A Single-Chip High-Voltage Integrated Actuator for Biomedical Ultrasound Scanners †
Abstract
:1. Introduction

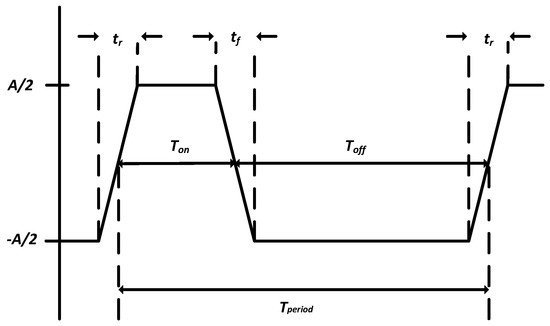

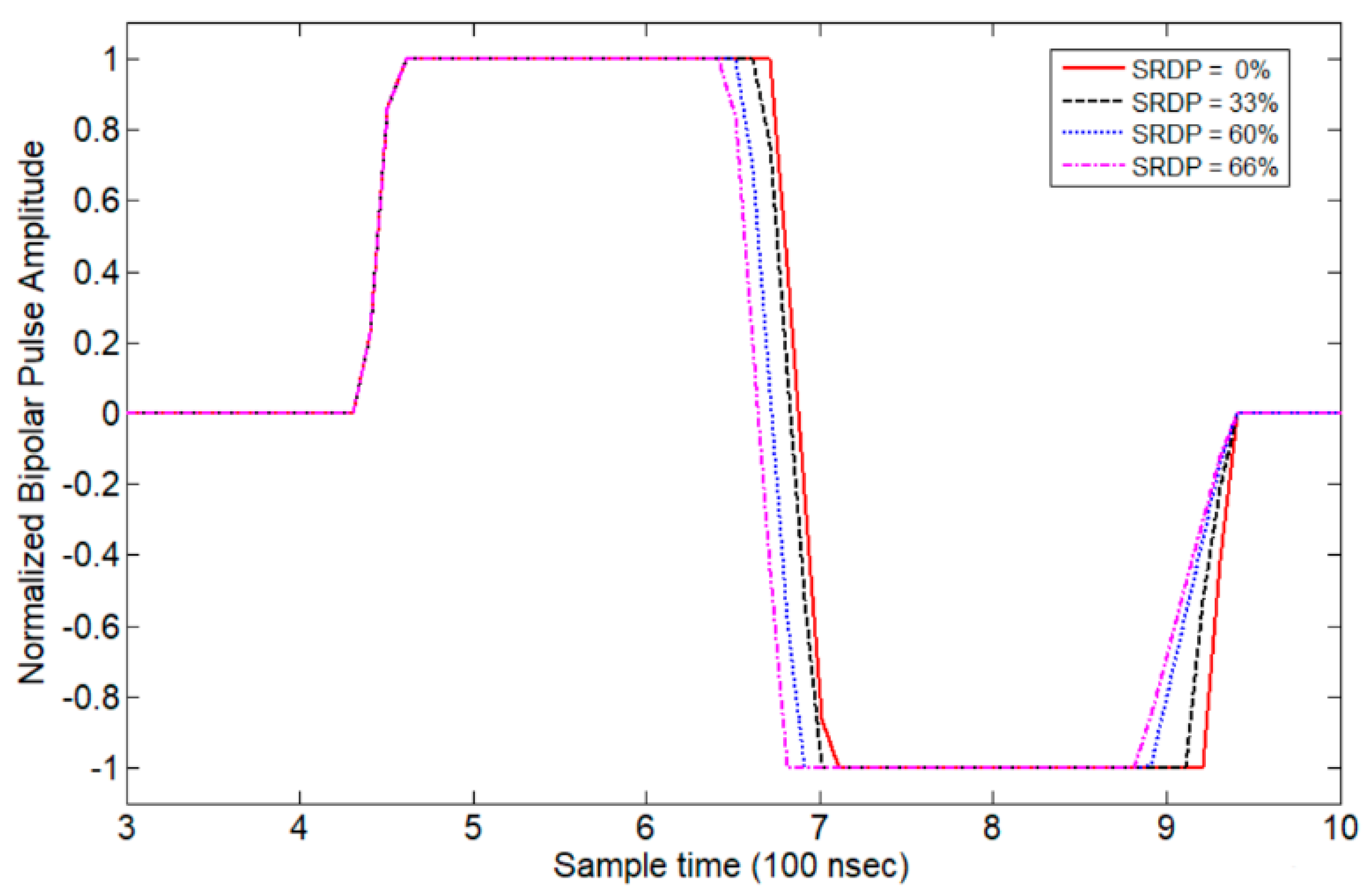

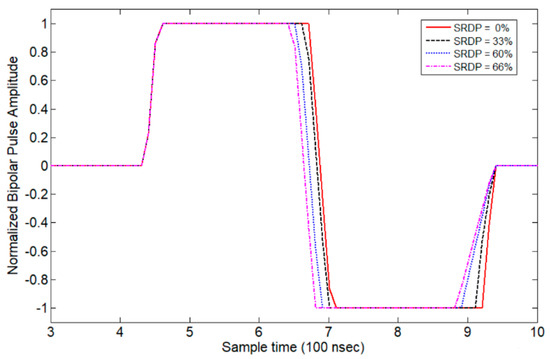

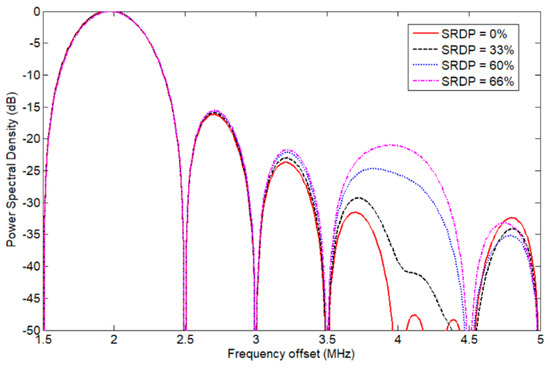

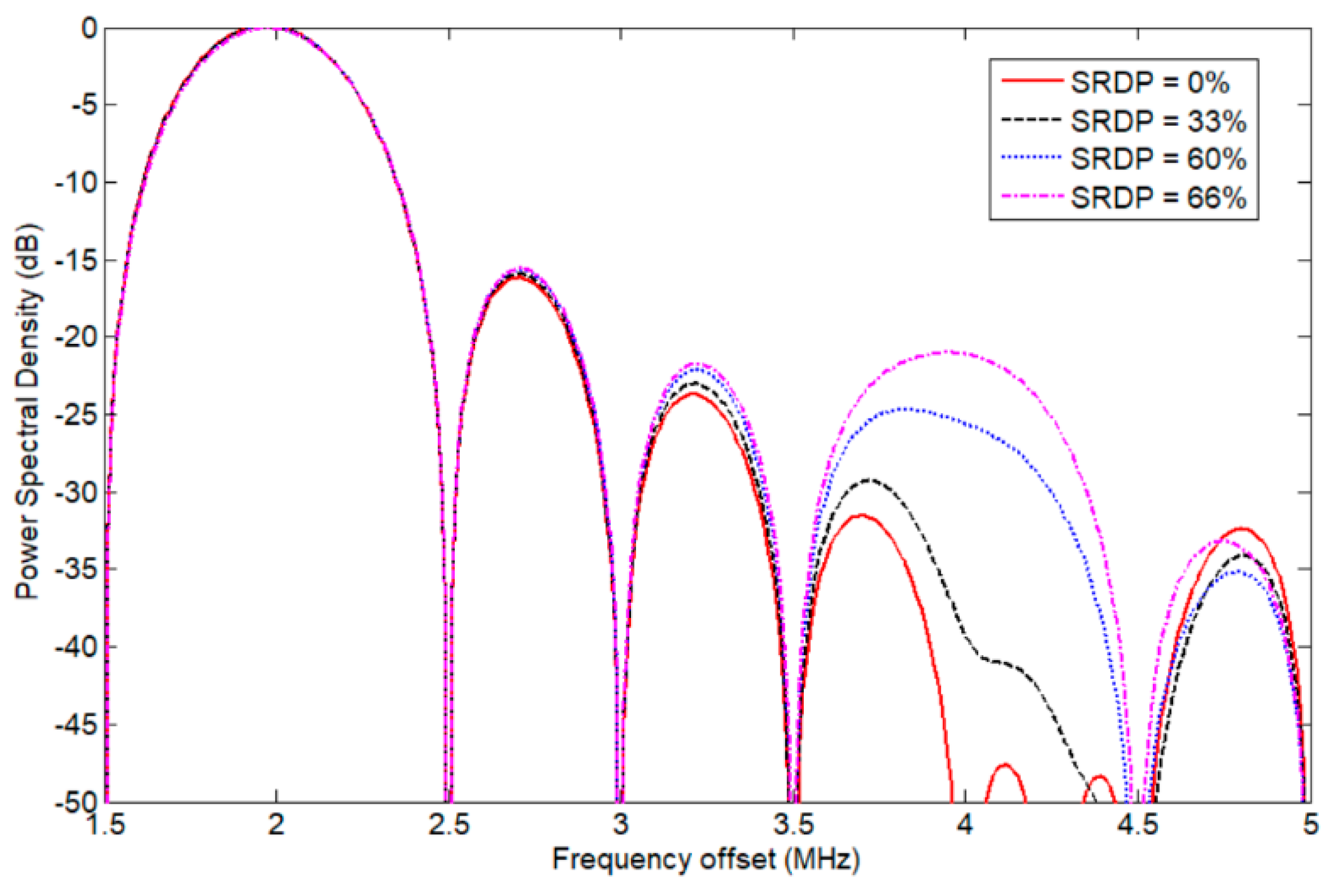

2. Excitation Signals for Harmonic Imaging System

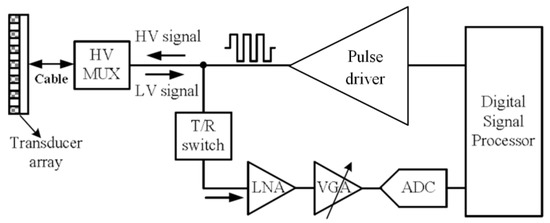

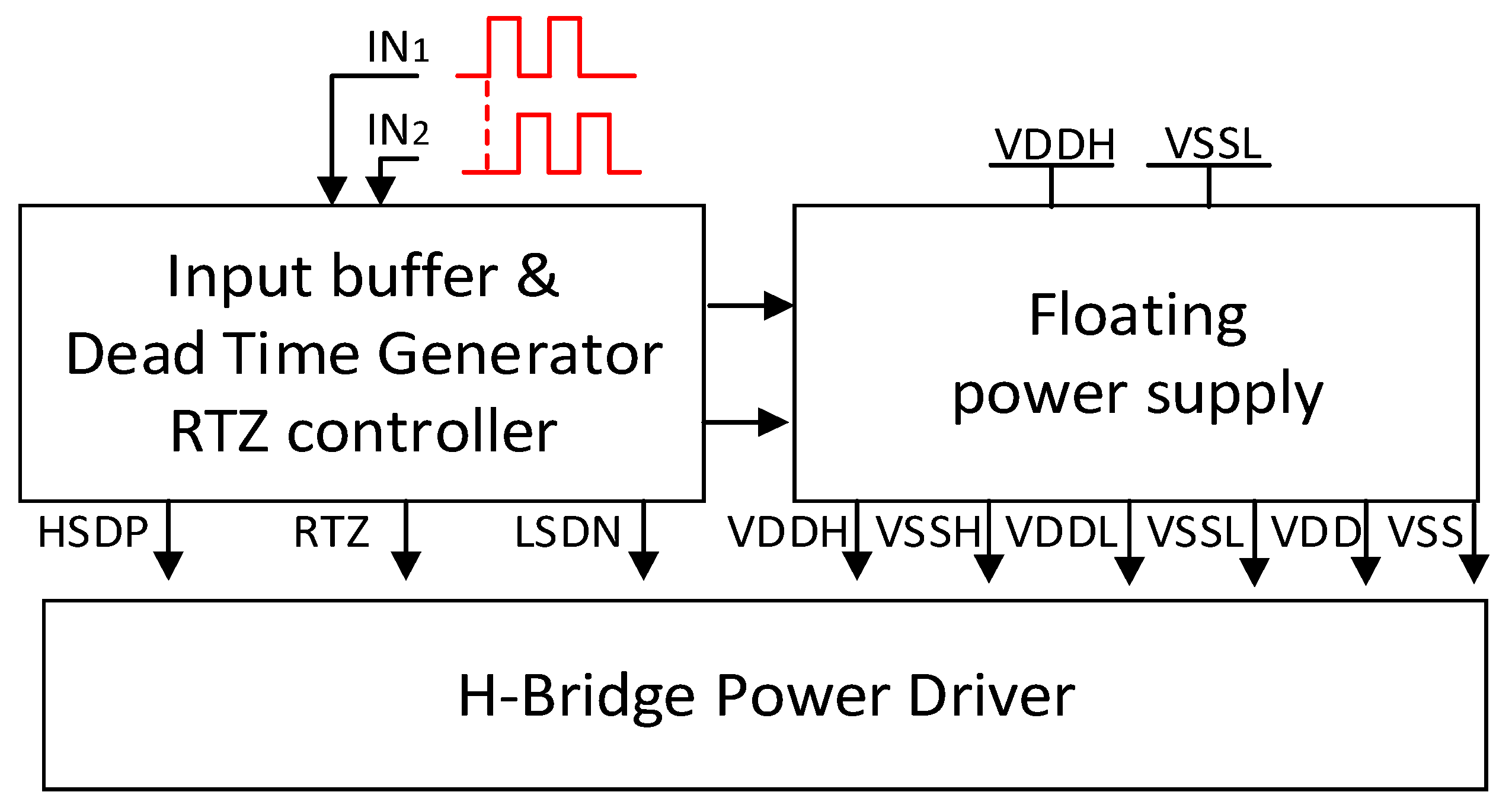

3. Single-Chip High-Voltage Driver for Biomedical Ultrasound

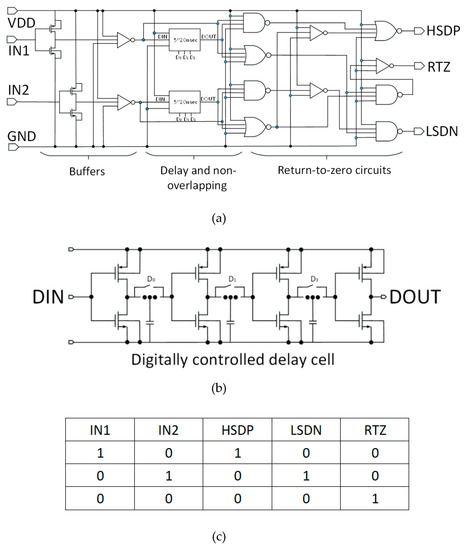

3.1. Input Stage

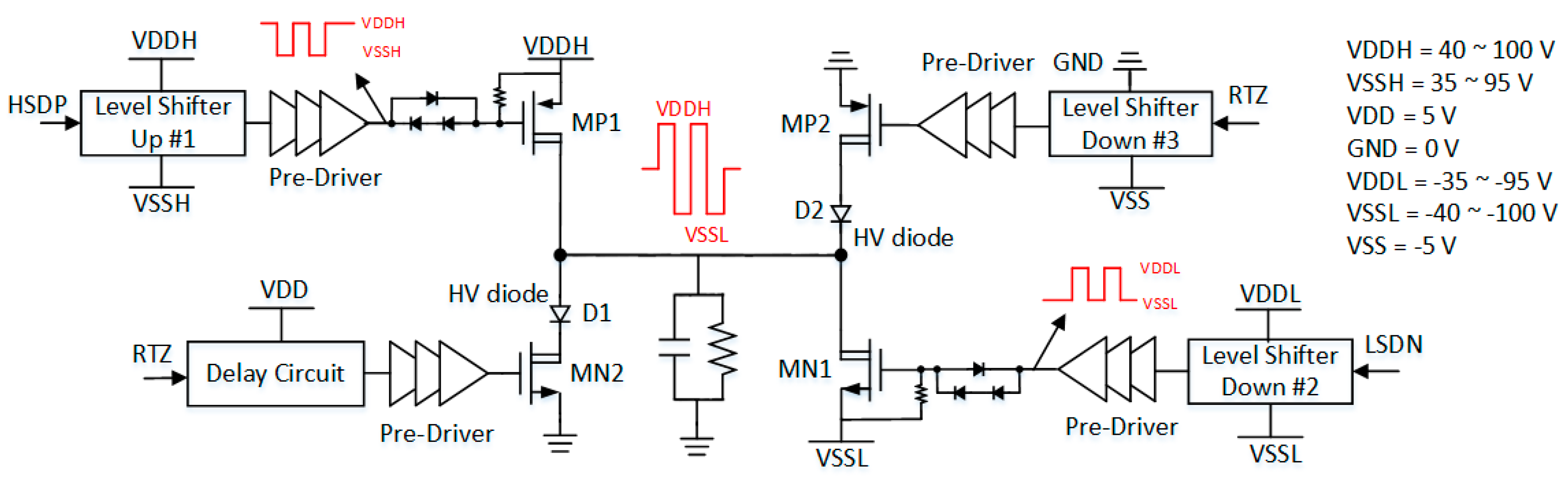

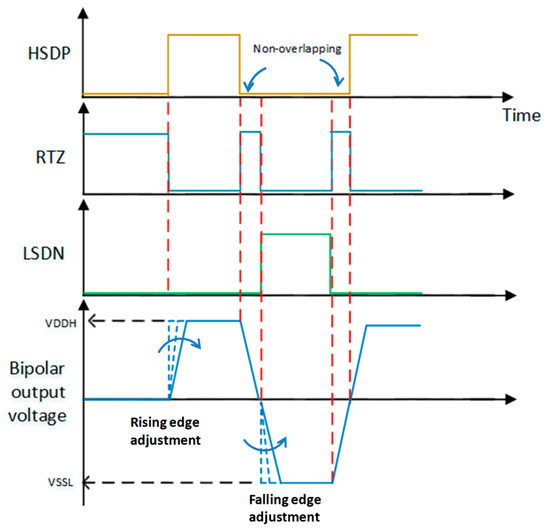

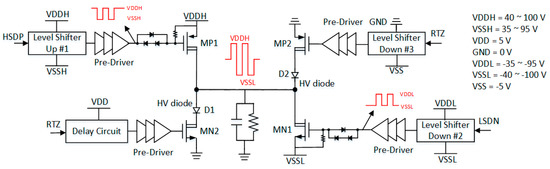

3.2. H-Bridge Power Driver

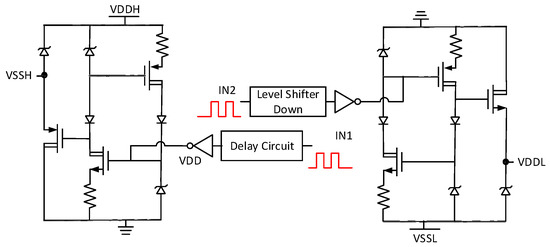

3.3. Low-Power Floating Power Supply

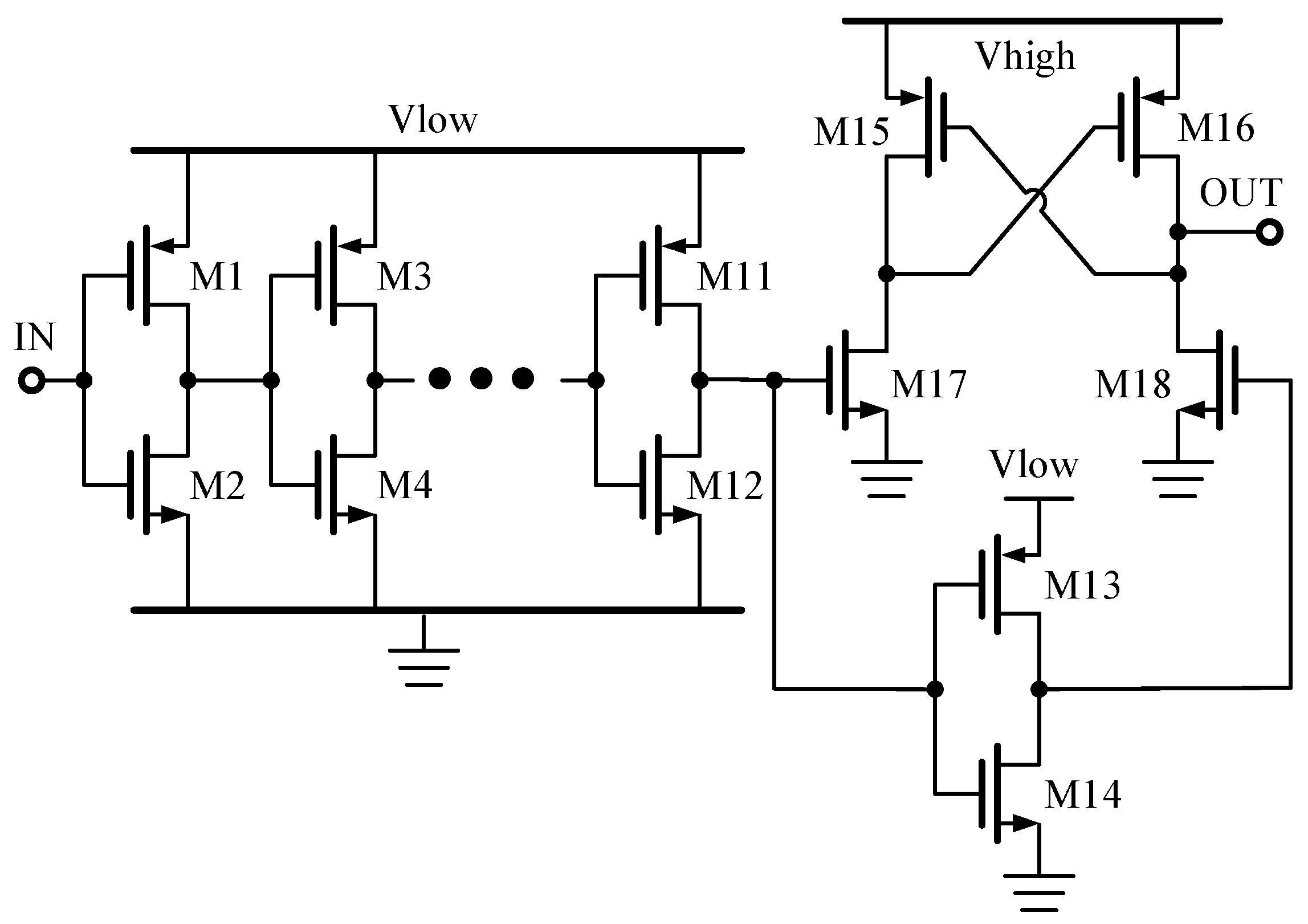

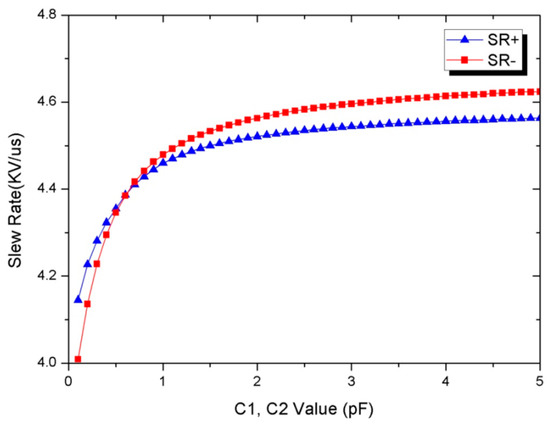

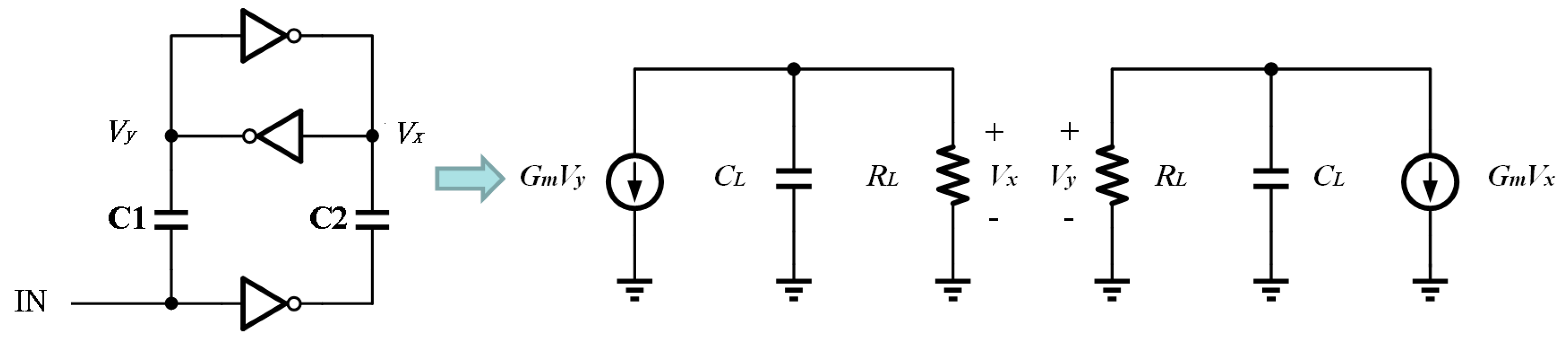

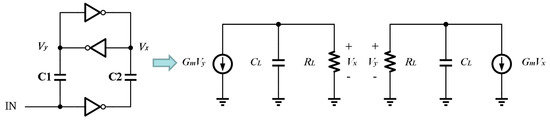

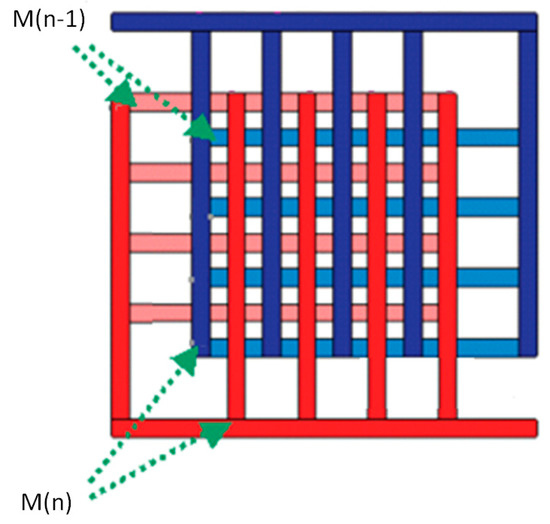

3.4. Capacitor-Coupled Floating Level-Shifter Design

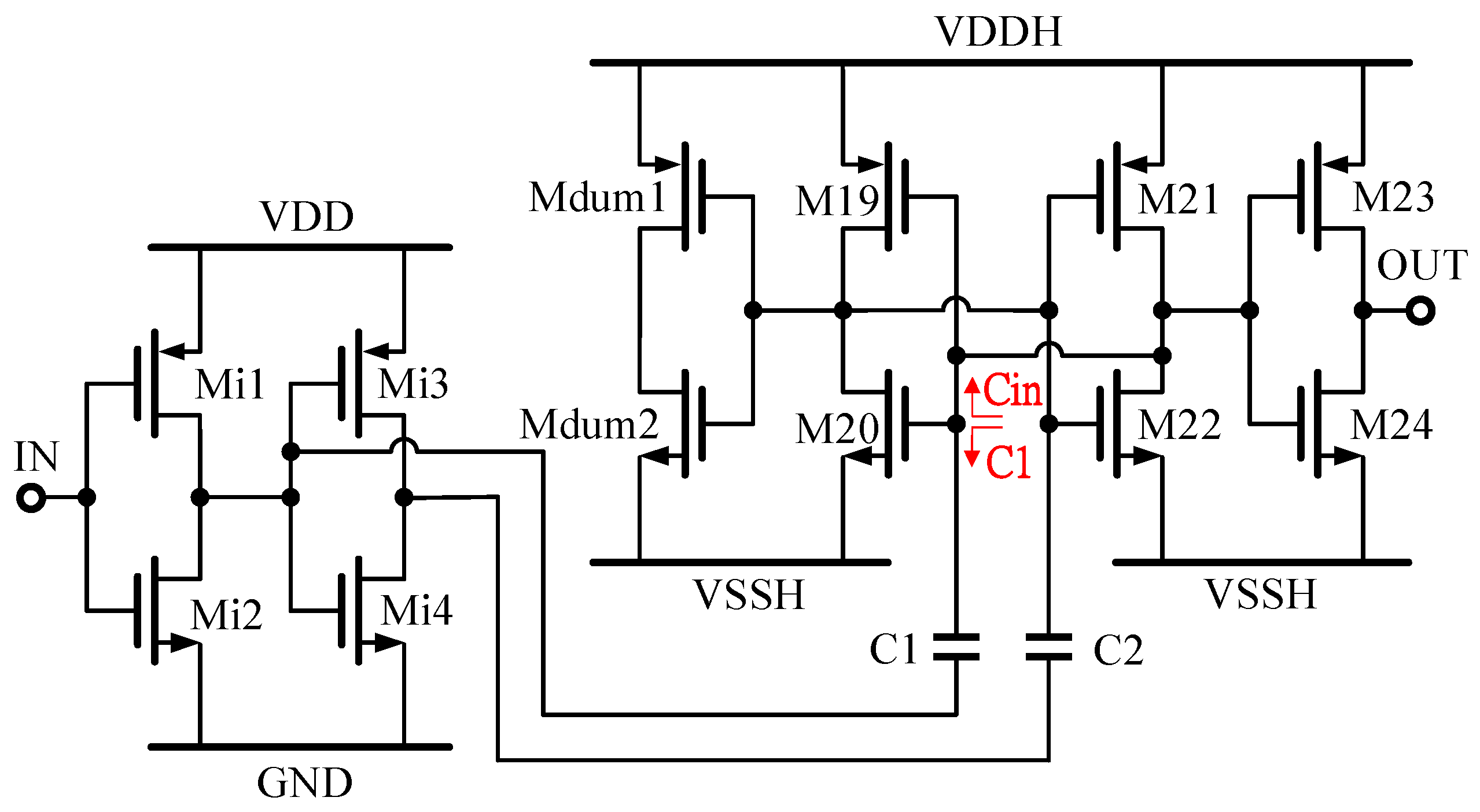

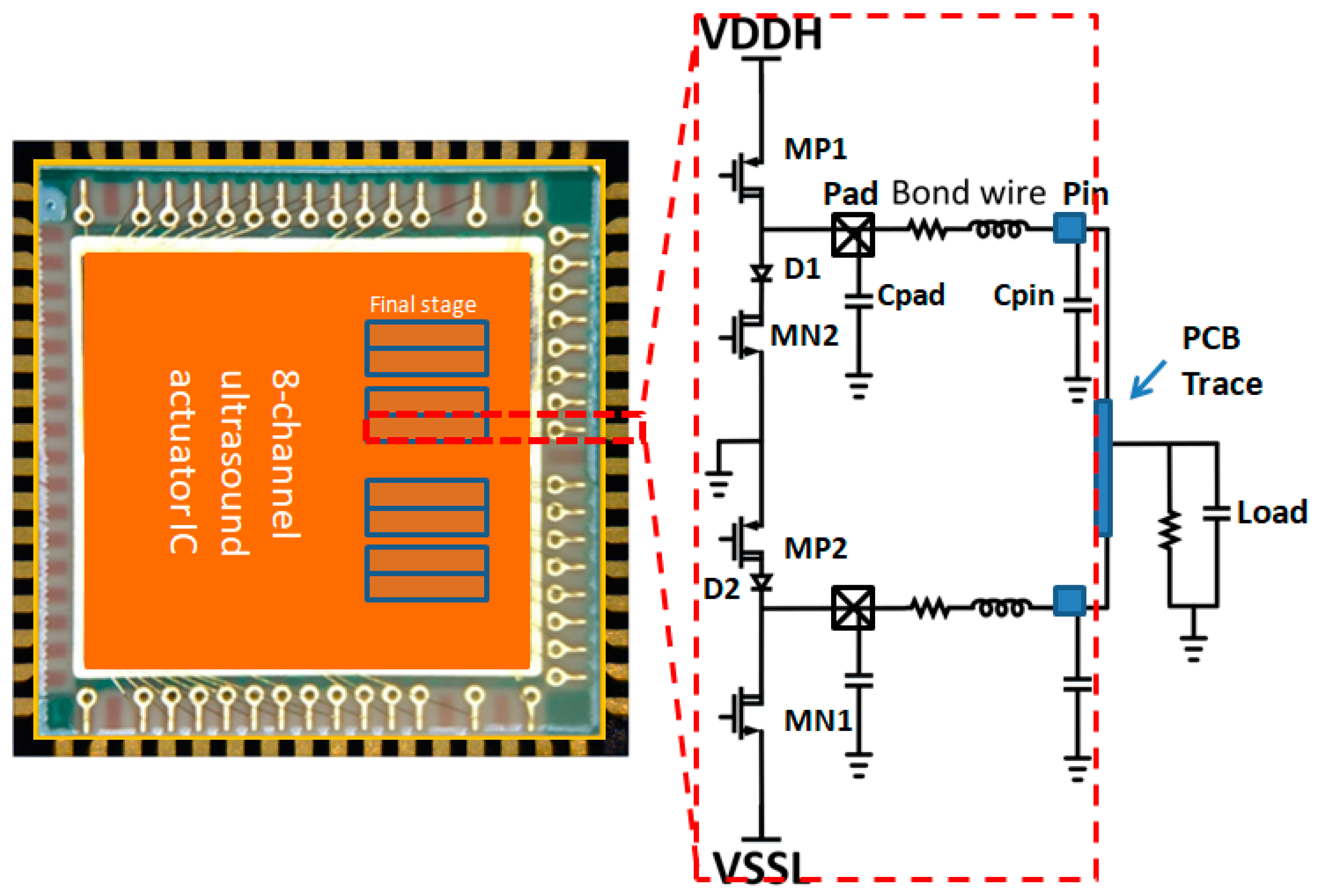

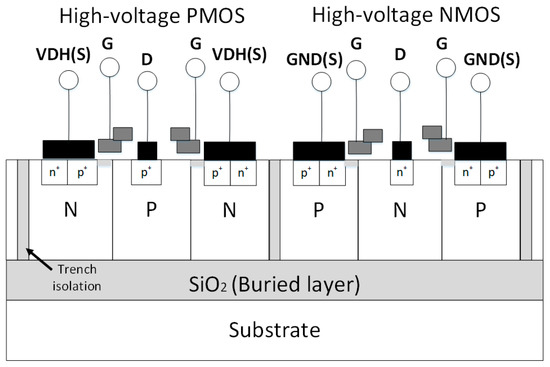

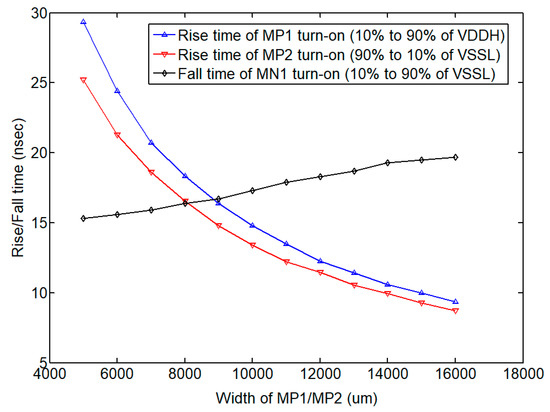

3.5. Final Stage Power Inverter Design

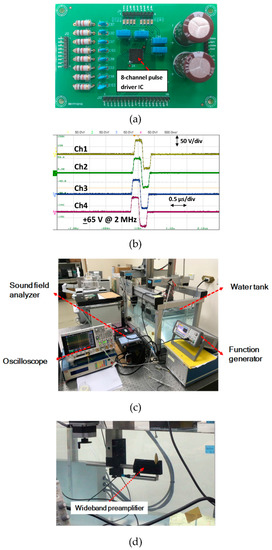

4. Experimental Results and Discussions

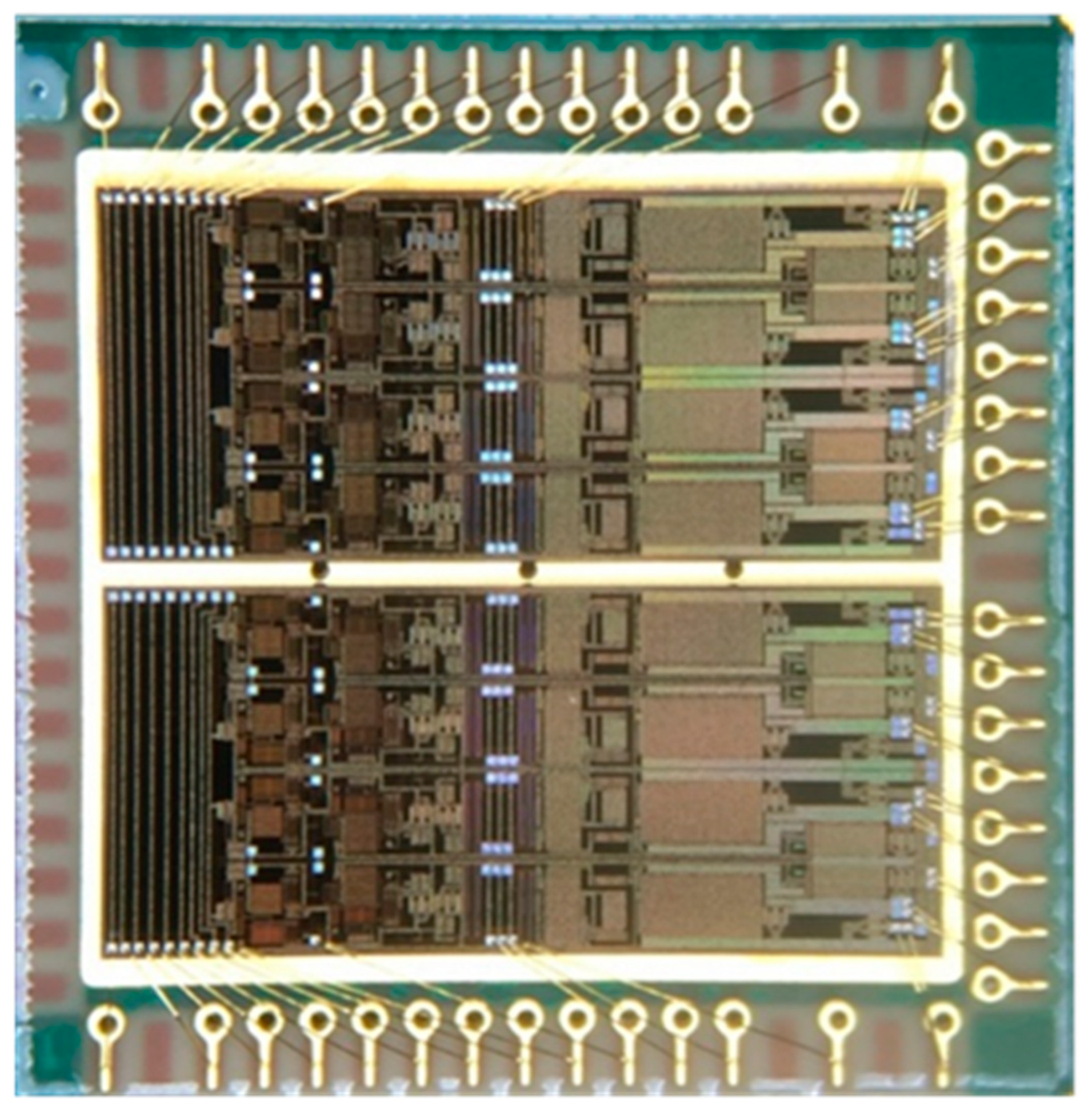

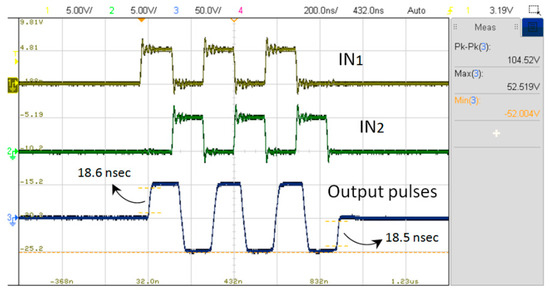

4.1. Electrical Performance Verification

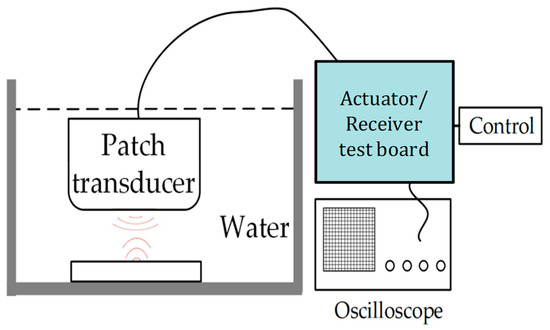

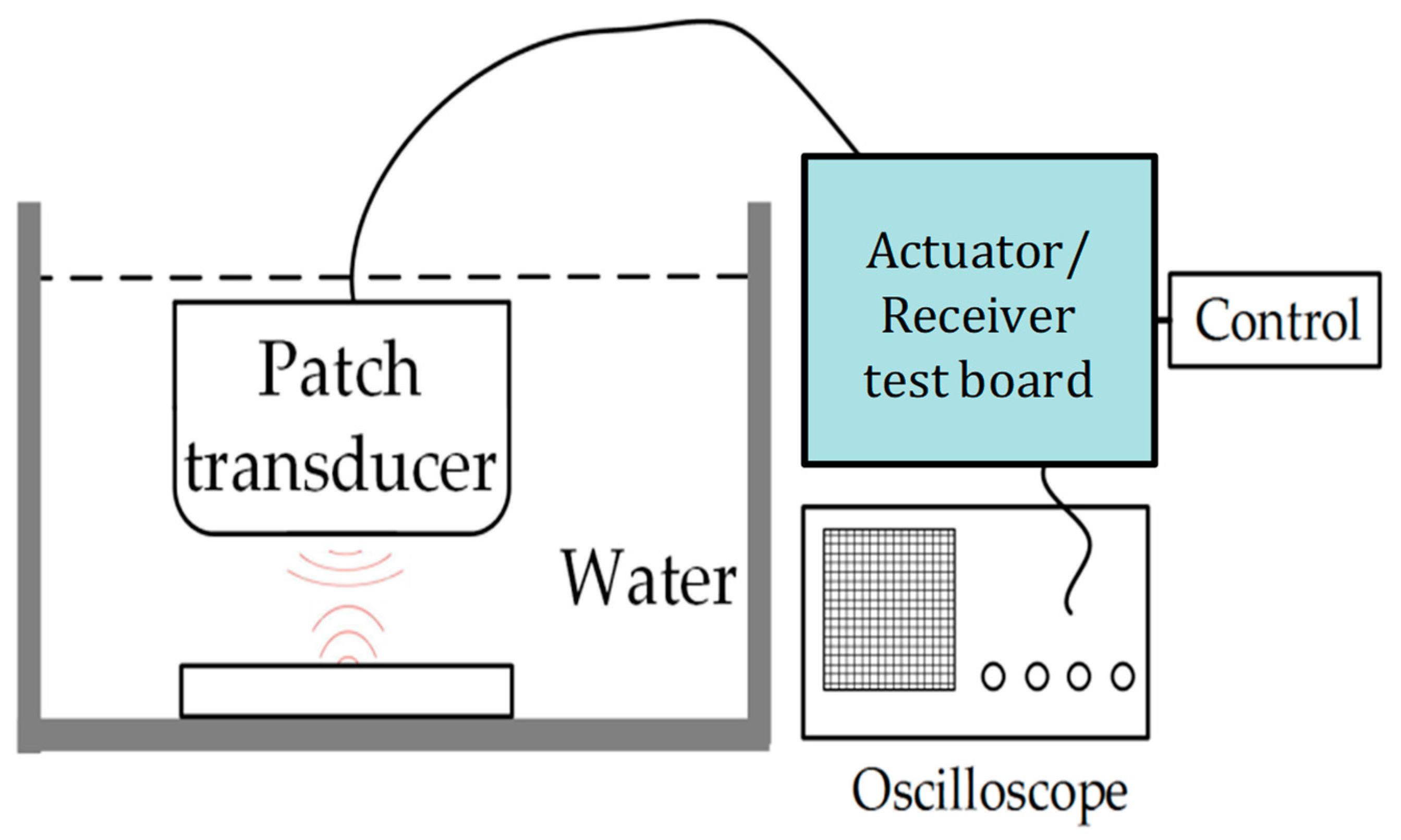

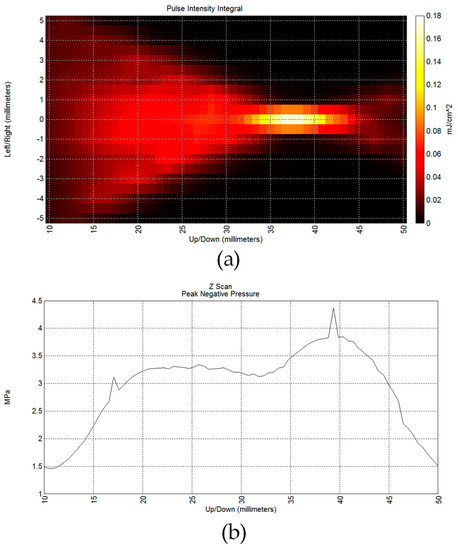

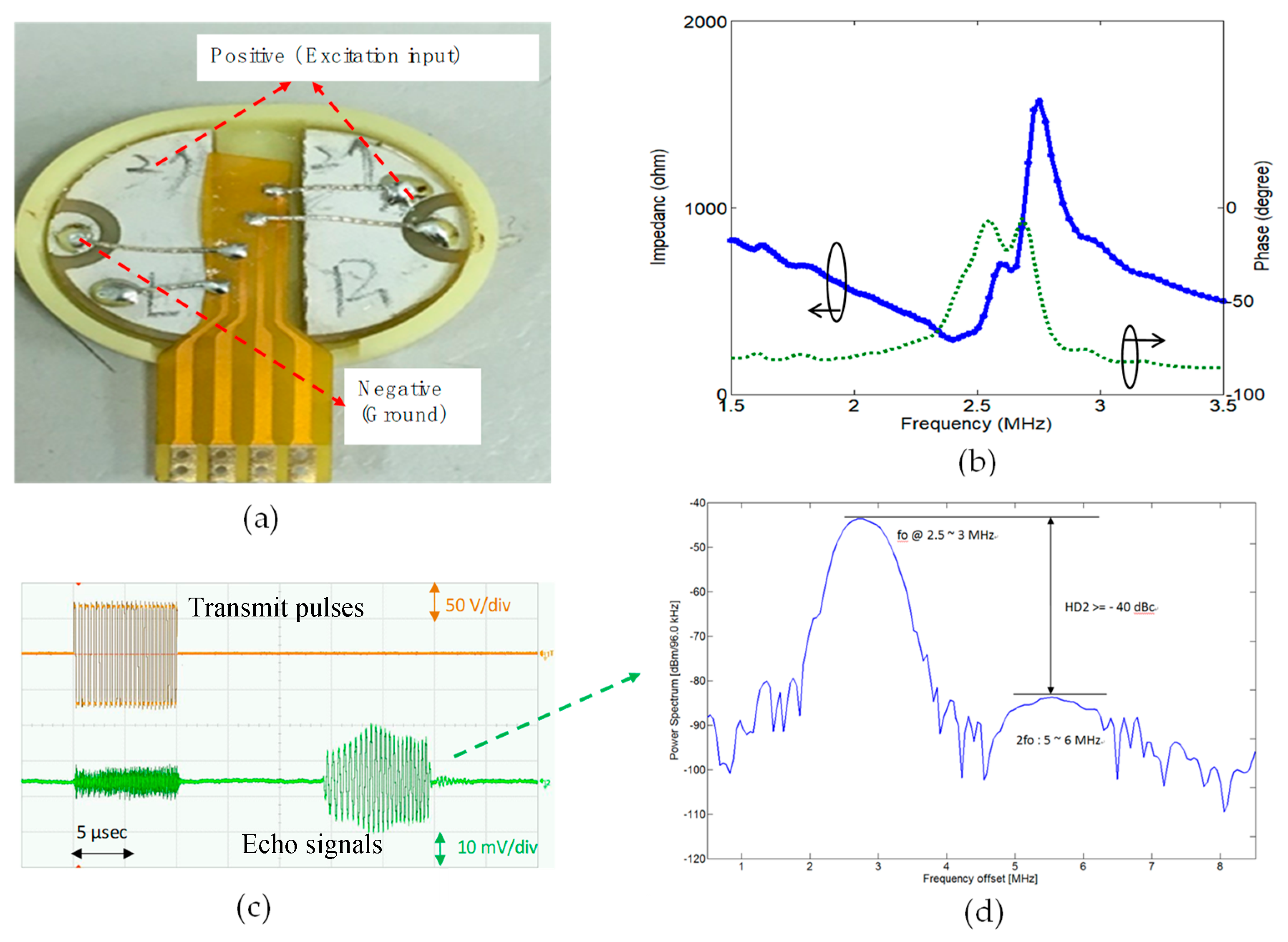

4.2. Acoustic Field Measurement Results
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Cobbold, R.S. Foundations of Biomedical Ultrasound; Oxford University Press: New York, NY, USA, 2007. [Google Scholar]
- Averkiou, M.A. Tissue harmonic imaging. In Proceedings of the 2000 IEEE Ultrasonics Symposium, San Juan, PR, USA, 22–25 October 2000. [Google Scholar]
- Lee, J.; Shin, E.; Lee, C.; Chang, J.H. Development of Dual-Frequency Oblong-Shaped-Focused Transducers for Intravascular Ultrasound Tissue Harmonic Imaging. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 2018, 65, 1571–1581. [Google Scholar] [CrossRef] [PubMed]
- Trucco, A.; Bertora, F. Harmonic Beamforming: Performance Analysis and Imaging Results. IEEE Trans. Instrum. Meas. 2006, 55, 1965–1974. [Google Scholar] [CrossRef]
- Huynh, T.; Hoff, L.; Eggen, T. Sources of 2nd Harmonic Generation in a Medical Ultrasound Probe. In Proceedings of the 2018 IEEE International Ultrasonics Symposium (IUS), Kobe, Japan, 5 December 2018. [Google Scholar]
- Wu, J.X.; Du, Y.C.; Lin, C.H.; Chen, P.J.; Chen, T. A novel bipolar pulse generator for high-frequency ultrasound system. In Proceedings of the 2013 IEEE International Ultrasonics Symposium (IUS), Prague, Czech Republic, 21–25 July 2013; pp. 1571–1574. [Google Scholar]
- Brown, J.A.; Lockwood, G.R.; Low-Cost, A. High-Performance Pulse Generator for Ultrasound Imaging. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 2002, 49, 848–851. [Google Scholar] [CrossRef]
- Xu, X.; Yen, J.T.; Shung, K.K. A low-cost bipolar pulse generator for high-frequency ultrasound applications. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 2007, 54, 443–447. [Google Scholar] [CrossRef]
- Shen, C.C.; Li, P.C. Harmonic Leakage and Image Quality Degradation in Tissue Harmonic Imaging. IEEE Trans. Ultrason. Ferroelectr. Freq. control 2001, 48, 728–736. [Google Scholar] [CrossRef]
- Song, H.J.; Song, J.; Chang, J.H.; Song, T.K. Ultrasound harmonic imaging using nonlinear chirp for cardiac imaging. In Proceedings of the 2010 IEEE International Ultrasonics Symposium, San Diego, CA, USA, 11–14 October 2010. [Google Scholar]
- MehdiBenane, Y.; Bujoreanu, D.; Lavarello, R.; Bernard, A.; Cachard, C.; Basset, O. Enhanced Second Harmonic Imaging Using a Pulse Compression Technique Combined with Ultrasound Pulse Inversion. In Proceedings of the 2018 IEEE International Ultrasonics Symposium (IUS), Kobe, Japan, 5 December 2018. [Google Scholar]
- Song, J.; Kim, S.; Sohn, H.Y.; Song, T.K.; Yoo, Y.M. Codedexcitation for ultrasound tissue harmonic imaging. Ultrasonics 2010, 50, 613–619. [Google Scholar] [CrossRef]
- Cha, H.K.; Zhao, D.; Cheong, J.H.; Guo, B.; Yu, H.; Je, M. A CMOS High-Voltage Transmitter IC for Ultrasound Medical Imaging Applications. IEEE Trans. Circuits Syst. II Express Briefs 2013, 60, 316–320. [Google Scholar] [CrossRef]
- Haider, B. Power Drive Circuits for Diagnostic Medical Ultrasound. In Proceedings of the 2006 IEEE International Symposium on Power Semiconductor Devices and IC’s, Naples, Italy, 4–8 June 2006. [Google Scholar]
- Banuaji, A.; Cha, H.K. A15-V Bidirectional Ultrasound Interface Analog Front-End IC for Medical Imaging Using Standard CMOS Technology. IEEE Trans. Circuits Syst. II 2014, 61, 604–608. [Google Scholar] [CrossRef]
- Zhao, D.; Tan, M.T.; Cha, H.K.; Qu, J.; Mei, Y.; Yu, H.; Basu, A.; Je, M. High-voltage pulser for ultrasound medical imaging applications. In Proceedings of the 2011 International Symposium on Integrated Circuits, Singapore, 12–14 December 2011; pp. 408–411. [Google Scholar]
- Tan, M.; Chen, C.; Chen, Z.; Janjic, J.; Daeichin, V.; Chang, Z.Y.; Noothout, E.; van Soest, G.; Verweij, M.D.; de Jong, N.; et al. A front-end ASIC with high-voltage transmit switching and receive digitization for 3-D forward-looking intravascular ultrasound imaging. IEEE J. Solid-State Circuits 2018, 53, 2284–2297. [Google Scholar] [CrossRef]
- Hsia, C.; Huang, Y.; Lu, C.W. Single-chip ultra-high slew-rate pulse generator for ultrasound scanner applications. In Proceedings of the 2013 IEEE International Ultrasonics Symposium (IUS), Prague, Czech Republic, 21–25 July 2013; pp. 21–25. [Google Scholar]
- Maxim Integrated Products Inc. MAX14808, Octal Three-Level/Quad Five-Level High-Voltage 2A Digital Pulsers with T/R Switch; Maxim Integrated Products Inc: San Jose, CA, USA, 2013. [Google Scholar]
- Hitachi Ltd. HDL6V5540, Quad 5-Level RTZ, 100V, 2A Ultrasound Pulser; Hitachi Ltd.: Tokyo, Japan, 2010. [Google Scholar]
- Texas Instruments. LM-96550, Ultrasound Transmit Pulser; Texas Instruments: Dallas, TX, USA, 2013. [Google Scholar]
- MD2130. High Speed Ultrasound Beamforming Source Driver; Supertex: Sunnyvale, CA, USA, 2011. [Google Scholar]
- Lu, D.F.; Hsia, C.; Huang, Y.C. Design of integrated high voltage pulse generator for medical ultrasound transmitters. IEICE Trans. Commun. 2019, E102-B, 1121–1127. [Google Scholar] [CrossRef]
- Huang, Y.C.; Chen, K.T.; Lu, K.Y.; Hsia, C.; Hsiao, Y.C. Multiple-Channel High-Voltage Power Drive Circuit for Medical Ultrasound Scanners. In Proceedings of the IEEE International Conference on Consumer Electronics—Taiwan (IEEE 2019 ICCE-TW), Yilan, Taiwan, 20–22 May 2019. [Google Scholar]
- Oppenheim, A.V.; Willsky, A.S. Signals and Systems; Prentice Hall: Upper Saddle River, NJ, USA, 1982. [Google Scholar]
- Qiao, M.; Zhang, K.; Zhou, X.; Zou, J.; Zhang, B.; Li, Z. 250 V Thin-Layer SOI Technology With Field pLDMOS for High-Voltage Switching IC. IEEE Trans. Electron Devices 2015, 62, 1970–1976. [Google Scholar] [CrossRef]
Power Device Name | MP1 | MN2 | MN1 | MP2 | D1/D2 |
---|---|---|---|---|---|
Width (μm) | 950 × 10 | 250 × 11 | 300 × 11 | 800 × 10 | 100 × 8 |
Length (μm) | 0.5 | 0.9 | 0.9 | 0.5 | 36 |
Input Signal Frequency. | No input (Stand-by) | 3.5 MHz Pulse | 7.5 MHz Pulse | 10 MHz Pulse |
---|---|---|---|---|
VDDH = 50 V and VSSL = −50 V | 3.6 mW | 48.6 mW | 48.8 mW | 49.2 mW |
This Work | [23] | LM96550 [21] | MAX14808 [19] | MD2130 [22] | |
---|---|---|---|---|---|
Voltage level | 3 | 3 | 3 | 3/5 | Continuous |
External supply voltage sources | 4 | 6 | 6 | 5/7 | 5 |
Technology | 0.5 μm CMOS*-SOI | 0.25 μm BCD+ | N/A | N/A | CMOS* (discrete) |
Output voltage (V) | 0 to ±75 | 0 to ±40 | 0 to ±50 | 0 to ±100 | 0 to +125 |
Channel no. Maximum frequency (MHz) | 8up to 10 | 1 up to 20 | 8 up to 15 | 8 up to 10 | 1 up to 15 |
Peak current (A) | 2 | 2 | 2 | 2 | 3 |
Rising time (nsec) | 18.6 | 8.6 | 18 | 21 | - |
Falling time (nsec) | 18.5 | 8.5 | 18 | 21 | - |
Slew rate (V/μsec) | 3.7 K | 4.7 K | 2.2 K | 3.8 K | - |
Output load | 1 kΩ// 220 pF | 100 Ω//100 pF | 100 Ω// 330 pF | 1 kΩ// 240 pF | 1 kΩ// 220 pF |

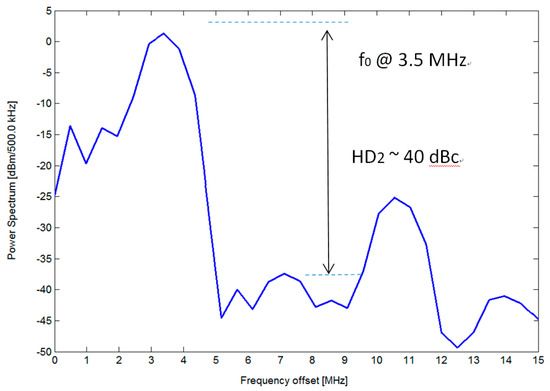

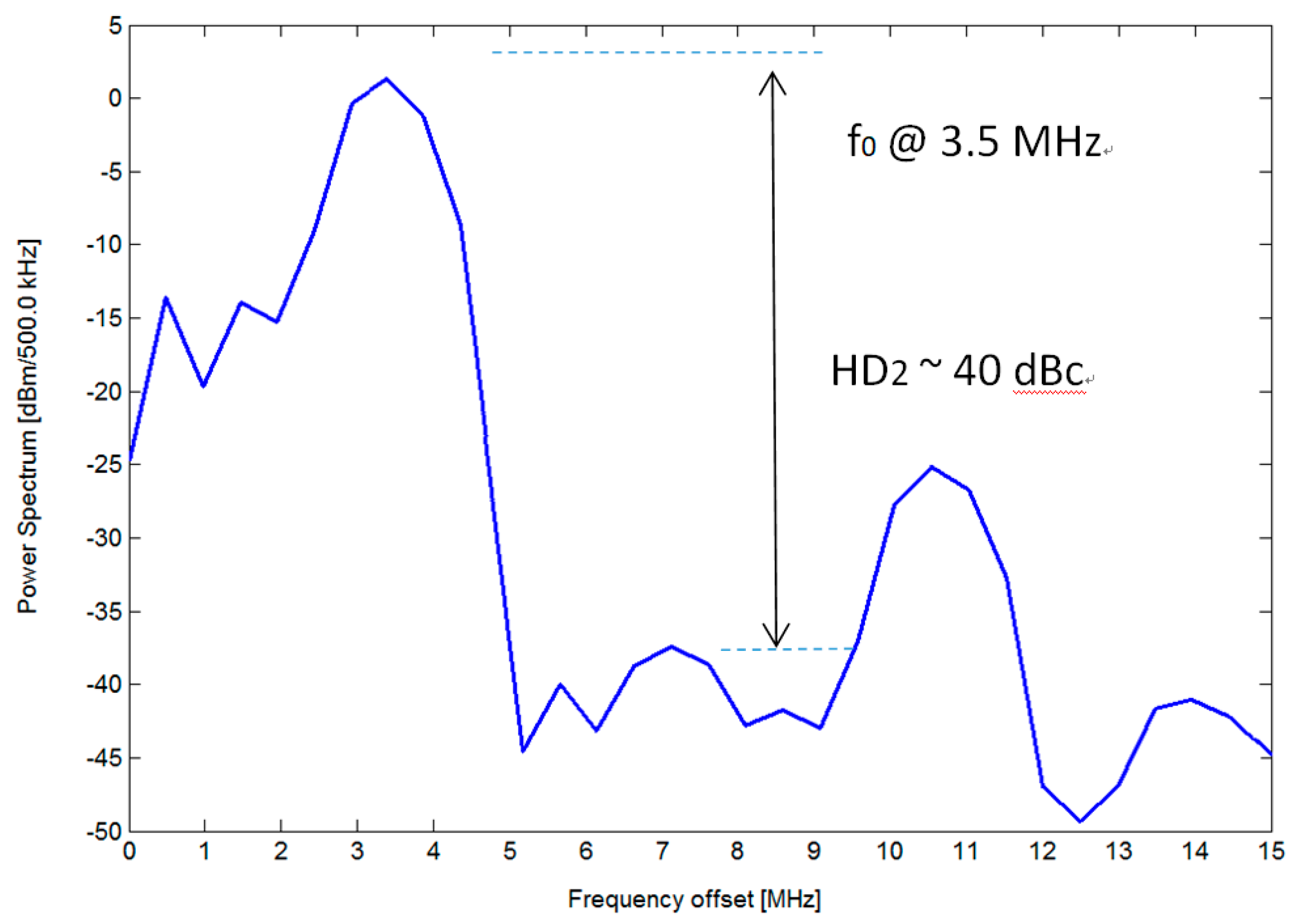

HD2 (dBc) | −40 | −40 | −40 | −43 | −46 |
Standby power (mW/ch) | <4 | 5.5 | 32 | 17 | 152 |
Working power (mW/ch) | <50 | - | - | 73 | - |
