Detection of Cu2+ Ions with GGH Peptide Realized with Si-Nanoribbon ISFET

1
Transport at Nanoscale Interfaces Laboratory, Empa–Swiss Federal Laboratories for Materials Science and Technology, Ueberlandstrasse 129, CH-8600 Duebendorf, Switzerland
2
Department of Physics, University of Basel, Klingelbergstrasse 82, CH-4056 Basel, Switzerland
3
Institute of Chemistry, The Hebrew University of Jerusalem, Safra Campus, Givat Ram, Jerusalem 91904, Israel
*
Authors to whom correspondence should be addressed.
Current affiliation: Max Plank Institute for Polymer Research, Ackermannweg 10, D-55128 Mainz, Germany.
Sensors 2019, 19(18), 4022; https://doi.org/10.3390/s19184022
Received: 19 July 2019 / Revised: 29 August 2019 / Accepted: 12 September 2019 / Published: 18 September 2019
(This article belongs to the Special Issue Potentiometric Bio/Chemical Sensing)

Abstract

:
The presence of heavy metal ions such as copper in the human body at certain concentrations and specific conditions can lead to the development of different diseases. The currently available analytical detection methods remain expensive, time-consuming, and often require sample pre-treatment. The development of specific and quantitative, easy-in-operation, and cost-effective devices, capable of monitoring the level of Cu2+ ions in environmental and physiological media, is necessary. We use silicon nanoribbon (SiNR) ion-sensitive field effect transistor (ISFET) devices modified with a Gly–Gly–His peptide for the detection of copper ions in a large concentration range. The specific binding of copper ions causes a conformational change of the ligand, and a deprotonation of secondary amine groups. By performing differential measurements, we gain a deeper insight into the details of the ion–ligand interaction. We highlight in particular the importance of considering non-specific interactions to explain the sensors’ response.

1. Introduction

Detecting and monitoring the presence of heavy metal ions in various media, such as drinking and ground water, foodstuff, and, ultimately, in bodily fluids, is a matter of public health due to the recognized impact of these ions on the human body [1,2]. In small quantities, certain heavy metals, like copper (1 mg/kg), manganese (0.17 mg/kg), and zinc (28.6–42.8 mg/kg), are important for our health [3]. Above certain concentrations, heavy metals are however harmful due to their interaction with peptides [2]. This can lead to a modification of the molecular structure of proteins and therefore cause toxicological and carcinogenic effects, affecting the central nervous system, kidneys, and liver, skin, bones, and teeth [4]. The World Health Organization (WHO) and Environmental Protection Agency (EPA) developed guidelines specifying the acceptable amounts of heavy metals in drinking water [5,6].
Here, we focus on the detection of copper, which is an essential element in the human organism. Copper deficiency may cause anemia, neutropenia, and bone abnormalities [7,8]. In addition, elevated concentrations may lead to copper poisoning and damage the liver, brain, and other organs. Abnormal copper concentrations are partially caused by environmental factors, which are linked with the consumption of copper from drinking water [9]. Accurate and reliable detection methods are therefore required to precisely monitor the concentration of copper ions.
Various peptides have been tested for the specific detection of Cu2+ ions [10,11,12,13,14]. Using peptides for ion sensing allows the mimicking of biological systems and expands the understanding of important processes, like copper transport realized with the copper-binding site of albumin [11,15]. Aside from established analytical methods to determine Cu2+ ion concentrations, such as flame or electrothermal atomic absorption spectrophotometry [16], and spectroscopy [17,18], alternative approaches for specific Cu2+ binding using peptides have been tested, such as classical electrochemical methods [19,20,21,22], microcantilevers deflection [23], surface plasmon resonance biosensors [24], and ion-sensitive field effect transistors (ISFET) [25]. A potentiometric detection with ISFETs provides the interesting opportunity to improve our understanding of peptide–ion chelation mechanisms by monitoring charges at functional surfaces bearing self-assembled monolayers (SAM) of receptors. Besides their sensitivity to various targets, achieved with receptor molecules, ISFETs can be fabricated at large in a CMOS compatible process, with low production cost perspectives. However, this approach remains barely explored, with, to the authors’ best knowledge, only a single study attempting to use potentiometric sensing to detect Cu2+ ions with peptides [26]. We provide here a systematic characterization of the interaction of copper ions over an extended concentration range, using silicon nanoribbon (SiNR)-based ISFETs, functionalized with glycine–glycine–histidine (Gly–Gly–His, GGH).
The silicon nanoribbons (SiNR) used in this work are separated from the electrolyte solution by an insulating layer of Al2O3 oxide, and are additionally covered with gold. As shown in our previous studies, this opens the possibility to functionalize the surface with receptors for the detection of various analytes [27,28,29,30]. We investigate here how the net charge at the sensor surface is influenced by the interaction of GGH and Cu2+ ions in different buffer solutions over a large analyte concentration range. The peptide Gly–Gly–His (Figure 1) is known to bind copper ions with high affinity. A large range of association constants (107–1016) can be found in literature [15,31,32,33,34].The selectivity of the GGH peptide towards Cu2+ has been shown in literature [35,36].
Such a high affinity of the peptide to copper ions allows an analyte detection in the low concentration range, from femto- to micromolar. GGH can have different deprotonation states, depending on the pH of the media, which will therefore influence the binding affinity as previously reported, for instance, for peptides with histidine residue [37].

2. Materials and Methods

2.1. Device Fabrication

The ISFET devices were fabricated from a p-doped silicon-on-insulator (SOI) wafer (Soitec, France) with a buried oxide 145 nm thick, by a top–down approach. The structure of the device is shown in Figure S1. The fabrication process is described in detail in our previous work [27,28,29,30]. Briefly, the top Si(100) layer of the SOI wafer (p-type, 85 nm thick, resistivity 8.5–11.5 Ω) was thermally oxidized in order to grow a 15 nm thick SiO2 layer. A device pattern with 48 SiNRs was defined by electron beam lithography (EBL) and etched using a combination of reactive ion etching (SiO2 layer) and wet etching (Si device layer) with a mixture of tetramethylammonium hydroxide (TMAH) and isopropyl alcohol (IPA) 9:1 at 45°. The etched NRs were typically 10 µm long, 80 nm high, and 1–25 µm wide. The source and drain of each transistor were doped with boron, and then thermally annealed in a forming gas to activate the dopants (6 min, 950°). As an insulation layer, a 20 nm thick Al2O3 layer was deposited using atomic layer deposition (ALD) at 225°. Contact pads were opened by wet etching with buffered hydrofluoric acid (BHF), and 300 nm thick Al–Si (1%) pads were deposited by electron beam evaporation and annealed at 450°. To extend the range of application and enable their functionalization with various receptors, SiNRs were covered with 20 nm thick gold film (with a 5 nm chromium adhesion layer) by electron beam evaporation. This coating partially suppresses the response to H+ and permits the use of thiol chemistry for surface functionalization [27,28,30]. For additional protection and to create microfluidic channels, the devices were covered with a 2 µm thick layer of SU-8. Finally, the wafer was diced and devices were wire-bonded to the chip carriers. The bonds were sealed with epoxy (Epotek 353ND).

2.2. Microfluidic Channels

Microfluidic channels were fabricated in order to reduce the required amount of analyte solutions and to automatize solutions exchange. Polydimethylsiloxane (PDMS) was poured onto a 100 µm thick SU-8 layer on Si, acting as a master, and patterned by EBL with the desired channel structure (two channels in this case). The PDMS was cured for 2 h at 60° and peeled off from the wafer. Two holes at the beginning and at the end of each microchannel were punched in order to connect polytetrafluoroethylene (PTEE) tubes for solution exchange. The whole system was then placed in a larger mold, and more PDMS was added to stabilize the microfluidic chamber.

2.3. Surface Functionalization

The devices were cleaned with UV–ozone, rinsed with Milli-Q water, and covered with PDMS microchannels. The devices’ surfaces were functionalized by flushing a LpaGGH solution (83 µM) through one of the microfluidic channels for 12 hours in total, in sequences alternating between 10 s of flushing (solution refresh) and 1000 s of functionalization time [28]. For the time series measurements, a self-assembly process was performed. The ligand solution was applied to the device surface for typically 12 hours. This method has the advantage of sparing material, as only about 50 µl of the ligand solution is necessary for a proper functionalization.

2.4. Peptide, Electrolyte, and Cu2+ Ion Solutions

For the SAM formation of the gold-coated SiNRs, we used GGH peptides conjugated with a lipoic acid prior to grafting it onto the surface. The GGH peptide functionalized with a lipoic acid was synthesized by a standard HATU-based solid phase peptide synthesis protocol, and its assembly on the surface was characterized with X-ray photoelectron spectroscopy (XPS) as described in previous work [19]. The ammonium acetate solution (5 M), pH buffer Titrisol, and copper (II) nitrate trihydrate were purchased from Sigma Aldrich and diluted with Milli-Q water to the required concentration. The pH was adjusted using KOH and HCl. As previously shown, K+ and Cl ions do not affect the GGH–Cu2+ binding [19].

2.5. Measurement Procedure

As previously described, two measurement procedures were used: Steady-state and real time. In the first case, the samples were stabilized for 1 min after solution exchange [28,30]. A potential of 100 mV was applied between source and drain. The source–drain current was measured while sweeping the gate voltage, applied with the reference electrode. From the measured transfer curves, we extracted a threshold voltage (Vth) at a given conductance value of 20 nS. Performing such measurement while increasing Cu(NO3)2 concentration resulted in a relative shift of the transfer curves. We quantified the change in the surface potential of the devices by extracting Vth and plotting it versus concentration. A linear fit to this data gave us the response of the device in mV/decade. As we operated the p-type semiconductor in the accumulation regime, the change in surface potential was given by: Δ Ψ = Δ V t h [38].
We measured the response of gold-coated SiNRs, functionalized with the GGH peptide (active surface). To exclude possible contributions from nonspecific interactions, as well as superimposed signals, we also measured the response of the reference, bare gold as control (passive surface). The differential response, characterizing the response due to the active molecular layer, was obtained by subtracting the control SiNRs signal from the active SiNRs signal.
In real-time measurements, a constant source–drain voltage (100 mV) and constant gate voltage (defined by the linear response regime of the device) were applied, and the source–drain current ( I s d ) was monitored versus time. Changes in surface potential while flushing different solutions coud be quantified by normalizing the source–drain current by the transconductance ( g m ) of each individual NR as follows: Δ Ψ = Δ I s d g m . Possible drifts during the measurement were corrected by subtracting the baseline of the electrolyte solution without added copper ions (first five minutes of the measurement) [27]. The measured curves were shifted to 0 for clarity, as we measured the change in the surface potential, not the absolute value. At each “step” in concentration, the surface potential shift value for each Cu(NO3)2 concentration was extracted by averaging the data points after 1 min stabilization time.

3. Results

We performed a potentiometric detection of Cu2+ ions using SiNR-based ISFETs functionalized with a GGH. We systematically measured the Cu2+ response at electrolyte pH ranging from 4 to 8. We used ammonium acetate (50 mM) as electrolyte solution at pH ranging from 5 to 8 and added Cu(NO3)2 at a concentration ranging from 0.1 fM to 0.1 µM.
Figure 2a shows the change in surface potential ΔΨ with increasing Cu(NO3)2 concentration, starting from ammonium acetate (50 mM, pH 7). The two lines (red and black) represent the Au–GGH (active) and Au (passive) surfaces, respectively. Figure 2b shows the extracted values of the surface potential shift (average value for each concentration after 1 min settling time) versus Cu2+ concentration. We observe a negative change in surface potential shift upon binding of Cu2+ to the immobilized ligand at pH 7 (about −15 mV/decade). Subtracting the response of the control surface (Au, −4 mV/decade) from the active SiNRs (Au–GGH) results in a differential response of −11 mV/decade (blue dots). We plot the differential response to represent the GGH-Cu system without background signal from Cu2+ interacting with the Au surface. At pH 8 we observe a similar trend (Figure 2c,d), with a smaller differential response of −5 mV/decade. The negative differential response appears counterintuitive as the analyte is positively charged. We would indeed a priori expect an increase in surface potential with increasing of Cu2+ ion concentration, when the surface charge becomes more positive [30]. We however anticipate here that the measured negative change in surface potential reveals a more subtle mechanism upon the complexation of Cu2+ ions by the GGH ligand, which leads to a net negative charge of the complex, as sensed by the active surface.
In these experiments, we don’t observe a full Nernstian response. However, we don’t expect that, as the binding reaction is not at the Helmholtz plane, but takes place in the diffuse layer. This limits the response due to screening effects [39], as the charges are further away from the surface, and we measure less change in the potential.
We suggest that the final complex GGH–Cu2+ can be negatively charged due to the release of several protons from the ligand upon Cu2+ chelation. The GGH peptide has three amide groups that contribute to the complex formation (Figure 1). The nitrogen atom of pyridine in the imidazole ring acts as an anchoring binding site to initiate the Cu2+ chelation [10,11,14]. At neutral to basic pH, the Cu2+ chelation process sequentially deprotonates the consecutive peptide nitrogen (secondary amides). This process is schematically described in Figure S2.
The Cu2+–ligand complex can have four different charge states, depending on the pH, which influences the protonation state of the ligand:
L + C u 2 + [ C u 2 + L ] + 2
L + C u 2 + [ C u 2 + L 1 ] + 1 + H +
L + C u 2 + [ C u 2 + L 2 ] + 2 H +
L + C u 2 + [ C u 2 + L 3 ] 1 + 3 H +
At pH 7 and higher, the ligand is neutral. Upon copper binding, the ligand can release up to three protons (secondary amides) and predominantly forms the complex [ C u 2 + L 3 ] 1 [20,22,23,26]. In addition, Cu2+ comes in a variety of ionic forms [40], as the Cu2+ hydrolysis depends on pH (occurring at pH 5 and higher). Studies identify five hydrolysis products, with CuOH+ and Cu(OH)2 (aq.) being prevalent at pH 6 and higher [41]. Cu2+ hydrolysis competes with the GGH complexation reaction, affecting the amount of [ C u 2 + L 3 ] 1 complexes formed and, hence, the surface potential.
Based on our results, we interpret that, upon Cu2+ binding to the ligand, secondary amides are deprotonated, and the GGH ligand undergoes a conformational change [19,20,22], bringing an effective negative charge close to the surface (Figure 1). At pH 7 and slightly higher, we expect the formation of −1 charged complexes [ C u 2 + L 3 ] 1 , resulting in a negative surface potential with increasing Cu(NO3)2 concentration [42]. In slightly basic conditions (ammonium acetate, pH 8), a secondary amine can already be deprotonated. This results in less or even no net gain in charge, and we observe a smaller response. Furthermore, a higher pH leads to more copper (II) hydroxide formation, leading to a lower concentration of free Cu2+ ions in the solution, which can also lower the response [43,44].
For the passive surface (Au), the surface potential decreases as well. As emphasized above, several copper hydrolysis products coexist at pH 7 and 8, which shows a non-specific interaction with the Au surface or hydroxyl groups on it.
At pH 6 and lower, we observe no response in the Cu(NO3)2 concentration range between 0.1 fM and 0.1 µM. The acidic environment prevents the deprotonation of the secondary amine groups of the ligand, lowering the probability for chelation of a cation, thereby leading to a lower affinity for Cu2+. At pH 5 and 6, the active Au–GGH devices in the low concentration range show a negligible response (Figure S3).
In certain conditions, a positive response to Cu2+ can be observed. Instead of the expected signal saturation at high Cu(NO3)2 (from 0.05 mM to 10 mM) concentrations, we observe an increase in the surface potential on all surfaces (Au and Au–GGH), even at low pH. Figure 3 shows the response to Cu(NO3)2 at pH 4, 5, 6 (Titrisol buffer). The inset shows the differential response of +11 mV/decade. Figure 3b,c shows the response at pH 5 and 6, respectively, +8 mV/decade and +3.9 mV/decade. The positive response indicates that, in this case, another process is prevalent.
We explain this by non-specific adsorption of Cu2+ ion to gold at high Cu(NO3)2 concentrations, leading to a superimposed signal, which is higher than that from the specific interaction process. Furthermore, at pH 6 and lower, the histidine can be protonated, contributing to a more positive net charge of Au–GGH, as compared to the bare Au surface. This is independent, whether chelation is happening or not, as the effective charge of the GGH–Cu2+ complex is either neutral or positively charged (+1 or +2) at low pH. This process leads to a clear increase in the surface potential for Au and Au–GGH and, hence, to a positive differential response.
Note that in some cases, a positive response for both the active and the passive wires can lead to an overall negative differential response. This might be interpreted as the expected response from the specific interaction between the analyte and the ligand. We however show in Figure 3d that this situation can also arise when the response is dominated by non-specific interactions. We observe this behavior at high Cu(NO)2 concentrations (0.05–10 mM) in ammonium acetate, pH 7, where the differential response is indeed negative, −14 mV/decade. In this case, both surfaces, Au (passive) and Au–GGH (active), show, however, a positive change in surface potential, which indicates that non-specific interactions of Cu2+ with the surface dominate the signal from the ligand binding reaction. This again shows the importance of carefully considering all possible contributions to the measured signal.

4. Conclusions

We have demonstrated that ISFETs can achieve a quantitative detection of Cu2+ ions. Peptides provide a flexible ligand system to ensure a specific detection of the metallic ions. The selected GGH peptide is of particular interest, as it can serve as a model system for the copper-binding site of human serum albumin, which is a major path of copper transport in blood.
We rationalized the GGH peptide–copper ion complexation process by performing differential measurements with SiNR ISFET-based devices and screened different binding conditions, from pH 4 to 8 over an extended concentration range (10−14 to 10−2 M). We show in particular that the range of reliable operation of ISFETs functionalized with these peptides is restricted to a relatively narrow pH region around neutral pH. The ion–ligand complexation process is indeed affected by pH due to the protonation and deprotonation of secondary amines in the peptide, which can lead to apparently unexpected surface potential changes. We propose a simple mechanism to explain this behavior. We also demonstrate the impact of non-specific adsorption, which dominates the devices’ response in the higher concentration range. This effect still remains too often overlooked, although it substantially affects the overall sensor response. A differential measurement platform, as proposed here, allows this issue to be addressed.

Supplementary Materials

The following Figures are available online at https://www.mdpi.com/1424-8220/19/18/4022/s1, Figure S1: ISFET Device Structure, Figure S2: Chelation Reactions, Figure S3: Control Measurements at Low Concentration and Low pH, Figure S4: pH Dependence of Copper Ionic Forms.

Author Contributions

Conceptualization, M.W. and M.C.; Data curation, O.S., Y.M., and M.B.; Funding acquisition, S.Y., and M.C.; Investigation, O.S., Y.M., and M.B.; Methodology, M.W. and M.C.; Resources, I.A., M.H., S.Y., and M.C.; Software, O.S., Y.M., and M.W.; Supervision, S.Y., M.W., and M.C.; Writing—original draft, O.S., M.W., and M.C.; Writing—review and editing, O.S., M.W., and M.C.

Funding

This research was funded by EU Horizon 2020 FET Open project “Reservoir Computing with Real-time Data for future IT” (RECORD-IT) under grant agreement 664786.

Acknowledgments

The authors thank Kristine Bender for the fabrication of devices, and Ralph Stoop and Axel Fanget for the support on early stages of this research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. WHO. Trace Elements in Human Nutrition and Health. Available online: http://www.who.int/nutrition/publications/micronutrients/9241561734/en/ (accessed on 24 June 2019).
  2. Tchounwou, P.B.; Yedjou, C.G.; Patlolla, A.K.; Sutton, D.J. Heavy Metals Toxicity and the Environment. EXS 2012, 101, 133–164. [Google Scholar] [CrossRef] [PubMed]
  3. Emsley, J.; Emsley, S.W. Nature’s Building Blocks: An A–Z Guide to the Elements; Oxford University Press: Oxford, UK, 2001; ISBN 978-0-19-850341-5. [Google Scholar]
  4. Aragay, G.; Pons, J.; Merkoçi, A. Recent Trends in Macro-, Micro-, and Nanomaterial-Based Tools and Strategies for Heavy-Metal Detection. Chem. Rev. 2011, 111, 3433–3458. [Google Scholar] [CrossRef] [PubMed]
  5. World Health Organization. Copper in Drinking Water; World Health Organization: Geneva, Switzerland, 2004. [Google Scholar]
  6. US EPA. Lead and Copper Rule. Available online: https://www.epa.gov/dwreginfo/lead-and-copper-rule (accessed on 12 April 2019).
  7. Uauy, R.; Olivares, M.; Gonzalez, M. Essentiality of copper in humans. Am. J. Clin. Nutr. 1998, 67, 952S–959S. [Google Scholar] [CrossRef] [PubMed]
  8. Hedera, P.; Fink, J.K.; Bockenstedt, P.L.; Brewer, G.J. Myelopolyneuropathy and Pancytopenia Due to Copper Deficiency and High Zinc Levels of Unknown Origin: Further Support for Existence of a New Zinc Overload Syndrome. Arch. Neurol. 2003, 60, 1303–1306. [Google Scholar] [CrossRef] [PubMed]
  9. Brewer, G.J. Alzheimer’s disease causation by copper toxicity and treatment with zinc. Front Aging Neurosci. 2014, 6. [Google Scholar] [CrossRef] [PubMed]
  10. Bi, X.; Yang, K.-L. Complexation of Copper Ions with Histidine-Containing Tripeptides Immobilized on Solid Surfaces. Langmuir 2007, 23, 11067–11073. [Google Scholar] [CrossRef] [PubMed]
  11. Harford, C.; Sarkar, B. Amino Terminal Cu(II)- and Ni(II)-Binding (ATCUN) Motif of Proteins and Peptides: Metal Binding, DNA Cleavage, and Other Properties. Acc. Chem. Res. 1997, 30, 123–130. [Google Scholar] [CrossRef]
  12. Sanna, D.; Micera, G.; Kállay, C.; Rigó, V.; Sóvágó, I. Copper(II) complexes of N-terminal protected tri- and tetra-peptides containing histidine residues. Dalton Trans. 2004, 2702–2707. [Google Scholar] [CrossRef]
  13. Takehara, K.; Ide, Y. Electrochemistry of copper(II)-peptide complexes containing histidine residues. Inorg. Chim. Acta 1991, 183, 195–202. [Google Scholar] [CrossRef]
  14. Bal, W.; Dyba, M.; Kozłowski, H. The impact of the amino-acid sequence on the specificity of copper(II) interactions with peptides having nonco-ordinating side-chains. Acta Biochim. Pol. 1997, 44, 467–476. [Google Scholar]
  15. Lau, S.-J.; Kruck, T.P.A.; Sarkar, B. A Peptide Molecule Mimicking the Copper(II) Transport Site of Human Serum Albumin A Comparative Study between the Synthetic Site and Albumin. J. Biol. Chem. 1974, 249, 5878–5884. [Google Scholar] [PubMed]
  16. Angelova, M.; Asenova, S.; Nedkova, V.; Koleva-Kolarova, R. Copper in the Human Organism. Trakia J. Sci. 2011, 9, 11. [Google Scholar]
  17. Daniele, P.G.; Zerbinati, O.; Zelano, V.; Ostacoli, G. Thermodynamic and Spectroscopic Study of Copper(i1)-GIycyl-L-histidylglycine Complexes in Aqueous Solution. J. Chem. Soc. Dalton Trans. 1991, 5, 2711–2715. [Google Scholar] [CrossRef]
  18. Gonzalez, P.; Vileno, B.; Bossak, K.; El Khoury, Y.; Hellwig, P.; Bal, W.; Hureau, C.; Faller, P. Cu(II) Binding to the Peptide Ala-His-His, a Chimera of the Canonical Cu(II)-Binding Motifs Xxx-His and Xxx-Zzz-His. Inorg. Chem. 2017, 56, 14870–14879. [Google Scholar] [CrossRef] [PubMed]
  19. Mervinetsky, E.; Alshanski, I.; Hamo, Y.; Sandonas, L.M.; Dianat, A.; Buchwald, J.; Gutierrez, R.; Cuniberti, G.; Hurevich, M.; Yitzchaik, S. Copper Induced Conformational Changes of Tripeptide Monolayer Based Impedimetric Biosensor. Sci. Rep. 2017, 7, 9498. [Google Scholar] [CrossRef] [PubMed]
  20. Wawrzyniak, U.E.; Ciosek, P.; Zaborowski, M.; Liu, G.; Gooding, J.J. Gly-Gly-His Immobilized on Monolayer Modified Back-Side Contact Miniaturized Sensors for Complexation of Copper Ions. Electroanalysis 2013, 25, 1461–1471. [Google Scholar] [CrossRef]
  21. Gooding, J.J.; Hibbert, D.B.; Yang, W. Electrochemical Metal Ion Sensors. Exploiting Amino Acids and Peptides as Recognition Elements. Sensors 2001, 1, 75–90. [Google Scholar] [CrossRef][Green Version]
  22. Yang, W.; Jaramillo, D.; Gooding, J.J.; Hibbert, D.B.; Zhang, R.; Willett, G.D.; Fisher, K.J. Sub-ppt detection limits for copper ions with Gly-Gly-His modified electrodes. Chem. Commun. 2001, 1982–1983. [Google Scholar] [CrossRef]
  23. Xu, Y.-M.; Pan, H.-Q.; Wu, S.-H.; Zhang, B.-L. Interaction Between Tripeptide Gly-Gly-His and Cu2+ Probed by Microcantilevers. Chin. J. Anal. Chem. 2009, 37, 783–787. [Google Scholar] [CrossRef]
  24. Wang, R.; Wang, W.; Ren, H.; Chae, J. Detection of copper ions in drinking water using the competitive adsorption of proteins. Biosens. Bioelectron. 2014, 57, 179–185. [Google Scholar] [CrossRef]
  25. Lee, C.-S.; Kim, S.; Kim, M. Ion-Sensitive Field-Effect Transistor for Biological Sensing. Sensors 2009, 9, 7111–7131. [Google Scholar] [CrossRef] [PubMed]
  26. Nguyen, T.T.K.; Tran, H.V.; Vu, T.T.; Reisberg, S.; Noël, V.; Mattana, G.; Pham, M.C.; Piro, B. Peptide-modified electrolyte-gated organic field effect transistor. Application to Cu2+ detection. Biosens. Bioelectron. 2019, 127, 118–125. [Google Scholar] [CrossRef] [PubMed]
  27. Wipf, M.; Stoop, R.L.; Navarra, G.; Rabbani, S.; Ernst, B.; Bedner, K.; Schönenberger, C.; Calame, M. Label-Free FimH Protein Interaction Analysis Using Silicon Nanoribbon BioFETs. ACS Sens. 2016, 1, 781–788. [Google Scholar] [CrossRef]
  28. Wipf, M.; Stoop, R.L.; Tarasov, A.; Bedner, K.; Fu, W.; Wright, I.A.; Martin, C.J.; Constable, E.C.; Calame, M.; Schönenberger, C. Selective Sodium Sensing with Gold-Coated Silicon Nanowire Field-Effect Transistors in a Differential Setup. ACS Nano 2013, 7, 5978–5983. [Google Scholar] [CrossRef] [PubMed]
  29. Stoop, R.L.; Wipf, M.; Müller, S.; Bedner, K.; Wright, I.A.; Martin, C.J.; Constable, E.C.; Fu, W.; Tarasov, A.; Calame, M.; et al. Competing surface reactions limiting the performance of ion-sensitive field-effect transistors. Sens. Actuators B Chem. 2015, 220, 500–507. [Google Scholar] [CrossRef][Green Version]
  30. Stoop, R.L.; Wipf, M.; Müller, S.; Bedner, K.; Wright, I.A.; Martin, C.J.; Constable, E.C.; Fanget, A.; Schönenberger, C.; Calame, M. Implementing Silicon Nanoribbon Field-Effect Transistors as Arrays for Multiple Ion Detection. Biosensors 2016, 6, 21. [Google Scholar] [CrossRef] [PubMed]
  31. Hu, X.; Zhang, Q.; Wang, W.; Yuan, Z.; Zhu, X.; Chen, B.; Chen, X. Tripeptide GGH as the Inhibitor of Copper-Amyloid-β-Mediated Redox Reaction and Toxicity. ACS Chem. Neurosci. 2016, 7, 1255–1263. [Google Scholar] [CrossRef] [PubMed]
  32. Kulprachakarn, K.; Chen, Y.-L.; Kong, X.; Arno, M.C.; Hider, R.C.; Srichairatanakool, S.; Bansal, S.S. Copper(II) binding properties of hepcidin. J. Biol. Inorg. Chem. 2016, 21, 329–338. [Google Scholar] [CrossRef] [PubMed][Green Version]
  33. Lin, M.; Cho, M.S.; Choe, W.S.; Lee, Y. Electrochemical analysis of copper ion using a Gly–Gly–His tripeptide modified poly(3-thiopheneacetic acid) biosensor. Biosens. Bioelectron. 2009, 25, 28–33. [Google Scholar] [CrossRef] [PubMed]
  34. Yang, W.; Chow, E.; Willett, G.; Brynn Hibbert, D.; Justin Gooding, J. Exploring the use of the tripeptide Gly–Gly–His as a selective recognition element for the fabrication of electrochemical copper sensors. Analyst 2003, 128, 712–718. [Google Scholar] [CrossRef] [PubMed]
  35. Papp, S.; Jágerszki, G.; Gyurcsányi, R.E. Ion-Selective Electrodes Based on Hydrophilic Ionophore-Modified Nanopores. Angew. Chem. 2018, 130, 4842–4845. [Google Scholar] [CrossRef]
  36. Pavan, S.; Berti, F. Short peptides as biosensor transducers. Anal. Bioanal. Chem. 2012, 402, 3055–3070. [Google Scholar] [CrossRef]
  37. Raics, M.; Sanna, D.; Sóvágó, I.; Kállay, C. Copper(II), nickel(II) and zinc(II) complexes of hexapeptides containing separate aspartyl and histidyl residues. Inorg. Chim. Acta 2015, 426, 99–106. [Google Scholar] [CrossRef][Green Version]
  38. Knopfmacher, O.; Tarasov, A.; Fu, W.; Wipf, M.; Niesen, B.; Calame, M.; Schönenberger, C. Nernst Limit in Dual-Gated Si-Nanowire FET Sensors. Nano Lett. 2010, 10, 2268–2274. [Google Scholar] [CrossRef] [PubMed]
  39. Vacic, A.; Criscione, J.M.; Rajan, N.K.; Stern, E.; Fahmy, T.M.; Reed, M.A. Determination of Molecular Configuration by Debye Length Modulation. J. Am. Chem. Soc. 2011, 133, 13886–13889. [Google Scholar] [CrossRef]
  40. Hay, R.W.; Hassan, M.M.; You-Quan, C. Kinetic and thermodynamic studies of the copper(II) and nickel(II) complexes of glycylglycyl-L-histidine. J. Inorg. Biochem. 1993, 52, 17–25. [Google Scholar] [CrossRef]
  41. Vuceta, J.; Morgan, J.J. Hydrolysis of Cu(II)1. Limnol. Oceanogr. 1977, 22, 742–746. [Google Scholar] [CrossRef]
  42. Mervinetsky, E.; Alshanski, I.; Lenfant, S.; Guerin, D.; Medrano Sandonas, L.; Dianat, A.; Gutierrez, R.; Cuniberti, G.; Hurevich, M.; Yitzchaik, S.; et al. Electron Transport through Self-Assembled Monolayers of Tripeptides. J. Phys. Chem. C 2019, 123, 9600–9608. [Google Scholar] [CrossRef][Green Version]
  43. Badruddoza, A.Z.M.; Tay, A.S.H.; Tan, P.Y.; Hidajat, K.; Uddin, M.S. Carboxymethyl-β-cyclodextrin conjugated magnetic nanoparticles as nano-adsorbents for removal of copper ions: Synthesis and adsorption studies. J. Hazard. Mater. 2011, 185, 1177–1186. [Google Scholar] [CrossRef]
  44. Licheri, G.; Musinu, A.; Paschina, G.; Piccaluga, G.; Pinna, G.; Sedda, A.F. Coordination of Cu(II) in Cu(NO3)2 aqueous solutions. J. Chem. Phys. 1984, 80, 5308–5311. [Google Scholar] [CrossRef]

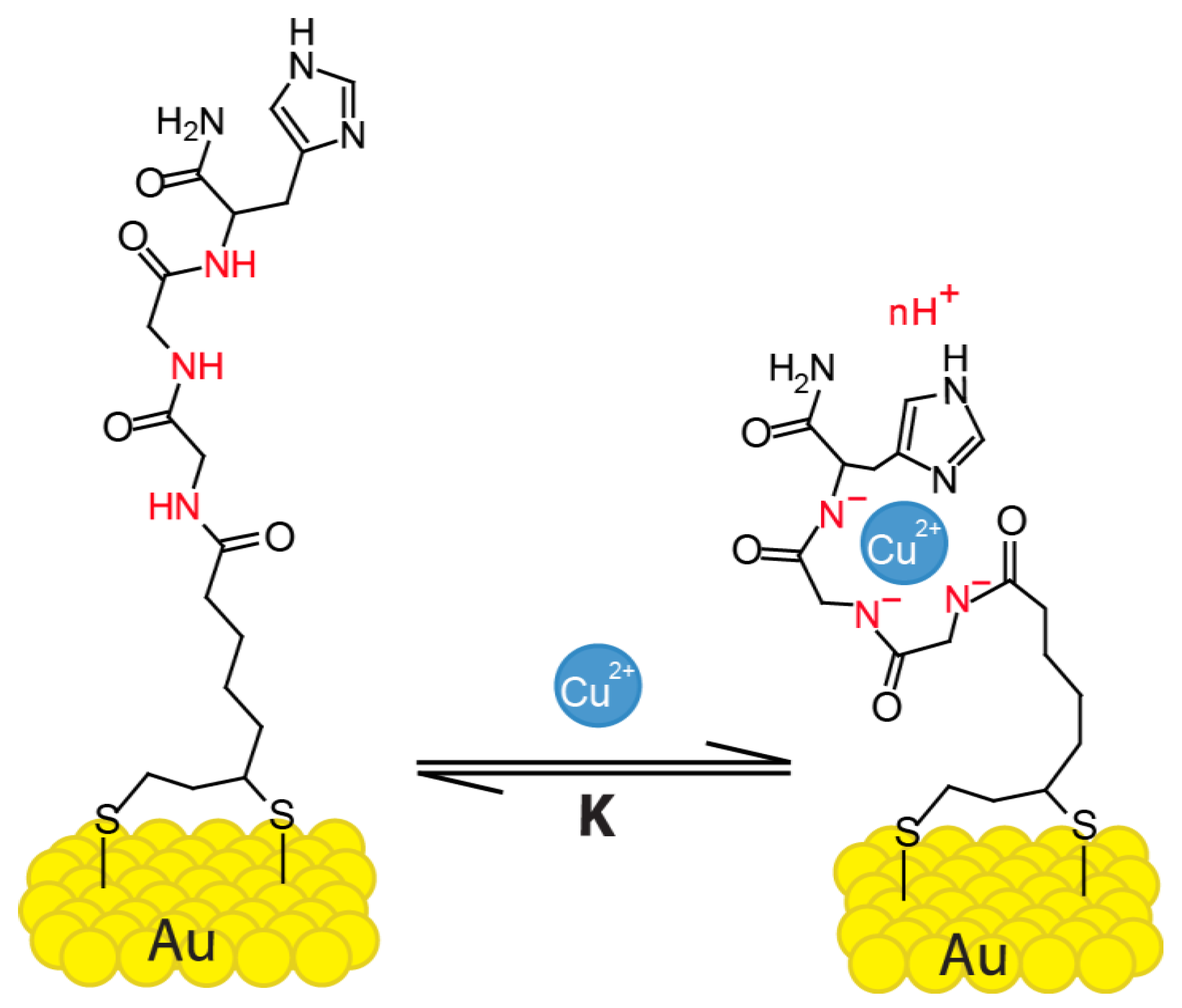

Figure 1. Glycine–glycine–histidine (Gly–Gly–His, GGH) monolayer on a gold surface and the complexation of Cu2+ ions. Secondary amines, carrying different charges depending on the electrolyte’s pH, are indicated in red.
Figure 1. Glycine–glycine–histidine (Gly–Gly–His, GGH) monolayer on a gold surface and the complexation of Cu2+ ions. Secondary amines, carrying different charges depending on the electrolyte’s pH, are indicated in red.
Sensors 19 04022 g001

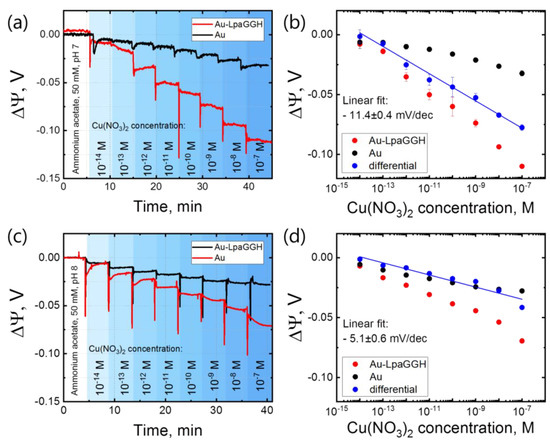

Figure 2. Response of the GGH ligand to Cu(NO3)2 in the concentration range of 10 fM to 0.1 µM. Real-time measurements of the surface potential shift ΔΨ for increasing concentrations of Cu(NO3)2 in ammonium acetate (50 mM), pH 7 (a) and pH 8 (c). For drift correction, a baseline is subtracted from the measured data and the measured curves are shifted to zero (see Methods). (b,d) Differential response at pH 7 and 8, respectively (see Methods). The reported surface potential values are extracted from “steps” after 1 min settling time, and buffer baseline is shifted to zero.
Figure 2. Response of the GGH ligand to Cu(NO3)2 in the concentration range of 10 fM to 0.1 µM. Real-time measurements of the surface potential shift ΔΨ for increasing concentrations of Cu(NO3)2 in ammonium acetate (50 mM), pH 7 (a) and pH 8 (c). For drift correction, a baseline is subtracted from the measured data and the measured curves are shifted to zero (see Methods). (b,d) Differential response at pH 7 and 8, respectively (see Methods). The reported surface potential values are extracted from “steps” after 1 min settling time, and buffer baseline is shifted to zero.
Sensors 19 04022 g002

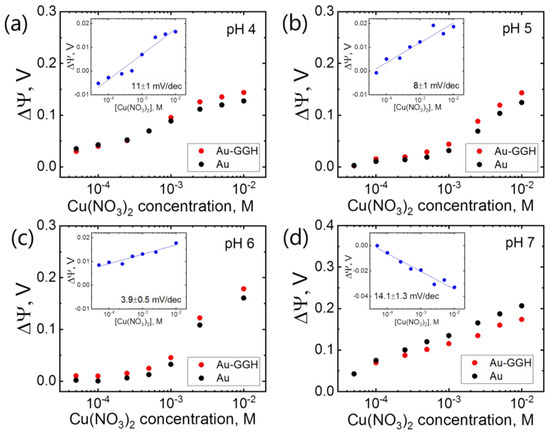

Figure 3. Response to Cu2+ ions at high concentrations (0.05–10 mM) in Titrisol buffer at (a) pH 4 (105 mM, HCl 0.044, NaOH 0.11, C6H8O7 0.056 mol/l), (b) pH 5 (148 mM, NaOH 0.2, C6H8O7 0.096 mol/l), (c) pH 6 (83 mM, NaOH 0.16, C6H8O7 0.06 mol/l), (d) pH 7, ammonium acetate (50 mM). The signal is averaged over all measured nanoribbons (12 active and 12 control). All insets show the differential response.
Figure 3. Response to Cu2+ ions at high concentrations (0.05–10 mM) in Titrisol buffer at (a) pH 4 (105 mM, HCl 0.044, NaOH 0.11, C6H8O7 0.056 mol/l), (b) pH 5 (148 mM, NaOH 0.2, C6H8O7 0.096 mol/l), (c) pH 6 (83 mM, NaOH 0.16, C6H8O7 0.06 mol/l), (d) pH 7, ammonium acetate (50 mM). The signal is averaged over all measured nanoribbons (12 active and 12 control). All insets show the differential response.
Sensors 19 04022 g003
