Open AccessArticle

Measurement of Dynamic Responses from Large Structural Tests by Analyzing Non-Synchronized Videos

Department of Civil Engineering, National Taipei University of Technology, 1 Sec 3 Zhongxiao E. Rd. 10608 Taipei, Taiwan
Sensors 2019, 19(16), 3520;
Received: 4 July 2019 / Revised: 8 August 2019 / Accepted: 9 August 2019 / Published: 11 August 2019
PDF [5325 KB, uploaded 11 August 2019]

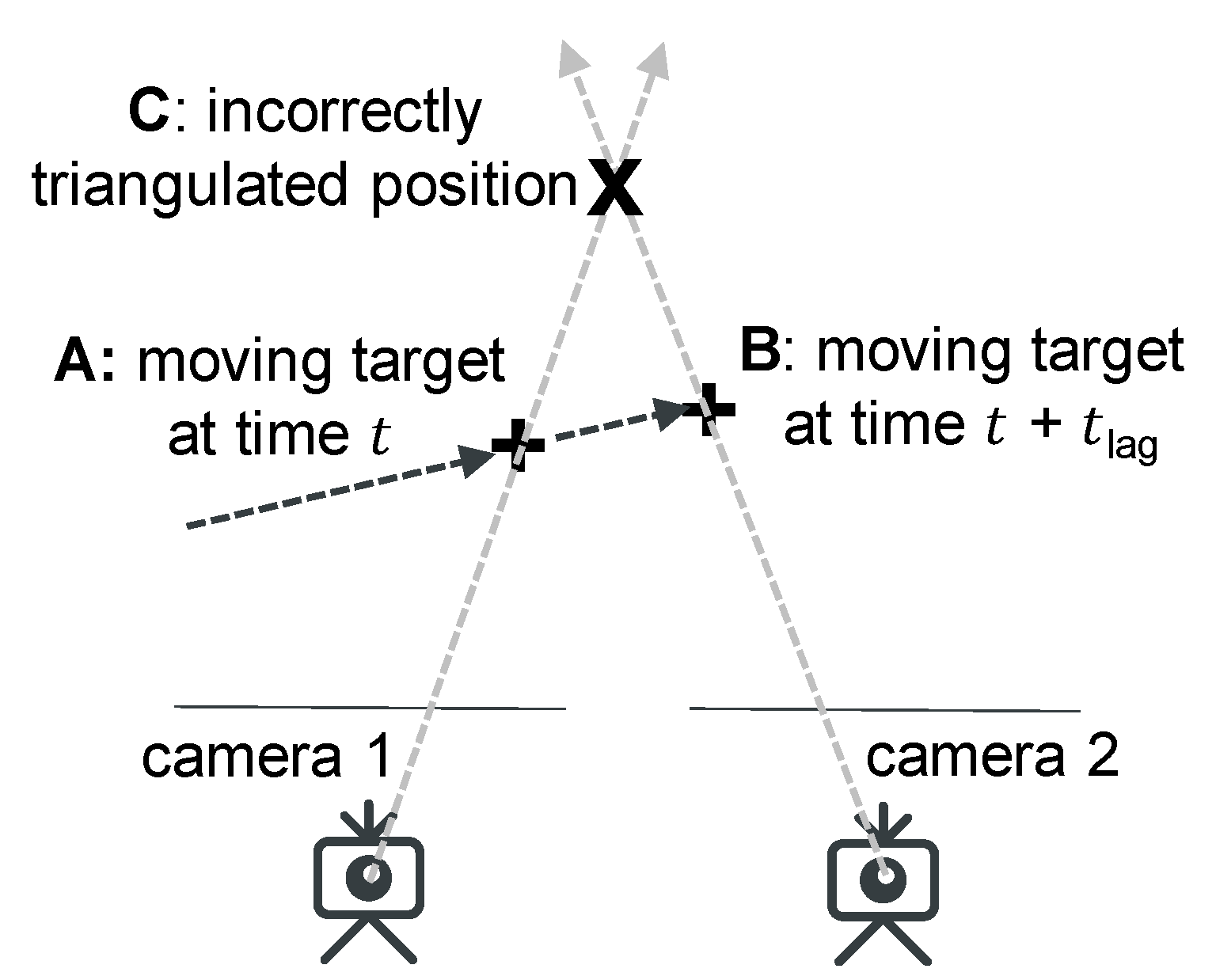

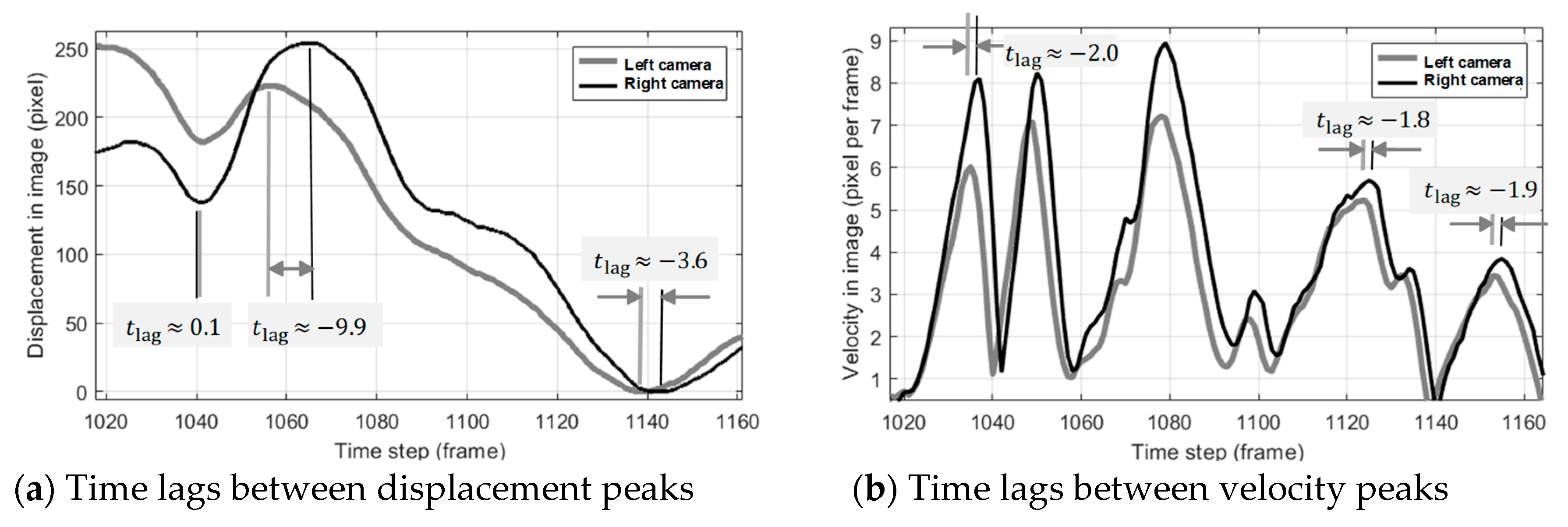

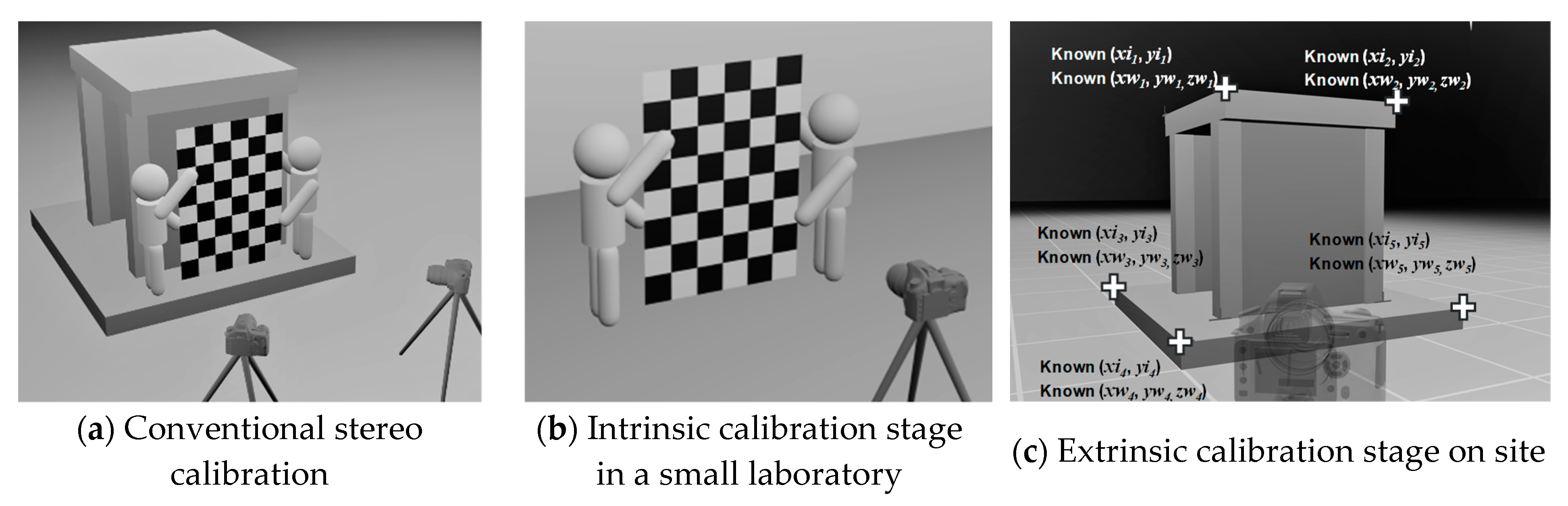

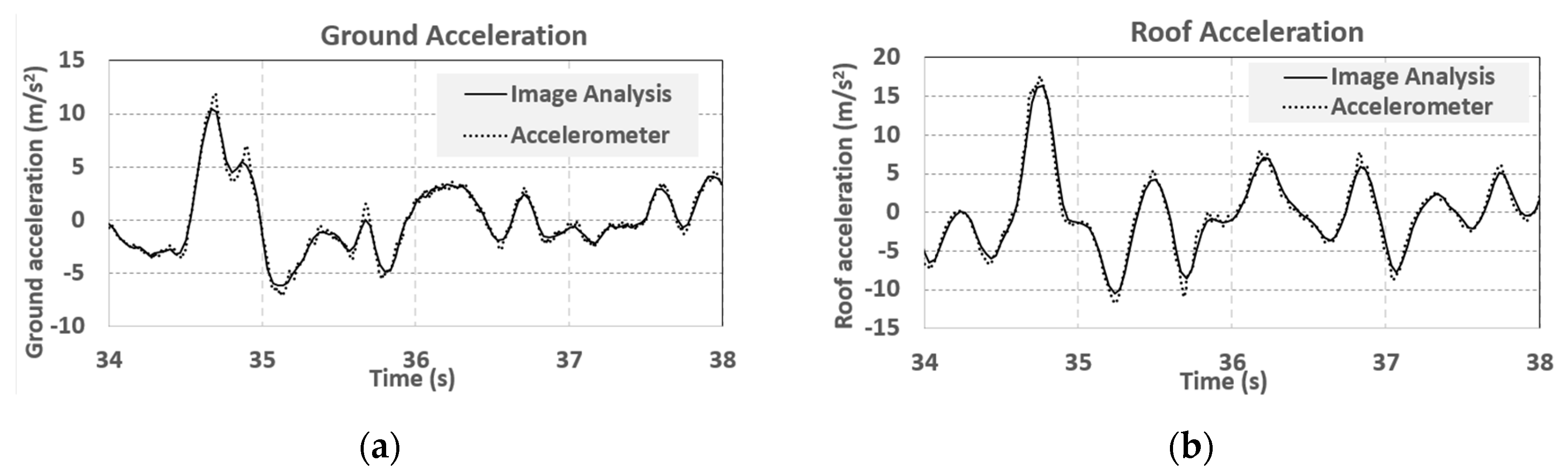

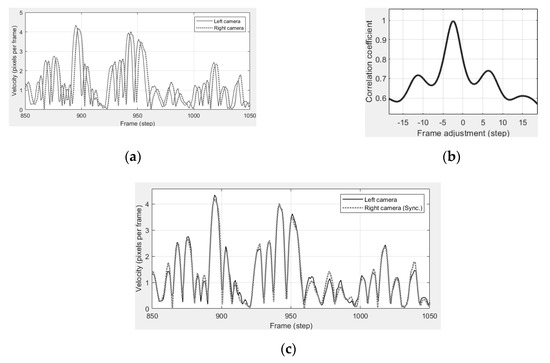

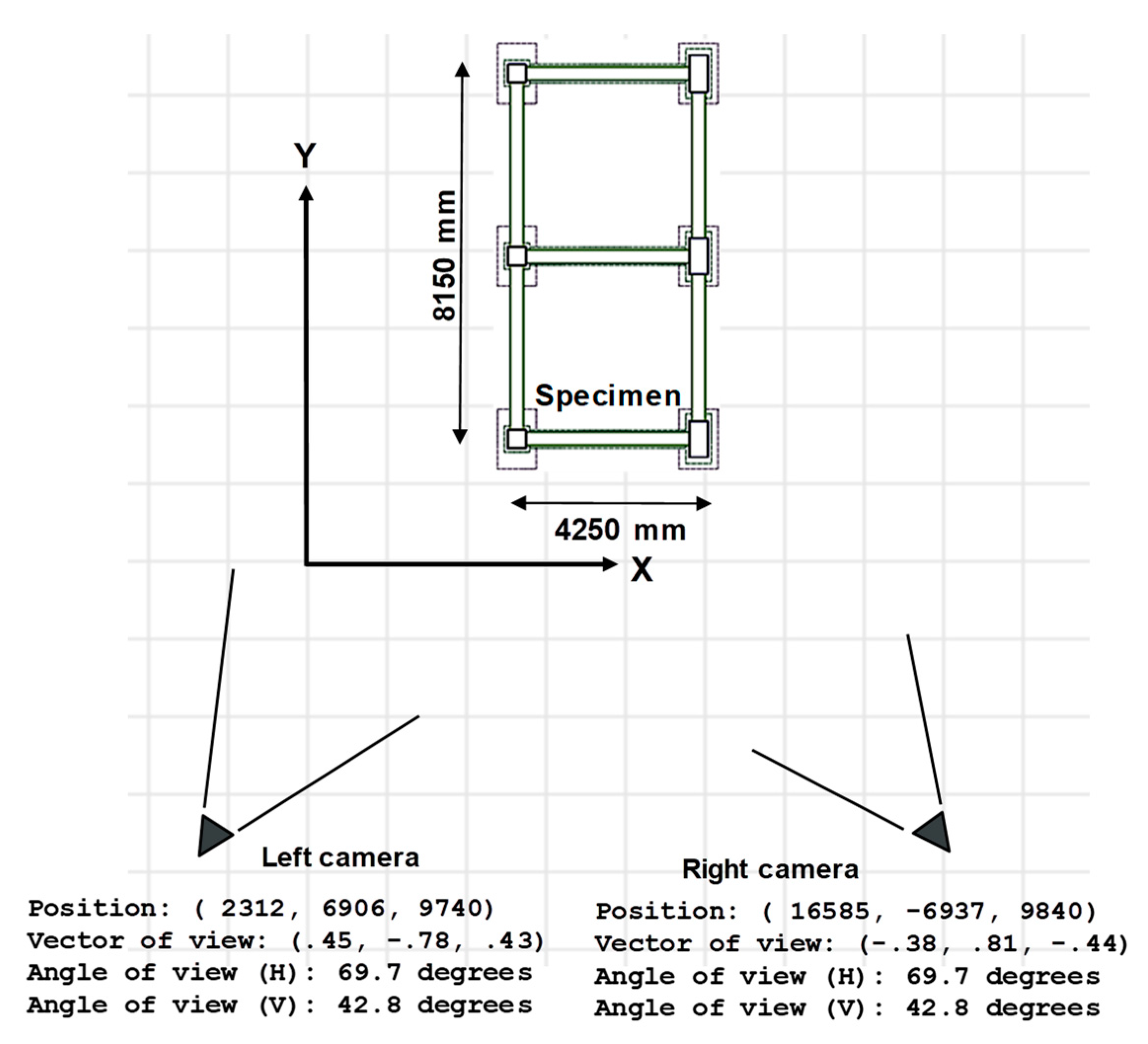

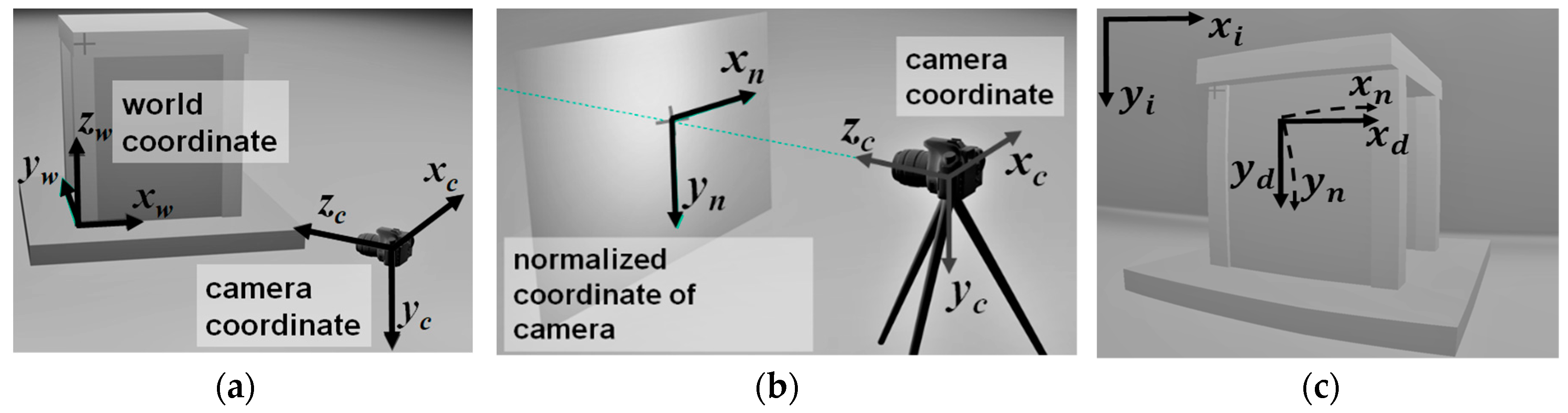

Image analysis techniques have been employed to measure displacements, deformation, crack propagation, and structural health monitoring. With the rapid development and wide application of digital imaging technology, consumer digital cameras are commonly used for making such measurements because of their satisfactory imaging resolution, video recording capability, and relatively low cost. However, three-dimensional dynamic response monitoring and measurement on large-scale structures pose challenges of camera calibration and synchronization to image analysis. Without satisfactory camera position and orientation obtained from calibration and well-synchronized imaging, significant errors would occur in the dynamic responses during image analysis and stereo triangulation. This paper introduces two camera calibration approaches that are suitable for large-scale structural experiments, as well as a synchronization method to estimate the time difference between two cameras and further minimize the error of stereo triangulation. Two structural experiments are used to verify the calibration approaches and the synchronization method to acquire dynamic responses. The results demonstrate the performance and accuracy improvement by using the proposed methods.
Keywords: structural experiments; response measurement; camera calibration; signal synchronization structural experiments; response measurement; camera calibration; signal synchronization
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
