Potentiality of Using Luojia 1-01 Nighttime Light Imagery to Investigate Artificial Light Pollution

by
Wei Jiang
1,2,
Guojin He
1,3,4,*,
Tengfei Long
1,3,4,*,
Hongxiang Guo
1,2,
Ranyu Yin
1,2,
Wanchun Leng
1,2,
Huichan Liu
1,3,4 and
Guizhou Wang
1,3,4
1
Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100094, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
Key Laboratory of Earth Observation Hainan Province, Sanya 572029, China
4
Sanya Institute of Remote Sensing, Sanya 572029, China
*
Authors to whom correspondence should be addressed.
Sensors 2018, 18(9), 2900; https://doi.org/10.3390/s18092900
Submission received: 8 August 2018 / Revised: 30 August 2018 / Accepted: 30 August 2018 / Published: 1 September 2018
(This article belongs to the Special Issue The Design, Data Processing and Applications of Luojia 1-01 Satellite)
Browse Figures
Versions Notes

Abstract

:
The successful launch of Luojia 1-01 complements the existing nighttime light data with a high spatial resolution of 130 m. This paper is the first study to assess the potential of using Luojia 1-01 nighttime light imagery for investigating artificial light pollution. Eight Luojia 1-01 images were selected to conduct geometric correction. Then, the ability of Luojia 1-01 to detect artificial light pollution was assessed from three aspects, including the comparison between Luojia 1-01 and the Suomi National Polar-Orbiting Partnership Visible Infrared Imaging Radiometer Suite (NPP-VIIRS), the source of artificial light pollution and the patterns of urban light pollution. Moreover, the advantages and limitations of Luojia 1-01 were discussed. The results showed the following: (1) Luojia 1-01 can detect a higher dynamic range and capture the finer spatial details of artificial nighttime light. (2) The averages of the artificial light brightness were different between various land use types. The brightness of the artificial light pollution of airports, streets, and commercial services is high, while dark areas include farmland and rivers. (3) The light pollution patterns of four cities decreased away from the urban core and the total light pollution is highly related to the economic development. Our findings confirm that Luojia 1-01 can be effectively used to investigate artificial light pollution. Some limitations of Luojia 1-01, including its spectral range, radiometric calibration and the effects of clouds and moonlight, should be researched in future studies.

Graphical Abstract

1. Introduction

Light pollution refers to the excessive use of artificial light, mainly outdoor lighting [1,2]. Mismanaged artificial light can alter the nighttime sky brightness [1], eclipse natural starlight [2], and disrupt circadian rhythms [3]. Evidence from previous studies have suggested that light pollution can affect animal behaviors [4,5,6], ecological environments [7,8], human health [9,10], and astronomical observations [2,11]. Moreover, light pollution requires excessive power consumption [12], which can waste energy resources and increase greenhouse gas emissions [12,13]. Therefore, the monitoring and assessment of light pollution is essential for maintaining the ecological environment, meeting sustainable development goals and improving the life quality of urban residents.
Compared with ground-based measurements, nighttime light remote sensing is suitable to acquire large-scale and high numbers of artificial lighting data with low costs [14,15,16,17,18,19]. The observations of nighttime light provide an opportunity to understand light pollution [20,21]. Currently, there are two types of commonly used nighttime remote sensing data: the Defense Meteorological Satellite Program Operational Linescan System (DMSP-OLS) [22,23] and the Suomi National Polar-Orbiting Partnership Visible Infrared Imaging Radiometer Suite (NPP-VIIRS) [24,25,26]. These data are widely utilized to analyze urbanization [27,28], estimate socioeconomic parameters [13,29], and assess military conflicts [30,31,32]. The investigations of light pollution at the national [14,33], regional [21], and global [34] scales are documented. However, the DMSP-OLS is not calibrated and it needs systematic correction before applying it to light pollution investigations [14,21]. The advantage of DMSP-OLS is its long-term past observations, but the calibration has to be done with care [34]. Moreover, the NPP-VIIRS imagery with on-board calibration are used to produce the world atlas of artificial sky luminance [1] and to explore the growth rates of lit areas and the total radiance of artificial light at the global scale [34].
On 2 June 2018, the Luojia 1-01 satellite produced by Wuhan University, which was designed to acquire new high-resolution nighttime light imagery, was launched [35]. The parameter comparisons of DMSP-OLS, NPP-VIIRS and Luojia 1-01 are shown in Table 1. The spatial resolution of the new Luojia 1-01 nighttime light data has greatly improved with on-board calibration. Compared with DMSP-OLS and NPP-VIIRS, the spatial details of artificial light can be clearly observed by Luojia 1-01, which are shown in Figure 1.
The Luojia 1-01 has better spatial resolution than the other two satellite images. However, there is a lack of documentation on the application of Luojia 1-01 nighttime light imagery in assessing light pollution. Therefore, the motivation of this paper is to assess the potential of using Luojia 1-01 nighttime light imagery to assess artificial light pollution. To achieve this goal, we will examine the ability of Luojia 1-01 to detect artificial outdoor lighting, determine the light sources of light pollution, and explore the patterns of urban light pollution. Finally, the limitations of Luojia 1-01 nighttime light imagery are summarized in the discussion section. This study will encourage more researchers to use Luojia 1-01 to investigate light pollution, and the conclusions will help governments make policies to regulate and plan urban light pollution.

2. Materials and Methods

2.1. Data Source

High-resolution Luojia1-01 data are freely available for scientists to download from the Hubei data and application center [36]. In this study, several factors, including the cloud cover, lunar cycle, city size, gas flares, and religious buildings, are considered when selecting images for investigation. Figure 2 shows the distribution of the study areas and origin images, and the metadata of the experiment images are summarized in Table 2.

2.2. Nighttime Light Imagery Processing

High-precision geometric positioning is the basis of remote sensing applications [37]. According to a released report of LuoJia1-01 [35], the released images are systematically geometric corrected, and the positioning accuracy ranges from 0.49 km to 0.93 km. Consequently, before new products with improved geolocation accuracy are released, precise geometric correction is necessary for LuoJia1-01 to accurately investigate artificial light pollution. To accurately investigate artificial light pollution, these experimental images need to be geometrically corrected. Because the spatial resolution of LuoJia1-01 nighttime light imagery is high, the road network can be clearly observed. Thus, accurate ground control points (GCPs) can be collected using road intersections. For each image scene, approximately 50 GCPs were manually collected to estimate the rational function coefficients (RPCs) using the L1-norm-regularized least squares method [38], which are used to conduct ortho-rectification with the help of the global Shuttle Radar Topography Mission(SRTM) Digital Elevation Model (DEM) data. The geolocating performance of LuoJia1-01 nighttime light imagery in Wuhan is shown in Figure 3. In Figure 3a, the geometric error in the bridge can be clearly found. Figure 3b shows that the geometric position accuracy can be significantly improved after ortho-rectification. Through nighttime light imagery processing, the geometric positioning error of the experimental images can be reduced.

3. Results

3.1. The Ability of Luojia 1-01 to Detect Artificial Outdoor Lighting

To investigate the artificial light pollution, the ability of Luojia 1-01 to detect nighttime outdoor lighting should be first assessed. Six cities, including Wuhan, Hangzhou, Seoul, Busan, Haifa and Mexico City, are selected as the study areas. First, the digital number (DN) range of Luojia 1-01 and NPP-VIIRS across these cities are calculated, as shown in Table 3. The result shows that Luojia 1-01 can detect a higher dynamic range than NPP-VIIRS. Second, to compare the consistency of luminary artificial light observed by Luojia 1-01 and NPP-VIIRS, the Luojia 1-01 images of six cities are resampled with the spatial resolution of NPP-VIIRS at nighttime. The scatter plots regarding to two types of nighttime light data are shown in Figure 4. From the correlation coefficient, the spatial consistency between Luojia 1-01 and NPP-VIIRS is high in Seoul and Mexico. However, the different image acquisition dates and spectral sensitivity can reduce the consistency. The ability of Luojia 1-01 nighttime light imagery to acquire detailed information on urban luminaires is evaluated by comparing the latitudinal transects of the DN between Luojia 1-01 and NPP-VIIRS in four cities. The results are shown in Figure 5. The DN values of two types of data increase towards the urban core and decrease away from the urban core. Moreover, the variability of Luojia 1-01 in the core urban areas is higher than that of NPP-VIIRS. This result suggests that Luojia 1-01 can capture finer spatial details of artificial nighttime light compared with NPP-VIIRS nighttime light images.

3.2. Determination the Source of Artificial Light Pollution

The LuoJia1-01 nighttime light satellite can capture a higher dynamic range and finer spatial details of luminaires. Thus, it can be used to determine the source of artificial light pollution. First, we investigate the artificial light pollution sources within different land use types. The land use type classification is referenced in Levin’s work [39]. The typical land use boundaries were manually drawn by using high-resolution Google Earth satellite imagery, based on which the averages of the nighttime brightness for each type were calculated, and the results are shown in Figure 6. A clear difference in the average brightness can be found between various land use types. The high-brightness artificial light pollution areas were located in the commercial services, streets, airports, industrial areas and public services, while dark areas were associated with farmland, rivers, reservoirs and rural residential areas.
Furthermore, the high-resolution images were employed to validate high artificial light pollution. Figure 7a–c show that the luminary brightness in airports and terminals are brighter than those on airport runways. As to the ports, the artificial light in lifting areas is brighter than that in container areas (Figure 7d–f). The artificial light pollution in industrial bases (Figure 7g–i) have a high level. Some landmark buildings, including mosques (Figure 7j), high-density residential areas (Figure 7k), and commercial buildings (Figure 7l) are sources of high artificial light pollution in urban areas. These sources of light pollution tend to be near the urban core areas, which may be detrimental to human health [10,40]. Moreover, the luminaires from marine fishing can also be captured by LuoJia1-01(Figure 7m–o), which can be used to monitor the spatial distribution of fishing activity [41,42] and assess the disturbance of artificial light pollution on the marine ecosystem [43].
Among the various land use types, artificial light along roads is the major source of light pollution [44]. The high-resolution LuoJia1-01 nighttime light imagery provides the potential to detect the artificial light along roads. Figure 8 shows the road networks with nighttime light imagery in Wuhan and Ningbo. To investigate the light pollution regarding the road light, multiple buffer analysis is employed on the main roads (Xinshi road and Shengxin road). Figure 9 shows that the average DN brightness decreases away from the road. This result is because high-brightness lights are widely used for traffic, while the light is of low brightness around residential areas and open spaces.

3.3. Exploration the Patterns of Urban Light Pollution

Urban light pollution patterns relate to the economic development levels, populations, and energy consumption [45]. Four cities, including Wuhan, Seoul, Haifa and Mexico City, were selected to explore the patterns of urban light pollution. The nighttime light imagery within a 45 km buffer is classified with different levels using the natural breaks (Jenks) method [46]. Figure 10 suggests that the light pollution patterns of four cities were significantly different and the light pollution decreased away from the urban cores. Moreover, the areas and area percentages regarding the different light pollution levels are illustrated in Figure 11. For the area corresponding to moderate light pollution, the top one is Seoul, which is followed by Mexico City. Compared with strong light pollution, the area of Seoul was larger than that of Mexico. As to the area percentages, the patterns of Haifa and Seoul are similar. Compared with Haifa and Seoul, the area percentages of Wuhan and Mexico City regarding the moderate light pollution are high. Moreover, the correlation between the total light pollution area (refering to three light pollution level areas) and gross domestic product (GDP) is shown in Figure 12. Although the urban sample is only four cities, this result suggests that the light pollution is highly related to economic development.

4. Discussion

Over the past 20 years, DMSP-OLS and NPP-VIIRS were the main data sources in the field of nighttime light remote sensing [26,47]. Some studies documented the new high-resolution nighttime light imagery, such as JL1-3B [48] and EROS-B [39], but these data are not freely available for acquisition [39]. Nighttime light imagery from International Space Station (ISS) is open access data with high spatial resolution, however, these images lack automated georeferencing. The successful launch of Luojia 1-01 complements the existing nighttime light data with a high spatial resolution of 130 m. This paper is the first study to investigate the potential of using Luojia 1-01 nighttime light imagery to evaluate light pollution. Compared with NPP-VIIRS, the Luojia 1-01 can capture a higher dynamic range and finer spatial details of luminaires. Moreover, we investigated the light pollution within different land cover types and found that the light pollution is significantly different between various land use types. The source of high-brightness light pollution was determined with high-resolution images, and the average DN brightness decreased away from the road. Finally, the urban light pollution pattern in four cities was explored and the result suggested that the light pollution was highly related to the level of economic development.
Although this study confirmed that Luojia 1-01 can be applied to investigate artificial light pollution, there are still some limitations for Luojia 1-01. First, “white” LEDs are widely used for street lighting and the commonly used high correlated color temperature (CCT) white light-emitting diodes (LEDs) emit a large fraction of radiation in the range of 450 nm to 480 nm [34,39,49,50]. However, the spectral range of Luojia 1-01 can detect from only 480 μm to 800 μm [35]. Thus, some radiance information of LED luminaires will not be captured by the Luojia 1-01 nighttime light satellite. This limitation is a challenge when the Luojia 1-01 is used in estimating electricity, energy and carbon emissions. Second, Luojia 1-01 lacks accurate ground-based measurements to conduct the radiometric calibration [19,51]. Thus, Luojia 1-01 cannot be directly compared with NPP-VIIRS nighttime light imagery. This limitation will make it difficult to quantify urban night light pollution [49]. Third, clouds and moonlight can affect the quality of Luojia 1-01 nighttime light imagery. Figure 13a shows the imagery with clouds in Shanghai, China. In the thin cloud area, artificial light is attenuated by clouds. The lunar calendar of Figure 13b is 16 May with a full moon and the sea and land near Amsterdam is lighted. The radiance in the urban area contains nighttime light and moonlight. Future studies can be carried out on the preprocessing of Luojia 1-01 nighttime light imagery to eliminate the effects of clouds and moonlight.
Due to the high sensitivity of Luojia 1-01, the LuoJia1-01 nighttime light satellite can capture a higher dynamic range. In addition to nighttime lighting, LuoJia1-01 can also clearly detect gas fires in oilfields. Figure 14 shows the high-brightness DN caused by gas fires in Iraq. Therefore, the LuoJia1-01 nighttime light imaging can be used to detect gas fires and estimate oil and gas production [52] in future studies.

5. Conclusions

Luojia 1-01 is a new satellite that can be used to acquire high-resolution nighttime light imagery at a global scale. Compared with NPP-VIIRS nighttime light imagery, the Luojia 1-01 nighttime light imagery shows great potential as a future light pollution data source with an improved spatial resolution. This paper is the first study to investigate the potential of Luojia 1-01 nighttime light imagery in artificial light pollution. The conclusions are summarized as follows.
(1) Compared with NPP-VIIRS, the spatial consistency between Luojia 1-01 and NPP-VIIRS is high, and Luojia 1-01 can detect a higher dynamic range and capture the finer spatial details of artificial nighttime light.
(2) The averages of the artificial light brightness were different between various land use types. The high-brightness artificial light pollution areas were located in commercial services, streets, airports, industrial areas, public services and marine fishing, while the darkest areas were associated with farmland, rivers, reservoirs and rural residential areas. Moreover, the average luminary brightness decreased away from roads.
(3) The light pollution patterns of four cities were significantly different and the light pollution decreased away from the urban core. The areas with moderate light pollution are Seoul and Mexico City, and the strong light pollution area in Seoul was larger than that in Mexico City. Compared with Seoul and Mexico City, the areas in Wuhan and Haifa corresponding to the three light pollution levels were smaller. This result suggested that the light pollution was related to economic development.
This study provides evidence for the advantages of using Luojia 1-01 nighttime light imagery and confirms that it can be effectively used to investigate artificial light pollution. These conclusions can help researchers understand the artificial light pollution using Luojia 1-01 high nighttime light imagery. However, the spectral range, radiometric calibration and the effects of clouds and moonlight are still limitations for the widespread use of Luojia 1-01 nighttime light imagery. These shortcomings will be the future research directions.

Author Contributions

G.H., W.J. and T.L. conceived and designed the experiments; W.J., H.G. and W.L. performed the experiments; W.J., R.Y., H.L. and G.W. analyzed the data; W.J. wrote the paper; and all authors edited the paper.

Funding

This research was financially supported by the National Natural Science Foundation of China (61731022 and 61701495), the Strategic Priority Research Program of the Chinese Academy of Sciences (XDA190090300), the National Key Research and Development Program of China—rapid production method for large-scale global change products (2016YFA0600302), and the Hainan Provincial Department of Science and Technology (grant numbers ZDKJ2016021 and ZDKJ2016015).

Acknowledgments

We give thanks to the research team at Wuhan University for freely providing the Luojia 1-01 nighttime light imagery. The authors thank editors and three anonymous reviewers for their valuable comments to improve our manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Falchi, F.; Cinzano, P.; Duriscoe, D.; Kyba, C.C.M.; Elvidge, C.D.; Baugh, K.; Portnov, B.A.; Rybnikova, N.A.; Furgoni, R. The new world atlas of artificial night sky brightness. Sci. Adv. 2016, 2, e1600377. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Riegel, K.W. Light pollution: Outdoor lighting is a growing threat to astronomy. Science 1973, 179, 1285–1291. [Google Scholar] [CrossRef] [PubMed]
  3. Longcore, T.; Rich, C. Ecological light pollution. Front. Ecol. Environ. 2004, 2, 191–198. [Google Scholar] [CrossRef]
  4. Rodriguez, A.; Rodriguez, B.; Negro, J.J. GPS tracking for mapping seabird mortality induced by light pollution. Sci. Rep. 2015, 5, 16070. [Google Scholar] [CrossRef] [PubMed]
  5. Mazor, T.; Levin, N.; Possingham, H.P.; Levy, Y.; Rocchini, D.; Richardson, A.J.; Kark, S. Can satellite-based night lights be used for conservation? The case of nesting sea turtles in the mediterranean. Biol. Conserv. 2013, 159, 63–72. [Google Scholar] [CrossRef]
  6. Raap, T.; Pinxten, R.; Eens, M. Light pollution disrupts sleep in free-living animals. Sci. Rep. 2015, 5, 13557. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Jiang, W.; He, G.; Leng, W.; Long, T.; Wang, G.; Liu, H.; Peng, Y.; Yin, R.; Guo, H. Characterizing light pollution trends across protected areas in china using nighttime light remote sensing data. ISPRS Int. J. Geo-Inf. 2018, 7, 243. [Google Scholar] [CrossRef]
  8. De Freitas, J.R.; Bennie, J.; Mantovani, W.; Gaston, K.J. Exposure of tropical ecosystems to artificial light at night: Brazil as a case study. PLoS ONE 2017, 12, e0171655. [Google Scholar] [CrossRef] [PubMed]
  9. Stevens, R.G.; Brainard, G.C.; Blask, D.E.; Lockley, S.W.; Motta, M.E. Breast cancer and circadian disruption from electric lighting in the modern world. Ca-Cancer J. Clin. 2014, 64, 207–218. [Google Scholar] [CrossRef] [PubMed]
  10. Rybnikova, N.A.; Portnov, B.A. Outdoor light and breast cancer incidence: A comparative analysis of DMSP and VIIRS-DNB satellite data. Int. J. Remote Sens. 2017, 38, 5952–5961. [Google Scholar] [CrossRef]
  11. Falchi, F.; Cinzano, P.; Elvidge, C.D.; Keith, D.M.; Haim, A. Limiting the impact of light pollution on human health, environment and stellar visibility. J. Environ. Manag. 2011, 92, 2714–2722. [Google Scholar] [CrossRef] [PubMed]
  12. Shi, K.F.; Chen, Y.; Yu, B.L.; Xu, T.B.; Yang, C.S.; Li, L.Y.; Huang, C.; Chen, Z.Q.; Liu, R.; Wu, J.P. Detecting spatiotemporal dynamics of global electric power consumption using DMSP-OLS nighttime stable light data. Appl. Energy 2016, 184, 450–463. [Google Scholar] [CrossRef]
  13. Shi, K.; Chen, Y.; Yu, B.; Xu, T.; Chen, Z.; Liu, R.; Li, L.; Wu, J. Modeling spatiotemporal CO2 (carbon dioxide) emission dynamics in china from DMSP-OLS nighttime stable light data using panel data analysis. Appl. Energy 2016, 168, 523–533. [Google Scholar] [CrossRef]
  14. Jiang, W.; He, G.J.; Long, T.F.; Wang, C.; Ni, Y.; Ma, R.Q. Assessing light pollution in china based on nighttime light imagery. Remote Sens. 2017, 9, 135. [Google Scholar] [CrossRef]
  15. Li, X.; Li, D. Can night-time light images play a role in evaluating the syrian crisis? Int. J. Remote Sens. 2014, 35, 6648–6661. [Google Scholar] [CrossRef]
  16. Li, X.; Chen, F.; Chen, X. Satellite-observed nighttime light variation as evidence for global armed conflicts. IEEE J. Sel. Top. Appl. Earth Observ. Remote Sens. 2013, 6, 2302–2315. [Google Scholar] [CrossRef]
  17. Chen, Z.Q.; Yu, B.L.; Song, W.; Liu, H.X.; Wu, Q.S.; Shi, K.F.; Wu, J.P. A new approach for detecting urban centers and their spatial structure with nighttime light remote sensing. IEEE Geosci. Remote Sens. 2017, 55, 6305–6319. [Google Scholar] [CrossRef]
  18. Hanel, A.; Posch, T.; Ribas, S.J.; Aube, M.; Duriscoe, D.; Jechow, A.; Kollath, Z.; Lolkema, D.E.; Moore, C.; Schmidt, N.; et al. Measuring night sky brightness: Methods and challenges. J. Quant. Spectrosc. Radiat. Transf. 2018, 205, 278–290. [Google Scholar] [CrossRef]
  19. Jechow, A.; Kollath, Z.; Ribas, S.J.; Spoelstra, H.; Holker, F.; Kyba, C.C.M. Imaging and mapping the impact of clouds on skyglow with all-sky photometry. Sci. Rep. 2017, 7, 6741. [Google Scholar] [CrossRef] [PubMed]
  20. Bennie, J.; Duffy, J.P.; Davies, T.W.; Correa-Cano, M.E.; Gaston, K.J. Global trends in exposure to light pollution in natural terrestrial ecosystems. Remote Sens. 2015, 7, 2715–2730. [Google Scholar] [CrossRef] [Green Version]
  21. Bennie, J.; Davies, T.W.; Duffy, J.P.; Inger, R.; Gaston, K.J. Contrasting trends in light pollution across europe based on satellite observed nighttime lights. Sci. Rep. 2014, 4, 3789. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Wu, J.; Ma, L.; Li, W.; Peng, J.; Liu, H. Dynamics of urban density in china: Estimations based on DMSP/OLS nighttime light data. IEEE J. Sel. Top. Appl. Earth Observ. Remote Sens. 2014, 7, 4266–4275. [Google Scholar] [CrossRef]
  23. Huang, Q.; He, C.; Gao, B.; Yang, Y.; Liu, Z.; Zhao, Y.; Dou, Y. Detecting the 20 year city-size dynamics in China with a rank clock approach and DMSP/OLS nighttime data. Landsc. Urban Plan. 2015, 137, 138–148. [Google Scholar] [CrossRef]
  24. Li, X.; Xu, H.M.; Chen, X.L.; Li, C. Potential of NPP-VIIRS nighttime light imagery for modeling the regional economy of China. Remote Sens. 2013, 5, 3057–3081. [Google Scholar] [CrossRef]
  25. Shi, K.F.; Yu, B.L.; Huang, Y.X.; Hu, Y.J.; Yin, B.; Chen, Z.Q.; Chen, L.J.; Wu, J.P. Evaluating the ability of NPP-VIIRS nighttime light data to estimate the gross domestic product and the electric power consumption of china at multiple scales: A comparison with DMSP-OLS data. Remote Sens. 2014, 6, 1705–1724. [Google Scholar] [CrossRef]
  26. Elvidge, C.D.; Baugh, K.; Zhizhin, M.; Hsu, F.C.; Ghosh, T. Viirs nighttime lights. Int. J. Remote Sens. 2017, 38, 5860–5879. [Google Scholar] [CrossRef]
  27. He, C.Y.; Shi, P.J.; Li, J.G.; Chen, J.; Pan, Y.Z.; Li, J.; Zhuo, L.; Toshiaki, I. Restoring urbanization process in China in the 1990s by using non-radiance calibrated DMSP/OLS nighttime light imagery and statistical data. Chin. Sci. Bull. 2006, 51, 1614–1620. [Google Scholar] [CrossRef]
  28. Zhou, Y.; Smith, S.J.; Zhao, K.; Imhoff, M.; Thomson, A.; Bond-Lamberty, B.; Asrar, G.R.; Zhang, X.; He, C.; Elvidge, C.D. A global map of urban extent from nightlights. Environ. Res. Lett. 2015, 10, 0554011. [Google Scholar] [CrossRef]
  29. Yu, B.; Shi, K.; Hu, Y.; Huang, C.; Chen, Z.; Wu, J. Poverty evaluation using NPP-VIIRS nighttime light composite data at the county level in China. IEEE J. Sel. Top. Appl. Earth Observ. Remote Sens. 2015, 8, 1217–1229. [Google Scholar] [CrossRef]
  30. Li, X.; Zhang, R.; Huang, C.Q.; Li, D.R. Detecting 2014 northern iraq insurgency using nighttime light imagery. Int. J. Remote Sens. 2015, 36, 3446–3458. [Google Scholar] [CrossRef]
  31. Witmer, F.D.W. Remote sensing of violent conflict: Eyes from above. Int. J. Remote Sens. 2015, 36, 2326–2352. [Google Scholar] [CrossRef]
  32. Jiang, W.; He, G.J.; Long, T.F.; Liu, H.C. Ongoing conflict makes yemen dark: From the perspective of nighttime light. Remote Sens. 2017, 9, 798. [Google Scholar] [CrossRef]
  33. Butt, M.J. Estimation of light pollution using satellite remote sensing and geographic information system techniques. GISci. Remote Sens. 2012, 49, 609–621. [Google Scholar] [CrossRef]
  34. Kyba, C.; Kuester, T.; Sanchez de Miguel, A.; Baugh, K.; Jechow, A.; Holker, F.; Bennie, J.; Elvidge, C.; Gaston, K.; Guanter, L.; et al. Artificially lit surface of earth at night increasing in radiance and extent. Sci. Adv. 2017, 3, e1701528. [Google Scholar] [CrossRef] [PubMed]
  35. The Luojia-La Scientific Experimental Satellite Was Successfully Launched. Available online: http://www.lmars.whu.edu.cn/index.php/en/researchnews/2169.html (accessed on 2 August 2018).
  36. High-Resolution Earth Observation System Hubei Data and Application Network. Available online: http://www.hbeos.org.cn/ (accessed on 1 August 2018).
  37. Long, T.F.; Jiao, W.L.; He, G.J.; Zhang, Z.M. A fast and reliable matching method for automated georeferencing of remotely-sensed imagery. Remote Sens. 2016, 8, 56. [Google Scholar] [CrossRef]
  38. Long, T.F.; Jiao, W.L.; He, G.J. RPC estimation via L1-norm-regularized least squares (L1LS). IEEE Geosci. Remote Sens. 2015, 53, 4554–4567. [Google Scholar] [CrossRef]
  39. Levin, N.; Johansen, K.; Hacker, J.M.; Phinn, S. A new source for high spatial resolution nighttime images-the EROS-B commercial satellite. Remote Sens. Environ. 2014, 149, 1–12. [Google Scholar] [CrossRef]
  40. Rybnikova, N.; Haim, A.; Portnov, B.A. Artificial light at night (ALAN) and breast cancer incidence worldwide: A revisit of earlier findings with analysis of current trends. Chronobiol. Int. 2015, 32, 757–773. [Google Scholar] [CrossRef] [PubMed]
  41. Cho, K.; Ito, R.; Shimoda, H.; Sakata, T. Fishing fleet lights and sea surface temperature distribution observed by DMSP-OLS sensor. Int. J. Remote Sens. 1999, 20, 3–9. [Google Scholar] [CrossRef]
  42. Straka III, W.C.; Seaman, C.J.; Baugh, K.; Cole, K.; Stevens, E.; Miller, S.D. Utilization of the suomi national polar-orbiting partnership (NPP) visible infrared imaging radiometer suite (VIIRS) day/night band for arctic ship tracking and fisheries management. Remote Sens. 2015, 7, 971–989. [Google Scholar] [CrossRef]
  43. Davies, T.W.; Duffy, J.P.; Bennie, J.; Gaston, K.J. Stemming the tide of light pollution encroaching into marine protected areas. Conserv. Lett. 2016, 9, 164–171. [Google Scholar] [CrossRef] [Green Version]
  44. Katz, Y.; Levin, N. Quantifying urban light pollution—A comparison between field measurements and EROS-B imagery. Remote Sens. Environ. 2016, 177, 65–77. [Google Scholar] [CrossRef]
  45. Gallaway, T.; Olsen, R.N.; Mitchell, D.M. The economics of global light pollution. Ecol. Econ. 2010, 69, 658–665. [Google Scholar] [CrossRef]
  46. Chen, J.; Yang, S.T.; Li, H.W.; Zhang, B.; Lv, J.R. Research on geographical environment unit division based on the method of natural breaks (Jenks). In Proceedings of the ISPRS/IGU/ICA Joint Workshop on Borderlands Modelling and Understanding for Global Sustainability 2013, Beijing, China, 5–6 December 2013; pp. 47–50. [Google Scholar]
  47. Li, X.; Elvidge, C.; Zhou, Y.Y.; Cao, C.Y.; Warner, T. Remote sensing of night-time light. Int. J. Remote Sens. 2017, 38, 5855–5859. [Google Scholar] [CrossRef]
  48. Zheng, Q.; Weng, Q.; Huang, L.; Wang, K.; Deng, J.; Jiang, R.; Ye, Z.; Gan, M. A new source of multi-spectral high spatial resolution night-time light imagery—JL1-3B. Remote Sens. Environ. 2018, 215, 300–312. [Google Scholar] [CrossRef]
  49. Kyba, C.C.M.; Garz, S.; Kuechly, H.; de Miguel, A.S.; Zamorano, J.; Fischer, J.; Hoelker, F. High-resolution imagery of earth at night: New sources, opportunities and challenges. Remote Sens. 2015, 7, 1–23. [Google Scholar] [CrossRef] [Green Version]
  50. Bois, C.; Bodrogi, P.; Khanh, T.Q.; Winkler, H. Measuring, simulating and optimizing current led phosphor systems to enhance the visual quality of lighting. J. Solid State Light. 2014, 1, 5. [Google Scholar] [CrossRef]
  51. Jechow, A.; Ribas, S.J.; Domingo, R.C.; Holker, F.; Kollath, Z.; Kyba, C.C.M. Tracking the dynamics of skyglow with differential photometry using a digital camera with fisheye lens. J. Quant. Spectrosc. Radiat. Transf. 2018, 209, 212–223. [Google Scholar] [CrossRef]
  52. Elvidge, C.D.; Ziskin, D.; Baugh, K.E.; Tuttle, B.T.; Ghosh, T.; Pack, D.W.; Erwin, E.H.; Zhizhin, M. A fifteen year record of global natural gas flaring derived from satellite data. Energies 2009, 2, 595–622. [Google Scholar] [CrossRef]
Sensors 18 02900 g001 550

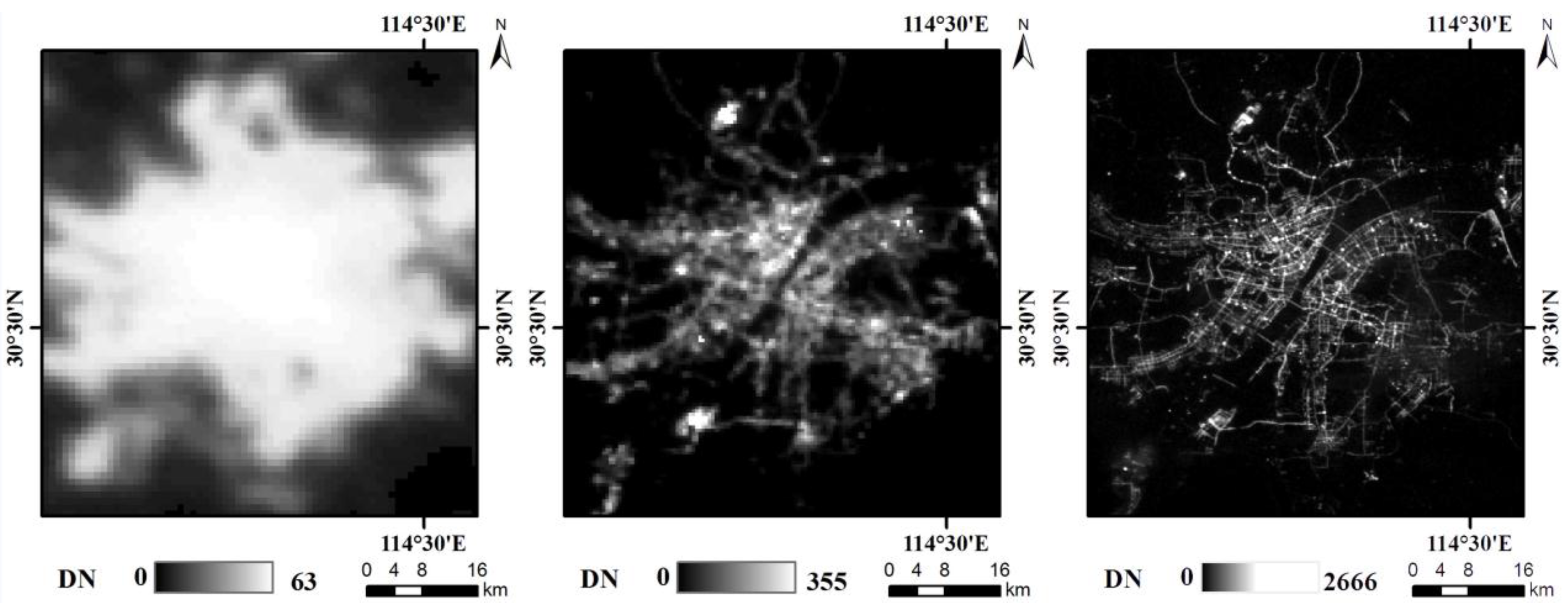

Figure 1. Nighttime imagery from DMSP-OLS, NPP-VIIRS and Luojia 1-01 in Wuhan, China: (a) is DMSP-OLS in 2013, (b) is NPP-VIIRS in May 2018; (c) is Luojia 1-01 on 13 June 2018.
Figure 1. Nighttime imagery from DMSP-OLS, NPP-VIIRS and Luojia 1-01 in Wuhan, China: (a) is DMSP-OLS in 2013, (b) is NPP-VIIRS in May 2018; (c) is Luojia 1-01 on 13 June 2018.
Sensors 18 02900 g001
Sensors 18 02900 g002 550

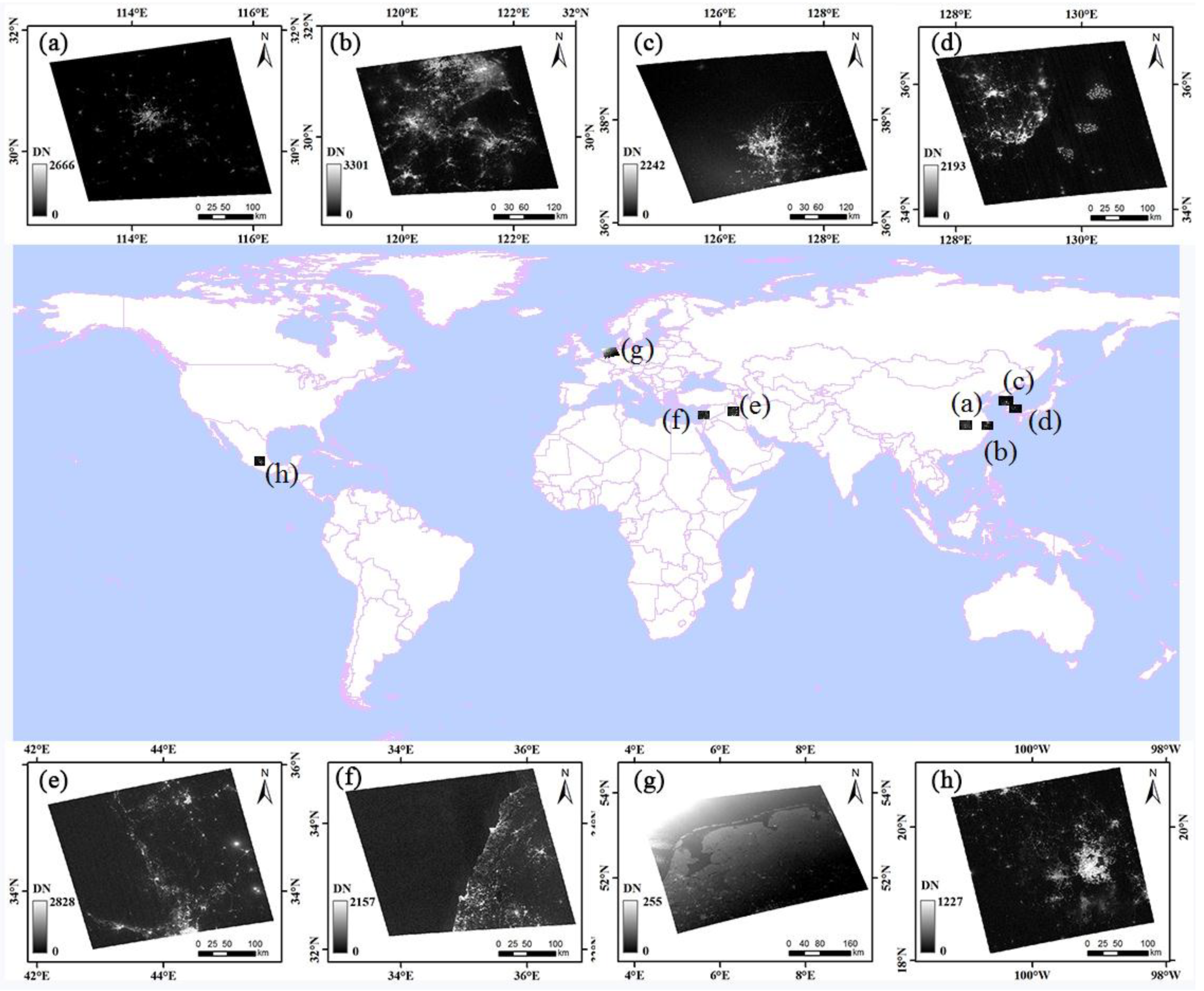

Figure 2. The distribution of the experiment images: (a) image of Wuhan in China; (b) image of Hangzhou and Shanghai in China; (c) image of Seoul in South Korea; (d) image of Busan in South Korea; (e) image of Baghdad in Iraq; (f) image of Haifa in Israel; (g) image of Amsterdam in the Netherlands; (h) image of Mexico City in Mexico.
Figure 2. The distribution of the experiment images: (a) image of Wuhan in China; (b) image of Hangzhou and Shanghai in China; (c) image of Seoul in South Korea; (d) image of Busan in South Korea; (e) image of Baghdad in Iraq; (f) image of Haifa in Israel; (g) image of Amsterdam in the Netherlands; (h) image of Mexico City in Mexico.
Sensors 18 02900 g002
Sensors 18 02900 g003 550
Figure 3. The geolocating performance of LuoJia1-01 nighttime light imagery: (a) refers to the performance before ortho-rectification; (b) refers to the performance after geometric correction.
Figure 3. The geolocating performance of LuoJia1-01 nighttime light imagery: (a) refers to the performance before ortho-rectification; (b) refers to the performance after geometric correction.
Sensors 18 02900 g003
Sensors 18 02900 g004 550

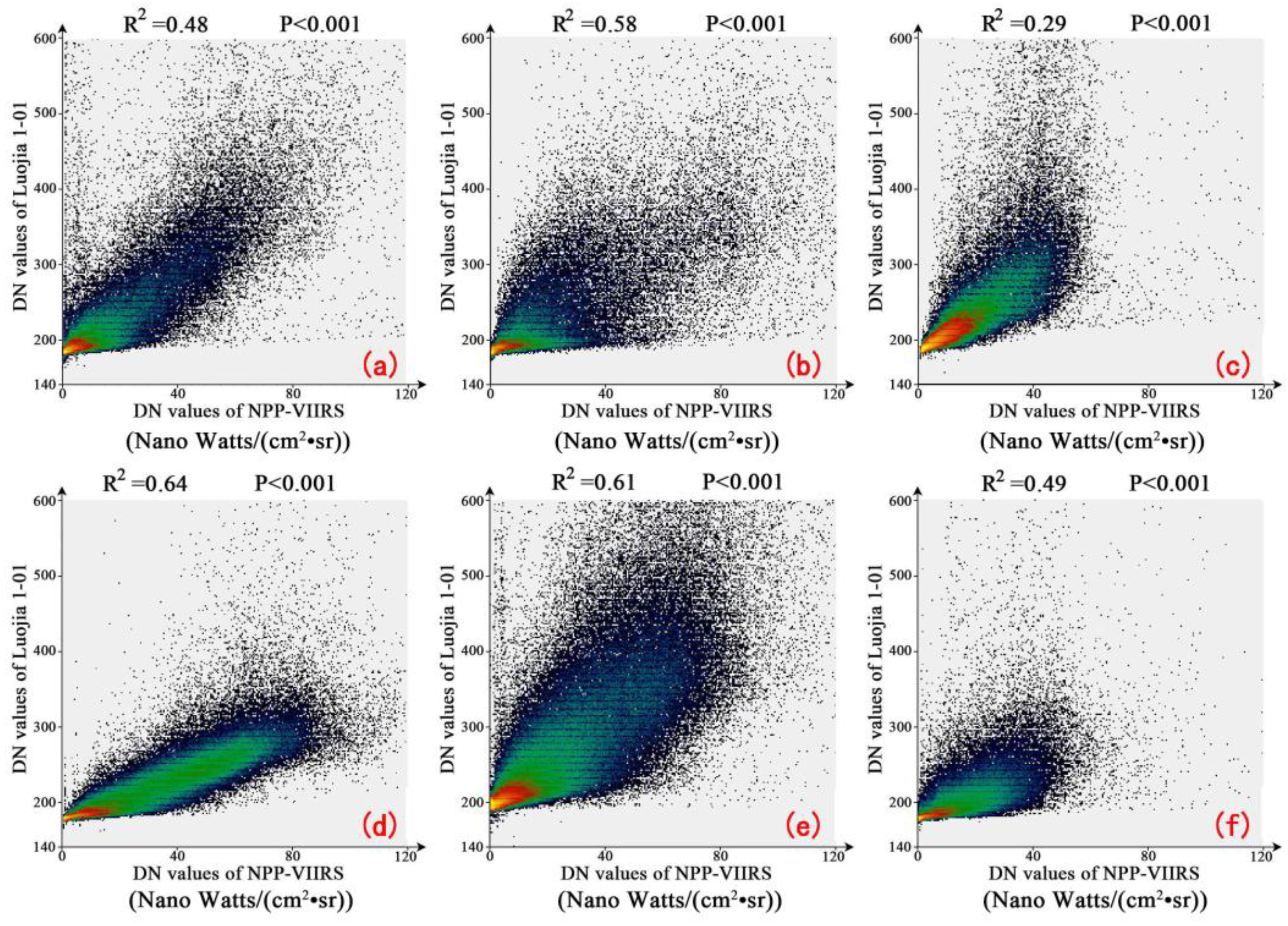

Figure 4. The scatter plot between Luojia 1-01 and Suomi National Polar-Orbiting Partnership Visible Infrared Imaging Radiometer Suite (NPP-VIIRS) for six cities: (a) refers to Busan; (b) refers to Haifa; (c) refers to Hangzhou; (d) refers to Mexico City; (e) refers to Seoul; (f) refers to Wuhan.
Figure 4. The scatter plot between Luojia 1-01 and Suomi National Polar-Orbiting Partnership Visible Infrared Imaging Radiometer Suite (NPP-VIIRS) for six cities: (a) refers to Busan; (b) refers to Haifa; (c) refers to Hangzhou; (d) refers to Mexico City; (e) refers to Seoul; (f) refers to Wuhan.
Sensors 18 02900 g004
Sensors 18 02900 g005 550

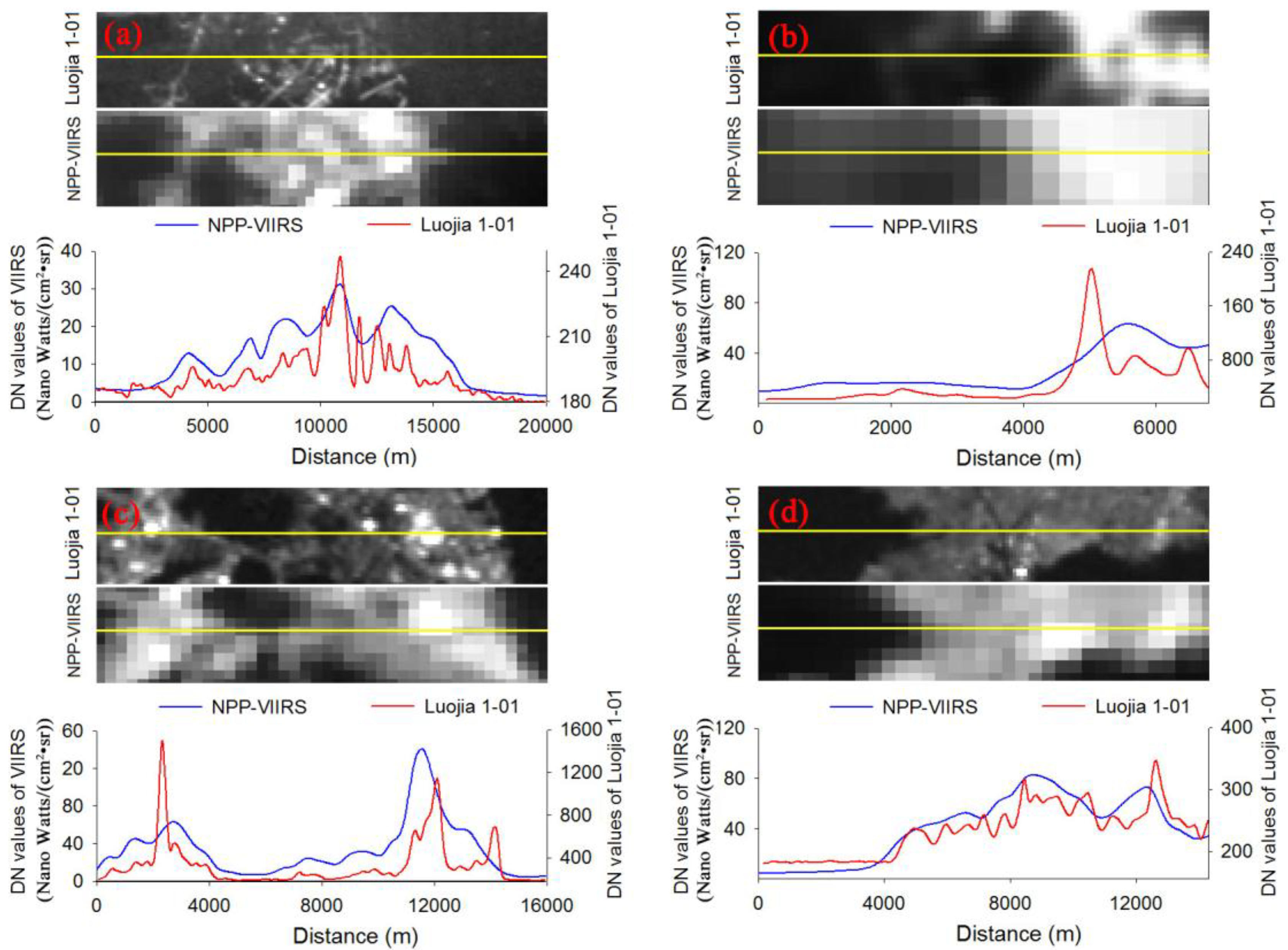

Figure 5. Latitudinal transects of the nighttime light DN between LuoJia1-01 and Suomi National Polar-Orbiting Partnership Visible Infrared Imaging Radiometer Suite (NPP-VIIRS): (a) refers to Wuhan; (b) refers to Hangzhou; (c) refers to Seoul; (d) refers to Mexico City.
Figure 5. Latitudinal transects of the nighttime light DN between LuoJia1-01 and Suomi National Polar-Orbiting Partnership Visible Infrared Imaging Radiometer Suite (NPP-VIIRS): (a) refers to Wuhan; (b) refers to Hangzhou; (c) refers to Seoul; (d) refers to Mexico City.
Sensors 18 02900 g005
Sensors 18 02900 g006 550

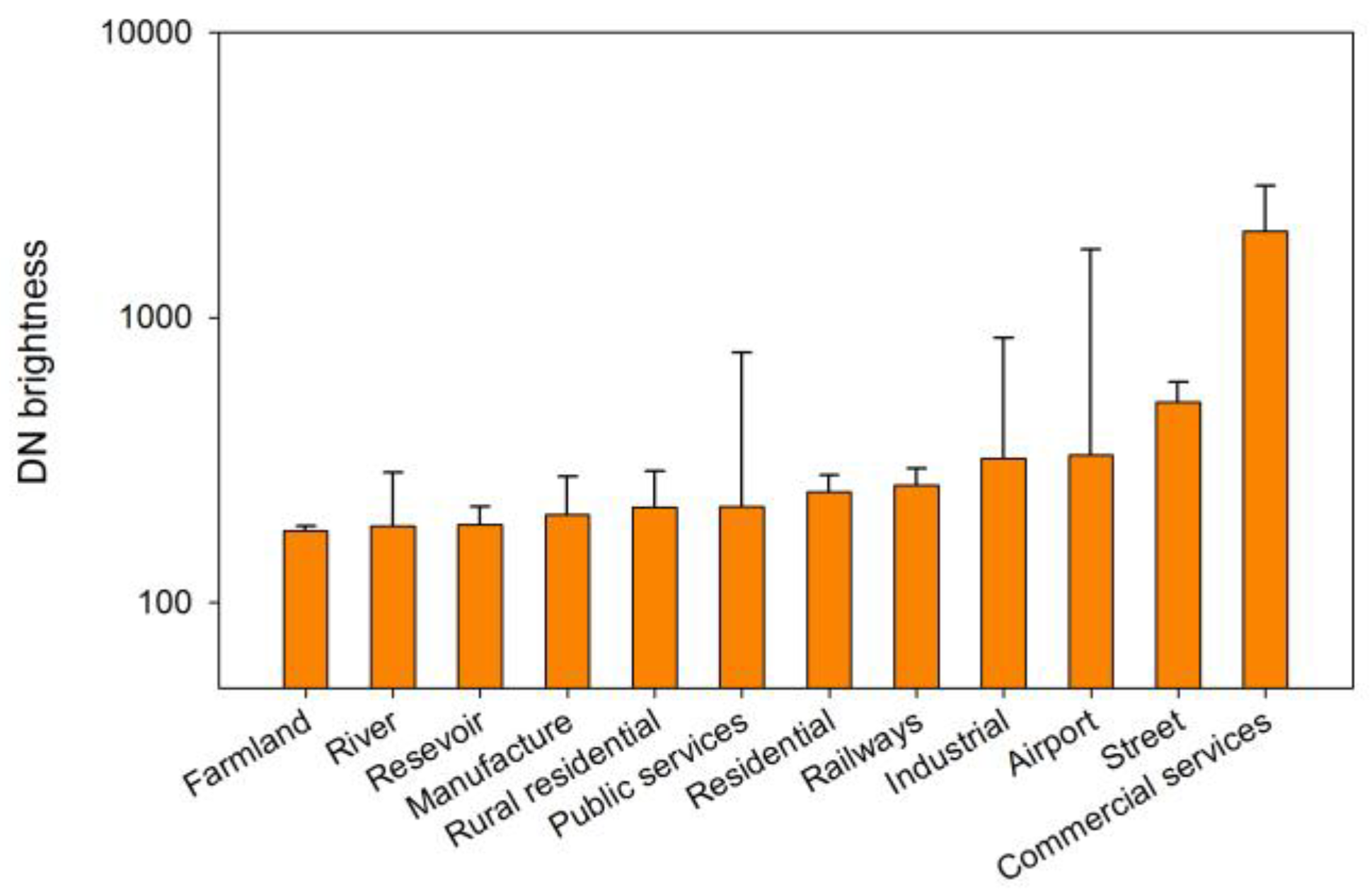

Figure 6. Digital number (DN) brightness for each land use type.
Figure 6. Digital number (DN) brightness for each land use type.
Sensors 18 02900 g006
Sensors 18 02900 g007 550

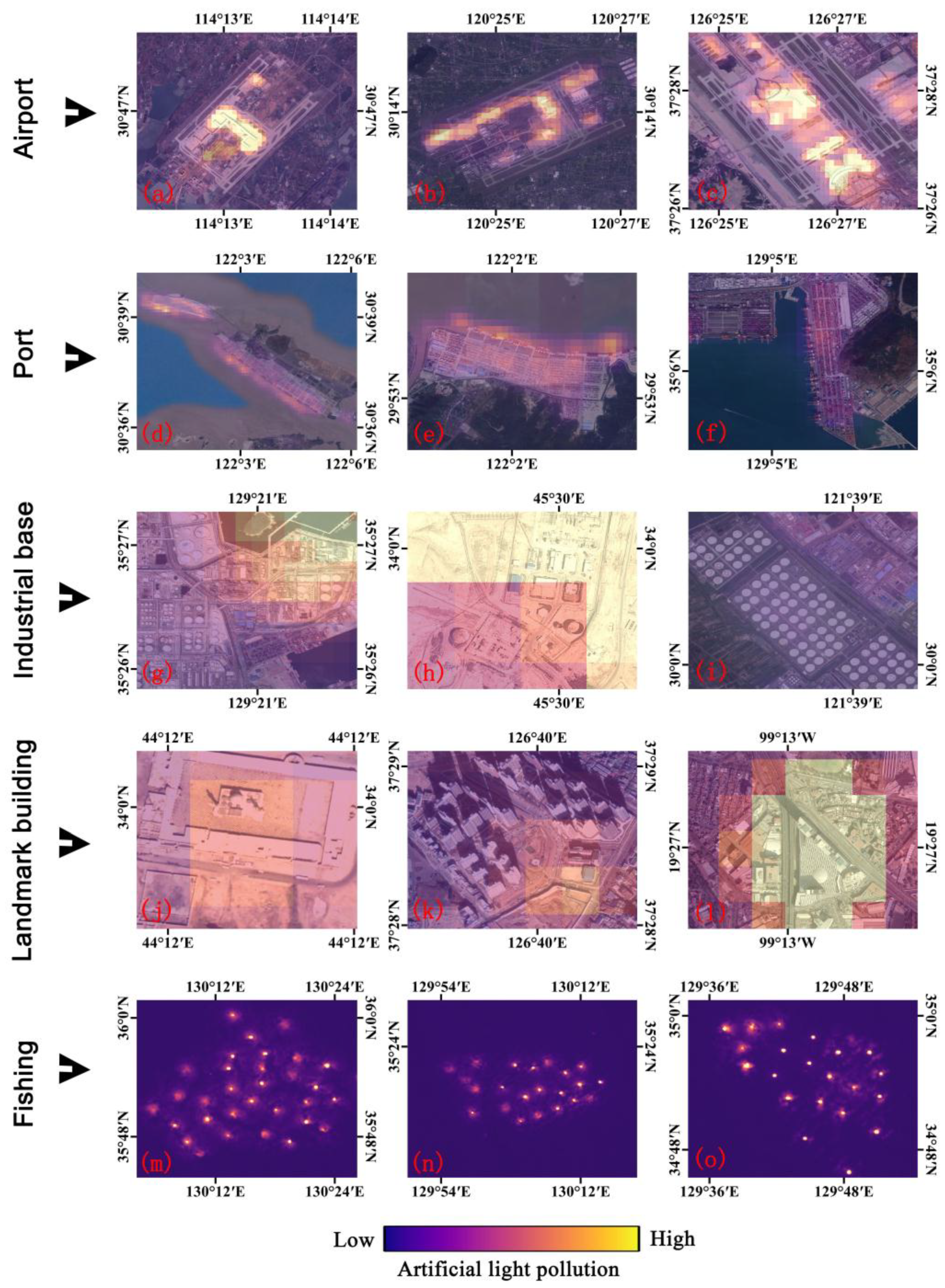

Figure 7. Validation of the high artificial light pollution with high-resolution images: (a–c) represent high artificial light pollution in airports; (d–f) represent high artificial light pollution in ports; (g–i) represent high artificial light pollution in industrial bases; (j–l) represent high artificial light pollution in landmark buildings; (m–o) represent high artificial light pollution regarding fishing. (a–l) are the LuoJia1-01 nighttime light images overlaid on Google Earth high-resolution images with 50% transparency. (m–o) are LuoJia1-01 nighttime light images.
Figure 7. Validation of the high artificial light pollution with high-resolution images: (a–c) represent high artificial light pollution in airports; (d–f) represent high artificial light pollution in ports; (g–i) represent high artificial light pollution in industrial bases; (j–l) represent high artificial light pollution in landmark buildings; (m–o) represent high artificial light pollution regarding fishing. (a–l) are the LuoJia1-01 nighttime light images overlaid on Google Earth high-resolution images with 50% transparency. (m–o) are LuoJia1-01 nighttime light images.
Sensors 18 02900 g007
Sensors 18 02900 g008 550
Figure 8. The artificial nighttime light along roads: (a) refers to the Xinshi road in Wuhan; (b) refers to the Shengxin road in Ningbo. (a) and (b) are the LuoJia1-01 nighttime light images overlaid on Google Earth high-resolution images with 50% transparency.
Figure 8. The artificial nighttime light along roads: (a) refers to the Xinshi road in Wuhan; (b) refers to the Shengxin road in Ningbo. (a) and (b) are the LuoJia1-01 nighttime light images overlaid on Google Earth high-resolution images with 50% transparency.
Sensors 18 02900 g008
Sensors 18 02900 g009 550

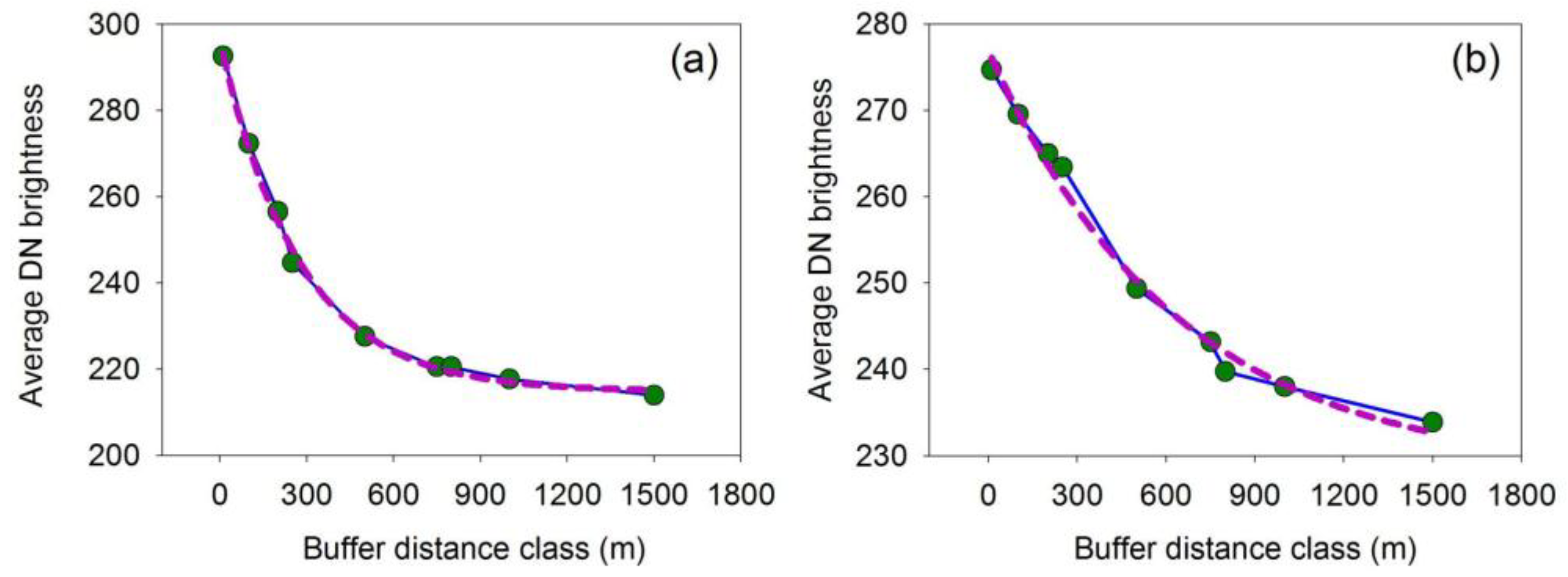

Figure 9. Average luminary brightness within multiple buffers: (a) refers to Xinshi road in Wuhan; (b) refers to Shengxin road in Ningbo.
Figure 9. Average luminary brightness within multiple buffers: (a) refers to Xinshi road in Wuhan; (b) refers to Shengxin road in Ningbo.
Sensors 18 02900 g009
Sensors 18 02900 g010 550

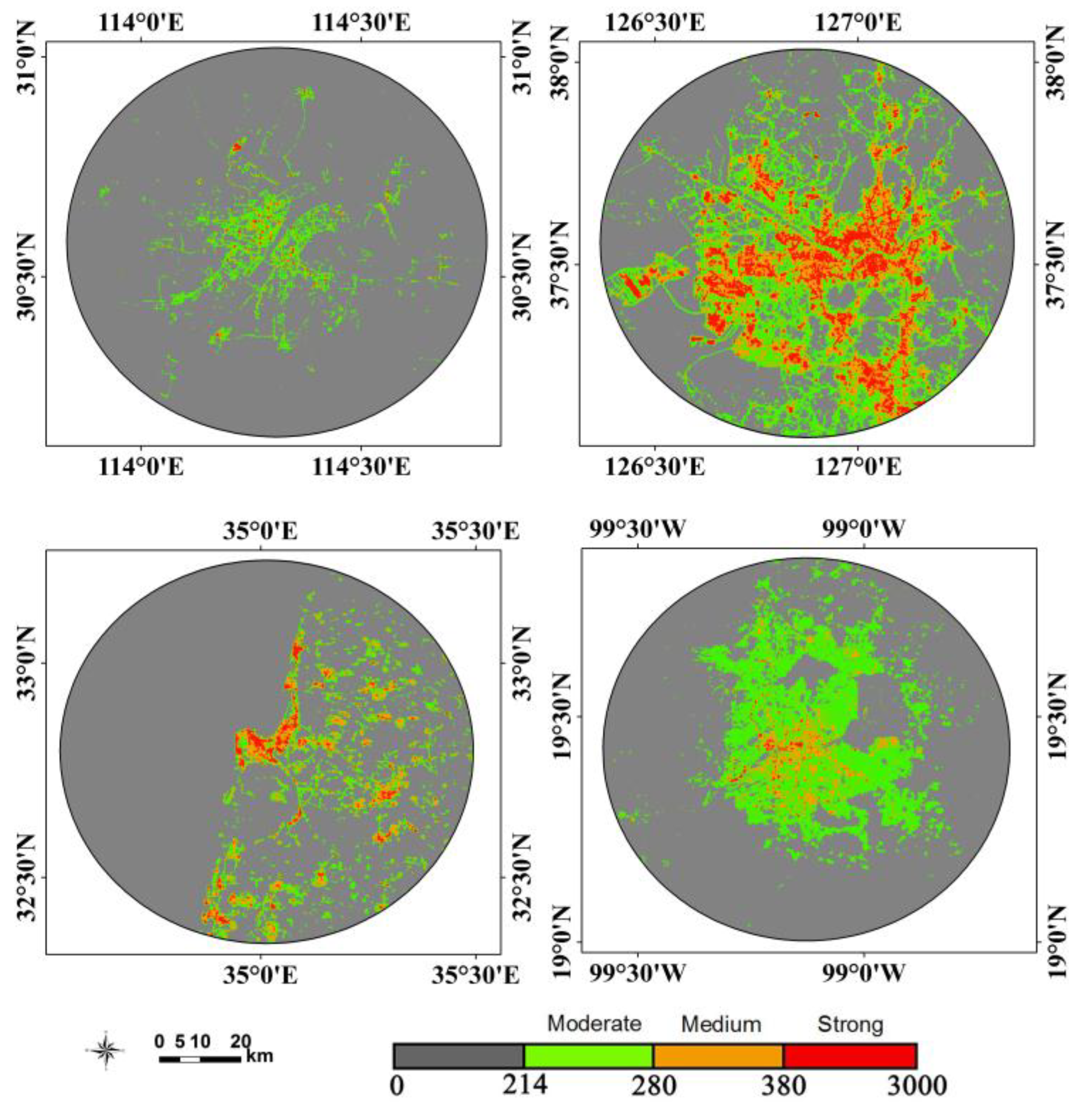

Figure 10. Urban light pollution patterns: (a) refers to Wuhan; (b) refers to Seoul; (c) refers to Haifa; (d) refers to Mexico City.
Figure 10. Urban light pollution patterns: (a) refers to Wuhan; (b) refers to Seoul; (c) refers to Haifa; (d) refers to Mexico City.
Sensors 18 02900 g010
Sensors 18 02900 g011 550

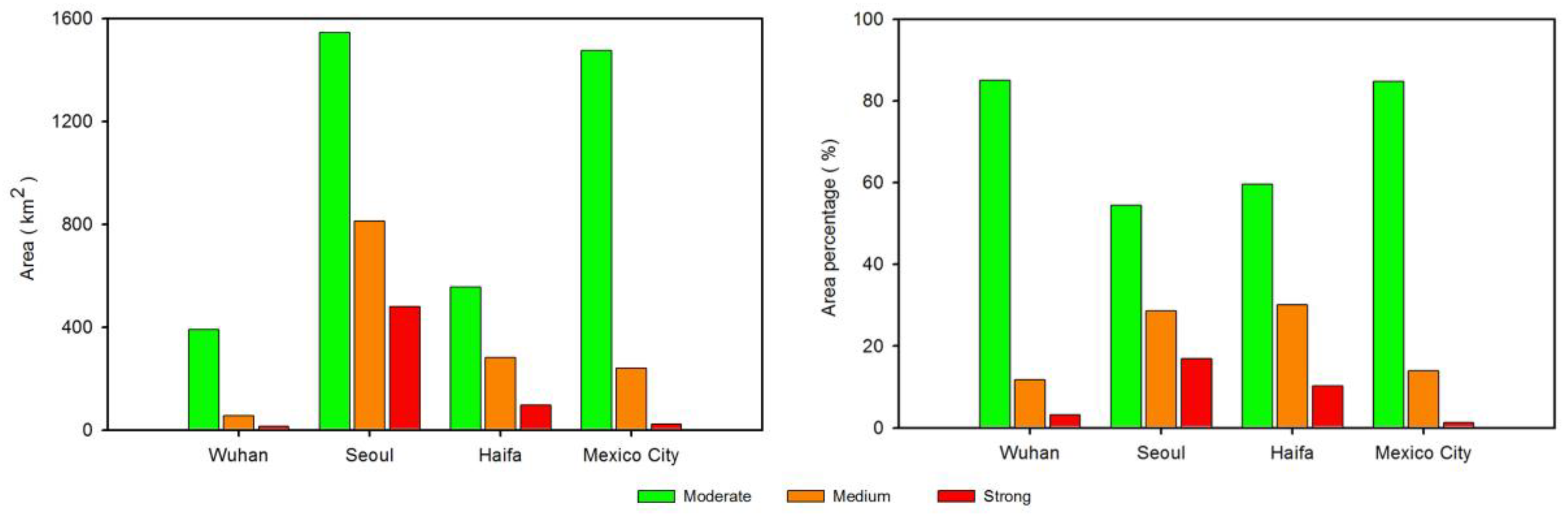

Figure 11. The areas and area percentages of different light pollution levels.
Figure 11. The areas and area percentages of different light pollution levels.
Sensors 18 02900 g011
Sensors 18 02900 g012 550

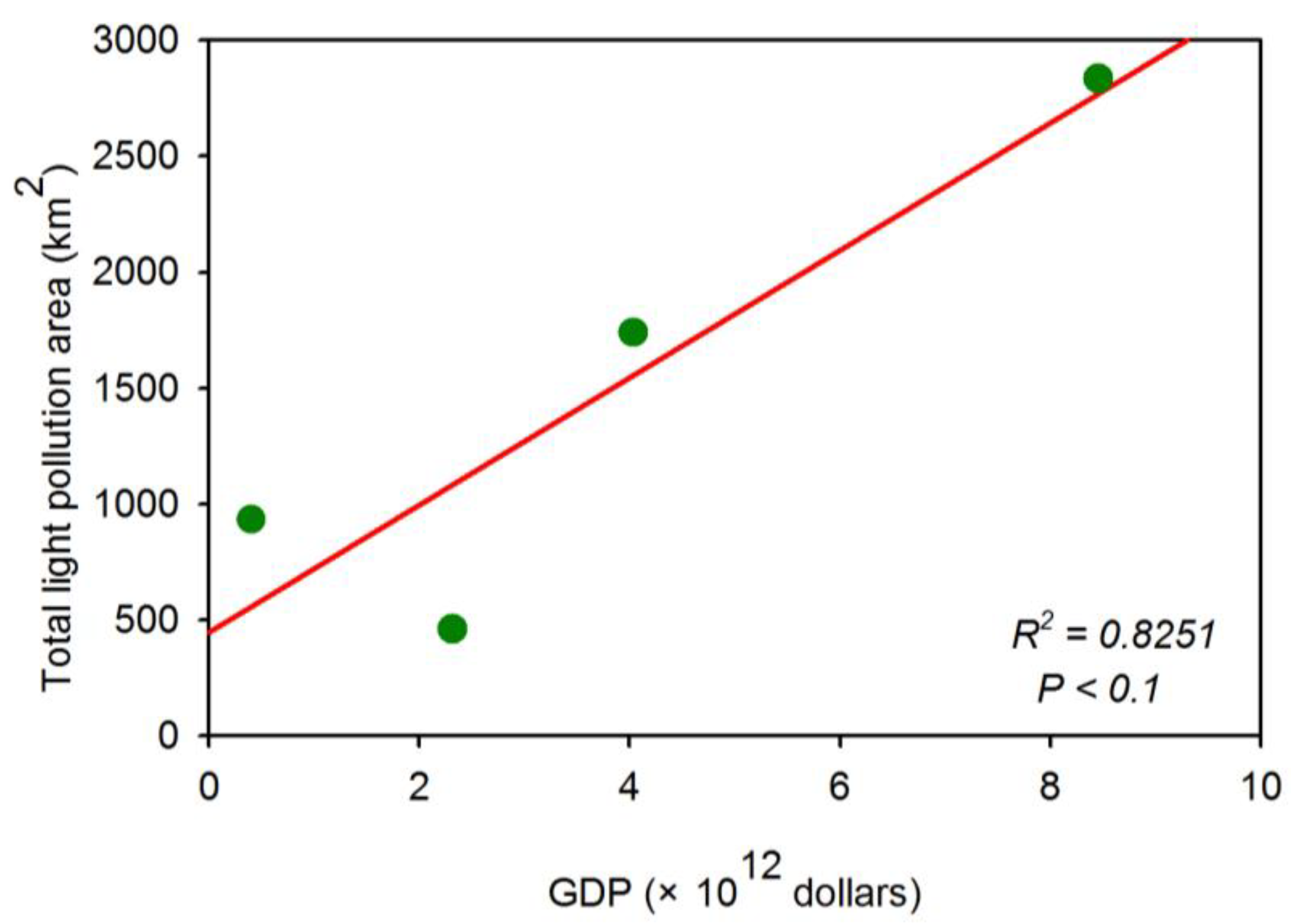

Figure 12. The correlation between the total light pollution area (refers to three light pollution level areas) and gross domestic product (GDP).
Figure 12. The correlation between the total light pollution area (refers to three light pollution level areas) and gross domestic product (GDP).
Sensors 18 02900 g012
Sensors 18 02900 g013 550

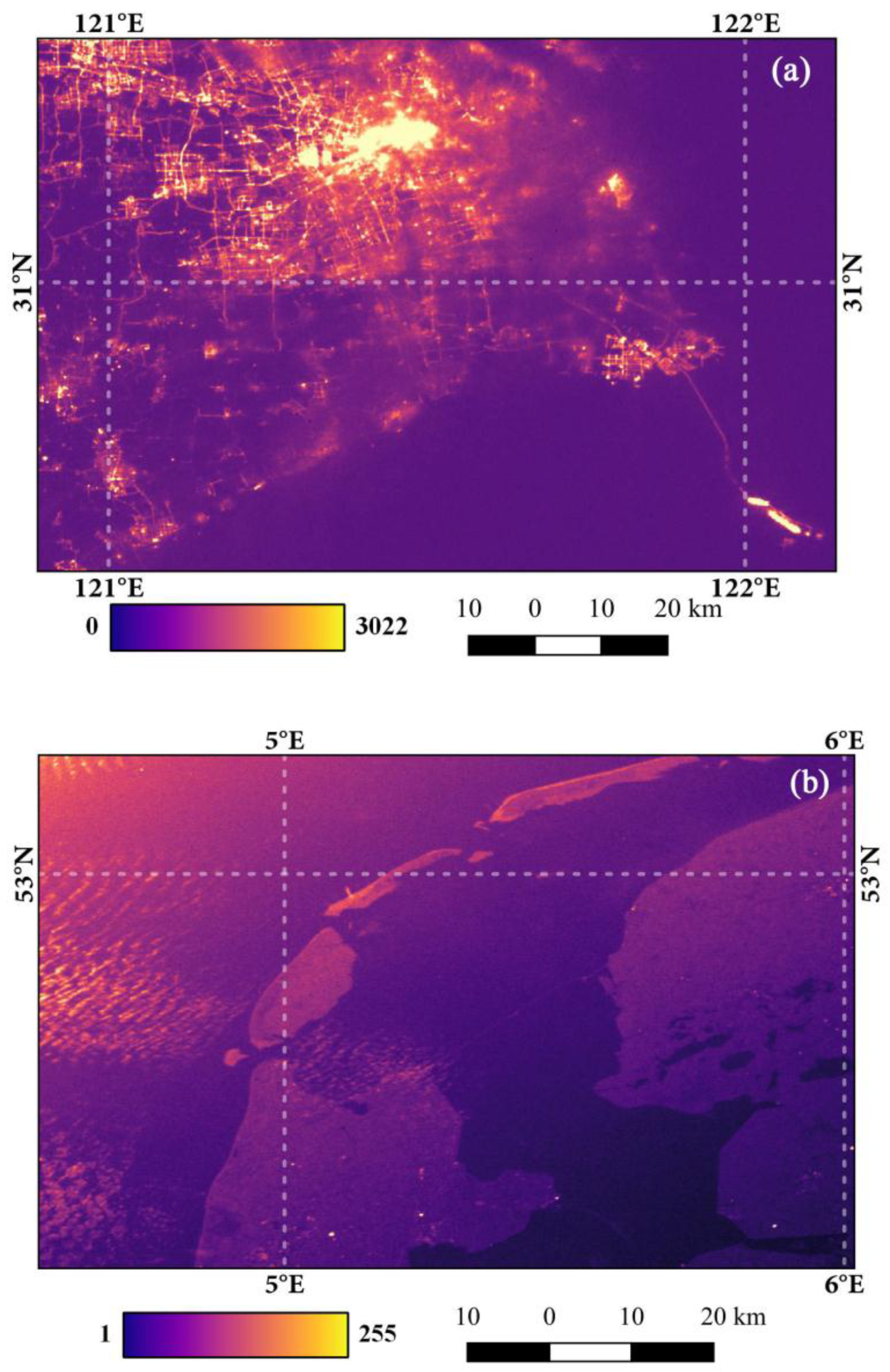

Figure 13. The quality of Luojia 1-01 nighttime light imagery with clouds and a full moon: (a) refers to the nighttime light imagery with clouds in Shanghai, China; (b) refers to the nighttime light imagery with a full moon near Amsterdam, the Netherlands.
Figure 13. The quality of Luojia 1-01 nighttime light imagery with clouds and a full moon: (a) refers to the nighttime light imagery with clouds in Shanghai, China; (b) refers to the nighttime light imagery with a full moon near Amsterdam, the Netherlands.
Sensors 18 02900 g013
Sensors 18 02900 g014 550

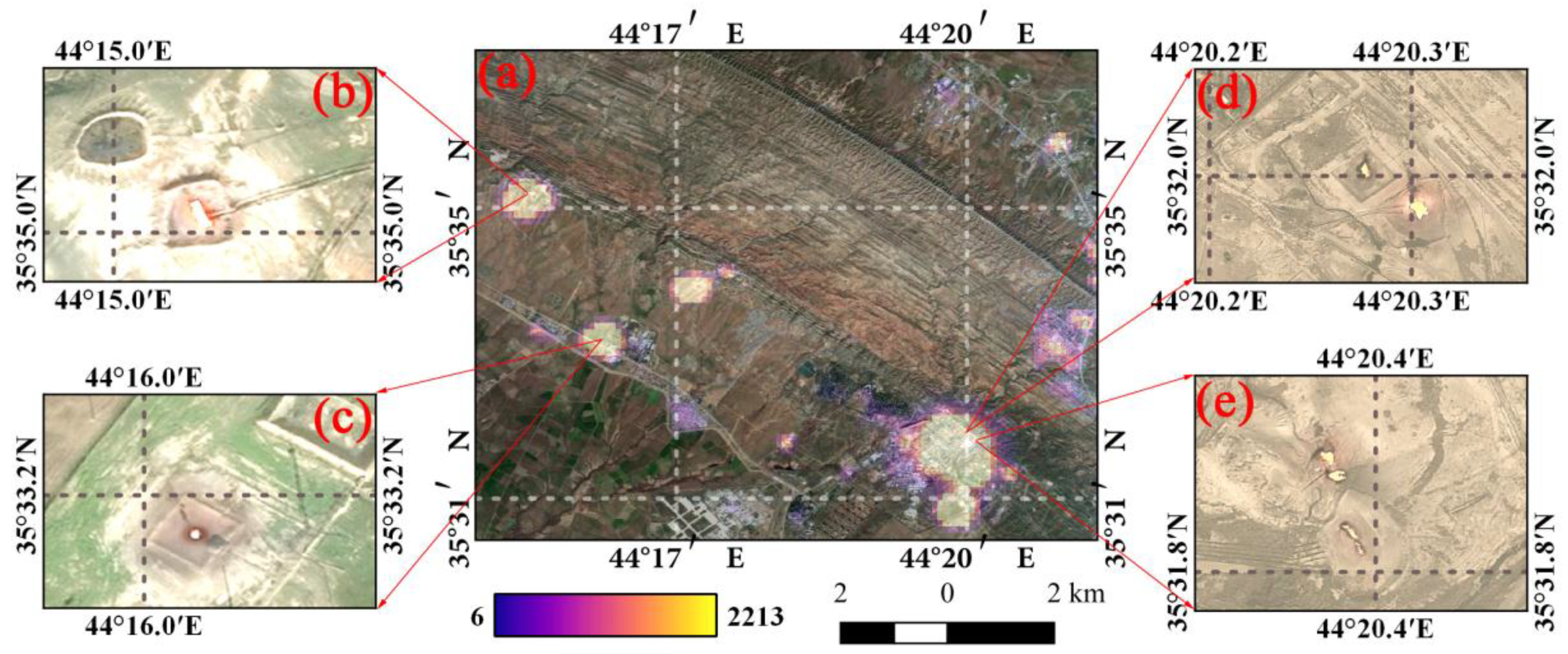

Figure 14. The gas fire captured by Luojia 1-01 nighttime light imagery in Iraq: (a) is the nighttime light image overlaid on a Google Earth high-resolution image with 50% transparency; (b–e) are the gas fires shown in Google Earth high-resolution images.
Figure 14. The gas fire captured by Luojia 1-01 nighttime light imagery in Iraq: (a) is the nighttime light image overlaid on a Google Earth high-resolution image with 50% transparency; (b–e) are the gas fires shown in Google Earth high-resolution images.
Sensors 18 02900 g014
Table
Table 1. The parameter comparisons of Defense Meteorological Satellite Program Operational Linescan System (DMSP-OLS), the Suomi National Polar-Orbiting Partnership Visible Infrared Imaging Radiometer Suite (NPP-VIIRS), and Luojia 1-01.
Table 1. The parameter comparisons of Defense Meteorological Satellite Program Operational Linescan System (DMSP-OLS), the Suomi National Polar-Orbiting Partnership Visible Infrared Imaging Radiometer Suite (NPP-VIIRS), and Luojia 1-01.
SatelliteDMSP-OLSNPP-VIIRSLuojia 1-01
OperatorU.S. Department of DefenseNASA/NOAAWuhan University
Available years1992–2013December 2011–presentJune 2017–present
Wavelength range400–1100 μm505–890 μm480–800 μm
Orbital altitude830 km830 km645 km
OrbitPolar orbit satellitePolar orbit satellitePolar orbit satellite
Spatial resolution2.7 km742 m130 m
Width3000 km3000 km260 km
Revisit time12 h12 h15 d
Pixel saturatedSaturatedNo saturatedNo saturated
On-board calibrationNoYesYes
Table
Table 2. The description of experiment data used in this study.
Table 2. The description of experiment data used in this study.
Study AreaFile NameAcquisition DateLunar CalendarCloud CoverCovered City
aLuoJia1-01_LR201806145301_20180613144138_HDR_0024_gec13 June 201830 AprilCloud freeWuhan
bLuoJia1-01_LR201806175049_20180616141538_HDR_0016_gec16 June 20183 MaySome cloudsHangzhou and Shanghai
cLuoJia1-01_LR201806193121_20180618132805_HDR_0011_gec18 June 20185 MayCloud freeSeoul
dLuoJia1-01_LR201806158490_20180614132921_HDR_0002_gec14 June 20181 MaySome cloudsBusan
eLuoJia1-01_LR201806057936_20180604191551_HDR_0019_gec4 June 201821 AprilCloud freeBaghdad
fLuoJia1-01_LR201806273072_20180622195500_0013_gec22 June 20189 MayCloud freeHaifa
gLuoJia1-01_LR201806304569_20180629211025_HDR_0058_8bit29 June 201816 MaySome cloudsAmsterdam
hLuoJia1-01_LR201806057936_20180605045718_HDR_0000_gec5 June 201822 AprilSome cloudsMexico City
Table
Table 3. The digital number (DN) range of Luojia 1-01 and Suomi National Polar-Orbiting Partnership Visible Infrared Imaging Radiometer Suite (NPP-VIIRS) in six cities.
Table 3. The digital number (DN) range of Luojia 1-01 and Suomi National Polar-Orbiting Partnership Visible Infrared Imaging Radiometer Suite (NPP-VIIRS) in six cities.
Study AreaDN Range of Luojia 1-01DN Range of NPP-VIIRS (Nano Watts/(cm2·sr))
Busan162–39520.39–243.66
Haifa172–27450.23–266.52
Hangzhou156–38870.71–207.11
Mexico City160–25800.54–150.64
Seoul141–28940–528.57
Wuhan163–19720.16–355

Share and Cite

MDPI and ACS Style

Jiang, W.; He, G.; Long, T.; Guo, H.; Yin, R.; Leng, W.; Liu, H.; Wang, G. Potentiality of Using Luojia 1-01 Nighttime Light Imagery to Investigate Artificial Light Pollution. Sensors 2018, 18, 2900. https://doi.org/10.3390/s18092900

AMA Style

Jiang W, He G, Long T, Guo H, Yin R, Leng W, Liu H, Wang G. Potentiality of Using Luojia 1-01 Nighttime Light Imagery to Investigate Artificial Light Pollution. Sensors. 2018; 18(9):2900. https://doi.org/10.3390/s18092900

Chicago/Turabian Style

Jiang, Wei, Guojin He, Tengfei Long, Hongxiang Guo, Ranyu Yin, Wanchun Leng, Huichan Liu, and Guizhou Wang. 2018. "Potentiality of Using Luojia 1-01 Nighttime Light Imagery to Investigate Artificial Light Pollution" Sensors 18, no. 9: 2900. https://doi.org/10.3390/s18092900

APA Style

Jiang, W., He, G., Long, T., Guo, H., Yin, R., Leng, W., Liu, H., & Wang, G. (2018). Potentiality of Using Luojia 1-01 Nighttime Light Imagery to Investigate Artificial Light Pollution. Sensors, 18(9), 2900. https://doi.org/10.3390/s18092900

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
