Sensors 2018, 18(8), 2610; https://doi.org/10.3390/s18082610

Design, Fabrication and Testing of a High-Sensitive Fibre Sensor for Tip Clearance Measurements

1
Communications Engineering Department, University of the Basque Country (UPV/EHU), Ingeniero Torres Quevedo Plaza 1, E-48013 Bilbao, Spain
2
Aeronautical Technologies Centre, Bizkaia Technological Park, E-48170 Zamudio, Spain
3
Applied Mathematics Department, University of the Basque Country (UPV/EHU), Ingeniero Torres Quevedo Plaza 1, E-48013 Bilbao, Spain
*
Author to whom correspondence should be addressed.
Received: 4 July 2018 / Revised: 2 August 2018 / Accepted: 2 August 2018 / Published: 9 August 2018
(This article belongs to the Section Physical Sensors)
Full-Text   |   PDF [2022 KB, uploaded 13 August 2018]   |

Abstract

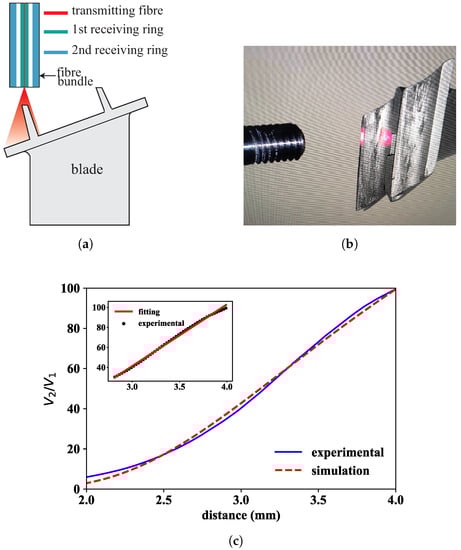

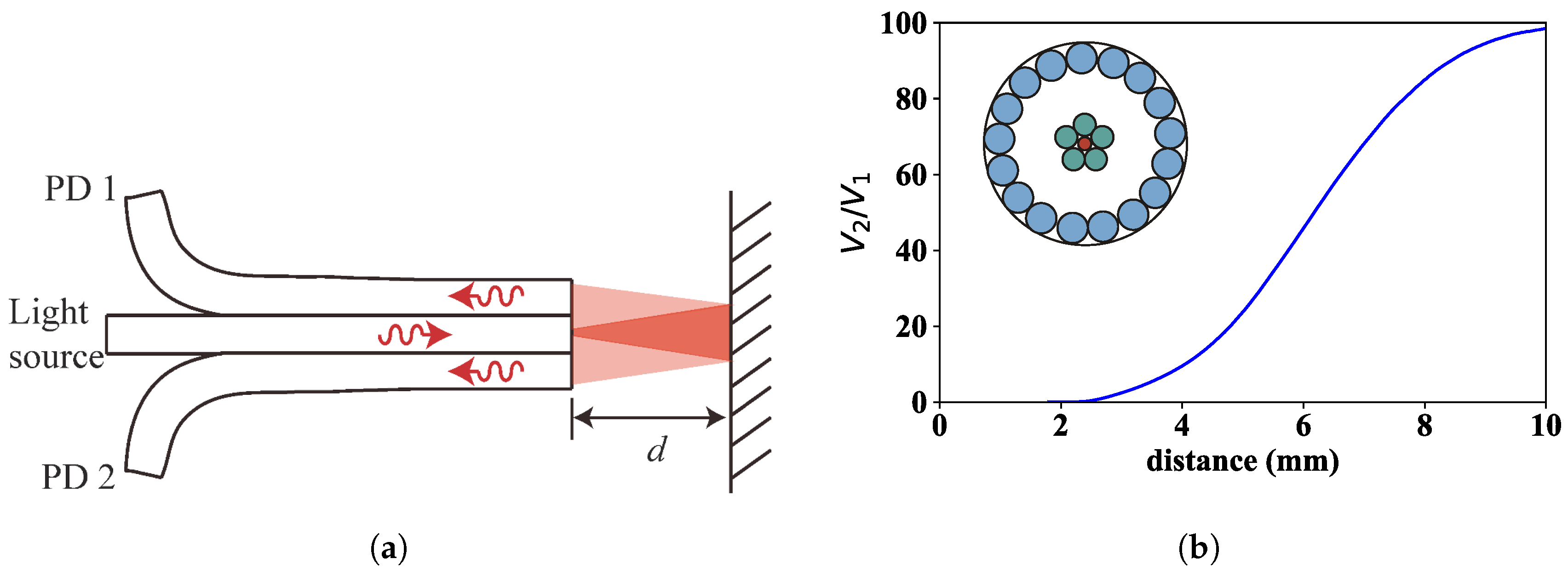

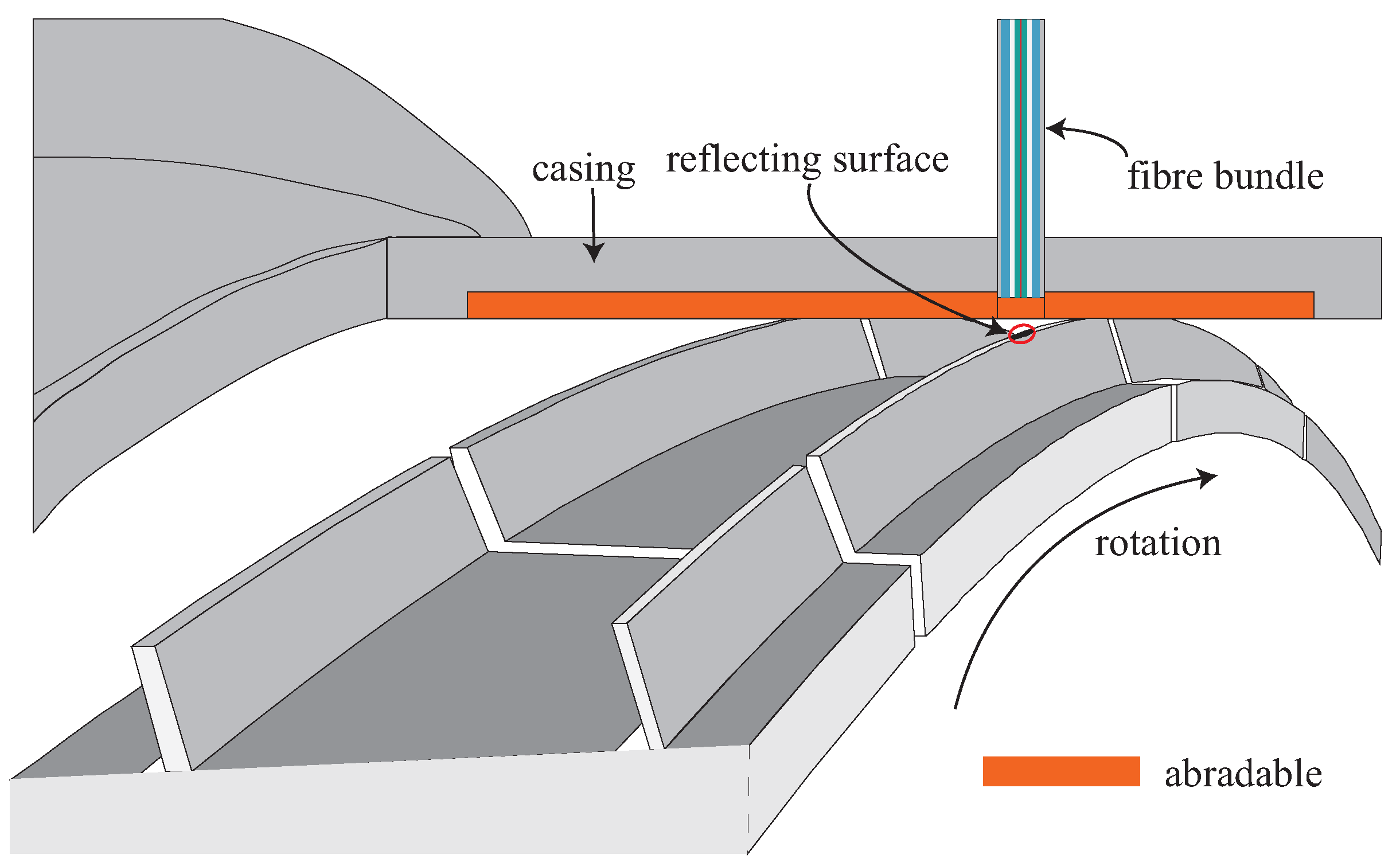

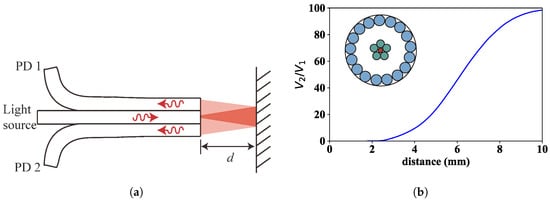

A highly sensitive fibre bundle-based reflective optical sensor has been designed and fabricated for Tip Clearance measurements in a turbine rig. The sensor offers high spatial and temporal resolution. The sensor probe consists of a single-mode transmitting fibre and two concentric rings of receiving multimode fibres that collect reflected light in a differential detection gain configuration, yielding a highly linear calibration curve for distance measurements. The clearance measurement range is approximately 2 mm around the central point fixed at 3.2 mm from the probe tip, and the sensitivity of the probe is 61.73 mm−1. The fibre bundle has been designed to ensure that the distance security specifications required for the experimental program of the turbine are met. The optical sensor has operated under demanding conditions set by the blade and casing design. The experimental results obtained so far are promising and lead us to think that the optical sensor has great potential for online clearance measurements with high precision. View Full-Text
Keywords: tip clearance; optical fibre sensor; aircraft turbine tip clearance; optical fibre sensor; aircraft turbine
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Durana, G.; Amorebieta, J.; Fernandez, R.; Beloki, J.; Arrospide, E.; Garcia, I.; Zubia, J. Design, Fabrication and Testing of a High-Sensitive Fibre Sensor for Tip Clearance Measurements. Sensors 2018, 18, 2610.
