An Electrochemiluminescence Sensor Based on Nafion/Magnetic Fe3O4 Nanocrystals Modified Electrode for the Determination of Bisphenol A in Environmental Water Samples

by
Jiye Chai
1,
Xinru Yu
1,
Jian Zhao
2,
Aili Sun
1,
Xizhi Shi
1,* and
Dexiang Li
1
1
School of Marine Sciences, Ningbo University, 818 Fenghua Road, Ningbo 315211, China
2
Ningbo Academy of Agricultural Sciences, 19 Houde Road, Ningbo 315040, China
*
Author to whom correspondence should be addressed.
Sensors 2018, 18(8), 2537; https://doi.org/10.3390/s18082537
Submission received: 4 July 2018 / Revised: 26 July 2018 / Accepted: 28 July 2018 / Published: 3 August 2018
(This article belongs to the Special Issue Luminescence and Chemiluminescence Sensors)
Browse Figures
Versions Notes

Abstract

:
The well-dispersive and superparamagnetic Fe3O4-nanocrystals (Fe3O4-NCs) which could significantly enhance the anodic electrochemiluminescence (ECL) behavior of luminol, were synthesized in this study. Compared to ZnS, ZnSe, CdS and CdTe nanoparticles, the strongest anodic ECL signals were obtained at +1.6 V on the Fe3O4-NCs coated glassy carbon electrode. The ECL spectra revealed that the strong ECL resonance energy transfer occurred between luminol and Fe3O4-NCs. Furthermore, under the optimized ECL experimental conditions, such as the amount of Fe3O4-NCs, the concentration of luminol and the pH of supporting electrolyte, BPA exhibited a stronger distinct ECL quenching effect than its structural analogs and a highly selective and sensitive ECL sensor for the determination of bisphenol A (BPA) was developed based on the Fe3O4-NCs. A good linear relationship was found between the ECL intensity and the increased BPA concentration within 0.01–5.0 mg/L, with a correlation coefficient of 0.9972. The detection limit was 0.66 × 10−3 mg/L. Good recoveries between 96.0% and 105.0% with a relative standard deviation of less than 4.8% were obtained in real water samples. The proposed ECL sensor can be successfully employed to BPA detection in environmental aqueous samples.

1. Introduction

Bisphenol A (BPA) is used as a monomer in chemical industrial production for epoxy resins (EP), polycarbonates (PC) and other plastics; these materials are globally used in food containers, such as resin lining of cans, drinking water bottles and feeding bottles, medical apparatus and food packaging bags [1,2]. However, BPA residue is usually detected in food, soil and water because of the wide usage of BPA-based products [3,4]. In particular, BPA shows endocrine-disrupting chemical properties, such as inducing cancerous tumors, birth defects and abnormal differentiation of reproductive organs at low-dose exposure; hence, BPA exposure increases the risk of humans to diabetes mellitus and cardiovascular disease [5,6,7]. Therefore, a sensitive, reliable and rapid analytical method should be developed for the detection and monitoring of trace BPA amounts.
Various analytical methods, such as liquid chromatography–mass spectrometry [8], gas chromatography–mass spectrometry [9] and capillary electrophoresis [10], have been established and applied for BPA determination in environmental samples. These methods are sensitive and reliable for routine analysis; however, they entail expensive instruments, well-trained operators, elaborate sample pretreatment and time-consuming processes [11]. Electrochemical (EC) techniques allowing fast, simplified and cost-effective operations have been extensively developed. However, EC techniques demonstrate limited reproducibility, sensitivity and selectivity when used for the direct detection of BPA because of the high overpotential of BPA oxidation [12,13]. These problems should be solved to realize the selective and sensitive determination of BPA. Electrochemiluminescence (ECL), which combines the superiority of electrochemical and luminescence, has been extensively used in many areas, including medical diagnostics and detection of hazardous chemicals in food and environment samples, due to its high sensitivity, low background, simplicity and excellent temporal and spatial control [14,15,16,17]. The sensitive ECL reaction system combines the most common ECL reagent (Luminol and Ru(bpy)32+) with the modified electrode to eliminate the potential disadvantages and significantly enhance the ECL response. Nanometer materials, such as multi-walled carbon nanotubes, graphene dots, metal nanoparticles, quantum dots and silica film, had been fabricated the electrode and practically applied to the determination of sulfonylurea herbicide, dopamine, organophosphate pesticides and ochratoxin A [18,19,20,21].
Among these, superparamagnetic Fe3O4-nanocrystals (Fe3O4-NCs) have gained growing interest for electrode modification due to their unique properties, including easy preparation, good biocompatibility, conductivity and non-toxicity. The successful applications of magnetic Fe3O4-NCs in the detection of thrombin, pesticides, protein and phenolic compounds et al., have been reported [22,23,24,25]. Nevertheless, to the best of our knowledge, the anodic ECL of luminol combined with superparamagnetic Fe3O4-NCs has yet to be used to improve the sensitivity and selectivity of BPA determination. Therefore, in the present study, the superparamagnetic Fe3O4-NCs were firstly synthesized, which could be conveniently deposited and regularly attached to the electrode surface owing to the excellent magnetic properties. Furthermore, a novel anodic ECL sensor based on a glassy carbon electrode (GCE) coated with superparamagnetic nafion/Fe3O4-NCs was fabricated and exhibited excellent sensitivity, selectivity and reproducibility for BPA determination in real samples. The procedure for the materials preparation and ECL sensor fabrication were illustrated in Figure 1.

2. Materials and Methods

2.1. Chemicals and Materials

Nafion, luminol (chemiluminescence reagent, ≥98.0%), BPA, cypermethrin (CYP), 17β-estradiol (E2), diethylstilbestrol (DES), phenol (PHE) and hexestrol (INN) were obtained from Sigma-Aldrich Trading Co., Ltd. (Shanghai, China). All other reagents were of analytical grade and the ultrapure water (resistivity ≥ 18.25 MΩ) was applied. The experiments were conducted at 25 °C.

2.2. Synthesis of Fe3O4-NCs

Fe3O4-NCs were synthesized using the modified protocol as previously reported in the literature [26]. First, appropriate amounts of ferric chloride, sodium oleate, ethanol and n-hexane were mixed with water while stirring at 70 °C for 4 h in a three-necked flask. The upper layer with the oleic acid iron complex was further washed three times with deionized water in a separating funnel. The n-hexane was removed through vacuum filtration, thereby producing a wax-like solid called the oleic acid iron complex. The oleic acid iron complex and oleic acid were mixed with octadecylene in the three-necked flask and the mixture was evacuated at 100 °C for 1 h in a nitrogen atmosphere. The reaction temperature was increased to 320 °C at the rate of 10 °C/min and the Fe3O4-NCs solution was obtained after 0.5 h. Finally, 5.0 mL of chloroform and ethanol was consecutively added. After vortexing for 5 min, the mixture was centrifuged at 8000 g for 10 min and the precipitates were redispersed in ethanol to obtain the Fe3O4-NCs solution.

2.3. Fabrication of Nafion/Fe3O4-NCs-Coated GCE

Prior to modification, the bare GCE was polished with 0.05 μm and 0.07 μm alumina slurry and rinsed sequentially with ethanol and ultrapure water through ultrasonication. After dried in air, 8.0 × 103 mg/L Fe3O4-NCs were first dispersed in chloroform through ultrasonication for 0.5 h. Afterward, 5.0 μL of Fe3O4-NCs suspension was deposited onto the working electrode surface. After evaporation, 5.0 μL of nafion solution (1.0% dissolved in anhydrous alcohol) was dropped onto the surface of the resulting Fe3O4-NCs-coated GCE. After drying in air, the nafion/Fe3O4-NCs-coated GCE was slightly washed with ultrapure water to remove the redundant modifier. All modified electrodes were kept at 4 °C until use.

2.4. ECL Measurement

Cyclic voltammograms and corresponding ECL experiments were carried out on a chemiluminescent analytical system with a three-electrode system (Model MPI-E, Xi’an Remax Electronic Science & Technology Co. Ltd., Xi’an, China). The photomultiplier tube voltage was at −500 V during the entire detection. A 10.0 mL polytetrafluoroethylene cuvette was used. Prior to the experiments, the nafion/Fe3O4-NCs-coated GCE was washed with 0.01 M NaOH (pH 11.0) to eliminate possible contaminants. The sample was then added into the test cell containing 2.0 mL of 0.01 M NaOH (pH 11.0) and 160.0 μL of 6.0 × 10−6 M luminol.

2.5. Characterization of the ECL Sensor

The electrochemical impedance spectroscopy (EIS) of the modified GCE was investigated on an electrochemical workstation (CHI 660E, CH Instrument Company, Shanghai, China). The procedure was proceeded as previously reported [27]. The morphology of Fe3O4-NCs was observed by a transmission electron microscope (TEM, JEM-2100F, Hitachi Instrument, Hitachi, Japan). Cyclic voltammetry was conducted at the cycling potential range of −1.8–1.8 V (vs. Ag/AgCl). EC and ECL signals were collected simultaneously.

2.6. BPA Determination

The river water and tap water samples were obtained from the local Yongjiang river and our laboratory, respectively. The samples were firstly filtered using a 0.45 μm membrane and their pH was adjusted to pH 11.0 using 1.0 M NaOH solution before determination.

3. Results and Discussion

3.1. Characterization of Magnetic Fe3O4-NCs

The morphologies of Fe3O4-NCs were characterized by TEM. The typical TEM image revealed that the successfully prepared Fe3O4-NCs possess well-dispersed nanocrystalline with approximately 22 nm in size (Figure 2). Moreover, the obtained Fe3O4-NCs showed superparamagnetic properties (Figure 3), which can provide the preferred orientation of the nanosheets and prevent their aggregation. The preparation of the ECL sensor based on the Fe3O4-NCs is shown in Figure 1.

3.2. Electrochemistry and ECL Behavior of Nafion/Fe3O4-NCs/GCE

Some nanoparticles can enhance the cathodic or anodic luminol ECL [28]. In the present work, cyclic voltammetry and ECL study were performed to characterize the coated GCE. The ECL behavior of Fe3O4-NCs-modified GCE was comparatively studied. A scan was conducted between −1.8 V and 1.8 V, no cathodic ECL was observed, whereas the anodic ECL based on the bare GCE showed a weak signal around 1.6 V in alkaline condition (Figure 4) but it cannot be used in analytical application, which can be assigned to the background light emission. However, the Fe3O4-NCs-modified GCE can enhance the anodic ECL intensity in the presence of luminol at around 1.4 V. The strongest ECL intensity based on the nafion/Fe3O4-NCs/GCE was obtained at 1.4 V, which could be ascribed to the strong electrocatalytic effect of Fe3O4-NCs on luminol ECL [28]. The limited potential window of the reaction solvent decreased and the ECL sensor can function sensitively at a relatively low positive potential, which can avoid the interferences from the high positive potential [29]. Therefore, the Fe3O4-NCs exhibited good superiority and was applied in the following experiments.
The electrode modification and the ECL mechanism were monitored through EIS. From the Nyquist plots in Figure 5, a typical semicircle, which is equal to the electron-transfer resistance [30,31], was observed for all modified GCEs. The semicircle diameters of the bare GCE, nafion/GCE, Fe3O4-NCs/GCE and nafion/Fe3O4-NCs/GCE were about 150, 130, 140 and 123 Ω, respectively. This finding suggests that nafion and Fe3O4-NCs were successfully immobilized onto the GCE surface and that the nafion/Fe3O4-NCs/GCE possessed the best electrical conductivity. After separately depositing the nafion/Fe3O4-NCs, nafion and Fe3O4-NCs composite films onto the GCE surface (a–c in Figure 5), the impedances of the electrodes were decreased in contrast to the bare GCE. These results indicated that both nafion and Fe3O4-NCs positively affected conductivity and generated the gain effect, which enhanced the electron transfer rate and decreased the electron flow resistance. However, the semicircle diameter of the nafion/Fe3O4-NCs/GCE was smaller than that of the Fe3O4-NCs/GCE, indicating better charge transfer in the nafion/Fe3O4-NCs/GCE compared with the Fe3O4-NCs/GCE. This phenomenon can be ascribed to the fact that nafion allows the nafion/Fe3O4-NCs/GCE film to facilitate the electron transfer [32] and the nafion/Fe3O4-NCs/GCE possessed the best electrical conductivity. On the basis of above results, the strong anodic ECL resulted from the highly efficient electrocatalytic effect of Fe3O4-NCs on luminol.
Therefore, the mechanisms of the enhancing ECL effect of Fe3O4-NCs and the selective quenching response of BPA on anodic luminol ECL were represented in Equations (1)–(5). Under alkaline condition, luminol molecules transform into luminol anions (LH−). At the +1.6 V potential scanning, LH− and Fe3O4-NCs generate luminol radicals (LH−•) and excited Fe3O4-NCs+• on the working electrode surface, respectively. The strong ECL resonance energy transfer occurred between Fe3O4-NCs+• and LH−• and unstable excited luminol (LH*) was formed and emitted the light when it returned to the ground state [33,34]. Additionally, after BPA addition, it was oxidized and transform into O-quinone on the electrode surface by electron process, which accordingly resulted in competitively electron-quenched luminescence of developed ECL sensor [11].
LH− − e → LH−•
Fe3O4-NCs − e → Fe3O4-NCs+•
LH−• + Fe3O4-NCs+• → LH* + Fe3O4-NCs
LH* → LH + hv
BPA − 2e − 2H+ → O-Quinone

3.3. Optimization of ECL Reaction Conditions

The effect of the luminol concentration, Fe3O4-NCs concentration and pH of the reaction solution on the ECL intensity of the fabricated nafion/Fe3O4-NCs/GCE was determined to improve the sensitivity and selectivity of the ECL sensor. As shown in Figure 6A, the anodic ECL intensity of the fabricated ECL sensor increased until reaching a maximum of 160.0 μL as the luminol volume (5.0 × 10−5 M, dissolved in 0.01 M sodium hydroxide solution) in the polytetrafluoroethylene cuvette was increased in the range of 0.0–160.0 μL. However, ECL intensity decreased as luminol volume was further increased to 640.0 μL accompanied with the highly unstable ECL signal. Therefore, the optimum luminol volume of 160.0 μL is suitable for the fabrication of the biosensor.
The coated amount of Fe3O4-NCs on GCE was further optimized. As shown in Figure 6B, ECL intensity gradually increased as Fe3O4-NCs coating concentration was increased from 1.0 × 103 mg/L to 8.0 × 103 mg/L. ECL intensity decreased as this concentration was further increased. This result can be ascribed to the fact that increasing the concentration of Fe3O4-NCs coating increases film thickness due to the restack and electrochemical impedance that decreases the energy transfer during ECL [11]. Hence, a concentration of 8.0 × 103 mg/L Fe3O4-NCs was selected for GCE modification.
Considering that luminol ECL is a pH-dependent procedure, we also examined the influence of pH ranging from 7.0 to 12.0 on the ECL response. Figure 6C shows that ECL intensity increased from pH 7.0 to 11.0 and decreased at pH 12.0. The highest ECL intensity was obtained at pH 11.0, which indicated that the strong ECL response of luminol could be motivated in alkaline solution. Therefore, pH 11.0 was selected as the optimal pH.

3.4. Quenching Efficiency and Stability

The ECL quenching efficiencies, which was defined as the (I0 − I)/I0, where I0 and I represent the ECL intensity in the absence and presence of the quencher, respectively [35], were investigated under the optimum ECL response system. The quencher including INN, E2, PHE, DES, which have the similar structure or structure base to BPA, were applied to evaluate the selectivity of the nafion/Fe3O4-NCs/GCE. Furthermore, since CYP is often detected in the water samples, it is also used to evaluate the selectivity of the nafion/Fe3O4-NCs/GCE. As shown in Figure 7A, the nearly complete ECL quenching with a quenching efficiency of 97.4% was observed in the presence of BPA. DES, E2 and CYP negatively affected ECL intensity, whereas INN and PHE slightly affected ECL intensity with a quenching efficiency of 1.9% and 6.2%, respectively. This result indicated that the compounds with similar and different chemical structures to BPA could not/weakly interfere with the ECL quenching response. The nafion/Fe3O4-NCs/GCE showed the highest selectivity of ECL quenching response to BPA as compared with the other chemicals. Thus, this sensor shows great potential for BPA determination.
The excellent stability of the nafion/Fe3O4-NCs/GCE is important for practical application. Therefore, the stability of the developed ECL sensor was investigated. As illustrated in Figure 7B, under consecutive cyclic potential scanning within 0.0–1.8 V in 15 cycles, no distinct ECL response change (RSD < 0.42%) was observed for the nafion/Fe3O4-NCs/GCE in solution containing luminol (pH 11.0) at a 100 mV/s scan rate. This result indicated the excellent stability of the ECL signal of luminol under the nafion/Fe3O4-NCs/GCE. Five nafion/Fe3O4-NCs/GCEs were fabricated following the same procedure to evaluate the reproducibility. The stability of the nafion/Fe3O4-NCs/GCE was evaluated for 3 weeks and the RSD values of the ECL sensors were calculated to be 3.6%. After 3 weeks, the ECL intensity of the electrolyte retained 96.2% of the initial response. These results demonstrated the excellent repeatability, reproducibility and stability of the ECL response system based on the nafion/Fe3O4-NCs/GCE.

3.5. Real Sample Analysis

The practical capability of the developed ECL sensor based on the nafion/Fe3O4-NCs/GCE for the selective and sensitive detection of BPA was further validated in tap and river water samples. The references of linearity, accuracy, precision and LOD were investigated. As shown in Figure 8, ECL intensity decreased gradually with increasing BPA concentration. A calibration curve between 0.01 mg/L and 5.0 mg/L was obtained with a correlation coefficient of 0.9972 and the LOD was 0.66 × 10−3 mg/L. These results suggested that the fabricated anodic ECL sensor could be used to detect BPA in real samples. The accuracy and precision of the fabricated ECL sensor in determining BPA in tap and river water samples were summarized in Table 1. The recoveries for BPA were in the range of 96.0–105.0% with the RSD below 4.8%, indicating the good accuracy and precision of the ECL sensor based on the nafion/Fe3O4-NCs/GCE. Compared with previous methods for BPA determination (Table 2), the present method has a comparable or better detection limit and linear range. These results revealed that the ECL sensor had good practicability for sensitive BPA determination in real samples without further pretreatment.

4. Conclusions

A novel anodic ECL method based on nafion/Fe3O4-NCs-modified GCE was successfully fabricated for the highly effective determination of BPA. Possessing the good conductivity and magnetism of Fe3O4-NCs, a modified GCE based on nafion/Fe3O4-NCs was constructed, which can significantly enhance the anodic ECL behavior of luminol. Under the optimal experimental conditions, the developed ECL sensor provided selective luminescence inhibiting effects by BPA compared with its structural analogs. Furthermore, the fabricated ECL method was successfully promising for the efficient determination of BPA in real aqueous samples with a low limit of detection of 0.66 × 10−3 mg/L and exhibited wide linear range, excellent accuracy and precision and high sensitivity. Therefore, the excellent properties of the developed ECL sensor method demonstrated the application potential for the BPA monitoring in water pollution.

Author Contributions

Conceptualization, J.C.; Methodology, J.C. and X.Y.; Formal analysis, J.C. and D.L.; Project administration, J.Z. and A.S.; Supervision, X.S.; Writing—original draft, J.C.

Funding

This research was funded by [the Zhejiang Provincial Natural Science Foundation of China] grant number [LR16C190001], [the National Natural Science Foundation of China] grant number [31772856], [the Public Science and Technology Research Funds Projects of Ocean] grant number [201405035], [the Technology Innovation Team of Ningbo city] grant number [2015C110018] and the K.C. Wong Magna Fund in Ningbo University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lopardo, L.; Adams, D.; Cummins, A.; Kasprzyk-Hordern, B. Verifying community-wide exposure to endocrine disruptors in personal care products—In quest for metabolic biomarkers of exposure via in vitro studies and wastewater-based epidemiology. Water Res. 2018, 143, 117–126. [Google Scholar] [CrossRef] [PubMed]
  2. Ragavan, K.V.; Rastogi, N.K.; Thakur, M.S. Sensors and biosensors for analysis of bisphenol-A. TrAC Trends Anal. Chem. 2013, 52, 248–260. [Google Scholar] [CrossRef]
  3. Devi, P.G.; Chakraborty, P.K.; Dasgupta, D. Inhibition of a Zn(II)-containing enzyme, alcohol dehydrogenase, by anticancer antibiotics, mithramycin and chromomycin A3. J. Biol. Inorg. Chem. 2009, 14, 347–359. [Google Scholar] [CrossRef] [PubMed]
  4. Lee, H.B.; Peart, T.E.; Gris, G.; Chan, J. Endocrine-disrupting chemicals in industrial wastewater samples in Toronto, Ontario. Water Qual. Res. J. 2002, 37, 459–472. [Google Scholar] [CrossRef]
  5. Shafei, A.E.; Ramzy, M.M.; Hegazy, A.I.; Husseny, A.K.; EL-hadary, U.G.; Taha, M.M.; Mosa, A.A. The molecular mechanisms of action of the endocrine disrupting chemical Bisphenol A in the development of cancer. Gene 2018, 647, 235–243. [Google Scholar] [CrossRef] [PubMed]
  6. Di Donato, M.; Cernera, G.; Giovannelli, P.; Galasso, G.; Bilancio, A.; Migliaccio, A.; Castoria, G. Recent advances on bisphenol-A and endocrine disruptor effects on human prostate cancer. Mol. Cell Endocrinol. 2017, 457, 35–42. [Google Scholar] [CrossRef] [PubMed]
  7. Lang, I.A.; Galloway, T.S.; Scarlett, A.; Henley, W.E. Association of urinary bisphenol A concentration with medical disorders and laboratory abnormalities in adults. J. Am. Med. Assoc. 2008, 300, 1303–1310. [Google Scholar] [CrossRef] [PubMed]
  8. Martín, J.; Santos, J.L.; Aparicio, I.; Alonso, E. Analytical method for biomonitoring of endocrine-disrupting compounds (bisphenol A, parabens, perfluoroalkyl compounds and a brominated flame retardant) in human hair by liquid chromatography-tandem mass spectrometry. Anal. Chim. Acta 2016, 945, 95–101. [Google Scholar] [CrossRef] [PubMed]
  9. Pérez, R.A.; Albero, B.; Tadeo, J.L.; Sánchez-Brunete, C. Determination of endocrine-disrupting compounds in water samples by magnetic nanoparticle-assisted dispersive liquid-liquid microextraction combined with gas chromatography-tandem mass spectrometry. Anal. Bioanal. Chem. 2016, 408, 8013–8023. [Google Scholar] [CrossRef] [PubMed]
  10. Li, J.; Lu, J.X.; Qiao, X.G.; Xu, Z.X. A study on biomimetic immunoassay-capillary electrophoresis method based on molecularly imprinted polymer for determination of trace trichlorfon residue in vegetables. Food Chem. 2017, 221, 1285–1290. [Google Scholar] [CrossRef] [PubMed]
  11. Yu, C.M.; Gou, L.L.; Zhou, X.H.; Bao, N.; Gu, H.Y. Chitosan-Fe3O4 nanocomposite based electrochemical sensors for the determination of bisphenol A. Electrochim. Acta 2011, 56, 9056–9063. [Google Scholar] [CrossRef]
  12. Yin, H.S.; Zhou, Y.L.; Ai, S.Y.; Han, R.X.; Tang, T.T.; Zhu, L.S. Electrochemical behavior of bisphenol A at glassy carbon electrode modified with gold nanoparticles; silk fibroin; and PAMAM dendrimers. Microchim. Acta 2010, 170, 99–105. [Google Scholar] [CrossRef]
  13. Li, Q.F.; Ren, S.Y.; Wang, Y.; Bai, J.L.; Peng, Y.; Ning, B.A.; Lyu, Q.J.; Gao, Z.X. Efficient detection of environmental estrogens Bisphenol A and estradiol by sensing system based on AuNP-AuNP-UCNP triple structure. Chin. J. Anal. Chem. 2018, 46, 486–492. [Google Scholar] [CrossRef]
  14. Zhou, Y.; Wang, H.J.; Zhuo, Y.; Chai, Y.Q.; Yuan, R. Highly efficient electrochemiluminescent silver nanoclusters/titanium oxide nanomaterials as a signal probe for ferrocene-driven light switch bioanalysis. Anal. Chem. 2017, 89, 3732–3738. [Google Scholar] [CrossRef] [PubMed]
  15. Kitte, S.A.; Gao, W.; Zholudov, Y.T.; Qi, L.; Nsabimana, A.; Liu, Z.; Xu, G. Stainless steel electrode for sensitive luminol electrochemiluminescent detection of H2O2, glucose, and glucose oxidase activity. Anal. Chem. 2017, 89, 9864–9869. [Google Scholar] [CrossRef] [PubMed]
  16. Wu, F.F.; Zhou, Y.; Wang, J.X.; Zhuo, Y.; Yuan, R.; Chai, Y.Q. A novel electrochemiluminescence immunosensor based on Mn doped Ag2S quantum dots probe for laminin detection. Sens. Actuators B Chem. 2017, 243, 1067–1074. [Google Scholar] [CrossRef]
  17. Fang, C.; Zheng, L.J.; Zhai, S.Y.; Tu, Y.F. An electrochemiluminescent method to detect a dipeptide related to diabetes. Chin. J. Anal. Chem. 2017, 45, 1951–1955. [Google Scholar]
  18. Wang, K.; Wei, X.H.; Tu, Y.F. Strong enhancement of the electrochemiluminescence of luminol by AuAg and PtAg alloy nanoclusters, and its sensitization by phenolic artificial oestrogens. Microchim. Acta 2014, 181, 1223–1230. [Google Scholar] [CrossRef]
  19. Li, H.F.; Xie, C.G.; Fu, X.C. Electrochemiluminescence sensor for sulfonylurea herbicide with molecular imprinting core-shell nanoparticles/chitosan composite film modified glassy carbon electrode. Sens. Actuators B Chem. 2013, 181, 858–866. [Google Scholar] [CrossRef]
  20. Yang, Y.Y.; Zhang, H.; Huang, C.S.; Jia, N.Q. MWCNTs-PEI composites-based electrochemical sensor for sensitive detection of bisphenol A. Sens. Actuators B Chem. 2016, 235, 408–413. [Google Scholar] [CrossRef]
  21. Yang, L.L.; Zhang, Y.; Li, R.B.; Lin, C.Y.; Guo, L.H.; Qiu, B.; Lin, Z.Y.; Chen, G.N. Electrochemiluminescence biosensor for ultrasensitive determination of Ochratoxin A in corn samples based on aptamer and hyperbranched rolling circle amplification. Biosens. Bioelectron. 2015, 70, 268–274. [Google Scholar] [CrossRef] [PubMed]
  22. Jie, G.F.; Yuan, J.X. Novel magnetic Fe3O4@CdSe composite quantum dot-based electrochemiluminescence detection of thrombin by a multiple DNA cycle amplification strategy. Anal. Chem. 2012, 84, 2811–2817. [Google Scholar] [CrossRef] [PubMed]
  23. Guan, G.; Yang, L.; Mei, Q.; Zhang, K.; Zhang, Z.; Han, M.Y. Chemiluminescence switching on peroxidase-like Fe3O4 nanoparticles for selective detection and simultaneous determination of various pesticides. Anal. Chem. 2012, 84, 9492–9497. [Google Scholar] [CrossRef] [PubMed]
  24. Tsai, H.Y.; Hsu, C.F.; Chiu, I.W.; Fuh, C.B. Detection of C-reactive protein based on immunoassay using antibody-conjugated magnetic nanoparticles. Anal. Chem. 2007, 79, 8416–8419. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, S.F.; Tan, Y.M.; Zhao, D.M.; Liu, G.D. Amperometric tyrosinase biosensor based on Fe3O4 nanoparticles-chitosan nanocomposite. Biosens. Bioelectron. 2008, 23, 1781–1787. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, Y.F.; Zhu, Z.W.; Xu, F.; Wei, X.L. One-pot reaction to synthesize superparamagnetic iron oxide nanoparticles by adding phenol as reducing agent and stabilizer. J. Nanopart. Res. 2012, 14, 755. [Google Scholar] [CrossRef]
  27. Xu, S.J.; Liu, Y.; Wang, T.H.; Li, J.H. Positive potential operation of a cathodic electrogenerated chemiluminescence immunosensor based on luminol and graphene for cancer biomarker detection. Anal. Chem. 2011, 83, 3817–3823. [Google Scholar] [CrossRef] [PubMed]
  28. Hou, C.; Tang, W.X.; Zhang, C.; Wang, Y.F.; Zhu, N.N. A novel and sensitive electrochemical sensor for bisphenol A determination based on carbon black supporting ferroferric oxide nanoparticles. Electrochim. Acta 2014, 144, 324–331. [Google Scholar] [CrossRef]
  29. Wu, Z.; Hu, J.; Zeng, T.; Zhang, Z.L.; Chen, J.J.; Wong, G.; Qiu, X.G.; Liu, W.J.; Gao, G.F.; Bi, Y.B.; et al. Ultrasensitive ebola virus detection based on electroluminescent nanospheres and immunomagnetic separation. Anal. Chem. 2017, 89, 2039–2048. [Google Scholar] [CrossRef] [PubMed]
  30. Li, J.; Xie, H.Q.; Chen, L.F. A sensitive hydrazine electrochemical sensor based on electrodeposition of gold nanoparticles on choline film modified glassy carbon electrode. Sens. Actuators B Chem. 2011, 153, 239–245. [Google Scholar] [CrossRef]
  31. Zhu, S.; Lin, X.; Ran, P.Y.; Xia, Q.; Yang, C.C.; Ma, J.; Fu, Y.Z. A novel luminescence-functionalized metal-organic framework nanoflowers electrochemiluminesence sensor via “on-off” system. Biosens. Bioelectron. 2017, 91, 436–440. [Google Scholar] [CrossRef] [PubMed]
  32. Hong, L.R.; Zhao, J.; Lei, Y.M.; Yuan, R.; Zhuo, Y. Efficient electrochemiluminescence from Ru(bpy)32+ enhanced by three-layer porous Fe3O4@SnO2@Au nanoparticles for label-free and sensitive bioanalysis. Electrochim. Acta 2017, 241, 291–298. [Google Scholar] [CrossRef]
  33. Dong, Y.P.; Wang, J.; Peng, Y.; Zhu, J.J. Electrogenerated chemiluminescence resonance energy transfer between luminol and CdS/graphene nanocomposites and its sensing application. J. Electroanal. Chem. 2016, 781, 109–113. [Google Scholar] [CrossRef]
  34. Rizwan, M.; Mohd-naim, N.F.; Ahmed, M.U. Trends and advances in electrochemiluminescence nanobiosensors. Sensors 2018, 18, 166. [Google Scholar] [CrossRef] [PubMed]
  35. Zhou, C.S.; Liu, Z.; Dai, J.Y.; Xiao, D. Electrospun Ru (bpy)32+-doped nafion nanofibers for electrochemiluminescence sensing. Analyst 2010, 135, 1004–1009. [Google Scholar] [CrossRef] [PubMed]
  36. Lin, Y.; Liu, K.; Liu, C.; Yin, L.; Kang, Q.; Li, L.; Li, B. Electrochemical sensing of bisphenol A based on polyglutamic acid/amino-functionalised carbon nanotubes nanocomposite. Electrochim. Acta 2014, 133, 492–500. [Google Scholar] [CrossRef]
  37. Zheng, Z.; Du, Y.; Wang, Z.; Feng, Q.; Wang, C. Pt/grapheme-CNTs nanocomposite based electrochemical sensors for the determination of endocrine disruptor bisphenol A in thermal printing papers. Analyst 2013, 13, 693–701. [Google Scholar]
  38. Guo, W.; Zhang, A.; Zhang, X.; Huang, C.; Yang, D.; Jia, N. Multiwalled carbon nanotubes/gold nanocomposites-based electrochemiluminescent sensor for sensitive determination of Bisphenol A. Anal. Bioanal. Chem. 2016, 408, 7173–7180. [Google Scholar] [CrossRef] [PubMed]
  39. Portaccio, M.; Tuoro, D.D.; Arduini, F.; Moscone, D.; Cammarota, M.; Mita, D.G.; Lepore, M. Laccase biosensor based on screen-printed electrode modified with thionine-carbon black nanocomposite for Bisphenol A detection. Electrochim. Acta 2013, 109, 340–347. [Google Scholar] [CrossRef]
  40. Niu, X.; Yang, W.; Wang, G.; Ren, J.; Guo, H.; Gao, J. A novel electrochemical sensor of bisphenol A based on stacked graphene nanofibers/gold nanoparticles composite modified glassy carbon electrode. Electrochim. Acta 2013, 98, 167–175. [Google Scholar] [CrossRef]
Sensors 18 02537 g001 550

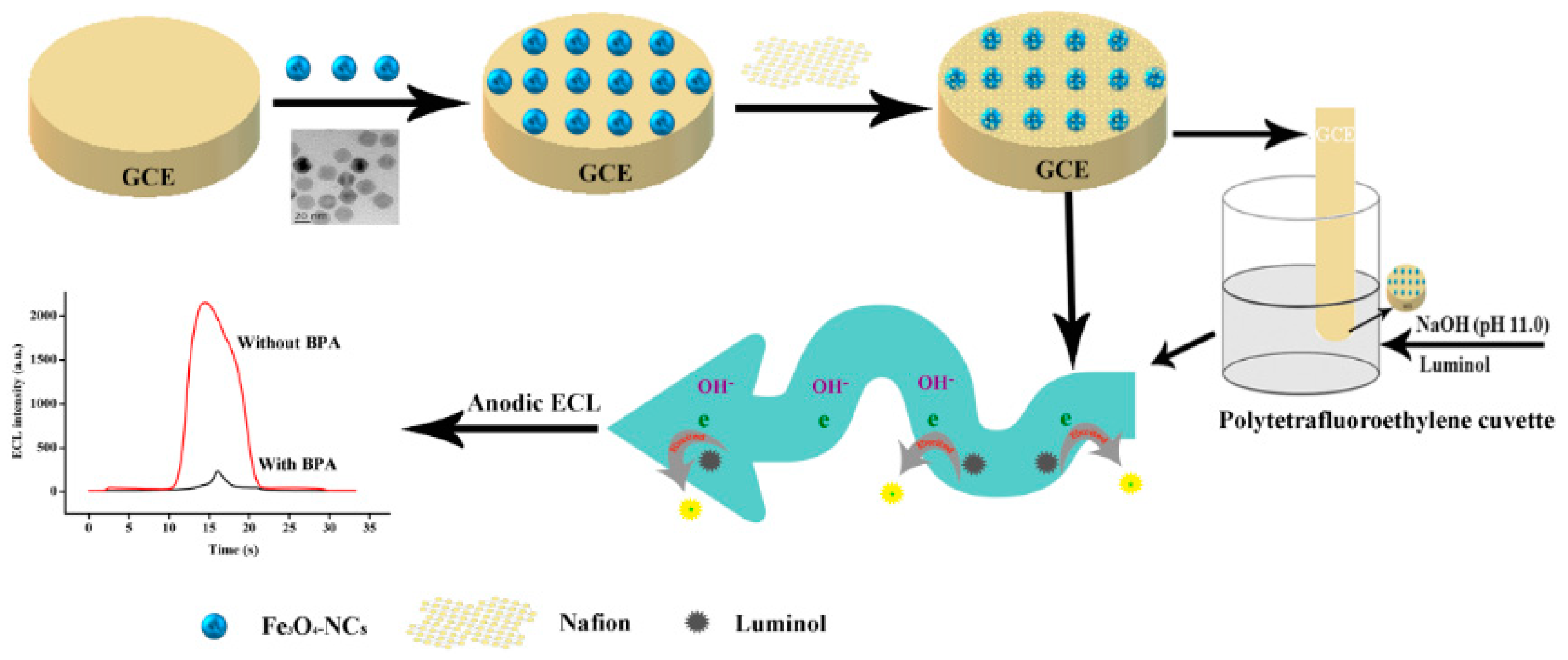

Figure 1. Schematic representation of ECL sensor development.
Figure 1. Schematic representation of ECL sensor development.
Sensors 18 02537 g001
Sensors 18 02537 g002 550
Figure 2. TEM of Fe3O4-NCs.
Figure 2. TEM of Fe3O4-NCs.
Sensors 18 02537 g002
Sensors 18 02537 g003 550

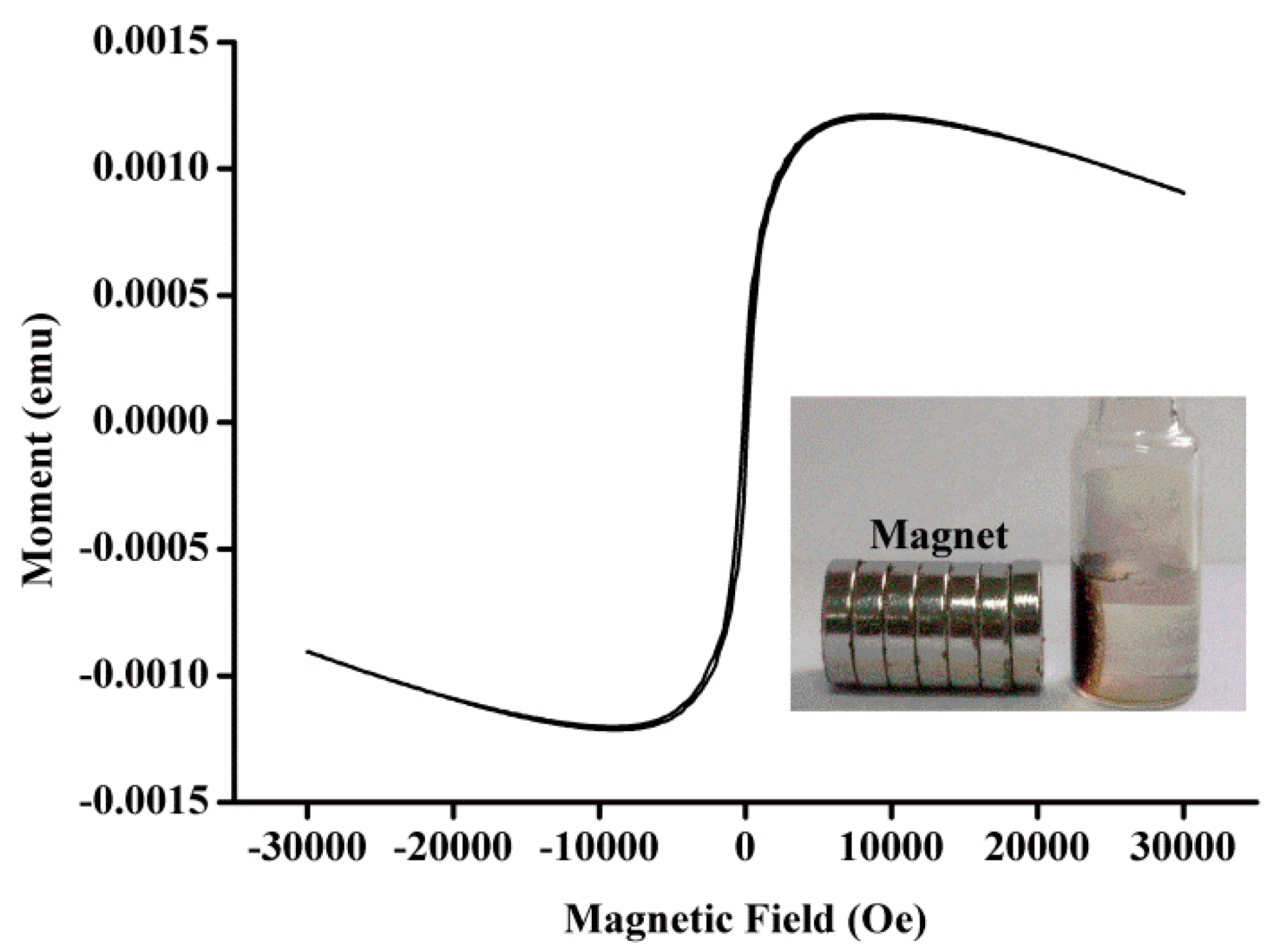

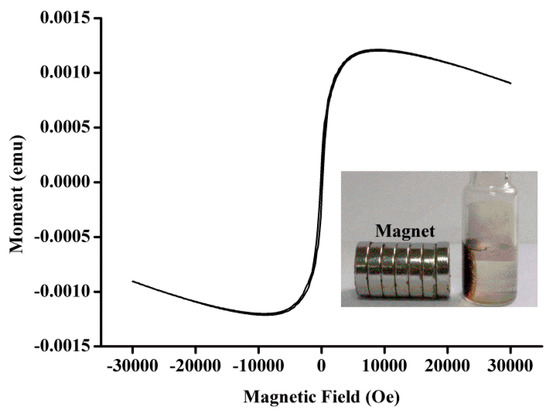

Figure 3. VSM magnetization curves of Fe3O4-NCs. The inset shows the separation of a solution of Fe3O4-NCs in the presence of an external magnetic field.
Figure 3. VSM magnetization curves of Fe3O4-NCs. The inset shows the separation of a solution of Fe3O4-NCs in the presence of an external magnetic field.
Sensors 18 02537 g003
Sensors 18 02537 g004 550

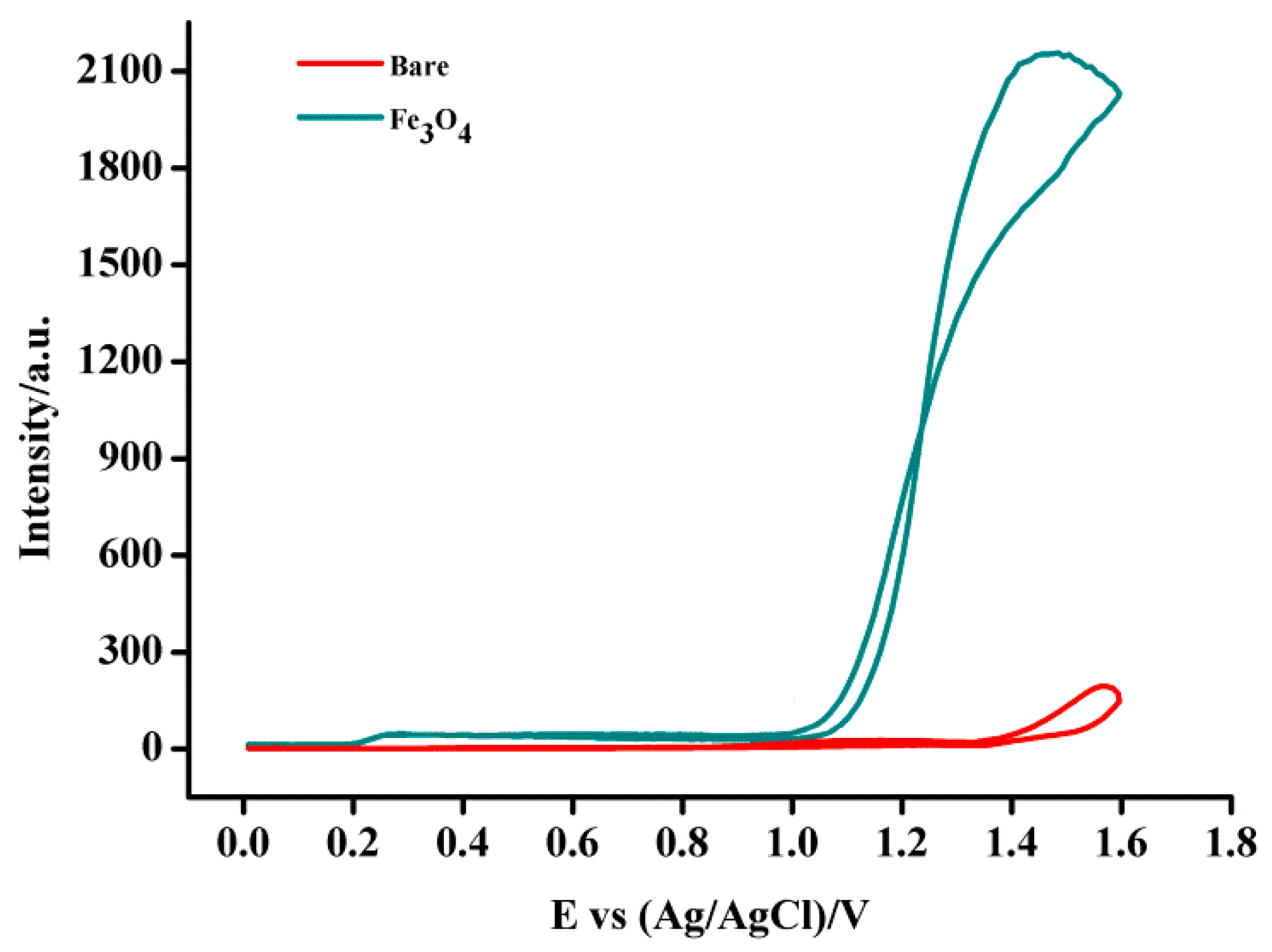

Figure 4. ECL intensity of luminol in bare GCE and Fe3O4-NCs/GCE under 0.01 M NaOH (pH 11.0) and 6.0 × 10−6 M luminol.
Figure 4. ECL intensity of luminol in bare GCE and Fe3O4-NCs/GCE under 0.01 M NaOH (pH 11.0) and 6.0 × 10−6 M luminol.
Sensors 18 02537 g004
Sensors 18 02537 g005 550

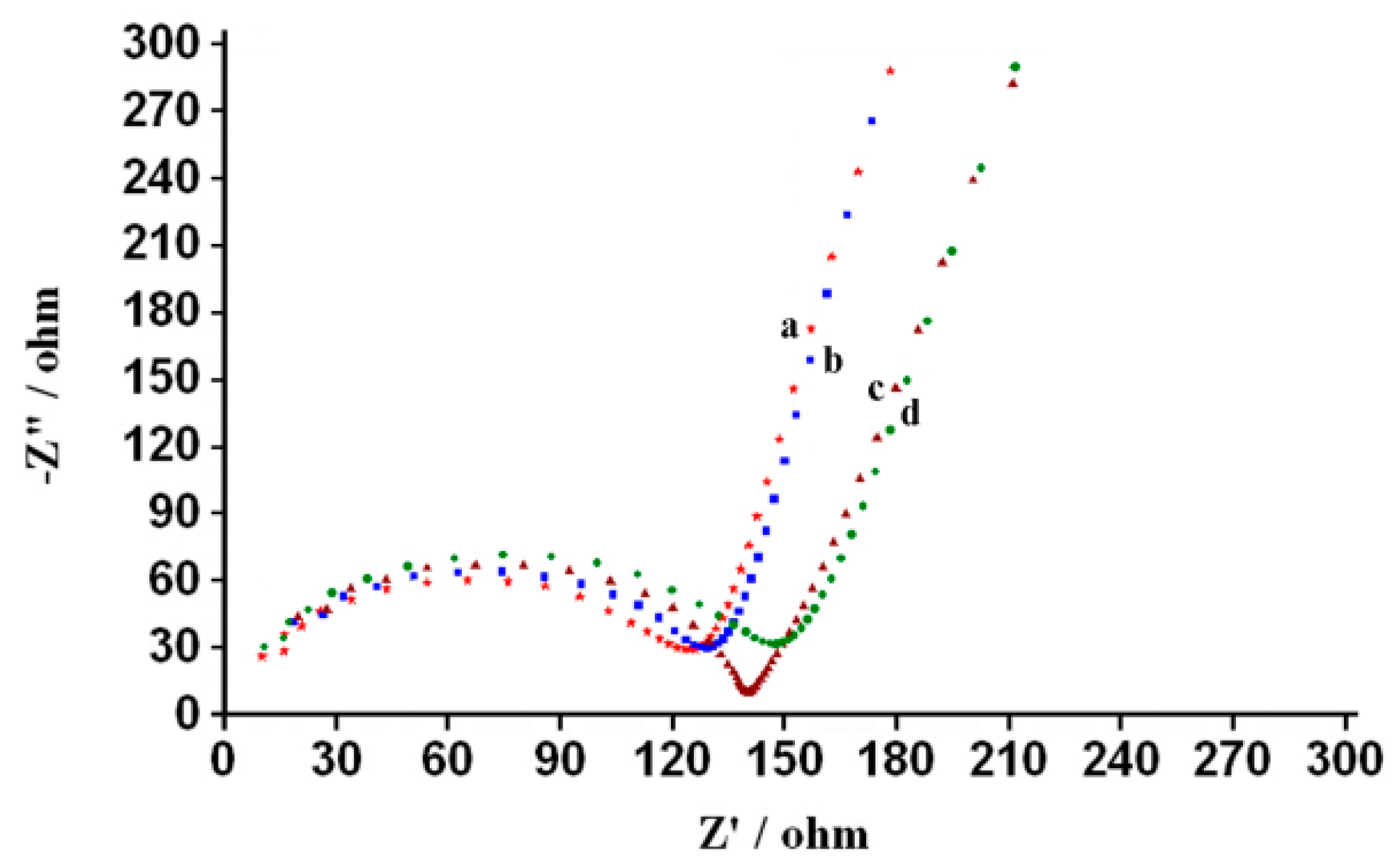

Figure 5. Electrochemical impedance spectra of electrode: nafion/Fe3O4-NCs/GCE (a, solid star), nafion/GCE (b, solid square), Fe3O4-NCs/GCE (c, solid triangle) and bare/GCE (d, solid circle).
Figure 5. Electrochemical impedance spectra of electrode: nafion/Fe3O4-NCs/GCE (a, solid star), nafion/GCE (b, solid square), Fe3O4-NCs/GCE (c, solid triangle) and bare/GCE (d, solid circle).
Sensors 18 02537 g005
Sensors 18 02537 g006 550

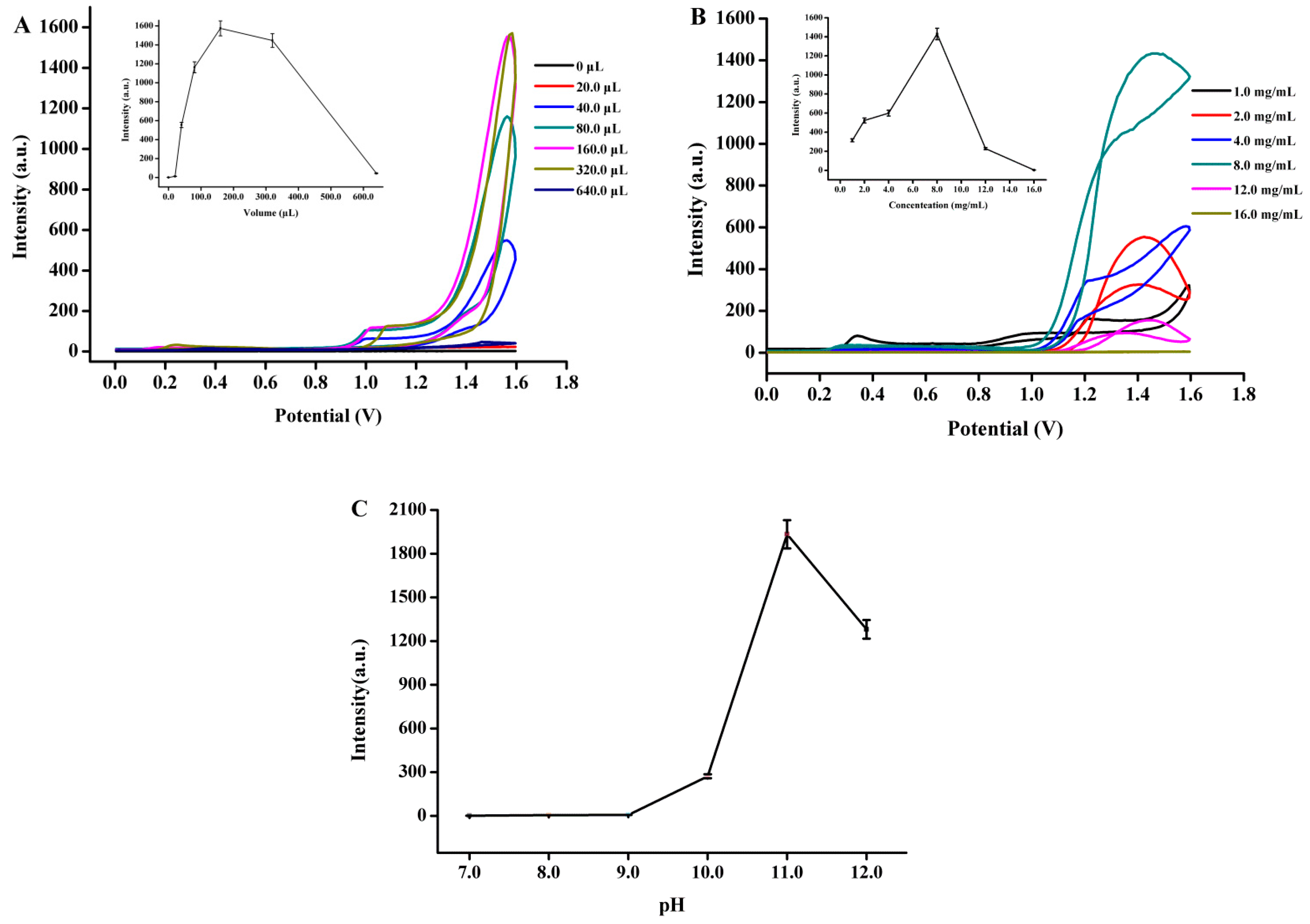

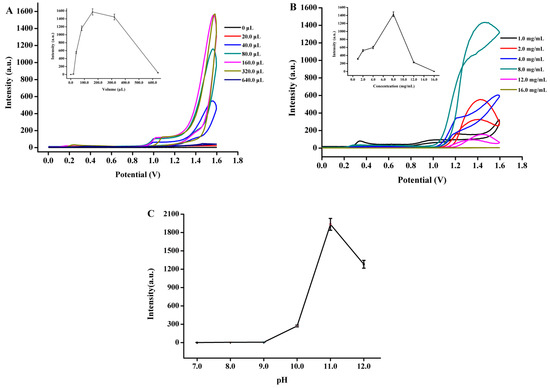

Figure 6. Effects of luminol volume (A), the coated concentration of Fe3O4-NCs (B) and pH (C) on ECL intensity of the developed ECL sensor based on the Fe3O4-NCs/GCE.
Figure 6. Effects of luminol volume (A), the coated concentration of Fe3O4-NCs (B) and pH (C) on ECL intensity of the developed ECL sensor based on the Fe3O4-NCs/GCE.
Sensors 18 02537 g006
Sensors 18 02537 g007 550

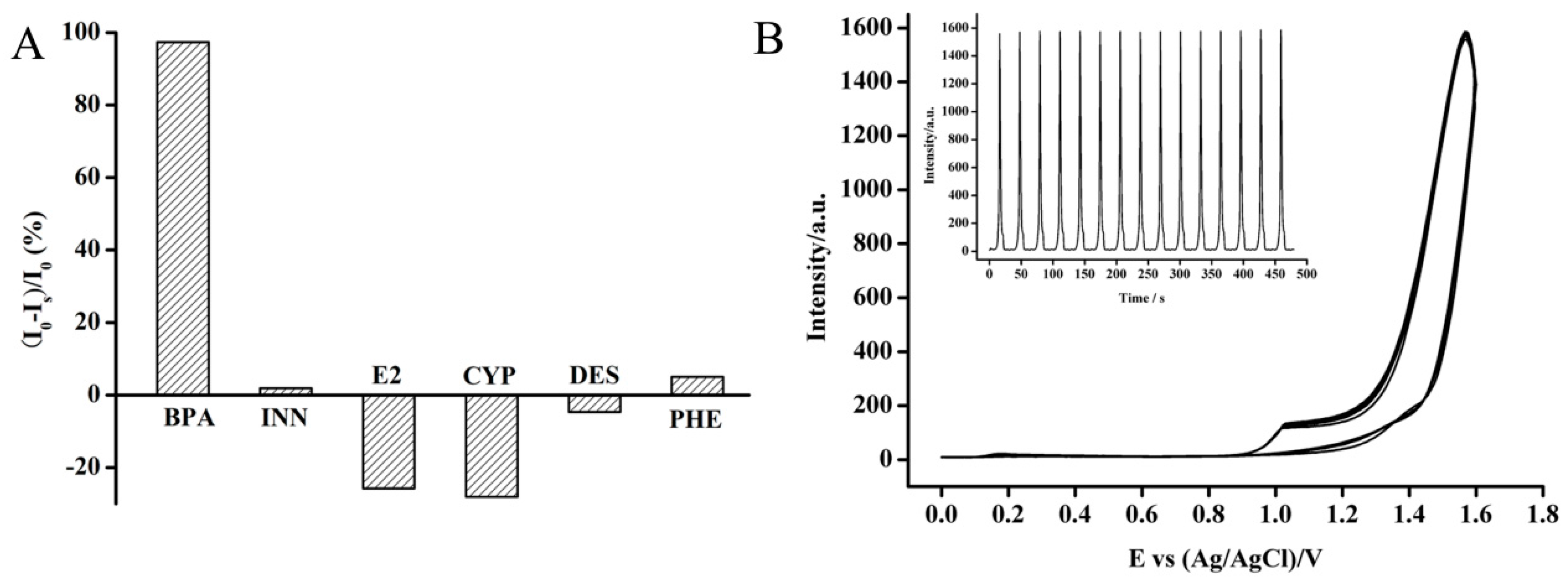

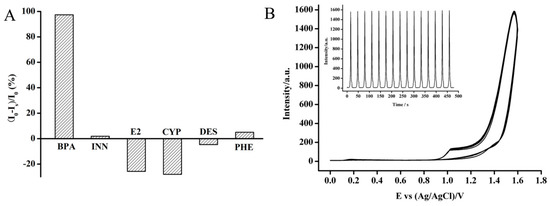

Figure 7. Selectivity (A) and stability (B) of the developed ECL sensor for BPA detection. Scan rate: 100 mV/s.
Figure 7. Selectivity (A) and stability (B) of the developed ECL sensor for BPA detection. Scan rate: 100 mV/s.
Sensors 18 02537 g007
Sensors 18 02537 g008 550

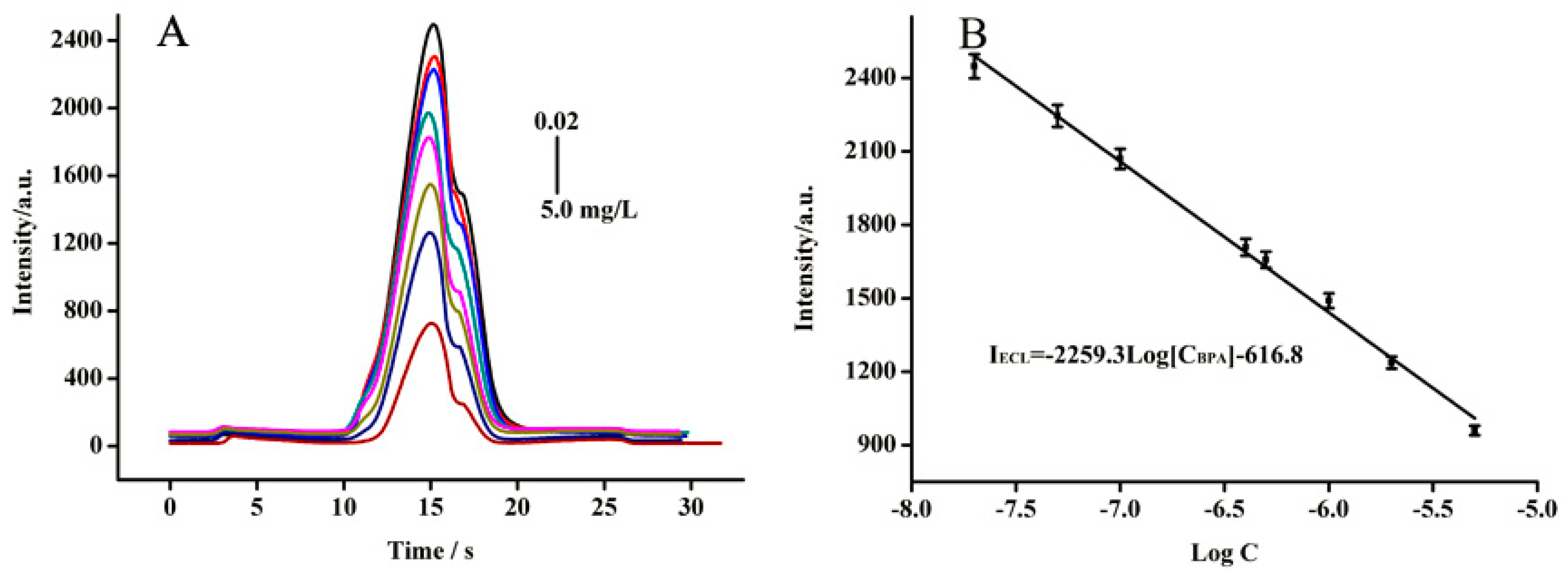

Figure 8. The anodic ECL signals spectra at the Fe3O4-NCs/GCE with different concentration BPA solutions. (A) The ECL spectra in the presence of different amount of BPA; (B) The regression equation between the ECL intensity and different BPA concentrations.
Figure 8. The anodic ECL signals spectra at the Fe3O4-NCs/GCE with different concentration BPA solutions. (A) The ECL spectra in the presence of different amount of BPA; (B) The regression equation between the ECL intensity and different BPA concentrations.
Sensors 18 02537 g008
Table
Table 1. Determination of BPA in water samples (n = 3).
Table 1. Determination of BPA in water samples (n = 3).
Type of WaterAdded (mg/L)Founded (mg/L)RSD (%)Recovery (%)
River0.010.01022.5100.3
0.100.0964.696.0
0.200.2024.5101.2
Tap water0.100.0994.899.0
1.001.0504.6105.0
5.004.9702.599.4
Table
Table 2. Comparison of the performance for the BPA determination with others.
Table 2. Comparison of the performance for the BPA determination with others.
Modified ElectrodeMethodLinear Range (mg/kg, L)LOD (mg/kg, L)Recovery (%)
PGA/MWCNT-NH2/GCE [36]EC0.02–2.284.6 × 10−395.0–108.0
Pt/GR-CNTs/GCE [37]EC0.01–2.289.6 × 10−396.1–106.7
Chitosan/MWCNTs-Au/GCE [38]ECL0.06–22.818.9 × 10−395.6–105.0
Boron-doped diamond electrode [39]EC0.1–1.250.0 × 10−390.0–120.0
AuNPs/SGNF/GCE [40]EC0.02–578.0 × 10−398.4–102.1
This workECL0.01–50.00.66 × 10−396.0–105.0
