Plasmonic Multichannel Refractive Index Sensor Based on Subwavelength Tangent-Ring Metal–Insulator–Metal Waveguide

School of Physics and Optoelectronic Engineering, Guangdong University of Technology, Guangzhou 510006, Guangdong, China
*
Author to whom correspondence should be addressed.
Sensors 2018, 18(5), 1348; https://doi.org/10.3390/s18051348
Received: 26 March 2018 / Revised: 20 April 2018 / Accepted: 24 April 2018 / Published: 26 April 2018
(This article belongs to the Section Physical Sensors)
  |
PDF [2871 KB, uploaded 3 May 2018]
  |

Abstract

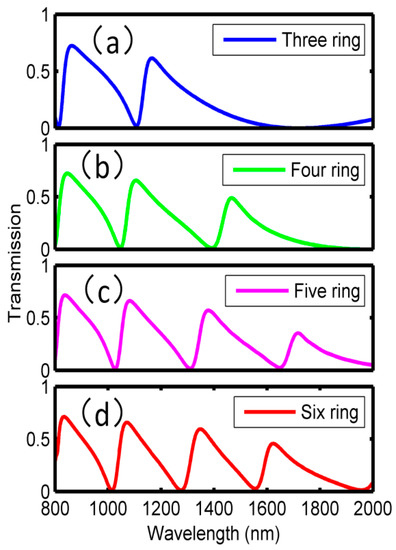

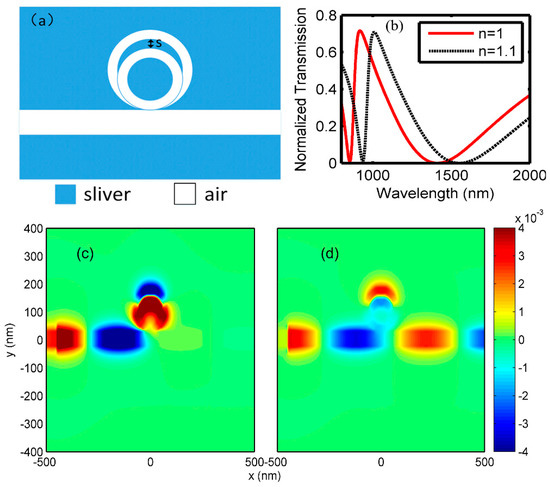

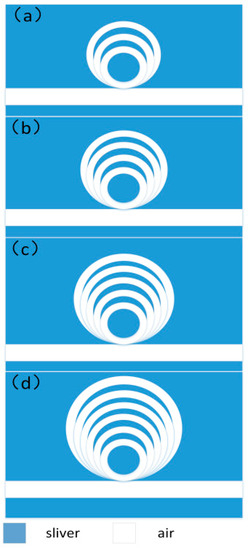

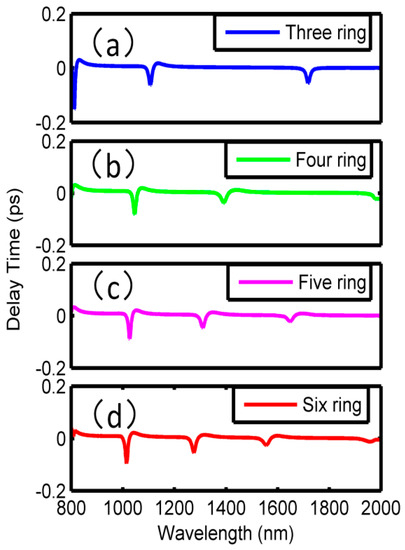

In this paper, a multichannel refractive index sensor based on a subwavelength metal–insulator–metal (MIM) waveguide coupled with tangent-ring resonators is proposed. When two tangent-ring resonators were placed above the MIM waveguide, Fano resonance with asymmetrical line shape appeared in the transmission spectrum due to the interference between the light–dark resonant modes. The sensitivity and figure of merit were as high as 880 nm/RIU and 964, respectively. Through adding more tangent-ring resonators, multiple Fano resonances with ultrasharp peaks/dips were achieved in the wavelength range of 800–2000 nm. Besides, negative group delays were also observed in the Fano resonant dips. Two-dimensional finite-difference time-domain (FDTD) method was used to simulate and analyze the performances of the proposed structures. These kinds of multiring structures can find important applications in the on-chip optical sensing and optical communication areas. View Full-Text
Keywords: refractive index sensor; sub-wavelength MIM waveguide; Fano resonance refractive index sensor; sub-wavelength MIM waveguide; Fano resonance
Figures

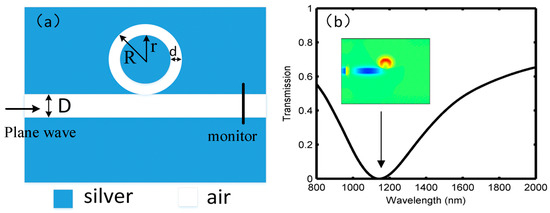

Figure 1
