Open AccessFeature PaperArticle
Sensors 2018, 18(4), 1206; https://doi.org/10.3390/s18041206

“What Is a Step?” Differences in How a Step Is Detected among Three Popular Activity Monitors That Have Impacted Physical Activity Research

1
Department of Health Sciences, Northeastern University, Boston, MA 02115, USA
2
Department of Kinesiology, Recreation, and Sport Studies, University of Tennessee, Knoxville, TN 37996 USA
3
KAL Research/Consulting, Denver, CO 80206, USA
*
Author to whom correspondence should be addressed.
Received: 28 February 2018 / Revised: 8 April 2018 / Accepted: 12 April 2018 / Published: 15 April 2018
(This article belongs to the Special Issue Sensors for Gait, Posture, and Health Monitoring)
Full-Text   |   PDF [12633 KB, uploaded 3 May 2018]   |

Abstract

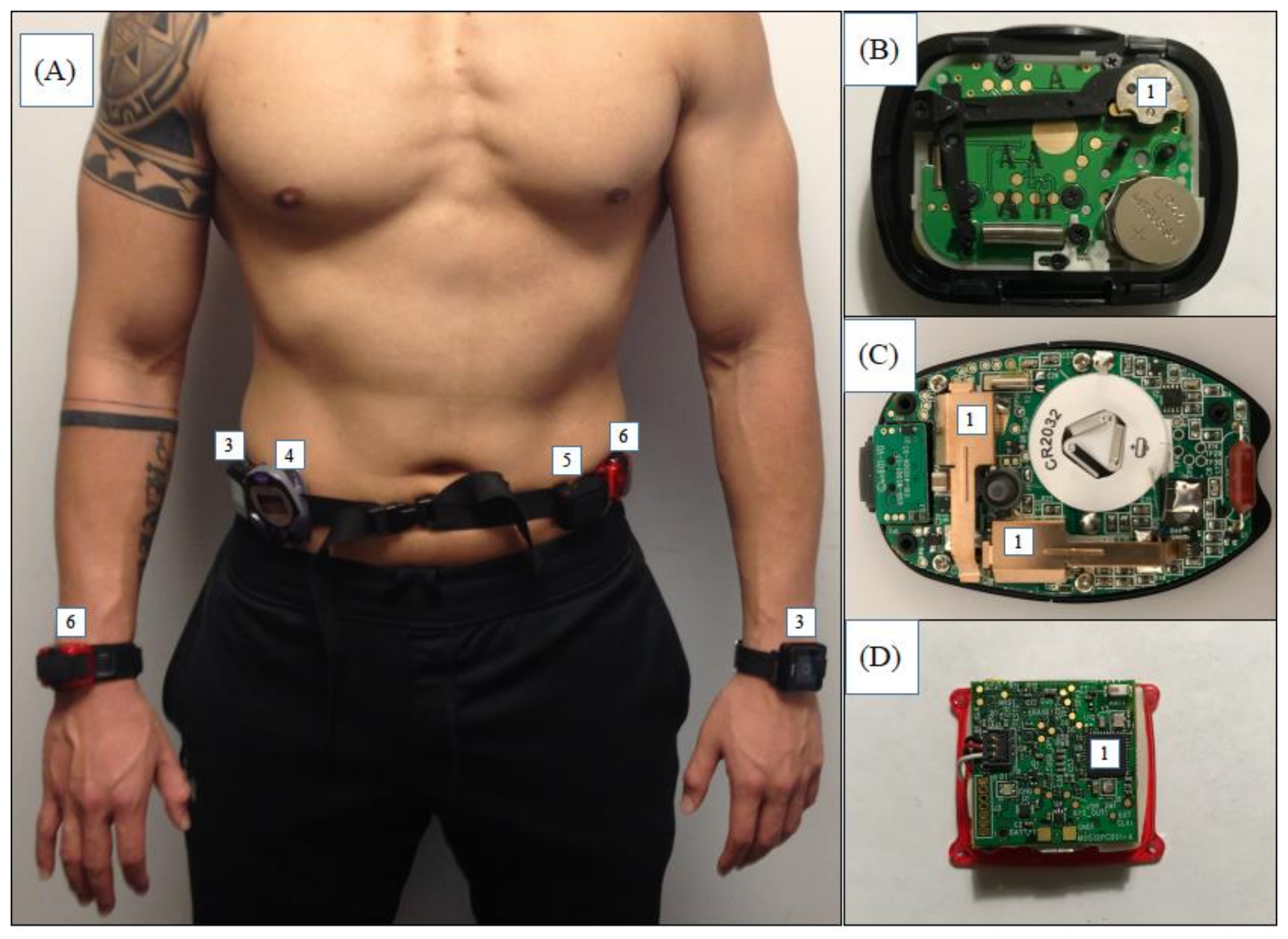

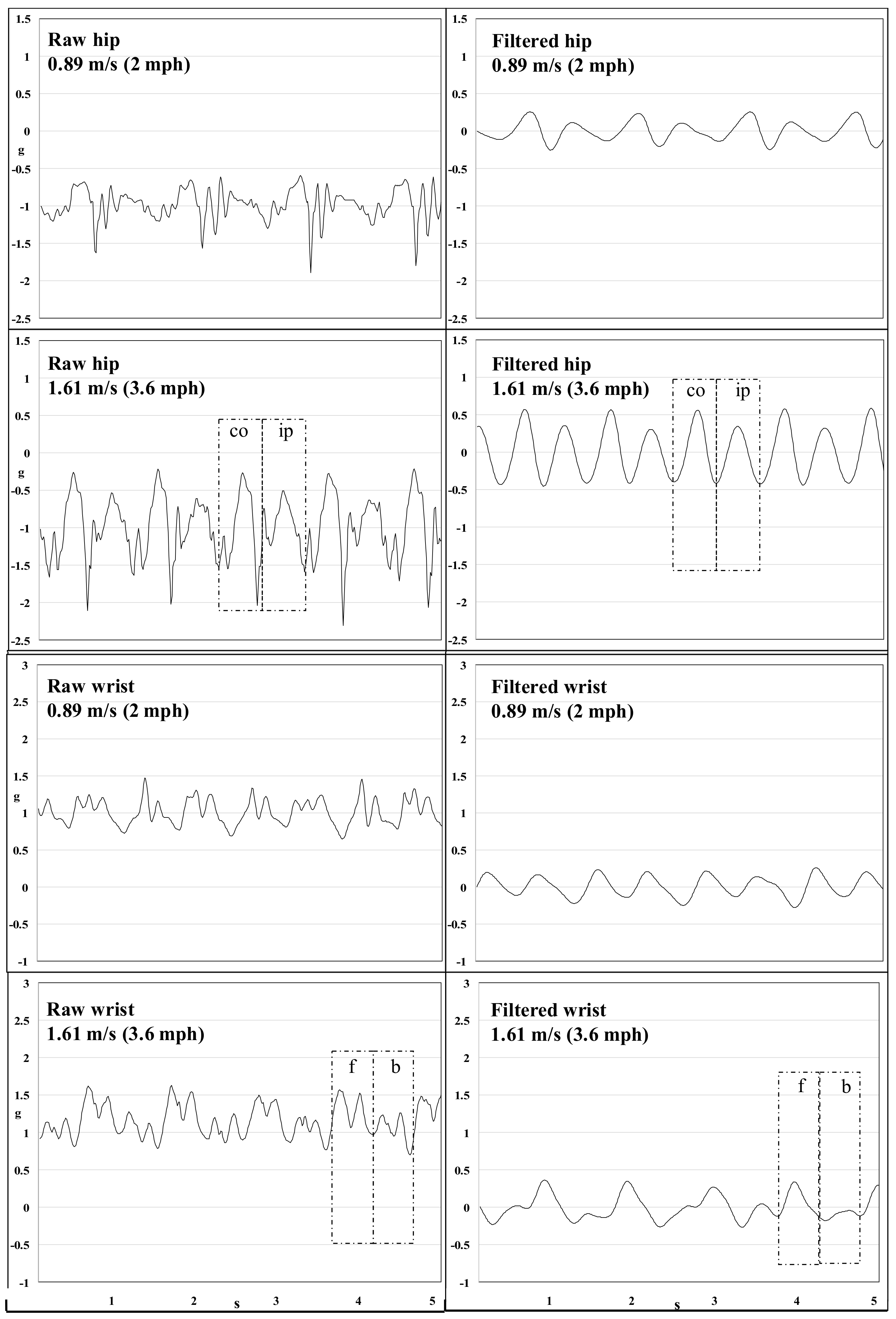

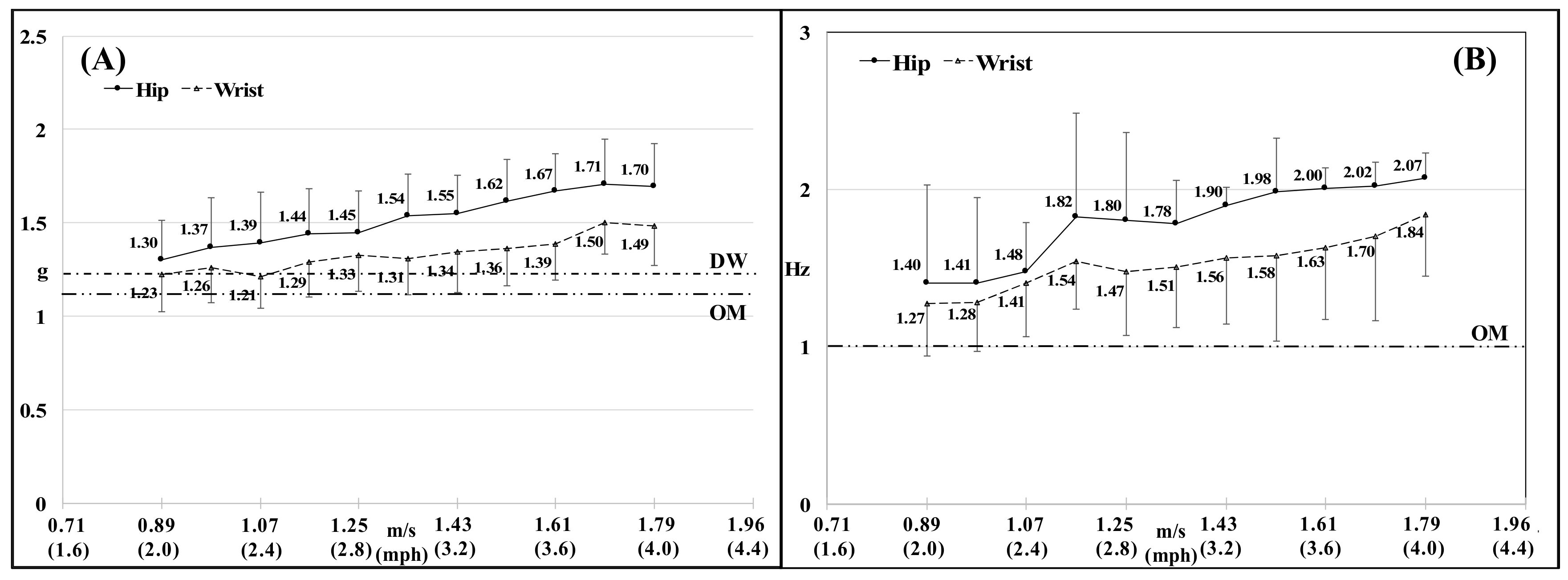

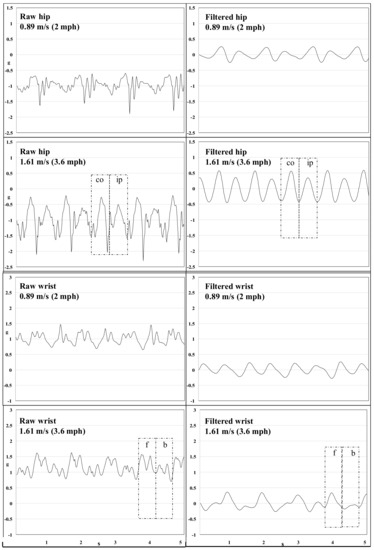

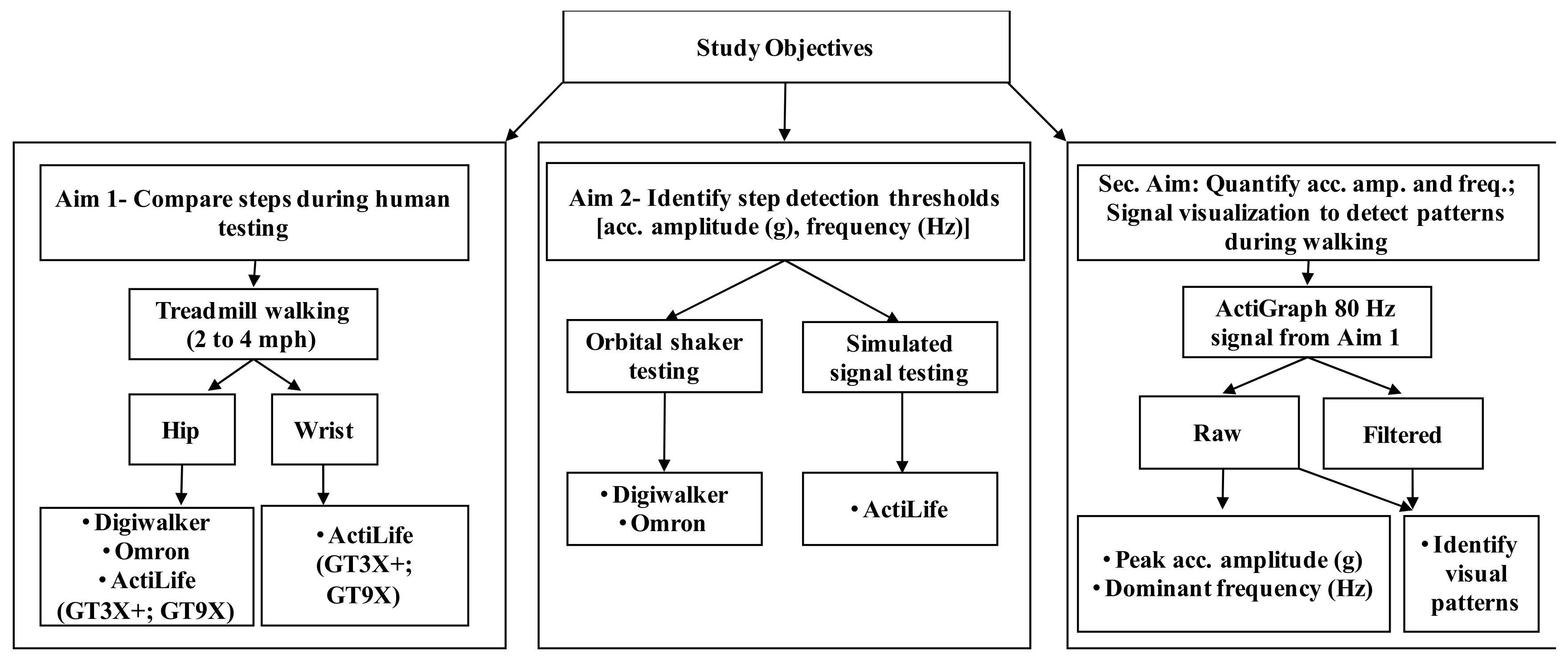

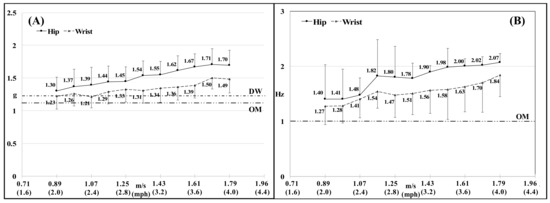

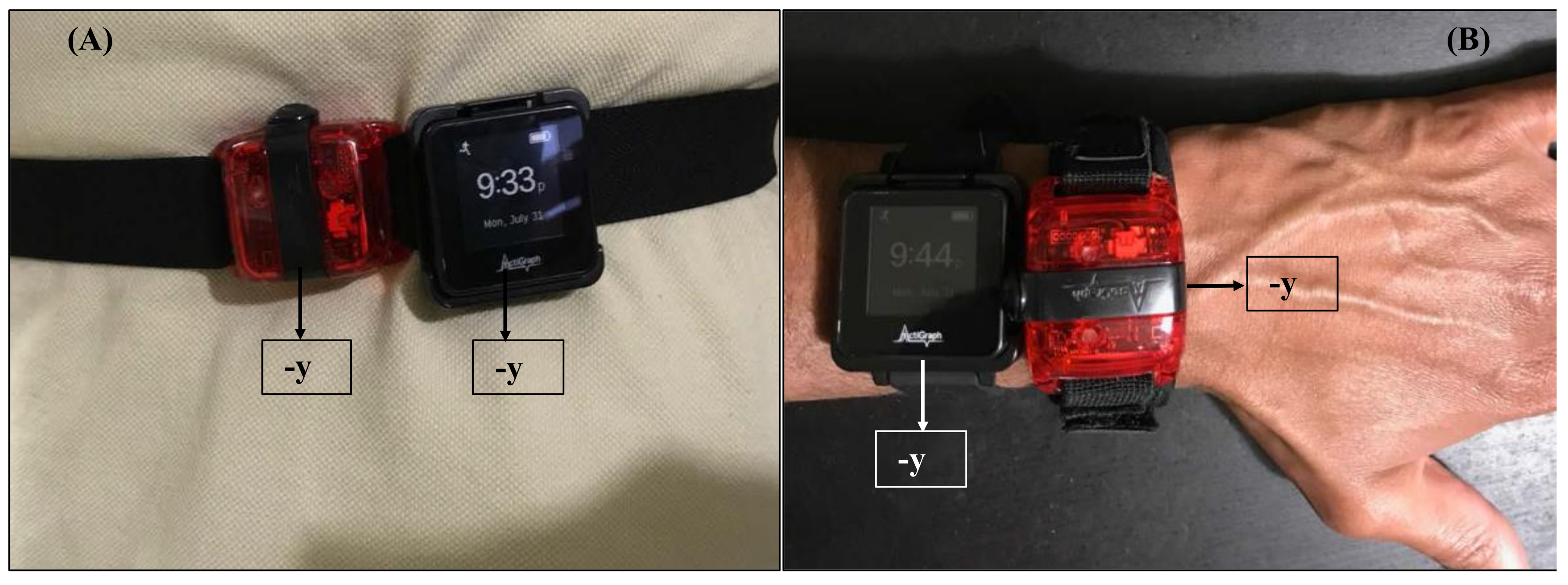

(1) Background: This study compared manually-counted treadmill walking steps from the hip-worn DigiwalkerSW200 and OmronHJ720ITC, and hip and wrist-worn ActiGraph GT3X+ and GT9X; determined brand-specific acceleration amplitude (g) and/or frequency (Hz) step-detection thresholds; and quantified key features of the acceleration signal during walking. (2) Methods: Twenty participants (Age: 26.7 ± 4.9 years) performed treadmill walking between 0.89-to-1.79 m/s (2–4 mph) while wearing a hip-worn DigiwalkerSW200, OmronHJ720ITC, GT3X+ and GT9X, and a wrist-worn GT3X+ and GT9X. A DigiwalkerSW200 and OmronHJ720ITC underwent shaker testing to determine device-specific frequency and amplitude step-detection thresholds. Simulated signal testing was used to determine thresholds for the ActiGraph step algorithm. Steps during human testing were compared using bias and confidence intervals. (3) Results: The OmronHJ720ITC was most accurate during treadmill walking. Hip and wrist-worn ActiGraph outputs were significantly different from the criterion. The DigiwalkerSW200 records steps for movements with a total acceleration of ≥1.21 g. The OmronHJ720ITC detects a step when movement has an acceleration ≥0.10 g with a dominant frequency of ≥1 Hz. The step-threshold for the ActiLife algorithm is variable based on signal frequency. Acceleration signals at the hip and wrist have distinctive patterns during treadmill walking. (4) Conclusions: Three common research-grade physical activity monitors employ different step-detection strategies, which causes variability in step output. View Full-Text
Keywords: Step-detection; ActiGraph; Pedometer; acceleration; physical activity Step-detection; ActiGraph; Pedometer; acceleration; physical activity
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
