Time Sequential Single-Cell Patterning with High Efficiency and High Density

1
State Key Laboratory of Precision Measurement Technology and Instruments, Tsinghua University, Beijing 100084, China
2
Center for Biosystems Dynamics Research (BDR), RIKEN, 1-3 Yamadaoka, Suita, Osaka 565-0871, Japan
3
Division of Materials Science, Nara Institute of Science and Technology, 8916-5 Takayama-cho, Ikoma, Nara 630-0192, Japan
*
Author to whom correspondence should be addressed.
Sensors 2018, 18(11), 3672; https://doi.org/10.3390/s18113672
Received: 23 September 2018 / Revised: 24 October 2018 / Accepted: 25 October 2018 / Published: 29 October 2018
(This article belongs to the Section Chemical Sensors)
  |
PDF [2467 KB, uploaded 29 October 2018]
  |

Abstract

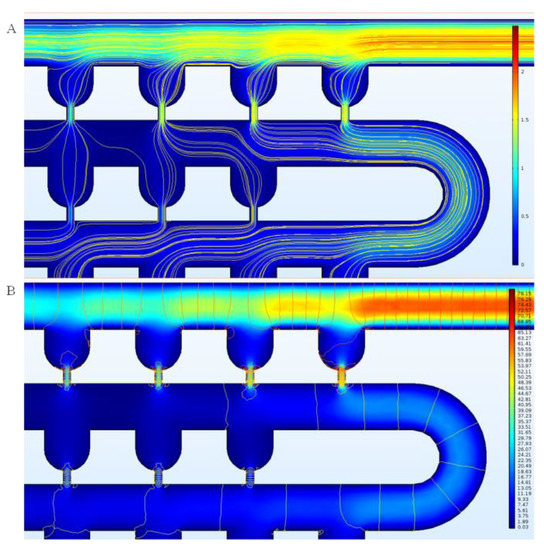

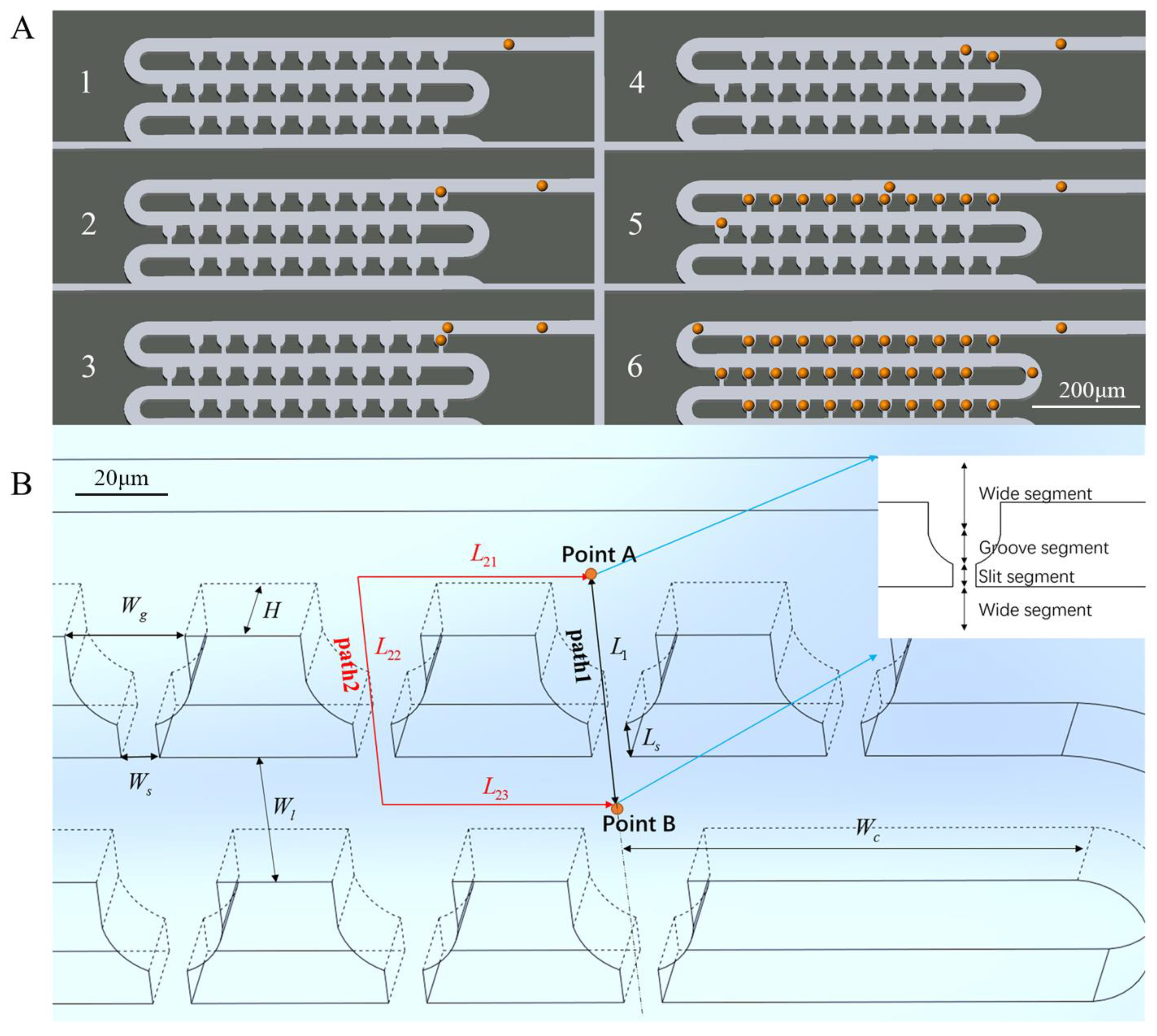

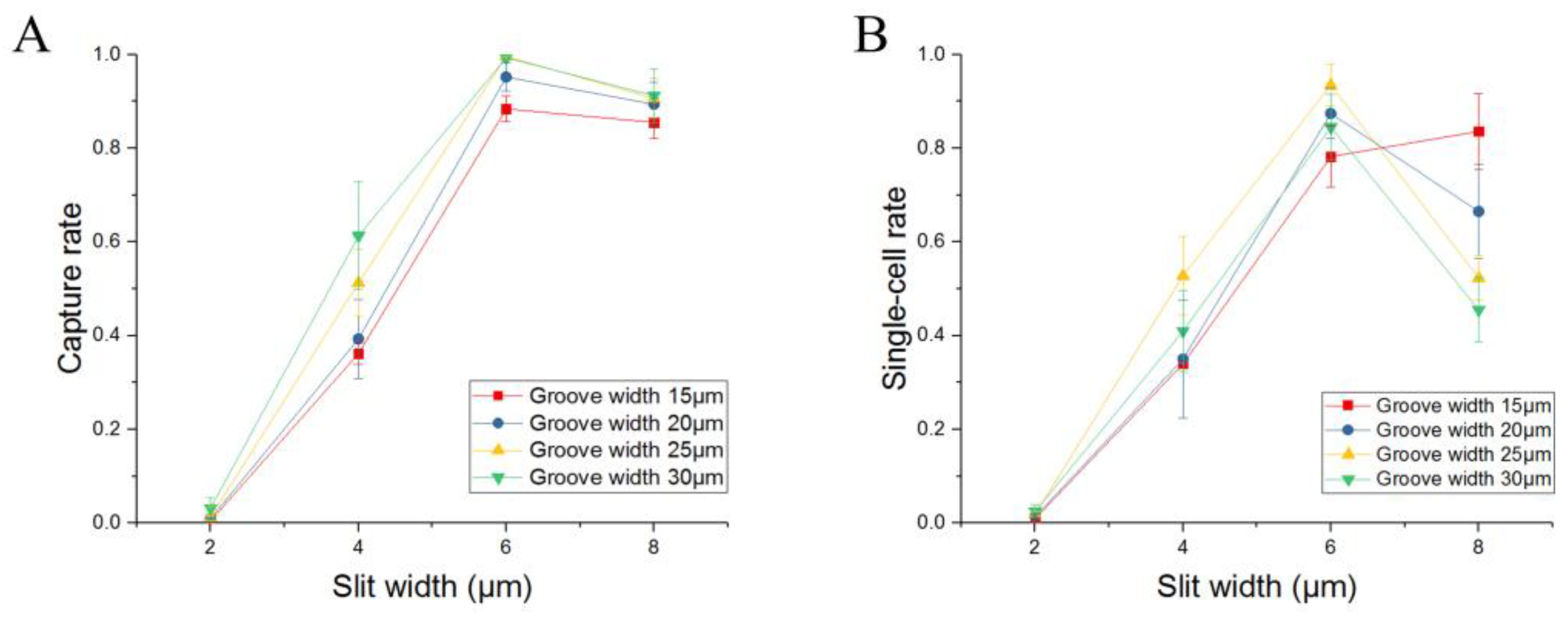

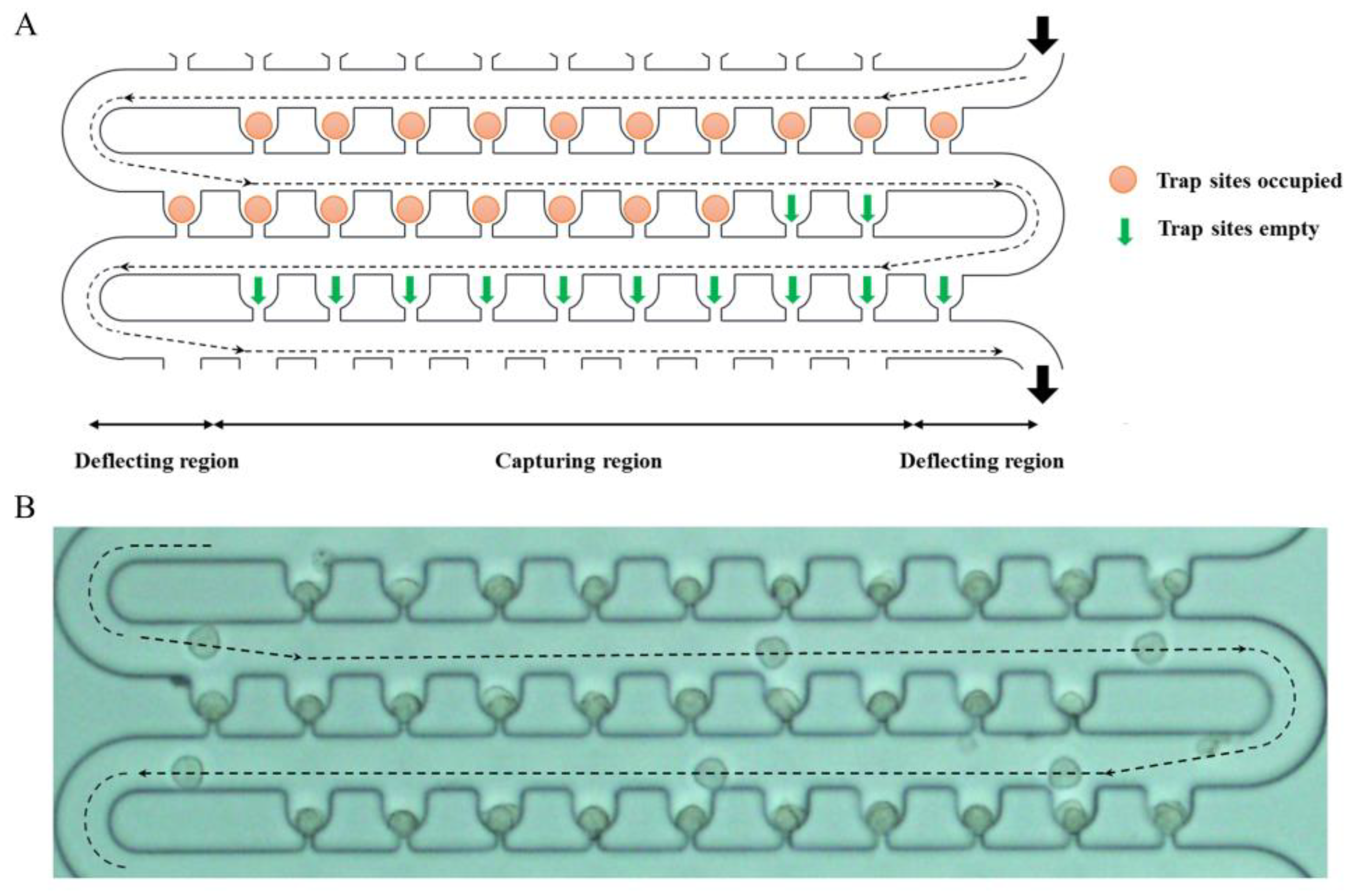

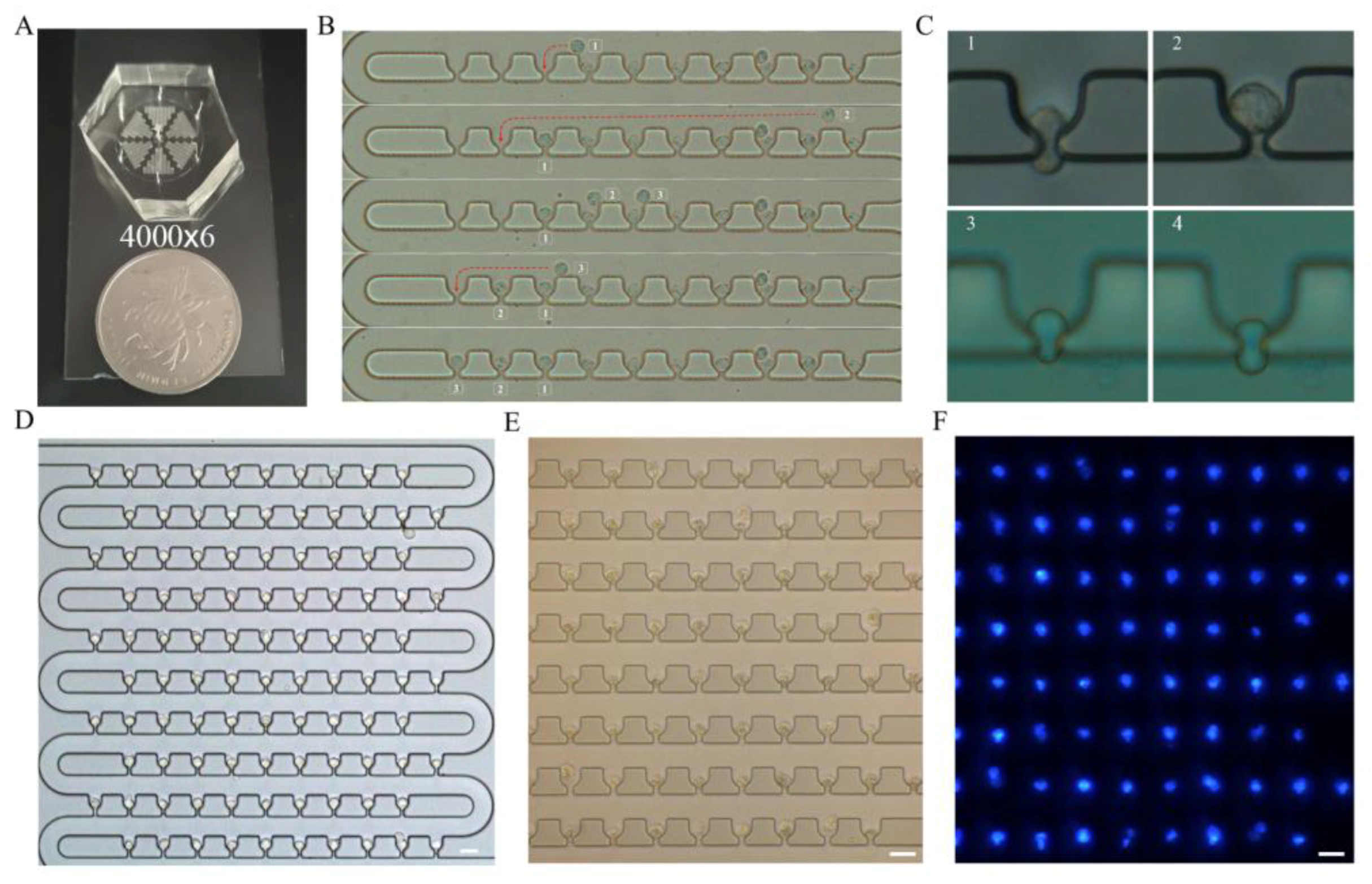

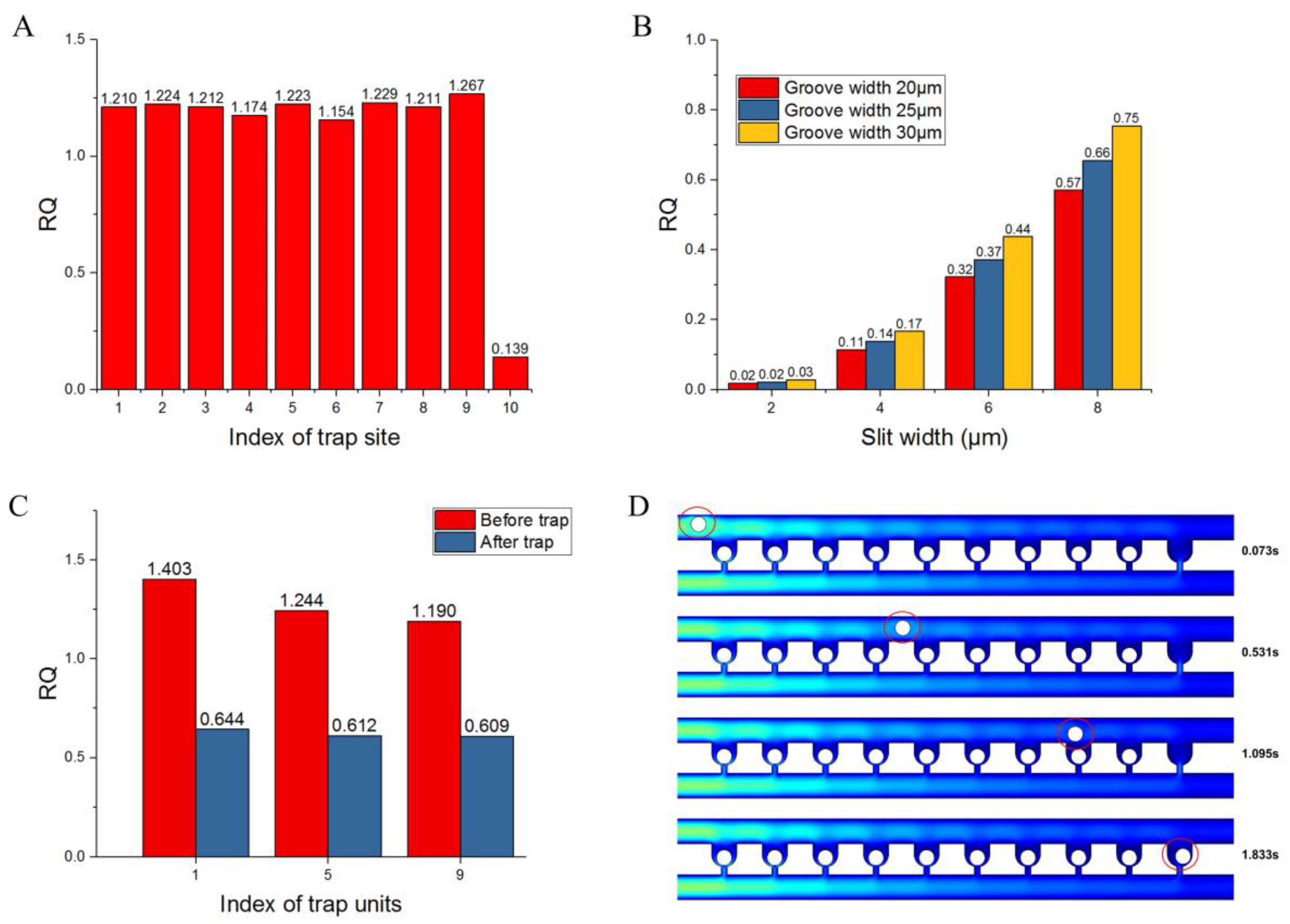

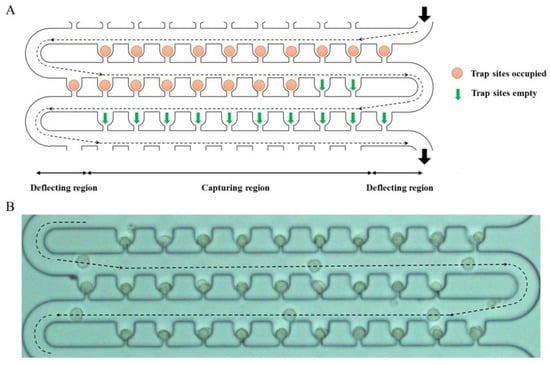

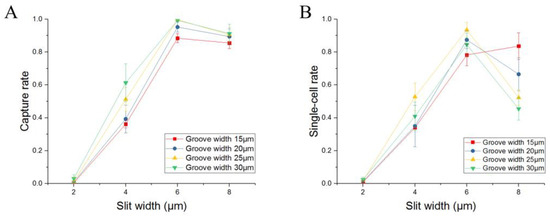

Single-cell capture plays an important role in single-cell manipulation and analysis. This paper presents a microfluidic device for deterministic single-cell trapping based on the hydrodynamic trapping mechanism. The device is composed of an S-shaped loop channel and thousands of aligned trap units. This arrayed structure enables each row of the device to be treated equally and independently, as it has row periodicity. A theoretical model was established and a simulation was conducted to optimize the key geometric parameters, and the performance was evaluated by conducting experiments on MCF-7 and Jurkat cells. The results showed improvements in single-cell trapping ability, including loading efficiency, capture speed, and the density of the patterned cells. The optimized device can achieve a capture efficiency of up to 100% and single-cell capture efficiency of up to 95%. This device offers 200 trap units in an area of 1 mm2, which enables 100 single cells to be observed simultaneously using a microscope with a 20× objective lens. One thousand cells can be trapped sequentially within 2 min; this is faster than the values obtained with previously reported devices. Furthermore, the cells can also be recovered by reversely infusing solutions. The structure can be easily extended to a large scale, and a patterned array with 32,000 trap sites was accomplished on a single chip. This device can be a powerful tool for high-throughput single-cell analysis, cell heterogeneity investigation, and drug screening. View Full-Text
Keywords: cell patterning; cell trapping; single-cell analysis; microfluidics; lab-on-a-chip cell patterning; cell trapping; single-cell analysis; microfluidics; lab-on-a-chip
