Open AccessArticle
Sensors 2018, 18(10), 3404; https://doi.org/10.3390/s18103404

Improving the Surface-Enhanced Raman Scattering Performance of Silver Nanodendritic Substrates with Sprayed-On Graphene-Based Coatings

Department of Chemical Engineering, Queen’s University, Kingston, ON K7L3N6, Canada
*
Author to whom correspondence should be addressed.
Received: 28 August 2018 / Revised: 3 October 2018 / Accepted: 6 October 2018 / Published: 11 October 2018
(This article belongs to the Special Issue Applications of Raman Spectroscopy in Sensors)
Full-Text   |   PDF [2794 KB, uploaded 11 October 2018]   |

Abstract

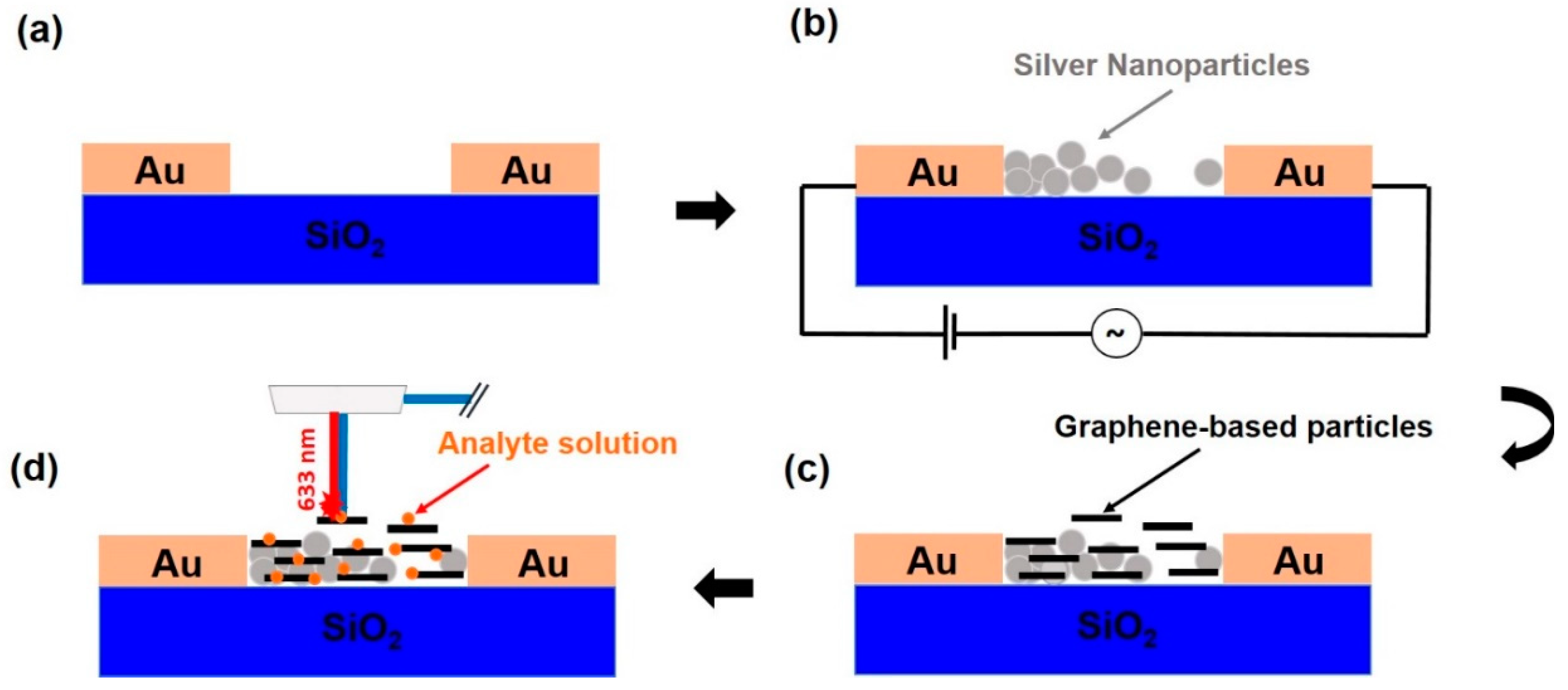

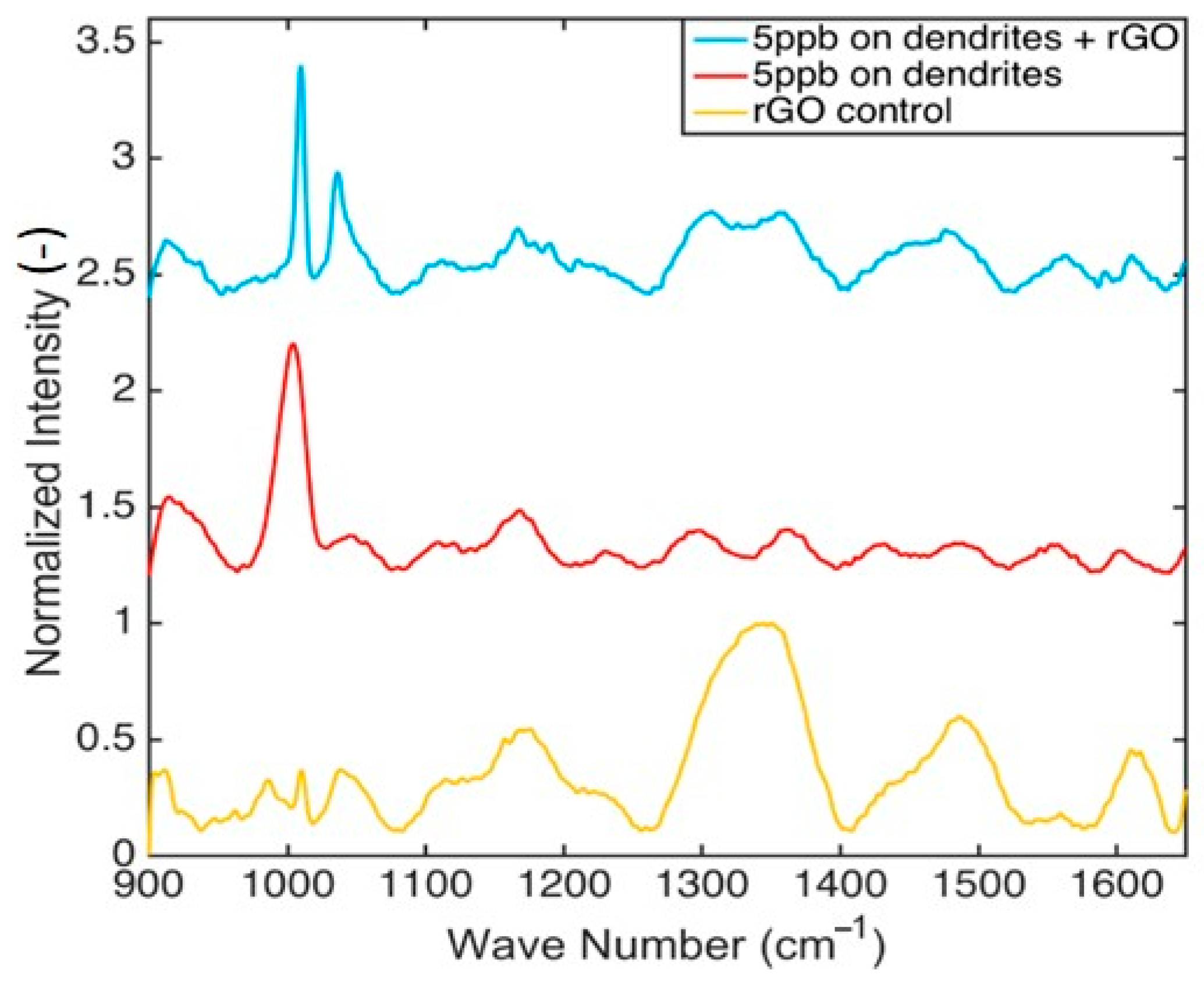

This study examines the improvements in surface-enhanced Raman scattering (SERS) performance achieved when silver nanodendritic structures are coated with various graphene-based materials, namely graphene oxide (GO), reduced graphene oxide (rGO), and graphene nanoplatelets (GNPs). The tests are performed on our unique SERS-active substrates, prepared on the surface of planar microelectrode chips using an electric field-guided Ag nanoparticle assembly process. The graphene-based materials are introduced into the substrate by means of an in-house spray-coating technique. The SERS enhancement effect of each coating is examined as a function of spray nozzle passes (N) and optimal values are identified for each coating type. The enhancements found for GO, rGO, and GNP (6–9 graphene layers thick) coatings are 2.3 (N = 25), 2.5 (N = 5), and 1.6 (N = 1), respectively. Additionally, in comparison with their uncoated counterparts, substrates coated with rGO (N = 5) are shown to enhance the intensity of the methamphetamine (5 ppb) spectrum in artificial saliva by approximately 3-fold. Overall, it can be concluded that the introduction of GO or rGO to the SERS substrate using spray-coating, a simple and also scalable method, can produce substantial SERS performance enhancement. View Full-Text
Keywords: surface-enhanced Raman scattering; silver dendrites; electric field-guided assembly; graphene-based coatings; sprayed coatings; illicit drug detection surface-enhanced Raman scattering; silver dendrites; electric field-guided assembly; graphene-based coatings; sprayed coatings; illicit drug detection
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Mohammadi, A.; Nicholls, D.L.; Docoslis, A. Improving the Surface-Enhanced Raman Scattering Performance of Silver Nanodendritic Substrates with Sprayed-On Graphene-Based Coatings. Sensors 2018, 18, 3404.
