Open AccessArticle
Sensors 2017, 17(8), 1704;

Detection of Pseudomonas aeruginosa Metabolite Pyocyanin in Water and Saliva by Employing the SERS Technique

Institute of Physical Chemistry and Abbe Center of Photonics, Friedrich Schiller University Jena, Helmholtzweg 4, 07743 Jena, Germany
Research Campus InfectoGnostics, Philosophenweg 7, 07743 Jena, Germany
Leibniz Institute of Photonic Technology Jena, Albert-Einstein-Str. 9, 07745 Jena, Germany
Authors to whom correspondence should be addressed.
Received: 13 June 2017 / Revised: 19 July 2017 / Accepted: 20 July 2017 / Published: 25 July 2017
(This article belongs to the Special Issue Applications of Raman Spectroscopy in Biosensors)
Full-Text   |   PDF [2735 KB, uploaded 25 July 2017]   |

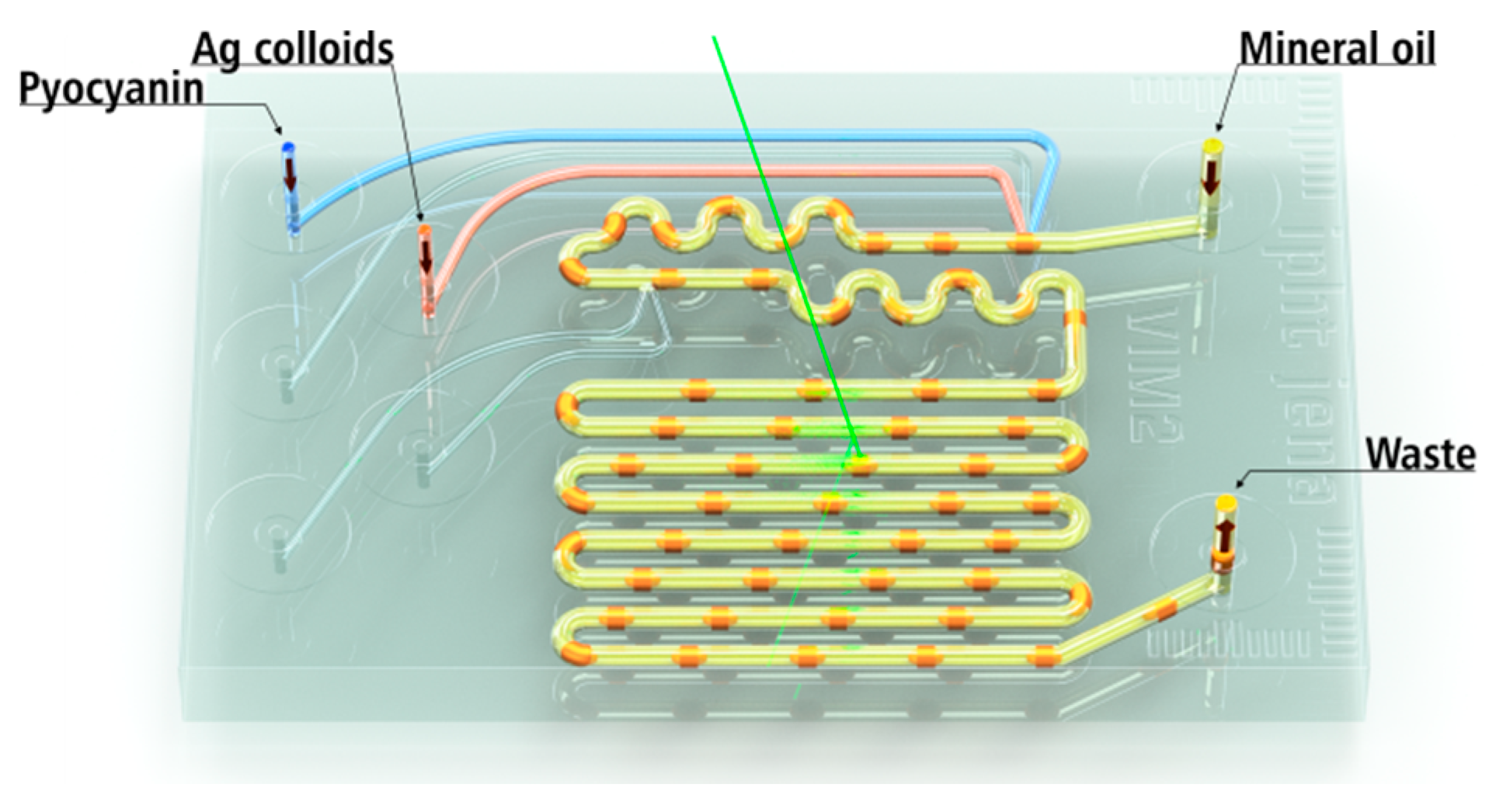

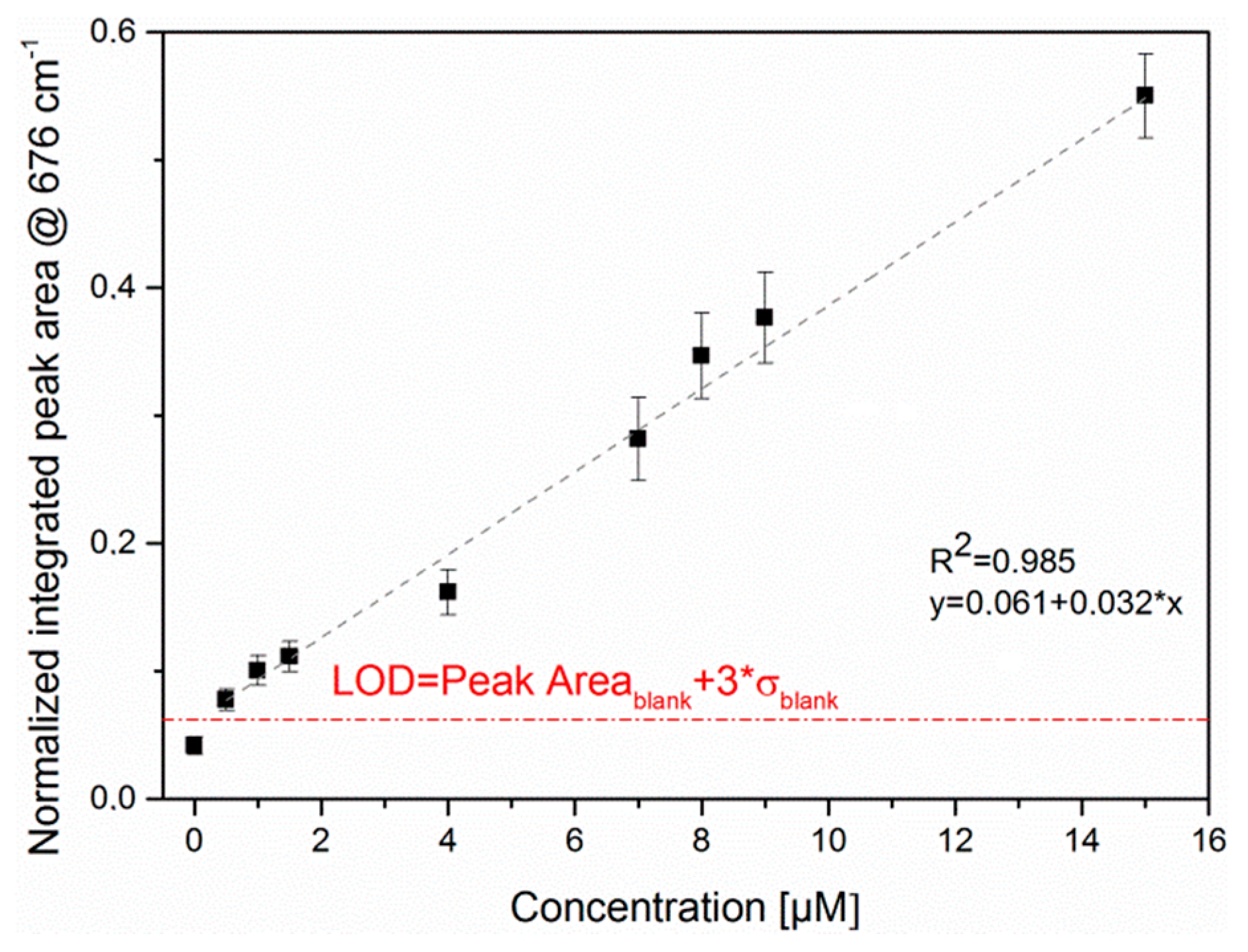

Pyocyanin (PYO) is a metabolite specific for Pseudomonas aeruginosa. In the case of immunocompromised patients, it is currently considered a biomarker for life-threating Pseudomonas infections. In the frame of this study it is shown, that PYO can be detected in aqueous solution by employing surface-enhanced Raman spectroscopy (SERS) combined with a microfluidic platform. The achieved limit of detection is 0.5 μM. This is ~2 orders of magnitude below the concentration of PYO found in clinical samples. Furthermore, as proof of principle, the SERS detection of PYO in the saliva of three volunteers was also investigated. This body fluid can be collected in a non-invasive manner and is highly chemically complex, making the detection of the target molecule challenging. Nevertheless, PYO was successfully detected in two saliva samples down to 10 μM and in one sample at a concentration of 25 μM. This indicates that the molecules present in saliva do not inhibit the efficient adsorption of PYO on the surface of the employed SERS active substrates. View Full-Text
Keywords: SERS; pyocyanin; microfluidics; diagnosis; artificial sputum SERS; pyocyanin; microfluidics; diagnosis; artificial sputum

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
