# An Improved Multi-Sensor Fusion Navigation Algorithm Based on the Factor Graph

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

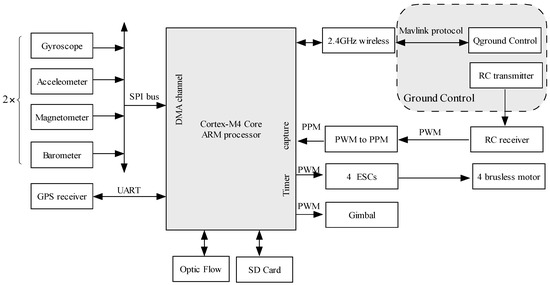

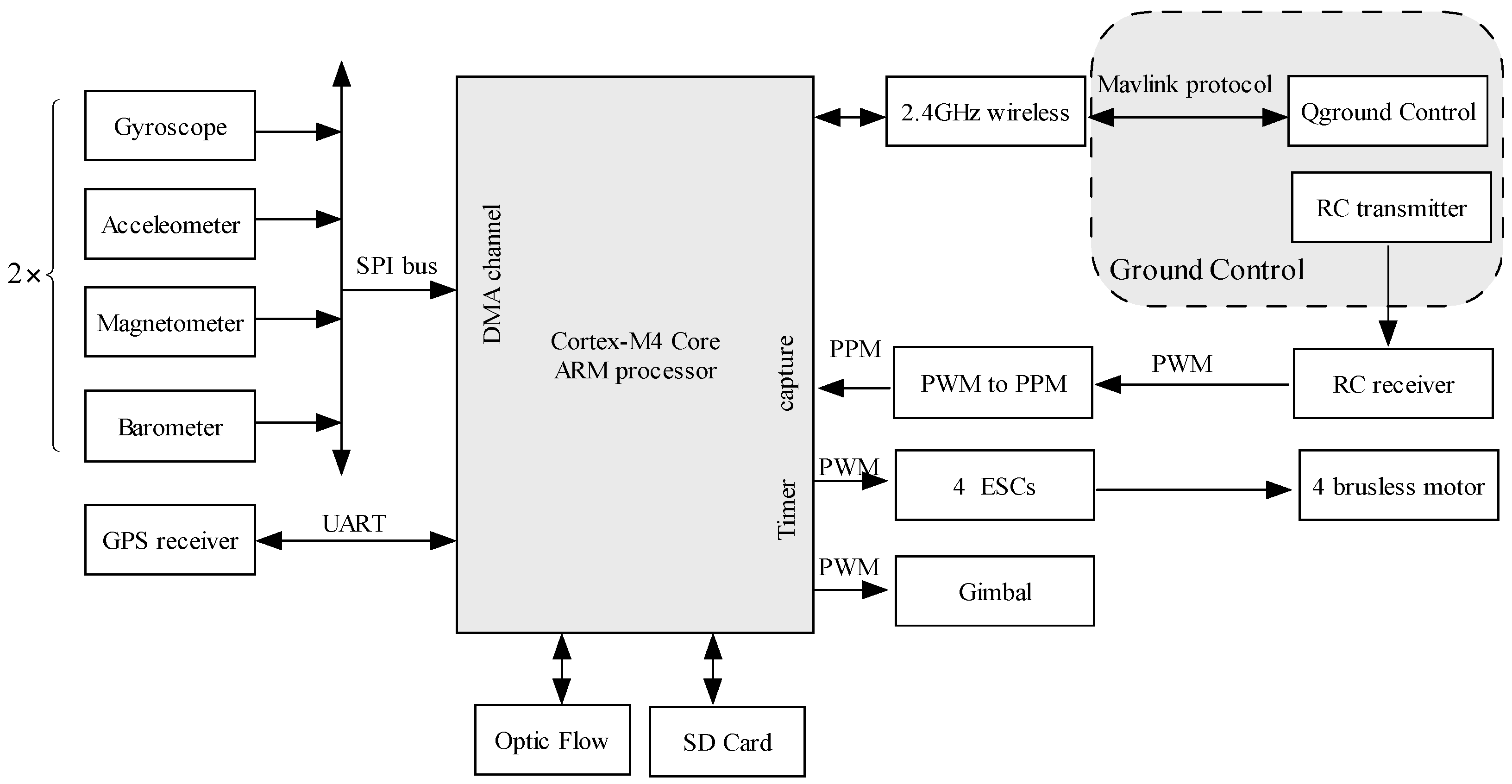

## 2. System Overview

- MPU-6000 inertial sensor, including a three-axis MEMS gyroscope and a three-axis accelerometer.
- HMC5983 magnetometer enables 1° to 2° compass heading accuracy with temperature compensation.
- MS5611 barometer module, with an altitude resolution of 0.1 m.
- URM37 sonar module provides 0.04 m–5 m non-contact measurement function, the ranging accuracy can reach to 1 cm.
- Ublox LEA 6H GPS receiver, with the position accuracy of 2 m.
- Optical flow sensor processing the pixel resolution of 752 × 480 at 120 (indoor) to 250 Hz (outdoor).

## 3. System Model for the Navigation System

#### 3.1. State Model of the System

#### 3.2. Measurement Model of the System

#### 3.2.1. GPS Measurement Equation

#### 3.2.2. Barometric Altimeter Measurement Equation

#### 3.2.3. Magnetometer Measurement Equation

#### 3.2.4. Optical Flow Measurement Equation

#### 3.2.5. Sonar Measurement Equation

## 4. Information Fusion Method Based on the Factor Graph

#### 4.1. Factor Graph Formulations

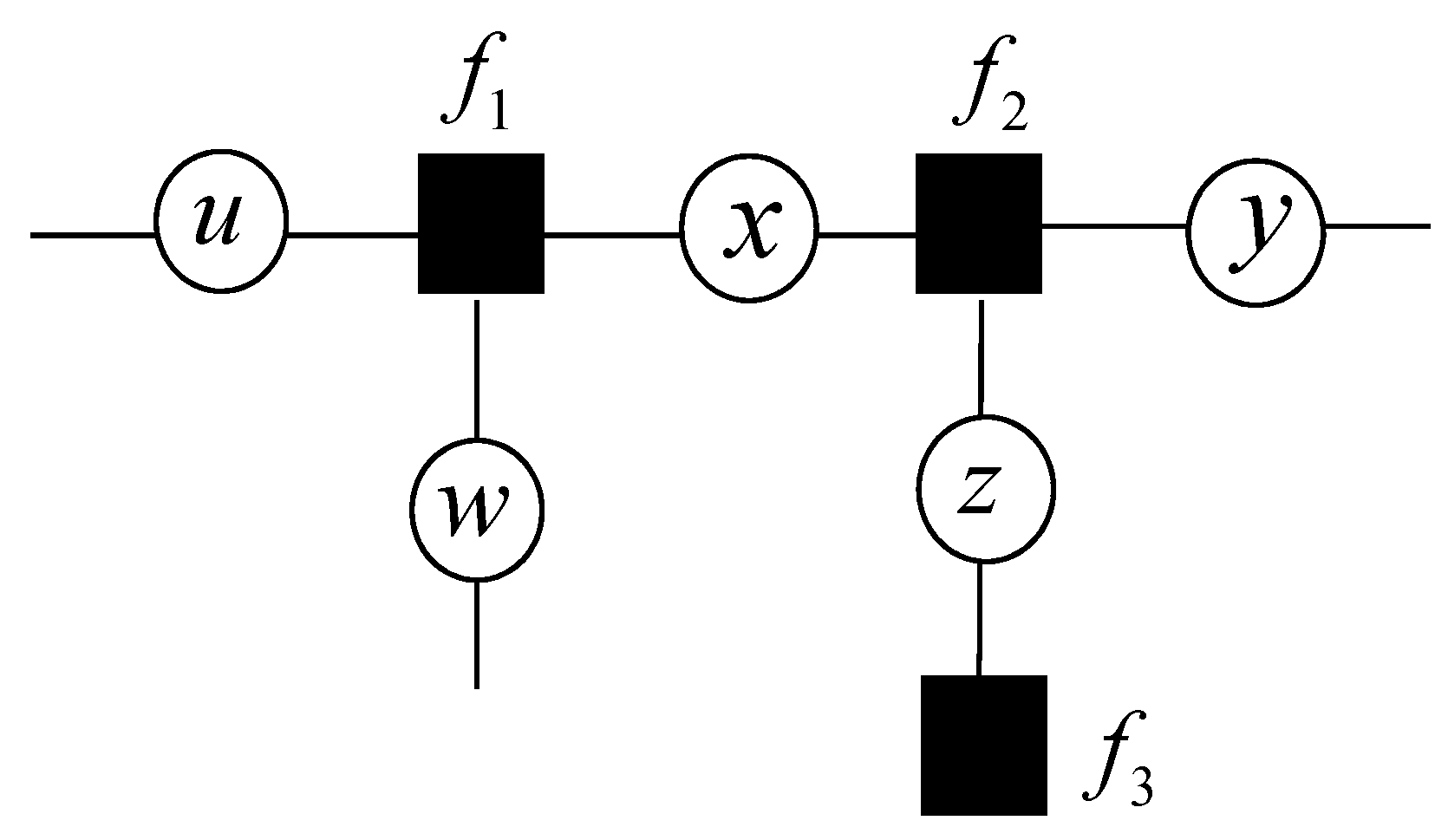

_{1}, f

_{2}, f

_{3}are the local functions. Due to the variable vertex u, w, x are connected to f

_{1}, the factor vertex f

_{1}involves the independent variables u, w, x. In a similar way, the factor vertex f

_{2}involves the independent variables x, y, z. The factor vertex f

_{3}involves the independent variable z.

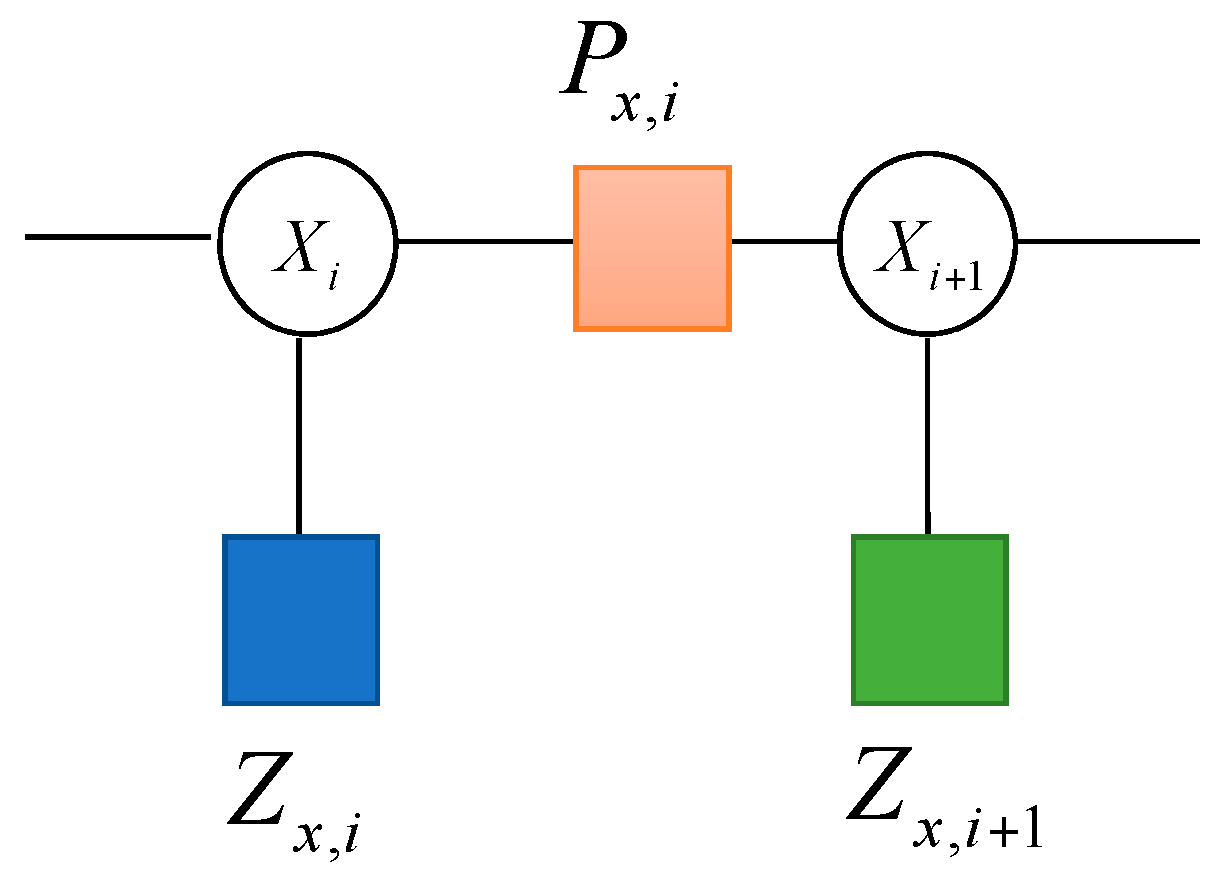

#### 4.2. Fusion Algorithm with the Factor Graph

#### 4.3. Factor Graph Modeling

- Step 1:
- Set the initial parameters and define a state-space vector. New factors ${f}_{new}=\left\{\right\}$ and new variables ${\mathit{X}}_{new}=\left\{\right\}$ are initialized. The probability density function $p({\mathit{X}}_{0})$ should be set up according to the parameters of the system.
- Step 2:

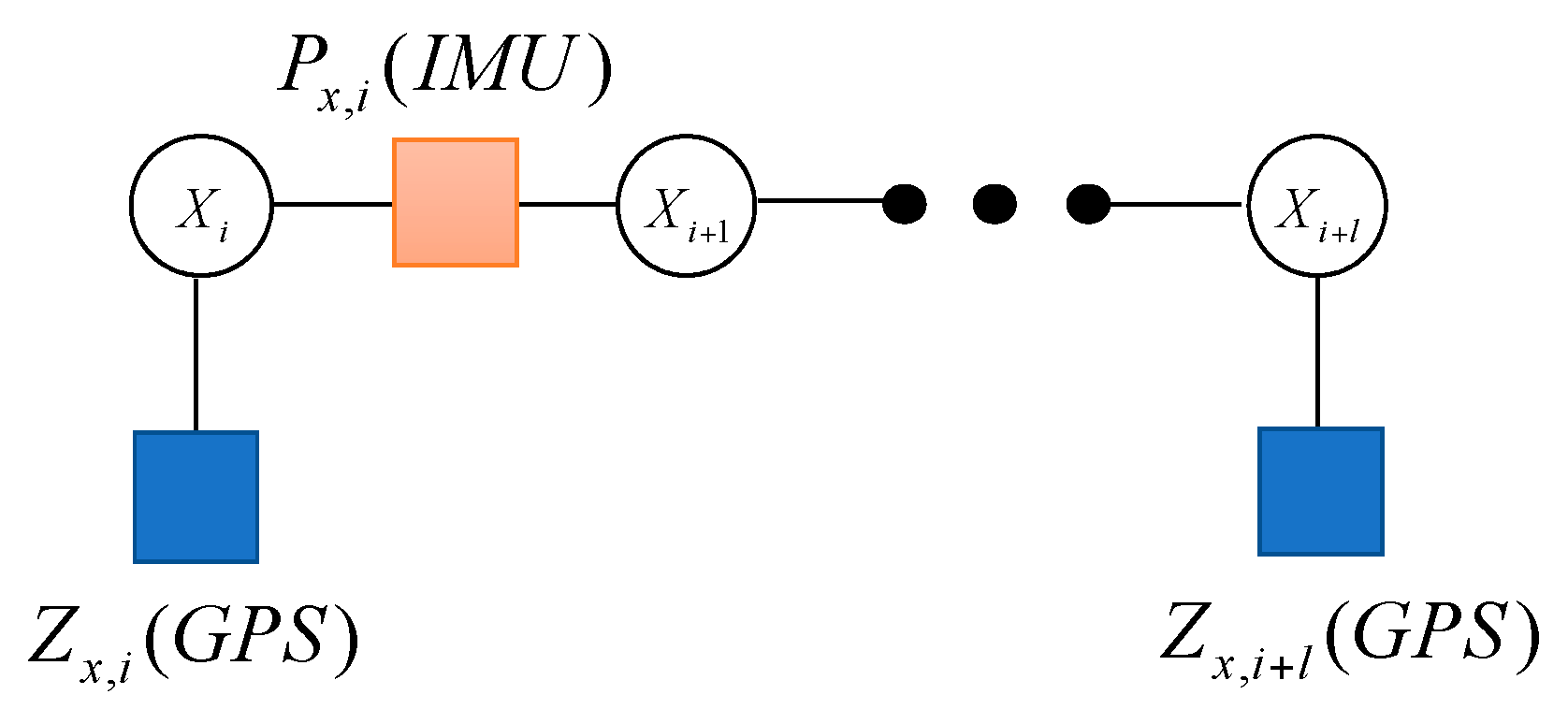

- When the system receives the IMU measurement ${\tilde{\mathit{f}}}^{b},{\tilde{w}}_{ib}^{b}$, at ${t}_{i}$ moment, the factor node ${P}_{x,i}(IMU)$ will be added into the graph. It connects two different variable nodes ${\mathit{X}}_{i}$ and ${\mathit{X}}_{i+1}$ in ${t}_{i}$ and ${t}_{i+1}$ moments, respectively. The IMU measurement is used to calculate the state transition matrix to predict ${\widehat{\mathit{X}}}_{i+1/i}$ by state vector propagation.
- Position is calculated by ${\mathit{p}}_{i+1}={\mathit{p}}_{i}+{\mathit{v}}_{i}\cdot \Delta t$;
- Velocity is calculated by ${\mathit{v}}_{i+1}={\mathit{v}}_{i}+[{C}_{b}^{n}\cdot ({\tilde{\mathit{f}}}^{b}-{\nabla}_{a}-{\mathsf{\omega}}_{a})+{\left[\begin{array}{ccc}0& 0& 1\end{array}\right]}^{T}g]\cdot \Delta t$;
- Attitude is calculated by ${\mathit{q}}_{i+1}={\mathit{q}}_{i}+[\frac{1}{2}{\mathit{q}}_{i}\otimes ({\tilde{w}}_{ib}^{b}-{\nabla}_{g}-{\mathsf{\omega}}_{g})]\cdot \Delta t$.

- Step 3:
- Add ${\mathit{X}}_{i+1}=\left[\begin{array}{ccccc}{{\mathit{p}}_{i+1}}^{T}& {{\mathit{v}}_{i+1}}^{T}& {{\mathit{q}}_{i+1}}^{T}& {\nabla}_{a}^{T}& {\nabla}_{g}^{T}\end{array}\right]$ to ${\mathit{X}}_{new}=\left\{\right\}$;
- Step 4:

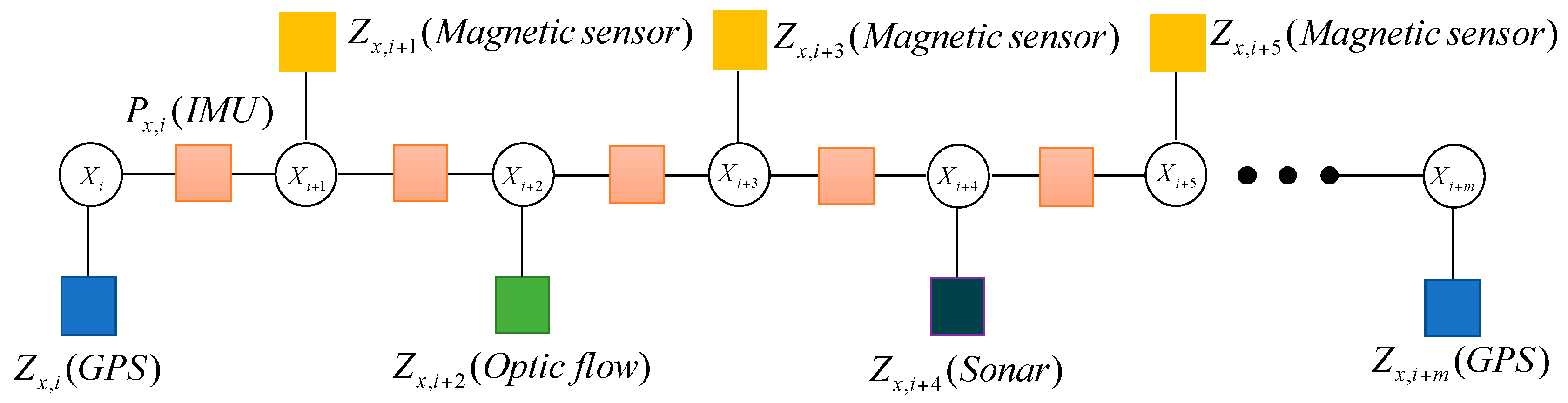

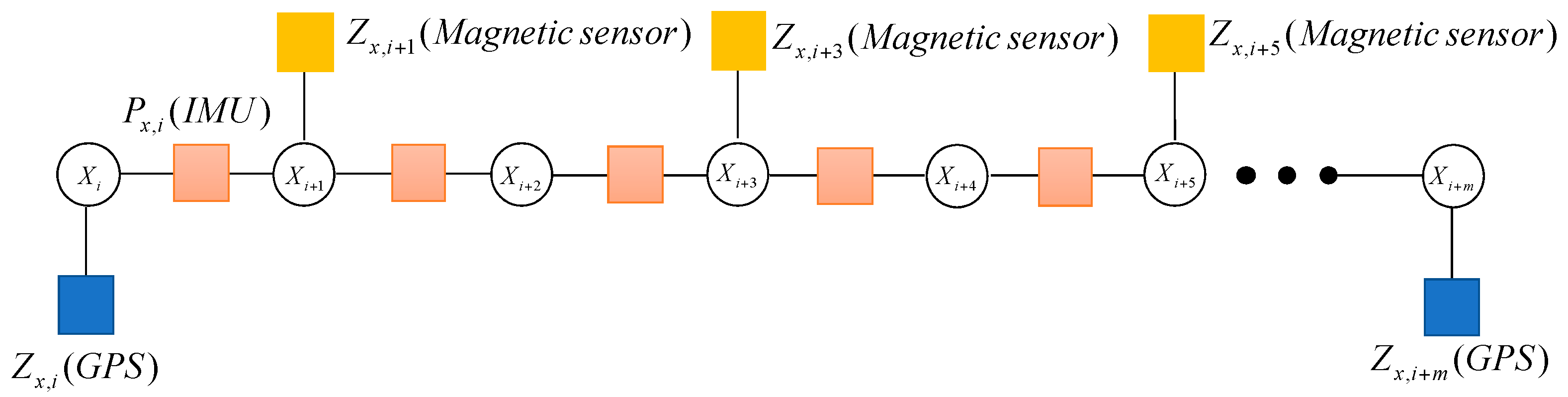

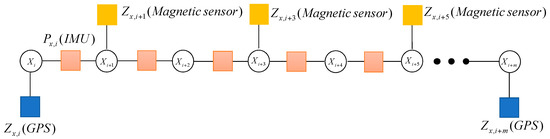

- When the system receives the measurement ${\mathit{Z}}_{x,k}$ (magnetic, GPS, sonar or optic flow, etc.) at ${t}_{k}$ moment, the factor node ${f}_{x,k}$(magnetic, GPS, sonar or optic flow, etc.) will be added into the graph. Add ${f}_{x,k}$ to ${f}_{new}=\left\{\right\}$.
- Step 5:
- The optimization problem encoded by the factor graph is solved by Gauss–Newton iterations. $\mathit{Z}$ is the set of all measurements, and $\mathit{X}$ represents the set of all variables. $\widehat{\mathit{X}}$ is an initial estimate of $\mathit{X}$. According to Equation (17), the increment $\Delta \mathit{X}$ needs to be calculated, which should satisfy Equation (23).$$\underset{\Delta \mathit{X}}{\mathrm{arg}\mathrm{min}}{\Vert J(\widehat{\mathit{X}})\Delta \mathit{X}-r(\widehat{\mathit{X}})\Vert}^{2}$$

## 5. Experiment and Discussion

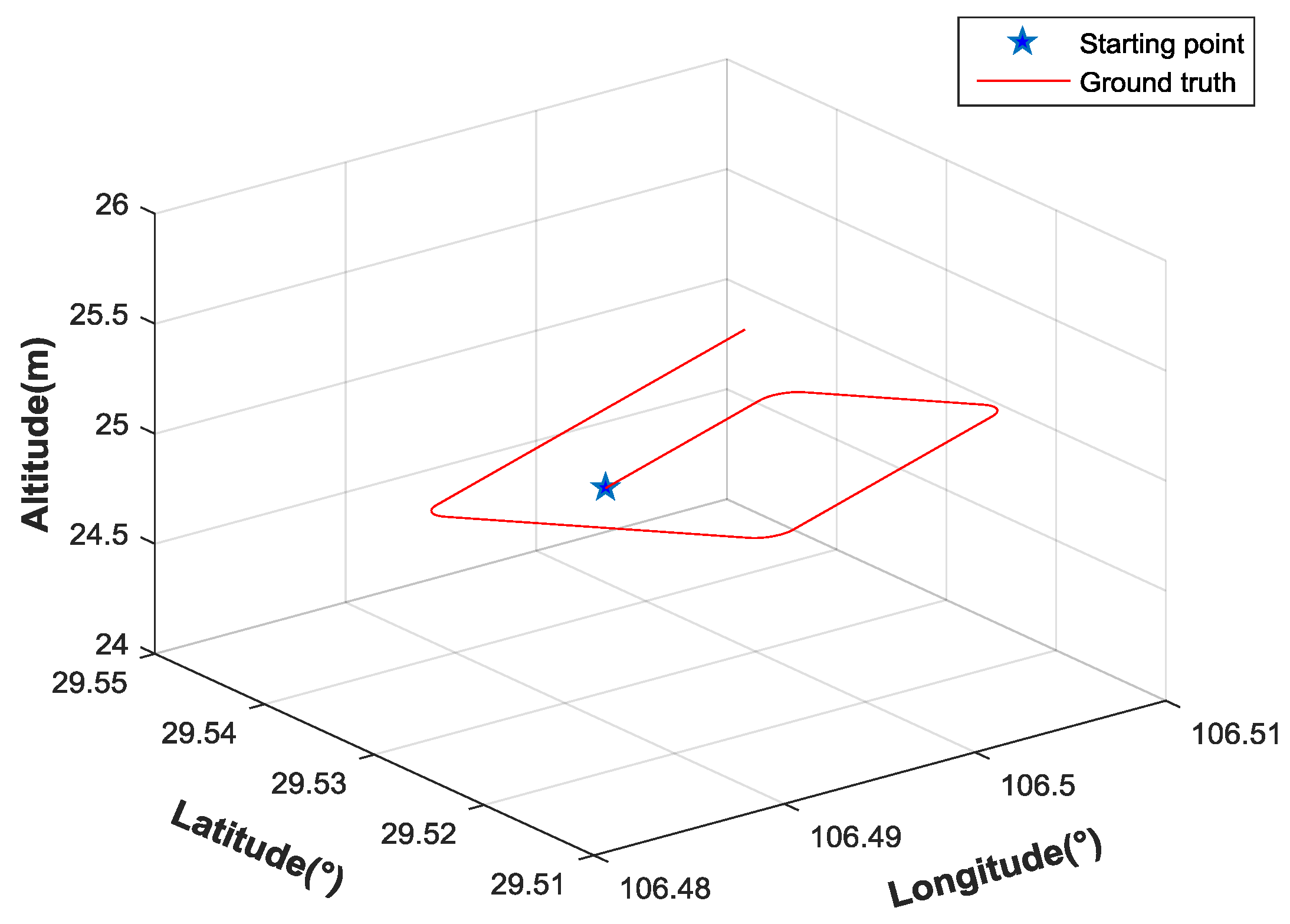

#### 5.1. Simulation and Analysis

#### 5.2. MUAV Flight Test and Results

## 6. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Gökçe, F.; Üçoluk, G.; Şahin, E.; Kalkan, S. Vision-Based Detection and Distance Estimation of Micro Unmanned Aerial Vehicles. Sensors
**2015**, 15, 23805–23846. [Google Scholar] [CrossRef] [PubMed] - Kim, J.H.; Sukkarieh, S. A baro-altimeter augmented INS/GPS navigation system for an uninhabited aerial vehicle. In Proceedings of the 6th International Conference on Satellite Navigation Technology (SATNAV 03), Melbourne VIC, Australia, 23–25 July 2003.
- Siebert, S.; Teizer, J. Mobile 3D mapping for surveying earthwork projects using an Unmanned Aerial Vehicle (UAV) system. Autom. Constr.
**2014**, 41, 1–14. [Google Scholar] [CrossRef] - Baiocchi, V.; Dominici, D.; Milone, M.V.; Mormile, M. Development of a software to plan UAVs stereoscopic flight: An application on post earthquake scenario in L’Aquila city. In Proceedings of the International Conference on Computational Science and Its Applications, Ho Chi Minh City, Vietnam, 24–27 June 2013; Springer: Berlin/Heidelberg, Germany, 2013; pp. 150–165. [Google Scholar]
- D’Oleire-Oltmanns, S.; Marzolff, I.; Peter, K.D.; Ries, J.B. Unmanned aerial vehicle (UAV) for monitoring soil erosion in Morocco. Remote Sens.
**2012**, 4, 3390–3416. [Google Scholar] [CrossRef] - Wendel, J.; Meister, O.; Schlaile, C.; Trommer, G.F. An integrated GPS/MEMS-IMU navigation system for an autonomous helicopter. Aerosp. Sci. Technol.
**2006**, 10, 527–533. [Google Scholar] [CrossRef] - Chiabrando, F.; Nex, F.; Piatti, D.; Rinaudo, F. UAV and RPV systems for photogrammetric surveys in archaelogical areas: Two tests in the Piedmont region (Italy). J. Archaeol. Sci.
**2011**, 38, 697–710. [Google Scholar] [CrossRef] - Li, Y. Optimal multisensor integrated navigation through information space approach. Phys. Commun.
**2014**, 13, 44–53. [Google Scholar] [CrossRef] - Noureldin, A.; Osman, A.; El-Sheimy, N. A neuro-wavelet method for multi-sensor system integration for vehicular navigation. Meas. Sci. Technol.
**2003**, 15, 404. [Google Scholar] [CrossRef] - Gao, S.; Zhong, Y.; Zhang, X.; Shirinzadeh, B. Multi-sensor optimal data fusion for INS/GPS/SAR integrated navigation system. Aerosp. Sci. Technol.
**2009**, 13, 232–237. [Google Scholar] [CrossRef] - Grewal, M.S.; Weill, L.R.; Andrews, A.P. Global Positioning Systems, Inertial Navigation, and Integration; John Wiley & Sons: Hoboken, NJ, USA, 2007. [Google Scholar]
- Smith, D.; Singh, S. Approaches to multisensor data fusion in target tracking: A survey. IEEE Trans. Knowl. Data Eng.
**2006**, 18, 1696–1710. [Google Scholar] [CrossRef] - Yager, R.R. On the fusion of imprecise uncertainty measures using belief structures. Inf. Sci.
**2011**, 181, 3199–3209. [Google Scholar] [CrossRef] - Sun, X.J.; Gao, Y.; Deng, Z.L.; Wang, J.W. Multi-model information fusion Kalman filtering and white noise deconvolution. Inf. Fusion
**2010**, 11, 163–173. [Google Scholar] [CrossRef] - Willner, D.; Chang, C.B.; Dunn, K.P. Kalman filter algorithms for a multi-sensor system. In Proceedings of the 1976 IEEE Conference on 15th Symposium on Adaptive Processes, Clearwater, FL, USA, 1–3 December 1976; pp. 570–574.
- Sun, S.L.; Deng, Z.L. Multi-sensor optimal information fusion Kalman filter. Automatica
**2004**, 40, 1017–1023. [Google Scholar] [CrossRef] - Rodríguez-Valenzuela, S.; Holgado-Terriza, J.A.; Gutiérrez-Guerrero, J.M.; Muros-Cobos, J.L. Distributed Service-Based Approach for Sensor Data Fusion in IoT Environments. Sensors
**2014**, 14, 19200–19228. [Google Scholar] [CrossRef] [PubMed] - Deng, Z.L.; Qi, R.B. Multi-sensor information fusion suboptimal steady-state Kalman filter. Chin. Sci. Abstr.
**2000**, 6, 183–184. [Google Scholar] - Gan, Q.; Harris, C.J. Comparison of two measurement fusion methods for Kalman-filter-based multisensor data fusion. IEEE Trans. Aerosp. Electron. Syst.
**2001**, 37, 273–279. [Google Scholar] [CrossRef] - Ali, J.; Fang, J.C. SINS/ANS/GPS integration using federated Kalman filter based on optimized information-sharing coefficients. In Proceedings of the AIAA Guidance, Navigation, and Control Conference, San Francisco, CA, USA, 15–18 August 2005; pp. 1–13.
- Brion, V.; Riff, O.; Descoleaux, M.; Mangiri, J.F.; Le Bihan, D.; Poupon, C.; Poupon, F. The Parallel Kalman Filter: An efficient tool to deal with real-time non central χ noise correction of HARDI data. In Proceedings of the IEEE International Symposium on Biomedical Imaging, Barcelona, Spain, 2–5 May 2012; pp. 34–37.
- Leung, Y.; Ji, N.N.; Ma, J.H. An integrated information fusion approach based on the theory of evidence and group decision-making. Inf. Fusion
**2013**, 14, 410–422. [Google Scholar] [CrossRef] - Wen, C.; Wen, C.; Li, Y. An Optimal Sequential Decentralized Filter of Discrete-time Systems with Cross-Correlated Noises. In Proceedings of the 17th World Congress on the International Federation of Automatic Control, Seoul, Korea, 6–11 July 2008; pp. 7560–7565.
- Wen, C.; Cai, Y.; Wen, C.; Xu, X. Optimal sequential Kalman filtering with cross-correlated measurement noises. Aerosp. Sci. Technol.
**2013**, 26, 153–159. [Google Scholar] [CrossRef] - Indelman, V.; Williams, S.; Kaess, M.; Dellaert, F. Information fusion in navigation systems via factor graph based incremental smoothing. Robot. Auton. Syst.
**2013**, 61, 721–738. [Google Scholar] [CrossRef] - Loeliger, H.A.; Dauwels, J.; Hu, J.; Korl, S.; Ping, L.; Kschischang, F.R. The factor graph approach to model-based signal processing. Proc. IEEE
**2007**, 95, 1295–1322. [Google Scholar] [CrossRef] - Mao, Y.; Kschischang, F.R.; Li, B.; Pasupathy, S. A factor graph approach to link loss monitoring in wireless sensor networks. IEEE J. Sel. Areas Commun.
**2005**, 23, 820–829. [Google Scholar] - Forster, C.; Carlone, L.; Dellaert, F.; Scaramuzza, D. IMU Preintegration on Manifold for Efficient Visual-Inertial Maximum-a-Posteriori Estimation. Robotics: Science and Systems XI. 2015 (EPFL-CONF-214687). Available online: http://www.roboticsproceedings.org/rss11/p06.pdf (accessed on 20 March 2017).

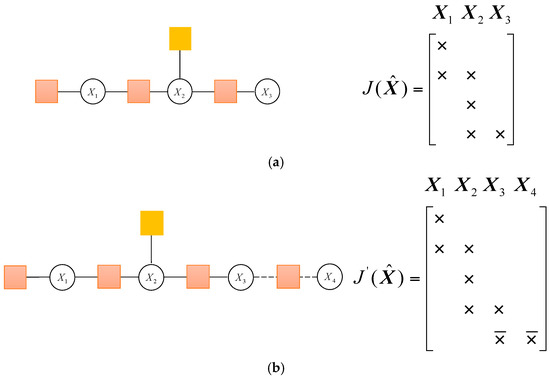

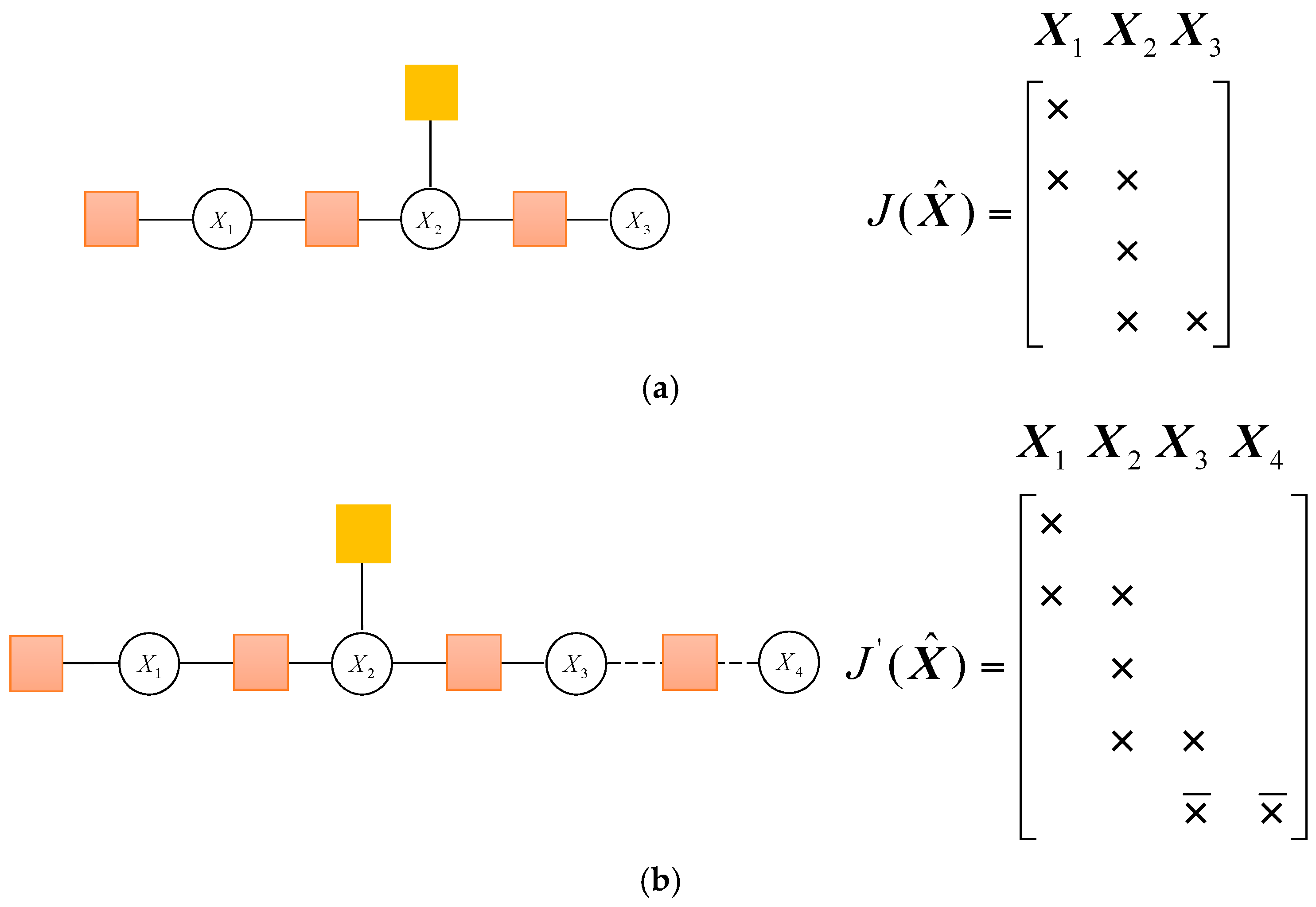

**Figure 7.**The factor graph and the associated Jacobian matrix in two moments. (

**a**) The factor graph and the associated Jacobian matrix; (

**b**) The factor graph and the associated Jacobian matrix when adding new factor node.

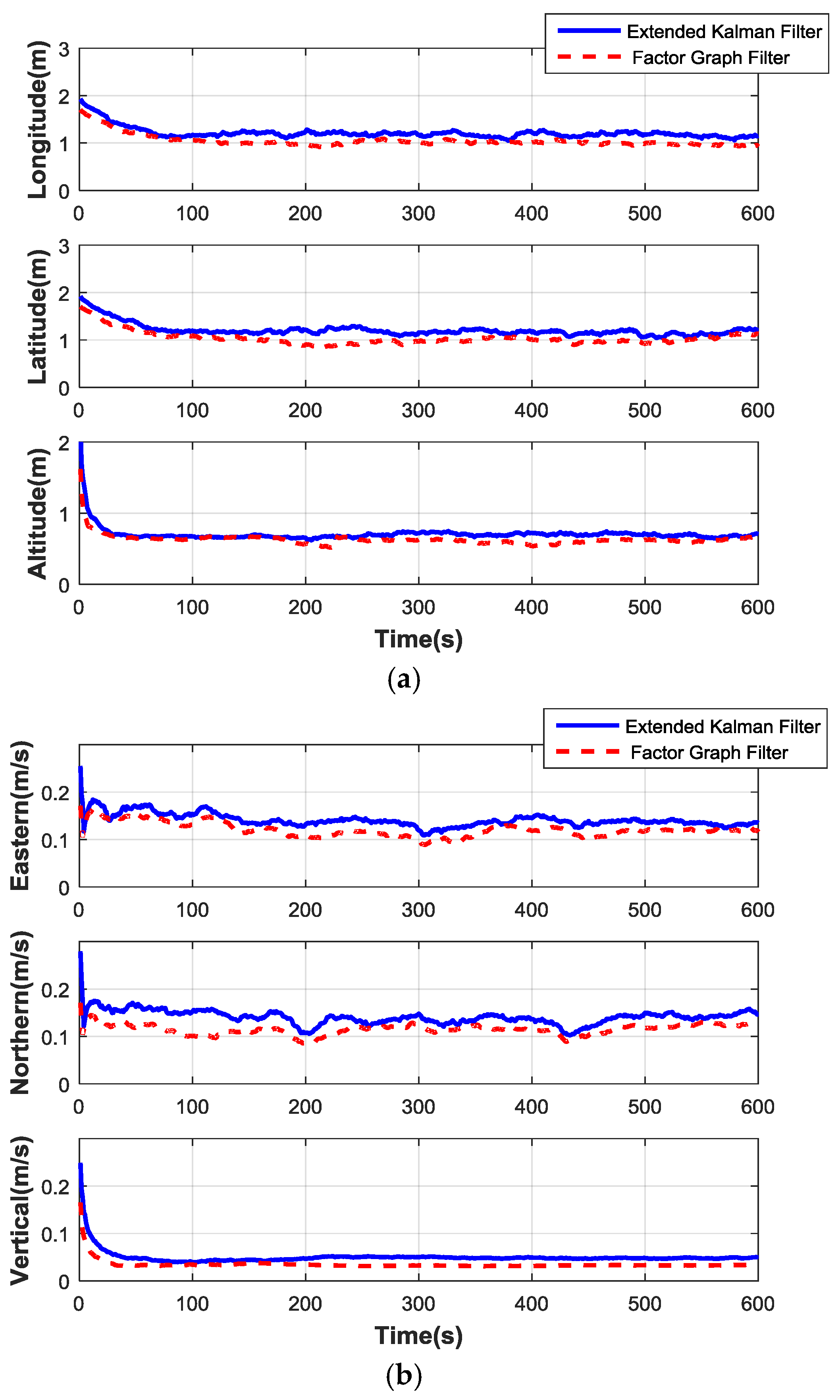

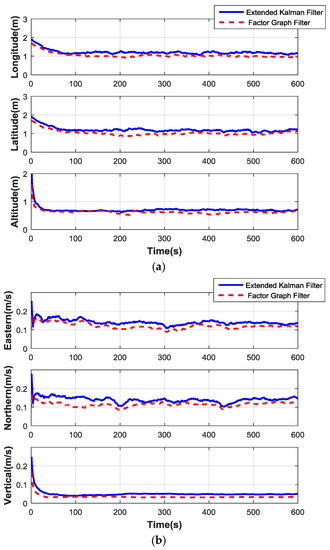

**Figure 9.**Comparison curves of two filter methods. (

**a**) Position error contrast curves; (

**b**) Velocity error contrast curves.

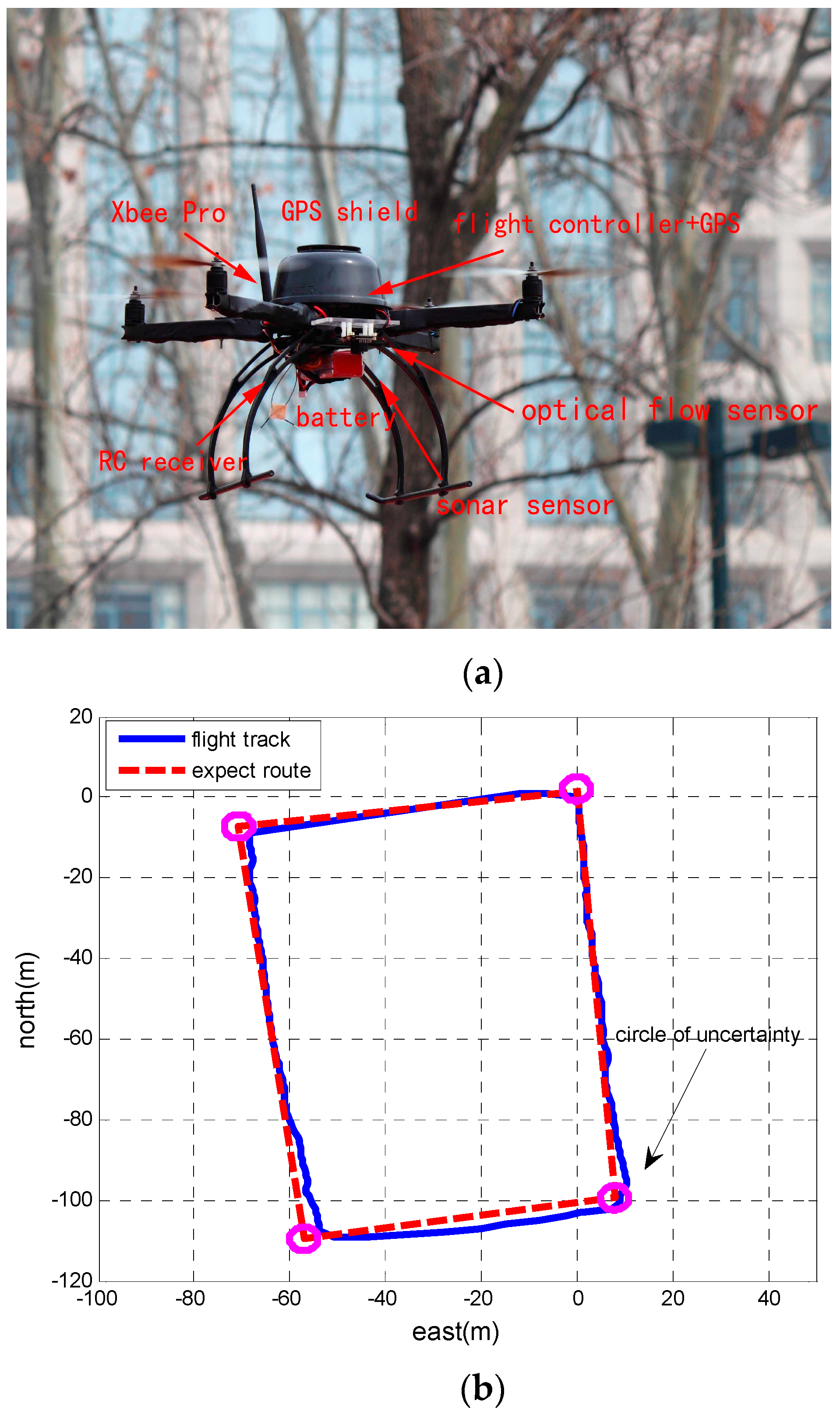

**Figure 10.**Square shaped outdoor trajectory in the flight experiment of the MUAV. (

**a**) Test flight experiment of the MUAV; (

**b**) Square shaped trajectory.

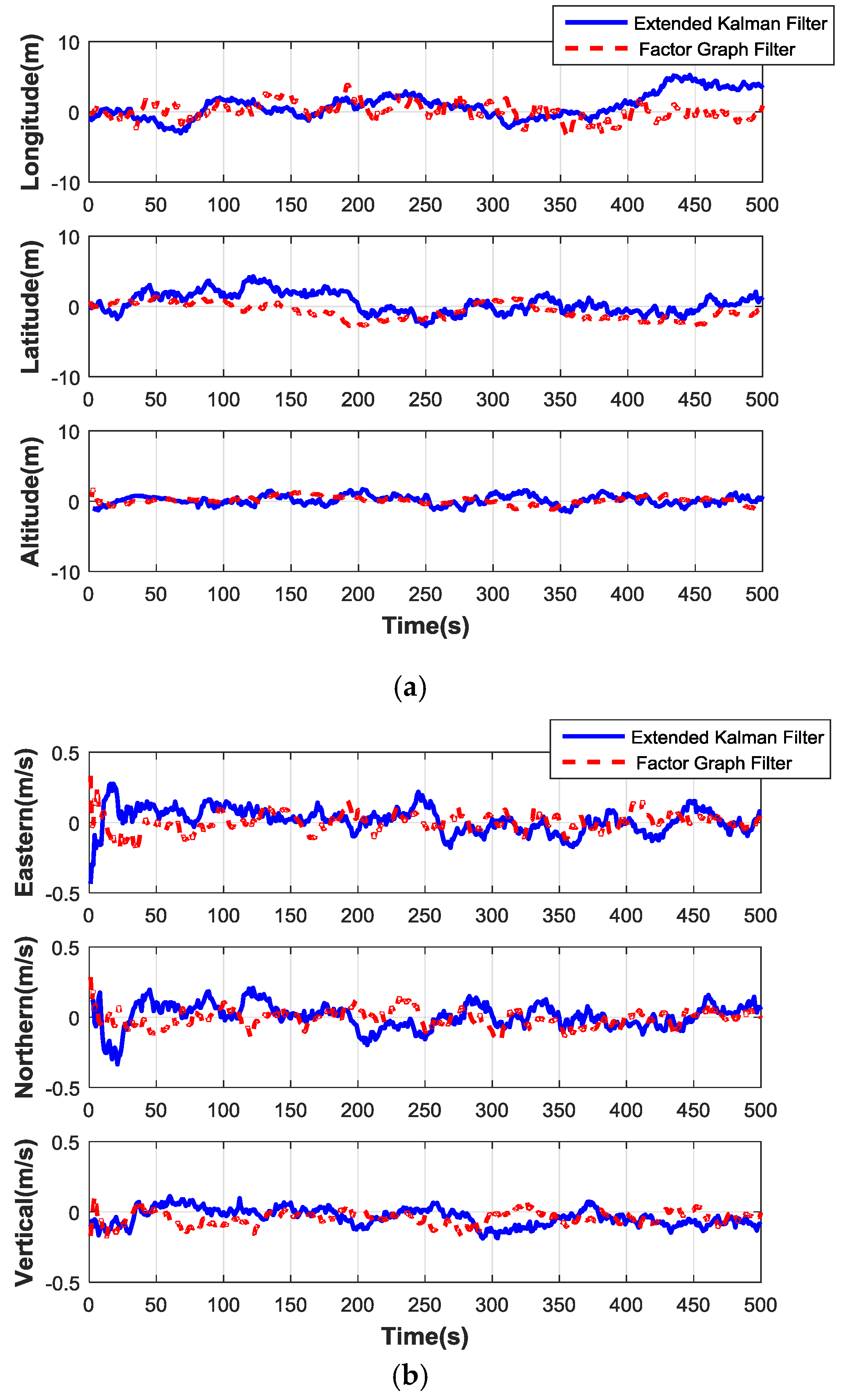

**Figure 11.**Comparison curves of two filter methods. (

**a**) Position error contrast curves. (

**b**) Velocity error contrast curves.

Sensor | Error | Value | Frequency |
---|---|---|---|

IMU | Gyro constant drift | 10°/h | 50 Hz |

Gyro first-order Markov process | 10°/h | ||

Gyro white noise measurement | 10°/h | ||

Accelerometer first-order Markov process | 1 × 10^{−4} g | ||

GPS | Position error noise | 10 m, 10 m, 20 m | 1 Hz |

Velocity error noise | 0.1 m/s, 0.1 m/s, 0.1 m/s | ||

Magnetometer | Heading error noise | 0.2° | 20 Hz |

Barometer | Height error noise | 5 m | 10 Hz |

Error Type | Average RMSE in the Position Error (units: m) | Average RMSE in the Velocity Error (units: m/s) | ||||
---|---|---|---|---|---|---|

Longitude | Latitude | Height | Eastern | Northern | Vertical | |

Extend Kalman filter | 1.212 | 1.205 | 0.703 | 0.141 | 0.142 | 0.049 |

Factor graph filter | 1.043 | 1.035 | 0.628 | 0.121 | 0.115 | 0.034 |

Type | Parameters Item | Unit |
---|---|---|

Machine size | 608 × 608 × 243 | mm |

Takeoff weight | 950 | g |

Maximum payload | <580 | g |

Flight time | 15 | min |

Error Type | RMSE in the Position Error (units: m) | RMSE in the Velocity Error (units: m/s) | ||||
---|---|---|---|---|---|---|

Longitude | Latitude | Height | Eastern | Northern | Vertical | |

Extend Kalman filter | 1.821 | 1.451 | 0.652 | 0.088 | 0.086 | 0.061 |

Factor graph filter | 1.288 | 1.143 | 0.519 | 0.065 | 0.061 | 0.049 |
