Investigation of Pristine Graphite Oxide as Room-Temperature Chemiresistive Ammonia Gas Sensing Material

Department of Chemistry and Chemical Technology, Novosibirsk State Technical University, K. Marx 20, RU-630073 Novosibirsk, Russia
SIX Research Centre, Brno University of Technology, Technická 10, CZ-61600 Brno, Czech Republic
Department of Physical Electronics, Faculty of Science, Masaryk University, Kotlářská 2, CZ-61137 Brno, Czech Republic
RG Plasma Technologies, CEITEC—Central European Institute of Technology, Masaryk University, Purkyňova 123, CZ-61200 Brno, Czech Republic
Author to whom correspondence should be addressed.
Sensors 2017, 17(2), 320;
Submission received: 26 December 2016 / Revised: 2 February 2017 / Accepted: 6 February 2017 / Published: 9 February 2017
(This article belongs to the Special Issue Gas Nanosensors)


Graphite oxide has been investigated as a possible room-temperature chemiresistive sensor of ammonia in a gas phase. Graphite oxide was synthesized from high purity graphite using the modified Hummers method. The graphite oxide sample was investigated using scanning electron microscopy, energy dispersive X-ray spectroscopy, X-ray diffraction, thermogravimetry and differential scanning calorimetry. Sensing properties were tested in a wide range of ammonia concentrations in air (10–1000 ppm) and under different relative humidity levels (3%–65%). It was concluded that the graphite oxide–based sensor possessed a good response to NH3 in dry synthetic air (ΔR/R0 ranged from 2.5% to 7.4% for concentrations of 100–500 ppm and 3% relative humidity) with negligible cross-sensitivity towards H2 and CH4. It was determined that the sensor recovery rate was improved with ammonia concentration growth. Increasing the ambient relative humidity led to an increase of the sensor response. The highest response of 22.2% for 100 ppm of ammonia was achieved at a 65% relative humidity level.

1. Introduction

Ammonia is noxious, irritating and, in higher concentrations, a dangerous gas. It is frequently used in the chemical industry, in oil refining and in refrigeration technology, and its detection is of great significance due to its high toxicity [1,2]. Therefore, the important issue is to create a room-temperature–operated ammonia gas sensor with enhanced characteristics of: sensor response, recovery time and response time. Usually, commercial ammonia gas sensors are based on metal oxide semiconductors; however, these sensors operate at relatively high temperatures (200–350 °C) [3,4]. Therefore, the high power consumption of these sensors is a problem to be solved by using novel active materials, one of which can be graphite oxide.
Graphite oxide (GO) is a special type of graphite-like three-dimensional material intercalated by various oxygen-containing functional groups (carboxylic groups, epoxy groups, ether groups, etc.) [5]. Also, GO may contain the water intercalated between graphene layers [6]. It was first synthesized by Brodie, in 1855, who treated the natural graphite with a mixture of potassium chlorate and fuming nitric acid [7], and then it became very intensively studied as a precursor for a set of graphene-like materials, such as graphene oxide, reduced graphene oxide, graphite nanoplatelets and graphene, in recent years. Besides the Brodie method, there are Staudenmaier [8] and Hummers [9] methods, which are also frequently used for GO synthesis. Nowadays, the Hummers method is often used to obtain GO because it is simple and less dangerous, which makes it possible to create many modifications [10,11,12], allowing the synthesis of materials with a wide range of C:O ratios and defectiveness. Pristine GO is an electrical insulator, and can become a conductor after reduction. Such a material is then called reduced graphite oxide. All materials derived from GO are much poorer in crystallinity and carrier mobility.
GO is one of the materials that can be utilized for ammonia detection. The excellent ammonia adsorption ability of graphite oxide in water was confirmed in [12,13]. Most of the articles are devoted to the creation of sensors based on graphene-like materials, such as graphene, graphene oxide and reduced graphene oxide [14,15,16]. Zhang et al. [17] created sensors based on SnO2 and CuO nanoflower–decorated graphene possessed the highest response of 4.9% to 300 ppm of NH3. In [18] the authors investigated hybrid tetralayered polyaniline (PANI)/graphene oxide/PANI/ZnO sensors for ammonia detection at the relative humidity of 65%. In [19] the authors created Cu-benzene trycarboxylic metal organic framework (MOF)/graphene-based hybrid materials showing the response of 3.7% to 500 ppm of NH3. Katkov et al. [20] developed fluorine-functionalized ammonia gas sensors possessing a 10% response to 10,000 ppm of NH3.
Graphite oxide can be successfully used for room-temperature detection of ammonia because of its good adsorption ability and the possibility to enhance the texture characteristics by its reduction [21,22,23]. However, the data on its use in an initial non-reduced state of graphite oxide as an active material for ammonia gas sensors are poorly presented and the research is mainly concentrated on graphene oxide sheets or reduced graphene oxide [24,25]. It is worth noting that graphite oxide possesses higher scalability potential in comparison with graphene oxide, which needs a long and energy-consuming stage of sonication. In addition, graphite oxide possesses the highest concentration of oxygen-containing functional groups compared with its above-mentioned derivatives, which gives a potential for GO to be used as an active material for the detection of toxic gases [12].
This work is devoted to the investigation of the ammonia gas–sensing properties of GO when used as an active layer of a chemiresistive gas sensor. The role of relative humidity on the sensor response is shown. Cross-sensitivity tests of the GO sensor in hydrogen and methane were carried out.

2. Experimental

Graphene oxide used as active material for ammonia gas sensor was synthesized by modified Hummers technique. The GO synthesis technique was described in detail in [26]. Shortly, high purity artificial graphite was sieved using sieve with a mesh size of 100 µm. Then, 20 g of graphite was placed into the flask with 460 mL of concentrated H2SO4 (96%) and 10 g of NaNO3. The resulting mixture was mixed by the magnetic stirrer for 10 min and kept at the temperature of 0 °C in ice bath. After 15 min of synthesis beginning anhydrous KMnO4 (60 g) was added to the mixture of graphite/H2SO4/NaNO3 and the resulting mixture was kept for 20 min at 0 °C followed by the heating to 35 °C for 30 min. To perform the hydrolysis of graphite intercalated compounds, the mixture was poured into the flask with 230 mL of ice and kept at the room temperature (25 ± 2 °C) for 15 min. The last stage of synthesis was the addition of 840 mL of H2O2 and the mixture was kept for additional 15 min at the room temperature. The prepared GO was washed by deionized water and dried in air at 90 °C during 24 h. Adding the excess of hydrogen peroxide was used to make the oxidation of graphite deeper and to intensify the evolution of increased amount of oxygen.
GO was investigated by scanning electron microscopy (SEM) using Hitachi S-3400N equipped with energy dispersive spectroscopy (EDX) add-on. X-ray diffraction (XRD) of GO sample was carried out using DRON-3 spectrometer (Cu Kα, λ = 1.54 Å). Thermal behavior of the sample was investigated by thermogravimetry (TG) and differential scanning calorimetry (DSC) using NETZSCH STA 449C analyzer. Raman spectroscopy was carried out using Renishaw InVia spectrometer in the range of 100–3200 cm−1 (λ = 514 nm).
GO based chemiresistive gas sensor was obtained by spray coating of GO suspension over the preheated substrate at 80 °C using Fengda BD-208 airbrush. The GO suspension was prepared from 100 mg of GO powder thoroughly dispersed in 10 mL of N,N-dimethylformamide by 1 h ultrasonication in water bath and spray-coated between two 200 nm thick gold electrodes previously sputtered on a Si/SiO2 (535 µm/90 nm) substrate to form an active area of 2 × 4 mm. The thickness of resulted sensing layer was measured using mechanical profilometer DektaXT (Bruker, Billerica, MA, USA, DE) to be ~2 µm.
The response of gas sensors was examined using the custom-made gas rig (see Figure 1). The gas rig consisted of three gas channels. Synthetic air (80% N2 + 20% O2, Linde Gas, Brno, Czech Republic) was used as gas carrier. The second line was used for analyte: mixture of 5000 ppm NH3 in synthetic air (Linde Gas, Czech Republic). The third line was used for admixing of wet air for measurements at different relative humidity (RH) evaporated from deionized water. The main parameter of the sensors was sensor response (%):
ΔR/R0 = (R − R0)/R0,
where R is the resistance of the sensor exposed to NH3, (Ω); R0 is the sensor resistance in synthetic air, (Ω). The investigation of sensor response was carried out at room temperature (25 ± 2 °C). The sensors were examined in a concentration range of 100–1000 ppm. The deviation of sensor response was ±0.2%.
To estimate the sensor selectivity, the sensor response measurements in admixtures of H2 and CH4 (5000 ppm of analyte diluted in air, Linde Gas, Brno, Czech Republic) were also carried out. Sensor resistance was measured by two-point technique using Keithley 2410 SourceMeter (Tektronix, Beaverton, OR, USA) at bias voltage of 1 V. Current-voltage curves of the sensor were measured by Keithley 4200-SCS Semiconductor characterization system (Tektronix, Beaverton, OR, USA) at room temperature (25 ± 2 °C).
The testing of gas sensors was carried out at different RH. RH and the temperature in the measuring chamber was monitored by calibrated SHT25 (Sensirion, Staefa, Switzerland) sensor which was placed inside the measuring chamber. The volume of the chamber where the sensors were examined was 125 cm3 (length −8 cm, width −6 cm, height −2.6 cm). The RH level of dry gases (air, NH3, H2, CH4) was on the level of 2.5%–3% during the measurement. The measurements with different RH were carried out by wet air, obtained by the bubbling of dry air, fed through the deionized water taken from Millipore (Merck Millipore, Billerica, MA, USA), and its mixing with dry air and analyte.

3. Results

3.1. GO Characterization

The GO sample was successfully synthesized using the modified Hummers technique described above. SEM images of the synthesized GO sample are shown in Figure 2. The GO sample is represented by micron-sized rough particles. The particle size of the obtained material was determined by the initial size of the graphite used for the synthesis, which was separated using a sieve with a mesh size of 100 µm. From the SEM images shown in Figure 2, it is clear that the strong treatment of graphite made the material more defective and the particles’ surfaces were covered by platelets of GO. According to the EDX data, there were three main elements present in prepared GO: C (70.44 at. %), O (22.46 at. %) and S (7.1 at. %). The C:O ratio value of 3:1 confirmed the high content of oxygen-containing functional groups and it is in agreement with the previously published data corresponding to GO synthesized by the Hummers technique [6]. The content of sulfur was high enough in comparison with the data published in [6,12], and this value usually reaches 1–3 wt %; in some cases, the complete absence of sulfur was detected. The appearance of sulfur can be linked with the presence of S = O and S-O groups on the GO surface [12]. It can be suggested that sulfur can take part in the reactive adsorption of ammonia, because this effect was found in [6].
The XRD pattern of the GO sample is shown in Figure 3a. According to the XRD data, the prepared sample represents a partially oxidized GO due to the presence of the graphite phase around 2θ = 26°. There is a peak corresponding to the GO phase at 2θ = 11.3° with an interlayer distance of 7.87 Å. The presence of a peak at 2θ = 25.6° can be assigned to graphite-intercalated compounds. The DSC curves show the thermal reduction of GO with the onset of an exothermal peak of 165 °C and the end at 230 °C (the reduction enthalpy was −244 J/g). Generally, the reduction enthalpy varied from −78 to −652 J/g [27]. The value of the enthalpy of the GO reduction process was relatively low [28]. This value confirms the partial presence of a graphite phase in the active material that is linked with its higher conductivity in comparison with strongly oxidized graphites. It is worth noting that graphite oxide resistance tends to grow with the increase of the oxygen-containing functional groups concentration and it becomes an insulator in a deep oxidation state. GO reduction was accompanied by a strong mass loss of 10% in the temperature range of 165−230 °C. The beginning of GO reduction limits the sensor operation temperature which was around 100–120 °C, and exceeding it will lead to the decrease of the concentration of oxygen-containing groups which is linked with the response.
Raman spectroscopy (Figure 3c) showed the presense of two strong peaks, D (1359 cm−1) and G (1593 cm−1), corresponding to the disorder and graphitic structure of the graphite material [29]. The ratio I(D)/I(G) was equal to 0.86 which confirms the high defectiveness of the material. The ratio value is comparible with the value of highly oxidized graphite [30,31].

3.2. GO-Based Sensor Testing

Successfully prepared sensors were tested for their initial resistance which was measured as 7.2 kΩ and increased during ammonia adsorption. The GO sensor response to ammonia varied from 2.5 to 10% in a concentration range from 100 to 1000 ppm and at a low RH of 3% (Figure 4a). The sensor showed a relatively high response in comparison with carbon nanotubes and graphene-like materials [32]. For example, in [33] the author obtained PANI/multi-wall carbon nanotube (MWCNT) sensors and the response of the plasma-treated PANI/MWCNT sensor was 1.6% at 100 ppm NH3. The obtained GO sensor showed a slightly higher response in a comparison with a reduced graphite oxide ammonia sensor (5.5% at 200 ppm) [34]. Also, the plasma-treated sensors MWCNT/Nafion with a response of 2.4% (100 ppm NH3) were obtained in this article. The sensor exhibited a weak recovery rate at relatively low concentrations of ammonia (e.g., 100 ppm). The increase of the NH3 concentration induced an increase of the recovery rate. The same effect was observed in [20], although there was no explanation given for it. It is likely that low concentrations of ammonia lead to the formation of a thin layer of molecules adsorbed on the GO surface, the biggest part of which is chemically adsorbed, while concentrations higher than ~100–250 ppm produce an increase of physically adsorbed molecules which are easy to remove from the surface.
The current-voltage curves of the sample are shown in Figure 4b. The sensor exhibited a linear I-V characteristic. The addition of NH3 to the air resulted in a slight change of the curve slope.
One of the most important issues is the influence of RH on the sensor response. The increase of the RH leads to sensor response growth, which indicates the effect of the response increase after GO surface humidification. The response to 100 ppm, 250 ppm and 500 ppm of ammonia at 65% RH was equal to 22.2%, 22.5%, 29.6%, respectively. The response increase with RH can be caused by the improved ammonia adsorption on the GO surface in wet air. There are two types of ammonia adsorption on the GO sensor surface in dry and wet air. In [6,35] the authors suggested that in dry air, NH3 interacts with carboxylic and sulfonic groups with the formation of ammonium salts (NH4+). Alternately, in wet air, the chemical interaction of ammonia with functional groups is less active, and therefore the dissolution of NH3 as physical adsorption mainly takes place. This fact also confirms the stronger recovery of the GO sensor in wet air. The chemically adsorbed NH3 is hard to remove from the surface due to its stronger interaction with the functional groups, and the domination of physical ammonia adsoption makes recovery more effective. The measurements with RHs of 3%, 27% and 65% were carried out (see Figure 5a).
The comparison of the sensor response of different active materials for NH3 detection at various RH values and the data obtained in this work are presented in Table 1. The recovery of the sensor response under 100 ppm of NH3 in air with 3%, 27% and 65% of RH (during 10 min) was 2%, 14% and 49%, respectively. It is worth noting that the contact with ammonia either in wet air or in dry air does not change the sensing mechanism of GO, which is based on a hole depletion mechanism [19,36,37], where GO can be treated as a p-type semiconductor and the absorption of an electron-donating compound such as NH3 leads to the increase of sensor resistance. The desorption of chemically adsorbed ammonia which will make the sensor reusable can be performed using thermal heating [38], infrared light irradiation [39], etc.
Cross-sensitivity measurements were also carried out for the prepared GO sensor. The cross-sensitivity to methane and hydrogen was investigated. The results we obtained showed that the sensor possessed a higher response towards ammonia than to CH4 and H2 (see Figure 5b). The response curve of the GO sample to CH4 and H2 indicated the weaker adsorption of these gases on the GO surface in a comparison with NH3. This fact can be explained by the chemical nature of these compounds, where ammonia donates more electrons compared with hydrogen and methane. Since the sensor shows good selectivity towards ammonia, it can be possibly used for ammonia detection in air, N2, inert gases and their mixtures which are widely used in industrial processes (NH3 adsorption in metallurgy, the petrochemical industry and the chemical industry). Also, we can suggest that GO can be used as an active material for environmental protection near plants for NH3 production and in refrigeration plants, in which ammonia is still used. One of the promising applications of this sensor is for health and safety [40].

4. Conclusions

The obtained results show a high potential of graphite oxide applied as an active material for ammonia gas sensors operating at room temperature. The highest response of the prepared GO-based sensor to ammonia in dry air was 10% for 1000 ppm of NH3. The sensor response increased during the growth of the relative humidity due to the enhancement of ammonia adsorption in wet air and it reached the values of 22.2%, 22.5%, 29.6% for 100 ppm, 250 ppm and 500 ppm of NH3 in air, respectively, at 65% relative humidity. The selectivity tests showed a higher response towards NH3 in a comparison with CH4 and H2. The obtained data confirm the potential of graphite oxide application in a non-reduced state for the detection of ammonia in a gas phase, which makes it possible to create cheaper sensors based on GO in comparison with graphene-like materials. For example, the combination of a cheap sensing material (graphite oxide) with a highly scalable and reproducible technique of screen-printing creates a highly versatile platform in the field of sensor devices.


This research has been financially supported by the Ministry of Education, Youth and Sports of the Czech Republic under the project CEITEC 2020 (LQ1601). For the experimental part of the research, the infrastructure of the SIX Center was used. The grant LO1401 from the National Sustainability Program is highly acknowledged. The research was also financed by Erasmus Mundus Action 2, Strand 1, Lot 4, Aurora2012С111 (Aurora—Towards Modern and Innovative Higher Education) and the Grant of the President of Russian Federation for Young Researchers PhD (MK-5360.2016.8).

Author Contributions

A.G.B. performed the experiments on graphite oxide synthesis, did the material and gas-sensing characterization and wrote the paper; J.P. prepared the sensors and helped with gas-sensing characterizations and writing the paper; O.J. and L.Z. analyzed the data on the gas sensor response.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Nguyen, H.-Q.; Huh, J.-S. Behavior of single-walled carbon nanotube-based gas sensors at various temperatures of treatment and operation. Sens. Actuators B Chem. 2006, 117, 426–430. [Google Scholar] [CrossRef]
  2. Travlou, N.A.; Seredych, M.; Rodríguez-Castellón, E.; Bandosz, T.J. Activated carbon-based gas sensors: Effects of surface features on the sensing mechanism. J. Mater. Chem. A 2015, 3, 3821–3831. [Google Scholar] [CrossRef]
  3. Gedam, N.N.; Padole, P.R.; Rithe, S.K.; Chaudhari, G.N. Ammonia gas sensor based on a spinel semiconductor, Co0.8Ni0.2Fe2O4 nanomaterial. J. Sol-Gel Sci. Technol. 2009, 50, 296–300. [Google Scholar] [CrossRef]
  4. Wang, Y.; Wu, X.; Su, Q.; Li, Y.; Zhou, Z. Ammonia-sensing characteristics of Pt and SiO2 doped SnO2 materials. Solid-State Electron. 2001, 45, 347–350. [Google Scholar] [CrossRef]
  5. Dreyer, D.R.; Park, S.; Bielawski, C.W.; Ruoff, R.S. The chemistry of graphene oxide. Chem. Soc. Rev. 2010, 39, 228–240. [Google Scholar] [CrossRef] [PubMed]
  6. Petit, C.; Seredych, M.; Bandosz, T.J. Revisiting the chemistry of graphite oxides and its effect on ammonia adsorption. J. Mater. Chem. 2009, 19, 9176. [Google Scholar] [CrossRef]
  7. Brodie, B.C. On the Atomic Weight of Graphite. Philos. Trans. R. Soc. Lond. 1859, 149, 249–259. [Google Scholar] [CrossRef]
  8. Staudenmaier, L. Verfahren zur Darstellung der Graphitsaure. Ber. Dtsch. Chem. Ges. 1898, 31, 1481–1487. [Google Scholar] [CrossRef]
  9. Hummers, W.S.J.; Offeman, R.E. Preparation of Graphitic Oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
  10. Tran, Q.T.; Huynh, T.M.H.; Tong, D.T.; Tran, V.T.; Nguyen, N.D. Synthesis and application of graphene–silver nanowires composite for ammonia gas sensing. Adv. Nat. Sci. Nanosci. Nanotechnol. 2013, 4, 45012. [Google Scholar] [CrossRef]
  11. Zhang, J.; Zhang, R.; Wang, X.; Feng, W.; Hu, P.; O’Neill, W.; Wang, Z. Fabrication of highly oriented reduced graphene oxide microbelts array for massive production of sensitive ammonia gas sensors. J. Micromech. Microeng. 2013, 23, 95031. [Google Scholar] [CrossRef]
  12. Seredych, M.; Tamashausky, A.V.; Bandosz, T.J. Graphite oxides obtained from porous graphite: The role of surface chemistry and texture in ammonia retention at ambient conditions. Adv. Funct. Mater. 2010, 20, 1670–1679. [Google Scholar] [CrossRef]
  13. Seredych, M.; Bandosz, T.J. Combined role of water and surface chemistry in reactive adsorption of ammonia on graphite oxides. Langmuir 2010, 26, 5491–5498. [Google Scholar] [CrossRef] [PubMed]
  14. Li, X.; Chen, X.; Yao, Y.; Li, N.; Chen, X. High-stability quartz crystal microbalance ammonia sensor utilizing graphene oxide isolation layer. Sens. Actuators B Chem. 2014, 196, 183–188. [Google Scholar] [CrossRef]
  15. Wang, Y.; Zhang, L.; Hu, N.; Wang, Y.; Zhang, Y.; Zhou, Z.; Liu, Y.; Shen, S.; Peng, C. Ammonia gas sensors based on chemically reduced graphene oxide sheets self-assembled on Au electrodes. Nanoscale Res. Lett. 2014, 9, 251. [Google Scholar] [CrossRef] [PubMed]
  16. Yang, J.; Gunasekaran, S. Electrochemically reduced graphene oxide sheets for use in high performance supercapacitors. Carbon 2013, 51, 36–44. [Google Scholar] [CrossRef]
  17. Zhang, D.; Liu, J.; Jiang, C.; Liu, A.; Xia, B. Quantitative detection of formaldehyde and ammonia gas via metal oxide-modified graphene-based sensor array combining with neural network model. Sens. Actuators B Chem. 2017, 240, 55–65. [Google Scholar] [CrossRef]
  18. Andre, R.S.; Shimizu, F.M.; Miyazaki, C.M.; Riul, A.; Manzani, D.; Ribeiro, S.J.L.; Oliveira, O.N.; Mattoso, L.H.C.; Correa, D.S. Hybrid layer-by-layer (LbL) films of polyaniline, graphene oxide and zinc oxide to detect ammonia. Sens. Actuators B Chem. 2017, 238, 795–801. [Google Scholar] [CrossRef]
  19. Travlou, N.A.; Singh, K.; Rodríguez-Castellón, E.; Bandosz, T.J. Cu–BTC MOF–graphene-based hybrid materials as low concentration ammonia sensors. J. Mater. Chem. A 2015, 2, 2445–2460. [Google Scholar] [CrossRef]
  20. Katkov, M.V.; Sysoev, V.I.; Gusel’nikov, A.V.; Asanov, I.P.; Bulusheva, L.G.; Okotrub, A.V. A backside fluorine-functionalized graphene layer for ammonia detection. Phys. Chem. Chem. Phys. 2014, 17, 444–450. [Google Scholar] [CrossRef] [PubMed]
  21. Poh, H.L.; Šimek, P.; Sofer, Z.; Pumera, M. Sulfur-doped graphene via thermal exfoliation of graphite oxide in H2S, SO2, or CS2 gas. ACS Nano 2013, 7, 5262–5272. [Google Scholar] [CrossRef] [PubMed]
  22. Bourlinos, A.B.; Gournis, D.; Petridis, D.; Szabo, T.; Szeri, A.; Dékány, I. Graphite Oxide : Chemical Reduction to Graphite and Surface Modification with Primary Aliphatic Amines and Amino Acids. Langmuir 2003, 19, 6050–6055. [Google Scholar] [CrossRef]
  23. Zhang, H.-B.; Wang, J.-W.; Yan, Q.; Zheng, W.-G.; Chen, C.; Yu, Z.-Z. Vacuum-assisted synthesis of graphene from thermal exfoliation and reduction of graphite oxide. J. Mater. Chem. 2011, 21, 5392. [Google Scholar] [CrossRef]
  24. Basu, S.; Bhattacharyya, P. Recent developments on graphene and graphene oxide based solid state gas sensors. Sens. Actuators B Chem. 2012, 173, 1–21. [Google Scholar] [CrossRef]
  25. Hu, N.; Yang, Z.; Wang, Y.Y.; Zhang, L.; Wang, Y.Y.; Huang, X.; Wei, H.; Wei, L.; Zhang, Y. Ultrafast and sensitive room temperature NH3 gas sensors based on chemically reduced graphene oxide. Nanotechnology 2014, 25, 25502. [Google Scholar] [CrossRef] [PubMed]
  26. Bannov, A.G.; Timofeeva, A.A.; Shinkarev, V.V.; Dyukova, K.D.; Ukhina, A.V.; Maksimovskii, E.A.; Yusin, S.I. Synthesis and studies of properties of graphite oxide and thermally expanded graphite. Prot. Met. Phys. Chem. Surf. 2014, 50, 183–190. [Google Scholar] [CrossRef]
  27. Zhao, Q.; Cheng, X.; Wu, J.; Yu, X. Sulfur-free exfoliated graphite with large exfoliated volume: Preparation, characterization and its adsorption performance. J. Ind. Eng. Chem. 2014, 20, 4028–4032. [Google Scholar] [CrossRef]
  28. Yuan, B.; Song, L.; Liew, K.M.; Hu, Y. Mechanism for increased thermal instability and fire risk of graphite oxide containing metal salts. Mater. Lett. 2016, 167, 197–200. [Google Scholar] [CrossRef]
  29. Ferrari, A.C. Raman spectroscopy of graphene and graphite: Disorder, electron-phonon coupling, doping and nonadiabatic effects. Solid State Commun. 2007, 143, 47–57. [Google Scholar] [CrossRef]
  30. Gurzęda, B.; Florczak, P.; Kempiński, M.; Peplińska, B.; Krawczyk, P.; Jurga, S. Synthesis of graphite oxide by electrochemical oxidation in aqueous perchloric acid. Carbon 2016, 100, 540–545. [Google Scholar] [CrossRef]
  31. Gao, W.; Majumder, M.; Alemany, L.B.; Narayanan, T.N.; Ibarra, M.A.; Pradhan, B.K.; Ajayan, P.M. Engineered graphite oxide materials for application in water purification. ACS Appl. Mater. Interfaces 2011, 3, 1821–1826. [Google Scholar] [CrossRef] [PubMed]
  32. Han, J.-W.; Kim, B.; Li, J.; Meyyappan, M. A carbon nanotube based ammonia sensor on cellulose paper. RSC Adv. 2014, 4, 549. [Google Scholar] [CrossRef]
  33. Kim, T.; Kim, S.; Min, N.; Pak, J.J.; Lee, C.; Kim, S. NH3 Sensitive Chemiresistor Sensors Using Plasma Functionalized Multiwall Carbon Nanotubes/Conducting Polymer Composites. In Proceedings of the 2008 IEEE Sensors, Lecce, Italy, 26–29 October 2008; pp. 208–211.
  34. Ghosh, R.; Midya, A.; Santra, S.; Ray, S.K.; Guha, P.K. Chemically reduced graphene oxide for ammonia detection at room temperature. ACS Appl. Mater. Interfaces 2013, 5, 7599–7603. [Google Scholar] [CrossRef] [PubMed]
  35. Travlou, N.A.; Rodríguez-castell, E. Sensing of NH3 on heterogeneous nanoporous carbons in the presence of humidity. Carbon 2016, 100, 64–73. [Google Scholar] [CrossRef]
  36. Bekyarova, E.; Davis, M.; Burch, T.; Itkis, M.E.; Zhao, B.; Sunshine, S.; Haddon, R.C. Chemically Functionalized Single-Walled Carbon Nanotubes as Ammonia Sensors. J. Phys. Chem. B 2004, 108, 19717–19720. [Google Scholar] [CrossRef]
  37. Zhang, T.; Mubeen, S.; Bekyarova, E.; Yoo, B.Y.; Haddon, R.C.; Myung, N.V.; Deshusses, M. A Poly(m-aminobenzene sulfonic acid) functionalized single-walled carbon nanotubes based gas sensor. Nanotechnology 2007, 18, 165504. [Google Scholar] [CrossRef]
  38. Meyyappan, M. Carbon Nanotube-Based Chemical Sensors. Small 2016, 12, 2118–2129. [Google Scholar] [CrossRef] [PubMed]
  39. Gautam, M.; Jayatissa, A.H. Ammonia gas sensing behavior of graphene surface decorated with gold nanoparticles. Solid State Electron. 2012, 78, 159–165. [Google Scholar] [CrossRef]
  40. Timmer, B.; Olthuis, W.; Van Den Berg, A. Ammonia sensors and their applications—A review. Sens. Actuators B Chem. 2005, 107, 666–677. [Google Scholar] [CrossRef]
  41. Teerapanich, P.; Myint, M.T.Z.; Joseph, C.M.; Hornyak, G.L.; Dutta, J. Development and Improvement of Carbon Nanotube-Based Ammonia Gas Sensors Using Ink-Jet Printed Interdigitated Electrodes. IEEE Trans. Nanotechnol. 2013, 12, 255–262. [Google Scholar] [CrossRef]
  42. Majzlíková, P.; Sedláček, J.; Prášek, J.; Pekárek, J.; Svatoš, V.; Bannov, A.G.; Jašek, O.; Synek, P.; Eliáš, M.; Zajíčková, L.; et al. Sensing Properties of Multiwalled Carbon Nanotubes Grown in MW Plasma Torch: Electronic and Electrochemical Behavior, Gas Sensing, Field Emission, IR Absorption. Sensors 2015, 15, 2644–2661. [Google Scholar] [CrossRef] [PubMed]
  43. Song, H.; Li, X.; Cui, P.; Guo, S.; Liu, W.; Wang, X. Morphology optimization of CVD graphene decorated with Ag nanoparticles as ammonia sensor. Sens. Actuators B Chem. 2017, 244, 124–130. [Google Scholar] [CrossRef]
  44. Li, X.; Zhao, Y.; Wang, X.; Wang, J.; Gaskov, A.M.; Akbar, S.A. Reduced graphene oxide (rGO) decorated TiO2 microspheres for selective room-temperature gas sensors. Sens. Actuators B Chem. 2016, 230, 330–336. [Google Scholar] [CrossRef]

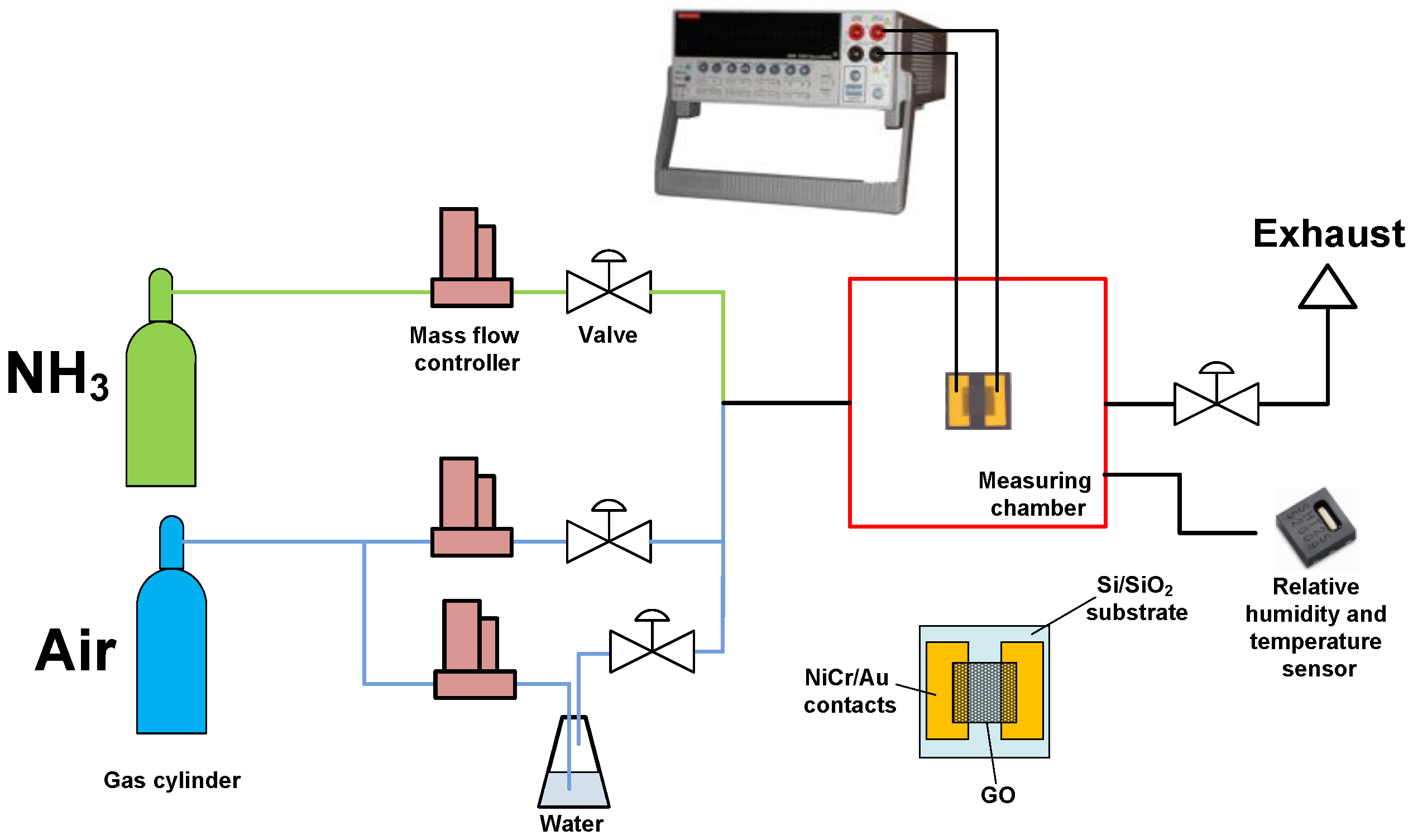

Figure 1. Scheme of gas rig for chemiresistive GO-based ammonia gas sensor characterization.
Figure 1. Scheme of gas rig for chemiresistive GO-based ammonia gas sensor characterization.
Sensors 17 00320 g001
Figure 2. SEM images of GO sample at different magnifications (a)—x2000; (b)—x5000; (c)—x2000; (d)—x10,000). Particles of micron size are covered by platelets of GO due to strong acidic treatment.
Figure 2. SEM images of GO sample at different magnifications (a)—x2000; (b)—x5000; (c)—x2000; (d)—x10,000). Particles of micron size are covered by platelets of GO due to strong acidic treatment.
Sensors 17 00320 g002

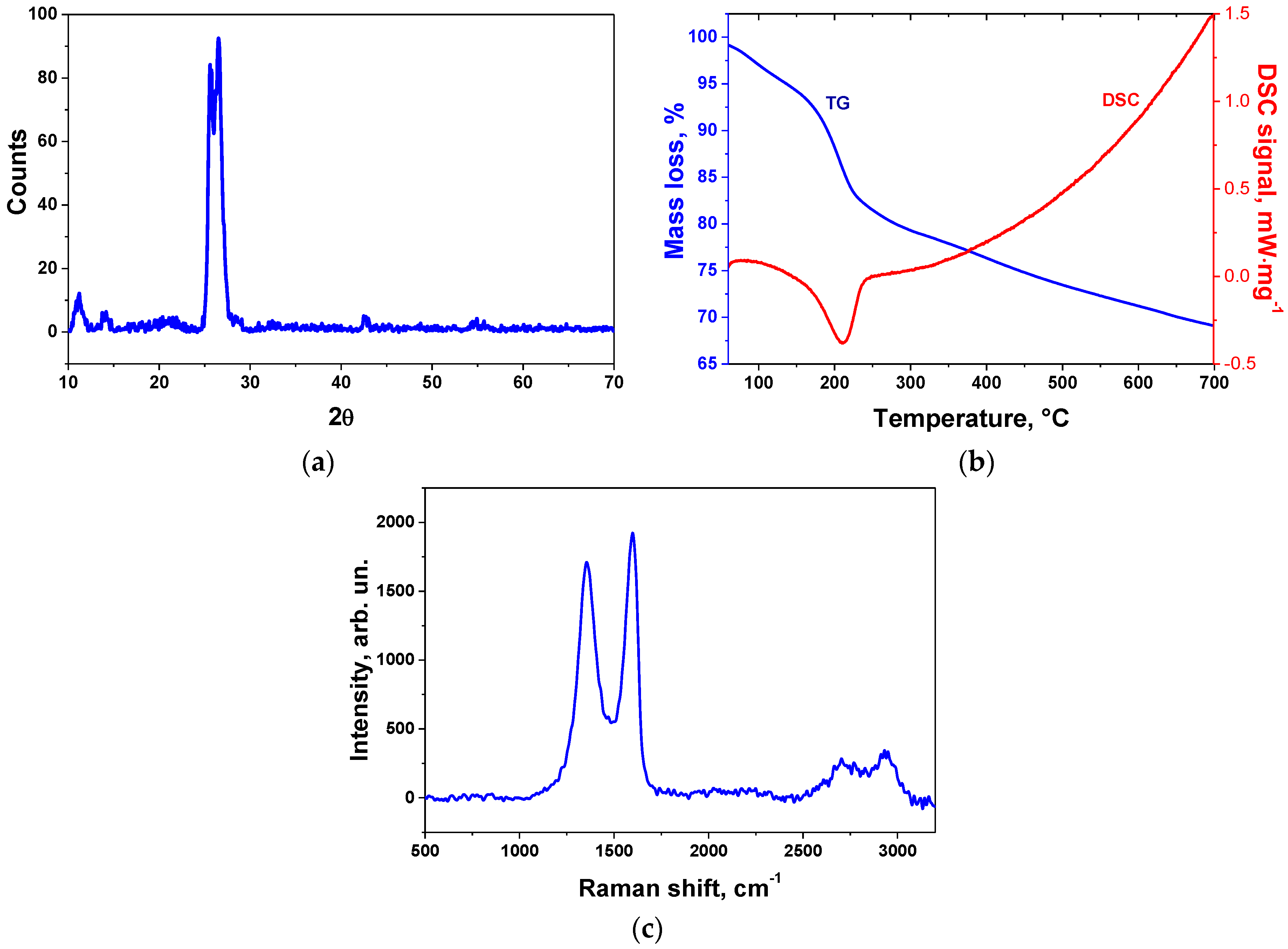

Figure 3. XRD pattern (a), TG/DSC curves (b), and Raman spectrum (c) of synthesized GO sample.
Figure 3. XRD pattern (a), TG/DSC curves (b), and Raman spectrum (c) of synthesized GO sample.
Sensors 17 00320 g003

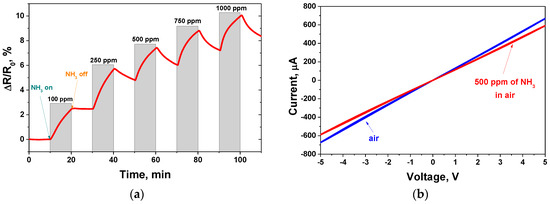

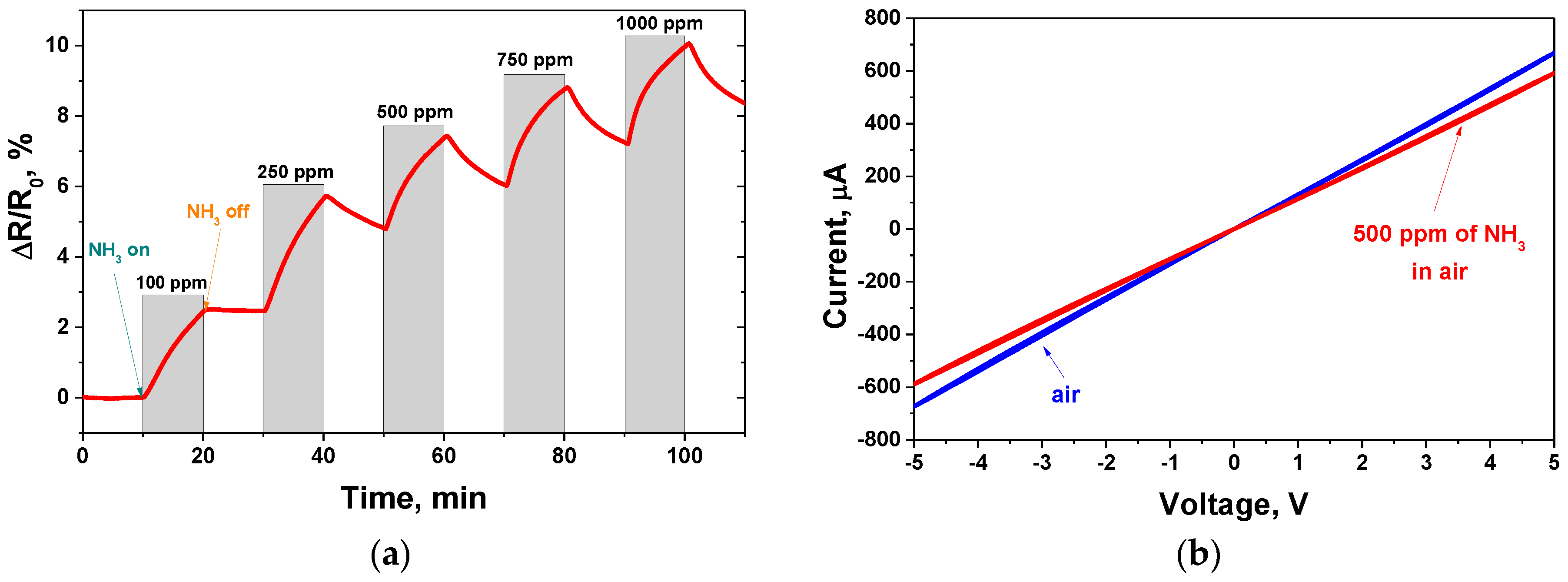

Figure 4. GO-based chemiresistive sensor measurements at room temperature: (a) response to ammonia in the range of concentrations from 100 ppm to 1000 ppm; (b) current-voltage characteristic measured in air atmosphere (red curve) and in 500 ppm of ammonia in air mixture (blue curve).
Figure 4. GO-based chemiresistive sensor measurements at room temperature: (a) response to ammonia in the range of concentrations from 100 ppm to 1000 ppm; (b) current-voltage characteristic measured in air atmosphere (red curve) and in 500 ppm of ammonia in air mixture (blue curve).
Sensors 17 00320 g004

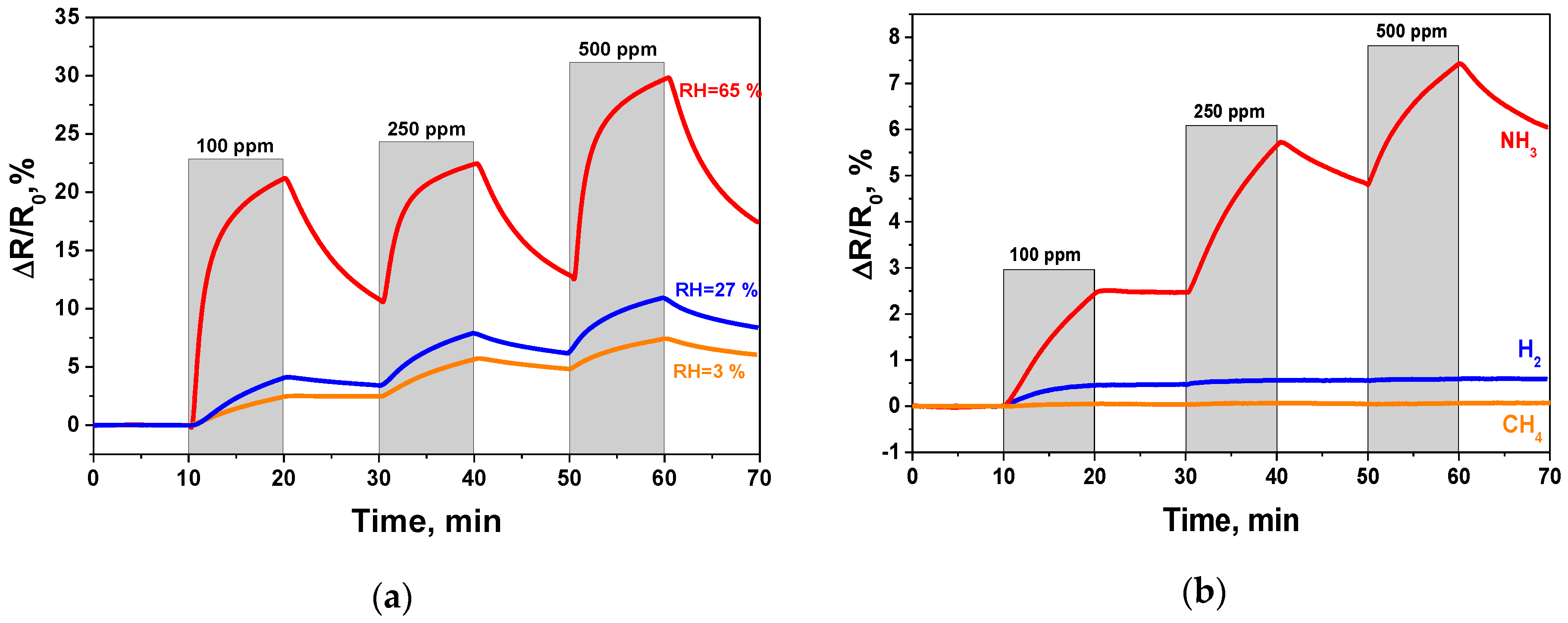

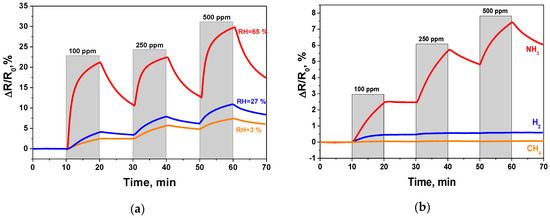

Figure 5. GO sensor response obtained at room temperature: (a) influence of increasing RH on response; (b) response towards different gases in dry air (RH = 3%).
Figure 5. GO sensor response obtained at room temperature: (a) influence of increasing RH on response; (b) response towards different gases in dry air (RH = 3%).
Sensors 17 00320 g005
Table 1. GO ammonia sensor performance in a comparison with literature data.
Table 1. GO ammonia sensor performance in a comparison with literature data.
Active Material for NH3 DetectionNH3 Concentration (ppm)Sensor Response (%)RH (%)Temperature (°C)Reference
Graphite oxide500306525This work
Single-wall carbon nanotubes62.535625[41]
Single-wall carbon nanotubes10068025[32]
Multi-wall carbon nanotubes5001.9325[42]
Fluorinated graphene10,00010.2n/a25[20]
CVD graphene decorated Ag nanoparticles50012.58025[43]
Reduced graphene oxide decorate by TiO2 microspheres303.28920[44]
