Next Article in Journal
Development of a High Precision Displacement Measurement System by Fusing a Low Cost RTK-GPS Sensor and a Force Feedback Accelerometer for Infrastructure Monitoring
Next Article in Special Issue
Application of a Saddle-Type Eddy Current Sensor in Steel Ball Surface-Defect Inspection
Previous Article in Journal
Tactile Perception of Roughness and Hardness to Discriminate Materials by Friction-Induced Vibration
Previous Article in Special Issue
A High-Performance Portable Transient Electro-Magnetic Sensor for Unexploded Ordnance Detection
Article Menu
Issue 12 (December) cover image

Export Article

Open AccessArticle
Sensors 2017, 17(12), 2743;

Effect of Composition and Thickness on the Perpendicular Magnetic Anisotropy of (Co/Pd) Multilayers

Department of Materials Science and Engineering, University of Utah, Salt Lake City, UT 84112, USA
Department of Physics, Jadavpur University, Kolkata-700032, India
Author to whom correspondence should be addressed.
Received: 2 November 2017 / Revised: 22 November 2017 / Accepted: 22 November 2017 / Published: 28 November 2017
(This article belongs to the Special Issue Magnetic Sensors and Their Applications)
Full-Text   |   PDF [5081 KB, uploaded 28 November 2017]   |

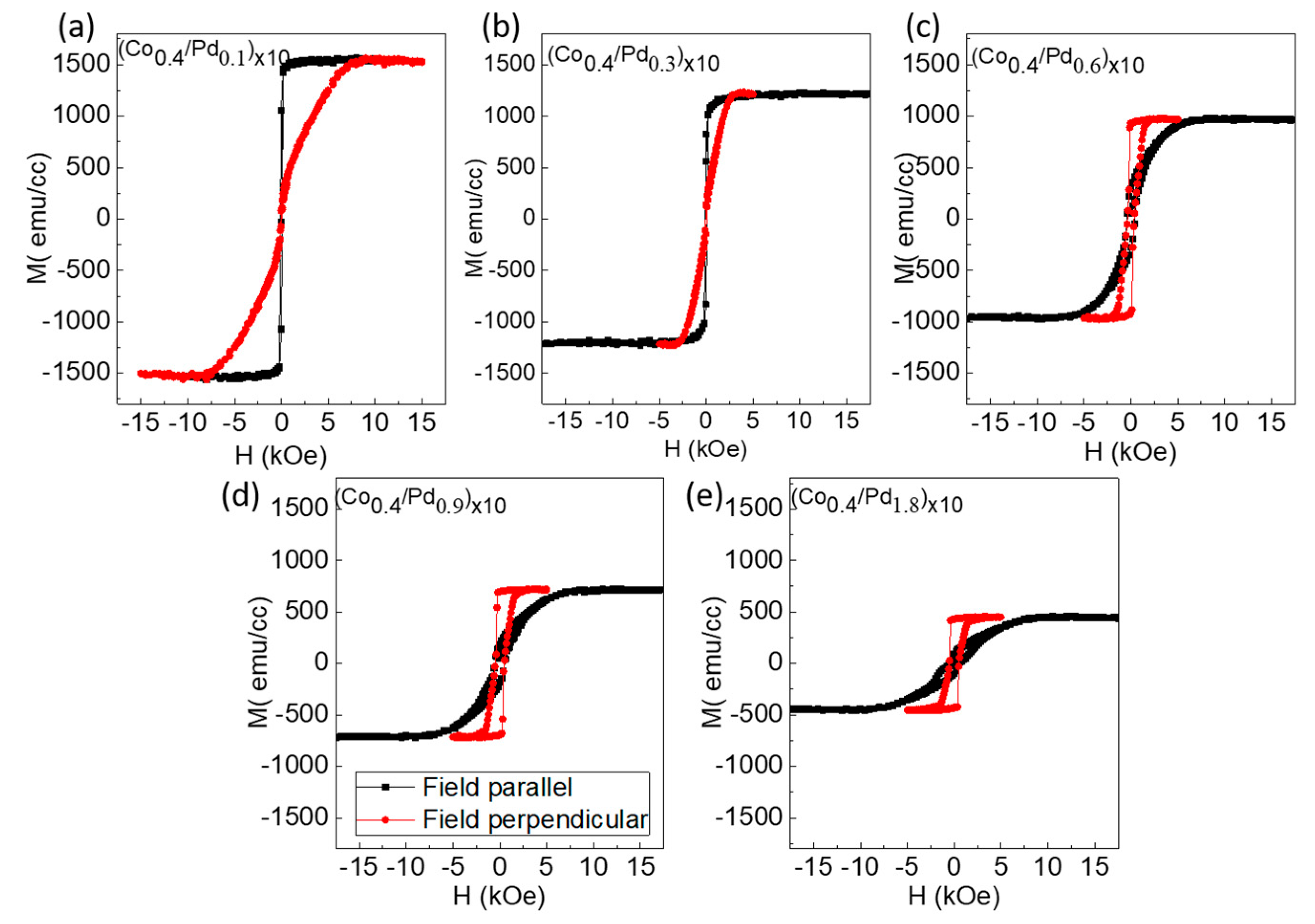

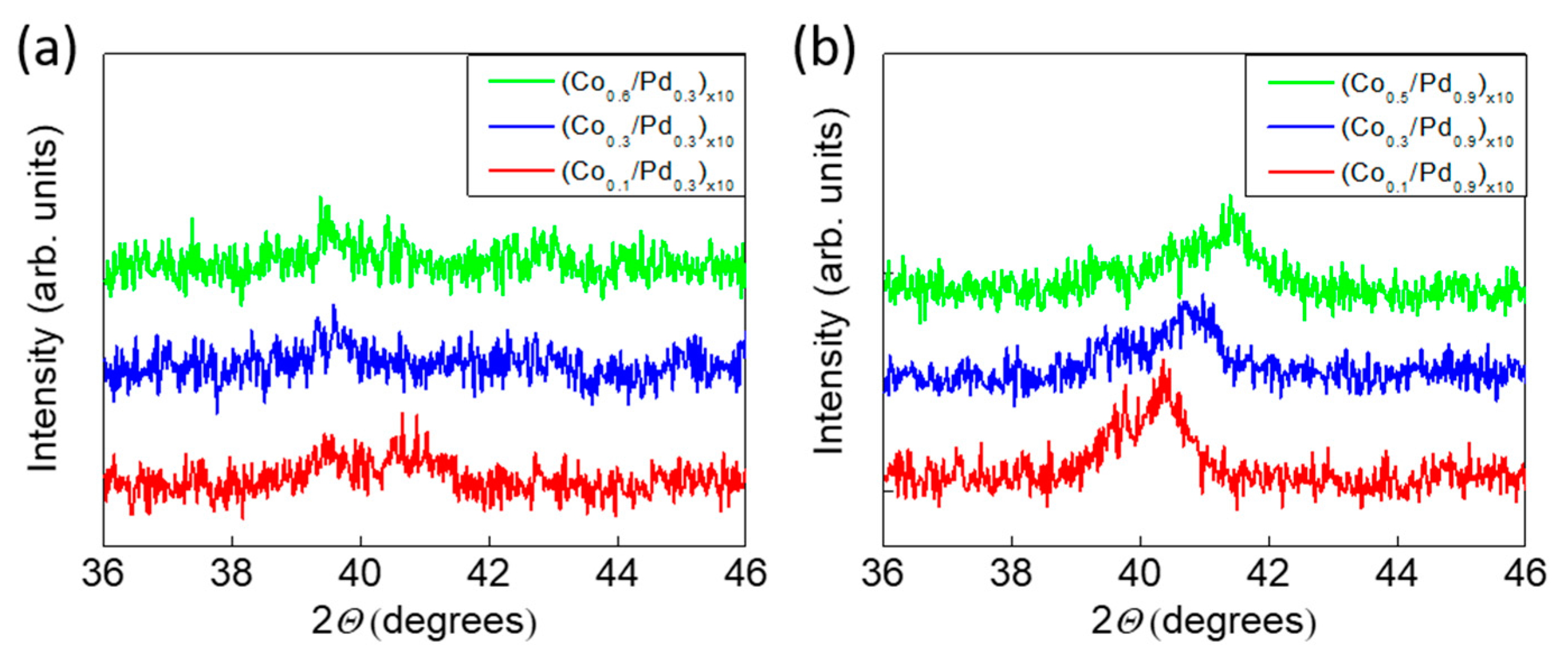

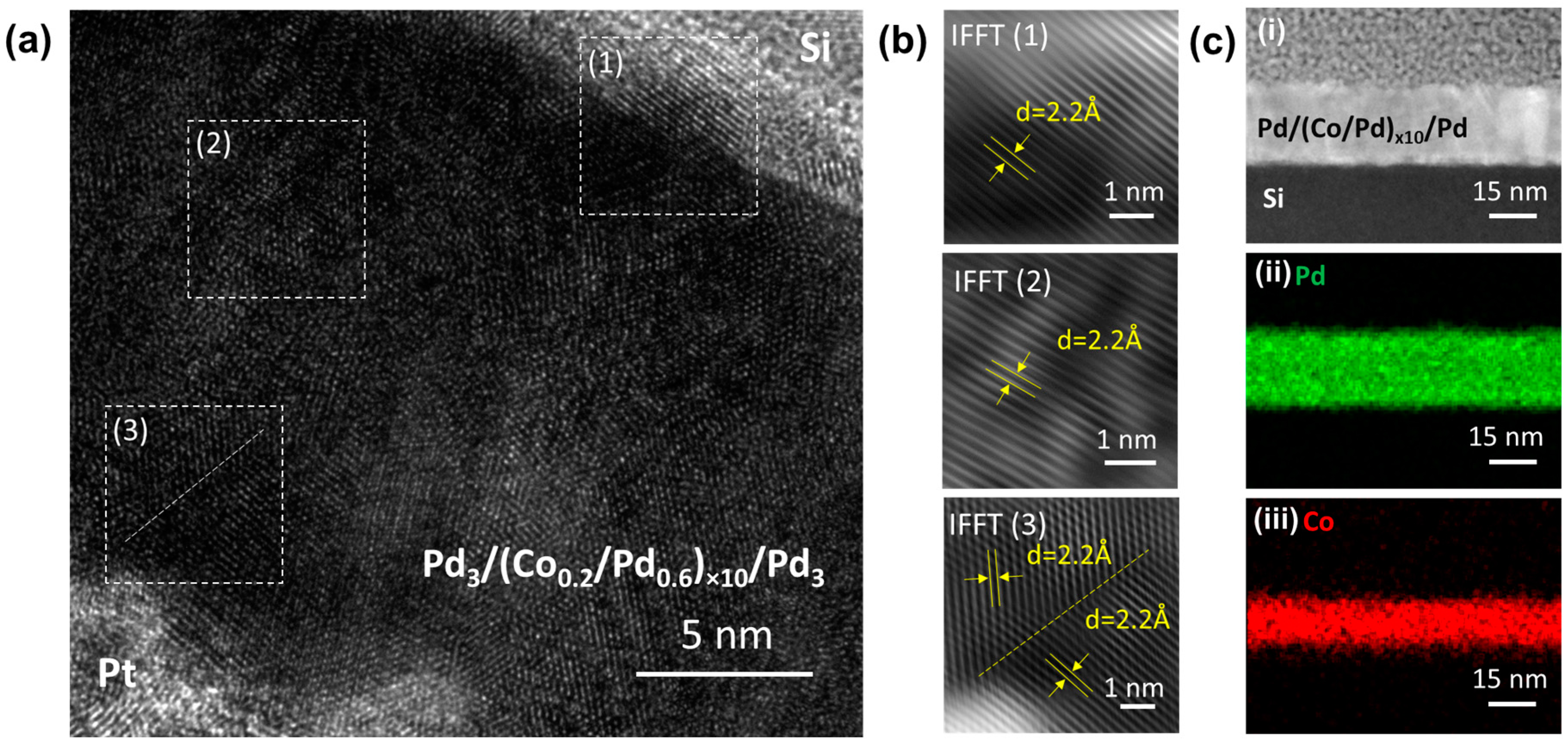

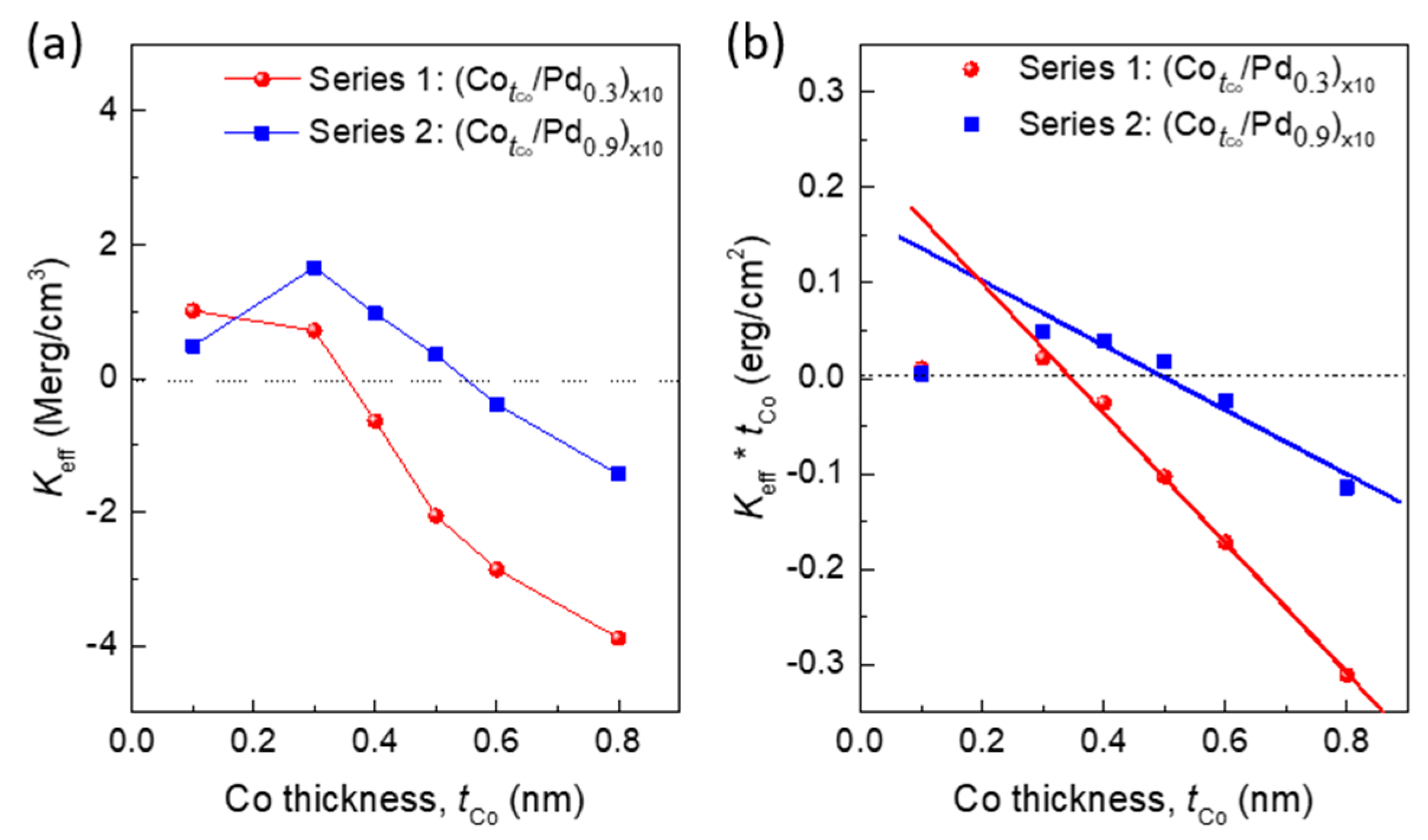

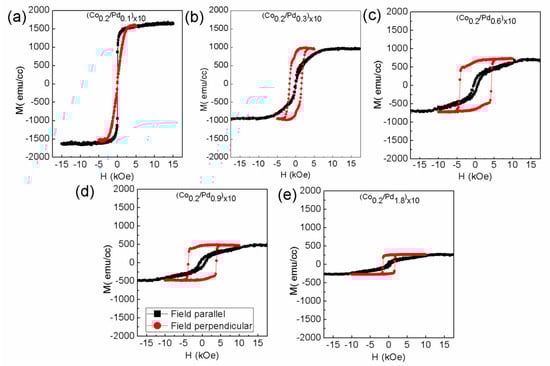

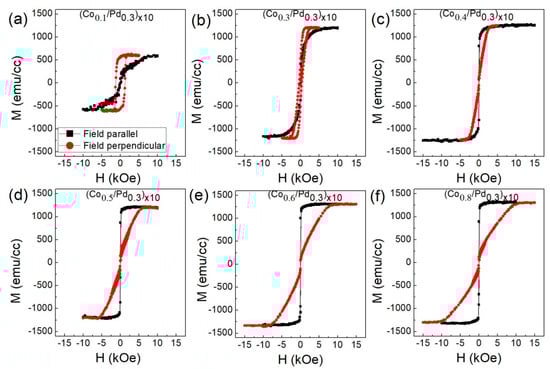

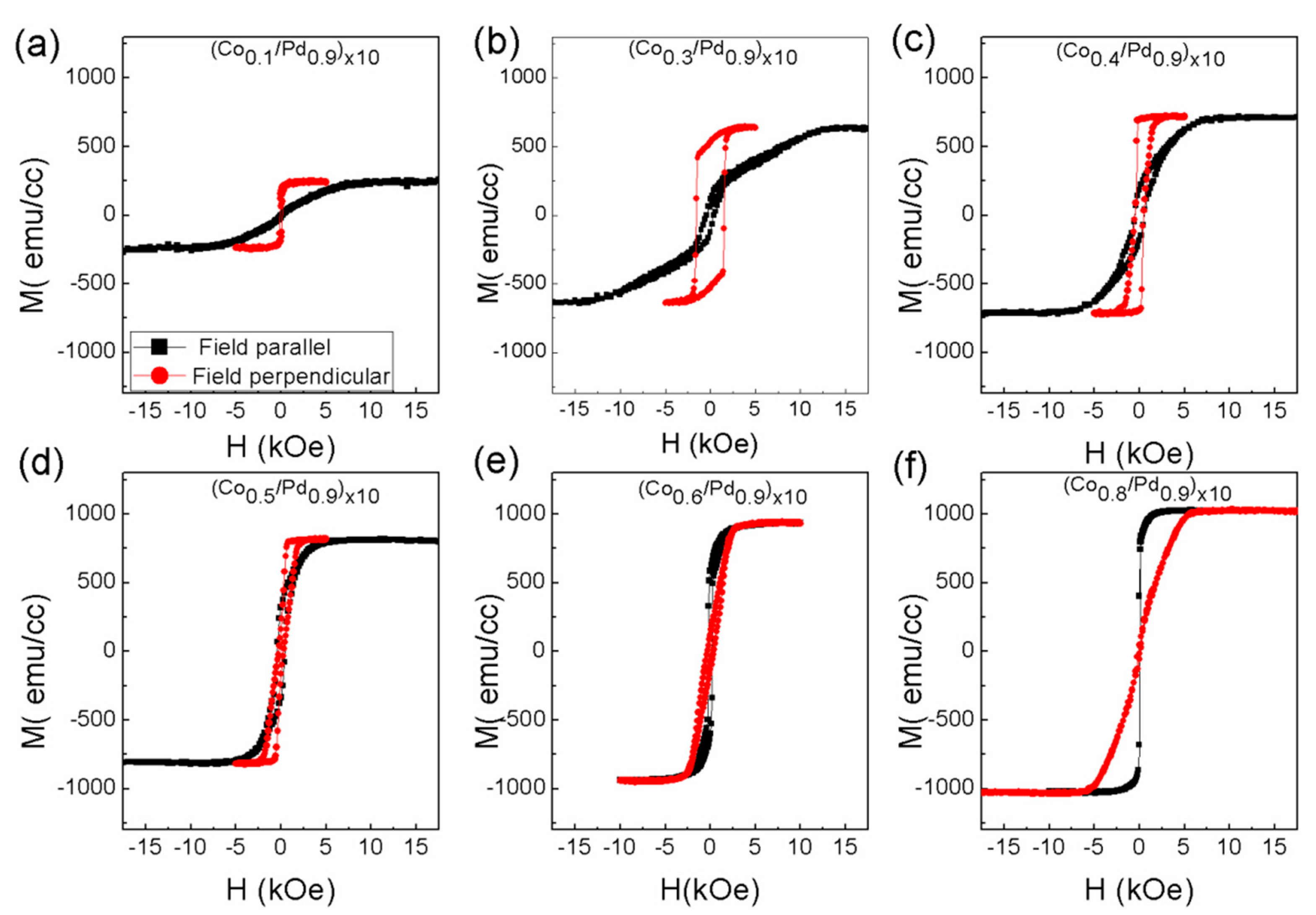

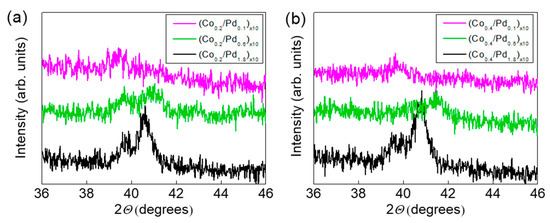

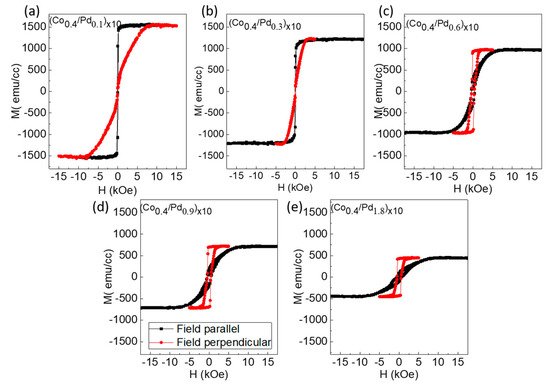

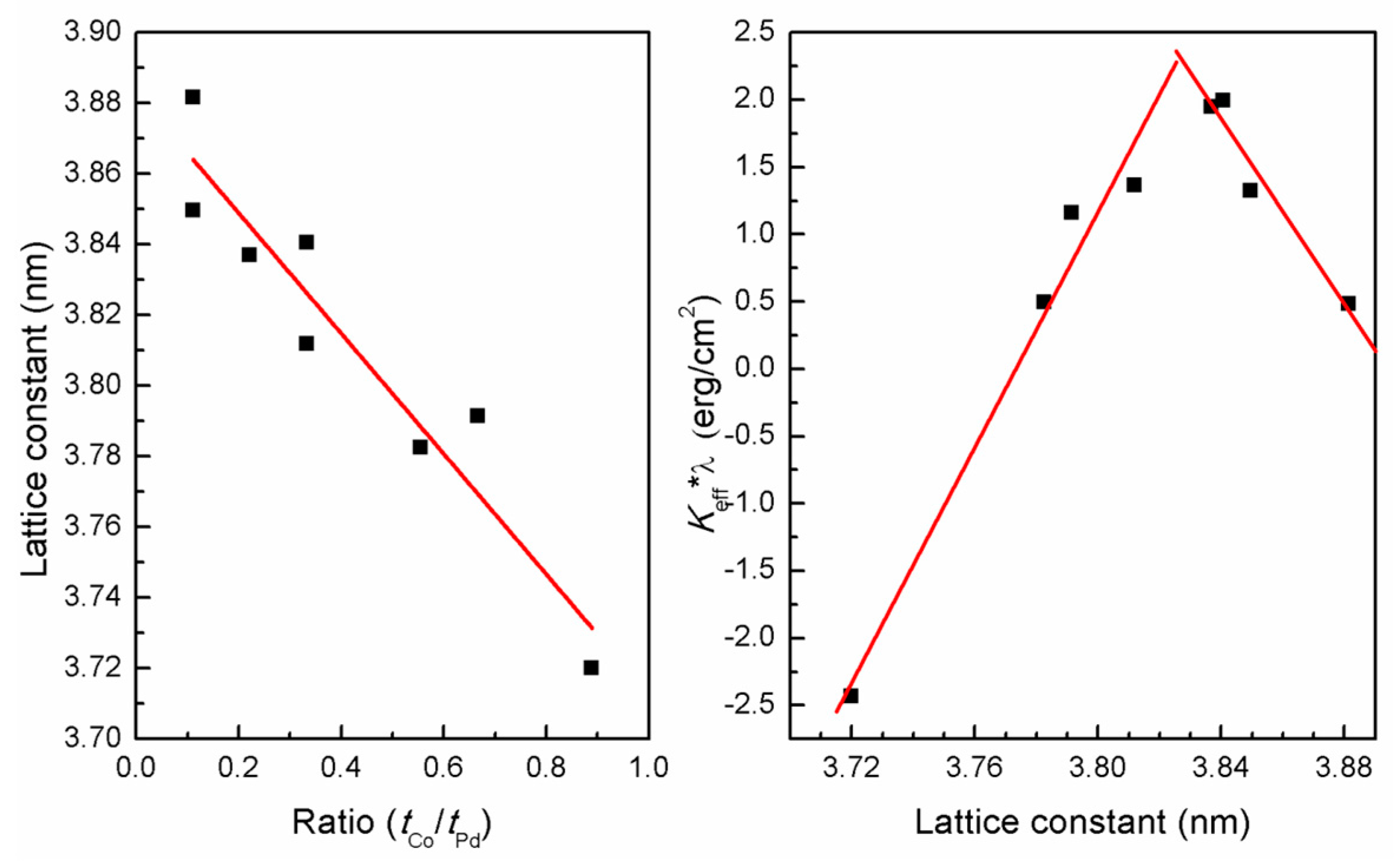

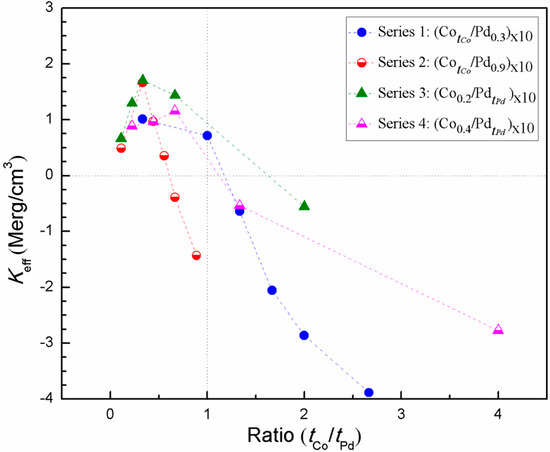

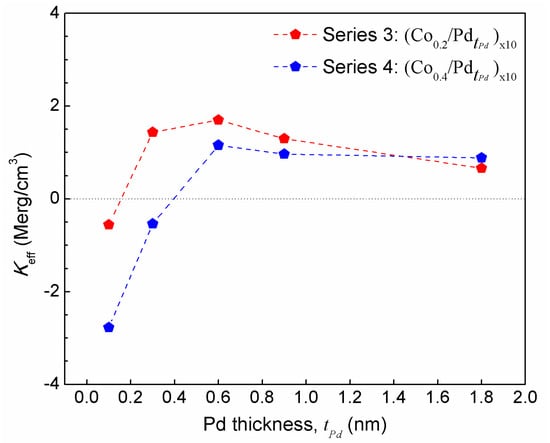

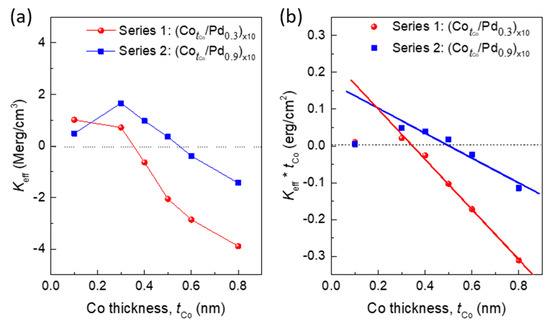

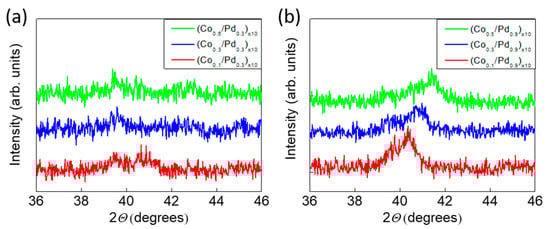

Magnetic materials with perpendicular magnetic anisotropy (PMA) have wide-ranging applications in magnetic recording and sensing devices. Multilayers comprised of ferromagnetic and non-magnetic metals (FM–NM) are interesting materials, as their magnetic anisotropy depends strongly on composition and growth parameters. In this context, (Co/Pd) multilayers have gained huge interest recently due to their robustness and tunable PMA. Here, we report a systematic study of the effect of composition on the magnetic anisotropy of (Co/Pd) multilayers grown by Direct Current (DC) magnetron sputtering. Four different series of (Co/Pd)×10 multilayers with different thicknesses of Co and Pd were examined. Vibrating sample magnetometery was used to determine the magnetic anisotropy of these films. X-ray diffraction and transmission electron microscopy experiments were performed to understand the structural morphology of the films. Our results showed that (Co/Pd)×10 multilayers exhibit PMA when the Co to Pd ratio is less than or equal to 1 and the thickness of Co layers is not more than 5 Å. Maximum effective anisotropy energy is shown by the films with a Co to Pd ratio of 1/3. View Full-Text
Keywords: perpendicular magnetic anisotropy; sputtering; multilayers; magnetic tunnel junctions perpendicular magnetic anisotropy; sputtering; multilayers; magnetic tunnel junctions

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Tudu, B.; Tian, K.; Tiwari, A. Effect of Composition and Thickness on the Perpendicular Magnetic Anisotropy of (Co/Pd) Multilayers. Sensors 2017, 17, 2743.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
