Effects of Operating Temperature on Droplet Casting of Flexible Polymer/Multi-Walled Carbon Nanotube Composite Gas Sensors

1
Department of Electrical and Computer Engineering, National Chiao Tung University, 1001 University Road, Hsinchu City 30010, Taiwan
2
Institute of Electrical Control Engineering, National Chiao Tung University, 1001 University Road, Hsinchu City 30010, Taiwan
3
Institute of Biomedical Engineering, National Chiao Tung University, 1001 University Road, Hsinchu City 30010, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editors: Eduard Llobet and Stella Vallejos
Sensors 2017, 17(1), 4; https://doi.org/10.3390/s17010004
Received: 29 November 2016 / Revised: 16 December 2016 / Accepted: 17 December 2016 / Published: 22 December 2016
(This article belongs to the Special Issue Gas Nanosensors)

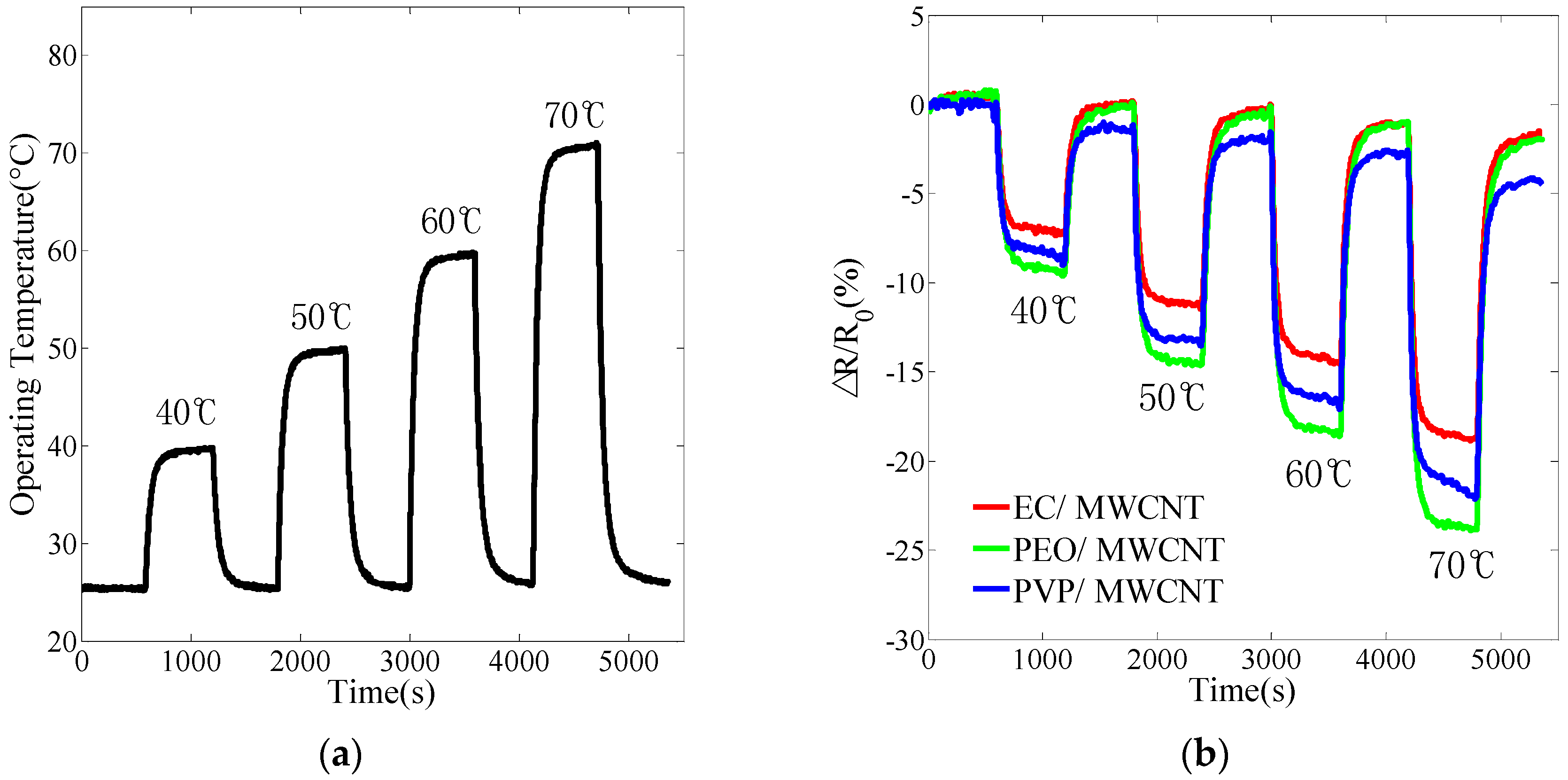

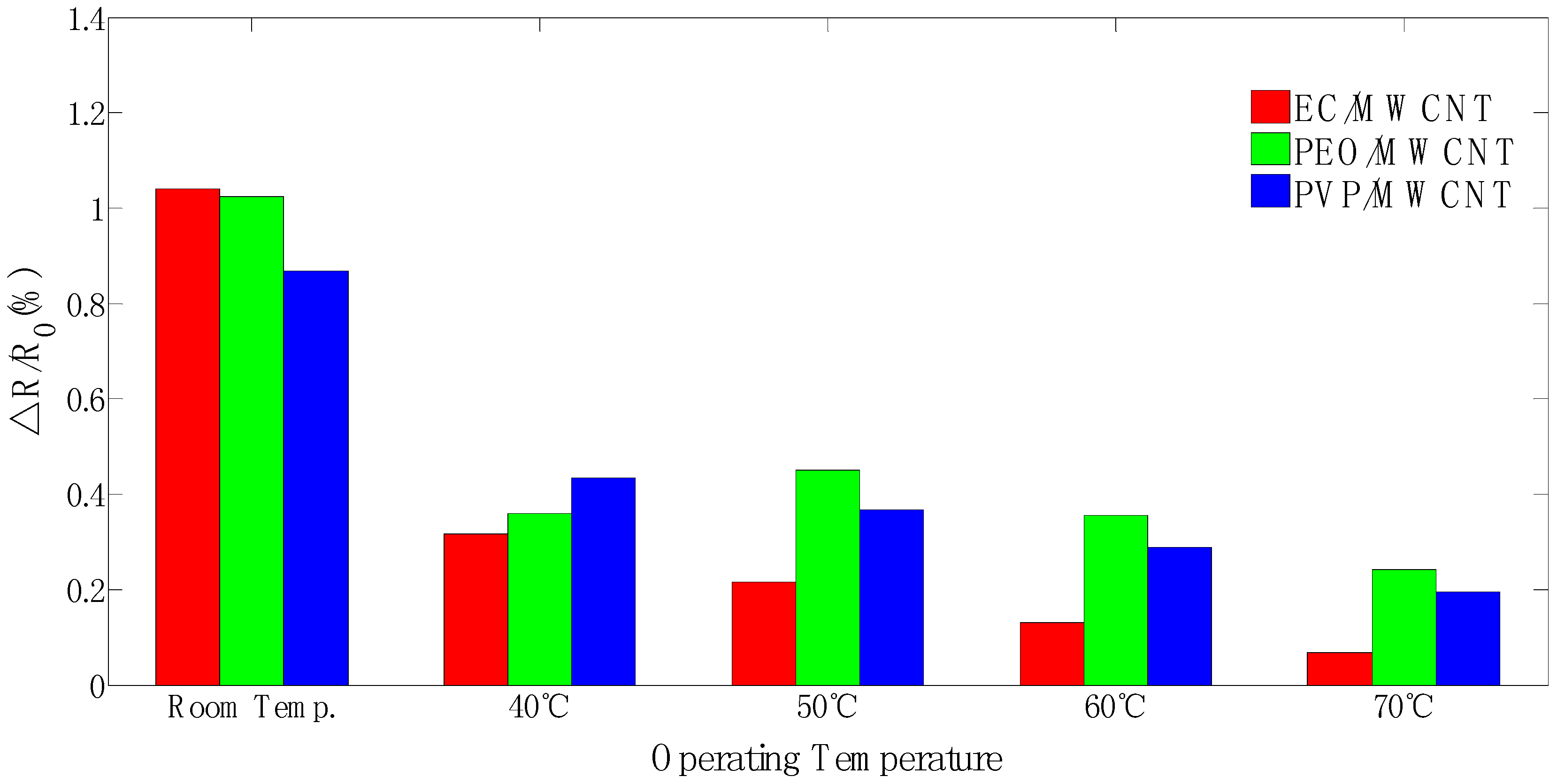

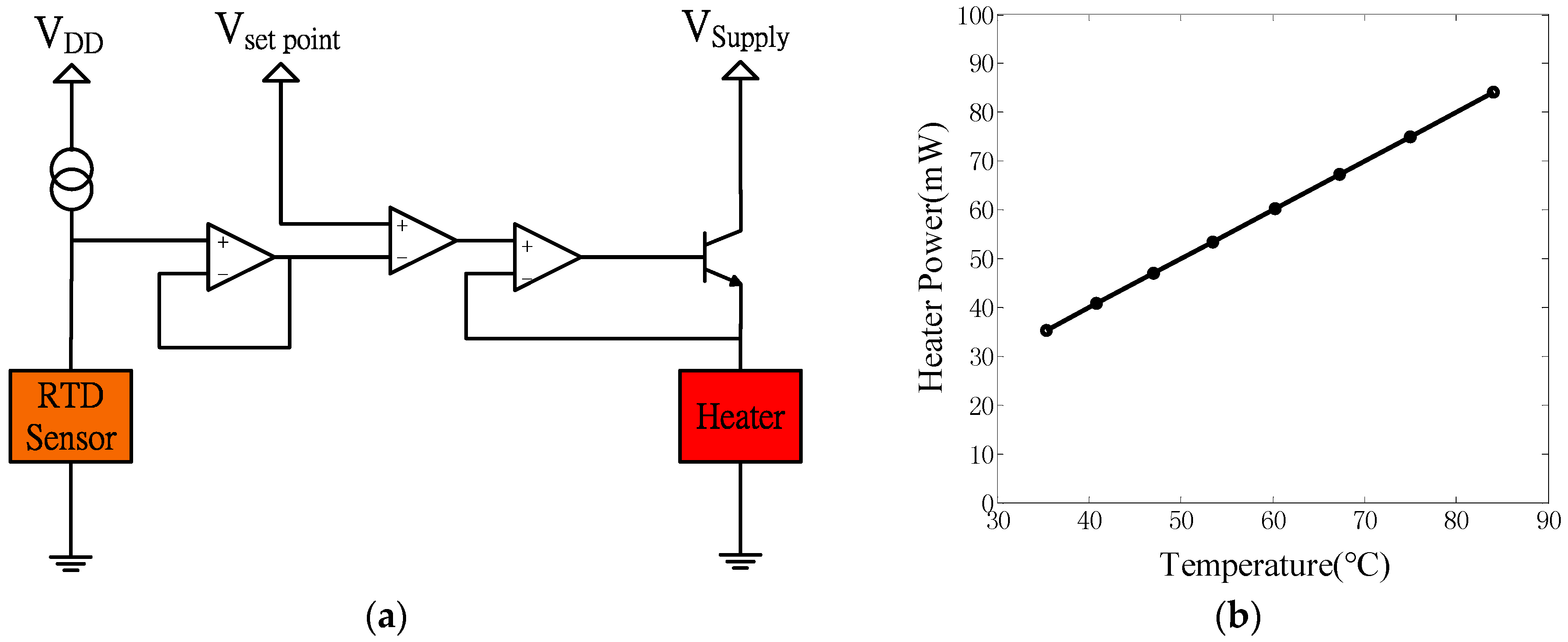

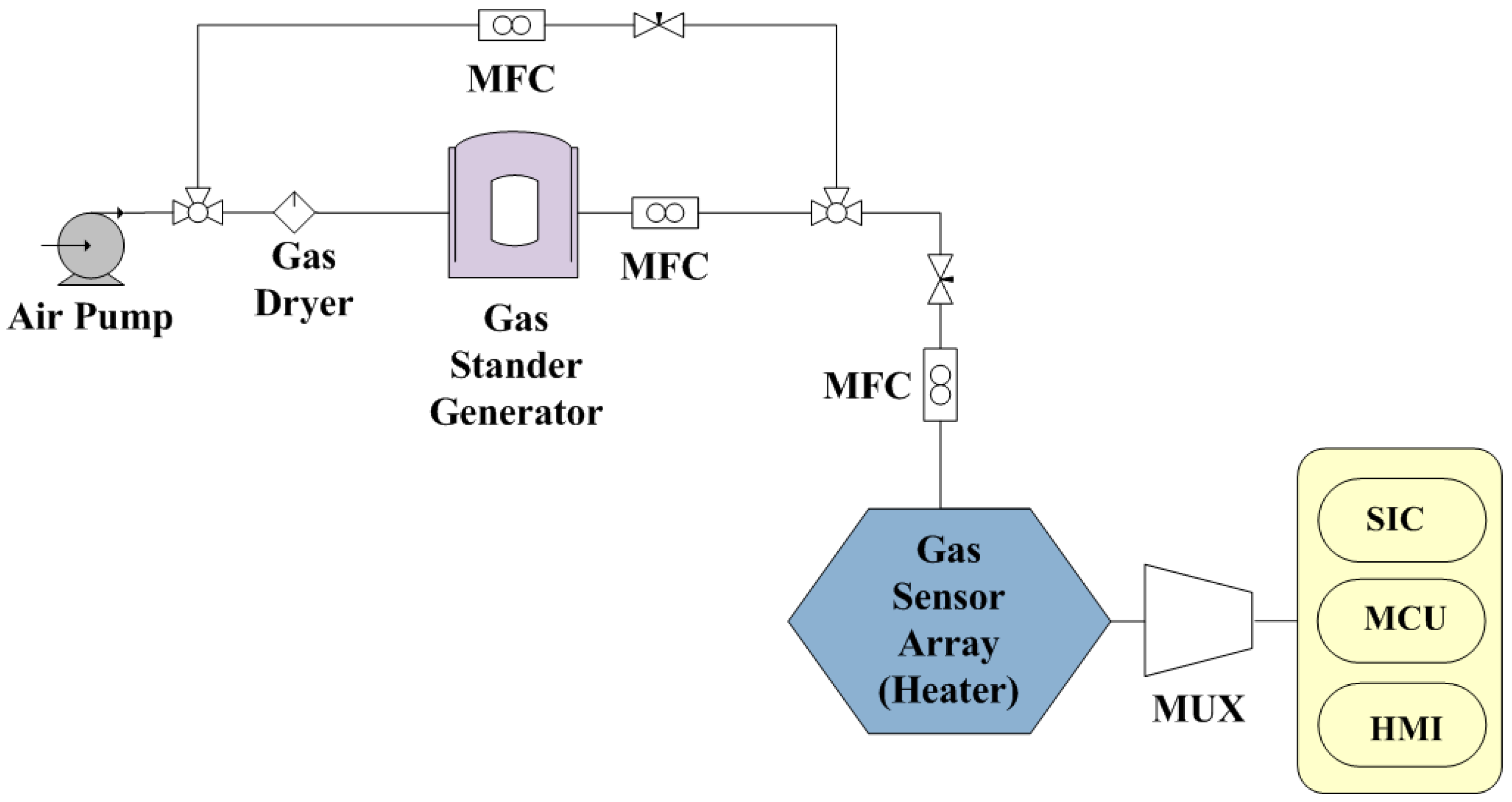

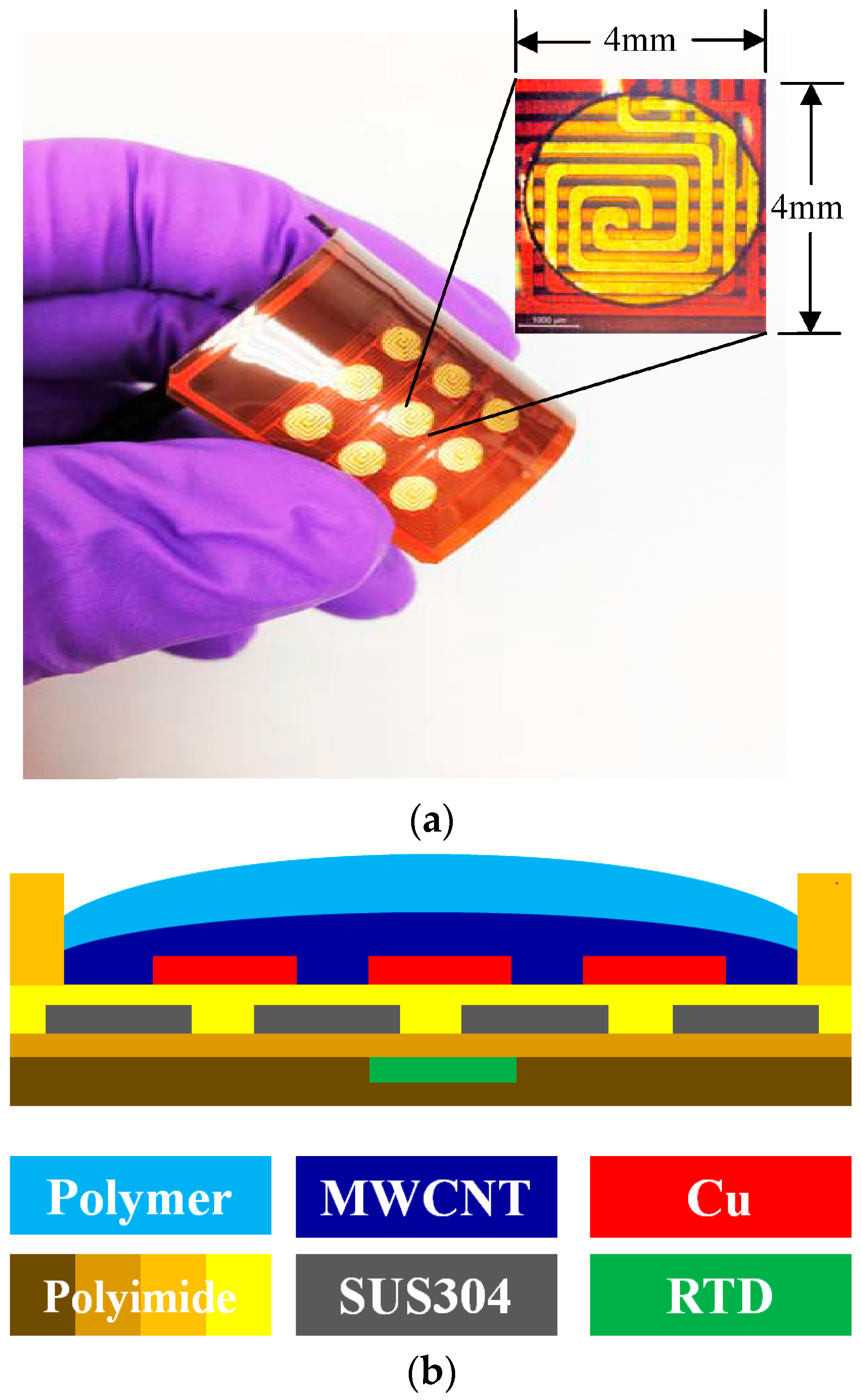

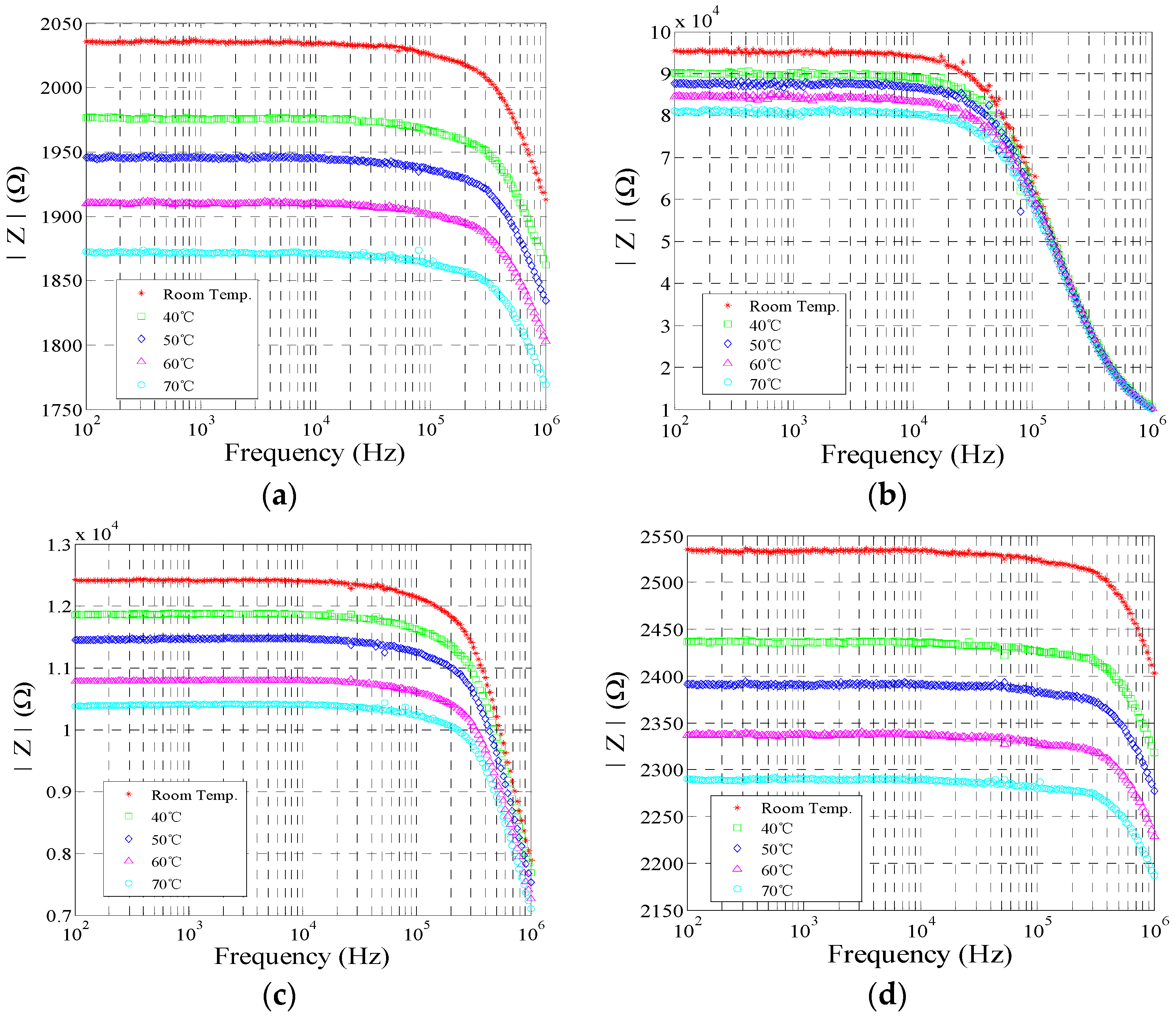

This study examined the performance of a flexible polymer/multi-walled carbon nanotube (MWCNT) composite sensor array as a function of operating temperature. The response magnitudes of a cost-effective flexible gas sensor array equipped with a heater were measured with respect to five different operating temperatures (room temperature, 40 °C, 50 °C, 60 °C, and 70 °C) via impedance spectrum measurement and sensing response experiments. The selected polymers that were droplet cast to coat a MWCNT conductive layer to form two-layer polymer/MWCNT composite sensing films included ethyl cellulose (EC), polyethylene oxide (PEO), and polyvinylpyrrolidone (PVP). Electrical characterization of impedance, sensing response magnitude, and scanning electron microscope (SEM) morphology of each type of polymer/MWCNT composite film was performed at different operating temperatures. With respect to ethanol, the response magnitude of the sensor decreased with increasing operating temperatures. The results indicated that the higher operating temperature could reduce the response and influence the sensitivity of the polymer/MWCNT gas sensor array. The morphology of polymer/MWCNT composite films revealed that there were changes in the porous film after volatile organic compound (VOC) testing. View Full-Text
Keywords: polymer/multi-walled carbon nanotube composites; droplet casting; operating temperature; impedance spectrum polymer/multi-walled carbon nanotube composites; droplet casting; operating temperature; impedance spectrum
