Sensors 2016, 16(9), 1342; https://doi.org/10.3390/s16091342

Article
Sensitive Bioanalysis Based on in-Situ Droplet Anodic Stripping Voltammetric Detection of CdS Quantum Dots Label after Enhanced Cathodic Preconcentration
1
Key Laboratory of Chemical Biology & Traditional Chinese Medicine Research (Ministry of Education of China), College of Chemistry and Chemical Engineering, Hunan Normal University, Changsha 410081, China
2
Liuzhou Traditional Chinese Medicine Hospital, Liuzhou 545001, China
*
Author to whom correspondence should be addressed.
Academic Editor: Huangxian Ju
Received: 17 June 2016 / Accepted: 4 August 2016 / Published: 23 August 2016

Abstract

:
We report a protocol of CdS-labeled sandwich-type amperometric bioanalysis with high sensitivity, on the basis of simultaneous chemical-dissolution/cathodic-enrichment of the CdS quantum dot biolabel and anodic stripping voltammetry (ASV) detection of Cd directly on the bioelectrode. We added a microliter droplet of 0.1 M aqueous HNO3 to dissolve CdS on the bioelectrode and simultaneously achieved the potentiostatic cathodic preconcentration of Cd by starting the potentiostatic operation before HNO3 addition, which can largely increase the ASV signal. Our protocol was used for immunoanalysis and aptamer-based bioanalysis of several proteins, giving limits of detection of 4.5 fg·mL−1 for human immunoglobulin G, 3.0 fg·mL−1 for human carcinoembryonic antigen (CEA), 4.9 fg·mL−1 for human α-fetoprotein (AFP), and 0.9 fM for thrombin, which are better than many reported results. The simultaneous and sensitive analysis of CEA and AFP at two screen-printed carbon electrodes was also conducted by our protocol.
Keywords:
immunoelectrode; aptamer-electrode; screen-printed carbon electrodes; CdS quantum dot-labeled amperometric bioanalysis; signal amplification

1. Introduction

Bioanalysis on the basis of a variety of bioaffinity events that are naturally of high specificity has attracted great academic and industrial attention [1,2,3]. Improving the bioanalysis sensitivity is widely concerned in many areas including biomedical and environmental analysis [4,5,6]. Various biolabeling strategies are frequently used in bioaffinity-based bioanalysis, because the bioaffinity events usually fail to directly give great analytical signals [7,8,9]. Two kinds of biolabeling protocols have been reported for the bioaffinity-based bioanalysis to date, i.e., molecule-level biolabeling (e.g., radioactive labeling [10,11] and enzyme labeling [12,13]) and nanometer-level biolabeling [14,15]. Many nanomaterials, e.g., gold nanoparticles (AuNPs), silver nanoparticles, metal sulphide/selenide/telluride quantum dots (QDs), graphene, and carbon nanotubes, can be used as biolabels to output and amplify the analytical signals, mainly owing to the unique optical, electronic, electrochemical, catalytic, and/or mechanical properties of nanomaterials [15,16,17].
Various optical and electrochemical methods as well as their hyphenation with chromatographic or magnetic separation have been widely employed in bioanalysis [18,19]. Electrochemical methods have been intensively explored for rapid bioanalysis due to the high sensitivity and selectivity, low limits of detection (LODs), facile operation, simple instrumentation, and scope for miniaturization [20,21,22]. The metal-labeled amperometric bioanalysis (MLAB) method involving a sandwich-type bioaffinity interface has been proven promising, which accesses the amperometric signal of metal biolabels either by their chemical dissolution, transfer of the lysate into another electrolyte for cathodic enrichment of the atomic metal, and then anodic stripping voltammetry (ASV) analysis, or by in situ amperometric analysis directly at the bioelectrode without the metal-enrichment step [23,24,25,26,27]. However, signal mining from the metal labels in the two protocols is somewhat limited due to either the solution-dilution effect or the intrinsically short distance of electron communication [28,29]. Obviously, amplification of MLAB signals is very interesting.
Herein, we report a CdS-labeled MLAB protocol for sandwich-type immunoanalysis and aptamer-based bioanalysis, on the basis of simultaneous chemical-dissolution/cathodic-enrichment of the CdS quantum dots biolabel and then in-situ ASV analysis directly on the bioelectrode. Major steps of our protocol are depicted in Scheme 1 (here, immunoassay, as an example). First, the primary antibody (Ab1) was covalently immobilized on a chitosan (CS) modified glassy carbon electrode (GCE) by glutaraldehyde (GA) crosslinking, bovine serum albumin (BSA) was used to block the possible remaining active sites against nonspecific adsorption, and then the target antigen was immunologically immobilized. The second antibody (Ab2) labeled with CdS QDs (Ab2-CdS) was then captured on the electrode, followed by thorough water-rinse and nitrogen-drying. Second, 5 μL of 0.1 M aqueous HNO3 was added to dissolve the CdS label and connect the three-electrode electrolytic cell for diffusion-controlled potentiostatic cathodic preconcentration of metallic Cd (−1.0 V vs. SCE). Note that the potentiostatic operation was started before the HNO3 addition (safe in the potentiostatic mode), so as to minimize the diffusion-layer thickness to capture Cd as entirely as possible from the CdS QDs biolabel, as proven by our recent efforts [30,31,32]. Finally, differential pulse ASV analysis of Cd was conducted to quantify the antigen analyte. Our protocol has been used for sandwich-type immunoanalysis and aptamer-based bioanalysis of several proteins, giving limits of detection (LODs) of 4.5 fg·mL−1 for human immunoglobulin G (IgG), 3.0 fg·mL−1 for human carcinoembryonic antigen (CEA), 4.9 fg·mL−1 for human α-fetoprotein (AFP), and 0.9 fM for thrombin with the CdS QDs label, which are better than many reported results (Table 1).

2. Materials and Methods

2.1. Apparatus and Materials

All electrochemical immunoassays were performed on a CHI660A electrochemical workstation or a CHI1040B multichannel potentiostat (Chenhua Instruments Co., Shanghai, China). The CHI1040B multichannel potentiostat can work with eight independent three electrode cells or eight working electrodes (WEs) in the same solution with common reference electrode (RE) and counter electrode (CE). A disk GCE with 3.0 mm diameter and a platinum wire with 0.1 mm diameter (Chenhua Instruments Co.) served as the WE and the CE, respectively. A KCl-saturated calomel electrode (SCE) of a small-sized salt bridge filled with saturated KNO3 served as the RE. All potentials here are cited versus SCE, unless otherwise specified. The screen-printed carbon electrodes (SPCEs, area = 2 mm2) was made by an electric flat screen printer (AT-25PA, ATMA Tong Yuan M/C Ind. Co., Ltd., Kunshan, China).
IgG and goat anti-IgG (anti-IgG) were purchased from Beijing Dingguo Changsheng Biotechnology Co., Ltd., Beijing, China. Monoclonal mouse anti-CEA (anti-CEA), CEA, anti-AFP, and AFP were purchased from Beijing Key Biotech. Co., Ltd., Beijing, China. 1-Ethyl-3-(3-dimethylaminopropyl) carbodiimide hydrochloride (EDC), N-hydroxysuccinimide (NHS), human α-thrombin, and BSA were purchased from Sigma-Aldrich Chemical Co. (St. Louis, MO, USA). CS from crab shells (90% deacetylated) was commercially obtained from Sinopharm Chemicals Co., Ltd. (Shanghai, China). GA (25% aqueous solution) was purchased from Alfa Aesar China Ltd. (Tianjin, China). The washing and blocking buffer for immunoassay was 0.01 M phosphate buffer (10 mM NaH2PO4 − Na2HPO4 + 0.15 M NaCl, pH 7.4). Fifty millimoles of Tris-HCl buffer containing 100 mM NaCl, 5 mM KCl, 1 mM MgCl2, 5 mM CaCl2 (pH 7.4) was used for construction and rinse of the aptamer-electrode. 0.25 wt% CS solution was prepared in 0.10 M acetate buffer (pH 5.4). All other chemicals were of analytical grade or better quality. Milli-Q ultrapure water (Millipore, ≥18 MΩ·cm) was used in all experiments. The clinical serum samples were approved by the Ethical Committee of the Liuzhou Traditional Chinese Medicine Hospital, Guangxi Zhuang Autonomous Region, China, and the CEA and AFP levels had been analyzed by chemiluminescence in the hospital. Written informed consent was obtained from all donors. The nucleic acid aptamers with the following sequences were purchased from Sangon biotech Co., Ltd., Shanghai, China.
Aptamer-I (Apt1-NH2): 5′-NH2-(CH2)6-T10GGTTGGTGTGGTTGG-3′
Aptamer-II (Apt2): 5′-(TC)10AGTCCGTGGTAGGGCAGGTTGGGGTGACT-3′

2.2. Preparation of Ab2-CdS or Apt2-CdS Conjugates

Prior to use, all glassware was thoroughly cleaned in aqua regia (VHNO3:VHCl = 1:3), rinsed with ultrapure water, and oven-dried. The CdS QDs of (30 ± 5) nm diameter were prepared as reported previously [54]. Briefly, in a 100 mL Erlenmeyer flask, 10 mL of 0.01 M Cd(CH3COO)2 and 5 mL of 0.01 M CH3CSNH2 were mixed, with slowly added 0.3 mL of 0.1 M sodium hexametaphosphate solution as the stabilizer. The solution was adjusted to pH 9.5 with 0.1 M NaOH and vigorously stirred to allow reaction for about 1 h, finally yielding a yellowish sol of CdS QDs. 2.5 μL of 0.7 mg·L−1 cysteine solution was added to the sol, in a volumetric flask to allow reaction for 24 h. Then, 1.5 mL of the cysteine-functionalized CdS nanoparticles dispersion was mixed with fresh prepared 50 μL 0.1 M EDC-HCl and 50 μL 0.1 M NHS. The samples were incubated at room temperature for 1 h under shaking, and washed thoroughly with buffer to remove excess EDC-HCl and NHS. Next, 10 μg antibody or 1 nmol Apt2 was added and gently mixed at 4 °C for 20 h. The supernatant was discarded after centrifugation at 4800 rpm for 30 min, then the soft sediment was washed with 0.01 M phosphate buffer (pH 7.4). Repeating the centrifugation, the CdS conjugates were finally redispersed in 0.5 mL 0.01 M pH 7.4 phosphate buffer containing 1.0% (w/v) BSA or 100 μM BSA and stored at 4 °C prior to use.

2.3. Preparation of Immunoelectrodes

GCE was carefully polished with aqueous alumina slurries (particle size of 0.5 μm and then 0.05 μm). After water rinse, the polished GCE was ultrasonically washed in water, ethanol, and water for 5 min each to eliminate residual alumina powder. The GCE was treated with concentrated sulfuric acid for 15 s and then water-rinsed. Cyclic voltammertry (CV) from −1.0 to 1.0 V at 100 mV·s−1 was performed in 0.50 M aqueous H2SO4 until CV curves became reproducible. The cleaned GCE was used for immobilization of antibody.
First, 2.5 μL of 0.25 mg·mL−1 CS was dropped and dried at room temperature on the WE, followed by activating with 2.5% GA (in 50 mM pH 7.4 phosphate buffer) for 2 h and washing with water (GA-CS/GCE). Afterward, 6 μL of 1 mg·mL−1 Ab1 was dropped on the WE and incubated at room temperature for 1 h and then at 4 °C overnight in a moisture-saturated environment. Subsequently, excess Ab1 was removed with the washing buffer. A 1-h treatment with BSA (3%, 6 μL) blocking solution was applied to the nonspecific sites, followed by washing with buffer.
The assay of antigen is shown in Scheme 1. The immunoelectrode was first incubated with 6 μL of antigen standard solution or serum sample at 37 °C for 60 min. After rinsed with washing buffer, the immunoelectrode was incubated at 37 °C in phosphate buffer containing Ab2-CdS for 40 min. After, the immunoelectrode was rinsed thoroughly with phosphate buffer and ultrapure water to remove the nonspecifically-bound species, and the final immunoelectrode Ab2-CdS/antigen/BSA/Ab1/GA-CS/GCE was obtained.
The two-analyte immunoassay using CdS QDs as biolabels was similarly conducted. The SPCEs containing two graphite WEs, two graphite quasi-references, and two graphite auxiliary electrodes were prepared by the aforementioned screen-printing equipment, as shown in Scheme 2. Two electrochemical microcells were constructed by the insulating layer printed around the working areas. The two-analyte immunoelectrodes using the working SPCEs were constructed similarly to those using GCEs as before.

2.4. Preparation of Aptamer-Electrodes

10 μL of 1 μM Apt1-NH2 was added to the GA-CS/GCE surface, followed by incubation at room temperature for 1 h and at 4 °C overnight in a moisture-saturated environment. Excess Apt1-NH2 was removed with the washing buffer, and a 1-h treatment with BSA (100 μM, 10 μL) blocking solution was applied to block the nonspecific sites, followed by buffer washing. The electrode was incubated at 37 °C for 2 h with 10 μL buffer containing thrombin at different concentrations. After careful washing with the buffer to remove non-captured thrombin, 10 μL of Apt2-CdS was dropped to the WE and incubated at 37 °C for 2 h. The electrode was then rinsed with ultrapure water three times to obtain an aptamer-electrode of Apt2-CdS/thrombin/Apt1-NH2/GA-CS/GCE, which was stored in a dry environment before use.

2.5. Conventional Cell Measurement Procedures

We switched on the potentiostat at −1.0 V in air, so as to ensure the synchronization of diffusion-controlled Cd electrodeposition soon after the WE, RE, and CE were connected by the added electrolyte solution. The CdS marker was dissolved by the addition of 5 μL 0.1 M HNO3 solution for simultaneous cathodic preconcentration of atomic Cd. During 500 s preconcentration, 8.5 mL of 0.3 M aqueous sodium acetate (NaAc) was added at the last 50 s to regulate the pH to about 5. Differential pulse ASV from −1.0 to −0.45 V, with 4 mV potential steps, 50 mV amplitude, and 50 ms pulse width, was performed to record the ASV currents. For the conventional solution-replacement protocol, the solution of dissolved Cd2+ ions (5 μL) was transferred into 995 μL of 0.2 M acetate buffer at pH 5.2 as the electrolyte solution, and ASV analysis was conducted on another cleaned GCE (−1.0 V).

2.6. SPCE Measurements

The two-analyte immunoassay, which should intrinsically have a time-efficiency higher than the separate one-analyte immunoassays (sharing the same time of cathodic preconcentration), was conducted using the CHI1040B electrochemical workstation (Scheme 2). Briefly, −1.0 V vs. graphite reference were first applied to each of the two electrolytic cells in Scheme 2 in air, which can allow diffusion-controlled Cd electrodeposition in the solution. Then, we simultaneously added two independent liquid drops (each 5 μL 0.1 M HNO3) to dissolve the CdS biolabel and preconcentrate atomic Cd for 500 s. Differential pulse ASV with the same parameters as before was performed.

3. Results

3.1. Simulated Experiments for Evaluating the Signaling Efficiency of our Protocol

We conducted the following simulated experiments to compare the signaling efficiency (δ, defined as in Equation (1)) of our protocol with those of conventional ones. An appropriate amount of CdS QDs (nCdS-cast in mol) were cast-coated on a bare GCE and dried in air, and anodic stripping linear sweep voltammetry (LSV) was used to detect the amount of cast-coated CdS (nCdS-LSV in mol).
δ = n CdS-LSV / n CdS-cast = Q / ( z F n CdS-cast )
where F is the Faraday constant (96485.3 C·mol−1), and z is the number of electrons transferred (z = 2 here).
The anodic stripping LSV curves and δ as functions of cathodic-enrichment time are shown in Figure 1. The maximum δ for our protocol was as high as 70.7%, after dissolution of CdS QDs and 500-s cathodic enrichment in 5 μL of 0.1 M HNO3 and then LSV stripping. In contrast, the similar protocol but the cathodic-concentration potential was applied after HNO3 addition gave δ = 34.2% for 500-s preconcentration, highlighting the importance of the beforehand infliction of a cathodic potential in air in our protocol, since the WE in our protocol can more efficiently capture Cd by cathodic reduction of nearby Cd2+ on the WE immediately after the acidic dissolution of CdS. In addition, the δ even for 600-s enrichment was only 1.0% for the conventional solution-replacement protocol by dissolving the CdS QDs with 5 μL of 0.1 M HNO3 and then transferring it into 995-μL 0.10 M acetate buffer (pH 5.2) for enrichment at −1.0 V and LSV stripping. The above results simply for cast-coated CdS QDs confirm the maximum signaling efficiency of our protocol versus conventional ones.
The volume of 0.1 M HNO3 used to dissolve CdS QDs was optimized. As shown in Figure S1, δ decreased with the increase of HNO3 volume, because a smaller volume of HNO3 solution can lead to a thinner diffusion-layer for enhanced enrichment of atomic Cd on the WE and, thus, a larger ASV peak. Hence, 5-μL HNO3 will be used below to maximize the signal.

3.2. Immunoassay of IgG, CEA and AFP

Our protocol can be well used for immunoassay of proteins. Under optimized conditions, the stripping peak current is linear with the common logarithm of IgG concentration from 5 fg·mL−1 to 500 ng·mL−1, with a sensitivity of 7.5 μA·dec−1 (dec means decade) and a LOD of 4.5 fg·mL−1 (S/N = 3), as shown in Figure 2. The LOD is much better than that experimentally obtained from the conventional solution-replacement protocol (0.4 pg·mL−1, Figure 2) and many literature-reported values (Table 1). Three repetitive measurements of 0.500, 5.00, and 50.0 ng·mL−1 IgG yielded reproducible ASV signals with relative standard deviations (RSDs) of (6% ± 2%), indicating acceptable reproducibility.
CEA is a very important clinical diagnosis biomarker for a wide range of malignancies, such as breast cancer, colorectal cancer, and gastric cancer, and is usually immunologically determined [45,46]. Our protocol was also used to detect CEA (Figure 3A). Under optimized conditions, the stripping peak current is linear with the common logarithm of CEA concentration from 5 fg·mL−1 to 500 ng·mL−1, with a sensitivity of 8.1 μA·dec−1 and a LOD of 3.0 fg·mL−1 (S/N = 3). The LOD is much better than that experimentally obtained from the conventional solution-replacement protocol (0.2 pg·mL−1 for CdS QDs label, Figure 3B) and the literature-reported values (Table 1). Similarly, our protocol also gave much enhanced analytical performance for immunoassay of AFP (LOD = 4.9 fg·mL−1), as shown in Figure 4 and Table 1.
To evaluate the analytical reliability and application potential of our protocol, CEA in human-serum samples was determined by our method (only 6 μL sample required for each test) for comparison with the reference results of chemiluminescence assay. As listed in Table S1, our results agree well with the reference results with relative deviations within ±7%, proving the high analytical reliability and application potential of our protocol. The storage stability of the prepared immunoelectrodes was examined by keeping them under dry conditions at 4 °C, and both IgG and CEA gave over 90% of the initial responses after two weeks.

3.3. Aptamer-Based Bioanalysis

Our protocol also can be well used for aptamer-based bioanalysis. Aptamers are nucleic acids that can specifically bind to their targets [55,56,57]. Here, thrombin and a pair of its aptamers were used as a model system. Under the optimum conditions, the stripping peak current is linear with the common logarithm of thrombin concentration from 1 fM to 10 nM, with a sensitivity of 12.5 μA·dec−1 and a LOD of 0.9 fM (S/N = 3), as shown in Figure 5. The LOD is much lower than the previously-reported results (Table 1). We also investigated the selectivity and reproducibility of our protocol. All of the responses to five nonspecific proteins, each at a 100-fold concentration of thrombin, were less than 9% of that to thrombin, as shown in Figure 6. One and 5 nM standard thrombin aqueous solutions were detected by five bioelectrodes, and the RSDs are 8.7% and 7.3%, respectively. As listed in Table 2, our method was evaluated in human blood serum substrate by the standard addition method. The recovery and RSD are acceptable, indicating the application potential of our method for analysis of complex biological samples.

3.4. Simultaneous Two-Target Immunoassay

Our protocol was used for simultaneous two-target immunoassay at two SPCEs (Scheme 2). Here, the two electrolytic cells were independent, since we used two independent liquid drops, each with 5-μL volume. This design can exclude the crosstalk generally resulting from the diffusion of electroactive species on one electrode to neighboring electrodes, as confirmed in Figure S2 and Figure 7. We prepared BSA/anti-CEA/SPCE and BSA/anti-AFP/SPCE on the chip, then incubated with blank solution, 40 ng·mL−1 CEA, or/and 40 ng·mL−1 AFP, and then Ab2-CdS QDs for immunoassay by our protocol. As expected, anodic stripping responses were observable only on the immunoelectrodes with corresponding capture antibodies (Figure 7A), excluding the cross-reactivity between the two analytical systems. Here, the simultaneous two-target immunoassay gave linear response ranges from 4 fg·mL−1 to 400 ng·mL−1 with a sensitivity of 1.32 μA·dec−1 and a LOD of 2.8 fg·mL−1 (S/N = 3) for CEA, as well as from 4 fg·mL−1 to 400 ng·mL−1 with a sensitivity of 1.28 μA·dec−1 and a LOD of 3.0 fg·mL−1 (S/N = 3) for AFP, respectively, as shown in Figure 7B. The analytical performance different from those at GCE-based bioelectrodes comes from the different electroactivity of the GCE and SPCE substrates. As listed in Table 3, our two-target immunoassay protocol was used for simultaneous CEA and AFP assay in clinical human-serum samples. No significant differences were obtained between our results and the hospital results (within ±7% relative deviation (RD)). Thus, we believe that our protocol can be used for simultaneous multianalyte bioanalysis of practical samples on disposable biochips.

4. Conclusions

In conclusion, we have demonstrated a biosensing protocol on the basis of CdS quantum dot biolabeling and in situ droplet ASV detection with enhanced cathodic preconcentration, which enables bioassay of CEA, AFP, and thrombin at fg·mL−1 or fM levels, and performs better than many reported analogues. Immunoassays of CEA and AFP in clinical samples by our protocol gave results agreeable with the hospital results. Our protocol has the advantages of high sensitivity, wide linear detection range (ca. six orders of magnitude), low LOD, good accuracy/precision/stability, easy operation, and small consumption of reagents/samples. Compared with our recent efforts [30,31,32], the CdS biolabeling here is more convenient in acidic dissolution and ASV detection, though further increasing the sensitivity and lowering the LOD rely on additional signal-amplification protocols. The proven capability of simultaneous two-target immunoassay may be extended for simultaneous multianalyte detection on high-throughput disposable biochips (bioelectronic coding [1,5] also possible), which holds great potential for disease diagnosis and other biosensing applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/16/9/1342/s1, Figure S1: δ versus volume of 0.1 M HNO3 used to dissolve CdS QDs for our protocol (n = 3). Conditions: 500-s enrichment; others are the same as in Figure 1 except for varying volume of HNO3, Figure S2: Differential pulse ASV responses at a BSA/anti-CEA/GA-CS/SPCE (a) and a neighboring bare SPCE (b). The electrodes were incubated with 40 fg·mL−1 CEA and then Ab2-CdS QDs, and the ASV analysis were then performed. Here, only the immunoelectrode showed an ASV peak, while no obvious response was observed at the bare SPCE, Table S1: Immunoassay of CEA in clinical serum samples by our protocol and the hospital method.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (21475041, 21305041, 21405042), and Hunan Lotus Scholars Program (2011).

Author Contributions

Xiaoli Qin and Qingji Xie conceived and designed the experiments; Xiaoli Qin performed the experiments; Xiaoli Qin and Linchun Wang analyzed the data; Linchun Wang was the medical doctor who recruited the participants and organized the sample collections; Xiaoli Qin and Qingji Xie wrote and revised the paper. Xiaoli Qin and Linchun Wang contributed equally to this work.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AbAntibody
AFPα-fetoprotein
AgAntigen
anti-IgGAnti-human immunoglobulin G
ASVAnodic stripping voltammetry
AuNPsGold nanoparticles
BSABovine serum albumin
CECounter electrode
CEACarcinoembryonic antigen
CSChitosan
CVCyclic voltammetry
EDC1-ethyl-3-(3-dimethylaminopropyl) carbodiimide
GAGlutaraldehyde
GCEGlassy carbon electrode
IgGImmunoglobulin G
LODLimit of detection
LSVLinear sweep voltammetry
MLABMetal-labeled amperometric bioassay
NHSN-hydroxysuccinimide
QDsQuantum dots
REReference electrode
RDRelative deviation
RSDRelative standard deviation
SCESaturated calomel electrode
WEWorking electrode

References

  1. Hansen, J.A.; Wang, J.; Kawde, A.N.; Xiang, Y.; Gothelf, K.V.; Collins, G. Quantum-Dot/Aptamer-Based Ultrasensitive Multi-Analyte Electrochemical Biosensor. J. Am. Chem. Soc. 2006, 128, 2228–2229. [Google Scholar] [CrossRef] [PubMed]
  2. Song, Y.J.; Zhang, Y.Q.; Bernard, P.E.; Reuben, J.M.; Ueno, N.T.; Arlinghaus, R.B.; Zu, Y.L.; Qin, L.D. Multiplexed volumetric bar-chart chip for point-of-care diagnostics. Nat. Commun. 2012, 3, 1283. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, F.; Elbaz, J.; Teller, C.; Willner, I. Amplified Detection of DNA through an Autocatalytic and Catabolic DNAzyme-Mediated Process. Angew. Chem. Int. Ed. 2011, 50, 295–299. [Google Scholar] [CrossRef] [PubMed]
  4. Saletti, G.; Çuburu, N.; Yang, J.S.; Dey, A.; Czerkinsky, C. Enzyme-linked immunospot assays for direct ex vivo measurement of vaccine-induced human humoral immune responses in blood. Nat. Protoc. 2013, 8, 1073–1087. [Google Scholar] [CrossRef]
  5. Kokkinos, C.; Angelopoulou, M.; Economou, A.; Prodromidis, M.; Florou, A.; Haasnoot, W.; Petrou, P.; Kakabakos, S. Lab-on-a-Membrane Foldable Devices for Duplex Drop-Volume Electrochemical Biosensing Using Quantum Dot Tags. Anal. Chem. 2016, 88, 6897–6904. [Google Scholar] [CrossRef] [PubMed]
  6. Li, Z.; Xin, Y.; Wu, W.; Fu, B.; Zhang, Z. Topotactic Conversion of Copper(I) Phosphide Nanowires for Sensitive Electrochemical Detection of H2O2 Release from Living Cells. Anal. Chem. 2016. [Google Scholar] [CrossRef]
  7. Munge, B.S.; Coffey, A.L.; Doucette, J.M.; Somba, B.K.; Malhotra, R.; Patel, V.; Gutkind, J.S.; Rusling, J.F. Nanostructured Immunosensor for Attomolar Detection of Cancer Biomarker Interleukin-8 Using Massively Labeled Superparamagnetic Particles. Angew. Chem. Int. Ed. 2011, 50, 7915–7918. [Google Scholar] [CrossRef]
  8. Krishnan, S.; Mani, V.; Wasalathanthri, D.; Kumar, C.V.; Rusling, J.F. Attomolar Detection of a Cancer Biomarker Protein in Serum by Surface Plasmon Resonance Using Superparamagnetic Particle Labels. Angew. Chem. Int. Ed. 2010, 49, 1–5. [Google Scholar]
  9. Zhang, L.B.; Zhu, J.B.; Guo, S.J.; Li, T.; Li, J.; Wang, E.K. Photoinduced Electron Transfer of DNA/Ag Nanoclusters Modulated by G-Quadruplex/Hemin Complex for the Construction of Versatile Biosensors. J. Am. Chem. Soc. 2013, 135, 2403–2406. [Google Scholar] [CrossRef] [PubMed]
  10. Yalow, R.S.; Berson, S.A. Immunoassay of endogenous plasma insulin in man. J. Clin. Investig. 1960, 39, 1157–1175. [Google Scholar] [CrossRef] [PubMed]
  11. Pradelles, P.; Grassi, J.; Maclouf, J. Enzyme Immunoassays of Eicosanoids Using Acetylcholine Esterase as Label: An Alternative to Radioimmunoassay. Anal. Chem. 1985, 57, 1170–1173. [Google Scholar] [CrossRef] [PubMed]
  12. Wu, Y.F.; Chen, C.L.; Liu, S.Q. Enzyme-Functionalized Silica Nanoparticles as Sensitive Labels in Biosensing. Anal. Chem. 2009, 81, 1600–1607. [Google Scholar] [CrossRef] [PubMed]
  13. Sharma, A.K.; Kent, A.D.; Heemstra, J.M. Enzyme-Linked Small-Molecule Detection Using Split Aptamer Ligation. Anal. Chem. 2012, 84, 6104–6109. [Google Scholar] [CrossRef] [PubMed]
  14. Gu, B.X.; Xu, C.X.; Yang, C.; Liu, S.Q.; Wang, M.L. ZnO quantum dot labeled immunosensor for carbohydrate antigen 19-9. Biosens. Bioelectron. 2011, 26, 2720–2723. [Google Scholar] [CrossRef] [PubMed]
  15. Zhao, W.W.; Ma, Z.Y.; Yu, P.P.; Dong, X.Y.; Xu, J.J.; Chen, H.Y. Highly Sensitive Photoelectrochemical Immunoassay with Enhanced Amplification Using Horseradish Peroxidase Induced Biocatalytic Precipitation on a CdS Quantum Dots Multilayer Electrode. Anal. Chem. 2012, 84, 917–923. [Google Scholar] [CrossRef] [PubMed]
  16. Liu, X.; Dai, Q.; Austin, L.; Coutts, J.; Knowles, G.; Zou, J.H.; Chen, H.; Huo, Q. A One-Step Homogeneous Immunoassay for Cancer Biomarker Detection Using Gold Nanoparticle Probes Coupled with Dynamic Light Scattering. J. Am. Chem. Soc. 2008, 130, 2780–2782. [Google Scholar] [CrossRef] [PubMed]
  17. Gill, R.; Zayats, M.; Willner, I. Semiconductor Quantum Dots for Bioanalysis. Angew. Chem. Int. Ed. 2008, 47, 7602–7625. [Google Scholar] [CrossRef] [PubMed]
  18. Arya, S.K.; Bhansali, S. Lung Cancer and Its Early Detection Using Biomarker-Based Biosensors. Chem. Rev. 2011, 111, 6783–6809. [Google Scholar] [CrossRef] [PubMed]
  19. Turner, A.P.F. Biosensors: Sense and Sensibility. Chem. Soc. Rev. 2013, 42, 3184–3196. [Google Scholar] [CrossRef] [PubMed]
  20. Kimmel, D.W.; LeBlanc, G.; Meschievitz, M.E.; Cliffel, D.E. Electrochemical Sensors and Biosensors. Anal. Chem. 2012, 84, 685–707. [Google Scholar] [CrossRef] [PubMed]
  21. Li, C.; Li, X.; Wei, L.; Liu, M.; Chen, Y.; Li, G. Simple electrochemical sensing of attomolar proteins using fabricated complexes with enhanced surface binding avidity. Chem. Sci. 2015, 6, 4311–4317. [Google Scholar] [CrossRef]
  22. Das, J.; Ivanov, I.; Montermini, L.; Rak, J.; Sargent, E.H.; Kelley, S.O. An electrochemical clamp assay for direct, rapid analysis of circulating nucleic acids in serum. Nat. Chem. 2015, 7, 569–575. [Google Scholar] [CrossRef]
  23. Feng, L.N.; Bian, Z.P.; Peng, J.; Jiang, F.; Yang, G.H.; Zhu, Y.D.; Yang, D.; Jiang, L.P.; Zhu, J.J. Ultrasensitive Multianalyte Electrochemical Immunoassay Based on Metal Ion Functionalized Titanium Phosphate Nanospheres. Anal. Chem. 2012, 84, 7810–7815. [Google Scholar] [CrossRef] [PubMed]
  24. Zhu, N.; Zhang, A.; He, P.; Fang, Y. Cadmium sulfide nanocluster-based electrochemical stripping detection of DNA hybridization. Analyst 2003, 128, 260–264. [Google Scholar] [CrossRef] [PubMed]
  25. Xiang, Y.; Zhang, H.; Jiang, B.; Chai, Y.; Yuan, R. Quantum Dot Layer-by-Layer Assemblies as Signal Amplification Labels for Ultrasensitive Electronic Detection of Uropathogens. Anal. Chem. 2011, 83, 4302–4306. [Google Scholar] [CrossRef] [PubMed]
  26. Kim, T.H.; El Said, W.A.; Choi, J.W. Highly sensitive electrochemical detection of potential cytotoxicity of CdSe/ZnS quantum dots using neural cell chip. Biosens. Bioelectron. 2012, 32, 266–272. [Google Scholar] [CrossRef] [PubMed]
  27. Lu, D.L.; Wang, J.; Wang, L.M.; Du, D.; Timchalk, C.; Barry, R.; Lin, Y.H. A Novel Nanoparticle-Based Disposable Electrochemical Immunosensor for Diagnosis of Exposure to Toxic Organophosphorus Agents. Adv. Funct. Mater. 2011, 21, 4371–4378. [Google Scholar] [CrossRef]
  28. Zuo, X.; Song, S.; Zhang, J.; Pan, D.; Wang, L.; Fan, C. A Target-Responsive Electrochemical Aptamer Switch (TREAS) for Reagentless Detection of Nanomolar ATP. J. Am. Chem. Soc. 2007, 129, 1042–1043. [Google Scholar] [CrossRef] [PubMed]
  29. Barfidokht, A.; Ciampi, S.; Luais, E.; Darwish, N.; Gooding, J.J. Distance-Dependent Electron Transfer at Passivated Electrodes Decorated by Gold Nanoparticles. Anal. Chem. 2013, 85, 1073–1080. [Google Scholar] [CrossRef] [PubMed]
  30. Qin, X.; Xu, A.; Liu, L.; Deng, W.; Chen, C.; Tan, Y.; Fu, Y.; Xie, Q.; Yao, S. Ultrasensitive Electrochemical Immunoassay of Proteins based on in Situ Duple Amplification of Gold Nanoparticle Biolabel Signals. Chem. Commun. 2015, 51, 8540–8543. [Google Scholar] [CrossRef] [PubMed]
  31. Qin, X.; Liu, L.; Xu, A.; Wang, L.; Tan, Y.; Chen, C.; Xie, Q. Ultrasensitive Immunoassay of Proteins Based on Gold Label/Silver Staining, Galvanic Replacement Reaction Enlargement, and In Situ Microliter-Droplet Anodic Stripping Voltammetry. J. Phys. Chem. C 2016, 120, 2855–2865. [Google Scholar] [CrossRef]
  32. Qin, X.; Xu, A.; Wang, L.; Liu, L.; Chao, L.; He, F.; Tan, Y.; Chen, C.; Xie, Q. In situ microliter-droplet anodic stripping voltammetry of copper stained on the gold label after galvanic replacement reaction enlargement for ultrasensitive immunoassay of proteins. Biosens. Bioelectron. 2016, 79, 914–921. [Google Scholar] [CrossRef] [PubMed]
  33. Qin, G.; Zhao, S.; Huang, Y.; Jiang, J.; Ye, F. Magnetic Bead-Sensing-Platform-Based Chemiluminescence Resonance Energy Transfer and Its Immunoassay Application. Anal. Chem. 2012, 84, 2708–2712. [Google Scholar] [CrossRef] [PubMed]
  34. Fu, Y.; Li, P.; Bu, L.; Wang, T.; Xie, Q.; Xu, X.; Lei, L.; Zou, C.; Yao, S. Chemical/Biochemical Preparation of New Polymeric Bionanocomposites with Enzyme Labels Immobilized at High Load and Activity for High-Performance Electrochemical Immunoassay. J. Phys. Chem. C 2010, 114, 1472–1480. [Google Scholar] [CrossRef]
  35. Cui, R.J.; Pan, H.C.; Zhu, J.J.; Chen, H.Y. Versatile Immunosensor Using CdTe Quantum Dots as Electrochemical and Fluorescent Labels. Anal. Chem. 2007, 79, 8494–8501. [Google Scholar] [CrossRef] [PubMed]
  36. Dequaire, M.; Degrand, C.; Limoges, B.T. An Electrochemical Metalloimmunoassay Based on a Colloidal Gold Label. Anal. Chem. 2000, 72, 5521–5528. [Google Scholar] [CrossRef] [PubMed]
  37. Lai, G.; Yan, F.; Wu, J.; Leng, C.; Ju, H. Ultrasensitive Multiplexed Immunoassay with Electrochemical Stripping Analysis of Silver Nanoparticles Catalytically Deposited by Gold Nanoparticles and Enzymatic Reaction. Anal. Chem. 2011, 83, 2726–2732. [Google Scholar] [CrossRef] [PubMed]
  38. Du, D.; Zou, Z.; Shin, Y.; Wang, J.; Wu, H.; Engelhard, M.H.; Liu, J.; Aksay, I.A.; Lin, Y. Sensitive Immunosensor for Cancer Biomarker Based on Dual Signal Amplification Strategy of Graphene Sheets and Multienzyme Functionalized Carbon Nanospheres. Anal. Chem. 2010, 82, 2989–2995. [Google Scholar] [CrossRef] [PubMed]
  39. Li, Y.; Ma, M.; Zhu, J. Dual-Signal Amplification Strategy for Ultrasensitive Photoelectrochemical Immunosensing of α-Fetoprotein. Anal. Chem. 2012, 84, 10492–10499. [Google Scholar] [CrossRef] [PubMed]
  40. Chun, C.; Joo, J.; Kwon, D.; Kim, C.S.; Cha, H.J.; Chung, M.S.; Jeon, S. A facile and sensitive immunoassay for the detection of alpha-fetoprotein using gold-coated magnetic nanoparticle clusters and dynamic light scattering. Chem. Commum. 2011, 47, 11047–11049. [Google Scholar] [CrossRef] [PubMed]
  41. Wu, B.Y.; Wang, H.F.; Chen, J.T.; Yan, X.P. Fluorescence Resonance Energy Transfer Inhibition Assay for α-Fetoprotein Excreted during Cancer Cell Growth Using Functionalized Persistent Luminescence Nanoparticles. J. Am. Chem. Soc. 2011, 133, 686–688. [Google Scholar] [CrossRef] [PubMed]
  42. Dai, H.; Yang, C.; Tong, Y.; Xu, G.; Ma, X.; Lin, Y.; Chen, G. Label-free electrochemiluminescent immunosensor for α-fetoprotein: Performance of Nafion–carbon nanodots nanocomposite films as antibody carriers. Chem. Commum. 2012, 48, 3055–3057. [Google Scholar] [CrossRef] [PubMed]
  43. Kong, F.Y.; Xu, B.Y.; Du, Y.; Xu, J.J.; Chen, H.Y. A branched electrode based electrochemical platform: Towards new label-free and reagentless simultaneous detection of two biomarkers. Chem. Commum. 2013, 49, 1052–1054. [Google Scholar] [CrossRef] [PubMed]
  44. Sun, X.; Ma, Z. Highly stable electrochemical immunosensor for carcinoembryonic antigen. Biosens. Bioelectron. 2012, 35, 470–474. [Google Scholar] [CrossRef] [PubMed]
  45. Yu, Q.; Zhan, X.; Liu, K.; Lv, H.; Duan, Y. Plasma-Enhanced Antibody Immobilization for the Development of a Capillary-Based Carcinoembryonic Antigen Immunosensor Using Laser-Induced Fluorescence Spectroscopy. Anal. Chem. 2013, 85, 4578–4585. [Google Scholar] [CrossRef] [PubMed]
  46. Fu, Z.; Liu, H.; Ju, H. Flow-Through Multianalyte Chemiluminescent Immunosensing System with Designed Substrate Zone-Resolved Technique for Sequential Detection of Tumor Markers. Anal. Chem. 2006, 78, 6999–7005. [Google Scholar] [CrossRef] [PubMed]
  47. Yan, M.; Ge, L.; Gao, W.; Yu, J.; Song, X.; Ge, S.; Jia, Z.; Chu, C. Electrogenerated Chemiluminescence from a Phenyleneethynylene Derivative and its Ultrasensitive Immunosensing Application Using a Nanotubular Mesoporous Pt-Ag Alloy for Signal Amplification. Adv. Funct. Mater. 2012, 22, 3899–3906. [Google Scholar] [CrossRef]
  48. Lin, J.; Wei, Z.; Mao, C. A label-free immunosensor based on modified mesoporous silica for simultaneous determination of tumor markers. Biosens. Bioelectron. 2011, 29, 40–45. [Google Scholar] [CrossRef] [PubMed]
  49. Jie, G.F.; Yuan, J.X. Novel Magnetic Fe3O4@CdSe Composite Quantum Dot-Based Electrochemiluminescence Detection of Thrombin by a Multiple DNA Cycle Amplification Strategy. Anal. Chem. 2012, 84, 2811–2817. [Google Scholar] [CrossRef] [PubMed]
  50. Wang, Y.L.; Li, D.; Ren, W.; Liu, Z.J.; Dong, S.J.; Wang, E.K. Ultrasensitive colorimetric detection of protein by aptamer-Au nanoparticles conjugates based on a dot-blot assay. Chem. Commum. 2008, 22, 2520–2522. [Google Scholar] [CrossRef] [PubMed]
  51. Pavlov, V.; Xiao, Y.; Shlyahovsky, B.; Willner, I. Aptamer-Functionalized Au Nanoparticles for the Amplified Optical Detection of Thrombin. J. Am. Chem. Soc. 2004, 126, 11768–11769. [Google Scholar] [CrossRef] [PubMed]
  52. Li, X.X.; Shen, L.H.; Zhang, D.D.; Qi, H.L.; Gao, Q.; Ma, F.; Zhang, C.X. Electrochemical impedance spectroscopy for study of aptamer-thrombin interfacial interactions. Biosens. Bioelectron. 2008, 23, 1624–1630. [Google Scholar] [CrossRef] [PubMed]
  53. Bai, Y.F.; Feng, F.; Zhao, L.; Wang, C.Y.; Wang, H.Y.; Tian, M.Z.; Qin, J.; Duan, Y.L.; He, X.X. Aptamer/thrombin/aptamer-AuNPs sandwich enhanced surface plasmon resonance sensor for the detection of subnanomolar thrombin. Biosens. Bioelectron. 2013, 47, 265–270. [Google Scholar] [CrossRef] [PubMed]
  54. Ye, M.; Zhang, Y.; Li, H.; Zhang, Y.; Tan, P.; Tang, H.; Yao, S. A novel method for the detection of point mutation in DNA using single-base-coded CdS nanoprobes. Biosens. Bioelectron. 2009, 24, 2339–2345. [Google Scholar] [CrossRef] [PubMed]
  55. Chen, Y.L.; Corn, R.M. DNAzyme Footprinting: Detecting Protein-Aptamer Complexation on Surfaces by Blocking DNAzyme Cleavage Activity. J. Am. Chem. Soc. 2013, 135, 2072–2075. [Google Scholar] [CrossRef] [PubMed]
  56. Willner, I.; Zayats, M. Electronic Aptamer-Based Sensors. Angew. Chem. Int. Ed. 2007, 46, 6408–6418. [Google Scholar] [CrossRef] [PubMed]
  57. Xiao, Y.; Lubin, A.A.; Heeger, A.J.; Plaxco, K.W. Label-Free Electronic Detection of Thrombin in Blood Serum by Using an Aptamer-Based Sensor. Angew. Chem. Int. Ed. 2005, 44, 5456–5459. [Google Scholar] [CrossRef] [PubMed]

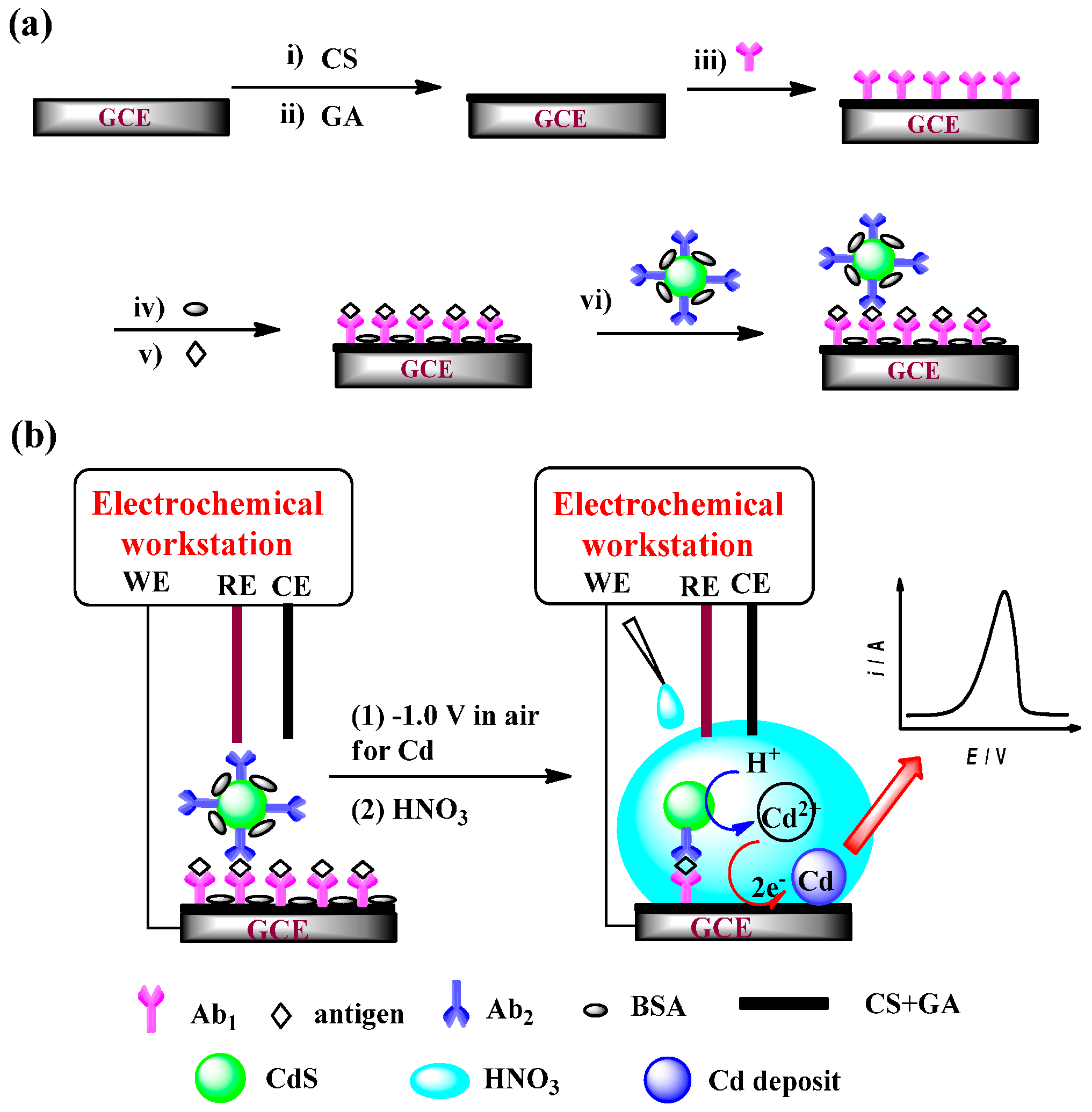

Scheme 1. Steps for preparing the immunosensor (a) and outputting the ASV signal (b).
Scheme 1. Steps for preparing the immunosensor (a) and outputting the ASV signal (b).
Sensors 16 01342 sch001

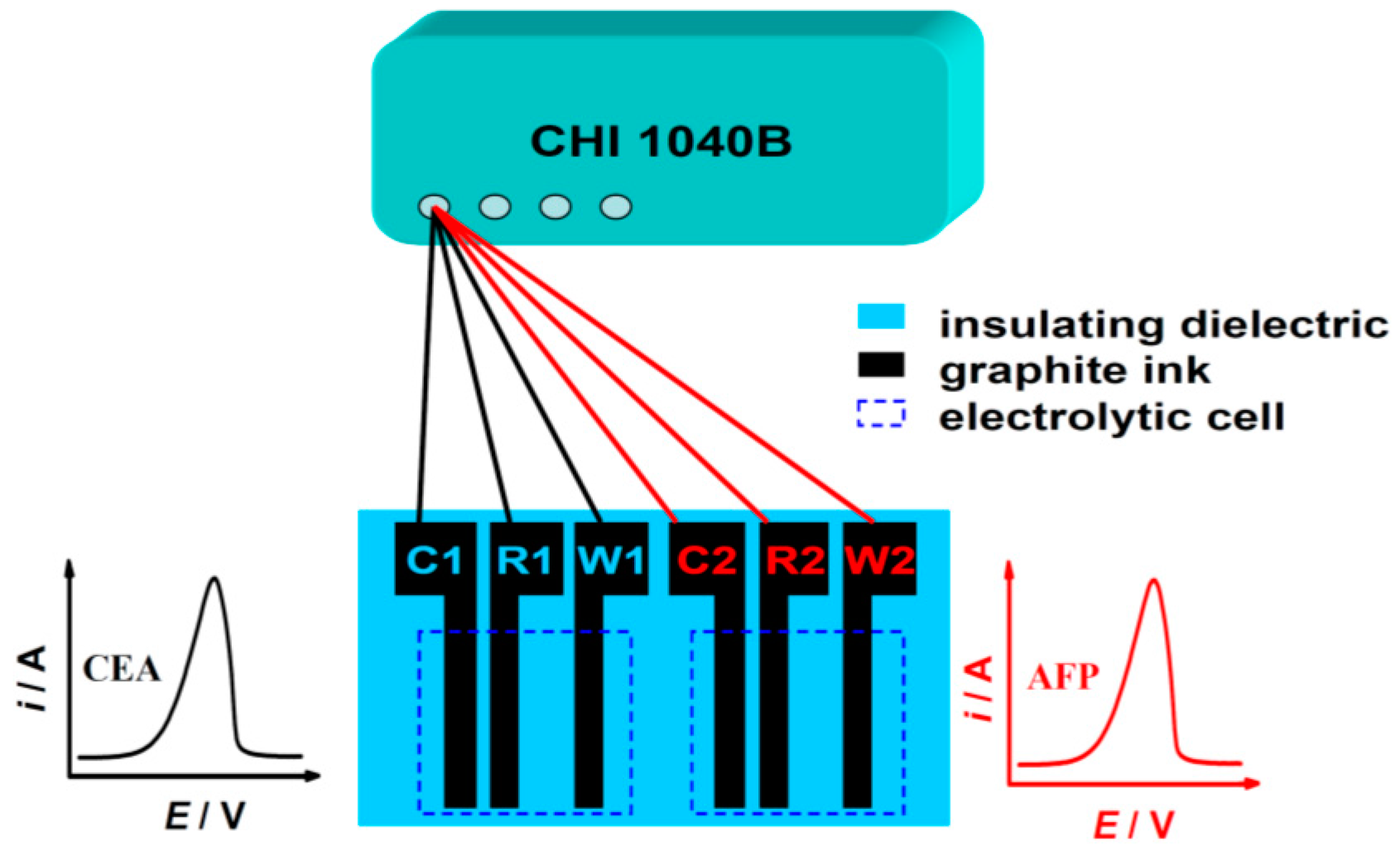

Scheme 2. Schematic diagram for simultaneous two-analyte immunoassay (not to scale). Here, W1, R1, and C1 denote WE1, RE1, CE1, and W2, R2, and C2 denote WE2, RE2, and CE2, respectively.
Scheme 2. Schematic diagram for simultaneous two-analyte immunoassay (not to scale). Here, W1, R1, and C1 denote WE1, RE1, CE1, and W2, R2, and C2 denote WE2, RE2, and CE2, respectively.
Sensors 16 01342 sch002

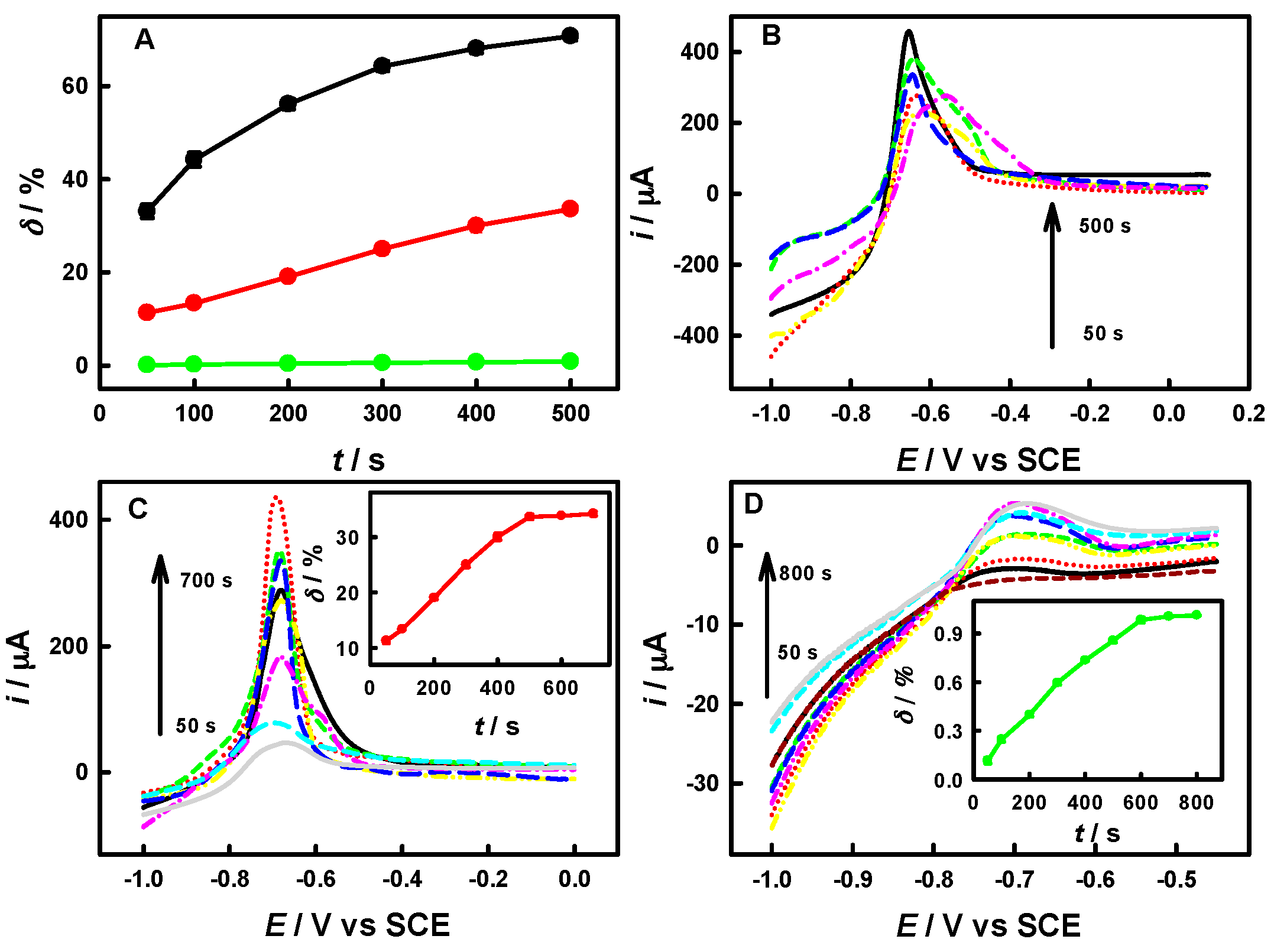

Figure 1. δ versus preconcentration-time curves (A, and Insets of C and D, n = 3) and anodic stripping LSV curves of the CdS QDs cast-coated on GCE (B, C and D, 100 mV·s−1) for our protocol (B), the similar protocol but without the beforehand exertion of a cathodic potential in air (C), and conventional solution-replacement protocol (D). Ten microliters of 10-fold diluted 6.5 mM CdS QDs dispersion was used for cast coating.
Figure 1. δ versus preconcentration-time curves (A, and Insets of C and D, n = 3) and anodic stripping LSV curves of the CdS QDs cast-coated on GCE (B, C and D, 100 mV·s−1) for our protocol (B), the similar protocol but without the beforehand exertion of a cathodic potential in air (C), and conventional solution-replacement protocol (D). Ten microliters of 10-fold diluted 6.5 mM CdS QDs dispersion was used for cast coating.
Sensors 16 01342 g001

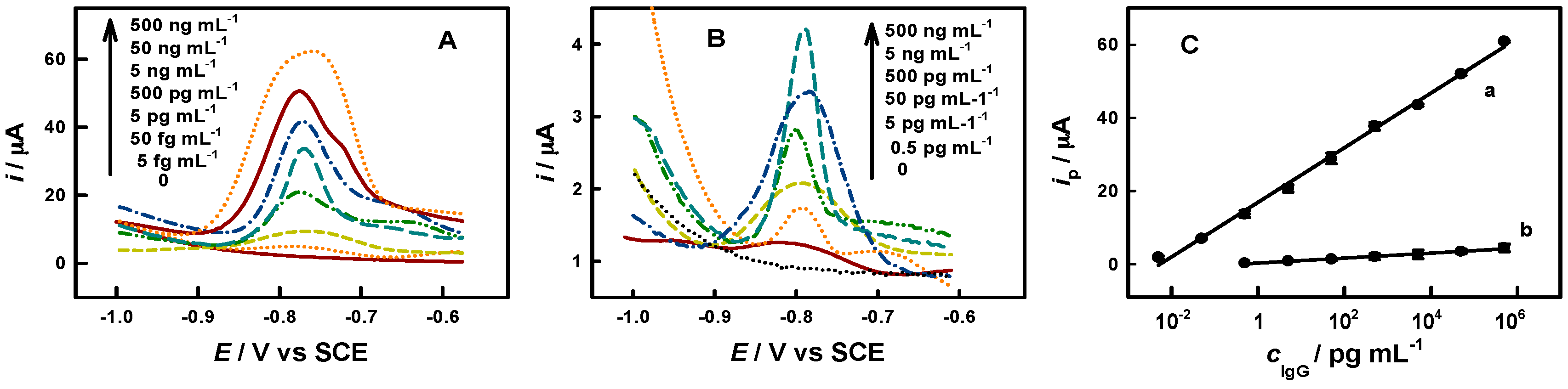

Figure 2. Differential pulse ASV curves for IgG immunoassay (A,B) and corresponding calibration curves (C, n = 3). Panel A and curve a in panel C are for our protocol. Panel B and curve b in panel C are for the conventional solution-replacement protocol.
Figure 2. Differential pulse ASV curves for IgG immunoassay (A,B) and corresponding calibration curves (C, n = 3). Panel A and curve a in panel C are for our protocol. Panel B and curve b in panel C are for the conventional solution-replacement protocol.
Sensors 16 01342 g002

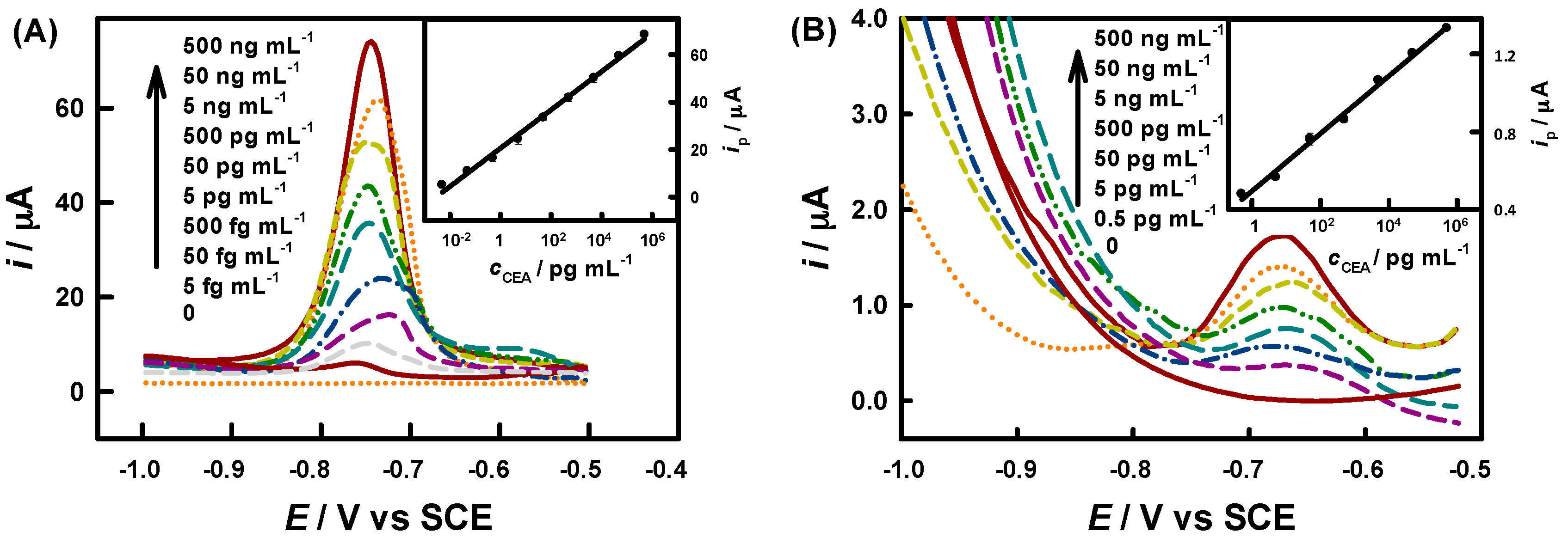

Figure 3. Differential pulse ASV curves for CEA immunoassay (A) for our protocol and (B) for the conventional protocol) and corresponding calibration curves (inset, n = 3).
Figure 3. Differential pulse ASV curves for CEA immunoassay (A) for our protocol and (B) for the conventional protocol) and corresponding calibration curves (inset, n = 3).
Sensors 16 01342 g003
Figure 4. Differential pulse ASV curves for AFP immunoassay (A) and corresponding calibration curves (B) by our protocol (n = 3).
Figure 4. Differential pulse ASV curves for AFP immunoassay (A) and corresponding calibration curves (B) by our protocol (n = 3).
Sensors 16 01342 g004

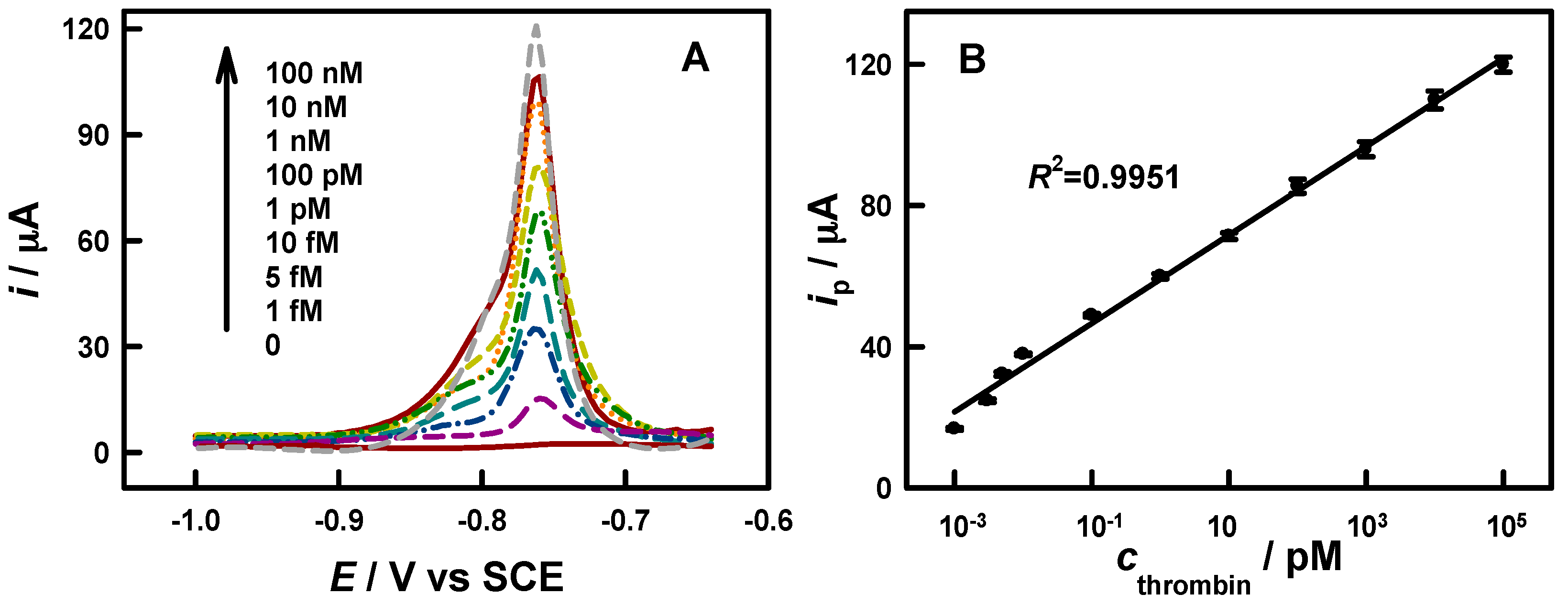

Figure 5. Differential pulse ASV curves for thrombin aptamer-electrodes (A) and corresponding calibration curves (B) using our protocol (n = 3).
Figure 5. Differential pulse ASV curves for thrombin aptamer-electrodes (A) and corresponding calibration curves (B) using our protocol (n = 3).
Sensors 16 01342 g005
Figure 6. The responses of the prepared aptamer-electrode to 10 nM thrombin and several other proteins each at 1 μM.
Figure 6. The responses of the prepared aptamer-electrode to 10 nM thrombin and several other proteins each at 1 μM.
Sensors 16 01342 g006

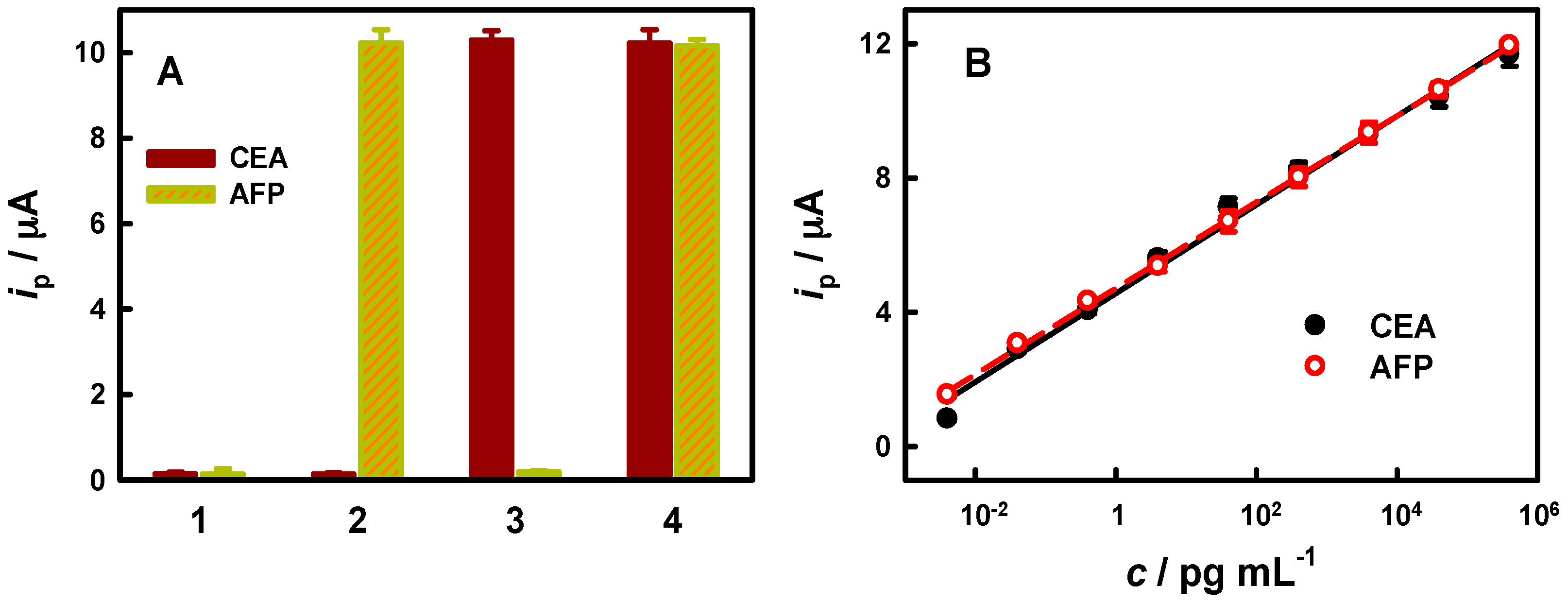

Figure 7. (A) Differential pulse ASV responses at a BSA/anti-CEA/SPCE and a neighboring BSA/anti-CEA/SPCE after incubated with blank control (1), 40 ng·mL−1 AFP (2), 40 ng·mL−1 CEA (3), 40 ng·mL−1 of AFP and CEA (4), and then Ab2-CdS QDs for immunoassay by our protocol; and (B) calibration curves for simultaneous analysis of CEA and AFP.
Figure 7. (A) Differential pulse ASV responses at a BSA/anti-CEA/SPCE and a neighboring BSA/anti-CEA/SPCE after incubated with blank control (1), 40 ng·mL−1 AFP (2), 40 ng·mL−1 CEA (3), 40 ng·mL−1 of AFP and CEA (4), and then Ab2-CdS QDs for immunoassay by our protocol; and (B) calibration curves for simultaneous analysis of CEA and AFP.
Sensors 16 01342 g007
Table 1. Comparison of some sandwich-type bioelectrodes for bioassay *.
Table 1. Comparison of some sandwich-type bioelectrodes for bioassay *.
AnalyteLabelAnalytical TechniqueLDR/ng·mL−1LOD/ng·mL−1Ref.
IgGFITCCRET0.03–0.64.35 × 10−3[33]
CdS QDsPhotoelectrochemical5 × 10−4–55 × 10−4[15]
GlucoseChronoamperometry0.005–10.002[34]
CdTe QDsFluorometry/SWV0.1–500/5 × 10−3−1000.03/0.005[35]
AuNPsASV for Au(III)0.5–1000.5[36]
AuNPs and ALPASV for catalytically-deposited Ag0.01–2504.8 × 10−3
6.1 × 10−3
[37]
CdS QDsDifferential pulse ASV5 × 10−6–5004.5 × 10−6This work
AFPCNSs-HRPSWV0.05–60.02[38]
CdTe-GOxPhotoelectrochemistry5 × 10−4–1 × 1041.3 × 10−4[39]
Au-MNCsDynamic light scattering0.01–500.01[40]
PLNPsFRET0.8–450.41[41]
Label-freeElectrochemiluminescence1 × 10−4–10, 10–3201 × 10−4[42]
Label-freeDifferential pulse ASV0.5–500.1[43]
CdS QDsDifferential pulse ASV5 × 10−6–5004.9 × 10−6This work
CEALabel-freeDifferential pulse ASV0.5–800.05[43]
AuNPsDifferential pulse ASV1 × 10−5–1003.0 × 10−6[44]
Cy3Fluorescence0.3–1000.09[45]
ALPChemiluminescence1–1200.6[46]
Pt–Ag alloyElectrogenerated chemiluminescence1 × 10−5–103.0 × 10−6[47]
Label-freeDifferential pulse ASV0.5–450.2[48]
CdS QDsDifferential pulse ASV5 × 10−6–5003.0 × 10−6This work
ThrombinQDsSWV0.02–0.50.02[1]
Fe3[email protected]Electrochemiluminescence1 × 10−3–5.0 nM0.12 pM[49]
AuNPsColorimetric detection0.115–3.7 pM14 fM[50]
AuNPsAbsorption spectra for catalytically deposited Au2–167 nM2 nM[51]
Label-freeEIS0.12–30 nM0.06 nM[52]
AuNPsSPR0.1–75 nM0.1 nM[53]
CdS QDsDifferential pulse ASV1 × 10−6–10 nM0.9 fMThis work
* Immunoassay for AFP and CEA, and aptasensing for thrombin. FITC: fluorescein isothiocyanate; CRET: chemiluminescence resonance energy transfer; SWV: square wave voltammograms; ALP: alkaline phosphatase; CNSs: carbon nanospheres; MNCs: magnetic nanoparticle clusters; PLNPs: persistent-luminescence nanoparticles; FRET: fluorescence resonance energy transfer; EIS: electrochemical impedance spectroscopy; SPR: surface plasmon resonance. LDR and LOD for thrombin in molar concentrations are separately given in corresponding rows.
Table 2. Detection of thrombin in the human blood serum substrate (n = 3) by our method. The sera were 10-fold diluted with Tris-HCl buffer (pH = 7.4).
Table 2. Detection of thrombin in the human blood serum substrate (n = 3) by our method. The sera were 10-fold diluted with Tris-HCl buffer (pH = 7.4).
Added/nmol·L−1Measured/nmol·L−1RSD/%Recovery/%
1.000.976.497
2.001.967.598
3.002.955.298
4.004.078.0101
5.004.816.996
Table 3. Immunoassays of CEA and AFP in clinical serum samples by our protocol and the reference method.
Table 3. Immunoassays of CEA and AFP in clinical serum samples by our protocol and the reference method.
Serum SampleReference Method a/ng·mL−1CEAAFP
CEAAFPOur Protocol b/ng·mL−1RD/%Our Protocol b/ng·mL−1RD/%
1Normal2.2811.32.19−3.911.1−1.8
2Normal1.721.401.67−2.91.33−5.0
3Normal1.341.311.426.01.396.1
4Pregnant2.5314.32.623.613.9−2.8
5Lung cancer5.5880.35.37−3.879.6−0.9
6Rectal cancer34.537033.1−4.0369−0.3
7Liver cancer5.0230.65.213.832.14.9
a The reference method was chemiluminescence conducted on an Anthos Lucy 2 semi-automatic analyzer in the hospital; and b given as the average value of three successive assays.
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
