Pedestrian Navigation Using Foot-Mounted Inertial Sensor and LIDAR
Abstract
:1. Introduction

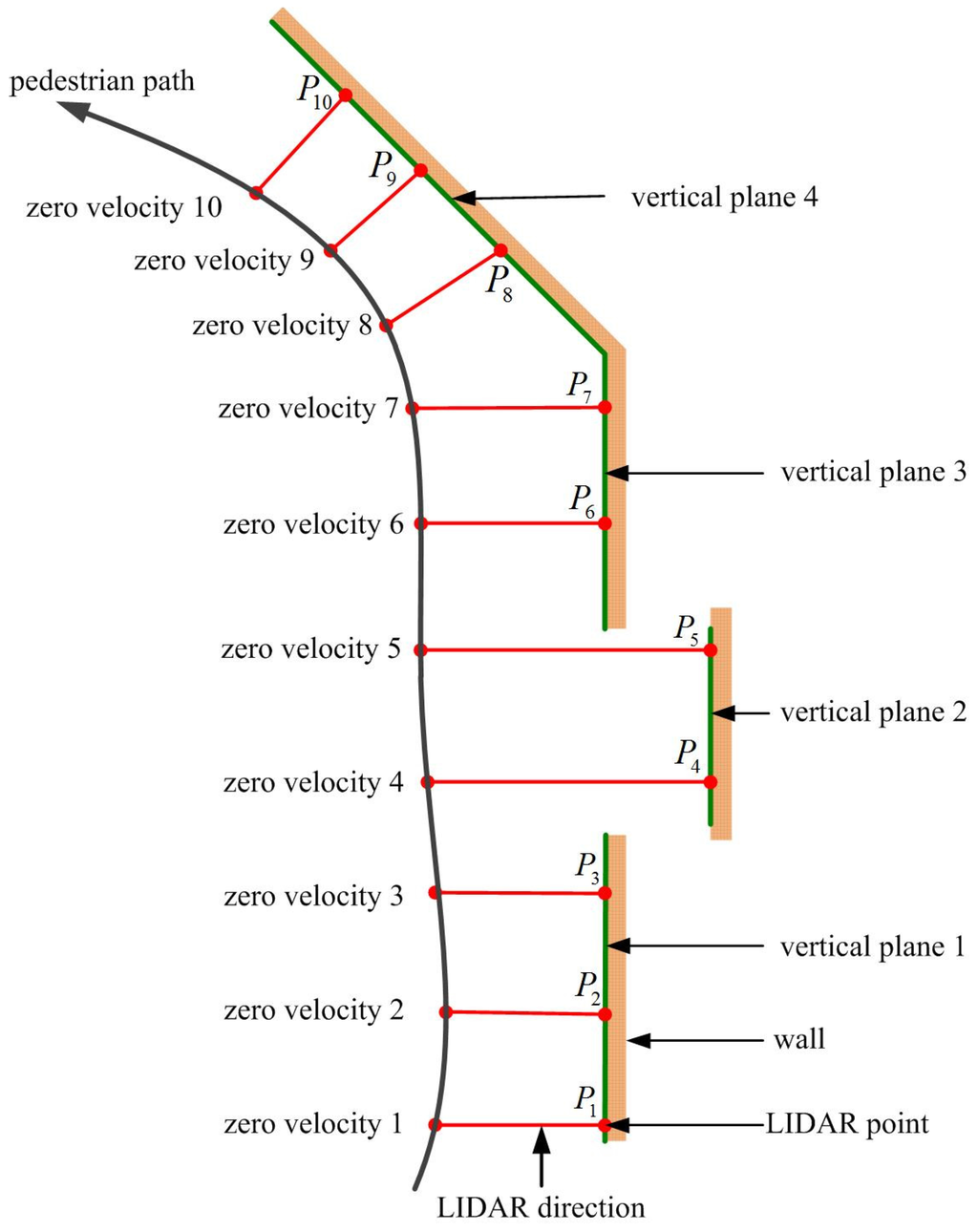

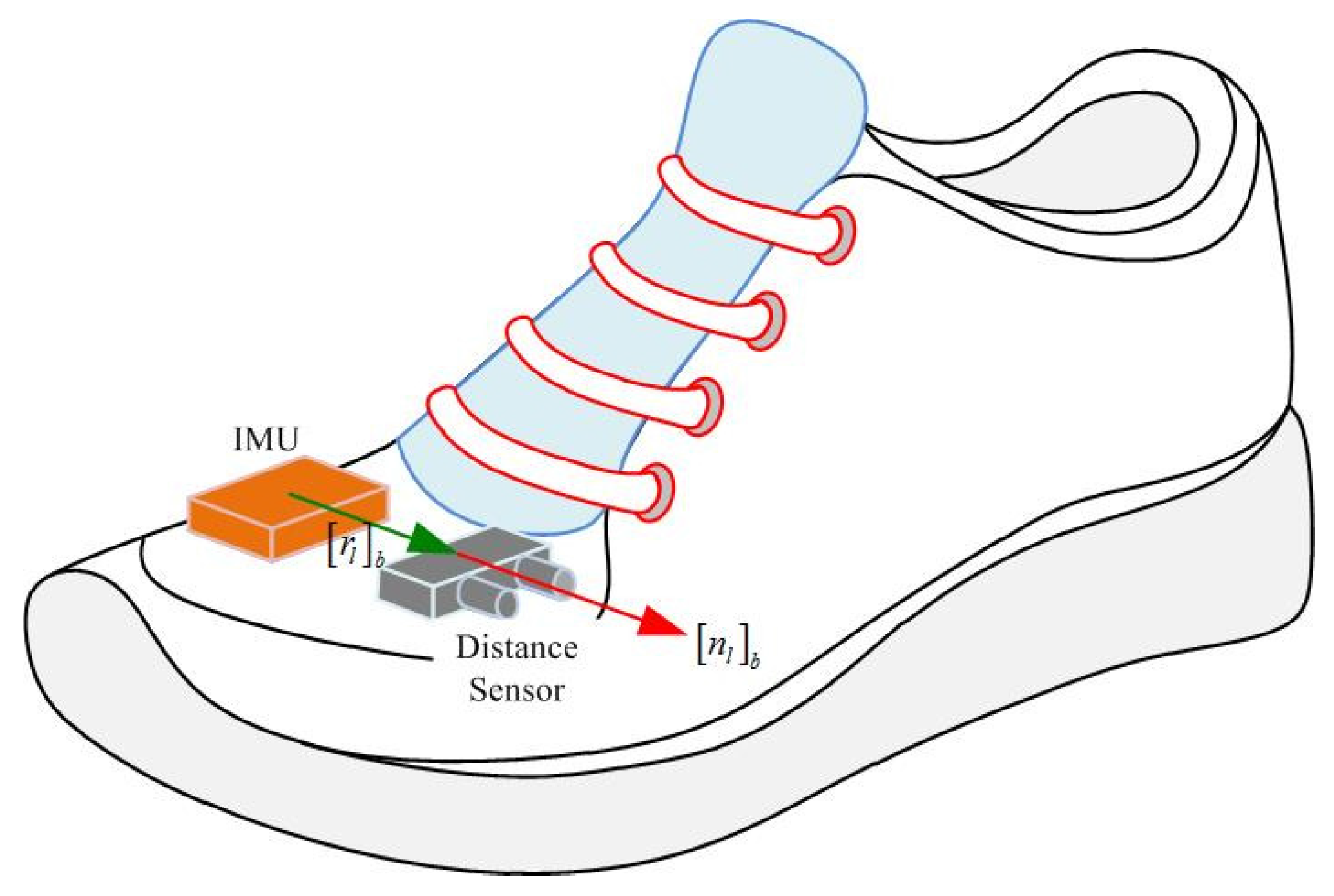

2. Overview System

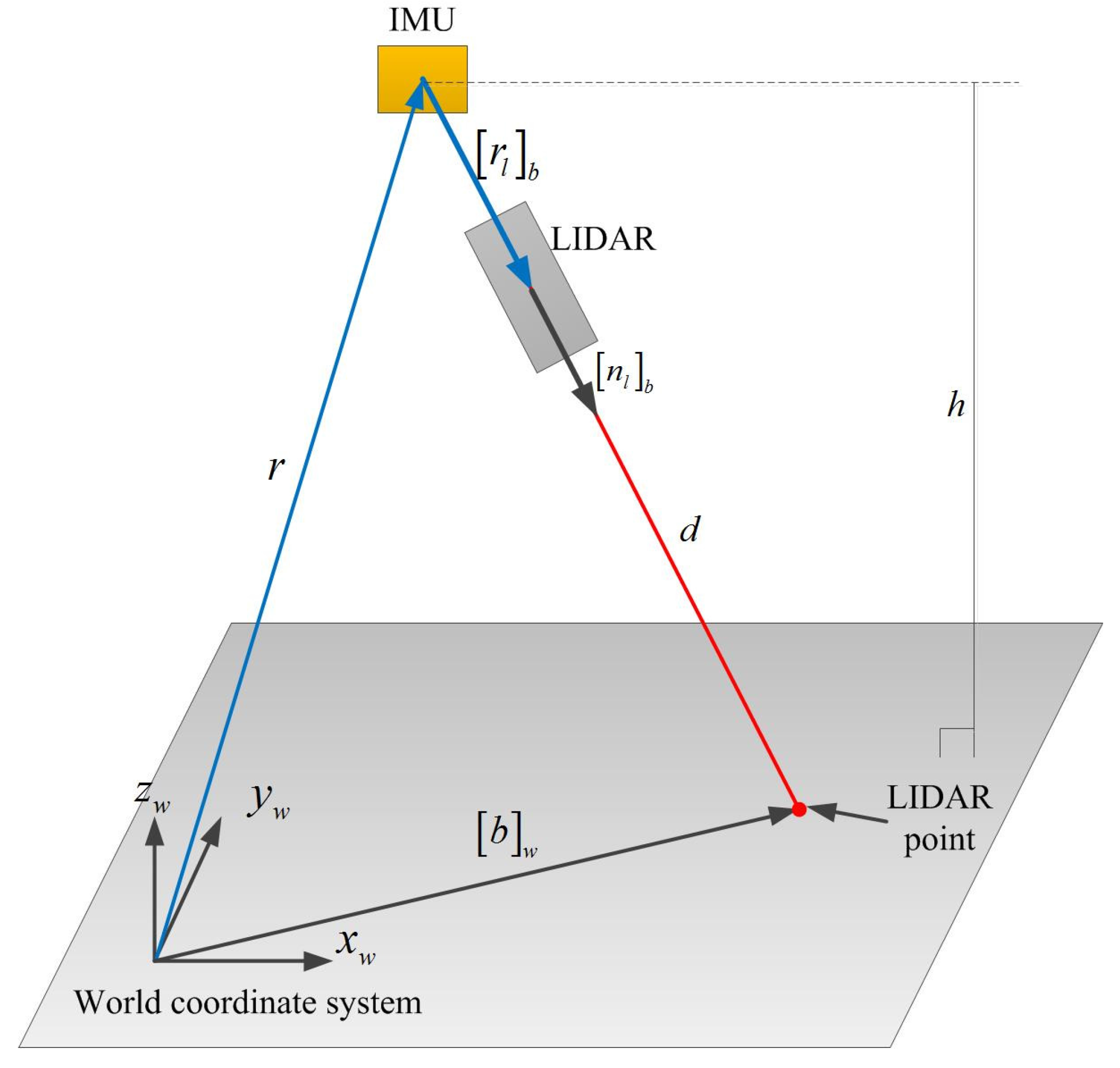

3. Distance Sensor Calibration
4. Kalman Filter Combining an INA and Compensation Using LIDAR
4.1. Basic INA

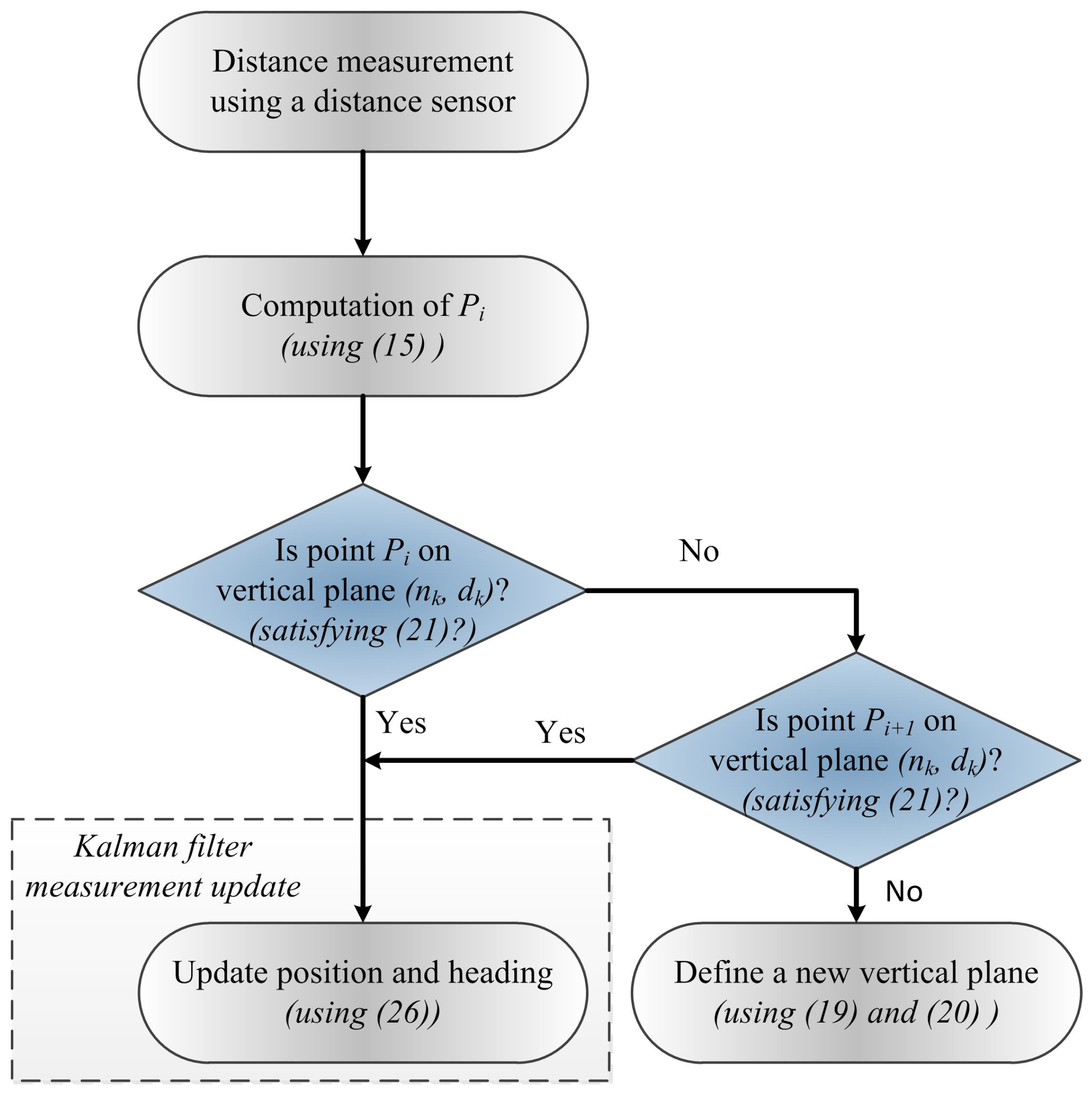

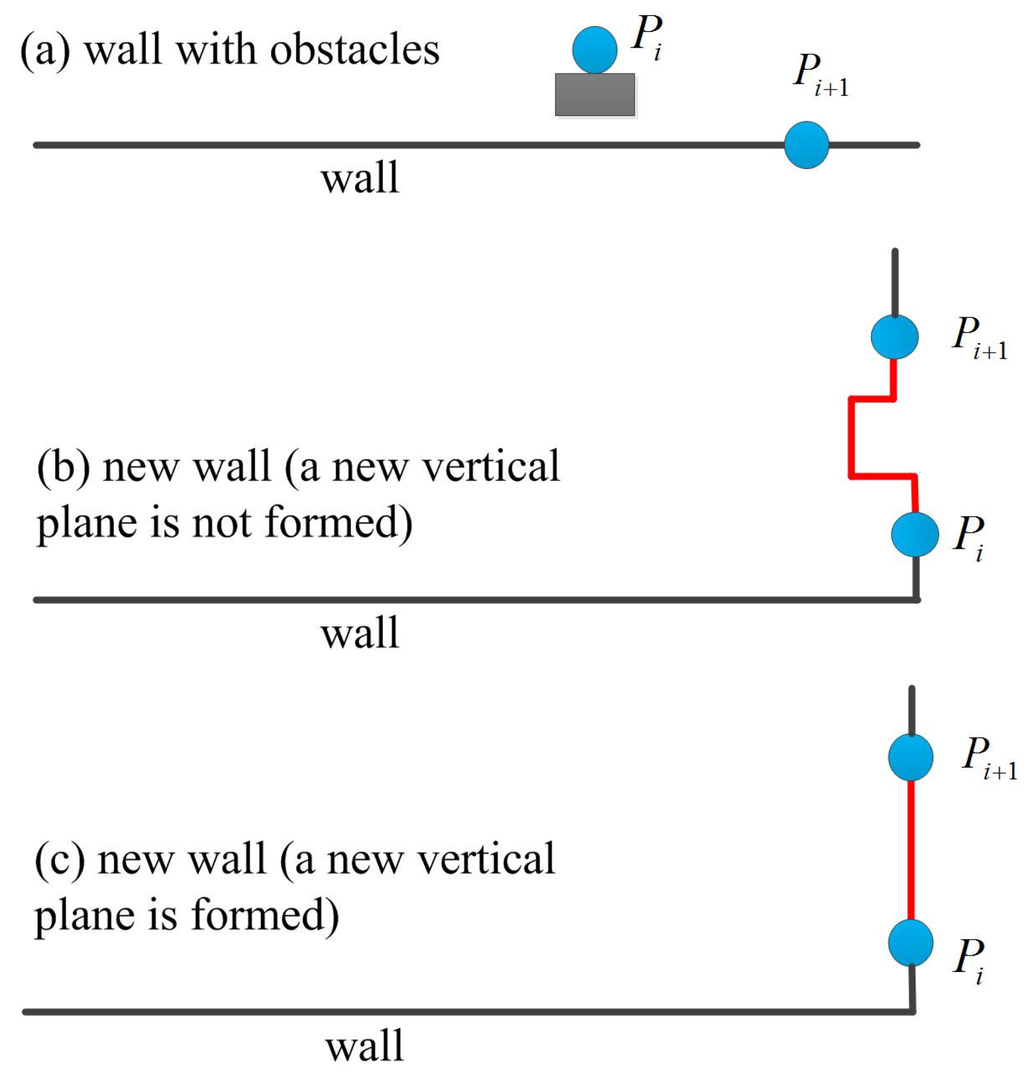

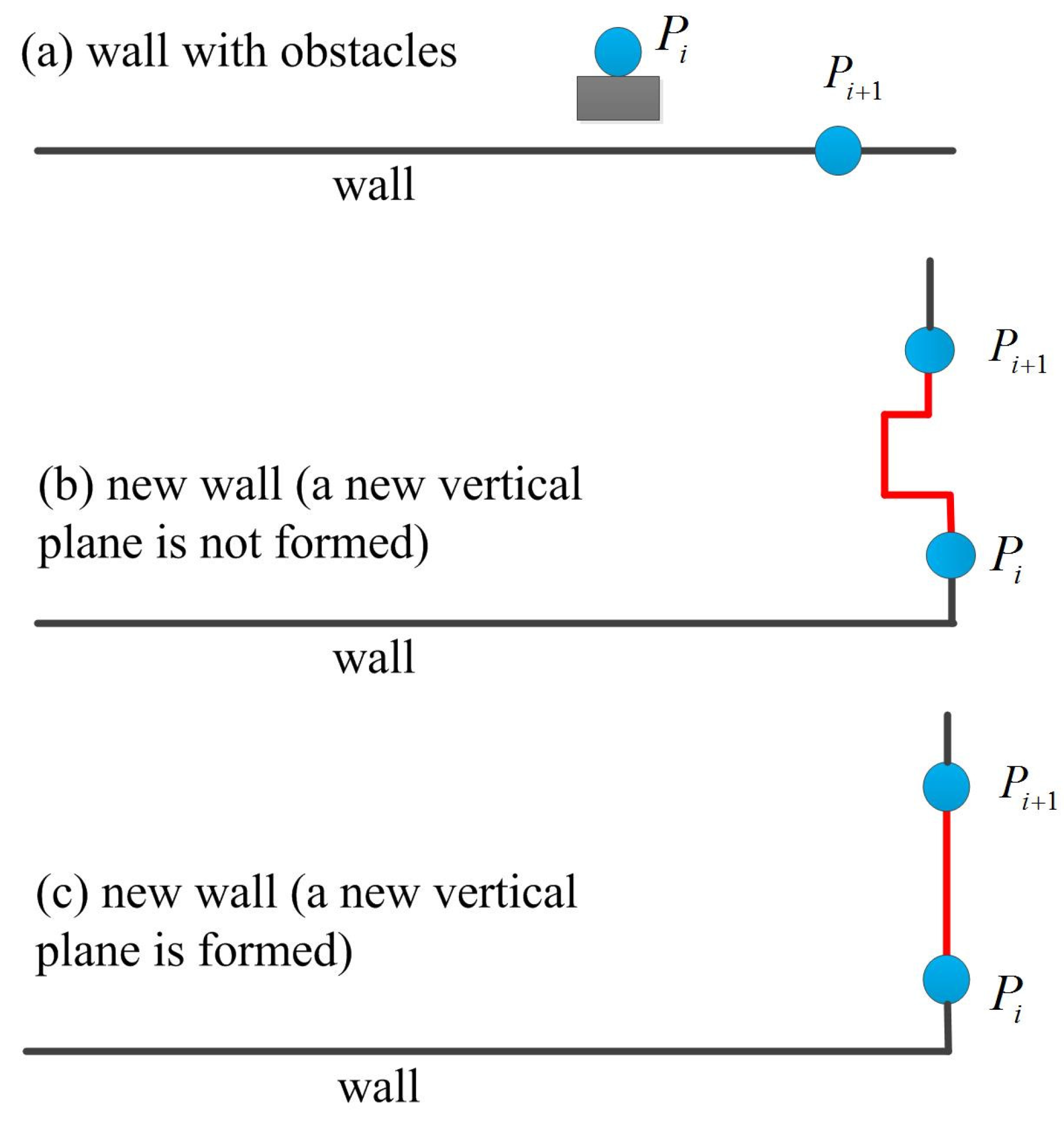

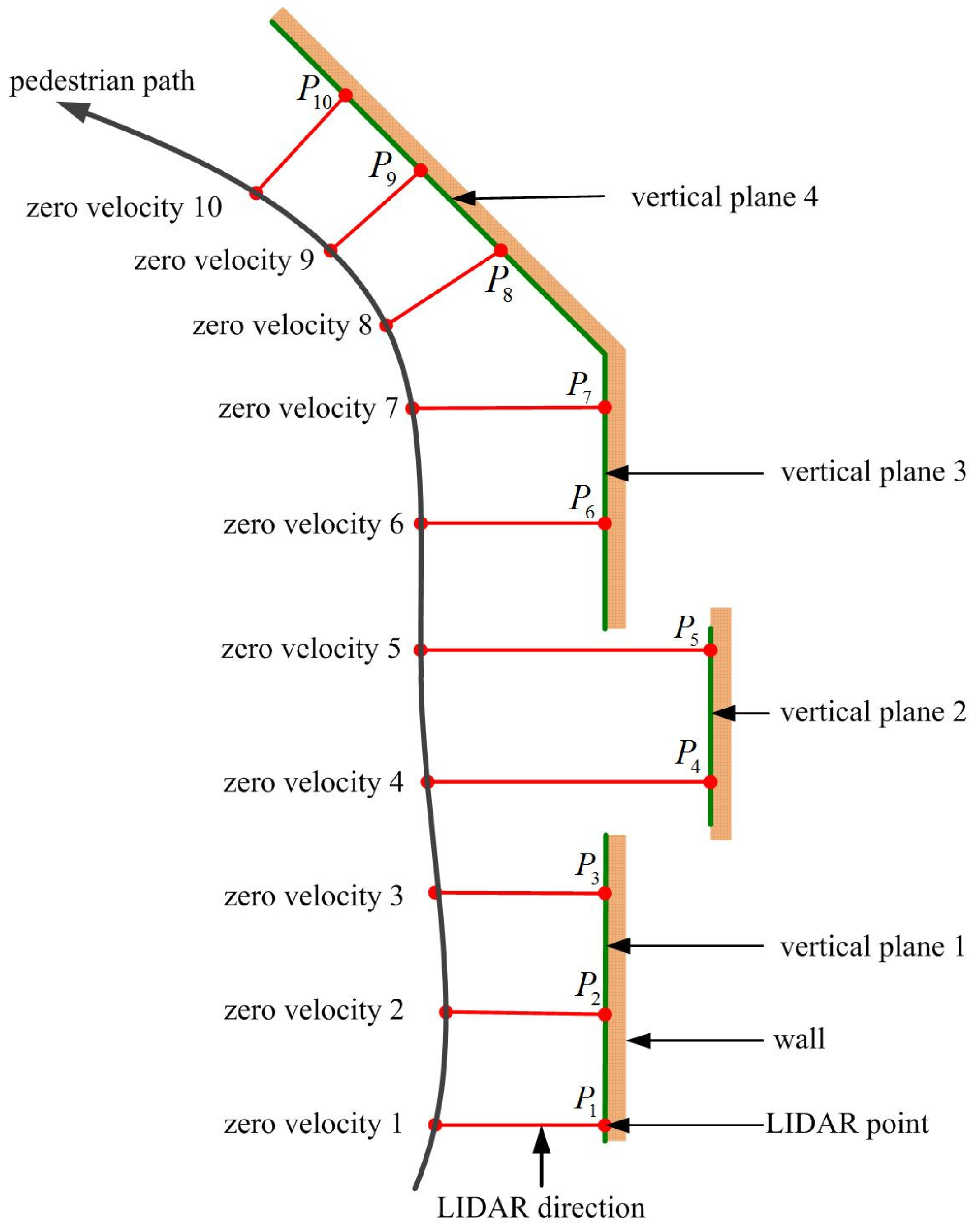

4.2. Proposed Position and Heading Updating Algorithm Using the Distance Sensor

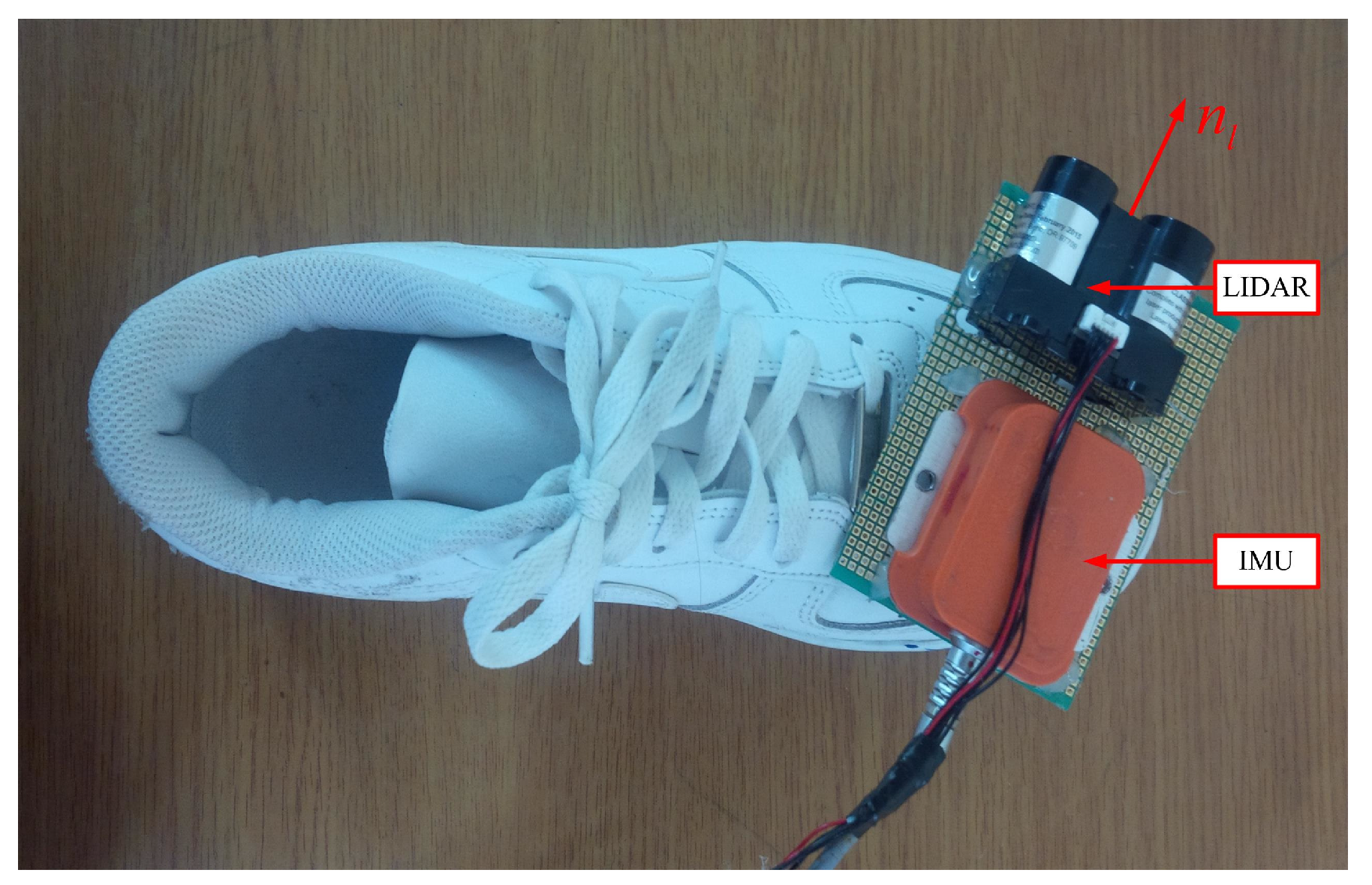

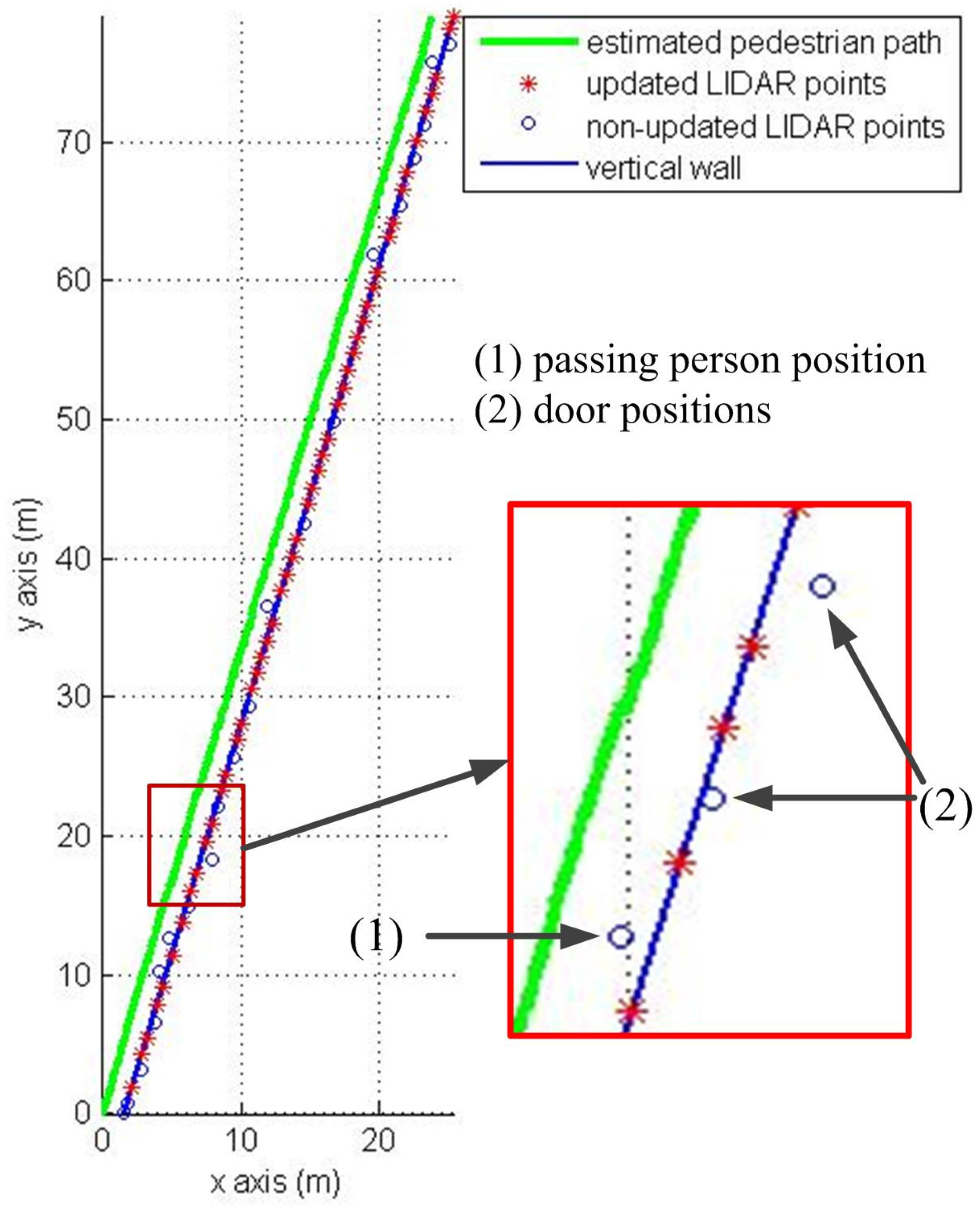

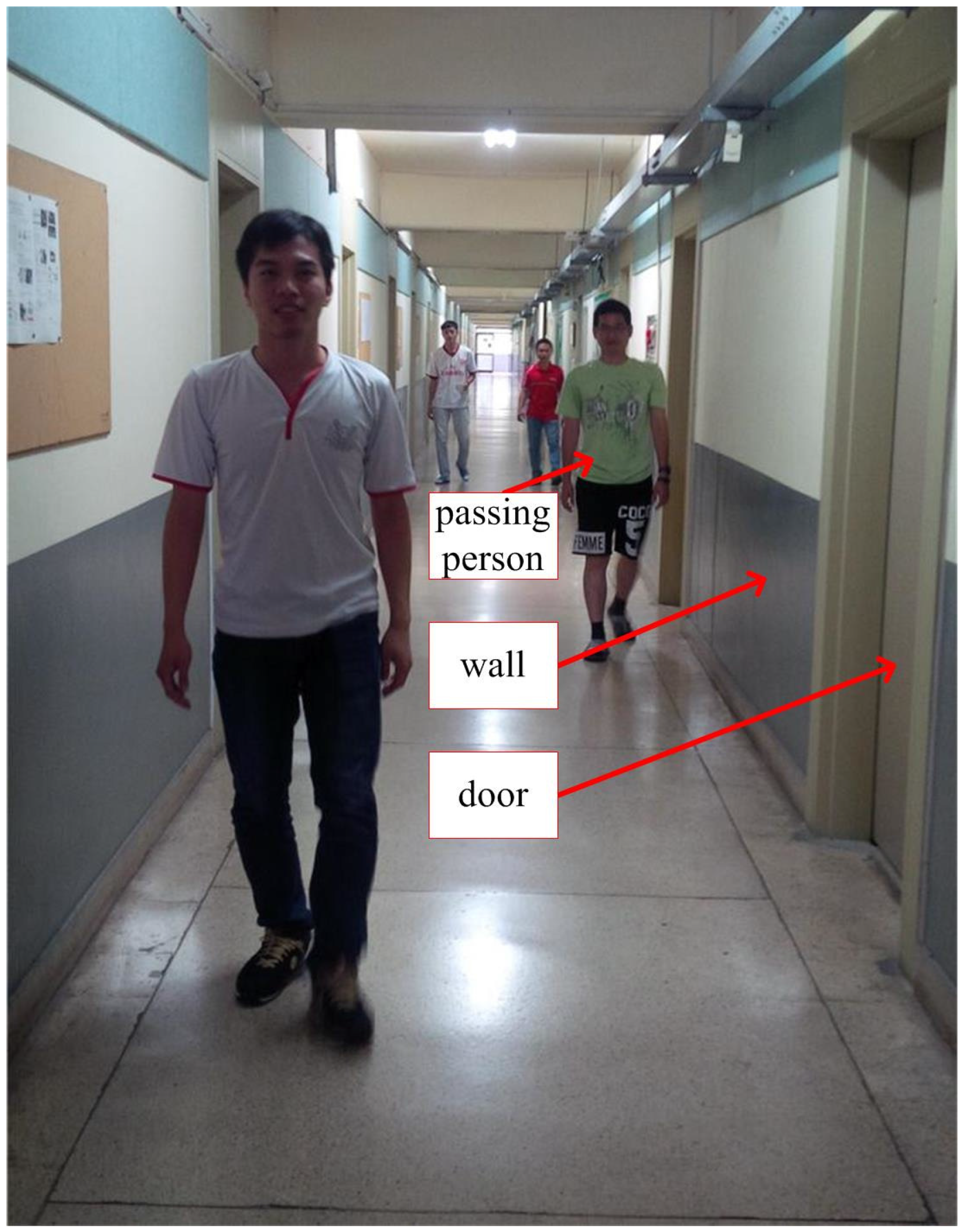

5. Experiments and Results

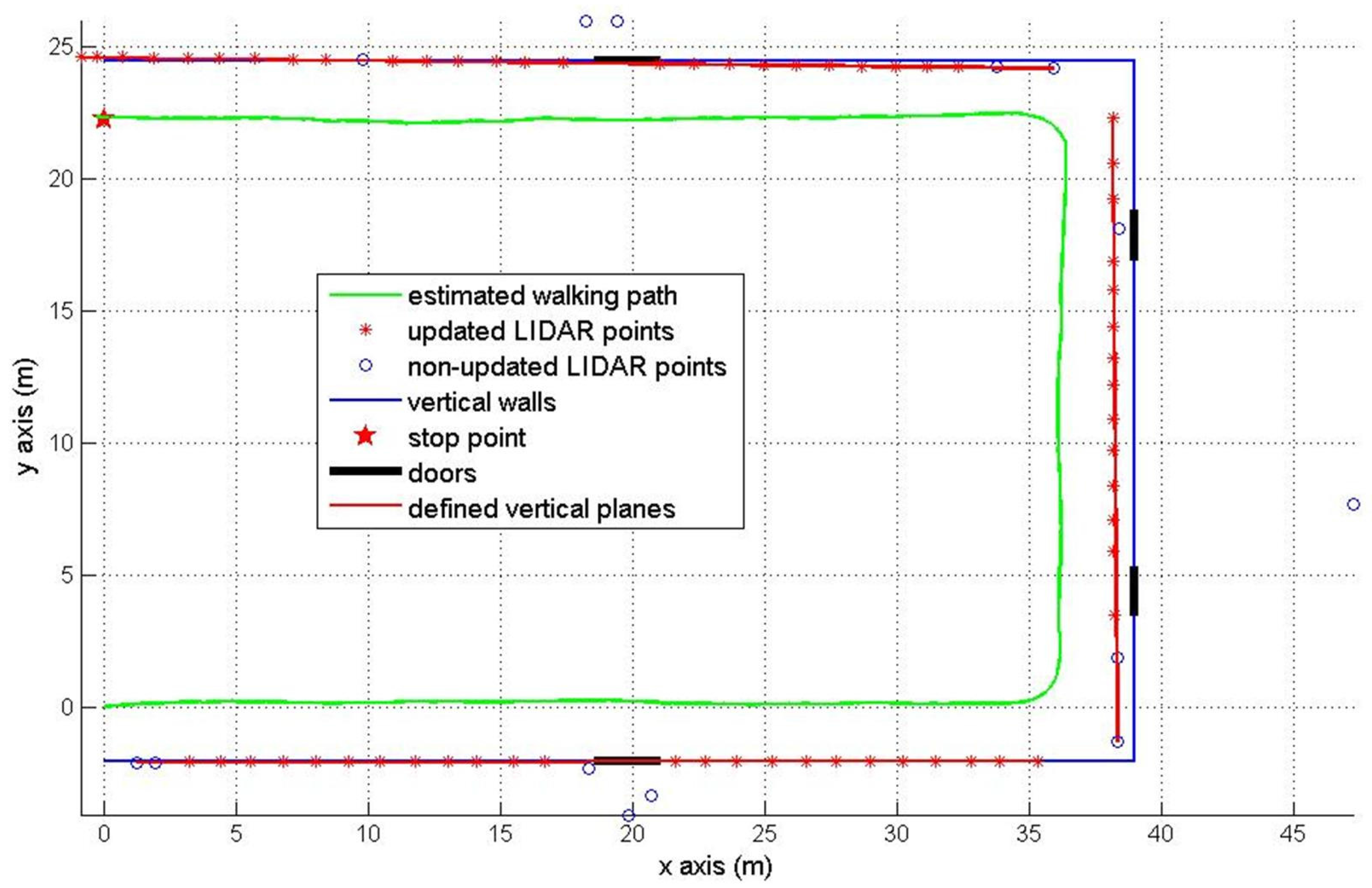

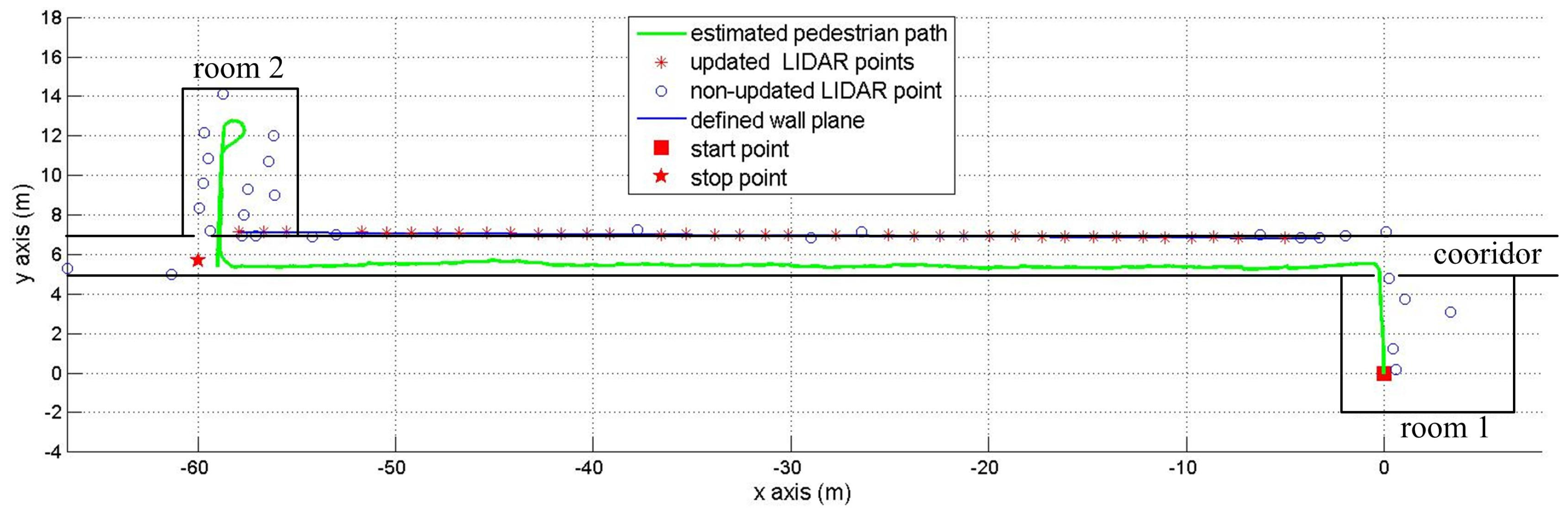

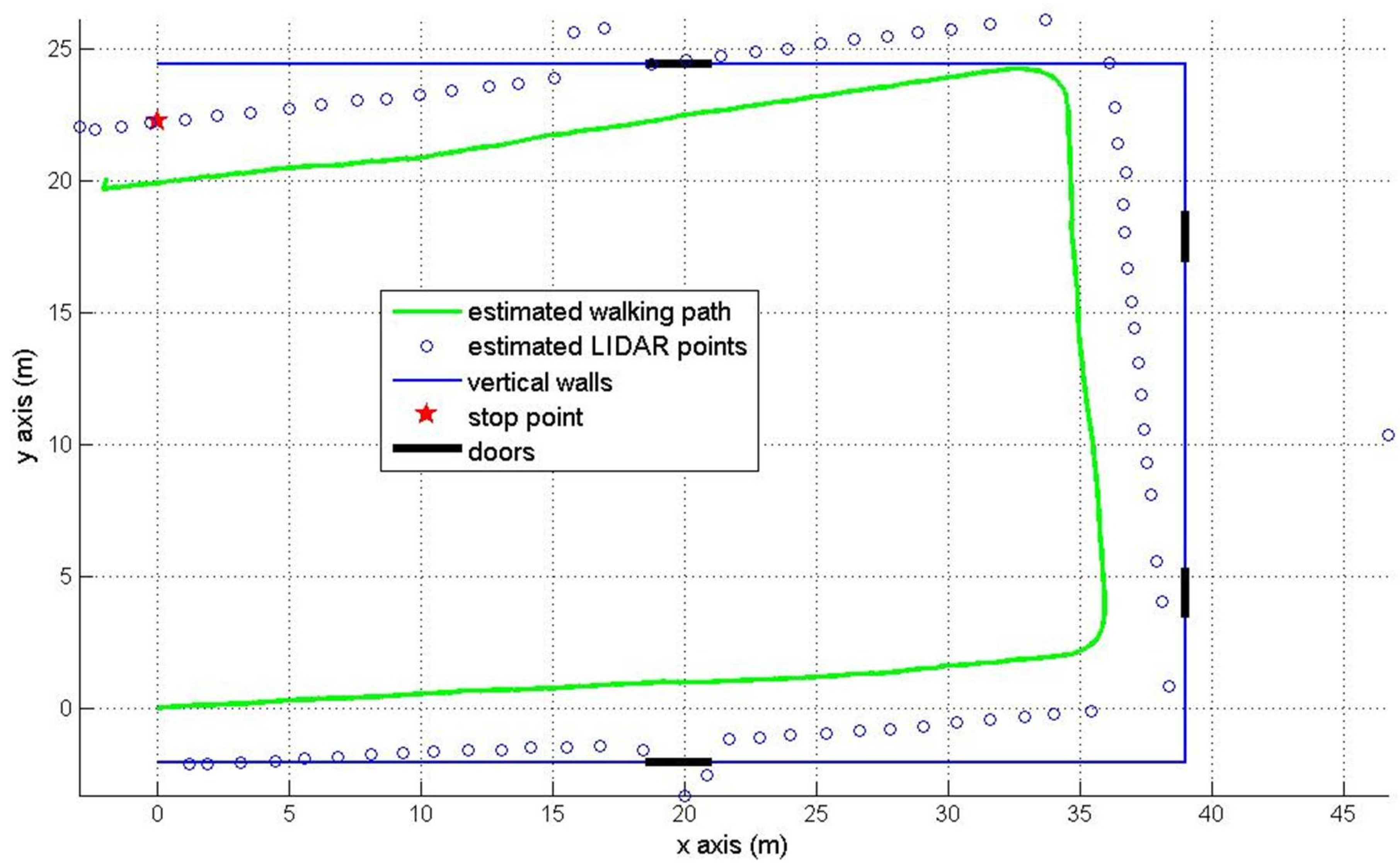

Experiment Number | Position Error (Pure INA) | Position Error (Proposed Method) |
---|---|---|
1 | 4.38 | 1.74 |
2 | 9.48 | 1.55 |
3 | 10.48 | 1.54 |
4 | 11.61 | 1.40 |
5 | 8.50 | 1.43 |
RMS | 9.23 | 1.54 |
Experiment Number | Walking Speed (km/h) | Stride Length (m) | Stride Speed (stride/s) | Position Error (Pure INA) (m) | Position Error (Proposed Method) (m) |
---|---|---|---|---|---|
1 | 4.14 | 1.25 | 0.92 | 2.04 | 0.45 |
2 | 4.15 | 1.25 | 0.92 | 1.32 | 0.34 |
3 | 4.57 | 1.25 | 1.02 | 2.57 | 0.52 |
4 | 4.59 | 1.30 | 0.98 | 3.21 | 0.54 |
5 | 4.72 | 1.30 | 1.01 | 3.11 | 0.37 |
6 | 5.19 | 1.50 | 0.96 | 2.25 | 0.43 |
7 | 5.43 | 1.50 | 1.01 | 1.67 | 0.35 |
8 | 5.44 | 1.50 | 1.01 | 1.70 | 0.44 |
9 | 5.46 | 1.50 | 1.01 | 2.53 | 0.52 |
10 | 5.53 | 1.50 | 1.02 | 1.22 | 0.36 |
11 | 5.54 | 1.50 | 1.03 | 1.26 | 0.42 |
12 | 5.57 | 1.50 | 1.03 | 2.33 | 0.37 |
13 | 6.06 | 1.50 | 1.12 | 2.58 | 0.39 |
14 | 6.07 | 1.50 | 1.12 | 0.84 | 0.31 |
15 | 6.10 | 1.50 | 1.13 | 1.80 | 0.51 |
Mean | 2.03 | 0.42 |
Experiment Number | Position Error (Pure INA) | Position Error (Proposed Method) |
---|---|---|
1 | 3.01 | 0.20 |
2 | 5.20 | 0.64 |
3 | 1.94 | 0.64 |
4 | 2.67 | 0.91 |
5 | 5.32 | 0.13 |
RMS | 3.88 | 0.58 |

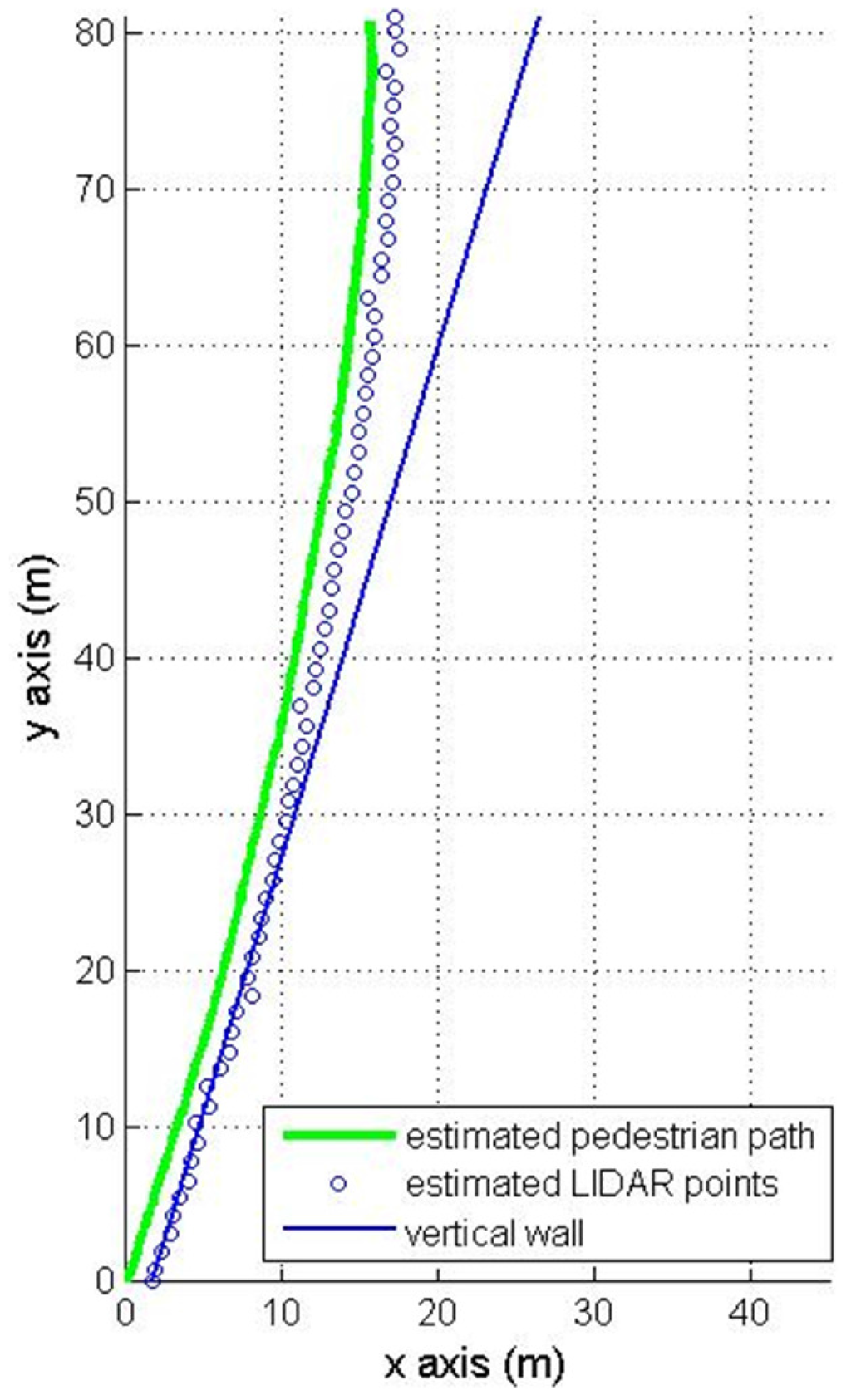

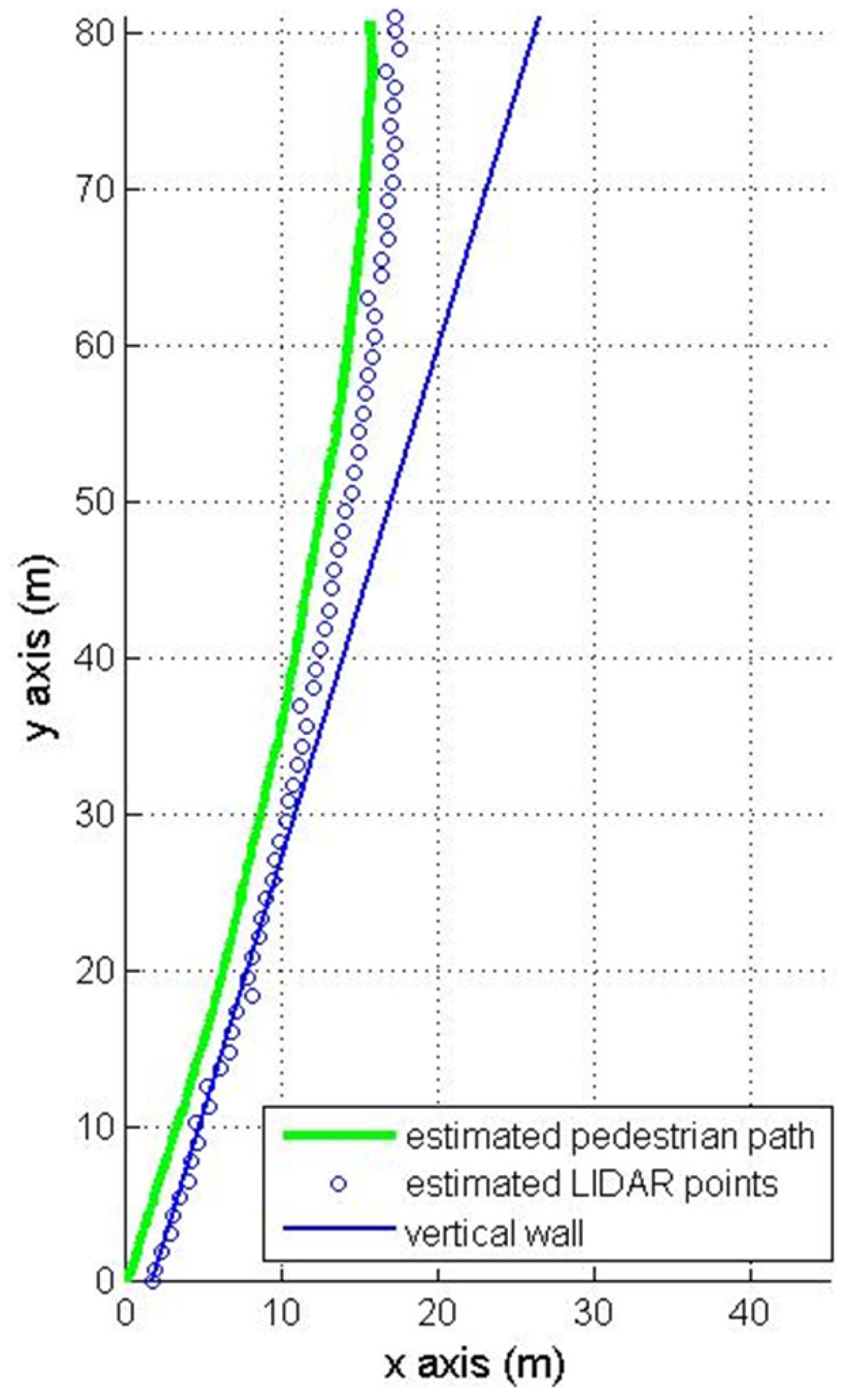

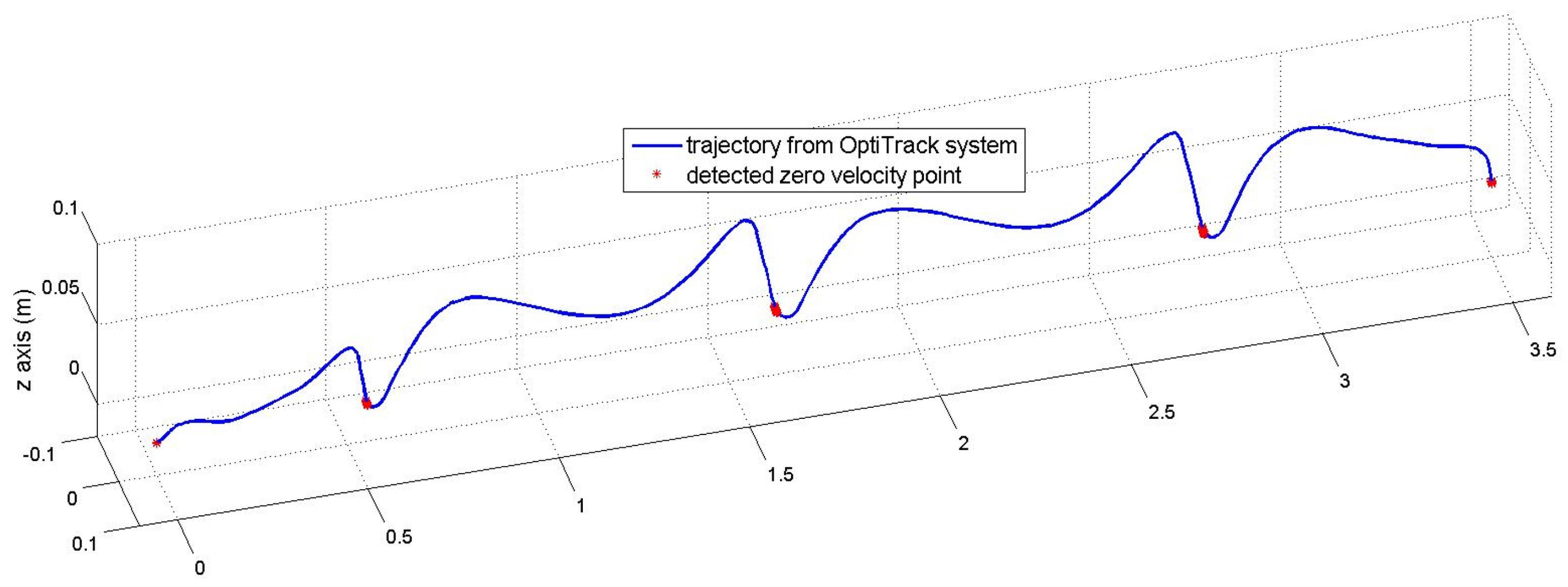

6. Discussion

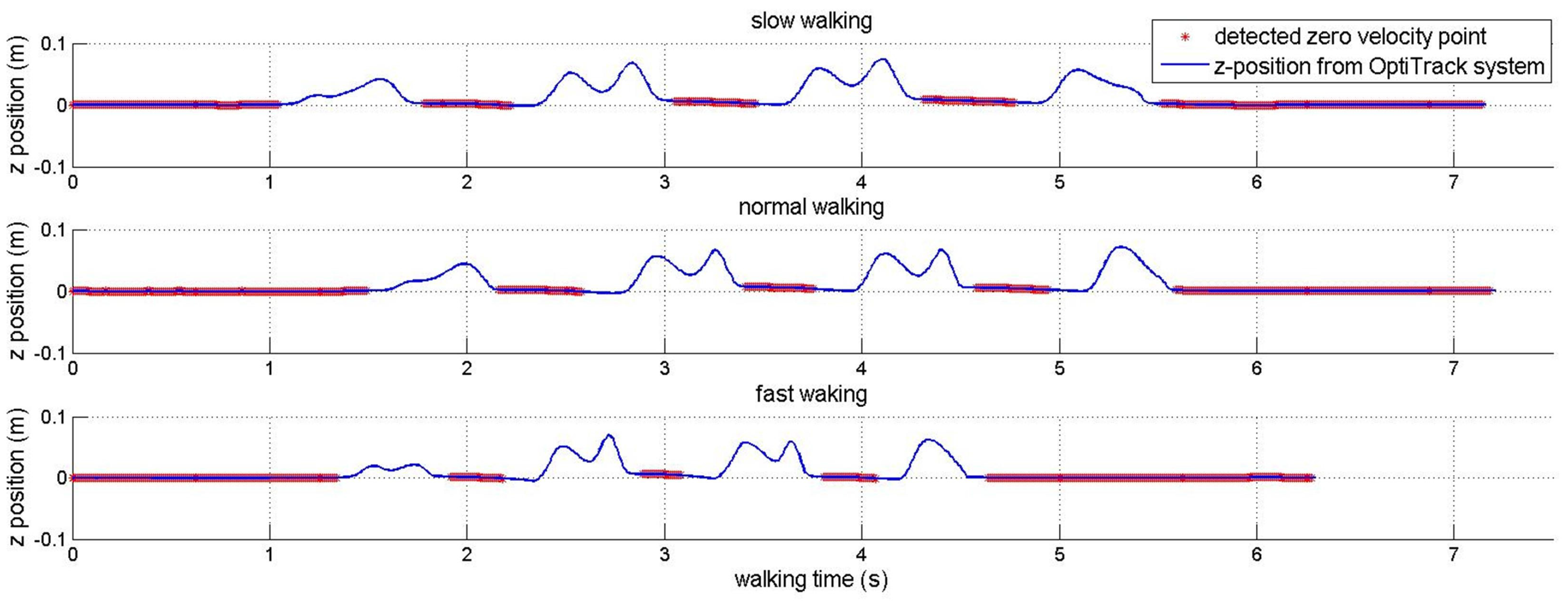

Stride Speed (Stride/s) | Walking Speed (km/h) | Stride Length (m) | Number Zero Velocity Interval (True) | Missing Zero Velocity Detection |
---|---|---|---|---|
0.92 | 4.14 | 1.25 | 25 | 0 |
0.96 | 5.19 | 1.50 | 21 | 0 |
0.98 | 4.59 | 1.30 | 24 | 0 |
1.01 | 4.72 | 1.30 | 24 | 0 |
1.01 | 5.46 | 1.50 | 21 | 0 |
1.01 | 5.44 | 1.50 | 21 | 0 |
1.01 | 5.43 | 1.50 | 21 | 0 |
1.02 | 4.57 | 1.25 | 25 | 0 |
1.02 | 5.53 | 1.50 | 21 | 0 |
1.03 | 5.57 | 1.50 | 21 | 0 |
1.03 | 5.54 | 1.50 | 21 | 0 |
1.12 | 6.06 | 1.50 | 21 | 0 |
1.12 | 6.07 | 1.50 | 21 | 0 |
1.13 | 6.10 | 1.50 | 21 | 1 |
1.16 | 5.96 | 1.43 | 22 | 4 |
1.17 | 6.04 | 1.43 | 22 | 8 |
1.26 | 6.78 | 1.50 | 21 | 17 |
1.28 | 6.94 | 1.50 | 21 | 18 |
1.32 | 6.81 | 1.43 | 22 | 19 |
1.35 | 6.95 | 1.43 | 22 | 18 |
7. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
