Sensors 2015, 15(5), 10088-10099;

Silver Nanoparticle-Enhanced Resonance Raman Sensor of Chromium(III) in Seawater Samples

Department of Chemistry, Soongsil University, Seoul 156-743, Korea
Author to whom correspondence should be addressed.
Academic Editor: W. Rudolf Seitz
Received: 18 March 2015 / Revised: 21 April 2015 / Accepted: 24 April 2015 / Published: 29 April 2015
(This article belongs to the Section Chemical Sensors)
Full-Text   |   PDF [2613 KB, uploaded 29 April 2015]   |

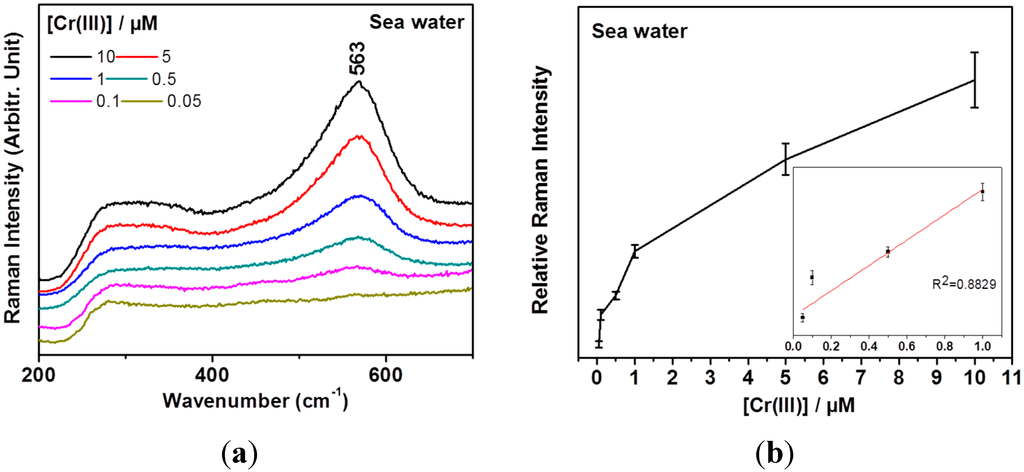

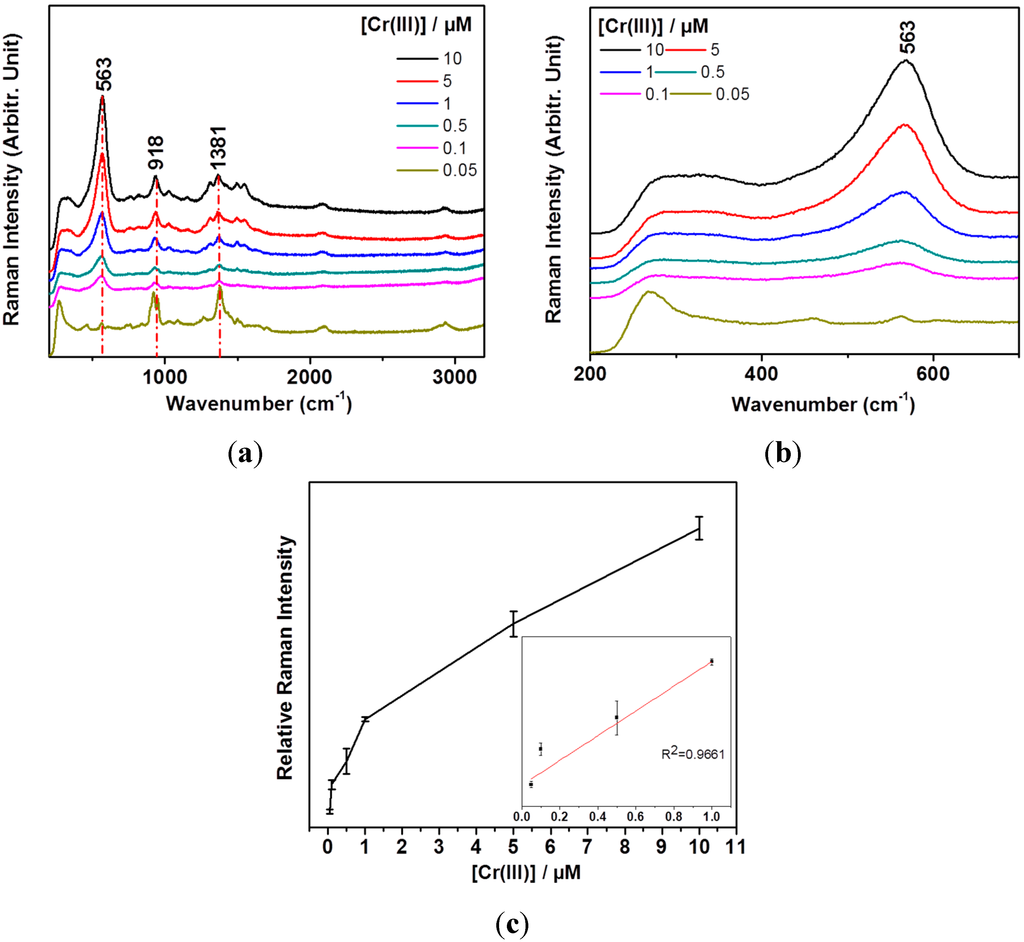

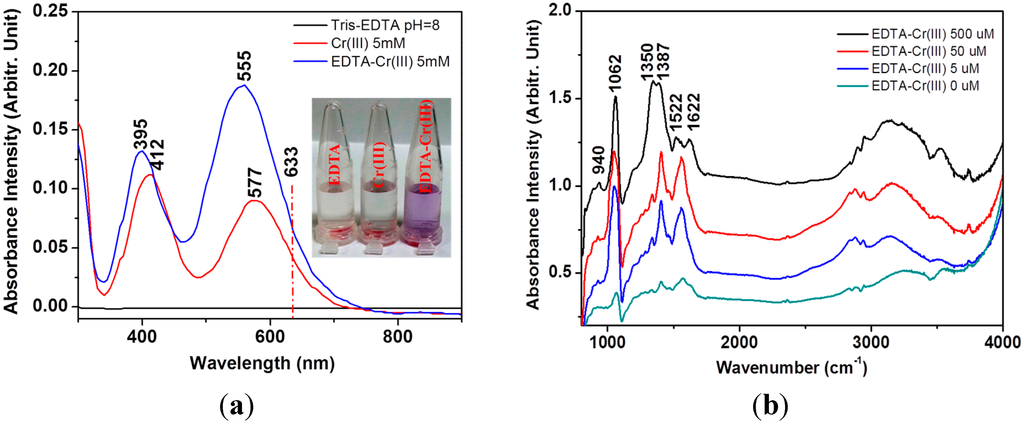

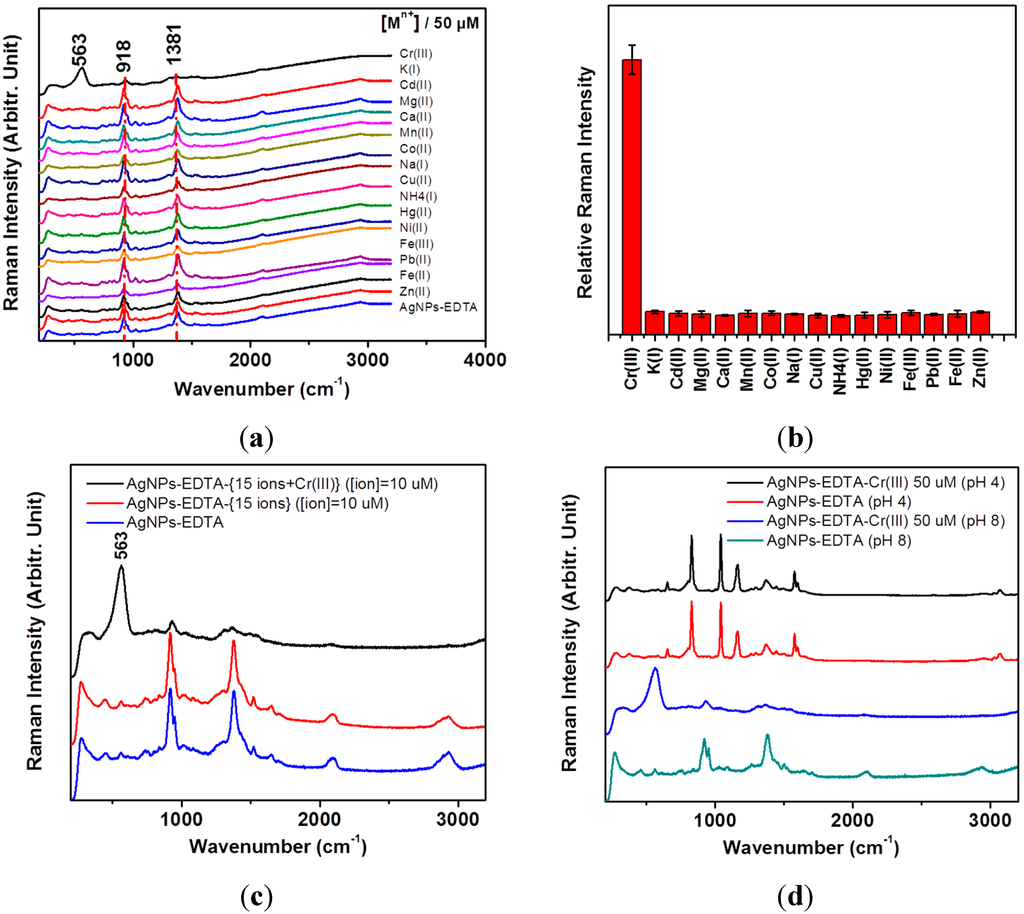

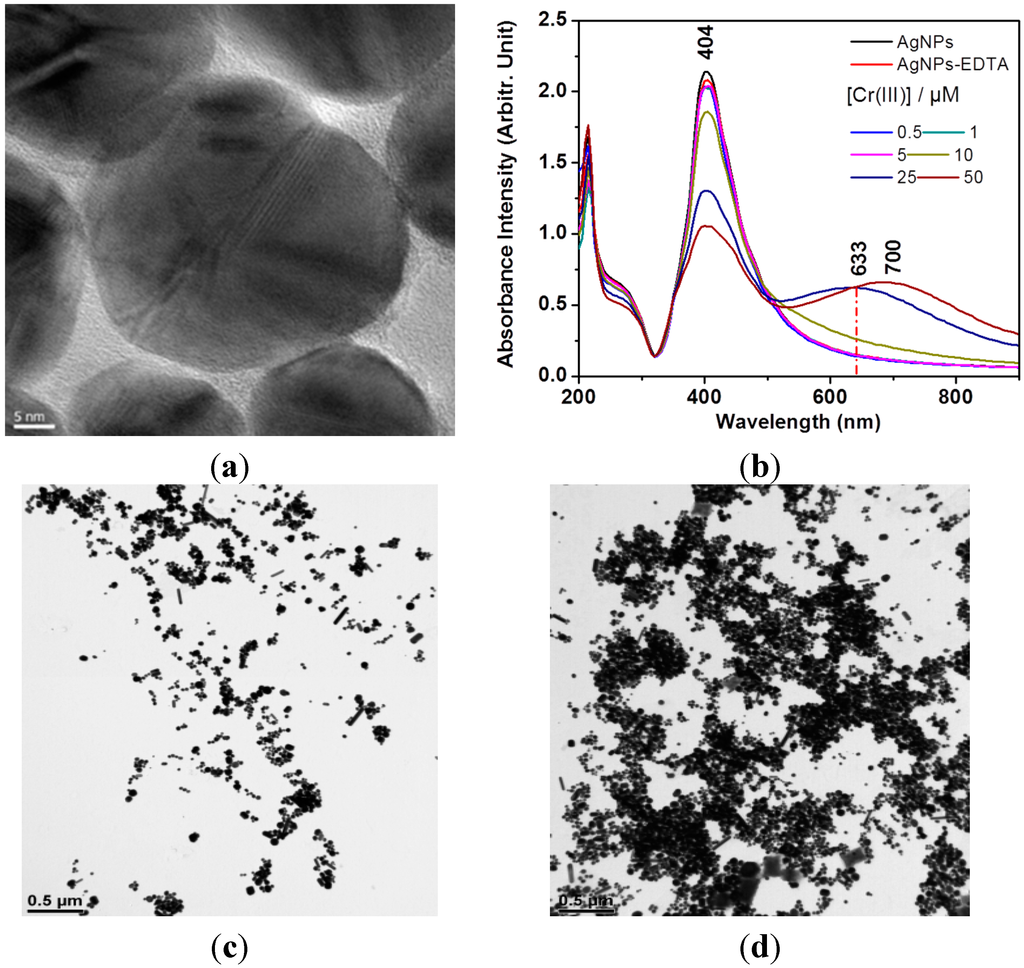

Tris(hydroxymethyl)aminomethane ethylenediaminetetraacetic acid (Tris-EDTA), upon binding Cr(III) in aqueous solutions at pH 8.0 on silver nanoparticles (AgNPs), was found to provide a sensitive and selective Raman marker band at ~563 cm−1, which can be ascribed to the metal-N band. UV-Vis absorption spectra also supported the aggregation and structural change of EDTA upon binding Cr(III). Only for Cr(III) concentrations above 500 nM, the band at ~563 cm−1 become strongly intensified in the surface-enhanced Raman scattering spectra. This band, due to the metal-EDTA complex, was not observed in the case of 50 mM of K+, Cd2+, Mg2+, Ca2+, Mn2+, Co2+, Na+, Cu2+, NH4+, Hg2+, Ni2+, Fe3+, Pb2+, Fe2+, and Zn2+ ions. Seawater samples containing K, Mg, Ca, and Na ion concentrations higher than 8 mM also showed the characteristic Raman band at ~563 cm−1 above 500 nM, validating our method. Our approach may be useful in detecting real water samples by means of AgNPs and Raman spectroscopy. View Full-Text
Keywords: Cr(III); EDTA; Raman spectroscopy; silver nanoparticles; seawater Cr(III); EDTA; Raman spectroscopy; silver nanoparticles; seawater

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Ly, N.H.; Joo, S.-W. Silver Nanoparticle-Enhanced Resonance Raman Sensor of Chromium(III) in Seawater Samples. Sensors 2015, 15, 10088-10099.
