Open AccessArticle
Sensors 2015, 15(4), 8664-8684;

Multi-Camera and Structured-Light Vision System (MSVS) for Dynamic High-Accuracy 3D Measurements of Railway Tunnels

School of Electrical Engineering, Southwest Jiaotong University, Erhuan Road No. 111, Jinniu District, Chengdu 610031, China
Author to whom correspondence should be addressed.
Academic Editor: Thomas Schumacher
Received: 26 October 2014 / Revised: 25 March 2015 / Accepted: 7 April 2015 / Published: 14 April 2015
Full-Text   |   PDF [2348 KB, uploaded 14 April 2015]   |

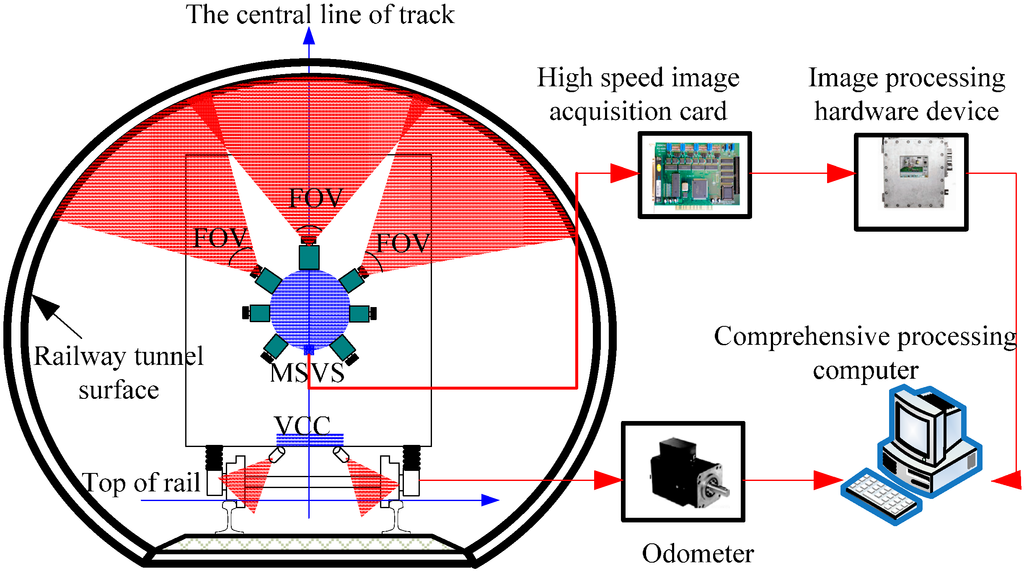

Railway tunnel 3D clearance inspection is critical to guaranteeing railway operation safety. However, it is a challenge to inspect railway tunnel 3D clearance using a vision system, because both the spatial range and field of view (FOV) of such measurements are quite large. This paper summarizes our work on dynamic railway tunnel 3D clearance inspection based on a multi-camera and structured-light vision system (MSVS). First, the configuration of the MSVS is described. Then, the global calibration for the MSVS is discussed in detail. The onboard vision system is mounted on a dedicated vehicle and is expected to suffer from multiple degrees of freedom vibrations brought about by the running vehicle. Any small vibration can result in substantial measurement errors. In order to overcome this problem, a vehicle motion deviation rectifying method is investigated. Experiments using the vision inspection system are conducted with satisfactory online measurement results. View Full-Text
Keywords: railway tunnel; 3D clearance; dynamic inspection railway tunnel; 3D clearance; dynamic inspection

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
