Vertical Soil Profiling Using a Galvanic Contact Resistivity Scanning Approach

1
McGill University, 21111 Lakeshore Road, Ste-Anne-de-Bellevue, QC H9X 3V9, Canada
2
Leibniz-Institute for Agricultural Engineering (ATB), 100 Max-Eyth-Allee, Potsdam 14469, Germany
3
DUALEM, 540 Churchill Avenue, Milton, ON L9T 3A2, Canada
4
Geocarta, 5 rue de la Banque, Paris 75002, France
*
Author to whom correspondence should be addressed.
Sensors 2014, 14(7), 13243-13255; https://doi.org/10.3390/s140713243
Received: 22 July 2013 / Revised: 3 June 2014 / Accepted: 18 June 2014 / Published: 23 July 2014
(This article belongs to the Section Physical Sensors)

Abstract

: Proximal sensing of soil electromagnetic properties is widely used to map spatial land heterogeneity. The mapping instruments use galvanic contact, capacitive coupling or electromagnetic induction. Regardless of the type of instrument, the geometrical configuration between signal transmitting and receiving elements typically defines the shape of the depth response function. To assess vertical soil profiles, many modern instruments use multiple transmitter-receiver pairs. Alternatively, vertical electrical sounding can be used to measure changes in apparent soil electrical conductivity with depth at a specific location. This paper examines the possibility for the assessment of soil profiles using a dynamic surface galvanic contact resistivity scanning approach, with transmitting and receiving electrodes configured in an equatorial dipole-dipole array. An automated scanner system was developed and tested in agricultural fields with different soil profiles. While operating in the field, the distance between current injecting and measuring pairs of rolling electrodes was varied continuously from 40 to 190 cm. The preliminary evaluation included a comparison of scan results from 20 locations to shallow (less than 1.2 m deep) soil profiles and to a two-layer soil profile model defined using an electromagnetic induction instrument.

1. Introduction

Information about soil quality and its variations is relevant for agriculture, archaeology, and environmental assessment. Traditional methods for soil exploration are laborious and, thus, not economical for high-resolution soil mapping. Proximal soil sensing is a new discipline that combines soil sensors and data analysis methods to obtain high resolution soil information at a reasonable cost. Sensors for apparent electrical conductivity (ECa) and its reciprocal apparent electrical resistivity (ERa) have been the most popular for proximal soil sensing. The ability of soil to conduct and accumulate an electrical charge has been linked with several physical and chemical soil properties. Therefore, spatial changes in soil ECa have been linked to spatial soil heterogeneity [14]. In non-saline, non-hydromorphic mineral soils, the particle size distribution (soil texture) in combination with related soil attributes is typically the most influential factor for spatial variation of soil ECa [5], as smaller particles (clay and fine silt) are related to higher ion concentrations (greater surface charge) and superior water storage (smaller pore size).

Soil ECa (or ERa) is commonly measured by a galvanic contact, capacitive coupling or electromagnetic induction (EMI) [5,6]. In each case, an instrument is pulled across the landscape while recording periodic measurements along with their geographic coordinates. Therefore, collected data is a series of measurements representing a specific soil depth, depending on the configuration between electrical signal transmitting and receiving elements. Although such data can be adequate for a number of applications, knowing how soil ECa and related properties change with depth in different parts of a field can be equally important. For example, the depth and physical composition of topsoil along with the nature of subsoil material characterize the root development environment in relation to the mechanical impedance to root growth, soil water and nutrient storage capacity as well as the potential activity of microorganisms.

Several different methods have been used to estimate how apparent soil electrical conductivity changes with depth. In-situ methods, such as soil coring, are invasive and can only be performed in a stop-and-go mode. Surface methods, such as vertical electrical sounding, are non-invasive or produce negligible soil disturbance and most can collect data on-the-go [7]. The depth of investigation for surface methods is altered by changing the parameters of the instrument. For example, a depth response curve for an EMI instrument can be modified by changing the distance between transmitting and receiving coils, their orientation, height above ground, or electrical frequency [8]. Likewise, the geometrical configuration between current injecting and sensing electrodes is related to depth sensitivity when using galvanic contact resistivity systems [7].

There are several common geometrical configurations used by popular galvanic contact resistivity instruments, such as Schlumberger, Wenner, and dipole-dipole arrays [7]. For example, Figure 1 illustrates the equatorial dipole-dipole array. In this case, soil electrical resistivity and conductivity are calculated using the following equations [9]:

E R a = π 1 L 1 α 2 + L 2 · U I
E C a = 1000 E R a
where ERa is electrical resistivity [Ω·m]; a is dipole length (inter-pair electrode spacing) [m]; L is the distance between the injecting and the measuring pairs [m]; U is the voltage drop along the distance L [mV]; I is the generated current [mA]; ECa is electrical conductivity [mS/m].

Figure 2 shows several depth sensitivity curves with dipole spacing (L) varied from 0.5 to 2.5 m and dipole lengths (a) being either 1 or 0.3 m. It can be seen that the depth of investigation is a function of dipole length and spacing.

To obtain multiple ECa measurements representing different depths, some galvanic contact resistivity instruments include several pairs of measuring electrodes. For example, the Veris® 3100 (Veris Technologies, Inc., Salina, KS, USA); the system has six Coulter electrodes arranged in a Wenner array with two depths of investigation. Dabas [10] developed a sensor system with four pairs of rolling electrodes, which enables three depths of investigation. Later, Lueck and Ruehlmann [11] developed another sensor system, which permitted measurements at five depth levels using twelve rolling electrodes. For these systems, each pair of electrodes at a fixed distance provides a single depth of investigation.

With an EMI instrument, it is feasible to use a pneumatic angular scanning system to measure ECa incrementally through a range of depths of investigation [12]. Similar measurements can be obtained with a galvanic system by changing the spacing between electrodes. Therefore, the objective of this study was to develop a prototype galvanic contact resistivity system capable of obtaining relatively continuous scans of ECa using two pairs of rolling electrodes configured in an equatorial dipole-dipole mode with variable distances between the pairs.

2. Materials and Methods

2.1. Scanner System Development

Shown in Figure 3, a scanner system was developed using four Veris® Q series disc electrodes (Veris Technologies, Inc.) configured as shown in Figure 1. An electrical motor automatically moves the electrodes through a range of spacing. A 4-Point light hp (Lippmann Geophysikalische Messgeräte, Schaufling, Germany) instrument was used to conduct the measurements with the current set within the range of 0.1 to 100 mA, depending on the observed ECa values. Since insufficient suppression of mains interference may occur if the mains frequency is a multiple of the measurement frequency, the frequency was set at 25 Hz to avoid this phenomenon (frequency of mains in Canada is 60 Hz). The distance between the current injecting and measuring pairs of rolling electrodes was varied continuously from 40 to 190 cm. The distance between each pair of electrodes was fixed at 45 cm. A ToughSonic TSPC-30S1-232 ultrasonic sensor (Senix® Corporation, Hinesburg, VT, USA) was used to measure the distance between the two pairs of electrodes while a Global Positioning System (GPS) receiver measured the geographic coordinates. All data were recorded using a LabView (National Instruments, Inc., Austin, TX, USA) interface developed for this application. As implemented, the electrodes moved through a complete cycle of spacing in less than 10 s in either a stationary mode or on-the-go. To filter out the noise, each complete scan was converted to an array of fifteen (arbitrarily defined) discrete ECa measurements corresponding to different depth sensitivity curves. For preliminary system evaluation, these surface data were used to estimate the parameters of a two-layer model of electrical conductivity by means of inversion [8].

2.2. Preliminary Field Evaluation

2.2.1. Test Locations and Direct Soil Profiling

The scanner system has been tested in three agricultural fields at Macdonald Farm of McGill University, Ste-Anne-de-Bellevue, QC, Canada (Figure 4).

Twenty sites with a wide range of soil textures were selected to evaluate the system's performance in the stationary mode. To characterize the soil profiles in each location, a Veris® P4000 unit (Veris Technologies, Inc.) shown in Figure 5 was used with either the integrated soil probe or the soil core extraction attachment. The probe allowed for the collection of direct (in-situ) ECa measurements with 2.5–3 cm depth increments. Unfortunately, the soil profiles obtained in Fields 16 and 22 were very short due to the shallow and very hard subsoil (heavy clay or bedrock). All the cores that could be collected were divided by homogeneous depth intervals or horizons according to color and texture by feel. In the laboratory the soil texture of each horizon was more accurately determined using the hydrometer method [13]. However, no information was available for the characteristics of the subsoil. Therefore, direct validation of the ECa scanner data was not feasible and only four soil profiles from Field 66 were used to visually observe the agreement between 1-m deep soil profiles and corresponding scanner system measurements.

2.2.2. Indirect Soil Profiling

To overcome the limitation of unknown soil profiles below the penetrable topsoil layer, a DUALEM-21S (DUALEM, Milton, ON, Canada) EMI instrument with four depths of investigation [14,15] was used for the validation of the scanner system measurements (Figure 6). The DUALEM-21S measurements were interpreted according to a two-layer (three parameters) model, as more complex models would require more than four different depth sensitivity curves. The thickness of a superficial layer, the ECa of this layer and the ECa underlying earth were estimated as those that minimize the error between the predicted and the measured overall ECa values according to Equation (3). The predicted values were calculated using Equations (46) [1619].

ε = 100 ( H 1 H 1 ) 2 + ( P 1 P 1 ) 2 + ( H 2 H 2 ) 2 + ( P 2 P 2 ) 2 ( H 1 ) 2 + ( P 1 ) 2 + ( H 2 ) 2 + ( P 2 ) 2
x = E C 1 ( n m ) + E C 2 ( 1 n ) x = H 1 , P 1 , H 2 , or P 2
m = { 1 1 4 h 2 + 1 for H 1 2 h 1.1 4 ( h 1.1 ) 2 + 1 for P 1 1 1 4 ( h 2 ) 2 + 1 for H 2 2 h 2.1 4 ( h 2.1 ) 2 + 1 for P 2
n = { 1 1 4 ( h + d ) 2 + 1 for H 1 2 ( h + d ) 1.1 4 ( h + d 1.1 ) 2 + 1 for P 1 1 1 4 ( h + d 2 ) 2 + 1 for H 2 2 ( h + d ) 2.1 4 ( h + d 2.1 ) 2 + 1 for P 2
where h is the height of the DUALEM-21S sensor above the ground [m]; d is the depth of the surficial layer [m]; EC1 is the apparent electrical conductivity of the surficial layer [mS/m]; EC2 is the apparent electrical conductivity of the underlying earth [mS/m]; H1, P1, H2, P2 are the ECa values measured, respectively, by the four arrays of the DUALEM-21S [mS/m]; H1′, P1′, H2′, P2′ are the predicted ECa values [mS/m]; ε is the error between predicted and measured ECa values.

2.3. Soil Profile Model Parameters Prediction

Assuming that the two-layer models obtained from EMI were acceptable approximations of the changes of electrical conductivity with depth, a multilayer perception neural network algorithm [2024] was developed to define the relationship between the scanner system measurements and the three model parameters (d, EC1 and EC2). This was performed using IBM-SPSS Modeler Version 15.0 (IBM-SPSS, Inc., Chicago, IL, USA) software. The scanner system data (over 200 measurements during each scan) were aggregated using fifteen discrete distances with 10-cm increment (from 40° to 190° cm). They were assigned as inputs (X1 through X15). The three model parameters Y1 = d, Y2 = EC1 and Y3 = EC2) were set as targets to be predicted. At this preliminary stage, all scans were treated as calibration data. Additional diverse scans would be required to make this validation procedure more complete by splitting the scans between calibration and validation datasets.

A simple linear regression was used to relate individual model parameters estimated from EMI and those predicted using the neural network from the scanner system measurements. To report results of this analysis in physical units, the prediction error (PE) for each model parameter was calculated according to:

PE = 1 N · i = 1 N ( x i x i ) 2
where xi is a soil profile model parameter estimated using EMI; x i is the corresponding soil profile model parameter predicted using the scanner system measurements processed through the neural network; N is the number of compared two-layer soil profile models.

3. Results and Discussion

Figure 7 illustrates four sample soil profiles and ECa measurements obtained using a Veris P4000 along with the corresponding measurements obtained using the scanner system.

With no substantial difference in soil salinity (laboratory EC < 200 μS/cm) and water content (20–25 g/g gravimetric water content), the results of the particle size analysis were consistent with the in-situ ECa measurements, in that coarse soil texture produced relatively low values of ECa. Likewise, the relationship of the scanner system ECa measurements and the distance between current injecting and sensing pairs of electrodes were consistent with these soil profiles. Thus, sandy site 18 produced a relatively constant scan with low ECa values. Sites 19 and 20 indicated higher ECa values (as well as their variance) with greater distances between the injecting and measuring pairs; this was consistent with an increase in clay content with depth. With limited information about soil profiles, similar observations were made when analyzing the results from the other sixteen sites.

Figure 8 illustrates the relationships between the two-layer soil profile model parameters estimated using DUALEM-21S data and those predicted using the scanner system data. Based on these results, PE of 0.3 m could be expected for the depth of the upper soil layer. PE estimates of ECa were 1.36 mS/m for the upper soil layer and 3.29 mS/m for the subsoil. Figure 9 illustrates the soil profile models found for the four sites illustrated in Figure 7. Again, despite the insufficient number of model parameters needed to describe the soil profiles observed through the test locations, the results were consistent with soil profiling observations.

Based on the achieved design, continuous scanning of galvanic contact soil resistivity could be applied to predict the change in soil physical properties with depth. These estimates can be spatially interpolated to obtain a 3D representation of ECa. In principle, this method resembles the accepted geophysical practices of vertical electrical sounding and 2D soil electrical resistivity tomography that are typically conducted by manually inserting electrodes using a predefined geometrical pattern [25]. However, the instrument developed is also a mobile ECa mapping instrument that can be used to collect georeferenced measurements along a path of travel [5]. The advantage of the scanner developed for this study is the quasi-continuous variation of depth sensitivity and the lower number of electrodes when compared to the multi-electrode galvanic coupled sensors with fixed geometries. Unfortunately, the preliminary field evaluation performed in this study was limited due to the unknown soil profile below the depth of the extracted soil cores. Further work is needed to evaluate the practical applicability of the newly developed platform and to optimize the operational and data interpretation parameters.

4. Conclusions

An automated scanner system with an equatorial dipole-dipole array was developed and tested in several agricultural fields. At sites where soil profiling was feasible, the extracted soil cores indicated changes in soil textures with depth consistent with the direct ECa profiles and the scanner system measurements obtained. Furthermore, a neural network calibration model could be used to predict the parameters of a two-layer soil profile model estimated using a commercial multi-depth EMI instrument, which revealed 0.3 m expected difference in predicting the depth of topsoil in a two-layer model with 1.36 and 3.29 mS/m ECa prediction uncertainties for the superficial layer and underlying earth, respectively. However, to predict the parameters of a more complex model, it is necessary to know the soil profiles at greater depths.

Acknowledgments

This project is supported in part by funds provided through National Science and Engineering Research of Canada (NSERC) Discovery as well as Agriculture and Agri-Food Canada (AAFC) Agricultural Greenhouse Gases Program (AGGP) grants using infrastructure supported by Canada Foundation for Innovation (CFI) Leader Opportunity Fund (LOF).

Author Contributions

Luan Pan, the lead author, developed and tested the system, Viacheslav I. Adamchuk, corresponding author, created the concept and provided general project supervision, Shiv Prasher assisted with the sensor calibration using neural network, Robin Gebbers helped with field testing and data interpretation, Richard S. Taylor helped processing EMI sensor data, and Michel Dabas assisted with interpretation of depth response of galvanic contact resistivity data.

Conflicts of Interest

The authors declare no conflict of interest. Mention of a trade name, proprietary product, or company name is for presentation clarity and does not imply endorsement by the authors, the McGill University, nor does it imply exclusion of other products that may also be suitable.

References

  1. De Jong, E.; Ballantyne, A.K.; Cameron, D.R.; Read, D.W.L. Measurement of Apparent Electrical Conductivity of Soils by an Electromagnetic Induction Probe to Aid Salinity Surveys. Soil Sci. Soc. Am. J. 1979, 43, 810–812. [Google Scholar]
  2. Kachanoski, R.G.; Gregorich, E.G.; van Wesenbeck, J. Estimating Spatial Variations of Soil Water Content Using Noncontacting Electromagnetic Induction Methods. Can. J. Soil Sci. 1988, 68, 715–722. [Google Scholar]
  3. Domsch, H.; Giebel, A. Estimation of Soil Textural Features from Soil Electrical Conductivity Recorded Using the EM38. Precis. Agric. 2004, 3, 389–409. [Google Scholar]
  4. Corwin, D.L.; Lesch, S.M. Application of Soil Electrical Conductivity Measurements in Agriculture. Comput. Electron. Agric. 2005, 46, 11–43. [Google Scholar]
  5. Gebbers, R.; Lück, E.; Dabas, M.; Domsch, H. Comparison of Instruments for Geoelectrical Soil Mapping at the Field Scale. Near Surf. Geophys 2009, 7, 179–190. [Google Scholar]
  6. Handbook of Agricultural Geophysics; Allred, B.J., Ehsani, M.R., Daniels, J.J., Eds.; CRC Press: Boca Raton, FL, USA, 2008; pp. 3–410.
  7. Parasnis, D.S. Principles of Applied Geophysics, 5th ed.; Chapman & Hall: London, UK, 1997; p. 456. [Google Scholar]
  8. Hendrickx, J.M.H.; Borchers, B.; Corwin, D.L.; Lesch, S.M.; Hilgendorfer, A.C.; Schlue, J. Inversion of Soil Conductivity Profiles from Electromagnetic Induction Measurements: Theory and Experimental Verification. Soil Sci. Soc. Am. J. 2002, 66, 673–685. [Google Scholar]
  9. Roy, A.; Apparao, A. Depth of Investigation in Direct Current Methods. Geophysics 1971, 36, 943–959. [Google Scholar]
  10. Dabas, M. Theory and Practice of the New Fast Electrical Imaging System ARP©. In Seeing the Unseen, Geophysics and Landscape Archaeology; Campana, S., Piro, S., Eds.; CRC Press Taylor and Francis Group: Boca Raton, FL, USA, 2009; pp. 105–126. [Google Scholar]
  11. Lueck, E.; Ruehlmann, J. Resistivity Mapping with GEOPHILUS ELECTRICUS—Information about Lateral and Vertical Soil Heterogeneity. Geoderma 2013, 199, 2–11. [Google Scholar]
  12. Adamchuk, V.I.; Mat Su, A.S.; Eigenberg, R.A.; Ferguson, R.B. Development of an Angular Scanning System for Sensing Vertical Profiles of Soil Electrical Conductivity. Trans. ASABE 2011, 54, 1–11. [Google Scholar]
  13. Sheldrick, B.H.; Wang, C. Particle Size Distribution. In Soil Sampling and Methods of Analysis; Carter, M.R., Ed.; CRC Press: Boca Raton, FL, USA, 1993; Chapter 47; pp. 499–512. [Google Scholar]
  14. Simpson, D.; van Meirvenne, M.; Saey, T.; Vermeersch, H.; Bourgeois, J.; Lehouck, A.; Cockx, L.; Vitharana, U.W.A. Evaluating the Multiple Coil Configurations of the EM38DD and DUALEM-21S Sensors to Detect Archaeological Anomalies. Archaeol. Prospect. 2009, 16, 91–102. [Google Scholar]
  15. De Smedt, P.; van Meirvenne, M.; Meerschman, E.; Saey, T.; Bats, M.; Court-Picon, M.; de Reu, J.; Zwertvaegher, A.; Antrop, M.; Bourgeois, J.; et al. Reconstructing Palaeochannel Morphology with a Mobile Multicoil Electromagnetic Induction Sensor. Geomorphology 2011, 130, 136–141. [Google Scholar]
  16. Wait, J.R. A Note on the Electromagnetic Response of a Stratified Earth. Geophysics 1962, 27, 382–385. [Google Scholar]
  17. Wait, J.R. Geo-Electromagnetism; Academic Press: New York, NY, USA, 1982. [Google Scholar]
  18. Kaufman, A.A.; Keller, G.V. Frequency and Transient Soundings; Elsevier: Amsterdam, The Netherlands, 1983. [Google Scholar]
  19. Saey, T.; Simpson, D.; Vermeersch, H.; Cockx, L.; van Meirvenne, M. Comparing the EM38DD and DUALEM-21S Sensors for Depth-to-Clay Mapping. Soil Sci. Soc. Am. J. 2009, 73, 7–12. [Google Scholar]
  20. Hagan, M.T.; Demuth, H.B.; Beale, M.H. Neural Network Design; PWS Publishing Company: Boston, MA, USA, 1996; pp. 2–14. [Google Scholar]
  21. Bishop, C.M. Neural Networks for Pattern Recognition, 3rd ed.; Oxford University Press: Oxford, UK, 1995. [Google Scholar]
  22. Fine, T.L. Feedforward Neural Network Methodology, 3rd ed.; Springer-Verlag: New York, NY, USA, 1999. [Google Scholar]
  23. Haykin, S. Neural Networks: A Comprehensive Foundation, 2nd ed.; Macmillan College Publishing: New York, NY, USA, 1998. [Google Scholar]
  24. Ripley, B.D. Pattern Recognition and Neural Networks; Cambridge University Press: Cambridge, UK, 1996. [Google Scholar]
  25. Furman, A.; Ferre, T.P.A.; Warrick, A.W. A Sensitivity Analysis of Electrical Resistivity Tomography Array Types Using Analytical Element Modeling. Vadose Zone J. 2003, 2, 416–423. [Google Scholar]

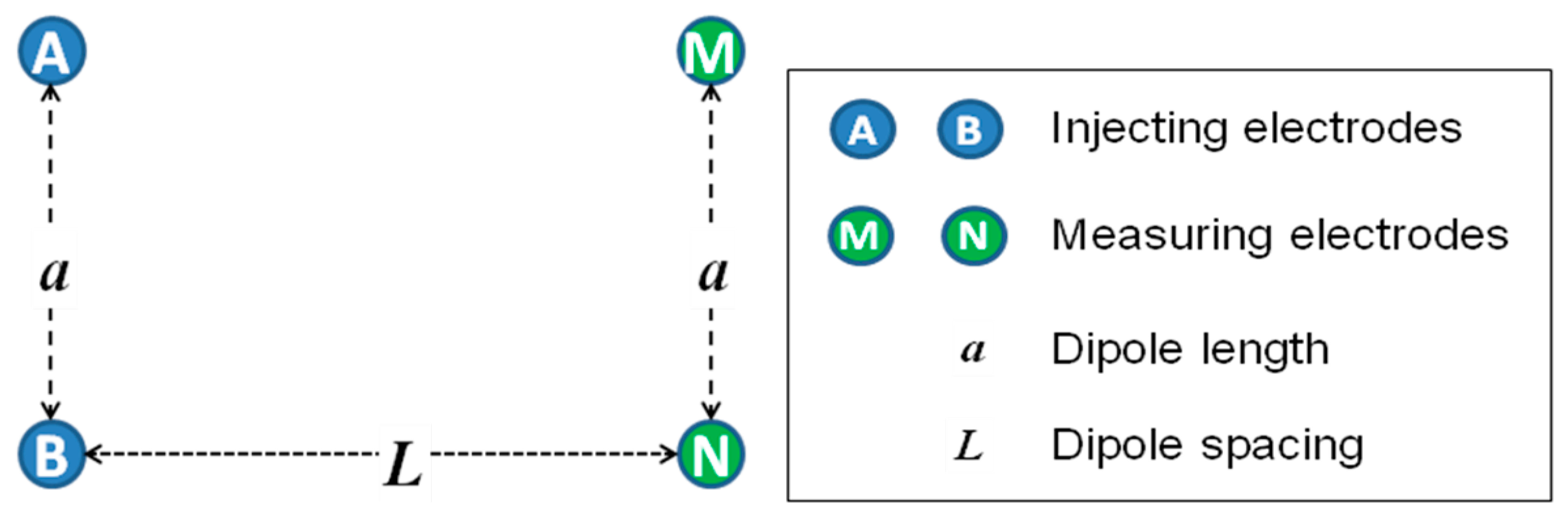

Figure 1. Equatorial dipole-dipole electrode configuration.
Figure 1. Equatorial dipole-dipole electrode configuration.
Sensors 14 13243f1 1024
Figure 2. The sensitivity-depth-curves with dipole spacing (L) varying from 0.5 m to 2.5 m with 0.5 m increments and dipole lengths (a) of 1 m and 0.3 m.
Figure 2. The sensitivity-depth-curves with dipole spacing (L) varying from 0.5 m to 2.5 m with 0.5 m increments and dipole lengths (a) of 1 m and 0.3 m.
Sensors 14 13243f2 1024

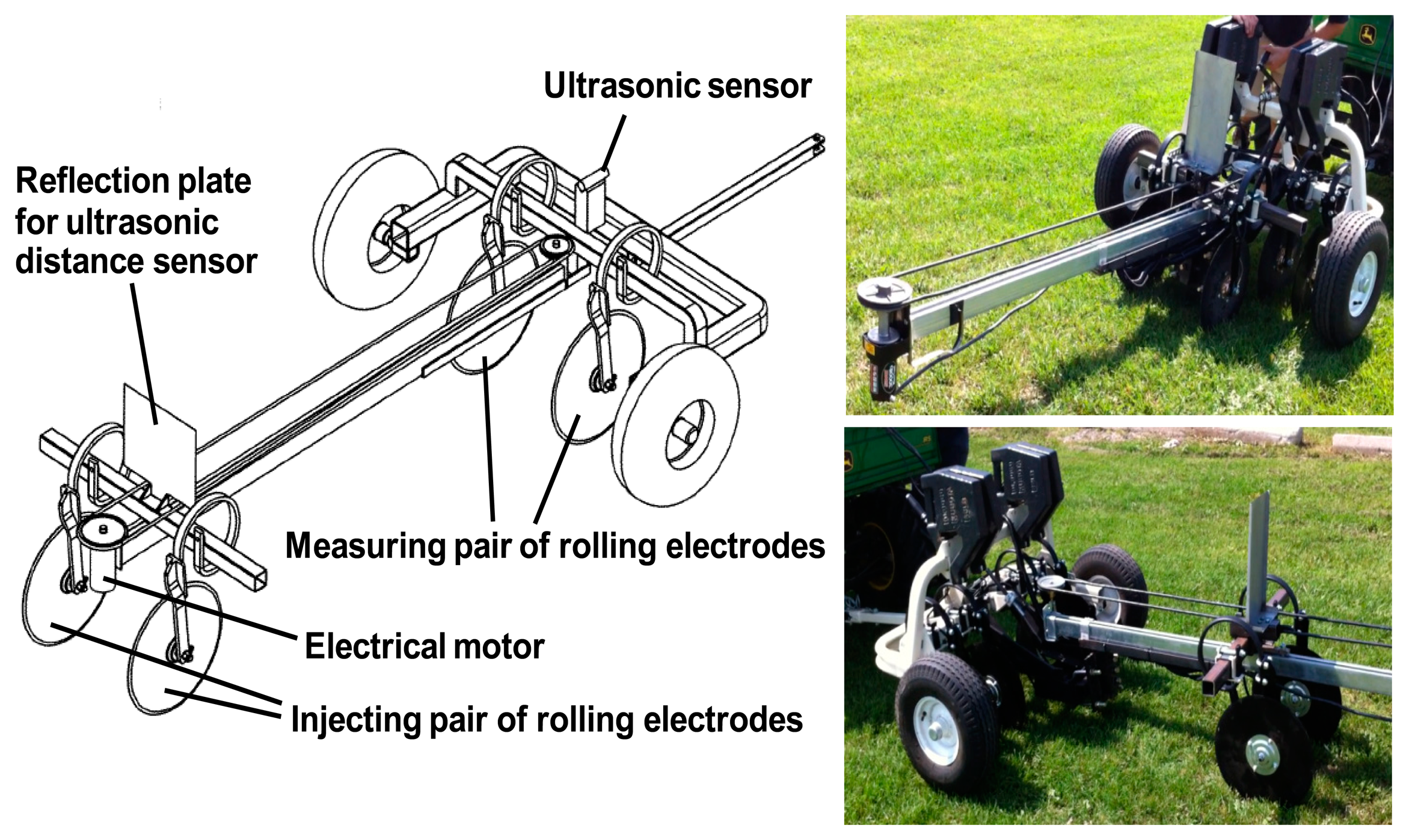

Figure 3. Prototype galvanic contact resistivity scanner.
Figure 3. Prototype galvanic contact resistivity scanner.
Sensors 14 13243f3 1024
Figure 4. Experimental fields with different soil types.Notes: Bb, D and Ro: Clay; Am and V: Loamy sand; Ch, M and Ri: Clay Loam; Mk and Mk-a: Organic deposits; C: Fine sandy loam; So and U: Sand; Bn-1: Ill-drained loam; Cv: Sandy loam; Bt, Cs, Dm and O: Light sandy loam; C-a: Shallow find sandy loam; Bn and F: Loam; S and Z: Silt loam.
Figure 4. Experimental fields with different soil types.Notes: Bb, D and Ro: Clay; Am and V: Loamy sand; Ch, M and Ri: Clay Loam; Mk and Mk-a: Organic deposits; C: Fine sandy loam; So and U: Sand; Bn-1: Ill-drained loam; Cv: Sandy loam; Bt, Cs, Dm and O: Light sandy loam; C-a: Shallow find sandy loam; Bn and F: Loam; S and Z: Silt loam.
Sensors 14 13243f4 1024
Figure 5. Veris® P4000 unit with hyperspectral, ECa and force sensors.
Figure 5. Veris® P4000 unit with hyperspectral, ECa and force sensors.
Sensors 14 13243f5 1024

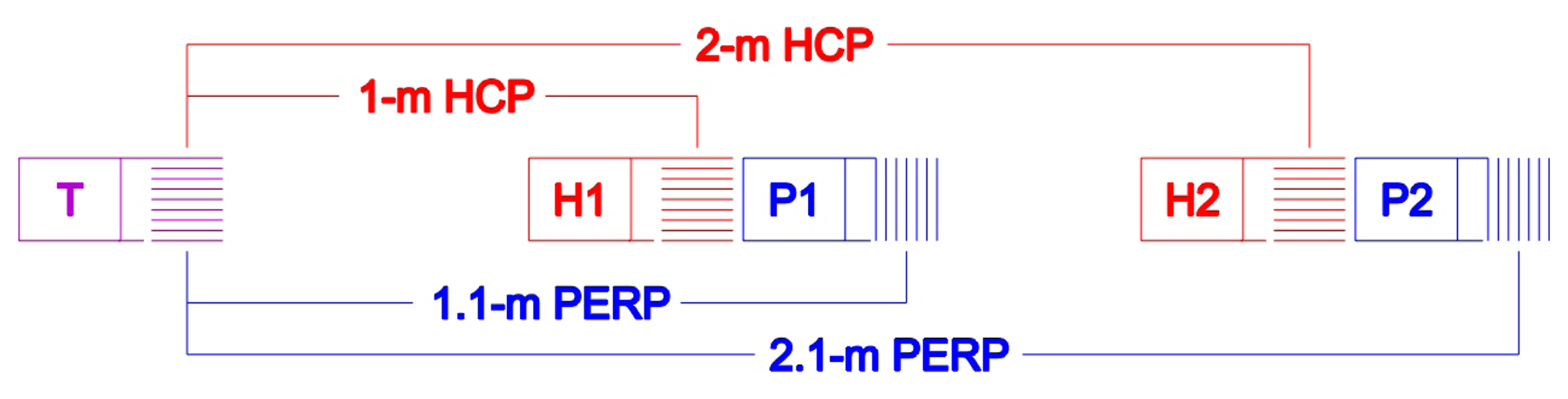

Figure 6. Schematic overview of the DUALEM-21S sensor with the transmitting coil (T) and four receiving coils (two in a horizontal coplanar (HCP) and two in a perpendicular (PERP) loop orientation in relationship to the transmitting coil) [18,19].
Figure 6. Schematic overview of the DUALEM-21S sensor with the transmitting coil (T) and four receiving coils (two in a horizontal coplanar (HCP) and two in a perpendicular (PERP) loop orientation in relationship to the transmitting coil) [18,19].
Sensors 14 13243f6 1024
Figure 7. Example of soil profiles (left) along with the corresponding apparent soil electrical conductivity profiles measured by Veri® P4000 unit (middle) and the scanner system measurements (right).
Figure 7. Example of soil profiles (left) along with the corresponding apparent soil electrical conductivity profiles measured by Veri® P4000 unit (middle) and the scanner system measurements (right).
Sensors 14 13243f7a 1024Sensors 14 13243f7b 1024

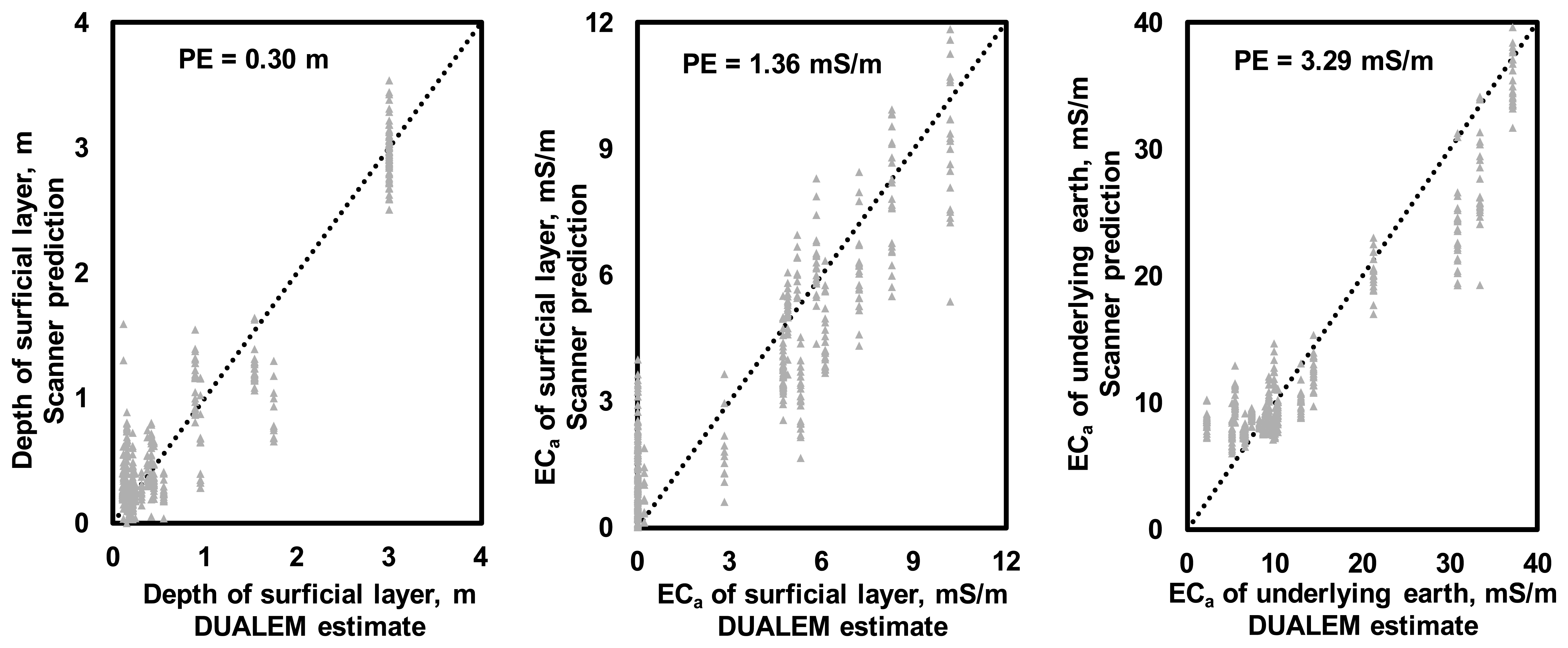

Figure 8. Relationships between the soil profile model parameters estimated using DUALEM-21S and those predicted using the scanner system measurements processed through the neural network while treating the entire dataset as calibration data.
Figure 8. Relationships between the soil profile model parameters estimated using DUALEM-21S and those predicted using the scanner system measurements processed through the neural network while treating the entire dataset as calibration data.
Sensors 14 13243f8 1024

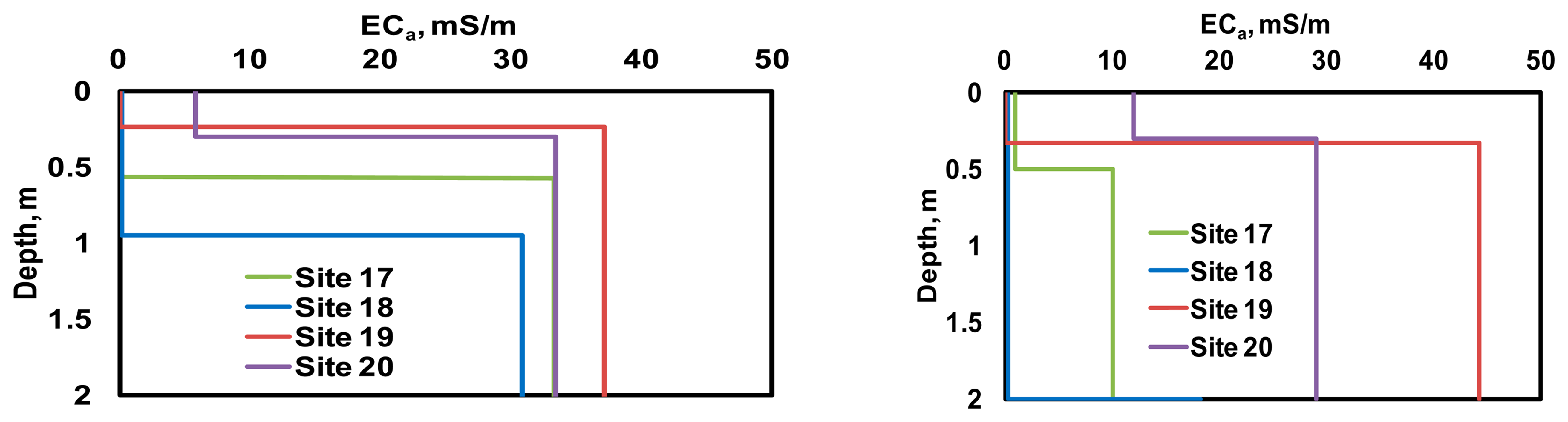

Figure 9. Soil profiles modeled using DUALEM-21S (left) and scanner system (right) measurements.
Figure 9. Soil profiles modeled using DUALEM-21S (left) and scanner system (right) measurements.
Sensors 14 13243f9 1024
