A Vondrak Low Pass Filter for IMU Sensor Initial Alignment on a Disturbed Base

School of Environment and Spatial Informatics, China University of Mining and Technology, Xuzhou 22116, China
School of Surveying and Spatial Information Systems, The University of New South Wales, Sydney 2052, Australia
School of Information Science Technology, East China Normal University, Shanghai 200062, China
Author to whom correspondence should be addressed.
Received: 14 August 2014 / Revised: 1 December 2014 / Accepted: 2 December 2014 / Published: 10 December 2014
(This article belongs to the Special Issue Positioning and Tracking Sensors and Technologies in Road Transport)
Full-Text   |   PDF [1336 KB, uploaded 10 December 2014]

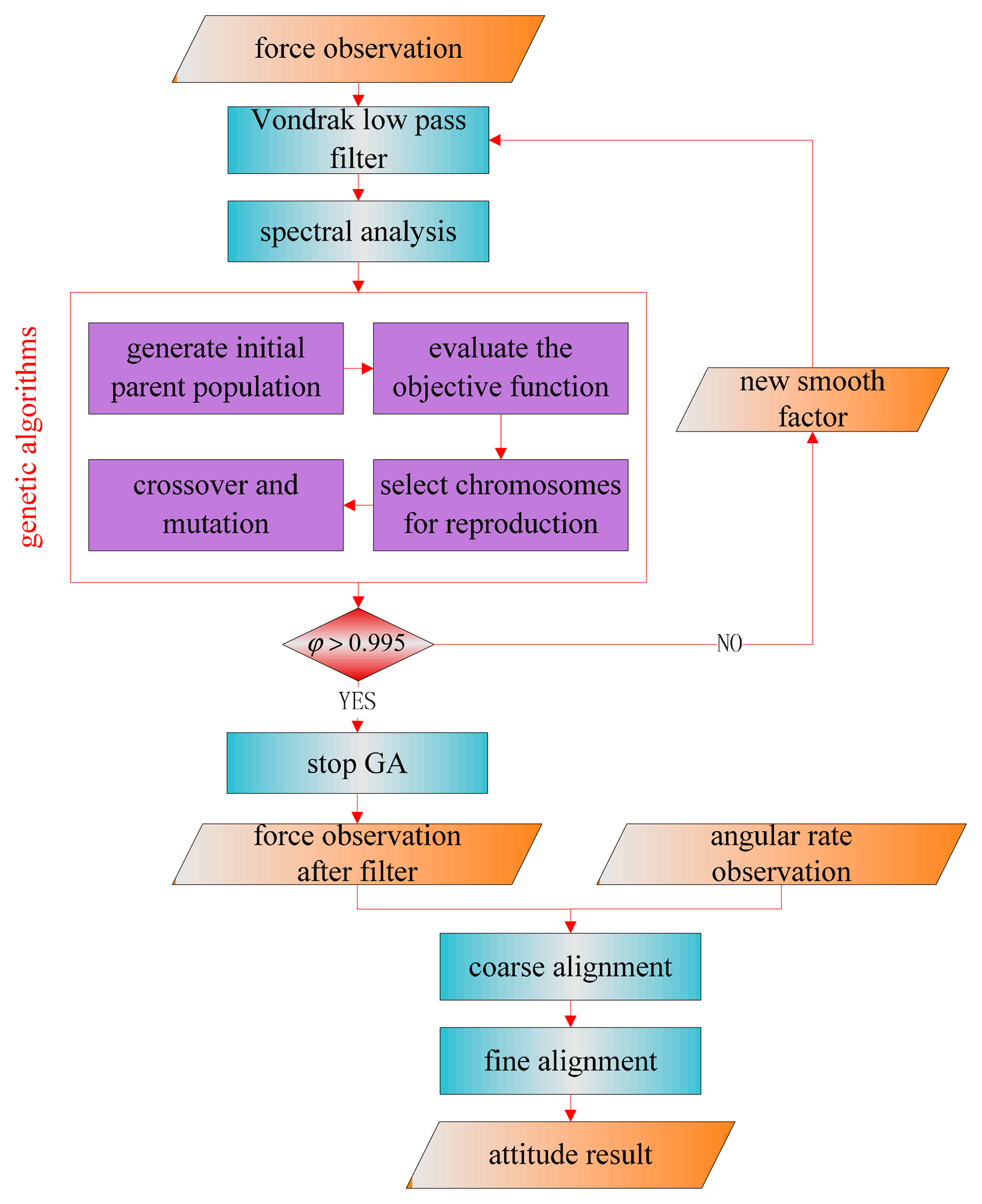

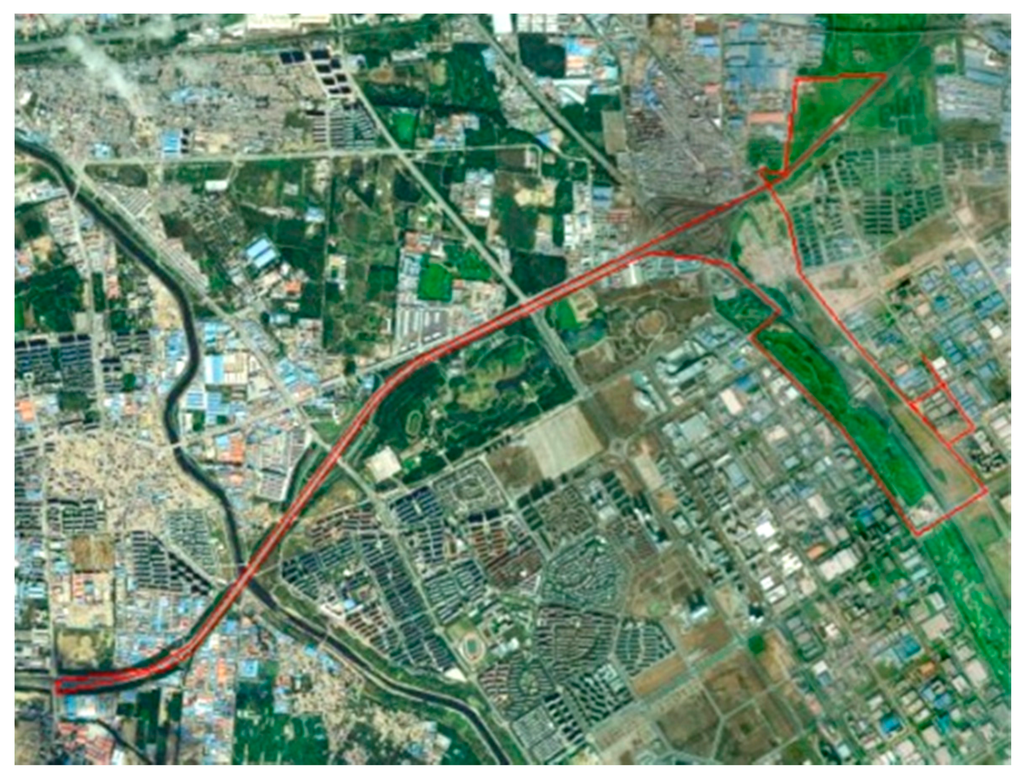

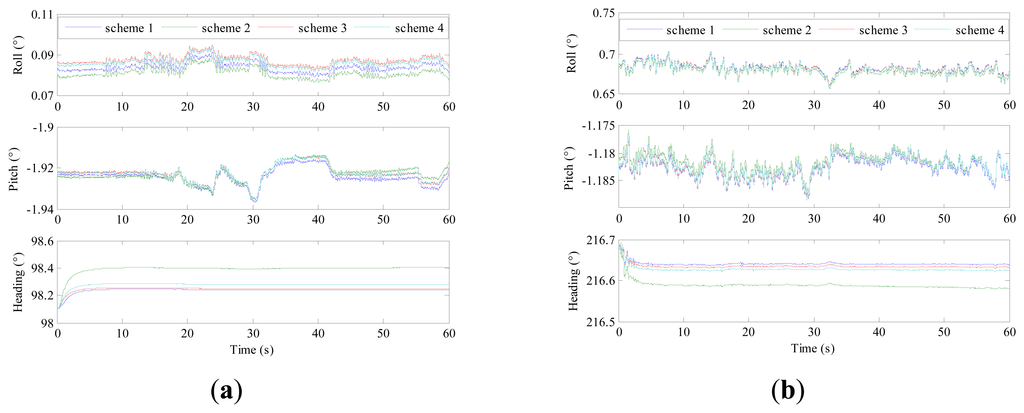

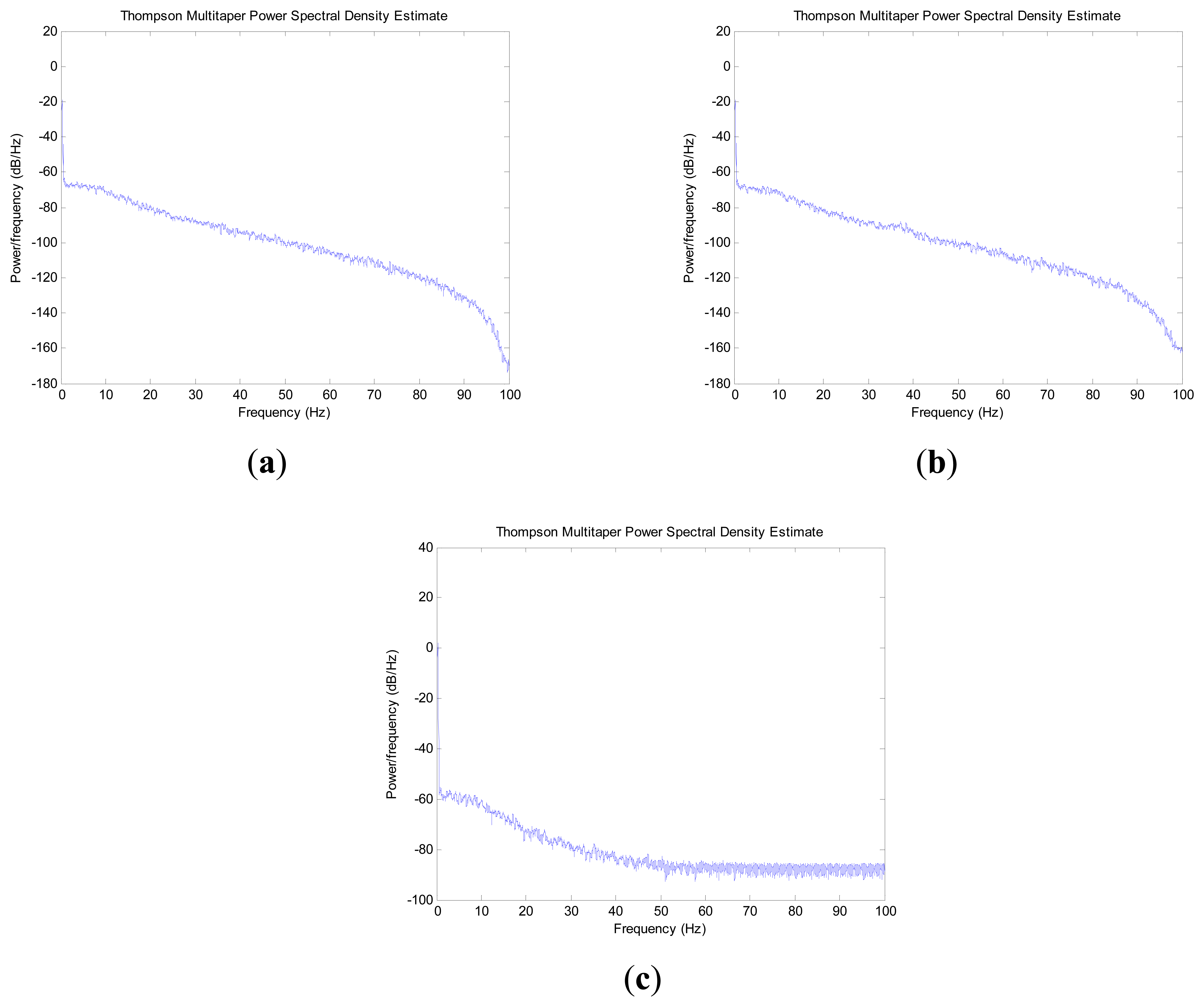

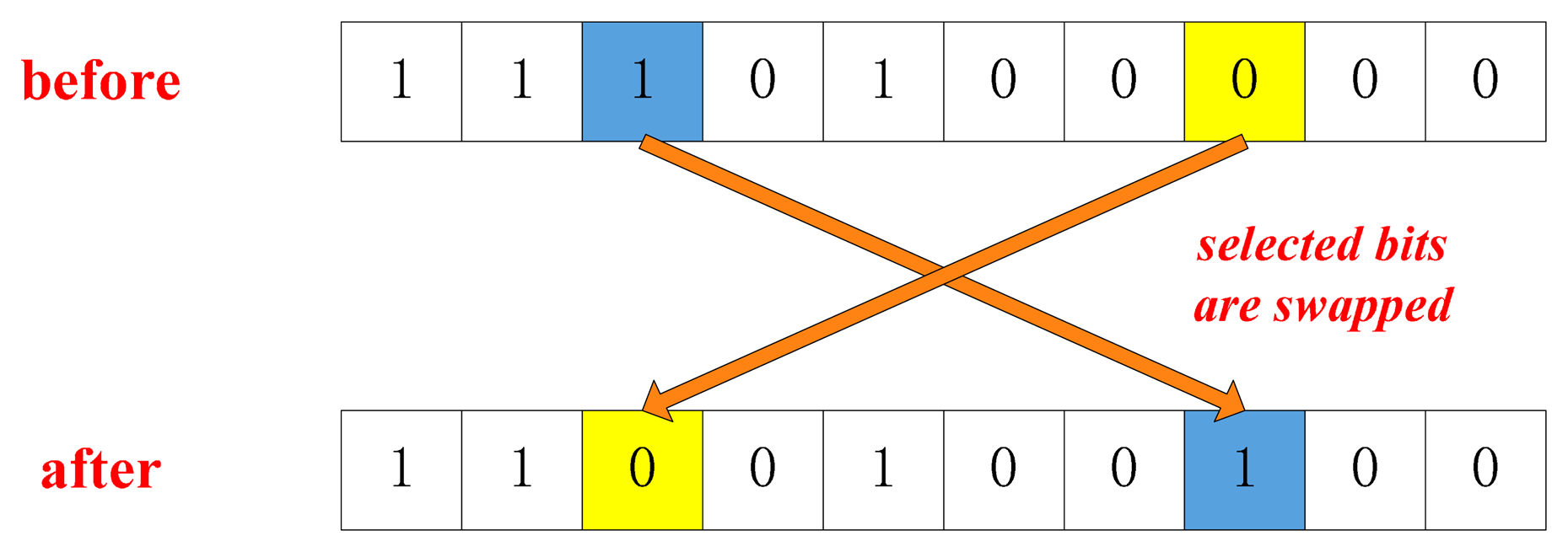

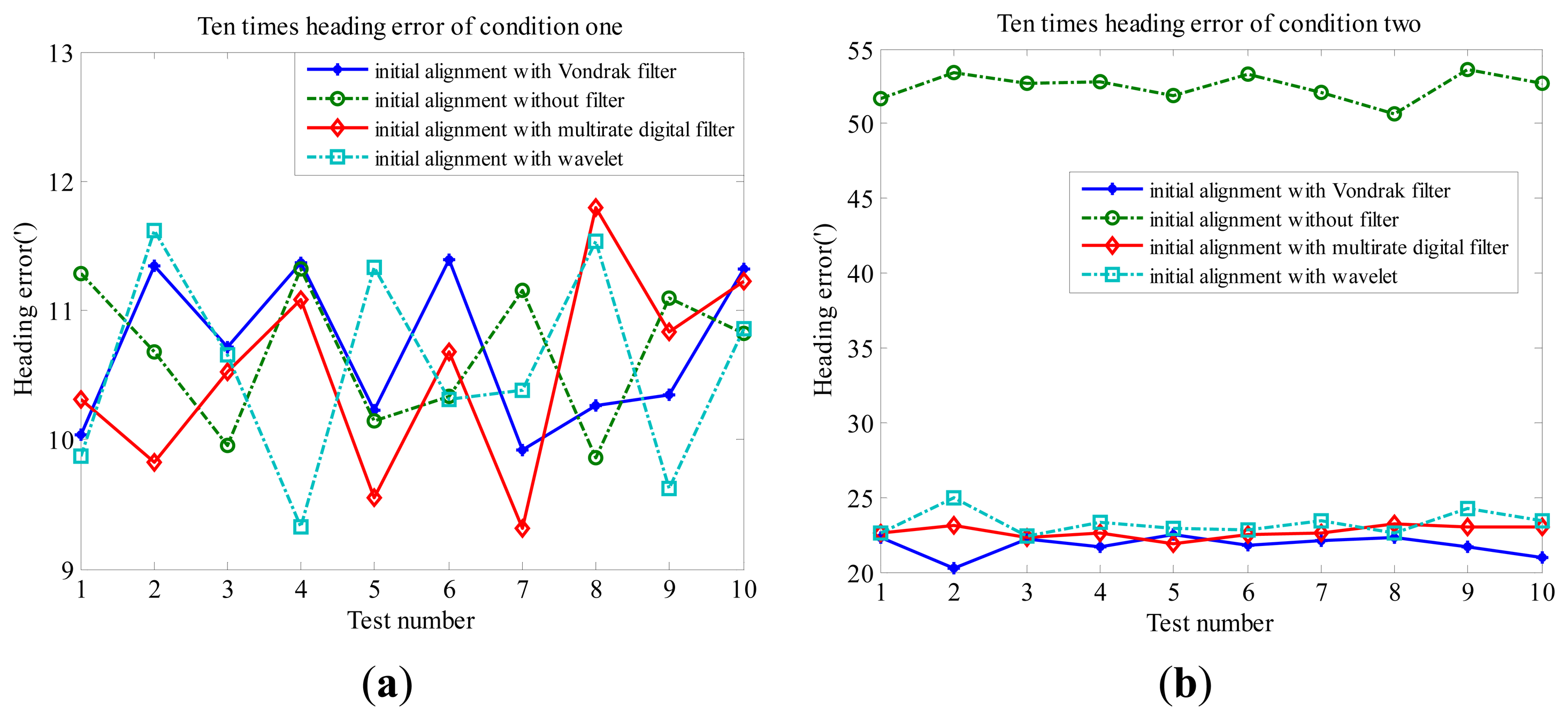

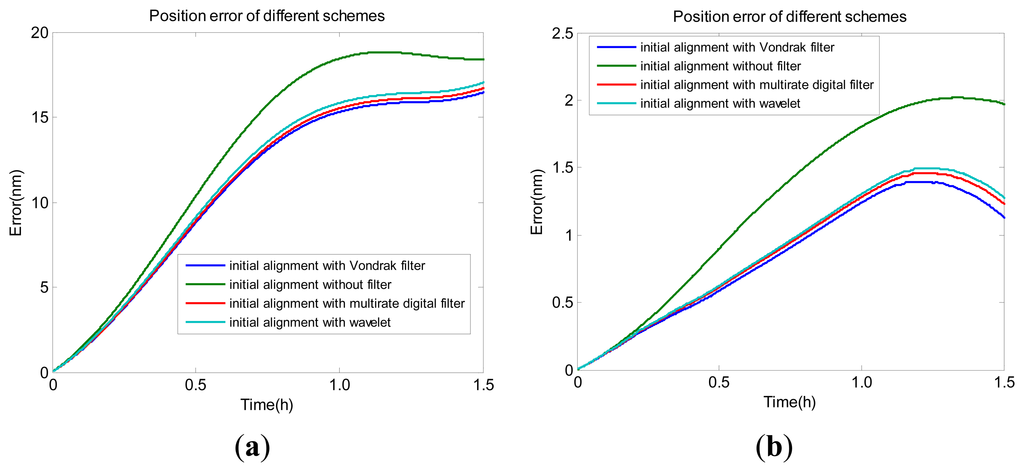

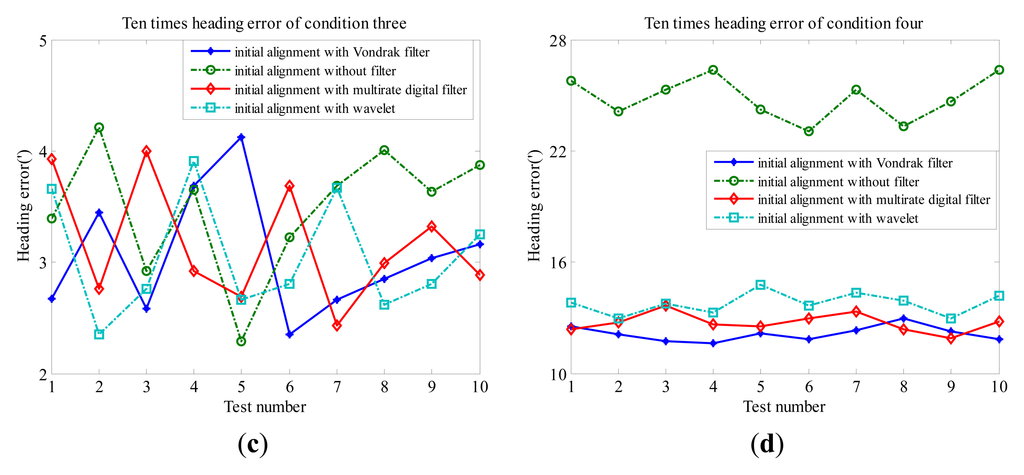

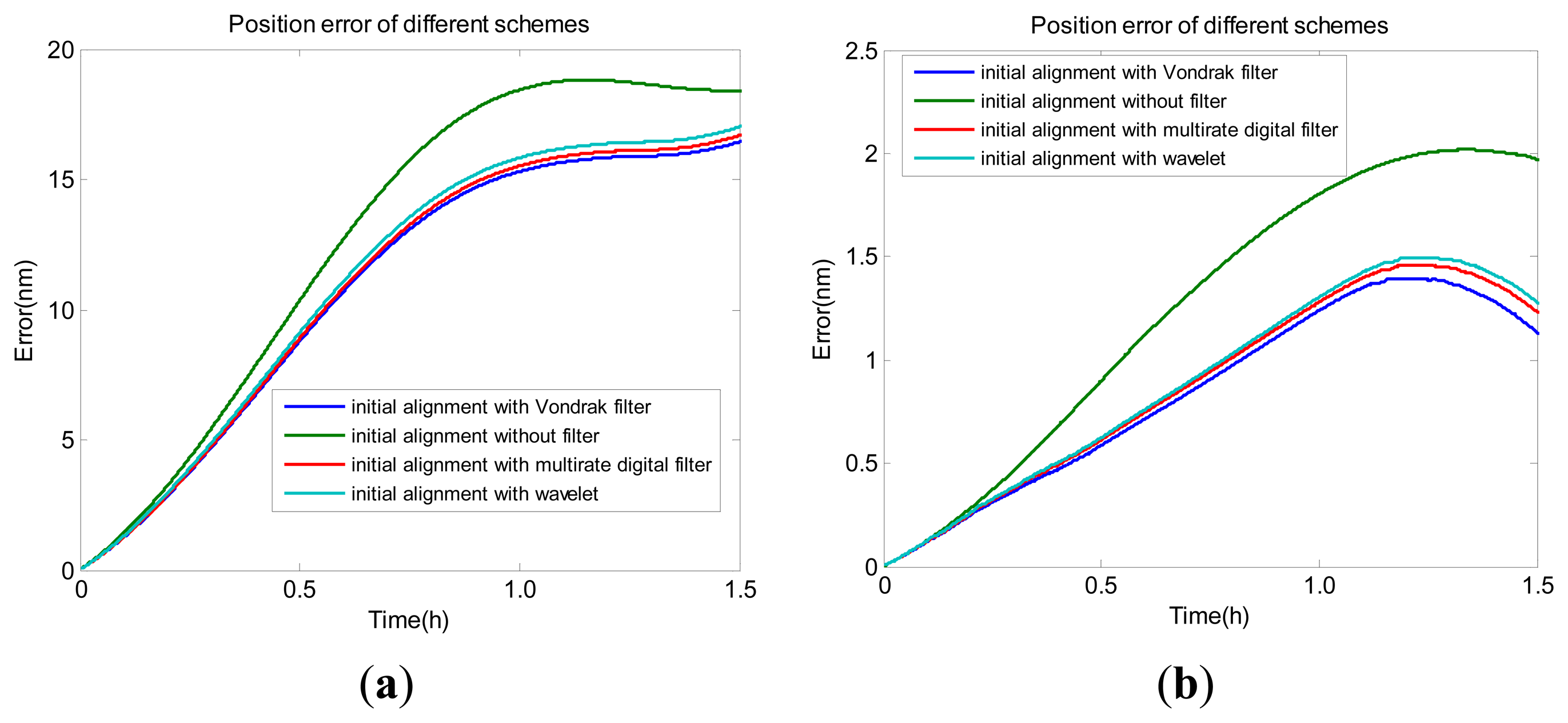

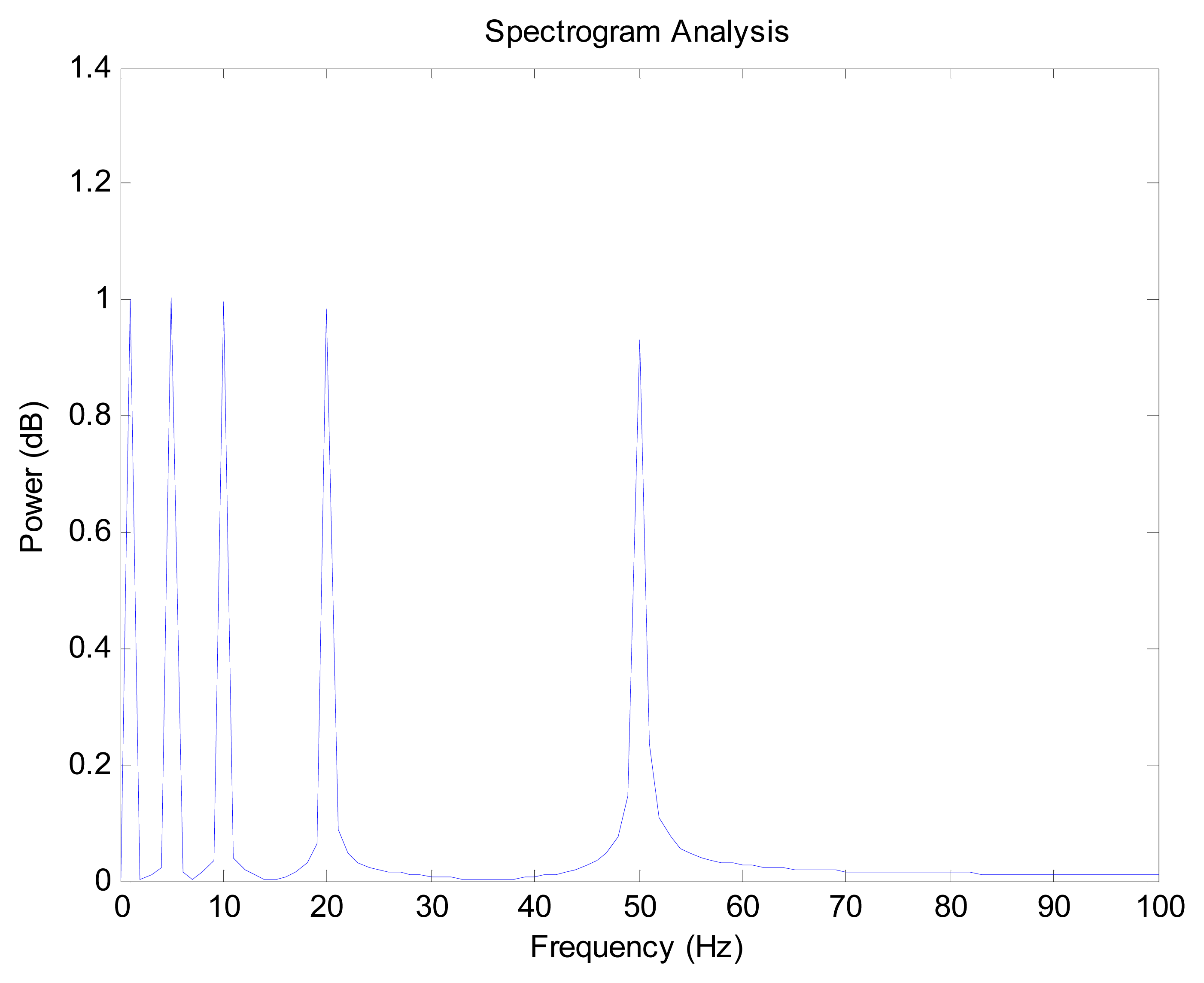

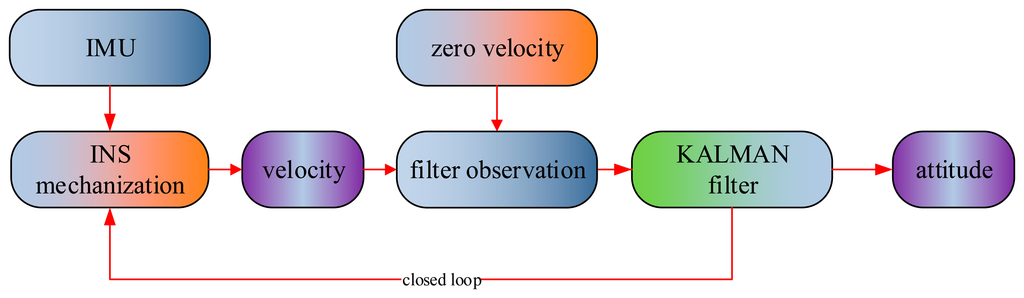

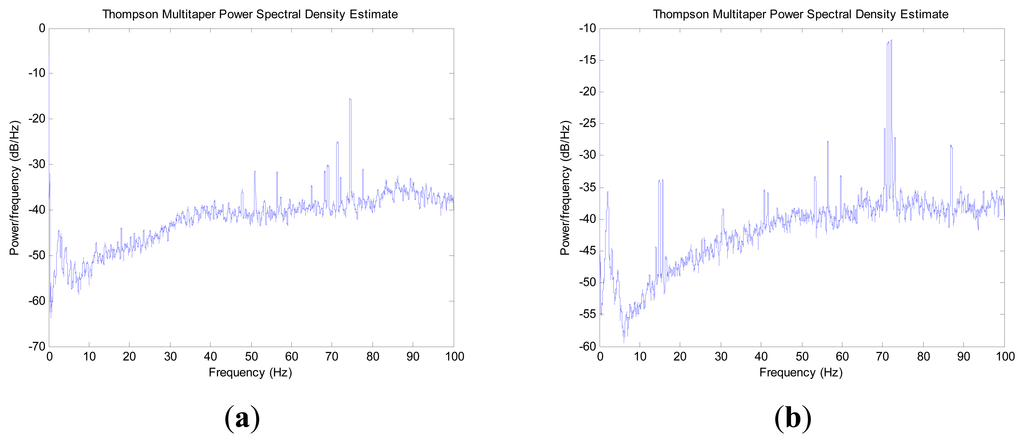

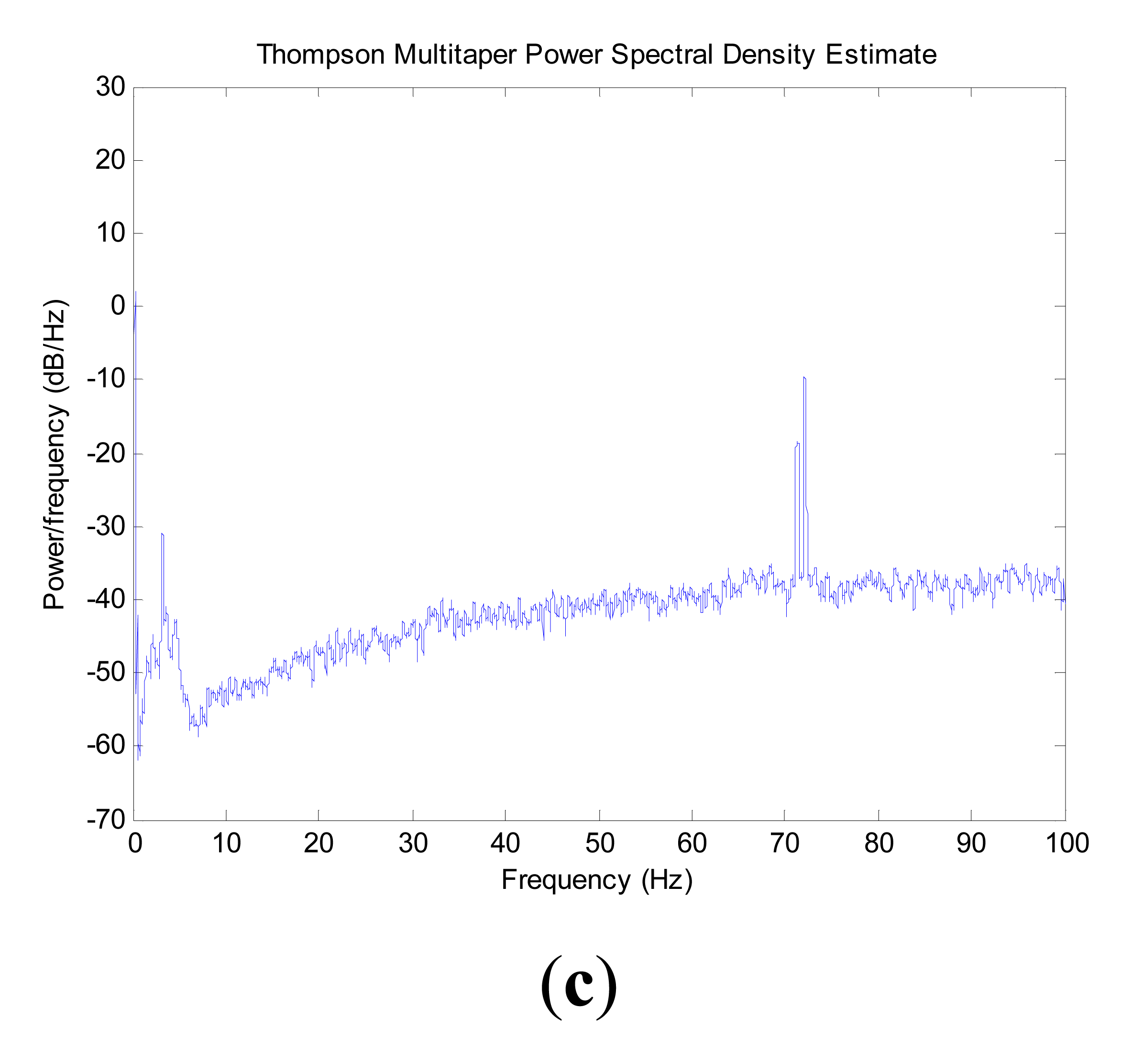

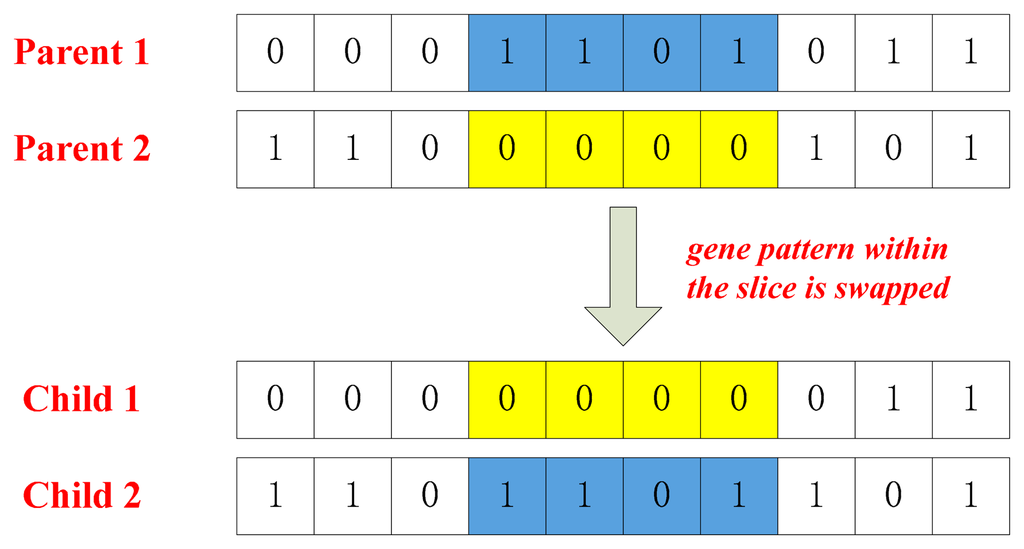

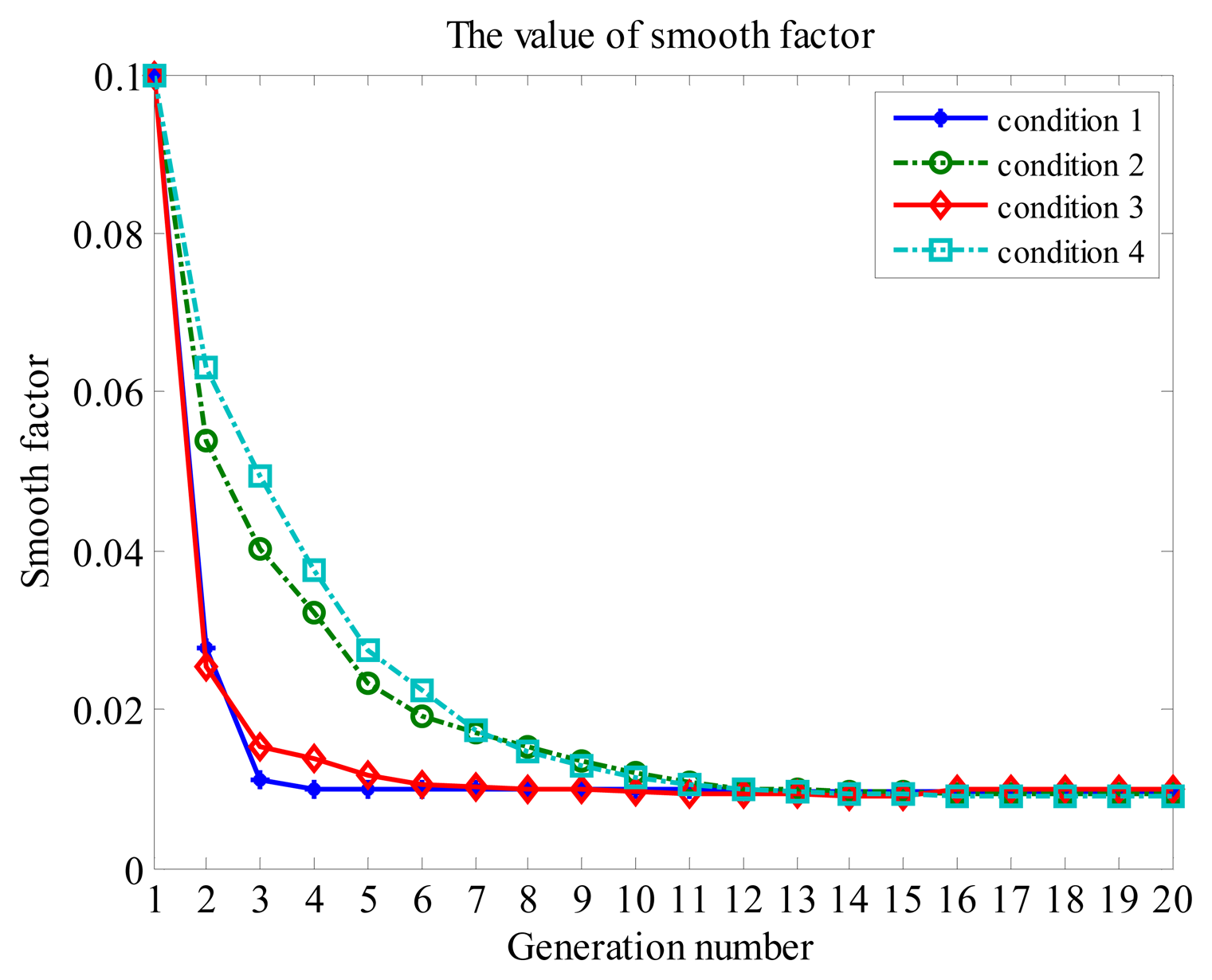

The initial alignment of the Inertial Measurement Unit (IMU) is an important process of INS to determine the coordinate transformation matrix which is used in the integration of Global Positioning Systems (GPS) with Inertial Navigation Systems (INS). In this paper a novel alignment method for a disturbed base, such as a vehicle disturbed by wind outdoors, implemented with the aid of a Vondrak low pass filter, is proposed. The basic principle of initial alignment including coarse alignment and fine alignment is introduced first. The spectral analysis is processed to compare the differences between the characteristic error of INS force observation on a stationary base and on disturbed bases. In order to reduce the high frequency noise in the force observation more accurately and more easily, a Vondrak low pass filter is constructed based on the spectral analysis result. The genetic algorithms method is introduced to choose the smoothing factor in the Vondrak filter and the corresponding objective condition is built. The architecture of the proposed alignment method with the Vondrak low pass filter is shown. Furthermore, simulated experiments and actual experiments were performed to validate the new algorithm. The results indicate that, compared with the conventional alignment method, the Vondrak filter could eliminate the high frequency noise in the force observation and the proposed alignment method could improve the attitude accuracy. At the same time, only one parameter needs to be set, which makes the proposed method easier to implement than other low-pass filter methods. View Full-Text
Keywords: initial alignment; Vondrak filter; genetic algorithms; disturbed base initial alignment; Vondrak filter; genetic algorithms; disturbed base
