How Elongated? The Pattern of Elongation of Cervical Centra of Elasmosaurus platyurus with Comments on Cervical Elongation Patterns among Plesiosauromorphs

Abstract

Elasmosaurids comprise some of the most extreme morphotypes of plesiosaurs. Thus, the study of their neck and vertebrae elongation patterns plays a crucial role in understanding the anatomy of elasmosaurids. In this study, the taphonomic distortion of the holotype of Elasmosaurus platyurus and its effects on the vertebral length index (VLI) values are evaluated, and a new index to describe the neck is proposed (MAVLI = mean value of the vertebral elongation index of the anterior two-thirds of neck vertebrae). The results provide a strong foundation for a new scheme of neck elongation patterns that divide the diversity of the neck elongation of plesiosauriomorphs into three categories: not-elongate (MAVLI < 95 and Max VLI < 100), elongate (125 > MAVLI > 95 and 100 < Max VLI < 135), and extremely elongated (MAVLI > 125 and Max VLI > 135).

1. Introduction

Elasmosaurid comprises some of the most extreme plesiosauromorph morphotypes [1,2] with Elasmosaurus platyurus being recognized as the vertebrate with the highest cervical account (72 cervical vertebrae [2,3]). Although more than 40 cervical vertebrae are shared by all members of the family, a high variability in both cervical count and the relative elongation of cervical centra are recorded among elasmosaurids [3,4,5,6].

Among the records of plesiosaurians, the cervical centra are the most frequently preserved elements due to their high number per individual and preservational characteristics (i.e., box-like compact bones [7,8]). Therefore, cervical vertebrae have played an important role in the taxonomy of elasmosaurids since the 19th century (see [8] for a detailed review). However, after Welles [8] and its comprehensive discussion, the use of isolated cervical centra as diagnostic elements at the genus level has been dismissed. Despite this, the study of variation in vertebral elongation and the patterns of elongation of complete cervical regions among elasmosaurids continued during the second half of the 20th century and the first years of the 21st century. Brown, [9], created the Vertebral Length Index (VLI), while [1] used the term “plesiosauromorph” to describe the plesiosaur morphotype characterized by a long neck and a small skull. Later, O’Keefe and Hiller [4]) studied the patterns of the VLI of cervical regions among elasmosaurids. Their general conclusions followed those of Welles [7] about the low diagnostic value of isolated vertebrae at the genus or species level and drew attention to the high variability in neck elongation, commenting that “variability reigns” [4] (p. 216). However, they made the first steps in the classification of neck elongation patterns, indicating that Elasmosaurus platyurus and Styxosaurus sp. (their “elongate” group) strongly differed from other elasmosaurids, showing a pattern of a high number of cervical vertebrae and vertebral elongation values far higher than in other elasmosaurids. Despite some difficulties related to the extreme variability observed, O’Keefe and Hiller attempted to create criteria to differentiate between these two groups based on complete and incomplete necks. Additionally, those authors stated that the “elongate” group was restricted to the Western Interior Seaway (WIS) [4]. The absence of the recognition of a third (with short vertebrae) group is related to the systematic affinities of aristonecines considered by the authors. Later, the recognition of the elasmosaurid affinities of aristonectines and the description of Nakonanectes bradti increased the known range of variation in cervical elongation patterns among elasmosaurids by adding elasmosaurids with relatively shorter cervical centra [6,10,11]. Otero et al. [12] proposed a modification in neck elongation terminology, using the term “extremely elongated form” to nominate the member of the “elongate” group of O’Keefe and Hiller [4] and adding the category “plesiomorphic elasmosaurids” (Otero et al. [12] (p. 254), also called “intermediate elasmosaurids” in the same contribution (Otero et al. [12] (p. 256), for the more typical elasmosaurid neck. They also used the term “aristonectine” to group the neck elongation pattern observed among elasmosaurids that are members of the Aristonectine subfamily (Aristonectes parvidens, Aristonectes quiriquinensis, Kaiwhekea katiki, and Wunyelfia maulensis) for the first time. Otero [5] added the following names for the vertebral morphotypes characteristic of the latter three groups: “can-shaped” cervical vertebrae, “Cimoliasaurus-grade” cervical vertebrae, and “aristonectine-type” cervical vertebrae.

This short introduction can be summarized as follow: (1) the neck elongation pattern (in terms of the number of cervical vertebrae and elongation of vertebral centra) has played a central role in the study of elasmosaurid diversity, and (2) different terms were proposed to describe this diversity (

Table 1. Comparison of terminology regarding the neck elongation pattern of elasmosaurids.

	Range VLI	Average VLI	Other Features	Vertebra Type
O’Keefe and Hiller, 2006
Non-elongate group	30	~100		Cimoliasaurus-grade
Elongate Group	60–100	125–138	Some cervical VLI 150 to 200/erratic variation	Can-shape (some vertebrae)
Otero et al., 2015
Plesiomorphic/ Intermediate elasmosaurids		99	Cervical count~60	Cimoliasaurus-grade
Extremely long-necked forms		135	Cervical count~72–76	Can-shape
Aristonectine		80	Cervical count~43	Aristonectine

and

Table 2. Approximate equivalence between [4,12] categories of neck elongation pattern of elasmosaurids.

O’Keefe and Hiller, 2006 [4]	Otero et al., 2015 [12]
Non-elongate group	Plesiomorphic elasmosaurids/intermediate elasmosaurids
Elongate group	Extreme long-necked elasmosaurids
-	Aristonectinae

). This long story all started with the description of Elasmosaurus platyurus, which coincidentally is also one of the extreme forms in terms of cervical elongation [4].

The type genus of the family Elasmosauridae, Elasmosaurus, comprises only one species, Elasmosaurus platyurus (ANSP 10081, holotype). This species is a key member of the “elongate” group among elasmosaurids, characterized by its extremely long neck, as evidenced by the high number of cervical vertebrae and the values of the vertebral elongation index (VLI). A detailed examination of the cervical vertebrae count has been conducted by [2], revealing 72 cervical vertebrae. However, less attention has been given to the taphonomic distortion of the holotype specimen (ANSP 10081) and its impact on the VLI values of the cervical vertebrae. It is clear that the taphonomic distortion of ANSP 10081, the holotype of E. platyurus, was evident since its original description by Cope. He noted that “the whole skeleton has been under considerable pressure so that most of the ribs have been pressed flat out the vertebrae; the long parapophyses (cervical ribs) of the cervicals have most of them been fractured at their bases and compressed, those of opposite sides thus approaching more nearly in the form of the chevron bones than otherwise would have done” [13] (p. 48). Cope also mentioned that “the proximal cervicals are obliquely flattened by the pressure” [13] (p. 48) and that “many of the preserved ribs have been pressed upon the vertebrae and crushed” (Cope, 1869 [13] (p. 49)). However, a few years later Cope wrote that “the other cervicals have the bodies naturally flat, with the articular surface much less so than the median portions” [14] (p. 80) without any mention of taphonomic distortion.

Later, Welles [15] (p. 185) commented on ANSP 10081 (indicated as ANSP 18001 by [7,8]), stating that it is the only known elasmosaurid with compressed cervicals and suspecting that the compression is due to crushing. However, a decade later, in Welles [7]: Table 1 the measurements L, H, and B of the vertebral centra of ANSP 10081 were provided, but the strong deformation of the cervical centra was not explicitly addressed, and only a few values were given in italics, indicating estimated values. This suggests a possible change in Welles’s perception of the extent of the deformation of the specimen. Sachs later mentioned that “most vertebrae are laterally compressed, with this compression being stronger in the middle cervical region than in the anterior or posterior section.” [16] (p. 97). Finally, O’Keefe and Hiller acknowledged that previous researchers relied on the assumption that they included only measurements that appeared close to the original values. However, they also noted that it would be “naive” to assume that there is no preservation error in the data, although they believed the generated error was minimal [4].

In summary, the recognition of the taphonomic distortion of the ANSP 10081 has been variable among researchers. However, while several researchers have acknowledged the taphonomic distortion of the holotype, no attempt has been made to quantify or analyze the influence of this factor on the VLI values.

The main goal of this contribution is to analyze the taphonomic distortion of the ANSP 10081, re-evaluate the neck elongation pattern of Elasmosaurus platyurus, simplify the definition and terminology of neck elongation patterns, and extend the conclusions to other plesiosauromorphs to describe their evolutionary history.

1.1. Anatomical Abbreviations

BHI, breadth to length index; BI: breadth index; cr, cervical rib; HI, height index; MAVLI: mean of the VLI values of the cervical vertebrae of the anteriormost two-thirds of the neck; nc, neural canal; VLI, Vertebral Length Index.

1.2. Institutional Abbreviations

AMNH, American Museum Natural History, New York, USA; CM, Conway Museum, Christ Church, New Zealand; DMNS, Denver Museum of Nature and Science, Denver, Colorado, USA; MGUAN, Museu de Geologia da Universidade Agostinho Neto, Luanda, Angola; ANSP, The Academy of Natural Sciences of Drexel University, Philadelphia, USA; MLP, Museo de La Plata, Buenos Aires Province, Argentina; NHMUK, Natural History Museum, London, United Kingdom.

2. Materials and Methods

2.1. Methods

2.1.1. Indices

Linear measurements were taken using a mechanical caliper, which allowed for an accuracy of 0.1 mm. The indices considered are those proposed by Welles (1952), which take into account the ratio between the centrum length (L) and height (H) (HI = 100 × H/L), and the ratio between centrum breadth (B) and length (BI = 100 × B/L). Both breadth and height were measured on the posterior articular face. The Vertebral Length Index (VLI = 100 L/(0.5 × (H + B))) proposed by Brown was also used [9]. Additionally, a new index is defined: MAVLI = mean of the VLI values of the anteriormost two-thirds of the neck.

2.1.2. Retrodeformation

The process of restoring the original form of a fossil body is called retrodeformation. General methods for retrodeformation require a final shape to reach, the restitution of bilateral symmetry, or an external source that indicates the direction and magnitude of strains [17]. Complete retrodeformation is unachievable as there is no certainty about the original shape, the lateral compression maintains an approximate bilateral symmetry (Figure 1), and there is no external indicator of the main strain direction. However, a complete retrodeformation is not the objective attempted here. Instead, it is intended to determine the degree to which taphonomic distortion affects the VLI.

The former problem was dealt with by following an approach divided into three steps. First, the material is described, and the main direction of distortion is determined (based on the reduction of the neural canal and the direction of cervical ribs, the main direction is lateral compression, mainly affecting the B value; see description, Supplementary Materials 1). It is clear that each area of the vertebrae was affected in different grades, however, as the objective here is punctual (retrodeformed the B values) the accounting for anisotropy in distortion is unnecessary for our current purposes.

The second step is to estimate the value of B (cervical centrum width) prior to the deformation. To test the tool used, the series of the B values of cervical vertebrae in three mostly undistorted or slightly distorted specimens of elasmosaurids were analyzed: the elasmosaurids with high vertebral elongation, Elasmosaurinae Styxosaurus sp. (AMNH 5835, from [18], Supplementary Materials 2 Table S1), and the more conservative weddellonectians Tuarangisaurus sp. (CM Zfr 115, from [4], Supplementary Materials 2 Table S2) and Vegasaurus molyi (MLP 93-I-5-1, from [19], Supplementary Materials 2 Table S3). The objective was to analyze the significance of the regression line between B value and cervical position and its statistical significance (referred to as “complete analysis” hereafter). An additional regression line was calculated using only the B values of the first and last ten cervical centra (referred to as “reduced analysis” hereafter). As both regression lines are statistically significant but extremely similar, it is assumed that the reduced regression line could be used as an accurate proxy model of the complete regression lines, generating a useful tool to estimate B values when there is a gap in the middle cervical series of elasmosaurids but the number of missing values (missing or distorted vertebrae) is known.

Following this strategy, the original sequence of B values of ANSP 10081 is obtained using a regression line of the first and last ten cervical centra of ANSP 10081, as they are less deformed (first ten cervicals, ST2) or nearly undeformed (last ten cervical, Supplementary Materials 1 Table S1). Lastly, using the estimated B values of ANSP 10081, an estimated series of VLI is obtained (Supplementary Materials 1 Table S1). All of the analyses were carried out with R software package stats and nortest [20,21]. The complete script is given as supplementary data in Supplementary Materials 3. All of the analyses were performed using R software [21], complete script and data used is given as Supplementary Materials 3.

3. Results

3.1. Systematic Paleontology

• Sauropterygia Owen, 1860 [22]
• Plesiosauria de Blainville, 1835 [23]
• Elasmosauridae Cope, 1869 [13]
• Elasmosaurus platyurus Cope, 1868 [24]

Materials: ANSP 10081, skeleton, comprising both premaxillae, part of the maxilla, two maxillary fragments with teeth, anterior part of dentaries, three jaw fragments, and indeterminable cranial fragments, 72 cervical vertebrae, including the atlas–axis complex, three pectoral, six dorsal, four sacral, and 18 caudal vertebrae, and rib fragments. Additionally, originally preserved pectoral and pelvic girdles are now missing.

Locality and Horizon. Near McAllaster, Logan Country, Kansas. Sharon Springs Shale Member, Pierre Shale (lower Campanian).

3.2. Numeration and Order of Vertebrae

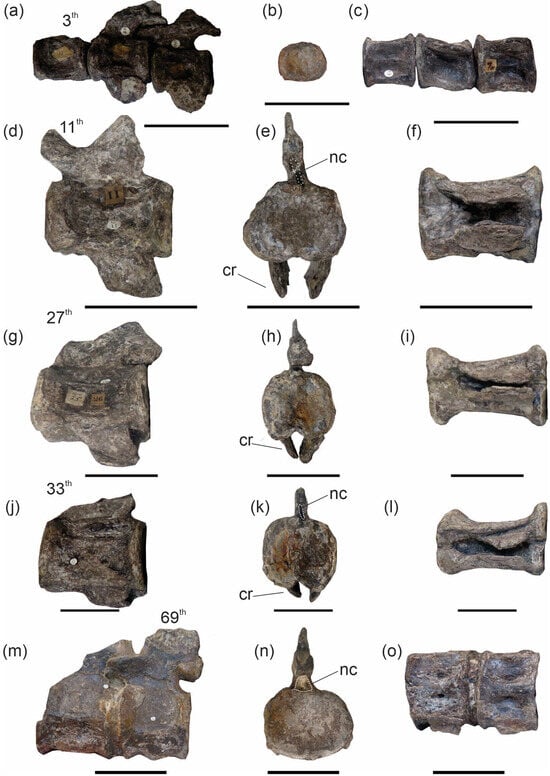

The vertebrae are labeled using paper labels, inked in black and labelled with white circles (Figure 1 and Figure S1). None of these are completely coincident. Here, the latter labels (in white circles) are followed, except for vertebrae 9 and 10, which are interpreted as inverted. Additionally, half of a centrum relocated by [2] is intercalated as vertebrae 14 (between the 14th and 15th labeled in white circles).

3.3. Taphonomic Distortion

The cervical region of ANSP 10081 is laterally compressed, but this compression is variable along the neck and affects the vertebral centra, cervical ribs, and neural canal. The atlas–axis complex shows a strong lateral compression, even showing an asymmetrical distorted neural canal (Figure 1e,k). The post-axis cervical vertebrae also show evidence of distortion as the cervical ribs are unnaturally displaced to the sagittal plane (vertebrae 7–10, Figure 1d–f). In ventral view, the third cervical vertebra shows the typical morphology, but in the third post, the cervical shows a deep concavity formed partially by the displacement of cervical ribs. The same is observed in vertebrae 11–18 (Figure 1f), with cervical ribs misplaced to the sagittal plane, almost touching in the midline, and the distortion of articular faces. The same vertebrae show that the neural canal is also strongly compressed. The same pattern is observed in vertebrae 19–27, although the depression generated in the ventral surface is more marked (Figure 1g–i). In the vertebrae 28–33 (Figure 1j–l), the lateral compression becomes more marked, and cervical ribs are also displaced toward the sagittal plane. The vertebrae 34–43 show an increased ventral concavity generated by the displacement of the cervical ribs. Vertebrae 48–54 are not well prepared. Therefore, it is impossible to evaluate them. Vertebrae 55–59 show a less depressed ventral surface, but the ventral foramina are elongated. The vertebrae 60–64 show a less deformed vertebra, and the ventral surface becomes flat to convex. Vertebrae 65–72 show the least distortion of the series with a wide neural canal and visible and elliptical ventral foramina (Figure 1m–o).

3.4. Measures of Cervical Centra

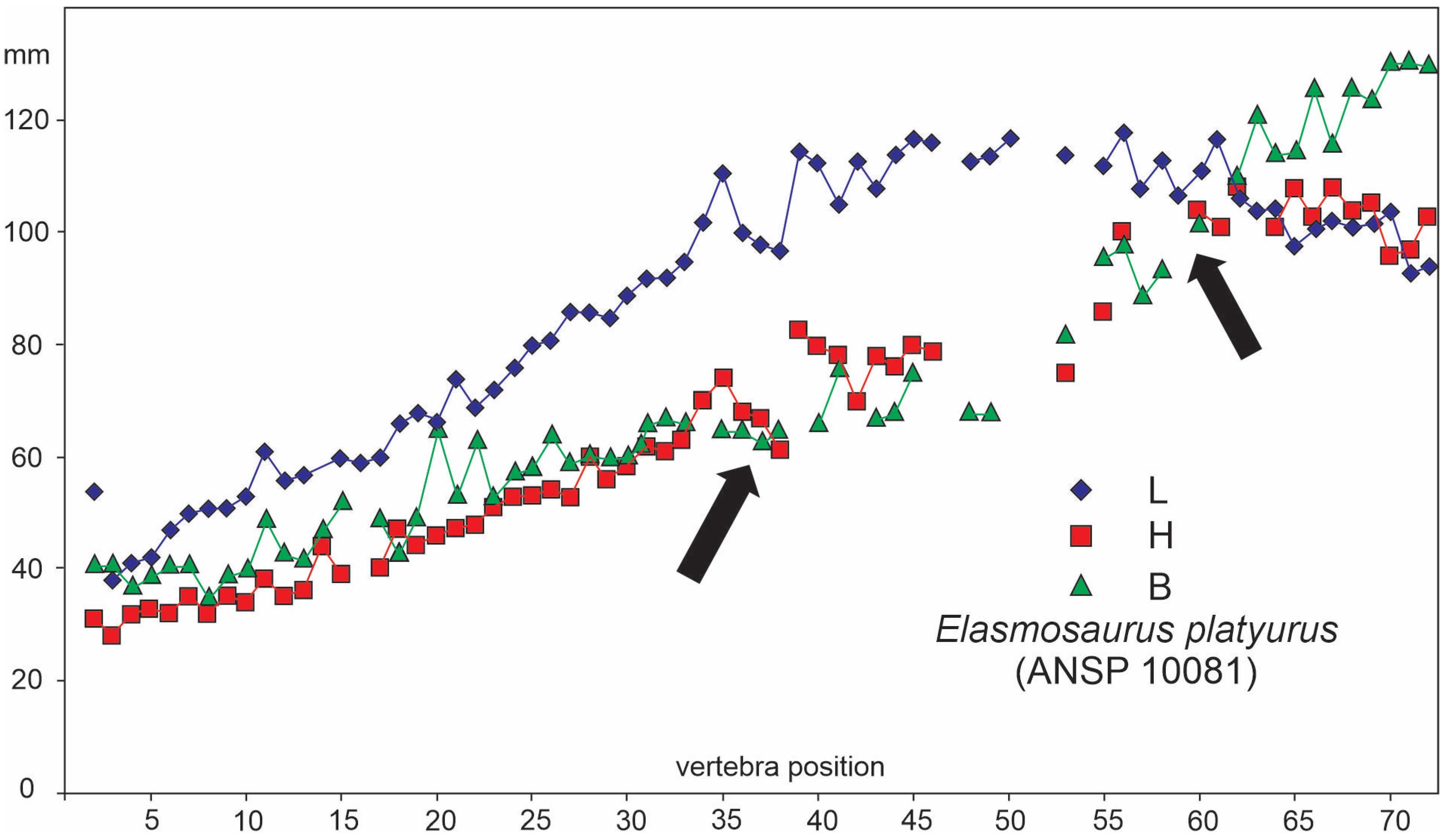

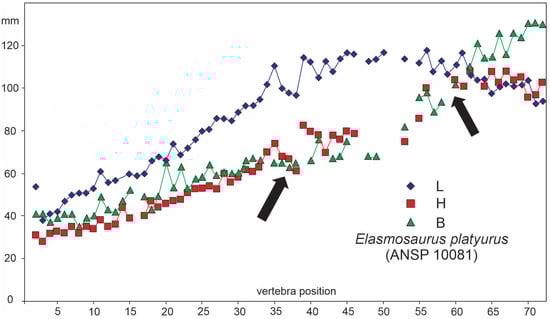

The values of L, H, and B are given in Supplementary Materials 1 Table S1 and Figure 2. In the cranio–caudal direction, the length (L) values increase approximately from the 45th to the 55th cervical vertebrae and then tend to decrease until the posteriormost cervicals. The height (H) values show a growing tendency in the cranio–caudal direction along the neck, with few exceptions. Finally, the width (B) values show a clear growing cranio–caudal sequence with a long plateau between the 35th and 50th cervical vertebrae and middle cervicals.

3.5. Estimation of Retrodeformed B Values in Elasmosaurus platyurus

The results of regression lines of the complete B value sequences and the first ten B and last ten B values against the cervical position are given in

Table 3. Regression line of vertebral position vs. B values for first ten and last ten cervical vertebrae: ac = linear coefficient of complete regression; ar = linear coefficient of reduced regression.

Regression	r2	Regression Line	p-Value	ac/ar
Styxosaurus sp. (complete)	0.9919676	y = 1.795x + 27.41	<2.10−16	0.988
Styxosaurus sp. (reduced)	0.9935	y = 1.816x + 29.625	<2.10−16
Tuarangisaurus sp. (complete)	0.9848	y = 1.08x + 36.8	<2.10−16	1.018
Tuarangisaurus sp. (reduced)	0.9933	y = 1.06x +35.30	<2.10−16
Vegasaurus molyi (complete)	0.979	y = 1.411x + 27.534	<2.10−16	1.016
Vegasaurus molyi (reduced)	0.9941	y = 1.389x + 25.837	<6.71.10−16

. All (complete and reduced data) show a high r² value and are statistically significant (α < 0.05). Additionally, the comparison between each part indicates that, in each case, the regression lines show no significant differences. Therefore, the B value of the cervical centra of Elasmosaurus platyurus (ANSP 10081) is estimated using the regression lines of reduced data (

Table 4. Regression model obtained for B values of cervical centra of ANSP 10081 vs. vertebral position.

Regression	r2	Regression Line	p-Value
Elasmosaurus platyurus (reduced)	0.9828	y = 1.46x + 34.61	<2.20−16

).

The ten anteriormost cervicals of (ANSP 10081) show lateral compression (although less than the middle cervical vertebrae). Therefore, although arbitrary, 10% is added to the original B values in order to diminish its effect in the complete regression prior to the calculation of the regression line. The regression line of vertebral position vs. B values obtained for the first ten (corrected by adding 10% as they show a visible lateral compression) and the posteriormost ten (mostly uncompressed) cervical vertebrae of Elasmosaurus platyurus is given in Table 4.

4. Discussion

4.1. Elongation Pattern of Elasmosaurus platyurus

The first point to discuss is the differences in values between different versions of the data sets of the VLI values of ANSP 10081 (

Table 5. Comparison of VLI mean value, VLI standard deviation, MAVLI, and Max VLI.

Data Source	VLI Mean	VLI sta. Dev.	MAVLI	Max VLI
Welles, 1952, O’Keefe and Hiller, 2006 [4,8].	137.72	27.15	150	174
Sachs, 2005 [16].	136.07	22.73	143	175
New measures, this paper	129.72	23.22	141	160
Estimated measures, this paper	118.29	17.65	127	145

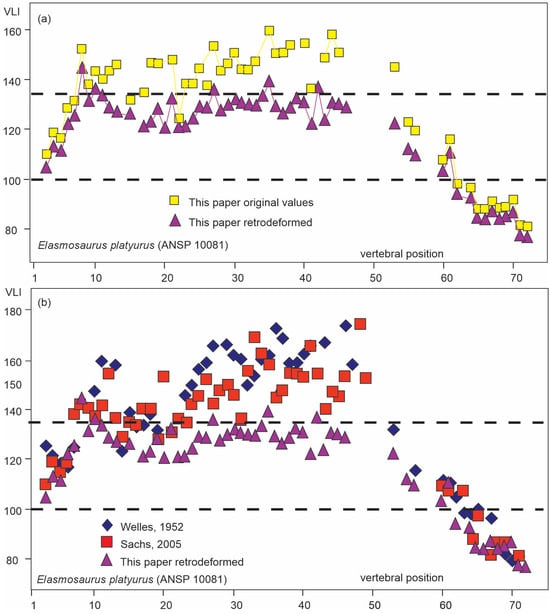

) and graphs (Figure 3). The differences between the data of Welles [8] and Sachs [16] are explicable as differences in measures (including the articular face, which is considered an observational error) and some changes in vertebral order. On the other hand, the differences between the latter two VLI sequences and the VLI estimated here are quite high and require other explanations. The main differences are explainable by the strong lateral compression suffered by the cervical vertebrae, almost closing the neural canal, displacing the ribs and reducing the B values. Additionally, the description reinforces this assumption regarding a significant distortion, and indicates that the most affected zone is the middle cervical zone (also commented on by Sachs, 2005 [16]), where the L values reach their maximum. The combination of the latter two elements (high L values and B maximum reduction by deformation) generates the highest VLI values of the neck of Elasmosaurus platyurus. These values correspond with the middle cervical region of Elasmosaurus platyurus.

The estimation of the undeformed B and VLI values (Supplementary Materials 1 Table S1, Figure 3) indicates that Elasmosaurus platyurus, the iconic species of the elongated group, seems to show a VLI lower than previously considered. Therefore, the definitions of the neck elongation patterns should be modified. The division into fixed categories is not possible at all. However, the diversity seems to fall into three main groups following the ideas of [4,5], and some criteria appear to be valid. Particularly important is to remark on the mean value of VLI in the anterior two-thirds of the neck (MAVLI, hereafter). The new definitions of categories proposed here are given below (

Table 6. Definitions of categories of neck elongation patterns proposed in this contribution.

	MAVLI	Max VLI	HI, BI Middle Cervical
Non-elongated	MAVLI < 95	≤100	HI~100; BI > 140
Elongated	125 > MAVLI > 95	100 < max < 135	HI~70–80; BI < 140
Extremely elongated	MAVLI > 125	>135	Some vertebrae HI < 65

).

4.2. Classification of Elasmosaurid Neck Elongation Pattern

Each elasmosaurid is classified based on its neck pattern using the new criteria. In cases where no complete neck is available, the possible category is discussed (Table 6 and

Table 7. Plesiosauromoph taxa, MAVLI, MAX VLI, and Mean HI and BI values. For citation, see Table 8. * indicate that is based on incomplete cervical regions, ~ indicate approximate values.

Taxa	MAVLI	Max VLI	Mean HI/BI of Middle Cervicals
Neoplesiosauria
Rhaeticosaurus mertensi	-	-	-
Plesiosauroidea
Eoplesiosaurus antiquior	-	-	-
Plesiosauridae
Plesiosaurus dolichodeirus	91	102	HI = 103/BI = 79
Microcleididae
Microcleidus tournemirensis	129	143	HI = 61/BI = 86
Microcleidus homalospondilus	-	-	-
Seeleyosaurus guillelmiimperatoris	100	111	HI = 101/BI = 80
Cryptoclididae
Ophthalmothule cryostea	109	118	HI = 77/BI = 93
Spitrasaurus wensaasi	105	129	HI = 67/BI = 87
Spitrasaurus larseni	-	105?	-
Muraenosaurus leedsi	103	109?	HI = 99/BI = 83
Tricleidus seeleyi	92	98	HI = 100/BI = 80
Cryptoclidus eurymerus	~85	~88	-
Colymbosaurus megadeirus	~85	~94	-
Djupedalia engeri	85	88	HI = 70/BI = 95
Abyssosaurus nataliae	87	98	HI = 98/BI = 130
Picrocleidus beloclis	102?	106?	HI = 80/BI = 89
Tatenectes laramiensis	-	-	-
Kimmerosaurus langhami	-	-	-
Colymbosaurus svalbardensis	-	-	-
Leptocleididae
Brancasaurus brancai	94	110	HI = 96/BI = 95
Elasmosauridae
Callawayasaurus colombiensis	~96.3	107	HI = 82/BI = 109
Jucha squalea	-	124	-
Zarafasaura oceanis	-	-	-
Euelasmosaurida
Thalassomedon haningtoni	108	135	HI = 78/BI = 92
Libonectes morgani	108	128	HI = 67/BI = 101
Cardiocorax mukulu	-	-	-
Elasmosaurinae
Hydrotherosaurus alexandrae	105	118	HI = 91/BI = 102
Nakonanectes bradti *	91	100	HI = 88/BI = 134
Elasmosaurus platyurus (estimated)	127	145	HI = 65/HI = 87
Styxosaurus sp. (AMNH 5835)	135	147	HI = 63/BI = 89
Albertonectes vanderveldei *	139	141	HI = 66/BI = 79
Terminonatator ponteixensis	129	151	HI = 65/BI = 96
Weddellonectia
Kawanectes lafquenianum	-	-	-
Vegasaurus molyi	97	108	HI = 86/BI = 120
Morenosaurus stocki	-	-	-
Futabasaurus suzukii	-	-	-
Aristonectinae
Wunyelfia maulensis	-	-	-
Kaiwhekea katiki	-	-	-
Aristonectes quiriquinensis *	-	~87	-
Aristonectes parvidens *	~79	~88	-

). Among the basal elasmosaurids, Jucha squalea only preserves two groups of non-continuous cervical vertebrae, of which one of them (UPM NV 15, [25]) has VLI values well above 100 but lower than 125. Therefore, J. squalea seems to exhibit an elongated neck pattern. The holotype of Callawayasaurus colombiensis (UCMP 38349, Welles [8], Figure 4a (this paper) shows VLI values higher than 100 but never reaching 110, thus fitting the elongated pattern. There is no available list of vertebral measurements for Zarafasaura oceanis. However, based on photos of the specimen (WDC CMC-01, Supplementary Material 1, Figure S8), the cervical proportions indicate a non-elongated pattern.

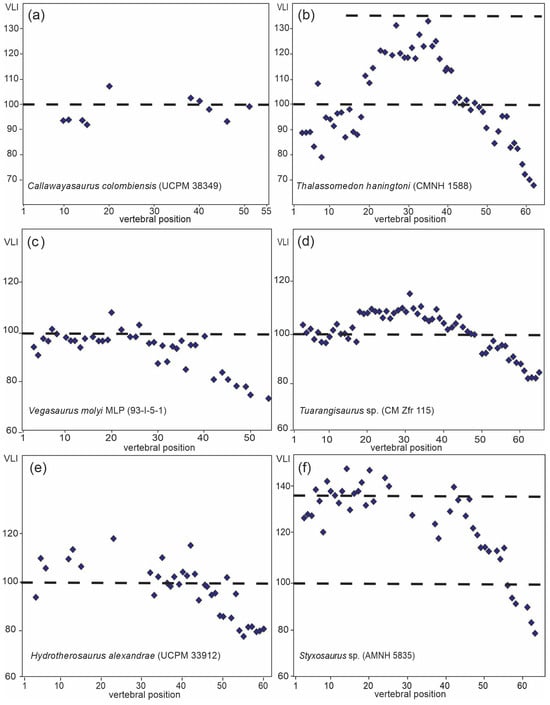

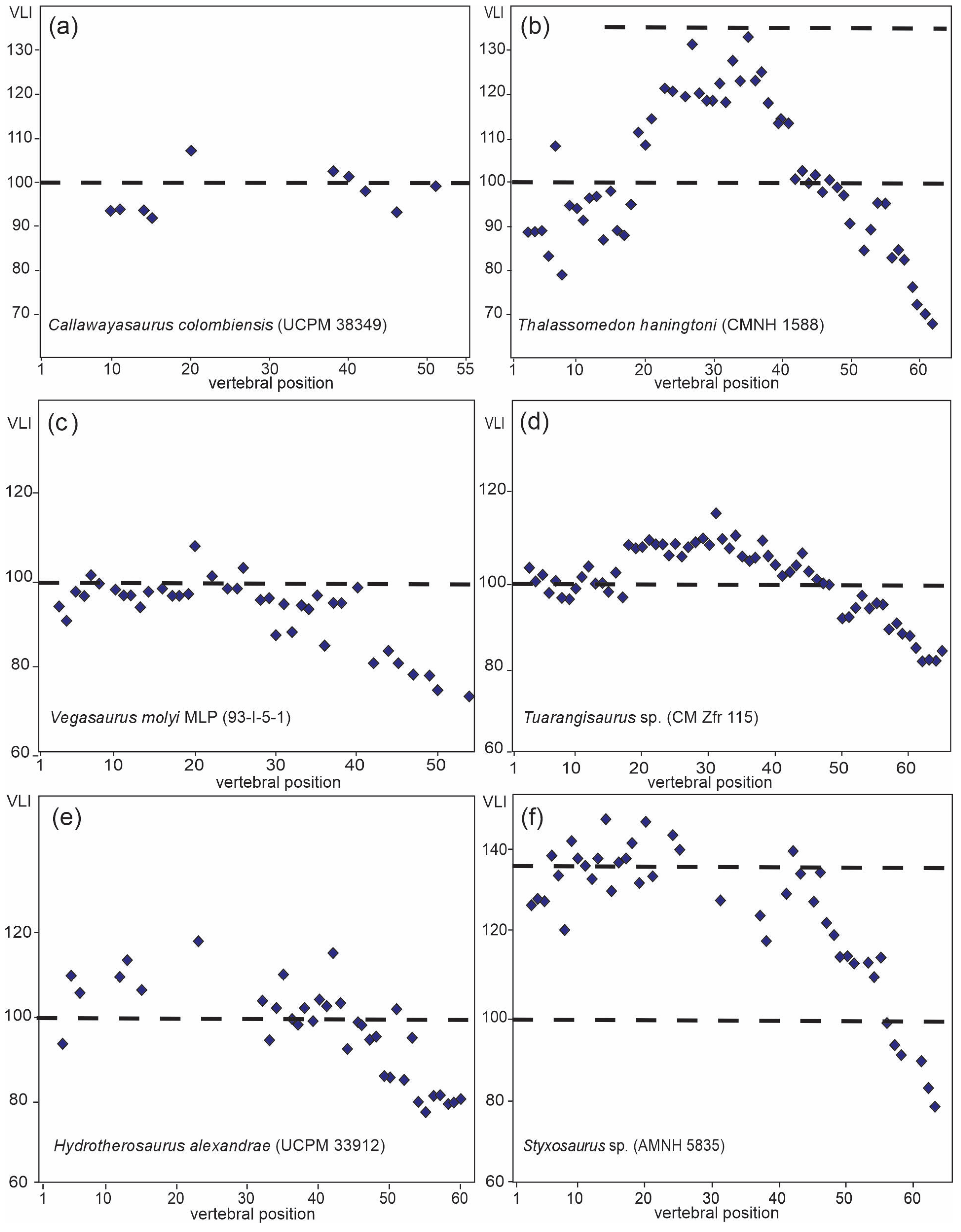

Among euelasmosaurians, Thalassomedon haningtoni (DMNS 1588 [18], Figure 4b (this paper) has a cervical vertebra (numbered 35) with relatively high VLI values (134) but lower than 135. Combined with the observation of probable lateral compression of DMNS 1588 (reduction of B values), as well as MAVLI being 108, it indicates that Thalassomedon haningtoni exhibits an elongated neck pattern. The VLI pattern of Libonectes morgani (SMUSMP 69120, [18]: Table 1) shows VLI values lower than 135 and MAVLI of 108, fitting well with the elongated group. The holotype of Cardiocorax mukulu (MGUAN PA103) only preserves a few cervical vertebrae, with one of them appearing to be anterior to middle and showing a VLI value of approximately 98. Additionally, the specimen MGUAN PA278, also referred to as C. mukulu [41], shows VLI values of the first seven post-axial cervical vertebrae between 76 and 88 and middle cervical vertebrae with VLI values of 83 and 100. Therefore, C. mukulu seems to present a strong case for a non-elongated neck, but as no complete neck is available, further evidence is needed to confirm this assumption.

Among the elasmosaurines, the VLI pattern of Hydrotherosaurus alexandrae (UCMP 33912, [15], Figure 4e) fits with the elongated group, as it exhibits middle cervical VLI values higher than 100 but lower than 135, and an MAVLI of 105. The only specimen of Nakonanectes bradti preserves only the anterior half of the neck, and its VLI sequence does not reach 100 (MOR 3072, Serratos et al., 2017 [6]), indicating a non-elongated neck. There are no complete sets of vertebral values available for Albertonectes vanderveldei; however, the available (Max VLI 141 and MAVLI~139) data indicate a pattern similar to that inferred for Styxosaurus (Figure 4f) and Elasmosaurus platyurus. Therefore, it is considered to exhibit an extremely elongated pattern. The case for Terminonatator ponteixensis is quite easy to determine as, although not complete, the neck is well preserved Sato (2002, 2003 [42,43]). This gives an approximate MAVLI of 129 and an MAX VLI of 151, which indicate an extremely elongated neck pattern, as concluded by (O’Keefe and Hiller, 2006 [4]).

Among weddellonectians, the holotype of Morenosaurus stocki only preserves approximately the posterior half of the neck. The VLI pattern does not reach 95 (Welles, 1943 [15]) in any vertebra. Considering that the posterior cervical region usually shows a VLI lower than the middle cervicals in elasmosaurids, it is impossible to determine the elongation pattern as it falls on the boundary between elongated and non-elongated. A similar case occurs with the holotype of Futabasaurus suzukii, where the neck of the holotype (NSM PV15025) only preserves 15 cervical vertebrae representing the posterior half of the neck, with relatively low VLI values ranging from 69 to 82 (Sato et al., 2006 [50]), probably indicating a non-elongated neck. However, this assumption is weak as no complete neck is available. A similar case is observed in Aphrosaurus furlongi, where only the 18 posteriormost cervical centra are preserved. The neck of Vegasaurus molyi ([19], Figure 4c) exhibits middle cervicals with VLI values around 100, falling within the lower limit of the elongated neck pattern. No complete cervical region of Kawanectes lafquenianum is available; however, the specimens at hand comprise middle cervical vertebrae with VLI values around 100 [44], indicating that the neck probably fits well with the elongated pattern. A similar situation happened in Chubutinectes carmeloi, and therefore, this species probably shows an elongated neck pattern [45]

The holotype of A. parvidens (MLP 40-XI-14-6) only preserves the nineteen anterior and middle cervical, with VLI values lower than 88. Therefore, it exhibits a non-elongated pattern [49]. The holotype of Aristonectes quiriquinensis (SGO.PV.957, [48]) preserves anterior, middle, and posterior cervical vertebrae. The maximum VLI value recorded is 95, indicating that A. quiriquinensis shows a non-elongated pattern. There are no complete sets of vertebral measurements available for Kaiwhekea katiki; however, Cruickshank and Fordyce [47] indicate that the VLI of the anteriormost cervicals of the holotype varies between 61 and 75, fitting well with the non-elongated pattern. The VLI of the anteriormost five post-axial vertebrae of Wunyelfia maulensis ranges from 82.9 to 89.4 [46], indicating a non-elongated cervical pattern.

4.3. Plesiosauromorph Neck Elongation Pattern

The modification of the classification of neck elongation patterns and its application to elasmosaurids opens questions about its application to other plesiosauromorph plesiosaurs. The results of this are given in Table 7 and

Table 8. Plesiosauromorph taxa, neck elongation pattern, and data source.

Taxa	Neck Elongation	Data Source
Neoplesiosauria
Rhaeticosaurus mertensi	Non-elongated	[7]
Plesiosauroidea
Eoplesiosaurus antiquior	Non-elongated?	[26]
Plesiosauridae
Plesiosaurus dolichodeirus	Non-elongated	[27]
Microcleididae
Microcleidus tournemirensis	Extremely elongated	[28]
Microcleidus homalospondilus	Elongated?	[29]: table V
Westphalisaurus simonsensii	Elongated?	[13]
Seeleyosaurus guillelmiimperatoris	Elongated?	[30]
Cryptoclididae
Ophthalmothule cryostea	Elongated	[31]
Spitrasaurus wensaasi	Elongated	[32]
Tricleidus seeleyi	Non-elongated	[33]
Cryptoclidus eurymerus	Non-elongated	[9]
Colymbosaurus megadeirus	Non-elongated	[34]
Djupedalia engeri	Non-elongated	[35]
Spitrasaurus larseni	Non-elongated	[32]
Abyssosaurus nataliae	Non-elongated	[36]
Picrocleidus beloclis	Non-elongated	[33]
Tatenectes laramiensis	Non-elongated	[37]
Kimmerosaurus langhami	Non-elongated	[38]
Colymbosaurus sp.	Non-elongated	[39]
Leptocleididae
Brancasaurus brancai	Non-elongated	[4]
Elasmosauridae
Callawayasaurus colombiensis	Elongated	[7]
Jucha squalea	Elongated	[25]
Zarafasaura oceanis	Non-elongated	[40]
Euelasmosaurida
Thalassomedon hanintoni	Elongated	[15]
Libonectes morgani	Elongated	[18]
Cardiocorax mukulu	Non-elongated	[41]
Elasmosaurinae
Hydrotherosaurus alexandrae	Elongated	[15]
Nakonanectes bradti	Non-elongated	[6]
Elasmosaurus platyurus	Extremely elongated	[8]
Styxosaurus sp.	Extremely elongated	[8]
Albertonectes vanderveldei	Extremely elongated	[3]
Terminonatator ponteixensis	Extremely elongated	[42,43]
Weddellonectia
Kawanectes lafquenianum	Elongated	[44]
Vegasaurus molyi	Elongated	[19]
Chubutinectes carmeloi	Elongated?	[45]
Aristonectinae
Wunyelfia maulensis	Non-elongated	[46]
Kaiwhekea katiki	Non-elongated	[47]
Aristonectes quiriquinensis	Non-elongated	[48]
Aristonectes parvidens	Non-elongated	[49]

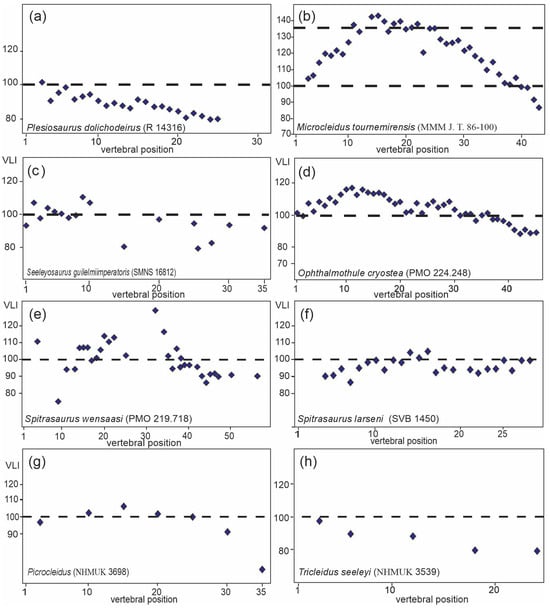

. Although not a clear “plesiosauromorph,” the oldest plesiosaur, Rhaeticosaurus mertensi, is considered here as non-elongated [51]. Among Plesiosauroidea, the Hettangian Eoplesiosaurus antiquior is recorded as non-elongated with doubts, as the B values are unavailable (Benson et al., 2012 [26]). Also, the iconic Sinemurian Plesiosaurus dolichodeirus shows a non-elongated pattern (Table 1 [27] and Figure 5a (this paper)).

Among microcleidids, Seeleyosaurus guillelmiimperatoris fits well with the elongated neck definition even though only a small number of cervicals show VLI values above 100 ([30]: Table 1, Figure 5c (this paper)). The same is inferred from Microcleidus homalospondilus based on Owen’s description [29]. The Toarcian Microcleidus tournemirensis is a plesiosauromorph with an extremely elongated neck (MAVLI 129; Max VLI = 143, data from Bardet et al. [28], Figure 5b (this paper)), and therefore is the first appearance of elongated patterns in plesiosaurian history.

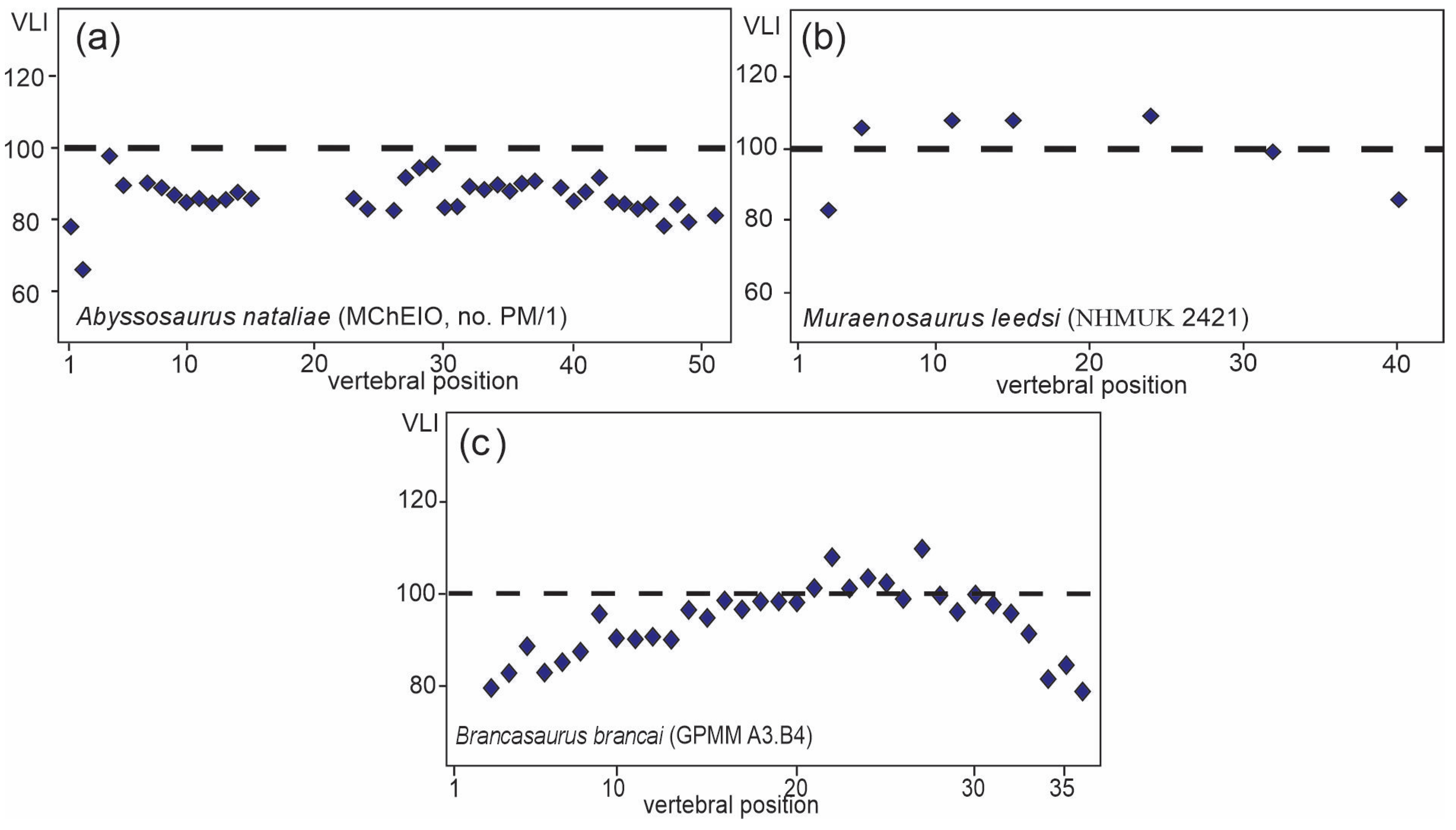

The cryptoclidids Ophthalmothule cryostea, Spitrasaurus larseni, Spitrasaurus wensaasi, Picrocleidus, Tricleidus seeleyi, Abyssosaurus nataliae and Muraenosaurus leedsi (Figure 5d–h and Figure 6a,b) are recorded as elongated plesiosauromorphs [32,33,36], while the other analyzed cryptoclidids, Cryptoclidus eurymerus ([9]: Figure 13), are not elongated. The case of Kimmerosaurus langhami is complex as only the first seven cervical vertebrae are available and show VLI values higher than 75 (Brown et al., 1986 [38]), indicating a probable non-elongated pattern. However, this inference is weak due to the incompleteness of the neck. Finally, among Leptocleididae, Brancasaurus brancai shows a non-elongated pattern [52].

In summary, the redefinition of neck elongation patterns allows for a more comprehensive history of plesiosauromorphs. It indicates that the oldest appearance of elongated necks (MAVLI > 100) most likely occurred during the Pliensbachian-Toarcian while the appearance of the extremely elongated pattern (MAVLI > 125, represented by Microcleidus tournemirensis) happened during the Toarcian as was previously briefly commented by Benson et al. [26]. This shows that a complete diversity of neck elongation patterns was present during the Early Jurassic and was mirrored during the Late Cretaceous, albeit in a more extreme expression, mainly within elasmosaurids.

5. Conclusions

Partial retrodeformation of the cervical centra of the holotype of E. platyurus was performed, leading to the conclusion that the natural sequence of VLI values is lower than previously recorded.

A modification to the classification of neck elongation patterns in plesiosauromorphs is proposed, introducing the following categories: extremely elongated (MAVLI > 125; Max VLI > 135; some cervicals HI < 65), elongated (125 > MAVLI > 100; 100 < Max VLI < 135; middle cervical HI~70-80; BI < 140), and non-elongated (MAVLI < 100; Max VLI < 100; middle cervical HI~100; BI > 140).

The elongated pattern appears during the Pliensbachian-Toarcian, and the extremely elongated necks are recorded for the first time in the Miclocleidid Microcleidus tournemirensis (Toarcian). This indicates that the complete diversity of neck elongation was present during the Early Jurassic and reemerged during the Late Cretaceous.
