Diversity of Diatom Algae in the Lena Delta Nature Reserve and the Adjacent Territory in the Specific Ecological Factors of the Arctic
1
Institute of Evolution, University of Haifa, Mount Carmel, 199 Abba Khoushi Ave., Haifa 3498838, Israel
2
Institute for Biological Problems of Cryolithozone Siberian Branch of Russian Academy of Science (IBPC SB RAS), Lenin av., 41, 677980 Yakutsk, Russia
3
Papanin Institute for Biology of Inland Waters Russian Academy of Sciences (IBIW RAS), Nekouz District, Yaroslavl Region, 152742 Borok, Russia
*
Author to whom correspondence should be addressed.
Diversity 2023, 15(7), 802; https://doi.org/10.3390/d15070802
Submission received: 24 May 2023
/
Revised: 14 June 2023
/
Accepted: 21 June 2023
/
Published: 23 June 2023
Abstract
:A total of 413 diatom taxa were known for aquatic habitats of the Lena Delta Nature Reserve. We identified 385 taxa in 14 small tundra lakes near the reserve that significantly enriched the diatom diversity of the region (666 taxa including definitions to the genus level). Thus, the species composition of diatoms in the reserve and adjacent territories was increased by 278 species. We showed that the species of the genera Pinnularia (57) and Eunotia (51) have predominance at the family and generic levels. The index of intraspecific variability Ssp./Sp. for the lakes of the reserve was 1.11, and that for the lakes of the Tiksi region 1.14, which is typical for high-latitude and high-mountain communities. The number of rare or endangered species varied in different lakes from 1 to 10, totaling 42 species for the entire study area. Bioindication has shown that potentially threatened species prefer moderate temperatures, and slightly acidic or neutral environments free from organic pollution. A comparative analysis of the species composition of diatoms in the vicinity of the Lena Delta and other northern water bodies of Yakutia and the Arctic Islands showed that the species composition of each lake in the Arctic has a discernably different species distribution. The indicator characteristics show a certain response of the species composition of diatoms to changes in salinity, pH, and organic pollution. Regularities in the spatial distribution of diatoms in the study area were revealed in connection with the environmental variables of their habitat. Statistical mapping of diatom diversity data and bioindicators revealed a pronounced response to point pollution, and also let us assume the influence of summer northeast winds on species composition of the studied lake communities. We suggest that the high diversity inherent in the diatom lakes of the Tiksi coastal zone, which can even be updated in further studies, can be considered as a property of coastal biota inherent in ecotones. Since it is in the coastal Tiksi region that a surge in the number of species is observed, this region can be considered not only an ecotone, but also a hotspot of diatom diversity. The results of the study are important for developing the basis for monitoring biodiversity under the conditions of anthropogenic and climatic changes in the Arctic.
1. Introduction
The diatom algae of Bacillariophyta Karsten are a common group of colonial or single-celled organisms characterized by an exogenous siliceous shell. The study of the ecology and species diversity of diatoms in the Arctic is of particular importance in connection with the phenomena of global climate change.
The study of diatoms of the Eurasian high Arctic aquatic ecosystems has remained in the initial stage but even now results are represented on the Eurasian northern coast of Arctic Ocean [1,2], the Arctic Ocean islands [3,4,5,6], Chukotka [7,8,9], and the Yakutia continental part [10,11].
Our studies of the Northern Yakutia aquatic communities were carried out to assess the impact of anthropogenic and climatic factors on them [12,13,14,15,16,17,18].

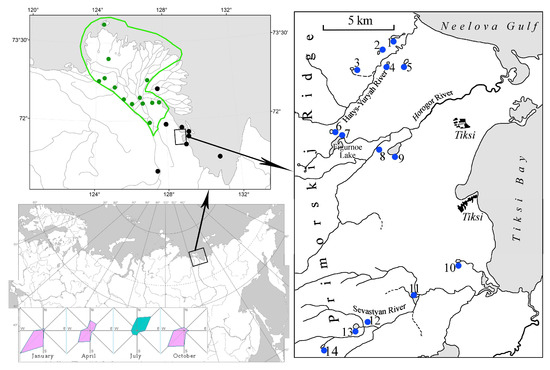

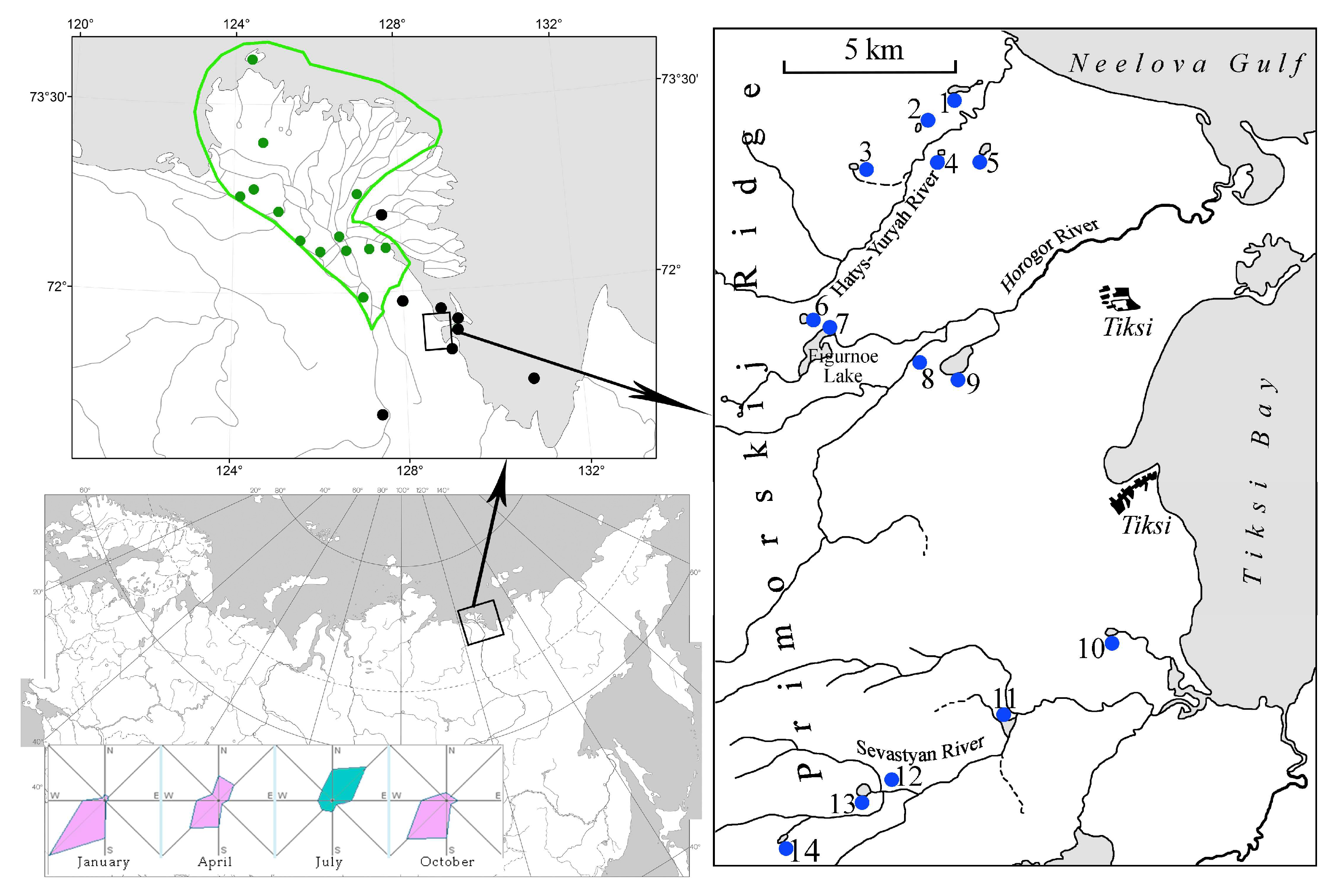

The water bodies of the Lena Delta Nature Reserve (Figure 1, green dots) and adjacent territories (black dots) include the lower reaches of the Lena River, the river delta, the close places of the Laptev Sea area and the New Siberian Islands, as well as tundra reservoirs on the Kharaulakh Range. All mentioned waterbodies are located beyond the Arctic Circle in the zone of continuous occurrence of permafrost soils. Algological studies of this area were started almost 100 years ago. The latest summary, including all currently available information on the algoflora of the delta region, was previously published on the GBIF.org portal [19]. Therefore, the diatom flora of the Lena Delta Nature Reserve and the area close to its border coast (Figure 1, green and black dots) included information on 413 taxa below the genus rank before this study. Investigations of diatoms in the lakes of the coastal territory adjacent to the reserve (Figure 1, blue dots) are currently ongoing due to the potential for industrial development of the coastal territory and shelf [18].
The species composition and diversity of diatoms in Arctic water bodies is influenced by several regional features: the area of the reservoir, the direction of the prevailing winds, water temperature, salinity, and pH, as mentioned in previous studies [1,18,20]. However, the detection of species worthy of inclusion in the Red Book of the Arctic [6,21] has not been done so far. Figure 1 shows that the region of the Arctic coast near the Lena River Delta needs to be studied more. As a basis for this study, we chose the data on the species composition of diatoms of the Lena Delta Nature Reserve and the adjacent territory (green and black dots), hereinafter referred to as “delta region” [19], and a recent survey of 14 water bodies in the vicinity of Tiksi settlement (blue dots), hereinafter referred to as “Tiksi region” [18]. Unfortunately, there is very little data available on the habitat for water bodies in “delta region” but the environmental data for “Tiksi region” were sufficient [18] to be used for the species–environment relationships analysis.
Our hypothesis was that by studying in detail the relationship between diatom biodiversity and environmental variables in the model zone of the Arctic coast, it is possible to identify the introduction of species from temperate latitudes to the Arctic coast in the context of global climate change.
The aim of this study was to compile a general list of diatoms of the Lena Delta Nature Reserve and the adjacent coastal area, characterize the diversity and species richness, conduct an ecological and geographical analysis, reveal environmental factors influencing the diatom diversity in the studied lakes, and identify potentially threatened species worthy of inclusion in the Red Book of the Arctic region.
2. Materials and Methods
2.1. Description of Study Area
The study area is located north of the Arctic Circle on the coast of the Laptev Sea of the Arctic Ocean and includes the Lena River Delta and reservoirs on the eastern spur of the Kharaulakh Range of the Verkhoyansk Mountain system. The maximum height reaches 400 m above sea level. The underlying rocks are mainly shales, sandstones, and limestones, as well as effusive rocks that were formed because of removal by the Lena River or accumulated because of catastrophic outbursts of a glacier-dammed lake in the late Pleistocene-early Holocene [22,23,24]. The territory belongs to the tundra and mountain-tundra natural zones. The climate is polar maritime, the average annual air temperature is −9–11 °C [25], and the average frost-free period is 45 days [26]. The depth of seasonal thawing of permafrost soils is 0.2–1.2 m [27]. The average annual precipitation reaches 212 mm, of which the bulk falls from June to August. The phenomena of a polar day in summer and a polar night in winter are characteristic. Strong winds are frequent, and the warmest month of the year, July, is characterized by the lowest average hourly wind speed of the year, which is 15.5 km h−1 (Figure 1, wind roses). The delta and coastal areas are characterized by an abundance of small tundra reservoirs due to limited drainage due to the low thickness of the seasonally thawed permafrost layer [28]. Our work on the territory adjacent to the reserve was carried out on 14 different types of water bodies, which are shallow tundra lakes, small reservoirs, and a hollow in the swampy tundra (Table 1, Figure 1 and Figure 2).

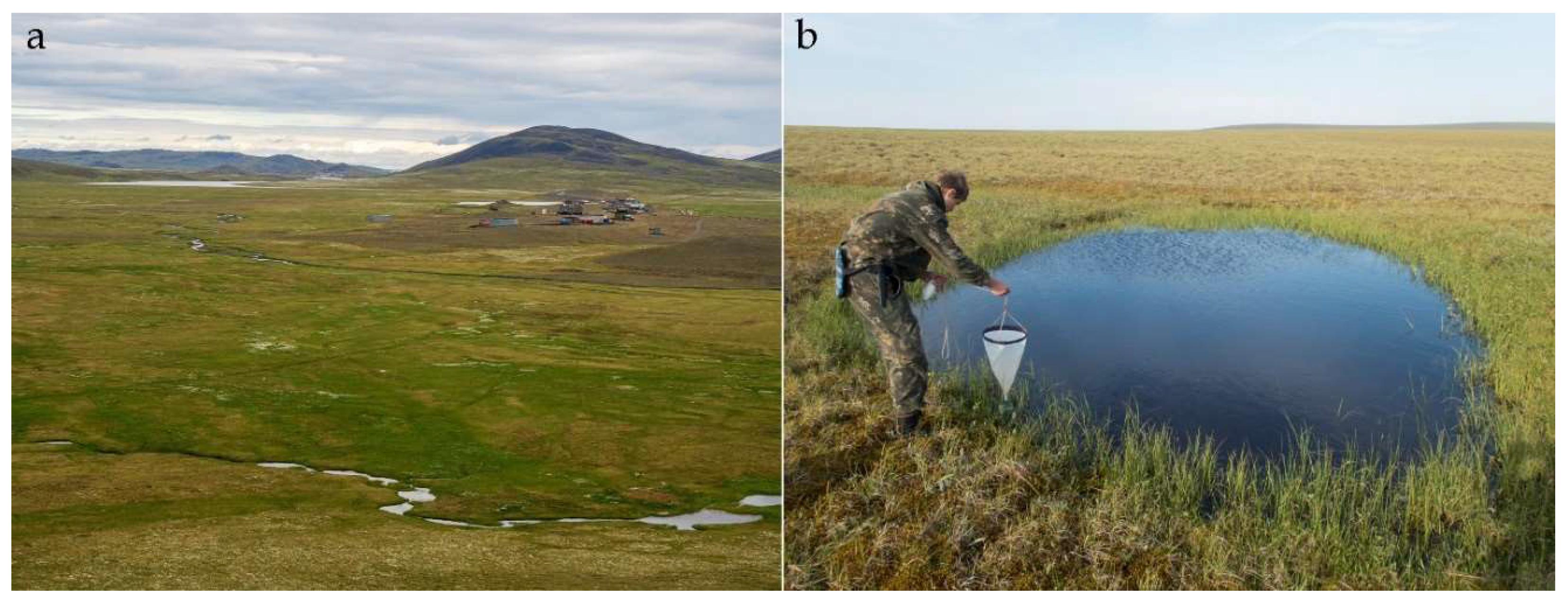

2.2. Sampling
Algae sampling on 14 waterbodies of the adjacent territory was carried out between 3 and 7 July 2021. When taking samples, Apstein’s plankton net (SEFAR NITEX fabric, mesh diameter 15 µm) was used. All samples from 14 lakes were taken by throwing the Apstein net three times. Since the lakes are shallow water bodies, the shores of which are overgrown with tundra vegetation, in the process of sampling, not only the inhabitants of the water mass, but also organisms that were disturbed and torn off from the substrate were collected in the net. So, each sample accumulated both plankton and periphyton. Fixation with 4% neutral formaldehyde solution was carried out immediately after collection. The temperature of water and the morphometric parameters of each lake were determined during the collection of phytoplankton. Coordinates and altitudes of the stations were defined by a Garmin eTrex GPS-navigator (Table 1). Water samples of 1 L were collected from each lake for chemical analysis. All samples were transported for determination to the Analytical Chemistry Laboratory of the Institute for Biological Problems of Cryolithozone SB RAS, Yakutsk, Russia.
2.3. Diatom Analysis
Cleaning of diatom shells from organic matter was carried out by burning in 30% hydrogen peroxide with 6 h heat treatment in a thermostat at 85 °C [29]. Diatoms in prepared permanent preparations were examined using a JSM-6510 LV (JEOL Ltd.; Tokyo, Japan) scanning electron microscope.
Handbooks and individual articles were used for the diatom species determinations [9,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51]. The modern species names were adopted using algaebase.org [52]. Rare and endangered species are marked based on data on the distribution of well-studied diatoms in Central Europe [53] in comparison with IUCN [54] (The International Union for Conservation of Nature) criteria (Table 2). Bioindicator analysis was performed according to [55], revealing species-specific ecological preferences [56,57]. Statistical maps were constructed as the network analysis in JASP (significant only) on the botnet package in the R Statistica package [58]. The BioDiversity Pro 2.0 program was used for similarity calculation [59].
3. Results
3.1. Taxonomical and Floristic Analysis of Diatoms
A significant diversity (385 taxa, Appendix A Figure A1 and Figure A2) of diatoms was found for 14 small tundra shallow lakes in “Tiksi region” [18], which, together with the identified previously diatom species in the Nature Reserve itself of the “delta region” [19], makes up a general floristic list of 666 taxa (including definitions to the genus level) (Appendix A Table A1). Thus, the species composition of diatoms in the reserve and adjacent protected areas was updated by 278 species.

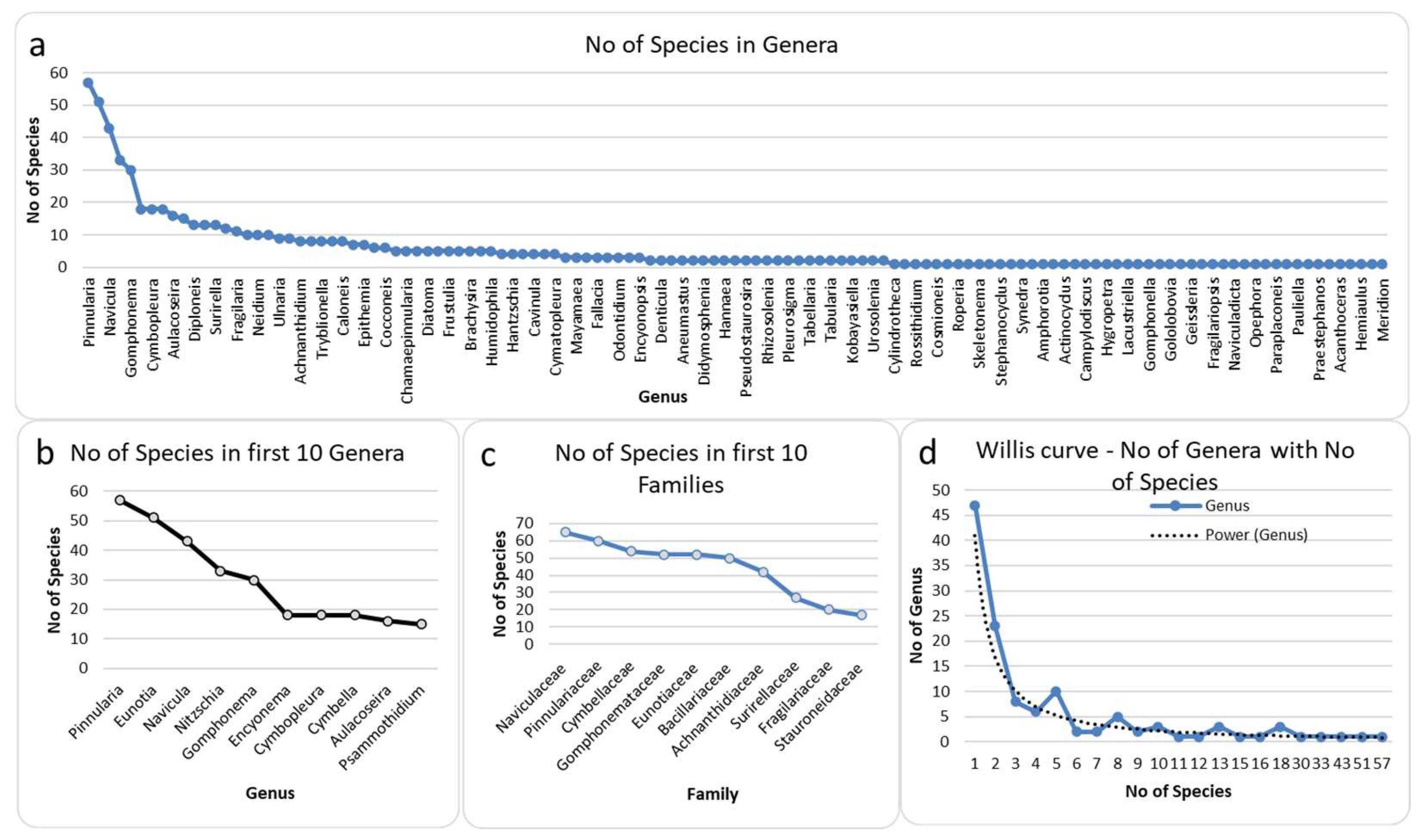

For the diatom flora of the habitats of this Arctic coast, a wide range of generic richness of 123 genera was revealed, including from 1 to 57 species (Figure 3a), with a predominance of species of the Pinnularia (57) and Eunotia (51) genera (Figure 3b).
Among the first 10 families out of 47, the Naviculaceae family with 65 species is the most abundant, followed by Pinnulariaceae and Eunotiaceae which move to 2nd and 5th place, respectively (Figure 3c). Floristic data were checked by us for completeness of knowledge by constructing a Willis curve comparing the number of species in genera [60]. It was found that when the Willis curve is represented by a hyperbolic distribution, it can be used as a criterion for the completeness of the list of algoflora and, therefore, for the subsequent analysis of alpha or gamma diversity. Figure 3d shows that the distribution of the number of species over the number of genera is a smooth enough line, almost coinciding with the trend line. This is evidence that the diatom flora of the Lena Delta Nature Reserve and the adjacent area is sufficiently studied to allow a systematic and ecological analysis of its species composition. However, irregularities on the distribution line indicate that the list of species has not yet been exhausted and will be increased with further research.
Floristic properties may be characteristic of the region under study. For this purpose, the index of intraspecific variability was calculated for the floristic composition of lakes in the Tiksi region. The index was defined as the quotient of the total number of identified taxa with a rank below the genus divided by the number of species. As it was revealed earlier [61], the index of intraspecific/species variability of diatom floras of Eurasia decreases from north to south, which may be associated with climate change and therefore can be used as a criterion for future warming. The index Ssp./Sp. for the entire Lena Delta Nature Reserve and the adjacent area, which includes the “Tiksi region” and “delta region”, was 1.11, and for the study area of the “Tiksi region”, the index was 1.14, typical for high-latitude and high-altitude communities (Table 3). The number of diatom species per area of the reserve and the “Tiksi region” differed markedly, amounting to 0.05 and 2.14 species per area, respectively.
Figure 4 makes it possible to compare the distribution of the studied lakes in the “delta region” and a group of 14 lakes in the “Tiksi region”. Both studied areas have a significant number of the investigated lakes evenly distributed over the territory, the altitude of which is within 0–140 m above sea level and the number of species in individual lakes varies in a wider range on the territory of the reserve than on the territory of Tiksi. That is, environmental properties are similar, and differences are observed in the number of species in lakes. In this regard, it should be noted that the lakes in the delta were visited repeatedly over several years, while 14 lakes in the “Tiksi region” were examined only once.

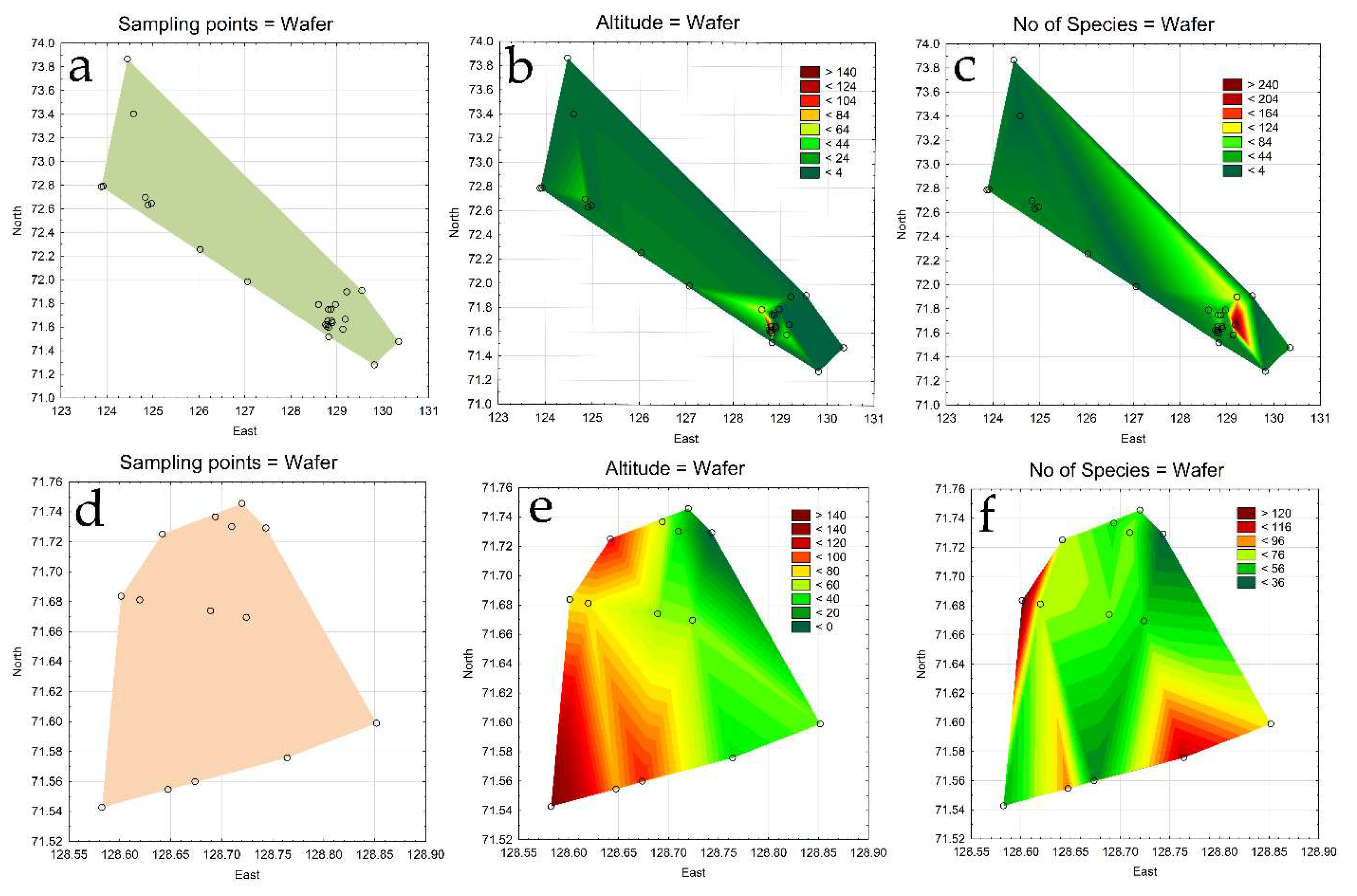

The relationship between the morphometry of the studied lakes and the diatom species richness was defined by calculation data for the number of species per lake area represented in Table 4. It can be seen that highest species richness was in lake 6, but the Sp./Area index was highest in lake 4. The calculation of correlations of this index with the morphometric parameters of a group of lakes showed a significant correlation (p-value = 0.04), which is −0.502 for Sp./Area and coastline length.
3.2. Bioindicators and Ecological Preferences of Diatoms

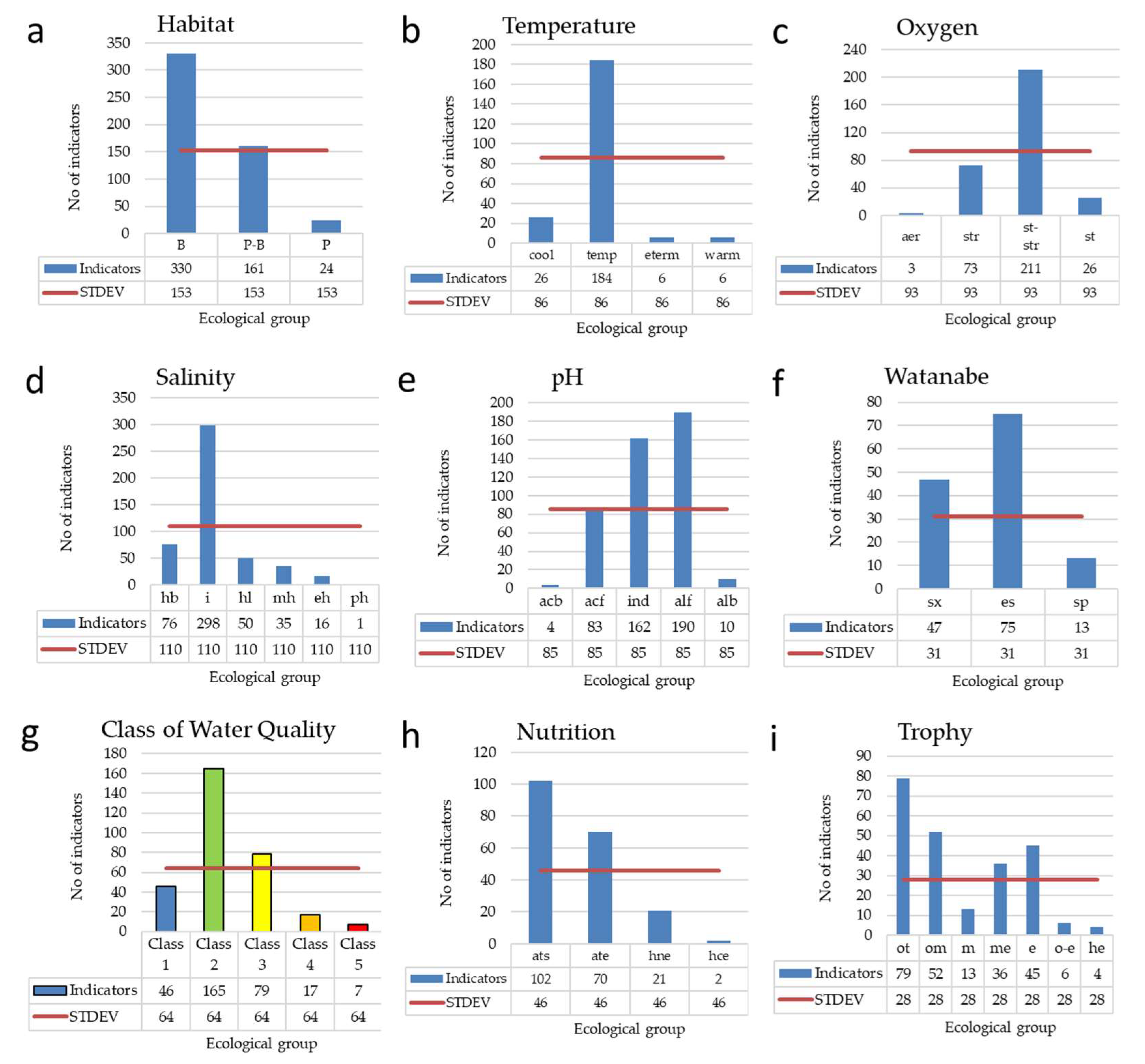

Ecological preferences of revealed species in “Tiksi region” and “delta region” are presented in Appendix A Table A2. The indicator species number distribution over the ecological categories is shown in Figure 5. Benthic and planktonic-benthic inhabitants prevail (Figure 5a). Temperate temperature species and indicators of middle oxygenated waters strongly prevail (Figure 5b,c). Indicators of low salinity group of indifferents (i) prevail in the studied area on the seacoast (Figure 5d). Indicators of water pH distribution show prevalence of groups of alkaliphiles and neutral waters (Figure 5e). Organic pollution indicators according to Watanabe demonstrated clear waters with sx and es groups, as shown in Figure 5f. Water quality was defined with the relation of the species-specific index saprobity S to 1–5 classes. Figure 5g shows the prevailing of organically unpolluted water indicators of classes 2 and 3. Between nutrition type indicators, the autotrophs (ats and ate) strongly prevail (Figure 5h). Trophic state indicator distribution was irregular, with two peaks in oligotrophic and eutrophic groups (ot and e) that reflected the impact on aquatic ecosystems, which increased the trophicity in some lakes (Figure 5i). The detailed distribution of species indicators over ecological categories is represented in Appendix A Table A3.
3.3. Species in Threat Categories
Appendix A Table A1 shows that the number of diatom species in the entire Lena Delta Nature Reserve and the adjacent areas is extremely high, which forces us to analyze the degree of their endemism and rarity, as well as the threat of extinction. Unfortunately, there is no mention of endangered diatom species in the Protected Areas of Russia [6]. Therefore, we used Germany’s most developed Red Data Book diatom species resource [53] as a basis for identifying potentially threatened species in the Lena Delta Nature Reserve and the adjacent areas (Table 2).

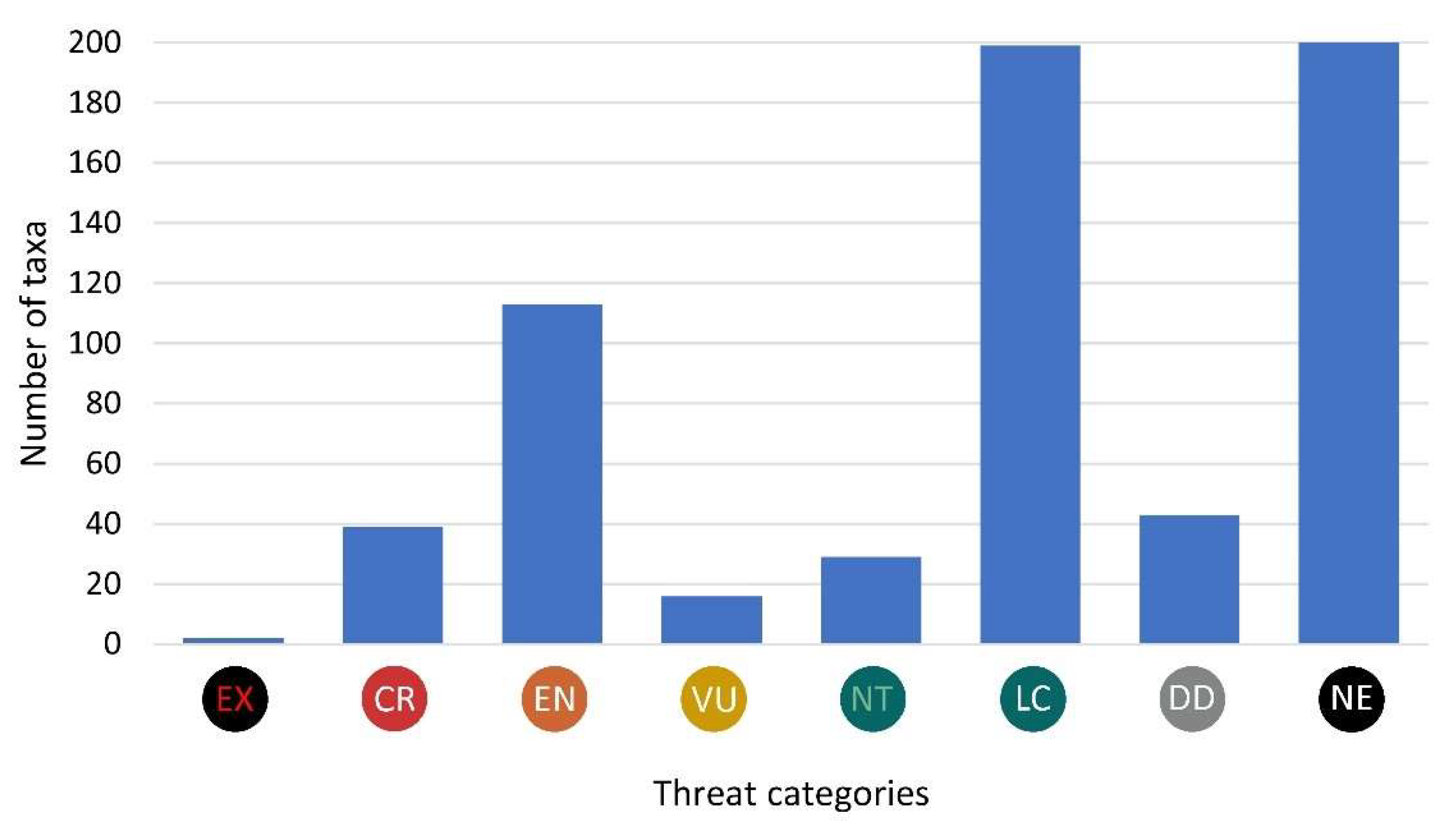

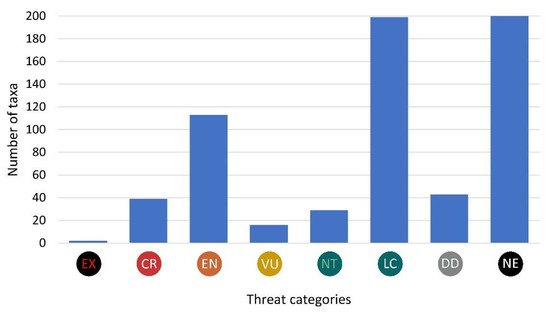

The distribution of the revealed species over Threat Categories can be seen in Figure 6. Analysis of the revealed species composition of diatoms in relation to the Threatened species categories of the highest three threat levels, 1–3, from Extinct or Lost to Highly Threatened, showed that 42 species classified as such (Table 5) can be found on the Lena Delta Nature Reserve and the adjacent areas.
Most of these are species of the genus Psammothidium (6), and there are three species each from the genera Brachysira and Navicula. Among the list of species, there are both newly described (Boreozonacola hustedtii) taxa without studied ecology and distribution, and widespread species (Neidium iridis). We have summarized the known ecological preferences (Appendix A Table A2) of these endangered species in Table 5 and found that they inhabit waters of moderate temperature (temp), well supplied with oxygen (str), having low salinity (ind), neutral, and weakly saturated with organic substances (es, o). These species are characterized by an autotrophic type of nutrition (ats) and living in communities of oligotrophic water bodies (ot). It follows that clean, fresh, pH-neutral, and unpolluted water communities are under threat.
3.4. Comparative Floristic
We can see the sufficient role of climatic, morphometric, and other environmental variables in the high latitude lakes community composition because of this calculation. Therefore, we decided to compare diatom community composition in morphometrically similar lakes which were located at the north of Eurasia. Altogether 40 lakes, including 14 Tiksi lakes, were taken for similarity of diatom community calculation: 9 Yakutia lakes (Y) Aalaah, Kurelah, Sullah, Dyiere, Ynah, Nal Tungulu, Large and Small Tungulu, Abalah, Nidzhili [10]; Bolshezemelskaya Tundra lakes (BZ) Vanutkiny, Kharbeyskiye, Korotaikha, Vorkuta, Usa, Kara [2]; Tiksi (T), species from the “Tiksi region” 14 lakes [18] (Appendix A Table A1). The Bray–Curtis calculation of the diatom species composition similarity of the lakes above the Arctic circle latitude of Russia shows strong separation of each group of the lakes. Figure 7 demonstrates three clusters that were marked for North Yakutia (1), Bolshezemelskaya Tundra (2), and 14 Tiksi lakes from current research (3).

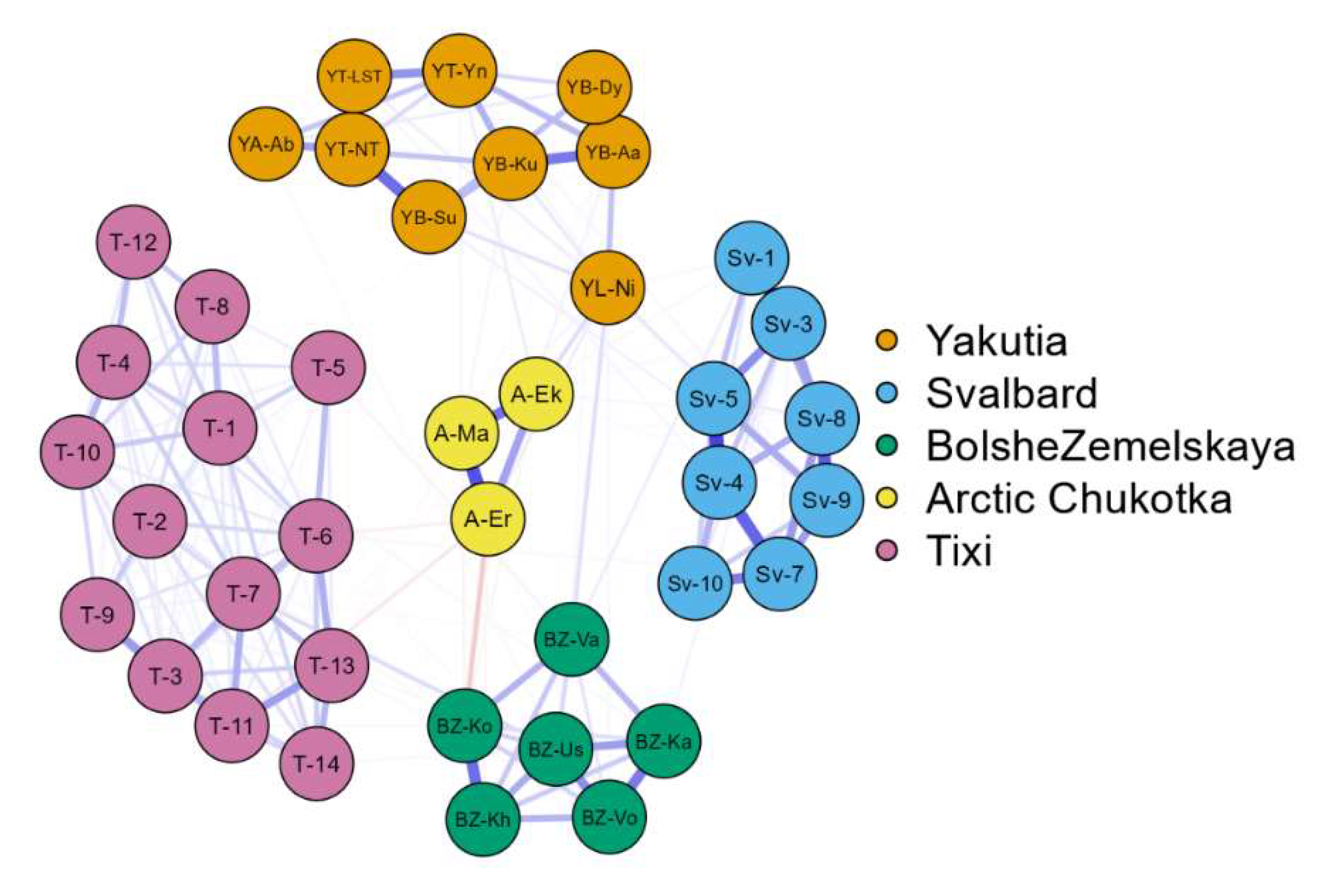

We have expanded the list of diatom floras for the next step of comparison, which included Arctic Chukotka from Amguema basin lakes Ervynaygytgyn, Matachingagytgyn, Ekitiki [7,8], Bolshezemelskaya Tundra lakes Vanutkiny, Kharbeyskiye, Korotaikha, Vorkuta, Usa, Kara [2], Svalbard, ten Hornsund fiord lakes [5], and nine Yakutia lakes Aalaah, Kurelah, Sullah, Dyiere, Ynah, Nal Tungulu, Large and Small Tungulu, Abalah, and Nidzhili [10].

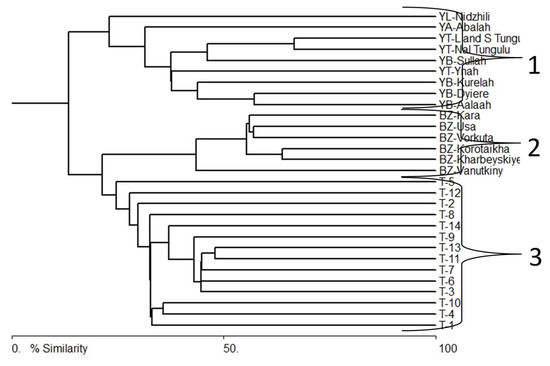

Comparison with the JASP program [58] represented results of similarity calculation, as shown in Figure 8. It can be seen that the species composition of each group of the lakes is strongly separated from each other. This high individuality of species composition can be the result of the influence of the geographical position of the lakes group and its climatic features.
4. Discussion
The subject of our study was the flora of diatoms found in the lakes of the “Tiksi region” in the vicinity of Tiksi settlement and the delta on the territory of the “delta region” of the Lena Delta Nature Reserve. The general list was compiled from our studies of the “delta region” [19] including 413 taxa, and 385 taxa of the “Tiksi region” [18], and amounted to 666 taxa of diatoms (including definitions to the genus level), 278 of which were enriched the regional flora. The floristic analysis was carried out after constructing the Willis curve, which was found to be quite smooth and close to the trend line, thereby indicating that the list of diatoms is sufficiently complete for an adequate flora of the analysis. The Willis curve was not so smooth to allow us to assume that the list of species has yet been exhausted, and the list will be increased with further research. The index of intraspecific variability Ssp./Sp. for the lakes of the “delta region” was 1.11, and for the lakes of the “Tiksi region” it was 1.14, which is typical for high-latitude and high-mountain communities.
We calculated the Sp./Area index as the number of diatom species per whole studied area, which was 0.05 for the “delta region” but 2.14 for the “Tiksi region”, thereby showing differences between biodiversity of both studied areas and confirming that the coastal zone can be the hotspot of the Arctic diatoms, as was revealed for Arctic chrysophytes [67]. Our reasoning boils down to the fact that in the lakes of Northern Europe, as well as in some subarctic and temperate lakes of northwestern Russia and the Baltic states, the species lists of diatoms were proportional to the area of the lakes [68]. In the lakes of the Tiksi region and some lakes of the delta region studied here, the area of lakes does not correlate with species richness. Even though all compared lakes are shallow and have been studied many times in the delta region, and samples were taken once in the Tiksi region, the diversity in the lakes of the Tiksi region was found to be significantly higher. We attempted to remove a possible reason for the high diversity in Tiksi lakes surveyed by SEM and carried out the same study of diatoms in some lakes of the delta, but here the species composition did not increase. Thus, we concluded that the burst of diversity of diatoms in lakes of the same type morphometrically but located in the coastal zone of the lakes of the Tiksi region is associated with the Arctic coastal ecotone. Thus, the geographic factor was found to be significant for the formation of diatom communities in the Arctic floras. In addition to this, the association with individual river runoff basins on the coast, elevated habitats, and the influence of such climatic factors such as summer northeast winds on the species composition was previously revealed [18].
The Arctic deltas are responsible for nutrient transport to the sea, which varies by delta and season, and it is estimated that the Lena Delta retains about 15% of the input load, the largest in the Arctic Ocean [69]. At the same time, the deposition of nitrates by the tundra landscape in the spring and their subsequent accumulation in lakes and wetlands adjacent to river channels contributes to the enrichment of lake water with a nutrient base [69]. This makes the water of the Lena River a source of nutrients [17,70] on the one hand, but on the other hand, stimulates the diversity of algae, as has been shown in the lakes of the Tiksi coastal region [18]. Despite this, the current diatom flora shows clean, organically uncontaminated waters, although there is a diversity burst response to a one-time nutrient point impact in the Tiksi area.
Whole flora bioindicators analysis shows that the diatoms identified in the “delta region” and the coastal “Tiksi region” were mainly benthic autotrophs, preferring temperate, middle oxygenated, low-saline, low-alkalic clear class 2 water, and characterize two trophic types of waterbodies—oligotrophic and eutrophic.
The high individuality of diatom communities was revealed both for the entire Lena Delta and its adjacent areas, and in a comparative analysis with the lacustrine floras of Yakutia and the High Arctic of Eurasia. For the first time for the Arctic regions of Eurasia, a preliminary analysis of the threat of diatom species was carried out and 42 species of the IUCN categories were identified. These rare or threatened species prefer moderate temperatures, and slightly acidic or neutral environments free from organic pollution. Thus, the lake communities in clean, fresh, pH-neutral, and unpolluted waters in the coastal zone of the Arctic Ocean with the highest diversity are the most vulnerable.
As a result of comparing the properties of the natural environment of the “delta region” and the coastal zone of the “Tiksi region”, our hypothesis that one indicator of global climate change may be the introduction of diatom species from temperate latitudes to the Arctic was confirmed. The species richness in the Tiksi coastal lakes was higher than that in the delta lakes even though the lakes in the delta were sampled many times over several years, and 14 lakes in the “Tiksi region” were surveyed only once. This allows us to suggest that the high diversity inherent in the diatom lakes of the Tiksi coastal zone, which can even be enriched in further studies, can be considered as a property of coastal biota inherent in ecotones. Since it is in the coastal region of Tiksi that a surge in the number of species is observed, this region can be considered not only an ecotone, but also a hotspot of diatom diversity. Ecotones are border areas of different landscapes where there is a marked increase in the diversity of organisms [71]. Until now, the landscapes of the coast of the Arctic Ocean have not been considered as ecotones for diatom communities. However, for the diversity of algae, this term was used, for example, for communities of river habitats [72]. The diversity of diatoms in the coastal area of the “Tiksi region” may be due to several factors. As known, studies of diatoms in a scanning electron microscope give a higher percentage of certain species [73].
We have formed a hypothesis about the introduction of species from temperate latitudes into Arctic waters under the conditions of global climate change [20]. The revealed record level of species diversity of diatoms and related changes in the structure of diatom communities can be fingerprint evidence of the beginning of climate warming. On the other hand, there is an opinion that the similarity between the algal communities of the northern and temperate regions may be more apparent than real [74]. This is confirmed by the sharp predominance of species of the genera Pinnularia and Eunotia, not only in our studied lakes, but also in a comparative analysis with other Arctic floras. Moreover, the further north the flora, the more saturated with species are these two genera. This may be one of the decisive signs for assessing the impact of climate change on the aquatic communities of the Arctic. Our conclusions are in the frame of the Ruth Patrick theory [75] about the relationship between diatom biodiversity and the health of the environment that can be seen in increasing the species diversity in the tundra coastal area of Arctic. So, this type of Arctic wetlands can have high importance because of their high water cleaning capacity by absorbing and assimilating a variety of pollutants.
Therefore, we revealed the important role of climatic and other environmental variables related with geographical position of the waterbody in forming the diatom community composition in the high latitude lakes. We suggest that the results of this study can be used to create a database on the biodiversity of diatoms as indicators of changes in untouched areas, as well as pioneers in monitoring climate change in the Arctic. Their relevance for assessing the consequences of local anthropogenic impact is high.
Author Contributions
Conceptualization, S.B. and V.G.; methodology, S.B. and V.G.; software, S.B.; validation, S.B., V.G. and S.G.; formal analysis, V.G. and S.G.; investigation, V.G.; resources, V.G.; data curation, S.G. and V.G.; writing—original draft preparation, S.B. and V.G.; writing—review and editing, S.B., V.G. and S.G.; visualization, S.B.; supervision, V.G.; project administration, V.G.; funding acquisition, V.G. All authors have read and agreed to the published version of the manuscript.
Funding
The research was carried out within the state assignment of the Ministry of Science and Higher Education of the Russian Federation (theme No. FWRS-2021-0023, reg. No. AAAA-A21-121012190038-0), (theme No. 121051100099-5).
Institutional Review Board Statement
Not applicable.
Data Availability Statement
Not applicable.
Acknowledgments
This work was partly supported by the Israeli Ministry of Aliyah and Integration.
Conflicts of Interest
The authors declare no conflict of interest.
Appendix A
Figure A1.
Electron micrographs of diatoms of studied waterbodies: (a)—Amphora indistincta, (b)—Brachysira brebissonii, (c)—Gololobovia obliqua, (d)—Caloneis holarctica, (e)—Gomphonema angusticephalum, (f)—Cavinula pseudoscutiformis, (g)—Cocconeis placentula var. euglypta, (h)—C. neodiminuta, (i)—Cyclotella distinguenda, (j)—Cymbopleura designata, (k)—Encyonema minutum, (l)—Encyonopsis perborealis, (m)—Eunotia incisa, (n)—Fallacia pygmaea, (o)—Frustulia krammeri.
Figure A1.
Electron micrographs of diatoms of studied waterbodies: (a)—Amphora indistincta, (b)—Brachysira brebissonii, (c)—Gololobovia obliqua, (d)—Caloneis holarctica, (e)—Gomphonema angusticephalum, (f)—Cavinula pseudoscutiformis, (g)—Cocconeis placentula var. euglypta, (h)—C. neodiminuta, (i)—Cyclotella distinguenda, (j)—Cymbopleura designata, (k)—Encyonema minutum, (l)—Encyonopsis perborealis, (m)—Eunotia incisa, (n)—Fallacia pygmaea, (o)—Frustulia krammeri.
Figure A2.
Electron micrographs of diatoms of studied waterbodies: (a)—Hygropetra balfouriana, (b)—Navicula cryptocephala, (c)—N. radiosa, (d)—Neidium hitchcockii, (e)—Nitzschia alpina, (f)—N. inconspicua, (g)—N. media, (h)—N. perminuta, (i)—Pinnularia canadensis, (j)—P. notabilis, (k)—P. rhombarea, (l)—P. subanglica, (m)—Placoneis interglacialis, (n)—Sellaphora insolita, (o)—S. laevissima, (p)—Skabitschewskia oestrupii, (q)—Stephanodiscus hashiensis.
Figure A2.
Electron micrographs of diatoms of studied waterbodies: (a)—Hygropetra balfouriana, (b)—Navicula cryptocephala, (c)—N. radiosa, (d)—Neidium hitchcockii, (e)—Nitzschia alpina, (f)—N. inconspicua, (g)—N. media, (h)—N. perminuta, (i)—Pinnularia canadensis, (j)—P. notabilis, (k)—P. rhombarea, (l)—P. subanglica, (m)—Placoneis interglacialis, (n)—Sellaphora insolita, (o)—S. laevissima, (p)—Skabitschewskia oestrupii, (q)—Stephanodiscus hashiensis.
Table A1.
Distribution of diatom species in the Lena Delta Nature Reserve (ULR) and the adjacent area in Tiksi lakes 1–14 with Red List [53] and IUCN [54] categories. Abbreviations of categories as in Table 2. ‘1’, present; ‘-’, absent.
| Taxa | Red List Category | IUCN Category | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | ULR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Acanthoceras zachariasii (Brun) Simonsen | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Achnanthes adnata Bory | 0 | NE | - | - | - | - | 1 | - | - | - | - | - | 1 | - | - | - | - |
| Achnanthes atacamae Hustedt | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Achnanthes ingratiformis Lange-Bertalot | 0 | NE | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - |
| Achnanthes koshovii Jasnitsky | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Achnanthes sp. | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Achnanthidium affine (Grunow) Czarnecki | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Achnanthidium kranzii (Lange-Bertalot) Round & Bukhtiyarova | 4 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Achnanthidium minutissimum (Kützing) Czarnecki | 9 | LC | 1 | 1 | 1 | 1 | - | 1 | 1 | - | 1 | 1 | 1 | - | 1 | 1 | 1 |
| Achnanthidium minutissimum var. jackii (Rabenhorst) Lange-Bertalot | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Achnanthidium nodosum (Cleve) Tseplik & Chudaev | 0 | NE | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Achnanthidium petersenii (Hustedt) C.E.Wetzel, L.Ector, D.M.Williams & I.Jüttner | 4 | EN | 1 | - | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
| Achnanthidium saprophilum (H.Kobayashi & Mayama) Round & Bukhtiyarova | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | 1 | - | 1 | 1 | - |
| Achnanthidium sp. | - | - | - | 1 | - | 1 | - | - | - | - | - | 1 | - | - | - | - | - |
| Actinocyclus kuetzingii (A.W.F.Schmidt) Simonsen | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Adlafia sp. | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Amphora copulata (Kützing) Schoeman & R.E.M.Archibald | 9 | LC | - | 1 | - | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 | - | - | 1 | - |
| Amphora indistincta Levkov | 9 | LC | - | 1 | - | - | 1 | 1 | - | - | - | - | 1 | - | 1 | 1 | - |
| Amphora ovalis (Kützing) Kützing | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Amphora pediculus (Kützing) Grunow | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Amphora pseudosibirica Levkov & Pavlov | 0 | NE | - | - | 1 | - | - | - | - | - | - | - | 1 | - | 1 | 1 | - |
| Amphora sp. | 9 | LC | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Amphorotia clevei (Grunow) D.M.Williams & G.Reid | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Aneumastus apiculatus (Østrup) Lange-Bertalot | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Aneumastus tusculus (Ehrenberg) D.G.Mann & A.J.Stickle | 0 | NE | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Asterionella formosa Hassall | 9 | LC | - | - | - | - | - | 1 | 1 | - | - | - | 1 | - | - | - | 1 |
| Aulacoseira alpigena (Grunow) Krammer | 5 | EN | 1 | - | 1 | 1 | - | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Aulacoseira ambigua (Grunow) Simonsen | 9 | LC | - | - | - | 1 | - | 1 | - | - | 1 | - | - | - | 1 | - | 1 |
| Aulacoseira distans (Ehrenberg) Simonsen | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Aulacoseira granulata (Ehrenberg) Simonsen f. granulata | 9 | LC | - | - | - | 1 | 1 | 1 | - | - | - | 1 | - | - | 1 | - | 1 |
| Aulacoseira granulata f. curvata (Hustedt) Simonsen | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Aulacoseira islandica (O.Müller) Simonsen | 9 | LC | - | - | - | - | 1 | 1 | - | - | - | - | - | - | - | - | 1 |
| Aulacoseira italica (Ehrenberg) Simonsen var. italica | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Aulacoseira italica var. curvata (Pantocsek) L.Yang & Q.X.Wang | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Aulacoseira italica var. tenuissima (Grunow) Simonsen | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Aulacoseira lirata (Ehrenberg) R.Ross | 5 | EN | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Aulacoseira perglabra (Østrup) E.Y.Haworth | 6 | VU | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - |
| Aulacoseira pfaffiana (Reinsch) Krammer | 5 | EN | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Aulacoseira pusilla (F.Meister) A.Tuji & A.Houki | 9 | LC | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Aulacoseira scalaris (Grunow) Houk, Klee & Passauer | 0 | NE | 1 | 1 | - | 1 | - | 1 | - | 1 | - | 1 | - | - | - | - | - |
| Aulacoseira subarctica (O.Müller) E.Y.Haworth | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | 1 |
| Aulacoseira valida (Grunow) Krammer | 5 | EN | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | 1 |
| Boreozonacola hustedtii Lange-Bertalot, Kulikovskiy & Witkowski | 3 | CR | - | - | - | - | - | - | - | - | 1 | 1 | - | - | - | - | - |
| Brachysira brebissonii R.Ross | 4 | EN | 1 | 1 | - | 1 | - | 1 | - | 1 | 1 | 1 | - | 1 | - | - | - |
| Brachysira calcicola Lange-Bertalot | 3 | CR | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Brachysira neoexilis Lange-Bertalot | 9 | LC | 1 | - | - | - | - | - | - | 1 | 1 | 1 | - | 1 | - | - | - |
| Brachysira procera Lange-Bertalot & Gerd Moser | 3 | CR | - | - | - | - | - | - | - | 1 | - | 1 | - | - | - | - | - |
| Brachysira styriaca (Grunow) R.Ross | 3 | CR | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Caloneis arctica (Krasske) Lange-Bertalot & S.I.Genkal | 0 | NE | - | 1 | - | - | - | 1 | - | - | - | - | 1 | - | - | - | - |
| Caloneis bacillum (Grunow) Cleve | 8 | DD | - | - | 1 | - | - | 1 | 1 | - | 1 | 1 | - | - | 1 | - | - |
| Caloneis holarctica Kulikovskiy, Lange-Bertalot & A.Witkowski | 0 | NE | 1 | 1 | 1 | - | - | 1 | 1 | 1 | - | - | 1 | 1 | - | - | - |
| Caloneis silicula (Ehrenberg) Cleve var. Silicula | 9 | LC | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | 1 |
| Caloneis silicula var. elliptica Mayer | 0 | NE | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Caloneis undosa Krammer | 4 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Caloneis ventricosa F.Meister var. truncatula (Grunow) Meister | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Caloneis westii (W.Smith) Hendey | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Campylodiscus hibernicus Ehrenberg | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - |
| Cavinula cocconeiformis (W.Gregory ex Greville) D.G.Mann & A.J.Stickle | 5 | EN | 1 | - | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | - | - |
| Cavinula jaernefeltii (Hustedt) D.G.Mann & A.J.Stickle | 4 | EN | 1 | - | 1 | - | - | 1 | - | - | 1 | - | 1 | - | 1 | 1 | - |
| Cavinula pseudoscutiformis (Hustedt) D.G.Mann & Stickle | 4 | EN | - | - | 1 | 1 | 1 | 1 | 1 | - | - | 1 | 1 | - | 1 | 1 | - |
| Cavinula sp. | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Chaetoceros borealis Bailey | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chaetoceros compressus Lauder | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chaetoceros debilis Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chaetoceros decipiens Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chaetoceros furcellatus Yendo | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chaetoceros gracilis Pantocsek | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chaetoceros mitra (Bailey) Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chaetoceros simplex Ostenfeld | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chaetoceros socialis H.S.Lauder | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chaetoceros subtilis Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chaetoceros teres Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chaetoceros wighamii Brightwell | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chamaepinnularia begeri (Krasske) Lange-Bertalot | 5 | EN | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Chamaepinnularia circumborealis Lange-Bertalot | 0 | NE | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Chamaepinnularia krookiformis (Krammer) Lange-Bertalot & Krammer | 9 | LC | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
| Chamaepinnularia soehrensis (Krasske) Lange-Bertalot & Krammer | 4 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Chamaepinnularia sp. | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | 1 |
| Cocconeis lineata Ehrenberg | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Cocconeis neodiminuta Krammer | 9 | LC | - | - | - | 1 | - | 1 | - | - | - | - | - | - | - | - | - |
| Cocconeis pediculus Ehrenberg | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cocconeis placentula Ehrenberg var. placentula | 8 | DD | - | - | 1 | - | - | 1 | - | - | 1 | - | - | - | - | - | 1 |
| Cocconeis placentula var. euglypta (Ehrenberg) Cleve | 9 | LC | 1 | - | - | - | - | 1 | - | - | - | - | 1 | - | - | - | - |
| Cocconeis sp. | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - |
| Coscinodiscus curvatulus Grunow | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cosmioneis pusilla (W.Smith) D.G.Mann & A.J.Stickle | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Craticula ambigua (Ehrenberg) D.G.Mann | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Craticula halophila (Grunow) D.G.Mann | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Craticula molestiformis (Hustedt) Mayama | 9 | LC | - | - | - | - | - | 1 | 1 | - | - | - | - | - | 1 | - | - |
| Ctenophora pulchella (Ralfs ex Kützing) D.M.Williams & Round | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cyclostephanos dubius (Hustedt) Round | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Cyclostephanos makarovae (S.I.Genkal) K.Schultz | 0 | NE | - | - | - | - | 1 | - | - | - | - | - | - | - | 1 | - | - |
| Cyclotella atomus Hustedt | 9 | LC | - | - | - | - | 1 | 1 | - | - | - | - | - | - | 1 | - | - |
| Cyclotella distinguenda Hustedt | 9 | LC | 1 | - | - | 1 | 1 | 1 | - | - | 1 | - | 1 | 1 | - | - | - |
| Cyclotella meduanae H.Germain | 9 | LC | - | - | - | - | 1 | 1 | - | - | - | - | - | - | 1 | - | - |
| Cyclotella melosiroides (Kirchner) Lemmermann | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cylindrotheca gracilis (Brébisson ex Kützing) Grunow | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymatopleura elliptica (Brébisson) W.Smith | 9 | LC | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Cymatopleura nobilis Hantzsch | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymatopleura solea var. gracilis Grunow | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymatopleura solea var. vulgaris Meister | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbella affinis Kützing | 3 | CR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbella arctica (Lagerstedt) A.W.F.Schmidt | 4 | EN | - | - | - | - | 1 | 1 | - | - | - | - | - | - | - | - | 1 |
| Cymbella australica (A.W.F.Schmidt) Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbella carassius Skvortzov | 3 | CR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbella cleve-eulerae Krammer | 0 | NE | - | - | - | - | - | 1 | - | - | 1 | - | - | - | - | - | - |
| Cymbella cymbiformis C.Agardh | 4 | EN | - | - | - | - | 1 | - | - | 1 | - | - | - | - | - | - | 1 |
| Cymbella hantzschiana Krammer | 8 | DD | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Cymbella helvetica Kützing | 4 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbella krammeri Bahls | 0 | NE | - | 1 | 1 | - | - | 1 | 1 | - | 1 | - | - | - | 1 | 1 | - |
| Cymbella lanceolata C.Agardh | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbella neocistula Krammer | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbella neogena (Grunow) Krammer | 0 | NE | - | 1 | - | - | - | 1 | 1 | - | - | - | - | - | 1 | - | - |
| Cymbella proxima Reimer | 5 | EN | - | - | - | - | - | 1 | - | 1 | - | - | - | - | - | - | - |
| Cymbella stuxbergii (Cleve) Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbella subcistula Krammer | 8 | DD | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Cymbella tartuensis Molder | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbella tumida (Brébisson) Van Heurck | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbella sp. | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | 1 |
| Cymbellafalsa diluviana (Krasske) Lange-Bertalot & Metzeltin | 3 | CR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbopleura amphicephala (Nägeli ex Kützing) Krammer | 5 | EN | - | - | - | - | - | 1 | - | - | - | - | - | - | 1 | - | 1 |
| Cymbopleura anglica (Lagerstedt) Krammer | 5 | EN | - | - | 1 | - | - | 1 | 1 | 1 | - | 1 | 1 | - | 1 | - | - |
| Cymbopleura angustata var. spitsbergensis Krammer | 0 | NE | - | 1 | 1 | - | - | 1 | - | 1 | 1 | - | - | - | 1 | - | - |
| Cymbopleura cuspidata (Kützing) Krammer | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbopleura designata (Krammer) Bahls | 1 | EX | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Cymbopleura elliptica Krammer | 5 | EN | - | 1 | - | - | - | - | - | - | 1 | - | - | - | - | - | - |
| Cymbopleura hybrida (Grunow ex Cleve) Krammer | 5 | EN | - | - | - | - | - | - | - | - | 1 | 1 | - | - | - | - | - |
| Cymbopleura incertiformis Krammer | 5 | EN | 1 | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Cymbopleura naviculiformis (Auerswald ex Heiberg) Krammer | 9 | LC | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | 1 |
| Cymbopleura neoheteropleura Krammer | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbopleura oblongata var. stenoraphe Krammer | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - |
| Cymbopleura stauroneiformis (Lagerstedt) Krammer | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Cymbopleura subanglica Krammer | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - |
| Cymbopleura subapiculata Krammer | 0 | NE | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Cymbopleura subcuspidata (Krammer) Krammer | 5 | EN | - | - | 1 | - | - | 1 | 1 | - | - | - | 1 | - | 1 | - | 1 |
| Cymbopleura truncata Krammer | 0 | NE | - | 1 | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
| Cymbopleura tynnii (Krammer) Krammer | 3 | CR | - | - | - | - | - | - | - | - | - | 1 | - | 1 | - | - | - |
| Cymbopleura sp. | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Denticula elegans Kützing | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Denticula tenuis Kützing | 9 | LC | - | 1 | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Diatoma moniliformis (Kützing) D.M.Williams | 9 | LC | 1 | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Diatoma moniliformis subsp. ovalis (F.Fricke) Lange-Bertalot, Rumrich & G.Hofmann | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Diatoma problematica Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Diatoma tenuis C.Agardh | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Diatoma vulgaris Bory | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | 1 |
| Diatomella balfouriana Greville | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Didymosphenia geminata (Lyngbye) Mart.Schmidt | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Didymosphenia siberica (Grunow) Mart.Schmidt | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Diploneis boldtiana Cleve | 0 | NE | - | - | - | - | - | 1 | - | 1 | - | 1 | - | - | - | - | - |
| Diploneis didymus (Ehrenberg) Ehrenberg | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Diploneis elliptica (Kützing) Cleve | 7 | NT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Diploneis interrupta (Kützing) Cleve | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Diploneis modica Hustedt | 8 | DD | - | - | - | - | - | 1 | - | - | - | - | 1 | - | 1 | 1 | - |
| Diploneis oblongella (Nägeli ex Kützing) A.Cleve | 8 | DD | 1 | - | 1 | - | - | 1 | - | - | - | - | 1 | - | 1 | 1 | - |
| Diploneis oculata (Brébisson) Cleve | 9 | LC | - | - | 1 | - | - | 1 | - | - | 1 | 1 | 1 | - | 1 | - | 1 |
| Diploneis ovalis (Hilse) Cleve | 3 | CR | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | 1 |
| Diploneis parma Cleve | 6 | VU | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Diploneis smithii (Brébisson) Cleve var. smithii | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Diploneis smithii var. pumila (Grunow) Hustedt | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Diploneis subovalis Cleve | 0 | NE | - | 1 | - | - | - | - | - | - | - | - | 1 | - | 1 | - | - |
| Diploneis sp. | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Discostella pseudostelligera (Hustedt) Houk & Klee | 9 | LC | - | - | - | - | - | - | - | - | 1 | - | - | - | 1 | - | 1 |
| Discostella stelligera (Cleve & Grunow) Houk & Klee | 9 | LC | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - | 1 |
| Encyonema auerswaldii Rabenhorst | 8 | DD | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - |
| Encyonema elginense (Krammer) D.G.Mann | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | 1 |
| Encyonema fogedii Krammer | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Encyonema gaeumannii (F.Meister) Krammer | 4 | EN | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Encyonema groenlandica (Foged) Kulikovskiy & Lange-Bertalot | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - |
| Encyonema lacustre (C.Agardh) Pantocsek | 7 | NT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Encyonema lange-bertalotii Krammer | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Encyonema latens (Krasske) D.G.Mann | 1 | EX | - | - | 1 | 1 | - | 1 | 1 | - | - | 1 | - | - | - | - | 1 |
| Encyonema lunatum (W.Smith) Van Heurck | 8 | DD | - | 1 | - | - | - | - | - | - | 1 | 1 | 1 | 1 | - | - | - |
| Encyonema minutum (Hilse) D.G.Mann var. minutum | 9 | LC | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | - | - | - | 1 | - | - | 1 |
| Encyonema minutum var. hankensis (Skvortzow et Meyer) Kharitonov | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Encyonema neogracile Krammer | 4 | EN | 1 | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 | - |
| Encyonema perpusillum (A.Cleve) D.G.Mann | 4 | EN | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Encyonema reichardtii (Krammer) D.G.Mann | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Encyonema silesiacum (Bleisch) D.G.Mann | 9 | LC | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | - | 1 | - | 1 |
| Encyonema ventricosum (C.Agardh) Grunow | 9 | LC | - | - | - | - | - | - | - | 1 | - | 1 | - | - | - | - | 1 |
| Encyonema vulgare Krammer | 4 | EN | - | - | - | 1 | - | - | 1 | - | - | - | 1 | - | - | - | - |
| Encyonema sp. | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | 1 |
| Encyonopsis cesatiformis Krammer | 8 | DD | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Encyonopsis cesatii (Rabenhorst) Krammer | 7 | NT | 1 | 1 | 1 | 1 | - | 1 | - | 1 | - | 1 | - | - | 1 | - | - |
| Encyonopsis perborealis Krammer | 0 | NE | - | 1 | 1 | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Entomoneis alata (Ehrenberg) Ehrenberg | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Entomoneis ornata (Bailey) Reimer | 5 | EN | - | - | - | - | - | - | 1 | - | - | - | - | - | 1 | - | 1 |
| Entomoneis paludosa (W.Smith) Reimer var. paludosa | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Entomoneis paludosa var. hyperborea (Grunow) Czarnecki & D.C.Reinke | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Envekadea sp. | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Epithemia adnata (Kützing) Brébisson var. adnata | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Epithemia adnata var. saxonica (Kützing) R.M.Patrick | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Epithemia argus (Ehrenberg) Kützing | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Epithemia parallela (Grunow) Ruck & Nakov | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Epithemia porcellus Kützing | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Epithemia sorex Kützing | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Epithemia turgida (Ehrenberg) Kützing | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eucampia zodiacus Ehrenberg | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eucocconeis alpestris (Brun) Lange-Bertalot | 3 | CR | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
| Eucocconeis austriaca (Hustedt) Lange-Bertalot | 3 | CR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eucocconeis depressa (Cleve) Lange-Bertalot | 0 | NE | 1 | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
| Eucocconeis diluviana (Hustedt) Lange-Bertalot | 6 | VU | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eucocconeis flexella (Kützing) F.Meister | 3 | CR | - | 1 | 1 | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Eucocconeis laevis (Østrup) Lange-Bertalot | 7 | NT | 1 | 1 | 1 | - | - | 1 | 1 | - | 1 | 1 | 1 | - | - | 1 | - |
| Eucocconeis leptostriata Lange-Bertalot apud H.Lange-Bertalot & S.I.Genkal | 8 | DD | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - |
| Eucocconeis quadratarea (Østrup) Lange-Bertalot | 6 | VU | 1 | 1 | 1 | - | - | 1 | 1 | - | - | 1 | 1 | - | - | 1 | - |
| Eunotia ambivalens Lange-Bertalot & Tagliaventi | 5 | EN | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Eunotia arcubus var. bidens (Grunow) Lange-Bertalot | 4 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eunotia arcus Ehrenberg | 7 | NT | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - | 1 |
| Eunotia bidens Ehrenberg | 5 | EN | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | 1 |
| Eunotia bidentula W.Smith | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eunotia bigibba Kützing | 3 | CR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eunotia bigibboidea Lange-Bertalot & Witkowski | 0 | NE | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Eunotia bilunaris (Ehrenberg) Schaarschmidt | 9 | LC | - | 1 | - | - | - | - | 1 | - | - | - | - | 1 | - | - | 1 |
| Eunotia boreoalpina Lange-Bertalot & Nörpel-Schempp | 0 | NE | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia boreotenuis Nörpel-Schempp & Lange-Bertalot | 5 | EN | - | - | 1 | 1 | - | - | 1 | - | 1 | - | 1 | 1 | - | - | - |
| Eunotia botuliformis F.Wild, Nörpel & Lange-Bertalot | 5 | EN | - | - | - | - | - | - | - | 1 | - | - | - | 1 | - | - | - |
| Eunotia cantonatii Lange-Bertalot & Tagliaventi | 8 | DD | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Eunotia chelonia Nörpel-Schempp, Lange-Bertalot & Metzeltin | 0 | NE | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia curtagrunowii Nörpel-Schempp & Lange-Bertalot | 5 | EN | - | - | - | - | - | - | - | 1 | - | 1 | - | - | - | - | 1 |
| Eunotia elegans Østrup | 2 | CR | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia eurycephala (Grunow) Nörpel-Schempp & Lange-Bertalot | 6 | VU | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia ewa Lange-Bertalot & Witkowski | 0 | NE | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia exigua (Brébisson ex Kützing) Rabenhorst | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eunotia faba Ehrenberg | 2 | CR | 1 | - | - | - | - | 1 | 1 | 1 | - | - | - | - | 1 | - | - |
| Eunotia flexuosa (Brébisson ex Kützing) Kützing | 3 | CR | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Eunotia formica Ehrenberg | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eunotia fureyae Lange-Bertalot | 0 | NE | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Eunotia genuflexa Nörpel-Schempp | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - |
| Eunotia groenlandica Nörpel-Schempp & Lange-Bertalot | 5 | EN | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | 1 |
| Eunotia incisa W.Smith ex W.Gregory | 5 | EN | - | - | - | 1 | - | - | 1 | 1 | - | 1 | - | - | - | - | - |
| Eunotia islandica Østrup | 8 | DD | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia julma Lange-Bertalot | 0 | NE | 1 | - | - | - | - | - | - | - | - | 1 | 1 | - | - | - | - |
| Eunotia major (W.Smith) Rabenhorst | 0 | NE | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Eunotia meisteri Hustedt | 4 | EN | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Eunotia minor (Kützing) Grunow | 7 | NT | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia monnieri Lange-Bertalot & Tagliaventi | 5 | EN | - | - | - | - | - | - | - | 1 | - | - | 1 | - | - | - | - |
| Eunotia monodon Ehrenberg | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eunotia mucophila (Lange-Bertalot, Nörpel-Schempp & Alles) Lange-Bertalot | 5 | EN | - | - | - | 1 | - | - | - | - | - | - | - | 1 | - | - | - |
| Eunotia naegelii Migula | 4 | EN | - | - | - | - | - | - | - | 1 | - | - | - | 1 | - | - | 1 |
| Eunotia neocompacta var. vixcompacta Lange-Bertalot | 5 | EN | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia parallela Ehrenberg | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eunotia paralleladubia Lange-Bertalot & S.Mayama | 0 | NE | - | - | - | - | - | - | - | - | - | 1 | - | 1 | - | - | - |
| Eunotia parapraerupta Lange-Bertalot & Metzeltin | 0 | NE | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia praerupta Ehrenberg | 3 | CR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eunotia pseudogroenlandica Lange-Bertalot & Tagliaventi | 5 | EN | - | - | - | 1 | - | - | - | - | - | - | - | 1 | - | - | - |
| Eunotia pseudopapilio Lange-Bertalot & M.Nörpel-Schempp | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eunotia rhomboidea Hustedt | 5 | EN | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Eunotia scandiorussica Kulikovskiy, Lange-Bertalot, Genkal & Witkowski | 0 | NE | - | - | - | 1 | - | - | - | 1 | - | - | - | - | - | - | - |
| Eunotia semicircularis (Ehrenberg) Lange-Bertalot & Metzeltin | 0 | NE | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia septentrionalis Østrup | 0 | NE | - | - | - | 1 | - | - | - | - | - | - | - | 1 | - | - | - |
| Eunotia subarcuatoides Alles, Nörpel & Lange-Bertalot | 9 | LC | 1 | - | - | 1 | - | 1 | - | 1 | - | - | - | 1 | - | - | - |
| Eunotia subherkiniensis Lange-Bertalot | 0 | NE | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Eunotia triodon Ehrenberg | 3 | CR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eunotia ursamaioris Lange-Bertalot & Nörpel-Schempp | 5 | EN | 1 | - | 1 | 1 | - | 1 | - | - | 1 | 1 | 1 | 1 | - | - | - |
| Eunotia valida Hustedt | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Eunotia sp. | - | - | - | - | 1 | 1 | - | - | - | - | - | - | - | - | - | 1 | 1 |
| Fallacia crassicostata Lange-Bertalot & Werum | 6 | VU | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Fallacia pygmaea (Kützing) Stickle & D.G.Mann | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | 1 | - | - | - | 1 |
| Fallacia sp. | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Fragilaria amphicephaloides Lange-Bertalot | 4 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Fragilaria aquaplus Lange-Bertalot & S.Ulrich | 8 | DD | 1 | - | - | 1 | - | 1 | - | - | - | - | - | - | - | - | - |
| Fragilaria capucina Desmazières | 9 | LC | 1 | 1 | - | - | 1 | - | - | 1 | - | - | - | - | - | - | 1 |
| Fragilaria crotonensis Kitton | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Fragilaria goulardii var. telezkoensis (Poretzky) Kharitonov | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Fragilaria radians (Kützing) D.M.Williams & Round | 9 | LC | - | - | 1 | - | - | 1 | - | - | - | 1 | 1 | - | 1 | - | 1 |
| Fragilaria rumpens (Kützing) G.W.F.Carlson | 9 | LC | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Fragilaria saxoplanctonica Lange-Bertalot & S.Ulrich | 9 | LC | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Fragilaria striatula Lyngbye | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Fragilaria vaucheriae (Kützing) J.B.Petersen | 9 | LC | - | - | 1 | 1 | 1 | 1 | 1 | - | - | 1 | 1 | - | - | - | 1 |
| Fragilaria sp. | - | - | - | - | 1 | - | - | - | - | - | 1 | - | 1 | - | - | - | - |
| Fragilariforma bicapitata (A.Mayer) D.M.Williams & Round | 5 | EN | - | - | - | 1 | - | 1 | - | - | - | - | - | - | - | - | 1 |
| Fragilariforma constricta (Ehrenberg) D.M.Williams & Round | 4 | EN | - | - | 1 | - | - | - | - | - | 1 | 1 | 1 | - | 1 | - | - |
| Fragilariforma mesolepta (Rabenhorst) Kharitonov | 9 | LC | 1 | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - |
| Fragilariforma nitzschioides (Grunow) Lange-Bertalot | 4 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Fragilariforma virescens (Ralfs) D.M.Williams & Round | 9 | LC | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | 1 |
| Fragilariopsis oceanica (Cleve) Hasle | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Frustulia crassinervia (Brébisson ex W.Smith) Lange-Bertalot & Krammer | 7 | NT | 1 | - | - | 1 | - | 1 | 1 | 1 | 1 | - | - | 1 | - | - | - |
| Frustulia erifuga Lange-Bertalot & Krammer | 4 | EN | - | - | - | - | - | 1 | - | 1 | - | - | - | - | - | - | - |
| Frustulia krammeri Lange-Bertalot & Metzeltin | 2 | CR | 1 | - | - | - | 1 | 1 | - | - | - | - | - | - | - | - | - |
| Frustulia saxonica Rabenhorst | 7 | NT | 1 | - | - | 1 | - | 1 | - | - | - | 1 | - | 1 | - | 1 | - |
| Frustulia vulgaris (Thwaites) De Toni | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Geissleria davydovae Genkal et Yaruschina | 0 | NE | 1 | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Genkalia digituloides (Lange-Bertalot) Lange-Bertalot & Kulikovskiy | 5 | EN | - | 1 | - | - | - | - | - | 1 | 1 | 1 | 1 | - | - | - | - |
| Gololobovia obliqua (W.Gregory) Kulikovskiy, Glushchenko & Kociolek | 0 | NE | - | 1 | - | - | - | 1 | - | - | - | - | 1 | - | - | - | 1 |
| Gomphoneis eriensis (Grunow) Skvortzov & K.I.Meyer | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphoneis quadripunctata (Østrup) P.Dawson ex R.Ross & P.A.Sims | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphoneis septa (F.Moghadam) Kociolek, Stoermer & Bahls | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonella olivacea (Hornemann) Rabenhorst | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema acuminatum Ehrenberg | 9 | LC | - | 1 | - | - | - | - | - | 1 | - | - | - | - | - | - | 1 |
| Gomphonema angustatum (Kützing) Rabenhorst | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema angusticephalum E.Reichardt & Lange-Bertalot | 6 | VU | 1 | - | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 |
| Gomphonema angustum C.Agardh | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema brebissonii Kützing | 9 | LC | - | - | - | 1 | - | - | - | 1 | - | - | - | - | - | - | 1 |
| Gomphonema capitatum Ehrenberg | 9 | LC | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | 1 |
| Gomphonema coronatum Ehrenberg | 4 | EN | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | 1 |
| Gomphonema gracile Ehrenberg | 8 | DD | - | - | 1 | - | - | - | - | - | 1 | - | 1 | - | - | - | 1 |
| Gomphonema hebridense W.Gregory | 7 | NT | 1 | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Gomphonema helveticum Brun | 3 | CR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema italicum Kützing | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - |
| Gomphonema lagenula Kützing | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema lagerheimii A.Cleve | 3 | CR | - | - | - | 1 | - | - | - | 1 | - | 1 | 1 | - | 1 | - | 1 |
| Gomphonema laticollum E.Reichardt | 0 | NE | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Gomphonema longiceps f. suecicum (Grunow) Hustedt | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema microcapitatum Kulikovskiy, Kociolek & Solak | 0 | NE | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Gomphonema micropus Kützing | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema mihoi Levkov | 0 | NE | - | 1 | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Gomphonema minutum f. pachypus Lange-Bertalot & E.Reichardt | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - |
| Gomphonema montanum (Schumann) Grunow | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema olivaceoides Hustedt | 9 | LC | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | 1 |
| Gomphonema parvulum (Kützing) Kützing | 9 | LC | 1 | - | - | 1 | - | 1 | - | - | - | 1 | - | - | 1 | - | - |
| Gomphonema productum (Grunow) Lange-Bertalot & E.Reichardt | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema pseudacuminatum Kulikovskiy, Kociolek & Solak | 0 | NE | - | - | - | - | - | 1 | 1 | - | - | - | - | - | - | - | - |
| Gomphonema pumilum (Grunow) E.Reichardt & Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema subclavatum (Grunow) Grunow | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema tergestinum (Grunow) Fricke | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema truncatum Ehrenberg | 9 | LC | 1 | - | - | 1 | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema ventricosum W.Gregory | 3 | CR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gomphonema sp. | - | - | 1 | - | 1 | 1 | - | - | 1 | - | 1 | 1 | 1 | - | 1 | - | 1 |
| Gomphosphenia vallei Beauger, C.E.Wetzel, Allain & Ector | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - |
| Gomphosphenia sp. | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - | 1 | - |
| Gyrosigma acuminatum (Kützing) Rabenhorst var. acuminatum | 9 | LC | - | - | 1 | - | - | - | 1 | - | - | - | - | - | 1 | 1 | 1 |
| Gyrosigma acuminatum var. gallicum (Grunow) Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gyrosigma attenuatum (Kützing) Rabenhorst | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gyrosigma balticum (Ehrenberg) Rabenhorst | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gyrosigma peisonis (Grunow) Hustedt | 6 | VU | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gyrosigma strigilis (W.Smith) J.W.Griffin & Henfrey | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Gyrosigma sp. | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - |
| Halamphora hassiaca (Krammer & S.Strecker) Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Halamphora veneta (Kützing) Levkov | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Handmannia antiqua (W.Smith) Kociolek et Khursevich | 0 | NE | - | 1 | - | - | - | - | - | - | 1 | - | - | - | - | - | 1 |
| Handmannia comta (Ehrenberg) Kociolek et Khursevich emend. Genkal | 0 | NE | - | - | - | - | 1 | 1 | - | - | 1 | - | - | - | - | - | 1 |
| Hannaea arcus (Ehrenberg) R.M.Patrick | 7 | NT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Hannaea inaequidentata (Lagerstedt) Genkal & Kharitonov | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Hantzschia amphioxys (Ehrenberg) Grunow f. amphioxys | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Hantzschia amphioxys f. capitata O.Müller | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Hantzschia virgata var. capitellata Hustedt | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Hantzschia sp. | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Hemiaulus hauckii Grunow ex Van Heurck | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Hippodonta capitata (Ehrenberg) Lange-Bertalot, Metzeltin & Witkowski | 9 | LC | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - | 1 |
| Hippodonta hungarica (Grunow) Lange-Bertalot, Metzeltin & Witkowski | 9 | LC | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Humidophila brekkaensis (J.B.Petersen) R.L.Lowe, Kociolek, J.R.Johansen, Van de Vijver, Lange-Bertalot & Krammer et Kopalova | 9 | LC | - | - | - | - | - | - | 1 | - | - | 1 | - | - | - | - | - |
| Humidophila gallica (W.Smith) Lowe, Kociolek, Q.You, Q.Wang & Stepanek | 0 | NE | - | - | - | - | - | - | - | 1 | - | 1 | - | - | - | - | - |
| Humidophila perpusilla (Grunow) R.L.Lowe, Kociolek, J.R.Johansen, Van de Vijver, Lange-Bertalot & Kopalová | 9 | LC | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
| Humidophila schmassmannii (Hustedt) Buczkó & Wojtal | 5 | EN | 1 | - | 1 | - | - | 1 | - | 1 | - | - | - | - | - | - | - |
| Humidophila sp. | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Hygropetra balfouriana (Grunow ex Cleve) Krammer & Lange-Bertalot | 5 | EN | - | 1 | - | - | - | 1 | - | - | - | 1 | - | - | 1 | - | 1 |
| Iconella bifrons (Ehrenberg) Ruck & Nakov | 4 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Iconella biseriata (Brébisson) Ruck & Nakov | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Iconella curvula (W.Smith) Ruck & Nakov | 3 | CR | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Iconella linearis (W.Smith) Ruck & Nakov | 9 | LC | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Iconella nervosa (A.W.F.Schmidt) C.Cocquyt & R.Jahn | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Iconella spiralis (Kützing) E.C.Ruck & T.Nakov | 7 | NT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Iconella splendida (Ehrenberg) Ruck & Nakov | 7 | NT | - | - | - | - | - | - | 1 | - | - | - | - | - | - | 1 | - |
| Iconella tenera (W.Gregory) Ruck & Nakov | 7 | NT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Karayevia laterostrata (Hustedt) Bukhtiyarova | 4 | EN | 1 | - | - | - | - | - | - | - | - | 1 | 1 | - | 1 | 1 | - |
| Kobayasiella parasubtilissima (H.Kobayasi & T.Nagumo) Lange-Bertalot | 7 | NT | - | 1 | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Kobayasiella subtilissima (Cleve) Lange-Bertalot | 3 | CR | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Lacustriella lacustris (W.Gregory) Lange-Bertalot & Kulikovskiy | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Lemnicola hungarica (Grunow) Round & Basson | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Leptocylindrus danicus Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Lindavia costata (Loginova, Lupikina & Khursevich) Nakov, Guillory, Julius, Theriot & Alverson | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Mayamaea agrestis (Hustedt) Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Mayamaea disjuncta (Hustedt) J.Y. Li & Y.Z.Qi | 3 | CR | - | - | 1 | 1 | - | - | - | - | - | 1 | - | - | - | - | - |
| Mayamaea permitis (Hustedt) K.Bruder & Medlin | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Melosira lineata var. subangularis (Grunow) Aboal | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Melosira moniliformis (Link) C.Agardh | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Melosira normanii Arnott ex Van Heurck | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Melosira undulata (Ehrenberg) Kützing | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Melosira varians C.Agardh | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | 1 |
| Meridion circulare (Greville) C.Agardh | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula angusta Grunow | 3 | CR | 1 | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Navicula antonii Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula bottnica Grunow | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula capitatoradiata H.Germain ex Gasse | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula chiarae Lange-Bertalot & Genkal | 0 | NE | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Navicula cincta (Ehrenberg) Ralfs | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula cryptocephala Kützing var. cryptocephala | 9 | LC | - | - | 1 | 1 | - | 1 | 1 | - | - | - | 1 | - | 1 | - | 1 |
| Navicula cryptocephala var. lata Poretzky & Anisimova | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula cryptotenella Lange-Bertalot | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | 1 | - | - | 1 | - |
| Navicula cryptotenelloides Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | 1 |
| Navicula digitoconvergens Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula digitoradiata (W.Gregory) Ralfs | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula gottlandica Grunow | 3 | CR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula granii (Jørgensen) Gran | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula hasta Pantocsek | 10 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula kariana Grunow | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula lanceolata var. tenuirostris Skvortzov | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula laterostrata Hustedt | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula margalithii Lange-Bertalot | 6 | VU | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula mediocostata E.Reichardt | 3 | CR | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Navicula menisculus Schumann | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula notha J.H.Wallace | 3 | CR | 1 | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Navicula phyllepta Kützing | 9 | LC | - | 1 | 1 | - | - | 1 | 1 | - | 1 | - | 1 | - | - | - | - |
| Navicula phylleptosoma Lange-Bertalot | 8 | DD | - | - | 1 | - | - | - | 1 | - | - | - | 1 | - | 1 | - | - |
| Navicula pusilla var. jacutica Kisseleva | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula radiosa Kützing | 9 | LC | 1 | 1 | 1 | 1 | - | 1 | 1 | - | 1 | 1 | 1 | - | 1 | 1 | 1 |
| Navicula reinhardtii (Grunow) Grunow var. reinhardtii | 9 | LC | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - | 1 |
| Navicula reinhardtii var. elliptica Héribaud | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula rhynchocephala Kützing | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula rhynchotella Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula rostellata Kützing | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - |
| Navicula rotaeana (Rabenhorst) Grunow | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula slesvicensis Grunow | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula streckerae Lange-Bertalot & Witkowski | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula striolata (Grunow) Lange-Bertalot | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula tripunctata (O.F.Müller) Bory | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | 1 |
| Navicula trivialis Lange-Bertalot | 9 | LC | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Navicula venerablis Hohn & Hellerman | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula viridula (Kützing) Ehrenberg | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula viridulacalcis Lange-Bertalot | 5 | EN | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 | - | - |
| Navicula vulpina Kützing | 4 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Navicula wygaschii Lange-Bertalot | 5 | EN | - | 1 | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Navicula sp. | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 |
| Naviculadicta sp. | - | - | - | 1 | 1 | - | - | 1 | 1 | - | 1 | - | 1 | - | 1 | 1 | 1 |
| Navigeia paludosa (Hustedt) Bukhtiyarova | 4 | EN | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
| Navigeia thingvallae (Østrup) Bukhtiyarova | 2 | CR | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - |
| Neidiopsis wulffii (J.B.Petersen) Lange-Bertalot | 0 | NE | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 | - | - |
| Neidium affine (Ehrenberg) Pfitzer | 7 | NT | - | - | - | 1 | - | - | - | - | - | - | 1 | - | - | - | 1 |
| Neidium ampliatum (Ehrenberg) Krammer | 7 | NT | - | 1 | - | 1 | 1 | 1 | 1 | - | - | - | 1 | - | 1 | 1 | - |
| Neidium bisulcatum (Lagerstedt) Cleve | 4 | EN | - | - | - | - | - | - | 1 | 1 | - | 1 | - | 1 | 1 | - | - |
| Neidium dubium (Ehenberg) Cleve | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 |
| Neidium hercynicum Ant.Mayer | 5 | EN | - | - | - | 1 | - | - | 1 | - | - | - | 1 | - | - | - | - |
| Neidium hitchcockii (Ehrenberg) Cleve | 0 | NE | - | - | - | - | - | 1 | 1 | - | - | - | 1 | - | - | - | - |
| Neidium iridis (Ehrenberg) Cleve var. iridis | 3 | CR | - | - | 1 | - | - | - | - | - | - | - | 1 | - | 1 | - | 1 |
| Neidium iridis var. diminutum (Pantocsek) Wislouch & Kolbe | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Neidium productum (W.Smith) Cleve | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Neidium sp. | - | - | - | - | - | - | - | 1 | - | - | - | - | 1 | - | - | - | - |
| Nitzschia acicularis (Kützing) W.Smith | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | 1 |
| Nitzschia acidoclinata Lange-Bertalot | 7 | NT | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - |
| Nitzschia acuta Hantzsch | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia alpina Hustedt | 4 | EN | - | 1 | 1 | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Nitzschia aquaea Wisłouch & V.S.Poretzky | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia brevissima Grunow | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia capitellata Hustedt var. capitellata | 9 | LC | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | 1 |
| Nitzschia capitellata var. tenuirostris (Grunow) Bukhtiyarova | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia commutatoides Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 | - | - |
| Nitzschia denticula Grunow | 7 | NT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia dissipata (Kützing) Rabenhorst var. dissipata | 9 | LC | - | - | - | - | - | 1 | 1 | - | - | - | 1 | - | 1 | 1 | - |
| Nitzschia flexoides Geitler | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia fonticola (Grunow) Grunow | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | - | - | 1 | - | - |
| Nitzschia frigida Grunow | 3 | CR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia frustulum (Kützing) Grunow | 9 | LC | - | - | - | - | - | 1 | 1 | - | - | 1 | 1 | - | - | - | - |
| Nitzschia graciliformis Lange-Bertalot & Simonsen | 9 | LC | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | 1 |
| Nitzschia gracilis Hantzsch | 9 | LC | - | - | - | - | - | - | 1 | - | - | - | - | 1 | - | - | 1 |
| Nitzschia homburgiensis Lange-Bertalot | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia inconspicua Grunow | 0 | NE | 1 | - | - | - | 1 | 1 | - | - | - | 1 | - | - | - | 1 | 1 |
| Nitzschia intermedia Hantzsch ex Cleve & Grunow | 9 | LC | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | 1 |
| Nitzschia linearis W.Smith | 9 | LC | - | - | - | - | - | - | 1 | - | - | - | 1 | - | - | 1 | 1 |
| Nitzschia longissima (Brébisson) Ralfs | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia media Hantzsch | 7 | NT | 1 | - | 1 | - | - | - | 1 | - | - | - | 1 | - | 1 | - | - |
| Nitzschia palea (Kützing) W.Smith | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia paleacea (Grunow) Grunow | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia perminuta Grunow | 9 | LC | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | - | 1 |
| Nitzschia recta Hantzsch ex Rabenhorst | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia rosenstockii Lange-Bertalot | 8 | DD | - | - | - | - | - | 1 | - | - | - | - | - | - | 1 | 1 | - |
| Nitzschia sigma (Kützing) W.Smith | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia sublinearis Hustedt | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia umbonata (Ehrenberg) Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia vermicularis (Kützing) Hantzsch | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nitzschia sp. | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Nupela impexiformis (Lange-Bertalot) Lange-Bertalot | 6 | VU | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 | 1 | - |
| Nupela neogracillima Kulikovskiy & Lange-Bertalot | 0 | NE | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
| Nupela silvahercynia (Lange-Bertalot) Lange-Bertalot | 4 | EN | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Nupela tenuicephala (Hustedt) Lange-Bertalot | 4 | EN | - | 1 | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Odontidium anceps (Ehrenberg) Ralfs | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Odontidium hyemale (Roth) Kützing | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Odontidium mesodon (Ehrenberg) Kützing | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Opephora mutabilis Sabbe & Wyverman | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pantocsekiella costei (J.C.Druart & F.Straub) K.T.Kiss & E.Ács | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - |
| Pantocsekiella kuetzingiana (Thwaites) K.T.Kiss & E.Ács | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pantocsekiella ocellata (Pantocsek) K.T.Kiss & Ács | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Paraplaconeis placentula (Ehrenberg) Kulikovskiy & Lange-Bertalot | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pauliella taeniata (Grunow) Round & Basson | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia acoricola Hustedt | 5 | EN | - | - | - | - | 1 | - | - | - | 1 | - | 1 | - | - | - | - |
| Pinnularia ammerensis Kulikovskiy, Lange-Bertalot & Metzeltin | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - |
| Pinnularia anglica Krammer | 5 | EN | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia angustarea Kulikovskiy, Lange-Bertalot, A.Witkovski & N.I.Dorofeyuk | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - |
| Pinnularia biceps W.Gregory | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia brebissonii (Kützing) Rabenhorst var. brebissonii | 9 | LC | 1 | - | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 |
| Pinnularia bottnica Krammer | 8 | DD | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Pinnularia brandelii Cleve | 5 | EN | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Pinnularia brevicostata Cleve | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia bullacostae Krammer & Lange-Bertalot | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia canadensis Krammer | 0 | NE | - | - | - | - | - | - | 1 | - | - | 1 | 1 | - | - | - | - |
| Pinnularia cardinaliculus Cleve | 6 | VU | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia cuneola E.Reichardt | 5 | EN | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Pinnularia decrescens (Grunow) Krammer | 8 | DD | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Pinnularia divergens var. sublinearis Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - |
| Pinnularia divergens W.Smith | 7 | NT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia eifeliana (Krammer) Krammer | 5 | EN | - | - | - | - | - | 1 | - | - | - | - | 1 | - | - | - | - |
| Pinnularia gentilis (Donkin) Cleve | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia grunowii Krammer | 9 | LC | - | - | - | 1 | - | 1 | 1 | - | - | - | - | - | - | - | - |
| Pinnularia halophila Krammer | 6 | VU | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - |
| Pinnularia intermedia (Lagerstedt) Cleve | 4 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia krammeri Metzeltin | 0 | NE | - | - | - | - | - | - | - | - | - | 1 | 1 | - | 1 | - | - |
| Pinnularia lagerstedtii (Cleve) A.Cleve | 5 | EN | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia lailaensis Foged | 0 | NE | - | - | - | - | - | - | 1 | - | - | - | 1 | - | - | - | - |
| Pinnularia lata (Brébisson) W.Smith | 4 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia macilenta Ehrenberg | 5 | EN | - | - | - | 1 | - | 1 | - | 1 | - | - | - | 1 | - | - | - |
| Pinnularia media (Krammer) Kulikovskiy, Lange-Bertalot & Metzeltin | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia mesogongyla Ehrenberg | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia mesolepta (Ehrenberg) W.Smith | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia microstauron (Ehrenberg) Cleve var. microstauron | 7 | NT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia microstauron var. rostrata Krammer | 0 | NE | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia neohalophila Kulikovskiy, Genkal & Mikheeva | 8 | DD | - | - | - | 1 | - | - | - | - | - | - | 1 | - | - | - | - |
| Pinnularia neomajor Krammer | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia nodosa (Ehrenberg) W.Smith var. nodosa | 5 | EN | - | - | - | - | - | - | 1 | 1 | - | - | - | - | - | - | 1 |
| Pinnularia nodosa var. percapitata Krammer | 5 | EN | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Pinnularia nodosa var. robusta (Foged) Krammer | 6 | VU | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Pinnularia notabilis Krammer | 5 | EN | - | - | - | - | - | - | - | - | - | - | 1 | 1 | 1 | - | - |
| Pinnularia oriunda Krammer | 5 | EN | 1 | - | - | - | - | - | 1 | - | - | - | 1 | - | - | - | 1 |
| Pinnularia oriundiformis Krammer | 5 | EN | 1 | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Pinnularia parvulissima Krammer | 8 | DD | - | - | - | 1 | - | - | - | - | - | - | 1 | - | - | - | - |
| Pinnularia permicrostauron Krammer & Metzeltin | 0 | NE | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Pinnularia pluvianiformis Krammer | 0 | NE | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - |
| Pinnularia quadratarea (A.W.F.Schmidt) Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia rhombarea Krammer | 5 | EN | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 | - | - |
| Pinnularia rupestris Hantzsch | 5 | EN | - | - | - | - | - | 1 | 1 | - | - | - | - | - | 1 | - | - |
| Pinnularia septentrionalis Krammer | 0 | NE | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Pinnularia similiformis Krammer | 9 | LC | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - |
| Pinnularia spitsbergensis Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - |
| Pinnularia stricta Hustedt | 0 | NE | - | - | - | - | - | - | - | - | - | 1 | 1 | 1 | - | - | - |
| Pinnularia subanglica Krammer | 8 | DD | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - |
| Pinnularia subrostrata (A.Cleve) A.Cleve | 6 | VU | - | - | - | 1 | - | - | - | - | - | 1 | - | 1 | 1 | - | - |
| Pinnularia subrupestris Krammer | 5 | EN | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - | 1 |
| Pinnularia subundulata Østrup | 6 | VU | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - |
| Pinnularia sudetica Hilse | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia undula (Schumann) Krammer | 5 | EN | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Pinnularia viridis (Nitzsch) Ehrenberg | 8 | DD | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pinnularia sp. | - | - | - | 1 | 1 | - | - | - | 1 | 1 | 1 | - | 1 | - | 1 | 1 | 1 |
| Placogeia similis (Krasske) Bukhtiyarova | 7 | NT | - | - | 1 | - | - | 1 | - | 1 | 1 | - | 1 | - | 1 | - | - |
| Placoneis amphibola (Cleve) E.J.Cox | 4 | EN | - | 1 | - | - | - | 1 | - | - | - | - | - | - | - | - | 1 |
| Placoneis clementioides (Hustedt) E.J.Cox | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - |
| Placoneis dicephala (Ehrenberg) Mereschkowsky | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Placoneis elginensis (W.Gregory) E.J.Cox | 8 | DD | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Placoneis exigua (W.Gregory) Mereschkovsky | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Placoneis gastrum (Ehrenberg) Mereschkowsky | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Placoneis interglacialis (Hustedt) E.J.Cox | 0 | NE | - | - | - | - | - | 1 | - | - | - | - | - | - | 1 | - | - |
| Placoneis opportuna (Hustedt) Chudaev & Gololobova | 3 | CR | - | - | - | - | - | 1 | - | - | - | - | - | - | 1 | - | - |
| Placoneis placentula var. rostrata (Mayer) N.A.Andresen, Stoermer & R.G.Kreis, Jr. | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Placoneis sp. | - | - | - | 1 | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Planothidium delicatulum (Kützing) Round & Bukhtiyarova | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Planothidium haynaldii (Schaarschmidt) Lange-Bertalot | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Planothidium lanceolatum (Brébisson ex Kützing) Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Planothidium straubianum C.E.Wetzel, Van de Vijver & L.Ector | 0 | NE | - | - | 1 | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Planothidium sp. | - | - | - | - | - | - | - | 1 | - | - | - | 1 | - | - | 1 | 1 | 1 |
| Pleurosigma delicatulum W.Smith | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Pleurosigma elongatum W.Smith | 9 | LC | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Praestephanos triporus (Genkal & G.V.Kuzmin) A.Tuji & J.-S.Ki | 0 | NE | - | - | - | - | - | 1 | 1 | - | - | 1 | - | - | - | - | - |
| Prestauroneis crucicula (W.Smith) Genkal & Yarushina | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Psammothidium petersenii (Hastedt) Round et Bukhiyarova | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Psammothidium bioretii (H.Germain) Bukhtiyarova & Round | 9 | LC | - | - | 1 | - | - | - | - | 1 | 1 | - | 1 | - | 1 | - | - |
| Psammothidium chlidanos (M.H.Hohn & Hellerman) Lange-Bertalot | 4 | EN | - | 1 | - | 1 | - | 1 | 1 | - | 1 | 1 | 1 | - | - | - | - |
| Psammothidium daonense (Lange-Bertalot) Lange-Bertalot | 5 | EN | - | 1 | - | - | - | - | 1 | - | - | - | - | - | 1 | - | - |
| Psammothidium helveticum (Hustedt) Bukhtiyarova & Round | 9 | LC | 1 | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Psammothidium kryophilum (J.B.Petersen) E.Reichardt | 3 | CR | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Psammothidium levanderi (Hustedt) Bukhtiyarova & Round | 3 | CR | 1 | - | - | 1 | - | - | - | - | - | 1 | - | - | - | - | - |
| Psammothidium marginulatum (Grunow) Bukhtiyarova & Round | 8 | DD | - | - | 1 | - | - | - | - | - | 1 | - | 1 | - | - | - | - |
| Psammothidium rechtense (Leclercq) Lange-Bertalot | 3 | CR | - | - | 1 | - | - | 1 | 1 | 1 | 1 | - | 1 | - | - | - | - |
| Psammothidium rossii (Hustedt) Bukhtiyarova & Round | 3 | CR | - | - | 1 | - | - | 1 | - | 1 | - | - | - | - | 1 | - | - |
| Psammothidium scoticum (R.J.Flower & V.J.Jones) Bukhtiyarova & Round | 3 | CR | - | - | 1 | - | - | - | - | - | 1 | - | - | - | - | - | - |
| Psammothidium subatomoides (Hustedt) Bukhtiyarova & Round | 7 | NT | - | 1 | - | - | - | - | - | - | - | - | 1 | - | - | - | 1 |
| Psammothidium subsalsum (J.B.Petersen) Kulikowskiy, Witkowski & Pliński | 0 | NE | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Psammothidium ventrale (Krasske) Bukhtiyarova & Round | 3 | CR | - | - | 1 | 1 | - | - | - | - | 1 | 1 | 1 | - | 1 | - | - |
| Psammothidium sp. | - | - | - | - | 1 | - | - | 1 | - | - | - | - | 1 | - | - | - | - |
| Pseudostaurosira brevistriata (Grunow) D.M.Williams & Round | 9 | LC | 1 | 1 | - | - | - | - | - | - | - | - | - | - | - | 1 | - |
| Pseudostaurosira parasitica (W.Smith) E.Morales | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 | - |
| Pulchellophycus obsitus (Hustedt) Edlund & M.J.Wynne | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | - |
| Pulchellophycus sp. | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - |
| Reimeria sinuata (W.Gregory) Kociolek & Stoermer | 9 | LC | - | - | - | - | - | 1 | - | - | 1 | 1 | - | - | - | - | 1 |
| Rexlowea parasemen (Lange-Bertalot) Kulikoviskiy, Kociolek & Genkal | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Rhizosolenia hebetata f. semispina (Hensen) Gran | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Rhizosolenia hebetata J.W.Bailey | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Rhoicosphenia abbreviata (C.Agardh) Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Rhopalodia gibba (Ehrenberg) O.Müller var. gibba | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Rhopalodia gibba var. ventricosa (Kützing) H.Peragallo & M.Peragallo | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Roperia praetesselata H.J.Schrader | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Rossithidium kreigeri (Krasske) Bahls | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Sellaphora absoluta (Hustedt) Wetzel, Ector, Van de Vijver, Compère & D.G.Mann | 4 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Sellaphora bacillum (Ehrenberg) D.G.Mann | 9 | LC | - | - | - | - | - | 1 | 1 | - | - | - | - | 1 | 1 | - | 1 |
| Sellaphora difficillima (Hustedt) C.E.Wetzel, L.Ector & D.G.Mann | 0 | NE | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Sellaphora insolita (É.Manguin ex Kociolek & B.de Reviers) P.B.Hamilton & D.Antoniades | 0 | NE | - | - | 1 | - | - | 1 | - | - | - | 1 | 1 | - | - | 1 | - |
| Sellaphora laevissima (Kützing) D.G.Mann | 9 | LC | - | - | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 | - | 1 | - | - |
| Sellaphora parapupula Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Sellaphora pupula (Kützing) Mereschkovsky | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Sellaphora rectangularis (W.Gregory) Lange-Bertalot & Metzeltin | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Sellaphora vitabunda (Hustedt) D.G.Mann | 5 | EN | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 | - | - |
| Sellaphora sp. | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 | - |
| Simonsenia delognei (Grunow) Lange-Bertalot | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | - | - | 1 | - | - |
| Skabitschewskia oestrupii (A.Cleve) Kuliskovskiy & Lange-Bertalot | 7 | NT | - | - | 1 | - | - | 1 | 1 | - | 1 | - | 1 | - | 1 | 1 | - |
| Skabitschewskia peragalloi (Brun & Héribaud) Kuliskovskiy & Lange-Bertalot | 4 | EN | 1 | - | 1 | - | - | 1 | 1 | - | 1 | - | 1 | - | 1 | 1 | - |
| Skeletonema subsalsum (A.Cleve) Bethge | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Stauroneis amphicephala Kützing | 8 | DD | - | 1 | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Stauroneis anceps Ehrenberg f. anceps | 7 | NT | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | 1 |
| Stauroneis anceps f. linearis Rabenhorst | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Stauroneis gracilior E.Reichardt | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Stauroneis gracilis Ehrenberg | 7 | NT | - | - | - | - | - | - | 1 | - | - | - | 1 | 1 | 1 | - | - |
| Stauroneis guslyakovii Genkal & Yarushina | 0 | NE | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Stauroneis phoenicenteron (Nitzsch) Ehrenberg | 7 | NT | - | 1 | - | 1 | - | - | 1 | - | - | - | 1 | - | 1 | - | 1 |
| Stauroneis reichardtii Lange-Bertalot, Cavacini, Tagliaventi & Alfinito | 8 | DD | 1 | - | - | - | - | - | - | 1 | - | 1 | 1 | - | 1 | - | - |
| Stauroneis schulzii Jousé | 5 | EN | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Stauroneis siberica (Grunow) Lange-Bertalot & Krammer | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Stauroneis smithii Grunow var. karelica Wislouch & Kolbe | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Stauroneis smithii Grunow var. smithii | 9 | LC | - | - | 1 | - | - | 1 | - | - | - | - | 1 | - | 1 | 1 | 1 |
| Stauroneis sp. | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - |
| Staurosira construens Ehrenberg | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Staurosira sviridae Kulikovskiy, Genkal & Mikheeva | 0 | NE | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - |
| Staurosirella lanceolata (Hustedt) E.A.Morales, C.Wetzel & L.Ector | 0 | NE | 1 | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Staurosirella lapponica (Grunow) D.M.Williams & Round | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Staurosirella pinnata (Ehrenberg) D.M.Williams & Round | 0 | NE | 1 | 1 | - | - | - | 1 | - | 1 | 1 | - | 1 | - | 1 | 1 | - |
| Stenopterobia heribaudii (Playfair) Playfair | 0 | NE | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | - |
| Stephanocyclus meneghinianus (Kützing) Kulikovskiy, Genkal & Kociolek = Cyclotella meneghiniana Kützing | 9 | LC | - | - | - | - | 1 | 1 | - | - | - | - | - | - | 1 | - | 1 |
| Stephanodiscus binderanus (Kützing) Krieger | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Stephanodiscus hantzschii Grunow | 9 | LC | - | 1 | 1 | - | - | 1 | - | - | - | 1 | - | - | - | 1 | 1 |
| Stephanodiscus hashiensis H.Tanaka | 0 | NE | - | - | - | - | - | 1 | - | - | - | - | - | - | 1 | - | - |
| Stephanodiscus minutulus (Kützing) Cleve & Möller | 9 | LC | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Stephanodiscus neoastraea Håkansson & Hickel emend. Casper, Scheffler et Augsten | 9 | LC | 1 | - | - | - | 1 | - | - | - | - | 1 | - | - | - | - | 1 |
| Surirella angusta Kützing | 9 | LC | - | - | 1 | - | - | - | 1 | - | - | - | - | - | - | - | 1 |
| Surirella brebissonii Krammer & Lange-Bertalot | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Surirella capronii var. hankensis Skvortzov | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Surirella conifera Skvortzov | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Surirella crumena Brébisson ex Kützing | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Surirella didyma Kützing | 6 | VU | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Surirella elegans Ehrenberg | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Surirella hibernica (W.Smith) D.Kapustin & O.Kryvosheia | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Surirella librile (Ehrenberg) Ehrenberg | 0 | NE | - | - | - | - | - | - | - | - | - | - | 1 | - | 1 | - | 1 |
| Surirella minuta Brébisson ex Kützing | 9 | LC | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Surirella ovalis Brébisson | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Surirella roba Leclercq | 5 | EN | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - |
| Surirella sp. | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - | 1 | - | - |
| Synedra actinastroides (Lemmermann) Lemmermann | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Tabellaria fenestrata (Lyngbye) Kützing | 7 | NT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Tabellaria flocculosa (Roth) Kützing | 9 | LC | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | - | 1 | 1 | 1 | 1 |
| Tabularia parva (Kützing) D.M.Williams & Round | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Tabularia tabulata (C.Agardh) Snoeijs | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Tetracyclus glans (Ehrenberg) F.W.Mills | 2 | CR | 1 | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - |
| Tetracyclus rupestris (Kützing) Grunow | 5 | EN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Thalassionema nitzschioides (Grunow) Mereschkowsky | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Thalassiosira baltica (Grunow) Ostenfeld | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Thalassiosira bramaputrae (Ehrenberg) Håkansson & Locker | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Thalassiosira decipiens (Grunow ex Van Heurck) Jørgensen | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Thalassiosira gravida Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Thalassiosira hyalina (Grunow) Gran | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Thalassiosira leptopus (Grunow) Hasle & G.Fryxell | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Thalassiosira nordenskioeldii Cleve | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Thalassiosira pseudonana Hasle & Heimdal | 9 | LC | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - |
| Thalassiosira sp. | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Tryblionella angustata W.Smith var. angustata | 0 | NE | - | - | 1 | 1 | - | - | - | - | - | - | - | - | - | - | 1 |
| Tryblionella angustata var. acuta (Grunow) Bukhtiyarova | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Tryblionella calida (Grunow) D.G.Mann | 0 | NE | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
| Tryblionella debilis Arnott ex O’Meara | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Tryblionella hantzschiana Grunow | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Tryblionella gracilis var. ambigua (Grunow) Bukhtiyarova | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Tryblionella hungarica (Grunow) Frenguelli | 0 | NE | - | - | - | - | - | - | - | - | - | - | 1 | - | - | - | 1 |
| Tryblionella littoralis (Grunow) D.G.Mann | 0 | NE | - | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - |
| Ulnaria acus (Kützing) Aboal | 9 | LC | - | - | - | - | - | - | 1 | - | - | - | - | - | 1 | 1 | 1 |
| Ulnaria amphirhynchus (Ehrenberg) Compère & Bukhtiyarova | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Ulnaria biceps (Kützing) Compère | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Ulnaria capitata (Ehrenberg) Compère | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Ulnaria contracta (Østrup) E.A.Morales & M.L.Vis | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Ulnaria danica (Kützing) Compère & Bukhtiyarova | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Ulnaria delicatissima var. angustissima (Grunow) Aboal & P.C.Silva | 0 | NE | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Ulnaria ulna (Nitzsch) Compère | 8 | DD | - | - | 1 | - | - | 1 | 1 | 1 | - | - | 1 | - | - | - | 1 |
| Ulnaria sp. | - | - | - | - | - | - | - | 1 | - | - | - | - | - | - | - | - | - |
| Urosolenia eriensis (H.L.Smith) Round & R.M.Crawford | 8 | DD | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Urosolenia longiseta (O.Zacharias) Edlund & Stoermer | 9 | LC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
Table A2.
Ecological preferences of diatom species in waterbodies of the Lena Delta Nature Reserve and adjacent areas.
Table A2.
Ecological preferences of diatom species in waterbodies of the Lena Delta Nature Reserve and adjacent areas.
| Taxa | Hab | Temp | Oxy | Sal | pH | pH Range | D | Index S | Sap | Aut-Het | Tro |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Acanthoceras zachariasii (Brun) Simonsen | P | - | st-str | i | ind | - | - | 1.4 | o-b | - | - |
| Achnanthes adnata Bory | B | - | - | mh | alf | - | - | 2.0 | b | - | me |
| Achnanthes atacamae Hustedt | - | - | - | - | - | - | - | - | - | - | - |
| Achnanthes ingratiformis Lange-Bertalot | B | - | - | - | - | 8.00 | - | - | - | - | - |
| Achnanthes koshovii Jasnitsky | B | - | - | - | - | - | - | - | - | - | - |
| Achnanthes sp. | - | - | - | - | - | - | - | - | - | - | - |
| Achnanthidium affine (Grunow) Czarnecki | B | - | str | i | alf | 6.8–7.1 | es | 1.1 | o | ate | - |
| Achnanthidium kranzii (Lange-Bertalot) Round & Bukhtiyarova | B | temp | str | hb | acf | 6.8–8.1 | - | 1.5 | o-b | ats | ot |
| Achnanthidium minutissimum (Kützing) Czarnecki | P-B | eterm | st-str | i | ind | 4.3–9.2 | es | 0.95 | b | ate | e |
| Achnanthidium minutissimum var. jackii (Rabenhorst) Lange-Bertalot | B | - | - | i | ind | - | - | - | o | - | - |
| Achnanthidium nodosum (Cleve) Tseplik & Chudaev | B | - | - | hb | acf | - | - | 1.0 | o | - | ot |
| Achnanthidium petersenii (Hustedt) C.E.Wetzel, L.Ector, D.M.Williams & I.Jüttner | B | - | str | hb | ind | 6.9 | - | 0.2 | o | ats | ot |
| Achnanthidium saprophilum (H.Kobayashi & Mayama) Round & Bukhtiyarova | B | temp | - | - | - | 7.3–7.8 | - | - | - | - | - |
| Achnanthidium sp. | - | - | - | - | - | - | - | - | - | - | - |
| Actinocyclus kuetzingii (A.W.F.Schmidt) Simonsen | P-B | - | - | eh | - | - | - | - | - | - | - |
| Adlafia sp. | - | - | - | - | - | - | - | - | - | - | - |
| Amphora copulata (Kützing) Schoeman & R.E.M.Archibald | B | temp | st-str | i | alf | 7.7 | es | 1.5 | o-b | ate | e |
| Amphora indistincta Levkov | - | - | - | - | - | - | - | - | - | - | - |
| Amphora ovalis (Kützing) Kützing | B | temp | st-str | i | alf | 6.2–9.0 | sx | 1.5 | b | ate | e |
| Amphora pediculus (Kützing) Grunow | B | temp | st | i | alf | 6.9–8.9 | es | 1.7 | b | ate | me |
| Amphora pseudosibirica Levkov & Pavlov | - | - | - | - | - | - | - | - | - | - | - |
| Amphora sp. | - | - | - | - | - | - | - | - | - | - | - |
| Amphorotia clevei (Grunow) D.M.Williams & G.Reid | B | - | - | hb | - | - | - | - | - | - | - |
| Aneumastus apiculatus (Østrup) Lange-Bertalot | P-B | - | str | i | ind | - | - | 2.0 | b | ats | me |
| Aneumastus tusculus (Ehrenberg) D.G.Mann & A.J.Stickle | P-B | - | st | i | alb | - | - | 0.9 | b | ate | o-e |
| Asterionella formosa Hassall | P | temp | st-str | i | alf | 6.4–7.99 | sx | 1.35 | b | ate | me |
| Aulacoseira alpigena (Grunow) Krammer | P-B | temp | st-str | i | alf | 4.8–8.4 | sp | 0.8 | x-b | ate | ot |
| Aulacoseira ambigua (Grunow) Simonsen | P | temp | st-str | i | alf | 6.0–8.5 | sp | 1.7 | b-o | ate | om |
| Aulacoseira distans (Ehrenberg) Simonsen | P-B | cool | str | i | acf | 4.5–7.8 | sp | 0.4 | o | ats | ot |
| Aulacoseira granulata (Ehrenberg) Simonsen f. granulata | P-B | temp | st-str | i | alf | 5.8–9.4 | es | 2.0 | b | ate | e |
| Aulacoseira granulata f. curvata (Hustedt) Simonsen | P-B | - | st-str | i | alf | - | - | 2.0 | b | ate | e |
| Aulacoseira islandica (O.Müller) Simonsen | P-B | cool | st-str | i | ind | 8.0 | es | 2.0 | b | ate | o-e |
| Aulacoseira italica (Ehrenberg) Simonsen var. italica | P-B | cool | st-str | i | ind | 5.8–8.4 | es | 1.45 | b | ate | me |
| Aulacoseira italica var. curvata (Pantocsek) L.Yang & Q.X.Wang | P | - | - | i | acf | - | es | - | - | - | - |
| Aulacoseira italica var. tenuissima (Grunow) Simonsen | P-B | cool | st-str | i | ind | 7.0 | es | 1.3 | b | ate | me |
| Aulacoseira lirata (Ehrenberg) R.Ross | P-B | temp | - | hb | acf | 4.6–7.3 | - | 0.5 | x-o | ate | - |
| Aulacoseira perglabra (Østrup) E.Y.Haworth | P-B | temp | - | hb | acf | 4.76 | - | 1.0 | o | ate | ot |
| Aulacoseira pfaffiana (Reinsch) Krammer | P-B | cool | str | hb | acf | - | - | 0.3 | x | ats | ot |
| Aulacoseira pusilla (F.Meister) A.Tuji & A.Houki | - | - | - | - | - | - | - | - | - | - | - |
| Aulacoseira scalaris (Grunow) Houk, Klee & Passauer | - | - | - | - | - | - | - | - | - | - | - |
| Aulacoseira subarctica (O.Müller) E.Y.Haworth | P | temp | st-str | i | alf | 6.72–8.14 | - | 1.7 | b-o | ats | om |
| Aulacoseira valida (Grunow) Krammer | P-B | - | - | i | alf | - | es | 1.3 | o | ate | om |
| Boreozonacola hustedtii Lange-Bertalot, Kulikovskiy & Witkowski | - | - | - | - | - | - | - | - | - | - | - |
| Brachysira brebissonii R.Ross | P-B | temp | st-str | hb | acf | 4.6–7.8 | sx | 0.4 | o | ats | ot |
| Brachysira calcicola Lange-Bertalot | B | - | - | - | - | - | - | 1.0 | o | - | - |
| Brachysira neoexilis Lange-Bertalot | B | - | - | - | acf | 7.8 | - | 0.5 | x-o | - | om |
| Brachysira procera Lange-Bertalot & Gerd Moser | B | - | - | - | acf | 6.3–6.5 | - | - | - | - | - |
| Brachysira styriaca (Grunow) R.Ross | B | temp | - | i | ind | 6.45–7.26 | es | 1.0 | o | - | ot |
| Caloneis arctica (Krasske) Lange-Bertalot & S.I.Genkal | - | - | - | - | - | - | - | - | - | - | - |
| Caloneis bacillum (Grunow) Cleve | B | temp | st-str | i | alf | 6.8–8.4 | es | 1.3 | b | ats | me |
| Caloneis holarctica Kulikovskiy, Lange-Bertalot & A.Witkowski | - | - | - | - | - | - | - | - | - | - | - |
| Caloneis silicula (Ehrenberg) Cleve var. Silicula | B | warm | st | i | ind | 6.3–9.0 | sp | 1.3 | o | ats | om |
| Caloneis silicula var. elliptica Mayer | - | - | - | - | - | - | - | - | - | - | - |
| Caloneis undosa Krammer | B | - | st-str | i | acf | - | - | 1.0 | o | ats | ot |
| Caloneis ventricosa F.Meister var. truncatula (Grunow) Meister | B | - | st-str | i | alf | - | - | 1.3 | b | ats | me |
| Caloneis westii (W.Smith) Hendey | B | - | - | mh | alf | - | - | - | - | ats | e |
| Campylodiscus hibernicus Ehrenberg | B | - | st | i | ind | - | es | 2.0 | b | ats | ot |
| Cavinula cocconeiformis (W.Gregory ex Greville) D.G.Mann & A.J.Stickle | P-B | temp | st-str | i | ind | 6.57–7.5 | es | 0.4 | x-o | ats | om |
| Cavinula jaernefeltii (Hustedt) D.G.Mann & A.J.Stickle | B | temp | str | i | acf | 6.71–7.5 | - | 2.0 | b | ats | om |
| Cavinula pseudoscutiformis (Hustedt) D.G.Mann & Stickle | P-B | temp | st-str | i | ind | 6.2–8.4 | sx | 0.4 | b | ats | me |
| Cavinula sp. | - | - | - | - | - | - | - | - | - | - | - |
| Chaetoceros borealis Bailey | - | - | - | - | - | - | - | - | - | - | - |
| Chaetoceros compressus Lauder | - | temp | - | eh | - | - | - | - | - | - | - |
| Chaetoceros debilis Cleve | - | - | - | - | - | - | - | - | - | - | - |
| Chaetoceros decipiens Cleve | - | - | - | - | - | - | - | - | - | - | - |
| Chaetoceros furcellatus Yendo | - | - | - | - | - | - | - | - | - | - | - |
| Chaetoceros gracilis Pantocsek | - | - | - | - | - | - | - | - | - | - | - |
| Chaetoceros mitra (Bailey) Cleve | P | - | - | i | - | - | - | - | - | - | - |
| Chaetoceros simplex Ostenfeld | - | - | - | - | - | - | - | - | - | - | - |
| Chaetoceros socialis H.S.Lauder | - | - | - | - | - | - | - | - | - | - | - |
| Chaetoceros subtilis Cleve | P-B | - | - | mh | alb | - | - | - | - | - | - |
| Chaetoceros teres Cleve | - | - | - | - | - | - | - | - | - | - | - |
| Chaetoceros wighamii Brightwell | P-B | - | - | mh | alb | - | - | - | - | - | - |
| Chamaepinnularia begeri (Krasske) Lange-Bertalot | B | temp | - | i | ind | 6.35 | - | 1.0 | o | ats | - |
| Chamaepinnularia circumborealis Lange-Bertalot | - | - | - | - | - | - | - | - | - | - | - |
| Chamaepinnularia krookiformis (Krammer) Lange-Bertalot & Krammer | B | - | - | hl | neu | - | - | 1.0 | o | - | - |
| Chamaepinnularia soehrensis (Krasske) Lange-Bertalot & Krammer | B | - | st-str | hb | acf | 8.20 | - | 1.0 | o | ats | ot |
| Chamaepinnularia sp. | - | - | - | - | - | - | - | - | - | - | - |
| Cocconeis lineata Ehrenberg | P-B | temp | st-str | i | alf | 6.3–9.5 | sx | 1.2 | b | ate | e |
| Cocconeis neodiminuta Krammer | P-B | temp | st-str | i | alf | 7–9 | sx | 0.9 | b | ats | me |
| Cocconeis pediculus Ehrenberg | B | temp | st-str | i | alf | 6.9–8.6 | sx | 1.8 | a-b | ate | me |
| Cocconeis placentula Ehrenberg var. placentula | P-B | temp | st-str | i | alf | 5.5–9.0 | es | 1.35 | o | ate | me |
| Cocconeis placentula var. euglypta (Ehrenberg) Cleve | P-B | temp | st-str | i | alf | 5.5–9.0 | sx | 1.3 | b | ate | om |
| Cocconeis sp. | - | - | - | - | - | - | - | - | - | - | - |
| Coscinodiscus curvatulus Grunow | P-B | - | - | eh | - | - | - | - | - | - | - |
| Cosmioneis pusilla (W.Smith) D.G.Mann & A.J.Stickle | P-B,aer | - | st-str | hl | ind | - | sp | 1.8 | o-a | ats | om |
| Craticula ambigua (Ehrenberg) D.G.Mann | B | temp | st | i | alf | 5.5–8.0 | es | 2.3 | b | - | me |
| Craticula halophila (Grunow) D.G.Mann | B | temp | st-str | mh | alf | 7.2–8.9 | es | 3.0 | a | ate | e |
| Craticula molestiformis (Hustedt) Mayama | B | temp | st | i | alf | 6.8–8.4 | - | 3.6 | a-p | hne | e |
| Ctenophora pulchella (Ralfs ex Kützing) D.M.Williams & Round | P-B,Ep | temp | st-str | mh | alf | 6.5–8.8 | sx | 2.3 | a | ate | e |
| Cyclostephanos dubius (Hustedt) Round | P-B | temp | st-str | hl | alf | 5.7–9.5 | es | 2.0 | a | ate | e |
| Cyclostephanos makarovae (S.I.Genkal) K.Schultz | - | - | - | - | - | - | - | - | - | - | - |
| Cyclotella atomus Hustedt | P-B | - | st-str | hl | alf | 6.9–8.5 | sp | 2.5 | b-a | ate | e |
| Cyclotella distinguenda Hustedt | P | - | str | hl | alf | 8.2 | - | 1.3 | o | - | om |
| Cyclotella meduanae H.Germain | - | - | - | - | - | - | - | - | - | - | - |
| Cyclotella melosiroides (Kirchner) Lemmermann | P | - | - | i | - | - | - | - | - | - | - |
| Cylindrotheca gracilis (Brébisson ex Kützing) Grunow | B | - | st | hl | ind | - | - | 2.8 | a-o | hne | e |
| Cymatopleura elliptica (Brébisson) W.Smith | P-B | temp | st-str | i | alf | 5.7–8.5 | - | 1.4 | b | ate | e |
| Cymatopleura nobilis Hantzsch | B | - | - | i | ind | - | - | 1.7 | b-o | hne | - |
| Cymatopleura solea var. gracilis Grunow | B | - | - | i | alf | - | - | - | - | - | - |
| Cymatopleura solea var. vulgaris Meister | B | - | - | i | ind | - | - | - | - | - | - |
| Cymbella affinis Kützing | B | temp | st-str | i | alf | 6.3–9.5 | sx | 1.1 | b | ats | e |
| Cymbella arctica (Lagerstedt) A.W.F.Schmidt | B | - | - | i | alf | 8.30 | - | 1.0 | o | - | ot |
| Cymbella australica (A.W.F.Schmidt) Cleve | B | - | - | i | ind | - | es | 1.0 | o | - | ot |
| Cymbella carassius Skvortzov | - | - | - | - | - | - | - | - | - | - | - |
| Cymbella cleve-eulerae Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Cymbella cymbiformis C.Agardh | B | temp | st-str | i | alf | 6.2–9.0 | sx | 2.0 | b | ats | om |
| Cymbella hantzschiana Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Cymbella helvetica Kützing | B | temp | st-str | i | ind | 7.36–8.4 | - | 0.6 | b | ats | me |
| Cymbella krammeri Bahls | - | - | - | - | - | - | - | - | - | - | - |
| Cymbella lanceolata C.Agardh | B | temp | st-str | i | alf | 6.5–8.6 | es | 2.5 | b-a | ate | e |
| Cymbella neocistula Krammer | B | - | - | i | ind | - | - | - | - | hne | - |
| Cymbella neogena (Grunow) Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Cymbella proxima Reimer | B | - | - | i | alf | - | es | 1.0 | o | - | m |
| Cymbella stuxbergii (Cleve) Cleve | B | - | - | i | neu | - | - | 1.0 | o | - | ot |
| Cymbella subcistula Krammer | B | - | - | - | - | - | - | 1.2 | o | - | - |
| Cymbella tartuensis Molder | B | - | - | i | ind | - | - | - | - | - | - |
| Cymbella tumida (Brébisson) Van Heurck | B | temp | st-str | i | alf | 6.8–9.5 | sx | 2.2 | b | ats | me |
| Cymbella sp. | - | - | - | - | - | - | - | - | - | - | - |
| Cymbellafalsa diluviana (Krasske) Lange-Bertalot & Metzeltin | B | - | - | i | alf | 7.95 | - | 1.0 | o | - | ot |
| Cymbopleura amphicephala (Nägeli ex Kützing) Krammer | B | - | st-str | i | ind | 4.6–8.2 | - | - | - | - | - |
| Cymbopleura anglica (Lagerstedt) Krammer | B | - | - | hb | ind | - | sx | 1.2 | o | ats | om |
| Cymbopleura angustata var. spitsbergensis Krammer | B | - | str | i | ind | 4.9–8.20 | - | 1.0 | o | - | ot |
| Cymbopleura cuspidata (Kützing) Krammer | P-B | temp | st-str | i | alf | 5.7–7.5 | - | - | - | - | - |
| Cymbopleura designata (Krammer) Bahls | B | temp | st-str | i | alf | 6.3–9.0 | - | 1.8 | o-a | ats | m |
| Cymbopleura elliptica Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Cymbopleura hybrida (Grunow ex Cleve) Krammer | P-B | - | - | i | ind | 8.10 | - | 1.2 | o | ats | - |
| Cymbopleura incertiformis Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Cymbopleura naviculiformis (Auerswald ex Heiberg) Krammer | B | temp | st-str | i | ind | 7.8–6.94 | - | - | - | - | - |
| Cymbopleura neoheteropleura Krammer | B | - | - | hb | acf | - | es | 1.2 | o | ate | om |
| Cymbopleura oblongata var. stenoraphe Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Cymbopleura stauroneiformis (Lagerstedt) Krammer | B | - | - | - | ind | - | - | 1.0 | o | ats | ot |
| Cymbopleura subanglica Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Cymbopleura subapiculata Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Cymbopleura subcuspidata (Krammer) Krammer | P-B | - | str | i | acf | - | sx | 1.0 | o | ats | om |
| Cymbopleura truncata Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Cymbopleura tynnii (Krammer) Krammer | B | - | - | - | - | - | - | - | - | - | - |
| Cymbopleura sp. | - | - | - | - | - | - | - | - | - | - | - |
| Denticula elegans Kützing | P-B,aer | - | - | i | alf | 7.3–9.0 | - | - | - | - | - |
| Denticula tenuis Kützing | B | - | st-str | i | alf | 7.42–8.0 | - | - | - | - | - |
| Diatoma moniliformis (Kützing) D.M.Williams | P-B | temp | st-str | i | alf | 8.0–8.5 | - | 0.4 | x-o | - | - |
| Diatoma moniliformis subsp. ovalis (F.Fricke) Lange-Bertalot, Rumrich & G.Hofmann | B | - | st-str | i | alf | - | sx | 1.4 | o-b | - | - |
| Diatoma problematica Lange-Bertalot | B | - | - | - | - | - | - | 1.3 | o | - | om |
| Diatoma tenuis C.Agardh | P-B | temp | st-str | hl | alf | 6.9–8.39 | - | 2.4 | b-a | - | om |
| Diatoma vulgaris Bory | P-B | temp | st-str | i | alf | 6.2–8.9 | - | 2.4 | b-a | - | - |
| Diatomella balfouriana Greville | B | - | - | - | - | - | es | 2.2 | b | ate | me |
| Didymosphenia geminata (Lyngbye) Mart.Schmidt | B | - | st-str | i | ind | - | - | 2.0 | b | - | - |
| Didymosphenia siberica (Grunow) Mart.Schmidt | - | - | - | - | - | - | - | - | - | - | - |
| Diploneis boldtiana Cleve | B | - | st-str | i | ind | - | - | - | - | - | - |
| Diploneis didymus (Ehrenberg) Ehrenberg | B | - | - | mh | alf | - | - | - | - | - | - |
| Diploneis elliptica (Kützing) Cleve | B | temp | str | i | alf | 8.2 | es | - | - | - | - |
| Diploneis interrupta (Kützing) Cleve | B | - | - | mh | alf | - | - | - | - | - | - |
| Diploneis modica Hustedt | B | - | - | - | - | 6.58 | - | - | - | - | - |
| Diploneis oblongella (Nägeli ex Kützing) A.Cleve | B | - | st-str | i | ind | 6.9–8.0 | - | - | - | - | - |
| Diploneis oculata (Brébisson) Cleve | B | temp | st-str | i | alf | 7.4–8.2 | - | - | - | - | - |
| Diploneis ovalis (Hilse) Cleve | B | - | st-str | i | alf | 6.5–9.0 | - | 0.9 | x-b | ate | m |
| Diploneis parma Cleve | B | cool | - | i | alf | 6.6–8.6 | - | - | - | - | - |
| Diploneis smithii (Brébisson) Cleve var. smithii | B | - | - | mh | alf | - | - | - | - | - | - |
| Diploneis smithii var. pumila (Grunow) Hustedt | B | - | - | mh | alf | - | - | 0.7 | o-x | - | - |
| Diploneis subovalis Cleve | B | temp | st-str | hl | ind | - | - | - | - | - | - |
| Diploneis sp. | - | - | - | - | - | - | - | - | - | - | - |
| Discostella pseudostelligera (Hustedt) Houk & Klee | P | temp | st-str | i | ind | 6.32–8.5 | - | 2.7 | a-o | - | - |
| Discostella stelligera (Cleve & Grunow) Houk & Klee | P-B | temp | st-str | i | ind | 5.1–9.0 | - | - | - | - | - |
| Encyonema auerswaldii Rabenhorst | B | - | - | i | ind | - | - | - | - | - | - |
| Encyonema elginense (Krammer) D.G.Mann | B | temp | st-str | hb | acf | 5.5–9.0 | - | - | - | - | - |
| Encyonema fogedii Krammer | - | - | - | - | - | 8.10 | sx | 1.5 | o-b | ats | om |
| Encyonema gaeumannii (F.Meister) Krammer | B | temp | str | hb | acf | 4.6–7.9 | - | - | - | - | - |
| Encyonema groenlandica (Foged) Kulikovskiy & Lange-Bertalot | - | - | - | - | - | - | - | - | - | - | - |
| Encyonema lacustre (C.Agardh) Pantocsek | B | - | - | hl | ind | - | - | - | - | - | - |
| Encyonema lange-bertalotii Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Encyonema latens (Krasske) D.G.Mann | B | - | - | - | - | 7.8–8.0 | - | 1.0 | o | ats | ot |
| Encyonema lunatum (W.Smith) Van Heurck | B | temp | - | - | ind | 4.9–7.8 | es | 1.3 | o | ats | e |
| Encyonema minutum (Hilse) D.G.Mann var. minutum | B | temp | st-str | i | ind | 4.9–8.9 | sx | 1.5 | o-b | ats | - |
| Encyonema minutum var. hankensis (Skvortzow et Meyer) Kharitonov | - | - | - | - | - | - | - | - | - | - | - |
| Encyonema neogracile Krammer | P-B | - | - | - | ind | 6.4 | - | - | - | hne | - |
| Encyonema perpusillum (A.Cleve) D.G.Mann | P-B | temp | str | hb | ind | 6.1–6.16 | - | - | - | - | - |
| Encyonema reichardtii (Krammer) D.G.Mann | B | temp | str | i | ind | 7.6–7.8 | - | 1.0 | o | ats | ot |
| Encyonema silesiacum (Bleisch) D.G.Mann | B | temp | st-str | i | ind | 6.2–8.6 | - | - | - | - | - |
| Encyonema ventricosum (C.Agardh) Grunow | B | - | st-str | i | ind | 6.2–8.0 | - | - | - | ate | - |
| Encyonema vulgare Krammer | B | - | - | - | - | - | - | - | o | ats | me |
| Encyonema sp. | - | - | - | - | - | - | - | - | - | - | - |
| Encyonopsis cesatiformis Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Encyonopsis cesatii (Rabenhorst) Krammer | B | temp | str | i | ind | 5.7–8.0 | - | 1.5 | o-b | - | - |
| Encyonopsis perborealis Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Entomoneis alata (Ehrenberg) Ehrenberg | P-B | - | st | mh | alf | - | - | 2.5 | b-a | - | - |
| Entomoneis ornata (Bailey) Reimer | B | - | st-str | i | alf | - | - | 2.0 | b | hne | - |
| Entomoneis paludosa (W.Smith) Reimer var. paludosa | B | - | - | hl | - | - | - | 1.5 | o-b | ats | om |
| Entomoneis paludosa var. hyperborea (Grunow) Czarnecki & D.C.Reinke | - | - | - | - | - | - | - | - | - | - | - |
| Envekadea sp. | - | - | - | - | - | - | - | - | - | - | - |
| Epithemia adnata (Kützing) Brébisson var. adnata | B | temp | st-str | i | alb | 5.5–9.0 | - | 1.2 | o | - | - |
| Epithemia adnata var. saxonica (Kützing) R.M.Patrick | B | temp | - | i | alf | 4.8–9.0 | - | 1.2 | o | - | - |
| Epithemia argus (Ehrenberg) Kützing | P-B | - | st-str | i | ind | - | sx | 1.2 | o | ats | me |
| Epithemia parallela (Grunow) Ruck & Nakov | B | - | str | i | alf | - | - | 1.0 | o | - | - |
| Epithemia porcellus Kützing | B | - | - | i | alf | - | - | - | - | - | - |
| Epithemia sorex Kützing | B | temp | st-str | i | alf | 5.0–9.0 | - | - | - | - | - |
| Epithemia turgida (Ehrenberg) Kützing | B | temp | st-str | i | alf | 5.0–9.0 | - | 1.1 | - | - | - |
| Eucampia zodiacus Ehrenberg | - | - | - | hl | - | - | - | - | - | - | - |
| Eucocconeis alpestris (Brun) Lange-Bertalot | B | temp | str | hb | ind | 6.35–7.09 | - | - | - | - | - |
| Eucocconeis austriaca (Hustedt) Lange-Bertalot | B | - | - | i | alf | - | - | 0.2 | x | ats | ot |
| Eucocconeis depressa (Cleve) Lange-Bertalot | B | - | - | hb | acf | - | - | 1.0 | o | - | ot |
| Eucocconeis diluviana (Hustedt) Lange-Bertalot | - | - | - | - | - | - | - | - | - | - | - |
| Eucocconeis flexella (Kützing) F.Meister | B | temp | str | mh | ind | 7.13–8.10 | - | - | - | - | - |
| Eucocconeis laevis (Østrup) Lange-Bertalot | B | - | str | hb | neu | 7.90 | sx | 0.2 | x | ats | ot |
| Eucocconeis leptostriata Lange-Bertalot apud H.Lange-Bertalot & S.I.Genkal | B | - | - | i | neu | - | sx | - | - | ate | - |
| Eucocconeis quadratarea (Østrup) Lange-Bertalot | B | - | - | i | acf | - | - | 1.0 | o | - | - |
| Eunotia ambivalens Lange-Bertalot & Tagliaventi | B | - | - | i | acf | - | - | 3.9 | b-p | - | - |
| Eunotia arcubus var. bidens (Grunow) Lange-Bertalot | B | - | - | i | alf | - | sx | 1.0 | o | - | ot |
| Eunotia arcus Ehrenberg | B | temp | st-str | i | acf | 5.8–6.95 | sx | 0.4 | x-o | ats | ot |
| Eunotia bidens Ehrenberg | P-B,aer | cool | st-str | hb | acf | - | - | 1.0 | o | - | ot |
| Eunotia bidentula W.Smith | B | - | st-str | i | acf | 4.66–7.0 | - | 0.4 | x-o | ats | om |
| Eunotia bigibba Kützing | B | - | str | i | acf | 4.6–5.0 | - | 0.4 | x-o | - | ot |
| Eunotia bigibboidea Lange-Bertalot & Witkowski | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia bilunaris (Ehrenberg) Schaarschmidt | B | temp | st-str | i | acf | 5.0–7.8 | - | - | - | - | - |
| Eunotia boreoalpina Lange-Bertalot & Nörpel-Schempp | B | - | - | hb | - | - | - | - | - | - | - |
| Eunotia boreotenuis Nörpel-Schempp & Lange-Bertalot | B | - | - | hb | - | - | - | 1.0 | o | - | ot |
| Eunotia botuliformis F.Wild, Nörpel & Lange-Bertalot | B | - | - | hb | acf | - | - | 1.0 | o | - | ot |
| Eunotia cantonatii Lange-Bertalot & Tagliaventi | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia chelonia Nörpel-Schempp, Lange-Bertalot & Metzeltin | B | - | - | i | acf | - | - | - | - | - | - |
| Eunotia curtagrunowii Nörpel-Schempp & Lange-Bertalot | P-B | - | - | hb | acf | - | - | 0.4 | x-o | ats | ot |
| Eunotia elegans Østrup | P-B | - | st-str | hb | acf | 6.3 | - | 0.2 | x | ats | ot |
| Eunotia eurycephala (Grunow) Nörpel-Schempp & Lange-Bertalot | B | - | - | i | - | - | - | - | - | - | - |
| Eunotia ewa Lange-Bertalot & Witkowski | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia exigua (Brébisson ex Kützing) Rabenhorst | P-B,aer | temp | st-str | hb | acb | 3.4–8.0 | - | 1.0 | o | - | ot |
| Eunotia faba Ehrenberg | B | temp | st-str | - | alf | 5.38–7.0 | - | - | o | ats | ot |
| Eunotia flexuosa (Brébisson ex Kützing) Kützing | B | temp | st-str | i | acf | 4.5–7.8 | - | 0.4 | x-o | - | - |
| Eunotia formica Ehrenberg | B | - | st-str | i | acf | - | - | 0.8 | x-b | ats | om |
| Eunotia fureyae Lange-Bertalot | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia genuflexa Nörpel-Schempp | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia groenlandica Nörpel-Schempp & Lange-Bertalot | B | - | st-str | hb | acf | 3.80 | - | 0.6 | o-x | - | - |
| Eunotia incisa W.Smith ex W.Gregory | P-B | temp | st-str | i | acf | 4.5–7.0 | - | - | o | ats | om |
| Eunotia islandica Østrup | B | - | - | i | acf | - | - | 0.4 | x-o | - | ot |
| Eunotia julma Lange-Bertalot | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia major (W.Smith) Rabenhorst | B | - | st-str | hb | acf | 6.7 | - | 1.0 | o | - | - |
| Eunotia meisteri Hustedt | P-B | - | str | i | acf | 4.5–7.2 | - | 0.4 | x-o | ats | - |
| Eunotia minor (Kützing) Grunow | B | temp | st-str | hb | acf | 4.5–8.2 | - | - | - | - | - |
| Eunotia monnieri Lange-Bertalot & Tagliaventi | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia monodon Ehrenberg | B | - | st-str | hb | acf | 7.3 | es | 0.4 | x-o | ats | ot |
| Eunotia mucophila (Lange-Bertalot, Nörpel-Schempp & Alles) Lange-Bertalot | P-B | temp | st-str | hb | acf | 5.25–6.4 | - | - | - | - | - |
| Eunotia naegelii Migula | P-B | temp | str | hb | acf | 4.5–6.0 | sx | 0.5 | x-o | ate | ot |
| Eunotia neocompacta var. vixcompacta Lange-Bertalot | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia parallela Ehrenberg | P-B | - | str | i | acf | - | - | 1.0 | o | - | - |
| Eunotia paralleladubia Lange-Bertalot & S.Mayama | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia parapraerupta Lange-Bertalot & Metzeltin | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia praerupta Ehrenberg | P-B | cool | st-str | hb | acf | 6.68–8.0 | - | 0.3 | x | - | - |
| Eunotia pseudogroenlandica Lange-Bertalot & Tagliaventi | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia pseudopapilio Lange-Bertalot & M.Nörpel-Schempp | B | - | st-str | hb | acf | - | sx | 0.4 | x-o | ats | om |
| Eunotia rhomboidea Hustedt | B | temp | str | hb | acf | 4.84–6.4 | - | 1.0 | o | - | - |
| Eunotia scandiorussica Kulikovskiy, Lange-Bertalot, Genkal & Witkowski | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia semicircularis (Ehrenberg) Lange-Bertalot & Metzeltin | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia septentrionalis Østrup | P-B | - | str | hb | acf | 4.5–7.5 | - | 1.0 | o | - | ot |
| Eunotia subarcuatoides Alles, Nörpel & Lange-Bertalot | B | - | str | hb | acb | 6.7 | - | 0.4 | x-o | - | - |
| Eunotia subherkiniensis Lange-Bertalot | - | - | - | - | - | - | - | - | - | - | - |
| Eunotia triodon Ehrenberg | B | temp | - | hb | acf | 6.33 | - | 1.0 | o | - | ot |
| Eunotia ursamaioris Lange-Bertalot & Nörpel-Schempp | B | - | - | hb | - | - | - | 1.0 | o | - | ot |
| Eunotia valida Hustedt | P-B | - | - | hb | acf | - | - | 1.0 | o | - | ot |
| Eunotia sp. | - | - | - | - | - | - | - | - | - | - | - |
| Fallacia crassicostata Lange-Bertalot & Werum | - | - | - | - | - | - | - | - | - | - | - |
| Fallacia pygmaea (Kützing) Stickle & D.G.Mann | P-B | - | st-str | mh | alf | 7.4–9.1 | - | - | - | ats | - |
| Fallacia sp. | - | - | - | - | - | - | - | - | - | - | - |
| Fragilaria amphicephaloides Lange-Bertalot | B | - | - | i | alf | 6.76 | - | 1.1 | o | - | - |
| Fragilaria aquaplus Lange-Bertalot & S.Ulrich | - | - | - | - | - | - | - | - | - | - | - |
| Fragilaria capucina Desmazières | P-B | temp | st-str | i | ind | 6.4–8.9 | - | - | - | - | - |
| Fragilaria crotonensis Kitton | P-B | temp | st-str | i | alf | 5.7–8.9 | - | - | - | - | - |
| Fragilaria goulardii var. telezkoensis (Poretzky) Kharitonov | - | - | - | - | - | - | - | - | - | - | - |
| Fragilaria radians (Kützing) D.M.Williams & Round | P-B | warm | st-str | i | alf | 7.0–7.5 | - | - | - | - | - |
| Fragilaria rumpens (Kützing) G.W.F.Carlson | P-B | eterm | st-str | i | ind | 6.5–8.8 | - | 2.0 | b | ats | e |
| Fragilaria saxoplanctonica Lange-Bertalot & S.Ulrich | - | - | - | - | - | - | - | - | - | - | - |
| Fragilaria striatula Lyngbye | P-B | - | - | eh | - | - | - | - | - | - | - |
| Fragilaria vaucheriae (Kützing) J.B.Petersen | P-B,Ep | temp | st-str | i | alf | 6.5–8.8 | - | - | - | - | - |
| Fragilaria sp. | - | - | - | i | - | 4.9–7.8 | es | - | - | hne | - |
| Fragilariforma bicapitata (A.Mayer) D.M.Williams & Round | P-B | - | st-str | hb | ind | - | - | - | - | - | - |
| Fragilariforma constricta (Ehrenberg) D.M.Williams & Round | B | - | str | hb | acf | 4.6–7.0 | - | 1.3 | o | ats | m |
| Fragilariforma mesolepta (Rabenhorst) Kharitonov | P-B | - | st-str | i | alf | 6.3–9.0 | - | 1.0 | o | - | ot |
| Fragilariforma nitzschioides (Grunow) Lange-Bertalot | B | - | - | i | ind | - | sx | 1.9 | o-a | ats | me |
| Fragilariforma virescens (Ralfs) D.M.Williams & Round | P-B | temp | st-str | hb | ind | 4.6–8.2 | - | 1.0 | o | - | ot |
| Fragilariopsis oceanica (Cleve) Hasle | P | - | - | eh | - | - | - | - | - | - | - |
| Frustulia crassinervia (Brébisson ex W.Smith) Lange-Bertalot & Krammer | B | - | str | hb | acf | 4.7–7.2 | sx | 0.5 | x-o | ats | ot |
| Frustulia erifuga Lange-Bertalot & Krammer | B | temp | str | hb | acf | 5.85–6.49 | - | - | o | ats | e |
| Frustulia krammeri Lange-Bertalot & Metzeltin | B | - | - | - | acf | - | - | - | - | - | e |
| Frustulia saxonica Rabenhorst | B | temp | st-str | hb | acf | 4.5–7.2 | - | - | - | ate | - |
| Frustulia vulgaris (Thwaites) De Toni | P-B | temp | st-str | i | alf | 5.7–8.2 | - | 1.0 | o | - | - |
| Geissleria davydovae Genkal et Yaruschina | - | - | - | - | - | - | - | - | - | - | - |
| Genkalia digituloides (Lange-Bertalot) Lange-Bertalot & Kulikovskiy | - | - | - | - | - | - | - | - | - | - | - |
| Gololobovia obliqua (W.Gregory) Kulikovskiy, Glushchenko & Kociolek | - | - | - | - | - | - | - | - | - | - | - |
| Gomphoneis eriensis (Grunow) Skvortzov & K.I.Meyer | B | - | - | hb | - | - | - | 0.3 | x | ate | ot |
| Gomphoneis quadripunctata (Østrup) P.Dawson ex R.Ross & P.A.Sims | B | - | - | i | ind | - | - | - | - | - | - |
| Gomphoneis septa (F.Moghadam) Kociolek, Stoermer & Bahls | B | - | - | - | - | - | - | - | - | - | - |
| Gomphonella olivacea (Hornemann) Rabenhorst | B | temp | st-str | i | alf | 6.5–8.8 | - | 2.3 | b | ate | om |
| Gomphonema acuminatum Ehrenberg | B | temp | st-str | i | ind | 6.3–9.5 | - | 0.8 | x-b | - | - |
| Gomphonema angustatum (Kützing) Rabenhorst | B | temp | st-str | i | ind | 5.7–9.0 | - | 1.0 | o | - | - |
| Gomphonema angusticephalum E.Reichardt & Lange-Bertalot | - | - | - | - | - | - | - | - | - | - | - |
| Gomphonema angustum C.Agardh | B | - | st-str | i | ind | 8.17–8.2 | - | - | - | - | - |
| Gomphonema brebissonii Kützing | B | - | st | i | ind | - | - | - | - | - | m |
| Gomphonema capitatum Ehrenberg | B | temp | st | i | alf | 6.9–8.9 | - | 1.2 | o | - | om |
| Gomphonema coronatum Ehrenberg | B | - | st | i | ind | 7.33 | - | - | - | - | - |
| Gomphonema gracile Ehrenberg | B | temp | st-str | i | alf | 6.4–8.6 | - | - | - | - | - |
| Gomphonema hebridense W.Gregory | B | - | - | - | acf | 6.1 | - | 1.0 | o | - | - |
| Gomphonema helveticum Brun | B | - | - | i | ind | - | - | - | - | - | - |
| Gomphonema italicum Kützing | - | - | - | - | - | - | - | - | - | - | - |
| Gomphonema lagenula Kützing | B | - | - | - | - | - | - | - | b | ate | e |
| Gomphonema lagerheimii A.Cleve | B | - | str | hb | acf | - | - | - | - | - | m |
| Gomphonema laticollum E.Reichardt | - | - | - | - | - | - | - | 1.0 | o | ats | ot |
| Gomphonema longiceps f. suecicum (Grunow) Hustedt | - | - | - | - | - | - | - | - | - | - | - |
| Gomphonema microcapitatum Kulikovskiy, Kociolek & Solak | - | - | - | - | - | - | - | - | - | - | - |
| Gomphonema micropus Kützing | B | temp | st-str | i | ind | 6.6–8.3 | - | 1.1 | - | - | - |
| Gomphonema mihoi Levkov | - | - | - | - | - | - | - | - | - | - | - |
| Gomphonema minutum f. pachypus Lange-Bertalot & E.Reichardt | - | - | - | - | - | - | - | - | - | - | - |
| Gomphonema montanum (Schumann) Grunow | B | - | str | i | ind | - | - | - | - | ate | - |
| Gomphonema olivaceoides Hustedt | B | - | str | hb | ind | - | - | 1.0 | o | - | - |
| Gomphonema parvulum (Kützing) Kützing | B | temp | st-str | i | ind | 4.5–8.6 | - | 0.7 | o-x | ats | ot |
| Gomphonema productum (Grunow) Lange-Bertalot & E.Reichardt | B | - | str | i | ind | - | - | 1.0 | o | - | - |
| Gomphonema pseudacuminatum Kulikovskiy, Kociolek & Solak | - | - | - | - | - | - | - | - | - | - | - |
| Gomphonema pumilum (Grunow) E.Reichardt & Lange-Bertalot | B | temp | - | i | alf | 6.6–8.4 | - | - | - | - | - |
| Gomphonema subclavatum (Grunow) Grunow | B | - | str | i | ind | - | - | 1.0 | o | - | ot |
| Gomphonema tergestinum (Grunow) Fricke | B | - | str | i | ind | - | - | 1.0 | o | - | - |
| Gomphonema truncatum Ehrenberg | B | temp | st-str | i | ind | 7.19 | - | 2.0 | b | - | - |
| Gomphonema ventricosum W.Gregory | B | cool | str | i | ind | - | - | 1.0 | o | - | - |
| Gomphonema sp. | B | - | - | i | - | 5.7–7.8 | sx | - | - | - | - |
| Gomphosphenia vallei Beauger, C.E.Wetzel, Allain & Ector | - | - | - | - | - | - | - | - | - | - | - |
| Gomphosphenia sp. | B | - | - | - | - | - | - | - | - | - | - |
| Gyrosigma acuminatum (Kützing) Rabenhorst var. acuminatum | B | temp | st-str | i | alf | 6.3–9.5 | - | - | - | - | - |
| Gyrosigma acuminatum var. gallicum (Grunow) Cleve | B | - | st-str | hl | alf | - | - | - | - | - | - |
| Gyrosigma attenuatum (Kützing) Rabenhorst | P-B | temp | st-str | i | alf | 6.9–8.5 | - | - | - | - | - |
| Gyrosigma balticum (Ehrenberg) Rabenhorst | B | temp | st | mh | alb | - | - | - | - | - | - |
| Gyrosigma peisonis (Grunow) Hustedt | B | - | st-str | mh | alf | - | sp | 2.0 | b | ate | e |
| Gyrosigma strigilis (W.Smith) J.W.Griffin & Henfrey | B | - | - | mh | alb | - | es | - | - | hne | - |
| Gyrosigma sp. | B | - | - | - | - | - | - | - | - | - | - |
| Halamphora hassiaca (Krammer & S.Strecker) Lange-Bertalot | - | - | - | - | - | - | - | - | - | - | - |
| Halamphora veneta (Kützing) Levkov | B | temp | st-str | hl | alf | 7.4–8.4 | - | - | - | - | - |
| Handmannia antiqua (W.Smith) Kociolek et Khursevich | P-B | temp | - | hb | acf | 7.25–7.27 | - | 1.2 | o | - | - |
| Handmannia comta (Ehrenberg) Kociolek et Khursevich emend. Genkal | P | temp | st | i | alf | 6.0–7.8 | - | - | - | - | - |
| Hannaea arcus (Ehrenberg) R.M.Patrick | B | temp | str | i | alf | 5.7–7.5 | - | - | - | - | - |
| Hannaea inaequidentata (Lagerstedt) Genkal & Kharitonov | P-B | - | - | hb | neu | - | - | - | - | - | - |
| Hantzschia amphioxys (Ehrenberg) Grunow f. amphioxys | B,aer | temp | st-str | i | ind | 6.3–9.5 | - | 3.0 | a | - | me |
| Hantzschia amphioxys f. capitata O.Müller | B | - | st-str | I | ind | - | es | 1.9 | a | ate | o-e |
| Hantzschia virgata var. capitellata Hustedt | B | - | - | hl | - | - | - | 2.0 | b | - | m |
| Hantzschia sp. | B | - | - | - | - | - | - | - | - | - | - |
| Hemiaulus hauckii Grunow ex Van Heurck | - | - | - | - | - | - | - | - | - | - | - |
| Hippodonta capitata (Ehrenberg) Lange-Bertalot, Metzeltin & Witkowski | B | temp | st-str | hl | alf | 6.6–9.5 | - | - | a-b | - | me |
| Hippodonta hungarica (Grunow) Lange-Bertalot, Metzeltin & Witkowski | B | - | st-str | hl | alf | 6.9–8.6 | - | - | - | - | - |
| Humidophila brekkaensis (J.B.Petersen) R.L.Lowe, Kociolek, J.R.Johansen, Van de Vijver, Lange-Bertalot & Krammer et Kopalova | B | - | aer | mh | alf | - | - | - | - | - | - |
| Humidophila gallica (W.Smith) Lowe, Kociolek, Q.You, Q.Wang & Stepanek | B | - | st-str | i | ind | 7.60 | es | 0.7 | o-x | ate | om |
| Humidophila perpusilla (Grunow) R.L.Lowe, Kociolek, J.R.Johansen, Van de Vijver, Lange-Bertalot & Kopalová | B | warm | st-str | I | ind | - | - | - | - | - | - |
| Humidophila schmassmannii (Hustedt) Buczkó & Wojtal | B | cool | - | - | acf | - | sp | 0.7 | o-x | ats | om |
| Humidophila sp. | - | - | - | - | - | - | - | - | - | - | - |
| Hygropetra balfouriana (Grunow ex Cleve) Krammer & Lange-Bertalot | B,aer | temp | - | i | ind | 6.89–7.60 | - | - | - | - | ot |
| Iconella bifrons (Ehrenberg) Ruck & Nakov | P-B | - | st | i | ind | - | - | 1.7 | b-o | ats | e |
| Iconella biseriata (Brébisson) Ruck & Nakov | P-B | temp | st-str | i | alf | 7–9 | es | 1.0 | o | - | m |
| Iconella curvula (W.Smith) Ruck & Nakov | B | - | str | hb | acf | - | - | 2.0 | b | - | me |
| Iconella linearis (W.Smith) Ruck & Nakov | P-B | - | st-str | i | ind | 4.6–9.0 | - | - | - | - | - |
| Iconella nervosa (A.W.F.Schmidt) C.Cocquyt & R.Jahn | B | - | st | i | alf | 6.9–7.0 | es | 0.5 | x-o | ats | om |
| Iconella spiralis (Kützing) E.C.Ruck & T.Nakov | B | - | str | i | alf | - | - | 1.1 | o | - | - |
| Iconella splendida (Ehrenberg) Ruck & Nakov | P-B | - | st-str | i | alf | - | - | - | - | - | - |
| Iconella tenera (W.Gregory) Ruck & Nakov | P-B | temp | st | i | alf | 5.7–7.5 | - | 0.2 | x | ats | ot |
| Karayevia laterostrata (Hustedt) Bukhtiyarova | B | temp | st-str | hb | ind | 6.89–8.1 | - | - | - | - | - |
| Kobayasiella parasubtilissima (H.Kobayasi & T.Nagumo) Lange-Bertalot | B | temp | str | hb | acb | 5.41 | - | 1.5 | o-b | - | - |
| Kobayasiella subtilissima (Cleve) Lange-Bertalot | B | temp | st-str | i | acb | 4.6–7.0 | - | 1.6 | b-o | ats | me |
| Lacustriella lacustris (W.Gregory) Lange-Bertalot & Kulikovskiy | B | - | - | hb | ind | - | - | - | - | - | e |
| Lemnicola hungarica (Grunow) Round & Basson | P-B | - | st-str | i | alf | 6.7- 8.2 | - | 0.8 | x-b | - | - |
| Leptocylindrus danicus Cleve | - | - | - | - | - | - | - | - | - | - | - |
| Lindavia costata (Loginova, Lupikina & Khursevich) Nakov, Guillory, Julius, Theriot & Alverson | - | - | - | - | - | - | - | - | - | - | - |
| Mayamaea agrestis (Hustedt) Lange-Bertalot | B | - | - | i | ind | 7.2 | es | 2.6 | a-o | hce | he |
| Mayamaea disjuncta (Hustedt) J.Y. Li & Y.Z.Qi | B | - | str | i | ind | 7.5 | sp | 3.0 | a | ate | he |
| Mayamaea permitis (Hustedt) K.Bruder & Medlin | B | temp | st | i | alf | 6.5–8.9 | - | 0.7 | o-x | - | - |
| Melosira lineata var. subangularis (Grunow) Aboal | P-B | cool | - | mh | alf | 6.3–9.1 | - | 2.0 | b | - | - |
| Melosira moniliformis (Link) C.Agardh | P-B | eterm | str | mh | alf | - | - | 2.0 | b | - | - |
| Melosira normanii Arnott ex Van Heurck | - | - | - | - | - | - | - | - | - | - | - |
| Melosira undulata (Ehrenberg) Kützing | P-B | - | - | i | ind | - | - | 2.8 | a-o | - | - |
| Melosira varians C.Agardh | P-B | temp | st-str | hl | ind | 5–9 | - | 2.4 | b-a | - | - |
| Meridion circulare (Greville) C.Agardh | P-B | temp | st-str | i | ind | 6.6–8.3 | - | - | - | - | - |
| Navicula angusta Grunow | B | - | st-str | i | ind | 7.6–8.2 | - | 1.0 | o | - | - |
| Navicula antonii Lange-Bertalot | B | temp | - | oh | alf | 7.5–8.5 | es | - | - | - | - |
| Navicula bottnica Grunow | B | - | - | mh | alf | - | sx | 2.1 | b | ate | e |
| Navicula capitatoradiata H.Germain ex Gasse | P-B | temp | st-str | mh | alf | 7.6–8.1 | - | - | - | - | - |
| Navicula chiarae Lange-Bertalot & Genkal | - | - | - | - | - | 8.30 | - | - | - | hce | - |
| Navicula cincta (Ehrenberg) Ralfs | B | temp | st-str | hl | alf | 6.9–8.4 | - | - | - | - | - |
| Navicula cryptocephala Kützing var. cryptocephala | P-B | temp | st-str | i | ind | 6.5–8.4 | - | 2.4 | b-a | - | - |
| Navicula cryptocephala var. lata Poretzky & Anisimova | B | - | - | i | - | - | - | - | - | - | - |
| Navicula cryptotenella Lange-Bertalot | P-B | temp | st-str | i | ind | 6.5–8.7 | - | - | - | - | - |
| Navicula cryptotenelloides Lange-Bertalot | B | - | - | oh | alf | 7.9–8.19 | - | 1.0 | o | - | - |
| Navicula digitoconvergens Lange-Bertalot | - | - | - | - | - | - | - | - | - | - | - |
| Navicula digitoradiata (W.Gregory) Ralfs | B | - | - | i | alf | - | - | - | - | - | - |
| Navicula gottlandica Grunow | P-B | - | - | hl | alf | - | es | 2.5 | b-a | ate | e |
| Navicula granii (Jørgensen) Gran | - | - | - | - | - | - | - | - | - | - | - |
| Navicula hasta Pantocsek | B | - | - | - | ind | - | - | - | - | - | - |
| Navicula kariana Grunow | - | warm | - | i | - | - | - | - | - | - | - |
| Navicula lanceolata var. tenuirostris Skvortzov | B | - | - | i | alf | - | - | 1.0 | o | - | - |
| Navicula laterostrata Hustedt | P-B | - | str | i | alf | 7.1–7.9 | - | 1.1 | o | - | - |
| Navicula margalithii Lange-Bertalot | B | - | - | hl | alf | - | - | - | - | - | - |
| Navicula mediocostata E.Reichardt | B | - | - | oh | alf | - | es | 3.0 | a | ate | e |
| Navicula menisculus Schumann | P-B | - | st-str | hl | alf | 6.7–7.6 | - | - | o | ats | e |
| Navicula notha J.H.Wallace | B | - | str | i | acf | 6.3–7.5 | - | - | - | - | - |
| Navicula phyllepta Kützing | B | - | - | hl | - | - | - | - | - | - | - |
| Navicula phylleptosoma Lange-Bertalot | B | - | - | mh | alf | 7.7 | - | - | - | - | - |
| Navicula pusilla var. jacutica Kisseleva | B | - | - | hl | ind | - | - | - | - | - | - |
| Navicula radiosa Kützing | B | temp | st-str | i | ind | 5–9 | sx | - | - | - | - |
| Navicula reinhardtii (Grunow) Grunow var. reinhardtii | - | - | - | - | - | - | - | - | - | - | - |
| Navicula reinhardtii var. elliptica Héribaud | - | - | - | - | - | - | - | - | - | - | - |
| Navicula rhynchocephala Kützing | B | temp | st-str | hl | alf | 6.4–9.5 | - | 1.3 | o | - | - |
| Navicula rhynchotella Lange-Bertalot | B | - | - | hl | alf | - | - | - | - | - | - |
| Navicula rostellata Kützing | B | - | st-str | i | alf | 7.7–8.6 | - | 0.7 | o-x | ate | ot |
| Navicula rotaeana (Rabenhorst) Grunow | P-B | - | st | i | ind | - | - | - | - | - | - |
| Navicula slesvicensis Grunow | P-B | - | st-str | hl | alf | - | - | - | - | - | - |
| Navicula streckerae Lange-Bertalot & Witkowski | - | - | - | - | - | - | - | - | - | - | - |
| Navicula striolata (Grunow) Lange-Bertalot | B | - | - | i | alb | - | - | - | - | - | - |
| Navicula tripunctata (O.F.Müller) Bory | P-B | temp | st-str | i | alf | 7.0–8.6 | es | - | - | - | e |
| Navicula trivialis Lange-Bertalot | B | temp | st-str | i | alf | 7.2–8.1 | es | - | - | - | - |
| Navicula venerablis Hohn & Hellerman | - | - | - | - | - | - | - | - | - | - | - |
| Navicula viridula (Kützing) Ehrenberg | B | - | st-str | hl | alf | 7.5–8.0 | - | - | - | - | - |
| Navicula viridulacalcis Lange-Bertalot | B | - | - | - | - | - | - | - | - | - | - |
| Navicula vulpina Kützing | B | temp | st-str | i | ind | 7.52–8.30 | - | - | - | - | - |
| Navicula wygaschii Lange-Bertalot | - | - | - | - | - | - | - | - | - | - | - |
| Navicula sp. | - | - | - | - | - | - | - | - | - | - | - |
| Naviculadicta sp. | - | - | - | - | - | - | - | - | - | - | - |
| Navigeia paludosa (Hustedt) Bukhtiyarova | B | - | str | i | ind | 8.11 | sx | - | - | - | - |
| Navigeia thingvallae (Østrup) Bukhtiyarova | B | - | - | - | - | - | - | - | - | - | - |
| Neidiopsis wulffii (J.B.Petersen) Lange-Bertalot | - | - | - | - | - | 7.80 | - | - | - | ats | ot |
| Neidium affine (Ehrenberg) Pfitzer | B | temp | st-str | i | ind | 4.5–7.8 | - | - | - | - | - |
| Neidium ampliatum (Ehrenberg) Krammer | B | temp | st | i | ind | 5.2–8.6 | - | - | - | - | - |
| Neidium bisulcatum (Lagerstedt) Cleve | B | - | st-str | i | ind | 4.9–7.0 | - | 1.0 | o | - | - |
| Neidium dubium (Ehenberg) Cleve | B | - | str | i | alf | - | - | - | - | - | - |
| Neidium hercynicum Ant.Mayer | B | - | - | i | acf | - | - | - | - | - | - |
| Neidium hitchcockii (Ehrenberg) Cleve | P-B | - | st | I | ind | - | es | 0.6 | o-x | ats | ot |
| Neidium iridis (Ehrenberg) Cleve var. iridis | B | temp | st-str | hb | ind | 5.1–8.9 | - | - | - | - | - |
| Neidium iridis var. diminutum (Pantocsek) Wislouch & Kolbe | B | - | - | i | ind | - | - | 1.0 | o | - | - |
| Neidium productum (W.Smith) Cleve | P-B | temp | st-str | i | ind | - | - | - | - | - | - |
| Neidium sp. | B | - | - | - | - | 4.6–6.9 | - | - | - | - | - |
| Nitzschia acicularis (Kützing) W.Smith | P-B | temp | st | i | alf | 6.8–8.1 | es | 1.4 | o-b | ats | om |
| Nitzschia acidoclinata Lange-Bertalot | B | temp | str | hb | ind | 6.5–8.0 | - | 3.6 | a-b | ate | e |
| Nitzschia acuta Hantzsch | P-B | - | st-str | i | alf | - | - | - | - | - | - |
| Nitzschia alpina Hustedt | P-B | temp | str | i | acf | 7.39 | - | 1.0 | o | - | - |
| Nitzschia aquaea Wisłouch & V.S.Poretzky | - | - | hb | - | - | es | 2.1 | b | ate | e | |
| Nitzschia brevissima Grunow | B | - | st-str | hl | alf | 6.5–8.0 | - | - | - | - | - |
| Nitzschia capitellata Hustedt var. capitellata | B | temp | - | i | ind | 6.9–8.6 | - | 3.6 | a-b | - | o-e |
| Nitzschia capitellata var. tenuirostris (Grunow) Bukhtiyarova | P-B | - | - | i | alf | 7.0–8.2 | - | 1.0 | o | - | - |
| Nitzschia commutatoides Lange-Bertalot | - | - | - | hl | - | - | - | - | - | - | - |
| Nitzschia denticula Grunow | B | - | - | mh | alf | 8.0 | - | - | - | - | - |
| Nitzschia dissipata (Kützing) Rabenhorst var. dissipata | B | temp | st-str | i | alf | 6.5–8.5 | sx | 1.4 | o-b | - | - |
| Nitzschia flexoides Geitler | B | - | - | - | - | - | - | 1.5 | o-b | - | - |
| Nitzschia fonticola (Grunow) Grunow | P-B | temp | st-str | i | alf | 6.0–8.9 | - | 3.6 | a-b | hne | - |
| Nitzschia frigida Grunow | - | - | - | - | - | - | - | - | - | - | - |
| Nitzschia frustulum (Kützing) Grunow | P-B | temp | st-str | hl | alf | 6.7–8.8 | es | 2.7 | a-o | - | - |
| Nitzschia graciliformis Lange-Bertalot & Simonsen | B | - | - | i | alf | - | es | 1.0 | o | - | - |
| Nitzschia gracilis Hantzsch | P-B | temp | st-str | i | ind | 5.51–8.25 | - | - | - | - | - |
| Nitzschia homburgiensis Lange-Bertalot | B | - | st-str | i | alf | - | - | - | - | - | - |
| Nitzschia inconspicua Grunow | B | temp | st-str | hl | alf | 6.7–8.9 | - | - | - | - | - |
| Nitzschia intermedia Hantzsch ex Cleve & Grunow | P-B | temp | - | i | ind | 6.6–8.1 | - | - | - | - | - |
| Nitzschia linearis W.Smith | B | temp | - | i | alf | 7.1–8.1 | es | 1.7 | b-o | ate | me |
| Nitzschia longissima (Brébisson) Ralfs | - | - | - | mh | alf | - | - | - | - | - | - |
| Nitzschia media Hantzsch | - | - | - | - | - | - | - | - | - | - | - |
| Nitzschia palea (Kützing) W.Smith | P-B | temp | st-str | i | ind | 4.5–8.8 | - | 2.0 | b | - | - |
| Nitzschia paleacea (Grunow) Grunow | P-B | temp | st-str | i | alf | 6.8–8.9 | es | 2.0 | b | ate | o-e |
| Nitzschia perminuta Grunow | P-B | temp | str | hl | alf | 5.79–8.0 | - | - | - | - | - |
| Nitzschia recta Hantzsch ex Rabenhorst | B | temp | st-str | i | alf | 6–9 | - | 1.0 | o | - | - |
| Nitzschia rosenstockii Lange-Bertalot | B | - | - | hl | - | - | - | - | - | - | - |
| Nitzschia sigma (Kützing) W.Smith | B | temp | st-str | mh | alf | 6.9–8.2 | - | - | - | - | - |
| Nitzschia sublinearis Hustedt | P-B | - | - | i | alf | - | - | - | - | - | - |
| Nitzschia umbonata (Ehrenberg) Lange-Bertalot | P-B | - | st-str | i | ind | 7.2–8.2 | sp | 2.0 | b | hne | me |
| Nitzschia vermicularis (Kützing) Hantzsch | P-B | temp | st-str | i | alf | 7.23 | - | - | - | - | - |
| Nitzschia sp. | - | - | - | - | - | - | - | - | - | - | - |
| Nupela impexiformis (Lange-Bertalot) Lange-Bertalot | B | - | - | - | ind | 6.8–7.3 | sx | 0.5 | x-o | ats | ot |
| Nupela neogracillima Kulikovskiy & Lange-Bertalot | P-B | - | - | i | ind | - | - | - | - | - | ot |
| Nupela silvahercynia (Lange-Bertalot) Lange-Bertalot | B | - | - | i | - | - | - | - | - | - | - |
| Nupela tenuicephala (Hustedt) Lange-Bertalot | B | - | - | - | acf | - | es | - | - | - | - |
| Odontidium anceps (Ehrenberg) Ralfs | P-B | cool | st-str | hb | ind | 7.8–8.2 | - | - | - | - | - |
| Odontidium hyemale (Roth) Kützing | P-B | cool | st-str | hb | ind | 6.5–7.5 | - | - | - | - | - |
| Odontidium mesodon (Ehrenberg) Kützing | B | cool | st-str | hb | ind | 6.6–8.3 | - | 0.9 | x-b | - | - |
| Opephora mutabilis Sabbe & Wyverman | B | - | - | eh | alf | - | - | - | - | - | - |
| Pantocsekiella costei (J.C.Druart & F.Straub) K.T.Kiss & E.Ács | - | - | - | - | - | - | - | - | - | - | - |
| Pantocsekiella kuetzingiana (Thwaites) K.T.Kiss & E.Ács | B | temp | st-str | hl | ind | 6.6–8.3 | es | 3.6 | a-b | - | e |
| Pantocsekiella ocellata (Pantocsek) K.T.Kiss & Ács | P-B | cool | st-str | hl | alf | 6.61–8.18 | - | 0.9 | x-b | - | ot |
| Paraplaconeis placentula (Ehrenberg) Kulikovskiy & Lange-Bertalot | B | temp | st-str | i | alf | 7.3–8.4 | - | 2.0 | b | - | ot |
| Pauliella taeniata (Grunow) Round & Basson | P-B | - | - | eh | alf | - | - | 2.0 | b | - | - |
| Pinnularia acoricola Hustedt | B | - | st-str | i | acf | - | - | - | - | - | - |
| Pinnularia ammerensis Kulikovskiy, Lange-Bertalot & Metzeltin | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia anglica Krammer | B | - | - | - | acf | - | es | 2.3 | b | - | e |
| Pinnularia angustarea Kulikovskiy, Lange-Bertalot, A.Witkovski & N.I.Dorofeyuk | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia biceps W.Gregory | B | temp | str | i | acf | 5.1–7.2 | es | 0.3 | x | ats | om |
| Pinnularia brebissonii (Kützing) Rabenhorst var. brebissonii | B | temp | st-str | i | ind | - | - | 1.0 | o | - | - |
| Pinnularia bottnica Krammer | B | - | - | hl | - | - | - | - | - | - | - |
| Pinnularia brandelii Cleve | B | - | - | hb | acf | - | - | - | - | - | - |
| Pinnularia brevicostata Cleve | P-B | cool | st-str | i | ind | - | - | - | - | - | - |
| Pinnularia bullacostae Krammer & Lange-Bertalot | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia canadensis Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia cardinaliculus Cleve | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia cuneola E.Reichardt | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia decrescens (Grunow) Krammer | B | - | str | hb | ind | - | - | - | - | - | - |
| Pinnularia divergens var. sublinearis Cleve | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia divergens W.Smith | B | - | st | hb | ind | - | - | - | - | - | - |
| Pinnularia eifeliana (Krammer) Krammer | B | - | - | - | - | - | - | 1.0 | o | - | - |
| Pinnularia gentilis (Donkin) Cleve | B | - | st-str | i | ind | - | - | - | - | - | - |
| Pinnularia grunowii Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia halophila Krammer | B | - | - | hl | - | - | - | 0.2 | x | ats | om |
| Pinnularia intermedia (Lagerstedt) Cleve | P-B | cool | st-str | i | ind | - | - | 1.0 | o | - | - |
| Pinnularia krammeri Metzeltin | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia lagerstedtii (Cleve) A.Cleve | B | - | aer | hb | ind | - | - | - | - | - | - |
| Pinnularia lailaensis Foged | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia lata (Brébisson) W.Smith | P-B | - | str | i | acf | - | - | 0.3 | x | - | - |
| Pinnularia macilenta Ehrenberg | B | - | - | - | - | - | - | 0.9 | x-b | - | - |
| Pinnularia media (Krammer) Kulikovskiy, Lange-Bertalot & Metzeltin | B | - | - | - | - | - | - | 0.6 | o-x | ate | me |
| Pinnularia mesogongyla Ehrenberg | B | - | st | i | ind | - | sx | 0.2 | o | ats | ot |
| Pinnularia mesolepta (Ehrenberg) W.Smith | P-B | temp | st-str | i | ind | 6.9–7.1 | - | - | - | - | ot |
| Pinnularia microstauron (Ehrenberg) Cleve var. microstauron | P-B | temp | st-str | i | ind | 4.5–8.7 | - | 0.3 | x | ats | ot |
| Pinnularia microstauron var. rostrata Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia neohalophila Kulikovskiy, Genkal & Mikheeva | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia neomajor Krammer | B | - | - | i | ind | - | - | - | - | - | - |
| Pinnularia nodosa (Ehrenberg) W.Smith var. nodosa | B | temp | str | i | ind | 6.79 | - | 0.4 | x-o | - | - |
| Pinnularia nodosa var. percapitata Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia nodosa var. robusta (Foged) Krammer | B | - | - | - | - | - | - | 0.4 | x-o | ats | ot |
| Pinnularia notabilis Krammer | B | - | - | - | - | - | - | 0.6 | o-x | - | - |
| Pinnularia oriunda Krammer | B | - | - | i | neu | - | - | 1.0 | o | ats | ot |
| Pinnularia oriundiformis Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia parvulissima Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia permicrostauron Krammer & Metzeltin | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia pluvianiformis Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia quadratarea (A.W.F.Schmidt) Cleve | B | - | - | ph | - | - | - | 0.3 | x | - | - |
| Pinnularia rhombarea Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia rupestris Hantzsch | B | temp | str | i | acf | 5.39 | - | - | - | - | - |
| Pinnularia septentrionalis Krammer | B | - | - | i | ind | - | - | 1.0 | o | - | om |
| Pinnularia similiformis Krammer | B | - | - | - | acf | - | - | 1.0 | o | - | ot |
| Pinnularia spitsbergensis Cleve | B | - | - | hb | ind | - | - | - | - | ats | ot |
| Pinnularia stricta Hustedt | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia subanglica Krammer | - | - | - | - | - | - | - | - | - | - | - |
| Pinnularia subrostrata (A.Cleve) A.Cleve | B | - | - | hb | acf | - | - | 1.0 | o | - | - |
| Pinnularia subrupestris Krammer | B | - | - | hb | acf | - | - | 0.4 | x-o | - | - |
| Pinnularia subundulata Østrup | B | - | - | - | acf | - | - | 0.3 | x | - | ot |
| Pinnularia sudetica Hilse | B | - | st-str | i | acf | - | - | 1.0 | o | - | - |
| Pinnularia undula (Schumann) Krammer | B | - | - | i | ind | - | - | 1.0 | o | - | - |
| Pinnularia viridis (Nitzsch) Ehrenberg | P-B | temp | st-str | i | ind | 5.24–7.1 | - | 0.9 | x-b | - | ot |
| Pinnularia sp. | - | - | - | - | - | 4.5–7.8 | - | - | - | - | - |
| Placogeia similis (Krasske) Bukhtiyarova | B | - | - | i | ind | - | - | - | - | - | e |
| Placoneis amphibola (Cleve) E.J.Cox | B | cool | st-str | i | ind | - | - | - | - | - | - |
| Placoneis clementioides (Hustedt) E.J.Cox | B | - | - | i | alf | - | - | - | - | - | - |
| Placoneis dicephala (Ehrenberg) Mereschkowsky | B | - | - | i | ind | - | es | 2.0 | b | ate | me |
| Placoneis elginensis (W.Gregory) E.J.Cox | P-B | - | st-str | i | alf | 7.0–8.2 | - | - | - | - | - |
| Placoneis exigua (W.Gregory) Mereschkovsky | B | - | str | i | ind | - | es | 1.4 | o-b | - | - |
| Placoneis gastrum (Ehrenberg) Mereschkowsky | B | - | st-str | i | ind | - | - | - | - | - | - |
| Placoneis interglacialis (Hustedt) E.J.Cox | B | - | - | i | ind | - | - | 2.0 | b | - | - |
| Placoneis opportuna (Hustedt) Chudaev & Gololobova | B | - | - | - | - | - | es | - | - | - | - |
| Placoneis placentula var. rostrata (Mayer) N.A.Andresen, Stoermer & R.G.Kreis, Jr. | B | - | - | i | alf | - | - | - | - | - | - |
| Placoneis sp. | - | - | - | - | - | - | - | - | - | - | - |
| Planothidium delicatulum (Kützing) Round & Bukhtiyarova | P-B | - | st-str | mh | alb | 6.6–8.5 | - | 1.0 | o | ats | ot |
| Planothidium haynaldii (Schaarschmidt) Lange-Bertalot | B | - | st-str | i | alf | - | - | 1.0 | o | hne | om |
| Planothidium lanceolatum (Brébisson ex Kützing) Lange-Bertalot | P-B | temp | st-str | i | alf | 6.4–9.0 | sx | 1.0 | o | ats | om |
| Planothidium straubianum C.E.Wetzel, Van de Vijver & L.Ector | B | - | str | i | alf | 8.0 | - | - | a | ats | e |
| Planothidium sp. | - | - | - | - | - | - | - | - | - | - | - |
| Pleurosigma delicatulum W.Smith | B | - | - | mh | - | - | - | - | - | - | - |
| Pleurosigma elongatum W.Smith | P-B | - | - | mh | alf | - | - | - | - | - | - |
| Praestephanos triporus (Genkal & G.V.Kuzmin) A.Tuji & J.-S.Ki | P | - | - | i | alf | - | - | - | - | - | - |
| Prestauroneis crucicula (W.Smith) Genkal & Yarushina | B | - | - | mh | ind | - | - | 0.2 | x | - | - |
| Psammothidium petersenii (Hastedt) Round et Bukhiyarova | - | - | - | - | - | - | - | - | - | - | - |
| Psammothidium bioretii (H.Germain) Bukhtiyarova & Round | B | - | str | i | ind | 6.08–7.9 | - | 0.7 | o-x | ats | ot |
| Psammothidium chlidanos (M.H.Hohn & Hellerman) Lange-Bertalot | B | - | - | hb | acf | 7.1–7.9 | - | 1.0 | o | - | ot |
| Psammothidium daonense (Lange-Bertalot) Lange-Bertalot | B | temp | str | hb | ind | 6.6–8.2 | - | - | o | ats | ot |
| Psammothidium helveticum (Hustedt) Bukhtiyarova & Round | B | temp | st-str | hb | alf | 6.0–7.4 | es | 2.4 | b-a | ate | m |
| Psammothidium kryophilum (J.B.Petersen) E.Reichardt | P-B | - | str | i | ind | 8.10 | sx | 0.5 | x-o | ats | ot |
| Psammothidium levanderi (Hustedt) Bukhtiyarova & Round | B | temp | str | i | ind | 6.6–8.4 | sx | 2.0 | b | ats | om |
| Psammothidium marginulatum (Grunow) Bukhtiyarova & Round | B | temp | st-str | hb | acf | 4.6–7.9 | sx | 0.2 | x | ats | ot |
| Psammothidium rechtense (Leclercq) Lange-Bertalot | B | - | str | hb | alf | - | - | 1.0 | o | ats | ot |
| Psammothidium rossii (Hustedt) Bukhtiyarova & Round | B | - | str | hb | ind | - | - | 1.0 | o | ats | ot |
| Psammothidium scoticum (R.J.Flower & V.J.Jones) Bukhtiyarova & Round | B | temp | - | - | - | 6.42 | - | - | - | - | - |
| Psammothidium subatomoides (Hustedt) Bukhtiyarova & Round | P-B | temp | str | hb | acf | 6.4–8.01 | sx | 2.0 | b | ats | me |
| Psammothidium subsalsum (J.B.Petersen) Kulikowskiy, Witkowski & Pliński | B | - | - | - | - | - | - | - | - | - | - |
| Psammothidium ventrale (Krasske) Bukhtiyarova & Round | B | - | str | hb | acf | 7.45 | - | 2.0 | b | ats | om |
| Psammothidium sp. | - | - | - | - | - | - | - | - | - | - | - |
| Pseudostaurosira brevistriata (Grunow) D.M.Williams & Round | P-B | temp | st-str | i | alf | 5.2–8.4 | - | 2.0 | b | ate | - |
| Pseudostaurosira parasitica (W.Smith) E.Morales | P-B | temp | st-str | i | alf | 6.41–8.22 | - | 1.0 | o | ate | ot |
| Pulchellophycus obsitus (Hustedt) Edlund & M.J.Wynne | - | - | - | - | - | - | - | - | - | - | - |
| Pulchellophycus sp. | - | - | - | - | - | - | - | - | - | - | - |
| Reimeria sinuata (W.Gregory) Kociolek & Stoermer | P-B,aer | temp | st-str | i | ind | 6.6–8.9 | - | - | - | - | - |
| Rexlowea parasemen (Lange-Bertalot) Kulikoviskiy, Kociolek & Genkal | B | - | - | i | ind | - | es | - | - | - | - |
| Rhizosolenia hebetata f. semispina (Hensen) Gran | P | cool | - | eh | - | - | - | - | - | - | - |
| Rhizosolenia hebetata J.W.Bailey | P | cool | - | eh | - | - | - | - | - | - | - |
| Rhoicosphenia abbreviata (C.Agardh) Lange-Bertalot | B | temp | st-str | i | alf | 6.5–8.6 | es | 1.9 | o-a | ate | me |
| Rhopalodia gibba (Ehrenberg) O.Müller var. gibba | P-B | temp | st-str | i | alf | 6.2–9.0 | es | 1.4 | x-o | ate | om |
| Rhopalodia gibba var. ventricosa (Kützing) H.Peragallo & M.Peragallo | B | temp | - | i | alf | 6.2–9.0 | es | 1.4 | o-b | hne | - |
| Roperia praetesselata H.J.Schrader | - | - | - | - | - | - | - | - | - | - | - |
| Rossithidium kreigeri (Krasske) Bahls | B | - | - | hb | - | - | sx | 1.0 | o | - | ot |
| Sellaphora absoluta (Hustedt) Wetzel, Ector, Van de Vijver, Compère & D.G.Mann | B | - | str | i | ind | - | es | 1.0 | o | ats | m |
| Sellaphora bacillum (Ehrenberg) D.G.Mann | B | - | st-str | i | alf | 7–9 | sx | 1.5 | o-b | ats | me |
| Sellaphora difficillima (Hustedt) C.E.Wetzel, L.Ector & D.G.Mann | B | temp | str | hb | acf | 7.8 | - | 1.0 | o | ate | om |
| Sellaphora insolita (É.Manguin ex Kociolek & B.de Reviers) P.B.Hamilton & D.Antoniades | - | - | - | - | - | - | - | - | - | - | - |
| Sellaphora laevissima (Kützing) D.G.Mann | B | - | st-str | i | ind | 5.7–8.1 | - | 2.0 | b | ats | om |
| Sellaphora parapupula Lange-Bertalot | B | - | st | i | ind | 6.5–7.6 | - | 1.0 | o | ate | m |
| Sellaphora pupula (Kützing) Mereschkovsky | B | eterm | st-str | hl | ind | 5.2–9.0 | sx | 1.9 | o-a | ate | me |
| Sellaphora rectangularis (W.Gregory) Lange-Bertalot & Metzeltin | B | temp | st-str | hl | ind | 6.5–9.0 | sx | 1.9 | o-a | ate | me |
| Sellaphora vitabunda (Hustedt) D.G.Mann | B | - | - | i | alf | 8.06 | es | 1.0 | o | ats | om |
| Sellaphora sp. | B | - | - | - | - | - | - | - | - | - | - |
| Simonsenia delognei (Grunow) Lange-Bertalot | B | temp | str | oh | alf | 7.5–8.1 | - | 3.0 | a | hne | e |
| Skabitschewskia oestrupii (A.Cleve) Kuliskovskiy & Lange-Bertalot | B | - | str | i | ind | 7.6 | - | 1.0 | o | ats | om |
| Skabitschewskia peragalloi (Brun & Héribaud) Kuliskovskiy & Lange-Bertalot | B | - | str | i | ind | 8.20 | sx | 0.4 | x-o | ats | om |
| Skeletonema subsalsum (A.Cleve) Bethge | P | - | - | i | ind | - | - | 2.3 | b | - | me |
| Stauroneis amphicephala Kützing | P-B | temp | st-str | i | ind | 4.8–8.2 | sx | 1.3 | o | ats | om |
| Stauroneis anceps Ehrenberg f. anceps | P-B | temp | st-str | i | ind | 4.8–8.2 | sx | 1.3 | o | ats | om |
| Stauroneis anceps f. linearis Rabenhorst | B | - | st-str | i | alf | - | - | - | - | - | - |
| Stauroneis gracilior E.Reichardt | B | - | - | - | - | - | - | - | - | - | - |
| Stauroneis gracilis Ehrenberg | B | - | - | I | ind | 5.3 | - | - | o | - | - |
| Stauroneis guslyakovii Genkal & Yarushina | - | - | - | - | - | - | - | - | - | - | - |
| Stauroneis phoenicenteron (Nitzsch) Ehrenberg | P-B | temp | st-str | i | ind | 6.01–8.5 | - | - | - | - | - |
| Stauroneis reichardtii Lange-Bertalot, Cavacini, Tagliaventi & Alfinito | P-B | temp | st-str | i | ind | 4.8–8.2 | sx | 1.3 | o | ats | om |
| Stauroneis schulzii Jousé | B | - | - | i | alf | - | - | - | - | ats | - |
| Stauroneis siberica (Grunow) Lange-Bertalot & Krammer | B | - | - | i | alf | - | - | - | - | - | - |
| Stauroneis smithii Grunow var. karelica Wislouch & Kolbe | B | cool | - | i | - | - | - | 1.0 | o | - | ot |
| Stauroneis smithii Grunow var. smithii | P-B | - | st-str | i | alf | - | - | 1.0 | o | - | om |
| Stauroneis sp. | B | - | - | - | - | - | - | 1.5 | o-b | ate | o-e |
| Staurosira construens Ehrenberg | P-B | temp | st-str | i | alf | 5.5–9.0 | - | 1.0 | o | - | - |
| Staurosira sviridae Kulikovskiy, Genkal & Mikheeva | - | - | - | - | - | - | - | - | - | - | - |
| Staurosirella lanceolata (Hustedt) E.A.Morales, C.Wetzel & L.Ector | - | - | - | - | - | - | - | - | - | - | - |
| Staurosirella lapponica (Grunow) D.M.Williams & Round | P-B | temp | st-str | i | ind | 7.24–8.2 | - | 1.1 | o | ate | ot |
| Staurosirella pinnata (Ehrenberg) D.M.Williams & Round | P-B | temp | st-str | hl | alf | 6.2–9.3 | es | 1.1 | o | ats | om |
| Stenopterobia heribaudii (Playfair) Playfair | P-B | - | st | - | - | - | - | 0.4 | x-o | - | - |
| Stephanocyclus meneghinianus (Kützing) Kulikovskiy, Genkal & Kociolek = Cyclotella meneghiniana Kützing | P-B | temp | st-str | hl | alf | 5.5–9.0 | sp | 2.8 | a | hne | e |
| Stephanodiscus binderanus (Kützing) Krieger | P | - | - | hl | ind | - | es | 1.5 | o-b | ate | me |
| Stephanodiscus hantzschii Grunow | P | temp | - | i | - | 8.0–8.5 | - | - | - | - | - |
| Stephanodiscus hashiensis H.Tanaka | - | - | - | - | - | - | - | - | - | - | - |
| Stephanodiscus minutulus (Kützing) Cleve & Möller | P | temp | st-str | i | alb | 6.5–9.0 | es | 3.6 | a-o | hne | he |
| Stephanodiscus neoastraea Håkansson & Hickel emend. Casper, Scheffler et Augsten | P | temp | st-str | i | alb | 5.5–9.0 | es | - | - | - | - |
| Surirella angusta Kützing | P-B | temp | st-str | i | alf | 6.9–8.9 | - | - | - | - | - |
| Surirella brebissonii Krammer & Lange-Bertalot | B | temp | st-str | hl | alf | 7.2–8.4 | - | 0.5 | x-o | - | - |
| Surirella capronii var. hankensis Skvortzov | - | - | - | - | - | - | - | - | - | - | - |
| Surirella conifera Skvortzov | - | - | - | - | - | - | - | - | - | - | - |
| Surirella crumena Brébisson ex Kützing | B | - | st-str | hl | alf | - | - | - | - | - | - |
| Surirella didyma Kützing | B | - | - | i | alf | - | - | - | - | - | - |
| Surirella elegans Ehrenberg | P-B | - | str | i | alf | - | - | 1.0 | o | - | om |
| Surirella hibernica (W.Smith) D.Kapustin & O.Kryvosheia | P-B | - | st-str | i | alf | - | - | - | - | - | - |
| Surirella librile (Ehrenberg) Ehrenberg | P-B | temp | st-str | i | alf | 8.0 | - | - | - | hne | - |
| Surirella minuta Brébisson ex Kützing | B | temp | st-str | i | alf | 6.9–8.6 | - | - | - | - | - |
| Surirella ovalis Brébisson | P-B | - | st-str | mh | alf | - | es | 1.7 | b-o | - | - |
| Surirella roba Leclercq | B | - | str | i | acf | - | - | - | - | - | - |
| Surirella sp. | B | - | - | mh | - | - | es | 1.85 | o-a | hne | - |
| Synedra actinastroides (Lemmermann) Lemmermann | - | - | - | - | - | - | - | - | - | - | - |
| Tabellaria fenestrata (Lyngbye) Kützing | P-B | - | st-str | i | ind | 6.2 | - | 1.9 | o-a | - | - |
| Tabellaria flocculosa (Roth) Kützing | P-B | eterm | st-str | i | acf | 4.5–8.0 | - | 3.0 | a | - | - |
| Tabularia parva (Kützing) D.M.Williams & Round | - | - | - | mh | alf | - | - | - | - | - | - |
| Tabularia tabulata (C.Agardh) Snoeijs | B | - | - | mh | alf | - | - | - | - | - | - |
| Tetracyclus glans (Ehrenberg) F.W.Mills | P-B | temp | - | i | acf | 6.95 | - | 1.0 | x-o | - | ot |
| Tetracyclus rupestris (Kützing) Grunow | P-B | cool | aer | i | acf | - | - | 0.8 | x-b | - | ot |
| Thalassionema nitzschioides (Grunow) Mereschkowsky | P | - | - | eh | - | - | - | - | - | - | - |
| Thalassiosira baltica (Grunow) Ostenfeld | P-B | cool | - | mh | - | - | - | - | - | - | - |
| Thalassiosira bramaputrae (Ehrenberg) Håkansson & Locker | P-B | - | st-str | hl | alf | - | sp | 1.4 | o-b | ate | m |
| Thalassiosira decipiens (Grunow ex Van Heurck) Jørgensen | P-B | cool | - | eh | - | - | - | - | - | - | - |
| Thalassiosira gravida Cleve | P | cool | - | eh | alf | - | es | 2.0 | b | - | - |
| Thalassiosira hyalina (Grunow) Gran | - | warm | - | eh | - | - | - | - | - | - | - |
| Thalassiosira leptopus (Grunow) Hasle & G.Fryxell | P-B | cool | - | eh | alf | - | - | 2.0 | b | - | - |
| Thalassiosira nordenskioeldii Cleve | P | eterm | - | eh | - | - | - | - | - | - | - |
| Thalassiosira pseudonana Hasle & Heimdal | P | temp | st-str | hl | alf | 7.4–8.0 | - | 2.4 | b-a | hne | he |
| Thalassiosira sp. | B | - | - | - | - | - | - | - | - | - | - |
| Tryblionella angustata W.Smith var. angustata | P-B | temp | st | i | alf | 6.86–7.7 | sx | 1.5 | o-b | ats | e |
| Tryblionella angustata var. acuta (Grunow) Bukhtiyarova | P-B | - | - | i | alf | - | - | 2.0 | b | - | m |
| Tryblionella calida (Grunow) D.G.Mann | P-B | - | - | hl | - | 7.8–8.2 | - | 2.6 | a-o | - | e |
| Tryblionella debilis Arnott ex O’Meara | P-B | temp | st-str,aer | i | alf | 6.9–8.3 | es | 2.6 | a-o | ate | e |
| Tryblionella hantzschiana Grunow | B | - | st-str | hl | alf | - | - | 2.6 | a-o | ate | e |
| Tryblionella gracilis var. ambigua (Grunow) Bukhtiyarova | B | - | - | hl | - | - | - | 2.0 | b | - | - |
| Tryblionella hungarica (Grunow) Frenguelli | P-B | - | st-str | mh | alf | 7.0–7.8 | sp | 2.9 | a | ate | e |
| Tryblionella littoralis (Grunow) D.G.Mann | B | - | st-str | eh | alf | - | es | 2.6 | a-o | ats | e |
| Ulnaria acus (Kützing) Aboal | P-B | warm | st-str | i | alf | 6.8–8.0 | es | 1.85 | o-a | ate | me |
| Ulnaria amphirhynchus (Ehrenberg) Compère & Bukhtiyarova | P-B | - | - | i | alf | - | es | 2.0 | b | hne | om |
| Ulnaria biceps (Kützing) Compère | P-B | temp | - | i | alf | 5–9 | - | 1.9 | o-a | - | om |
| Ulnaria capitata (Ehrenberg) Compère | P-B | - | st-str | i | alf | - | es | 2.0 | b | ats | e |
| Ulnaria contracta (Østrup) E.A.Morales & M.L.Vis | B | - | - | i | alf | 6.3–9 | es | 2.4 | b-a | hne | - |
| Ulnaria danica (Kützing) Compère & Bukhtiyarova | P-B | temp | - | i | alf | 6.5–9.0 | es | 1.7 | b-o | hne | om |
| Ulnaria delicatissima var. angustissima (Grunow) Aboal & P.C.Silva | P-B | - | - | i | alf | 8.0 | es | 1.7 | b-o | - | om |
| Ulnaria ulna (Nitzsch) Compère | P-B | temp | st-str | i | alf | 5.0–9.5 | es | 2.4 | b-a | ate | e |
| Ulnaria sp. | - | - | - | - | - | - | - | - | - | - | - |
| Urosolenia eriensis (H.L.Smith) Round & R.M.Crawford | P-B | - | str | hl | acf | 7.93 | - | 0.5 | x-o | ats | om |
| Urosolenia longiseta (O.Zacharias) Edlund & Stoermer | P | - | str | i | acf | - | - | 0.9 | x-b | ats | me |
Note: “-“, not found. Abbreviations: Habitat (Hab) (P—planktonic, P-B—plankto-benthic, B—benthic); temperature (T) preferences (cool—cool-water, temp—temperate, eterm—eurythermic, warm—warm-water); oxygenation and streaming (Oxy) (st—standing water, str—streaming water, st-str—low streaming water, aer—aerophiles); pH preferences groups (pH) according to Hustedt (1957) [63] (alb—alkalibiontes; alf—alkaliphiles, ind—indifferent; acf—acidophiles; acb—acidobiontes, neu—neutrophiles); salinity ecological groups (Sal) according to Hustedt (1938–1939) [62] (hb—oligohalobes-halophobes, i—oligohalobes-indifferent, hl—halophiles; mh—mesohalobes, oh—oligohalobes of wide spectrum with optimum as indifferent, eh—euhalobes, ph—polyhalobes); Index S, species-specific index saprobity according to Sládeček, 1986 [65]; self-purification zone with index of saprobity (Sap) (x/0.0—xenosaprobe; x-o/0.4—xeno-oligosaprobe; x-b/0.8—xeno-betamesosaprobe; o/1.0—oligosaprobe; b-o/1.6—beta-oligosaprobe; o-a/1.8—oligo-alphamesosaprobe; b/2.0—betamesosaprobe; a/3.0—alphamesosaprobe; o-x/0.6—oligo-xenosaprobe; o-b/1.4—oligo-betamesosaprobe; b-p/2.8—beta-polysaprobe; b-a/2.4—beta-alphamesosaprobe; a-p/3.4—alpha-polysaprobe; a-ο/2.6—alpha-oligosaprobe; a-b/3.6—alpha-betamesosaprobe; organic pollution indicators according to Watanabe et al. (1986) [64] (D): sx—saproxenes; es—eurysaprobes; sp—saprophiles; nitrogen uptake metabolism (Aut-Het) (Van Dam et al., 1994) [66]: ats—nitrogen-autotrophic taxa, tolerating very small concentrations of organically bound nitrogen; ate—nitrogen-autotrophic taxa, tolerating elevated concentrations of organically bound nitrogen; hne—facultative nitrogen-heterotrophic taxa, needing periodically elevated concentrations of organically bound nitrogen; hce—obligate nitrogen-heterotrophic taxa, needing continuously elevated concentrations of organically bound nitrogen; Trophic state indicators (Tro) (Van Dam et al., 1994) [66]: (ot—oligotraphentic; om—oligomesotraphentic; m—mesotraphentic; me—mesoeutraphentic; e—eutraphentic; he—hypereutraphentic; o-e—oligo- to eutraphentic (hypereutraphentic)).
Table A3.
Distribution of species indicators over ecological groups in the waterbodies of the Lena Delta Nature Reserve and adjacent areas. Abbreviation of ecological groups as in Appendix A Table A2.
Table A3.
Distribution of species indicators over ecological groups in the waterbodies of the Lena Delta Nature Reserve and adjacent areas. Abbreviation of ecological groups as in Appendix A Table A2.
| Ecological Group | No of Indicators |
|---|---|
| Habitat | |
| B | 330 |
| P-B | 161 |
| P | 24 |
| Temperature | |
| cool | 26 |
| temp | 184 |
| eterm | 6 |
| warm | 6 |
| Oxygen | |
| aer | 3 |
| str | 73 |
| st-str | 211 |
| st | 26 |
| Salinity | |
| hb | 76 |
| i | 298 |
| hl | 50 |
| mh | 35 |
| eh | 16 |
| ph | 1 |
| Water pH | |
| acb | 4 |
| acf | 83 |
| ind | 162 |
| alf | 190 |
| alb | 10 |
| Saprobity Watanabe | |
| sx | 47 |
| es | 75 |
| sp | 13 |
| Nutrition type | |
| ats | 102 |
| ate | 70 |
| hne | 21 |
| hce | 2 |
| Trophic state | |
| ot | 79 |
| om | 52 |
| m | 13 |
| me | 36 |
| e | 45 |
| o-e | 6 |
| he | 4 |
| Class of Water Quality | |
| Class 1 | 46 |
| Class 2 | 165 |
| Class 3 | 79 |
| Class 4 | 17 |
| Class 5 | 7 |
References
- Barinova, S.; Stenina, A. Diatom diversity and ecological variables in the Arctic lakes of the Kostyanoi Nos Cape (Nenetsky Natural Reserve, Russian North). Plant Biosyst. Int. J. Deal. All Asp. Plant Biol. 2013, 147, 397–410. [Google Scholar] [CrossRef]
- Stenina, A.S. Diatoms (Bacillariophyta) in the Lakes of the East of the Bolshezemelskaya Tundra; Institute of Biology, Komi Scientific Center, Ural Branch, Russian Academy of Sciences: Syktyvkar, Russia, 2009; 176p. (In Russian) [Google Scholar]
- Kharitonov, V.G. Diatoms of the benthos of water bodies of Wrangel Island. News Taxon. Low. Plants 1981, 18, 33–39. [Google Scholar]
- Pinseel, E.; Van de Vijver, B.; Kavan, J.; Verleyen, E.; Kopalová, K. Diversity, ecology and community structure of the freshwater littoral diatom flora from Petuniabukta (Spitsbergen). Polar Biol. 2017, 40, 533–551. [Google Scholar] [CrossRef]
- Picińska-Fałtynowicz, J. Freshwater benthic diatoms from the south-western part of the Hornsund fiord area, SW Spitsbergen. Polar Res. 1988, 6, 19–34. [Google Scholar] [CrossRef]
- Protected Areas of Russia. Red Books. Red Book of the Republic of Sakha (Yakutia). Developer FGBU “AARI”, Laboratory of Geoinformation Technologies. Available online: http://www.oopt.aari.ru/rbdata/75/plant (accessed on 24 June 2019).
- Kharitonov, V.G. Diatom algae of fresh water bodies. In Ecology of the Basin of the R. amguema; Russian Academy of Sciences, Far Eastern Department, Institute for Biological Problems of Cryolithozone SB RAS: Vladivostok, Russia, 1993; pp. 47–81. (In Russian) [Google Scholar]
- Kharitonov, V.G. Diatoms (Bacillariophyseae) in the Sediments of Three Mountain, Oligotrophic Lakes in the Amguema River Basin (Chukotka). Sib. Ecol. J. 2010, 4, 609–622. [Google Scholar]
- Kharitonov, V.G.; Genkal, S.I. Diatoms of Lake Elgygytgyn and Its Environs (Chukotka); NESC FEB RAS: Magadan, Russia, 2012; pp. 1–402. (In Russian) [Google Scholar]
- Kopyrina, L.; Pshennikova, E.; Barinova, S. Diversity and ecological characteristic of algae and cyanobacteria of thermokarst lakes in Yakutia (northeastern Russia). Oceanol. Hydrobiol. Stud. 2020, 49, 99–122. [Google Scholar] [CrossRef]
- Kopyrina, L.; Pshennikova, E.; Barinova, S. Diversity and Ecology of Non-Diatom Algae in a Swampy Mountain Lake of the Suntar-Khayat Ridge (Republic Sakha, Yakutia, Russia). Transylv. Rev. Syst. Ecol. Res. 2022, 24, 17–34. [Google Scholar] [CrossRef]
- Barinova, S.; Gabyshev, V.; Gabysheva, O. Climate impact of freshwater biodiversity: General patterns in extreme environments of North-Eastern Siberia (Russia). Br. J. Environ. Clim. Change 2014, 4, 423–443. [Google Scholar] [CrossRef]
- Barinova, S.; Gabyshev, V.; Boboev, M.; Kukhaleishvili, L.; Bilous, O. Algal Indication of Climatic Gradients, American Journal of Environmental Protection. Spec. Issue Appl. Ecol. Probl. Innov. 2015, 4, 72–77. [Google Scholar] [CrossRef] [Green Version]
- Gabyshev, V.A. Assessment of potential phytoplankton transformations of large rivers of Eastern Siberia in response to global climate change. Biology Bulletin 2021, 48, 793–799. [Google Scholar] [CrossRef]
- Barinova, S.S.; Gabyshev, V.A.; Ivanova, A.P.; Gabysheva, O.I. Bioindication of the water salinity dynamics by the microalgae communities in the Lena River Delta, Laptev Sea, Russian Arctic. Mar. Biol. J. 2021, 6, 15–28. [Google Scholar] [CrossRef]
- Gabysheva, O.I.; Gabyshev, V.A.; Barinova, S. Influence of the Active Layer Thickness of Permafrost in Eastern Siberia on the River Discharge of Nutrients into the Arctic Ocean. Water 2022, 14, 84. [Google Scholar] [CrossRef]
- Gabyshev, V.; Barinova, S.; Ivanova, A.; Gabysheva, O.; Curtean-Bănăduc, A. The Indicator Role of Algae in Assessing the Organic Pollution in the Lena River Delta, the Russian Arctic. Front. Environ. Sci. 2022, 10, 921819. [Google Scholar] [CrossRef]
- Barinova, S.; Gabyshev, V.; Genkal, S.; Gabysheva, O. Diatoms of Small Water Bodies as Bioindicators in the Assessment of Climatic and Anthropogenic Impacts on the Coast of Tiksi Bay, Russian Arctic. Water 2023, 15, 1533. [Google Scholar] [CrossRef]
- Gabyshev, V.; Ivanova, A.; Gabysheva, O. Long-Term Survey of Algae of the Lena Delta Wildlife Reserve Including Data on Chemistry of Waters; Institute for Biological Problems of Cryolithozone, SB RAS: Yakutsk, Russia, 2021; Sampling event dataset Version 1.2. [Google Scholar] [CrossRef]
- Bessudova, A.; Gabyshev, V.; Firsova, A.; Gabysheva, O.; Bukin, Y.; Likhoshway, Y. Diversity variation of silica-scaled chrysophytes related to differences in physicochemical variables in estuaries of rivers in an Arctic watershed. Sustainability 2021, 13, 13768. [Google Scholar] [CrossRef]
- Komulainen, S.F. Freshwater algae in red data books: State-of-the-art and problems. Trans. Karelian Res. Cent. Russ. Acad. Sci. Biogeogr. Petrozavodsk. 2009, 1, 57–61. [Google Scholar]
- Gvozdetsky, N.A.; Mikhailov, N.I. Physical Geography of the USSR: Asian Part, 3rd ed.; Mysl’: Moscow, Russia, 1978; 512p. (In Russian) [Google Scholar]
- Grosswald, M.G.; Spektor, V.B. Glacial landforms of the Tiksi region (western coast of the Buor-Khaya Bay, Northern Yakutia). Geomorfologiya (Geomorphol. RAS) 1993, 1, 72–82. [Google Scholar]
- Spektor, V.B.; Shestakova, A.A.; Torgovkin, Y.I. New genetic types of landforms and deposits of the coastal part of the western sector of the Laptev Sea and the Lena River Delta. Arct. Subarct. Nat. Resour. 2021, 26, 81–93. [Google Scholar] [CrossRef]
- Konstantinov, P.Y.; Tregubov, O.D.; Zhang, M.; Li, G. Permafrost temperature dynamics over the last 30 years in certain regions of the Eastern sector of the Russian Arcric. Int. J. Appl. Sci. Technol. 2022, 1, 260–267. [Google Scholar] [CrossRef]
- Yakut ASSR. Part 2: Temperature of Air and Soil/Yakutsk Hydrometeorological Observatory; Reference Book on the Climate of the USSR; Issue 24; Gidrometeoizdat: Leningrad, Russia, 1966; pp. 1–398. [Google Scholar]
- Fedorov, A.N.; Botulu, T.A.; Varlamov., S.P. Permafrost Landscapes of Yakutia (Explanatory Note to the Permafrost-Landscape Map of the Yakut ASSR, Scale 1:2500000); GUGK: Novosibirsk, Russia, 1989; 170p. (In Russian) [Google Scholar]
- Kirillov, A.F.; Chernyshev, I.A. Annotated listing of pisciforms and fishes of marine and fresh waters of Yakutia. Bull. Yakutsk. State Univ. 2006, 3, 5–13. [Google Scholar]
- Balonov, I.M. Preparation of diatoms and golden algae for electron microscopy. In Methods for the Study of Biogeocenoses of Inland Waterbodies; Nauka, USSR: Moscow, Russia, 1975; pp. 87–89. (In Russian) [Google Scholar]
- Lange-Bertalot, H.; Moser, G. Brachysira: Monographie der Gattung; wichtige indicator-species für das Gewässer-Monitoring und Naviculadicta nov. gen.; ein Lösungsvorschlag zu dem Problem Navicula sensu lato onhe Navicula sensu stricto. Bibl. Diatomol. 1994, 29, 1–212. [Google Scholar]
- Krammer, K. Die cymbelloiden Diatomeen. Teil 1. Allgemeines und Encyonema part. Bibl. Diatomol. 1997, 36, 1–382. [Google Scholar]
- Krammer, K. Die cymbelloiden Diatomeen. Teil 2. Encyonema part., Encyonopsis und Cymbellopsis. Bibl. Diatomol. 1997, 7, 1–469. [Google Scholar]
- Krammer, K. Pinnularia. In Diatoms of Europe; Lange-Bertalot, H., Ed.; A.R.G. Gantner Verlag, K.G.: Ruggell, Liechtenstein, 2000; Volume 1, pp. 1–703. [Google Scholar]
- Krammer, K. Cymbella. In Diatoms of Europe; Lange-Bertalot, H., Ed.; A.R.G. Gantner Verlag, K.G.: Ruggell, Liechtenstein, 2002; Volume 3, pp. 1–584. [Google Scholar]
- Krammer, K. Cymbopleura, Delicata, Navicymbula, Gomphocymbellopsis, Afrocymbella. In Diatoms of Europe; Lange-Bertalot, H., Ed.; A.R.G. Gantner Verlag, K.G.: Ruggell, Liechtenstein, 2003; Volume 4, pp. 1–530. [Google Scholar]
- Krammer, K.; Lange-Bertalot, H. Bacillariophyceae. Teil 1. Naviculaceae. In Die Süsswasserflora von Mitteleuropa; Spektrum Akademischer Verlag: Stuttgart, Germany, 1986; pp. 1–876. [Google Scholar]
- Krammer, K.; Lange-Bertalot, H. Bacillariophyceae. Teil 2. Epithemiaceae, Bacillariaceae, Surirellaceae. In Die Süsswasserflora von Mitteleuropa; Spektrum Akademischer Verlag: Stuttgart, Germany, 1988; pp. 1–536. [Google Scholar]
- Krammer, K.; Lange-Bertalot, H. Bacillariophyceae. Teil 3. Centrales, Fragilariaceae, Eunotiaceae. In Die Süsswasserflora von Mitteleuropa; Ettl, H., Gerloff, J., Heynig, H., Eds.; Spektrum Akademischer Verlag: Stuttgart, Germany, 1991; pp. 1–576. [Google Scholar]
- Krammer, K.; Lange-Bertalot, H. Bacillariophyceae. Teil. 4. Achnanthaceae, Kritische Erganzungen zu Navicula (Lineolatae) und Gomphonema. In Die Süsswasserflora von Mitteleuropa; Gustav Fisher Verlag: Stuttgart, Germany, 1991; pp. 1–437. [Google Scholar]
- Lange-Bertalot, H.; Genkal, S.I. Diatoms of Siberia. I. Iconogr. Diatomol. 1999, 6, 7–272. [Google Scholar]
- Reichardt, E. Zur revision der gattung Gomphonema. Iconogr. Diatomol. 1999, 8, 1–203. [Google Scholar]
- Lange-Bertalot, H. Navicula sensu stricto, 10 genera separated from Navicula sensu lato Frustulia. In Diatoms of Europe; Lange-Bertalot, H., Ed.; A.R.G. Gantner Verlag, K.-G.: Ruggell, Liechtenstein, 2001; Volume 2, pp. 1–526. [Google Scholar]
- Werum, M.; Lange-Bertalot, H. Diatoms in springs from Central Europe and elsewhere under the influence of hydrogeology and anthropogenic impacts. Iconogr. Diatomol. 2004, 13, 1–417. [Google Scholar]
- Levkov, Z. Amphora sensu lato. In Diatoms of Europe; Lange-Bertalot, H., Ed.; A.R.G. Gantner Verlag, K.-G.: Ruggell, Liechtenstein, 2009; Volume 5, pp. 1–916. [Google Scholar]
- Genkal, S.I.; Bondarenko, N.A.; Shchur, L.A. Diatoms of Lakes in the South and North of Eastern Siberia; Publisher OAO “Rybinsk Press House”: Rybinsk, Russia, 2011; 72p. (In Russian) [Google Scholar]
- Lange-Bertalot, H.; Bak, M.; Witkowski, A. Eunotia and some related genera. In Diatoms of Europe; A.R.G. Gantner Verlag, K.-G.: Ruggell, Liechtenstein, 2011; Volume 6, pp. 1–747. [Google Scholar]
- Levkov, Z.; Metzeltin, D.; Pavlov, A. Luticola and Luticolopsis. In Diatoms of Europe; Lange-Bertalot, H., Ed.; A.R.G. Gantner Verlag, K.-G.: Ruggell, Liechtenstein, 2013; Volume 7, pp. 1–697. [Google Scholar]
- Levkov, Z.; Mitić-Kopanja, D.; Reichardt, E. The diatom genus Gomphonema from the Republik of Macedonia. In Diatoms of Europe; Lange-Bertalot, H., Ed.; A.R.G. Gantner Verlag, K.-G.: Ruggell, Liechtenstein, 2016; Volume 8, pp. 1–552. [Google Scholar]
- Kulikovskiy, M.S.; Glushchtnko, A.M.; Genkal, S.I.; Kuznetsova, I.V. Identification Book of Diatoms from Russia; Filigran: Yaroslavl, Russia, 2016; 804p. (In Russian) [Google Scholar]
- Lange-Bertalot, H.; Hofmann, G.; Werum, M.; Cantonati, M. Freshwater Benthic Diatoms of Central Europe; Koeltz Botanical Books: Schmitten-Oberreifenberg, Germany, 2017; 942p. [Google Scholar]
- Beauger, A.; Allain, E.; Voldoire, O.; Blavignac, C.; Rossi, S.; Wetzel, C.; Ector, L. Gomphosphenia vallei (Bacillariophyta), a new diatom species from a stream in the “Réserve Naturelle Nationale de la Vallée de Chaudefour”, Massif Central (France). Phytotaxa 2022, 542, 167–179. [Google Scholar] [CrossRef]
- Guiry, M.D.; Guiry, G.M. AlgaeBase World-Wide Electronic Publication. National University of Ireland, Galway. Available online: http://www.algaebase.org (accessed on 24 June 2019).
- Hofmann, G.; Lange-Bertalot, H.; Werum, M.; Klee, R. Rote Liste und Gesamtartenliste der limnischen Kieselalgen (Bacillariophyta) Deutschlands. In Rote Liste der Gefährdeten Tiere, Pflanzen und Pilze Deutschlands; Band 7, Pflanzen; Bundesamt für Naturschutz: Bonn, Germany, Naturschutz und Biologische Vielfalt; 2018; Volume 70, pp. 601–708. [Google Scholar]
- IUCN. IUCN Red List Categories and Criteria, Version 3.1, 2nd ed.; IUCN: Gland, Switzerland; Cambridge, UK, 2012; pp. 1–32. [Google Scholar]
- Barinova, S. Essential and practical bioindication methods and systems for the water quality assessment. Int. J. Environ. Sci. Nat. Resour. 2017, 2, 1–11. [Google Scholar] [CrossRef]
- Barinova, S.S.; Medvedeva, L.A.; Anissimova, O.V. Diversity of Algal Indicators in Environmental Assessment; Pilies Studio Publisher: Tel Aviv, Israel, 2006; 498p. (In Russian) [Google Scholar]
- Barinova, S.S.; Bilous, O.P.; Tsarenko, P.M. Algal Indication of Water Bodies in Ukraine: Methods and Prospects; Publishing House of Haifa University: Haifa, Israel, 2019; 367p. (In Russian) [Google Scholar]
- Love, J.; Selker, R.; Marsman, M.; Jamil, T.; Dropmann, D.; Verhagen, J.A.; Ly, A.; Gronau, F.Q.; Smira, M.; Epskamp, S.; et al. JASP: Graphical statistical software for common statistical designs. J. Stat. Softw. 2019, 88, 1–17. [Google Scholar] [CrossRef] [Green Version]
- McAleece, N.; Gage, J.D.G.; Lambshead, P.J.D.; Paterson, G.L.J. BioDiversity Professional statistics analysis software. Jointly developed by the Scottish Association for Marine Science and the Natural History Museum London; Informer Technologies, Inc.: Los Angeles, CA, USA; The Scottish Association for Marine Science: Oban, UK, 1997. [Google Scholar]
- Barinova, S. Systemic Criteria for the Analysis of Alpha- and Gamma-Diversity of Freshwater Algae. Int. J. Environ. Sci. Nat. Res. 2017, 4, 555633. [Google Scholar] [CrossRef]
- Barinova, S. The effect of altitude on distribution of freshwater algae in continental Israel. Curr. Top. Plant Biol. 2011, 12, 89–95. [Google Scholar]
- Hustedt, F. Systematisch und Ökologische Untersuchungen über die Diatomeenflora von Java, Bali und Sumatra. Archiv. Hydrobiol. Suppl. 1938, 15, 131–177, 393–506, 638–790, Eratum in Archiv. Hydrobiol. Suppl. 1939, 16, 1–155, 274–394. [Google Scholar]
- Hustedt, F. Die Diatomeenflora des Flußsystems der Weser im Gebiet der Hansestadt Bremen. Abh. Des Nat. Ver. Zu Brem. 1957, 34, 181–440. [Google Scholar]
- Watanabe, T.; Asai, K.; Houki, A. Numerical estimation of organic pollution of flowing water by using the epilithic diatom assemblage—Diatom Assemblage Index (DAIpo). Sci. Total Environ. 1986, 55, 209–218. [Google Scholar] [CrossRef]
- Sládeček, V. Diatoms as indicators of organic pollution. Acta Hydrochim. Hydrobiol. 1986, 14, 555–566. [Google Scholar] [CrossRef]
- Van Dam, H.; Mertens, A.; Sinkeldam, J. A coded checklist and ecological indicator values of freshwater diatoms from the Netherlands. Neth. J. Aquat. Ecol. 1994, 28, 117–133. [Google Scholar] [CrossRef]
- Bessudova, A.; Gabyshev, V.; Bukin, Y.; Gabysheva, O.; Likhoshway, Y.V. Species richness of scaled Chrysophytes in arctic waters in the Tiksi Region (Yakutia, Russia). Acta Biol. Sib. 2022, 8, 431–459. [Google Scholar] [CrossRef]
- Trifonova, I. Phytoplankton composition and biomass structure in relation to trophic gradient in some temperate and subarctic lakes of north-western Russia and the Prebaltic. Hydrobiologia 1998, 369, 99–108. [Google Scholar] [CrossRef]
- Knights, D.; Piliouras, A.; Schwenk, J.; Hariharan, J.; Russoniello, C. Seasonal and morphological controls on nitrate retention in Arctic deltas. Geophys. Res. Lett. 2023, 50, 1–10. [Google Scholar] [CrossRef]
- Gabyshev, V.A.; Tsarenko, P.M.; Ivanova, A.P. Diversity and Features of the Spatial Structure of Algal Communities of Water Bodies and Watercourses in the Lena River Estuary. Inland Water Biol. 2019, 12 (Suppl. 1), 1–9. [Google Scholar] [CrossRef]
- Odum, E.P. Fundamentals of Ecology, 3rd ed.; Publisher W.B. Saunders Co.: Philadelphia, PA, USA, 1971; pp. 1–574. [Google Scholar]
- Sharipova, M.Y. Algae of terraqueous ecotones of the Basu River Valley (South Ural, Russia). Int. J. Algae 2007, 9, 162–173. [Google Scholar] [CrossRef]
- Percopo, I.; Siano, R.; Cerino, F.; Sarno, D.; Zingone, A. Phytoplankton diversity during the spring bloom in the northwestern Mediterranean Sea. Bot. Mar. 2011, 54, 1–25. [Google Scholar] [CrossRef] [Green Version]
- Sheath, R.G.; Steinman, A.D. A checklist of freshwater algae of the Northwest Territories, Canada. Can. J. Bot. 1982, 60, 1964–1997. [Google Scholar] [CrossRef]
- Patrick, R.; Reimer, C.W. The Diatoms of the United States Exclusive of Alaska and Hawaii, Fragilariaceae, Eunotiaceae, Achnanthaceae, Naviculaceae; Publisher Academy of Natural Sciences: Philadelphia, PA, USA, 1966; Volume 1, pp. 1–702. [Google Scholar]
Figure 1.
Investigated waterbodies in the Lena Delta Nature Reserve (green outline, green dots) and the adjacent territory (black dots), summarized as “delta region” and a recent survey of waterbodies (blue dots, “Tiksi region”) with the wind rose seasonality.
Figure 1.
Investigated waterbodies in the Lena Delta Nature Reserve (green outline, green dots) and the adjacent territory (black dots), summarized as “delta region” and a recent survey of waterbodies (blue dots, “Tiksi region”) with the wind rose seasonality.
Figure 2.
Natural landscape of investigated waterbodies in the Lena Delta Nature Reserve and the adjacent area. (a) Arctic tundra with small waterbodies; (b) phytoplankton sampling.
Figure 2.
Natural landscape of investigated waterbodies in the Lena Delta Nature Reserve and the adjacent area. (a) Arctic tundra with small waterbodies; (b) phytoplankton sampling.
Figure 3.
Distribution of diatom species over 123 genera (a), ten richest genera (b), ten richest families (c), and Willis’s curve (d) in the Lena Delta Nature Reserve and the adjacent area.
Figure 3.
Distribution of diatom species over 123 genera (a), ten richest genera (b), ten richest families (c), and Willis’s curve (d) in the Lena Delta Nature Reserve and the adjacent area.
Figure 4.
Distribution of the studied lakes in the territory of the “delta region” (a) and a group of 14 lakes in the “Tiksi region” (d), altitude (b,e) and the number of diatom species (c,f). The top row of graphs is Delta region and bottom row is Tiksi lakes.
Figure 4.
Distribution of the studied lakes in the territory of the “delta region” (a) and a group of 14 lakes in the “Tiksi region” (d), altitude (b,e) and the number of diatom species (c,f). The top row of graphs is Delta region and bottom row is Tiksi lakes.
Figure 5.
Distribution of species indicators of the waterbodies in the entire Lena Delta Nature Reserve and the adjacent areas over ecological groups. The ecological groups order on the axis x follows the increase in the related environmental indicator. (a) Habitat (P—planktonic, P-B—plankto-benthic, B—benthic). (b) Temperature preferences (cool—cool-water, temp—temperate, eterm—eurythermic, warm—warm-water). (c) Oxygen and streaming (st—standing water, str—streaming water, st-str—low streaming water, aer—aerophiles). (d) Salinity ecological groups according to Hustedt (1938–1939) [62] (hb—oligohalobes-halophobes, i—oligohalobes-indifferent, hl—halophiles; mh—mesohalobes, eh—euhalobes, ph—polyhalobes). (e) pH preferences groups (pH) according to Hustedt (1957) [63] (alb—alkalibiontes; alf—alkaliphiles, ind—indifferent; acf—acidophiles; acb—acidobiontes). (f) Organic pollution indicators according to Watanabe et al. (1986) [64]: sx—saproxenes; es—eurysaprobes; sp—saprophiles. (g) Class 1–5 of organic pollution indicators according to species-specific Index saprobity of Sládeček, 1986 [65]. (h) Nutrition type as nitrogen uptake metabolism (Van Dam et al., 1994) [66]: ats—nitrogen-autotrophic taxa, tolerating very small concentrations of organically bound nitrogen; ate—nitrogen-autotrophic taxa, tolerating elevated concentrations of organically bound nitrogen; hne—facultative nitrogen-heterotrophic taxa, needing periodically elevated concentrations of organically bound nitrogen; hce—obligate nitrogen-heterotrophic taxa, needing continuously elevated concentrations of organically bound nitrogen. (i) Trophic state indicators (Van Dam et al., 1994) [66]: (ot—oligotraphentic; om—oligomesotraphentic; m—mesotraphentic; me—mesoeutraphentic; e—eutraphentic; he—hypereutraphentic; o-e—oligo- to eutraphentic (hypereutraphentic)).
Figure 5.
Distribution of species indicators of the waterbodies in the entire Lena Delta Nature Reserve and the adjacent areas over ecological groups. The ecological groups order on the axis x follows the increase in the related environmental indicator. (a) Habitat (P—planktonic, P-B—plankto-benthic, B—benthic). (b) Temperature preferences (cool—cool-water, temp—temperate, eterm—eurythermic, warm—warm-water). (c) Oxygen and streaming (st—standing water, str—streaming water, st-str—low streaming water, aer—aerophiles). (d) Salinity ecological groups according to Hustedt (1938–1939) [62] (hb—oligohalobes-halophobes, i—oligohalobes-indifferent, hl—halophiles; mh—mesohalobes, eh—euhalobes, ph—polyhalobes). (e) pH preferences groups (pH) according to Hustedt (1957) [63] (alb—alkalibiontes; alf—alkaliphiles, ind—indifferent; acf—acidophiles; acb—acidobiontes). (f) Organic pollution indicators according to Watanabe et al. (1986) [64]: sx—saproxenes; es—eurysaprobes; sp—saprophiles. (g) Class 1–5 of organic pollution indicators according to species-specific Index saprobity of Sládeček, 1986 [65]. (h) Nutrition type as nitrogen uptake metabolism (Van Dam et al., 1994) [66]: ats—nitrogen-autotrophic taxa, tolerating very small concentrations of organically bound nitrogen; ate—nitrogen-autotrophic taxa, tolerating elevated concentrations of organically bound nitrogen; hne—facultative nitrogen-heterotrophic taxa, needing periodically elevated concentrations of organically bound nitrogen; hce—obligate nitrogen-heterotrophic taxa, needing continuously elevated concentrations of organically bound nitrogen. (i) Trophic state indicators (Van Dam et al., 1994) [66]: (ot—oligotraphentic; om—oligomesotraphentic; m—mesotraphentic; me—mesoeutraphentic; e—eutraphentic; he—hypereutraphentic; o-e—oligo- to eutraphentic (hypereutraphentic)).
Figure 6.
Distribution of the number of diatom species in the flora of water bodies of the Lena Delta Nature Reserve and adjacent territories by IUCN Threat Categories. The order of the IUCN categories on the x-axis corresponds to threat reduction.
Figure 6.
Distribution of the number of diatom species in the flora of water bodies of the Lena Delta Nature Reserve and adjacent territories by IUCN Threat Categories. The order of the IUCN categories on the x-axis corresponds to threat reduction.
Figure 7.
Bray–Curtis cluster analysis of diatom list similarity of the Arctic lakes over the Arctic circle in Eurasia. Cluster 1: Nine Yakutia lakes (Y): Aalaah, Kurelah, Sullah, Dyiere, Ynah, Nal Tungulu, L. and S. Tungulu, Abalah, Nidzhili [10]. Cluster 2: Bolshezemelskaya Tundra lakes (BZ) Vanutkiny, Kharbeyskiye, Korotaikha, Vorkuta, Usa, Kara [2]. Cluster 3: Tiksi (T), species from 14 lakes [18] (Appendix A Table A1).
Figure 7.
Bray–Curtis cluster analysis of diatom list similarity of the Arctic lakes over the Arctic circle in Eurasia. Cluster 1: Nine Yakutia lakes (Y): Aalaah, Kurelah, Sullah, Dyiere, Ynah, Nal Tungulu, L. and S. Tungulu, Abalah, Nidzhili [10]. Cluster 2: Bolshezemelskaya Tundra lakes (BZ) Vanutkiny, Kharbeyskiye, Korotaikha, Vorkuta, Usa, Kara [2]. Cluster 3: Tiksi (T), species from 14 lakes [18] (Appendix A Table A1).
Figure 8.
JASP network plot of diatom species composition similarity for the small Arctic lakes, p< 0.5. Tiksi (T), species from the Tiksi region 14 lakes [18]. Arctic Chukotka, species from Amguema basin lakes: Ervynaygytgyn, Matachingagytgyn, Ekitiki [7,8]. Bolshezemelskaya Tundra lakes (BZ) Vanutkiny, Kharbeyskiye, Korotaikha, Vorkuta, Usa, Kara [2]. Svalbard (Sv), Hornsund fiord, eight lakes [5]. Yakutia (Y), nine lakes: Aalaah, Kurelah, Sullah, Dyiere, Ynah, Nal Tungulu, Large and Small Tungulu, Abalah, Nidzhili [10].
Figure 8.
JASP network plot of diatom species composition similarity for the small Arctic lakes, p< 0.5. Tiksi (T), species from the Tiksi region 14 lakes [18]. Arctic Chukotka, species from Amguema basin lakes: Ervynaygytgyn, Matachingagytgyn, Ekitiki [7,8]. Bolshezemelskaya Tundra lakes (BZ) Vanutkiny, Kharbeyskiye, Korotaikha, Vorkuta, Usa, Kara [2]. Svalbard (Sv), Hornsund fiord, eight lakes [5]. Yakutia (Y), nine lakes: Aalaah, Kurelah, Sullah, Dyiere, Ynah, Nal Tungulu, Large and Small Tungulu, Abalah, Nidzhili [10].
Table 1.
Sampling station parameters and the geographical coordinates of recent survey of waterbodies in “Tiksi region” (blue dots according to Figure 1).
Table 1.
Sampling station parameters and the geographical coordinates of recent survey of waterbodies in “Tiksi region” (blue dots according to Figure 1).
| No of Station | Lake Name | Water Temperature | Altitude, m | North | East |
|---|---|---|---|---|---|
| 1 | Lake 1 | 16.7 | 25 | 71°44′44″ | 128°43′12″ |
| 2 | Lake 2 | 15.1 | 66 | 71°44′12″ | 128°41′37″ |
| 3 | Lake 3 | 15.0 | 109 | 71°43′31″ | 128°38′31″ |
| 4 | Lake 4 | 20.4 | 38 | 71°43′48″ | 128°42′35″ |
| 5 | Lake 5 | 20.6 | −4 | 71°43′45″ | 128°44′36″ |
| 6 | Lake 6 | 16.1 | 76 | 71°41′10″ | 128°36′50″ |
| 7 | Lake 7 | 14.5 | 76 | 71°40′52″ | 128°37′11″ |
| 8 | Lake-puddle 8 | 10.1 | 55 | 71°40′26″ | 128°41′21″ |
| 9 | Lake 9 | 15.1 | 54 | 71°40′10″ | 128°43′27″ |
| 10 | Lake 10 | 13.3 | 52 | 71°35′56″ | 128°51′70″ |
| 11 | Lake 11 | 14.0 | 38 | 71°34′33″ | 128°45′51″ |
| 12 | Swampy lake 12 | - | 105 | 71°33′36″ | 128°40′26″ |
| 13 | Lake 13 | 14.6 | 85 | 71°33′17″ | 128°38′51″ |
| 14 | Lake 14 | 14.7 | 154 | 71°32′34″ | 128°34′57″ |
Table 2.
Threat categories for diatom species in the waterbodies of the Lena Delta Nature Reserve and the adjacent area.
Table 2.
Threat categories for diatom species in the waterbodies of the Lena Delta Nature Reserve and the adjacent area.
| IUCN Category | IUCN Code | No of Red List Category | Red List Category | Number of Species |
|---|---|---|---|---|
| Extinct | EX | 1 | Extinct or Lost | 2 |
| Critically Endangered | CR | 2, 3 | Threatened with Extinction, Highly Threatened | 40 |
| Endangered | EN | 4, 5 | Threatened, Threat of Unknown Extent | 112 |
| Vulnerable | VU | 6 | Extremely Rare | 16 |
| Near Threatened | NT | 7 | Near Threatened | 28 |
| Least Concern | LC | 9 | Not Threatened | 198 |
| Data Deficient | DD | 8 | Data Deficient | 43 |
| Not Evaluated | NE | 0, 10 | Not established | 194 |
Table 3.
Floristic parameters of the entire Lena Delta Nature Reserve and the adjacent area as the “Delta region”, and the “Tiksi region”.
Table 3.
Floristic parameters of the entire Lena Delta Nature Reserve and the adjacent area as the “Delta region”, and the “Tiksi region”.
| Variable | “Delta Region” | “Tiksi Region” |
|---|---|---|
| Area, km2 | 14300 | 180 |
| Species with intraspecies | 666 | 385 |
| Taxa without sp. | 631 | 356 |
| Species only | 569 | 337 |
| Sp./Area | 0.05 | 2.14 |
| Ssp./Sp. | 1.11 | 1.14 |
Table 4.
Distribution of the diatom species richness of the “Tiksi region” lakes over the lake surface.
Table 4.
Distribution of the diatom species richness of the “Tiksi region” lakes over the lake surface.
| No of Station | Lake Name | Lake Surface Area, km2 | Coastline Length, m | No of Species | Sp./Area |
|---|---|---|---|---|---|
| 1 | Lake 1 | 0.075 | 1618.42 | 66 | 881.601 |
| 2 | Lake 2 | 0.038 | 894.56 | 62 | 1635.603 |
| 3 | Lake 3 | 0.031 | 763.29 | 76 | 2460.437 |
| 4 | Lake 4 | 0.008 | 359.76 | 72 | 8891.117 |
| 5 | Lake 5 | 0.067 | 1188.51 | 33 | 493.171 |
| 6 | Lake 6 | 0.042 | 902.78 | 137 | 3252.128 |
| 7 | Lake 7 | 0.586 | 5716.74 | 75 | 128.074 |
| 8 | Lake-puddle 8 | - | - | 69 | - |
| 9 | Lake 9 | 0.486 | 3167.26 | 59 | 121.281 |
| 10 | Lake 10 | 0.077 | 1153.85 | 85 | 1101.333 |
| 11 | Lake 11 | 0.124 | 1800.36 | 117 | 946.742 |
| 12 | Swampy lake 12 | - | - | 43 | - |
| 13 | Lake 13 | 0.158 | 1639.88 | 96 | 609.365 |
| 14 | Lake 14 | 0.023 | 712.85 | 50 | 2175.773 |
Table 5.
Ecological preferences of diatom species in IUCN Threat Categories (Red Data List) of the Lena Delta Nature Reserve and adjacent areas.
Table 5.
Ecological preferences of diatom species in IUCN Threat Categories (Red Data List) of the Lena Delta Nature Reserve and adjacent areas.
| Species in Threat Categories | Hab | T | Oxy | Sal | pH | D | Index S | Sap | Aut-Het | Tro |
|---|---|---|---|---|---|---|---|---|---|---|
| EXTINCT (Extinct or Lost) | ||||||||||
| Cymbopleura designata (Krammer) Bahls | B | temp | st-str | i | alf | - | 1.8 | o-a | ats | m |
| Encyonema latens (Krasske) D.G.Mann | B | - | - | - | - | - | 1.0 | o | ats | ot |
| CRITICALLY ENDANGERED (Threatened with Extinction) | ||||||||||
| Eunotia elegans Østrup | P-B | - | st-str | hb | acf | - | 0.2 | x | ats | ot |
| Eunotia faba Ehrenberg | B | temp | st-str | - | alf | - | - | o | ats | ot |
| Frustulia krammeri Lange-Bertalot & Metzeltin | B | - | - | - | acf | - | - | - | - | e |
| Navigeia thingvallae (Østrup) Bukhtiyarova | B | - | - | - | - | - | - | - | - | - |
| Tetracyclus glans (Ehrenberg) F.W.Mills | P-B | temp | - | i | acf | - | 1.0 | x-o | - | ot |
| CRITICALLY ENDANGERED (Highly Threatened) | ||||||||||
| Boreozonacola hustedtii Lange-Bertalot, Kulikovskiy & Witkowski | - | - | - | - | - | - | - | - | - | - |
| Brachysira calcicola Lange-Bertalot | B | - | - | - | - | - | 1.0 | o | - | - |
| Brachysira procera Lange-Bertalot & Gerd Moser | B | - | - | - | acf | - | - | - | - | - |
| Brachysira styriaca (Grunow) R.Ross | B | temp | - | i | ind | es | 1.0 | o | - | ot |
| Cymbella affinis Kützing | B | temp | st-str | i | alf | sx | 1.1 | b | ats | e |
| Cymbella carassius Skvortzov | - | - | - | - | - | - | - | - | - | - |
| Cymbellafalsa diluviana (Krasske) Lange-Bertalot & Metzeltin | B | - | - | i | alf | - | 1.0 | o | - | ot |
| Cymbopleura tynnii (Krammer) Krammer | B | - | - | - | - | - | - | - | - | - |
| Diploneis ovalis (Hilse) Cleve | B | - | st-str | i | alf | - | 0.9 | x-b | ate | m |
| Eucocconeis alpestris (Brun) Lange-Bertalot | B | temp | str | hb | ind | - | - | - | - | - |
| Eucocconeis austriaca (Hustedt) Lange-Bertalot | B | - | - | i | alf | - | 0.2 | x | ats | ot |
| Eucocconeis flexella (Kützing) F.Meister | B | temp | str | mh | ind | - | - | - | - | - |
| Eunotia bigibba Kützing | B | - | str | i | acf | - | 0.4 | x-o | - | ot |
| Eunotia flexuosa (Brébisson ex Kützing) Kützing | B | temp | st-str | i | acf | - | 0.4 | x-o | - | - |
| Eunotia praerupta Ehrenberg | P-B | cool | st-str | hb | acf | - | 0.3 | x | - | - |
| Eunotia triodon Ehrenberg | B | temp | - | hb | acf | - | 1.0 | o | - | ot |
| Gomphonema helveticum Brun | B | - | - | i | ind | - | - | - | - | - |
| Gomphonema lagerheimii A.Cleve | B | - | str | hb | acf | - | - | - | - | m |
| Gomphonema ventricosum W.Gregory | B | cool | str | i | ind | - | 1.0 | o | - | - |
| Iconella curvula (W.Smith) Ruck & Nakov | B | - | str | hb | acf | - | 2.0 | b | - | me |
| Kobayasiella subtilissima (Cleve) Lange-Bertalot | B | temp | st-str | i | acb | - | 1.6 | b-o | ats | me |
| Mayamaea disjuncta (Hustedt) J.Y. Li & Y.Z.Qi | B | - | str | i | ind | sp | 3.0 | a | ate | he |
| Navicula angusta Grunow | B | - | st-str | i | ind | - | 1.0 | o | - | - |
| Navicula gottlandica Grunow | P-B | - | - | hl | alf | es | 2.5 | b-a | ate | e |
| Navicula mediocostata E.Reichardt | B | - | - | oh | alf | es | 3.0 | a | ate | e |
| Navicula notha J.H.Wallace | B | - | str | i | acf | - | - | - | - | - |
| Neidium iridis (Ehrenberg) Cleve var. iridis | B | temp | st-str | hb | ind | - | - | - | - | - |
| Nitzschia frigida Grunow | - | - | - | - | - | - | - | - | - | - |
| Placoneis opportuna (Hustedt) Chudaev & Gololobova | B | - | - | - | - | es | - | - | - | - |
| Psammothidium kryophilum (J.B.Petersen) E.Reichardt | P-B | - | str | i | ind | sx | 0.5 | x-o | ats | ot |
| Psammothidium levanderi (Hustedt) Bukhtiyarova & Round | B | temp | str | i | ind | sx | 2.0 | b | ats | om |
| Psammothidium rechtense (Leclercq) Lange-Bertalot | B | - | str | hb | alf | - | 1.0 | o | ats | ot |
| Psammothidium rossii (Hustedt) Bukhtiyarova & Round | B | - | str | hb | ind | - | 1.0 | o | ats | ot |
| Psammothidium scoticum (R.J.Flower & V.J.Jones) Bukhtiyarova & Round | B | temp | - | - | - | - | - | - | - | - |
| Psammothidium ventrale (Krasske) Bukhtiyarova & Round | B | - | str | hb | acf | - | 2.0 | b | ats | om |
Note: “-“, not found. Abbreviations: Habitat (Hab) (P-B—plankto-benthic, B—benthic); temperature (T) preferences (cool—cool-water, temp—temperate, eterm—eurythermic, warm—warm-water); oxygenation and streaming (Oxy) (str—streaming water, st-str—low streaming water); pH preferences groups (pH) according to Hustedt (1957) [63] (alb—alkalibiontes; alf—alkaliphiles, ind—indifferent; acf—acidophiles; salinity ecological groups (Sal) according to Hustedt (1938–1939) [62] (hb—oligohalobes-halophobes, i—oligohalobes-indifferent, hl—halophiles; mh—mesohalobes, oh—oligohalobes of wide spectrum with optimum as indifferent); Index S, species-specific index saprobity according to Sládeček, 1986 [65]; self-purification zone with index of saprobity (Sap) (x/0.0—xenosaprobe; x-o/0.4—xeno-oligosaprobe; x-b/0.8—xeno-betamesosaprobe; o/1.0—oligosaprobe; b-o/1.6—beta-oligosaprobe; o-a/1.8—oligo-alphamesosaprobe; b/2.0—betamesosaprobe; a/3.0—alphamesosaprobe; organic pollution indicators according to Watanabe et al. (1986) [64] (D): sx—saproxenes; es—eurysaprobes; sp—saprophiles; nitrogen uptake metabolism (Aut-Het) (Van Dam et al., 1994) [66]: ats—nitrogen-autotrophic taxa, tolerating very small concentrations of organically bound nitrogen; ate—nitrogen-autotrophic taxa, tolerating elevated concentrations of organically bound nitrogen; Trophic state indicators (Tro) (Van Dam et al., 1994) [66]: (ot—oligotraphentic; om—oligomesotraphentic; m—mesotraphentic; me—mesoeutraphentic; e—eutraphentic; he—hypereutraphentic).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Barinova, S.; Gabyshev, V.; Genkal, S. Diversity of Diatom Algae in the Lena Delta Nature Reserve and the Adjacent Territory in the Specific Ecological Factors of the Arctic. Diversity 2023, 15, 802. https://doi.org/10.3390/d15070802
AMA Style
Barinova S, Gabyshev V, Genkal S. Diversity of Diatom Algae in the Lena Delta Nature Reserve and the Adjacent Territory in the Specific Ecological Factors of the Arctic. Diversity. 2023; 15(7):802. https://doi.org/10.3390/d15070802
Chicago/Turabian StyleBarinova, Sophia, Viktor Gabyshev, and Sergey Genkal. 2023. "Diversity of Diatom Algae in the Lena Delta Nature Reserve and the Adjacent Territory in the Specific Ecological Factors of the Arctic" Diversity 15, no. 7: 802. https://doi.org/10.3390/d15070802
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
