Genetic Diversity of Oxytropis Species from the Center of the Genus Origin: Insight from Molecular Studies

by
Denis V. Sandanov
1,*,
Alla B. Kholina
2,
Marina M. Kozyrenko
2,
Elena V. Artyukova
2 and
Zhiheng Wang
3
1
Institute of General and Experimental Biology, Siberian Branch of the Russian Academy of Sciences, Ulan-Ude 670047, Russia
2
Federal Scientific Center of the East Asia Terrestrial Biodiversity, Far Eastern Branch of the Russian Academy of Sciences, Vladivostok 690022, Russia
3
College of Urban and Environmental Sciences, Peking University, Beijing 100871, China
*
Author to whom correspondence should be addressed.
Diversity 2023, 15(2), 244; https://doi.org/10.3390/d15020244
Submission received: 11 November 2022 / Revised: 11 January 2023 / Accepted: 6 February 2023 / Published: 9 February 2023
(This article belongs to the Special Issue Genetic Diversity and Phylogeography of Plants under Climate Change)
Browse Figures
Review Reports Versions Notes

Abstract

:
The genus Oxytropis (Fabaceae) was formed from the ancient species of Astragalus presumably approximately 5.6 Ma ago in Southern Siberia. Our study summarized data on the genetic diversity of 69 populations of 31 Oxytropis species in the center of origin of the genus based on the sequencing of plastid genome markers. Most of the populations (82.6%) are characterized by high gene diversity (0.600–1.000), which indicates a relatively stable state. Phylogenetic relationships between most Oxytropis species remain unresolved. Three genetic complexes and four phyletic lineages have been identified. Some species form weakly differentiated complexes, which is probably caused by their relatively recent divergence and the demography processes, as well as interspecific hybridization and polyploidy characteristic of Oxytropis species.

1. Introduction

Genus Oxytropis DC is one of the largest and most polymorphic genera of the family Fabaceae. According to different authors, it includes from 310 [1] to 450 species [2]. This is a predominantly Asian genus. Its range covers mainly North and Central Asia. The genus Oxytropis was supposedly formed about 5.6 million years ago at the Miocene–Pliocene boundary during the evolution of ancient species of the genus Astragalus L. in South Siberia [3,4]. The predominant life form of Oxytropis species is herbaceous perennials, inhabitants of mountain, steppe, meadow, forest-steppe, and forest communities. Some species form phytocenoses, e.g., O. lanata. Psammophytic oxytrope phytocenoses serve as habitats for many relict and endemic species, the existence of which directly depends on the state of the dominant species [5,6]. Many Oxytropis species are attractive as ornamental plants with a long flowering period, some species are valuable sources of vegetable protein for animals [7], but the most important and significant are the species with medicinal properties that are used in Tibetan, Mongolian, and Chinese medicine as hemostatic, diuretic, cardiovascular, anti-inflammatory, and antipyretic agents [8,9]. A wide range of medicinal properties of Oxytropis species is due to the diversity and complexity of chemicals. The main active substances are flavonoids, phenolcarboxylic acids, coumarins, alkaloids, and saponins [8,9,10,11]. The prospect of using such species as sources for the creation of medicines is obvious.
On the whole, 119 species and nine subspecies of Oxytropis were found in the Siberian flora in five subgenera and 16 sections [12]. The place of origin of the genus, the South Siberian mountainous region, is located between 49 and 56° north latitude and covers the Kuznetsk Alatau, Gorny Altai (including its Mongolian and Kazakh parts), Khangai, the Western and Eastern Sayan Mountains, the Western and Eastern Tannu-Ola, and the Baikal ridges of the southern framing of Lake Baikal (Primorsky and Khamar-Daban) and Southwestern Transbaikalia [13]. This is a complex tectonic structure, where tectonic activity still continues. The modern relief of this area is characterized by a variety of forms, from foothill depressions to mountain plateaus and high mountain ranges, between which there are more or less large basins, the flora of which forms “steppe islands”. Due to the isolation of these “islands” and the diversity of ecological and cenotic conditions in them, microevolutionary processes are intensively going on here. The main foci of species diversity are located in the place of origin of the genus Oxytropis: 69 species in the mountains of Southern Siberia, 39 of them in Altai, 34 each in the mountain floras of Tuva and Baikal Siberia [14]. The steppe flora of Southern Siberia mountains includes 59 species of Oxytropis, among them 17 species are found only in the steppes and are not part of the mountain floras of Southern Siberia [13]. The speciation within the genus occurs on the basis of hybridization and polyploidization. Polyploidy is widespread among Oxytropis species (basic number x = 8), especially in highland species, for which chromosome numbers 2n = 16, 32, 48, 64, 96 are known [15]. For Southern Siberia, a large number of hybrid forms are described, not fully formed taxa, whose species status is disputable [15]. The study of the genetic resources of Oxytropis species is relevant both for the conservation of the biodiversity of the flora of Southern Siberia, and for solving controversial taxonomic issues, as well as for studying the phylogeography and phylogeny of the genus as a whole.
In recent decades, much research has been conducted on plant barcoding using DNA sequences [16,17,18]. Chloroplast DNA has been extensively used to investigate phylogenetic relationships in plants [19]. Sequences of many cpDNA noncoding regions, including introns and intergenic spacers, have been used to assess interspecific relationships and suggested as molecular markers for species identification [20]. The intergenic spacers psbA-trnH, trnL-trnF, and trnS-trnG of cpDNA have proven to be useful as phylogenetic markers in the genus Oxytropis [4,21,22,23,24,25,26,27,28,29].
The aims of the present research are as follows: (1) to evaluate the genetic diversity of the populations of Oxytropis species from the center of the genus origin using intergenic spacers psbA-trnH, trnL-trnF, and trnS-trnG cpDNA; (2) to study the phylogenetic relationships of the Oxytropis species within Southern Siberia; (3) to determine a possible number of putative chloroplast lineages.

2. Materials and Methods

2.1. Taxon Sampling, DNA Extraction, and Sequencing

In this paper, we summarized the data of our previous studies [22,23,24,25,26,27,28,29] and new data obtained. A total of 621 plants of 69 populations of 31 Oxytropis species belonging to eight sections of three subgenera were sampled in four regions of Southern Siberia (Altai, Buryatia, Irkutsk Region, and Transbaikalia) and adjacent territories of Northeastern Mongolia to study cpDNA polymorphism (Figure 1). The complete specimen list, including the sampling localities, sample size, geographic coordinates, and codes for each population, is given in Table 1. The names of species, sections, and subgenera are accepted according to Malyshev [15]. The distribution of Oxytropis species in Asian Russia was analyzed using open-access data [30]. Additionally, species distribution data for Mongolia were considered [31].
All collected species were approved with herbarium specimens presented in the main Russian herbaria (LE, MW, UUH). All specimens used for DNA extraction are deposited at the Federal Scientific Centre of the East Asia Terrestrial Biodiversity, Far Eastern Branch of the Russian Academy of Sciences, Vladivostok, Russia.

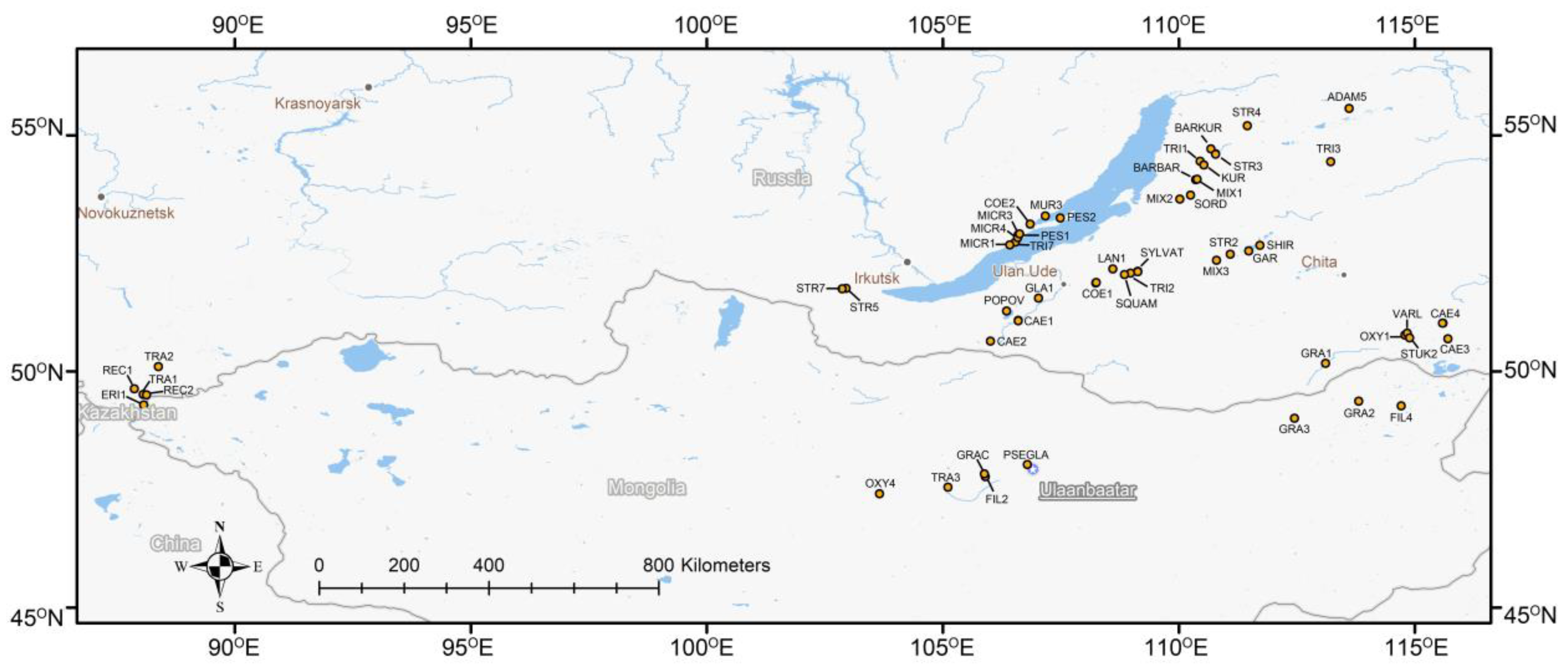

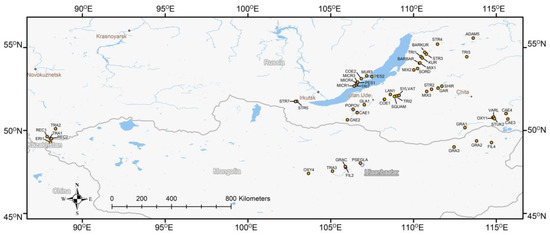

To evaluate similarities and differences between Oxytropis species, 53 morphological traits have been analyzed. They include plant growth form, type of hairs on the plant, length of floral shoots, inflorescence type, form of stipules, leaves and leaflets, shape of calyx and length of its sepals, corolla color, length of standard and tip of keel, shape and type of legumes. Characteristic features are marked by unity (1), and non-characteristic, by zero (0). Sometimes transition features are marked positively (1) in both alternative states, but when the basic data are absent or unclear, they are marked by 0 in both alternative states. Conformal features are not taken into account, if they invariably accompany other recorded parameters. The set of morphological traits was similar as in the previous study [2]. Data were estimated by cluster analysis using weighted pair-group average, taking into account relative Levenshtein’s edit distance (normalized to theoretical maximum equal to number of traits) between qualitative morphological traits [32,33]. Basic matrices and dissimilarity matrices were calculated using the IBIS program [34,35]. Agglomerative hierarchical clustering (WPGMA) was performed in Statsoft Statistica 12.0.
Table
Table 1. Sampling site locations, sample size, codes, genetic diversity within populations of Oxytropis species, and GenBank accession numbers.
Table 1. Sampling site locations, sample size, codes, genetic diversity within populations of Oxytropis species, and GenBank accession numbers.
Subgenus, Section, Species [Reference], 2n [Reference],
The Location of the Population (No. of Samples) 		Latitude,
Longitude		Population CodeGenetic Diversity (SD)Genbank Accession Numbers
Haplotype DiversityNucleotide DiversityPsba-TrnhTrnl-TrnfTrns-Trng
Subgenus Tragacanthoxytropis Vass. Section Hystrix Bunge
O. tragacanthoides Fisch. ex DC. [26], 2n = 16, 32 [15]
1. Russia, Altai Mts., Ukok Plateau, Zhumaly River (10)49.51°, 88.06°TRA10.867 (0.107)0.0048 (0.0027)MW172222-MW172234MW177548-MW177560MW177535-MW177547
2. Russia, Altai Mts., near the village Chagan-Uzun (5)50.10°, 88.38°TRA20.700 (0.218)0.0008 (0.0006)
3. Mongolia, Central Aimag, near the Öndörshireet sum (5)47.55°, 105.11°TRA30.800 (0.164)0.0005 (0.0004)
Subgenus Phacoxytropis Bunge Section Janthina Bunge
O. coerulea (Pall.) DC. [26], 2n = 32 [36]
1. Russia, Buryatia, the village Zaigraevo (5)51.87°, 108.24°COE10.900 (0.161)0.0017 (0.0012)LR898256-LR898269LR898302-LR898315LR898413-LR898426
2. Russia, Irkutsk Region, near the village Sarma (12)53.12°, 106.85°COE20.970 (0.044)0.0046 (0.0025)
O. filiformis DC. [26], 2n = 16 [15]
1. Mongolia, Central Aimag, near the Argalant sum (5)47.77°, 105.90°FIL21.000 (0.126)0.0048 (0.0031)LR898271, LR898272, LR898275-LR898279, LR898281-LR898283LR898317, LR898318, LR898321-LR898325, LR898327-LR898329LR898428, LR898429, LR898432-LR898436, LR898438-LR898440
2. Mongolia, Eastern Aimag, near the Gurvanzagal sum (9)49.27°, 114.71°FIL40.722 (0.159)0.0012 (0.0008)
Section Mesogaea Bunge
O. glabra (Lam.) DC. [26], 2n = 16 [15]
1. Russia, Buryatia, the village Orongoy (6)51.55°, 107.03°GLA10.333 (0.215)0.0001 (0.0002)LR898299, LR898300LR898345, LR898346LR898456, LR898457
Subgenus Oxytropis ex genere Oxytropis DC. Section Orobia Bunge
O. adamsiana (Trautv.) Jurtzev [29], 2n = 32 [15]
1. Russia, Buryatia, the village Uakit (10)55.57°, 113.61°ADAM50.956 (0.059)0.0047 (0.0027)OV260617-OV260624OV260717-OV260724OV260806-OV260813
O. popoviana Peschkova, 2n = 16, 32 [36]
1. Russia, Buryatia, the village Baraty (5)51.28°, 106.35°POPOV0.800 (0.164)0.0009 (0.0007)ON567429-ON567431ON567410-ON567412ON567391-ON567393
O. recognita Bunge, 2n = 32 [15]
1. Russia, Altai Mts., Jazator River (10)49.63°, 87.87°REC10.822 (0.097)0.0059 (0.0033)ON567432-ON567443ON567413-ON567424ON567394-ON567405
2. Russia, Altai Mts., Ukok Plateau (8)49.50°, 88.13°REC21.000 (0.062)0.0020 (0.0013)
O. sordida (Willd.) Pers. [25], 2n = 48, 64 [15]
1. Russia, Buryatia, the village Ina (8)53.73°, 110.25°SORD0.786 (0.151)0.0008 (0.0005)LS991870-LS991874LS991896-LS991900LS991922-LS991926
O. strobilacea Bunge [29], 2n = 16, 32, 48, 64 [15]
1. Russia, Buryatia, the village Zaigraevo (5)51.88°, 108.25°STR10.800 (0.164)0.0009 (0.0007)OV260579-OV260605, OV260608-OV260614OV260679-OV260705, OV260708-OV260714OV260768-OV260794, OV260797-OV260803
2. Russia, Buryatia, the village Komsomol’skoe (10)52.48°, 111.09°STR20.867 (0.107)0.0016 (0.0010)
3. Russia, Buryatia, the village Maisk (15)54.61°, 110.78°STR30.952 (0.040)0.0032 (0.0018)
4. Russia, Buryatia, tract Ukshaki (5)55.20°, 111.45°STR41.000 (0.127)0.0042 (0.0027)
5. Russia, Buryatia, the village Tory (6)51.76°, 102.95°STR50.600 (0.215)0.0013 (0.0009)
6. Russia, Buryatia, the village Zun-Murino (11)51.75°, 102.87°STR70.964 (0.051)0.0025 (0.0015)
O. sylvatica (Pall.) DC. [22], 2n = 16, 32 [15]
1. Russia, Buryatia, the village Udinsk (12)52.12°, 109.13°SYLVAT0.818 (0.084)0.0008 (0.0006)LT856560-LT856562LT856573-LT856575LT856586-LT856588
Section Xerobia Bunge
O. caespitosa (Pall.) Pers. [27], 2n = 48 [37], 64 [15]
1. Russia, Buryatia, near the village Novoselenginsk (11)51.08°, 106.60°CAE10.327 (0.153)0.0001 (0.0001)LR861115-LR861122LR828424-LR828431LR828468-LR828475
2. Russia, Buryatia, near the village Dyrestuy (9)50.64°, 106.01°CAE20.000 (0.000)0.0000 (0.0000)
3. Russia, Transbaikalia, near the village Kusocha (5)50.69°, 115.70°CAE30.700 (0.218)0.0030 (0.0020)
4. Russia, Transbaikalia, near the village Tsugol (5)51.02°, 115.60°CAE40.700 (0.218)0.0017 (0.0012)
O. eriocarpa Bunge [27], 2n = 16 [15], 24 + 2–3B [38]
1. Russia, Altai Mts., Ukok Plateau, Zhumaly River (7)49.29°, 88.07°ERI10.893 (0.111)0.0090 (0.0051)LR861754-LR861759LR861762-LR861767LR861770-LR861775
O. grandiflora (Pall.) DC. [27], 2n = 48 [39]
1. Russia, Transbaikalia, near the village Bytev (5)50.17°, 113.11°GRA10.900 (0.161)0.0046 (0.0029)LR861123-LR861131LR828432-LR828440LR828476-LR828484
2. Mongolia, Dornod Province, near the Bayandun sum (7)49.37°, 113.81°GRA20.857 (0.137)0.0035 (0.0021)
3. Mongolia, Dornod Province, near the Bayan-Uul sum (9)49.01°, 112.45°GRA30.667 (0.132)0.0043 (0.0024)
O. mixotriche Bunge [27], 2n—no data
1. Russia, Buryatia, near the village Urzhil (5)54.07°, 110.39°MIX10.400 (0.237)0.0002 (0.0002)LR861724 -LR861733LR861734 -LR861743LR861744 -LR861753
2. Russia, Buryatia, near the village Suvo (7)53.65°, 110.02°MIX20.851 (0.137)0.0053 (0.0031)
3. Russia, Buryatia, near the village Mozhayka (5)52.35°, 110.80°MIX31.000 (0.126)0.0019 (0.0013)
O. peschkovae M. Pop. [27], 2n = 48 [37]
1. Russia, Irkutsk Region, near the Gyzgi-Nur Lake (9)52.91°, 106.63°PES10.972 (0.064)0.0082 (0.0046)LR861691-LR861701 LR861702-LR861712LR861713-LR861723
2. Russia, Irkutsk Region, Olkhon Island, near the village Khuzhir (11)53.25°, 107.49°PES20.345 (0.172)0.0016 (0.0009)
O. triphylla (Pall.) DC. [27], 2n = 16 [36,40]
1. Russia, Buryatia, near the village Sakhuli (12)54.45°, 110.45°TRI10.924 (0.057)0.0018 (0.0011)LR861134-LR861149, LR861154-LR861158LR828443-LR828458, LR828463-LR828467LR828487-LR828502, LR828507-LR828511
2. Russia, Buryatia, near the village Udinsk (6)52.08°, 108.98°TRI20.800 (0.172)0.0022 (0.0014)
3. Russia, Buryatia, near the village Bagdarin (10)54.44°, 113.22°TRI30.844 (0.103)0.0021 (0.0013)
4. Russia, Irkutsk Region, Begul Bay (6)52.74°, 106.54°TRI71.000 (0.096)0.0025 (0.0016)
Section Polyadena Bunge
O. glandulosa Turcz. [23], 2n = 32 [15]
1. Russia, Buryatia, near the village Argada (10)54.37°, 110.53°KUR0.911 (0.077)0.0059 (0.0033)LT732668-LT732678LT732657-LT732667LT732646-LT732656
2. Russia, Buryatia, near the village Urzhil (14)54.07°, 110.39°BAR0.703 (0.101)0.0036 (0.0020)
3. Russia, Buryatia, near the village Shiringa (15)52.67°, 111.72°SHIR0.133 (0.112)0.0002 (0.0002)
4. Russia, Buryatia, near the village Garam (10)52.55°, 111.48°GAR0.356 (0.159)0.0006 (0.0004)
O. microphylla (Pall.) DC. [28], 2n—no data
1. Russia, Irkutsk Region, near the village Ozera (9)52.68°, 106.42°MICR10.000 (0.000)0.0000 (0.0000)MN199988-MN199990MN200000-MN200003MN200014-MN200016
2. Russia, Irkutsk Region, near the Gyzgi-Nur Lake (6)52.91°, 106.63°MICR20.600 (0.215)0.0007 (0.0005)
3. Russia, Irkutsk Region, near the Gurbi-Nur Lake (11)52.89°, 106.60°MICR30.182 (0.144)0.0001 (0.0001)
4. Russia, Irkutsk Region, near the Namish-Nur Lake (11)52.83°, 106.59°MICR40.182 (0.144)0.0001 (0.0001)
O. muricata (Pall.) DC. [28], 2n = 16, 32 [15]
1. Russia, Irkutsk Region, near the Gyzgi-Nur Lake (9)52.91°, 106.63°MUR10.417 (0.191)0.0009 (0.0006)MN199983-MN199987MN199996-MN200000MN200009-MN200013
2. Russia, Irkutsk Region, near the village Sarma (8)53.12°, 106.85°MUR20.250 (0.180)0.0007 (0.0005)
3. Russia, Irkutsk Region, near the Oto-Khushun Cape (13)53.29°, 107.17°MUR30.692 (0.075)0.0014 (0.0008)
O. pseudoglandulosa Gontsch. ex Grub. [28], 2n—no data
1. Mongolia, near the Ulan-Bator (7)48.03°, 106.79°PSEGLA0.809 (0.130)0.0011 (0.0007)MN199991-MN199994MN200004-MN200007MN200017-MN200020
O. varlakovii Serg. [22,28], 2n = 24 + 1B [40]
1. Russia, Transbaikalia, near the Nozhii Lake (5)50.80°, 114.83°VARL0.700 (0.218)0.0003 (0.0003)LT856563-LT856565LT856576-LT856578LT856589-LT856591
Section Leucopodia Bunge
O. squammulosa DC., 2n = 16 [38]
1. Russia, Buryatia, Uda River (5)52.05°, 108.85°SQUAM0.900 (0.161)0.0022 (0.0015)ON567444-ON567447ON567425-ON567428ON567406-ON567409
Section Verticillares DC.
O. bargusinensis Peschkova [22], 2n—no data
1. Russia, Buryatia, Alla River (15)54.71°, 110.68°BARKUR0.762 (0.096)0.0011 (0.0007)LT856473-LT856488LT856506-LT856521LT856539-LT856554
2. Russia, Buryatia, near the village Urzhil (15)54.06°, 110.36°BARBAR0.895 (0.070)0.0016 (0.0009)
O. gracillima Bunge [24], 2n—no data
1. Mongolia, Central Aimag, near the Argalant sum (5)47.83°, 105.88°GRAC1.000 (0.126)0.0042 (0.0027)MH174938, LT996058-LT996061LT996062-LT996066LT996067-LT996071
O. interposita Sipl. [22], 2n = 24 [40]
1. Russia, Buryatia, Alla River (14)54.71°, 110.68°INTKUR0.769 (0.075)0.0015 (0.0009)LT856489-LT856493LT856522-LT856526LT856555-LT856559
O. lanata (Pall.) DC. [24], 2n = 16 [15]
1. Russia, Buryatia, near the village Unegetei (20)52.17°, 108.60°LAN10.895 (0.051)0.0010 (0.0006)LT994841-LT994858LT994895-LT994912LT994949-LT994966
2. Russia, Buryatia, near the village Urzhil (15)54.07°, 110.39°LAN20.895 (0.052)0.0010 (0.0006)
3. Mongolia, Central Aimag, near the Argalant sum (5)47.83°, 105.88°LAN30.900 (0.161)0.0017 (0.0012)
O. myriophylla (Pall.) DC [24], 2n = 16 [15]
1. Russia, Transbaikalia, near the village Tsugol (5)51.02°, 115.59°MYR10.700 (0.218)0.0003 (0.0003)LT994859-LT994866LT994913-LT994920LT996002-LT996009
2. Russia, Buryatia, near the village Udinsk (21)52.11°, 109.13°MYR20.767 (0.057)0.0007 (0.0005)
3. Russia, Buryatia, the village Komsomol’skoe (8)52.48°, 111.09°MYR30.821 (0.101)0.0008 (0.0005)
O. oxyphylla (Pall.) DC. [24], 2n = 16 [15]
1. Russia, Transbaikalia, near the Nozhii Lake (5)50.77°, 114.79°OXY10.900 (0.161)0.0007 (0.0005)LT994867-LT994891LT994921-LT994945LT996010-LT996034
2. Russia, Buryatia, near the village Novoselenginsk (16)51.07°, 106.60°OXY20.958 (0.036)0.0023 (0.0013)
3. Russia, Buryatia, the village Komsomol’skoe (8)52.48°, 111.09°OXY30.964 (0.077)0.0045 (0.0026)
4. Mongolia, Bulgan Aimag, near the Rashaant sum (4)47.41°, 103.66°OXY41.000 (0.177)0.0042 (0.0029)
O. selengensis Bunge [24], 2n = 32 [15]
1. Russia, Buryatia, near the village Unegetei (18)52.17°, 108.60°SEL0.634 (0.127)0.0009 (0.0006)MH174937, LT996052-LT996057LT996045-LT996051LT996038-LT996044
O. stukovii Palibin [24], 2n = 16 [40]
1. Russia, Transbaikalia, near the Nozhii Lake (4)50.81°, 114.84°STUK10.833 (0.222)0.0005 (0.0005)LT994892-LT994894LT994946-LT994948LT996035-LT996037
2. Russia, Transbaikalia, near the Kunkur Lake (10)50.71°, 114.89°STUK20.711 (0.117)0.0004 (0.0003)
O. tompudae M. Pop. [22], 2n—no data
1. Russia, Buryatia, the village Maisk (8)54.60°, 110.78°TOMP0.893 (0.111)0.0026 (0.0016)LT856566-LT856571LT856579-LT856584LT856592-LT856597
SD—standard deviations. The bold font has shown the genetic diversity and accession numbers in this study.
Total DNA was extracted from dried leaves. The extraction buffer contained 100 mM Tris-HCl (pH 8.0), 0.7 M NaCl, 40 mM EDTA, 1% CTAB (hexadecyltrimethylammonium bromide), and 10 mL/L β-mercaptoethanol. The extract was incubated at 65 °C for 40 min. The DNA was deproteinized with chloroform: octanol (24:1) and precipitated with equal volume of isopropanol in the presence of 0.3 M sodium acetate. DNA pellets were washed with 75% ethanol and dissolved in the buffer containing 10 mM Tris-HCl (pH 8.0) and 1 mM EDTA. Amplification of the psbA-trnH, trnL-trnF, and trnS-trnG intergenic spacer regions of cpDNA was performed with the use of universal primers, reaction conditions, and temperature regimes recommended for these regions [19,41]. Forward and reverse sequences for each region were determined on a genetic analyzer ABI 3500 (Applied Biosystems, Bedford, MA, USA) at the Joint Center of Biotechnology and Gene Engineering, the Federal Scientific Center of the East Asia Terrestrial Biodiversity (Vladivostok, Russia), and assembled using the Staden Package, version 1.5 [42]. The sequences of haplotypes of the intergenic spacers were deposited in the European Nucleotide Archive database. The accession numbers for all the sequences used are listed in Table 1.

2.2. Sequence Alignment and Phylogenetic Analyses

The sequences of each cpDNA region were aligned manually in SeaView v. 4.7 [43] using the CLUSTAL algorithm, manually edited when necessary, and concatenated for each specimen. We included indels and length variation in mononucleotide and dinucleotide repeats in the dataset because repeatability tests allowed us to exclude PCR errors. The haplotypes were identified based on combined DNA sequences using DnaSP v. 5.0 [44]. Haplotype (h) and nucleotide (π) diversity of populations (for populations with four or more samples) were calculated in Arlequin v. 3.5 software package [45].
To reconstruct the phylogenetic relationships of haplotypes, we excluded length variation of mononucleotide and dinucleotide repeats in the dataset. A network of haplotypes was constructed using Network, version 5.0.1.1 [46], treating each deletion/insertion, regardless of size, as a single mutational event and using the MJ algorithm with default settings. Phylogenetic analyses of haplotypes were conducted using the ML, MP, and NJ methods as implemented in PAUP v. 4.0b10 [47]. Optimal trees were found using a heuristic search with TBR branch swapping and the MulTrees option in effect. For the ML analysis, the GTR + G + I model was selected according to the Akaike information criterion (AIC) using Modeltest v. 3.6 [48]. ML heuristic searches were performed using the resulting model settings, 100 replicates of random sequence addition, TBR branch swapping and MULTrees option on. The robustness of nodes in ML, NJ, and MP trees was tested using bootstrap with 1000 replicates (bootstrap percentage, BP). BP < 50% were not taken into account. Astragalus davuricus (Pall.) DC. from genus Astragalus L. (accession numbers in GenBank LM653198, LM653161, and LM653235) [49] was used as outgroup.

3. Results

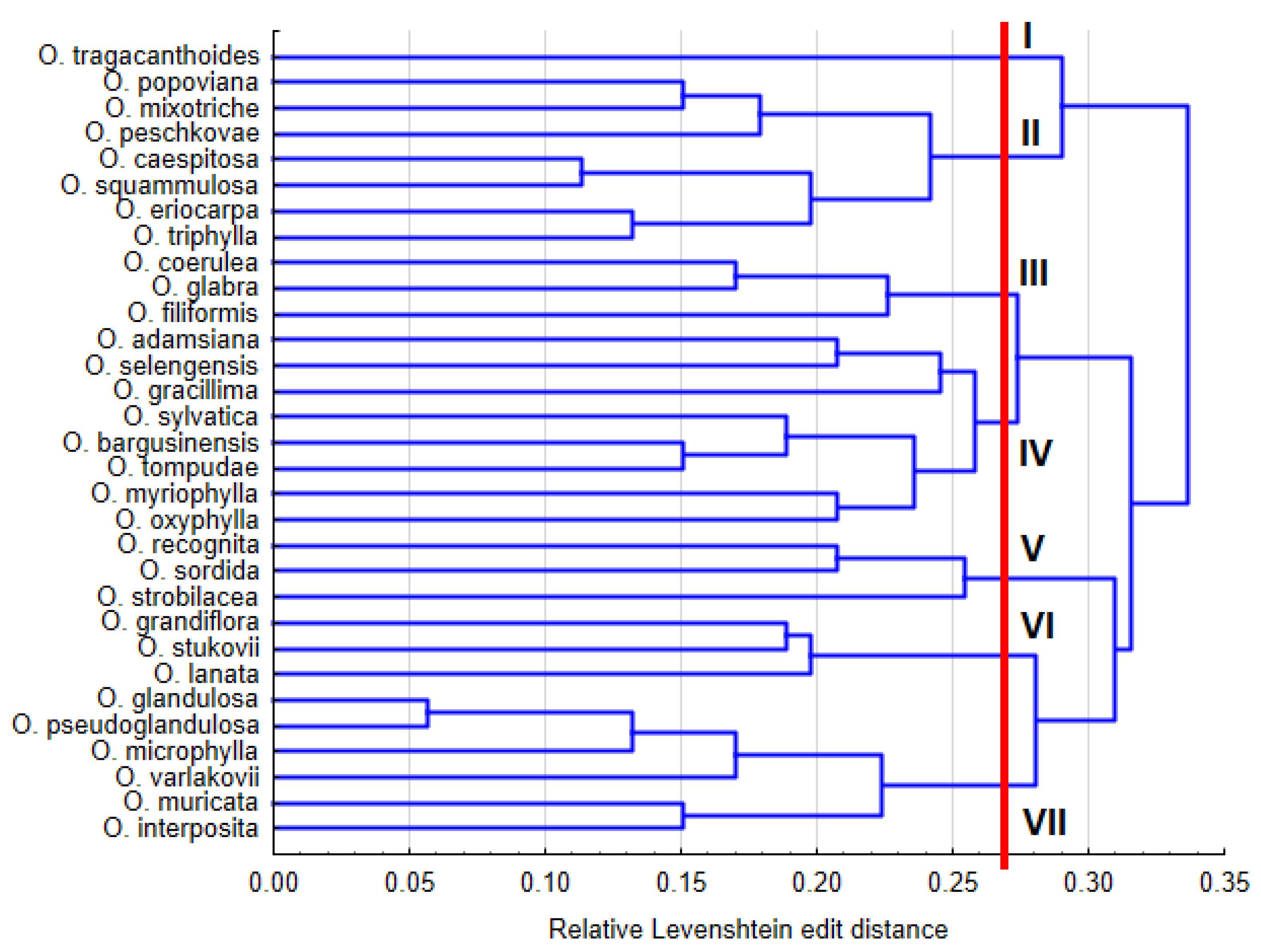

The dendrogram reflects the measure of morphological differences between separate species and sections of Oxytropis. Studied species on the dendrogram are divided into seven branches separated by a linkage distance at 0.09 (Figure 2). Species from sections Hystrix, Janthina, and Polyadena are well distinguished (branches I, III, and VII, respectively). Joining of O. interposita at the branch VII and close presenting of O. stukovii at the branch VI showed morphological similarities of this species with section Polyadena. Branch II was represented by species of section Xerobia and O. squammulosa from the section Leucopodia. Representatives of section Verticillares mostly formed branch IV and include two species from section Orobia (O. adamsiana and O. sylvatica). The neighbor branch V has only species from section Orobia (O. recognita, O. sordida, and O. strobilacea).
Among the 620 specimens of 31 Oxytropis species, 101 haplotypes (H1–H101) were identified on the basis of polymorphic sites detected across 2576 aligned positions of three cpDNA regions. Eighty-one nucleotide substitutions were identified, of which 63 sites were parsimony informative. Fourteen of 101 haplotypes (H7, H16, H18, H25–H29, H32, H47, H52, H70, H73, and H89) were shared by several species of either the same section or different sections (Figure 3). The species-specific molecular markers were revealed only for O. microphylla, O. gracillima, and O. lanata.
Data on the genetic diversity of Oxytropis species from Southern Siberia are presented in Table 1. Only two populations (CAE2 O. caespitosa and MICR1 O. microphylla) of 69 populations studied were monomorphic. Low and medium levels of haplotype diversity (h varies from 0.133 to 0.417) were found for 10 populations (14.5%). A high level of haplotype diversity (h varies from 0.600 to 1.000) was found for 57 populations (82.6%). Concerning nucleotide diversity, a low level (π varies from 0.0001 to 0.0032) was determined for 50 populations (72.5%), while moderate and high levels (π varies from 0.0035 to 0.0090) were determined for 17 populations (24.6%). A high level for both parameters was found for 14 populations (20.3%), whereas a low level for both parameters was found for eight populations (11.6%). A combination of a high level of haplotype diversity and a low level of nucleotide diversity was determined for 39 populations (56.5%).

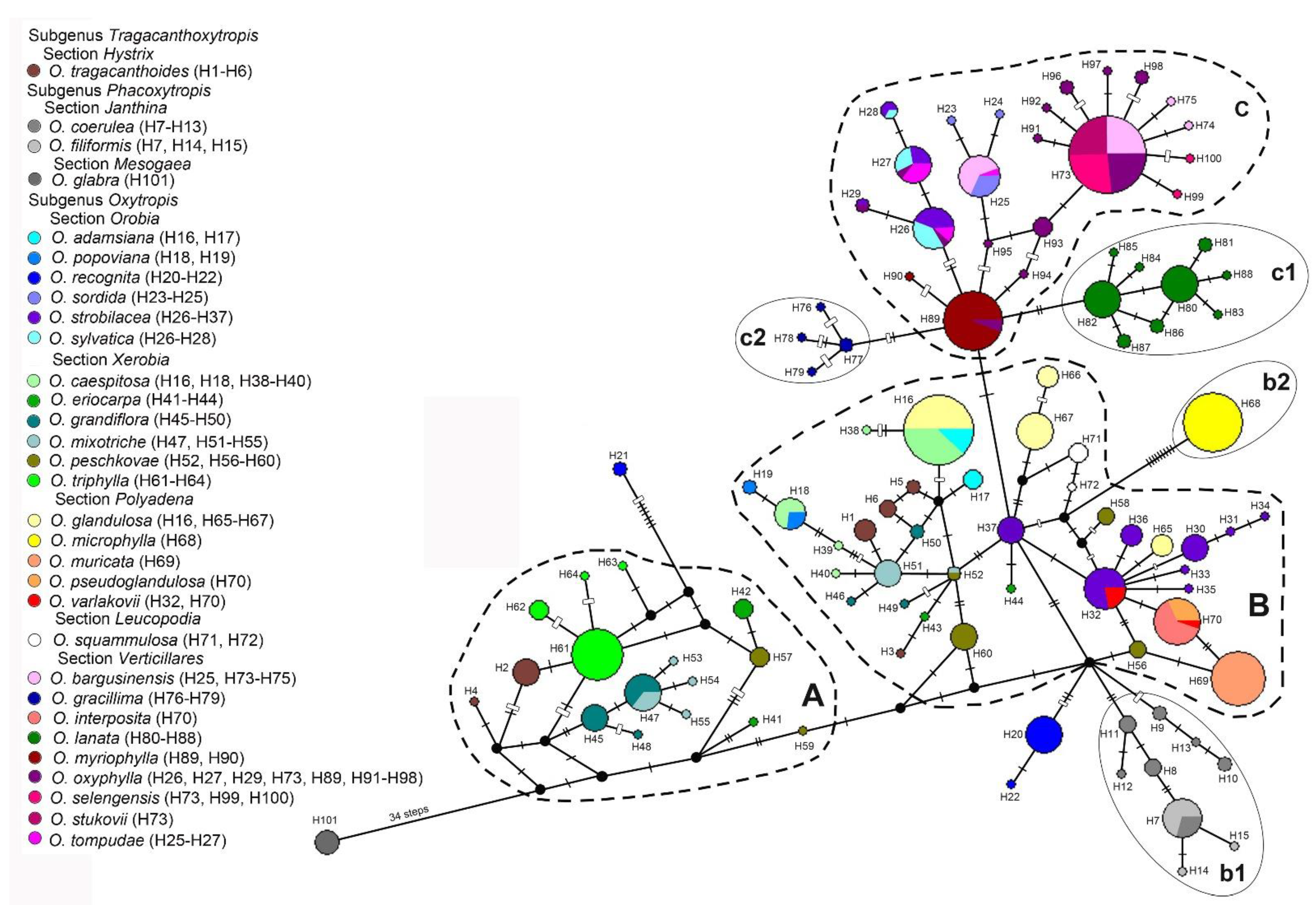

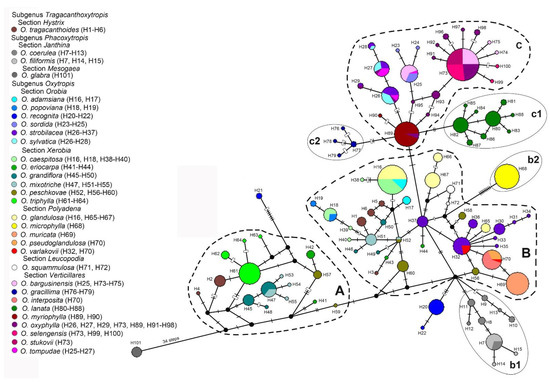

The relationships between haplotypes found in representatives of Oxytropis species from Southern Siberia are shown in Figure 3. Haplotype H101 of O. glabra sect. Mesogaea of the subg. Phacoxytropis was separated by 34 mutational steps from haplotype undetected in our study or an extinct ancestral one closely related to other Oxytropis haplotypes that formed three haplogroups (A, B, and C). These haplogroups contain loop structures between many haplotypes and are genetic complexes that include haplotypes of several species from different sections. Haplogroup A includes haplotypes of five Xerobia species and one Orobia species of the subg. Oxytropis, and haplotypes of O. tragacanthoides sect. Hystrix subg. Tragacanthoxytropis. Haplogroup B includes haplotypes of species from all five sections studied of the subg. Oxytropis as well as haplotypes of O. tragacanthoides. Haplogroup C includes haplotypes of the subg. Oxytropis only and specifically haplotypes of six Verticillares species and three Orobia species (Figure 3). Thus, haplotypes of Orobia species were present in all three haplogroups. Haplotypes of O. tragacanthoides, O. grandiflora, O. eriocarpa, and O. peschkovae were present in haplogroups A and B, and haplotypes of O. strobilacea were present in haplogroups B and C. Haplotypes of Polyadena species were present in haplogroup B. In addition, all haplotypes of O. coerulea and O. filiformis sect. Janthina subg. Phacoxytropis were found to form a single branch b1 that connected via unsampled or extinct haplotype to haplotypes of the haplogroup B (Figure 3). Haplotypes of O. microphylla sect. Polyadena formed another distinct branch b2 connected with the haplogroup B. Haplotypes of O. lanata and O. gracillima sect Verticillares were grouped into separate branches according to their species affiliation (c1 and c2, respectively) that connected with the haplogroup C. Loop structures between many haplotypes point to homoplasy, which hampers the identification of genetic relationships between them.

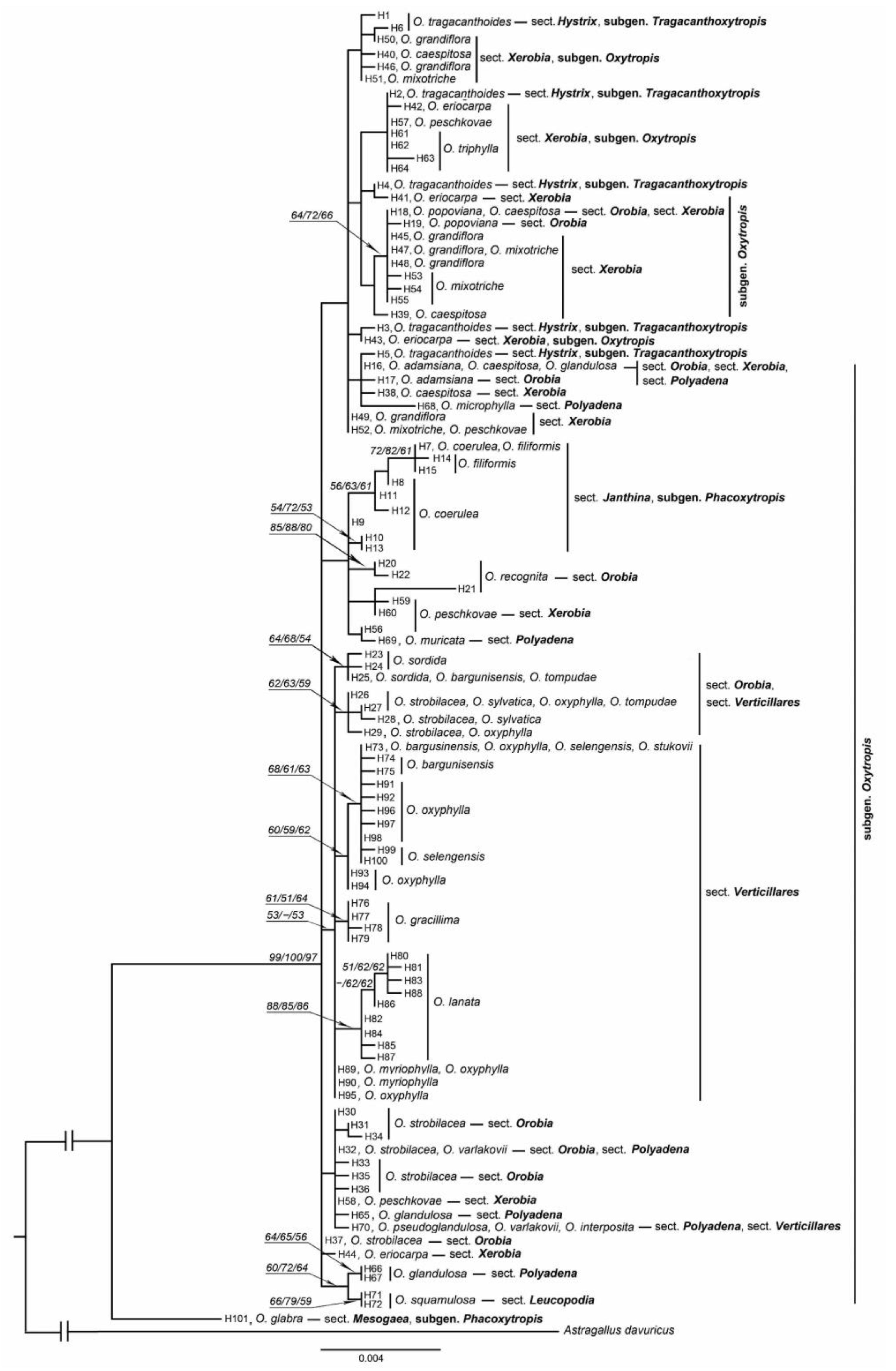

Phylogenetic analyses of 101 haplotypes of the species from Tragacanthoxytropis, Phacoxytropis, and Oxytropis subgenera supported the monophyly of the genus Oxytropis. Topology of ML tree shown in Figure 4 is similar to those of the MP and NJ trees with few differences in statistical supports of some nodes. All Oxytropis species except O. glabra formed a cluster with a high degree of support (BP 99, 100, and 97% for MP, NJ, and ML analyses, respectively). However, resolution within this cluster was poor, and only a few small groups have significant bootstrap support. Haplotypes of all species of sect. Verticillares (except O. interposita) are clustered together with low support only in MP and ML analyses. Within this clade, all haplotypes of O. gracillima form a distinct but weakly supported group (BP 61, 51, and 64%), and all haplotypes of O. lanata form a distinct group with a high degree of support (BP 88, 85, and 86%). The remaining Verticillares species are either unresolved or intermixed with each other or with the representatives of sect. Orobia in weakly supported subclades.

4. Discussion

4.1. Morphological Differences among Oxytropis Species

Species of well distinguished sections within genus Oxytropis were characterized by peculiar morphological features. Section Hystrix of subgenus Tragacanthoxytropis Vass. included shrubs and dwarf shrubs with membraneous legumes and hard leaf petioles which are presented on the plants after leaf fall. Section Janthina presented by tiny plants with opposite linear leaflets (usually 6–20 pairs) and small flowers (8–15 mm long) with bell calyx. Legumes are ovoid and unilocular [15]. All haplotypes of species from section Janthina were separate and form a single branch b1 (Figure 3). Representatives of section Polyadena are rosette plants with whorled leaflets and warty glands on legumes, leaves, stipules, and on calyx. The presence of O. interposita in the branch VII and close position of O. stukovii on the dendrogram (Figure 2) showed their morphological similarities and recently both species on the base of critical analysis included to the section Polyadena [50]. The haplotype of O. interposita is well presented in the haplogroup B in close relation with other species of section Polyadena, while the haploptype of O stukovii was found within another haplogroup C (Figure 3). The single species O. squammulosa representing monotypic section Leucopodia included branch II on the dendrogram with species from section Xerobia (Figure 2). Close morphological similarities of both sections have been previously discussed [2]. On the other hand, analysis of cpDNA haplotypes and position on ML tree revealed close relationships of O. squammulosa with species of section Polyadena (Figure 3 and Figure 4).

4.2. Genetic Diversity of the Populations of Oxytropis Species

Genetic diversity, which is the product of the long-term evolution of species, is caused by many factors and is one of the prerequisites for adaptation and survival of species. The higher the level of genetic diversity of a species, the easier it is to adapt to changing environments. Our results of studying the genetic diversity of 69 populations of 31 Oxytropis species showed that the minimum values of haplotype diversity (0.133–0.182) were determined only in three populations of two species, O. glandulosa and O. microphylla, and two populations were monomorphic (Table 1). These populations are small and isolated [51,52], and gene flow from nearest related populations is limited due to physical barriers. Such isolated populations were apt to suffer from genetic drift that may have contributed to the lack of genetic diversity. Comparisons of the variability of Oxytropis species of sect. Verticillares, Polyadena, and Xerobia from Southern Siberia with the data for Oxytropis species of sect. Orobia, Arctobia, and Gloeocephala from Northeast Asia showed that the populations of species of the last sections inhabiting higher latitudes than the southern-Siberian species, or arctic latitudes, were characterized by lower levels of genetic diversity or were monomorphic [53]. The low level of genetic diversity or lack of it, combined with the high levels of population differentiation, may also be due to their small population sizes and high degrees of spatial isolation, suggesting low gene flow between populations over an extended period.
The most populations of Oxytropis species from Southern Siberia were characterized by a high level of genetic diversity. For example, maximum values of haplotype diversity (0.893–1.000) were revealed in the 25 populations of 16 species of the 31 studied (Table 1). As a rule, high genetic diversity is typical for polymorphic species with a wide range, such as O. strobilacea and O. oxyphylla (Figure 5). However, we did not find any evidence of genetic diversity loss, even for endemic species with the narrowest distributions (O. triphylla, O. bargusinensis, and O. interposita) (Figure 6). Our results are probably an exception to the statement that endemic species are characterized by low genetic diversity [54,55], so it can be assumed that other factors different from geographic range may influence genetic variability.
Studies of the genetic variability of plant species have shown that the level of genetic diversity is influenced by a number of factors, such as mating systems, life history features, chromosomal variability, population distribution, as well as ecological factors [54,55,56]. Modern reviews, which evaluated the effects of life-history traits and environmental factors on the genetic diversity of plants [57,58,59,60], including the studies based on chloroplast genetic variation [57,58,60], also show that population genetic diversity depends on species-specific life-history traits, population dynamics, past climatic and demographic events, topography, and biogeography. In part, the number of haplotypes was influenced by the type of geographic distribution, while haplotype diversity was affected by the type of flower (monoecious, or dioecious), and the plant species most closely related phylogenetically have similar levels of genetic diversity [57].
The high level of genetic diversity within populations Oxytropis species from Southern Siberia studied is typical for the predominantly insect-pollinated species with the outcrossing breeding system and high longevity. Similarly high levels of chloroplast gene diversity were found in the populations of other legume species with similar life-history traits and mating systems (long-lived, insect-pollinated perennials that reproduce by outcrossing), such as Astragalus onobrychis L. (in diploid relict populations h varied from 0.833 to 1.000) [61], Sophora microphylla Aiton (h = 0.812 ± 0.019), and S. tetraptera J.S. Mill. (h = 0.931 ± 0.015) [62], as well Oxytropis diversifolia E. Peter (h = 0.880 ± 0.074) [63]. It seems likely that these peculiarities of breeding system are the most important source for the maintenance of the variability reserve for Oxytropis species with low-level gene diversity. As for the relict species studied, which include O. tragacanthoides sect. Hystrix, O. eriocarpa, and narrow endemic O. triphylla (both ones belong to sect. Xerobia), the high genetic variability in these species should largely be attributed to its antiquity, in addition to the longevity and outcrossing. It is assumed that the ancestors of the sect. Hystrix and Xerobia were widely distributed in Southern Siberia in the past [13]. Probably, the populations of O. tragacanthoides, O. eriocarpa, and O. triphylla were stable for a long time, and ancestral genetic variation was maintained. Similar patterns of genetic diversity based on cpDNA data were also noted for other long-lived relict species: Linum flavum L. [64], an above-mentioned Astragalus onobrychis [61], some Chamaesium species [65].
Other factors that significantly affect the level of genetic variability are the topography of the region and the ecological specialization of species. A number of studies of the phylogeny and phylogeography of species which inhabited topographically complex areas [58,60,65,66] showed that topography plays a key role in maintaining genetic diversity and diversification. The territory of Southern Siberia includes high mountains, foothill depressions, deep valleys, and plateaus [13], and is just such a complex heterogeneous landscape with high microhabitat variation. It is supposed that the maintenance of high genetic diversity in these microhabitats could be associated with the survival and diversification of species, and that populations in topographically complex landscapes should be more resistant and resilient to climate change [58]. The mountainous relief of Southern Siberia, including territories surrounding Lake Baikal, creates a mosaic of microclimates, as well a long-term isolation of individual steppe habitats confined to the southern slopes or bottoms of the basins. These circumstances favor the formation of new species or the preservation of relicts of different ages [13,67].
According to ecological requirements, many Oxytropis species from Southern Siberia are highly specialized, as a rule, including xerophytes, petrophytes, and psammophytes. All these species are photophilous, often grow on talus, on gravel, rocky and sandy substrates, including along the banks of rivers and lakes [7,12,14,15]. The effects of ecological factors (especially climatic and edaphic factors) were estimated for rare Astragalus species [68], a sister group for genus Oxytropis. According to the authors, the revealed relatively high level of genetic diversity in rare Astragalus taxa is due to two main reasons: (1) aspects of seed biology (maintenance a healthy seed bank), (2) spatial climatic and soil variability shaping local adaptations. This combination (and possibly interaction) of demographic and ecological forces may also have implications for the Siberian Oxytropis species. The importance of local environmental heterogeneity and habitat specialization in keeping multiple putative adaptations and generating genetic diversity was also shown for other plant species [69,70]. Interesting information about the role of environmental factors was obtained during the study of the diversity and diversification of species of the Eastern Mediterranean genus Ricotia [71]. In the absence of large glaciations, taxa indigenous to the southern Mediterranean region could survive climatic fluctuations of the Quaternary via short distance shifts to more favorable habitats. Authors supposed that the main factor promoting diversification in this region seems to be long-term ecological adaptation and specialization, and not large-scale events, such as contraction–expansion in and out of glacial refugia [71]. It can be supposed that for Oxytropis species from Southern Siberia, the territory of which was not subjected to large-scale glaciations [13], local environmental dynamics and ecological specialization could also contribute to the diversification and radiation processes. Furthermore, it can be assumed that heterogeneous environments in the center of origin of the genus Oxytropis provide the climatic and edaphic optimum for the studied species.
Another major reason for the high genetic variability in Oxytropis species is polyploidy. It is widely acknowledged that polyploidy has made a major contribution to plant diversification, as well to an increase in genetic variability and the adaptive capacity of species [72,73,74]. Polyploidy is common in the genus [15,75], with the incidence of polyploidy in Oxytropis reaching 58% [76]. Arctic species of the biggest section Orobia usually characterized by polyploidy and hybridogenesis. That is why high chromosome ploidity within these species reflects their secondary origin [77].
Chromosome numbers are known for 25 out of 31 Oxytropis species studied (Table 1), among which only eight species are diploid. Seventeen species are polyploids or have a variable number of chromosomes (2n): 16 and 32; 16, 32, 48 and 64; 48 and 64. It is clear that the genetic polymorphism in a number of species is partly due to their polyploid origin, both through autopolyploidization and allopolyploidization. Related to these processes are the issues of hybridization, which is also regarded as a relevant process generating diversity in plants. Hybridization and introgression have been considered to be common in the evolution of Oxytropis [15], but this will be discussed in the next section.
Thus, the high level of chloroplast gene diversity found for the most of studied Oxytropis species from Southern Siberia is determined by the interaction of a wide variety of factors, including range size, topography, local climatic and environmental conditions, habitat specialization, species characteristics, and ploidy levels, as well as genetic and demographic processes in populations.

4.3. Phylogenetic Relationships of Oxytropis Species within Southern Siberia

According to the results of cpDNA variability, it was found that the most of Oxytropis species from Southern Siberia are highly mixed (Figure 3 and Figure 4), and phylogenetic relationships between most taxa remain unresolved. The distribution of haplotypes both in the median network and in the ML tree does neither correspond to the division of the genus into sections nor to the population and species affiliation. The exception is four phyletic lineages (Figure 3) corresponding to the sectional (b1) and species (b2, c1, c2) affiliation. The combining of all haplotypes of O. coerulea and O. filiformis sect. Janthina into one phylogroup (Figure 3 and Figure 4) indicates close genetic proximity of these two species. The remaining three phyletic lineages correspond to the three species, O. microphylla sect. Polyadena (b2), and O. lanata (c1) and O. gracillima (c2) sect Verticillares. All of them are inhabitants of the sandy banks of rivers and lakes [12,15,78]. Earlier, it was noted [77] that one of the ecological bases of evolutionary changes in the genus Oxytropis is the colonization of loose sandy substrates. In this case, it is ecological specialization that probably led to the appearance of separate phyletic lineages. In addition, O. lanata and O. gracillima differ morphologically both from each other and from other species of the section: O. lanata belongs to the monotypic subsection Lanatae, O. gracillima belongs to the subsection Gobicola.
All the rest of the species are genetically admixed, although they are morphologically and ecologically differentiated. It is noteworthy that haplotypes of Orobia species were present in all three haplogroups (Figure 3). Section Orobia, with its huge disjunctive Eurasian-American range, is the largest and one of the most ancient sections of the genus [3,15]. Earlier, based on the morphological traits and ecological specialization of the species, it was shown that the sections Verticillares, Polyadena, and Xerobia are derivatives from the section Orobia [3,74]. Probably, the presence of species of the section Orobia in all identified haplogroups may be due to the fact that this section is ancestral to the other sections. The closeness of sections Orobia, Polyadena, and Verticillares was also shown based on phenetic analysis. At the same time, the section Xerobia was distant from this group [2]. Separation of last section may be due to the narrow confinement of the species of this section to cryoxerophytic conditions of mountain-steppe territories and specific adaptive traits of their morphotype [79]. In our study, most of the species of the section Xerobia also took a separate position (haplogroup A, Figure 3), possibly caused by ecological specialization. In addition, the rather separate position of all species of the section Verticillares formed haplogroup C and a weak-supported clade on the ML tree (Figure 2 and Figure 3). The only exception is O. interposita sect Verticillares, whose taxonomic position is controversial: according to Malyshev [15], O. interposita is a mutant, and based on our cpDNA data, the species is genetically close to the section Polyadena [23,28].
Fourteen of 101 haplotypes identified for 620 samples of 31 Oxytropis species from Southern Siberia were shared by several species of the same section or by species of different sections (Figure 3). Chloroplast sharing between species has been reported for a number of species complexes or for closely related species [62,80,81,82]. Haplotype sharing can be explained by several reasons, including preserved ancestral polymorphism, incomplete lineage sorting, homoplasy, and introgressive hybridization caused by genetic exchange after secondary contact between previously isolated species, or a combination of several causes [62,80,81,82]. As for the five shared haplotypes (H25–H29) identified in populations of different species (Figure 3), the spatial distribution of these populations in the sympatric region suggests potential hybridization. The genus Oxytropis is one of the genera with a high frequency of natural hybridization [15]. Our study included six Oxytropis species of hybrid origin (O. bargusinensis, O. microphylla, O. mixotriche, O. peschkovae, O. selengensis, O. tompudae), as well as nine species capable of hybridization, i.e., easily interbreed with other species [15]. Apparently, the reproductive barriers between Oxytropis species are rather weak, which makes possible intensive hybridization between different species or their chromosome races. In addition, the sympatric region with populations having haplotypes H25-H29 belongs to the territory of Baikal Siberia, located at the juncture of three floral regions. In this area, natural hybridization of plants is widespread and often considered as a phenomenon affecting not separate species, including Oxytropis species, but entire plant formations [83]. The remaining shared haplotypes had a disjunctive distribution and were found in spatially isolated populations separated by numerous physical barriers. In this case, ancestral polymorphism and incomplete lineage sorting would explain the presence of shared cpDNA haplotypes. Thus, it can be assumed that both retained ancestral polymorphism and introgression have played roles in the existence of shared haplotypes among Oxytropis species.
The three haplogroups identified in this study reflect the presence of three genetic complexes in the genus Oxytropis on the territory of Southern Siberia, among which one is more isolated (haplogroup A) and the other two (haplogroups B and C) are more closely related. Within each complex, closely related relationships between species and a mixed distribution of haplotypes that did not correspond to either population or taxonomic affiliation were found. The revealed genetic similarity with clear morphological differences is typical of the taxa that have a common origin and have recently undergone rapid adaptive radiation followed by incomplete lineage sorting. Rapid adaptive radiation was shown for the Oxytropis species [4], as well as for the other genera of the family Fabaceae, including Sophora [62], Pultenaea [84], Lupinus [85], Astragalus [68,86], and the species of Indigofera bungeana complex [87]. Rapid radiation may be accompanied by rapid isolation for several species, e.g., for the species of Indigofera bungeana complex [87]. On the other hand, a certain contribution to the complex relationships between the Oxytropis species could be made by hybridization between the incompletely specialized taxa after rapid radiation, which took place at the early stages of the evolution of the genus, but before the divergence of genealogical lineages, as was shown for the Pultenaea species [84]. Indirect evidence of rapid radiation and expansion of a number of South-Siberian Oxytropis species is the presence of star-like structures in the haplotype network (Figure 3). Haplogroups B and C contain some star-like structures with one of the shared haplotypes in the center, which are connected to nearest haplotypes through a single mutational step. For example, haplogroup C has a well-defined star-like structure with a shared haplotype H73 in the center (Figure 3). Another signal of expansion is a combination of high haplotype diversity with low nucleotide diversity, which was determined for more than half of the populations studied (56.5%). The interaction of processes of rapid adaptive radiation and introgression (the last is often complicated by following polyploidization) leads to the reticular evolution of Oxytropis species in the center of origin of the genus, which is characteristic for the genus Oxytropis at the whole [15], as well as for the closely related genus Astragalus [88].
In addition, our results shed light on the taxonomic position of O. squammulosa of the sect. Leucopodia. This monotypic section is morphologically close to the sect. Xerobia [2,89], and, according to Wang, should be merged with sect. Xerobia [90]. According to the results of studying the micromorphological traits of Oxytropis leaf epidermis [90], O. squammulosa did not group together with O. ciliata sect. Xerobia but was close to the group including O. muricata sect. Polyadena [90]. These authors concluded that the sect. Leucopodia is an independent section [90]. Our results also indicate the closeness of O. squammulosa to the species of sect. Polyadena. Thus, the haplotypes of O. squammulosa and of the species of sect. Polyadena together belong to haplogroup B (Figure 3), and on the ML tree O. squammulosa and O. glandulosa sect. Polyadena form a distinct branch with moderate support (Figure 4). At the same time, the absence of shared haplotypes for O. squammulosa and species of Polyadena or Xerobia sections and separate positions of O. squammulosa haplotypes (Figure 3 and Figure 4) confirm the interpretation of the sect. Leucopodia as an independent section.

5. Conclusions

Based on cpDNA sequences, the present study reveals the pattern of the genetic diversity and complex phylogenetic relationships of Oxytropis species in the center of genus origin. The high level of gene diversity found in most of the populations is shaped by an interplay between numerous factors, among which probably the most important are heterogeneous environmental conditions, life-history traits of species, and their ecological specialization. Phylogenetic relationships between most Oxytropis species remain unresolved. Three genetic complexes and four phyletic lineages have been identified. A high level of similarity of the plastid genomes of most Oxytropis species can be considered as an indication of their relatively recent divergence from a common ancestor, rapid radiation, a high level of interspecific hybridization, and the reticulate pattern of evolution typical of the genus.

Author Contributions

Conceptualization, D.V.S. and A.B.K.; methodology, D.V.S., A.B.K., M.M.K. and E.V.A.; validation, D.V.S. and A.B.K.; formal analysis, D.V.S., A.B.K., M.M.K. and E.V.A.; investigation, D.V.S., A.B.K., M.M.K. and E.V.A.; data curation, A.B.K.; writing—original draft preparation, A.B.K.; writing—review and editing, D.V.S., A.B.K., M.M.K., E.V.A. and Z.W.; visualization, D.V.S. and A.B.K.; supervision, D.V.S.; project administration, D.V.S. and A.B.K.; funding acquisition, D.V.S. and A.B.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Russian Foundation for Basic Research (Grant No. 16-04-01399-a) and was partially supported by the Russian Federal budget (Project Number 121030900138-8, D.V.S.).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Original sequence data are available at GenBank (http://www.ncbi.nlm.nih.gov/genbank, accessed on 25 July 2022) by their accession numbers presented in Table 1.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhu, X.; Welsh, S.L.; Ohashi, H. Oxytropis. In Flora of China; Wu, Z.Y., Raven, P.H., Hong, D.Y., Eds.; Science Press: Beijing, China; Missouri Botanical Garden Press: St. Louis, MO, USA, 2010; Volume 10, pp. 453–500. [Google Scholar]
  2. Malyshev, L.I. Phenetics of the Subgenera and Sections in the Genus Oxytropis DC. (Fabaceae) Bearing on Ecology and Phylogeny. Contemp. Probl. Ecol. 2008, 1, 440–444. [Google Scholar] [CrossRef]
  3. Polozhii, A.V. On the Problem of the Origin and Evolution of the Genus Oxytropis (Fabaceae). Bot. Zhurnal 2003, 88, 55–59. (In Russian) [Google Scholar]
  4. Shavvon, R.S.; Kazempour-Osaloo, S.; Maassoumi, A.A.; Moharrek, F.; Karaman Erkul, S.; Lemmon, A.; Lemmon, E.M.; Michalak, I.; Muellner-Riehl, A.N.; Favre, A. Increasing Phylogenetic Support for Explosively Radiating Taxa: The Promise of High-throughput Sequencing for Oxytropis (Fabaceae). J. Syst. Evol. 2017, 55, 385–404. [Google Scholar] [CrossRef]
  5. Kas’yanova, L.N.; Azovskii, M.G. Vegetation of Dune Sands of Olkhon Island on Baikal and Some Questions Concerning its Protection. Geogr. Nat. Res. 2011, 32, 248–253. [Google Scholar]
  6. Boikov, T.G.; Sutkin, A.V. Ecophytocenotic Features of Vicia tsydenii Malysch. in Southern Transbaikalia. Rus. J. Ecol. 2012, 5, 340–346. [Google Scholar]
  7. Plennik, R.Y. Morphologicheskaya Evolutsia Bobovyh Yugo-Vostochnogo Altaya [Morphological Evolution of Legumes from the South-Eastern Altai]; Nauka: Novosibirsk, Russia, 1976. (In Russian) [Google Scholar]
  8. Blinova, K.F.; Sakanyan, E.I. Species of Oxytropis DC. Used in Tibetan Medicine and Their Flavonoid Composition. Rast. Resur. 1986, 22, 266–272. (In Russian) [Google Scholar]
  9. Amirkhanova, A.S.; Ustenova, G.O. Review of the Current Status of Study Oxytropis. Asian J. Pharm. Clin. Res. 2018, 11, 50–55. [Google Scholar]
  10. Povydysh, M.N.; Bobyleva, N.S.; Bityukova, N.V. Genus 29. Oxytropis DC. In Plant Resources of Russia: Wild Flowering Plants, Their Component Composition, and Biological Activity; Budantsev, A.L., Ed.; KMK, SPb.: Moscow, Russia, 2010; Volume 3, pp. 65–69. (In Russian) [Google Scholar]
  11. Li, M.X.; Lan, Z.H.; Wei, L.L.; Zhang, W.J.; Zhang, R.X.; Jia, Z.P. Phytochemical and Biological Studies of Plants from the Genus Oxytropis. Rec. Nat. Prod. 2012, 6, 1–20. [Google Scholar]
  12. Polozhii, A.V. Oxytropis DC. In Flora Sibiriae. Fabaceae (Leguminosae); Polozhii, A.V., Malyshev, L.I., Eds.; Nauka: Novosibirsk, Russia, 1994; Volume 9, pp. 74–151. (In Russian) [Google Scholar]
  13. Peshkova, G.A. Florogeneticheskiy Analiz Stepnoy Floryi Gor Yuzhnoy Sibiri [Florogenetic Analysis of the Steppe Flora of the South Siberia]; Nauka: Novosibirsk, Russia, 2001. (In Russian) [Google Scholar]
  14. Polozhii, A.V. Oxytropis (Fabaceae) Species in the Mountain Flora of South Siberia. Bot. Zhurnal 1995, 80, 58–66. (In Russian) [Google Scholar]
  15. Malyshev, L.I. Diversity of the Genus Oxytropis in the Asian part of Russia. Turczaninowia 2008, 11, 5–141. (In Russian) [Google Scholar]
  16. Dong, W.; Liu, J.; Yu, J.; Wang, L.; Zhou, S. Highly Variable Chloroplast Markers for Evaluating Plant Phylogeny at Low Taxonomic Levels and for DNA barcoding. PLoS ONE 2012, 7, e35071. [Google Scholar]
  17. Kress, W.J. Plant DNA Barcodes: Applications Today and in the Future. J. Syst. Evol. 2017, 55, 291–307. [Google Scholar]
  18. Shneyer, V.S.; Rodionov, A.V. Plant DNA Barcodes. Biol. Bull. Rev. 2019, 9, 295–300. [Google Scholar]
  19. Shaw, J.; Lickey, E.B.; Beck, J.T.; Farmer, S.B.; Liu, W.; Miller, J.; Siripun, K.C.; Winder, C.T.; Schilling, E.E.; Small, R.L. The Tortoise and the Hare II: Relative Utility of 21 Noncoding Chloroplast DNA Sequences for Phylogenetic Analysis. Am. J. Bot. 2005, 92, 142–166. [Google Scholar]
  20. Kim, S.-C.; Crawford, D.J.; Jansen, R.K.; Santos-Guerra, A. The Use of a Non-coding Region of Chloroplast DNA in Phylogenetic Studies of the Subtribe Sonchinae (Asteraceae: Lactuceae). Plant Syst. Evol. 1999, 215, 85–99. [Google Scholar]
  21. Tekpinar, A.; Karaman Erkul, S.; Aytac, Z.; Kaya, Z. Phylogenetic Relationships among Native Oxytropis Species in Turkey Using trnL intron, trnL–F IGS, and trnV intron cpDNA Regions. Turk. J. Bot. 2016, 40, 472–479. [Google Scholar]
  22. Kholina, A.B.; Kozyrenko, M.M.; Artyukova, E.V.; Sandanov, D.V. Modern State of Populations of Endemic Oxytropis Species from Baikal Siberia and Their Phylogenetic Relationships Based on Chloroplast DNA Markers. Russ. J. Genet. 2018, 54, 805–815. [Google Scholar] [CrossRef]
  23. Kholina, A.; Kozyrenko, M.; Artyukova, E.; Sandanov, D.; Selyutina, I.; Chimitov, D. Plastid DNA Variation of the Endemic Species Oxytropis glandulosa Turcz. (Fabaceae). Turk. J. Bot. 2018, 42, 38–50. [Google Scholar] [CrossRef]
  24. Kholina, A.B.; Kozyrenko, M.M.; Artyukova, E.V.; Sandanov, D.V. The Divergence of Oxytropis Species of Section Verticillares (Fabaceae) of the Steppe Flora of Baikal Siberia Based on Chloroplast DNA Sequence Data. Russ. J. Genet. 2019, 55, 701–710. [Google Scholar] [CrossRef]
  25. Kholina, A.B.; Kozyrenko, M.M.; Artyukova, E.V.; Andrianova, E.A.; Sandanov, D.V.; Selyutina, I.Y.; Khoreva, M.G. Genetic Diversity and Phylogenetic Relationships of Oxytropis evenorum (Fabaceae) Based on Data of Sequencing of the Intergenic Spacers of the Chloroplast DNA. Bull. NESC 2019, 2, 117–125. (In Russian) [Google Scholar]
  26. Kholina, A.B.; Kozyrenko, M.M.; Artyukova, E.V.; Koldaeva, M.N.; Sandanov, D.V.; Selyutina, I.Y. Phylogenetic Relationships of the Species of Asian Russia of the Subgenera Phacoxytropis and Tragacanthoxytropis Genus Oxytropis Based on the Polymorphism of Markers of the Chloroplast and Nuclear Genomes. Russ. J. Genet. 2021, 57, 1042–1056. [Google Scholar]
  27. Kholina, A.; Kozyrenko, M.; Artyukova, E.; Sandanov, D.; Selyutina, I. Genetic Diversity of Oxytropis Section Xerobia (Fabaceae) in One of the Centres of Speciation. Genetica 2021, 149, 89–101. [Google Scholar] [CrossRef] [PubMed]
  28. Kholina, A.B.; Kozyrenko, M.M.; Artyukova, E.V.; Pozdnyakova, T.E. Variability of Chloroplast DNA of Oxytropis Section Polyadena (Fabaceae) in Asian Russia: Population Analysis and Phylogenetic Relationships. Biol. Bull. 2021, 48, 16–25. [Google Scholar] [CrossRef]
  29. Kholina, A.B.; Artyukova, E.V.; Yakubov, V.V.; Khoreva, M.G.; Mochalova, O.A.; Sandanov, D.V.; Selyutina, I.Y. Genetic Divergence of Closely Related Species Oxytropis strobilacea, O. adamsiana, O. vassilczenkoi of the series Strobilacei of the section Orobia (Fabaceae) from Asian Russia. Biol. Bull. 2023, 50, 15–25. [Google Scholar]
  30. Sandanov, D.V.; Dugarova, A.S.; Brianskaia, E.P.; Selyutina, I.Y.; Makunina, N.I.; Dudov, S.V.; Chepinoga, V.V.; Wang, Z. Diversity and Distribution of Oxytropis DC. (Fabaceae) Species in Asian Russia. Biodivers. Data J. 2022, 10, e78666. [Google Scholar]
  31. Ulziikhutag, N. Legumes of Mongolia (Taxonomy, Ecology, Geography, Phylogeny and Economic Value); Ulanbaatar, Mongolia, 2003. (In Russian) [Google Scholar]
  32. Levenshtein, V.I. Binary Code Capable of Correcting Deletions, Insertions and Reversals. Sov. Phys.-Dokl. Cybern. Control Theory 1966, 10, 707–710. [Google Scholar]
  33. Kohonen, T. Self-Organizing Maps, 3rd ed.; Springer: Berlin/Heidelberg, Germany, 2001. [Google Scholar]
  34. Anenkhonov, O.A.; Korolyuk, A.Y.; Sandanov, D.V.; Liu, H.; Zverev, A.A.; Guo, D. Soil-moisture Conditions Indicated by Field-layer Plants Help Identify Vulnerable Forests in the Forest-steppe of Semi-arid Southern Siberia. Ecol. Indic. 2015, 57, 196–207. [Google Scholar]
  35. Zverev, A.A. Methodological Aspects of Indicator Values Use in Biodiversity Analysis. Contemp. Probl. Ecol. 2020, 13, 321–332. [Google Scholar] [CrossRef]
  36. Krivenko, D.A.; Kotseruba, V.V.; Kazanovsky, S.G.; Verkhozina, A.V.; Stepanov, A.V. Fabaceae. IAPT/IOPB Chromosome Data 11. Taxon 2011, 60, 1222. [Google Scholar]
  37. Krivenko, D.A.; Kazanovsky, S.G.; Vinogradova, Y.K.; Verkhozina, A.V.; Knyazev, M.S.; Murtazaliev, R.A. Fabaceae (Leguminosae). IAPT/IOPB Chromosome Data 26. Taxon 2017, 66, 1492. [Google Scholar]
  38. An’kova, T.V.; Shaulo, D.N. Fabaceae. IAPT/IOPB Chromosome Data 14. Taxon 2012, 61, 1336. [Google Scholar]
  39. Krivenko, D.A.; Kazanovsky, S.G.; Verkhozina, A.V.; Chernova, O.D.; Dymshakova, O.S.; Turskaya, A.L. Fabaceae. IAPT/IOPB Chromosome Data 15. Taxon 2013, 62, 1077. [Google Scholar]
  40. Konichenko, E.S.; Selyutina, I.Y.; Dorogina, O.V. Fabaceae. IAPT/IOPB Chromosome Data 14. Taxon 2012, 61, 1338–1339. [Google Scholar]
  41. Taberlet, P.; Gielly, L.; Pautou, G.; Bouvet, J. Universal Primers for Amplification of Three Non-coding Regions of Chloroplast DNA. Plant Mol. Biol. 1991, 17, 1105–1109. [Google Scholar]
  42. Bonfeld, J.K.; Smith, K.F.; Staden, R. A New DNA Sequence Assembly Program. Nucleic Acids Res. 1995, 23, 4992–4999. [Google Scholar]
  43. Gouy, M.; Guindon, S.; Gascuel, O. SeaView version 4: A Multiplatform Graphical User Interface for Sequence Alignment and Phylogenetic Tree Building. Mol. Biol. Evol. 2010, 27, 221–224. [Google Scholar] [PubMed]
  44. Librado, P.; Rozas, J. DnaSP v5: A Software for Comprehensive Analysis of DNA Polymorphism Data. Bioinformatics 2009, 25, 1451–1452. [Google Scholar]
  45. Excoffier, L.; Lischer, H.E.L. Arlequin suite ver 3.5: A New Series of Programs to Perform Population Genetics Analyses under Linux and Windows. Mol. Ecol. Resour. 2010, 10, 564–567. [Google Scholar]
  46. Bandelt, H.J.; Forster, P.; Röhl, A. Median-joining Networks for Inferring Intraspecific Phylogenies. Mol. Biol. Evol. 1999, 16, 37–48. [Google Scholar]
  47. Swofford, D.L. PAUP*: Phylogenetic Analysis Using Parsimony (*and Other Methods): Version 4.04; Sinauer Associates Inc.: Sunderland, MA, USA, 2003. [Google Scholar]
  48. Posada, D.; Crandall, K.A. Modeltest: Testing the Model of DNA Substitution. Bioinformatics 1998, 14, 817–818. [Google Scholar]
  49. Kholina, A.B.; Kozyrenko, M.M.; Artyukova, E.V.; Sandanov, D.V.; Andrianova, E.A. Phylogenetic Relationships of the Species of Oxytropis DC. subg. Oxytropis and Phacoxytropis (Fabaceae) from Asian Russia Inferred from the Nucleotide Sequence Analysis of the Intergenic Spacers of the Chloroplast Genome. Russ. J. Genet. 2016, 52, 780–793. [Google Scholar]
  50. Chimitov, D.G. Taxonomic Diversity of the Genus Oxytropis Section Polyadena (Fabaceae) in Baikal Siberia. Novit. Syst. Plant. Vasc. 2022, 53, 43–57. (In Russian) [Google Scholar] [CrossRef]
  51. Selyutina, I.Y.; Sandanov, D.V.; Chimitov, D.G. Demographic Structure Analysis of Rare Species Oxytropis glandulosa Bunge (Fabaceae) in Republic of Buryatia. BSU Bull. Biol. Geography 2016, 2–3, 168–172. (In Russian) [Google Scholar]
  52. Selyutina, I.Y.; Sandanov, D.V. Demographic Structure and Population Size of Rare Endemic Oxytropis species from Priol’khonye Steppe. Rastit. Mir Aziat. Ross. 2018, 1, 14–23. (In Russian) [Google Scholar]
  53. Kholina, A.; Kozyrenko, M.; Artyukova, E.; Yakubov, V.; Khoreva, M.; Andrianova, E.; Mochalova, O.; Sandanov, D. Phylogenetic Relationships of Oxytropis Section Gloeocephala from Northeast Asia Based on Sequencing of the Intergenic Spacers of cpDNA and ITS nrDNA. Genetica 2022, 150, 117–128. [Google Scholar] [CrossRef]
  54. Hamrick, J.L.; Godt, M.J.W. Effects of Life History Traits on Genetic Diversity in Plant Species. Philos. Trans. R. Soc. Lond. B 1996, 351, 1291–1298. [Google Scholar]
  55. Gitzendanner, M.A.; Soltis, P.S. Patterns of Genetic Variation in Rare and Widespread Plant Congeners. Am. J. Bot. 2000, 87, 783–792. [Google Scholar] [CrossRef] [PubMed]
  56. Nybom, H. Comparison of Different Nuclear DNA Markers for Estimating Intraspecific Genetic Diversity in Plants. Mol. Ecol. 2004, 137, 1143–1155. [Google Scholar] [CrossRef] [PubMed]
  57. Carvalho, Y.G.S.; Vitorino, L.C.; de Souza, U.J.B.; Bessa, L.A. Recent Trends in Research on the Genetic Diversity of Plants: Implications for Conservation. Diversity 2019, 11, 62. [Google Scholar] [CrossRef]
  58. Blanco-Pastor, J.L.; Fernández-Mazuecos, M.; Coello, A.J.; Pastor, J.; Vargas, P. Topography Explains the Distribution of Genetic Diversity in One of the Most Fragile European Hotspots. Divers. Distrib. 2019, 25, 74–89. [Google Scholar] [CrossRef]
  59. De Kort, H.; Prunier, J.G.; Ducatez, S.; Honnay, O.; Baguette, M.; Stevens, V.M.; Blanchet, S. Life History, Climate and Biogeography Interactively Affect Worldwide Genetic Diversity of Plant and Animal Populations. Nat. Commun. 2021, 12, 516. [Google Scholar] [CrossRef] [PubMed]
  60. Wambulwa, M.C.; Luo, Y.-H.; Zhu, G.-F.; Milne, R.; Wachira, F.N.; Wu, Z.-Y.; Wang, H.; Gao, L.-M.; Li, D.-Z.; Liu, J. Determinants of Genetic Structure in a Highly Heterogeneous Landscape in Southwest China. Front. Plant Sci. 2022, 13, 779989. [Google Scholar] [CrossRef]
  61. Plenk, K.; Willner, W.; Demina, O.N.; Höhn, M.; Kuzemko, A.; Vassilev, K.; Kropf, M. Phylogeographic Evidence for Long-term Persistence of the Eurasian steppe Plant Astragalus onobrychis in the Pannonian Region (Eastern Central Europe). Flora 2020, 264, 151555. [Google Scholar] [CrossRef]
  62. Shepherd, L.D.; Lange, P.J.; Perrie, L.R.; Heenan, P.B. Chloroplast Phylogeography of New Zealand Sophora trees (Fabaceae): Extensive Hybridization and Widespread Last Glacial Maximum Survival. J. Biogeogr. 2017, 44, 1640–1651. [Google Scholar] [CrossRef]
  63. Wang, H.; Liu, P.-L.; Li, J.; Yang, H.; Li, Q.; Chang, Z.-Y. Why More Leaflets? The Role of Natural Selection in Shaping the Spatial Pattern of Leaf-shape Variation in Oxytropis diversifolia (Fabaceae) and Two Close Relatives. Front. Plant Sci. 2021, 12, 681962. [Google Scholar] [CrossRef]
  64. Plenk, K.; Bardy, K.; Höhn, M.; Thiv, M.; Kropf, M. No Obvious Genetic Erosion, but Evident Relict Status at the Westernmost Range Edge of the Pontic-Pannonian Steppe Plant Linum flavum L. (Linaceae) in Central Europe. Ecol. Evol. 2017, 7, 6527–6539. [Google Scholar] [CrossRef]
  65. Zheng, H.-Y.; Guo, X.-L.; Price, M.; He, X.-J.; Zhou, S.-D. Effects of Mountain Uplift and Climatic Oscillations on Phylogeography and Species Divergence of Chamaesium (Apiaceae). Front. Plant Sci. 2021, 12, 673200. [Google Scholar] [CrossRef]
  66. Salomón, L.; Nicola, M.V.; Kandziora, M.; Kolář, F.; Sklenář, P. Center of Origin and Evolutionary History in the High Andean Genus Oritrophium (Astereae, Asteraceae). Alp. Bot. 2021, 132, 123–139. [Google Scholar] [CrossRef]
  67. Namzalov, B.B. Baikal Phytogeographic Node as the Newest Center of Endemism of Inner Asia. Contemp. Probl. Ecol. 2009, 2, 341–347. [Google Scholar] [CrossRef]
  68. Jones, M.R.; Winkler, D.E.; Massatti, R. The Demographic and Ecological Factors Shaping Diversification among Rare Astragalus Species. Divers. Distrib. 2021, 27, 1407–1421. [Google Scholar] [CrossRef]
  69. Cortés, A.J.; Garzón, L.N.; Valencia, J.B.; Madriñán, S. On the Causes of Rapid Diversification in the Páramos: Isolation by Ecology and Genomic Divergence in Espeletia. Front. Plant Sci. 2018, 9, 1700. [Google Scholar] [CrossRef]
  70. Sampson, J.; Byrne, M. Genetic Differentiation among Subspecies of Banksia nivea (Proteaceae) Associated with Expansion and Habitat Specialization. Diversity 2022, 14, 98. [Google Scholar] [CrossRef]
  71. Özüdoğru, B.; Karacaoğlu, Ç.; Akaydın, G.; Erik, S.; Mummenhoff, K.; Sağlam, I.K. Ecological Specialization Promotes Diversity and Diversification in the Eastern Mediterranean Genus Ricotia (Brassicaceae). J. Syst. Evol. 2022, 60, 331–343. [Google Scholar] [CrossRef]
  72. Wood, T.E.; Takebayashi, N.; Barker, M.S.; Mayrose, I.; Greenspoon, P.B.; Rieseberg, L.H. The Frequency of Polyploid Speciation in Plants. Proc. Natl. Acad. Sci. USA 2009, 106, 13875–13879. [Google Scholar] [CrossRef]
  73. Soltis, P.S.; Soltis, D.E. Ancient WGD Events as Drivers of Key Innovations in Angiosperms. Curr. Opin. Plant Biol. 2016, 30, 159–165. [Google Scholar] [CrossRef] [Green Version]
  74. Van de Peer, Y.; Mizrachi, E.; Marchal, K. The Evolutionary Significance of Polyploidy. Nat. Rev. Genet. 2017, 18, 411–424. [Google Scholar] [CrossRef]
  75. Martin, E.; Karaman Erkul, S.; Aytaç, Z. Karyological Studies on Oxytropis (Fabaceae) from Turkey. Caryologia 2015, 68, 357–362. [Google Scholar] [CrossRef]
  76. Liu, Y.-H.; Meng, Y.; Yang, Y.-H.; Yang, Y.-P. Chromosome Numbers and Karyotypes of Six Oxytropis Species (Fabaceae) from the Qinghai Tibetan Plateau, China. Plant Divers. Res. 2011, 33, 423–431. (In Chinese) [Google Scholar]
  77. Yurtsev, B.A. Oxytropis DC. In Arctic Flora of the Soviet Union; Yurtsev, B.A., Ed.; Nauka: Leningrad, Russia, 1986; pp. 61–146. (In Russian) [Google Scholar]
  78. Yurtsev, B.A. Main Directions in the Evolution of Oxytropis Species Belonging to the Section Baikalia Bge. Bot. Zhurnal 1964, 49, 634–648. (In Russian) [Google Scholar]
  79. Vassilczenko, I.T. On the Problem of the Genesis of the Genus Oxytropis DC. Bot. Zhurnal 1965, 50, 313–323. (In Russian) [Google Scholar]
  80. Xu, Z.; Zhang, M.-L.; Cohen, J.I. Phylogeographic History of Atraphaxis Plants in Arid Northern China and the Origin of A. bracteata in the Loess Plateau. PLoS ONE 2016, 11, e0163243. [Google Scholar] [CrossRef]
  81. Segatto, A.L.A.; Reck-Kortmann, M.; Turchetto, C.; Freitas, L.B. Multiple Markers, Niche Modelling, and Bioregions Analyses to Evaluate the Genetic Diversity of a Plant Species Complex. BMC Evol. Biol. 2017, 17, 234. [Google Scholar] [CrossRef] [PubMed]
  82. Yang, Z.; Ma, W.-X.; He, X.; Zhao, T.-T.; Yang, X.-H.; Wang, L.-J.; Ma, Q.-H.; Liang, L.-S.; Wang, G.-X. Species Divergence and Phylogeography of Corylus heterophylla Fisch Complex (Betulaceae): Inferred from Molecular, Climatic and Morphological Data. Mol. Phylogenet. Evol. 2022, 168, 107413. [Google Scholar] [CrossRef] [PubMed]
  83. Bobrov, E.G. Introgressive Hybridization in the Flora of Baikal Siberia. Bot. Zhurnal 1961, 46, 313–327. (In Russian) [Google Scholar]
  84. Orthia, L.A.; Crisp, M.D.; Cook, L.G.; de Kok, R.P.J. Bush Pea: A Rapid Radiation with no Support for Monophyly of Pultenaea (Fabaceae: Mirbelieae). Aust. Syst. Bot. 2005, 18, 133–147. [Google Scholar] [CrossRef]
  85. Drummond, C.S.; Eastwood, R.J.; Miotto, S.T.S.; Hughes, C.E. Multiple Continental Radiations and Correlates of Diversification in Lupinus (Leguminosae): Testing for Key Innovation with Incomplete Taxon Sampling. Syst. Biol. 2012, 61, 443–460. [Google Scholar] [CrossRef] [PubMed]
  86. Bagheri, A.; Maassoumi, A.A.; Rahiminejad, M.R.; Brassac, J.; Blattner, F.R. Molecular Phylogeny and Divergence Times of Astragalus Section Hymenostegis: An Analysis of a Rapidly Diversifying Species Group in Fabaceae. Sci. Rep. 2017, 7, 14033. [Google Scholar] [CrossRef]
  87. Zhao, X.-L.; Gao, X.-F.; Zhu, Z.-M.; Gao, Y.-D.; Xu, B. The Demographic Response of a Deciduous Shrub (the Indigofera bungeana complex, Fabaceae) to the Pleistocene Climate Changes in East Asia. Sci. Rep. 2017, 7, 697. [Google Scholar] [CrossRef]
  88. Bartha, L.; Dragos, N.; Molnar, A.; Sramko, G. Molecular Evidence for Reticulate Speciation in Astragalus (Fabaceae) as Revealed by a Case Study from Sect. Dissitiflori. Botany 2013, 91, 702–714. [Google Scholar] [CrossRef] [Green Version]
  89. Wang, J.N. The Taxonomical Study of Oxytropis DC. in Inner Mongolia. Master’s Thesis, Inner Mongolia Normal University, Inner Mongolia, China, 2005. [Google Scholar]
  90. Zhao, X.; Hou, Q.; Du, M.; Zhang, H.; Jia, L.; Zhang, Z.; Ma, Z.; Sun, K. Micromorphological Leaf Epidermal Traits as Potential Taxonomic Markers for Infrageneric Classification of Oxytropis (Fabaceae). PhytoKeys 2022, 201, 51–76. [Google Scholar] [CrossRef]
Diversity 15 00244 g001 550
Figure 1. Map of sample sites for natural populations of Oxytropis species from Southern Siberia (69 population, light brown circles). Population codes as in Table 1.
Figure 1. Map of sample sites for natural populations of Oxytropis species from Southern Siberia (69 population, light brown circles). Population codes as in Table 1.
Diversity 15 00244 g001
Diversity 15 00244 g002 550
Figure 2. WPGMA similarity dendrogram of 31 Oxytropis species based of relative Levenshtein edit distance.
Figure 2. WPGMA similarity dendrogram of 31 Oxytropis species based of relative Levenshtein edit distance.
Diversity 15 00244 g002
Diversity 15 00244 g003 550
Figure 3. Median-joining network inferred from combined sequences of the psbA-trnH, trnL-trnF, and trnS-trnG regions showing the relationships among cpDNA haplotypes (H1–H101) of 31 Oxytropis species from Southern Siberia. Each circle represents the haplotype; the size of the circles reflects the frequency of occurrence of haplotype. The colors of circles indicate the affiliation of haplotype to certain species. Black small circles indicate the median vectors; thin bars indicate the mutational events; white thick bars indicate the indels; dashed lines are circled haplogroups A, B, C; thin lines are circled separate branches b1, b2, c1, and c2.
Figure 3. Median-joining network inferred from combined sequences of the psbA-trnH, trnL-trnF, and trnS-trnG regions showing the relationships among cpDNA haplotypes (H1–H101) of 31 Oxytropis species from Southern Siberia. Each circle represents the haplotype; the size of the circles reflects the frequency of occurrence of haplotype. The colors of circles indicate the affiliation of haplotype to certain species. Black small circles indicate the median vectors; thin bars indicate the mutational events; white thick bars indicate the indels; dashed lines are circled haplogroups A, B, C; thin lines are circled separate branches b1, b2, c1, and c2.
Diversity 15 00244 g003
Diversity 15 00244 g004 550
Figure 4. Maximum-likelihood topology obtained from the combined psbA-trnH, trnL-trnF, and trnS-trnG dataset and generated by PAUP under the GTR + I + G model showing branch lengths (–ln likelihood = 4997.50) for 69 populations of 31 Oxytropis species from Southern Siberia and Astragalus davuricus (accession numbers in GenBank LM653198, LM653161, and LM653235) as outgroup species. The numbers at nodes indicate bootstrap values (BI > 50%) for MP/NJ/ML analyses, respectively. The scale bar denotes the number of substitutions per site.
Figure 4. Maximum-likelihood topology obtained from the combined psbA-trnH, trnL-trnF, and trnS-trnG dataset and generated by PAUP under the GTR + I + G model showing branch lengths (–ln likelihood = 4997.50) for 69 populations of 31 Oxytropis species from Southern Siberia and Astragalus davuricus (accession numbers in GenBank LM653198, LM653161, and LM653235) as outgroup species. The numbers at nodes indicate bootstrap values (BI > 50%) for MP/NJ/ML analyses, respectively. The scale bar denotes the number of substitutions per site.
Diversity 15 00244 g004
Diversity 15 00244 g005 550

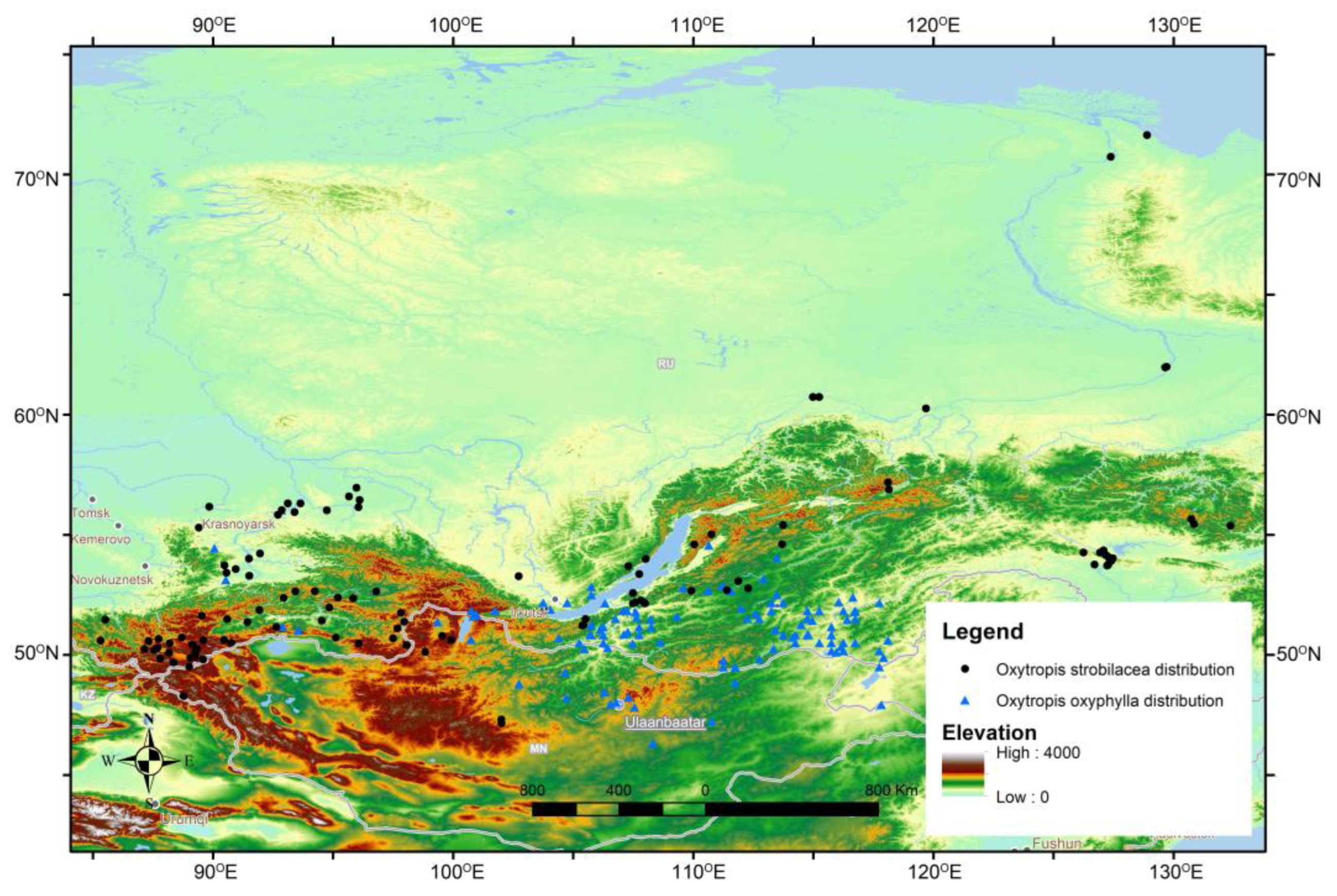

Figure 5. Distribution of Oxytropis strobilacea and Oxytropis oxyphylla.
Figure 5. Distribution of Oxytropis strobilacea and Oxytropis oxyphylla.
Diversity 15 00244 g005
Diversity 15 00244 g006 550

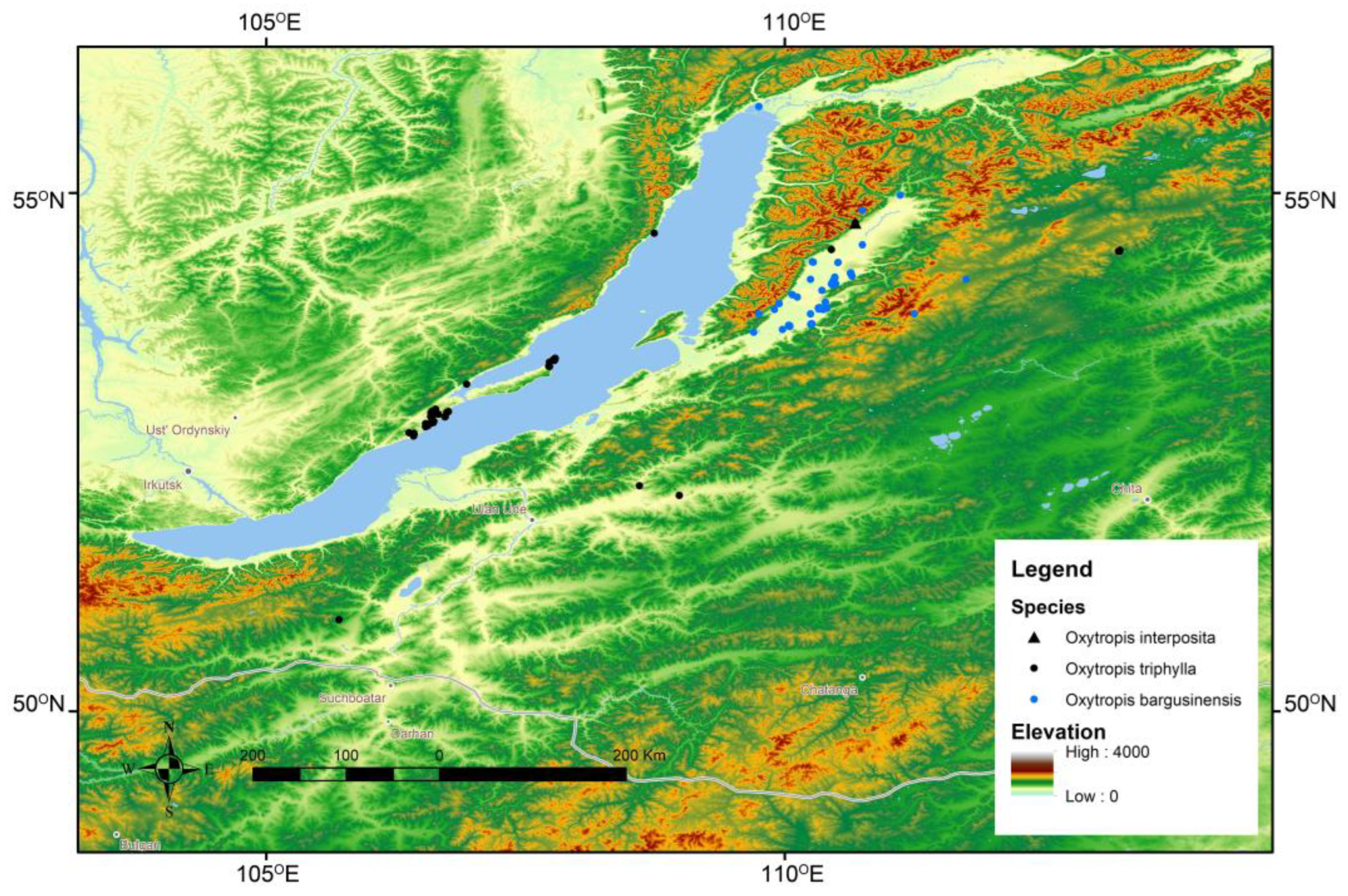

Figure 6. Distribution of three Oxytropis species endemic to Baikal Siberia.
Figure 6. Distribution of three Oxytropis species endemic to Baikal Siberia.
Diversity 15 00244 g006
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sandanov, D.V.; Kholina, A.B.; Kozyrenko, M.M.; Artyukova, E.V.; Wang, Z. Genetic Diversity of Oxytropis Species from the Center of the Genus Origin: Insight from Molecular Studies. Diversity 2023, 15, 244. https://doi.org/10.3390/d15020244

AMA Style

Sandanov DV, Kholina AB, Kozyrenko MM, Artyukova EV, Wang Z. Genetic Diversity of Oxytropis Species from the Center of the Genus Origin: Insight from Molecular Studies. Diversity. 2023; 15(2):244. https://doi.org/10.3390/d15020244

Chicago/Turabian Style

Sandanov, Denis V., Alla B. Kholina, Marina M. Kozyrenko, Elena V. Artyukova, and Zhiheng Wang. 2023. "Genetic Diversity of Oxytropis Species from the Center of the Genus Origin: Insight from Molecular Studies" Diversity 15, no. 2: 244. https://doi.org/10.3390/d15020244

APA Style

Sandanov, D. V., Kholina, A. B., Kozyrenko, M. M., Artyukova, E. V., & Wang, Z. (2023). Genetic Diversity of Oxytropis Species from the Center of the Genus Origin: Insight from Molecular Studies. Diversity, 15(2), 244. https://doi.org/10.3390/d15020244

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
