Article

Genotyping-by-Sequencing Analysis Shows That Siberian Lindens Are Nested within Tilia cordata Mill

by
Sergei V. Shekhovtsov
1,2,*,
Irina N. Shekhovtsova
3 and
Oleg E. Kosterin
1
1
Institute of Cytology and Genetics SB RAS, 630090 Novosibirsk, Russia
2
Institute of the Biological Problems of the North FEB RAS, 685000 Magadan, Russia
3
Central Siberian Botanical Garden of the SB RAS, 630090 Novosibirsk, Russia
*
Author to whom correspondence should be addressed.
Diversity 2022, 14(4), 256; https://doi.org/10.3390/d14040256
Submission received: 7 March 2022 / Revised: 23 March 2022 / Accepted: 28 March 2022 / Published: 30 March 2022
(This article belongs to the Special Issue Phylogeny and Phylogeography of the Holarctic)
Browse Figures
Versions Notes

Abstract

:
Tilia sibirica and T. nasczokinii are considered to be endemic Siberian linden species. They have very small distributions located hundreds to thousands of kilometers away from other lindens. It is unclear how closely these species are related to the widespread Tilia cordata: according to the current hypotheses, they could be pre-Pleistocene relicts or remnants of the recent continuous range of T. cordata that existed during the Holocene climatic optimum. Earlier studies detected significant differences between T. sibirica, T. nasczokinii, and T. cordata in microsatellite loci, but not in plastid sequences. Here we performed a phylogenetic analysis of several linden species based on GBS data. The obtained GBS sequences were assembled to create phylogenetic trees based on 16,000–294,000 variable sites. We found that T. cordata and the two putative Siberian species formed a monophyletic group. It consisted of three clades: the basal clade containing specimens from the Caucasus, and two sister clades representing populations from the East European Plains+the Urals and Siberia, respectively. Neither of the Siberian species was related to the Far Eastern T. amurensis, as was hypothesized earlier. Our study suggests that the colonization of Europe and Siberia after the Last Glacial Maximum occurred from different glacial refugia.

1. Introduction

Tilia cordata Mill. has the largest distribution among Eurasian lindens, from the Atlantic coast of Europe to West Siberia (Figure 1). In the east, its distribution becomes fragmented, with small populations scattered across swamps of the West Siberian Plain [1], up to the Novosibirsk [2] and Tomsk [3] Oblasts. These easternmost outposts of T. cordata are separated by ca. 600 km from the linden populations of the foothills of the Altai–Sayan mountain system, which are regarded as two separate species. A relatively big population from the Gornaya Shoria Mts (Kemerovo Oblast), the so-called Kuzedeevo Linden Island [4,5,6], was described as Tilia sibirica Fisch. ex Bayer. Numerous small populations from neighboring regions are also believed to belong to this species [7,8,9]. T. sibirica differs from T. cordata by having leaf blades on flowering shoots with strait or shallowly-cuneate base, not glaucescent beneath, as well as dense pubescence of ovary [10,11]. Two small adjacent populations growing near Krasnoyarsk were described as Tilia nasczokinii Stepanov. They were characterized as having asymmetrical, transversely cordate or basally truncated leaves, lanceolate lobes of stellate stigma, and few-flowered inflorescences [12]. However, many authors do not recognize these two taxa as separate species, because the diagnostic characters are highly variable so the distinctions can be traced only on a series of individuals. For example, the authors of the fundamental treatise «Woody plants of Asian Russia» considered both Siberian species as synonyms of T. cordata [13].
Several molecular studies attempted to clarify this issue. Logan et al. [14] employed 12 microsatellite loci to compare T. sibirica from the Kuzedeevo Linden Island to three T. cordata populations from Austria, Poland, and West Siberia. T. sibirica was found to differ significantly from T. cordata, with the divergence time between them estimated at 447 kya (95% confidence interval, 154–901 kya). Semerikova et al. [15] used RFLP of amplified plastid genes to find that T. sibirica had one of the haplotypes characteristics for T. cordata.
Ekart et al. [16] performed a more extensive analysis using the same microsatellite loci as in [14]. Fst values between T. sibirica, T. nasczokinii, and T. cordata were significantly higher (0.202–0.549) than among T. cordata populations separated by thousands of km (0.057–0.152). It is noteworthy that Fst between T. nasczokinii and T. sibirica (0.473–0.549) was higher than between each of them and T. cordata (0.202–0.407; 0.275 on the average). This might indicate that the greater number of distinctive microsatellite alleles in Siberian species can result from the bottlenecks they must have passed given their small population number and does not reflect the divergence time between the species. It is desirable to complement microsatellite analysis with other molecular methods, especially genome-wide ones.
In this study we attempted to investigate the phylogeny among linden species currently recognized as Tilia sibirica, T. nasczokinii, T. cordata, T. amurensis Rupr., T. taquetii C.K. Schneid., and T. begoniifolia Steven using genotyping-by-sequencing (GBS). This method is based on genome-wide sequencing of loci adjacent to conservative restriction sites. It allows one to obtain thousands of homologous loci for a set of species with no prior genome data.

2. Materials and Methods

Linden specimens were collected by the authors in 2019–2021 (Table 1, Figure 1). The voucher specimens are stored in the NSK herbarium under the accessions NSK0089748–NSK0089760. Morphological identification was performed according to regional floras [9,10,11,17]. Total DNA was extracted from air-dried or ethanol-fixed leaves using CTAB as described in [18].
DNA was purified using AMPure XP (Beckman Coulter Life Sciences, Brea, CA, USA), quantified using Qubit DNA HS Assay Kit (Thermo Fisher, Waltham, MA, USA), and normalized to 20 ng/μL. 200 ng of DNA were digested by MspI (4 u) and PstI-HF (4 u) restriction enzymes. After enzyme inactivation at 70 °C, 18 μL of 2× Instant Sticky-end Ligase Master Mix (New England Biolabs, Ipswich, MA, USA), and 1 μL each of 25 nM double-stranded P5-GBS-PstI and P7-GBS-MspI adapters with modified bases were added to the mix. After 1 h ligation at 22 °C, DNA was sedimented using magnetic KAPA Beads (Roche, Switzerland) and sticky ends were blunted by BST polymerase. Long fragments and concatenates were removed using AMPureXP. Indexing PCR was performed with 6 nmoles of the universal S4_indPCR primer and 6 nmoles of the corresponding indexing primer with Phusion HotStart PCR MasterMix (NEB, Ipswich, MA, USA) with the following profile: 30 s at 98 °C; 15 cycles of 10 s at 98 °C, 30 s at 60 °C, and 5 s at 72 °C; final extension step for 10 min at 72 °C. Libraries prepared for different specimens were pooled in equimolar quantities; the 240–600 bp fraction was excised by BluePippin (Sage Sciences, Beverly, MA, USA). Sequencing was performed using 150 cycles NextSeq500/550 High Output Kit v2.5 (Illumina, San Diego, CA, USA), the Read1_GBS_PstI, and the custom indexing primer [19].
The obtained sequence reads were demultiplexed, trimmed to 118 bp, and assembled into orthologous loci using ipyrad v. 0.9.82 [20] and Stacks v. 2.55 [21]. Loci assembly was performed with a variety of parameters: for Stacks, ranging from the conservative –m 5 –M 3 –n 3 to –m 3 –M 10 –n 7 as proposed by Cariou et al. [22] for phylogeny reconstruction. Assembly in ipyrad was done with the default parameters as well as with somewhat more relaxed values (max_Hs_consens 0.15, max_Indels_locus 15, max_shared_Hs_locus 0.6). The output of these programs in phylip format was used for phylogenetic inference.
Phylogenetic trees were constructed using the Maximum Likelihood algorithm in RAxML v. 8.2.12 [23] and Bayesian inference in MrBayes 3.2.7a [24]. Maximum Likelihood analysis was done with the GTRCAT model as suggested by the program; 1000 bootstrap replicates were performed. For the Bayesian inference, we used the general time reversible model with gamma-distributed rate variation. We performed 1,000,000 generations; 25% were discarded as burn-in.

3. Results

We obtained 1,868,940 to 23,038,890 reads for different linden specimens. Assembly of GBS loci was done independently with two programs, Stacks and ipyrad. For Stacks, we performed multiple assemblies with a wide range of different parameters: minimum number of reads for locus assembly, maximum number of mismatches between loci, etc. Depending on the parameters, we obtained 16,253 to 170,243 variable sites for our alignment. Ipyrad yielded much more information, with 220,408–294,531 variable sites. Trees obtained using different alignments had similar topologies, but those based on Stacks alignments had lower resolution and low statistical support for the T. cordata clade, while ipyrad trees were well resolved. Thus, we will base our analysis on the ipyrad trees.
The phylogenetic trees (Figure 2) revealed three high-level clades. One included the specimens of T. cordata and the Siberian linden species, the other the Far Eastern T. amurensis and T. taquetii, and the third one was formed by the Caucasian T. begoniifolia. The clade containing T. cordata was split into two subclades containing specimens from the southern (the Caucasus) and the northern parts of the range. The northern subclade fell into two groups encompassing the western (the East Siberian Plain and the Urals) and the eastern (Siberia) specimens. In the Siberian group, the two individuals of T. nasczokinii expectedly clustered with each other, as did the two T. sibirica specimens. A plant from Novosibirsk turned out to be closer to the T. nasczokinii subgroup.

4. Discussion

4.1. Phylogeny of the T. cordata Clade

In this study we aimed to reconstruct phylogenetic relationships between the geographically remote specimens of linden from the East European Plain, the Caucasus, and the Far East using GBS. The status of T. sibirica and T. nasczokinii as separate species is questionable. On the one hand, they differ from the European T. cordata both morphologically [10,11,12] and genetically [14,15,16]. On the other hand, the morphological characters are highly variable, and the differences can be seen only on a series of individuals [13].
Our data confirmed the results of earlier molecular studies [14,16]: European populations of T. cordata indeed differ genetically from the Siberian taxa (Figure 2). However, we found out that these differences are smaller than those between the Caucasian subclade of T. cordata and the rest of the clade. This divergence is expected from the disjunct distribution of T. cordata, with an isolate in the Caucasus (Figure 1). On the whole, genetic and geographical distances between the studied specimens appear to be well corresponded.
Based on morphology, some authors proposed that T. nasczokinii could be a sister species to the Far Eastern T. amurensis [12,15]. However, our analysis showed that these taxa are not closely related.
It is noteworthy that the study on European populations of T. cordata [25] found that a linden specimen from the East European Plain (the Voronezh Oblast of Russia) differed from the West European sample. Thus, it is possible that there could be additional genetic groups within T. cordata not detected in our study because we had no specimens from Western Europe.

4.2. Natural History of Siberian Lindens

The hypothesis that was mainstream throughout the 20th century and is still widespread is that the Siberian populations of linden are pre-glacial (Pliocene, «Tertiary») relics [4,5,6,26,27,28,29]. This viewpoint assumes that the age of their isolation exceeds 1.5 million years. This is in strong contradiction to paleoclimatic reconstructions, suggesting that southern Siberia was occupied by steppe-tundra during the Last Glacial Maximum, as well as in earlier strong glaciations [30,31,32]. It would be highly unlikely for the linden to survive in such a climate, since even now its Siberian populations, except for the Kuzedeevo Linden Island, are small (from a few trees to ca. 100 ha), often present as shrub forms, and obviously struggle for survival [33].
On the other hand, certain interglacial periods were even warmer than the current climate, and the distribution of linden was larger and uninterrupted. This was demonstrated even for the Holocene climatic optimum (the Atlantic period, ca. 5–9 kya) [30,34,35,36]. According to palynological data, both European and Far Eastern Tilia species coexisted in the foothills of the Altai in Mid-Pleistocene [37].
Based on these generally accepted paleoclimatic data, it would be logical to suggest that current Siberian populations represent the remains of the continuous distribution of the Holocene climatic optimum, which persisted as small isolates in places with favourable microclimate. This hypothesis was first proposed by Reverdatto [38], and further endorsed by Grosset [39], and more recently and based on modern paleopalynological data, by Dubatolov and Kosterin [36]. It is supported by the fact that in the Kuzedeevo Linden Island, currently the largest patch of linden in West Siberia, abundant linden pollen was detected only in the Holocene deposits but not in lower soil horizons [6,40,41].
However, our GBS analysis and earlier molecular studies [14,16] demonstrated that T. sibirica and T. nasczokinii significantly differ from the studied T. cordata populations from its main part of the range. Moreover, molecular datings [14] suggest that the divergence time between T. sibirica and T. cordata lies in the range of 154–901 kya, which does not accord with either the pre-Pleistocene or with the Holocene hypotheses. This implies that Siberian linden populations either colonized West Siberia from another refugium than that gave rise to the current European populations, or they survived glaciations in situ. As said above, the latter hypothesis, i.e., the existence of broadleaved forest refugia in the steppe-tundra conditions, appears highly unlikely.
As an alternative, we could place the putative glaciation refugium of Siberian lindens into the elevations located to the south of West Siberia: the Kazakh Hilly Land (Central Kazakhstan), or, less probably, the foothills of Tian Shan [36] (Figure 1). These regions are currently rather arid (which is why no paleopalinological data available for them), but during the Pleistocene glaciations their climate is expected to be favourable for linden. It is possible that during interglacials, West Siberia had a continuous distribution of linden with coexisting European, Siberian, and Far Eastern taxa.

4.3. The Linden Specimen from Novosibirsk

One of our specimens was taken not from a natural population but from an alley in Novosibirsk Academy Town (location 4 on Figure 1). Our phylogenetic analysis placed it into the Siberian group. This finding was unexpected because it is generally assumed that T. cordata was used in landscaping of Novosibirsk [42]. However, we found the reports suggesting that about 2000 trees of T. sibirica from the Kuzedeevo Linden Island was planted in Novosibirsk in 1958 [40,43]. The lindens of Novosibirsk indeed resemble T. sibirica by morphological characters. Moreover, on the phylogenetic tree the specimen from Novosibirsk grouped with T. nasczokinii rather than T. sibirica. This can be explained by insufficient data on genetic diversity within T. sibirica involved into our analysis, so that trees stemming from other natural populations, not studied by us, could be planted in Novosibirsk. These populations would probably differ from those of the main Kuzedeevo island genetically, given that the distribution of this taxon is patchy.
The climate changes of the recent decades made the south of West Siberia much more suitable for broad-leaved trees. The lindens introduced by landscaping are thus becoming the source of invasions into the neighbouring birch and pine forests [44]. Therefore, we can currently observe an expansion of the autochthonous Siberian linden, probably similar to that observed in the Holocene climatic optimum, but human-assisted to a certain extent.

4.4. Taxonomic Implications

As said above, the taxonomic status of T. sibirica and T. nasczokinii is equivocal. Our study confirmed that T. nasczokinii and T. sibirica differ from T. cordata genetically, as was revealed in earlier studies [14,16]. On the other hand, recognition of these species makes T. cordata paraphyletic (Figure 2), while it is assumed that paraphyletic taxa should be avoided whenever possible [45,46]. In our case, this problem could be resolved either by considering T. cordata as a polytypic species comprising a set of subspecies, or by splitting it into several species. We suggest that the former way is more appropriate, taking into account that all subclades within the clade containing T. cordata have separate distributions, thus satisfying the requirements for subspecies proposed in [47]. The Caucasian populations, traditionally recognized as T. cordata [10,47,48,49,50], therefore also deserve the subspecific status, based on their genetic and geographic distinctiveness from T. cordata from its main range.
Therefore, we propose to recognize four subspecies within T. cordata: the type subspecies Tilia cordata subsp. cordata; the Caucasian subclade as the putative subspecies still to be described, the two Siberian subspecies Tilia cordata subsp. sibirica (Fisch. ex Bayer) Pigott and Tilia cordata subsp. nasczokinii (Stepanov) Shekhovts. et Kosterin. comb. et stat nov. (≡ T. nasczokinii Stepanov, 1993, Bot. Zhurn. (Moscow and Leningrad) 78(3): 142).
We can make another taxonomic conclusion from our results. Zhu [51] treated Siberian lindens as Tilia amurensis var. sibirica (Fisch. ex Bayer) Y.C. Zhu, which was accepted in The World Checklist of Vascular Plants [52] and Plants of the World Online [53]. However, T. amurensis appears to be very distantly related to Siberian taxa, so this viewpoint is erroneous and should be rejected.

Author Contributions

Conceptualization, S.V.S. and O.E.K.; methodology, S.V.S. and I.N.S.; software, S.V.S.; formal analysis, S.V.S.; writing—original draft preparation, S.V.S.; writing—review and editing, O.E.K. and I.N.S.; visualization, S.V.S.; funding acquisition, S.V.S. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the State Budget Projects no. FWNR-2022-0022 and no. AAAA-A21-121011290024-5.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Raw sequences obtained in this study were deposited in the SRA archive as the PRJNA811982 BioProject. Scientific collections of the Central Siberian Botanical Garden SB RAS (USU 440537, Herbarium NS, NSK) were used in the work.

Acknowledgments

We are grateful to Gennady V. Vasiliev for performing GBS procedures, to Aleksandra A. Shipova for the help with the bioinformatic analysis, and to Vladimir V. Onishko and Elena V. Ilyina for their great help in the field.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zaripov, R.G.; Pashina, M.V. Tilia cordata Mill. In The Red Book of the Omsk Oblast, 2nd ed.; Sidorov, G.N., Ed.; Omsk Pedagogical State University: Omsk, Russia, 2015; p. 427. [Google Scholar]
  2. Krasnikov, A.A. Tilia cordata Mill. (1768). In The Red Book of the Novosibirsk Oblast. Animals, Plants, and Fungi, 3rd ed.; Marchenko, Y.Y., Ed.; Ministry of Natural Resources and Ecology of Novosibirsk Oblast: Novosibirsk, Russia, 2018; p. 427. [Google Scholar]
  3. Polozhiy, A.V. Tilia cordata Mill. In The Red Book of the Tomsk Oblast; Revushkin, A.S., Ed.; Tomsk University Press: Tomsk, Russia, 2002; p. 342. [Google Scholar]
  4. Krylov, P.N. Linden in the Piedmonts of Kuznetskii Alatau; Tomsk University Press: Tomsk, Russia, 1891; p. 156. [Google Scholar]
  5. Kuminova, A.V. On the modern state of the lime forest in the Kuznetskii Alatau. Proc. Tomsk Univ: 1951, 116, 181–186. [Google Scholar]
  6. Khlonov, Y.P. Linden and Linden Forests in West Siberia; Nauka Press: Novosibirsk, Russia, 1965; p. 40. [Google Scholar]
  7. Krapivkina, E.D. Tilia sibirica Bayer. In The Red Book of the Kemerovo Oblast. Rare and Threatened Species of Plants and Fungi, 2nd ed.; Kupriyanov, A.N., Ed.; Irbis: Kemerovo, Russia, 2012; Volume 1, p. 446. [Google Scholar]
  8. Revyakina, N.V. Tilia sibirica Bayer. In The Red Book of the Kemerovo Oblast. Rare and Threatened Species of Plants and Fungi; IPP Altay: Barnaul, Russia, 2006; Volume 1, p. 186. [Google Scholar]
  9. Krylov, P.N. Flora Sibiriae Occidentalis. Editio Secunda et Completa. Florae Altaicae et Provinciae Tomskiensis. Volumen VIII. Geraniaceae—Cornaceae; Botanical Section of Tomsk Society of Nature Explorers: Tomsk, Russia, 1935; pp. 1819–2087. [Google Scholar]
  10. Mallev, V.P. Family XCIV—Tiliaceae. In Flora URSS.; Shishkin, B.K., Bobrov, B.K., Eds.; Editio Academiae Scientarum URSS: Moscow, Russia, 1949; Volume XV, pp. 1–23. [Google Scholar]
  11. Vlasova, N.V. Family Tiliaceae. In Flora sibirieae Tomus 10, Geraniaceae—Cornaceae; Peshkova, G.A., Ed.; Nauka: Novosibirsk, Russia, 1996; pp. 65–66. [Google Scholar]
  12. Stepanov, N.V. Tilia nasczokinii (Tiliaceae); A new species from the neighbourhood of Krasnoyarsk. Bot. Zhurnal 1993, 78, 137–145. [Google Scholar]
  13. Koropachinskiy, I.Y.; Vstovskaya, T.N. Woody Plants of the Asian Part of Russia; SB RAS Press: Novosibirsk, Russia, 2002; p. 707. [Google Scholar]
  14. Logan, S.A.; Chytrý, M.; Wolff, K. Genetic diversity and demographic history of the Siberian lime (Tilia sibirica). Perspect. Plant Ecol. Evol. Syst. 2018, 33, 9–17. [Google Scholar] [CrossRef] [Green Version]
  15. Semerikova, S.A.; Isakov, I.Y.; Semerikov, V.L. Chloroplast DNA Variation shed light on the history of lime tree (Tilia cordata s. l.) in the eastern part of the range. Russ. J. Genet. 2020, 56, 192–203. [Google Scholar] [CrossRef]
  16. Ekart, A.K.; Larionova, A.Y.; Kravchenko, A.N.; Semerikova, S.A.; Sedaeva, M.I. Genetic structure and differentiation of relict lime populations based on the analysis of variability of nuclear microsatellite loci. Russ. J. Genet. 2021, 57, 920–927. [Google Scholar] [CrossRef]
  17. Tsvelev, N.N. Genus Tilia L. In Conspect of the Flora of Eastern Europe; Tsvelev, N.N., Ed.; KMK Scientific Press: Saint-Petersburg, Russia, 2012; pp. 471–474. [Google Scholar]
  18. Shekhovtsov, S.V.; Shekhovtsova, I.N.; Peltek, S.E. Phylogeny of Siberian species of Carex sect. Vesicariae based on nuclear and plastid markers. Nord. J. Bot. 2012, 30, 343–351. [Google Scholar] [CrossRef]
  19. Wendler, N.; Mascher, M.; Nöh, C.; Himmelbach, A.; Scholz, U.; Ruge-Wehling, B.; Stein, N. Unlocking the secondary gene-pool of barley with next-generation sequencing. Plant Biotechnol. J. 2014, 12, 1122–1131. [Google Scholar] [CrossRef]
  20. Eaton, D.A.R.; Overcast, I. ipyrad: Interactive assembly and analysis of RADseq datasets. Bioinformatics 2020, 36, 2592–2594. [Google Scholar] [CrossRef]
  21. Catchen, J.; Hohenlohe, P.A.; Bassham, S.; Amores, A.; Cresko, W.A. Stacks: An analysis tool set for population genomics. Mol. Ecol. 2013, 22, 3124–3140. [Google Scholar] [CrossRef] [Green Version]
  22. Cariou, M.; Duret, L.; Charlat, S. Is RAD-seq suitable for phylogenetic inference? An in silico assessment and optimization. Ecol. Evol. 2013, 3, 846–852. [Google Scholar] [CrossRef]
  23. Stamatakis, A. RAxML version 8: A tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics 2014, 30, 1312–1313. [Google Scholar] [CrossRef] [PubMed]
  24. Ronquist, F.; Teslenko, M.; Van Der Mark, P.; Ayres, D.L.; Darling, A.; Höhna, S.; Larget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Fineschi, S.; Salvini, D.; Taurchini, D.; Carnevale, S.; Vendramin, G.G. Chloroplast DNA variation of Tilia cordata (Tiliaceae). Can. J. For. Res. 2003, 33, 2503–2508. [Google Scholar] [CrossRef]
  26. Kuminova, A.V. Vegetation Cover of the Altai; Nauka Press: Novosibirsk, Russia, 1960; p. 450. [Google Scholar]
  27. Polozhiy, A.V.; Krapivkina, E.D. Relics of the Tertiary Broad-leaved Forests in the Flora of Siberia; Tomsk University Press: Tomsk, Russia, 1985; p. 158. [Google Scholar]
  28. Lashchinskiy, N.N.; Lashchinskaya, N.V. Higher vascular plants. In Flora of the Salair Ridge; Lashchinskiy, N.N., Ed.; GEO: Novosibirsk, Russia, 2007; pp. 155–250. [Google Scholar]
  29. Peshkova, G.A. On the accordance in development of mesophilous and xerophilous florae of the Baikalian Siberia in the Cenozoi. In The History of Vegetation Cover of North Asia; Malyshev, L.I., Ed.; Nauka Press: Novosibirsk, Russia, 1984; pp. 144–156. [Google Scholar]
  30. Arkhipov, S.A.; Volkova, V.S. Geological History, Landscapes and Climates of the Pleistocene in West Siberia; IGiG SO RAN: Novosibirsk, Russia, 1994; p. 106. [Google Scholar]
  31. Binney, H.; Edwards, M.; Macias-Fauria, M.; Lozhkin, A.; Anderson, P.; Kaplan, J.O.; Andreev, A.; Bezrukova, E.; Blyakharchuk, T.; Jankovska, V. Vegetation of Eurasia from the last glacial maximum to present: Key biogeographic patterns. Quat. Sci. Rev. 2017, 157, 80–97. [Google Scholar] [CrossRef]
  32. Tarasov, P.E.; Volkova, V.S.; Webb, T.; Guiot, J.; Andreev, A.A.; Bezusko, L.G.; Bezusko, T.V.; Bykova, G.V.; Dorofeyuk, N.I.; Kvavadze, E.V.; et al. Last glacial maximum biomes reconstructed from pollen and plant macrofossil data from northern Eurasia. J. Biogeogr. 2000, 27, 609–620. [Google Scholar] [CrossRef] [Green Version]
  33. Amelin, I.I.; Blyakharchuk, T.A. Distribution of Siberian linden (Tilia sibirica Bayer) in Kemerovo oblast. Vestn. Tomsk. Gos. Univ. Biol. 2016, 2, 30–52. [Google Scholar] [CrossRef] [Green Version]
  34. Belova, V.A. Vegetation and Climate of the Late Cenozoic of the Southern Eastern Siberia; Nauka Press: Novosibirsk, Russia, 1985; p. 158. [Google Scholar]
  35. Volkova, V.S.; Belova, V.A. On a role of broad-leaved trees in vegetation of the Holocene in Siberia. In Paleopalynology of Siberia. Papers of the Soviet Palynologists to the V International Conference on Palynology (Cambridge, England, 1980); Saks, V.N., Ed.; Nauka Press: Moscow, Russia, 1980; pp. 112–117. [Google Scholar]
  36. Dubatolov, V.; Kosterin, O. Nemoral species of Lepidoptera (Insecta) in Siberia: A novel view on their history and the timing of their range disjunctions. Entomol. Fenn. 2000, 11, 141–166. [Google Scholar] [CrossRef] [Green Version]
  37. Bolikhovskaya, N.S.; Derevyanko, A.P.; Shun’kov, M.V. The fossil palynoflora, geological age, and climatostratigraphy of the earliest deposits of the Karama site (Early Paleolithic, Altai Mountains). Paleontol. J. 2006, 40, S558–S566. [Google Scholar] [CrossRef]
  38. Reverdatto, V.V. Main aspects of development of the post-Tertiary flora of Siberia. Sov. Bot. 1940, 2, 48–60. [Google Scholar]
  39. Grosset, G.E. The age of thermophylous relic flora of the broad-leaved forests of the Russian Plain, South Ural and Siberia with respect to the paleography of the Pleistocene and Holocene. Bulleten’ MOIP Biol. Div. 1962, 17, 94–109. [Google Scholar]
  40. Khlonov, Y.P. Siberian linden—Tilia sibirica Bayer. In Biological Foundations of Protection of Rare and Threatened Siberian Plants; Sobolevskaya, K.A., Ed.; Nauka: Novosibirsk, Russia, 1990; pp. 58–80. [Google Scholar]
  41. Novák, J.; Trotsiuk, V.; Sýkora, O.; Svoboda, M.; Chytrý, M. Ecology of Tilia sibirica in a continental hemiboreal forest, southern Siberia: An analogue of a glacial refugium of broad-leaved temperate trees? Holocene 2014, 24, 908–918. [Google Scholar] [CrossRef]
  42. Sedelnikov, V.P.; Banaev, E.V.; Chindyaeva, L.N. CSBG and the landscape architecture of Novosibirsk Scientific Centre. In The Nature of Akademgorodok, 50 Years Later; Zhimulev, I.F., Ed.; SB RAS Press: Novosibirsk, Russia, 2007; pp. 32–40. [Google Scholar]
  43. Krylov, G.V.; Salatova, N.G. Landscaping of Cities and Towns of West Siberia; Vnitoles: Novosibirsk, Russia, 1955; p. 56. [Google Scholar]
  44. Lashchinskiy, N.N.; Makunina, N.I.; Mal’tseva, T.V. A sketch of vegetation. In Ecosystem Dynamics of the Novosibirsk Academy Town; Zhimulev, I.F., Ed.; SB RAS Press: Novosibirsk, Russia, 2013; pp. 85–104. [Google Scholar]
  45. Williams, D.M.; Kociolek, J.P. Pursuit of a natural classification of diatoms: History, monophyly and the rejection of paraphyletic taxa. Eur. J. Phycol. 2007, 42, 313–319. [Google Scholar] [CrossRef]
  46. Moonlight, P.W.; Ardi, W.H.; Padilla, L.A.; Chung, K.-F.; Fuller, D.; Girmansyah, D.; Hollands, R.; Jara-Muñoz, A.; Kiew, R.; Leong, W.-C.; et al. Dividing and conquering the fastest-growing genus: Towards a natural sectional classification of the mega-diverse genus Begonia (Begoniaceae). Taxon 2018, 67, 267–323. [Google Scholar] [CrossRef]
  47. Mayr, E. Of what use are subspecies? Auk 1982, 99, 593–595. [Google Scholar]
  48. Galushko, A.I. Flora of the Northern Caucasus; Rostov University Press: Rostov, Russia, 1980; Volume 2, 352p. [Google Scholar]
  49. Zernov, A.S. Flora of the Northwestern Caucasus; KMK Scientific Press: Moscow, Russia, 2006; 664p. [Google Scholar]
  50. Murtazaliev, R.A. Conspect of the Flora of Dagestan; Epokha: Makhachkala, Russia, 2009; Volume 1, 320p. [Google Scholar]
  51. Zhu, Y.C. (Ed.) Plantae Medicinales China Boreali-Orientalis; Heilongjiang Science and Technology Publishing House: Harbin, China, 1989; 1300p. [Google Scholar]
  52. Govaerts, R.; Lughadha, E.N.; Black, N.; Turner, R.; Paton, A. The World Checklist of Vascular Plants, a continuously updated resource for exploring global plant diversity. Sci. Data 2021, 8, 215. [Google Scholar] [CrossRef]
  53. Plants of the World Online. Available online: http://powo.science.kew.org (accessed on 1 March 2022).
Diversity 14 00256 g001 550
Figure 1. Sampling locations of the studied Tilia specimens. Location numbers in circles refer to Table 1. Distributions of T. sibirica and T. nasczokinii are too small so they are only represented by location circles (locations 5, 6 and 7, 8, respectively). Distribution of T. cordata is shaded in green; distribution of T. taquetii and T. amurensis is shaded in red. Arrows indicate putative dispersal routes of T. cordata after the LGM.
Figure 1. Sampling locations of the studied Tilia specimens. Location numbers in circles refer to Table 1. Distributions of T. sibirica and T. nasczokinii are too small so they are only represented by location circles (locations 5, 6 and 7, 8, respectively). Distribution of T. cordata is shaded in green; distribution of T. taquetii and T. amurensis is shaded in red. Arrows indicate putative dispersal routes of T. cordata after the LGM.
Diversity 14 00256 g001
Diversity 14 00256 g002 550

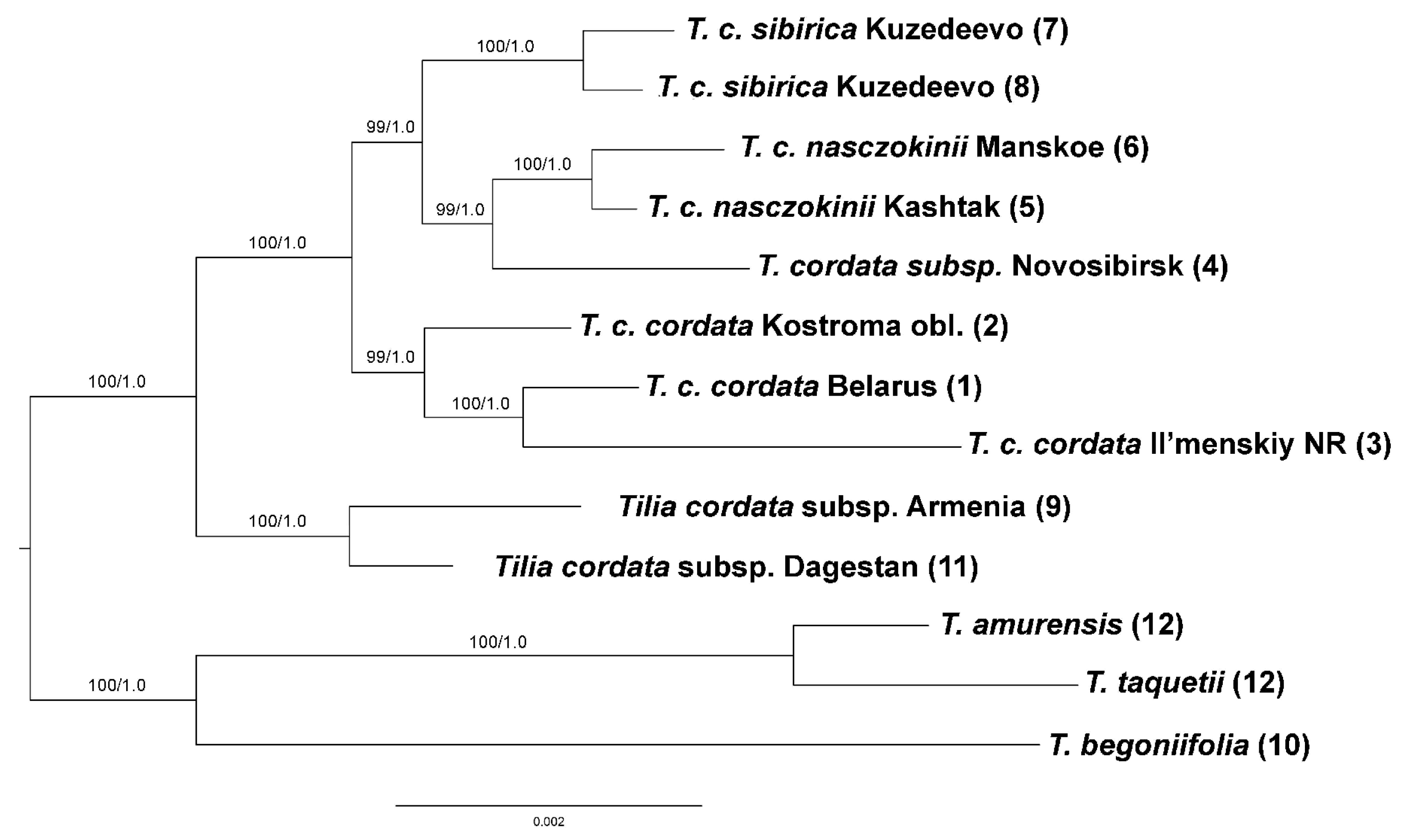

Figure 2. Phylogenetic tree of the studied specimens constructed using the ML method. Numbers in brackets after specimen names refer to location numbers (Figure 1, Table 1). Numbers at the branches indicate ML bootstrap support/Bayesian bootstrap support.
Figure 2. Phylogenetic tree of the studied specimens constructed using the ML method. Numbers in brackets after specimen names refer to location numbers (Figure 1, Table 1). Numbers at the branches indicate ML bootstrap support/Bayesian bootstrap support.
Diversity 14 00256 g002
Table
Table 1. Studied specimens. Numbers refer to Figure 1. Voucher numbers are given in parentheses.
Table 1. Studied specimens. Numbers refer to Figure 1. Voucher numbers are given in parentheses.
No.SpeciesLocation
1T. cordata cordataBelarus, Krichev Natural Reserve, mixed forest, N53.643, E31.883 (NSK0089748)
2-//-Russia, Kostroma Oblast, Sudislavl’ District, Sledovo village, N57.76333 E41.2518368, 137 m a.s.l. (NSK0089749)
3-//-Russia, Chelyabinsk Oblast, Il’menskiy State Nature Reserve, slope of the Lake Bol’shoy Tatkul’ SW bank, mixed forest, N55.1893, E60.2870 (NSK0089750))
4Tilia cordata subsp.Russia, Novosibirsk Oblast, Novosibirsk Academy Town, a lingen alley at Academician Lavrentyev avenue 10, N54.84788, E83.10825 (NSK0089751)
5T. cordata nasczokiniiRussia, Krasnoyarskiy Kray, Krasnoyarsk, Kashtak Valley (the type locality of Tilia nasczokini), N55.9575, E92.7793 (NSK0089752)
6-//-Russia, Krasnoyarskiy Kray, Krasnoyarsk District, 3 km NE of Ust’-Mana village, Manskoe Zaymishche terrain, N55.9643, E92.5029 (NSK0089753)
7T. cordata sibiricaRussia, Kemerovo Oblast, Novokuznetsk District, 4.5 km SE of Kuzedeevo village, Novokuznetsk District, a ridge along the Kondoma River right bank, N53.3204, E87.2533 (NSK0089754)
8-//-Russia, Kemerovo Oblast, 6 km ESE of Kuzedeevo village, the interfluve of the Bol’shoy and Malyy Tesh Rivers, N53.3281, E87.2806 (NSK0089755)
9Tilia cordata undescr. subsp.Armenia, Lori Province, Chkalov settlement, N40.928 E 44.626 (NSK0089756)
10T. begoniifoliaArmenia, Tavush Province, Gosh village, N40.729, E45.002 (NSK0089757)
11Tilia cordata undescr. subsp.Russia, Dagestan Republic, Tabasaran District, 2.8 km WSW Kuzhnik village, beach forest margin, N41.9445 E47.7908 (NSK0089758)
12T. amurensisRussia, Khabarovskiy kray, Khabarovsk District, Bol’shekhekhtsyrskiy Nature Reserve, N48.88 E134.76 (NSK0089759)
-//-T. taquetii-//- (NSK0089760)
