DNA Barcoding of Marine Mollusks Associated with Corallina officinalis Turfs in Southern Istria (Adriatic Sea)

by
Moira Buršić
1,
Ljiljana Iveša
2,
Andrej Jaklin
2,
Milvana Arko Pijevac
3,
Mladen Kučinić
4,
Mauro Štifanić
1,
Lucija Neal
5 and
Branka Bruvo Mađarić
6,*
1
Faculty of Natural Sciences, Juraj Dobrila University of Pula, Zagrebačka 30, 52100 Pula, Croatia
2
Center for Marine Research, Ruđer Bošković Institute, G. Paliage 5, 52210 Rovinj, Croatia
3
Natural History Museum Rijeka, Lorenzov Prolaz 1, 51000 Rijeka, Croatia
4
Department of Biology, Faculty of Science, University of Zagreb, Rooseveltov trg 6, 10000 Zagreb, Croatia
5
Kaplan International College, Moulsecoomb Campus, University of Brighton, Watts Building, Lewes Rd., Brighton BN2 4GJ, UK
6
Molecular Biology Division, Ruđer Bošković Institute, Bijenička 54, 10000 Zagreb, Croatia
*
Author to whom correspondence should be addressed.
Diversity 2021, 13(5), 196; https://doi.org/10.3390/d13050196
Submission received: 1 March 2021 / Revised: 31 March 2021 / Accepted: 29 April 2021 / Published: 30 April 2021
(This article belongs to the Special Issue Molecular Biodiversity of Marine Invertebrates)
Browse Figures
Versions Notes

Abstract

:
Presence of mollusk assemblages was studied within red coralligenous algae Corallina officinalis L. along the southern Istrian coast. C. officinalis turfs can be considered a biodiversity reservoir, as they shelter numerous invertebrate species. The aim of this study was to identify mollusk species within these settlements using DNA barcoding as a method for detailed identification of mollusks. Nine locations and 18 localities with algal coverage range above 90% were chosen at four research areas. From 54 collected samples of C. officinalis turfs, a total of 46 mollusk species were identified. Molecular methods helped identify 16 gastropod, 14 bivalve and one polyplacophoran species. COI sequences for two bivalve species (Musculus cf. costulatus (Risso, 1826) and Gregariella semigranata (Reeve, 1858)) and seven gastropod species (Megastomia winfriedi Peñas & Rolán, 1999, Eatonina sp. Thiele, 1912, Eatonina cossurae (Calcara, 1841), Crisilla cf. maculata (Monterosato, 1869), Alvania cf. carinata (da Costa, 1778), Vitreolina antiflexa (Monterosato, 1884) and Odostomia plicata (Montagu, 1803)) represent new BINs in BOLD database. This study contributes to new findings related to the high biodiversity of mollusks associated with widespread C. officinalis settlements along the southern coastal area of Istria.

1. Introduction

Corallina officinalis L. is an encrusting red alga, globally widely distributed in the temperate zone where it forms dense settlements in the intertidal area. It modifies the environment through its characteristic structure and is an ideal example of how algae affect the composition and interaction of organisms within their settlements [1]. It shelters many macrofaunal groups from wave action, predation, and stress from desiccation in the intertidal area [2,3,4]. Based on the mapping results of its habitats along the eastern Adriatic coast [5], the coastal area of the Adriatic Sea is a suitable location for Corallina’s settlements. Looking on a smaller scale, along the western Istrian coast, the same continuous widespread distribution is recorded for Corallina officinalis and Ellisolandia elongata (J.Ellis & Solander) K.R.Hind & G.W.Saunders, with C. officinalis dominating in areas with no anthropogenic impact [6].
Changes in the structure and composition of macrofauna found in C. officinalis turfs have been studied worldwide [2,7,8,9,10,11]. All previous data showed high abundance and variety of invertebrates present. The most common taxonomic groups found were polychaetes, crustaceans (amphipods, isopods, tanaidaceans, decapods), pycnogonids and mollusks, mostly represented by bivalves and gastropods [2,8,12,13,14,15,16,17,18,19,20,21,22,23,24]. Notably, most of the invertebrate specimens recorded in C. officinalis turfs were present as juvenile stages, making the identification according to morphological features very complex [2,8,12,13,14,15,16,17,18,19,20,21,22,23,24].
DNA barcoding [25] can be very useful in identifying specific taxonomic groups or developmental stages of various invertebrates in situations where species determination based on morphology is extremely problematic [26,27], as well as in cases where a damaged organism is present or just a tissue fragment is available [28]. DNA barcoding of marine organisms has been ongoing around the world for more than a decade to distinguish cryptic and invasive species as well as to help explain different puzzling life cycles, making it a convenient tool for assessment and conservation of marine biodiversity [29,30,31,32]. However, it has not yet been used in studies of invertebrate fauna within C. officinalis turfs, and this paper presents how sequence data of the mitochondrial cox-1 gene (i.e., the barcode region, mtDNA COI-5P) can be used to confirm or eventually correct morphological identifications for such problematic specimens. Additionally, this study is one of the first examples of barcode methodology usage for Croatian marine mollusks. We further highlight the importance of molecular methods in marine invertebrates identification and supplementing existing DNA barcode databases such as BOLD database with valid sequence data.

2. Materials and Methods

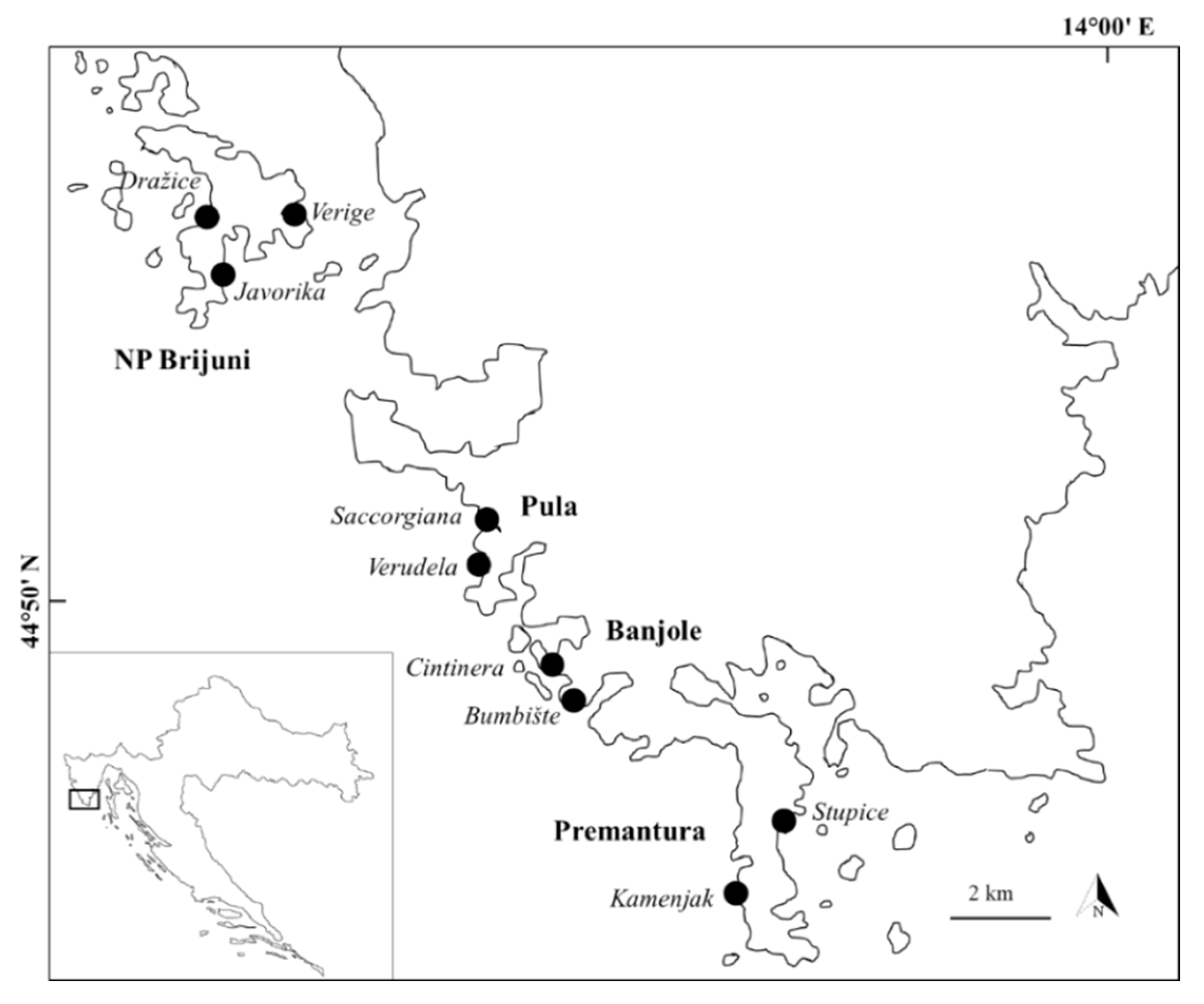

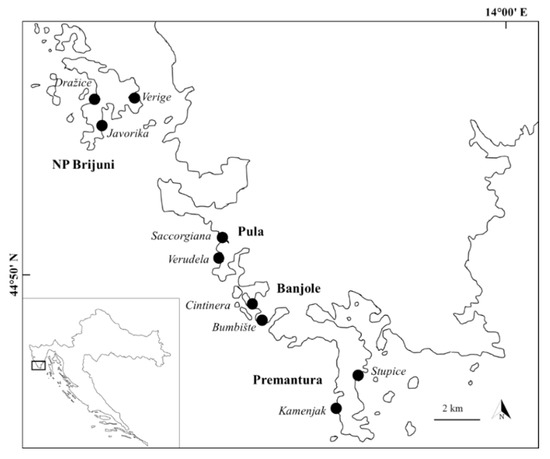

The research was carried out in the northeastern part of the Adriatic Sea, in the coastal area of southern Istria and Brijuni National Park. Intertidal area of southern Istria is dominated by carbonate sedimentary rocks which represents a desirable substrate type for the settlements of the red alga Corallina officinalis [33]. Sampling was performed in the summer period of 2018, between June and August, in four different sampling areas named Pula, Banjole, Premantura and NP Brijuni (Brijuni National Park). Each sampling area had two or, in case of NP Brijuni, three sampling localities with a total of nine sampling locations indicated in Figure 1.
Prior to sampling of C. officinalis, mapping of its presence along the southern Istrian coast was performed. The density of the algae settlement was estimated based on the percentage of algal coverage in the coastal belt about 50 cm wide and the algal coverage for all sampling localities chosen was above 90%. Algae sampling was performed quantitatively by scraping off with a hammer and chisel within three randomly positioned replicate quadrats 5 × 5 cm in size. A total of 54 samples were collected and analyzed. In order to prevent and reduce the loss of mollusks associated with the red algae, sampling was performed during low tide while the algae were completely out of water. Algae samples were rinsed in the laboratory using a 500 μm mesh size sieve and each branch was carefully inspected under a stereomicroscope. Mollusks were sorted, counted and identified to the lowest possible taxonomic rank based on morphology according to available literature [34,35,36,37,38,39,40,41,42]. Morphological identifications were conducted by taxonomists specialized for marine mollusks, particularly bivalves and gastropods, and specimens were compared with the marine mollusks collection of the Natural History Museum Rijeka (Croatia). After identification, each specimen was preserved in 96% ethanol for further processing. The World Register of Marine Species was used to check all species names [43]. Since identification according to morphological features was not possible for some specimens, DNA barcoding was implemented.
Mollusks that were sampled from C. officinalis turfs were only a couple of millimeters in size, so genomic DNA was extracted from the entire specimen using the QIAamp DNA Micro Kit, according to the manufacturer’s specifications. Another specimen from the same sampling location and with the same morphological characteristics was kept as a paravoucher in the Invertebrates DNA Barcode collection of the Juraj Dobrila University of Pula. Elution was done in two stages, first with 50 µL elution buffer and second with 100 µL elution buffer. NanoDrop spectrophotometer was used to check the quantity of extracted DNA.
Full-length COI-5P DNA barcodes were amplified using primer sets LCO1490/HCO2198 [44] and jgLCO1490/jgHCO2198 [45]. Even though additional primer sets were initially tested [46,47], all DNA barcodes were successfully amplified with the use of jgLCO1490/jgHCO2198 primer set with the exception of the specimens identified as Mytilus galloprovincialis which were amplified with LCO1490/HCO2198 primer set. 20 μL polymerase chain reactions (PCR) mixture contained 1× DreamTaqTM Reaction Buffer (containing 2 mM MgCl2, Thermo Scientific, Waltham, Massachusetts, USA), 0.2 mM dNTP mix (Qiagen), 0.5 μM of each primer, 1.0 U DreamTaq polymerase (Thermo Scientific) and 3 μL of DNA eluate (10-fold dilution of the second eluate). PCR cycling conditions comprised an initial denaturation step (95 °C for 1 min) followed by 35 cycles of denaturation at 95 °C for 45 s, annealing at 48 °C for 45 s and elongation at 72 °C for 45 s and a final extension step at 72 °C for 7 min. Quality and quantity of PCR products were checked by electrophoresis on 1% agarose gel stained with ethidium bromide. Enzymatic cleanup of PCR products was done using Exonuclease I and Antarctic Phosphatase (AnP) according to the manufacturer’s specifications (New England BioLabs—NEB). Bidirectional sequencing was performed by Macrogen Inc. sequencing service (Amsterdam, Netherlands) using the same amplification primers as for the PCR reaction. Sequences were edited and curated using the programs BioEdit v.7.0.5.3. [48] and Geneious Prime v.11.0.3 + 7 (http://www.geneious.com, accessed on 10 January 2021) [49]. EMBOSS Sixpack (https://www.ebi.ac.uk/Tools/st/emboss_sixpack/, accessed on 25 January 2021) [50] was used to check the open reading frame. All DNA sequences were submitted to both the Barcode of Life Data Systems—BOLD [51] and NCBI GenBank [52]. BOLD Process IDs, GenBank Accession numbers and Inventory numbers are given in Table S1.
BOLD identification tool (http://www.boldsystems.org/index.php/IDS_OpenIdEngine, accessed on 10 February 2021) and BLAST (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 10 February 2021) were used for initial comparison of obtained DNA sequences with sequences available in BOLD and NCBI databases and their classification into putative species or higher taxonomic categories, depending on the obtained genetic distances (Kimura-2-P, K2P, calculated in MEGA-X v.10.0.5 [53]. A threshold of 3% was considered as the most commonly used cut-off value for species designations for marine mollusks [54,55,56,57], while for the specimens with lower similarities a tree-based identification in BOLD was performed (Taxon ID NJ tree tool; K2P distances; pairwise deletion) so that the specimen could be classified into a genus, family or higher taxonomic rank.
Several algorithms were employed to assign specimens to particular species (i.e., operational taxonomic units, OTUs). Firstly, Barcode Index Numbers (BINs) were allocated to specimens using REfined Single Linkage Analysis (RESL) in BOLD [58]. In addition, species delineation methods (SDMs) bPTP [59] (https://species.h-its.org/ptp/, accessed on 22 March 2021), ASAP [60] (https://bioinfo.mnhn.fr/abi/public/asap/asapweb.html, accessed on 22 March 2021) and ABGD [61] (https://bioinfo.mnhn.fr/abi/public/abgd/, accessed on 22 March 2021) (all under default parameters) were performed to confirm the initial classification of specimens. Depending on the availability of data, datasets used in species delineations consisted of conspecific, congeneric and/or confamiliar sequences withdrawn from BOLD database of public records. MAFFT v.7 [62] (https://mafft.cbrc.jp/alignment/server/index.html, accessed on 24 March 2021) was used for multiple nucleotide sequence alignments (alignment datasets in Supplementary File S2). As input for bPTP, maximum likelihood (ML) trees were constructed on PhyML 3.0 web-server [63] (http://www.atgc-montpellier.fr/phyml/, accessed on 25 March 2021), with automatic model selection by SMS determined through AIC selection criterion [64] (ML trees in Supplementary File S3).
The final decision for each specimen identification was made by taking into consideration a combination of morphological features, BLAST and BOLD similarity results, BIN-RESL assignments and the results of SDMs.

3. Results

A total of 14,757 individual mollusks were isolated from C. officinalis turfs collected along the southern Istrian coast and identified to the species level wherever possible. Identification according to their morphological features resulted in 46 species, of which 26 gastropods, 19 bivalves and one polyplacophoran (Table 1 and Table 2). Detailed information about species distribution for each investigated sampling location are being prepared for publication in a separate article. For 69% of specimens subjected to DNA barcoding, COI-barcode region was successfully amplified. Out of 54 mitochondrial cox-1 sequences obtained, 24 sequences belonged to gastropods, 29 sequences to bivalves and one sequence to a polyplacophoran. Certain species were represented with more than one specimen which was confirmed with additional analyses such as calculation of inter- and intraspecific genetic p-distances of the mitochondrial cytochrome oxidase I gene fragments (Tables S4–S6) as well as BIN-RESL, bPTP, ASAP and ABGD species delineation methods (SDMs) (Table 1). As a result of these analyses, the number of species recorded through DNA barcoding adds up to 31 (16 species for gastropods, 14 species for bivalves and one polyplacophoran). Several individuals were not successfully barcoded, so the total number of barcoded species is 33% lower than the number of species recorded based on morphological features (31 barcoded species compared to 46 morphologically identified species).
Table 1 shows overall results of mollusks identification based on morphological features compared with the identification results based on similarity of obtained sequences with the sequences present in both databases (BOLD and GenBank), as well as the results of BIN-RESL and SDMs.
DNA barcoding confirmed species identification based on morphology for 18 specimens, which makes 33% of the sequences. For eight specimens, making up 15% of the sequences, the original morphological identification was refuted after comparison with the sequences available in the database. For these specimens, high similarity with the available sequences and the results from SDMs were crucial in correcting the original morphological determination. The gastropods in question were Steromphala adriatica, Gibbula cf. turbinoides and Ocenebra cf. edwardsii which were originally identified as cf. Gibbula ardens, cf. Gibbula ardens, and Muricopsis cristata, respectively. One of the specimens originally identified as cf. Gibbula ardens had 99.68% similarity with the Steromphala adriatica sequence, another one had 96.46% similarity with Gibbula turbinoides sequence, while a specimen originally identified as Muricopsis cristata had 100% similarity with Ocenebra cf. edwardsii (Table 2). SDMs confirmed the assignments for S. adriatica and M. cristata, while for the third specimen the results of SDMs were not in concordance, and therefore this specimen was designated as G. cf. turbinoides. Bivalves in question were Lasaea cf. rubra, Mytilus galloprovincialis, Striarca lactea and Chama gryphoides. For the specimens originally identified as Mytilaster sp. and Mytilaster minimus it was later concluded that those specimens are in fact Mytilus galloprovincialis since their sequences had a 99% similarity with the M. galloprovincialis sequence, further confirmed by SDMs. The species Striarca lacteal and Chama gryphoides were initially identified as Arca tetragona and Ostrea sp., respectively. A specimen originally identified as Arca tetragona had 98.62% similarity with the Striarca lactea sequence, while a specimen originally identified as Ostrea sp. had 99.85% similarity with the Chama gryphoides sequence, also confirmed by SDMs. A specimen initially morphologically identified as Lasaea adansoni was after analyses corrected to be Lasaea cf. rubra (Table 2).
For 52% of the specimens, DNA barcoding did not serve in identification to the species level due to the lack of available sequences in the BOLD and GenBank databases. In cases where morphological identification was also not reliable, the specimens were identified to the family or genus level with the help of a tree-based identification in the BOLD database. On the other hand, in cases of reliable morphological identification, newly sequenced specimens were submitted to the BOLD database as new species. In our study, there were nine such species, i.e., seven gastropod species and two bivalve species that represented new additions to the BOLD database. Gastropods were Megastomia winfriedi, Eatonina sp., Eatonina cossurae, Crisilla cf. maculata, Alvania cf. carinata, Vitreolina antiflexa and Odostomia plicata, and bivalves were Musculus cf. costulatus and Gregariella semigranata (Figure 2, Table 2).
In addition, the calculation of intraspecific and interspecific uncorrected pairwise distances (p-distances) was performed for the specimens that were assigned to same species and/or same genera or families, in order to check the existence of the 3% similarity threshold, which is usually taken as the cut-off value for species separation in mollusks. Along with that, the existence of the barcoding gap was also checked. For gastropods, intraspecific p-distances calculation was conducted for five species which were represented with more than one individual. These are Crisilla cf. maculata, Phorcus turbinatus, Gibbula cf. turbinoides, Megastomia winfriedi and Rissoella sp. Table S4 shows that the maximum recorded intraspecific p-distance value was 2.32% for the species Rissoella sp., also within the 3% threshold.
Interspecific genetic p-distances for gastropods ranged from 14% to 35%. Certain families were represented by several species, so p-distance values within the family, and in some cases within the genus, could also be recorded. For the family Rissoidae, which was represented with the genera Crisilla and Alvania, p-distance interspecific values ranged from 18% to 24%. For the family Cingulopsidae and its only genus Eatonina, p-distance value was 24%. Interspecific p-distance values within the family Trochidae (represented by the genera Phorcus, Gibbula and Steromphala) ranged from 14% to 16%, while for the family Pyramidellidae (represented by the genera Megastomia and Odostomia) this value was 30%.
For bivalves intraspecific p-distances calculation was performed for five species which were represented with more than one specimen. Species in question were Musculus cf. costulatus, Mytilus galloprovincialis, two species from the Veneridae family and Cardita calyculata. Tables S5 and S6 show that the 3% threshold for intraspecific genetic distance was also met, with a maximum recorded intraspecific p-distance value of 2.72% for Mytilus galloprovincialis.
Interspecific genetic p-distances for bivalves ranged from 18% to 49%. Mytilidae and Veneridae were represented by several specimens, so interspecific p-distance values within these families could also be calculated. For Mytilidae, which was represented with the genera Musculus, Mytilus, Gregariella and Lithophaga, values ranged from 21% to 40%. Interspecific p-distance values for four species within the family Veneridae ranged from 18% to 36%.
The obtained ranges of intra- and interspecific p-distances between the analyzed specimens of gastropods and bivalves do not overlap, thus corroborating the existence of the barcoding gap and further supporting species identification.
As a summary of all taxa recorded within our study, a list is provided in Table 2 with detailed information on the type of identification used (i.e., based on morphology and/or DNA barcoding). It is noteworthy to mention that twenty-two species were newly recorded for northern Adriatic Corallina turfs.

4. Discussion

Although molecular methods for specimen identification existed before the use of DNA barcoding, the method as such offers several major advantages. The most important advantage DNA barcoding brings is a form of standardization which allows comparison and verification of data between researchers [65]. However, the use of DNA barcoding was not intended as a method that will replace the very important and necessary taxonomy but as an addition that will complement it, which has shown to be helpful in many cases [30]. DNA barcoding has proven to be a useful tool in identifying mollusks. Given that in our study juvenile mollusks of a maximum body size up to only a few millimeters were predominant, determination according to morphological features was a significant challenge in most cases. Mollusks were often documented as a problematic group for DNA amplification [66], with various success rates of COI region amplification (e.g., 43% for museum collection samples [67], 52% for mollusks collected in Canada [66] and 59% for samples of marine mollusks collected in the North Sea [29]. Therefore, the recorded success of amplified COI-barcode regions for 69% of specimens subjected to DNA barcoding in our study may be considered a satisfactory result. There are several suggested explanations for such variable success rates of DNA amplification for mollusks. Variations in mucopolysaccharide levels can often reduce the success of PCR amplification [68]. Polysaccharides present in tissue and mucus are considered a major problem because they co-precipitate with the DNA molecule and inhibit DNA polymerase activity [67]. This is most probably the main reason why the results of our study indicate better amplification when a 10-fold dilution of the second DNA eluate was used in the PCR reaction. In addition, living gastropods tend to retract and seal their shell with the operculum, which prevents the penetration of alcohol into the tissue, preventing proper fixation and conservation of the tissue, and consequently causing the degradation of genomic DNA which can hinder the amplification of the barcoding fragment. This is most likely explanation for the lack of sample amplification for some specimens in our study. Galindo et al. [69] suggested that a microwave oven can be used when extracting tissue from gastropod shells, since short exposure to the wavelength used by these devices facilitates tissue extraction, while at the same time the quality and quantity of the obtained DNA is not impaired. Another benefit of this method is that the intact gastropod shell can be preserved which is necessary for correct taxonomic identification and for proper storage as a barcode voucher.
The traditional approach for validating putative species using the DNA barcoding method is based on comparison of intra- and interspecific genetic distances [25,70]. There is much discussion in literature about which threshold is most appropriate, however data vary depending on the taxonomic group and species being investigated. Sweeney et al. [71] suggest that this range should be 2–4% for invertebrates, while the 3% threshold is frequently mentioned for marine mollusks [54,55,56,57]. Besides this, the existence of a clear barcoding gap, which is defined as ten times the ratio between the average interspecific and intraspecific distances [72], must also be taken into account. Another approach based on genetic distances relies on the absence of overlap between the values of the lowest interspecies variation and the highest intraspecific divergence [73]. However, many recent studies report great variation of intra- vs. interspecific distances in molluscan taxa [74,75,76,77,78], indicating that any a priori set threshold must be taken with caution and checked by alternative approaches for molecular identification.
A range of single-locus species delimitation methods are available which differ from each other in a number of aspects and which all take into account more than just the a priori set sequence distance thresholds, but instead employ various algorithms to identify minimal phylogenetic units (OTUs) within the phylogenetic species concept [79,80,81,82,83,84,85]. Molecular species delimitations have also been recently used in various studies of marine mollusks, mostly as part of integrative taxonomic approaches to species identification (e.g., [55,56,57], to mention just a few).
In our study, several methods were employed to classify questionable specimens as a particular species. For the calculation of COI genetic distances, the aforementioned threshold of 3% intraspecific variability was taken into account, as well as the barcoding gap. The average recorded intraspecific variability for gastropods was 1.25% (range 0–2.32%) and for bivalves 0.7% (range 0–2.72%), while the average interspecific variability for gastropods was 28% (range 14–35%) and for bivalves 38% (range 18–49%). The obtained intra- and interspecific p-distance values are comparable to range of values recorded in previous studies of mollusks where distances from 0% to 4.1% were obtained for intraspecific variability and from 4.3% to 34.4% for genetic divergence between different species [86,87,88]. Furthermore, our results confirm the existence of the barcoding gap, and show that there is no intra-/interspecies distance overlap for both gastropods and bivalves, even though this finding must be interpreted carefully since only few individuals per species were sampled.
Besides the obtained values of intraspecific variability and interspecific divergence, species delimitation methods were employed that allowed us the assignment of questionable specimens to particular species. This was precisely the case for Mytilus galloprovincialis, which was mostly represented by juvenile forms with only a few adult specimens. Juveniles are morphologically very similar to Mytilaster minimus, which had a controversial taxonomic history with many synonyms and subspecies variations [89]. However, based on evaluation of genetic distances and the results of SDMs, it was concluded that all newly sequenced specimens belong to the species Mytilus galloprovincialis. In addition to this species, a similar dilemma also occurred for specimens of Musculus costulatus and specimens belonging to family Veneridae, whose morphological features were not sufficiently informative. Integration of employed molecular methods ultimately allowed their classification to particular OTUs with a significant level of confidence, although the specimens of Veneridae could not be identified to species level due to lack of data in databases.
Correct specimen identification using the DNA barcoding method requires a comprehensive database containing sequences of the same species that is being identified. The lack of reference sequences was precisely the reason why certain specimens from our study were not identified to the species level. In particular, this applies to one gastropod species that was uploaded to BOLD simply as Gastropoda (BOLD Process ID CROMI007-19 and GenBank Accession number MT920137). According to morphology, these specimens were identified as Sinezona cingulata, which is not currently present in the BOLD database and GenBank. However, since the similarity of our specimen’s sequence with the only congeneric species present in GenBank (S. confusa [90]) was below 65%, we did not make a new entry for BOLD database under the name S. cingulata. However, in some cases it was possible to identify the specimen up to the genus or family level (as in the case of Veneridae specimens). Yet another category are several specimens for which incongruent results of species delimitation methods were obtained, but nevertheless we were confident in our identification according to morphological features. This applies for example to Cardita calyculata and Bittium reticulatum. When various developmental stages were present, such as in the case of Cardita calyculata, we were able to identify the specimens that already begun having morphological features crucial for identification (Figure 3). Juvenile mollusks are often morphologically very different from adult individuals, so DNA barcoding is increasingly used by taxonomists as a tool to avoid confusion and misidentification of specimens. Molecular identification of juvenile individuals can help in understanding the life cycle of individual species [26] and in the early detection of invasive species [91].
In cases of taxa which most probably represent species complexes or cryptic species, which are quite common in mollusks [75,76,87,89], species delimitation methods and BIN-RESL can efficiently point to these taxonomic problems. Several instances of such complex taxa have also been noticed in this study, through appearance of the same species names in two (or even several) clearly separate BINs. e.g., Ocenebra edwardsi, Gibbula turbinoides and Striarca lactaea appear in two separate BINs each, while the most striking example is Mytilus galloprovinciallis which is present in as much as 21 BINs in BOLD database. Another quite often encountered issue in BOLD is related to cases of (most probably) erroneous initial morphological determinations which remain unnoticed and which result in discordant BINs in BOLD database, i.e., BINs composed of specimens with different species names. In our work we noticed two cases of such discordance, namely BINs containing our specimens of S. adriatica and M. galloprovincialis.
Existing database sequences are therefore a key part of DNA barcoding for specimen identification. A reliable database of verified sequences is necessary to compare newly obtained sequences and possibly identify questionable individuals [92]. Without reference sequences with vouchers whose authenticity and accuracy of taxonomic identification have been confirmed by qualified expert taxonomists, it is not possible to exploit the full potential of DNA barcoding. However, data entry into the BOLD database far exceeds the speed of their verification, so this verification process is the bottleneck of the entire initiative [92]. Nevertheless, this situation is improving daily since many researchers are contributing to the BOLD database.
A comparison of mollusk species isolated from C. officinalis turfs with previously recorded species conducted throughout the world confirms this algal settlement as a biodiversity reservoir for marine mollusks. Most commonly recorded genera for gastropods are Alvania, Eatonina, Odostomia, Rissoa, Rissoella and the family Rissoidae in general, and for bivalves Hiatella, Lasaea, Musculus and Mytilus [2,12,13,14,15,16,17,18,19,20,21,23,93,94,95] which were all recorded in considerable numbers in our study as well. Even though C. officinalis turfs have been investigated for years, there are still many unknowns regarding its settlements, which is further substantiated by the fact that we identified one gastropod genus (Episcomitra) and three bivalve genera (Gregariella, Lucinella, Striarca) that were not documented in previous studies. Even when compared with the Buršić et al. [21] study, which was conducted in the same research areas as our study, we identified 14 new gastropod species and 8 new bivalve species in the C. officinalis settlements in the northern Adriatic (Table 2). Regarding the biodiversity of marine invertebrates in the Adriatic Sea, our research also contributed to the BOLD database, given that nine newly sequenced mollusk species were added to the database. However, having in mind that DNA barcoding relies on a single molecular marker and that sequences and taxon samplings in public databases are far from dense or suitable enough for species identification in many taxa, additional investigations with larger sample size are needed in order to gain a full picture of biodiversity in this realm.

5. Conclusions

Our results of 46 identified mollusk species confirm C. officinalis settlements as important areas for coastal biodiversity. Based on the results of this study and given that mollusks isolated within the C. officinalis turfs were predominantly specimens that were very difficult to determine only by morphological features, DNA barcoding greatly helped as an additional tool in specimen identification. In the case where it was not possible to identify a specimen down to the species level or when it was not possible to state with certainty whether particular specimens were the same or different species, DNA barcoding proved to be the most appropriate option in resolving these dilemmas. The combination of classical taxonomic methods and DNA barcoding as specimen identification is therefore recommended in resolving potential doubts and difficulties encountered by taxonomists as successfully as possible.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/d13050196/s1, Table S1: Specimens used in analysis with assigned species name, BOLD Process ID number, GenBank Accession number and Inventory numbers in the Invertebrates DNA Barcode collection at the Juraj Dobrila University of Pula; Supplementary S2: Alignment datasets; Supplementary S3: Maximum likelihood (ML) trees; Table S4: Inter- and intraspecific genetic p-distances of the mitochondrial cytochrome oxidase I (cox-1) gene fragments recorded for gastropod species (numbers in bold show intraspecific p-distance values); Table S5: Inter- and intraspecific genetic p-distances of the mitochondrial cytochrome oxidase I (cox-1) gene fragments recorded for bivalve species M. costulatus, M. galloprovincialis and C. calyculata (numbers in bold show intraspecific p-distance values); Table S6: Inter- and intraspecific genetic p-distances of the mitochondrial cytochrome oxidase I (cox-1) gene fragments recorded for Veneridae (numbers in bold show intraspecific p-distance values).

Author Contributions

Conceptualization, M.B., B.B.M. and L.I.; Data Curation, M.B. and B.B.M.; Formal Analysis, M.B. and B.B.M.; Funding Acquisition, M.K.; Investigation, M.B., L.I., A.J. and M.A.P.; Methodology, M.B. and B.B.M.; Project Administration, M.K.; Resources, M.K., M.Š., A.J. and M.A.P.; Writing—Original Draft Preparation, M.B. and B.B.M.; Writing—Review & Editing, M.B., B.B.M., L.I., A.J., M.Š. and L.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Croatian Science Foundation under the project IP-2016-06-9988 (“DNA Barcoding of Diversity of Croatian Fauna”, P.I. Prof. M.K.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The mtDNA COI-5P sequences are submitted to BOLD and GenBank databases.

Conflicts of Interest

The authors declare no conflict of interest.
