Vulnerable Forests of the Pink Sea Fan Eunicella verrucosa in the Mediterranean Sea

by
Giovanni Chimienti
1,2
1
Dipartimento di Biologia, Università degli Studi di Bari, Via Orabona 4, 70125 Bari, Italy
2
CoNISMa, Piazzale Flaminio 9, 00197 Roma, Italy
Diversity 2020, 12(5), 176; https://doi.org/10.3390/d12050176
Submission received: 14 April 2020 / Revised: 25 April 2020 / Accepted: 28 April 2020 / Published: 30 April 2020
(This article belongs to the Section Marine Diversity)
Browse Figures
Review Reports Versions Notes

Abstract

:
The pink sea fan Eunicella verrucosa (Cnidaria, Anthozoa, Alcyonacea) can form coral forests at mesophotic depths in the Mediterranean Sea. Despite the recognized importance of these habitats, they have been scantly studied and their distribution is mostly unknown. This study reports the new finding of E. verrucosa forests in the Mediterranean Sea, and the updated distribution of this species that has been considered rare in the basin. In particular, one site off Sanremo (Ligurian Sea) was characterized by a monospecific population of E. verrucosa with 2.3 ± 0.2 colonies m−2. By combining new records, literature, and citizen science data, the species is believed to be widespread in the basin with few or isolated colonies, and 19 E. verrucosa forests were identified. The overall associated community showed how these coral forests are essential for species of conservation interest, as well as for species of high commercial value. For this reason, proper protection and management strategies are necessary.

Graphical Abstract

1. Introduction

Arborescent corals such as antipatharians and alcyonaceans can form mono- or multispecific animal forests that represent vulnerable marine ecosystems of great ecological importance [1,2,3,4]. The order Alcyonacea includes the so-called gorgonians, i.e., octocorals characterized by a tough but flexible axis composed of the scleroprotein gorgonin [5]. Varying amounts of calcareous material is included in the axis as well as in the living tissue, where the calcareous structures take the form of sclerites [5]. The Mediterranean Sea hosts 24 recognized species of gorgonians, sometimes known as “sea fan” or “sea whip” depending on the shape of the colony. Gorgonian forests contribute greatly to the Mediterranean seascape, providing biomass, structural complexity, and aesthetic value to sublittoral communities, as well as sustaining a rich, associated biodiversity [6,7,8,9,10,11,12,13,14].
The pink sea fan Eunicella verrucosa (Pallas, 1766) is an Atlanto-Mediterranean species present in the East Atlantic, from Scotland to Angola, and in the Mediterranean Sea [5,15,16,17]. It is a temperate- to cold-water species that can be found from 2 to 60 m depth in the Atlantic Ocean [5,17], where it represents a major heritage species [18,19,20]. In the Mediterranean Sea, E. verrucosa has been listed as “near threatened” on the Red List by the International Union for Conservation of Nature (IUCN) [21], and has been reported from 20 to 200 m depth [5,22,23]. This species lives in the mesophotic zone, such as that portion of the seabed that goes from the limit of presence of seagrass to the limit of presence of algae (loss of net productivity at level of irradiance <1%), indicatively between 50 and 200 m depth [2,4]. This bathymetric range can host rocky pinnacles commonly included among the so-called roche du large [24], literally ‘offshore rocks’, representing the ideal substrate for E. verrucosa. Occasionally, it can also form facies (sensu [24]) on coralligenous formations, such as typical Mediterranean bioconstructions built up by a suite of calcifying organisms (e.g., calcareous red algae, corals, serpulids, bryozoans, molluscs) that grow one on the other, generation after generation, building a secondary hard substratum in dim light conditions [13,25,26]. Although knowledge about the Mediterranean mesophotic zone is scarce and the distribution of E. verrucosa remains still unclear, recent records showed that the species is mostly present below 35 m depth [22,23]. Shallower occurrences are uncommon and most likely due to low-light conditions (e.g., water turbidity, presence of rocks and overhangs) [27] in presence of cold-enough waters. In particular, E. verrucosa has been found in the Alboran Sea, in the Balearic Sea, and in the Ligurian Sea, with few more records along the coasts of Tunisia, Italy, Croatia, and Greece [17,22,23,27,28,29,30,31,32,33,34,35,36,37]. All these records refer to the occurrence of one or few isolated colonies, sometimes as part of a mixed coral forest, while no data about Mediterranean forests of E. verrucosa are present in literature. The only population investigated in this basin is located off Marseille, in the Gulf of Lion (Balearic Sea), where 73 colonies distributed within nine sites were monitored [22]. However, it is not clear if the area is characterized by a dense coral assemblage or by several isolated colonies over a large area, since colonies’ density is not reported.
This study reports: (1) The remarkable new finding of E. verrucosa forests in the Mediterranean Sea, (2) an overview about the currently known distribution of the species in the basin, and (3) a first insight about the biodiversity associated with these coral forests.

2. Materials and Methods

Technical scuba dives were carried out in two sites located off the cities of Bordighera and Sanremo (Ligurian Sea, Italy) in order to verify the presence of E. verrucosa according to informal reports from local divers. Taxonomic identification of E. verrucosa was based on macroscopic morphological characters, such as the pink or white color, the fan shape with many branches on one plant, the thin terminal branches, and the high calyces arranged biserially [5]. These characters allowed distinguishing the species from the two congeneric fan-shaped ones: Eunicella cavolini (yellow color, terminal branches cylindrically, and calyces relatively low and disposed all around the branches) and Eunicella singularis (white, greyish, or greenish color, long terminal branches directing upright, and calyces not projecting) [5].
A shoal off Sanremo, called “Scoglio dell’Astice”, was selected as study site. Underwater videos were carried out using a 4K camera with a maximum scene illuminator of 10,000 lumen and a size reference to calculate the area investigated. Video analysis was performed using Adobe Premiere Pro software, and sampling units of 2.5 ± 0.2 m2 were defined along each transect, according to the minimal area used for visual surveys on octocoral habitats [38,39,40]. Sequences with bad visibility and/or recorded outside the coral forest (e.g., soft bottoms, hard-bottom areas not colonized by E. verrucosa) were discarded. The forest of E. verrucosa was quantified by abundance (number of colonies per sampling unit), then the density (colonies m−2) was calculated for each sampling unit and expressed as mean ± standard error. Anthropic impacts observed within the coral forest were also assessed.
High-resolution photos of E. verrucosa colonies with size reference were collected in the same coral forest for nondestructive morphometric analysis. Twelve size classes of 5 cm each were identified, from 1–5 to 56–60 cm. Size structure was analyzed in terms of size-frequency and distribution parameters, such as skewness and kurtosis, calculated using the R software platform functions agostino.test [41] and anscombe.test [42]. Then, the age of the colonies was inferred, based on the height (H), according to the function proposed by [22], as follow:
Age = e H + 18.39   17.94
Age structure of the population was analyzed in the same way as the size structure, based on 15 age classes of 5 years each, from 1–5 to 71–75 years.
The general distribution of E. verrucosa in the Mediterranean Sea was assessed through a multisource approach based on new records, literature, and citizen science data. In particular, additional records were obtained from grab and rock-dredge samples collected along the coasts of Montenegro (Adriatic Sea, cruise CROMA—CROatian and Montenegrin mArine ecosystems) and Greece (Ionian Sea; cruise COCOMAP14—COast to COast habitat MAPping 2014), aboard Research Vessel Urania. Data present in scientific literature were also considered [22,23,27,29,30,31,32,33,34,35,36,37,43,44], and only a few uncertain records were discarded (e.g., [28,45]). Citizen science data available online were used only in the presence of good-quality photos to confirm the specific identification or if they were previously validated by an expert. In particular, data were extrapolated from three main platforms: iNaturalist (www.inaturalist.org, a social network of nature enthusiasts that share and cross-validate photographic observations), the Global Biodiversity Information Facility (www.gbif.org, an international network to share open access data about life), and the open access database of the Reef Check Mediterranean Underwater Coastal Environment Monitoring protocol (www.reefcheckmed.org, that groups’ underwater observations were carried out by trained volunteers based on a standardized protocol [46]). This latter platform includes a semi-quantitative estimation of abundances. Therefore, the observations of more than 50 colonies of E. verrucosa during a single dive were considered as coral forests.
The macro- and megafauna associated with E. verrucosa forests was identified at the lowest possible taxonomic level based on images and samples collected in this study. Observations from literature were also considered, particularly for epibionts [5,22,31,47]. Epibiont species, as well as species of conservation importance and of commercial value, were highlighted.

3. Results

3.1. The Forest of Eunicella verrucosa off Sanremo

The shoal explored off Sanremo (Scoglio dell’Astice) was composed by two main rocky areas, distant 50 m one from the other and surrounded by muddy sediments. The first area was characterized by an elevation of up to 4 m and steep walls, over an area of approximatively 200 m2 entirely colonized by a monospecific forest of Paramuricea clavata, with numerous and large colonies mostly settled on the top and on the edge of the small shoal, at 65–68 m depth. Numerous massive sponges were also observed (Figure 1a,b). The second area was represented by scattered large rocks and small rocky platforms of up to 1.5 m in height over an area of about 120 m2, inhabited by a monospecific forest of E. verrucosa at 65–70 m depth (Figure 1c–e). A total of 158 colonies of E. verrucosa were counted over an area of 80 m2, with a mean density of 2.3 ± 0.2 colonies m−2 (28 sampling units, 1 to 13 colonies per sampling unit) and a maximum of 5.2 colonies m−2. The understory of the coral forest was dominated by sponges of the genus Axinella, often colonized by the zoanthid Parazoanthus axinellae (Figure 1d). Two colonies of P. clavata and two of E. cavolini were also present in the highest portion of the rocky shoal. The nearby area was characterized by a muddy seabed with numerous holothurians, as well as small scattered rocky substrates and coralligenous, patchy bioconstructions dominated by sponges and ascidians. Part of the nearby hard bottom was also covered by countless specimens of the polychaete Sabella pavonina (Figure 1f,g).
All the colonies of E. verrucosa belonged to the white morphotype sensu [5]. Colonies’ sizes ranged from 6 to 58 cm in height, with the dominant presence of the size classes from 21 to 35 cm (82 colonies measured). Size-frequency distribution resulted symmetrically and mesokurtically, with the mean, median, and modal values overlapping (Figure 2).
The inferred age of the colonies was from 4 to 71 years, showing a highly skewed and leptokurtic distribution (Figure 3), with a long right tail that represented colonies older than 20 years and generally higher than 35 cm.
Anthropic impacts consisted of few lost fishing gears, such as two bottom longlines and one trammel net, showing that this area has been occasionally targeted by small artisanal fishery.

3.2. The Coral Forest off Bordighera

A mixed coral forest, dominated by numerous, large colonies of E. verrucosa and P. clavata, with the occasional occurrence of E. cavolinii and Leptogorgia sarmentosa, was found on a rocky shoal off Bordighera, at 47–50 m depth (Figure 4a). Most of the E. verrucosa colonies showed the white morphotype, although some pink colonies were also present (Figure 4b). A second rocky shoal was detected in the area, a few hundred meters from the first one, with a mixed coral assemblage dominated by P. clavata and the black coral Antipathella subpinnata at 68–70 m depth (Figure 4c).

3.3. Additional Records of Eunicella verrucosa in the Adriatic and Ionian Seas

Several E. verrucosa colonies and branches were collected off and southeast of the Kotor Bay through grab and dredge sampling, respectively (Figure 4d,e). Even if it was not possible to quantify the abundance, the presence of two forests in the two sampling sites was assumed based on the large amount of sampled material. All the colonies in this area were pink in color. Two additional pink colonies of E. verrucosa were collected by rocky dredge off Merlera Island (Greece, Ionian Sea), at 90 m depth.

3.4. Distribution of Eunicella verrucosa in the Mediterranean Sea

The combination of new data from visual surveys, samples, scientific literature, and citizen science allowed obtaining an updated overview about the distribution of E. verrucosa in the Mediterranean Sea (Figure 5a). The species was particularly widespread in the northwestern portion of the basin, along the coasts of Spain, France, and Italy. The majority of the records concerned the occurrence of isolated or few colonies, identified in almost 162 sites (1 in this study, 22 from literature, and 139 from citizen science), while forests of E. verrucosa have been observed in 19 sites thus far (4 in this study, 1 from literature, and 14 from citizen science), most of which were in the Ligurian Sea and Sicily Channel (Figure 5b, Table 1). Globally, E. verrucosa was mostly present below 30 m depth, with some records at shallower depths reported in the Sicily Channel (the shallowest at 16 m depth).

3.5. Biodiversity Associated with Eunicella verrucosa Forests

The overall macro- and megafauna observed in association with Mediterranean E. verrucosa forests included 80 taxa, i.e., 1 Foraminifera, 20 Porifera, 9 Cnidaria, 4 Mollusca, 5 Annelida, 4 Arthropoda, 7 Bryozoa, 12 Echinodermata, and 18 Chordata (Table 2), most of which were observed within the study site off Sanremo.
The sessile fauna was mainly composed by hard-bottom filter-feeders, such as sponges and ascidians, as well as suspension-feeders such as corals, polychaetes and bryozoans. Sponges were dominant in terms of diversity and represented a common component of the forests’ understory, although many taxa were not identifiable based on images. The co-occurrence of E. verrucosa with other gorgonians, such as E. cavolini, P. clavata, and L. sarmentosa, was quite common, at least in the forests of the Liguro-Provencal coast (Figure 6a, Table 2).
Vagile and sedentary fauna included several echinoderms, molluscs, crustaceans, and fish. Echinoderms had representatives from all the five classes (Crinoidea, Holothuroidea, Asteroidea, Ophiuroidea, and Echinoidea), with holothurians commonly present in forests settled on short and scantly structured rocky outcrops, partially covered by sediments, that were particularly accessible to these soft-bottom deposit-feeders (Figure 6a,g). Mollusks included corallivores that feed on E. verrucosa, such as the Tritoniidae Tritonia nilsodhneri and the Ovulidae Simnia spelta (Figure 6c–d), as well as the spongivore Felimare picta (Figure 6e) that feeds on the numerous sponges, particularly those belonging to the genera Ircinia and Dysidea. Most of the fish fauna observed was represented by demersal species, such as the small red scorpionfish Scorpaena notata, the comber Serranus cabrilla, the rainbow wrasse Coris julis, and the cuckoo wrasse Labrus mixtus, as well as large schools of the red mullet Mullus barbatus barbatus, the swallowtail seaperch Anthias anthias, and the parrot seaperch Callanthias ruber. Large predators, such as the red scorpionfish Scorpaena scrofa (Figure 6f), the conger eel Conger conger, the Mediterranean moray eel Muraena helena (Figure 6g), the forkbeard Phycis phycis, the dusky grouper Epinephelus marginatus, and the Atlantic wreckfish Polyprion americanus, were also spotted off Sanremo. Schools of pelagic species, such as picarels Spicara sp. and horse mackerels Trachurus sp., were also observed swimming close to the coral forest.
Epibionts included benthic species such as the colonial polychaetes belonging to Filograna–Salmacina complex, the bivalve Pteria hirundo, and the bryozoan Reteporella cf. grimaldii (Figure 6b), whose settlement was probably enhanced by the grazing activities of the above-mentioned corallivores. These latter could be considered vagile epibionts, together with the crustacean Balssia gasti, the crinoid Antedon mediterranea and the ophiuroids Astrospartus mediterraneus and Ophiacantha setosa (Figure 1d, Figure 4a, Figure 6a). Crinoids and ophiuroids have been observed using the colonies of E. verrucosa to lift from the seabed and enhance their chances to catch the suspended food particles. In particular, O. setosa was found with a large number of specimens on the colonies collected off and southeast of the Bay of Kotor (Figure 4d,e).

4. Discussion

Coral habitats play a fundamental structural role in the Mediterranean Sea, creating some of the most rich and diverse habitats known from shallow to deep bathymetries [3,4,6,8,9,16,26,27,35,48,49,50,51]. These habitats are of primary importance for marine conservation [1] but often proper protection initiatives cannot be applied due to the lack of knowledge about the presence and the distribution of the key structural species [52]. Citizen science projects based on effective and shared protocols can represent a promising source of additional information about the distribution of conspicuous species [23,46], particularly in the case of iconic taxa such as alcyonaceans. This is also the case of the pink sea fan, E. verrucosa, that has been considered a rare or uncommon gorgonian in the Mediterranean Sea [22,23].

4.1. Morphometry and Age Inference

Non-invasive methods to assess population structure on octocorals are effective and needed ways to study these peculiar communities without affecting them [7,12,22,39,53,54,55]. Morphometric analysis on E. verrucosa off Sanremo seemed to indicate a healthy and balanced population, with the symmetric distribution of both large, old colonies and juvenile, new recruits (Figure 2), also supported by the fact that signs of stress or diseases were not observed. Considering that the correlation between size and age is not linear, but follows a von Bertalanffy growth function where growth rate decreases with colonies’ height [22], the inferred age-frequency distribution was in accordance with such observation, highlighting the dominant presence of colonies from 1 to 20 years old with a few colonies older than 35 years (right tail) (Figure 3). The function used to infer the age was developed from colonies in Riou Archipelago (France), close enough to Sanremo to be considered comparable. However, it was based on 15 colonies of sizes between 5 and 40 cm [22], so it should be tested and probably improved in the future, particularly with a larger number of colonies and considering also those higher than 40 cm, for which the reliability is not yet known. Whatever the maximum age of the colonies was, the presence of large and old ones indicated a certain stability of the environment and the longevity of the species. In fact, the growth rate of E. verrucosa in the Mediterranean Sea is 3.33 ± 0.61 cm year−1 for colonies smaller than 15 cm, decreasing gradually up to 0.62 ± 0.22 cm year−1 around 40 cm in height [22], and it is expected to be even lower in higher colonies. Such decrease in growth rate according to age is common in gorgonians (e.g., [56,57,58]). Moreover, Mediterranean oligotrophic waters can lead to an even slower growth rate of E. verrucosa compared to Atlantic areas [22,53], where the species is also shallower.
The population of E. verrucosa reported in literature at Riou Archipelago (20–40 m depth) was dominated by colonies of 10–30 cm in height, with the maximum size of 40 cm [22]. On the contrary, the more frequent size classes off Sanremo (65–70 m depth) were between 21 and 35 cm, with the highest colony of 58 cm, supporting the hypothesis that deeper populations could be larger in size (and older) than shallow ones.

4.2. Eunicella verrucosa in the Mediterranean Sea

On a local scale, the distribution of the colonies is usually patchy and shoals very close to each other can show different facies, as with the two rocky areas off Sanremo, with the two separated monospecific forests of P. clavata and E. verrucosa. On a larger scale, the data analyzed in this study showed how E. verrucosa is particularly widespread along the northwestern Mediterranean Sea (Figure 5a,b). However, its remarkable presence in this area of the basin could be biased by the fact that citizen science projects are more common along the coasts of Spain, France, and Italy than in the eastern basin and the coast of North Africa. Moreover, these projects are limited to scuba diving depths (up to 40–50 m), while a large part of the bathymetric range of this species falls in the lower mesophotic zone (up to 200 m), a zone still scantly explored. For this reason, citizen science campaigns in underrepresented areas and mesophotic explorations using indirect methods are needed to fill the gap of knowledge about the geographic and bathymetric distribution of E. verrucosa and its forests. This approach would help to set priorities for management and conservation purposes, as already done throughout the southwest UK coastal waters where E. verrucosa has been used as indicator of the spatial efficacy of Marine Protected Areas [20]. Although observations of isolated colonies and occasional forests of E. verrucosa occurred along the Liguro-Provencal coast, technical diving explorations below the depth of classic scuba diving allowed identifying two new forests of E. verrucosa in the area (Figure 5b, Table 1), confirming the importance of such areas for the presence of mesophotic coral forests. Despite the need for further validation through visual surveys, those off and southeast of Kotor Bay (Figure 5a) are the only records of E. verrucosa forests along the coasts of Montenegro and in the whole Adriatic Sea thus far. Similarly, the occurrence of few colonies off the Merlera Island is the first record for the Ionian coasts of Greece and one of the few in the Ionian Sea (Figure 5a).
The overall biodiversity observed in association with the forests of E. verrucosa highlighted the importance of these habitats for both conservation and fishery management. In particular, 31 of the taxa found are listed in at least one of the main legal instruments for species conservation and management ongoing in the Mediterranean Sea, such as the Bern Convention (Convention on the Conservation of European Wildlife and Natural Habitats: Appendix II: strictly protected fauna species, Appendix III: protected fauna species), the Barcelona Convention (Protocol for Specially Protected Areas and Biological Diversity in the Mediterranean, SPA/BD: Annex II: list of endangered or threatened species, Annex III: list of species whose exploitation is regulated) and the Red List of the International Union for Conservation of Nature (IUCN) (Table 2).
Part of the megafauna associated with E. verrucosa forests is of high commercial value, such as the spiny lobster Palinurus elephas (Figure 6h), the European lobster Homarus gammarus (Figure 6i), and the spinous spider crab Maja squinado, all observed off Sanremo. Due to the relatively common presence of these crustaceans, this shoal is known as “Scoglio dell’Astice”, that literally means “lobster shoal” with particular reference to H. gammarus whose big specimens could be present (Figure 6i). Economically important fish included S. scrofa, M. barbatus, P. phycis, C. conger, M. helena, E. marginatus, and P. americanus. This latter record is remarkable also due to the relatively rare records of this deep species at mesophotic depths in the Mediterranean Sea.
The observation of pelagic species highlighted the pivotal role of coral forests, such as E. verrucosa ones, as feeding ground and shelter also for species that are not strictly benthonic. The importance role of E. verrucosa as habitat former was also enhanced by the numerous organisms that live and feed directly on the coral colony. Some of these epibionts, such as B. gasti, T. nilsodhneri, and S. spelta, are also adapted to camouflage with E. verrucosa colonies.

4.3. Impacts and Threats

The slow growth rate of E. verrucosa enhances its vulnerability to anthropic pressures, particularly fishery, pollution, and climate changes. Although new to science, the E. verrucosa forest off Sanremo is already affected by fishing practices using bottom longlines targeting large fish, and trammel nets for lobsters. Despite being considered as passive and selectively geared with a low impact, longlines and trammel nets can sweep the seabed during retrieval operations and during bad-weather conditions. During this process they might injure or catch the corals as well as, in some cases, remain entangled on the seabed [4,34,48,59,60,61,62,63,64]. For this reason, the use of bottom-contact fishing gear should be banned in those areas characterized by vulnerable marine ecosystems as coral forests [1,65].
Corals are more susceptible to diseases when stressed. Eunicella species have been affected by mass mortality events linked to positive thermal anomalies [66], and evidences of a disease affecting E. verrucosa have been correlated to high concentrations of Vibrio bacteria most likely due to the elevated seawater temperature [67]. Similarly to other temperate and cold-water corals, this species could be severely affected by the ongoing climate change, with drastic habitat loss that can lead to local extinctions with limited refugia and negative effects on the associated community [68]. Besides the several species of commercial importance associated with the forests of E. verrucosa, the quantity of taxa included in conservation frameworks is remarkable and provides an insight about the importance of this habitat for biodiversity conservation. Such diversity is due to the presence of hard-bottom and coralligenous communities [13,24,25,26] and a noticeable epibiotic fauna, as well as soft-bottom species that can have access to the understory of the coral forest when the hard bottom is not particularly structured.

5. Conclusions

The general picture about the distribution of E. verrucosa in the Mediterranean Sea revealed many new occurrences, although large populations constituting coral forests are still scantly known. This study represents the first quantitative study on a rare, monospecific forest of E. verrucosa and its remarkable associated community. Considering its accessibility and the presence of species of high commercial value, this unique and vulnerable habitat should be included in conservation strategies aiming to preserve its integrity and its biodiversity from current and potential anthropogenic threats. Examples of effective initiatives to preserve E. verrucosa forests and other vulnerable marine ecosystems can be the institution of Marine Protected Areas, Fishery Restricted Areas, and, in European waters, the individuation of Sites of Community Importance.
Albeit E. verrucosa is a shallow-water species in the Atlantic Ocean, its mesophotic occurrence in the Mediterranean Sea implies that more findings could occur in the future below 50 m of depth. The exploration of the mesophotic zone is fundamental to identify peculiar habitats such as coral forests, in order to design proper protection strategies on a basin-scale, aiming to reach a desirable network of protected areas.

Funding

This research was funded by the Italian Ministry of Education, University and Research (Ministero dell’Istruzione, dell’Università e della Ricerca; Programma Operativo Nazionale - PON 2014-2020), grant AIM 1807508-1, Linea 1, by the Italian Ministry for Environment, Land and Sea Protection (Ministero dell’Ambiente e della Tutela del Territorio e del Mare), as part of the Italian monitoring program for the implementation of the Marine Strategy Framework Directive (European Union, 2008/56/EC), and by the European Union through the FP7 CoCoNet project (Towards Coast to Coast Networks of marine protected areas (from the shore to the high and deep sea), coupled with sea-based wind energy potential)), grant number 287844.

Acknowledgments

I am grateful to Maurizio Delfini for underwater videos and photos, as well as to all the contributors in the citizen science platforms and projects. Special thanks to Francesco Mastrototaro for the critical suggestions to improve the clarity of the text. Chief scientists Marco Taviani, Lorenzo Angeletti, and Federica Foglini, as well as the captain, crew, and colleagues aboard R/V Urania during cruises CROMA and COCOMAP14 are warmly acknowledged.

Conflicts of Interest

The author declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Food and Agriculture Organization (FAO). International Guidelines for the Management of Deep-Sea Fisheries in the High Seas; FAO: Rome, Italy, 2009; pp. 1–21. [Google Scholar]
  2. Lesser, M.P.; Slattery, M.; Leichter, J.J. Ecology of mesophotic coral reefs. J. Exp. Mar. Biol. Ecol. 2009, 375, 1–8. [Google Scholar] [CrossRef]
  3. Rossi, S.; Bramanti, L.; Gori, A.; Orejas, C. An overview of the animal forests of the world. In Marine Animal Forests; Rossi, S., Ed.; Springer International Publishing: Berlin, Germany, 2017; pp. 1–26. [Google Scholar]
  4. Chimienti, G.; Mastrototaro, F.; D’Onghia, G. Mesophotic and Deep-Sea Vulnerable Coral Habitats of the Mediterranean Sea: Overview and Conservation Perspectives. In The Benthos Zone; Soto, L., Ed.; IntechOpen: London, UK, 2019; pp. 1–20. [Google Scholar] [CrossRef] [Green Version]
  5. Carpine, C.; Grasshoff, M. Les Gorgonaires de la Mediterranean. Bull. Inst. Océanogr. Monaco 1975, 71, 1–140. [Google Scholar]
  6. Gili, J.M.; Coma, R. Benthic suspension feeders: Their paramount role in littoral marine food webs. Trends Ecol. Evol. 1998, 13, 316–321. [Google Scholar] [CrossRef]
  7. Linares, C.; Coma, R.; Garrabou, J.; Díaz, D.; Zabala, M. Size distribution, density and disturbance in two Mediterranean gorgonians: Paramuricea clavata and Eunicella singularis. J. Appl. Ecol. 2008, 45, 688–699. [Google Scholar] [CrossRef]
  8. Cerrano, C.; Danovaro, R.; Gambi, C.; Pusceddu, A.; Riva, A.; Schiaparelli, S. Gold coral (Savalia savaglia) and gorgonian forests enhance benthic biodiversity and ecosystem functioning in the mesophotic zone. Biodivers. Conserv. 2010, 19, 153–167. [Google Scholar] [CrossRef] [Green Version]
  9. Angeletti, L.; Taviani, M.; Canese, S.; Foglini, F.; Mastrototaro, F.; Argnani, A.; Trincardi, F.; Bakran–Petricioli, T.; Ceregato, A.; Chimienti, G.; et al. New deep-water cnidarian sites in the southern Adriatic Sea. Mediterr. Mar. Sci. 2014, 15, 225–238. [Google Scholar]
  10. Ponti, M.; Perlini, R.A.; Ventra, V.; Grech, D.; Abbiati, M.; Cerrano, C. Ecological shifts in Mediterranean coralligenous assemblages related to gorgonian forest loss. PLoS ONE 2014, 9, e102782. [Google Scholar] [CrossRef]
  11. Ponti, M.; Turicchia, E.; Ferro, F.; Cerrano, C.; Abbiati, M. The understorey of gorgonian forests in mesophotic temperate reefs. Aquat. Conserv. Mar. Freshw. Ecosyst. 2018, 28, 1153–1166. [Google Scholar] [CrossRef]
  12. Grinyó, J.; Gori, A.; Ambroso, S.; Purroy, A.; Calatayud, C.; Dominguez-Carrió, C.; Coppari, M.; Iacono, C.L.; López-González, P.J.; Gili, J.M. Diversity, distribution and population size structure of deep Mediterranean gorgonian assemblages (Menorca Channel, Western Mediterranean Sea). Prog. Oceanogr. 2016, 145, 42–56. [Google Scholar] [CrossRef]
  13. Chimienti, G.; Stithou, M.; Dalle Mura, I.; Mastrototaro, F.; D’Onghia, G.; Tursi, A.; Izzi, C.; Fraschetti, S. An explorative assessment of the importance of mediterranean coralligenous habitat to local economy: The case of recreational diving. J. Environ. Account. Manag. 2017, 5, 315–325. [Google Scholar] [CrossRef] [Green Version]
  14. Mastrototaro, F.; Chimienti, G.; Acosta, J.; Blanco, J.; Garcia, S.; Rivera, J.; Aguilar, R. Isidella elongata (Cnidaria: Alcyonacea) facies in the western Mediterranean Sea: Visual surveys and descriptions of its ecological role. Eur. Zool. J. 2017, 84, 209–225. [Google Scholar] [CrossRef] [Green Version]
  15. Carpine, C. Contribution à la connaissance des Gorgones Holaxonia de la Mediterranean occidentale. Bull. Inst. océanogr. Monaco 1963, 60, 1–52. [Google Scholar]
  16. Weinberg, S. Revision of the common Octocorallia of the Mediterranean circalittoral. I. Gorgonacea. Beaufortia 1976, 24, 63–104. [Google Scholar]
  17. Grasshoff, M. Die Flachwasser-Gorgonarien von Europa und Westafrika (Cnidaria, Anthozoa). Cour. Forsch. Inst. Senckenberg 1992, 149, 1–135. [Google Scholar]
  18. Lafargue, F. Peuplements sessiles de l’archipel des Glénans. Vie Milieu 1969, 20, 415–436. [Google Scholar]
  19. Hiscock, K. Where have all the corals gone? Mar. Conserv. 2003, 6, 8–9. [Google Scholar]
  20. Pikesley, S.K.; Godley, B.J.; Latham, H.; Richardson, P.B.; Robson, L.M.; Solandt, J.L.; Trundle, C.; Wood, C.; Witt, M.J. Pink sea fans (Eunicella verrucosa) as indicators of the spatial efficacy of Marine Protected Areas in southwest UK coastal waters. Mar. Policy 2016, 64, 38–45. [Google Scholar] [CrossRef]
  21. Otero, M.M.; Numa, C.; Bo, M.; Orejas, C.; Garrabou, J.; Cerrano, C.; Kružić, P.; Antoniadou, C.; Aguilar, R.; Kipson, S.; et al. Overview of the Conservation Status of Mediterranean Anthozoans; IUCN: Málaga, Spain, 2017; pp. 1–73. [Google Scholar]
  22. Sartoretto, S.; Francour, P. Bathymetric distribution and growth rates of Eunicella verrucosa (Cnidaria: Gorgoniidae) populations along the Marseilles coast (France). Sci. Mar. 2012, 76, 349–355. [Google Scholar] [CrossRef] [Green Version]
  23. Di Camillo, C.G.; Ponti, M.; Bavestrello, G.; Krzelj, M.; Cerrano, C. Building a baseline for habitat-forming corals by a multi-source approach, including Web Ecological Knowledge. Biodivers. Conserv. 2018, 27, 1257–1276. [Google Scholar] [CrossRef]
  24. Pérès, J.M.; Picard, J. Nouveau manuel de bionomie benthique de la mer Méditerranée. Rec. Trav. Stat. Mar. Endoume 1964, 31, 1–137. [Google Scholar]
  25. Ballesteros, E. Mediterranean coralligenous assemblages: A synthesis of present knowledge. Oceanogr. Mar. Biol. Ann. Rev. 2006, 44, 123–195. [Google Scholar]
  26. Ingrosso, G.; Abbiati, M.; Badalamenti, F.; Bavestrello, G.; Belmonte, G.; Cannas, R.; Benedetti-Cecchi, L.; Bertolino, M.; Bevilacqua, S.; Bianchi, C.N.; et al. Mediterranean bioconstructions along the Italian coast. Adv. Mar. Biol. 2018, 79, 61–136. [Google Scholar] [PubMed]
  27. Cocito, S.; Bedulli, D.; Sgorbini, S. Distribution patterns of the sublittoral epibenthic assemblages on a rocky shoal in the Ligurian Sea (NW Mediterranean). Sci. Mar. 2002, 66, 175–181. [Google Scholar] [CrossRef] [Green Version]
  28. Rossi, L. Le specie di Eunicella (Gorgonaria) del golfo di Genova. Ann. Mus. Civ. Stor. Nat. Genova 1959, 71, 203–225. [Google Scholar]
  29. Vafidis, D.; Koukouras, A.; Voultsiadou-Koukoura, E. Octocoral fauna of the Aegean Sea with a check list of the Mediterranean species: New information, faunal comparisons. Ann. Inst. Oceanogr. Paris 1994, 70, 217–229. [Google Scholar]
  30. Cebrián, E.; Ballesteros, E. Zonation patterns of benthic communities in an upwelling area from the western Mediterranean (La Herradura, Alboran Sea). Sci. Mar. 2004, 68, 69–84. [Google Scholar] [CrossRef] [Green Version]
  31. Cerrano, C.; Bavestrello, G.; Palma, M.; Previati, M.; Schiapparelli, S. Una popolazione di Gerardia savaglia (Bertoloni, 1819) nell’area marina protetta di Portofino. Biol. Mar. Mediterr. 2007, 14, 156–157. [Google Scholar]
  32. Kružić, P. Anthozoan fauna of Telašćica Nature Park (Adriatic Sea, Croatia). Nat. Croat. 2007, 16, 233–266. [Google Scholar]
  33. Coppo, S.; Diviacco, G.; Tunesi, L. Environmental and conservation relevance of the Punta Manara coralligenous beds (Eastern Ligurian Sea). In Proceedings of the 1st Symposium on the Coralligenous and Other Calcareous Bioconcretions of the Mediterranean Sea, Tabarka, Tunisia, 15–16 January 2009; pp. 75–81. [Google Scholar]
  34. Bo, M.; Bava, S.; Canese, S.; Angiolillo, M.; Cattaneo-Vietti, R.; Bavestrello, G. Fishing impact on deep Mediterranean rocky habitats as revealed by ROV investigation. Biol. Conserv. 2014, 171, 167–176. [Google Scholar] [CrossRef]
  35. Gori, A.; Bavestrello, G.; Grinyó, J.; Dominguez-Carrió, C.; Ambroso, S.; Bo, M. Animal forests in deep coastal bottoms and continental shelf of the Mediterranean Sea. In Marine Animal Forests; Rossi, S., Ed.; Springer International Publishing: Berlin, Germany, 2017; pp. 207–233. [Google Scholar]
  36. de la Torriente, A.; González-Irusta, J.M.; Aguilar, R.; Fernández-Salas, L.M.; Punzón, A.; Serrano, A. Benthic habitat modelling and mapping as a conservation tool for marine protected areas: A seamount in the western Mediterranean. Aquat. Conserv. Mar. Freshw. Ecosyst. 2019, 29, 732–750. [Google Scholar] [CrossRef]
  37. Ghanem, R.; Kechaou, E.S.; Ben Souissi, J.; Garrabou, J. Overview on the distribution of gorgonian species in Tunisian marine coastal waters (central Mediterranean). Sci. Mar. 2018, 82, 55–66. [Google Scholar] [CrossRef] [Green Version]
  38. Weinberg, S. The minimal area problem in invertebrate communities of Mediterranean rocky substrata. Mar. Biol. 1978, 49, 33–40. [Google Scholar] [CrossRef]
  39. Ambroso, S.; Gori, A.; Dominguez-Carrió, C.; Gili, J.M.; Berganzo, E.; Teixidó, N.; Greenacre, M.; Rossi, S. Spatial distribution patterns of the soft corals Alcyonium acaule and Alcyonium palmatum in coastal bottoms (Cap de Creus, northwestern Mediterranean Sea). Mar. Biol. 2014, 160, 3059–3070. [Google Scholar] [CrossRef]
  40. Chimienti, G.; Angeletti, L.; Rizzo, L.; Tursi, A.; Mastrototaro, F. ROV vs. trawling approaches in the study of benthic communities: The case of Pennatula rubra (Cnidaria: Cennatulacea). J. Mar. Biol. Assoc. UK 2018, 98, 1859–1869. [Google Scholar] [CrossRef]
  41. Komsta, L.; Novomestky, F. Moments, Cumulants, Skewness, Kurtosis and Related Tests. R Package Version 0.13. 2012. Available online: http://CRAN.R-project.org/package=moments (accessed on 13 April 2020).
  42. Anscombe, F.J.; Gynn, W.J. Distribution of the kurtosis statistic b2 for normal samples. Biometrika 1983, 70, 227–234. [Google Scholar] [CrossRef]
  43. Demir, M. Boğazlar ve adalar sahillerinin omurgasız dip hayvanları. Ist. Univ. Rac. Sci. Hydrobiol. Res. Ins. Publ. 1952, 3, 1–615. [Google Scholar]
  44. Gori, A.; Bramanti, L.; López-González, P.; Thoma, J.N.; Gili, J.M.; Grinyó, J.; Uceira, V.; Rossi, S. Characterization of the zooxanthellate and azooxanthellate morphotypes of the Mediterranean gorgonian Eunicella singularis. Mar. Biol. 2012, 159, 1485–1496. [Google Scholar] [CrossRef]
  45. Pax, F.; Müller, I. Die Anthozoenfauna der Adria; Institut für Ozeanographie und Fischerei: Split, Croatia, 1962; pp. 1–343. [Google Scholar]
  46. Cerrano, C.; Milanese, M.; Ponti, M. Diving for science-science for diving: Volunteer scuba divers support science and conservation in the Mediterranean Sea. Aquat. Conserv. 2017, 7, 303–323. [Google Scholar] [CrossRef]
  47. Furfaro, G.; Trainito, E.; De Lorenzi, F.; Fantin, M.; Doneddu, M. Tritonia nilsodhneri Marcus Ev., 1983 (Gastropoda, Heterobranchia, Tritoniidae): First records for the Adriatic Sea and new data on ecology and distribution of Mediterranean populations. Acta Adriat. 2017, 58, 261–270. [Google Scholar] [CrossRef]
  48. Fabri, M.C.; Pedel, L.; Beuck, L.; Galgani, F.; Hebbeln, D.; Freiwald, A. Megafauna of vulnerable marine ecosystems in French mediterranean submarine canyons: Spatial distribution and anthropogenic impacts. Deep Sea Res. Part II Top. Stud. Oceanogr. 2014, 104, 184–207. [Google Scholar] [CrossRef] [Green Version]
  49. Bo, M.; Bavestrello, G.; Angiolillo, M.; Calcagnile, L.; Canese, S.; Cannas, R.; Cau, A.; D’Elia, M.; D’Oriano, F.; Follesa, M.C.; et al. Persistence of pristine deep-sea coral gardens in the Mediterranean Sea (SW Sardinia). PLoS ONE 2015, 10, e0119393. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Chimienti, G.; Bo, M.; Taviani, M.; Mastrototaro, F. Occurrence and Biogeography of Mediterranean Cold-Water Corals. In Mediterranean Cold-Water Corals: Past, Present and Future; Orejas, C., Jimennez, C., Eds.; Springer International Publishing: Berlin, Germany, 2019; Volume 9, pp. 213–243. [Google Scholar]
  51. Ocaña, A.; Sánchez Tocino, L.; López-González, P.J. Consideraciones faunísticas y biogeográficas de los antozoos (Cnidaria: Anthozoa) de la costa de Granada (Mar de Alborán). Zool. Baetica 2000, 11, 51–65. [Google Scholar]
  52. Chimienti, G.; Bo, M.; Mastrototaro, F. Know the distribution to assess the changes: Mediterranean cold-water coral bioconstructions. Rend. Lincei Sci. Fis. Nat. 2018, 29, 583–588. [Google Scholar] [CrossRef]
  53. Coz, R.; Ouisse, V.; Artero, C.; Carpentier, A.; Crave, A.; Feunteun, E.; Olivier, J.M.; Perrin, B.; Ysnel, F. Development of a new standardised method for sustainable monitoring of the vulnerable pink sea fan Eunicella verrucosa. Mar. Biol. 2012, 159, 1375–1388. [Google Scholar] [CrossRef]
  54. Murillo, F.J.; MacDonald, B.W.; Kenchington, E.; Campana, S.E.; Sainte-Marie, B.; Sacau, M. Morphometry and growth of sea pen species from dense habitats in the Gulf of St. Lawrence, eastern Canada. Mar. Biol. Res. 2018, 14, 366–382. [Google Scholar] [CrossRef]
  55. Chimienti, G.; Di Nisio, A.; Lanzolla, A.M.L.; Andria, G.; Tursi, A.; Mastrototaro, F. Towards non-invasive methods to assess population structure and biomass in vulnerable sea pen fields. Sensors 2019, 19, 2255. [Google Scholar] [CrossRef] [Green Version]
  56. Mistri, M.; Ceccherelli, V.U. Growth of the Mediterranean gorgonian Lophogorgia ceratophyta (L., 1758). Mar. Ecol. 1993, 14, 329–340. [Google Scholar] [CrossRef]
  57. Coma, R.; Ribes, M.; Zabala, M.; Gili, J.M. Growth in a modular colonial marine invertebrates. Estuar. Coast. Shlef Sci. 1998, 47, 459–470. [Google Scholar] [CrossRef] [Green Version]
  58. Andrews, A.H.; Cordes, E.E.; Mahoney, M.M.; Munk, K.; Coale, K.H.; Caillet, G.M.; Heifetz, J. Age, growth and radiometric age validation of a deep-sea, habitat-forming gorgonian (Primnoa resedaeformis) from the Gulf of Alaska. Hydrobiologia 2002, 471, 101–110. [Google Scholar] [CrossRef]
  59. Company, J.B.; Ramirez-Llodra, E.; Sardà, F. Submarine canyons in the Catalan Sea (NW Mediterranean): Megafaunal biodiversity patterns and anthropogenic threats. In Mediterranean Submarine Canyons: Ecology and Governance; Würtz, M., Ed.; IUCN: Gland, Switzerland; Málaga, Spain, 2012; pp. 133–144. [Google Scholar]
  60. Hinz, H. Impact of bottom fishing on animal forests: Science, conservation, and fisheries management. In Marine Animal Forests; Rossi, S., Ed.; Springer International Publishing: Berlin, Germany, 2017; pp. 1041–1059. [Google Scholar]
  61. Mytilineou, C.; Smith, C.J.; Anastasopoulou, A.; Papadopoulou, K.N.; Christidis, G.; Bekas, P.; Kavadas, S.; Dokos, J. New cold-water coral occurrences in the eastern Ionian Sea: Results from experimental long line fishing. Deep Sea Res. Part II Top. Stud. Oceanogr. 2014, 99, 146–157. [Google Scholar] [CrossRef]
  62. Sampaio, I.; Braga-Henriques, A.; Pham, C.; Ocaña, O.; De Matos, V.; Morato, T.; Porteiro, F.M. Cold-water corals landed by bottom longline fisheries in the Azores (north-eastern Atlantic). J. Mar. Biol. Assoc. UK 2012, 92, 1547–1555. [Google Scholar] [CrossRef]
  63. D’Onghia, G. Cold-water corals as shelter, feeding and life-history critical habitats for fish species: Ecological interactions and fishing impact. In Mediterranean Cold-Water Corals: Past, Present and Future; Orejas, C., Jimennez, C., Eds.; Springer International Publishing: Berlin, Germany, 2019; Volume 9, pp. 335–356. [Google Scholar]
  64. Enrichetti, F.; Dominguez-Carrió, C.; Toma, M.; Bavestrello, G.; Betti, F.; Canese, S.; Bo, M. Megabenthic communities of the Ligurian deep continental shelf and shelf break (NW Mediterranean Sea). PLoS ONE 2019, 14, e0223949. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. FAO (Food and Agriculture Organization). Abandoned, lost or otherwise discarded gillnets and trammel nets: Methods to estimate ghost fishing mortality, and the status of regional monitoring and management. In FAO Fisheries and Aquaculture Technical Paper No. 600; Gilman, E., Chopin, F., Suuronen, P., Kuemlangan, B., Eds.; FAO: Italy, Rome, 2016; pp. 1–79. [Google Scholar]
  66. Garrabou, J.; Coma, R.; Bensoussan, N.; Bally, M.; Chevaldonné, P.; Cigliano, M.; Diaz, D.; Harmelin, J.G.; Gambi, M.C.; Kersting, D.K.; et al. Mass mortality in NW Mediterranean rocky benthic communities: Effects of the 2003 heat wave. Glob. Chang. Biol. 2009, 15, 1090–1103. [Google Scholar] [CrossRef]
  67. Hall-Spencer, J.M.; Pike, J.; Munn, C.B. Diseases affect cold-water corals too: Eunicella verrucosa (Cnidaria: Gorgonacea) necrosis in SW England. Dis. Aquat. Org. 2007, 76, 87–97. [Google Scholar] [CrossRef] [Green Version]
  68. Morato, T.; González-Irusta, J.M.; Dominguez-Carrió, C.; Wei, C.L.; Davies, A.; Sweetman, A.K.; Taranto, G.H.; Beazley, L.; García-Alegre, A.; Grehan, A.; et al. Climate-induced changes in the suitable habitat of cold-water corals and commercially important deep-sea fishes in the North Atlantic. Glob. Chang. Biol. 2020, 26, 2181–2202. [Google Scholar] [CrossRef]
Diversity 12 00176 g001 550
Figure 1. Benthic communities off Sanremo. (a) Forest of Paramuricea clavata (1), with (b) massive sponges (2) and the ascidian Halocynthia papillosa (3); (c) forest of Eunicella verrucosa, with (d) the epibiont ophiuroid Astrospartus mediterraneus (4), and the sponges Axinella sp. covered by Parazoanthus axinellae (5); (e) living polyps of E. verrucosa; (f) isolated colony of E. verrucosa on the rocky bottom nearby the coral forest, whose community is locally dominated by Axinella spp. with (5) and without (6) P. axinellae, as well as the polychaete Sabella pavonina (7); (g) detail of S. pavonina population. Scale bars: a–d,f,g, 10 cm; e, 1 cm.
Figure 1. Benthic communities off Sanremo. (a) Forest of Paramuricea clavata (1), with (b) massive sponges (2) and the ascidian Halocynthia papillosa (3); (c) forest of Eunicella verrucosa, with (d) the epibiont ophiuroid Astrospartus mediterraneus (4), and the sponges Axinella sp. covered by Parazoanthus axinellae (5); (e) living polyps of E. verrucosa; (f) isolated colony of E. verrucosa on the rocky bottom nearby the coral forest, whose community is locally dominated by Axinella spp. with (5) and without (6) P. axinellae, as well as the polychaete Sabella pavonina (7); (g) detail of S. pavonina population. Scale bars: a–d,f,g, 10 cm; e, 1 cm.
Diversity 12 00176 g001
Diversity 12 00176 g002 550

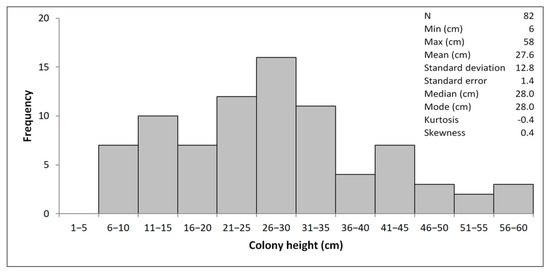

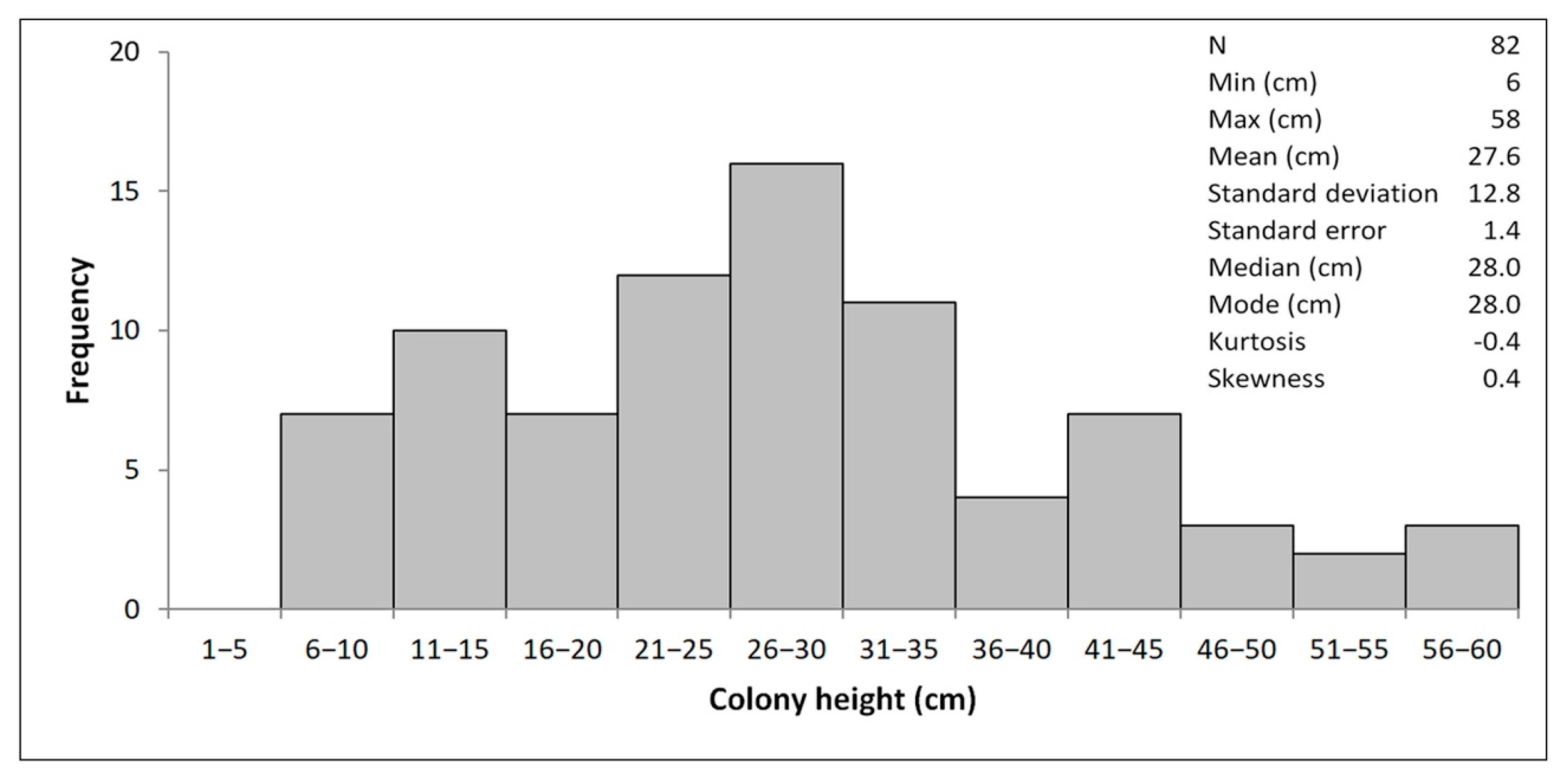

Figure 2. Size-frequency distribution of Eunicella verrucosa off Sanremo.
Figure 2. Size-frequency distribution of Eunicella verrucosa off Sanremo.
Diversity 12 00176 g002
Diversity 12 00176 g003 550

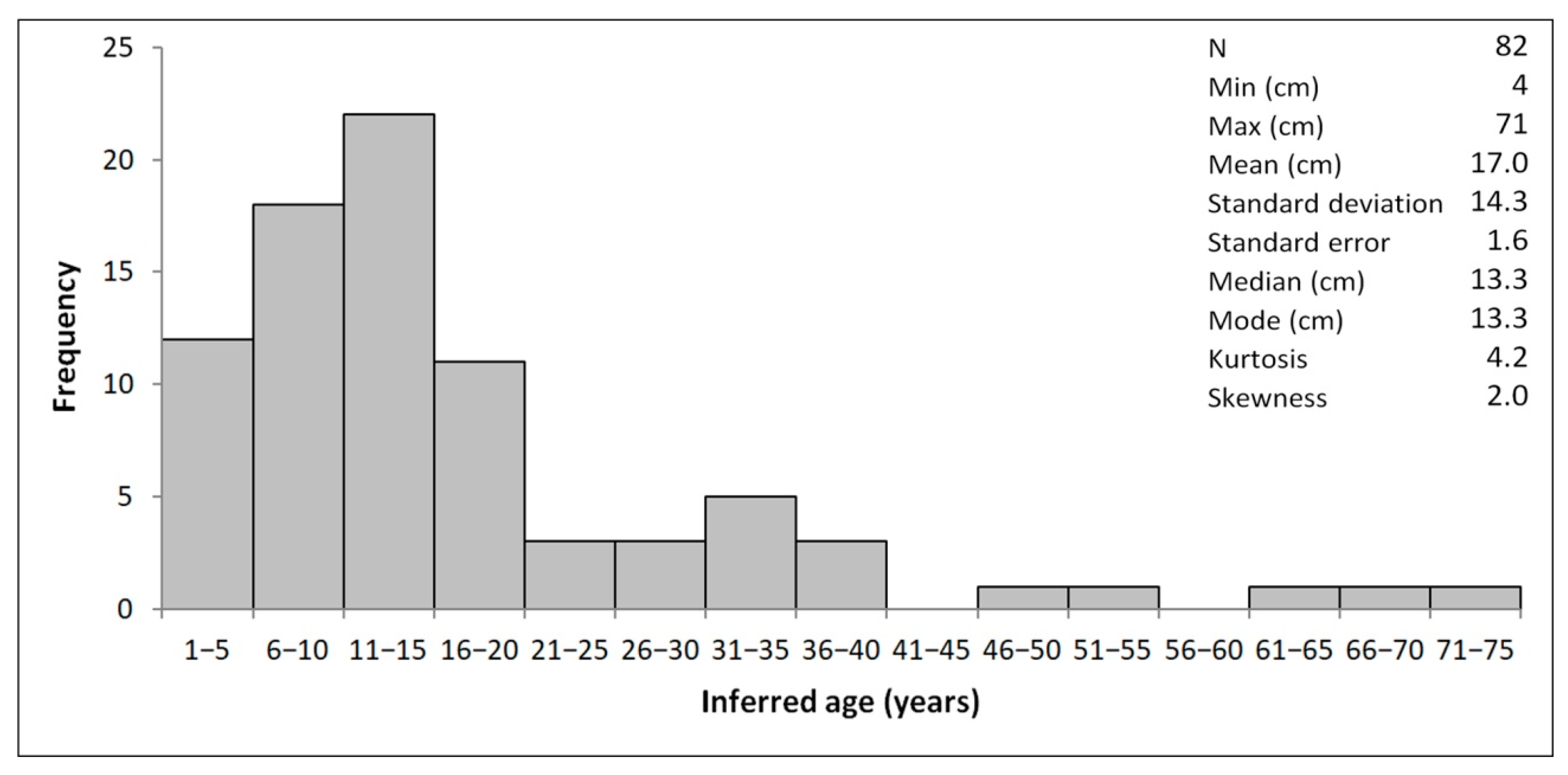

Figure 3. Age-frequency distribution of Eunicella verrucosa off Sanremo.
Figure 3. Age-frequency distribution of Eunicella verrucosa off Sanremo.
Diversity 12 00176 g003
Diversity 12 00176 g004 550
Figure 4. Additional records of Eunicella verrucosa. (a) Mixed forest of E. verrucosa and Paramuricea clavata (1) off Bordighera, with colonies epibionted by the ophiuroid Astrospartus mediterraneus (4) and by bryozoans (8); (b) detail of both pink and white morphotypes of E. verrucosa; in the background, a colony of Leptogorgia sarmentosa (9); (c) mixed forest of P. clavata (1) and Antipathella subpinnata (10) off Bordighera; (d) colonies of E. verrucosa sampled southeast of Kotor, with many epibiont ophiuroids Ophiacantha setosa; (e) detail of the colony with O. setosa (11). Scale bars: a,c, 10 cm; b,d–e, 5 cm.
Figure 4. Additional records of Eunicella verrucosa. (a) Mixed forest of E. verrucosa and Paramuricea clavata (1) off Bordighera, with colonies epibionted by the ophiuroid Astrospartus mediterraneus (4) and by bryozoans (8); (b) detail of both pink and white morphotypes of E. verrucosa; in the background, a colony of Leptogorgia sarmentosa (9); (c) mixed forest of P. clavata (1) and Antipathella subpinnata (10) off Bordighera; (d) colonies of E. verrucosa sampled southeast of Kotor, with many epibiont ophiuroids Ophiacantha setosa; (e) detail of the colony with O. setosa (11). Scale bars: a,c, 10 cm; b,d–e, 5 cm.
Diversity 12 00176 g004
Diversity 12 00176 g005 550

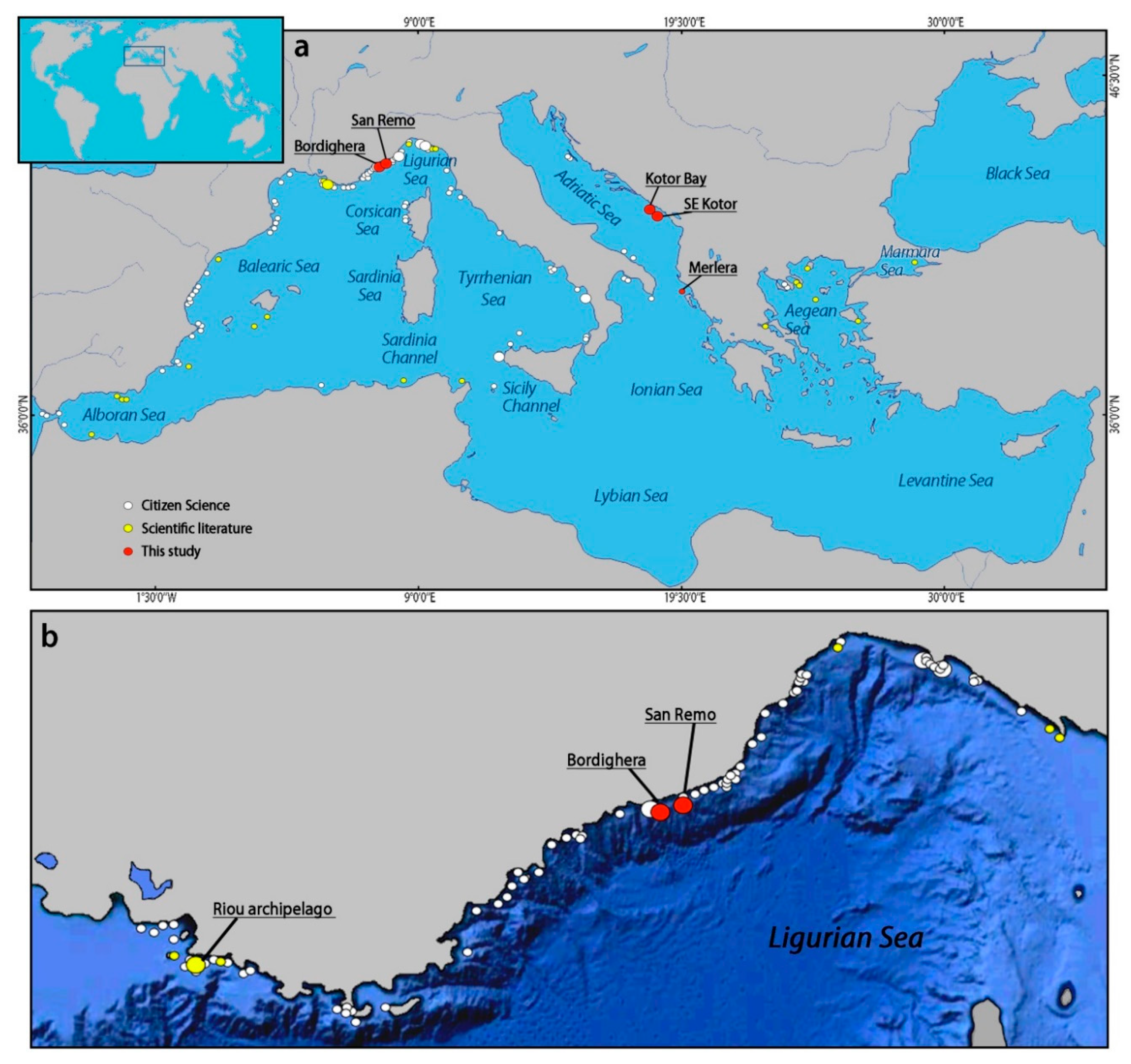

Figure 5. Distribution of Eunicella verrucosa in the Mediterranean Sea. (a) Global view, (b) detail of the Liguro–Provencal coast. Small dots indicate few/isolated colonies, while large dots represent forests of E. verrucosa.
Figure 5. Distribution of Eunicella verrucosa in the Mediterranean Sea. (a) Global view, (b) detail of the Liguro–Provencal coast. Small dots indicate few/isolated colonies, while large dots represent forests of E. verrucosa.
Diversity 12 00176 g005
Diversity 12 00176 g006 550
Figure 6. Examples of the animal taxa associated with Eunicella verrucosa. (a) Colonies of E. verrucosa with Paramuricea clavata (1) in the background, Leptogorgia sarmentosa (9), Astrospartus mediterraneus (4), Axinella sp. with Parazoanthus axinellae (5), and Holothuria sp. (12); (b) colonies of the bryozoan Reteporella cf. grimaldii (8) as epibiont on E. verrucosa; (c) sample of E. verrucosa with the ophiuroid Ophiacantha setosa (11) and the gastropod Simnia spelta; (d) lateral (left) and ventral (right) view of S. spelta; (e) the nudibranch Felimare picta crawling on the hard bottom below the E. verrucosa forest; (f) the red scorpionfish Scorpaena scrofa (13); (g) the Mediterranean moray eel Muraena helena (14); (h) the spiny lobster Palinurus elephas (15) and the echiurid Bonnellia viridis (16); (i) a large specimen of the European lobster Homarus gammarus (17) with Holothuria sp. (12) and B. viridis (16). Scale bars: a–b,f–g, 5 cm; c–e, 1 cm; h–I, 10 cm.
Figure 6. Examples of the animal taxa associated with Eunicella verrucosa. (a) Colonies of E. verrucosa with Paramuricea clavata (1) in the background, Leptogorgia sarmentosa (9), Astrospartus mediterraneus (4), Axinella sp. with Parazoanthus axinellae (5), and Holothuria sp. (12); (b) colonies of the bryozoan Reteporella cf. grimaldii (8) as epibiont on E. verrucosa; (c) sample of E. verrucosa with the ophiuroid Ophiacantha setosa (11) and the gastropod Simnia spelta; (d) lateral (left) and ventral (right) view of S. spelta; (e) the nudibranch Felimare picta crawling on the hard bottom below the E. verrucosa forest; (f) the red scorpionfish Scorpaena scrofa (13); (g) the Mediterranean moray eel Muraena helena (14); (h) the spiny lobster Palinurus elephas (15) and the echiurid Bonnellia viridis (16); (i) a large specimen of the European lobster Homarus gammarus (17) with Holothuria sp. (12) and B. viridis (16). Scale bars: a–b,f–g, 5 cm; c–e, 1 cm; h–I, 10 cm.
Diversity 12 00176 g006
Table
Table 1. Localization, depth (m), and abundance (N: number of colonies) of the 19 Eunicella verrucosa forests identified in the Mediterranean Sea, with indication of the latest update and the source of the data. Fr: France; It: Italy; Mo: Montenegro; RCMed: Reef Check Mediterranean.
Table 1. Localization, depth (m), and abundance (N: number of colonies) of the 19 Eunicella verrucosa forests identified in the Mediterranean Sea, with indication of the latest update and the source of the data. Fr: France; It: Italy; Mo: Montenegro; RCMed: Reef Check Mediterranean.
BasinCountryLocalityLat NLon ENDepth YearSource
Balearic SeaFrMaire Island,
Riou Archipelago		43.20765.3402-20–402007[22]
Ligurian SeaItI tuvi Bordighera43.76917.6878>5030–332012RCMed
Ligurian SeaItBordighera43.7687.694>5047–502020This study
Ligurian SeaItSanremo,
Scoglio dell’Astice		43.8007.838>15065–702020This study
Ligurian SeaItPilone43.91588.1404>5033–352014RCMed
Ligurian SeaItPortofino,
Punta Chiappa		44.32309.1456>5045–552006RCMed
Ligurian SeaItPortofino,
Punta del Faro		44.29769.2181>5040–702015RCMed
Ligurian SeaItPortofino,
Punta del Faro		44.29809.2183>5042–452013RCMed
Ligurian SeaItPortofino,
Punta del Faro		44.29809.2196>5045–502013RCMed
Ligurian SeaItPunta Manara44.24279.4027>5040–452006RCMed
Tyrrhenian SeaItScalea39.817715.7731>10044–552010RCMed
Sicily ChannelItFavignana37.904812.3059>5025–302010RCMed
Sicily ChannelItFavignana, Trigone37.906812.3037>5025–302010RCMed
Sicily ChannelItFavignana, Galeotta37.911412.2999>5018–302010RCMed
Sicily ChannelItFavignana,
Toro Canyon		37.877112.3095> 10016–322010RCMed
Sicily ChannelItFavignana,
Secca del Toro		37.878212.3097>10020–302010RCMed
Sicily ChannelItFavignana,
Secca Fondale		37.874412.3091>10020–302010RCMed
Adriatic SeaMoKotor Bay42.301518.5127-1082014This study
Adriatic SeaMoSE Kotor42.231218.5919-1102014This study
Table
Table 2. List of the animal taxa observed in association with Eunicella verrucosa and its forests, with indication of the location and the protection framework. B: Bern Convention (Convention on the Conservation of European Wildlife and Natural Habitats: Appendix II and III), S: SPA/BD Protocol (Protocol for Specially Protected Areas and Biological Diversity in the Mediterranean, Barcelona Convention: Annex II and III), I: International Union for Conservation of Nature (IUCN), Red List (LC: least concern, NT: near threatened, VU: vulnerable).
Table 2. List of the animal taxa observed in association with Eunicella verrucosa and its forests, with indication of the location and the protection framework. B: Bern Convention (Convention on the Conservation of European Wildlife and Natural Habitats: Appendix II and III), S: SPA/BD Protocol (Protocol for Specially Protected Areas and Biological Diversity in the Mediterranean, Barcelona Convention: Annex II and III), I: International Union for Conservation of Nature (IUCN), Red List (LC: least concern, NT: near threatened, VU: vulnerable).
Phylum, ClassTaxonLocationProtection
BSI
Foraminifera
GlobothalameaMiniacina miniacea (Pallas, 1766)SE Kotor
Porifera
DemospongiaeAgelas oroides (Schmidt, 1864)Sanremo
Aplysina aerophoba (Nardo, 1833)Sanremo II
Axinella brondstedi Bergquist, 1970Bordighera, Sanremo
Axinella damicornis (Esper, 1794)Sanremo
Axinella polypoides Schmidt, 1862Bordighera, SanremoIIII
Chondrosia reniformis Nardo, 1847Sanremo
Cliona sp.Riou [22], Bordighera
Dysidea avara (Schmidt, 1862)Bordighera
Geodia sp.Sanremo
Hemimycale columella (Bowerbank, 1874)Sanremo
Ircinia sp.Sanremo
Pachastrella monilifera Schmidt, 1868Sanremo
Petrosia sp.Bordighera, Sanremo
Phorbas sp.Sanremo
Pleraplysilla spinifera (Schulze, 1879)Sanremo
Raspaciona aculeata (Johnston, 1842)Bordighera
Sarcotragus cf. foetidus Schmidt, 1862Sanremo II
Spongia sp.Sanremo
SuberitidaeSanremo
HomoscleromorphaOscarella lobularis (Schmidt, 1862)Sanremo
Cnidaria
HydrozoaAglaophenia sp.Sanremo
Halecium sp.SE Kotor
AnthozoaAlcyonium acaule Marion, 1878Sanremo LC
Caryophyllia sp.Kotor Bay, SE Kotor, Bordighera, Sanremo
Eunicella cavolini (Koch, 1887)Riou [22], Bordighera, Sanremo NT
Leptogorgia sarmentosa (Esper, 1789)Riou [22], Bordighera LC
Paramuricea clavata (Risso, 1826)Riou [22], Bordighera, Sanremo VU
Parazoanthus axinellae (Schmidt, 1862)Bordighera, Sanremo LC
Savalia savaglia (Bertoloni, 1819)SanremoIIIINT
Mollusca
GastropodaFelimare picta (Philippi, 1836)Sanremo
Simnia spelta (Linnaeus, 1758) 1Riou [22], SE Kotor
Tritonia nilsodhneri Marcus Ev., 1983 1Grananda [47], Riou [22], Portofino [31]
BivalviaPteria hirundo (Linnaeus, 1758) 1SE Kotor
Annelida
PolychaetaBonellia viridis Rolando, 1822Bordighera, Sanremo
Filograna-Salmacina complex 1Bordighera, Sanremo
Sabella pavonina Savigny, 1822Sanremo
Serpula vermicularis Linnaeus, 1767Sanremo
SerpulidaeSanremo, SE Kotor
Arthropoda
MalacostracaBalssia gasti (Balss, 1921) 1Riou [22]
Homarus gammarus (Linnaeus, 1758)SanremoIIIIIILC
Maja squinado (Herbst, 1788)SanremoIIIIII
Palinurus elephas (Fabricius, 1787)SanremoIIIIIIVU
Bryozoa
GymnolaemataAdeonella calveti Canu & Bassler, 1930Sanremo
Myriapora truncata (Pallas, 1766)Sanremo
Pentapora fascialis (Pallas, 1766)Sanremo
Reteporella cf. grimaldii (Jullien, 1903) 1Bordighera, Sanremo
Schizomavella (Schizomavella) mamillata (Hincks, 1880)Sanremo, Kotor Bay
Schizomavella sp.Sanremo
Smittina cervicornis (Pallas, 1766)Sanremo
Echinodermata
CrinoideaAntedon mediterranea (Lamarck, 1816) 1Kotor Bay, SE Kotor
HolothuroideaHolothuria (Holothuria) tubulosa Gmelin, 1791Bordighera, Sanremo LC
Holothuria (Panningothuria) forskali Delle Chiaje, 1823Bordighera, Sanremo LC
Holothuria (Roweothuria) poli Delle Chiaje, 1824Bordighera, Sanremo LC
AsteroideaAnseropoda placenta (Pennant, 1777)SE Kotor
Echinaster (Echinaster) sepositus (Retzius, 1783)Sanremo
Hacelia attenuata Gray, 1840Sanremo
Marthasterias glacialis (Linnaeus, 1758)Sanremo
Peltaster placenta (Müller & Troschel, 1842)Sanremo
OphiuroideaAstrospartus mediterraneus (Risso, 1826) 1Bordighera, Sanremo
Ophiacantha setosa (Bruzelius, 1805) 1Corsica [5], Kotor Bay, SE Kotor
EchinoideaEchinus melo Lamarck, 1816Sanremo
Chordata
AscidiaceaDidemnidaeSanremo, Kotor Bay, SE Kotor
Diplosoma spongiforme (Giard, 1872)Sanremo
Halocynthia papillosa (Linnaeus, 1767)Sanremo
ActinopterygiiAnthias anthias (Linnaeus, 1758)Sanremo LC
Callanthias ruber (Rafinesque, 1810)Sanremo LC
Conger conger (Linnaeus, 1758)Sanremo LC
Coris julis (Linnaeus, 1758)Sanremo LC
Epinephelus marginatus (Lowe, 1834)BordigheraIIIIIIVU
Labrus mixtus Linnaeus, 1758Sanremo LC
Mullus barbatus barbatus Linnaeus, 1758Sanremo LC
Muraena helena Linnaeus, 1758Sanremo LC
Phycis phycis (Linnaeus, 1766)Sanremo LC
Polyprion americanus (Bloch & Schneider, 1801)Sanremo NT
Scorpaena notata Rafinesque, 1810Sanremo LC
Scorpaena scrofa Linnaeus, 1758Bordighera, Sanremo LC
Serranus cabrilla (Linnaeus, 1758)Sanremo LC
Spicara sp.Sanremo LC
Trachurus sp.Sanremo LC
1 Taxa found as epibiont on E. verrucosa.

Share and Cite

MDPI and ACS Style

Chimienti, G. Vulnerable Forests of the Pink Sea Fan Eunicella verrucosa in the Mediterranean Sea. Diversity 2020, 12, 176. https://doi.org/10.3390/d12050176

AMA Style

Chimienti G. Vulnerable Forests of the Pink Sea Fan Eunicella verrucosa in the Mediterranean Sea. Diversity. 2020; 12(5):176. https://doi.org/10.3390/d12050176

Chicago/Turabian Style

Chimienti, Giovanni. 2020. "Vulnerable Forests of the Pink Sea Fan Eunicella verrucosa in the Mediterranean Sea" Diversity 12, no. 5: 176. https://doi.org/10.3390/d12050176

APA Style

Chimienti, G. (2020). Vulnerable Forests of the Pink Sea Fan Eunicella verrucosa in the Mediterranean Sea. Diversity, 12(5), 176. https://doi.org/10.3390/d12050176

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
