3a-Phenylhexahydropentalene-1,6-dione

Abstract

Bicyclo[3.3.0]skeleton is a common structural motif present in many natural products and pharmaceutical agents. Here we have synthesized a rigid 3a-arylhexahydropentalene-1,6-dione from cyclopent-2-en-1-one which is an easy and readily available starting material.

1. Introduction

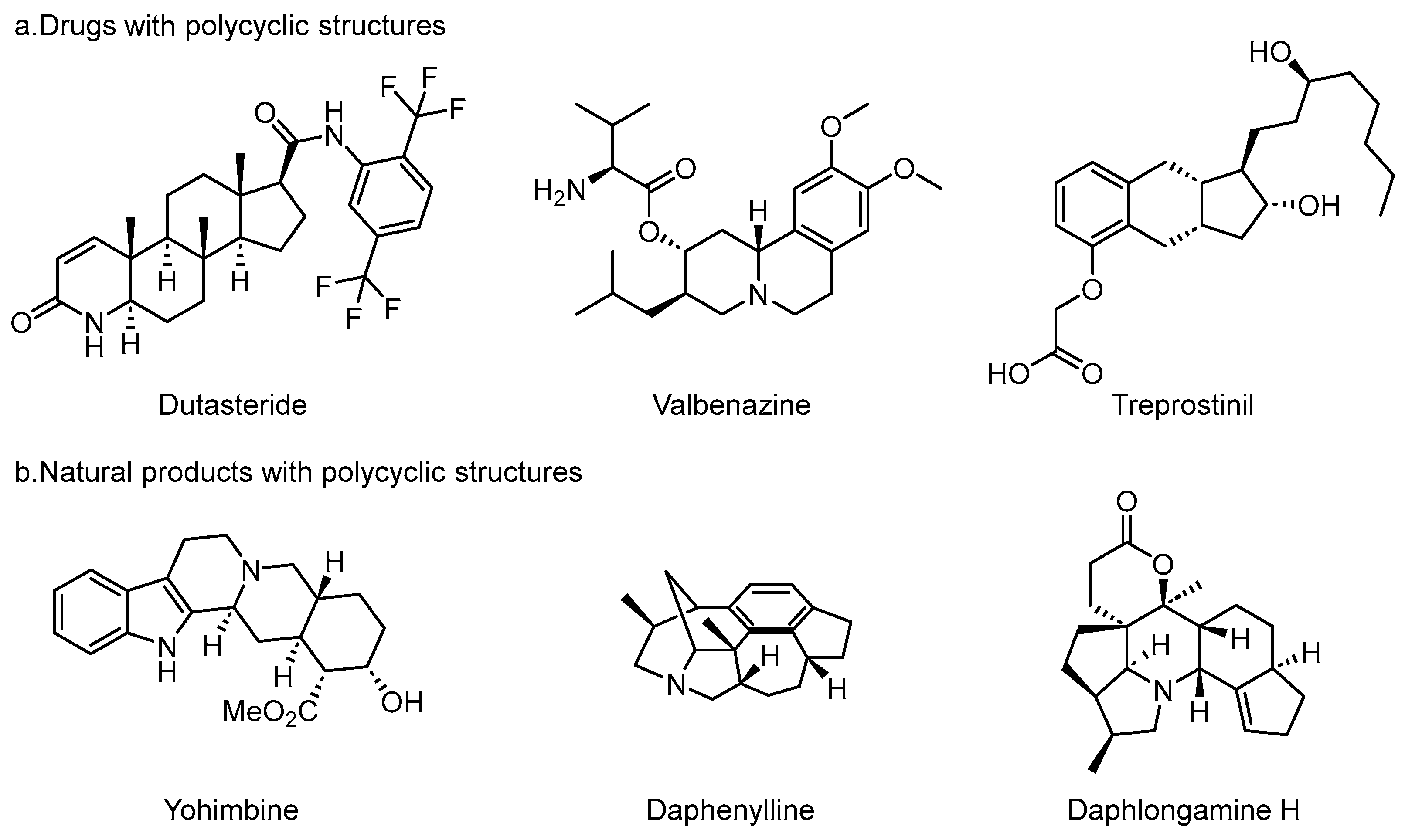

Saturated bicyclic and polycyclic frameworks are common structural patterns found in both pharmaceutical substances and organic compounds. Dutasteride (Avodart) [1,2,3], a steroidal 5α-reductase inhibitor, is clinically used to treat benign prostatic hyperplasia and androgenetic alopecia. Valbenazine (INGREZZA) [4], a selective vesicular monoamine transporter 2 (VMAT2) inhibitor containing a nitrogen heterocycle, is approved for the treatment of two hyperkinetic movement disorders, tardive dyskinesia (TD) and chorea associated with Huntington’s disease (HD). Oral treprostinil (Orenitram) [5] is a prostacyclin analogue used to treat pulmonary arterial hypertension (PAH). Oral treprostrinil contains a central structural motif of a chiral bicyclic[4.3.0]nonane core (Figure 1a). Besides synthetic drugs, many natural products also have complex, highly functionalized fused-ring structures, such as monoterpenoid indole alkaloids (MIAs) [6,7,8] and daphniphyllum alkaloid (Figure 1b) [9]. The importance of these frameworks continues to inspire chemists to develop new synthetic methods.

In this type of structurally rich framework, multifunctional bicyclic diketones are considered important structural units in organic synthesis. They are highly functionalized, containing two carbonyl groups, and therefore possess great chemical flexibility. Under different reaction conditions, they can undergo various transformations, such as ring expansion, rearrangement [10] and selective ring opening reaction [11], thereby achieving skeletal recombination and producing different molecular structures. Therefore, these diketones are used in the total synthesis of complex natural products and the modular construction of pharmaceutically relevant scaffolds [12,13].

Since bicyclic diketones can be used to synthesize structurally diverse and biologically active molecules, developing efficient and scalable methods for producing bicyclic diketones has been a fascinating goal in the fields of medicinal chemistry and synthetic chemistry. This article introduces a concise and convenient three-step method for the synthesis of aryl-substituted bicyclic diketones, which can serve as useful intermediate for drug discovery and natural product synthesis.

2. Results and Discussion

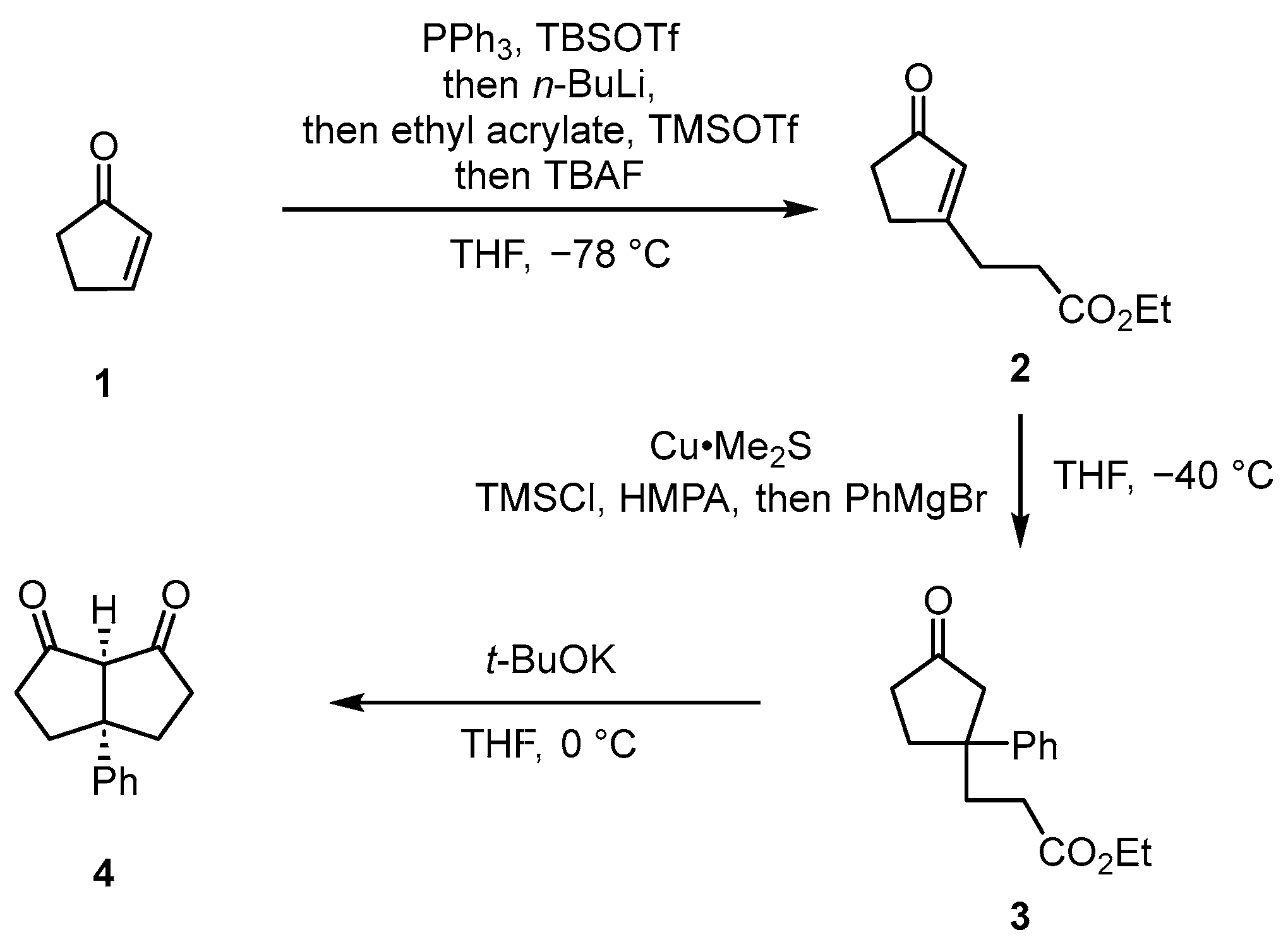

Compound 2 was synthesized from cyclopent-2-en-1-one via a one-step process following a previously reported procedure [10]. In this reaction, triphenylphosphine was reacted with cyclopent-2-en-1-one in the presence of tert-butyldimethylsilyltrifluoromethanesulfonate (TBSOTf) to generate an umpolung ylide intermediate. The intermediate was then reacted with ethyl acrylate, which was activated by trimethylsilyl trifluoromethanesulfonate (TMSOTf). Finally, the compound was treated with tetra-n-butylammonium fluoride (TBAF) to obtain target compound 2 (Scheme 1).

After obtaining compound 2, it was reacted with phenylmagnesium bromide in the presence of copper(I) bromide dimethyl sulfide complex (CuBr·Me₂S) and trimethylchlorosilane (TMSCl). The corresponding 1,4-addition product 3 was obtained. Subsequently, compound 3 undergoes a condensation reaction in the presence of potassium tert-butoxide (t-BuOK) to generate compound 4 as a single isomer.

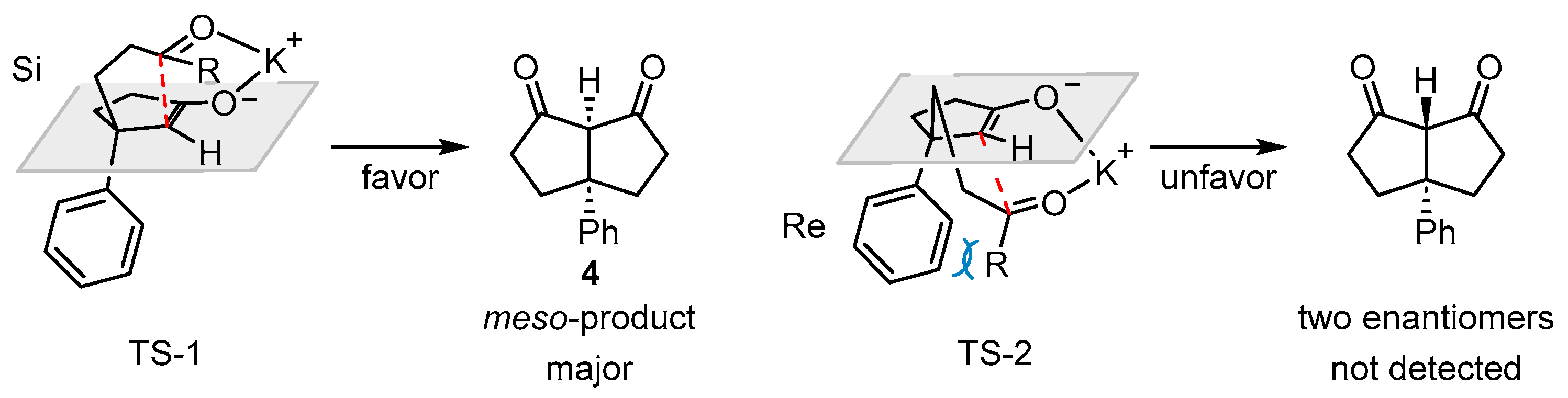

Theoretically, this cyclization reaction can produce a pair of enantiomers and a meso compound, but only one isomer was obtained in the experiment. Based on the analysis of the transition state in the condensation step, this selectivity can be rationalized: when nucleophilic addition occurs on the Si face of the cyclopentanone plane (corresponding to transition state TS1), the resulting transition state is relatively favourable in terms of steric hindrance and ring strain, ultimately leading to the meso product. Conversely, when addition occurs on the Re face (transition state TS2), the ester group has difficulty approaching it, and there is a significant repulsive interaction between the R group and the benzene ring, making this pathway very unfavourable (Figure 2). These factors together lead to the exclusive formation of meso isomer.

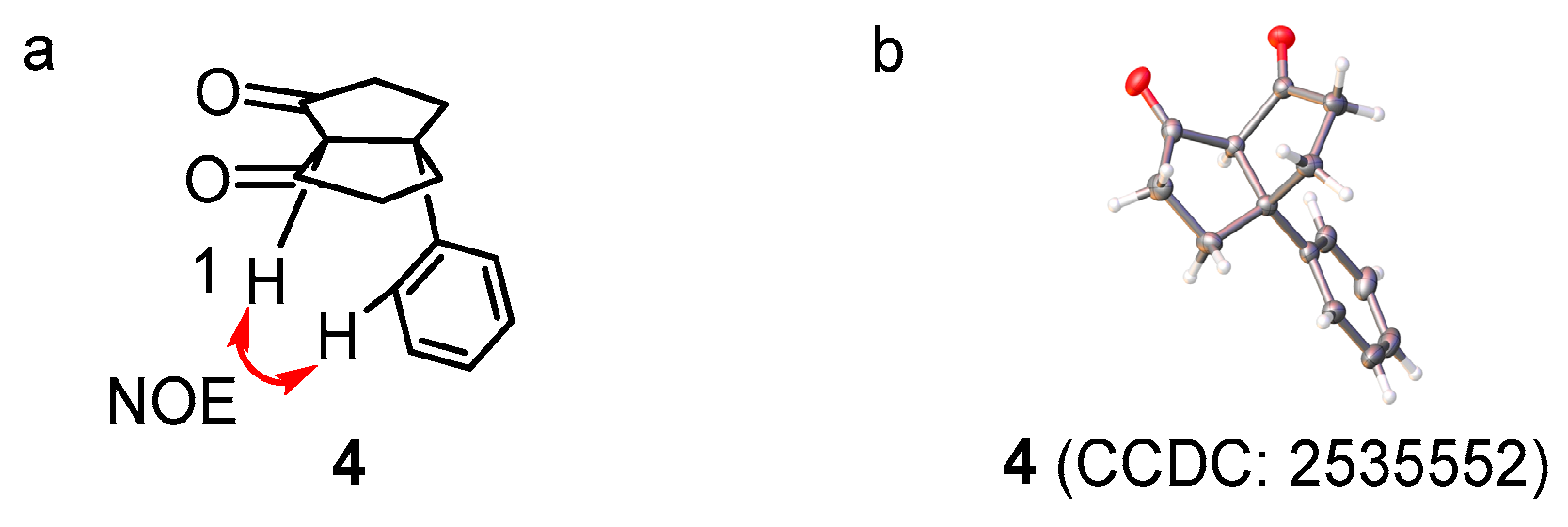

The structure of compound 4 was preliminarily established through ¹³C NMR spectroscopy: only four carbon signals were observed in the δ 70–0 range, and a single carbonyl carbon signal was detected at δ 208.1, which initially suggesting a meso configuration. Further NOESY analysis (see Supplementary Materials for details) revealed a weak correlation between H-1 and the phenyl protons (Figure 3a), indicating that H-1 and the phenyl ring are likely located on the same side of the molecule. Ultimately, single-crystal X-ray diffraction analysis (CCDC: 2535552) conclusively confirmed the meso configuration of the compound (Figure 3b), validating the above inferences. Additionally, the proposed structure was further validated by the ¹H NMR, ¹³C NMR, DEPT, ¹H-¹HCOSY, and HSQC spectra of compound 4 (see Supplementary Materials for details).

3. Materials and Methods

3.1. Chemicals and Instrumentations

Unless otherwise specified, all reagents used were of analytical grade. The key reagents included: cyclopent-2-en-1-one, triphenylphosphine, ethyl acrylate, tert-butyldimethylsilyl trifluoromethanesulfonate, n-butyllithium, copper(I) dimethyl sulfide complex, phenylmagnesium bromide, potassium tert-butoxide. All chemical structures in this paper were drawn using ChemDraw (v2022).The following main instruments were used to characterize and analyze the compounds: Thermostatic heating magnetic stirrer (Model DF-101S) (Shanghai, China), manufactured by Shanghai Yukang Science and Education Instrument Equipment Co, Ltd., Rotary evaporator (Model N-1100V), obtained from EYELA (Tokyo Rika Kikai Co., Ltd., Tokyo, Japan); Chemical diaphragm pump (Model MZ 2C NT), product of Vacuubrand GmbH, Wertheim Germany; Vacuum drying oven (Model DZF-6020) (Gongyi, China), supplied by Gongyi Jinghua Instrument Co., Ltd.; Circulating water vacuum pump (Model SHZ-D(ΙΙΙ)) (Zhengzhou, China), produced by Zhengzhou Yuxiang Instrument Equipment Co., Ltd.; Electronic balance (Model ME203E), brand of Mettler Toledo, Zurich, Switzerland; ¹H NMR and ¹³C NMR spectra were on Bruker AVANCE^III 400 MHz, or Bruker AVANCE NEO 600 MHz (Karlsruhe, Germany) instrument using CDCl₃ as solvent. Chemical shifts (δ) were reported in ppm relative to residual solvent peak or tetramethylsilane as internal standard (CDCl₃: 7.26 ppm for ¹H NMR, 77.0 ppm for ¹³C NMR; Multiplicity and qualifier abbreviations are as follows: s = singlet, d = doublet, t = triplet, q = quartets, dd = doublet of doublets, ddd = doublet of doublet of doublets, dddd = doublet of doublet of doublet of doublets, dt = doublet of triplets, dq = doublet of quartets, ddq = doublet of doublet of quartets, td = triplet of doublets, qd = quartet of doublets, m = multiplet. High-resolution mass spectral analysis (HRMS) data were measured on a Bruker ApexII mass spectrometer (Rheinstetten, Germany) using the ESI technique. The single-crystal diffractometer (XtaLAB Synergy-DW), obtained from Rigaku (Rigaku Corporation., Tokyo, Japan).

3.2. Synthesis of Ethyl 3-(3-oxocyclopent-1-en-1-yl)propanoate (2)

In this synthesis process, the method was adapted from the research of Stoltz et al. [10]. A flame-dried 500 mL flask with a magnetic stir bar was charged with PPh₃ (9.2 g, 35.0 mmol, 1.05 equiv.) and THF (150 mL). TBSOTf (9.3 g, 8.0 mL, 35.0 mmol, 1.05 equiv.) was then added, followed by cyclopentenone (2.7 g, 2.7 mL, 33.3 mmol, 1.0 equiv.). The reaction mixture was stirred for 2 h to allow complete consumption of cyclopentenone, and the results were monitored by thin-layer chromatography. The solution was cooled to −78 °C and held at this temperature for 20 min, and then n-butyllithium (2.5 M in hexane, 16.0 mL, 40.0 mmol, 1.2 equiv.) was added. After being added, the solution first turned red, and then almost black. The reaction mixture was kept at −78 °C for 45 min. In a separate flame-dried flask equipped with a magnetic stir bar, THF (60 mL) and ethyl acrylate (3.7 g, 3.9 mL, 36.7 mmol, 1.1 equiv.) were added. After cooling this solution to −78 °C, one part of TMSOTf (8.4 g, 6.8 mL, 37.6 mmol, 1.13 equiv.) was added. The resultant solution was quickly transferred by cannula to the stirring ylide solution at −78 °C, where it was kept for 45 min. TBAF (1.0 M in THF, 90.0 mL, 90.0 mmol) was then added. After removing the cooling bath and adding 100 mL of water, the reaction mixture was allowed to warm to room temperature for 30 min. Next, the reaction mixture was extracted with 100 mL of water and ethyl acetate (100 mL). The organic layer was washed with brine, dried with anhydrous sodium sulfate, and concentrated under reduced pressure. The crude residue was purified by column chromatography to obtain the title compound 2 as a yellow solid (3.8 g, yield 62%).

3.3. Ethyl 3-(3-oxo-1-phenylcyclopentyl)propanoate (3)

In this synthesis process, the method was adapted from the research of Stoltz et al. [10]. CuBr·Me₂S (310 mg, 1.5 mmol, 0.3 equiv.) was added to a flame-dried 100 mL flask equipped with a stir bar and a rubber septum, and the flask was purged with nitrogen. THF (15 mL) was added, followed by HMPA (5.2 mL, 30.6 mmol, 6.0 equiv.). The resulting pale green mixture was cooled to −40 °C, and then TMSCl (3.8 mL, 30.6 mmol, 6.0 equivalent) was added dropwise. Then, compound 2 (0.9 g, 5.1 mmol, 1.0 equiv.) in THF (10 mL) was rapidly added dropwise. Finally, phenyl magnesium bromide (15.3 mmol, 3 equiv.) was injected dropwise via a syringe pump over a 2 h interval. After adding the Grignard reagent, the reaction mixture was stirred for another hour and then quenched with acetic acid (1.1 mL, 20.4 mmol, 4.0 equiv.). The mixture was warm to room temperature and then extracted with water and ethyl acetate (40 mL). The combined organic layers were washed with a saturated aqueous solution of NaHCO₃ (30 mL) and brine (50 mL), dried with Na₂SO₄, and concentrated under reduced pressure. The crude residue was purified by column chromatography to give title compound 3 as a colourless oil (820 mg), with a yield of 61%. R_f = 0.4 (hexane:ethyl acetate = 1:1). ¹H NMR (400 MHz, CDCl₃) δ 7.35 (t, J = 7.8 Hz, 2H), 7.29–7.19 (m, 3H), 4.03 (q, J = 7.2 Hz, 2H), 2.70 (d, J = 17.6 Hz, 1H), 2.49 (d, J = 17.6 Hz, 1H), 2.43–2.20 (m, 4H), 2.17–1.95 (m, 4H). δ 1.19 (t, J = 7.2 Hz, 3H). ¹³C NMR (101 MHz, CDCl₃) δ 217.5, 173.1, 144.6, 128.6, 126.7, 126.3, 60.4, 50.4, 47.0, 36.4, 36.3, 34.3, 30.2, 14.1. HRMS (m/z, ESI): Calcd. For C₁₆H₂₀O₃Na⁺ [M + Na]⁺: 283.1305; found: 283.1304.

3.4. 3a-Phenylhexahydropentalene-1,6-dione (4)

Ketone 3 (2.0 mmol, 1.0 equiv.) was added to a flame-dried 100 mL flask equipped with a stir bar. THF (30 mL) was added and then cooled the solution to 0 °C. Subsequently, anhydrous t-BuOK (336 mg, 3.0 mmol, 1.5 equiv.) was added in one go. After stirring the mixture for 20 min, the TLC showed that the starting material had been completely consumed. The reaction was quenched with a saturated aqueous NH₄Cl, and the mixture was warm to room temperature. The aqueous layer was extracted three times with ethyl acetate (20 mL). The combined organic layers were washed with brine (30 mL), dried with Na₂SO₄, and concentrated under reduced pressure. The crude product residue was purified by column chromatography to give title compound 4 as a white solid (291 mg), with a yield of 68%. R_f = 0.6 (hexane:ethyl acetate = 1:1) ¹H NMR (600 MHz, CDCl₃) δ 7.37 (t, J = 7.8 Hz, 2H), 7.28 (t, J = 7.4 Hz, 1H), 7.25–7.22 (m, 2H), 3.44 (s, 1H), 2.48 (t, J = 8.0 Hz, 4H), 2.44–2.36 (m, 2H), 2.34–2.26 (m, 2H). ¹³C NMR (151 MHz, CDCl₃) δ 208.1, 145.4, 128.9, 127.1, 125.3, 68.8, 54.0, 37.5, 33.8. HRMS (m/z, ESI): Calcd. For C₁₄H₁₄O₂Na⁺ [M + Na]⁺: 237.0886; found: 237.0884. m.p.: 120–121 °C.

3.5. X-Ray Crystallography

X-ray structural analysis of compound 4 was carried out on an XtaLAB Synergy-DW diffractometer equipped with a HyPix-6000HE detector using Cu Kα radiation (λ = 1.54184 Å) at 149.91(19) K. The structure was solved and refined using the SHELX program package [14]. Molecular graphics and preparation of the manuscript were performed with the OLEX2 software package [15].

Selected crystallographic data: C₁₄H₁₄O₂, M = 214.25, orthorhombic, a = 11.42584(16), b = 13.9530(2), c = 6.89357(9) Å, α = 90°, β = 90°, γ = 90°, V = 1099.00(3) ų, T = 149.91(19) K, space group Pca2₁, Z = 4, ρ_calc = 1.295 g/cm³. More detailed information can be found in the Supporting Materials. CCDC 2535552 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/structures (accessed on 6 March 2026).

4. Conclusions

In summary, bicyclic[3.3.0]diones were successfully synthesized using simple starting materials. The structure of compound 4 was characterized by single-crystal X-ray diffraction analysis and nuclear magnetic resonance spectroscopy techniques, including ¹H NMR, ¹³C NMR, DEPT, ¹H-¹H COSY, and HSQC.
