N-(p-Toluenesulfonyl)-1-(4′-acetylphenoxy)acrylimidate: Synthesis, Crystal Structure and Theoretical Studies

Abstract

The formation of N-sulfonyl-1-aryloxy acrylimidate is described, for the first time, from a consecutive process, which involves a CuAAC reaction, a ketenimine formation and subsequent rearrangement between an aryl propargyl ether and a sulfonyl azide. The structure of this newly synthesized compound was analyzed by NMR spectra and unambiguously established by X-ray analysis. In addition, theoretical calculations, which included a Hirshfeld surface, FMO, QTAIM and NCI indices analysis, corroborated the formation of π-π stacking interactions among aromatic rings, as well as C-H···O interactions between vinyl hydrogens with ketone carbonyl oxygen.

1. Introduction

The number of applications of copper-catalyzed azide-alkyne cycloaddition (CuAAC) is not only limited to the preparation of 1,2,3-tiazoles, but has also been extended to the generation of interesting intermediates, such as ketenimines. In this regard, seminal works of Chang and coworkers [1] demonstrated the potential of this reaction in the preparation of compounds of chemical interest [2].

In connection with other synthetic studies, some time ago we investigated new methods and catalysts for selective preparation of 1-sulfonyl-1,2,3-triazoles from sulfonyl azides and alkynes [3,4,5]. Derived from these studies, and as an effort to expand the uses of this reaction to other systems, we found the formation of an unexpected product from an aryl propargyl ether and a sulfonyl azide under conventional CuAAC reaction conditions. Herein is described our most recent results in this area.

2. Results and Discussion

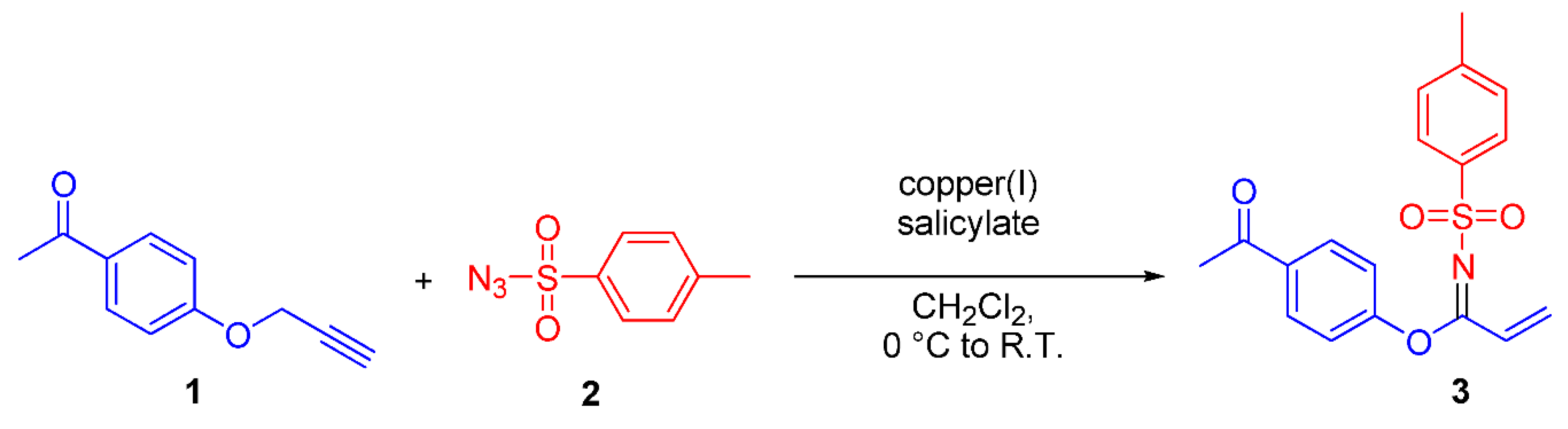

In this report, we disclose that straightforward treatment of p-toluenesulfonyl azide 2 and 1-(4-prop-2-ynyloxyphenyl)ethanone 1 in the presence of catalytic amounts of copper(I) salicylate [5] afforded N-(p-toluenesulfonyl)-1-(4′-Acetylphenoxy)acrylimidate 3 in 29% yield, as depicted in Scheme 1.

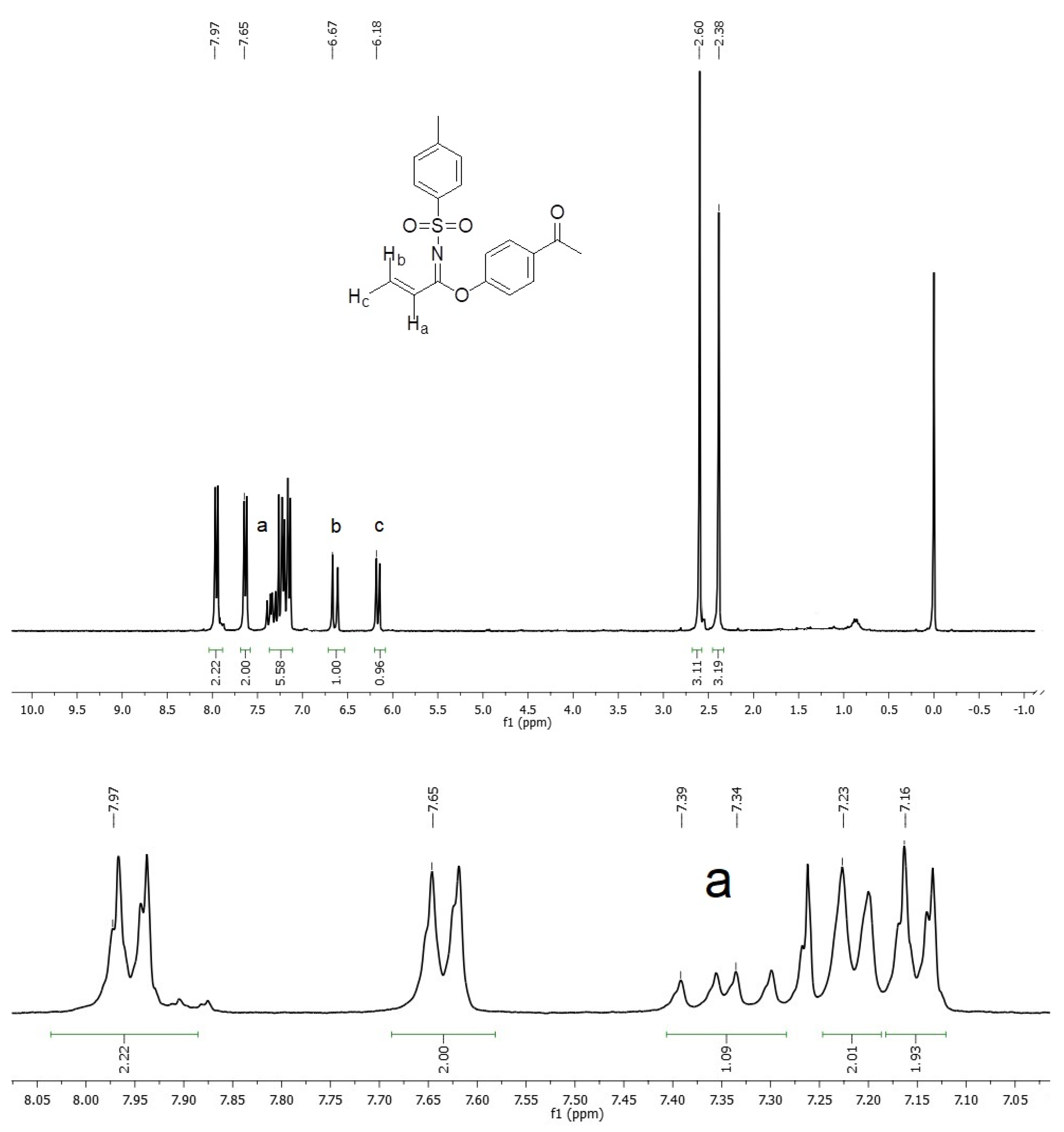

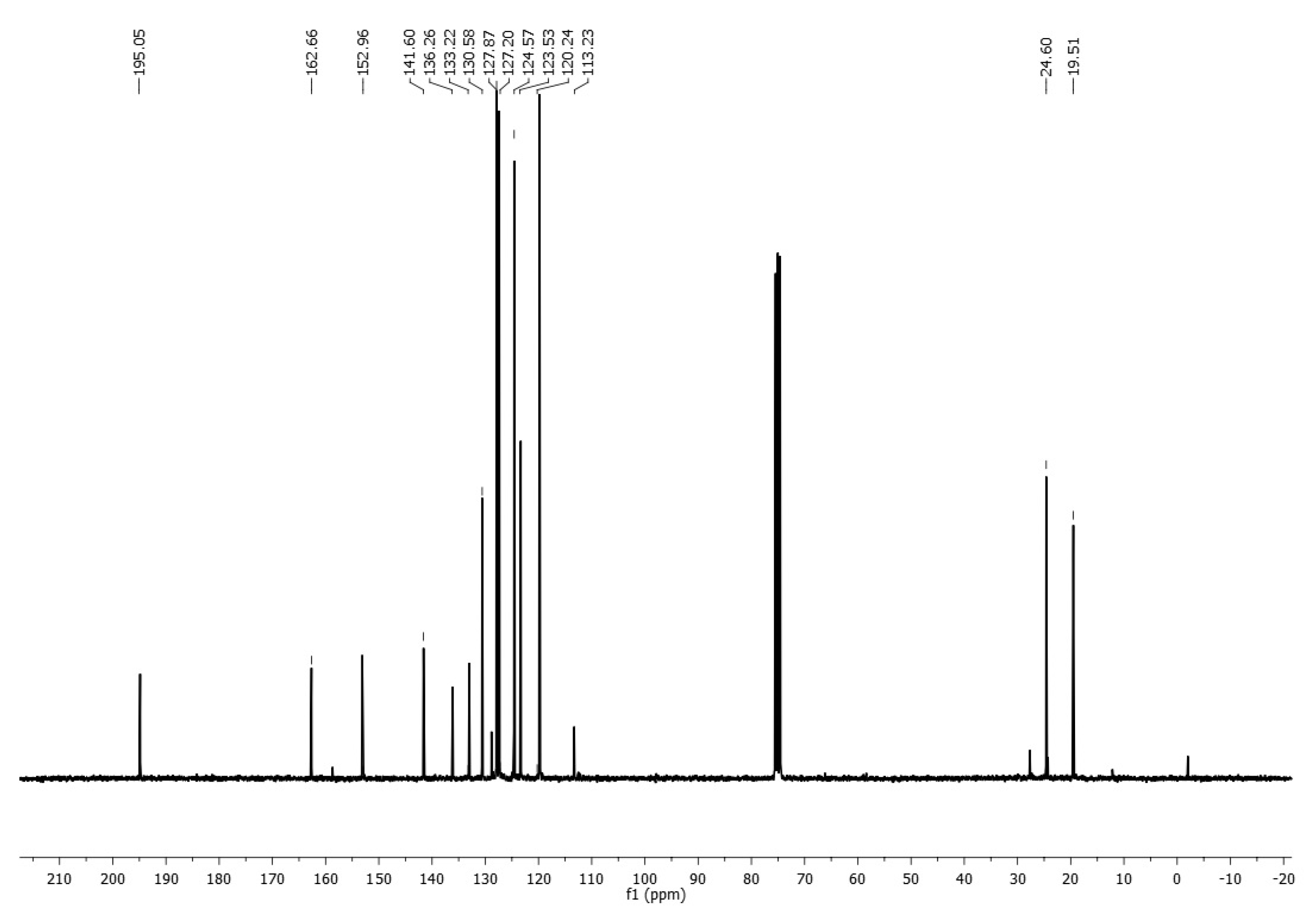

An important spectroscopic feature, which gave rise to the product identification, was a signal pattern observed in the ¹H NMR spectrum associated with a vinyl system, see Figure 1 (Supplementary Materials), with two doublet signals at δ 6.18 ppm (J_ac = 10.89 Hz) and 6.67 ppm (J_ab = 16.98 Hz), assigned to geminal hydrogens, as well as a doublet of doublets signal at δ 7.39 ppm (J_ab = 16.95 Hz and J_ac = 10.86 Hz), corresponding to Hydrogen on C-2 from acrylimidate moiety. On the other hand, vinyl carbon signals were located at δ 113.2 and 127.2 ppm in ¹³C NMR, whereas an imidate C=N carbon signal was observed at δ 195.1 ppm (Figure 2).

The structure of imidate 3 was unambiguously elucidated by X-ray crystallography. due to compound 3 resulting in a crystalline solid. Crystallographic data and structural refinement parameters of 3 are summarized in

Table 1. Crystallographic data for structural analysis of compound 3.

Crystal Data	3
Empirical formula	C18H17NO4S
Formula weight	343.38
Temperature (K)	100(2)
Radiation type	Mo Kα
Crystal system	Triclinic
Space group	P − 1
Unit cell dimensions (Å, °)
a	9.1339(4)
b	9.4474(4)
c	10.7404(4)
α	66.3790(10)
β	85.4950(10)
γ	77.8620(10)
Volume (Å3)	830.15(6)
Z	2
Density (calculated, Mg/m3)	1.374
Absorption coefficient μ (mm−1)	0.217
F(000)	360
Crystal size (mm3)	0.160 × 0.185 × 0.318
Θ range (deg)	2.070 to 27.504
Index ranges	−11 ≤ h ≤ 11, −12 ≤ k ≤ 12, −13 ≤ l ≤ 13
Reflections collected	18,221
Independent reflections	3808 [R(int) = 0.0130]
Data/restraints/parameters	3808/0/219
Goodness-of-fit on F2	1.039
Final R indices [I > 2sigma(I)]	R1 = 0.0298, wR2 = 0.0805
R indices (all data)	R1 = 0.0306, wR2 = 0.0812
Largest diff. peak and hole (e Å−3)	0.435, −0.390

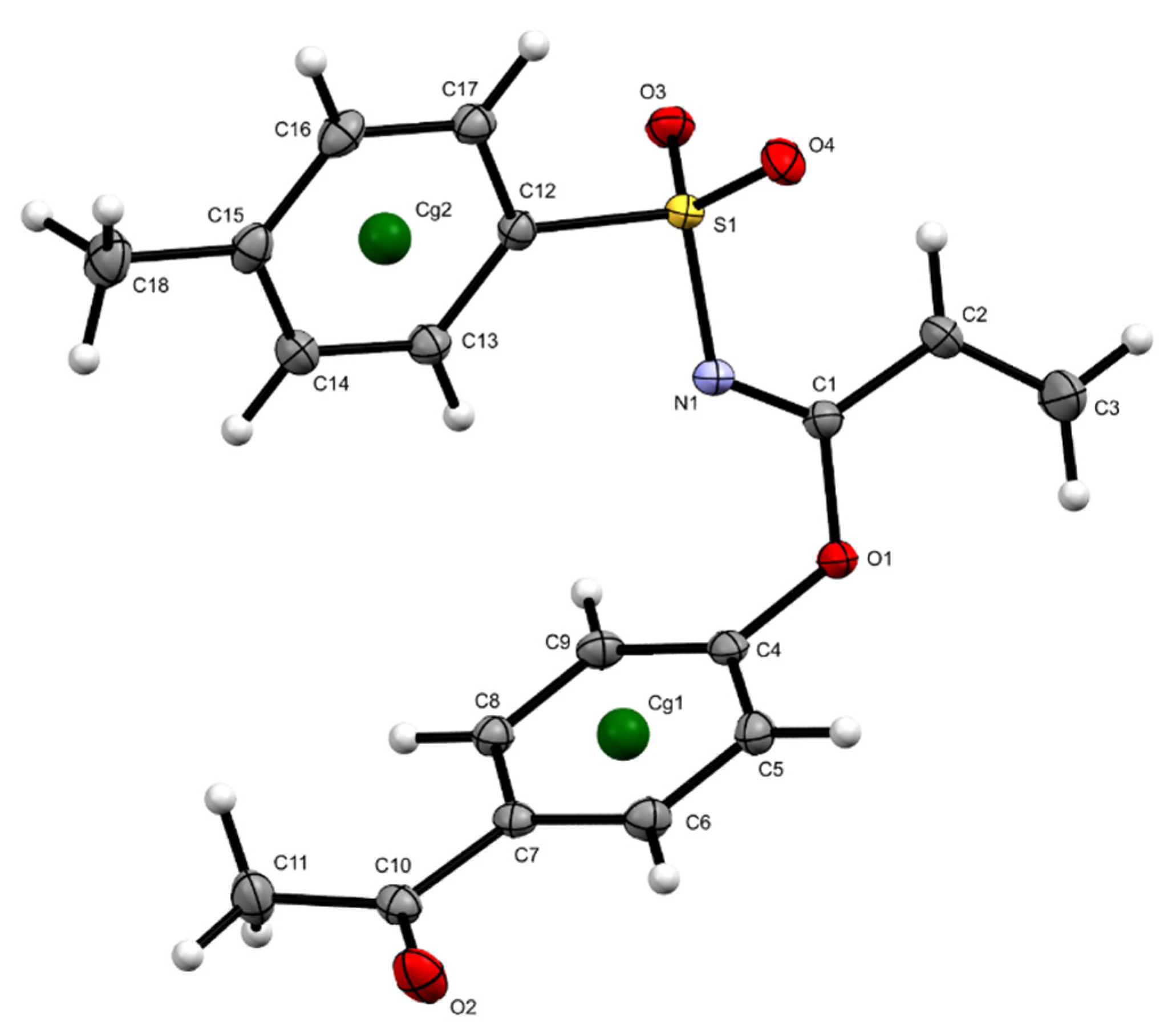

, and the crystal structure of compound 3 is projected in Figure 3. A notable U-shaped conformation was perceived, similar to those observed in certain aromatic urea dicarboxylic acids [6] and helicenes [7]. For compound 3, the aromatic rings underwent an approaching which could be evidenced by distances up to 2.944 Å between hydrogens in the toluenesulfonyl ring with hydrogens in the acetyl phenoxy system. Moreover, these rings maintained an almost perpendicular position, displaying a dihedral angle of 85.69°.

The above-described conformation was probably due to the presence of diverse interactions, highlighting π-π stacking interactions, a first Cg1···Cg1 interaction with a distance of 3.8729(7) Å (symmetry code −x + 1, −y + 1, −z) and a second Cg2···Cg2 interaction with a distance of 4.8878(7) Å (symmetry code −x + 2, −y + 1, −z + 1), as seen in

Table 2. Hydrogen-bond geometry (Å, °).

D—H···A	D—H	H···A	D···A	D—H···A
C2—H2···O2 i	0.95	2.59	3.2198(14)	123.9
C3—H3B···O2 i	0.95	2.56	3.1986(16)	124.7
C2—H2···O3	0.95	2.71	3.2620(14)	117.3
C13—H13···N1	0.95	2.45	2.8398(14)	104.4
C11—H11A···O4 ii	0.98	2.63	3.5461(16)	155.5
C11—H11B···O3 iii	0.98	2.85	3.6760(15)	142.8
C17—H17···O3 iv	0.95	2.78	3.7080(14)	164.4
C9—H9···Cg2 iii	0.95	2.55	3.4644(12)	162.9

Symmetry codes: (i) x − 1, y + 1, z; (ii) x, y − 1, z; (iii) −x + 1, −y + 1, −z + 1; (iv) −x + 1, −y + 2, −z + 1.

and Figure 4, and C-H···O interactions between vinyl hydrogens with ketone carbonyl oxygen (distances C3-H···O = 2.561 Å and C2-H···O 2.592 Å) which, in turn, also interacted with an aromatic hydrogen from tosyl moiety, C14-H···O = 2.703 Å, as well as with aromatic hydrogens from the outer acetyl phenoxy ring C8-H···O = 2.770 Å and C9-H···O = 2.922 Å.

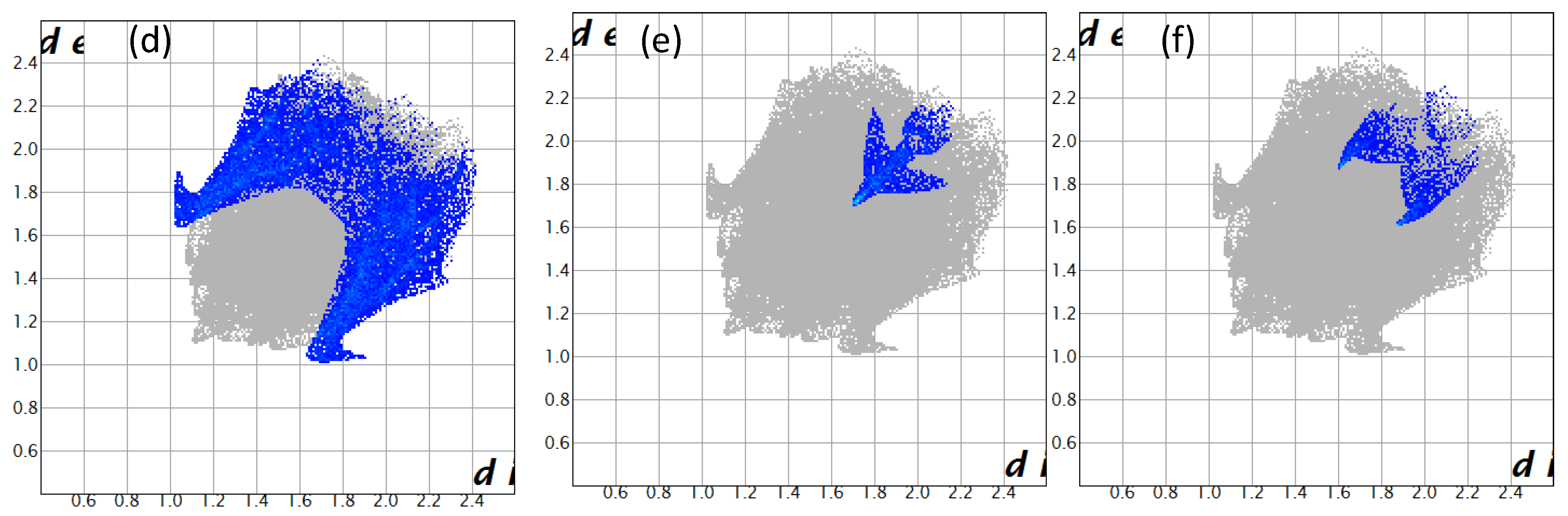

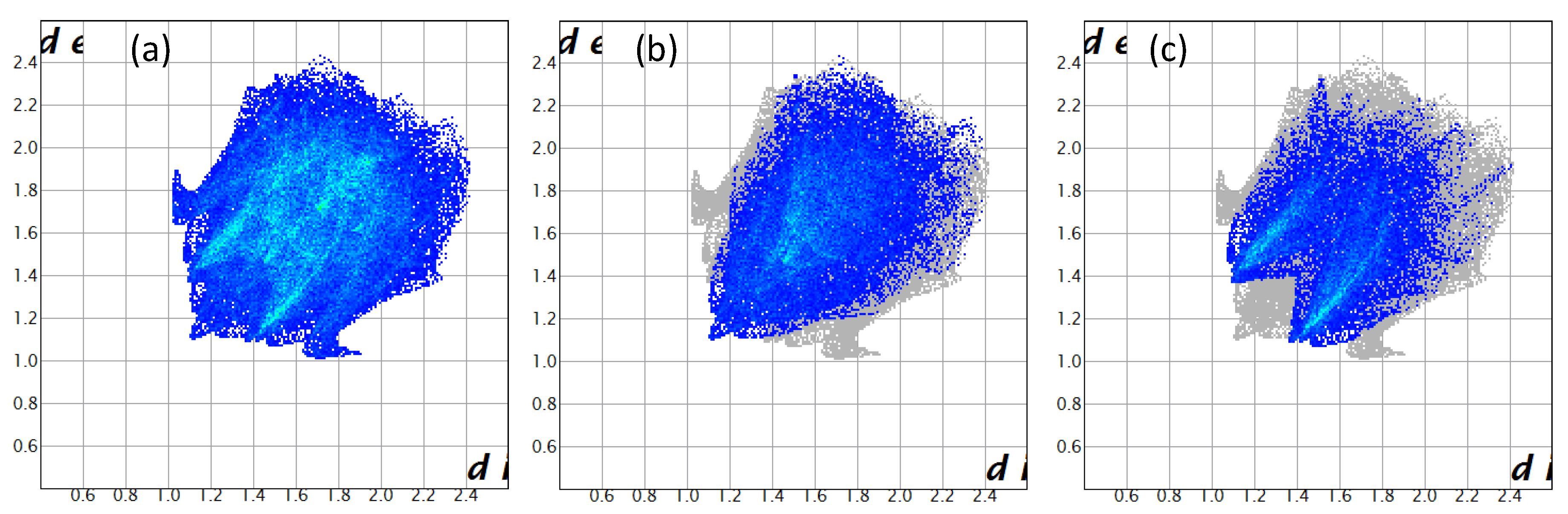

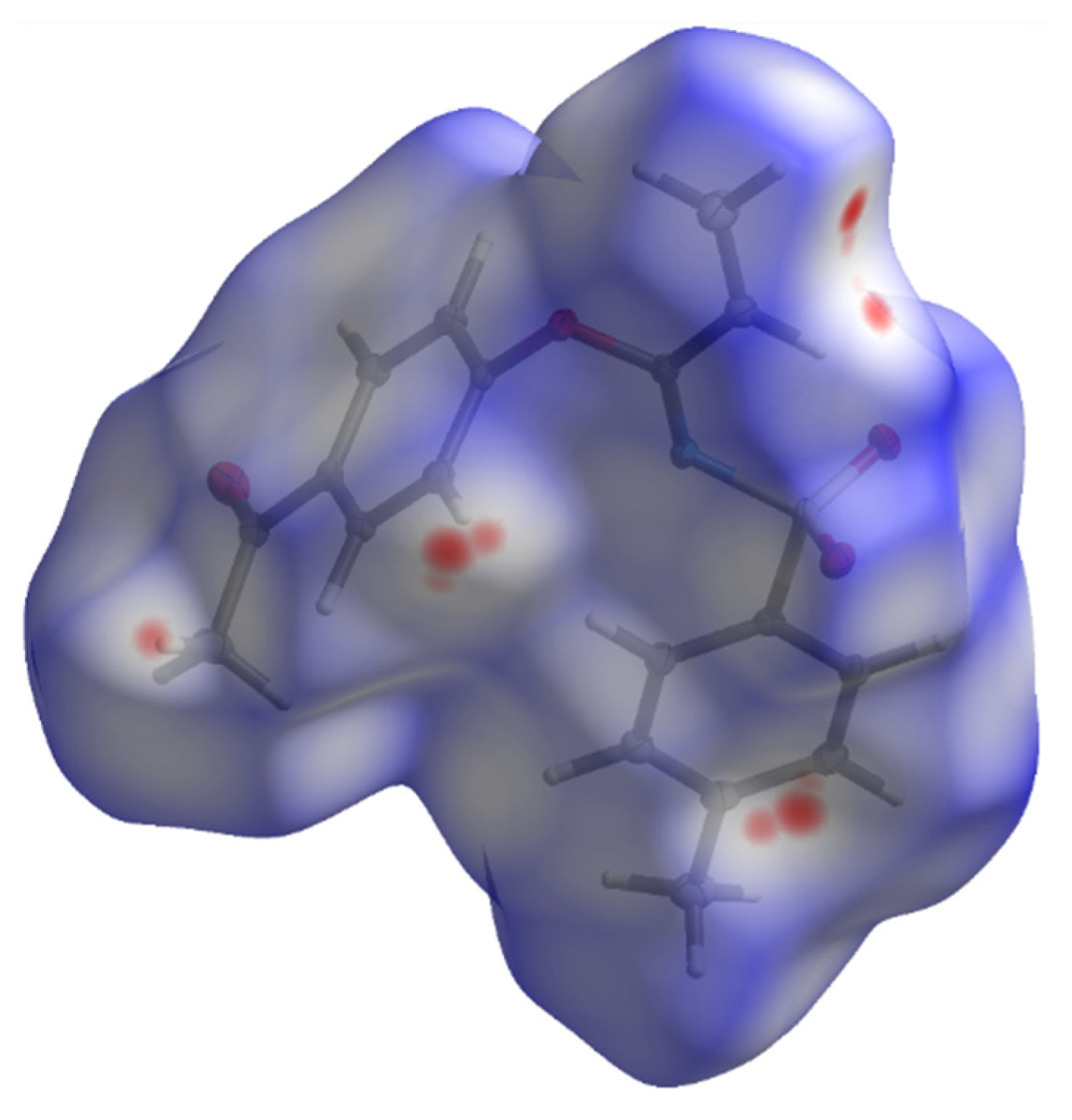

A subsequent Hirshfeld surface analysis was determined on compound 3. A projection of the Hirshfeld surfaces for imidate 3 mapped over d_norm (top and bottom), d_i, d_e, shape index and curvedness are plotted in Figure 5 and Figure 6, displaying red spots which indicate high-intensity contacts and closest interactions being located on vinyl hydrogens along with hydrogens from both aromatic rings. These contact zones exhibited significant C-H···O hydrogen interactions, as seen in Figure 7. Furthermore, 2D fingerprint plots of d_e versus d_i for compound 3 (Figure 8) allowed a visualization of hydrogen bonded interactions with C and O atoms, noting an important contribution by H···H (41.1%) and O···H (29.1%) contacts, confirming previous observations.

As a complement of the aforementioned, a topology study was carried out, which included both quantum theory of atoms in molecules (QTAIM) as well as non-covalent interaction (NCI) index. A graphical overview is presented in Figure 9, covering graphical representations of QTAIM through Bond Critical Point (BCP), Critical Ring Point (RCP) and Critical Cage Point (CCP), which are indicated in orange, yellow and green colors, respectively. In the case of NCI, the blue and green iso-surfaces were placed around aromatic ring bonds, pointing out an outstanding π-π stacking contact. In consequence, these studies agreed with the crystallographic information.

A frontier molecular orbital (FMO) analysis for molecule 3 was verified; the HOMO and LUMO energies were calculated at PBE1PBE/cc-pVDZ level for gaseous phase. From these calculations, a LUMO–HOMO energy gap value of −5.150 eV for 3 was determined. The FMO diagrams are plotted in Figure 10 and HOMO and LUMO energy values, in conjunction with some other molecular properties, are shown in

Table 3. HOMO-LUMO energies and values of quantum chemical parameters calculated at PBE1PBE/cc-pVDZ level of theory.

Crystal Data	3
Etotal (a.u.)	−1448.480
ELUMO (eV)	−1.956
EHOMO (eV)	−7.106
Electron affinity (eV)	1.956
Ionization potential (eV)	7.106
Gap Energy (eV)	5.150
Electronegativity (eV)	4.531
Chemical hardness (eV)	2.575
Chemical softness (eV−1)	0.388
Chemical potential (eV)	−4.531
Electrophilicity index (eV)	3.986

.

Calculation of local reactivity descriptors, such as electron affinity (A), ionization potential (I), gap energy, electronegativity (χ), chemical hardness (η), chemical softness (ζ), chemical potential (μ) and electrophilicity index (ω) results were helpful in the interpretation of Molecular Electrostatic Potential surfaces (MEP), which are mapped in Figure 11. In this regard, MEP projected upon an electron density iso-surface of imidate 3 was in the range ±5.414·10⁻², displaying negative charge distributions marked in red upon oxygen atoms from both carbonyl and sulfonyl groups. This charge distribution was also observed in the respective electronegative electrostatic potential (ESP) surface indicated in the blue color in Figure 12. This was an important finding, because negative charge distributions enable the referred C-H···O interactions.

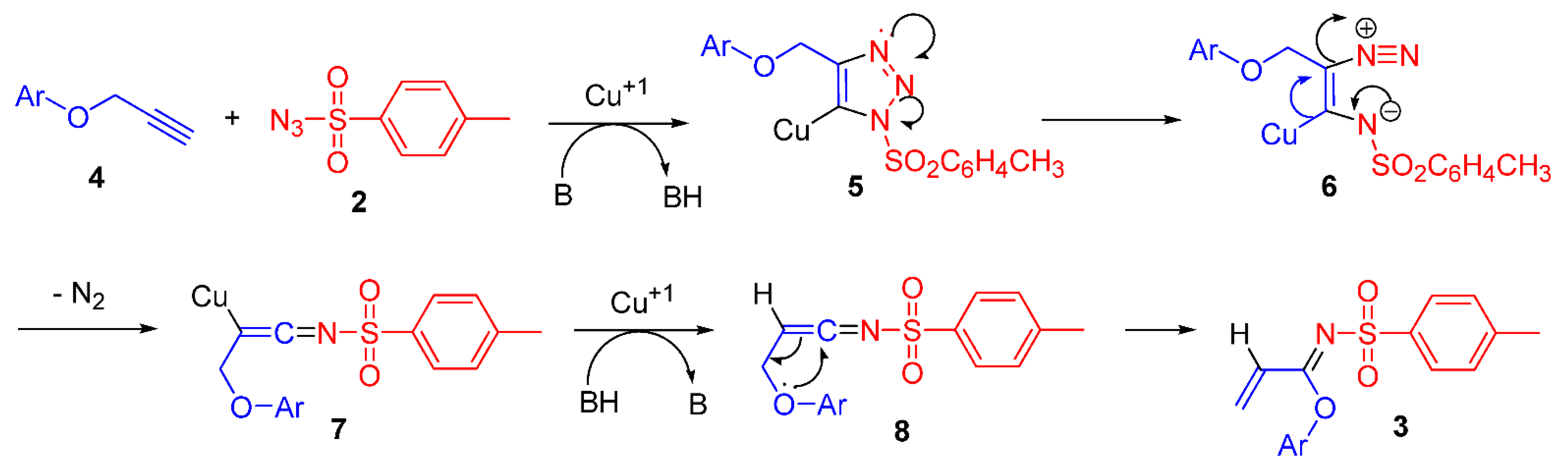

The formation of imidate 3 can be rationalized in terms of a reaction mechanism described in Scheme 2. Cycloaddition between aryloxy alkyne 4 and sulfonyl azide 2 in the presence of a catalytic cuprous source produces copper triazolide 5, which is cleaved into diazo imine 6, that, after nitrogen extrusion, gives ketenimine 8, which undergoes a rearrangement to afford the final imidate 3.

Few examples of similar processes have been reported in literature. Acetate group migration was detected in the synthesis of trans-α,β-unsaturated N-tosylamides from p-toluenesulfonyl azide and diverse propargyl acetates in [8,9]. On the flip side, a set of acrylamidines was prepared from the corresponding N,N-dialkyl propargylamines through a 1,3-amino group migration on ketenimine intermediates in [10]. Hence, this is the first example concerning an intramolecular aryloxy ketenimine rearrangement; wherefore, future investigations will be driven to study in more detail this process and to broaden the synthetic applications of this kind of intermediate.

3. Materials and Methods

The starting materials were purchased from Aldrich Chemical Co. and were used without further purification. Copper(I) salicylate was prepared according to literature [5]. The solvents were distilled before use. Silica plates of 0.20 mm thickness were used for thin layer chromatography. Melting points were determined with a Krüss Optronic melting point apparatus, and they were uncorrected. ¹H and ¹³C NMR spectra were recorded using a Bruker Avance 300-MHz; the chemical shifts (δ) are given in ppm relative to TMS as an internal standard (0.00). For analytical purposes, the mass spectra were recorded on a Shimadzu GCMS-QP2010 Plus in the EI mode, 70 eV, and 200 °C via direct inlet probe. Only the molecular and parent ions (m/z) are reported. IR spectra were recorded on a Bruker Tensor 27 (Supplementary Materials).

For the X-ray diffraction studies, crystals of compound 3 were obtained by slow evaporation of a dilute AcOEt solution, and the reflections were acquired with a Bruker APEX DUO diffractometer equipped with an Apex II CCD detector, Mo Kα radiation (λ = 0.71073 Å) at 100 K. Frames were collected using omega scans and integrated with SAINT and multi-scan absorption correction (SADABS) was applied [11]. The structure was solved by direct methods (SHELXS-97) [12]; missing atoms were found by differ-fence-Fourier synthesis and refined on F2 by a full-matrix least-squares procedure using anisotropic dis-placement parameters using SHELXL [13] using the ShelXle GUI [14]. The hydrogen atoms of the C–H bonds were placed in idealized positions. The molecular graphics were prepared using Mercury [15] and POV-Ray [16]. Crystallographic data for the structure reported in this paper have been deposited with the Cambridge Crystallographic Data Centre, CCDC No. 2183265 for compound 3. Copies of available materials can be obtained free of charge on application to the Director, CCDC, 12 Union Road, Cambridge CB2 IEZ, UK (facsimile: (44) 01223 336033); e-mail: [email protected].

The quantum chemical calculations were performed using Gaussian 09 program package [17]. The crystal structure geometry was used as a starting model to optimize. The vibration frequencies were calculated for the optimized structure in gas phase and no imaginary frequencies were obtained. All calculations were done at PBE1PBE/cc-pVDZ level of theory [18,19,20].

The Hirshfeld surface mapped with d_norm and fingerprint plots were performed with Crystal Explorer 21.5 program [21]. The 2-D fingerprint plots were used for visualizing, exploring and quantifying intermolecular interactions.

The Quantum Theory of Atoms in Molecules (QTAIM) [22] and non-covalent interactions (NCI) [23] analysis have been performed using Multiwfn 3.8 [24] at PBE1PBE/cc-pVDZ level of theory on the structures of 1 (monomer or dimer) in which only the positions of the hydrogen atoms were optimized. The VMD 1.9.4 [25] and GNUplot 5.4 [26] were used for the visualization of the results.

Synthesis of N-(p-Toluenesulfonyl)-1-(4′-acetylphenoxy)acrylimidate 3

1-(4-Prop-2-ynyloxyphenyl)ethanone 1 (0.174 g, 1.0 mmol) was added in one portion to a solution of p-toluenesulfonyl azide 2 (0.197 g, 1.0 mmol) and copper (I) salicylate (0.0099 g, 0.05 mmol) in CH₂Cl₂ (6 mL) at 0 °C. The resulting mixture was stirred at 0 °C for 3 h and at room temperature for 3 h. Charcoal (0.05 g) was added, the mixture was filtered through celite, and the solvent was removed under reduced pressure. Purification by column chromatography (SiO₂, hexane/AcOEt 8:2) afforded N-(p-toluenesulfonyl)-1-(4′-acetylphenoxy)acrylimidate 3 (0.099 g, 29%) as a colorless oil. ¹H NMR (300 MHz, CDCl₃) δ 7.97 (d, J = 8.7 Hz, 2H), 7.65 (d, J = 8.1 Hz, 2H), 7.39 (dd, J_ab = 16.95 Hz, J_ac = 10.86 Hz, 1H), 7.23 (d, J = 8.1 Hz, 2H), 7.16 (d, J = 8.7 Hz, 2H), 6.67 (d, J_ab = 16.98 Hz, 1H), 6.18 (d, J_ac = 10.89 Hz, 1H), 2.60 (s, 3H), 2.38 (s, 3H); ¹³C NMR (75 MHz, CDCl₃) δ 195.0 (C), 162.7 (C), 153.3 (C), 141.6 (C), 136.3 (C), 133.2 (C), 130.6 (2xCH), 127.9 (2xCH), 127.4 (2xCH), 124.6 (2xCH), 123.2 (CH), 119.8 (CH₂), 24.9 (CH₃), 19.9 (CH₃); IR (ATR, cm⁻¹): 2990, 1728, 1649, 1572, 1379, 1253, 1195; HRESIMS calcd. for [C₁₈H₁₇NO₄S + Na]⁺: 366.0776, found: 366.0781.

4. Conclusions

The reaction of o aryl propargyl ether 1 and p-toluenesulfonyl azide 2 in the presence of catalytic amounts of copper(I) salicylate afforded acrylimidate 3, which was derived from a consecutive process, which involved a CuAAC reaction, a ketenimine formation and subsequent rearrangement. These elements suggest that this kind of compound will enjoy widespread application.
