5,5′-Thiobis(4-chloro-3H-1,2-dithiole-3-thione)

Abstract

3H-1,2-Dithiole-3-thiones are important compounds with many types of significant pharmacological activity. Although many derivatives of this class have been described in the literature, their thioethers have not previously been obtained. In this communication, it is shown that the reaction of 4,5-dichloro-3H-1,2-dithiole-3-thione with potassium isocyanate unexpectedly gave 5,5′-thiobis(4-chloro-3H-1,2-dithiole-3-thione). The structure of the synthesized compound was established by elemental analysis, high-resolution mass spectrometry, ¹³C NMR and IR spectroscopy, and mass spectrometry.

1. Introduction

3H-1,2-Dithiole-3-thiones show many types of significant biological activity [1] due to their ability to endogenously produce hydrogen sulfide (H₂S), the third gaseous signaling molecule [2]. Among these heterocycles, readily available 4,5-dichloro-3H-1,2-dithiole-3-thione 1 [3] can be considered as an attractive starting material for many useful molecules due to its easy reactivity in 1,3-dipolar cycloadditions [4,5] and nucleophilic substitution of the 5-chlorine atom [6,7]. The introduction of a thiocyanate group into heterocyclic rings has led to various biological activities of these compounds [8]. We hypothesized that the combination of a 3H-1,2-dithiole-3-thione core with the thiocyanato group could give novel, biologically important compounds. Herein, we report the reaction of 4,5-dichloro-3H-1,2-dithiole-3-thione 1 with potassium isocyanate and the unexpected formation of 5,5’-thiobis(4-chloro-3H-1,2-dithiole-3-thione) 2 instead of 4-chloro-5-thiocyanato-3H-1,2-dithiole-3-thione 3.

2. Results and Discussion

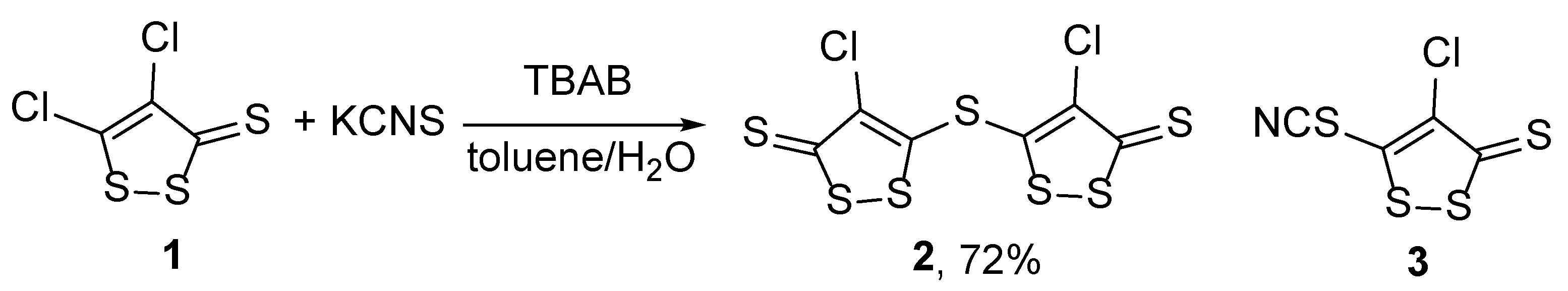

In an attempt to obtain thiocyanate derivative 3, the reaction of 4,5-dichloro-3H-1,2-dithiole-3-thione 1 with potassium thiocyanate was studied. It was found that the treatment of compound 1 with potassium thiocyanate afforded in a mixture of aromatic hydrocarbon and water in the presence of tetrabutylammonium bromide (TBAB) as a phase transfer catalyst gave a new dimer 2: dark red solid C₆Cl₂S₇ (Scheme 1). The reaction occurred when heated; the best result was obtained in toluene/water, where the starting material disappeared after 1 h (

Table 1. Reaction of 4,5-dichloro-3H-1,2-dithiole-3-thione 1 with KSCN.

Entry	Solvent	KSCN, (Equiv)	Temperature, °C	Time, h	Yield of 2, %
1	benzene	1	rt	10	0
2	benzene	1	80	8	68
3	benzene	0.5	80	8	52
4	benzene	1.5	80	8	67
5	benzene	1	80	16	63
6	toluene	1	110	1	73

, Entry 6) and product 2 was isolated with a high yield (73%). With longer heating in benzene, along with the disappearance of the starting dithiolethione 1, the formation of decomposition products was observed.

We failed to detect the formation of thiocyanate derivative 3. It was not possible to obtain compound 3 at room temperature, since the reaction does not proceed under these conditions. Curiously, dimer 2 was not formed in the reaction of dithiolethione 1 with sodium sulfide when refluxing in a benzene/water mixture with TBAB for 1 h. Only the complete decomposition of starting material 1 was observed, and we failed to isolate individual products from the reaction mixture.

There are no data in the literature on the formation of heterocyclic sulfides from the corresponding thiocyanates. The only close analogy of the reaction presented in this paper is the formation of aromatic sulfides by the reductive coupling of aryl thiocyanates with aryl halides in the presence of SmI₂ and a Pd catalyst [9].

The structure of 5,5′-thiobis(4-chloro-3H-1,2-dithiole-3-thione) 2 was fully confirmed by elemental analysis, high-resolution mass spectrometry, ¹³C NMR and IR spectroscopy, and mass spectrometry.

In conclusion, it is shown that the reaction of 4,5-dichloro-3H-1,2-dithiole-3-thione 1 with potassium thiocyanate leads to 5,5′-thiobis(4-chloro-3H-1,2-dithiole-3-thione) 2, which appears to be a dimerization product of 4-chloro-5-thiocyanato-3H-1,2-dithiol-3-thione 3. This compound may have useful pharmacological properties.

3. Materials and Methods

4,5-Dichloro-1,2-dithiole-3-thione 1 was prepared according to the published method [3]. The solvents and reagents were purchased from commercial sources and used as received. Elemental analysis was performed on a 2400 Elemental Analyzer (Perkin ElmerInc., Waltham, MA, USA). The melting point was determined on a Kofler hot-stage apparatus and was uncorrected. ¹³C NMR spectrum was taken with a Bruker AM-300 machine (Bruker AXS Handheld Inc., Kennewick, WA, USA) (at a frequency of 75 MHz) with TMS as the standard. The MS spectrum (EI, 70 eV) was obtained with a Finnigan MAT INCOS 50 instrument (Hazlet, NJ, USA). The IR spectrum was measured with a Bruker “Alpha-T” (Billerica, MA, USA) instrument in a KBr pellet. The high-resolution MS spectrum was measured on a Bruker micrOTOF II instrument (Bruker Daltonik Gmbh, Bremen, Germany) using electrospray ionization (ESI).

4,5-Dichloro-1,2-dithiole-3-thione 1. Red crystals, mp. 76 °C (lit. [3] mp. 76 °C). IR spectrum (KBr), ν, cm⁻¹: 1704, 1660, 1532, 1272, 1080, 968, 848, 784. ¹³C-NMR (CDCl₃, ppm): 136.0, 155.3, 202.9 (C=S). MS (EI, 70 Ev), m/z (I, %): 202 (M⁺, 23), 167 (M-Cl, 12), 135 (C₃ClS₂, 14), 103 (M-ClS₂, 21). Anal. calcd for C₃Cl₂S₃: C, 17.73; Cl, 34.98; S, 47.29%; found: C, 17.85; Cl, 34.90; S, 47.51%.

Synthesis of 5,5’-thiobis(4-chloro-3H-1,2-dithiole-3-thione) 2 (Supplementary Materials).

A solution of KCNS (97 mg, 1 mmol) in water (1 mL) and TBAB at the tip of a spatula were added to a solution of 4,5-dichloro-1,2-dithiol-3-thione 1 (203 mg, 1 mmol) in toluene (10 mL) and the reaction mixture was refluxed for 1 h (TLC). CH₂Cl₂ (50 mL) was added to the reaction mixture and the organic layer was separated, washed with water (5 mL), and dried over MgSO₄. The residue was purified by column chromatography on silica gel (Silica gel Merck 60, eluent CH₂Cl₂). Yield 134 mg (73%), dark red crystals, mp. 149–150 °C. IR spectrum (KBr), ν, cm⁻¹: 1632, 1439, 1265, 1235 (C=S), 1050 (C-Cl), 841. ¹³C-NMR (DMSO-d₆, ppm): 137.7 (C-Cl), 157.6 (C-S), 205.4 (C=S). MS (EI, 70 Ev), m/z (I, %): 370 (M + 4, 22), 368 (M + 2, 62), 366 (M+, 71), 333 (5), 331 (8), 169 (5), 167 (15), 137 (43), 135 (100), 100 (90), 88 (34), 76 (26), 64 (26), 32 (13). HRMS (ESI-TOF): calcd for C₆Cl₂S₇ [M + 1]⁻ 366.7495; found m/z 366.7488. Anal. calcd for C₆Cl₂S₇: C, 19.62; Cl, 19.30; found: C, 19.76; Cl, 19.11%.
