Short Note

4′-(N-(Propargyl)pyrrol-2-yl)-2,2′:6′,2′′-terpyridine

Institut UTINAM UMR CNRS 6213, UFR Sciences et Techniques, Université de Bourgogne-Franche-Comté, 16 Route de Gray, 25030 Besançon, France
*
Author to whom correspondence should be addressed.
Academic Editor: Oleg A. Rakitin
Molbank 2022, 2022(2), M1356; https://doi.org/10.3390/M1356
Received: 16 March 2022 / Accepted: 23 March 2022 / Published: 25 March 2022
(This article belongs to the Section Organic Synthesis)

Abstract

A new terpyridine molecule, bearing a N-propargylated pyrrole, was prepared and characterized. Its synthesis was based on a Krohnke-type reaction between 2-acetylpyridine and N-propargylpyrrole-2-carboxaldehyde in a basic medium. An allene-containing terpyridine was also obtained as a by-product.
Keywords: alkyne derivatives; N-donor ligands; oligopyridines; pyrrole derivatives alkyne derivatives; N-donor ligands; oligopyridines; pyrrole derivatives

1. Introduction

Owing to their ability to form a broad range of complexes with metals, 2,2′:6′,2′′-terpyridine derivatives have been widely studied. Terpyridines and their complexes can find applications in many fields ranging from medicinal chemistry to functional materials [1,2]. In particular, terpyridine derivatives which contain an additional pyrrole heterocycle (named hereafter pyrrole-terpys) are interesting compounds because they can be deposited as thin films onto surfaces via electropolymerization [3]. The so-obtained polymeric materials can be used, for example, as an active layer in a sensor device [4]. Additionally, pyrrole-terpys can find applications in other fields such as catalysis [5] or as photosensitizers [6,7], just to name a few. Consequently, the synthesis of new pyrrole-terpys could be of interest for a broad range of scientific fields. In particular, the introduction of an alkyne moiety onto a pyrrole-terpy could be interesting since it offers the possibility to “click” the terpyridine onto various materials or biomolecules [8,9,10] via the Huisgen reaction [11] and allows the preparation of hetero-polymetallic complexes through complexation of both the terpyridine and alkyne parts of the molecule [12]. This paper describes the preparation and characterization of the new 4′-(N-(propargyl)pyrrol-2-yl)-2,2′:6′,2′′-terpyridine 1 (Figure 1).

2. Results and Discussion

A tentative synthesis of 1 through N-propargylation of 4′-(pyrrol-2-yl)-2,2′:6′,2′′-terpyridine is already reported in the literature [13]. The synthetic pathway that was explored relies on the N-alkylation of the pyrrole ring with propargyl bromide in a strong basic medium [14]. Nevertheless, this approach failed in providing 1, and only isomeric 4′-(N-(propan-1,2-dienyl)pyrrol-2-yl)-2,2′:6′,2′′-terpyridine 2 was obtained (Figure 2). This can be explained by the strong basic conditions (potassium hydroxide in dimethylsulfoxide is a superbase [15]) of the reaction which result in isomerization of the triple bond. Therefore, another synthetic strategy was developed in the present research to obtain compound 1.
Many synthetic protocols are available for the preparation of terpyridines [16,17,18], most of them being based on Krohnke’s method [19]. Here, the reaction between 2-acetylpyridine and N-propargylpyrrole-2-carboxaldehyde [20] in the presence of potassium hydroxide and aqueous ammonia in ethanol [21] was selected (Figure 3).
Although the reaction is also conducted in a basic medium, it was expected that the basicity of potassium hydroxide would be lower in the present solvent system (aqueous ethanol) than in dimethylsulfoxide (vide supra), thus minimizing the formation of compound 2. In fact, after 24 h of reaction, a mixture of 1 and 2 was obtained. The two products were separated by flash chromatography over neutral alumina (Figure 4). The main product was the awaited terpyridine 1 which was obtained in 9.4% yield, while compound 2 was obtained in 2.8% yield.
The molecular structure of compound 1 was unambiguously confirmed by different analytical techniques. First, the 1H-NMR spectrum (Supplementary Material) exhibits the typical signals for the terpyridine and pyrrole sub-units as reported for other pyrrole-terpys [6,13,14,22,23]. Moreover, the acetylenic protons were characterized by a triplet and a doublet (J = 2.6 Hz) centered at 2.45 and 4.91 ppm, respectively. These chemical shifts and/or multiplicities also agree with those previously reported for other N-propargylated pyrroles [24,25]. The 13C-NMR spectrum exhibits 15 peaks, which fully agree with the proposed structure for 1.
Additionally, the infrared spectrum exhibits the characteristic ≡C-H stretching signal for the terminal alkyne at 3174 cm−1 as well as the -C≡C- stretching signal at 2114 cm−1 (Supplementary Material). Finally, the recorded mass spectra of compound 1 agree with the proposed structure since the molecular peak [M + H]+ (m/z = 337.14436) as well as the isotopic distribution fits with the calculated spectrum (Supplementary Material).
To reduce the amount of undesired compound 2, one experiment was carried out using an even weaker base. For this, N-propargylpyrrole-2-carboxaldehyde was reacted with 2-acetylpyridine and basic alumina under solventless conditions as already described for the preparation of other terpyridine derivatives [26]. Unfortunately, no trace of a terpyridine product was noticed under these conditions (Figure 5).

3. Materials and Methods

All reagents were purchased from commercial suppliers and used as received. The starting pyrrole aldehyde was prepared according to the literature [20]. Flash chromatography was carried out on a Combiflash Rf+ Lumen (Teledyne ISCO, Lincoln, NE, USA) using a PuriFlash 220 g neutral alumina cartridge (Interchim, Montluçon, France) with a hexane/ethyl acetate mixture (100:0 to 90:10 v:v) as an eluent. 1H and 13C-NMR spectra were recorded on a Brucker AC 400 (Bruker, Wissembourg, France) at 400 and 100 MHz, respectively, using CDCl3 as a solvent. Infrared spectra were recorded on an Alpha II spectrometer (Bruker, Wissembourg, France) as KBr discs. Melting points were recorded with a Stuart SMP 10 melting point apparatus (Bibby Sterilin, Stone, UK) and were uncorrected. HR-MS was recorded at Sayens SATT, Dijon, France.
4′-(N-(Propargyl)pyrrol-2-yl)-2,2′:6′,2′′-terpyridine (1) and 4′-(N-(propan-1,2-dienyl)pyrrol-2-yl)-2,2′:6′,2′′-terpyridine (2): N-Propargylpyrrole-2-carboxaldehyde (4.69 g; 35 mmol), 85% potassium hydroxide pellets (5.43 g; 82 mmol) and 25% aqueous ammonia solution (102 mL) were successively added to a solution of 2-acetylpyridine (8.53 g; 70 mmol) in absolute ethanol (180 mL). The reaction mixture was stirred at room temperature for 24 h. The precipitated solid was collected by filtration and washed with ice-cold 50% ethanol until washings were colorless. The crude product was air dried and purified by flash chromatography over neutral alumina (eluent: cyclohexane/ethyl acetate 100:0 to 90:10 v/v). This afforded compound 1 as a white solid (1.11 g; 9.4%) Mp = 136 °C together with compound 2 (0.33 g; 2.8%) as a white solid Mp = 128 °C.
Compound 1: 1H-NMR (CDCl3, 400 MHz), δ (ppm): 8.71 (m, 2H H6, 6′′), 8.65 (d, 2H, H3, 3′′, J = 8.0 Hz), 8.57 (s, 2H, H3′, 5′), 7.87 (td, 2H, H4, 4′′, J = 7.6 Hz, J = 1.8 Hz), 7.34 (ddd, 2H, H5, 5′′, J = 7.5 Hz, J = 4.8 Hz, J = 1.1 Hz), 7.07 (dd, 1H, Hd, J = 2.7 Hz, J = 1.8 Hz), 6.62 (dd, 1H, Hb, J = 3.7 Hz, J = 1.8 Hz), 6.32 (dd, 1H, Hc, J = 3.7 Hz, J = 2.9 Hz), 4.91 (d, 2H, He, J = 2.6 Hz), 2.45 (t, 1H, Hg, J = 2.6 Hz). 13C-NMR (CDCl3, 100 MHz), δ (ppm): 156.2, 155.8, 149.2, 142.1, 136.8, 132.1, 124.5, 123.8, 121.3, 119.6, 111.9, 109.4, 78.4, 73.9, 37.5. HR-MS: calc. for [C22H16N4 + H]+ 337.14477, found 337.14436. IR (KBr disc): nmax (cm−1): 3174, 3049, 3013, 2114.
Compound 2: The physical and spectroscopic properties agree with those reported in the literature [13].

4. Conclusions

The new terpyridine ligand 4′-(N-(propargyl)pyrrol-2-yl)-2,2′:6′,2′′-terpyridine was prepared and characterized. Future work will emphasize incorporating this ligand into new complexes and functional materials.

Supplementary Materials

1H- and 13C- NMR, IR spectra and HR-MS (full report) of terpyridine 1.

Author Contributions

J.H. conceived and carried out the experiments, analyzed data and prepared the manuscript. L.G. analyzed data and contributed to the manuscript preparation. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Regional Council of Bourgogne Franche-Comté through the program CoMICS (Chemistry of Molecular Interactions Catalysis and Sensors).

Data Availability Statement

The data from this study are available in this paper and in its Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schubert, U.S.; Hofmeier, H.; Newkome, G.R. Modern Terpyridine Chemistry; Wiley-VCH: Weinheim, Germany, 2006. [Google Scholar]
  2. Schubert, U.S.; Winter, A.; Newkome, G.R. Terpyridine-Based Materials: For Catalytic, Optoelectronic and Life Sciences Applications; Wiley-VCH: Weinheim, Germany, 2011. [Google Scholar]
  3. Beley, M.; Delabouglise, D.; Houppy, G.; Husson, J.; Petit, J.-P. Preparation and properties of ruthenium (II) complexes of 2,2′:6′,2′′-terpyridines substituted at the 4′-position with heterocyclic groups. Inorg. Chim. Acta 2005, 358, 3075–3083. [Google Scholar] [CrossRef]
  4. Naidji, B.; Husson, J.; Taouil, A.E.; Brunol, E.; Sanchez, J.-B.; Berger, F.; Rauch, J.-Y.; Guyard, L. Terpyridine-based metallopolymer thin films as active layer in ammonia sensor device. Synth. Met. 2016, 221, 214–219. [Google Scholar] [CrossRef]
  5. Husson, J.; Guyard, L. A new and facile method for the functionalization of a Merrifield resin with terpyridines: Application as a heterogeneous catalyst for the synthesis of biaryls in environmentally friendly solvents. Green Process. Synth. 2016, 5, 331–336. [Google Scholar] [CrossRef]
  6. Abboud, M.; Kalinina, D.; Potvin, P.G. Pyrrole-substituted tridentate complexes of Ru(II): Spectroscopy, electrochemistry, photosensitization and the role of orbital mixing. Inorg. Chim. Acta 2009, 362, 4953–4959. [Google Scholar] [CrossRef]
  7. Dehaudt, J.; Husson, J.; Guyard, L.; Oswald, F.; Martineau, D. A simple access to “Black-Dye” analogs with good efficiencies in dye-sensitized solar cells. Renew. Energy 2014, 66, 588–595. [Google Scholar] [CrossRef]
  8. Nakazawa, H.; Kobayashi, K. Base Metal-terpyridine Complex Immobilized on Stationary Phase Aimed as Reusable Hydrosilylation Catalyst. Chem. Asian J. 2021, 16, 3695–3701. [Google Scholar]
  9. Vilà, N.; Walcarius, A. Bis(terpyridine) Iron(II) Functionalized Vertically-Oriented Nanostructured Silica Films: Toward Electrochromic Materials. Front. Chem. 2021, 8, 830. [Google Scholar] [CrossRef]
  10. Busemann, A.; Araman, C.; Flaspohler, I.; Pratesi, A.; Zhou, X.-Q.; van Rixel, V.H.S.; Siegler, M.A.; Messori, L.; van Kasteren, S.I.; Bonnet, S. Alkyne Functionalization of a Photoactivated Polypyridyl Complex for Click-Enabled Serum Albumin interaction Studies. Inorg. Chem. 2020, 59, 7710–7720. [Google Scholar] [CrossRef]
  11. Binder, W.H.; Sachsenhofer, R. ‘Click’ Chemistry in Polymer and Material Science: An Update. Macromol. Rapid Commun. 2008, 29, 952–981. [Google Scholar] [CrossRef]
  12. Constable, E.C.; Housecroft, C.E.; Johnston, L.A.; Armspach, D.; Neuburger, M.; Zehnder, M. Dicobalt cluster functionalized 2,2′:6′,2′′-terpyridine ligands and their ruthenium(II) complexes. Polyhedron 2001, 20, 483–492. [Google Scholar] [CrossRef]
  13. Husson, J.; Guyard, L. 4′-(N-(propan-1,2-dienyl)pyrrol-2-yl)-2,2′:6′,2′′-terpyridine. Molbank 2020, 2020, M1142. [Google Scholar] [CrossRef]
  14. Husson, J.; Guyard, L. Synthesis of new 4′-(N-alkylpyrrol-2-yl)-2,2′:6′,2′′-terpyridines via N-alkylation of a pyrrole moiety. Heterocycl. Commun. 2015, 21, 199–202. [Google Scholar] [CrossRef]
  15. Yuan, Y.; Thome, I.; Kim, S.H.; Chen, D.T.; Beyer, A.; Bonnamour, J.; Zuidema, E.; Chang, S.; Bolm, C. Dimethyl Sulfoxide/Potassium Hydroxide: A Superbase for the Transition Metal-Free Preparation of Cross-Coupling Products. Adv. Synth. Catal. 2010, 17, 2892–2898. [Google Scholar] [CrossRef]
  16. Heller, M.; Schubert, U.S. Syntheses of functionalized 2,2′:6′,2′′-terpyridines. Eur. J. Org. Chem. 2003, 6, 947–961. [Google Scholar] [CrossRef]
  17. Fallahpour, R.A. Synthesis of 4′-substituted-2,2′:6′,2′′-terpyridines. Synthesis 2003, 2, 155–184. [Google Scholar] [CrossRef]
  18. Thompson, A.M.W.C. The synthesis of 2,2′:6′,2′′-terpyridine ligands—Versatile building blocks for supramolecular chemistry. Coord. Chem. Rev. 1997, 160, 1–52. [Google Scholar] [CrossRef]
  19. Kröhnke, F. Synthesis using pyridinium salts.5.Specific synthesis of pyridines and oligopyridines. Synthesis 1976, 1, 1–24. [Google Scholar] [CrossRef]
  20. Loaiza, P.R.; Löber, S.; Hübner, H.; Gmeiner, P. Click chemistry based solid phase supported synthesis of dopaminergic phenylacetylenes. Bioorg. Med. Chem. 2007, 15, 7248–7257. [Google Scholar] [CrossRef]
  21. Wang, J.; Hanan, G.S. A Facile Route to Sterically Hindered and Non-Hindered 4′-Aryl-2,2′:6′,2′′-Terpyridines. Synlett 2005, 8, 1251–1254. [Google Scholar] [CrossRef]
  22. Klemens, T.; Switlicka-Olszewska, A.; Machura, B.; Grucela, M.; Schab-Balcerzak, E.; Smolarek, K.; Mackowski, S.; Szlapa, A.; Kula, S.; Krompiec, S.; et al. Rhenium(I) terpyridine complexes—Synthesis, photophysical properties and application in organic light emitting devices. Dalton Trans. 2016, 45, 1746–1762. [Google Scholar] [CrossRef]
  23. Maron, A.; Szlapa, A.; Klemens, T.; Kula, S.; Machura, B.; Krompiec, S.; Malecki, J.G.; Switlicka-Olszewska, A.; Erfurt, K.; Chrobok, A. Tuning the photophysical properties of 4′-substituted terpyridines—An experimental and theoretical study. Org. Biomol. Chem. 2016, 14, 3793–3808. [Google Scholar] [CrossRef] [PubMed]
  24. Brandsma, L.; Tarasova, O.A.; Kalinina, N.A.; Albanov, A.I.; Klyba, L.V.; Trofimov, B.A. Efficient Synthesis of 1-(2-Propynyl)pyrrole. Russ. J. Organ. Chem. 2002, 38, 1073–1075. [Google Scholar] [CrossRef]
  25. Das Adhikary, N.; Kwon, S.; Chung, W.-J.; Koo, S. One-Pot Conversion of Carbohydrates into Pyrrole-2-carbaldehydes as Sustainable Platform Chemicals. J. Org. Chem. 2015, 80, 7693–7701. [Google Scholar] [CrossRef] [PubMed]
  26. Husson, J.; Migianu, E.; Beley, M.; Kirsch, G. Synthesis of New Terpyridines under Solventless Conditions Using Alumina. Synthesis 2004, 2, 267–270. [Google Scholar]

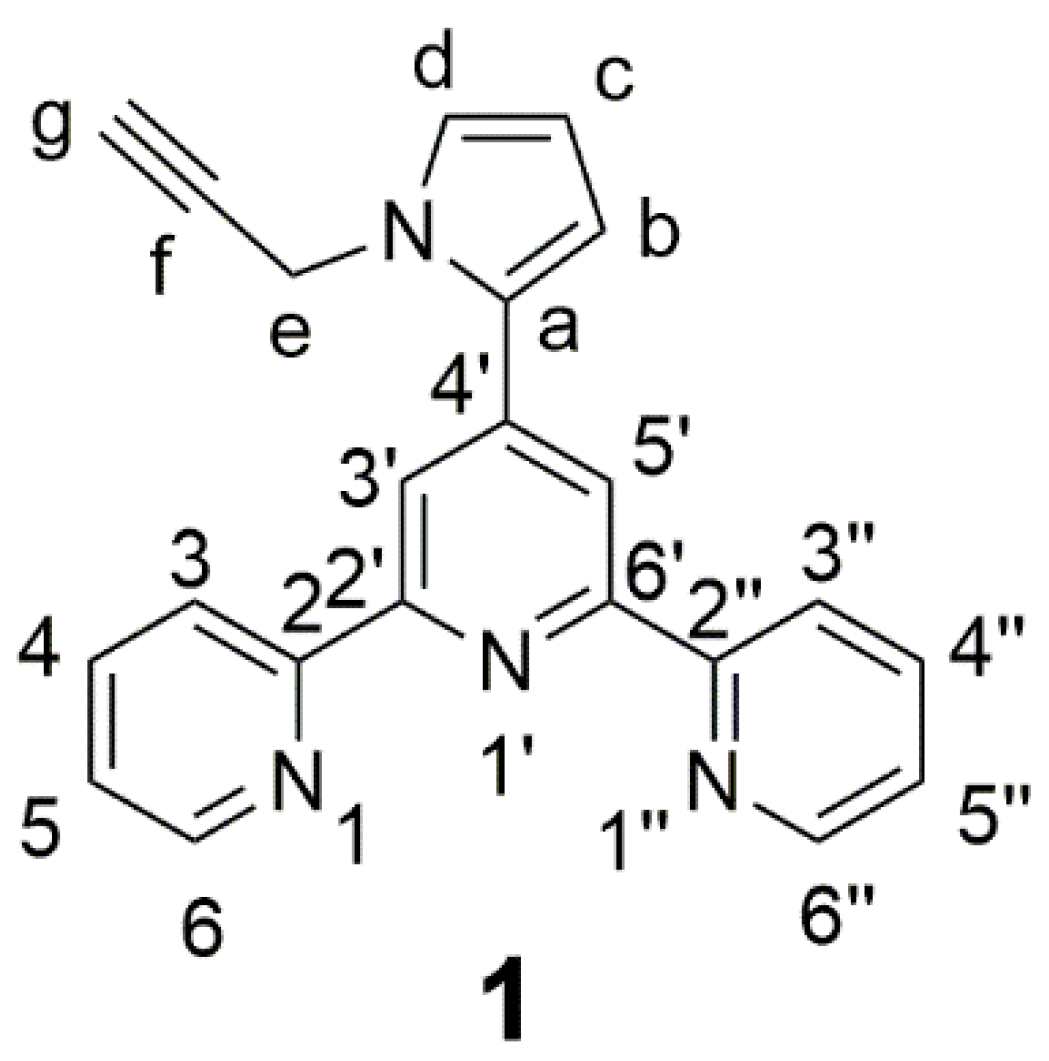

Figure 1. Structure and atom labeling of 4′-(N-(propargyl)pyrrol-2-yl)-2,2′:6′,2′′-terpyridine 1.
Figure 1. Structure and atom labeling of 4′-(N-(propargyl)pyrrol-2-yl)-2,2′:6′,2′′-terpyridine 1.
Molbank 2022 m1356 g001
Figure 2. Structure of 4′-(N-(propan-1,2-dienyl)pyrrol-2-yl)-2,2′:6′,2′′-terpyridine 2.
Figure 2. Structure of 4′-(N-(propan-1,2-dienyl)pyrrol-2-yl)-2,2′:6′,2′′-terpyridine 2.
Molbank 2022 m1356 g002
Figure 3. Reaction scheme.
Figure 3. Reaction scheme.
Molbank 2022 m1356 g003
Figure 4. TLC onto alumina (cyclohexane/ethyl acetate 9:1 v/v) of the crude mixture after staining with an aqueous solution of Mohr’s salt.
Figure 4. TLC onto alumina (cyclohexane/ethyl acetate 9:1 v/v) of the crude mixture after staining with an aqueous solution of Mohr’s salt.
Molbank 2022 m1356 g004

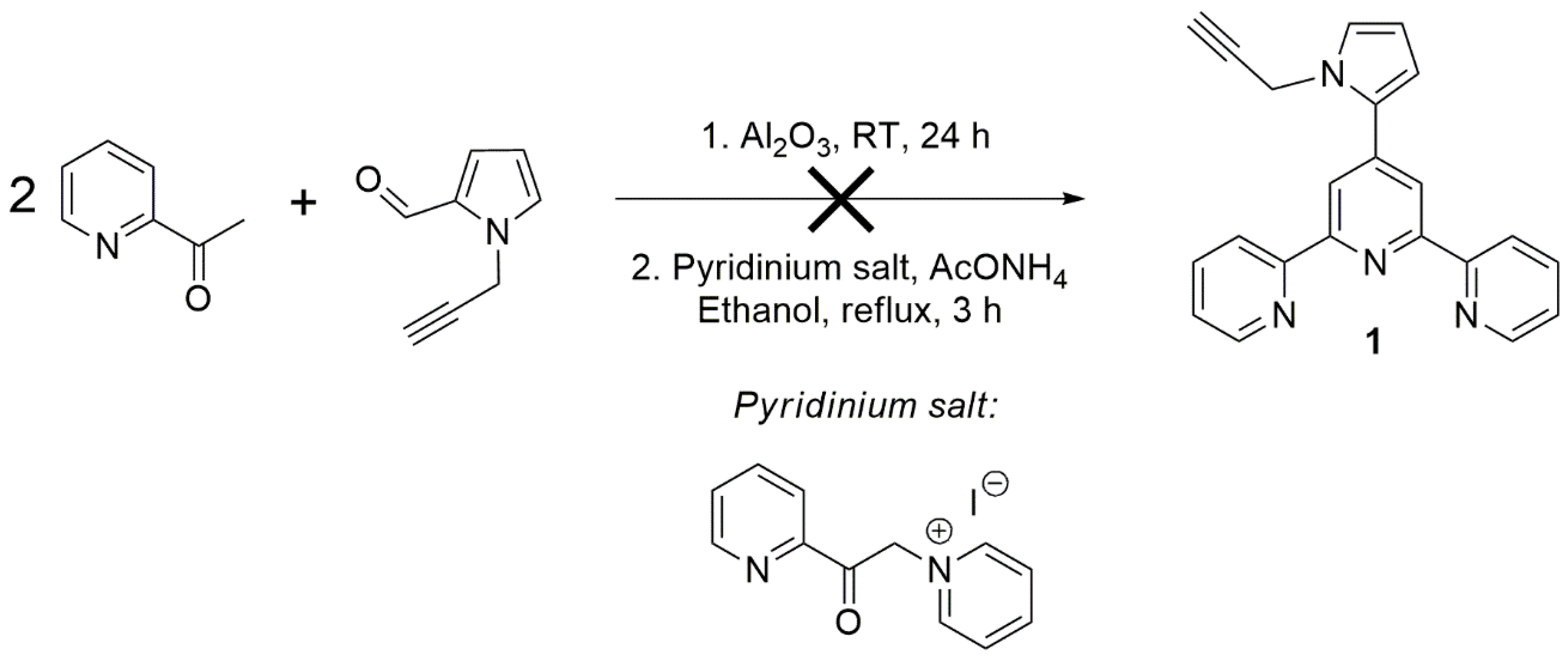

Figure 5. Tentative attempt to obtain compound 1 with an alternative synthetic protocol.
Figure 5. Tentative attempt to obtain compound 1 with an alternative synthetic protocol.
Molbank 2022 m1356 g005
