Open AccessShort Note

Diethyl pyrrole-2,5-dicarboxylate

EaStCHEM School of Chemistry, University of St Andrews, North Haugh, St Andrews, Fife KY16 9ST, UK
*
Author to whom correspondence should be addressed.
Molbank 2020, 2020(1), M1117; https://doi.org/10.3390/M1117 (registering DOI)
Received: 29 January 2020 / Revised: 13 February 2020 / Accepted: 14 February 2020 / Published: 17 February 2020
(This article belongs to the Special Issue Heterocycle Reactions)

Abstract

The title compound was obtained in moderate yield by a new and unexpected base-induced ring contraction from a 1,4-thiazine precursor. Its X-ray structure showing hydrogen bonded dimers was compared with those of other crystallographically characterised 2-acylpyrroles.
Keywords: diethyl pyrrole-2,5-dicarboxylate; X-ray structure; hydrogen bonding diethyl pyrrole-2,5-dicarboxylate; X-ray structure; hydrogen bonding

1. Introduction

Diethyl pyrrole-2,5-dicarboxylate 1 was first described in 1886 [1], and has since been prepared by a variety of methods [2,3]. It has found uses in medicinal chemistry as a precursor in the synthesis of pyrrolo[1,2-b]pyridazines for the treatment of proliferative disorders [4] and as potential Janus kinase inhibitors [5] as well as in the photochemical synthesis of tricyclic aziridines [6]. Despite its long history, the compound is seldom mentioned in the literature and was not characterised spectroscopically until 2009 [3]. We recently obtained pyrrole diester 1 by an unexpected and novel route and report here the determination of its molecular and crystal structure by X-ray diffraction. The structure was compared with those previously reported for similar pyrrole esters.

2. Results

Our intention was to try and form the parent heterocycle 1,4-thiazine whose synthesis was claimed in 1948 [7], but has never been repeated. Starting from ethyl bromopyruvate 2 and cysteine ethyl ester hydrochloride 3, the diethyl dihydrothiazinedicarboxylate 4 was prepared [8] (Scheme 1). This could be effectively dehydrogenated to give compound 6 either by oxidation with m-chloroperbenzoic acid to the sulfoxide 5, followed by spontaneous thermal dehydration [8] or directly using DDQ (2,3-dichloro-5,6-dicyano-1,4-benzoquinone) as described in the literature [8]. We then attempted to hydrolyse the ester groups of 6 to get the corresponding diacid for subsequent decarboxylation, but when a solution of the diester in ether was stirred with NaOH in ethanol at RT for 17 h, it gave upon evaporation and chromatographic purification a moderate yield of a compound that proved to be pyrrole diester 1 (41%), showing excellent agreement with the spectroscopic data in the literature [3]. Since it has not been reported before, we include here the UV–Visible spectrum of 1 (see Experimental Section and Supplementary Materials).
It seems likely that the reaction involves the loss of elemental sulfur, most likely from an anionic form of thiazine diester 6 as shown in Scheme 2. Although extrusion of sulfur from various ring-fused thiazine systems to give the corresponding pyrroles is known to occur thermally [9,10,11], the corresponding reaction of monocyclic thiazines is rather rare [12], and the only similar examples we are aware of are a series of the isomeric 1,4-thiazine-2,6-diesters 7, which are reported to give the pyrrole diesters 8 upon treatment with triethylamine [13,14].
In light of the unexpected reaction involved in going from 6 to 1, we took the opportunity to confirm the product structure unambiguously through X-ray diffraction. The resulting molecular structure (Figure 1) shows bond lengths and angles within the expected range, but a slight inequivalence in the dimensions around the two ester carbonyls (Table 1 and Table 2), which reflects the fact that one is involved in hydrogen bonding and the other is not.
This was clearer when we examined the unit cell and saw that the crystal structure consisted of pairs of hydrogen bonded molecules. When these are viewed along the b axis, they appear to be all coplanar, but this is misleading as the view along the a axis makes clear (Figure 2). The hydrogen bonding parameters (Table 3) are in agreement with the expectation for a strong NH to C=O interaction.
A survey of the relatively small number of other crystallographically characterised 2-acylpyrroles in the Cambridge Structural Database (CSD) showed that such dimers are in fact the commonest structural motif with the alternative linear arrangement being much less common (Figure 3).
A study by Senge and Smith in 2005 [15] showed that the series of six 2-acyl-3,5-dimethylpyrroles 914 all adopted such hydrogen bonded dimer structures, except for compound 13 where chains formed by hydrogen bonding of NH to the 4-acetyl-C=O. In another study of the three 3-methoxy-4-methylpyrrole esters 1517, 15 and 16 were also found to form hydrogen bonded dimers whereas the 5-unsubstituted compound 17 instead exhibited the chain structure [16]. Interestingly, the formyl group in 16, which could also have been involved in hydrogen bonding, was oriented away from NH, presumably for steric reasons. For the 3-hydroxy compound 18, the ester carbonyl was oriented away from NH as it was intramolecularly hydrogen bonded to the OH, and NH, then formed chains by hydrogen bonding intermolecularly to the OH as shown [16].
In summary, we obtained diethyl pyrrole-2,5-dicarboxylate in moderate yield by a new and unexpected heterocyclic transformation, and found that its crystal structure featured hydrogen bonded dimers similar to the structure adopted by most crystallographically characterised 2-acylpyrroles. Work to determine the scope and applications of this new pyrrole synthesis is currently in progress.

3. Experimental

Melting points were recorded on a Reichert hot-stage microscope (Reichert, Vienna, Austria) and are uncorrected. IR spectra were recorded on a Perkin-Elmer 1420 instrument (Perkin-Elmer, Waltham, MA, USA). NMR spectra were obtained for protons at 400 MHz and for carbon at 100 MHz using a Bruker AV400 instrument (Bruker, Billerica, MA, USA). Spectra were run at 25 °C on solutions in CDCl3 with internal Me4Si as the reference. Chemical shifts are reported in ppm to high frequency of the reference and coupling constants J are in Hz.

Diethyl pyrrole-2,5-dicarboxylate (1)

A solution of compound 6 [8] (0.5 g, 2.06 mmol) in diethyl ether (15 mL) was stirred while a solution of sodium hydroxide (0.166 g, 4.15 mmol) in ethanol (8 mL) was added dropwise. After the addition, the mixture was stirred at RT for 17 h before being filtered and the filtrate was evaporated to dryness under reduced pressure. The residue was subjected to column chromatography (SiO2, Et2O/hexanes, 50:50) to give at Rf 0.30 the title compound (0.18 g, 41%) as colourless crystals after recrystallisation (hexanes), mp 79–81 °C (lit. [1] 82 °C; [3] 83–84 °C); UV/Vis (MeCN): λmax (log ε) 281 (4.08), 271 (4.14), 210 nm (3.87); IR (Nujol): 3273, 1726, 1557, 1261 cm–1 (lit. [3]: 3276, 1736, 1556, 1266); 1H-NMR (400 MHz, CDCl3): 9.96 (1H, br, NH), 6.87 (2H, d, J 2.4), 4.36 (4H, q, J 7.2), 1.38 (6H, t, J 7.2) (lit. [3]: 9.72, 6.86, 4.36, 1.37); 13C-NMR (100 MHz, CDCl3): 160.4 (C=O), 126.2 (C), 115.4 (CH), 61.0 (CH2), 14.3 (CH3) (lit. [3]: 160.3, 126.2, 115.4, 61.0, 14.3); HRMS (ESI): Calcd. for C10H14NO4 (M+H): 212.0923. Found: 212.0917.
Crystal data for C10H13NO4, M = 211.22 g mol–1, colourless platelet, crystal dimensions 0.12 × 0.03 × 0.01 mm, monoclinic, space group P21/n, a = 15.552(7), b = 4.355(2), c = 16.234(7) Å, β = 107.410(11)°, V = 1049.1(8) Å3, Z = 4, Dcalc = 1.337 g cm–3, T = 125 K, R1 = 0.0607, Rw2 = 0.1456 for 1656 reflections with I > 2σ(I), and 142 variables. Data were collected using graphite monochromated Cu Kα radiation λ = 1.54187 Å and have been deposited at the Cambridge Crystallographic Data Centre as CCDC 1942514. The data can be obtained free of charge from the Cambridge Crystallographic Data Centre via http://www.ccdc.cam.ac.uk/getstructures. The structure was solved by direct methods and refined by full-matrix least-squares against F2 (SHELXL, Version 2018/3 [17]). Hydrogen atoms were assigned riding isotropic displacement parameters and constrained to idealised geometries except for H(1), which was refined with a distance restraint.

Supplementary Materials

The following is available online, Figure S1: UV–Visible spectrum of 1 in MeCN.

Author Contributions

C.B. and L.J.R.M. prepared the compound; A.M.Z.S. collected the X-ray data and solved the structure; R.A.A. designed the experiments, analysed the data, and wrote the paper. All authors have read and agreed to the published version of the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ciamician, G.; Silber, P. Ueber einige disubstituierte Derivate des Pyrrols und über ihre Constitution. Ber. Dtsch. Chem. Ges. 1886, 19, 1956–1964. [Google Scholar] [CrossRef]
  2. Kuhn, R.; Dury, K. Ringschlüsse mit α,α’-Dioxymuconsäure-estern. Liebigs Ann. Chem. 1951, 571, 44–68. [Google Scholar] [CrossRef]
  3. Ciez, D. A Direct Preparation of N-Unsubstituted Pyrrole-2,5-dicarboxylates from 2-Azidocarboxylic Esters. Org. Lett. 2009, 11, 4282–4285. [Google Scholar] [CrossRef] [PubMed]
  4. Salvati, M.E.; Illig, C.R.; Wilson, K.J.; Chen, J.; Meegalla, S.K.; Wall, M.J. Pyrrolopyridazine Compounds and Methods of Use Thereof for the Treatment of Proliferative Disorders. US Patent 2004 0209886 A1, 21 October 2004. [Google Scholar]
  5. Babu, Y.; Kotian, P.L.; Kumar, V.S.; Wu, M.; Lin, T.-H. Pyrrolo[1,2-b]pyridazine Derivatives as Janus Kinase Inhibitors. PCT International Patent Application WO 2011 014817 A1, 3 February 2011. [Google Scholar]
  6. Maskill, K.G.; Knowles, J.P.; Elliott, L.D.; Alder, R.W.; Booker-Milburn, K.I. Complexity from Simplicity: Tricyclic Aziridines from the Rearrangement of Pyrroles by Batch and Flow Photochemistry. Angew. Chem. Int. Ed. 2013, 52, 1499–1502. [Google Scholar] [CrossRef] [PubMed]
  7. Barkenbus, C.; Landis, P.S. 1,4-Thiazine. J. Am. Chem. Soc. 1948, 70, 684–685. [Google Scholar] [CrossRef]
  8. Berges, D.A.; Taggart, J.J. A Spontaneous Sulfoxide Dehydration. J. Org. Chem. 1985, 50, 413–415. [Google Scholar] [CrossRef]
  9. Marcos, C.F.; Polo, C.; Rakitin, O.A.; Rees, C.W.; Torroba, T. One-pot synthesis and chemistry of bis[1,2]dithiolopyrroles. Chem. Commun. 1997, 33, 879–880. [Google Scholar] [CrossRef]
  10. Rees, C.W.; White, A.J.P.; Williams, D.J.; Rakitin, O.A.; Marcos, C.F.; Polo, C.; Torroba, T. Selective Syntheses of Bis[1,2]dithiolo[1,4]thiazines and Bis[1,2]dithiolopyrroles from Hünig’s Base. J. Org. Chem. 1998, 63, 2189–2196. [Google Scholar] [CrossRef]
  11. Zissimou, G.A.; Kourtellaris, A.; Manoli, M.; Koutentis, P.A. Redox Active Quinoidal 1,2,4-Benzotriazines. J. Org. Chem. 2018, 83, 9391–9402. [Google Scholar] [CrossRef] [PubMed]
  12. Aitken, R.A.; Aitken, K.M. 1,4-Thiazines and their Benzo Derivatives. In Comprehensive Heterocyclic Chemistry III; Katritzky, A., Ramsden, C.A., Scriven, E.F.V., Taylor, R.J.K., Eds.; Elsevier: Oxford, UK, 2008; Volume 8, Chapter 9; pp. 607–675. ISBN 978-0-0804-4991-3. [Google Scholar]
  13. Lee, L.F.; Howe, R.K. Synthesis of 2H-1,4-Thiazine-2,6-dicarboxylates and Their Conversion to 3,4-Pyrroledicarboxylates via Sulfur Extrusion. J. Org. Chem. 1984, 49, 4780–4783. [Google Scholar] [CrossRef]
  14. Lee, L.F.; Schleppnik, F.M.; Howe, R.K. Syntheses and reactions of 2-halo-5-thiazolecarboxylates. J. Heterocycl. Chem. 1985, 22, 1621–1630. [Google Scholar] [CrossRef]
  15. Senge, M.O.; Smith, K.M. Hydrogen-bonding patterns in six derivatives of 2,4-dimethylpyrrole. Acta Crystallogr. Sect. C 2005, 61, o537–o541. [Google Scholar] [CrossRef] [PubMed]
  16. Bonauer, C.; Zabel, M.; König, B. Synthesis and Peptide Binding Properties of Methoxypyrrole Amino Acids (MOPAS). Org. Lett. 2004, 6, 1349–1352. [Google Scholar] [CrossRef] [PubMed]
  17. Sheldrick, G.M. A short history of SHELXL. Acta Crystallogr. Sect. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed]

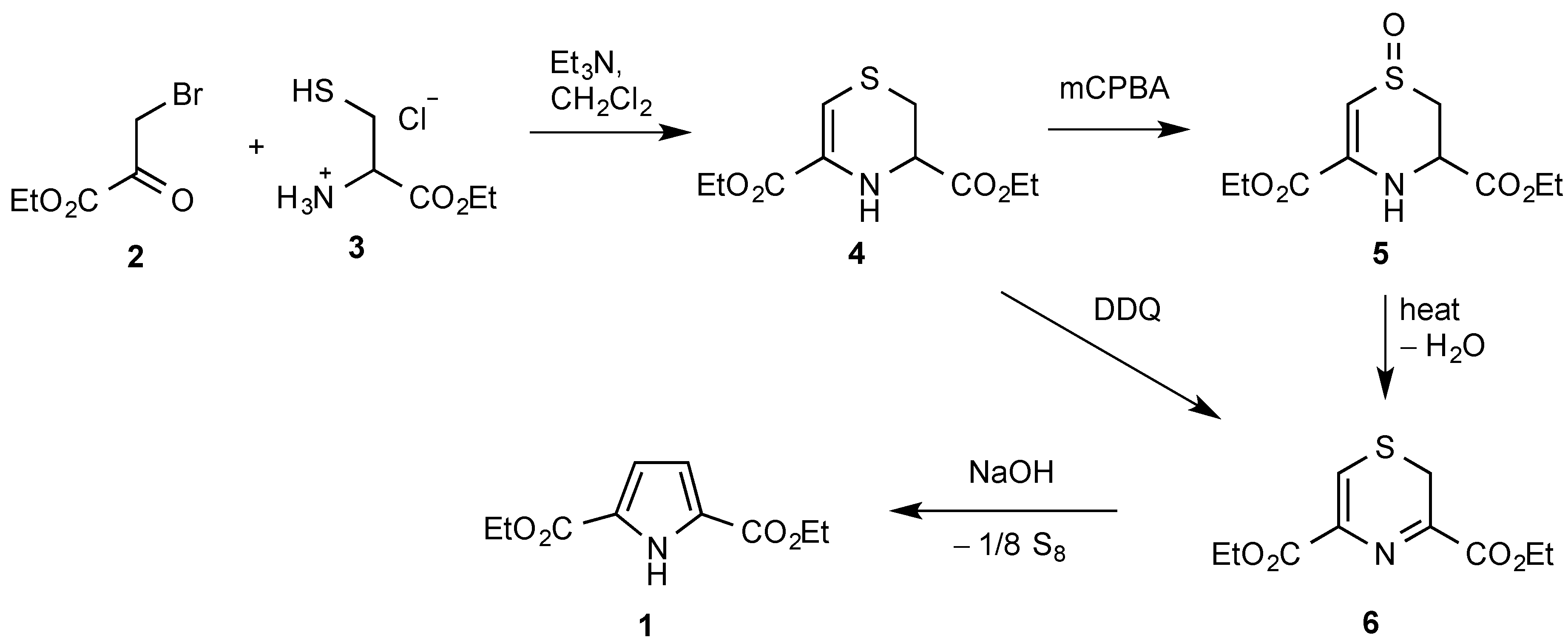

Scheme 1. Synthetic route to 1.
Scheme 1. Synthetic route to 1.
Molbank 2020 m1117 sch001
Scheme 2. Possible route for the formation of 1 from 6 with base and similar transformation of 7 to 8.
Scheme 2. Possible route for the formation of 1 from 6 with base and similar transformation of 7 to 8.
Molbank 2020 m1117 sch002

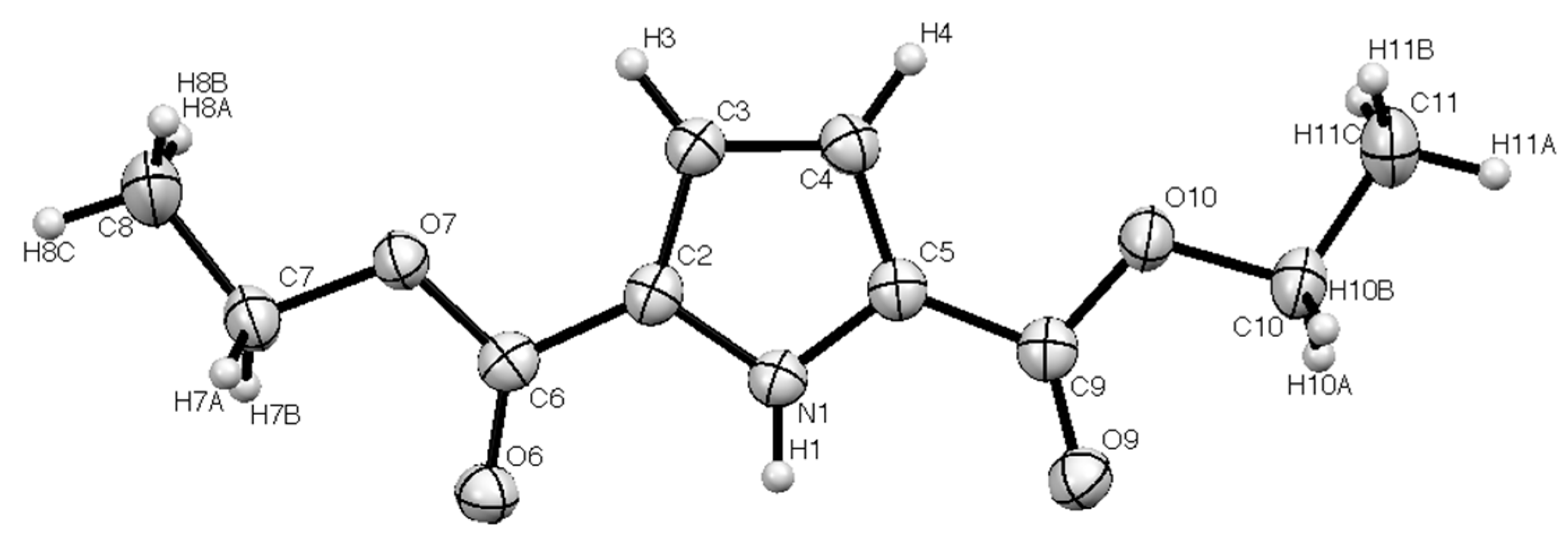

Figure 1. The molecular structure of 1 with numbering scheme.
Figure 1. The molecular structure of 1 with numbering scheme.
Molbank 2020 m1117 g001

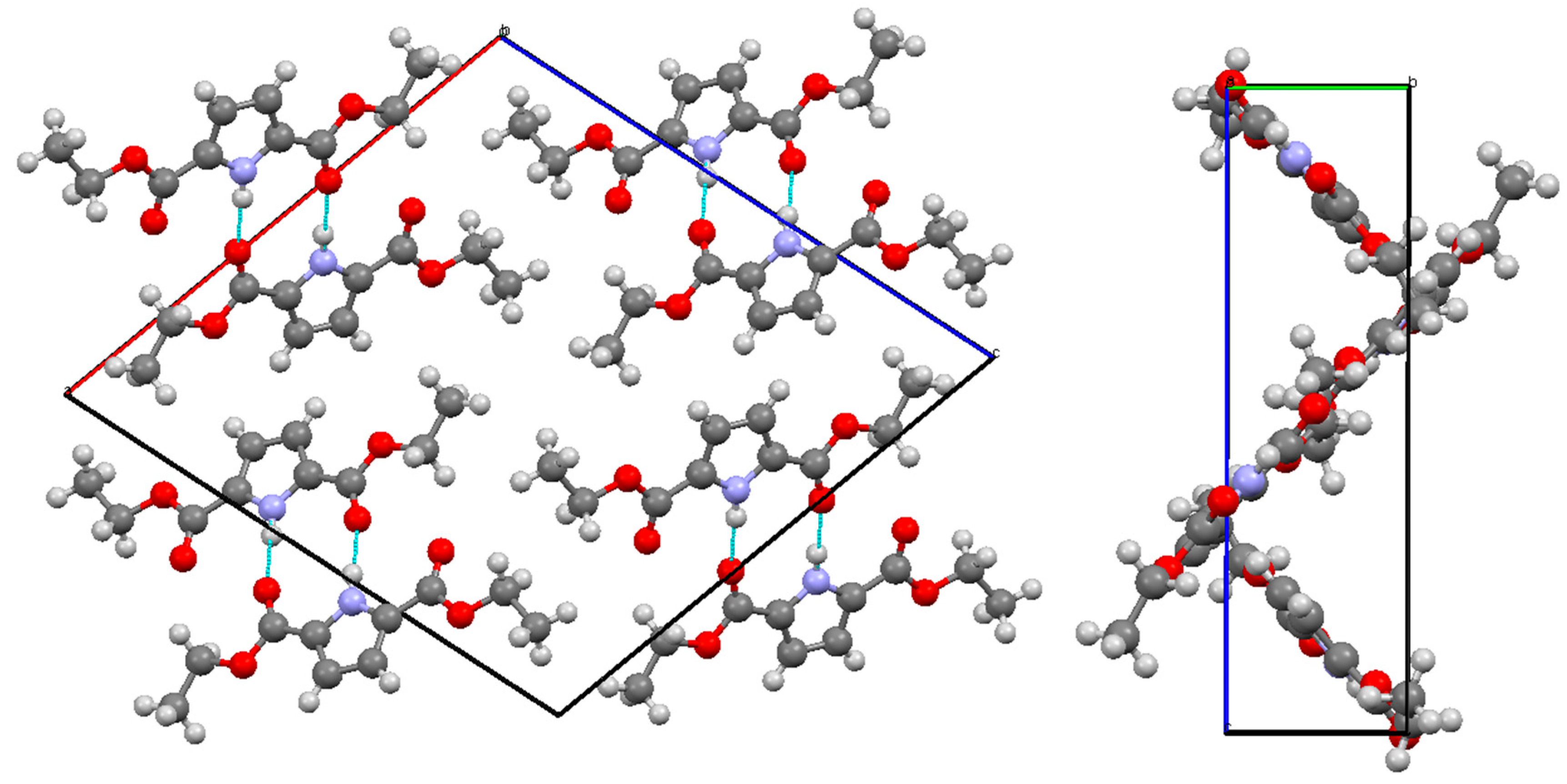

Figure 2. Unit cell of 1 viewed along the b axis showing the four molecules present along with their hydrogen bonded partners, and along the a axis showing that the molecules at the top left and bottom right are actually at right angles to those at the top right and bottom left.
Figure 2. Unit cell of 1 viewed along the b axis showing the four molecules present along with their hydrogen bonded partners, and along the a axis showing that the molecules at the top left and bottom right are actually at right angles to those at the top right and bottom left.
Molbank 2020 m1117 g002

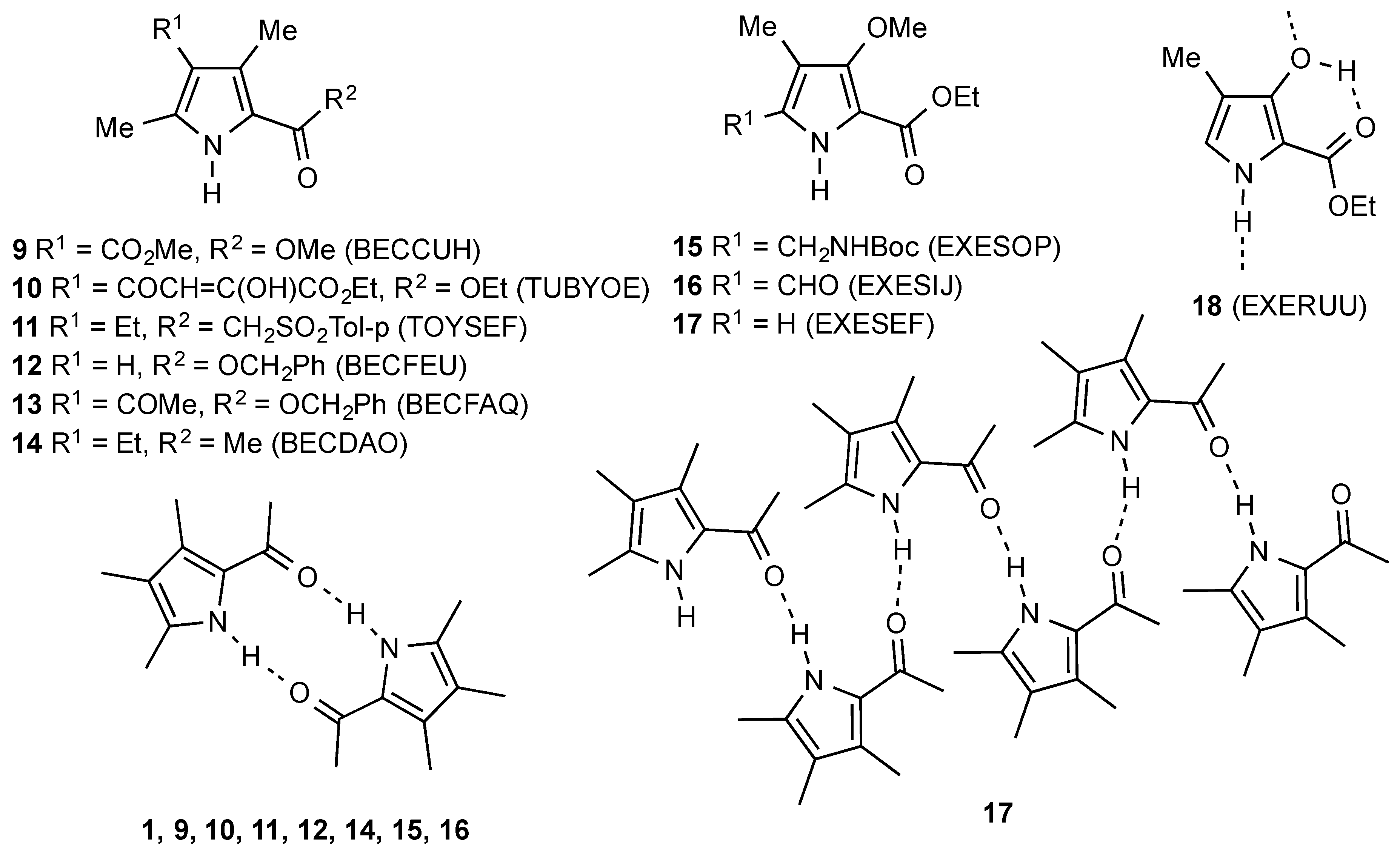

Figure 3. A survey of crystallographically characterised 2-acylpyrroles with CSD reference codes and the commonly occurring dimer and linear hydrogen-bonded structures.
Figure 3. A survey of crystallographically characterised 2-acylpyrroles with CSD reference codes and the commonly occurring dimer and linear hydrogen-bonded structures.
Molbank 2020 m1117 g003
Table 1. Selected bond lengths.
Table 1. Selected bond lengths.
BondLength/ÅBondLength/Å
N(1)–C(2)1.366(2)N(1)–C(5)1.358(2)
C(2)–C(6)1.458(2)C(5)–C(9)1.467(3)
C(6)–O(6)1.214(2)C(9)–O(9)1.210(2)
C(6)–O(7)1.341(2)C(9)–O(10)1.348(2)
Table 2. Selected angles.
Table 2. Selected angles.
AngleValue/°AngleValue/°
N(1)–C(2)–C(6)120.57(13)N(1)–C(5)–C(9)121.45(13)
C(2)–C(6)–O(6)124.31(15)C(5)–C(9)–O(9)125.91(16)
N(1)–C(2)–C(3)108.43(15)N(1)–C(5)–C(4)108.51(16)
C(2)–C(3)–C(4)106.96(15)C(5)–C(4)–C(3)107.25(14)
Table 3. Hydrogen bonding parameters for 1 (Å, °).
Table 3. Hydrogen bonding parameters for 1 (Å, °).
D—H…AD—HH…AD…AD—H…A
N(1)–H(1)…O(6)0.89(2)1.97(2)2.850(2)171(2)
