Molbank 2018, 2018(2), ; https://doi.org/10.3390/M996

Short Note
(E)-3-[4-(Pent-4-en-1-yloxy)phenyl]acrylicc Acid
1
School of Pharmaceutical Sciences, University of Shizuoka, 52-1 Yada, Suruga-ku, Shizuoka 422-8526, Japan
2
SAIDA FDS INC., 143-10 Isshiki, Yaizu, Shizuoka 425-0054, Japan
*
Author to whom correspondence should be addressed.
Received: 1 May 2018 / Accepted: 9 May 2018 / Published: 12 May 2018

Abstract

:
(E)-3-[4-(Pent-4-en-1-yloxy)phenyl]acetic acid is one of the useful components of liquid crystal materials which can be produced through Williamson ether synthesis by synthesizing 4-hydroxy-cinnamic acid and 5-bromo-1-pentene. Although Williamson ether synthesis is generally slow under conventional external heating conditions, microwave irradiation was effective for significant acceleration of the etherification. Furthermore, we demonstrated the rapid and continuous synthesis of (E)-3-[4-(pent-4-en-1-yloxy)phenyl]acetic acid, using a microwave-assisted flow reactor developed by us, in which the blockage by salt precipitation was suppressed by the continuous addition of an aqueous methanol solution after the reaction cavity.
Keywords:
aryl alkyl ether; Williamson ether synthesis; microwave; flow chemistry

1. Introduction

(E)-3-[4-(Pent-4-en-1-yloxy)phenyl]acrylic acid is utilized as a component of liquid crystal materials [1]. This compound is usually produced through Williamson ether synthesis by synthesizing 4-hydroxy-cinnamic acid and 5-bromo-1-pentene under basic conditions. Williamson ether synthesis is recognized as a representative method for carbon-oxygen bond formation to provide ethereal compounds, and a huge number of examples have been reported to date [2,3]. In general, however, a long reaction time and a number of additives used to activate electrophiles in SN2 reactions are required for Williamson ether synthesis. Starting from 4-hydroxy-cinnamic acid (1) and 5-bromo-1-pentene (2), (E)-3-[4-(pent-4-en-1-yloxy)phenyl]acrylic acid (3) was reportedly prepared with KOH as a base and KI as an activator at high reaction temperature; the reaction needed 24 h for completion [1].
Rapid heating by MicroWave (MW) irradiation is often used for the acceleration of target reactions, and tremendous efforts have been made towards microwave-assisted organic synthesis [4,5]. Not surprisingly, the application of MW heating to Williamson ether synthesis has been investigated by using simple microwave applicators [6,7,8,9]. However, the application of MW chemistry to a scale-up synthesis is difficult because of the limited penetration depth of MW. On the other hand, flow chemistry has benefits in terms of safe on-demand synthesis, and thus various types of reactions have been demonstrated successfully in a continuous manner [10,11,12,13,14]. In this context, some flow-microwave systems have been reported [15,16]. Wang reported a continuous-flow system with a domestic microwave oven and examined some organic reactions, including Williamson ether synthesis between benzyl chloride and phenol [17]. Strauss and colleagues developed their continuous microwave reactor, equipped with a pressure control valve to increase the reaction temperature, and its applications revealed that Strauss’s system allowed for improved productivity in comparison with Wang’s prototype system [18]. However, the reported yields (49% and 67%) were not adequate, and only a single example was demonstrated. Thus, these reactions have much room for improvement, in terms of the reaction efficiency and the number of reaction examples.
In 2015, we reported a highly efficient single-mode microwave applicator with a resonance cavity and demonstrated the synthetic application of our apparatus, in which two well-known reactions (the Fischer indole synthesis and the Diels-Alder reaction) were performed on a large scale (e.g., 100 g h−1 for the Fischer indole synthesis) continuously at high reaction temperature [19,20]. It is known that MW is absorbed directly by polarized organic molecules, and the resulting molecular vibration enables rapid heating of the reaction mixture. Therefore, we expected that rapid heating by MW irradiation would be effective in flow chemistry with starting materials having a good electrostatic property, since the residence time of the reactants is normally limited. Herein, we disclose the continuous-flow synthesis of (E)-3-[4-(pent-4-en-1-yloxy)phenyl]acrylic acid via Williamson ether synthesis using the flow-microwave applicator.

2. Results and Discussion

2.1. Initial Screening of the Reaction Conditions Using a Batch Reactor

To check the effect of MW irradiation, we first examined the reaction between 4-hydroxy-cinnamic acid (1) and 5-bromo-1-pentene (2) under the batch conditions (Table 1). According to the literature [1], the reaction was carried out at 90 °C under oil bath heating, and the desired compound 3 was obtained in 96% yield, although the reaction required 24 h for completion (entry 1). When the reaction time was changed to 10 min, the yield dropped dramatically to only 23% (entry 2). Even though the reason is not clear at present, MW heating increased the yield slightly even at 90 °C (entry 3). Interestingly, it was found that KI was not essential for this reaction, and the etherification was further accelerated when the temperature was raised up to 150 °C (entry 4). In this case, ester compound 4 was also formed in 19% yield as a byproduct, suggesting that substitution by the carboxylate anion could occur at high temperature. Therefore, we reduced the amount of 2 to minimize the overreaction, and 3.0 equivalents of KOH was added for promoting hydrolysis of the resultant ester 4. As we expected, the desired ether 3 was selectively obtained in 91% yield (entry 5). MeOH was slightly less effective for this reaction in comparison with EtOH (entry 6).

2.2. Continuous Williamson Ether Synthesis Using our Flow-Microwave Applicator

On the basis of the results obtained in Table 1, we needed to devise a flow-microwave system for this Williamson ether synthesis (Figure 1). The carboxylate form of 3 was found to precipitate quite easily from the reaction mixture, when the solution was cooled to ambient temperature. Thus, a mixed solvent of MeOH/H2O was continuously added, using the second pump just after the reaction cavity to dissolve the potassium salt of 3, so that potential clogging by the precipitate would be prevented. The detailed conditions are listed in Scheme 1. The volume of the reaction vessel in the microwave cavity was approximately 6 mL. The desired product 3 was quantitatively obtained, when the flow rate was 1.2 mL/min and the irradiation power was 120 W. In addition, over 90% chemical yield was retained even when the flow rate was increased to 4.0 mL/min (the residence time in the reaction vessel was 1.5 min), while higher MW irradiation power (170 W) was required to elevate the reaction temperature. These results suggest that the reaction reaches completion quickly (less than 1.5 min) at more than 160 °C. In this case, about 300 g of 3 can be produced by this system theoretically, if the continuous reaction is operated for 1 day.

3. Experiments

3.1. General

The 1H-NMR spectrum was measured on a JEOL JNM-ECA-500 spectrometer (JEOL, Tokyo, Japan) at 500 MHz, and the 13C-NMR spectrum was recorded on a JEOL JNM-ECA-500 spectrometer at 125 MHz. Chemical shifts were reported in parts per million (ppm) downfield from residual chloroform in CDCl3 for 1H-NMR. For 13C-NMR, chemical shifts were reported in a scale relative to CDCl3. Column chromatography was performed with silica gel N-60 (40–100 mm) purchased from Kanto Chemical Co., Inc., (Tokyo, Japan). A thin layer choromatography (TLC) analysis was performed on Silica gel 60 F254-coated glass plates (Merck, Darmstadt, Germany). The visualization of TLC plates was carried out by means of UltraViolet (UV) irradiation at 254 nm, or by spraying a 12-molybdo(VI)phosphoric acid ethanol solution. Reagents and solvents were purchased from commercial suppliers and were used without purification.

3.2. Typical Procedure of Willimason Ether Synthesis Using Flow-Microwave System

A stock solution of 4-hydroxy-cinnamic acid (2.05 g, 12.5 mmol), 5-bromo-1-pentene (2.23 g, 15.0 mmol) and KOH (2.10 g, 37.4 mmol) in EtOH/H2O (3/1, 50 mL) was pumped into the microwave applicator at a flow rate of 4.0 mL/min, and the irradiation power of the microwave reactor was set at 170 W. Meanwhile, the MeOH/H2O (5/1) solution was pumped into the line between the reaction vessel and the backpressure regulator at 6.0 mL/min. To stabilize the applicator, the solution was first run for 5 min. After the exit temperature reached 155–160 °C, the reaction mixture was collected for 1 min. The organic solvent was evaporated in vacuo, and the resultant residue was neutralized with 1 N HCl. The organic materials were extracted with EtOAc, and the combined organic layers were dried over Na2SO4. After filtration, the filtrate was concentrated, and the 1H-NMR was measured to determine the yield (91%). The residue was purified by column chromatography on silica gel (n-hexane/EtOAc = 10/1 to 3/1) to give 3 (211 mg, 91%) as a colorless solid.
1H-NMR (500 MHz, CDCl3): δ = 7.74 (d, J = 16.0 Hz, 1H), 7.50 (d, J = 8.6 Hz, 2H), 6.91 (d, J = 8.6 Hz, 2H), 6.32 (d, J = 16.0 Hz, 1H), 5.85 (tdd, J = 6.9, 10.3, 17.2 Hz, 1H), 5.07 (dd, J = 1.7, 17.2 Hz, 1H), 5.01 (dd, J = 1.7, 10.3 Hz, 1H), 4.01 (t, J = 6.3 Hz, 2H), 2.27–2.23 (m, 2H), 1.93–1.88 (m, 2H); 13C-NMR (125 MHz, CDCl3): δ = 172.4, 161.3, 146.8, 137.6, 130.1, 126.6, 115.4, 114.9, 114.5, 67.3, 30.0, 28.3.
The NMR spectra were consistent with the previous paper [1].

4. Conclusions

We have demonstrated Williamson ether synthesis using a flow-microwave applicator. Our system is effective for the continuous synthesis of (E)-3-[4-(pent-4-en-1-yloxy)phenyl]acrylic acid (3), and we believe that this method would be applicable to the synthesis of other ethereal compounds. Further applications of this flow-microwave system is being investigated in our group.

Supplementary Materials

The following are available online, flow-microwave applicator and NMR spectra of (E)-3-[4-(pent-4-en-1-yloxy)phenyl]acrylicc acid.

Author Contributions

Y.H. and H.E. conceived the idea for this work and designed the experiments; T.S. and S.T. performed the experiments. N.O., T.O., and H.O set up the flow-microwave applicator for this transformation. H.E., H.O., and Y.H. prepared the manuscript.

Funding

This research was funded by Shizuoka Industrial Promotion Foundation.

Acknowledgments

This work was partly supported by the NEDO Support Program for Ventures Involved in Innovation and Practical Application FY2012, and the University of Shizuoka.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Harada, Y.; Sakajiri, K.; Kuwahara, H.; Kang, S.; Watanabe, J.; Tokita, M. Cholesteric films exhibiting expanded or split reflection bands prepared by atmospheric photopolymerisation of diacrylic nematic monomer doped with a photoresponsive chiral dopant. J. Mater. Chem. C 2015, 3, 3790–3794. [Google Scholar] [CrossRef]
  2. Mandal, S.; Mandal, S.; Ghosh, S.K.; Sar, P.; Ghosh, A.; Saha, R.; Saha, B. A reveiw on the advancement of ether synthesis from organic solvent to water. RSC Adv. 2016, 6, 69605–69614. [Google Scholar] [CrossRef]
  3. Fuhrmann, E.; Talbiersky, J. Synthesis of Alkyl Aryl Ethers by Catalytic Williamson Ether Synthesis with Weak Alkylation Agents. Org. Proc. Res. Dev. 2005, 9, 206–211. [Google Scholar] [CrossRef]
  4. Kappe, C.O.; Stadler, A. Microwaves in Organic and Medicinal Chemistry; WILEY-VHC: Weinheim, Germany, 2005. [Google Scholar]
  5. Horikoshi, S.; Serpone, N. Microwaves in Catalysis; WILEY-VHC: Weinheim, Germany, 2016. [Google Scholar]
  6. Paul, S.; Gupta, M. Zinc-catalyzed Williamson ether synthesis in the absence of base. Tetrahedron Lett. 2004, 45, 8825–8829. [Google Scholar] [CrossRef]
  7. Reddy, K.R.; Rajanna, K.C.; Ramgopal, S.; Kumar, M.S.; Sana, S. Environmentally Benign Synthetic Protocol for O-Alkylation of β-Naphthols and Hydroxy Pyridines in Aqueous Micellar Media. Green Sustain. Chem. 2012, 2, 123–132. [Google Scholar] [CrossRef]
  8. Baar, M.R.; Gammerdinger, W.; Leap, J.; Morales, E.; Shikora, J.; Weber, M.H. Pedagogical Comparison of Five Reactions Performed under Microwave Heating in Multi-Mode versus Mono-Mode Ovens: Diels–Alder Cycloaddition, Wittig Salt Formation, E2 Dehydrohalogenation To Form an Alkyne, Williamson Ether Synthesis, and Fischer Esterification. J. Chem. Educ. 2014, 91, 1720–1724. [Google Scholar]
  9. Otero, E.; Vergara, S.; Robledo, S.M.; Cardona, W.; Carda, M.; Vélez, I.D.; Rojas, C.; Otálvaro, F. Synthesis, Leishmanicidal and Cytotoxic Activity of Triclosan-Chalcone, Triclosan-Chromone and Triclosan-Coumarin Hybrids. Molecules 2014, 19, 13251–13266. [Google Scholar] [CrossRef] [PubMed]
  10. Kobayashi, S. Flow “Fine” Synthesis: High Yielding and Selective Organic Synthesis by Flow Methods. Chem. Asian J. 2016, 11, 425–436. [Google Scholar] [CrossRef] [PubMed]
  11. Gutmann, B.; Cantillo, D.; Kappe, C.O. Continuous-Flow Technology–A Tool for the Safe Manufacturing of Active Pharmaceutical Ingredients. Angew. Chem. Int. Ed. 2015, 54, 6688–6728. [Google Scholar] [CrossRef] [PubMed]
  12. Porta, R.; Benaglia, M.; Puglisi, A. Flow Chemistry: Recent Developments in the Synthesis of Pharmaceutical Products. Org. Process Res. Dev. 2016, 20, 2–25. [Google Scholar] [CrossRef]
  13. Cantillo, D.; Kappe, C.O. Halogenation of organic compounds using continuous flow and microreactor technology. React. Chem. Eng. 2017, 2, 7–19. [Google Scholar] [CrossRef]
  14. Shukla, C.A.; Kulkarni, A.A. Automating multistep flow synthesis: Approach and challenges in integrating chemistry, machines and logic. Beilstein J. Org. Chem. 2017, 13, 960–987. [Google Scholar] [CrossRef] [PubMed]
  15. Bergamelli, F.; Iannelli, M.; Marafie, J.A.; Moseley, J.D. A Commercial Continuous Flow Microwave Reactor Evaluated for Scale-Up. Org. Proc. Res. Dev. 2010, 14, 926–930. [Google Scholar] [CrossRef]
  16. Glasnov, T.N.; Kappe, C.O. The Microwave-to-Flow Paradigm: Translating High-Temperature Batch Microwave Chemistry to Scalable Continuous-Flow Process. Chem. Eur. J. 2011, 17, 11956–11968. [Google Scholar] [CrossRef] [PubMed]
  17. Chen, S.-T.; Chiou, S.-H.; Wang, K.-T. Preparative Scale Organic Synthesis using a Kitchen Microwave Oven. J. Chem. Soc. Chem. Commun. 1990, 807–809. [Google Scholar] [CrossRef]
  18. Cablewski, T.; Faux, A.F.; Strauss, C.R. Development and Application of a Continuous Microwave Reactor for Organic Synthesis. J. Org. Chem. 1994, 59, 3408–3412. [Google Scholar] [CrossRef]
  19. Yokozawa, S.; Ohneda, N.; Muramatsu, K.; Okamoto, T.; Odajima, H.; Ikawa, T.; Sugiyama, J.; Fujita, M.; Sawairi, T.; Egami, H.; et al. Development of a highly efficient single-mode microwave applicator with a resonant cavity and its application to continuous flow syntheses. RSC Adv. 2015, 5, 10204–10210. [Google Scholar] [CrossRef]
  20. Ichikawa, T.; Mizuno, M.; Ueda, S.; Ohneda, N.; Odajima, H.; Sawama, Y.; Monguchi, Y.; Sajiki, H. A practical method for heterogeneously-catalyzed Mizoroki-Heck reaction: Flow system with adjustment of microwave resonance as an energy source. Tetrahedron Lett. 2018, 74, 1810–1816. [Google Scholar] [CrossRef]

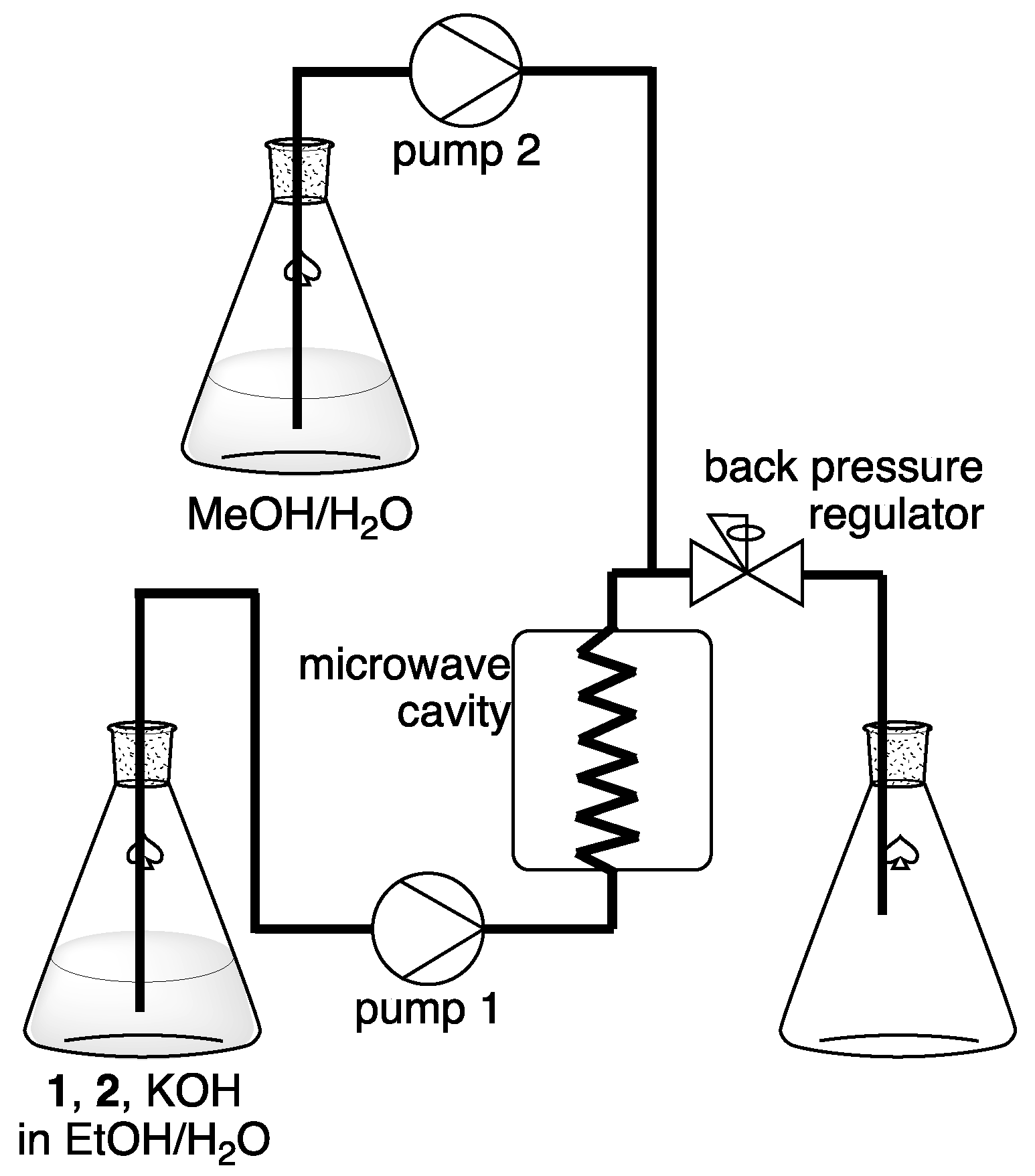

Figure 1. Outline of our flow-microwave system.
Figure 1. Outline of our flow-microwave system.
Molbank 2018 m996 g001

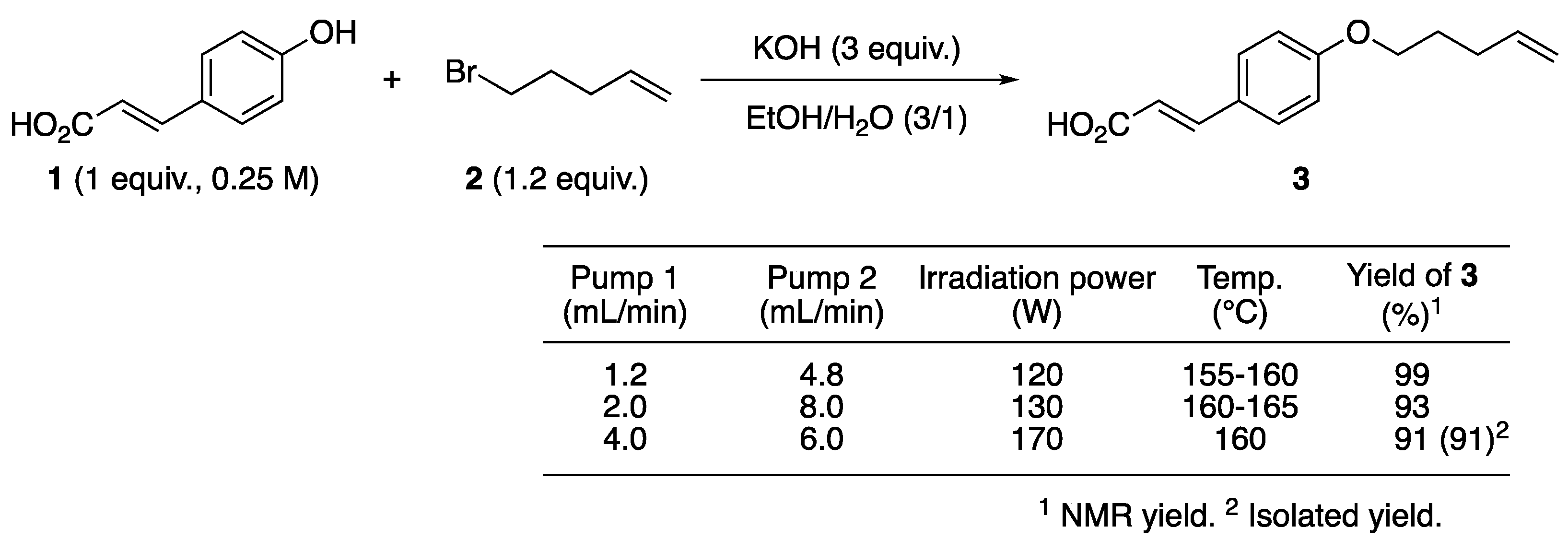

Scheme 1. Williamson ether synthesis between 1 and 2 using flow-microwave applicator.
Scheme 1. Williamson ether synthesis between 1 and 2 using flow-microwave applicator.
Molbank 2018 m996 sch001

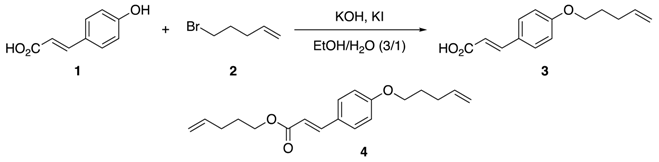

Table 1. Williamson ether synthesis under batch conditions 1.
Table 1. Williamson ether synthesis under batch conditions 1.
Molbank 2018 m996 i001
EntryHeat SourceTimeKOH (equiv)KI (equiv)Temp. (°C)Yield of 3 (%) 2
1oil bath24 h2.00.59096
2oil bath10 min2.00.59023
3microwave10 min2.00.59032
4microwave10 min2.5015078 3
5 4microwave10 min3.0015091
6 4,5microwave10 min3.0015086
1 The reactions were carried out with 4-hydroxy-cinnamic acid (1) (1.0 equiv), 5-bromo-1-pentene (2) (1.5 equiv), KOH, and KI in EtOH/H2O (3/1) on a 1.0 mmol scale, unless otherwise mentioned; 2 Determined by 1H-NMR analysis; 3 Ester 4 was obtained in 19% yield; 4 Run with 1.2 equiv of 2; 5 MeOH was used instead of EtOH.
