(Z)-4-(Carbomethoxymethylene)-2-(4-fluorophenyl)-4H-benzo[d][1,3]oxazine

1
Department of Chemistry, University of Parma, Parco Area delle Scienze 17/A, 43124 Parma, Italy
2
Laboratory of Industrial and Synthetic Organic Chemistry (LISOC), Department of Chemistry and Chemical Technologies, University of Calabria, Via Pietro Bucci 12/C, 87036 Arcavacata di Rende (CS), Italy
*
Author to whom correspondence should be addressed.
Academic Editor: Norbert Haider
Molbank 2017, 2017(1), M927; https://doi.org/10.3390/M927
Received: 20 December 2016 / Revised: 5 January 2017 / Accepted: 9 January 2017 / Published: 13 January 2017
(This article belongs to the Section Organic Synthesis)

Abstract

The title compound, (Z)-4-(carbomethoxymethylene)-2-(4-fluorophenyl)-4H-benzo[d][1,3]oxazine, was synthesized in 68% isolated yield by palladium-catalyzed oxidative cyclization-methoxycarbonylation of 4-fluoro-N-(2-((trimethylsilyl)ethynyl)phenyl)benzamide. This new heterocyclic derivative was fully characterized by IR, 1H-NMR, 13C-NMR spectroscopies, MS spectrometry, and elemental analysis. The Z configuration around the double bond was unequivocally established by 2D NOESY experiments.
Keywords: palladium; benzoxazines; carbonylation; Heterocyclization; 2D NMR experiments palladium; benzoxazines; carbonylation; Heterocyclization; 2D NMR experiments

1. Introduction

Palladium-catalyzed oxidative alkoxycarbonylation of alkynes is a simple and powerful tool for the synthesis of complex heterocyclic compounds from easily available starting reagents [1,2,3,4,5]. Over the years, we have successfully applied this effective methodology to access carbonylated compounds in a one-pot fashion [6,7,8,9,10,11,12,13]. In particular, some years ago, we reported a facile and efficient route for the synthesis of new functionalized benzo[d][1,3]oxazines by in situ deprotection of 2-(trimethylsilanyl)ethynylaniline derivatives followed by palladium-catalyzed cyclization-alkoxycarbonylation [14]. The benzo[d][1,3]oxazine scaffold is found in many biologically active molecules, including anti-tumor, anti-inflammatory, anti-convulsant, and anti-fungal agents [15,16,17,18,19]. In this Note, we report the preparation of the fluorinated benzoxazine 2—that is, (Z)-4-(carbomethoxymethylene)-2-(4-fluorophenyl)-4H-benzo[d][1,3]oxazine—by adopting the same catalytic carbonylative strategy (Scheme 1). We provide a full characterization of compound 2, including NMR spectra and a complete assignment of all 1H and 13C-NMR signals.

2. Results and Discussion

As shown in Scheme 1, the synthesis of (Z)-4-(carbomethoxymethylene)-2-(4-fluorophenyl)-4H-benzo[d][1,3]oxazine (2) was achieved in one step, through palladium-catalyzed oxidative alkoxycarbonylation of 4-fluoro-N-(2-((trimethylsilyl)ethynyl)phenyl)benzamide (1). The reaction was carried out in 7:1 MeCN/MeOH mixture at 65 °C in the presence of a catalytic amount of 10% Pd/C in conjunction with [Bu4N]I and KF and under 24 bar of a 3:1 mixture of CO-air. Under these reaction conditions, the target product 2 was obtained in 68% isolated yield. The structure of compound 2 was confirmed by NMR, IR, and mass spectral data. In particular, the Z stereochemistry of the methoxycarbonylmethylene moiety was confirmed by a 2D NOESY experiment, while 2D HSQC/HMBC experiments enabled the unequivocal assignment of all proton and carbon signals (Figure 1 and Figure 2).

3. Materials and Methods

Compound 1 was prepared according to procedures reported in the literature [14]. Other chemicals were obtained from commercial sources and were used without further purification. Gas chromatography analyses were performed with an Agilent Technology 7820A instrument (Agilent Technologies, Santa Clara, CA, USA) using a 30 m SE-30 capillary column. Column chromatography was carried out on silica gel (Merck, Darmstadt, Germany, 0.063–0.200 mm) and Thin-Layer Chromatography (TLC) on Merck 60F254 plates. Electron ionization (EI) mass spectra were obtained with an Agilent Technology instrument (Agilent Technologies, Santa Clara, CA, USA) working at 70 eV ionization energy. NMR spectra were recorded in CDCl3, using the solvent residual signals as internal reference (7.26 and 77.00 ppm, respectively, for 1H and 13C) on a Bruker AVANCE 400 spectrometer (Bruker, Milan, Italy). IR spectrum was run on a Nicolet FT-IR 5700 spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA) paired with a Diamond Smart Orbit accessory. Melting point was determined with an Electrothermal apparatus. Elemental analysis was performed with a Carlo Erba EA 1108-Elemental Analyzer (Carlo Erba, Milan, Italy).
The reaction in Scheme 1 was carried out in a 45 mL stainless steel autoclave with magnetic stirring. The autoclave was charged in the presence of air with amide 1 (0.31 g, 1.00 mmol), 10% Pd/C (0.011 g, 0.01 mmol), [Bu4N]I (0.369 g, 1.00 mmol), and KF·2H2O (0.141 g, 1.50 mmol) in MeCN/MeOH (7/1 v/v, 5 mL). The autoclave was pressurized with CO (18 bar) and air (6 bar), reaching a total pressure of 24 bar at room temperature, and then heated with stirring for 24 h at 65 °C. After cooling, the autoclave was degassed, the solvent was evaporated under vacuum, and the residue was filtered through a short SiO2 column using CH2Cl2 as eluent. The crude product was purified by column chromatography on silica gel using hexane/ethyl acetate 9:1 as eluent. Yield: 0.202 g (68% based on starting 1). Pale yellow solid, mp 143–146 °C. IR (ATR diamond, cm−1): ν = 2947 (w), 1714 (s), 1651 (s), 1608 (m), 1591 (m), 1507 (m), 1473 (m), 1276 (m), 1239 (m), 1147 (s), 1120 (m), 1089 (m), 761 (m); 1H-NMR (400 MHz, CDCl3) δ = 8.44–8.36 (m, 2H, H2′, H6′), 7.53 (dd, J = 7.9, 1.2 Hz, 1H, H5), 7.46 (ddd, J = 8.0, 7.3, 1.3 Hz, 1H, H7), 7.35 (dd, J = 8.0, 0.9 Hz, 1H, H8), 7.23 (ddd, J = 8.0, 7.3, 1.3 Hz, 1H, H6), 7.17–7.09 (m, 2H, H3′, H5′), 5.70 (s, 1H, H1′′), 3.76 (s, 3H, H3′′); 13C-NMR (100 MHz, CDCl3) δ = 165.30 (d, J = 251.7 Hz, C4′), 165.12 (C2′′), 156.56 (C4), 153.26 (C2), 140.29 (C8a), 133.12 (C7), 130.71 (d, J = 9.1 Hz, C2′, C6′), 127.86 (C6), 127.18 (C8), 126.56 (d, J = 2.9 Hz, C1′), 122.92 (C5), 118.27 (C4a), 115.63 (d, J = 22.0 Hz, C3′, C5′), 89.60 (C1′′), 50.94 (C3′′); GC-MS: m/z = 297 (100) [M+], 266 (27), 252 (32), 239 (24), 224 (35), 210 (25), 183 (46); anal. calcd for C17H12FNO3: C, C, 68.68; H, 4.07; F, 6.39; N, 4.71; O, 16.15; found C, 68.84; H, 4.01; N, 4.76.

Supplementary Materials

1D and 2D NMR spectra are available online at www.mdpi.com/1422-8599/2017/1/M927.
Supplementary File 1Supplementary File 2Supplementary File 3Supplementary File 4

Acknowledgments

This work was supported by University of Parma. The facilities of “Centro Interfacoltà di Misure”(University of Parma) were used for recording NMR spectra.

Author Contributions

N.D., M.C. and B.G. conceived and designed the experiments; F.P. performed the experiments; R.M. analyzed and confirmed the data analysis; E.M. performed and interpreted the 2D NMR experiments; N.D. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gadge, S.; Bhanage, B. Recent developments in palladium catalysed carbonylation reactions. RSC Adv. 2013, 4, 10367–10389. [Google Scholar] [CrossRef]
  2. Wu, X.-F.; Neumann, H.; Beller, M. Synthesis of Heterocycles via Palladium-Catalyzed Carbonylations. Chem. Rev. 2013, 113, 1–35. [Google Scholar] [CrossRef] [PubMed]
  3. Gabriele, B.; Mancuso, R.; Salerno, G. Oxidative Carbonylation as a Powerful Tool for the Direct Synthesis of Carbonylated Heterocycles. Eur. J. Org. Chem. 2012, 6825–6839. [Google Scholar] [CrossRef]
  4. Shen, C.; Wu, X. Palladium-Catalyzed Carbonylative Multicomponent Reactions. Chem. Eur. J. 2016, (in press). [Google Scholar] [CrossRef] [PubMed]
  5. Rossi, E. Palladium-Assisted Synthesis of Heterocycles via Carbonylation Reactions. In Modern Carbonylation Methods; Kollár, L., Ed.; Wiley-VCH: Weinheim, Germany, 2008; pp. 321–362. [Google Scholar]
  6. Bacchi, A.; Costa, M.; Della Ca’, N.; Fabbricatore, M.; Fazio, A.; Gabriele, B.; Nasi, C.; Salerno, G. Synthesis of 1 (Alkoxycarbonyl) methylene 1, 3 dihydroisobenzofurans and 4 (Alkoxycarbonyl) benzo [c] pyrans by Palladium Catalysed Oxidative Carbonylation of 2 Alkynylbenzyl Alcohols, 2 Alkynylbenzaldehydes and 2 Alkynylphenyl Ketones. Eur. J. Org. Chem. 2004, 574–585. [Google Scholar] [CrossRef]
  7. Bacchi, A.; Costa, M.; Della Ca’, N.; Gabriele, B.; Salerno, G.; Cassoni, S. Heterocyclic derivative syntheses by palladium-catalyzed oxidative cyclization-alkoxycarbonylation of substituted γ-oxoalkynes. J. Org. Chem. 2005, 70, 4971–4979. [Google Scholar] [CrossRef] [PubMed]
  8. Della Ca’, N.; Campanini, F.; Gabriele, B.; Salerno, G.; Massera, C.; Costa, M. Cascade Reactions: Catalytic Synthesis of Functionalized 1,3-Dihydroisobenzofuran and Tetrahydrofuran Derivatives by Sequential Nucleophilic Ring Opening-Heterocyclization- Oxidative Carbonylation of Alkynyloxiranes. Adv. Synth. Catal. 2009, 351, 2423–2432. [Google Scholar] [CrossRef]
  9. Della Ca’, N.; Bottarelli, P.; Dibenedetto, A.; Aresta, M.; Gabriele, B.; Salerno, G.; Costa, M. Palladium-catalyzed synthesis of symmetrical urea derivatives by oxidative carbonylation of primary amines in carbon dioxide medium. J. Catal. 2011, 282, 120–127. [Google Scholar]
  10. Queirolo, M.; Vezzani, A.; Mancuso, R.; Gabriele, B.; Costa, M.; Della Ca’, N. Neutral vs anionic palladium iodide-catalyzed carbonylation of terminal arylacetylenes. J. Mol. Catal. A: Chem. 2015, 398, 115–126. [Google Scholar] [CrossRef]
  11. Mancuso, R.; Raut, D.; Della Ca’, N.; Fini, F.; Carfagna, C.; Gabriele, B. Catalytic Oxidative Carbonylation of Amino Moieties to Ureas, Oxamides, 2-Oxazolidinones, and Benzoxazolones. ChemSusChem 2015, 8, 2204–2211. [Google Scholar] [CrossRef] [PubMed]
  12. Mancuso, R.; Maner, A.; Ziccarelli, I.; Pomelli, C.; Chiappe, C.; Della Ca’, N.; Veltri, L.; Gabriele, B. Auto-Tandem Catalysis in Ionic Liquids: Synthesis of 2-Oxazolidinones by Palladium-Catalyzed Oxidative Carbonylation of Propargylic Amines in EmimEtSO4. Molecules 2016, 21, 897. [Google Scholar] [CrossRef] [PubMed]
  13. Maffei, M.; Giacoia, G.; Mancuso, R.; Gabriele, B.; Motti, E.; Costa, M.; Della Ca’, N. A highly efficient Pd/CuI-catalyzed oxidative alkoxycarbonylation of α-olefins to unsaturated esters. J. Mol. Catal. A: Chem. 2017, 426, 435–443. [Google Scholar] [CrossRef]
  14. Costa, M.; Della Ca’, N.; Gabriele, B.; Massera, C.; Salerno, G.; Soliani, M. Synthesis of 4H-3,1-benzoxazines, quinazolin-2-ones, and quinoline-4-ones by palladium-catalyzed oxidative carbonylation of 2-ethynylaniline derivatives. J. Org. Chem. 2004, 69, 2469–2477. [Google Scholar] [CrossRef] [PubMed]
  15. Reddy, B.V.S.; Babu, R.A.; Reddy, M.R.; Reddy, B.J.M.; Sridhar, B. Intramolecular C–O/C–S bond insertion of α-diazoesters for the synthesis of 2-aryl-4H-benzo[d][1,3]oxazine and 2-aryl-4H-benzo[d][1,3]thiazine derivatives. RSC Adv. 2014, 4, 44629–44633. [Google Scholar] [CrossRef]
  16. Dias, N.; Goossens, J.-F.; Baldeyrou, B.; Lansiaux, A.; Colson, P.; Di Salvo, A.; Bernal, J.; Turnbull, A.; Mincher, D.J.; Bailly, C. Oxoazabenzo[de]anthracenes conjugated to amino acids: Synthesis and evaluation as DNA-binding antitumor agents. Bioconjugate Chem. 2005, 16, 949–958. [Google Scholar] [CrossRef] [PubMed]
  17. Hays, S.J.; Caprathe, B.W.; Gilmore, J.L.; Amin, N.; Emmerling, M.R.; Michael, W.; Nadimpalli, R.; Nath, R.; Raser, K.J.; Stafford, D.; et al. 2-Amino-4H-3,1-benzoxazin-4-ones as Inhibitors of C1r Serine Protease. J. Med. Chem. 1998, 41, 1060–1067. [Google Scholar] [CrossRef] [PubMed]
  18. Jarvest, R.L.; Parratt, M.J.; Debouck, C.M.; Gorniak, J.G.; Jennings, L.J.; Serafinowska, H.T.; Strickler, J.E. Inhibition of HSV-1 protease by benzoxazinones. Bioorg. Med. Chem. Lett. 1996, 6, 2463–2466. [Google Scholar] [CrossRef]
  19. Krantz, A.; Spencer, R.W.; Tam, T.F.; Liak, T.J.; Copp, L.J.; Thomas, E.M.; Rafferty, S.P. Design and synthesis of 4H-3,1-benzoxazin-4-ones as potent alternate substrate inhibitors of human leukocyte elastase. J. Med. Chem. 1990, 33, 464–479. [Google Scholar] [CrossRef] [PubMed]

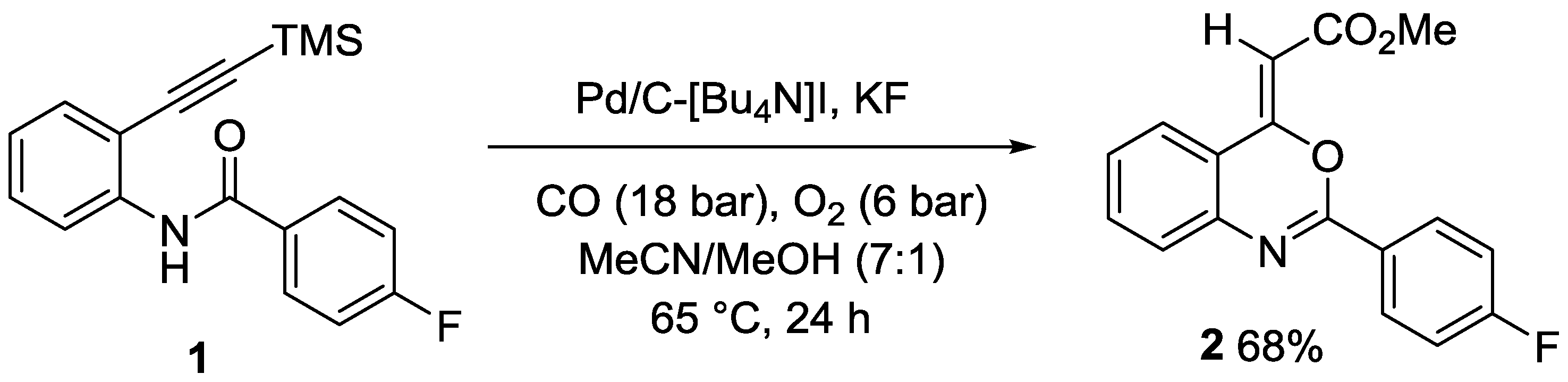

Scheme 1. Pd/C-catalyzed synthesis of the title compound 2 (TMS = trimethylsilyl).
Scheme 1. Pd/C-catalyzed synthesis of the title compound 2 (TMS = trimethylsilyl).
Molbank 2017 m927 sch001

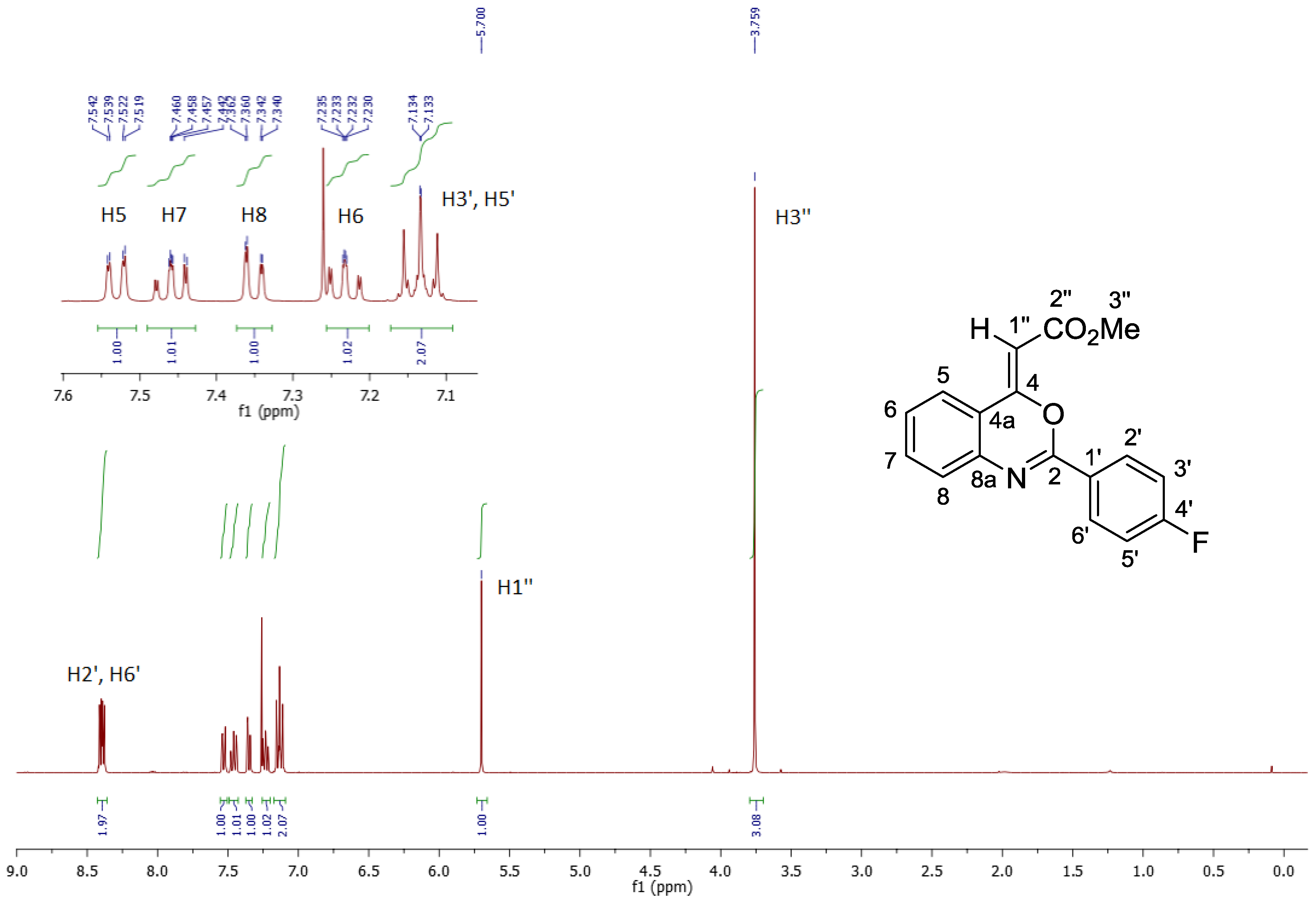

Figure 1. 1H-NMR spectrum of compound 2 (400 MHz, CDCl3) and related assignments.
Figure 1. 1H-NMR spectrum of compound 2 (400 MHz, CDCl3) and related assignments.
Molbank 2017 m927 g001

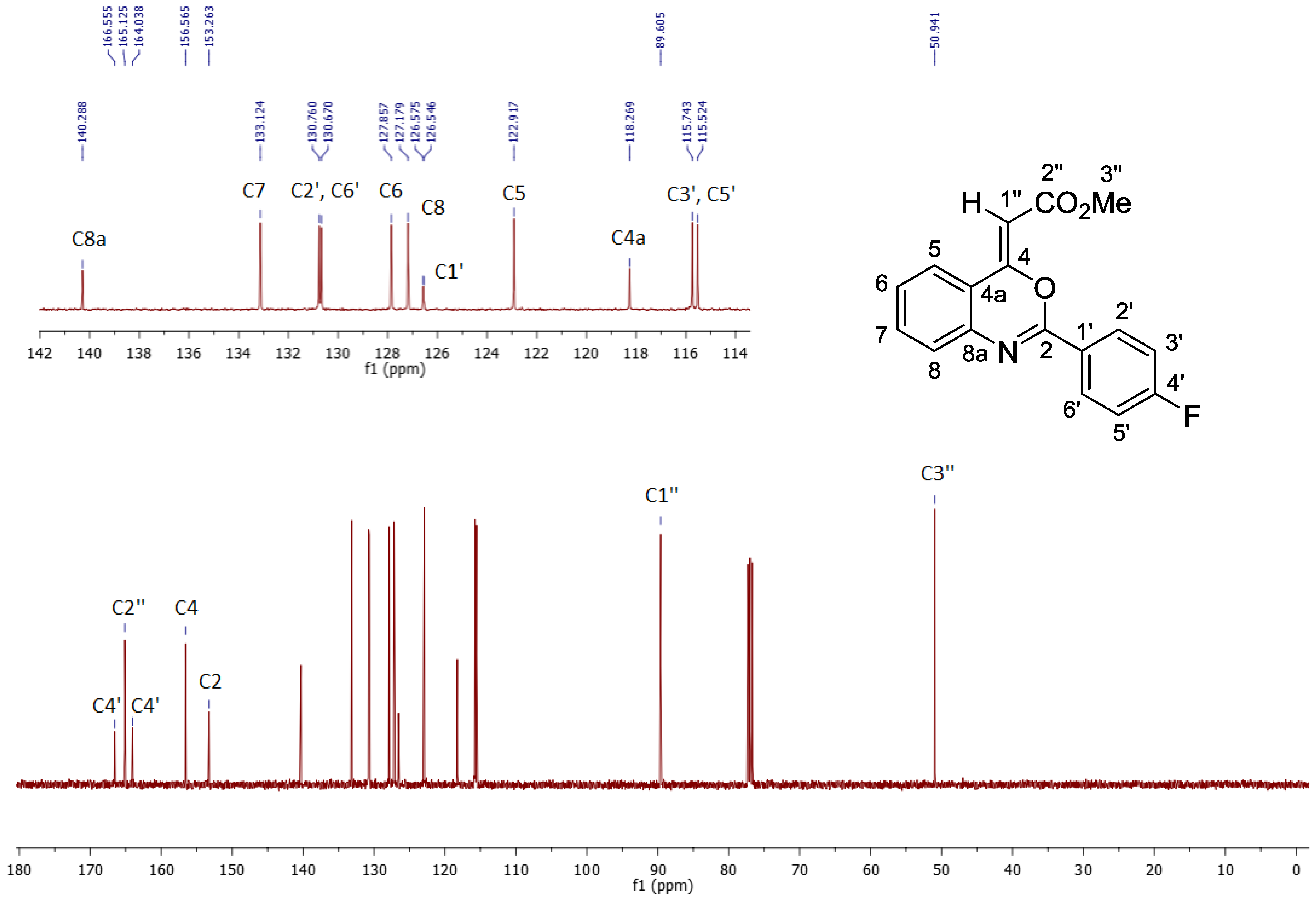

Figure 2. 13C-NMR spectrum of compound 2 (100 MHz, CDCl3) and related assignments.
