(E)-1-(2-Aminophenyl)-3-(benzo[d][1,3]dioxol-5-yl)prop-2-en-1-one

Abstract

The title chalcone (E)-1-(2-aminophenyl)-3-(benzo[d][1,3]dioxol-5-yl)prop-2-en-1-one was obtained in 76% yield from a NaOH catalyzed Claisen–Schmidt condensation reaction between o-aminoacetophenone and piperonal. This product will be used as a key precursor for the development of an alternative route for the total synthesis of the alkaloid Graveoline. Single crystals of the title compound suitable for X-ray diffraction were grown via slow evaporation in ethanol at room temperature. A complete crystallographic study was performed in depth to unequivocally confirm its structure. The crystal structure of the title o-aminochalcone, C₁₆H₁₃NO₃, shows two molecules per asymmetric unit (Z = 4) and adopts an E configuration about the C=C double bond. In the title compound, the mean plane of the non-H atoms of the central chalcone fragment C—C(O)—C—C—C is as follow: [root-mean-square (r.m.s.) deviation = 0.0210 Å for A–B and 0.0493 for C–D molecules]. In the crystal, molecules are linked by N–H...O and C–H...O, hydrogen bonds forming S(6), R²₂(6) and edge-fused R⁴₄(24)rings along with C(18) chains running parallel to (110).

1. Introduction

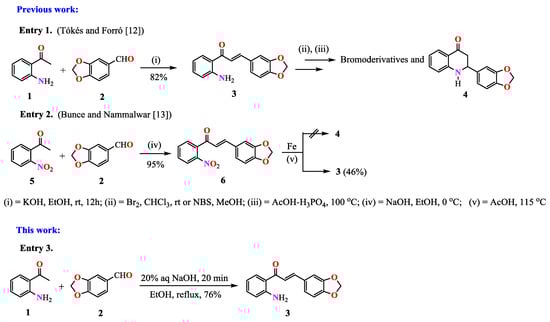

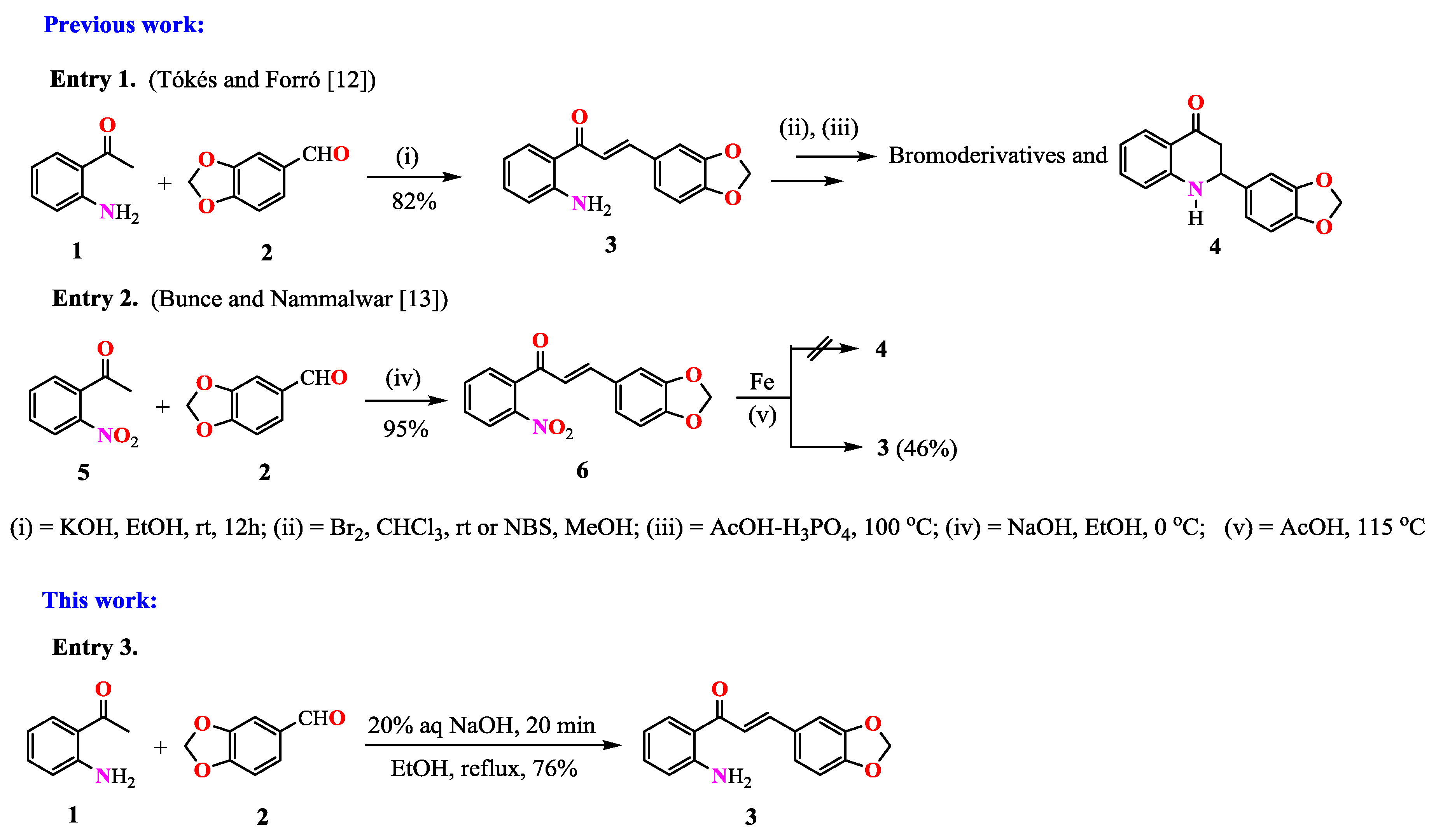

Chalcones are synthetic or naturally occurring α,β-unsaturated diaryl ketones which have shown a wide spectrum of biological [1,2,3,4] and synthetic [5,6] properties. It has been found that their biological activities and those of their derivatives may be enhanced by the insertion of heterocyclic rings in their structures [7]. Thus, chalcones bearing the heterocyclic [1,3]-dioxolo functionality are of particular interest because diverse synthetic and natural compounds containing this functionality in their frameworks have displayed important biological and pharmacological properties [8,9]. Continuing with our current studies on the synthetic utility of o-aminochalcones [10,11], the amino-[1,3]-dioxolo derivative 3 was obtained (as precursor for alkaloid Graveoline), from the condensation reaction of o-aminoacetophenone 1 and piperonal 2 in ethanolic alkaline media, (Scheme 1).

2. Results and Discussion

Chalcone 3 was previously prepared in 82% yield (m.p. 112 °C) by Tókés and Forró [12] for diverse bromination studies involving the formation of the tetrahydroquinolone 4, (Entry 1, Scheme 1). Posteriorly, Bunce and Nammalwar [13] obtained chalcone 3 as a side-product in 46% yield (m.p. 110–112 °C), attempting to synthesize the quinolone 4 through an in situ tandem reduction–Michael addition reaction in acetic acid media, (Entry 2, Scheme 1).

In this work, compound 3 was synthesized as a key intermediate for an alternative route of synthesis of alkaloid Graveoline and related methylenedioxy 2-aryl-4-quinolones. This product was obtained in 76% yield from equimolar amounts of o-aminoacetophenone 1 and piperonal 2 via a NaOH catalyzed Claisen–Schmidt condensation reaction as shown in Scheme 1, Entry 3. The residue was crystallized from ethanol affording a yellow solid. Single crystals of 3 suitable for X-ray diffraction were grown via slow evaporation of the ethanolic mother liquor.

Although compound 3 was acceptably characterized in references [12,13], some differences with our experimental data were found and no crystallographic analysis was supplied. These findings encouraged us to grow crystals of chalcone 3 suitable for X-ray diffraction. Additionally, a complete analytical and spectroscopic characterization (i.e., IR, 1D and 2D NMR, mass and elemental analysis) of compound 3 was performed; see Materials and Methods section.

2.1. Structural Analysis

Single crystals of 3 suitable for X-ray diffraction were grown via slow evaporation in ethanol at room temperature. According to the results (Figure 1, Figure 2 and

Table 1. Selected bond lengths [Å], angles [°] and torsion angles [°] for chalcone 3.

Bond Lengths
C1-C7; 1.4696(18)	C17-C23; 1.4712(18)
C7-O1; 1.2445(16)	C23-O4; 1.2431(16)
C8-C9; 1.3334(19)	C24-C25; 1.3322(19)
C9-C10; 1.4553(19)	C25-C26; 1.4570(18)
C10-C15; 1.3949(18)	C26-C31; 1.3966(18)
O2-C12; 1.3608(17)	O5-C28; 1.3691(16)
O3-C13; 1.3662(17)	O6-C29; 1.3663(16)
C11-C12; 1.3591(19)	C27-C28; 1.3611(19)
C13-C14; 1.363(2)	C29-C30; 1.3647(19)
Angles
C7-C8-C9; 122.35(13)	C17-C23-C24; 119.00(12)
C8-C9-C10; 126.41(13)	C24-C25-C26; 126.36(13)
Torsion Angles
N1-C2-C1-C7; -2.2(2)	N2-C18-C17-C23; −0.57(18)
C2-C1-C7-O1; 1.9(2)	C18-C17-C23-O4; 7.32(18)

,

Table 2. Hydrogen bond lengths [Å] and angles [°] for o-aminochalcone 3.

D–H...A	D–H	H...A	D...A	D–H...A
N2-H3N…O1	0.899(18)	2.132(19)	3.0293(16)	175.8(16)
N1-H1N…O4i	0.88(2)	2.22(2)	3.0254(17)	152.6(16)
C32-H32B…O5ii	0.99	2.49	3.3497(17)	144.9

Symmetry codes: (i) 2 − x, 1 − y, 1 − z; (ii) −x, 3 − y, 1 − z.

), there is no doubt that the obtained compound effectively corresponds to chalcone 3 as suggested in Scheme 1, (Entry 3).

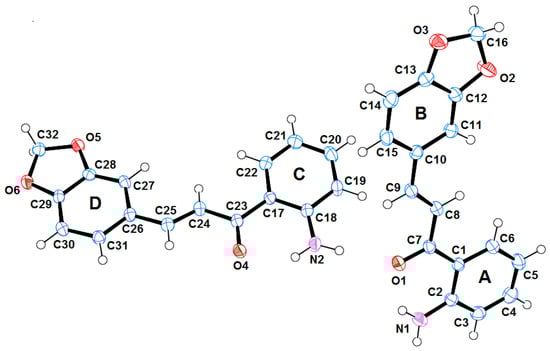

Similar compounds to 3 have previously been reported in the literature (i.e., 1-(6-amino-1,3-benzodioxol-5-yl)-3-(3,4,5-trimethoxyphenyl)prop-2-en-1-one [14] and 1-(6-amino-1,3-benzodioxol-5-yl)-3-(4-methoxyphenyl)prop-2-en-1-one [15]). The title compound 3 crystallizes in triclinic, P$\overline{1}$, with Z = 4. In the molecular structure of 3 shown in Figure 1, the central fragments C1–C7(O1)–C8=C9–C10 and C17–C23(O2)–C24=C25–C6 are essentially planar (root-mean-square (r.m.s.) deviation for all non-H atoms = 0.0210 Å and 0.0493 Å respectively) and they form dihedral angles of 1.47(9)° and 7.79(15)° with the A and C aryl rings, respectively and 4.86(9)° and 2.09(15)° with the B and D benzodioxol rings, respectively. The amino groups are syn positioned with respect to the carbonyl groups in both molecules.

Bond lengths and bond angles in the title molecules are in good agreement with those found in the related compounds of the references [14,15], with the exception of the C10–C15 and C26–C31 bond lengths. Whereas the title structure exhibits shortened distances of 1.3949(18) and 1.3966(18) Å, respectively, in these compounds, such bond lengths are 1.426(3) and 1.430(3) Å, respectively.

2.2. Supramolecular Features

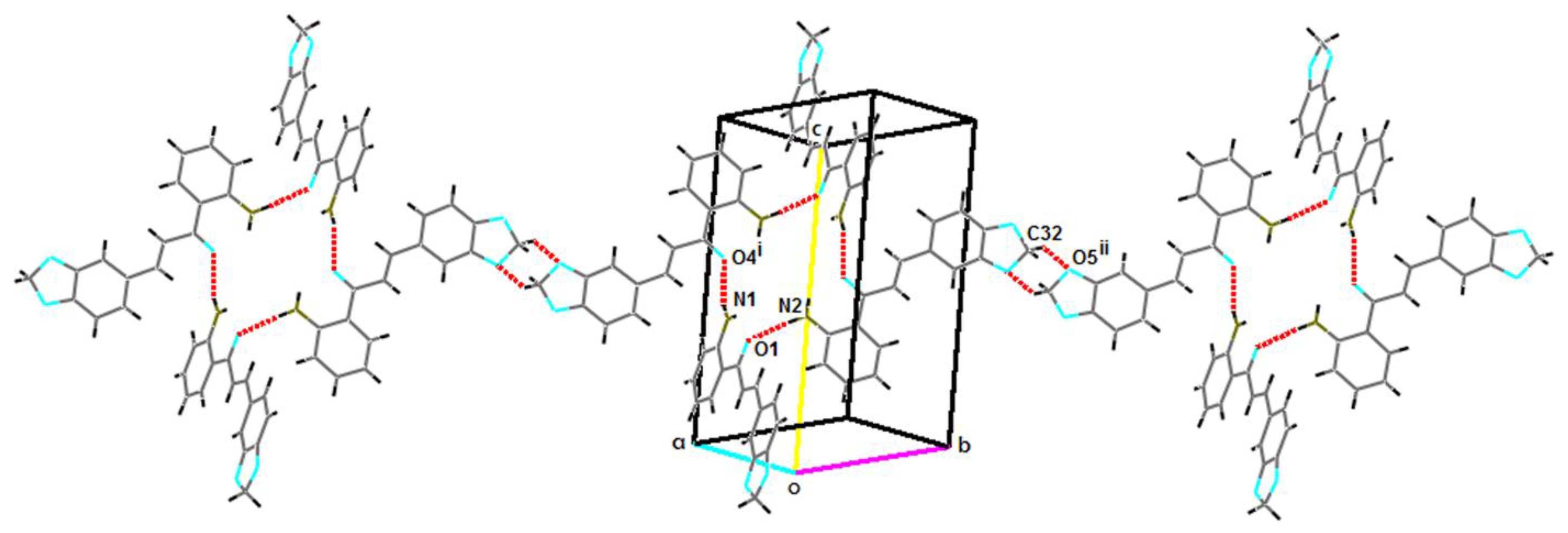

The packing arrangement of the title compound can be described by strong intramolecular N–H...O hydrogen bonds and by intermolecular N–H...O and C–H...O hydrogen bonds of medium-strength (see Table 1), [16]. The two molecules of the asymmetric unit intertwine to form intra-intermolecular intercalated bonds, generating S(6) and $R_4^4$(24) rings [17]. In these interactions, the N2–H3N moiety in the molecule at (x,y,z) acts as a hydrogen-bond donor to the O1 atom of the carbonyl group at (x,y,z) and N1–H1N in the molecule at (x,y,z) acts as a hydrogen-bond donor to the O4 atom of the carbonyl group at (2 − x, 1 − y, 1 − z). Molecules are connected and they are related by an inversion center, forming a kind of inner ring as seen in Figure 2. One of the molecules of the asymmetric unit proceeds to join, via C32–H32...O5 bonds with its twin molecule, configuring dimers with $R_2^2$-(6) rings. Thus, the inner rings are attached to C(18) chains of molecules, forming sheets running parallel to (110).

3. Materials and Methods

3.1. General Information

The melting point was determined on a Büchi melting point B-450 apparatus (Instrumart, South Burlington, VT, USA) and is uncorrected. The FTIR spectrum was recorded on a Shimadzu FTIR 8400 spectrophotometer (Scientific Instruments Inc., Seattle, WA, USA) using KBr disks. ¹H- and ¹³C-NMR spectra were recorded on a Bruker Avance 400 spectrometer (Bruker BioSpin GmbH, Rheinstetten, Germany) operating at 400 MHz and 100 MHz, respectively, and using DMSO-d₆ as solvent and tetramethylsilane as an internal standard. The mass spectrum was obtained on a SHIMADZU-GCMS 2010-DI-2010 spectrometer (Scientific Instruments Inc., Columbia, IN, USA), equipped with a direct inlet probe) operating at 70 eV. Microanalysis was performed on a Thermo-Finnigan Flash EA1112 CHN elemental analyzer (Thermo Fischer Scientific Inc., Madison, WI, USA), and the values are within ±0.4% of the theoretical values. Silica gel aluminum plates (Merck 60 F₂₅₄, Darmstadt, Germany) were used for analytical Thin Layer Chromatography (TLC). The starting ketone 1 and aldehyde 2 were purchased from (Sigma-Aldrich, San Luis, MO, USA); analytical or reagent grades were used without further purification.

3.2. Synthesis of (E)-1-(2-Aminophenyl)-3-(benzo[d][1,3]dioxol-5-yl)prop-2-en-1-one (3)

A mixture of o-aminoacetophenone 1 (0.5 g, 1 mmol), piperonal 2 (1 mmol), 20% NaOH aqueous solution (0.5 mL), and 96% EtOH (5 mL) was subjected to reflux for 20 min. The solid formed was filtered and washed with water then with ethanol. Recrystallization from 96% ethanol afforded 3 (76% yield, yellow solid, m.p. 117 °C). FTIR (KBr): ν = 3425, 3309 (NH₂), 3070, 2904, 1633 (C=O), 1601, 1566, 1244 and 1207 (CO) cm⁻¹. ¹H-NMR (400 MHz, DMSO-d₆) δ: 6.11 (s, 2H, OCH₂O, H-16), 6.60 (t, J = 8.0 Hz, 1H, H-5), 6.81 (d, J = 8.0 Hz, 1H, H-3), 6.98 (d, J = 8.0 Hz, 1H, H-14), 7.26–7.29 (m, 2H, H-15, H-4), 7.38 (s, 2H, NH₂), 7.59 (d, J = 16.0 Hz, 1H, H-9), 7.63 (s, 1H, H-11), 7.84 (d, J = 16.0 Hz, 1H, H-8), 8.11 (d, J = 8.0 Hz, 1H, H-6) ppm. ¹³C-NMR (100 MHz, DMSO-d₆) δ: 102.0 (C-16, OCH₂O), 107.4 (C-11), 108.9 (C-14), 114.9 (C-5), 117.3 (C-3), 118.2 (C-2), 121.8 (C-8), 125.8 (C-15), 130.1 (C-1), 131.9 (C-6), 134.6 (C-4), 142.5 (C-9), 148.6 (C-12), 149.6 (C-13), 152.5 (C-10), 191.0 (C-7, C=O) ppm. The numbering of the C and H atoms is the same as that for structure 3 in Figure 1. Anal. calcd. for C₁₆H₁₃NO₃ (267.27): C, 71.90; H, 4.90; N, 5.24. Found: C, 72.03; H, 4.77; N, 5.35. MS (EI, 70 eV) m/z (%): 267 (31) [M⁺], 266 (50), 146 (100).

Crystal Data: C₁₆H₁₃NO₃ (M = 267.27 g/mol): triclinic, space group P$\overline{1}$ (no. 2), a = 7.7323(3) Å, b = 11.2145(5) Å, c = 15.1819(7) Å, V = 1276.36(10) ų, Z = 4, T = 123(2) K, μ(MoKα) = 0.097 mm⁻¹, D_calc = 1.391 Mg/m³, 11,674 reflections measured (3.028° ≤ θ ≤ 27.497°), 5794 unique (R_int = 0.0185, R_sigma = 0.0317) which were used in all calculations. The final R1 was 0.0413 (I > 2σ(I)) and wR2 was 0.0554 (all data).

Data Collection and Refinement Details: Diffraction data were collected on an Oxford Diffraction Xcalibur E diffractometer [18], using graphite monochromated MoKα radiation (0.71073 Å). The corrected data were solved by direct methods with SHELXS-97 and refined by full-matrix methods on F² with SHELXL-2014 [19]. All H-atoms, except for H–N, were positioned at geometrically idealized positions, C–H = 0.9500 Å, C16-H = 0.9900 Å and C32-H = 0.9900 Å and were refined using a riding model approximation with U_iso(H) = 1.2 U_eq(parent atom). H–N atoms were found from the Fourier difference maps, and their coordinates were freely refined. Correctness of the model was confirmed by low residual peaks (0.257) and holes (−0.203 e. Å⁻³) in the final difference map. (CCDC 1518500 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected].)
