Molbank 2012, 2012(4), M784; https://doi.org/10.3390/M784

Short Note
3,5-Bis(4-dodecylthiophen-2-yl)-4H-1,2,6-thiadiazin-4-one
Department of Chemistry, University of Cyprus, P.O. Box 20537, 1678 Nicosia, Cyprus
*
Author to whom correspondence should be addressed.
Received: 24 September 2012 / Accepted: 7 November 2012 / Published: 8 November 2012

Abstract

:
3,5-Dichloro-4H-1,2,6-thiadiazin-4-one 1 reacts with (4-dodecylthiophen-2-yl)trimethylstannane 4 (2.2 equiv.) and Pd(Ph3P)2Cl2 (5 mol%) in acetonitrile at ca. 82 °C to give 3,5-bis(4-dodecylthiophen-2-yl)-4H-1,2,6-thiadiazin-4-one 5 in 93% yield.
Keywords:
1,2,6-thiadiazines; thiophenes; heterocycles; oligomers
Surprisingly little has appeared in the literature on nonoxidized 4H-1,2,6-thiadiazines. Monocyclic 3,5-dichloro-4H-1,2,6-thiadiazin-4-one 1 [1] and its 4-dicyanomethylene analogue 2-(3,5-dichloro-4H-1,2,6-thiadiazin-4-ylidene)malononitrile 2 [2,3] have been prepared (Scheme 1), the former in two steps starting from dichloromalononitrile and the latter in one step from tetracyanoethylene (TCNE). Both are useful precursors to several polycyclic 1,2,6-thiadiazine systems [4,5]. For several years now we have been developing the chemistry of both these heterocyclic scaffolds [2,3,4,5,6,7,8,9,10].
Recently, we described the palladium catalysed Suzuki and Stille coupling reactions of 3,5-dichloro-4H-1,2,6-thiadiazin-4-one 1 which enabled the preparation of symmetrical biaryl and biheteroarylthiadiazinones such as 3,5-di(thiophen-2-yl)-4H-1,2,6-thiadiazin-4-one 3 [7] (Scheme 1). Based on this structural unit we postulated the construction of conjugated polymers such as the thiophene/thiadiazinone polymers. To achieve this we required access to thiophene substituted thiadiazinone with solublizing alkyl chains, as such; the synthesis of 3,5-bis(4-dodecylthiophen-2-yl)-4H-1,2,6-thiadiazin-4-one 5 was targeted.
The reaction of 3,5-dichloro-4H-1,2,6-thiadiazin-4-one 1 with (4-dodecylthiophen-2-yl)trimethyl-stannane 4 (2.2 equiv.) in the presence of Pd(Ph3P)2Cl2 (5 mol%) proceeded smoothly in acetonitrile at ca. 82 °C to give 3,5-bis(4-dodecylthiophen-2-yl)-4H-1,2,6-thiadiazin-4-one 5 in 93% yield (Scheme 2).

Experimental

Acetonitrile was distilled from CaH2 and stored over 4 Å molecular sieves. The reaction mixture and column eluents were monitored by TLC using commercial glass backed thin layer chromatography (TLC) plates (Merck Kieselgel 60 F254). The plates were observed under UV light at 254 and 365 nm. The technique of dry flash chromatography was used using Merck Silica Gel 60 (less than 0.063 mm). Melting points were determined using a PolyTherm-A, Wagner & Munz, Kofler-Hotstage Microscope apparatus. IR spectra were recorded on a Shimadzu FTIR-NIR Prestige-21 spectrometer with Pike Miracle Ge ATR accessory and strong, medium and weak peaks are represented by s, m and w respectively. 1H-NMR spectra were recorded on a BrukerAvance 500 machine at 500 MHz, while 13C-NMR spectra were recorded at 125 MHz. Deuterated chloroform was used for homonuclear lock and the signals are referenced to the deuterated solvent peak. Low resolution (EI) mass spectrum was recorded on a Shimadzu Q2010 GCMS with direct inlet probe. Microanalysis was performed at London Metropolitan University on a Perkin Elmer 2400 Series II CHN Analyzer.
3,5-Bis(4-dodecylthiophen-2-yl)-4H-1,2,6-thiadiazin-4-one (5). To a solution of 3,5-dichloro-4H-1,2,6-thiadiazin-4-one 1 (50 mg, 0.273 mmol) in MeCN (2 mL) at ca. 20 °C, were added (4-dodecylthiophen-2-yl)trimethylstannane 4 (249 mg, 0.60 mmol) and Pd(Ph3P)2Cl2 (9.6 mg, 0.014 mmol) and the reaction was heated at reflux until no starting material remained (TLC). The reaction mixture was then left to cool to ca. 20 °C, diluted (DCM) and adsorbed onto silica. Chromatography (hexane/DCM, 7:3) gave the title compound 5 (156 mg, 93%) as yellow needles, m.p. 65.5–67 °C (from n-pentane); Rf 0.70 (hexane/DCM, 7:3); (found: C, 68.4; H, 8.8; N, 4.5. C35H54N2OS3 requires C, 68.4; H, 8.9; N, 4.6%); λmax(DCM)/nm 229 (log ε 3.40), 265 (3.59), 356 inf (3.36), 382 (3.65), 399 inf (3.75), 415 (3.82), 439 (3.81); vmax/cm−1 2955w, 2918s, 2851m, 1616m, 1464m, 1412m, 1393w, 1341w, 1250w, 1236w, 1225w, 1200w, 1188w, 1103w, 953w, 876w, 864m, 816w, 791w, 764w; δH (500 MHz; CDCl3) 8.11 (1H, s, thienyl H), 7,24 (1H, s, thienyl H), 2.67–2.62 (2H, m), 1.26 (20H, br s), 0.88 (3H, t, J 11.0, CH3); δC (125 MHz; CDCl3) one carbon (t) resonance missing 161.5 (s), 153.9 (s), 144.2 (s), 136.3 (s), 133.3 (d), 128.6 (d), 31.91 (t), 30.5 (t), 30.4 (t), 29.7 (t), 29.65 (t), 29.6 (t), 29.4 (t), 29.35 (t), 29.3 (t), 22.7 (t), 14.1 (q, CH3); m/z (EI) 615 (M++1, 41%), 614 (M+, 100), 460 (24), 306 (10), 276 (7), 168 (5), 155 (10), 149 (13), 137 (10), 125 (11), 122 (43), 111 (16), 109 (14), 97 (29), 95 (19), 83 (22), 71 (28), 57 (49).

Acknowledgements

The authors wish to thank the Cyprus Research Promotion Foundation [grant nos. ΠENEK, ENIΣX/0504/08 and NEKYP/0308/02] for financial support. Furthermore, we wish to thank the following organizations in Cyprus for generous donations of chemicals and glassware: the State General Laboratory, the Agricultural Research Institute, the Ministry of Agriculture, Biotronics Ltd and Medochemie Ltd. Finally, we thank the A. G. Leventis Foundation for helping to establish the NMR facility in the University of Cyprus.

Supplementary materials

Supplementary File 1Supplementary File 2Supplementary File 3

References

  1. Geevers, J.; Trompen, W.P. Synthesis and Reactions of 3,5-Dichloro-4H-1,2,6-Thiadiazin-4-one. Recl. Trav. Chim. Pays-B. 1974, 93, 270–272. [Google Scholar] [CrossRef]
  2. Koutentis, P.A.; Rees, C.W.; White, A.J.P.; Williams, D.J. Reaction of tetracyanoethylene with SCl2; new molecular rearrangements. J. Chem. Soc. Chem. Commun. 2000, 303–304. [Google Scholar] [CrossRef]
  3. Koutentis, P.A.; Rees, C.W. Reaction of tetracyanoethylene with SCl2; new molecular rearrangements. J. Chem. Soc. Perkin Trans. 1 2000, 1089–1094. [Google Scholar] [CrossRef]
  4. Koutentis, P.A.; Rees, C.W. Cyclisation chemistry of 4H-1,2,6-thiadiazines. J. Chem. Soc. Perkin Trans. 1 2000, 2601–2607. [Google Scholar] [CrossRef]
  5. Kalogirou, A.S.; Koutentis, P.A.; Rikkou, M.D. The synthesis of pyrrolo[2,3-c][1,2,6]thiadiazine-5-carbonitriles from (4H-1,2,6-thiadiazin-4-ylidene)malononitriles. Tetrahedron 2010, 66, 1817–1820. [Google Scholar] [CrossRef]
  6. Koutentis, P.A.; Rees, C.W. Chemistry of 4-dicyanomethyleno-1,2,6-thiadiazines. J. Chem. Soc. Perkin Trans. 1 2000, 1081–1088. [Google Scholar] [CrossRef]
  7. Ioannidou, H.A.; Kizas, C.; Koutentis, P.A. Palladium Catalyzed C–C Coupling Reactions of 3,5-Dichloro-4H-1,2,6-thiadiazin-4-one. Org. Lett. 2011, 13, 3466–3469. [Google Scholar] [CrossRef] [PubMed]
  8. Ioannidou, H.A.; Kizas, C.; Koutentis, P.A. Selective Stille Coupling Reactions of 3-Chloro-5-halo(pseudohalo)-4H-1,2,6-thiadiazin-4-ones. Org. Lett. 2011, 13, 5886–5889. [Google Scholar] [CrossRef] [PubMed]
  9. Ioannidou, H.A.; Koutentis, P.A. Modification of C-4 Position of 3,5-Disubstituted 4H-1,2,6-Thiadiazin-4-ones. Tetrahedron 2012, 68, 2590–2597. [Google Scholar] [CrossRef]
  10. Ioannidou, H.A.; Koutentis, P.A. Synthesis of Asymmetric 3,5-Diaryl-4H-1,2,6-Thiadiazin-4-ones via Suzuki-Miyaura and Stille Coupling Reactions. Tetrahedron 2012, 68, 7380–7385. [Google Scholar] [CrossRef]

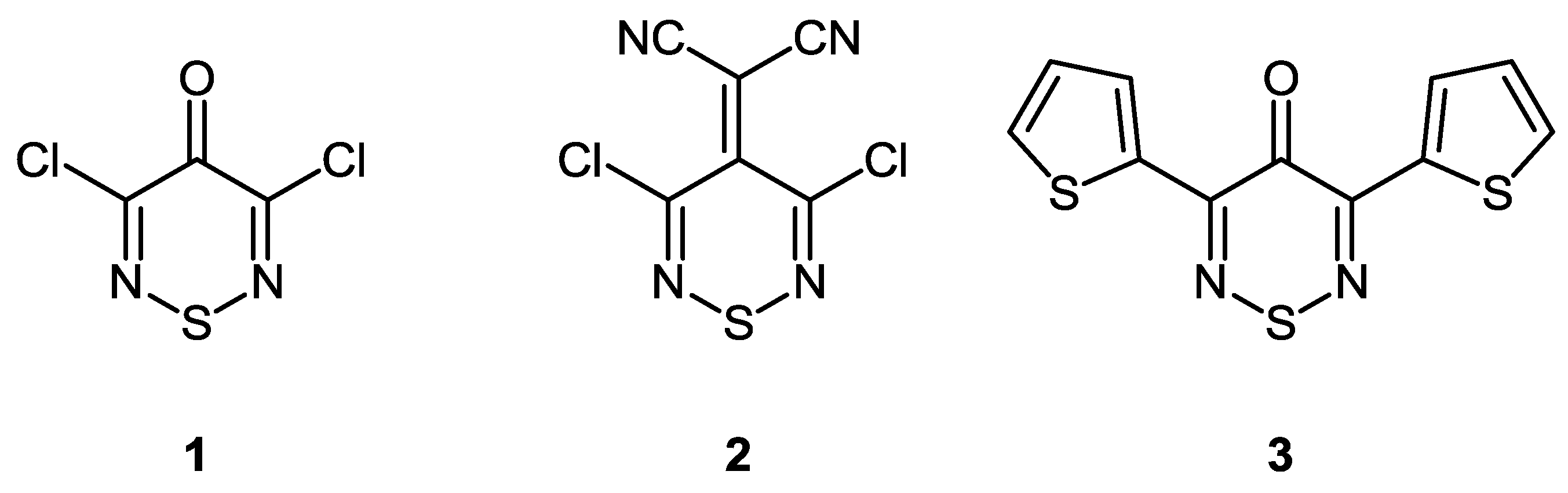

Scheme 1. Structures of 4H-1,2,6-thiadiazines 1-3.
Scheme 1. Structures of 4H-1,2,6-thiadiazines 1-3.
Molbank 2012 m784 sch001
Scheme 2. Synthesis of 3,5-bis(4-dodecylthiophen-2-yl)-4H-1,2,6-thiadiazin-4-one 5.
Scheme 2. Synthesis of 3,5-bis(4-dodecylthiophen-2-yl)-4H-1,2,6-thiadiazin-4-one 5.
Molbank 2012 m784 sch002
