Short Note

1-Nitro-3-[(benzylsulfonyl)methyl]benzene

by
Daniel G. Grohmann
and
Bruce A. Hathaway
*
Department of Chemistry, MS 6400, One University Plaza, Southeast Missouri State University, Cape Girardeau, MO, USA
*
Author to whom correspondence should be addressed.
Molbank 2006, 2006(5), M501; https://doi.org/10.3390/M501
Submission received: 6 July 2006 / Accepted: 1 August 2006 / Published: 1 September 2006

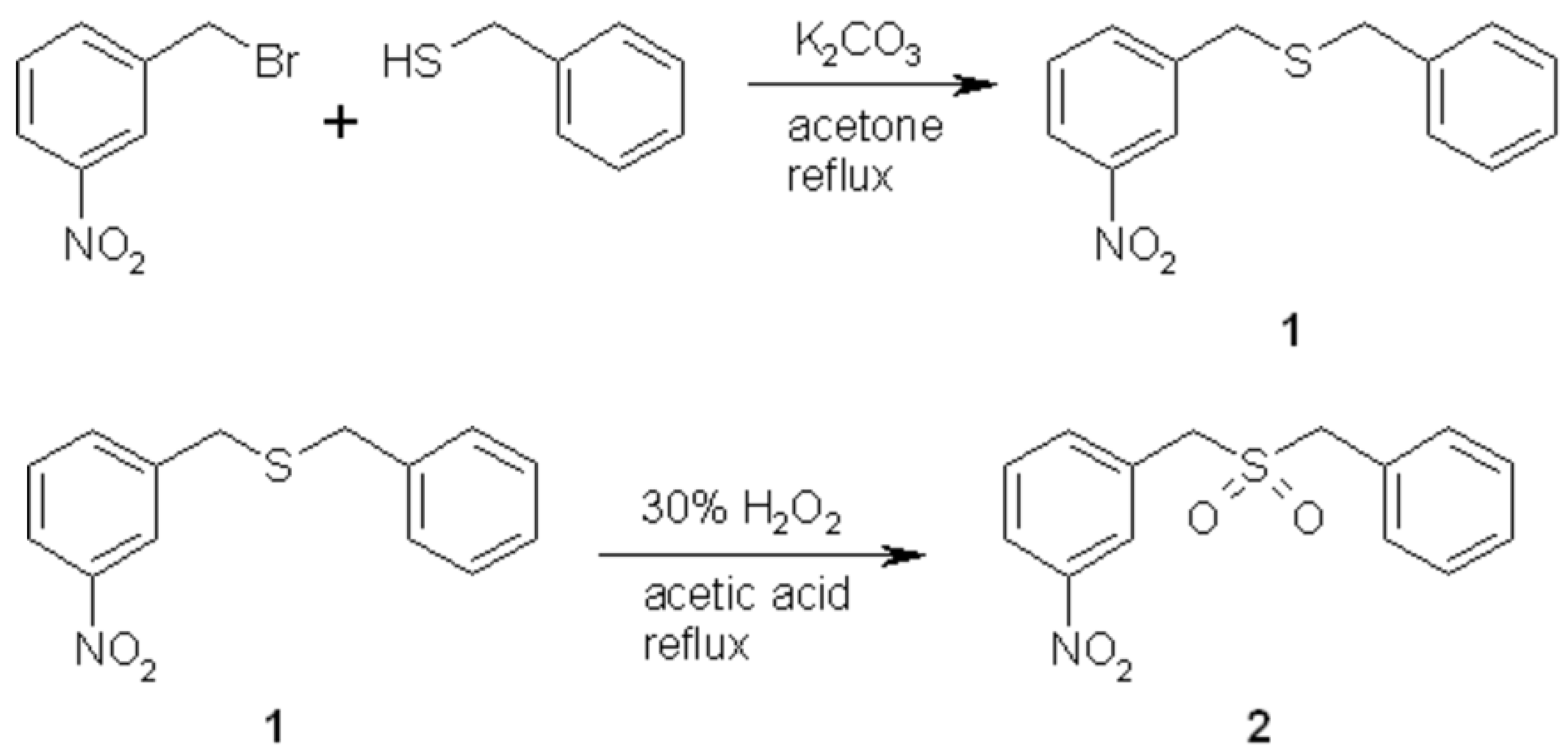

In the course of our work to prepare inhibitors of the enzyme dihydrofolate reductase, we desired to prepare sulfone analogues of some similar sulfides [1, 2]. Therefore, we prepared the nitrosulfide 1, and oxidized it with hydrogen peroxide in acetic acid [3, 4] to prepare the corresponding nitrosulfone, 2.
Molbank 2006 m501 i001
A mixture of 3-nitrobenzyl bromide (6.482 g, 30.00 mmoles), benzyl mercaptan (3.744 g, 30.14 mmoles), and potassium carbonate (4.247 g, 30.73 mmoles) were added to a round bottom flask containing 60 mL acetone. The reaction mixture was refluxed overnight. The potassium bromide that formed in the reaction was removed by vacuum filtration. The acetone was removed from the filtrate by using the rotavap to yield the crude 1-nitro-3-(benzylthio)methyl]benzene, 1, as a dark viscous liquid in quantitative yield. This product was used without further purification in the next reaction.
A mixture of 1-nitro-3-[(benzylthio)methyl]benzene, 1, (5.192 g, 20.02 mmoles), 10 mL of 30% hydrogen peroxide, and 40 mL glacial acetic acid were combined in a round bottom flask and refluxed for 24 hours. The reaction mixture was allowed to cool. The solid which had formed was collected via vacuum filtration and allowed to dry, to yield 4.336 g (14.88 mmoles) of 1-nitro-3-[(benzylsulfonyl)methyl]benzene, 2. The percent yield of this reaction was 74%.
Melting Point: 151 oC (decomposes)
IR (cm-1): 1520, 1351, 1319, 1297, 1280, 1112, 809, 730, 712, 695, 680, 671.
1H-NMR (300 MHz, DMSO-d6): δ= 8.25 (1H, doublet, J = 8 Hz), 8.15 ppm (1H, singlet), 7.7 (1H, doublet, J= 8 Hz), 7.55 (1H, triplet, J = 8 Hz), 7.4 (5H, multiplet), 4.3 (2H, singlet), 4.2 (2H, singlet).
13C-NMR (75 MHz, DMSO-d6): δ= 148.3, 137.1, 130.7, 129.9, 129.4, 129.3, 129.2, 127.2, 125.9, 124.0, 59.4, 56.7.
GC-MS [E.I., m/z (relative intensity)]: 91 (100), 89 (10), 77 (10), 291 (M+, trace).

Supplementary materials

Supplementary File 1Supplementary File 2Supplementary File 3

Acknowledgment

The authors thank the Grants and Research Funding Committee of Southeast Missouri State University for financial support.

References:

  1. Selassie, C.D.; Guo, Z.-r.; Hansch, C.; Khwaja, T. A.; Pentacost, S. A comparison of the Inhibition of Growth of Methotrexate-resistant and –Sensitive Leukemia Cells in Culture by Triazines. Evidence of a New Mechanism of Cell resistance to Methotrexate. J. Med. Chem. 1982, 25, 157–161. [Google Scholar] [CrossRef] [PubMed]
  2. Hansch, C.; Hathaway, B.A.; Guo, Z.-r.; Selassie, C.D.; Dietrich, S.W.; Blaney, J.M.; Langridge, R.; Volz, K.W.; Kaufman, B.T. Crystallography, QSAR, and Molecular Graphics in a Comparative Analysis of the Inhibition of Dihydrofolate Reductase from Chicken Liver and L. casei by 4,6-Diamino-1,2-dihydro-2,2-dimethyl-1-(x-phenyl)-s-triazines. J. Med. Chem. 1984, 27, 129–143. [Google Scholar] [CrossRef] [PubMed]
  3. Rheinboldt, H.; Giesbrecht, E. The Configuration of Sulfoxides. Mixed Crystals of Sulfoxides and Sulfones. J. Amer. Chem. Soc. 1946, 68, 973–978. [Google Scholar] [CrossRef]
  4. Ongley, P.S. (Ed.) Practical Handbook of Organic Chemistry; Addison-Wesley Publishing Company, Inc: Reading, MA, 1973; p. 637.
