High-Frequency Generation of Homozygous/Biallelic Mutants via CRISPR/Cas9 Driven by AtKu70/80 Promoters

by
Huihui Zhang
,
Chong Teng
,
Shanhua Lyu
* and
Yinglun Fan
*
College of Agriculture and Life Science, Liaocheng University, Liaocheng 252000, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2025, 26(18), 9094; https://doi.org/10.3390/ijms26189094
Submission received: 5 July 2025 / Revised: 16 September 2025 / Accepted: 16 September 2025 / Published: 18 September 2025
(This article belongs to the Special Issue Advances, Pitfalls and Future Perspectives for CRISPR/Cas9 Mediated Genome Editing: 4th Edition)
Browse Figures
Versions Notes

Abstract

CRISPR/Cas9 gene editing technology is widely used in plant gene editing to verify gene function or improve agronomic traits. In the CRISPR/Cas9 system, Cas9 expression hinges on promoter choice, and CRISPR/Cas9 driven by a strong promoter or cell division-specific promoter has a higher editing efficiency. The CRISPR/Cas9 mechanism involves the CAS9 enzyme, which, directed by guide RNA, cleaves target double-stranded DNA and subsequently induces insertions or deletions (InDels) through the non-homologous end joining (NHEJ) repair pathway. The Ku protein plays a central role in the NHEJ repair process. It remains unclear whether driving Cas9 with promoters of AtKu70 and AtKu80, which are subunits of the Ku protein, will enhance gene editing efficiency. In this study, the promoters of AtKu70 and AtKu80 were cloned and used to drive Cas9 in the CRISPR/Cas9 system. Four different genes, GmRj7, GmNNL1, AtPDS3, and AtBRI1, were designed for soybean hairy root transformation and Arabidopsis transformation. The results showed that the CRISPR/Cas9 systems driven by the promoters of AtKu70 and AtKu80 achieved higher homozygous/biallelic mutation efficiencies than the CRISPR/Cas9 system driven by the 35S promoter in hairy root transformation by Rhizobium rhizogenes and stable genetic transformation with Rhizobium tumefaciens.

1. Introduction

CRISPR/Cas9 gene editing technology has become the cornerstone of functional genomics and crop improvement, enabling precise gene validation, trait enhancement, and the rapid creation of elite germplasm. It now drives advances in yield, quality, disease and herbicide resistance, and other key agronomic attributes. [1]. At the same time, it is also widely used in gene regulation, multiple gene editing, and de novo domestication of wild plants [2,3,4,5]. The promoters responsible for the expression of both Cas9 and single guide RNA (sgRNA) play a crucial role for achieving efficient genome editing in plants using the CRISPR/Cas9 system [4]. The promoters widely used to drive the Cas9 gene are the cauliflower mosaic virus (CaMV) 35S promoter, which is used in dicotyledonous plants, and the maize ubiquitin promoter, which is used in monocotyledonous plants in CRISPR/Cas9 gene editing vectors [5]. However, the editing efficiency of these two promoters in dicotyledonous and monocotyledonous plants is not high. The efficiency of CRISPR/Cas9 driven by the 35S promoter in generating homozygous/biallelic mutants (HBM) at the AtBRI1 target site in Arabidopsis thaliana T1 transgenic plants is very low. In contrast, the efficiency of CRISPR/Cas9 driven by the Yao promoter reached 74.1% in generating HBM at the same target site [6]. Yao is a gene preferentially expressed in tissues with vigorous cell division, especially in embryos, blastocysts, endosperm, and pollen [7]. The YAO promoter also exhibits high gene editing efficiency in Citrus [8]. In Arabidopsis, the frequency of gene mutations has been enhanced when using the egg cell-specific EC1.2 promoter and the gametophyte-expressed SPL promoter to drive Cas9 [9,10]. Additionally, the efficiency of CRISPR/cas9-mediated gene editing in Arabidopsis was analyzed by using four different promoters, DD45, Lat52, Yao, and CDC45. The results showed that the DD45 promoter could improve the frequency of sgRNA targeted gene knock-in and sequence replacement via homologous recombination (HR) at several endogenous sites in Arabidopsis [11]. The promoter of a calreticulin-like protein gene, PCE8, generated highly efficient gene editing in T0 plants [12]. The AhUBQ4 (Ubiquitin gene) promoter was cloned from the peanut plant and applied to a CRISPR/Cas9 system. The CAS9-GFP driven by the AhUBQ4 promoter not only showed a stronger GFP fluorescence signal, but also was superior to the 35S-driven system in terms of editing efficiency and diversity of mutation types [13]. The maize dmc1 gene was highly expressed in callus and tassel, and the CRISPR/Cas9 system driven by the dmc1 promoter efficiently generates HBM in maize [4]. The Arabidopsis γ-glutamylcysteine synthase (AtGCS) showed high activity in the cotyledons and main root, and the CRISPR/Cas9 system driven with the AtGCS promoter showed higher homologous/biallelic mutation efficiency than the CaMV 35S promoter in hairy root transformation in soybean, Lotus japonicus, and tomato plants [14]. A higher proportion of HBM directly increases the probability of detecting the expected phenotype in primary transformants (T1 Arabidopsis or T0 tomato, soybean, and related species). This is especially critical in hairy root transformation, where heterozygous edits rarely yield visible phenotypes and only homozygous or biallelic mutations reliably manifest detectable changes. The applications of the reported promoters in the CRISPR/Cas9 editing vectors have been summarized in Supplementary Table S1.
In the CRISPR/Cas9 system, CAS9 endonuclease has been shown to induce site-specific double-strand breaks (DSBs). DSBs are then repaired either through the non-homologous end joining (NHEJ) process or via HR mechanisms [15,16]. When repair is carried out through HDR, no mutations are generated. In contrast, the NHEJ pathway typically results in mutations, specifically insertions or deletions (InDels). NHEJ is an alternative DNA repair mechanism that competes with homology-directed repair (HDR). If the NHEJ pathway can be enhanced and the HDR pathway can be weakened, the editing efficiency of CRISPR will be improved [17,18]. Ku is a heterodimeric protein composed of 70 and 80 kDa subunits and involved in numerous cellular processes. As a central initial DNA end-binding factor in the NHEJ pathway, the Ku protein promotes the recruitment of downstream factors [19,20]. At the DSBs, Ku acts as a scaffold for the entire DNA repair complex, interacting both directly and indirectly with multiple NHEJ factors and processing enzymes. Through a central loop formed by the intertwined strands of its Ku70 and Ku80 subunits, Ku binds double-stranded DNA ends with high affinity in a sequence-independent manner—a structure that helps keep DNA ends in proximity [21]. Therefore, the Ku protein is essential for maintaining genome integrity and proper cell and tissue development, and its role is to bind and stabilize the ends of broken DNA molecules [19]. The expression analyses of AtKu70 and AtKu80 showed that they were highly expressed in the shoot apex and roots based on Arabidopsis Information Resource (TAIR) data (Supplementary Figure S1) [22]. Based on these studies, we speculate that the promoters of AtKu70 and AtKu80 have the potential to improve editing efficiency as drivers of the Cas9 gene.
Here, we constructed the CRISPR/Cas9 vectors of the Cas9 gene driven by the AtKu70 and AtKu80 promoters and introduced a red fluorescent selectable marker into the cloning site of gRNA to facilitate the editing efficiency. The editing efficiencies of the 35S, AtKu70, and AtKu80 promoters were compared by Rhizobium rhizogenes (formerly known as Agrobacterium rhizogenes)-mediated hairy root transformation by targeting the GmRj7 and GmNNL1 genes in soybean. The AtPDS3 and AtBRI1 genes were selected in Arabidopsis for editing efficiency analysis with the three promoters by Rhizobium tumefaciens (formerly known as Agrobacterium tumefaciens)-mediated genetic transformation.

2. Results

2.1. Construction of pRd35Cas9-2BR, pRdKu70Cas9-2BR and pRdKu80Cas9-2BR

The mScarlet-I expression cassette was introduced between two BsaI sites of the gene editing vector pRd35Cas9 [14] and replaced the E. coli selectable marker gene, resistance to spectinomycin and streptomycin. The new editing vector was named pRd35Cas9-2BR (Figure 1).
The promoters of AtKu70 and AtKu80 were amplified from Arabidopsis Col-0 and cloned in between the KpnI and XbaI enzyme sites of pRd35Cas9-2BR, replacing the 2×35S promoter of pRd35Cas9-2BR. The two gene editing vectors were named pRdKu70Cas9-2BR and pRdKu80Cas9-2BR, respectively (Figure 1). The three gene editing vectors harboring the mScarlet-I expression cassette exhibited a red color in E. coli and could emit red fluorescence under green excitation light. When gRNAs were introduced between the two BsaI sites, the mScarlet-I expression cassette was replaced, and positive recombinant colonies appeared white in E. coli.

2.2. Hairy Root Transformation and Gene Editing Efficiency of GmRj7, and GmNNL1

DsRed serves as a plant reporter gene in these editing vectors; therefore, the hairy roots exhibiting red fluorescence are considered transgenic positive roots [14]. Genomic DNA was extracted from these transgenic positive roots, and the resulting PCR products were digested with restriction enzymes. If the PCR product was completely digested, the gene target of the transgenic root was unedited. If the PCR product was partially digested, the gene target of the transgenic root was a heterozygous edited type. If the PCR product remained undigested, the transgenic root was classified as a homozygous/biallelic mutant type. Analysis of the editing types of the GmRj7 target site were performed using PCR products digested with EcoRI from 30 independent transgenic hairy root lines. The editing types of the GmRj7 gene target site in hairy root transformation events mediated by the editing vector pRd35Cas9-Rj7 are shown in Figure 2A. The PCR products that could not be digested by EcoRI were verified by Sanger sequencing, and the results showed that base InDels (Insertions or Deletions) occurred near the PAM (Figure 2B). The editing types associated with the editing vectors pRdKu70Cas9-Rj7 and pRdKu80Cas9-Rj7 are shown in Supplementary Figure S2A,B.
To analyze the editing types of GmNNL1, a total of 90 independent transgenic hairy roots were used to digest the PCR product with HindIII (Supplementary Figure S3A–C). According to the results of HindIII endonuclease digestion, the editing efficiencies of CRISPR/Cas9 driven by these three promoters were significantly different (Table 1). The HBM editing efficiency of Cas9 driven by the AtKu70 and AtKu80 promoters reached 50%, while that of Cas9 driven by the 35s promoter was only 25%. The sequencing chromatogram showed that the editing events happened in the GmNNL1 target site (Supplementary Figure S3D,E).

2.3. Validation of the Gene Editing Efficiency in Arabidopsis

The AtPDS3 gene encodes a phytoene desaturase enzyme in Arabidopsis, and the pds3 mutant exhibits albino phenotypes [23]. The T1 seeds that could emit red fluorescence under green excitation light were transgenic-positive seeds. T1 seeds were used for germination on 1/2 MS medium. The numbers of T1 seedlings with albino phenotypes are shown in Table 2. The albino phenotypes at the seedling stage are shown in Figure 3a–h.
As AtBRI1 loss-of-function plants exhibit dwarfism [24], plants with a dwarf phenotype in transgenic positive T1 plants are HBM (Figure 3i–k). The editing efficiency of CRISPR/Cas9 driven by the AtKu70 and AtKu80 promoters was 2.47-fold and 2.03-fold higher, respectively, than the system driven by the 35S promoter at the AtPDS gene locus. Similarly, at the AtBRI1 gene locus, the editing efficiencies of CRISPR/Cas9 driven by AtKu70 and AtKu80 promoters were 2.45-fold and 1.95-fold higher, respectively, higher than the system driven by the 35S promoter (Table 2). Sanger sequencing of one plant with a dwarf phenotype showed the designed target site of AtBRI1 contained two mutant alleles, one with a 1 bp deletion and another with a 7 bp deletion (Figure 4).
To determine whether AtPDS or AtBRI1 had been edited in phenotypically normal plants, genomic DNA was extracted from normal T1 seedlings. After PCR amplification, the PCR products were digested with NcoI and EcoRV and resolved by electrophoresis (Supplementary Figures S4 and S5). The results revealed that a subset of these outwardly normal plants had edited target sites of AtPDS or AtBRI1, indicating heterozygous editing events that did not produce visible phenotypes. Analysis of the heterozygous editing efficiencies at both AtPDS and AtBRI1 showed that Cas9 driven by the AtKu70 or AtKu80 promoters outperformed the 35S promoter (Supplementary Table S2). Thus, when both homozygous and heterozygous edits are taken into account, the AtKu70/AtKu80 promoters confer higher overall editing efficiencies than the 35S promoter.

3. Discussion

3.1. Simply and Effectively Selectable Marker in E. coli

Widely used editing vectors typically employ antibiotics resistance genes [25] or lethal genes (such as ccdB, control of cell division B) [5] as selectable markers, which requires adding antibiotics to the culture medium or using a special E. coli strain. The mScarlet-I expression cassette was employed as a negative selectable marker for selecting positive recombinants in E. coli in our previously constructed pBTR vectors. The positive recombinants can be visually distinguished from non-positive ones by the naked eye [26]. The mScarlet-I expression cassette was introduced between two BsaI sites of the gene editing vectors pRd35Cas9-2BR, pRdKu70Cas9-2BR and pRdKu80Cas9-2BR in this study. It is simple, convenient, and effective to select positive recombinants using the negative selectable marker in gene editing vectors.

3.2. The CRISPR/Cas9 System Driven by AtKu70/80 Promoters Significantly Improves Proportion of Homozygous/Biallelic Mutation in R. rhizogenes and R. tumefaciens-Mediated Transformation

In our previous study, 30 independent transgenic roots were used to evaluate gene editing efficiency [14]. Accordingly, 30 transgenic roots were used to evaluate gene editing efficiency at the GmRj7 target site in the present study. There was no significant difference in editing efficiency at the GmRj7 target site with three different promoters. To more accurately assess the editing efficiency at the GmNNL1 target site, 90 transgenic roots were utilized for this evaluation. The homozygous/biallelic editing efficiencies of CRISPR/Cas9 driven by the AtKu70 and AtKu80 promoters were twice that of the CaMV 35S promoter at the GmNNL1 target site. The homozygous/biallelic editing efficiencies at the AtPDS and AtBRI target sites with CRISPR/Cas9 driven by the AtKu70 promoter were 2.47 and 2.45 times, respectively, higher than that of the 35S promoter in Arabidopsis. Therefore, the gene editing systems driven by the AtKu70 and AtKu80 promoters were more efficient than the editing system driven by the 35S promoter. TAIR data show that AtKu70 and AtKu80 are broadly expressed in Arabidopsis, with particularly high activity in embryos, the apical meristem, flowers, and roots [27]. We speculate that, when CAS9 cleaves double-stranded DNA, the DSBs will further activate strong expression of the AtKu70 and AtKu80 promoters, so that the CRISPR/Cas9 editing system driven by the AtKu70 or AtKu80 promoters has high editing efficiency. In our previous study, the HBM generation efficiency at the same target of GmRj7 using the CRISPR/Cas9 system driven by the AtGCS promoter was 70% [14], which indicated that there is little difference in HBM editing efficiency caused by different promoters at this same target of the GmRj7 gene. However, at the same target of the GmNNL1 gene, the editing efficiency of HBM with the AtGCS promoter was only 6.7% [14], while the efficiency with the Ku70 promoter reached 50%; the efficiencies of HBM generation with CRISPR/Cas9 driven by the promoters of AtKu70/AtKu80 are higher than that of the AtGCS promoter at this same target of GmNNL. The HBM editing efficiency caused by the Yao promoter at the same target of AtBRI1 was 71.4% [6], which is higher than those of AtKu70/AtKu80. The CRISPR/Cas9 driven by the Yao promoter generated 65%, 45.5%, and 75% HBM efficiencies, respectively, with three different targets of the PDS gene in citrus [8]. The efficiency of the maize dmc1 promoter in generating HBM in maize was 66% [4]. The reports mentioned above show that the efficiencies of generating HBM in the CRISPR/Cas9 systems driven by these promoters were higher than that driven by the 35S promoter. The method of calculating the gene editing efficiency of HBM based on changes in phenotypes is the simplest, but it is only limited to phenotypes that can be directly observed with the naked eye and cannot detect heterozygous editing events. In contrast, methods based on deep sequencing [28] and next-generation sequencing (NGS) [29] can detect all types of sequence changes in the edited region, such as insertions/deletions (indels), base substitutions, and inversions.
CRISPR/Cas9 gene editing has become a prominent and widely used technique in plant research. Optimizing the CRISPR system to enhance editing efficiency remains a key focus in gene editing research. For example, the editing efficiency can be improved by modifying the promoter driving Cas9 or gRNA, or by using codon-optimized Cas9 [30]. Additionally, increasing the expression level and stability of the CAS9 protein, as well as improving the efficiency of CAS9 nuclear entry, also contributes to improving editing efficiency. When CAS9 is fused with six nuclear localization signal (NLS) peptides and two short peptides TAT and HA2 that help to penetrate the cell membrane, the gene editing efficiency is significantly enhanced [31]. Different NLS can also affect gene editing efficiency. A comparison of six types of NLS revealed that double-BP NLS exhibits the highest targeting efficiency [32]. Additionally, co-expression of a human RNA m6A demethylase (which promotes chromatin opening) in gene editing vectors significantly enhances the efficiency of gene editing in soybean and rice [33]. CRISPR/Cas9 technology enables simultaneous targeting of multiple genes, making it highly significant for studying the interaction of genes [34]. Notably, in polyploid plants, where some genes exhibit functional redundancy, simultaneous targeting of multiple genes is crucial for analyzing gene function. Moreover, a CRISPR/Cas9 system with high editing efficiency can be more effectively applied to multi-gene editing.

4. Materials and Methods

4.1. Plant Materials and Growth Conditions

Soybean variety Williams 82 and Arabidopsis thaliana Columbia (Col-0) were used in this study. The plants were grown in a greenhouse under a 16 h light/8 h dark photoperiod at 24 ± 2 °C. Restriction enzymes and T4 ligase were purchased from New England Biolabs Company (Ipswich, MA, USA). The oligo DNAs and primers were synthesized by Sangon Biotech Co., Ltd. (Shanghai, China). Taq PCR Master Mix (2×, with Blue Dye) carrying Taq DNA polymerase was purchased from Sangon Biotech Co., Ltd. (Shanghai, China).

4.2. Construction of Basic Editing Vectors

To facilitate the screening target gRNA insertion of positive recombinants in E. coli, the mScarlet-I expression cassette, comprising the promoter of the neomycin phosphotransferase gene (PNptⅡ), mScarlet-I coding domain sequence, and lambda T0 terminator, was introduced between two BsaI sites of the editing vector pRd35Cas9 and allowed the construct to emit bright red fluorescence in E. coli [14]. PCR amplification was performed using primer set RdBsa1/RdBsa2 (all primer sequences used in this paper are listed in Supplementary Table S3) and with pMRE-Tn5-155 (Addgene Plasmid #118537) as the template [35]. The PCR product and pRd35Cas9 were mixed with BsaI, T4 ligase in 1×T4 ligation buffer at 37 °C/30 min, 4 °C/60 min. The resulting mixture was transformed into chemically competent E. coli DH5α cells, and the red-color colonies were selected for restriction enzyme digestion verification.
To isolate the promoters of AtKu70 (AT1G16970) and AtKu80 (AT1G48050), 1540 bp and 1647 bp upstream were amplified from Col-0 genomic DNA via PCR using primer sets, At1g97K/At1g97X, At1g05K/At1g05X, which contain a KpnI and XbaI sites, respectively. The PCR fragments and the newly constructed editing vector pRd35Cas9-2BR were digested with KpnI and XbaI sites, respectively, and then ligated with T4 ligase in 1×T4 ligation buffer. The resulting editing vectors were named pRdKu70Cas9-2BR and pRdKu80Cas9-2BR, respectively.

4.3. Construction of Editing Vectors for Knockout GmRj7, GmNNL1, AtBRI1, and AtPDS3 Genes

The sequences and positional information of these four target sites of GmRj7, GmNNL1, AtPDS3, and AtBRI1 and the recognition sites of restriction endonucleases are shown in Supplementary Figure S6. Four sets of oligo DNA, KtRj71/KtRj72, KtNNL1/KtNNL2, KtPD1/KtPD2, and KtBR1/KtBR2, were designed and used for construction of editing vectors for the knockout GmRj7, GmNNL1, AtPDS3, and AtBRI1 genes, respectively. For inserting the sgRNA into BsaI sites of editing vectors, the pair of two oligo DNAs were annealed at 60 °C for 5 min, and then cloned between two BsaI sites of pRd35Cas9-2BR, pRdKu70Cas9-2BR, and pRdKu80Cas9-2BR according to one digestion–ligation reaction [14]. The positive clones did not show red fluorescence and white color [26]. A total of twelve editing vectors were constructed, and the gRNAs were sequenced with Sanger Sequencing.

4.4. Hairy Root Transformation in Soybean and Validation of Genome Editing Efficiency

The constructed editing vectors harboring the soybean editing sites were introduced into R. rhizogenes strain K599 by electroporation. Soybean variety Williams 82 was used for one-step hairy root transformation with R. rhizogenes K599 harboring the six editing vectors according to our previous report [36]. Thirty seedlings were used for hairy root transformation with pRd35Cas9-Rj7, pRdKu70Cas9-Rj7, and pRdKu80Cas9-Rj7, respectively. Ninety seedlings were used for hairy root transformation with pRd35Cas9-NNL1, pRdKu70Cas9-NNL1, and pRdKu80Cas9-NNL1, respectively.
The editing vectors used in this study harbor the DsRed reporter gene [14]. So the transgenic positive hairy roots were distinguished from nontransgenic hairy roots by visual DsRed fluorescence using a handheld LUYOR-3415RG fluorescent lamp. Each hairy root was regarded as an independent editing event; the primary hairy root that came from a callus of an explant was named the 1st generation hairy root and the branches of the 1st generation hairy root were named the 2nd generation hairy roots. In the study on gene editing in hairy roots of Medicago truncatula, it was found that 2nd generation hairy roots have a higher editing efficiency than 1st generation hairy roots [37]. Genomic DNA was extracted from transgenic positive 1st generation hairy roots when the length of transgenic hairy roots was up to 5 cm. There were very few 2nd generation hairy roots on the 1st generation hairy roots with a length of about 5 cm (Supplementary Figure S7). Thirty and ninety transgenic hairy roots were used for genomic DNA extraction with each editing vector of GmRj7 and GmNNL1, respectively. Whether the target gene was edited was verified by enzyme digestion of the PCR product of the sequence where the target site was located. The primer sets Rj71/Rj72 and GmRHin1/GmRHin2 were used to amplify the target sequences of GmRj7 and GmNNL1, respectively. The PCR products of the GmRj7 target and GmNNL1 target were subjected to EcoRI and HindIII, respectively.

4.5. Arabidopsis Transformation and Validation of Genome Editing Efficiency

The editing vectors pRd35Cas9-PDS, pRd35Cas9-BRI, pRdKu70Cas9-PDS, pRdKu70Cas9-BRI, pRdKu80Cas9-PDS, and pRdKu80Cas9-BRI were introduced into the R. tumefaciens strain GV3101 by electroporation. These editing vectors were transformed into wild-type A. thaliana Col-0 by the floral dip method.
Transgenic Arabidopsis was selected by visual DsRed fluorescence using a handheld LUYOR-3415RG fluorescent lamp because those editing vectors carried the DsRed reporter gene. When the edited gene was a heterozygous or homozygous double mutation, the phenotype of T1 Arabidopsis was directly observed. T1 seedlings exhibiting albino or dwarf phenotypes were counted to quantify HBM efficiency. To further confirm that T1 seedlings were not exhibiting albino or dwarf phenotypes, genomic DNAs were extracted from normal plants. The designed target sequence was amplified with the primer sets AtPDS3/AtPDS4 and AtBRIF/AtBRIR, and the PCR products were digested with NcoI and EcoRV to verify whether the target sites at AtPDS3 and AtBRI1 had been edited, respectively. The PCR products of individual plants with dwarf phenotype were cloned into the vector pYFRed [38], and 5 positive clones were randomly selected for Sanger sequencing to clarify the gene-editing types of the AtBRI1 target.

5. Conclusions

This study focuses on the impact of promoters driving Cas9 in the CRISPR/Cas9 system on the efficiency of plant gene editing. Given that the Ku protein plays a core role in NHEJ repair, it remains unclear whether the promoters of AtKu70 and AtKu80 can enhance editing efficiency when driving Cas9. The promoters of AtKu70 and AtKu80 were cloned to drive Cas9 and performed gene editing on four targets, the soybean genes GmRj7 and GmNNL1 and the Arabidopsis genes AtPDS3 and AtBRI1. The results showed that, in CRISPR/Cas9 systems driven by the AtKu70 and AtKu80 promoters, among the four designed targets, the editing efficiencies at the targets of three genes, namely GmNNL1, AtPDS3, and AtBRI1, were significantly higher than those of the system driven by the 35S promoter.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ijms26189094/s1.

Author Contributions

Y.F. and S.L. designed the experiments and wrote the paper. H.Z. and C.T. performed the work and analyzed data. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Natural Science Foundation of Shandong province (ZR2023MC070).

Data Availability Statement

All data supporting the conclusions of this article are included in this article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Gao, C. Genome Engineering for Crop Improvement and Future Agriculture. Cell 2021, 184, 1621–1635. [Google Scholar] [CrossRef]
  2. Yu, H.; Lin, T.; Meng, X.; Du, H.; Zhang, J.; Liu, G.; Chen, M.; Jing, Y.; Kou, L.; Li, X.; et al. A Route to de Novo Domestication of Wild Allotetraploid Rice. Cell 2021, 184, 1156–1170.e14. [Google Scholar] [CrossRef] [PubMed]
  3. Li, T.; Yang, X.; Yu, Y.; Si, X.; Zhai, X.; Zhang, H.; Dong, W.; Gao, C.; Xu, C. Domestication of Wild Tomato Is Accelerated by Genome Editing. Nat. Biotechnol. 2018, 36, 1160–1163. [Google Scholar] [CrossRef] [PubMed]
  4. Feng, C.; Su, H.; Bai, H.; Wang, R.; Liu, Y.; Guo, X.; Liu, C.; Zhang, J.; Yuan, J.; Birchler, J.A.; et al. High-efficiency Genome Editing Using a Dmc1 Promoter-controlled CRISPR /Cas9 System in Maize. Plant Biotechnol. J. 2018, 16, 1848–1857. [Google Scholar] [CrossRef] [PubMed]
  5. Ma, X.; Zhang, Q.; Zhu, Q.; Liu, W.; Chen, Y.; Qiu, R.; Wang, B.; Yang, Z.; Li, H.; Lin, Y.; et al. A Robust CRISPR/Cas9 System for Convenient, High-Efficiency Multiplex Genome Editing in Monocot and Dicot Plants. Mol. Plant 2015, 8, 1274–1284. [Google Scholar] [CrossRef]
  6. Li, H.-J.; Liu, N.-Y.; Shi, D.-Q.; Liu, J.; Yang, W.-C. YAO Is a Nucleolar WD40-Repeat Protein Critical for Embryogenesis and Gametogenesis in Arabidopsis. BMC Plant Biol. 2010, 10, 169. [Google Scholar] [CrossRef]
  7. Yan, L.; Wei, S.; Wu, Y.; Hu, R.; Li, H.; Yang, W.; Xie, Q. High-Efficiency Genome Editing in Arabidopsis Using YAO Promoter-Driven CRISPR/Cas9 System. Mol. Plant 2015, 8, 1820–1823. [Google Scholar] [CrossRef]
  8. Zhang, F.; LeBlanc, C.; Irish, V.F.; Jacob, Y. Rapid and Efficient CRISPR/Cas9 Gene Editing in Citrus Using the YAO Promoter. Plant Cell Rep. 2017, 36, 1883–1887. [Google Scholar] [CrossRef]
  9. Wang, Z.-P.; Xing, H.-L.; Dong, L.; Zhang, H.-Y.; Han, C.-Y.; Wang, X.-C.; Chen, Q.-J. Egg Cell-Specific Promoter-Controlled CRISPR/Cas9 Efficiently Generates Homozygous Mutants for Multiple Target Genes in Arabidopsis in a Single Generation. Genome Biol. 2015, 16, 144. [Google Scholar] [CrossRef]
  10. Mao, Y.; Zhang, Z.; Feng, Z.; Wei, P.; Zhang, H.; Botella, J.R.; Zhu, J. Development of Germ-line-specific CRISPR-Cas9 Systems to Improve the Production of Heritable Gene Modifications in Arabidopsis. Plant Biotechnol. J. 2016, 14, 519–532. [Google Scholar] [CrossRef]
  11. Miki, D.; Zhang, W.; Zeng, W.; Feng, Z.; Zhu, J.-K. CRISPR/Cas9-Mediated Gene Targeting in Arabidopsis Using Sequential Transformation. Nat. Commun. 2018, 9, 1967. [Google Scholar] [CrossRef]
  12. Li, B.; Shang, Y.; Wang, L.; Lv, J.; Wu, Q.; Wang, F.; Chao, J.; Mao, J.; Ding, A.; Wu, X.; et al. Efficient Genome Editing in Dicot Plants Using Calreticulin Promoter-Driven CRISPR/Cas System. Mol. Hortic. 2025, 5, 9. [Google Scholar] [CrossRef] [PubMed]
  13. Cui, Y.; Zhang, Q.; Meng, Q.; Liu, X.; Liu, X. The Peanut Ubiquitin4 Promoter Drives Stable Gene Overexpression and Efficient Multiplex CRISPR/Cas9 Gene Editing in Peanut. aBIOTECH 2025. [Google Scholar] [CrossRef]
  14. Liu, S.; Wang, X.; Li, Q.; Peng, W.; Zhang, Z.; Chu, P.; Guo, S.; Fan, Y.; Lyu, S. AtGCS Promoter-Driven Clustered Regularly Interspaced Short Palindromic Repeats/Cas9 Highly Efficiently Generates Homozygous/Biallelic Mutations in the Transformed Roots by Agrobacterium Rhizogenes–Mediated Transformation. Front. Plant Sci. 2022, 13, 952428. [Google Scholar] [CrossRef] [PubMed]
  15. Cong, L.; Ran, F.A.; Cox, D.; Lin, S.; Barretto, R.; Habib, N.; Hsu, P.D.; Wu, X.; Jiang, W.; Marraffini, L.A.; et al. Multiplex Genome Engineering Using CRISPR/Cas Systems. Science 2013, 339, 819–823. [Google Scholar] [CrossRef]
  16. Jinek, M.; Chylinski, K.; Fonfara, I.; Hauer, M.; Doudna, J.A.; Charpentier, E. A Programmable Dual-RNA–Guided DNA Endonuclease in Adaptive Bacterial Immunity. Science 2012, 337, 816–821. [Google Scholar] [CrossRef] [PubMed]
  17. Puchta, H.; Fauser, F. Synthetic Nucleases for Genome Engineering in Plants: Prospects for a Bright Future. Plant J. 2014, 78, 727–741. [Google Scholar] [CrossRef]
  18. Maruyama, T.; Dougan, S.K.; Truttmann, M.C.; Bilate, A.M.; Ingram, J.R.; Ploegh, H.L. Increasing the Efficiency of Precise Genome Editing with CRISPR-Cas9 by Inhibition of Nonhomologous End Joining. Nat. Biotechnol. 2015, 33, 538–542. [Google Scholar] [CrossRef]
  19. Park, S.-J.; Ciccone, S.L.M.; Freie, B.; Kurimasa, A.; Chen, D.J.; Li, G.C.; Clapp, D.W.; Lee, S.-H. A Positive Role for the Ku Complex in DNA Replication Following Strand Break Damage in Mammals. J. Biol. Chem. 2004, 279, 6046–6055. [Google Scholar] [CrossRef]
  20. Liu, P.F.; Wang, Y.K.; Chang, W.C.; Chang, H.Y.; Pan, R.L. Regulation of Arabidopsis Thaliana Ku Genes at Different Developmental Stages under Heat Stress. Biochim. Biophys. Acta (BBA)—Gene Regul. Mech. 2008, 1779, 402–407. [Google Scholar] [CrossRef]
  21. Zhang, W.-W.; Yaneva, M. On the Mechanisms of Ku Protein Binding to DNA. Biochem. Biophys. Res. Commun. 1992, 186, 574–579. [Google Scholar] [CrossRef]
  22. Winter, D.; Vinegar, B.; Nahal, H.; Ammar, R.; Wilson, G.V.; Provart, N.J. An “Electronic Fluorescent Pictograph” Browser for Exploring and Analyzing Large-Scale Biological Data Sets. PLoS ONE 2007, 2, e718. [Google Scholar] [CrossRef]
  23. Qin, G.; Gu, H.; Ma, L.; Peng, Y.; Deng, X.W.; Chen, Z.; Qu, L.-J. Disruption of Phytoene Desaturase Gene Results in Albino and Dwarf Phenotypes in Arabidopsis by Impairing Chlorophyll, Carotenoid, and Gibberellin Biosynthesis. Cell Res. 2007, 17, 471–482. [Google Scholar] [CrossRef]
  24. Noguchi, T.; Fujioka, S.; Choe, S.; Takatsuto, S.; Yoshida, S.; Yuan, H.; Feldmann, K.A.; Tax, F.E. Brassinosteroid-Insensitive Dwarf Mutants of Arabidopsis Accumulate Brassinosteroids. Plant Physiol. 1999, 121, 743–752. [Google Scholar] [CrossRef]
  25. Xing, H.-L.; Dong, L.; Wang, Z.-P.; Zhang, H.-Y.; Han, C.-Y.; Liu, B.; Wang, X.-C.; Chen, Q.-J. A CRISPR/Cas9 Toolkit for Multiplex Genome Editing in Plants. BMC Plant Biol. 2014, 14, 327. [Google Scholar] [CrossRef]
  26. Wang, X.; Teng, C.; Wei, H.; Liu, S.; Xuan, H.; Peng, W.; Li, Q.; Hao, H.; Lyu, Q.; Lyu, S.; et al. Development of a Set of Novel Binary Expression Vectors for Plant Gene Function Analysis and Genetic Transformation. Front. Plant Sci. 2023, 13, 1104905. [Google Scholar] [CrossRef] [PubMed]
  27. Klepikova, A.V.; Kasianov, A.S.; Gerasimov, E.S.; Logacheva, M.D.; Penin, A.A. A High Resolution Map of the Arabidopsis Thaliana Developmental Transcriptome Based on RNA-seq Profiling. Plant J. 2016, 88, 1058–1070. [Google Scholar] [CrossRef] [PubMed]
  28. Oikemus, S.; Hu, K.; Shin, M.; Idrizi, F.; Goodman-Khan, A.; Kolb, A.; Ghanta, K.S.; Lee, J.; Wagh, A.; Wolfe, S.A.; et al. Identifying Optimal Conditions for Precise Knock-in of Exogenous DNA into the Zebrafish Genome. Development 2025, 152, dev204571. [Google Scholar] [CrossRef] [PubMed]
  29. Boel, A.; Steyaert, W.; De Rocker, N.; Menten, B.; Callewaert, B.; De Paepe, A.; Coucke, P.; Willaert, A. BATCH-GE: Batch Analysis of Next-Generation Sequencing Data for Genome Editing Assessment. Sci. Rep. 2016, 6, 30330. [Google Scholar] [CrossRef]
  30. Koblan, L.W.; Doman, J.L.; Wilson, C.; Levy, J.M.; Tay, T.; Newby, G.A.; Maianti, J.P.; Raguram, A.; Liu, D.R. Improving Cytidine and Adenine Base Editors by Expression Optimization and Ancestral Reconstruction. Nat. Biotechnol. 2018, 36, 843–846. [Google Scholar] [CrossRef]
  31. Zhang, Z.; Baxter, A.E.; Ren, D.; Qin, K.; Chen, Z.; Collins, S.M.; Huang, H.; Komar, C.A.; Bailer, P.F.; Parker, J.B.; et al. Efficient Engineering of Human and Mouse Primary Cells Using Peptide-Assisted Genome Editing. Nat. Biotechnol. 2024, 42, 305–315. [Google Scholar] [CrossRef] [PubMed]
  32. Develtere, W.; Decaestecker, W.; Rombaut, D.; Anders, C.; Clicque, E.; Vuylsteke, M.; Jacobs, T.B. Continual Improvement of CRISPR-induced Multiplex Mutagenesis in Arabidopsis. Plant J. 2024, 119, 1158–1172. [Google Scholar] [CrossRef] [PubMed]
  33. Bai, M.; Lin, W.; Peng, C.; Song, P.; Kuang, H.; Lin, J.; Zhang, J.; Wang, J.; Chen, B.; Li, H.; et al. Expressing a Human RNA Demethylase as an Assister Improves Gene-Editing Efficiency in Plants. Mol. Plant 2024, 17, 363–366. [Google Scholar] [CrossRef] [PubMed]
  34. Zhang, Y.; Ren, Q.; Tang, X.; Liu, S.; Malzahn, A.A.; Zhou, J.; Wang, J.; Yin, D.; Pan, C.; Yuan, M.; et al. Expanding the Scope of Plant Genome Engineering with Cas12a Orthologs and Highly Multiplexable Editing Systems. Nat. Commun. 2021, 12, 1944. [Google Scholar] [CrossRef]
  35. Schlechter, R.O.; Jun, H.; Bernach, M.; Oso, S.; Boyd, E.; Muñoz-Lintz, D.A.; Dobson, R.C.J.; Remus, D.M.; Remus-Emsermann, M.N.P. Chromatic Bacteria—A Broad Host-Range Plasmid and Chromosomal Insertion Toolbox for Fluorescent Protein Expression in Bacteria. Front. Microbiol. 2018, 9, 3052. [Google Scholar] [CrossRef]
  36. Fan, Y.; Zhang, X.; Zhong, L.; Wang, X.; Jin, L.; Lyu, S. One-Step Generation of Composite Soybean Plants with Transgenic Roots by Agrobacterium Rhizogenes-Mediated Transformation. BMC Plant Biol. 2020, 20, 208. [Google Scholar] [CrossRef]
  37. Zhang, H.; Cao, Y.; Zhang, H.; Xu, Y.; Zhou, C.; Liu, W.; Zhu, R.; Shang, C.; Li, J.; Shen, Z.; et al. Efficient Generation of CRISPR/Cas9-Mediated Homozygous/Biallelic Medicago Truncatula Mutants Using a Hairy Root System. Front. Plant Sci. 2020, 11, 294. [Google Scholar] [CrossRef]
  38. Zhang, X.; Teng, C.; Lyu, K.; Lyu, S.; Fan, Y. ‘Two in One’ Cloning Vector Applied for Blunt-End and T-A Cloning with One-Step Digestion–Ligation and Screening of Positive Recombinants by Unaided Eyes. CIMB 2024, 47, 17. [Google Scholar] [CrossRef]
Ijms 26 09094 g001

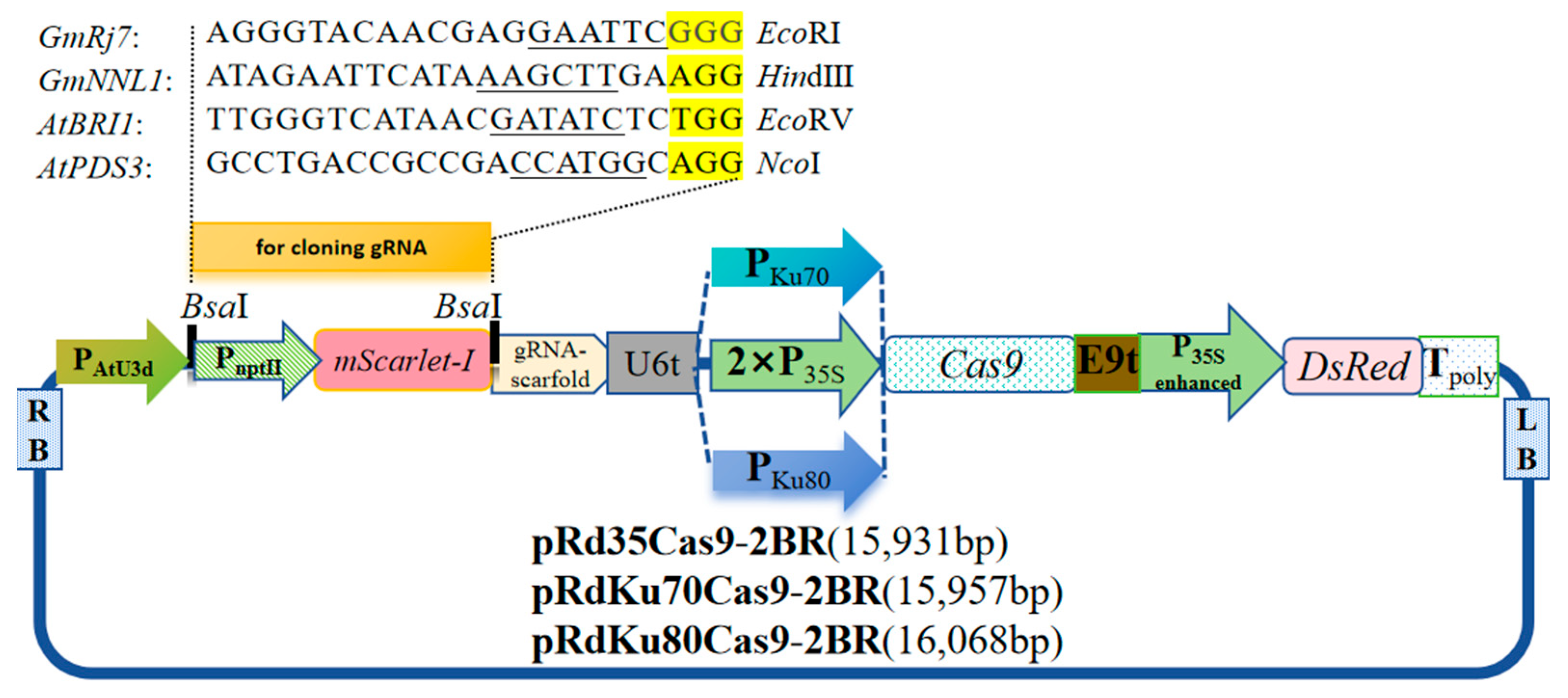

Figure 1. The backbone of CRISPR/Cas9 vectors. The PNptⅡ:mScarlet-I expression cassette was used for a visual selection marker in E. coli. The two BsaI sites are designed for cloning gRNAs. The gRNAs were driven by the AtU3d promoter. The AtKu70, AtKu80, and 2×35S promoters drive the Cas9 gene, respectively. The reporter gene, DsRed, is driven by the enhanced 35S promoter. The underlined sequences of target sites are recognition sequences of restriction endonucleases. The sequences highlighted with yellow are the PAM (Protospacer Adjacent Motif) sequences.
Figure 1. The backbone of CRISPR/Cas9 vectors. The PNptⅡ:mScarlet-I expression cassette was used for a visual selection marker in E. coli. The two BsaI sites are designed for cloning gRNAs. The gRNAs were driven by the AtU3d promoter. The AtKu70, AtKu80, and 2×35S promoters drive the Cas9 gene, respectively. The reporter gene, DsRed, is driven by the enhanced 35S promoter. The underlined sequences of target sites are recognition sequences of restriction endonucleases. The sequences highlighted with yellow are the PAM (Protospacer Adjacent Motif) sequences.
Ijms 26 09094 g001
Ijms 26 09094 g002

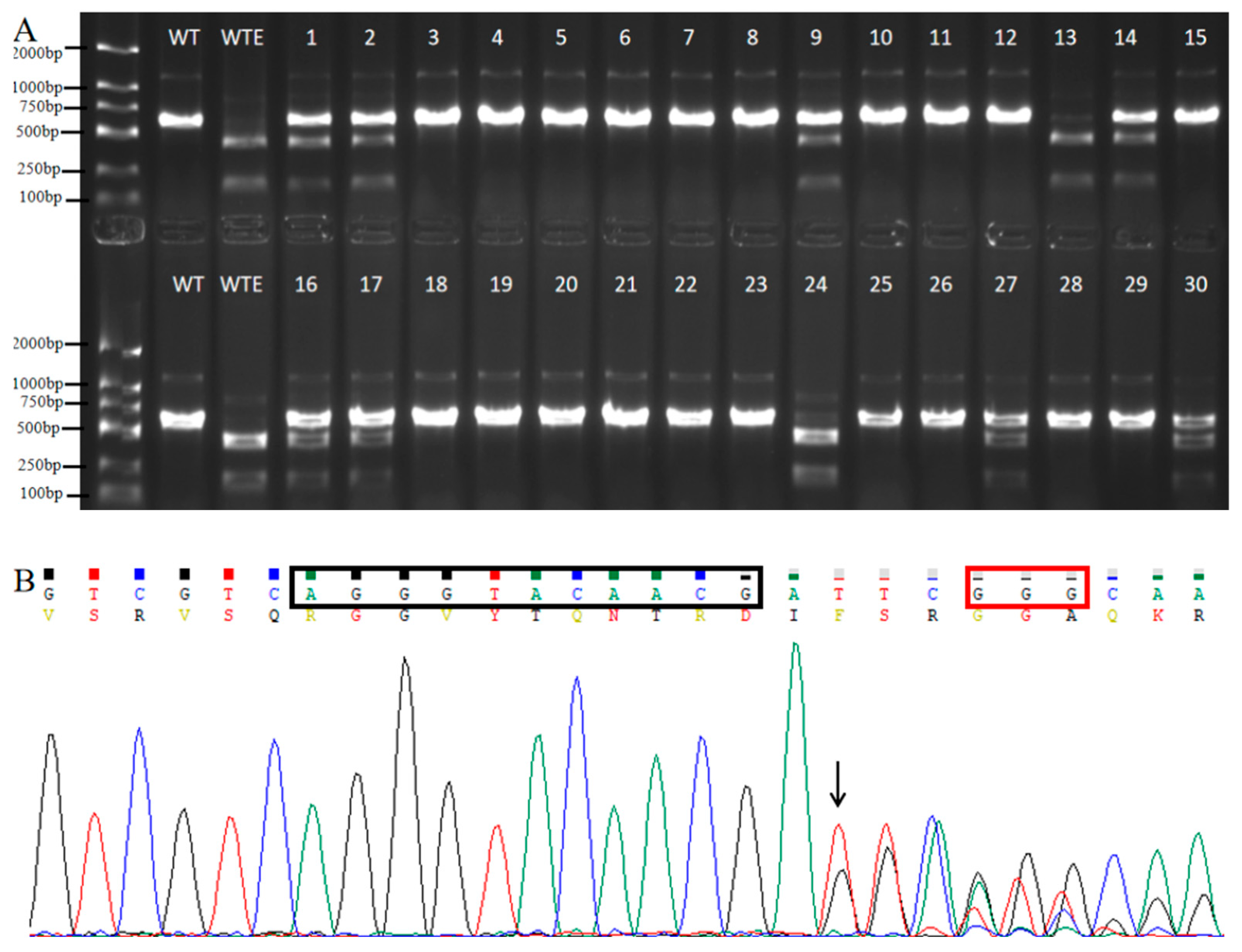

Figure 2. Verification of GmRj7 target gene editing (A) EcoRI digestion electrophoresis of PCR products with the editing vector pRd35Cas9-Rj7. Lane WT: undigested PCR fragment; lane WTE: digested PCR fragment by EcoRI. Lanes 1–30: different independent transgenic hairy roots. (B) Sanger sequencing of PCR product undigested with EcoRI. The sequence in the black box is part of target site and the sequence in the red box is the PAM. The black arrow: starting from this base, the sequencing chromatogram shows mixed peaks.
Figure 2. Verification of GmRj7 target gene editing (A) EcoRI digestion electrophoresis of PCR products with the editing vector pRd35Cas9-Rj7. Lane WT: undigested PCR fragment; lane WTE: digested PCR fragment by EcoRI. Lanes 1–30: different independent transgenic hairy roots. (B) Sanger sequencing of PCR product undigested with EcoRI. The sequence in the black box is part of target site and the sequence in the red box is the PAM. The black arrow: starting from this base, the sequencing chromatogram shows mixed peaks.
Ijms 26 09094 g002
Ijms 26 09094 g003

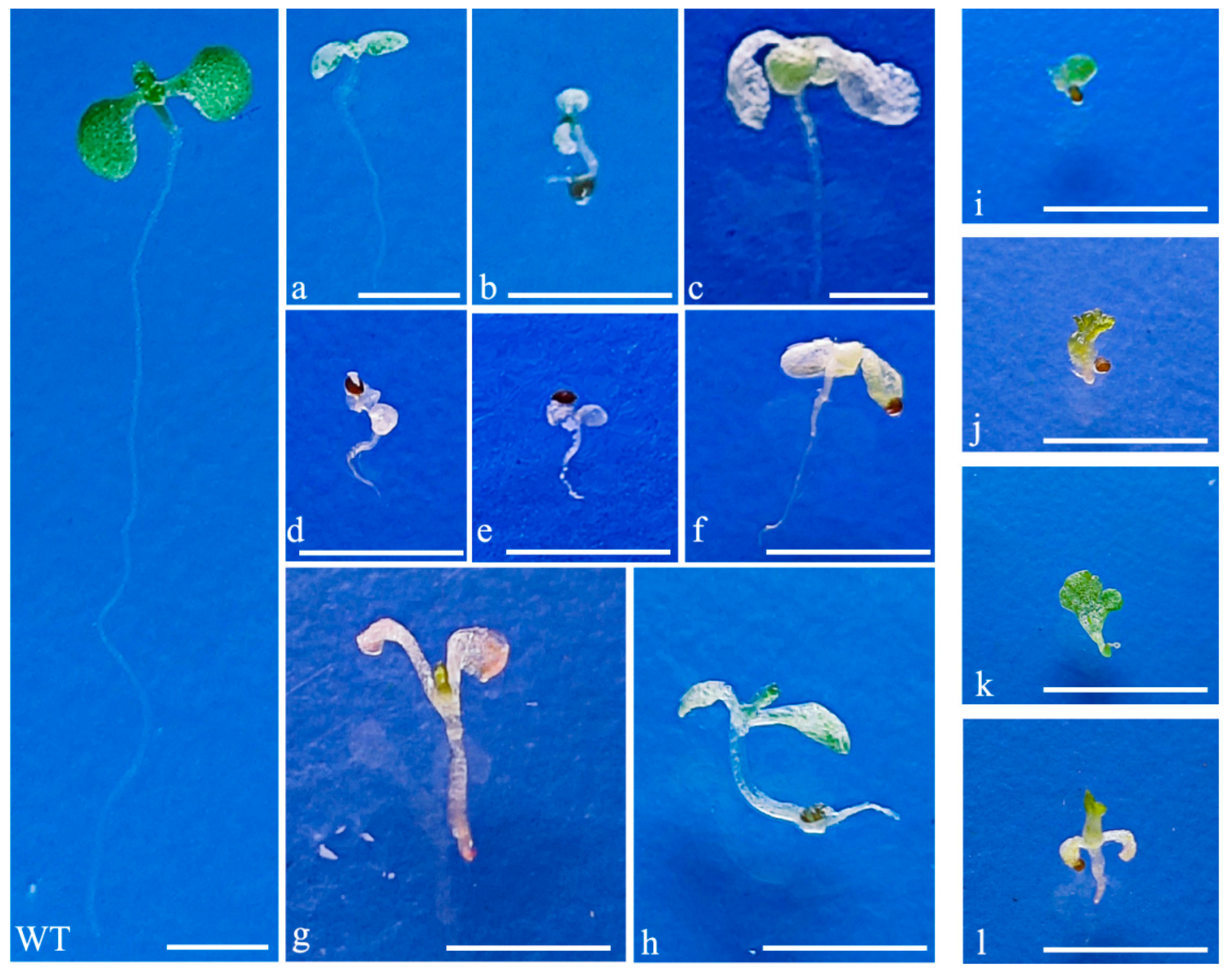

Figure 3. The albino or dwarf phenotypes after editing AtPDS3 and AtBRI1 in Arabidopsis, respectively. (a–h): albino phenotypes; (i–l): dwarf phenotypes. Scale bars = 1 cm.
Figure 3. The albino or dwarf phenotypes after editing AtPDS3 and AtBRI1 in Arabidopsis, respectively. (a–h): albino phenotypes; (i–l): dwarf phenotypes. Scale bars = 1 cm.
Ijms 26 09094 g003
Ijms 26 09094 g004

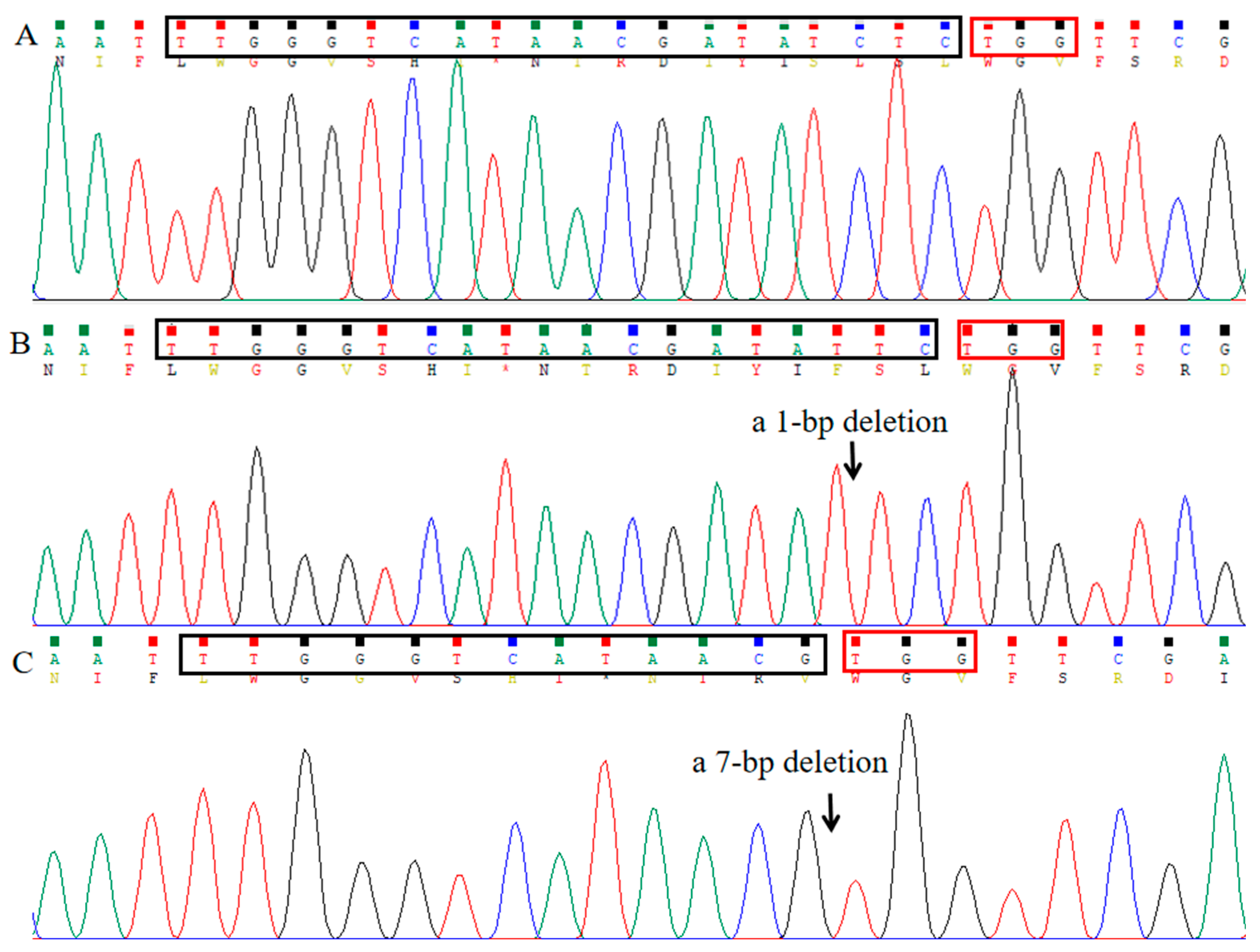

Figure 4. An example showing that knockout of AtBRI led to dwarf phenotypes at the seedling stage. (A): The Sanger sequencing map of AtBRI wild type. Sequence analysis revealed that this dwarf plant contained two mutant alleles, one with a 1 bp deletion (B) and another with a 7 bp deletion (C). The sequences in black boxes are the target site or part of the target site and the sequences in red boxes are the PAM sequences.
Figure 4. An example showing that knockout of AtBRI led to dwarf phenotypes at the seedling stage. (A): The Sanger sequencing map of AtBRI wild type. Sequence analysis revealed that this dwarf plant contained two mutant alleles, one with a 1 bp deletion (B) and another with a 7 bp deletion (C). The sequences in black boxes are the target site or part of the target site and the sequences in red boxes are the PAM sequences.
Ijms 26 09094 g004
Table 1. Editing efficiencies at target site in GmRj7 and GmNNL1 of different promoters.
Table 1. Editing efficiencies at target site in GmRj7 and GmNNL1 of different promoters.
CRISPR/Cas9 SystemGmRj7
(Number of HBM/Total)		GmNNL1
(Number of HBM/Total)
pRd35Cas9-2BR66.7% (20/30)25.6% (23/90)
pRdKu70Cas9-2BR66.7% (20/30)50% (45/90)
pRdKu80Cas9-2BR60% (18/30)48.9% (44/90)
Table 2. Editing efficiencies at AtPDS and AtBRI in Arabidopsis thaliana of different promoters.
Table 2. Editing efficiencies at AtPDS and AtBRI in Arabidopsis thaliana of different promoters.
CRISPR/Cas9 SystemAtPDS
(Number of HBM/Total)		AtBRI1
(Number of HBM/Total)
pRd35SCas9-2BR19.2% (11/52)17.7% (8/45)
pRdKu70Cas9-2BR47.5% (29/61)43.4% (23/53)
pRdKu80Cas9-2BR39.3% (22/56)34.5% (19/55)
