Dark Matter Carried by Sinorhizobium meliloti phiLM21-like Prophages

by
Maria E. Vladimirova
1,
Marina L. Roumiantseva
1,*,
Alla S. Saksaganskaia
1,
Alexandra P. Kozlova
1,
Victoria S. Muntyan
1 and
Sergey P. Gaponov
2
1
Laboratory of Genetics and Selection of Microorganisms, Federal State Budget Scientific Institution All-Russia Research Institute for Agricultural Microbiology (FSBSI ARRIAM), 196608 Saint Petersburg, Russia
2
Novikov Labs, 420033 Kazan, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2025, 26(17), 8704; https://doi.org/10.3390/ijms26178704
Submission received: 10 August 2025 / Revised: 29 August 2025 / Accepted: 3 September 2025 / Published: 6 September 2025
(This article belongs to the Special Issue Bacteriophage: Molecular Ecology and Pharmacology, 2nd Edition)
Browse Figures
Versions Notes

Abstract

A comprehensive comparative analysis was conducted on the nucleotide and amino acid sequences of intact phiLM21-like prophages (phiLM21-LPhs), which currently represent the most prevalent prophages in Sinorhizobium meliloti—a symbiotic partner of Fabaceae plants. Remarkably, the nucleotide sequences of 25 phiLM21-LPhs, identified across 36 geographically dispersed S. meliloti strains, covered no more than 34% of the phiLM21 phage genome. All prophages were integrated into specific isoacceptor tRNA genes and carried a tyrosine-type integrase gene; however, this integration did not exhibit features of tRNA-dependent lysogeny. Only one-fifth of phiLM21-LPhs encoded the minimal set of regulators for lysogenic/lytic cycle transitions, while the remainder contained either uncharacterized regulatory elements or appeared to be undergoing genomic “anchoring” within the host bacterium. The phiLM21-LPhs harbored open reading frames (ORFs) of diverse origins (phage-derived, bacterial, and unknown), yet over half of these ORFs had undeterminable functions, representing genetic “dark matter”. The observed diversification of intact phiLM21-like prophages likely stems from recombination events involving both virulent/temperate phages and phylogenetically remote bacterial taxa. The evolutionary and biological significance of the substantial genetic “dark matter” within these prophages in soil saprophytic bacteria remains an unresolved question.

1. Introduction

Bacteriophages, as the most numerous group of viruses, are widely found in all ecosystems [1,2,3,4]. However, soil phages are far less studied than phages from other ecosystems [5,6,7]. Viral particles reach their highest density in the root zone and directly in the rhizosphere of plant roots [8,9].
The infectious activity of phages can exceed 1023 bacterial cells per second [10]. As is known, phages lyse bacteria but can also integrate into the host bacterium’s genome via attB attachment sites (site-specific integration), which are found on both chromosomes and plasmid replicons (prophage; [11]). This property of phages has contributed to the active development of nature-like technologies aimed at delivering target genes to specific genomic locations using phage vectors [12,13].
Currently, most information about bacterial prophages—including their structure, prevalence, and functional significance—has been accumulated through studies of pathogenic or conditionally pathogenic bacterial strains, such as Escherichia coli, Bacillus spp., Pseudomonas spp., Streptococcus pyogenes, Salmonella enterica, and Staphylococcus aureus, primarily driven by medical interests. For example, it has been shown that prophages can be present in significant numbers in bacterial genomes, accounting for up to 10–20% of their genome [14,15,16]. The genome of E. coli can contain up to 18 prophage sequences of varying integrity, while strains of Desulfovibrio vulgaris may carry up to 6 sequences [17,18]. Our research has revealed that in the genomes of non-pathogenic nodule bacteria, Sinorhizobium meliloti, the number of prophages per genome can reach 30 [11,19].
By integrating into the host bacterium’s genome, temperate (lysogenic) phages can persist for extended periods as prophages, replicating alongside the bacterial genome and thus being inherited vertically. The involvement of prophages in horizontal gene transfer depends on their ability to excise, which is often triggered by adverse environmental factors affecting the host cell (prophage induction). Prophage induction leads to lytic development, starting with prophage excision from the bacterial genome and culminating in the formation of viral particles and cell lysis. During excision, the prophage can carry not only its own genes encoding “typical” phage proteins but also fragments of the host bacterium’s DNA, such as metabolic genes [20,21].
Moreover, prophage sequences actively participate in intracellular recombination processes [22,23,24]. This explains why phages often contain sequences from host bacteria as well as gene clusters from different phage lineages [22,23,24]. Such transfer facilitates the emergence of new phage genetic variants while also expanding the genetic potential of bacteria, enabling them to acquire new traits (phage conversion). For instance, prophages may carry genes responsible for antibiotic resistance, virulence, or the synthesis of various metabolites, thereby influencing the host bacterium’s resistance to adverse conditions and its overall viability [4,25,26].
Phage genomes are mosaic, meaning they consist of gene clusters from phages of different genetic lineages [22,23,24]. As a result, phages rapidly lose their authenticity. A striking example is the temperate rhizobiophage 16-3, isolated in the 1960s from the strain Rhizobium (Sinorhizobium) meliloti 41 in Hungary [19,27]. The genome of this phage serves as a model for genetic studies of homoimmune infection [28].
Today, sequences similar to those of phage 16-3 occur at a frequency of 0.09 within prophages of modern S. meliloti strains or other members of the Rhizobiaceae family, as well as in aquatic viromes from Ireland (NCBI database, 09.2022 [19]). This suggests that the temperate phage 16-3 was once widely distributed in the genomes of root-nodulated bacteria in the mid-20th century. However, its sequences are now virtually absent, possibly due to active recombination processes and the efficiency of bacterial host anti-phage defense systems, including restriction–modification systems.
Nevertheless, 10 extended sequences (ranging from 32 kb to 104.2 kb) related to phage 16-3, exhibiting low homology, have been identified in the genomes of various bacterial strains, including Mesorhizobium spp., Rhizobium leguminosarum, and an S. meliloti strain isolated from saline soils in the Aral Sea region [19]. Analysis of these phage 16-3-related sequences revealed that 81% of the identified open reading frames (ORFs) were either genes from diverse phages (89 phages infecting 45 bacterial species) or genes encoding hypothetical proteins. The latter is of particular interest, as such “dark” genetic information may, through genetic rearrangements (deletion/integration/recombination), acquire functional significance and unpredictably affect the host bacterium’s metabolism [29].
Currently, the Virus–Host DB contains 17 sinorhizobiophage genomes (phiLM21, 16-3, StopSmel, Aussie, PBC5, HMSP1-Susan, NV1.1.1, phiM6, AP-16-3, AP-J-162, phiM5, ort11, phiM9, phiM19, phiM7, phiM12, and phiN3; [30], accessed 4 April 2025). Among them is Sinorhizobium phage phiLM21, induced from the strain Sinorhizobium sp. LM21 (BioSample ID: SAMN06765771), isolated in 2014 from soils of a copper mine in Poland. Phage phiLM21 was characterized as having a siphovirus morphology (icosahedral head, flexible non-contractile tail, double-stranded DNA) [31]. According to the new phage classification [32], phiLM21 belongs to the unclassified Caudoviricetes (Virus–Host DB; [30]). Our study has shown that intact prophages like phiLM21 are widespread in the genomes of modern S. meliloti strains isolated from geographically remote regions, far from both each other and the original isolation site of phiLM21 [11].
The goal of our study was to conduct a systematic analysis of intact phiLM21-like prophages prevalent in the genomes of modern Sinorhizobium meliloti strains (symbionts of economically valuable leguminous plants). This approach provides new insights into the diversification of phage-derived sequences in the host bacterial genome and assesses the significance of phage conversion by analyzing the functional significance of “captured” foreign genetic material.

2. Results

In this study, we focused on assessing the diversification/“conservation” of nucleotide and amino acid sequences of intact prophages that are related to the temperate phage phiLM21, which appears to be an active participant in phage–microbe interactions within modern microcenosis.
Analysis of 36 S. meliloti genomes (see Section 4: Materials and Methods) revealed that 13 genomes contained a single sequence similar to phiLM21 (GenBank accession number NC_029046), while 6 genomes harbored two such sequences. Consequently, the further analysis was conducted on 25 intact phiLM21-like sequences (hereafter referred to as phiLM21-like prophages or phiLM21-LPhs; Table 1). According to PHASTEST classification, ‘intact’ phiLM21-LPhs are similar to phiLM21 in size and the number of phage genes/proteins, and they contain a set of ‘cornerstone’ genes. The phage origin proteins encoded in phiLM21-LPhs are predominantly similar to those of phiLM21 (Table 1).
All identified phiLM21-LPhs were integrated into specific isoacceptor tRNA genes. It has been shown that the host bacterial tRNA genes (integration sites) were reconstructed during the integration of phiLM21-LPhs. The most frequently involved was the tRNA-Lys(CUU) gene (frequency 0.52), followed by the tRNA-Ser(GCU) gene (frequency 0.28), and, less commonly, the tRNA-Leu(UAA) gene (frequency 0.16). In a single case, phiLM21-LPh was integrated into the same tRNA gene as phage phiLM21, specifically the tRNA-Pro(GGG) gene (frequency 0.04) (Table 1). These tRNA genes were numbered 039, 016, 031, and 017, corresponding to their positions on the chromosome relative to oriC, based on the analysis of the structural organization of the chromosome in bacteria of the species S. meliloti [11]. Each of the studied phiLM21-LPhs was named based on the strain in which it was identified and the order number of the tRNA gene into which the prophage was integrated (Table 1).

2.1. Analysis of Nucleotide Sequences

A comparative analysis of the characteristics of nucleotide sequences of phiLM21-LPhs with phiLM21, as well as with the complete genome sequences of 16 phages infecting Sinorhizobium spp. (see Section 4: Materials and Methods), revealed that their length ranged from 50,261 to 55,743 base pairs (average length 53.0 ± 0.25 kb). However, on average, this was no more than 10% longer or, at most, 1% shorter relative to the phiLM21 sequence (50,827 bp). On average, each phiLM21-LPh contained 75 ± 1 ORFs (genes) (Table 1). In 15 phiLM21-LPhs, a single tRNA gene was identified, represented by 10 tRNA-Met(CAU), 4 tRNA-fMet(CAU), and, in one case, a tRNA-Val(CAC). Only phiM162-016 contained two genes, specifically tRNA-Met(CAU) and tRNA-fMet(CAU). The GC content in phiLM21-LPhs varied from 59.2% to 60.8% (mean 60.0 ± 0.1%), comparable to that of phiLM21 (60.6%).

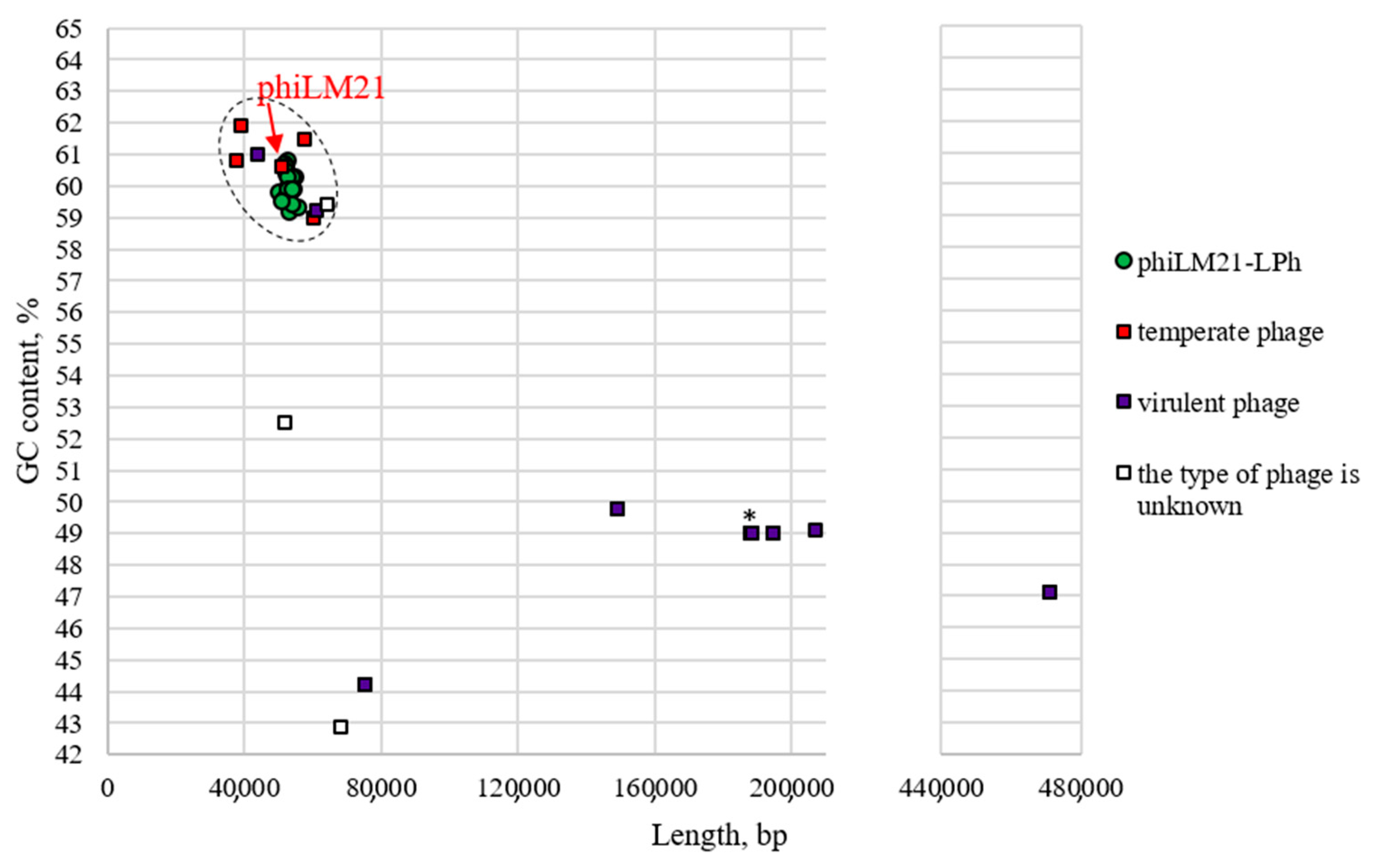

Scatter plot analysis revealed that the genome length and GC content of phiLM21-LPhs (53.0 ± 0.25 kb, 60.0 ± 0.1%) are similar to its temperate progenitor, phiLM21 (50.8 kb, 60.6%) (Figure 1). The phiLM21-LPhs variants co-clustered with other temperate Sinorhizobium phages (e.g., StopSmel, Aussie, 16-3, PBC5) and were comparable to two virulent phages (AP-16-3, phiM5) and to NV1.1.1. In contrast, phiLM21-LPhs were significantly different from the seven other virulent phages studied, which had distinctly larger genomes and lower GC content (210.4 ± 46.6 kb, 48.2 ± 0.7%) (Figure 1).
Thus, all identified phiLM21-LPhs are more similar to phiLM21 in their length and nucleotide composition than to other phages infecting S. meliloti. The obtained result confirms data previously reported by researchers of the phiLM21 phage, indicating that its sequence had limited similarity to other known phage genomes [31].
The GC content of phiLM21-LPhs, phiLM21, and four temperate rhizobiophages (StopSmel, Aussie, 16-3, PBC5) was found to be close to that of the host bacterium (the average GC content of the genome of the reference strain S. meliloti 1021 is 62%), compared to the GC content of virulent rhizobiophages. Interestingly, the GC content values of phiLM21-LPhs and phiLM21 were closer to that of megaplasmid pSymA (60.5%) than to similar values for the chromosome or megaplasmid pSymB (both with GC content of 62.5%). For comparison, the GC content for temperate phages was as follows: for Rhizobium phage 16-3, it was 59%; for Aussie, 61.9%; and for PBC5, 61.5%, which was closer to the GC content of the chromosome/pSymB.

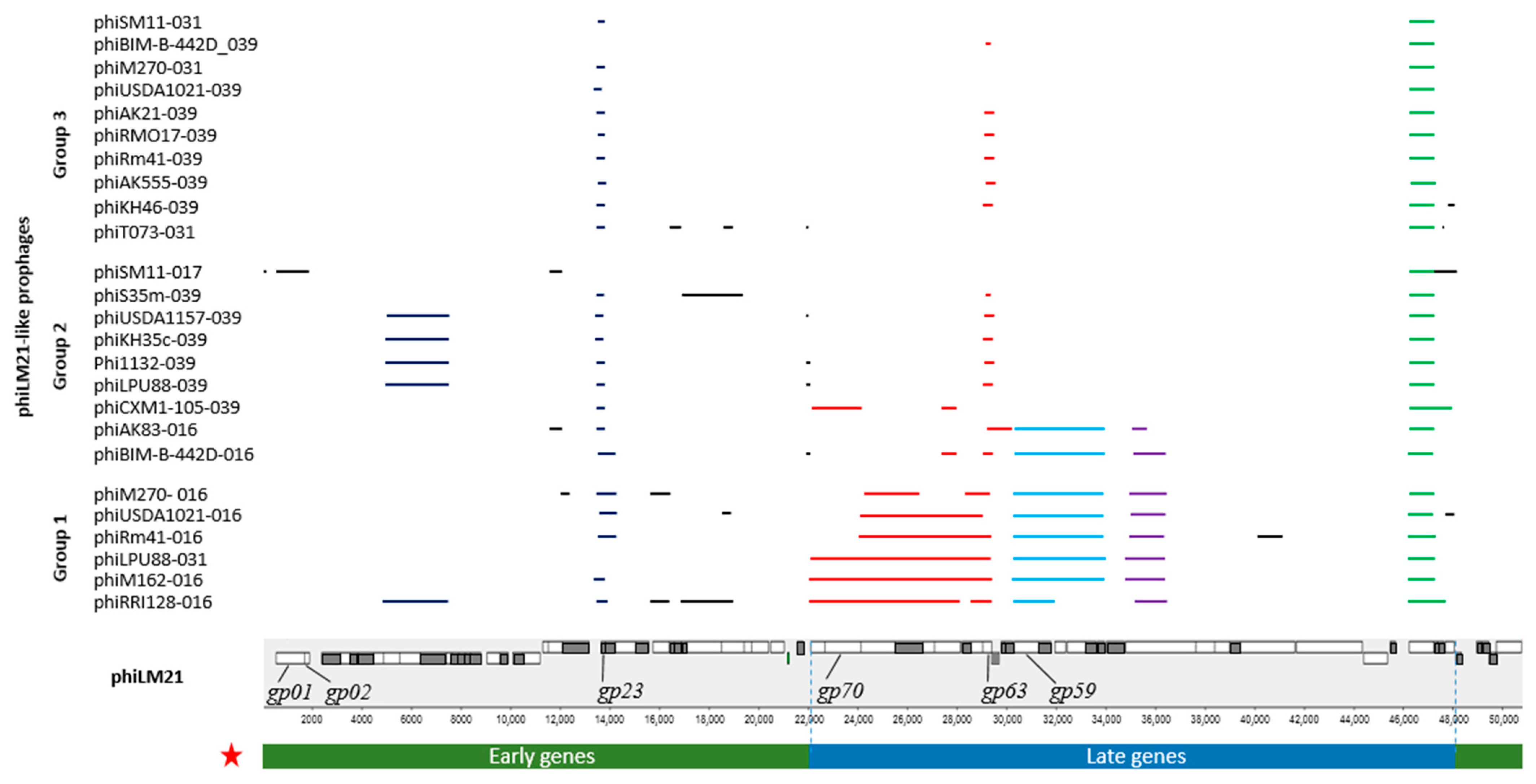

An analysis of the nucleotide sequence similarity between phiLM21-LPhs and phiLM21 was performed. For this, the nucleotide sequence of each of the 25 phiLM21-LPhs was aligned with the phiLM21 genome sequence using BLASTn (I > 70%). As a result, each phiLM21-LPh sequence contained between 2 and 13 fragments homologous to phiLM21. The total number of fragments across the 25 phiLM21-LPhs was 116, with sizes ranging from 63 to 7371 bp (I = 72.7–96.9%) (Figure 2). A large proportion consisted of fragments smaller than 1 kb (65%), with twice as many fragments up to 4.9 kb in size (31%), and only five sequences had sizes greater than 4.9 kb (Figure 2). Detailed BLASTn alignment results are presented in Table S2.
All 25 phiLM21-LPhs were divided into 3 groups according to the nucleotide similarity and coverage of the phiLM21 genome (Figure 3). Only Group 1 prophages exhibited the highest degree of similarity to phiLM21 (Figure 3; Table 2), with 4 to 10 extended genomic fragments identified in each of these prophages that were homologous to regions of the phiLM21 genome containing genes with early but predominantly late expression patterns (I = 78.6–80.7%, Cov = 22.1–33.8% of the phiLM21 genome). A prominent example is the prophage phiRRI128-016, which contained genes from both early and late expression modules, including genes involved in replication and recombination (DnaB-like replicative helicase, primosomal protein, Erf-like ssDNA annealing protein, DNA methyltransferase), excision (exonuclease), virion assembly (portal protein, head decoration protein, structural protein, head-tail adaptor Ad1, head closure protein Hc1, head morphogenesis protein, tail length tape measure protein, tail proteins), DNA packaging (small and large terminase subunits), and host lysis and particle release (chitinase), as detailed in Table S3.
Prophages in Group 1 contained sequences similar to just 31 phiLM21 genes. Five phiLM21-LPhs shared 17–18 of these genes, whereas phiRRI128-016 contained 22. All six intact prophages consistently shared seven genes from the phiLM21 late-expression module, including those for structural proteins (portal, head-tail adaptor Ad1, head morphogenesis, tail tape measure), a chitinase, and two hypothetical proteins (Table S3).
Groups 2 and 3 included 9 and 10 phiLM21-LPhs, respectively. In the case of Group 2, these were sequences that showed similarity to different parts of the phiLM21 phage genome, but, overall, they covered no more than 7.3–15% of the phiLM21 phage genome (Figure 3). For Group 3, short sequences corresponding to the same regions of the phiLM21 genome were identified within the phiLM21-LPhs, covering only 2–4% of the phage genome (Figure 3). The regions identified within phiLM21-LPhs from Groups 2 and 3 mainly contained genes from the early expression group of the phiLM21 phage. Significantly less frequently, they contained individual blocks of genes encoding proteins involved in the assembly of phage particles, packaging of phage DNA into them, and release from the host cell—that is, genes of late expression, which are expressed after phage induction. Genes involved in primary attachment to the host cell (tail fiber protein) and in terminating tail capsid assembly (tail terminator), which belong to the late expression gene group, were identified only in prophages of Group 1 and two prophages of Group 2 (phiAK83-016 and phiBIM-B-442D-016) (Table S3, Figure 3). The sequence encoding chitinase (I = 80.2–86.1%), which belongs to the late expression gene group of phages, was found in all phiLM21-LPhs (Figure 3).
Thus, the analysis of nucleotide sequences of intact phiLM21-LPhs showed that sequences with the highest similarity to the phiLM21 phage genome (Cov ≤ 34%; I ≤ 80%) occurred at a frequency of no more than 0.24. These related prophage regions harbored genes homologous to those in the early, and primarily the late, expression modules of phiLM21. Nucleotide sequence analysis revealed that the intact phiLM21-LPhs have diverged significantly from the original phiLM21 phage. Furthermore, even prophages residing within the same bacterial genome differed from one another, as they belonged to the different groups defined above.

2.2. Phylogenetic Analysis of phiLM21-LPhs

In all 25 phiLM21-LPhs, an ORF corresponding to the gene encoding the terminase large subunit (hereafter tls) was identified, which is widely used to assess the phylogenetic relatedness of studied phages [33]. The sequences of the tls gene from these prophages, as well as the sequence of the corresponding gene AWJ26_gp70 of phiLM21 and the sequence similar to the tls gene found in each of the 90 phages infecting rhizobia of the genera Bradyrhizobium, Mesorhizobium, Rhizobium, and Sinorhizobium, were used for phylogenetic analysis (see Section 4: Materials and Methods and Table S4).
The amino acid sequence (hereafter aa-tls) similar to that of phiLM21 was detected in only four cases: in three Group 1 phiLM21-LPhs (phiRRI128-016, phiM162-016, phiLPU88-031) and in phiCXM1-105-039 from Group 2 (Table S5). In 13 prophages, aa-tls was similar to sequences from Streptomyces phage mu1/6 NC_007967 (Table S6A). In six cases, the similarity was with amino acid sequences of terminases from Edwardsiella phage GF-2NC_026611 (phiSM11-017, phiT073-031), Shigella phage Sf14NC_042075 (phiKH35c-039, phiS35m-039), as well as Pseudomonas phage PA10NC_041903 (phiRM41-016), and Pseudomonas phage vB_PaeM_C2_10_Ab02NC_042113 (phiUSDA1021-016) (Table S6A). Two cases were identified where the tls gene was inactivated: in one case, the tls gene was a site of transposase IS1480 integration (phiAK21-039), and in the other, the sequence similar to tls was a pseudogene (phiM270-016).

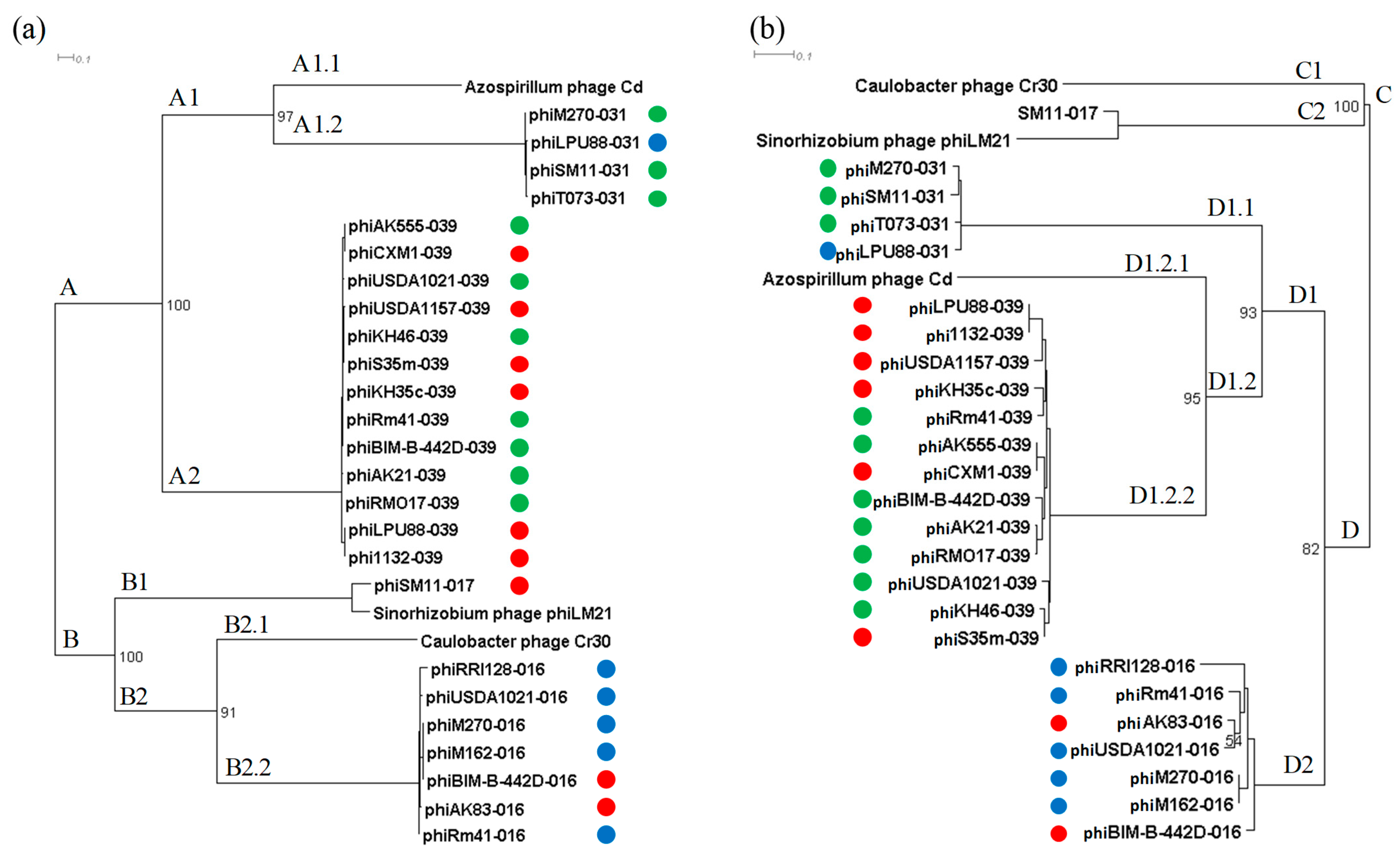

The phylogenetic tree shows three remote groups, clusters A, B, and C, which include all nucleotide sequences of tls identified within phiLM21-LPhs (Figure 4a). Cluster A was the most representative, comprising 15 tls sequences (bootstrap 100). However, the corresponding phiLM21-LPhs belonged to different groups (Groups 2 and 3) and were integrated into different tRNA genes (Figure 4b). The closest phylogenetic relatives of this cluster, based on cladistic analysis of the terminase sequence, were the tls sequences of the virulent Sinorhizobium phage phiM9, two Streptomyces phages mu1/6, and Mesorhizobium phage Cp1R7A-A1, infecting bacteria of the respective genera Streptomyces (Actinomycetes) and Mesorhizobium (Alphaproteobacteria). However, the statistical support for this clustering was low (bootstrap 14%), which did not allow us to conclude about the phylogenetic similarity of the tls gene sequences from the above phages and the sequences identified in the phiLM21-LPhs grouped in cluster A (Figure 4b).
Cluster B consisted of two subclusters, B1 and B2 (bootstrap 99%), and included tls gene sequences from six phiLM21-LPhs that belonged to different groups based on their nucleotide sequence similarity to phage phiLM21. The cluster also included the tls gene sequence of phiLM21 (bootstrap value 99%), indicating that the tls sequences identified within phiLM21-LPhs are phylogenetically related to the corresponding gene of phage phiLM21, as determined by cladistic clustering of the terminase sequence (Figure 4b).
Cluster C grouped the tls gene sequences found in five phiLM21-LPhs from Groups 1 and 2. Additionally, this cluster included tls gene sequences from the phages TM3_3_3 and N28_2, which infect bacteria of the genus Rhizobium (bootstrap 100%). The closest branch to this cluster was the branch containing tls sequences from two temperate Sinorhizobium phages, StopSmel and Aussie. However, the statistical support for this clustering was low (bootstrap 49%), suggesting that the tls gene sequences of phiLM21-LPhs within this cluster are more closely related to tls sequences of phages infecting Rhizobium bacteria than to those infecting Sinorhizobium, based on cladistic clustering of the terminase sequence (Figure 4b).
In conclusion, the clustering of phiLM21-LPhs based on nucleotide sequences of the tls gene did not correlate with the degree of nucleotide sequence similarity between the prophages and phage phiLM21 (Figure 3, prophage Groups 1–3).
Each of 25 phiLM21-LPhs also contained an ORF, whose product was an integrase according to PHASTEST and NCBI annotation tools (Table S7). Based on primary protein sequence analysis, these integrases were similar to tyrosine integrases. Only the integrase of phiSM11-017 was identical to that of Sinorhizobium phage phiLM21 (E = 0, Tables S5 and S7, Figure 3). Interestingly, the integration site for both the indicated prophage and phage was an isocceptor tRNA-Pro(GGG) in the genome of strain SM11 and LM21, respectively. Both sequences of phiSM11-017 and phiLM21 contained a 64 bp fragment identical to the 45 bp sequence of the 3′-end of the tRNA-Pro(GGG) gene in S. meliloti, which in phiLM21 was characterized as the attP site (coordinates 6 to 69; I = 96.9%). Thus, this sequence could also serve as the attP site for phiSM11-017.
The remaining 24 integrase sequences were similar to integrases from three different phages infecting Alphaproteobacteria of the families Hyphomicrobiales, Caulobacterales, and Rhodospirillales. For 17 sequences, similarity was shown with the integrase of Azospirillum phage Cd (NC_010355). The level of similarity between the primary amino acid sequences of these integrases and that of Azospirillum phage Cd varied among the prophages, with integration into the tRNA-Leu(UAA)-031 and tRNA-Lys(CUU)-039 genes (Cov = 79% and 66–74%, respectively; Table S7). In seven phiLM21-LPhs sequences, similarity was observed with the integrase of Caulobacter phage Cr30 (NC_025422; E = 4.0 × 10−10–1.4 × 10−8). Additionally, one of the primary amino acid sequences of the integrase (phiRRI128-016) also showed similarity to the integrase of Escherichia phage HK446 (E = 3.6 × 10−5; Table S7).
The search and annotation of ORFs corresponding to phage integrases were conducted using amino acid sequences with PHASTEST. To assess the phylogenetic relationship of the integrases with the respective phages, phylogenetic trees were constructed based on both amino acid (aa-int) and nucleotide (na-int) sequences of phiLM21-LPhs integrases (Figure 5a,b). The tree built on the aa-int sequences revealed four subclusters: A1, A2, B1, and B2 (bootstrap 91–100%; Figure 5a). Each included aa-int sequences from prophages with varying levels of similarity to phage phiLM21 (Groups 1–3 above; see Figure 5a). The amino acid sequences of integrases similar to those from Sinorhizobium phage phiLM21 or Caulobacter phage Cr30, as well as the aa-int sequences of the corresponding phages, belonged to different subclusters, B1 and B2, indicating their phylogenetic divergence from each other.
Amino acid sequences of phiLM21-LPhs integrases similar to the integrase of Azospirillum phage Cd belonged to two subclusters, A1 and A2 (bootstrap 100%). Subcluster A2 was the most numerous and included aa-int prophages that were integrated into analogous sequences of isoacceptor tRNA-Lys(CUU)-039. In contrast, subcluster A1 comprised aa-int prophages that were integrated into the gene of tRNA-Leu(UAA)-031, as well as aa-int sequences of Azospirillum phage Cd.
An analysis of the trees constructed based on aa-int and na-int sequences was performed (Figure 5). It was shown that the phylogenetic trees had different topologies (Figure 5). Nevertheless, clustering of na-int sequences according to the prophage integration site was observed both in the amino acid sequence analysis (A1, A2, B1, B2) and in the nucleotide sequence analysis (D1.1, D1.2.2, C2, D2).
However, the similarity of phiLM21-LPhs integrases to Caulobacter phage Cr30 and Azospirillum phage Cd integrases at the nucleotide level, as revealed by aa-int analysis, was not confirmed (Figure 5b). Therefore, it can be concluded that the similarity of aa sequences of integrases does not reflect their phylogenetic relationship but is rather due to the structural features of the proteins necessary for phage binding to the integration site.
Thus, integrase sequences similar to phage integrases at the amino acid level have a very low level of similarity at the nucleotide level with these phages. Consequently, integrase sequences do not reflect the phylogenetic relatedness of sequences associated with a particular phage but can serve as a key sequence for identifying potential phage integration sites.

2.3. Analysis of ORFs of phiLM21-LPhs

Among the 25 phiLM21-LPhs, 1872 ORFs were identified, according to PHASTEST. The primary protein products (amino acid sequences, hereafter aa) were grouped into six categories based on their established similarity:
  • (aa-i)—proteins of phiLM21 phage;
  • (aa-ii)—proteins of other phages, including those infecting bacteria of remote taxa;
  • (aa-iii)—proteins of bacteria of the genus Sinorhizobium/Ensifer;
  • (aa-iv)—proteins of phylogenetically remote bacteria;
  • (aa-v)—proteins similar to lipocalin family proteins;
  • (aa-vi)—hypothetical proteins of unknown origin (Table S8).

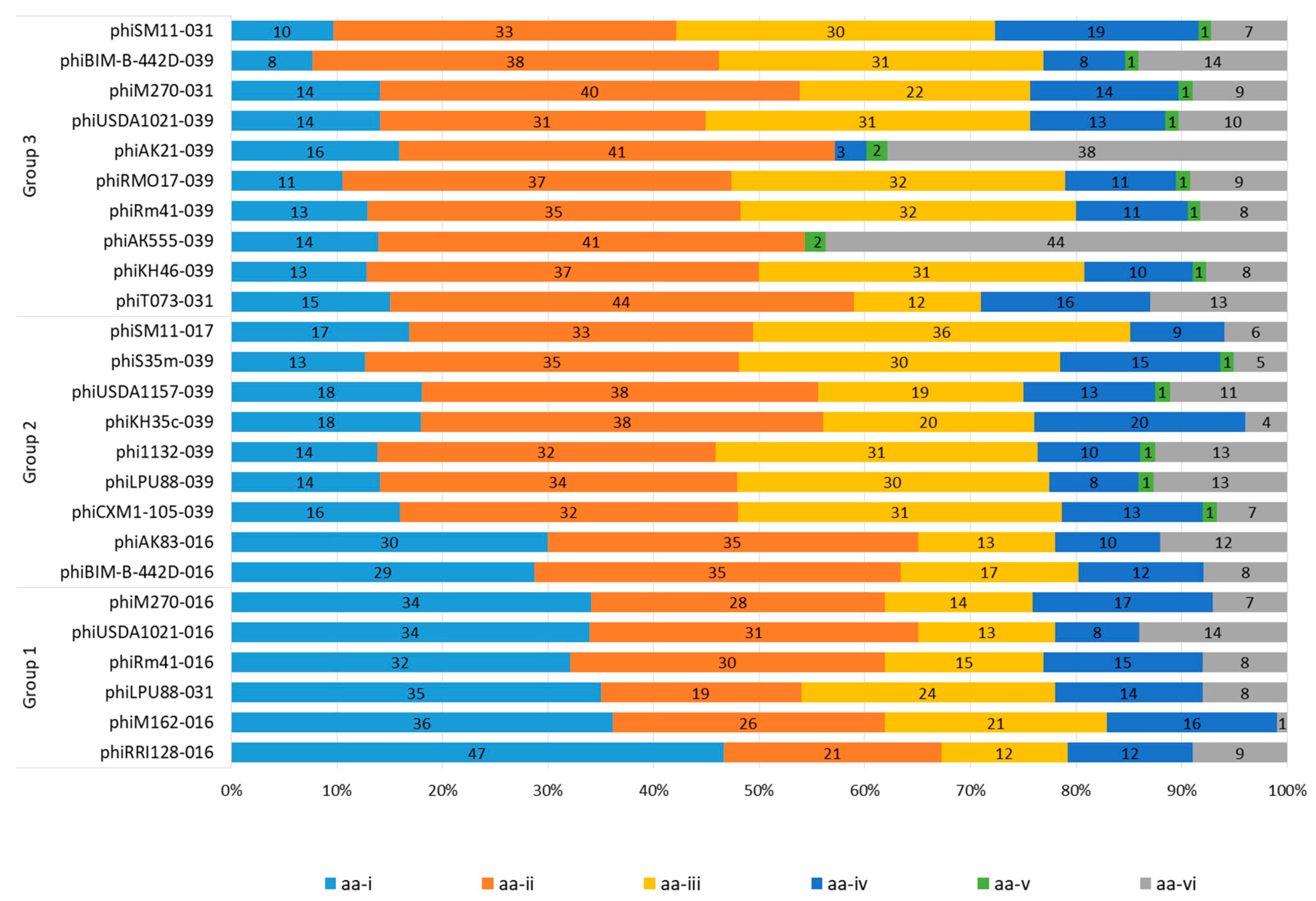

Each protein was assigned to a single group based on its PHASTEST annotation. Proteins with similarity to those from known phages or bacteria—including hypothetical, putative, and predicted functional proteins—were categorized into groups aa-i through aa-iv. All products identified as lipocalin family proteins were assigned to group aa-v, regardless of their similarity to viral, bacterial, or plant proteins. Group aa-vi consisted exclusively of hypothetical proteins of unknown origin.
It was established that phiLM21-like prophages, belonging to different Groups (1–3) based on their nucleotide similarity to phage phiLM21, varied in the number of ORF groups aa-i to aa-iv they contained (Figure 6). Prophages of Group 1 contained, on average, 2.3 times more aa-i sequences than prophages of Groups 2 and 3 (36.3%, 18.7%, and 12.7%, respectively). Conversely, for aa-ii and aa-iv, the opposite pattern was observed, with differences of 1.5 times (22.7%, 34.6%, and 37.7% and 16.5%, 25.1%, and 22.1% for Groups 1, 2, and 3, respectively). Statistically significant differences in the occurrence of aa-i and aa-iv sequences were found between Groups 1 and 3 (Χ2 = 20.2, p = 8 × 10−3, α = 0.05), while differences between Groups 1 and 2 were significant at α = 0.1 (Χ2 = 9.5, p = 0.05).

2.3.1. Groups aa-i and aa-ii

As shown in this work, the highest nucleotide sequence similarity with phage phiLM21 was observed only for phiLM21-LPhs of Group 1. ORFs analysis revealed that their amino acid sequences’ similarity to phiLM21 phage peptides (group aa-i) was, on average, twice as high as that of prophages in Groups 2 or 3. The percentage ratio of ORFs coding for early and late proteins similar to analogous proteins of phiLM21 in the case of prophages of Group 1 was shifted towards products of late-expressed genes (26.2% and 73.8%, respectively). Conversely, similar ORFs in prophages from Groups 2 and 3 occurred in roughly equal proportions (average 0.5/0.5). The difference in the ratio of ORFs for differentially expressed genes between prophages of Group 1 and Groups 2 and 3 was statistically significant (Χ2 = 12.3 and 7.9, respectively, p < 0.05, df = 1).
An exception was prophages phiBIM-B-442D-016 and phiAK83 (Group 2), which, despite low nucleotide sequence similarity to phage phiLM21 (15% and 14%, respectively), had a similar proportion of aa-i ORFs to that of prophages in Group 1, accounting for 29% and 30% of the total proteins of these prophages (Figure 6).
A total of 383 ORFs coding for aa-i sequences similar to analogous phiLM21 sequences were identified. Functions were predicted for 253 ORFs (66%), related to phage life processes, while 130 ORFs (34%) encoded hypothetical proteins (Table S8).
It was shown that over 95% of prophages contained two ORFs each—one from the early gene group and one from the late gene group (Figure 3). Their products included membrane proteins, transcription antiterminators, tail length tape measure proteins, and proteins involved in head morphogenesis (Table S5). More than 70% of prophages contained ORFs determining the terminase small subunit, while all prophages contained ORFs encoding the terminase large subunit (see above). ORFs predicting tail terminator synthesis and hypothetical proteins were also found in 70% of prophages (Table S5). The remaining ORFs were present in less than 50% of prophages. The consistent conservation of the sequences of these ORFs across prophages from genetically unrelated strains of Sinorhizobium from geographically diverse regions suggests that the protein products of these ORFs are crucial for maintaining the properties of intact prophages.

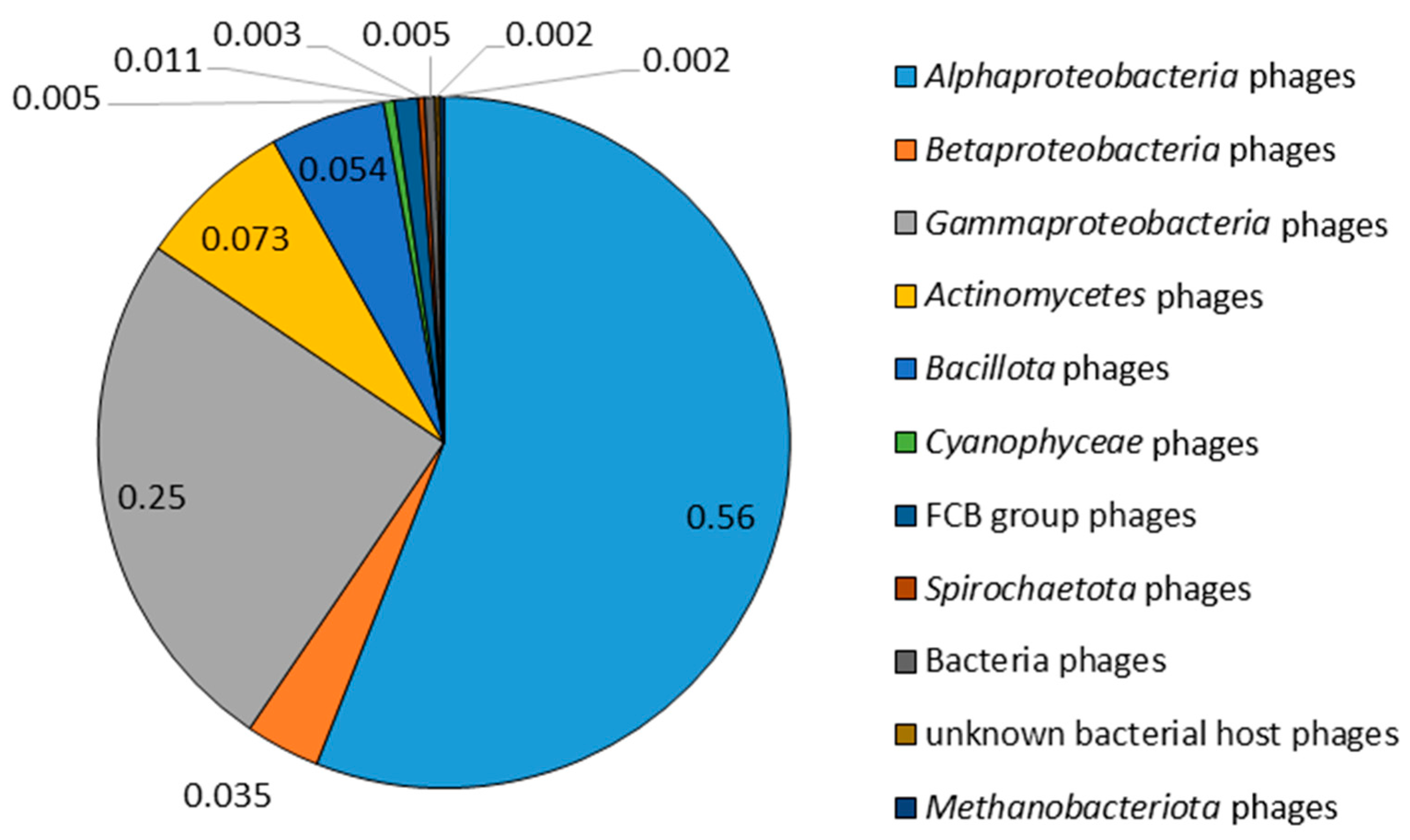

Within phiLM21-LPhs, 630 ORFs were identified, whose products are similar to primary protein sequences of 108 phages infecting bacteria of remote taxa (aa-ii) (Tables S6B and S8). More than half of these amino acid sequences (56%) were similar to sequences of phages infecting Alphaproteobacteria (Figure 7). Sequences similar to phages infecting Gammaproteobacteria were twice as rare, comprising 25%. The total share of primary protein sequences similar to those of other phages infecting Betaproteobacteria, Actinomycetes, Bacillota, Cyanophyceae, FCB group, Spirochaetota, and archaeal Methanobacteriota did not exceed 20% (Figure 7, Table S6B).
Among ORFs encoding protein sequences similar to analogous phage proteins, infecting Alphaproteobacteria (56%), sequences whose products are similar to proteins of phages infecting bacteria of the genus Rhizobium (0.24%) predominated. ORFs similar to those of Sinorhizobium phage PBC5 were found with a frequency of 0.07, and those similar to Sinorhizobium phages phiM7 and phiM9 were observed only in isolated cases.
For 320 out of 630 amino acid sequences (aa-ii), a function was predicted, whereas the remaining 49% were hypothetical proteins. ORFs with predicted functions mainly resembled proteins involved in processes related to phage DNA. There were no contractile sheath proteins similar to contractile sheath proteins of any other phages detected in phiLM21-LPhs, so it can be assumed that phiLM21-LPhs are characterized by non-contractile tail tubes, as was shown for phiLM21 in [31].
Thus, the analysis of primary protein sequences of phiLM21-LPhs showed their similarity both to proteins from the original phage phiLM21 and to proteins of phages infecting bacteria of remote taxa from other species. Functional prediction indicated that these sequences are necessary for phage viability, but a significant proportion of the protein products are still classified as hypothetical proteins.

2.3.2. Groups aa-iii and iv

On average, each prophage contained from 16 to 41 primary protein sequences (ORFs) that showed similarity to analogous sequences in bacteria. An exception comprised two prophages, phiAK21-039 and phiAK555-039, in which only two ORFs of interest were identified in the first, while in the second, such sequences were entirely absent (Table 1; Figure 6).
A total of 641 out of 1872 ORFs were identified, whose products were similar to amino acid sequences of the 89 bacterial species and the 6 other taxa (Brucella, Rhizobium, Pseudomonas, Rhizobiales, Sinorhizobium, and Sinorhizobium/Ensifer group) (Tables S8 and S9A). The majority of ORFs, specifically 416 out of 641 (64.9%), were similar to ORFs from 13 species of the genus Sinorhizobium spp. (Ensifer spp.) (Tables S8 and S9A1). The most prevalent were ORFs similar to those of S. medicae (0.35), whereas the proportion of ORFs similar to S. meliloti was nearly four times lower (0.09). Sequences similar to S. americanum and to bacteria for which only the genus Sinorhizobium was established showed almost equal frequencies (corresponding to 0.16 and 0.14). Rarely, sequences similar to E. aridi, E. glycinis, E. psoraleae, and E. sesbaniae were detected, with an average frequency of 0.04. In isolated cases, amino acid sequences similar to those of E. adhaerens, E. mexicanus, E. sojae, S. arboris, S. saheli, and S. terangae were identified (Table S9A1).
Amino acid sequences similar to analogous sequences in bacteria of other taxa were found 1.8 times less frequently (35.1%) (aa-iv; Table S8). In the aa-iv group, sequences characteristic of bacteria of the genus Rhizobium (0.30), Mesorhizobium (0.11), as well as species Pseudaminobacter salicylatoxidans (0.06) and Agrobacterium tumefaciens (0.06), predominated. Amino acid sequences similar to those of the remaining 52 species were found in single cases (Table S9A2).
For 53 out of 416 ORFs (frequency 0.13), aa-iii Sinorhizobium/Ensifer spp., and for 23 out of 225 ORFs (frequency 0.10), aa-iv, functions were predicted (Table 3, Tables S8 and S9B). Each sequence was assigned to the corresponding COG group, and a Function Code detected by STRING v. 12.0 (searching for similar protein sequences in the database) was also determined and linked to the IMG database. It was shown that the identified amino acid sequences, similar to those in Sinorhizobium spp., are primarily involved in metabolic processes (COG groups: Q, P; Table 3). Sequences similar to Sinorhizobium spp. and other bacterial species are likely involved in cellular processes and signaling (COG: M, O, V, UW) and in information storage and processing (COG: L). Additionally, a sequence of ammonia monooxygenase, an enzyme involved in ammonia metabolism, was identified within the prophages. Similar sequences were found in Novosphingobium resinovorum, which could utilize sulfanilic acid as its sole carbon, nitrogen, and sulfur source.

2.3.3. Group aa-vi (Lipocalin Protein Family)

A lipocalin family protein was identified within 14 prophages (Table 1). Sequences similar to this protein (Cov = 100%, I = 89.9–100%) were present in 11 prophages and showed similarity to a protein identified in Mesorhizobium (multispecies protein) (E = 1.8 × 10−58–5.8 × 10−57). In only one case, the similarity was with a sequence from Ruania albidiflava (Actinobacteria; E = 2.3 × 10−18), according to PHASTEST annotation. Two additional sequences were nearly identical (Cov = 100%, I = 99.4%) and 1.8 times longer than those discussed above; these were annotated as Temperature-induced lipocalin-1. The protein sequences identified in prophages phiAK21-039 and phiAK555-039 demonstrated similarity to bacterial membrane proteins (I = 47.0–97.0%, E = 2 × 10−36–7.4 × 10−94), as well as to plant proteins (I = 35.4–44.5%, E = 1.1 × 10−26–9 × 10−21). The latter is of particular interest because lipocalin-1 in plants of the genus Medicago participates in the development of resistance to cold and oxidative stress [34].
Thus, for the first time, it has been demonstrated that in the prophages phiLM21-LPhs of S. meliloti, amino acid sequences corresponding to the lipocalin protein family are present. This is a large group of small extracellular proteins, which are ubiquitously present throughout the tree of life, with the exception of the Archaea domain. Sequences of these proteins are highly dissimilar, while the crystal structures of lipocalins are highly conserved [35]. These proteins are involved in many biological processes, including immune response, pheromone transport, prostaglandin synthesis, retinoid binding, and even interactions with cancer cells [35,36,37].

2.3.4. Group aa-vi

It was shown that 65% of the ORFs identified within phiLM21-LPhs encode hypothetical proteins of viral, bacterial, or unknown origin (Table S8). These represent the so-called “dark matter”—the genetic cargo of prophages whose functions are unknown.

2.4. Evidence of Bacterial-Phage “Arms Race”

A search for anti-phage defense system elements in prophage sequences was conducted. Sequences encoding restriction endonucleases or methylases, similar to those found in Sinorhizobium arboris (COG: S; prophages phiRMO17-039 and phiBIM B-442D-039; Table 3), were identified. The amino acid sequence showed similarity to the Type I restriction enzyme HsdR of Serratia odorifera (I = 45.0%, E = 2.7 × 10−80) and may be characterized as a potential participant in defense processes. Sequences potentially involved in cellular defense processes, such as NUDIX hydrolase (prophages phiLPU88-039, phiBIM B-442D-039, and 1132-039), were also identified (Table 3).
Additionally, using the PADLOC web server, individual potential anti-phage system elements were detected, including MTase_II, SspD, and DndC, which were found at an average frequency of 0.04–0.16 (Table 4). Anti-phage system elements were identified in five prophages. ORFs encoding type II methyltransferases (MTase_II) were present in four prophages as a single copy, with two prophages containing two copies each (Table 4). The size of the identified nucleotide sequences ranged from 570 to 2013 bp. A high level of similarity was observed among five copies, with sizes exceeding 1131 bp (I > 97.96%), whereas no similarity was found for the 570 bp sequence (phiAK21-039). ORF encoding the SspD protein was present in two prophages (phiCXM1-105-039 and phiRm41-039) with high similarity (Cov = 100%, I = 99.23%), while no similarity was detected with the corresponding ORFs in prophage phiAK21-039. In prophage phiT073-031, a gene encoding the DndC protein was identified. In bacteria, SspD and DndC proteins are associated with the phosphorothioation system modification module SspABCD [38,39] and DndABCDE [40,41]; however, the affiliation of the identified amino acid sequences to these systems requires further verification.
In addition to the aforementioned potential elements of DNA modification-based systems, sequences encoding components of hypothetical defense systems (Phage Defense Candidates), PDC-S45 and PDC-M32 (phiAK21-039 and phiAUSDA1157-039) were identified.
In the prophage phiRm41-016, using PHASTEST, an ORF was identified whose product showed similarity to CRISPR-associated endoribonuclease Cas2 from Staphylococcus phage StB20-like (NC_028821; Cov = 77%, I = 35.62%, E = 3 × 10−15), which infects human skin-associated bacteria. This protein also showed similarity (according to blastp) to CRISPR/Cas system-associated endoribonuclease Cas2 identified in many bacteria from remote taxonomic groups, such as the marine bacterium Alteromonas sp. MmMcT2-5 and 1_MG-2023 (Cov = 98%, I = 39.1%, E = 5 × 10−15), members of the Bermanella genus within the Oceanospirillales order (Cov = 100%, I = 37.2%, E = 3 × 10−14), Afipia broomeae (Cov = 98%, I = 36.3%, E = 2 × 10−13), the nitrogen-fixing bacterium Microvirga lupini (Cov = 100%, I = 47.3%, E = 4 × 10−17), as well as hypothetical proteins of symbiotic nitrogen-fixing bacteria S. meliloti, R. leguminosarum, and Shinella kummerowiae (Cov = 99–100%, I = 73.9–100%, E = 2 × 10−61 to 4 × 10−46).
Thus, integrated intact phage sequences can potentially exert a significant influence on the viability and defensive properties of bacteria. Moreover, they often contain mobile elements. For one-third of the phiLM21-LPhs (28%), sequences encoding transposases were identified. For example, transposases ISRm3 (IS256 family), IS21, and IS5 family transposases were detected, which are present in the genomes of Sinorhizobium medicae, Rhizobium giardinii, and Mesorhizobium sophorae, respectively (Table 3 and Table S9B). The transposase IS1480 was also identified, which was previously found in Xanthomonas prophage 33913, as well as ISRSO10-transposase ORFA protein of Ralstonia solanacearum GMI1000 prophage (IS66 family transposase; E = 4.7 × 10−14). For other transposases, their types could not be determined (Table S6A). These IS elements could destabilize phage-origin integrated sequences, given evidence implicating phiLM21-LPhs in recombination.

2.5. Regulators Within phiLM21-LPhs

The switch between lysogenic and lytic life cycles of temperate phages is regulated by a system of regulators, such as in the case of phage λ, where these are the CI and Cro regulators, as well as the anti-termination protein [43]. In the genome of the prophage phiLM21, genes encoding a transcription antiterminator (AWJ26_gp34) and a putative Cro-like protein (AWJ26_gp20) are present; however, the gene encoding the C-repressor protein was not identified in phiLM21. Instead, gene AWJ26_gp19, encoding an XRE family transcriptional regulator and described [31] as a prophage repressor, is present.
A search for ORFs whose products could serve as potential regulators of the life cycle of temperate phages was conducted. It was shown that all phiLM21-like prophages contain ORFs corresponding to a transcription antiterminator of Sinorhizobium phage phiLM21 (E = 3.6 × 10−45–3.4 × 10−12), and none of the prophages contained ORFs similar to the XRE family transcriptional regulator (Table S5). Less than half of the phiLM21-LPhs (44%) contained ORFs whose products were similar to the C-repressor protein of Rhizobium phage 16-3 (E = 7.0 × 10−28–1.5 × 10−26), and half of these prophages (24%) also contained ORFs of putative Cro-like proteins similar to Sinorhizobium phage phiLM21 (all ORFs with E = 7.5 × 10−15) (Tables S5 and S6B). In addition, ORFs were identified (frequency of 0.4) whose products corresponded to potential repressors of other phages, such as prophage repressors and transcriptional repressors of Brucella phage BiPBO1, putative repressors of Pseudomonas phage vB_PaeP_Tr60_Ab31 (Table S6A). These ORFs were found in all three groups of prophages, but predominantly in Group 1. Also, in one prophage of Group 1 (phiM270-016) and three prophages of other groups (phiBIM-B-442D-016, phiT073-031, phiAK21-039), no ORF products similar to known phage regulators were identified.
It has been shown that sequences of operators, to which repressors bind, are absent in phiLM21-LPhs. These are identical to those in phage λ (operators oL1-oL3 and oR1-oR3) or Rhizobium phage 16-3 (oL1, oL2, oR1, oR2). Based on the obtained data, it can be assumed that either the operator sequences in phiLM21-LPhs differ from those known for phage λ and Rhizobium phage 16-3, or the sequences of their operators have undergone changes, the effects of which are unknown.
It can be concluded that some prophages have partially or completely lost their regulatory systems. This loss suggests that their sequences are becoming anchored in the host bacterial genome, and the genes they carry may be expressed during the cell’s life cycle. In contrast, other intact phiLM21-like prophages, which have retained a minimal set of regulators along with lysogenic and lytic cycle elements, could potentially be induced; however, they constitute a small minority (frequency 0.24). Preliminary induction experiments on prophages from this group, using stimuli such as UV light (5.4 J/cm2 for 1.5 min; 45 J/cm2 for 10 min) or mitomycin-C (0.5 µg/mL for 2 h at 28 °C), did not result in a transition to the lytic cycle. Therefore, it remains unclear whether these prophages can be induced under other conditions. Future studies are planned to investigate this possibility.

3. Discussion

Prophages are ubiquitous in bacterial genomes and represent a vast reservoir of genetic information. However, the functional significance of this foreign genetic material remains poorly understood. A substantial amount of data has been accumulated regarding resistance and virulence factors encoded by prophages in pathogenic bacterial strains, as well as their heterogeneity and diversity, and about the genes involved in vital processes of model temperate phages [44,45,46,47,48]. For example, the genes necessary for regulating the transition between the lysogenic and lytic life cycles of temperate phages have been studied using the model phage E. coli phage λ [43]. Meanwhile, knowledge about temperate phages in non-pathogenic bacteria, including symbionts of economically important plant species, has been obtained primarily from studies of individual phages [20,27,49].
In this study, a comprehensive comparative analysis was conducted on a group of 25 intact phiLM21-like prophages, which currently represent the most widespread group of prophages in the genomes of Sinorhizobium meliloti bacteria, symbionts of plants from the Fabaceae family [11]. It was shown that the frequency of occurrence of intact phiLM21-like prophages in the genomes of genetically unrelated S. meliloti strains isolated from various remote regions of the world, including an introgressive hybridization center of alfalfa subjected to secondary salinization (the northwestern part of Kazakhstan), was 0.53.
It was demonstrated that nucleotide sequences of phiLM21-LPhs differed slightly in size and GC content both among themselves and from the phiLM21 phage, but significantly differed in the level of coverage of the phiLM21 genome. However, the maximum coverage value did not exceed 34%, and the minimum was 2% (Identity >70%). Only a quarter of the identified intact prophages were potentially phylogenetically related to phiLM21 by cladistic clustering of the terminase sequence, while one-fifth of the prophages were related to rhizobiophages but not to sinorhizobiophages. More than half of the phiLM21-LPhs were related to each other but not to any other known rhizobiophages. The obtained data clearly demonstrate the process of nucleotide sequence diversification within the population of intact prophages present in the genomes of modern S. meliloti strains.
Analysis of amino acid sequences encoded by phiLM21-LPhs confirmed the obtained results and showed that ORFs, whose products were similar to phiLM21 proteins, were predominant. At the same time, a significant portion consisted of ORFs whose products were similar to proteins of phages infecting bacteria from phylogenetically remote taxa from Sinorhizobium (e.g., Rhizobium, Pseudomonas, and Azospirillum). Additionally, a substantial share comprised ORFs whose products are similar to sequences found in bacteria from taxa that are evolutionarily far apart from Sinorhizobium (e.g., Rhizobium, Mesorhizobium, Pseudaminobacter salicylatoxidans, and Agrobacterium tumefaciens). This aligns with data obtained for lambda-like phages infecting Enterobacteriaceae [50].
Such a significant number of ORFs similar to a broad spectrum of prophages and diverse soil bacteria indicates active recombination processes involving phage and bacterial genomes. Supporting this, the data presented in this article demonstrate the presence of transposase of IS element sequences from different families within phiLM21-LPhs, identified both in temperate phages and in prophages of bacteria from various taxa, which are widely distributed in the genomes of both rhizobia and bacteria from remote taxa.
Analysis of prophage sequences revealed evidence supporting the activity of a phage–microbe “arms race” in the process of evolving defense mechanisms. Various restriction–modification system elements, as well as anti-phage system components of bacteria, were identified within the prophage sequences, which appeared as a result of recombination processes involving phage-derived sequences.
What is the volume of genetic information within prophages that can be characterized as “dark matter”? Our study showed that 1209 ORFs (65% of all ORFs) in phiLM21-LPhs encode hypothetical proteins. Thus, more than half of the prophage ORFs constitute the “dark matter” of the prophage metavirome. Among them, 36.4% of ORFs have phage origin, 46.8% are presumably of bacterial origin, and for 16.9% of ORFs, it is not possible to determine the origin. Intact phiLM21-LPhs, similar to “containers,” harbor genetic information of phage, bacterial, and unknown origins. At the same time, the high prevalence of phiLM21 prophages may indicate that lysogenic strains had ecological advantages, which is consistent with [51].
In this context, questions regarding the possibility of prophages transitioning from the lysogenic to the lytic state, and whether the expression of lysogenic prophage genes in the bacterial host genome is possible, are directly relevant to understanding the functional role of the “dark matter” of phage origin. It is believed that the effect of phage conversion benefits bacterial hosts by providing new functions in a bacterium-phage symbiotic interaction known as lysogenic conversion [52,53,54]. However, all these studies were conducted on pathogenic strains of microorganisms co-evolving with specific phages. The process of prophage gene expression is closely linked to the regulatory systems controlling the life cycles of temperate phages [45]. The expression of prophage genes, including toxin genes, primarily occurs during phage induction, which results in the death of the pathogenic bacterial cell [45]. At the same time, there are data indicating that some phage genes are expressed both in the prophage state and can increase bacterial survival under certain conditions [55]. The impact of temperate phages on non-pathogenic bacteria, which are widely used, for example, in agricultural biotechnology, remains a relatively understudied area.
Analysis of phiLM21-LPhs revealed that only half possess sequences with predicted regulatory functions, although these remain uncharacterized; furthermore, only approximately one-fifth of intact phiLM21-LPhs contain the minimal set of regulators required for the transition from the lysogenic to the lytic cycle, as described in the literature, suggesting that these may be inducible from the bacterial genome. All phiLM21-LPhs were integrated into specific isoacceptor tRNA genes and encoded a tyrosine-type integrase, which recent data suggest may facilitate tRNA-dependent lysogeny [56]. If site-specific integration of the phage into a bacterial tRNA gene leads to its inactivation, phages can compensate for this by encoding a tRNA of the same isotype as the inactivated host tRNA, thereby complementing the loss and ensuring the survival of lysogenic progeny [56]. This mechanism was previously described by our group for prophages similar to Mesorhizobium phage vB_MloP_Lo5R7ANS [11]. However, it was not observed in the phiLM21-LPhs studied here, as all host tRNA genes were reconstructed upon phiLM21-LPhs integration, and all phiLM21-LPhs-encoded tRNA genes were different from the host tRNA genes at the integration site. The findings discussed above indicate that phiLM21-LPhs sequences are undergoing “anchoring” within the bacterial genome, a process that, according to [52], is accompanied by co-evolution of the bacterial chromosome and the integrated phage sequence.
The literature contains data indicating that phage-associated genes within genomic islands influence stress tolerance. For example, cyanobacteria of the genus Synechococcus express genes in response to oxidative stress conditions [57]. Similarly, genes located in prophages contribute to the virulence program of Salmonella [58]. We have shown that genes within genomic islands of S. meliloti, which have phage origin but have lost a significant portion of phage genes, including their regulatory elements, can be expressed under normal conditions as well as under osmotic stress conditions [59,60].
The results obtained in our study of prophages in the genomes of non-pathogenic nitrogen-fixing bacterial hosts—which are, in turn, micro-symbionts of leguminous plants—significantly complement and expand the understanding of the fate of site-specific integrated sequences of phage origin within bacterial chromosomes. Simultaneously, the data raise critical questions regarding the evolutionary implications of phage conversion in non-pathogenic bacteria, particularly its role in driving bacterial adaptation and diversification. The accumulated “dark matter” within prophages may further contribute to microbial evolution by serving as a reservoir of genetic variability, potentially facilitating niche specialization or horizontal gene transfer. Collectively, findings from both laboratory experiments and bioinformatics analyses underscore the pressing need for a renewed focus on functional investigations into phage–microbe interactions, which could elucidate their broader evolutionary and ecological consequences.

4. Materials and Methods

For analysis, complete genome sequences of 36 Sinorhizobium meliloti strains from various regions were used, available in GenBank (RefSeq) (Table 5). The sequences of 33 S. meliloti strains have a complete assembly level, while the genomes of AK170, AK555, and CXM1-105 have a contig assembly level. A group of 7 out of the 36 strains was isolated from a region subjected to extreme salinity in northwestern Kazakhstan. The genomes of five of these strains were sequenced, assembled, and annotated at the Laboratory of Genetics and Selection of Microorganisms, FSBSI ARRIAM. The two strains, AK21 and AK83, were analyzed within the framework of international projects INCO-COPERNICUS grant ICA2-CT-2001-10001 and PLADADINFIS EU [61,62] (Table 5).
In this study, genome sequences of 17 sinorhizobiophages listed in Virus–Host DB ([30], accessed 4 April 2025) (Table 6) were used.
The search for prophage sequences in S. meliloti genomes was conducted using the web service PHASTEST [73] in deep bacterial sequence annotation mode; the nucleotide genome sequence files (FASTA format) were uploaded. The chromosome sequences of 27 strains were restarted relative to the oriC sequence, whereas for 9 strains (S35m, RRI128, MAG283, LPU88, MABNR56, MAG282, LMB1, BIM B-442D, and 1132), sequences were taken directly from GenBank. The boundaries of the identified prophage sequences integrated into tRNA genes were determined according to the Islander algorithm [74], based on the localization of flanking direct repeats.
The bioinformatics classification of phage regions into ‘intact’, ‘questionable’, and ‘incomplete’ was performed using PHASTEST [73]. PHASTEST improves upon earlier versions and enhances annotation of all genomic features, including tRNAs, rRNAs, and protein-coding genes outside prophage regions. The general principles of the program are detailed by Zhou et al. [75]. This classification is based on the size of the phage region, the number of phage-like genes it contains, and its similarity to known phages. It also involves counting the number of identified genes encoding proteins essential for phage structure, DNA regulation, integration, and lysis (so-called ‘cornerstone’ genes), as well as assessing the density of phage-like genes within the region [75]. Nucleotide sequence alignments of genes, phages, and prophages were performed using Nucleotide BLAST (Web BLAST+ 2.17.0: 22 July 2025) (Identity > 70%). Amino acid sequence alignments were performed using Protein BLAST (Web BLAST+ 2.17.0: 22 July 2025). Sequences of phage genes and their protein products were obtained using PHASTEST annotation. tRNA searches within prophage sequences were additionally carried out using tRNAScan-SE v. 2.0 [76].
For phylogenetic analysis, whole-genome data of 90 phages (Table S4) obtained from the NCBI database (submission date July 2025) were used. Comparison of multiple nucleotide sequences of genes was performed using MUSCLE v5 [77]. Phylogenetic trees were constructed based on the sequences of the tls gene, encoding the terminase large subunit (TerL), which is used as a phylogenetic marker for phages, and the integrase gene (int), using IQ-TREE v.3.0.1 [78] with a maximum likelihood algorithm (1000 bootstrap replicates). The trees were visualized using Dendroscope3 [79].
The search for antiphage defense systems in prophages was performed using a PADLOC web server [42].
Statistical analyses were performed using the PAST software package version 4.03 [80]. The significance of the differences was assessed using the Χ2 criterion at α = 0.05.
The following abbreviations were used to describe the results obtained: I—Identity, Cov—Cover, E—E-value.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms26178704/s1.

Author Contributions

Conceptualization, M.L.R.; methodology, M.L.R., V.S.M., A.P.K., and M.E.V.; formal analysis, M.E.V., A.P.K., A.S.S., and V.S.M.; validation, M.E.V.; investigation, M.E.V., S.P.G., and V.S.M.; data curation, M.L.R. and M.E.V.; writing—original draft, M.L.R. and M.E.V.; writing—review and editing, M.L.R., A.P.K., A.S.S., V.S.M., S.P.G., and M.E.V.; project administration, M.L.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Ministry of Science and Higher Education of the Russian Federation within the framework of the Agreement of 29 May 2025 No. 075-15-2025-472 on the provision of a grant in the form of a subsidy from the federal budget for the implementation of the project, “Expansion of the fund and development of genomic research in the collection of microorganisms the Network Collection of Bioresources in the field of genetic technologies for agriculture (RCAM)”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in this article/Supplementary Materials. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
phiLM21-LPhsphiLM21-like prophages
IIdentity
CovCover
EE-value
tlsterminase large subunit

References

  1. Hendrix, R.W. Bacteriophages: Evolution of the Majority. Theor. Popul. Biol. 2002, 61, 471–480. [Google Scholar] [CrossRef] [PubMed]
  2. Ackermann, H.-W. Bacteriophage Observations and Evolution. Res. Microbiol. 2003, 154, 245–251. [Google Scholar] [CrossRef]
  3. Clokie, M.R.J.; Millard, A.D.; Letarov, A.V.; Heaphy, S. Phages in Nature. Bacteriophage 2011, 1, 31–45. [Google Scholar] [CrossRef] [PubMed]
  4. Naureen, Z.; Dautaj, A.; Anpilogov, K.; Camilleri, G.; Dhuli, K.; Tanzi, B.; Maltese, P.E.; Cristofoli, F.; De Antoni, L.; Beccari, T.; et al. Bacteriophages Presence in Nature and Their Role in the Natural Selection of Bacterial Populations. Acta Biomed. 2020, 91, e2020024. [Google Scholar] [CrossRef]
  5. Williamson, K.E.; Fuhrmann, J.J.; Wommack, K.E.; Radosevich, M. Viruses in Soil Ecosystems: An Unknown Quantity Within an Unexplored Territory. Annu. Rev. Virol. 2017, 4, 201–219. [Google Scholar] [CrossRef]
  6. Graham, E.B.; Paez-Espino, D.; Brislawn, C.; Hofmockel, K.S.; Wu, R.; Kyrpides, N.C.; Jansson, J.K.; McDermott, J.E. Untapped Viral Diversity in Global Soil Metagenomes. bioRxiv 2019. [Google Scholar] [CrossRef]
  7. Chevallereau, A.; Pons, B.J.; Van Houte, S.; Westra, E.R. Interactions between Bacterial and Phage Communities in Natural Environments. Nat. Rev. Microbiol. 2022, 20, 49–62. [Google Scholar] [CrossRef]
  8. Pratama, A.A.; Van Elsas, J.D. The ‘Neglected’ Soil Virome—Potential Role and Impact. Trends Microbiol. 2018, 26, 649–662. [Google Scholar] [CrossRef]
  9. Muscatt, G.; Hilton, S.; Raguideau, S.; Teakle, G.; Lidbury, I.D.E.A.; Wellington, E.M.H.; Quince, C.; Millard, A.; Bending, G.D.; Jameson, E. Crop Management Shapes the Diversity and Activity of DNA and RNA Viruses in the Rhizosphere. Microbiome 2022, 10, 181. [Google Scholar] [CrossRef]
  10. Keen, E.C.; Bliskovsky, V.V.; Malagon, F.; Baker, J.D.; Prince, J.S.; Klaus, J.S.; Adhya, S.L. Novel “Superspreader” Bacteriophages Promote Horizontal Gene Transfer by Transformation. mBio 2017, 8, e02115-16. [Google Scholar] [CrossRef]
  11. Vladimirova, M.E.; Roumiantseva, M.L.; Saksaganskaia, A.S.; Muntyan, V.S.; Gaponov, S.P.; Mengoni, A. Hot Spots of Site-Specific Integration into the Sinorhizobium Meliloti Chromosome. Int. J. Mol. Sci. 2024, 25, 10421. [Google Scholar] [CrossRef]
  12. Wang, H.; Yang, Y.; Xu, Y.; Chen, Y.; Zhang, W.; Liu, T.; Chen, G.; Wang, K. Phage-Based Delivery Systems: Engineering, Applications, and Challenges in Nanomedicines. J. Nanobiotechnol. 2024, 22, 365. [Google Scholar] [CrossRef]
  13. Wong, S.; Jimenez, S.; Pushparajah, D.; Prakash, R.; Slavcev, R. A Novel Miniaturized Filamentous Phagemid as a Gene Delivery Vehicle to Target Mammalian Cells. Mol. Ther. Nucleic Acids 2025, 36, 102571. [Google Scholar] [CrossRef] [PubMed]
  14. Casjens, S.; Hendrix, R.W. Bacteriophages and the Bacterial Genome. In The Bacterial Chromosome; Higgins, N.P., Ed.; ASM Press: Washington, DC, USA, 2014; pp. 39–52. ISBN 978-1-68367-204-3. [Google Scholar]
  15. Johnson, G.; Banerjee, S.; Putonti, C. Diversity of Pseudomonas Aeruginosa Temperate Phages. mSphere 2022, 7, e01015-21. [Google Scholar] [CrossRef] [PubMed]
  16. Zhou, W.; Li, Y.; Xu, X.; Rao, S.; Wen, H.; Han, Y.; Deng, A.; Zhang, Z.; Yang, Z.; Zhu, G. Whole-Genome Analysis Showed the Promotion of Genetic Diversity and Coevolution in Staphylococcus Aureus Lytic Bacteriophages and Their Hosts Mediated by Prophages via Worldwide Recombination Events. Front. Microbiol. 2023, 14, 1088125. [Google Scholar] [CrossRef]
  17. Asadulghani, M.; Ogura, Y.; Ooka, T.; Itoh, T.; Sawaguchi, A.; Iguchi, A.; Nakayama, K.; Hayashi, T. The Defective Prophage Pool of Escherichia Coli O157: Prophage–Prophage Interactions Potentiate Horizontal Transfer of Virulence Determinants. PLoS Pathog. 2009, 5, e1000408. [Google Scholar] [CrossRef]
  18. Orellana, R.; Arancibia, A.; Badilla, L.; Acosta, J.; Arancibia, G.; Escar, R.; Ferrada, G.; Seeger, M. Ecophysiological Features Shape the Distribution of Prophages and CRISPR in Sulfate Reducing Prokaryotes. Microorganisms 2021, 9, 931. [Google Scholar] [CrossRef] [PubMed]
  19. Kozlova, A.P.; Saksaganskaia, A.S.; Afonin, A.M.; Muntyan, V.S.; Vladimirova, M.E.; Dzyubenko, E.A.; Roumiantseva, M.L. A Temperate Sinorhizobium Phage, AP-16-3, Closely Related to Phage 16-3: Mosaic Genome and Prophage Analysis. Viruses 2023, 15, 1701. [Google Scholar] [CrossRef]
  20. Decewicz, P.; Radlinska, M.; Dziewit, L. Characterization of Sinorhizobium Sp. LM21 Prophages and Virus-Encoded DNA Methyltransferases in the Light of Comparative Genomic Analyses of the Sinorhizobial Virome. Viruses 2017, 9, 161. [Google Scholar] [CrossRef] [PubMed]
  21. Schneider, C.L. Bacteriophage-Mediated Horizontal Gene Transfer: Transduction. In Bacteriophages; Springer International Publishing: Cham, Switzerland, 2017; pp. 1–42. ISBN 978-3-319-40598-8. [Google Scholar]
  22. Zhan, Y.; Huang, S.; Voget, S.; Simon, M.; Chen, F. A Novel Roseobacter Phage Possesses Features of Podoviruses, Siphoviruses, Prophages and Gene Transfer Agents. Sci. Rep. 2016, 6, 30372. [Google Scholar] [CrossRef]
  23. Johnson, M.C.; Sena-Velez, M.; Washburn, B.K.; Platt, G.N.; Lu, S.; Brewer, T.E.; Lynn, J.S.; Stroupe, M.E.; Jones, K.M. Structure, Proteome and Genome of Sinorhizobium meliloti Phage ΦM5: A Virus with LUZ24-like Morphology and a Highly Mosaic Genome. J. Struct. Biol. 2017, 200, 343–359. [Google Scholar] [CrossRef] [PubMed]
  24. Cubo, M.T.; Alías-Villegas, C.; Balsanelli, E.; Mesa, D.; De Souza, E.; Espuny, M.R. Diversity of Sinorhizobium (Ensifer) meliloti Bacteriophages in the Rhizosphere of Medicago Marina: Myoviruses, Filamentous and N4-Like Podovirus. Front. Microbiol. 2020, 11, 22. [Google Scholar] [CrossRef]
  25. Rice, S.A.; Tan, C.H.; Mikkelsen, P.J.; Kung, V.; Woo, J.; Tay, M.; Hauser, A.; McDougald, D.; Webb, J.S.; Kjelleberg, S. The Biofilm Life Cycle and Virulence of Pseudomonas Aeruginosa Are Dependent on a Filamentous Prophage. ISME J. 2009, 3, 271–282. [Google Scholar] [CrossRef]
  26. Wang, X.; Kim, Y.; Ma, Q.; Hong, S.H.; Pokusaeva, K.; Sturino, J.M.; Wood, T.K. Cryptic Prophages Help Bacteria Cope with Adverse Environments. Nat. Commun. 2010, 1, 147. [Google Scholar] [CrossRef]
  27. Semsey, S.; Papp, I.; Buzas, Z.; Patthy, A.; Orosz, L.; Papp, P.P. Identification of Site-Specific Recombination Genes Int and Xis of the Rhizobium Temperate Phage 16-3. J. Bacteriol. 1999, 181, 4185–4192. [Google Scholar] [CrossRef] [PubMed]
  28. Csiszovszki, Z.; Buzás, Z.; Semsey, S.; Ponyi, T.; Papp, P.P.; Orosz, L. immX Immunity Region of Rhizobium Phage 16-3: Two Overlapping Cistrons of Repressor Function. J. Bacteriol. 2003, 185, 4382–4392. [Google Scholar] [CrossRef]
  29. Zhang, Y.; Li, R.; Zou, G.; Guo, Y.; Wu, R.; Zhou, Y.; Chen, H.; Zhou, R.; Lavigne, R.; Bergen, P.J.; et al. Discovery of Antimicrobial Lysins from the “Dark Matter” of Uncharacterized Phages Using Artificial Intelligence. Adv. Sci. 2024, 11, 2404049. [Google Scholar] [CrossRef]
  30. Mihara, T.; Nishimura, Y.; Shimizu, Y.; Nishiyama, H.; Yoshikawa, G.; Uehara, H.; Hingamp, P.; Goto, S.; Ogata, H. Linking Virus Genomes with Host Taxonomy. Viruses 2016, 8, 66. [Google Scholar] [CrossRef]
  31. Dziewit, L.; Oscik, K.; Bartosik, D.; Radlinska, M. Molecular Characterization of a Novel Temperate Sinorhizobium Bacteriophage, ΦLM21, Encoding DNA Methyltransferase with CcrM-Like Specificity. J. Virol. 2014, 88, 13111–13124. [Google Scholar] [CrossRef]
  32. Turner, D.; Shkoporov, A.N.; Lood, C.; Millard, A.D.; Dutilh, B.E.; Alfenas-Zerbini, P.; Van Zyl, L.J.; Aziz, R.K.; Oksanen, H.M.; Poranen, M.M.; et al. Abolishment of Morphology-Based Taxa and Change to Binomial Species Names: 2022 Taxonomy Update of the ICTV Bacterial Viruses Subcommittee. Arch. Virol. 2023, 168, 74. [Google Scholar] [CrossRef] [PubMed]
  33. Casjens, S.R.; Gilcrease, E.B.; Winn-Stapley, D.A.; Schicklmaier, P.; Schmieger, H.; Pedulla, M.L.; Ford, M.E.; Houtz, J.M.; Hatfull, G.F.; Hendrix, R.W. The Generalized Transducing Salmonella Bacteriophage ES18: Complete Genome Sequence and DNA Packaging Strategy. J. Bacteriol. 2005, 187, 1091–1104. [Google Scholar] [CrossRef]
  34. He, X.; Sambe, M.A.N.; Zhuo, C.; Tu, Q.; Guo, Z. A Temperature Induced Lipocalin Gene from Medicago falcata (MfTIL1) Confers Tolerance to Cold and Oxidative Stress. Plant Mol. Biol. 2015, 87, 645–654. [Google Scholar] [CrossRef] [PubMed]
  35. Flower, D.R. The Lipocalin Protein Family: Structure and Function. Biochem. J. 1996, 318, 1–14. [Google Scholar] [CrossRef]
  36. El-Halfawy, O.M.; Klett, J.; Ingram, R.J.; Loutet, S.A.; Murphy, M.E.P.; Martín-Santamaría, S.; Valvano, M.A. Antibiotic Capture by Bacterial Lipocalins Uncovers an Extracellular Mechanism of Intrinsic Antibiotic Resistance. mBio 2017, 8, e00225-17. [Google Scholar] [CrossRef]
  37. Chandrasekaran, P.; Weiskirchen, S.; Weiskirchen, R. Structure, Functions, and Implications of Selected Lipocalins in Human Disease. Int. J. Mol. Sci. 2024, 25, 4290. [Google Scholar] [CrossRef]
  38. Xiong, X.; Wu, G.; Wei, Y.; Liu, L.; Zhang, Y.; Su, R.; Jiang, X.; Li, M.; Gao, H.; Tian, X.; et al. SspABCD–SspE Is a Phosphorothioation-Sensing Bacterial Defence System with Broad Anti-Phage Activities. Nat. Microbiol. 2020, 5, 917–928. [Google Scholar] [CrossRef]
  39. Wang, S.; Wan, M.; Huang, R.; Zhang, Y.; Xie, Y.; Wei, Y.; Ahmad, M.; Wu, D.; Hong, Y.; Deng, Z.; et al. SspABCD-SspFGH Constitutes a New Type of DNA Phosphorothioate-Based Bacterial Defense System. mBio 2021, 12, e00613-21. [Google Scholar] [CrossRef]
  40. Xu, T.; Yao, F.; Zhou, X.; Deng, Z.; You, D. A Novel Host-Specific Restriction System Associated with DNA Backbone S-Modification in Salmonella. Nucleic Acids Res. 2010, 38, 7133–7141. [Google Scholar] [CrossRef] [PubMed]
  41. Tong, T.; Chen, S.; Wang, L.; Tang, Y.; Ryu, J.Y.; Jiang, S.; Wu, X.; Chen, C.; Luo, J.; Deng, Z.; et al. Occurrence, Evolution, and Functions of DNA Phosphorothioate Epigenetics in Bacteria. Proc. Natl. Acad. Sci. USA 2018, 115, E2988–E2996. [Google Scholar] [CrossRef]
  42. Payne, L.J.; Meaden, S.; Mestre, M.R.; Palmer, C.; Toro, N.; Fineran, P.C.; Jackson, S.A. PADLOC: A Web Server for the Identification of Antiviral Defence Systems in Microbial Genomes. Nucleic Acids Res. 2022, 50, W541–W550. [Google Scholar] [CrossRef] [PubMed]
  43. Brady, A.; Felipe-Ruiz, A.; Gallego Del Sol, F.; Marina, A.; Quiles-Puchalt, N.; Penadés, J.R. Molecular Basis of Lysis–Lysogeny Decisions in Gram-Positive Phages. Annu. Rev. Microbiol. 2021, 75, 563–581. [Google Scholar] [CrossRef]
  44. Sekizuka, T.; Yamamoto, A.; Komiya, T.; Kenri, T.; Takeuchi, F.; Shibayama, K.; Takahashi, M.; Kuroda, M.; Iwaki, M. Corynebacterium ulcerans 0102 Carries the Gene Encoding Diphtheria Toxin on a Prophage Different from the C. diphtheriae NCTC 13129 Prophage. BMC Microbiol. 2012, 12, 72. [Google Scholar] [CrossRef] [PubMed]
  45. Łoś, J.M.; Łoś, M.; Węgrzyn, A.; Węgrzyn, G. Altruism of Shiga Toxin-Producing Escherichia coli: Recent Hypothesis versus Experimental Results. Front. Cell. Infect. Microbiol. 2013, 2, 166. [Google Scholar] [CrossRef]
  46. Ingmer, H.; Gerlach, D.; Wolz, C. Temperate Phages of Staphylococcus aureus. Microbiol. Spectr. 2019, 7. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  47. Kondo, K.; Kawano, M.; Sugai, M. Distribution of Antimicrobial Resistance and Virulence Genes within the Prophage-Associated Regions in Nosocomial Pathogens. mSphere 2021, 6, e00452-21. [Google Scholar] [CrossRef] [PubMed]
  48. Abad, L.; Gauthier, C.H.; Florian, I.; Jacobs-Sera, D.; Hatfull, G.F. The Heterogenous and Diverse Population of Prophages in Mycobacterium Genomes. mSystems 2023, 8, e00446-23. [Google Scholar] [CrossRef] [PubMed]
  49. Nielander, M.; Maybank, M.; Massimino, C.; Fitzgerald, J.; Blossum, H.; Douthitt, C.; Holland, C.; Hunter, W.B.; Carrol, M.; D’Elia, T. Complete Genome Sequences of StopSmel and Aussie, Two Mu-like Bacteriophages of Sinorhizobium meliloti. Microbiol. Resour. Announc. 2024, 13, e01230-23. [Google Scholar] [CrossRef]
  50. Casjens, S.R. Diversity among the Tailed-Bacteriophages That Infect the Enterobacteriaceae. Res. Microbiol. 2008, 159, 340–348. [Google Scholar] [CrossRef]
  51. Ramisetty, B.C.M.; Sudhakari, P.A. Bacterial ‘Grounded’ Prophages: Hotspots for Genetic Renovation and Innovation. Front. Genet. 2019, 10, 65. [Google Scholar] [CrossRef]
  52. Brüssow, H.; Canchaya, C.; Hardt, W.-D. Phages and the Evolution of Bacterial Pathogens: From Genomic Rearrangements to Lysogenic Conversion. Microbiol. Mol. Biol. Rev. 2004, 68, 560–602. [Google Scholar] [CrossRef] [PubMed]
  53. Davies, E.V.; Winstanley, C.; Fothergill, J.L.; James, C.E. The Role of Temperate Bacteriophages in Bacterial Infection. FEMS Microbiol. Lett. 2016, 363, fnw015. [Google Scholar] [CrossRef] [PubMed]
  54. Łoś, J.; Zielińska, S.; Krajewska, A.; Michalina, Z.; Małachowska, A.; Kwaśnicka, K.; Łoś, M. Temperate Phages, Prophages, and Lysogeny. In Bacteriophages; Harper, D.R., Abedon, S.T., Burrowes, B.H., McConville, M.L., Eds.; Springer International Publishing: Cham, Switzerland, 2021; pp. 119–150. ISBN 978-3-319-41985-5. [Google Scholar]
  55. Barondess, J.J.; Beckwfth, J. A Bacterial Virulence Determinant Encoded by Lysogenic Coliphage λ. Nature 1990, 346, 871–874. [Google Scholar] [CrossRef]
  56. Guerrero-Bustamante, C.A.; Hatfull, G.F. Bacteriophage tRNA-Dependent Lysogeny: Requirement of Phage-Encoded tRNA Genes for Establishment of Lysogeny. mBio 2024, 15, e03260-23. [Google Scholar] [CrossRef]
  57. Stuart, R.K.; Brahamsha, B.; Busby, K.; Palenik, B. Genomic Island Genes in a Coastal Marine Synechococcus Strain Confer Enhanced Tolerance to Copper and Oxidative Stress. ISME J. 2013, 7, 1139–1149. [Google Scholar] [CrossRef]
  58. Ilyas, B.; Tsai, C.N.; Coombes, B.K. Evolution of Salmonella-Host Cell Interactions through a Dynamic Bacterial Genome. Front. Cell. Infect. Microbiol. 2017, 7, 428. [Google Scholar] [CrossRef] [PubMed]
  59. Roumiantseva, M.L.; Muntyan, V.S. Root Nodule Bacteria Sinorhizobium Meliloti: Tolerance to Salinity and Bacterial Genetic Determinants. Microbiology 2015, 84, 303–318. [Google Scholar] [CrossRef]
  60. Roumiantseva, M.L.; Muntyan, V.S.; Cherkasova, M.E.; Saksaganskaya, A.S.; Andronov, E.E.; Simarov, B.V. Genomic Islands in Sinorhizobium Meliloti Rm1021, Nitrogen-Fixing Symbiont of Alfalfa. Russ. J. Genet. 2018, 54, 759–769. [Google Scholar] [CrossRef]
  61. Jiménez-Zurdo, J.I.; Martínez-Abarca, F.; Cobo-Díaz, J.F.; López-Contreras, J.A.; Fernández-López, M.; Toro, N. Complete Genome Sequence of Sinorhizobium Meliloti Strain AK21, a Salt-Tolerant Isolate from the Aral Sea Region. Microbiol. Resour. Announc. 2020, 9, e01432-19. [Google Scholar] [CrossRef]
  62. Galardini, M.; Pini, F.; Bazzicalupo, M.; Biondi, E.G.; Mengoni, A. Replicon-Dependent Bacterial Genome Evolution: The Case of Sinorhizobium meliloti. Genome Biol. Evol. 2013, 5, 542–558. [Google Scholar] [CrossRef]
  63. Roumiantseva, M.L.; Vladimirova, M.E.; Saksaganskaia, A.S.; Muntyan, V.S.; Kozlova, A.P.; Afonin, A.M.; Baturina, O.A.; Simarov, B.V. Ensifer meliloti L6-AK89, an Effective Inoculant of Medicago lupulina Varieties: Phenotypic and Deep-Genome Screening. Agronomy 2022, 12, 766. [Google Scholar] [CrossRef]
  64. Vladimirova, M.E.; Muntyan, V.S.; Afonin, A.M.; Muntyan, A.N.; Baturina, O.A.; Dzuybenko, E.A.; Saksaganskaya, A.S.; Simarov, B.V.; Roumiantseva, M.L.; Kabilov, M.R. Complete Genome of Sinorhizobium meliloti AK76, a Symbiont of Wild Diploid Medicago lupulina from the Mugodgary Mountain Region. Microbiol. Resour. Announc. 2022, 11, e01088-21. [Google Scholar] [CrossRef]
  65. Baturina, O.A.; Muntyan, V.S.; Cherkasova, M.E.; Saksaganskaya, A.S.; Dzuybenko, N.I.; Kabilov, M.R.; Roumiantseva, M.L. Draft Genome Sequence of Sinorhizobium meliloti Strain AK170. Microbiol. Resour. Announc. 2019, 8, e01571-18. [Google Scholar] [CrossRef]
  66. Baturina, O.A.; Muntyan, V.S.; Afonin, A.M.; Cherkasova, M.E.; Simarov, B.V.; Kabilov, M.R.; Roumiantseva, M.L. Draft Genome Sequence of Sinorhizobium meliloti Strain CXM1-105. Microbiol. Resour. Announc. 2019, 8, e01621-18. [Google Scholar] [CrossRef] [PubMed]
  67. Muntyan, V.S.; Baturina, O.A.; Afonin, A.M.; Cherkasova, M.E.; Laktionov, Y.V.; Saksaganskaya, A.S.; Kabilov, M.R.; Roumiantseva, M.L. Draft Genome Sequence of Sinorhizobium meliloti AK555. Microbiol. Resour. Announc. 2019, 8, e01567-18. [Google Scholar] [CrossRef]
  68. Fleagle, B.; Imamovic, A.; Toledo, S.; Couves, M.; Jensen, A.; Vang, M.; Steevens, A.; Young, N.D.; Sadowsky, M.J.; Martinez-Vaz, B.M. Complete Genome Sequence of Sinorhizobium meliloti Bacteriophage HMSP1-Susan. Genome Announc. 2018, 6, e01450-17. [Google Scholar] [CrossRef]
  69. Brewer, T.E.; Washburn, B.K.; Lynn, J.S.; Jones, K.M. Complete Genome Sequence of Sinorhizobium Phage ΦM6, the First Terrestrial Phage of a Marine Phage Group. Microbiol. Resour. Announc. 2018, 7, e01143-18. [Google Scholar] [CrossRef]
  70. Kozlova, A.P.; Muntyan, V.S.; Vladimirova, M.E.; Saksaganskaia, A.S.; Kabilov, M.R.; Gorbunova, M.K.; Gorshkov, A.N.; Grudinin, M.P.; Simarov, B.V.; Roumiantseva, M.L. Soil Giant Phage: Genome and Biological Characteristics of Sinorhizobium Jumbo Phage. Int. J. Mol. Sci. 2024, 25, 7388. [Google Scholar] [CrossRef]
  71. Johnson, M.C.; Tatum, K.B.; Lynn, J.S.; Brewer, T.E.; Lu, S.; Washburn, B.K.; Stroupe, M.E.; Jones, K.M. Sinorhizobium meliloti Phage ΦM9 Defines a New Group of T4 Superfamily Phages with Unusual Genomic Features but a Common T=16 Capsid. J. Virol. 2015, 89, 10945–10958. [Google Scholar] [CrossRef] [PubMed]
  72. Brewer, T.E.; Elizabeth Stroupe, M.; Jones, K.M. The Genome, Proteome and Phylogenetic Analysis of Sinorhizobium meliloti Phage ΦM12, the Founder of a New Group of T4-Superfamily Phages. Virology 2014, 450–451, 84–97. [Google Scholar] [CrossRef] [PubMed]
  73. Wishart, D.S.; Han, S.; Saha, S.; Oler, E.; Peters, H.; Grant, J.R.; Stothard, P.; Gautam, V. PHASTEST: Faster than PHASTER, Better than PHAST. Nucleic Acids Res. 2023, 51, W443–W450. [Google Scholar] [CrossRef]
  74. Hudson, C.M.; Lau, B.Y.; Williams, K.P. Islander: A Database of Precisely Mapped Genomic Islands in tRNA and tmRNA Genes. Nucleic Acids Res. 2015, 43, D48–D53. [Google Scholar] [CrossRef] [PubMed]
  75. Zhou, Y.; Liang, Y.; Lynch, K.H.; Dennis, J.J.; Wishart, D.S. PHAST: A Fast Phage Search Tool. Nucleic Acids Res. 2011, 39, W347–W352. [Google Scholar] [CrossRef] [PubMed]
  76. Chan, P.P.; Lin, B.Y.; Mak, A.J.; Lowe, T.M. tRNAscan-SE 2.0: Improved Detection and Functional Classification of Transfer RNA Genes. Nucleic Acids Res. 2021, 49, 9077–9096. [Google Scholar] [CrossRef] [PubMed]
  77. Edgar, R.C. MUSCLE: Multiple Sequence Alignment with High Accuracy and High Throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef]
  78. Trifinopoulos, J.; Nguyen, L.-T.; von Haeseler, A.; Minh, B.Q. W-IQ-TREE: A Fast Online Phylogenetic Tool for Maximum Likelihood Analysis. Nucleic Acids Res. 2016, 44, W232–W235. [Google Scholar] [CrossRef]
  79. Huson, D.H.; Scornavacca, C. Dendroscope 3: An Interactive Tool for Rooted Phylogenetic Trees and Networks. Syst. Biol. 2012, 61, 1061–1067. [Google Scholar] [CrossRef]
  80. Hammer, O.; Harper, D.; Ryan, P. PAST: Paleontological Statistics Software Package for Education and Data Analysis. Palaeontol. Electron. 2001, 4, 1–9. [Google Scholar]
Ijms 26 08704 g001
Figure 1. The scatter plot illustrates the distribution of 25 phiLM21-like prophages, the phiLM21 phage itself, and 16 phages that infect S. meliloti. On the x-axis, genome lengths (in base pairs) are plotted, while the y-axis represents GC content (%) for phiLM21-LPhs, phiLM21, and the 16 S. meliloti-infecting phages (see Section 4: Materials and Methods). Values ranging from 200 to 440 kb on the x-axis are not shown, as phages infecting S. meliloti with such genome sizes are currently unknown. A red arrow indicates the position of the temperate phage phiLM21 on the plot. The dotted line highlights a cloud of dots formed by currently known temperate phages (phiLM21, StopSmel, Aussie, 16-3, PBC5). Additionally, an asterisk (*) marks a point on the diagram corresponding to two phages, phiM19 and phiM7, which have similar genome lengths and GC content.
Figure 1. The scatter plot illustrates the distribution of 25 phiLM21-like prophages, the phiLM21 phage itself, and 16 phages that infect S. meliloti. On the x-axis, genome lengths (in base pairs) are plotted, while the y-axis represents GC content (%) for phiLM21-LPhs, phiLM21, and the 16 S. meliloti-infecting phages (see Section 4: Materials and Methods). Values ranging from 200 to 440 kb on the x-axis are not shown, as phages infecting S. meliloti with such genome sizes are currently unknown. A red arrow indicates the position of the temperate phage phiLM21 on the plot. The dotted line highlights a cloud of dots formed by currently known temperate phages (phiLM21, StopSmel, Aussie, 16-3, PBC5). Additionally, an asterisk (*) marks a point on the diagram corresponding to two phages, phiM19 and phiM7, which have similar genome lengths and GC content.
Ijms 26 08704 g001
Ijms 26 08704 g002
Figure 2. Pairwise alignment of the 25 phiLM21-LPh sequences across phiLM21. * The location of the two sequences (7347 bp and 7371 bp; I = 82.2%) in the diagram is the same.
Figure 2. Pairwise alignment of the 25 phiLM21-LPh sequences across phiLM21. * The location of the two sequences (7347 bp and 7371 bp; I = 82.2%) in the diagram is the same.
Ijms 26 08704 g002
Ijms 26 08704 g003
Figure 3. Sequences of phiLM21-LPhs similar to phiLM21. The groups and the list of corresponding phiLM21-LPhs are shown on the left (see text). Colored lines indicate sequences identified in phiLM21-LPhs, with identity to phiLM21 exceeding 70%. Red star symbol (★). For the phiLM21 phage (50,827 bp; NCBI RefSeq: NC_029046.1 from 1 June 2025), regions of phage genes associated with early and late expression were predicted based on analysis of gene-encoded protein products. The early gene expression region in phiLM21 is tentatively starting from gene AWJ26_gp01 (gp01), which encodes an integrase, and AWJ26_gp02 (gp02), encoding an excisionase; it includes gene AWJ26_gp23 (gp23) encoding a hypothetical protein, and ends with a region encoding a transcription antiterminator and HNH endonuclease (positions 1–21,013 bp); this region also contains a non-homologous end-joining DNA ligase involved in DNA repair (positions 49,750–50,742 bp). The late gene expression region of phiLM21 is presumed to start with gene AWJ26_gp70 (gp70), encoding the terminase large subunit (involved in DNA packaging into the capsid); it includes gene AWJ26_gp63 (gp63), encoding head closure protein Hc1; gene AWJ26_gp59 (gp59), encoding head morphogenesis; and ends with a gene encoding a membrane protein (positions 22,088–48,048 bp). Colored rectangles indicate genes with predicted functions (total of 37 genes); gray rectangles represent genes encoding hypothetical proteins (total of 35 genes); and the green rectangle indicates the tRNA-Met gene. Detailed BLASTn alignment results are presented in Table S2.
Figure 3. Sequences of phiLM21-LPhs similar to phiLM21. The groups and the list of corresponding phiLM21-LPhs are shown on the left (see text). Colored lines indicate sequences identified in phiLM21-LPhs, with identity to phiLM21 exceeding 70%. Red star symbol (★). For the phiLM21 phage (50,827 bp; NCBI RefSeq: NC_029046.1 from 1 June 2025), regions of phage genes associated with early and late expression were predicted based on analysis of gene-encoded protein products. The early gene expression region in phiLM21 is tentatively starting from gene AWJ26_gp01 (gp01), which encodes an integrase, and AWJ26_gp02 (gp02), encoding an excisionase; it includes gene AWJ26_gp23 (gp23) encoding a hypothetical protein, and ends with a region encoding a transcription antiterminator and HNH endonuclease (positions 1–21,013 bp); this region also contains a non-homologous end-joining DNA ligase involved in DNA repair (positions 49,750–50,742 bp). The late gene expression region of phiLM21 is presumed to start with gene AWJ26_gp70 (gp70), encoding the terminase large subunit (involved in DNA packaging into the capsid); it includes gene AWJ26_gp63 (gp63), encoding head closure protein Hc1; gene AWJ26_gp59 (gp59), encoding head morphogenesis; and ends with a gene encoding a membrane protein (positions 22,088–48,048 bp). Colored rectangles indicate genes with predicted functions (total of 37 genes); gray rectangles represent genes encoding hypothetical proteins (total of 35 genes); and the green rectangle indicates the tRNA-Met gene. Detailed BLASTn alignment results are presented in Table S2.
Ijms 26 08704 g003
Ijms 26 08704 g004
Figure 4. Phylogenetic tree of tls genes of phiLM21-LPhs and phages infecting rhizobia. (a) tls genes of the 25 phiLM21-LPhs and 90 rhizobiophages (Table S4) were used for phylogenetic analysis; (b) the enlarged images of the clusters A, B, and C are presented; colored balls are phiLM21-LPhs groups, blue—Group 1, red—Group 2, green—Group 3, based on nucleotide similarity with phage PhiLM21 (see Figure 3); Sin-ph—Sinorhizobium phage, Rh-ph—Rhizobium phage, Br-ph—Bradyrhizobium phage, Mes-ph—Mesorhizobium phage, Edw-ph—Edwardsiella phage, Str-ph—Streptomyces phage, Pse-ph—Pseudomonas phage. Phylogenetic tree (a) in Newick format is in the Supplementary Materials.
Figure 4. Phylogenetic tree of tls genes of phiLM21-LPhs and phages infecting rhizobia. (a) tls genes of the 25 phiLM21-LPhs and 90 rhizobiophages (Table S4) were used for phylogenetic analysis; (b) the enlarged images of the clusters A, B, and C are presented; colored balls are phiLM21-LPhs groups, blue—Group 1, red—Group 2, green—Group 3, based on nucleotide similarity with phage PhiLM21 (see Figure 3); Sin-ph—Sinorhizobium phage, Rh-ph—Rhizobium phage, Br-ph—Bradyrhizobium phage, Mes-ph—Mesorhizobium phage, Edw-ph—Edwardsiella phage, Str-ph—Streptomyces phage, Pse-ph—Pseudomonas phage. Phylogenetic tree (a) in Newick format is in the Supplementary Materials.
Ijms 26 08704 g004
Ijms 26 08704 g005
Figure 5. Phylogenetic trees constructed based on (a) amino acid sequences and (b) nucleotide sequences of phiLM21-LPhs integrases. Colored circles represent groups of phiLM21-LPhs (see Figure 3): blue—Group 1, red—Group 2, green—Group 3. Labels A–D indicate clusters on the phylogenetic trees.
Figure 5. Phylogenetic trees constructed based on (a) amino acid sequences and (b) nucleotide sequences of phiLM21-LPhs integrases. Colored circles represent groups of phiLM21-LPhs (see Figure 3): blue—Group 1, red—Group 2, green—Group 3. Labels A–D indicate clusters on the phylogenetic trees.
Ijms 26 08704 g005
Ijms 26 08704 g006
Figure 6. Portion distribution of amino acid sequences encoded by phiLM21-LPhs exhibiting similarity to phages or bacterial genomes. phiLM21-LPhs of distinct groups according to sequence similarity with phage phiLM21 are encoded proteins exhibiting similarity to the following (in %): i—phiLM21; ii—phages infected bacteria of remote taxa; iii—aa sequences of Sinorhizobium/Ensifer spp.; iv—aa sequences of bacteria of remote taxa; v—lipocalin family aa sequences; vi—aa sequences of unknown origin, according to PHASTEST annotation.
Figure 6. Portion distribution of amino acid sequences encoded by phiLM21-LPhs exhibiting similarity to phages or bacterial genomes. phiLM21-LPhs of distinct groups according to sequence similarity with phage phiLM21 are encoded proteins exhibiting similarity to the following (in %): i—phiLM21; ii—phages infected bacteria of remote taxa; iii—aa sequences of Sinorhizobium/Ensifer spp.; iv—aa sequences of bacteria of remote taxa; v—lipocalin family aa sequences; vi—aa sequences of unknown origin, according to PHASTEST annotation.
Ijms 26 08704 g006
Ijms 26 08704 g007
Figure 7. The occurrence of amino acid sequences encoded by phiLM21-LPhs that have similarity to primary protein sequences of phages infecting bacteria of remote taxa.
Figure 7. The occurrence of amino acid sequences encoded by phiLM21-LPhs that have similarity to primary protein sequences of phages infecting bacteria of remote taxa.
Ijms 26 08704 g007
Table 1. Intact S. meliloti phiLM21-LPhs.
Table 1. Intact S. meliloti phiLM21-LPhs.
StrainphiLM21-LPh IIntegration Site
(tRNA Gene)		Length (bp)GC (%)Total Number of Protein-Coding GenesGenes Encoding Proteins Similar To: IItRNA Gene III
Phage Origin ProteinsNon-Phage Origin Proteins
Total Number Similar to phiLM21Hypothetical Sinorhizobium-like (S. meliloti)Other Bacterial TaxaLipocalin Family Protein
1132phi1132-039LYS(CUU)53,99459.9723310922 (2)71Met(CAU)
AK21phiAK21-039LYS(CUU)52,98959.25833922–/–21–
AK83phiAK83-016SER(GCU)52,89059.8775023910 (4)8–Val(CAC)
AK555phiAK555-039LYS(CUU)50,26159.85932826–/––/–1fMet(CAU)
CXM1-105phiCXM1-105-039LYS(CUU)53,95359.9753612523 (0)101fMet(CAU)
KH35cphiKH35c-039LYS(CUU)52,17960.4764314315 (1)15–/––
KH46phiKH46-039LYS(CUU)53,25860783910624 (1)81–
M162phiM162-016SER(GCU)53,42260.1704325115 (2)11–/–fMet(CAU)
Met(CAU)
RMO17phiRMO17-039LYS(CUU)52,04059.676368724 (2)81–
RRI128phiRRI128-016SER(GCU)51,89860.577523679 (1)9–/–fMet(CAU)
S35mphiS35m-039LYS(CUU)53,95260.3793810424 (1)121/
T073phiT073-031LEU(UAA)55,07060.38248121110 (1)13–/–Met(CAU)
USDA1157phiUSDA1157-039LYS(CUU)52,79260724013814 (1)91Met(CAU)
BIM B-442DphiBIM B-442D-016SER(GCU)52,57460.3774922613 (2)9–/––
phiBIM B-442D-039LYS(CUU)54,65959.9783661124 (0)61Met(CAU)
LPU88phiLPU88-031LEU(UAA)53,46059.8744026618 (3)10–/––
phiLPU88-039LYS(CUU)52,68759.9713410921 (2)61Met(CAU)
M270phiM270-016SER(GCU)52,17360.6764726511 (1)13–/–Met(CAU)
phiM270-031LEU(UAA)55,74359.3784211717 (2)111Met(CAU)
Rm41phiRm41-016SER(GCU)51,92160.7744624611 (1)11–/–Met(CAU)
phiRm41-039LYS(CUU)53,56559.8854111727 (1)91fMet(CAU)
SM11phiSM11-017PRO(GGG)50,86559.5703512425 (3)6–/––
phiSM11-031LEU(UAA)54,16459.483358625 (4)161Met(CAU)
USDA1021phiUSDA1021-016SER(GCU)52,85960.87750261110 (1)6–/–Met(CAU)
phiUSDA1021-039LYS(CUU)53,48560783511824 (1)101–
I Each prophage is named after its host strain and the number of its integration site tRNA gene, according to [11] 016—tRNA-Ser(GCU), 017—tRNA-Pro(GGG), 031—tRNA-Leu(UAA), 039—tRNA-Lys(CUU). Coordinates of phiLM21-LPhs in GenBank accessions are provided in Table S1; II according to PHASTEST annotation; III tRNA gene detected in phiLM21-LPhs according to tRNAScan-SE.
Table 2. Characteristics of phiLM21-homologous fragments in the phiLM21-LPh sequences (Group 1 prophages).
Table 2. Characteristics of phiLM21-homologous fragments in the phiLM21-LPh sequences (Group 1 prophages).
phiLM21-LPh
(Group 1)		Fragments Similar to phiLM21Cover (%) of phiLM21
QuantitySizes of and to (bp)Total Length, bpAverage Identity, %
phiRRI128-01610254–610717,17880.7 ± 0.833.8
phiM162-0165251–734713,78280.7 ± 1.127.1
phiLPU88-03141003–737113,57080.8 ± 1.326.7
phiRm41-0166700–528913,30978.6 ± 1.626.2
phiUSDA1021-0167302–494712,48679.3 ± 1.324.6
phiM270-0168325–374211,21679.9 ± 1.022.1
Table 3. Functional annotation of protein-encoding ORFs in phiLM21-LPhs.
Table 3. Functional annotation of protein-encoding ORFs in phiLM21-LPhs.
ORF of phiLM21-LPhs
COG IPredicted Protein FunctionGroups II
Function GroupDefinition (Function Code)ID
aa-iiiaa-iv
Metabolismsecondary metabolites biosynthesis, transport, and catabolism (Q)COG2931calcium-binding protein2-
COG2931protease1-
inorganic ion transport and metabolism (P)COG5478low-affinity iron permease family protein1-
Cellular Processes and Signalingcell wall/membrane/envelope biogenesis (M)COG2244lipopolysaccharide biosynthesis protein2-
posttranslational modification, protein turnover, chaperones (O)COG0526TlpA family protein disulfide reductase33
defense mechanisms (V)COG0494NUDIX hydrolase3-
intracellular trafficking, secretion, and vesicular transport (U); extracellular structures (W)COG3847Flp family type Ivb pilin-2
Information Storage and Processingreplication, recombination, and repair (L)COG0593chromosomal replication initiator protein DnaA1-
COG1793multifunctional non-homologous end joining protein LigD-1
Poorly Characterizedmobilome: prophages, transposons (X)COG3328IS256-like element ISRm3 family transposase1-
COG4584IS21 family transposase-1
COG3666IS5 family transposase-1
general function prediction only (R)COG3179peptidoglycan-binding protein19-
function unknown (S)COG4748restriction endonuclease or methylase2-
COG3750UPF0335 protein NGR_c28390-1
-cell cycle regulation III-GcrA cell cycle regulator5-
-signaling III-PhnA-like protein4-
-transporter III-potassium transporter Kup3-
-oxidative stress and homeostasis III-thiol reductase thioredoxin/thioredoxin/redoxin family protein22
-regulation of cell wall synthesis III-SMI1/KNR4 family protein2-
-ammonia metabolism III-ammonia monooxygenase-4
---necrosis-inducing protein1-
---immunity protein 321-
---ATP-binding protein-1
---FkbM family methyltransferase-1
---Arc family DNA-binding protein-1
---EthD family reductase-1
---three-Cys-motif partner protein TcmP-4
Total ORFs5323
I Clusters of orthologous groups of proteins, which were determined based on their homology to proteins with predicted functions, as identified by the STRING and IMG databases; II aa-iii and aa-iv—ORFs whose products are similar to aa of Sinorhizobium/Ensifer bacteria and bacteria of other taxa, respectively; III the process is specified according to the predicted protein function.
Table 4. Antiphage defense systems elements encoded in prophages (according to PADLOC).
Table 4. Antiphage defense systems elements encoded in prophages (according to PADLOC).
ProphagesProteins of Antiphage Systems Encoded by Prophag’s Genes *
DMS_otherPDC-M32PDC-S45
SspDMTase_IIDndCPDC-M32BPDC-M32APDC-S45
phiAK21-0391.8 × 10−11/3.7 × 10−112.6 × 10−44/3.3 × 10−44---4.3 × 10−94/4.7 × 10−94
phiCXM1-105-0393.3 × 10−15/1.3 × 10−142.8 × 10−80/1.6 × 10−70; 6.6 × 10−27/9 × 10−22 **----
phiRm41-0394.9 × 10−15/1.9 × 10−144.8 × 10−84/1.4 × 10−80----
phiT073-031-1.8 × 10−83/5.4 × 10−80; 3 × 10−26/2.5 × 10−21 **2.6 × 10−30/8.1 × 10−29---
phiUSDA1157-039---5.9 × 10−38/2.4 × 10−367.5 × 10−153/8.3 × 10−153-
*—full sequence E-value/domain E-value (according to PADLOC [42]); **—two copies.
Table 5. Genomes of the studied S. meliloti.
Table 5. Genomes of the studied S. meliloti.
StrainNCBI BioSample IDStrainNCBI BioSample IDStrainNCBI BioSample ID
AK21 ISAMN08428886HM006SAMN07175160RMO17SAMN02952139
AK83 ISAMN00017059KH35cSAMN07175161GR4SAMN02603224
L6-AK89 ISAMN22420025 IIKH46SAMN07175162CCMM B554 (FSM-MA)SAMN06284128
AK76 ISAMN17104055 IIIUSDA1021SAMN07175167Rm41SAMEA2272434
AK170 ISAMN10256575 IVUSDA1157SAMN07175169T073SAMN07175166
AK555 ISAMN08826593 IVUSDA1106SAMN07175168M270SAMN07175164
CXM1-105 ISAMN08826592 IV1021SAMEA3283068BL225CSAMN00017103
B399SAMN062297752011SAMN02603522RU11/001SAMEA3146337
B401SAMN06227501M162SAMN07175163SM11SAMN02603056
S35mSAMN16812329RRI128SAMN23416898MAG283SAMN37646061
LPU88SAMN37528575MABNR56SAMN40039399MAG282SAMN37646062
LMB1SAMN38508088BIM B-442DSAMN341640311132SAMN40473144
I—strains isolated from region subjected to extreme salinity (see text); II—the strain whose genome was sequenced, assembled, and annotated with the support of WCRC “AgriTechnologies for the Future” (Agreement No. 075-15-2020-920 dated 16.11.2020) [63]; III—the strain whose genome was sequenced, assembled, and annotated under the RSF 20-16-00105 project [64]; IV—strains whose genomes were sequenced, assembled, and annotated under the RSF 17-16-01095 project [65,66,67].
Table 6. Phages infecting Sinorhizobium spp.
Table 6. Phages infecting Sinorhizobium spp.
Caudoviricetes Virus LineageSinorhizobium Infecting PhageGenome Size (kb)/
CG Content (%)		GenBank Number/
Submission Date		Phage TypeThe Enzyme That Determines the Phage’s Integration/Integration SiteLiterary Source
Unclassified CaudoviricetesphiLM2150.8/
60.6%		NC_029046/2014temperatetyrosine integrase/tRNA-Pro(GGG)[20]
16-360.2/
59.0%		NC_011103/1998temperatetyrosine integrase/tRNA-Pro(CGG)[27]
StopSmel37.8/
60.8%		OR786374/2023temperatetransposase/- *[49]
Aussie39.0/
61.9%		OR786373/2023temperatetransposase/-[49]
PBC557.4/
61.5%		NC_003324/2001temperateintegrase/-[20]
HMSP1-Susan52.0/
52.5%		MG214783/2017- *integrase **/-[68]
NV1.1.164.2/
59.4%		OP484858/2022- *-/-[19]
phiM668.2/
42.9%		MH700630/2018- *transposase/-[69]
AP-16-361.0/
59.22%		OP484857/2022virulenttyrosine integrase/-[19]
AP-J-162471.5/
47.1%		PV864765/2025virulent-/-[70]
phiM544.0/
61.0%		MF074189/2017virulentintegrase/-[23]
Schitoviridae; Huelvavirusort1175.2/
44.2%		NC_049469/2020virulent-/-[24]
Pootjesviridae; EmnonavirusphiM9149.2/
49.8%		NC_028676/2015virulent-/-[71]
EmdodecavirusphiM19188.0/
49.0%		KR052481/2015virulent-/-[20]
phiM7188.4/
49.0%		NC_041929/2019virulent-/-[20]
phiM12194.7/
49.0%		NC_027204/2013virulent-/-[72]
phiN3206.7/
49.1%		NC_028945/2015virulent-/-[20]
*—no data available; **—the result of this analysis.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Vladimirova, M.E.; Roumiantseva, M.L.; Saksaganskaia, A.S.; Kozlova, A.P.; Muntyan, V.S.; Gaponov, S.P. Dark Matter Carried by Sinorhizobium meliloti phiLM21-like Prophages. Int. J. Mol. Sci. 2025, 26, 8704. https://doi.org/10.3390/ijms26178704

AMA Style

Vladimirova ME, Roumiantseva ML, Saksaganskaia AS, Kozlova AP, Muntyan VS, Gaponov SP. Dark Matter Carried by Sinorhizobium meliloti phiLM21-like Prophages. International Journal of Molecular Sciences. 2025; 26(17):8704. https://doi.org/10.3390/ijms26178704

Chicago/Turabian Style

Vladimirova, Maria E., Marina L. Roumiantseva, Alla S. Saksaganskaia, Alexandra P. Kozlova, Victoria S. Muntyan, and Sergey P. Gaponov. 2025. "Dark Matter Carried by Sinorhizobium meliloti phiLM21-like Prophages" International Journal of Molecular Sciences 26, no. 17: 8704. https://doi.org/10.3390/ijms26178704

APA Style

Vladimirova, M. E., Roumiantseva, M. L., Saksaganskaia, A. S., Kozlova, A. P., Muntyan, V. S., & Gaponov, S. P. (2025). Dark Matter Carried by Sinorhizobium meliloti phiLM21-like Prophages. International Journal of Molecular Sciences, 26(17), 8704. https://doi.org/10.3390/ijms26178704

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
