Article

Halogen Bond-Assisted Supramolecular Dimerization of Pyridinium-Fused 1,2,4-Selenadiazoles via Four-Center Se2N2 Chalcogen Bonding

by
Evgeny A. Dukhnovsky
1,
Alexander S. Novikov
2,
Alexey S. Kubasov
3,
Alexander V. Borisov
4,
Nkumbu Donovan Sikaona
1,
Anatoly A. Kirichuk
1,
Victor N. Khrustalev
1,5,
Andreii S. Kritchenkov
1 and
Alexander G. Tskhovrebov
1,*
1
Research Institute of Chemistry, Peoples’ Friendship University of Russia, 6 Miklukho-Maklaya Street, Moscow 117198, Russia
2
Institute of Chemistry, Saint Petersburg State University, Universitetskaya Nab. 7/9, Saint Petersburg 199034, Russia
3
Kurnakov Institute of General and Inorganic Chemistry, Russian Academy of Sciences, Leninsky Prosp. 31, Moscow 119334, Russia
4
Department of Chemistry, R.E. Alekseev Nizhny Novgorod State Technical University, Minin St., 24, Nizhny Novgorod 603155, Russia
5
N.D. Zelinsky Institute of Organic Chemistry, Russian Academy of Sciences, Leninsky Prosp. 47, Moscow 119334, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(7), 3972; https://doi.org/10.3390/ijms25073972
Submission received: 20 March 2024 / Revised: 30 March 2024 / Accepted: 1 April 2024 / Published: 3 April 2024
(This article belongs to the Section Biochemistry)

Abstract

:
The synthesis and structural characterization of α-haloalkyl-substituted pyridinium-fused 1,2,4-selenadiazoles with various counterions is reported herein, demonstrating a strategy for directed supramolecular dimerization in the solid state. The compounds were obtained through a recently discovered 1,3-dipolar cycloaddition reaction between nitriles and bifunctional 2-pyridylselenyl reagents, and their structures were confirmed by the X-ray crystallography. α-Haloalkyl-substituted pyridinium-fused 1,2,4-selenadiazoles exclusively formed supramolecular dimers via four-center Se···N chalcogen bonding, supported by additional halogen bonding involving α-haloalkyl substituents. The introduction of halogens at the α-position of the substituent R in the selenadiazole core proved effective in promoting supramolecular dimerization, which was unaffected by variation of counterions. Additionally, the impact of cocrystallization with a classical halogen bond donor C6F3I3 on the supramolecular assembly was investigated. Non-covalent interactions were studied using density functional theory calculations and topological analysis of the electron density distribution, which indicated that all ChB, XB and HB interactions are purely non-covalent and attractive in nature. This study underscores the potential of halogen and chalcogen bonding in directing the self-assembly of functional supramolecular materials employing 1,2,4-selenadiazoles derived from recently discovered cycloaddition between nitriles and bifunctional 2-pyridylselenyl reagents.

1. Introduction

The creation of functional supramolecular materials with programmable structures and, as a result, tunable properties through a bottom-up approach has posed a persistent and enduring challenge. Among the numerous supramolecular linkages employed for creating complex assemblies, coordination and hydrogen bonds are the most extensively utilized, which resulted in the rise of metal–organic frameworks (MOFs) [1,2] and hydrogen-bonded organic frameworks (HOFs) [3,4,5,6,7]. In recent years, halogen bonding (XB) and chalcogen bonding (ChB) have emerged as potent alternatives for hydrogen bonding, due to their directionality and superior tunability [8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30]. Despite their potential benefits, XB and ChB have garnered significantly less attention in the context of the creation of extended materials akin to HOFs and MOFs [30].
Chalcogenodiazoles are appealing candidates for creating such materials [31,32,33,34,35,36,37]. They have demonstrated the ability to assemble into symmetrical antiparallel supramolecular dimers through two Ch···N chalcogen bonding interactions. These appealing supramolecular building blocks have undergone extensive investigation in recent years [32,33,34,35,36,37].
Recently we have described a novel 1,3-dipolar cycloaddition reaction between nitriles and bifunctional 2-pyridylselenyl reagents, which allows us to synthesize otherwise inaccessible pyridinium-fused 1,2,4-selenadiazoles [38,39,40]. The latter showed a propensity to self-assemble into antiparallel supramolecular dimers in the solid state via four-center Se2N2 ChB. The formation of dimers was not observed for all the structurally characterized cationic selenadiazoles and depended on the substituents in the heterocyclic system [41,42,43,44]. In some cases, the square formation was outcompeted by other weak intermolecular contacts in the solid state. This prompted us to search for approaches for directed supramolecular synthesis involving our novel synthons featuring four-center Se2N2 ChB.
In a previous work [43], we demonstrated that benzylic-substituted pyridinium-fused 1,2,4-selenadiazoles exclusively form supramolecular dimers via four-center Se2N2 and two symmetrically equivalent selenium···arene ChB interactions. This benzylic substitution approach can be employed for reliable supramolecular dimerization of pyridinium-fused selenadiazoles in the crystal, which can be applied in supramolecular engineering.
Here, we report the synthesis and structural characterization of α-haloalkyl-substituted pyridinium-fused 1,2,4-selenadiazoles with various counterions and demonstrate that the introduction of a halogen at the α-position of substituent R in the selenadiazole core may be an effective strategy for directed supramolecular dimerization of selenadiazoles in the solid state.

2. Results and Discussion

Halides of α-haloalkyl-substituted pyridinium-fused 1,2,4-selenadiazoles were obtained by the oxidation of 2,2′-dipyridyl diselenide 1 or 4,4′-dimethyl-2,2′-dipyridyl diselenide 2 followed by sequential cyclization of in situ generated 2-pyridylselenyl halide or 4-methyl-2-pyridylselenyl halide with corresponding α-haloalkylnitriles (Scheme 1A, see experimental part for details). The salts of ReO4, PF6, BF4 and SCN were obtained via anion metathesis in 1,2,4-selenadiazolium chlorides (Scheme 1B).
The NMR data for 310 was consistent with the proposed structures. Compounds 310 could be recrystallized from the MeOH-Et2O mixture to give single crystals suitable for X-ray structural analysis, which confirmed their structures (Figure 1).
The crystal quality for 6 did not allow us to establish precise metrical parameters, but confirmed the atom connectivity in the solid state. Structural analysis revealed that for 310, the anion was involved in Se···X and H···X bifurcated non-covalent interactions (Figure 1). This robust chalcogen-bonded supramolecular synthon was described by us earlier [44,45,46]. Importantly, all the α-haloalkyl-substituted pyridinium-fused 1,2,4-selenadiazoles 310 exclusively form supramolecular dimers via four-center Se···N ChB (Figure 1) without an exception. Trichloromethyl-substituted 1,2,4-selenadiazoles 3 and 4 feature two antiparallel XB interactions Cl···Cl (for 3) or Cl···OReO3 (for 4, Figure 1). Chloromethyl-substituted derivatives 5 (PF6 salt) and 6 (BF4 salt) apart from four-center Se···N ChB exhibit Cl···F XB and Se···F ChB. 2,2-Dibromo-2-cyanoacetamide-derived pyridinium-fused 1,2,4-selenadiazole bromide 7 also exhibited four-center Se···N ChB together with the peripheral Br···Br interactions (Figure 1).
Further, we prepared fluoromethyl-substituted 1,2,4-selenadiazole salts 8 and 9 (Figure 1). Interestingly, they also formed dimers via four-center Se···N ChB but did not form F···X XB with the anions. In these cases, H···X HB (Figure 1) outcompeted the formation of XB involving the fluorine atom, arguably due to the low polarizability of the F atom and its weak XB-donating ability.
Finally, thiocyanate salt 10 also self-assembled into antiparallel supramolecular dimers in the solid state via four-center Se···N ChB and a pair of Cl···NCS XB (Figure 1).
Thus, the introduction of a halogen at the α-position of substituent R in the selenadiazole core indeed promotes supramolecular dimerization via four-center Se···N ChB; anion variation does not break these robust dimers as demonstrated above.
Further, we aimed to obtain thiocyanate salt of chloromethyl-substituted 1,2,4-selenadiazole salt via anion metathesis, but obtained thiocyano-substituted derivative 11 due to chlorine-to-thiocyanate exchange (Scheme 2).
The reaction was reproducible and allowed the preparation of 11 in good yield (57%). We managed to obtain single crystals suitable for the X-ray structural analysis, which revealed that 11 also self-assembles in the solid into Se2N2 supramolecular dimers, which are supported by a pair of S···S ChB interactions (Figure 2).
Further, we were interested in how cocrystallization of α-haloalkyl-substituted pyridinium-fused 1,2,4-selenadiazoles with C6F3I3, which is a classical halogen bond donor, would affect the self-assembly of a resulting supramolecular aggregate and whether Se2N2 supramolecular dimers would be sustained.
For this reason, we cocrystallized α-(trichloromethyl)-[1,2,4]selenadiazolo [4,5-a]pyridin-4-ium chloride with C6F3I3 (1:1 ratio) using MeOH as a solvent and performed single crystal structural analysis for a cocrystal 12 (Figure 3).
X-ray analysis revealed that in the solid of 12 Se2N2 supramolecular dimers are broken (Se···N distances of 5.82 Å are too long for ChB). However, Se···Cl and H···Cl bifurcated non-covalent interactions between the heterocycle and the Cl anion are conserved demonstrating again the robustness of this supramolecular synthon. Moreover, 12 contains supramolecular 1D infinite chains consisting of alternating selenadiazole···Cl ion pairs and C6F3I3 molecules (Figure 3), which are interconnected by I···N and I···Cl XB. Thus, in the resulting solid 12 Se2N2 supramolecular dimers were disrupted, indicating that the formed I···N and I···Cl XB interactions involving C6F3I3 molecules were collectively more significant than ChBs and HBs, which is confirmed by the results of DFT calculations and topological analysis of the electron density distribution within the framework of Bader’s theory (QTAIM analysis) [47] for model supramolecular associates (see properties and estimated strengths of such contacts in Table 1 and Table 2).
In order to confirm the presence of discussed HB, XB and ChB in studied solids 312 from a theoretical viewpoint, we carried out DFT calculations at the ωB97XD/DZP-DKH level of theory followed by the topological analysis of the electron density distribution within the framework of Bader’s theory (QTAIM analysis) [47] for model supramolecular associates (Cartesian atomic coordinates for these model supramolecular associates are presented in Supplementary Materials). The results of QTAIM analysis are summarized in Table 1 and Table 2; for illustrative purposes, the contour line diagram of the Laplacian of electron density distribution ∇2ρ(r), bond paths and selected zero-flux surfaces, visualization of electron localization function (ELF) and reduced density gradient (RDG) analyses for H···Cl, Se···N, Se···Cl, and Cl···Cl non-covalent interactions in 3 are shown in Figure 4.
The QTAIM analysis demonstrates the presence of appropriate bond critical points (3, −1) for HB, XB and ChB in model supramolecular associates (Table 1). The low magnitude of the electron density, positive values of the Laplacian of electron density and zero or very close to zero positive energy density in these bond critical points (3, −1) and estimated strengths for appropriate short contacts are typical for such non-covalent interactions is similar chemical systems [38,41,48,49,50,51]. The balance between the Lagrangian kinetic energy G(r) and potential energy density V(r) at the bond critical points (3, −1) corresponding for HB, XB and ChB in model supramolecular associates reveals that a covalent contribution is absent in these contacts (−G(r)/V(r) > 1) [52]. The sign of λ2 can be utilized to distinguish bonding (attractive, λ2 < 0) weak interactions from nonbonding ones (repulsive, λ2 > 0) [4,53,54]. Thus, discussed non-covalent interactions are attractive (Table 1).

3. Materials and Methods

3.1. General Remarks

All manipulations were carried out in the air. All the reagents used in this study were obtained from commercial sources (Aldrich, TCI-Europe, Strem, ABCR). Commercially available solvents were purified by conventional methods and distilled immediately prior to use. NMR spectra were recorded on a Bruker Avance NEO 700 (Karlsruhe, Germany); chemical shifts (δ) are given in ppm and coupling constants (J) in Hz. 4,4′-Dimethyl-2,2′-dipyridyl diselenide was obtained by the method reported in [55].

3.2. X-ray Crystal Structure Determination

The single-crystal X-ray diffraction data were collected on a three-circle Bruker D8 Venture diffractometer (Karlsruhe, Germany) (graphite monochromator, w and φ scan mode) (3, 4, 6–9, 11), on the ‘Belok/RSA’ beamline of the National Research Center ‘Kurchatov Institute’ (Moscow, Russian Federation) using a Rayonix SX165 CCD detector (Evanston, IL USA) (φ scan mode) (5) and on a four-circle Rigaku Synergy S diffractometer equipped with a HyPix6000HE area-detector (Tokyo, Japan) (graphite monochromator, shutterless ω scan mode) (10, 12). For compounds 3, 4, 69 and 11, the data were indexed and integrated using the SAINT program [56] and then scaled and corrected for absorption using the SADABS program [57]. For compound 5, the data were integrated by the utility iMOSFLM in the CCP4 program [58] and corrected for absorption using the Scala program [59]. For compounds 10 and 12, the data were integrated and corrected for absorption by the CrysAlisPro program (Rigaku, CrysAlisPro Software System, v. 1.171.41.106a, Rigaku Oxford Diffraction, 2021). For details, see Table S1 (electronic Supporting Information). The structures were determined by direct methods and refined by full-matrix least squares technique on F2 with anisotropic displacement parameters for non-hydrogen atoms. The amino hydrogen atoms in 7 were localized in the difference-Fourier maps and refined within the riding model with fixed isotropic displacement parameters [Uiso(H) = 1.2Ueq(N)]. The other hydrogen atoms in all compounds were placed in calculated positions and refined within the riding model with fixed isotropic displacement parameters [Uiso(H) = 1.5Ueq(C) for the CH3 groups and 1.2Ueq(C) for the other groups]. All calculations were carried out using the SHELXTL program suite [60].
Crystallographic data for compounds 312 have been deposited into the Cambridge Crystallographic Data Center, CCDC 2341614-2341623, respectively. Copies of this information may be obtained free of charge from the Director, CCDC, 12 Union Road, Cambridge CHB2 1EZ, UK (fax: +44 1223 336033; e-mail: [email protected] or www.ccdc.cam.ac.uk).

3.3. Computational Details

The single-point calculations based on the experimental X-ray structures 312 have been carried out at the DFT level of theory using the dispersion-corrected hybrid functional ωB97XD [61] with the help of the Gaussian 09 [62] program package. The Douglas–Kroll–Hess 2nd order scalar relativistic calculations requested relativistic core Hamiltonian were carried out using the DZP-DKH basis sets [63] for all atoms. The topological analysis of the electron density distribution with the help of the atoms in molecules (QTAIM) method has been performed by using the Multiwfn program (version 3.7) [64]. The Cartesian atomic coordinates for model supramolecular associates are presented in the Supplementary Materials.

3.4. Synthesis of Compounds 311

Ijms 25 03972 i001
A solution of PhICl2 (88 mg, 320 μmol) in CH2Cl2 (2 mL) was added to a solution of 4,4′-dimethyl-2,2′-dipyridyldiselenide (100 mg, 292 μmol) in Et2O (5 mL), and the reaction mixture was allowed to stand without stirring at room temperature for 12 h. Subsequently, the solution was separated from a yellow precipitate, and the solid was washed with Et2O (3 × 1 mL) and dried under a vacuum. Yield: 52 mg (43%). 1H NMR (600 MHz, CDCl3) δ 8.48 (d, J = 6.0 Hz, 1H), 8.37 (d, J = 6.0 Hz, 1H), 7.97 (s, 1H), 2.49 (s, 3H). 13C NMR (151 MHz, CDCl3) δ 139.6, 22.0.
Ijms 25 03972 i002
3. A solution of PhICl2 (27 mg, 98 μmol) in CH2Cl2 (2 mL) was added to a solution of 4,4′-dimethyl-2,2′-dipyridyldiselenide (30 mg, 88 μmol) and trichloroacetonitrile (50 μL, 499 μmol) in CH2Cl2 (2 mL), and the reaction mixture was left without stirring at room temperature for 12 h. After that, the solution was decanted from a colorless precipitate, and the solid was washed with Et2O (3 × 1 mL) and dried under a vacuum. Yield: 48 mg (78%). 1H NMR (600 MHz, D2O) δ 9.75 (d, J = 7.2 Hz, 1H), 8.69 (s, 1H), 7.95 (dd, J = 7.2, 1.8 Hz, 1H), 2.73 (s, 3H). 13C NMR (151 MHz, D2O) δ 170.2, 155.6, 147.8, 137.0, 125.7, 124.9, 87.5, 21.6.
Ijms 25 03972 i003
4. 7-methyl-3-(trichloromethyl)-[1,2,4]selenadiazolo [4,5-a]pyridin-4-ium chloride 3 (15 mg, 43 μmol) was dissolved in MeOH (1.5 mL) and the addition of 20 μL of perrhenic acid (70 wt %) resulted in the formation of a colorless microcrystalline precipitate, which was washed with Et2O (3 × 3 mL) and dried in vacuum. Yield: 10 mg (42%). 1H NMR (700 MHz, DMSO-d6) δ 9.68 (d, J = 7.1 Hz, 1H), 8.83–8.82 (m, 1H), 7.99–7.95 (m, 1H), 2.71 (s, 3H). 13C NMR (176 MHz, DMSO-d6) δ 172.2, 153.9, 146.8, 137.1, 126.7, 125.2, 88.7, 22.2.
Ijms 25 03972 i004
5. 3-(chloromethyl)-[1,2,4]selenadiazolo[4,5-a]pyridin-4-ium chloride (15 mg, 56 μmol) was dissolved in MeOH (1.5 mL) and the addition of the saturated MeOH solution of NBu4PF6 (300 µL) resulted in the formation of colorless crystals, which were washed with Et2O (3×3 mL) and dried under vacuum. Yield: 9 mg (43%). 1H NMR (600 MHz, D2O) δ 9.51 (d, J = 6.8 Hz, 1H), 8.86 (d, J = 8.7 Hz, 1H), 8.48–8.43 (m, 1H), 8.10–8.07 (m, 1H), 5.34 (s, 2H). 13C NMR (151 MHz, D2O) δ 168.8, 153.0, 140.0, 136.5, 126.2, 123.4, 37.8.
Ijms 25 03972 i005
6. 3-(chloromethyl)-[1,2,4]selenadiazolo[4,5-a]pyridin-4-ium chloride (15 mg, 56 μmol) was dissolved in MeOH (1.5 mL) and the addition of 10 μL of HBF4 (40 wt %) resulted in the formation of yellow crystals, which were washed with Et2O (3 × 3 mL) and dried under a vacuum. Yield: 8 mg (48%). 1H NMR (600 MHz, D2O) δ 9.50 (d, J = 6.8 Hz, 1H), 8.85 (d, J = 8.7 Hz, 1H), 8.45 (t, J = 8.3 Hz, 1H), 8.08 (t, J = 7.4 Hz, 1H), 5.34 (s, 2H). 13C NMR (151 MHz, D2O) δ 168.8, 153.0, 139.9, 136.4, 126.2, 123.4, 37.8.
Ijms 25 03972 i006
7. A solution of bromine (15 mg, 96 μmol) in CH2Cl2 (1 mL) was added to a solution of 2,2′-dipyridyldiselenide (30 mg, 96 μmol) and 2,2-dibromo-2-cyanoacetamide (46 mg, 192 μmol) in CH2Cl2 (2 mL), and the reaction mixture was left without stirring at room temperature for 12 h. After that, the solution was decanted from a yellow precipitate, and the solid was washed with Et2O (3×1 mL) and dried under a vacuum. Yield: 73 mg (79%). 1H NMR (600 MHz, D2O) δ 9.41 (d, J = 6.8 Hz, 1H), 8.92 (d, J = 8.7 Hz, 1H), 8.48–8.43 (m, 1H), 8.08 (t, J = 7.1 Hz, 1H). 13C NMR (151 MHz, D2O) δ 171.2, 167.0, 149.1, 140.0, 137.7, 126.7, 123.2, 47.1.
Ijms 25 03972 i007
8. 3-(fluoromethyl)-[1,2,4]selenadiazolo[4,5-a]pyridin-4-ium chloride (15 mg, 59.6 μmol) was dissolved in MeOH (1.5 mL) and addition of the saturated MeOH solution of NBu4PF6 (300 µL) resulted in the formation of colorless crystals, which were washed with Et2O (3 × 3 mL) and dried under a vacuum. Yield: 9 mg (42%). 1H NMR (700 MHz, D2O) δ 9.47 (d, J = 6.8 Hz, 1H), 8.86 (d, J = 8.7 Hz, 1H), 8.46 (t, J = 8.0 Hz, 1H), 8.08 (t, J = 7.0 Hz, 1H), 6.11 (s, 1H), 6.04 (s, 1H). 13C NMR (176 MHz, D2O) δ 168.6, 152.4, 140.0, 136.3, 126.1, 123.4, 78.5, 77.5.
Ijms 25 03972 i008
9. A solution of PhICl2 (27 mg, 98 μmol) in CH2Cl2 (2 mL) was added to a solution of 4,4′-dimethyl-2,2′-dipyridyldiselenide (30 mg, 88 μmol) and fluoroacetonitrile (50 μL, 890 μmol) in CH2Cl2 (2 mL), and the reaction mixture was left without stirring at room temperature for 12 h. After that, the solution was decanted from a colorless precipitate, and the solid was washed with Et2O (3 × 1 mL) and dried under a vacuum. Yield: 34 mg (72%). 1H NMR (600 MHz, D2O) δ 9.26 (d, J = 6.9 Hz, 1H), 8.61–8.60 (m, 1H), 7.89 (dd, J = 7.0, 1.6 Hz, 1H), 6.05 (s, 1H), 5.97 (s, 1H), 2.70 (s, 3H). 13C NMR (151 MHz, D2O) δ 167.3, 155.3, 135.0, 125.4, 125.3, 78.6, 77.5, 21.6.
Ijms 25 03972 i009
10. 3-(trichloromethyl)-[1,2,4]selenadiazolo[4,5-a]pyridin-4-ium chloride (15 mg, 44.5 μmol) was dissolved in MeOH (1.5 mL) and the addition of the saturated MeOH solution of NH4SCN (100 µL) resulted in the formation of colorless crystals, which were washed with EtOH (3 × 3 mL) and dried under a vacuum. Yield: 7 mg (44%). 1H NMR (700 MHz, D2O) δ 9.37 (dt, J = 6.8, 1.0 Hz, 1H), 8.80 (dt, J = 8.7, 1.0 Hz, 1H), 8.40–8.36 (m, 1H), 8.02–7.99 (m, 1H). 13C NMR (176 MHz, D2O) δ 171.6, 148.1, 140.1, 138.3, 133.1, 126.4, 123.1, 87.5.
Ijms 25 03972 i010
11. 3-(chloromethyl)-[1,2,4]selenadiazolo[4,5-a]pyridin-4-ium chloride (15 mg, 56 μmol) was dissolved in MeOH (1.5 mL) and addition of the saturated MeOH solution of NH4SCN (100 µL) resulted in the formation of colorless crystals, which were washed with EtOH (3 × 3 mL) and dried under a vacuum. Yield: 10 mg (57%). 1H NMR (700 MHz, D2O) δ 9.50 (dd, J = 12.6, 6.8 Hz, 1H), 8.86 (d, J = 8.7 Hz, 1H), 8.46 (t, J = 7.9 Hz, 1H), 8.09 (q, J = 6.8 Hz, 1H), 5.35 (s, 1H), 5.18 (s, 1H). 13C NMR (176 MHz, D2O) δ 168.8, 151.9, 139.9, 135.8, 133.5, 126.3, 123.4, 112.2, 31.9.

4. Conclusions

Overall, we prepared and structurally characterized eight α-haloalkyl-substituted pyridinium-fused 1,2,4-selenadiazoles with various counterions. Our findings demonstrate that incorporating a halogen at the α-position of the R substituent in the selenadiazole core proves to be an effective strategy for inducing directed supramolecular dimerization of selenadiazoles in the solid state.
Across all cases, the Se2N2 supramolecular motif was consistently supported by two symmetrically equivalent halogen–anion (XB) interactions, with hydrogen bonding (HB) also playing a crucial role in the self-assembly and supramolecular organization of these chemical systems in the solid state. Furthermore, we investigated how the cocrystallization of α-haloalkyl-substituted pyridinium-fused 1,2,4-selenadiazoles with C6F3I3 would affect the self-assembly of a resulting supramolecular aggregate.
In the resulting solid Se2N2 supramolecular dimers were disrupted, indicating that the formed I···N and I···Cl XB interactions involving C6F3I3 were collectively more significant than ChB. Considering the fundamental role of ChB, XB and HB interactions in the crystal packing of studied solids 312, these intermolecular contacts were also investigated theoretically.
Results of DFT calculations and topological analysis of the electron density distribution in model supramolecular associates reveal that all ChB, XB and HB interactions are purely non-covalent and attractive in nature. Overall, the estimated strength of these weak contacts decreases in the following order: 1.6–6.3 kcal/mol (ChB), 0.9–4.1 kcal/mol (XB) and 0.6–2.8 kcal/mol (HB).
Hence, halogen bond-assisted supramolecular dimerization of pyridinium-fused 1,2,4-selenadiazoles via four-center Se2N2 chalcogen bonding emerges as a potent tool in crystal engineering. We anticipate that this approach will find widespread adoption by researchers in the future for creating extended molecular systems connected via non-covalent interactions.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms25073972/s1.

Author Contributions

Conceptualization, A.G.T.; investigation, A.A.K., E.A.D., A.S.N., V.N.K., A.S.N., A.V.B., A.S.K. (Alexey S. Kubasov) and A.S.K. (Andreii S. Kritchenkov), N.D.S.; writing—original draft preparation, A.G.T. and A.S.N.; writing—review and editing, A.G.T. and A.S.N. All authors have read and agreed to the published version of the manuscript.

Funding

This work was performed under the support of the Russian Science Foundation (award No. 22-73-10007).

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

X-ray diffraction experiments were performed at the shared Facility Center of the Kurnakov Institute (IGIC RAS) within the framework of the State Assignment of the Kurnakov Institute in the field of fundamental scientific research.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Introduction. J. Solid State Chem. 2005, 178, v–vi. [CrossRef]
  2. Li, H.; Eddaoudi, M.; O’Keeffe, M.; Yaghi, O.M. Design and synthesis of an exceptionally stable and highly porous metal-organic framework. Nature 1999, 402, 276–279. [Google Scholar] [CrossRef]
  3. Desiraju, G.R. Supramolecular Synthons in Crystal Engineering—A New Organic Synthesis. Angew. Chem. Int. Ed. 1995, 34, 2311–2327. [Google Scholar] [CrossRef]
  4. Contreras-García, J.; Yang, W.; Johnson, E.R. Analysis of Hydrogen-Bond Interaction Potentials from the Electron Density: Integration of Noncovalent Interaction Regions. J. Phys. Chem. A 2011, 115, 12983–12990. [Google Scholar] [CrossRef] [PubMed]
  5. Repina, O.V.; Novikov, A.S.; Khoroshilova, O.V.; Kritchenkov, A.S.; Vasin, A.A.; Tskhovrebov, A.G. Lasagna-like supramolecular polymers derived from the PdII osazone complexes via C(sp2)–H⋯Hal hydrogen bonding. Inorganica Chim. Acta 2019, 502, 119378. [Google Scholar] [CrossRef]
  6. Mikhaylov, V.N.; Sorokoumov, V.N.; Novikov, A.S.; Melnik, M.V.; Tskhovrebov, A.G.; Balova, I.A. Intramolecular hydrogen bonding stabilizes trans-configuration in a mixed carbene/isocyanide PdII complexes. J. Organomet. Chem. 2020, 912, 121174. [Google Scholar] [CrossRef]
  7. Wang, B.; Lin, R.-B.; Zhang, Z.; Xiang, S.; Chen, B. Hydrogen-Bonded Organic Frameworks as a Tunable Platform for Functional Materials. J. Am. Chem. Soc. 2020, 142, 14399–14416. [Google Scholar] [CrossRef] [PubMed]
  8. Scheiner, S. The Pnicogen Bond: Its Relation to Hydrogen, Halogen, and Other Noncovalent Bonds. Accounts Chem. Res. 2012, 46, 280–288. [Google Scholar] [CrossRef]
  9. Legon, A.C. The halogen bond: An interim perspective. Phys. Chem. Chem. Phys. 2010, 12, 7736–7747. [Google Scholar] [CrossRef]
  10. Murray, J.S.; Lane, P.; Clark, T.; Riley, K.E.; Politzer, P. σ-Holes, π-holes and electrostatically-driven interactions. J. Mol. Model. 2011, 18, 541–548. [Google Scholar] [CrossRef]
  11. Metrangolo, P.; Neukirch, H.; Pilati, T.; Resnati, G. Halogen Bonding Based Recognition Processes: A World Parallel to Hydrogen Bonding. Accounts Chem. Res. 2005, 38, 386–395. [Google Scholar] [CrossRef] [PubMed]
  12. Nemec, V.; Fotović, L.; Vitasović, T.; Cinčić, D. Halogen bonding of the aldehyde oxygen atom in cocrystals of aromatic aldehydes and 1,4-diiodotetrafluorobenzene. CrystEngComm 2019, 21, 3251–3255. [Google Scholar] [CrossRef]
  13. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G. The Halogen Bond. Chem. Rev. 2016, 116, 2478–2601. [Google Scholar] [CrossRef]
  14. Wang, W.; Ji, B.; Zhang, Y. Chalcogen Bond: A Sister Noncovalent Bond to Halogen Bond. J. Phys. Chem. A 2009, 113, 8132–8135. [Google Scholar] [CrossRef] [PubMed]
  15. Benz, S.; López-Andarias, J.; Mareda, J.; Sakai, N.; Matile, S. Catalysis with Chalcogen Bonds. Angew. Chem. Int. Ed. 2016, 56, 812–815. [Google Scholar] [CrossRef] [PubMed]
  16. Riwar, L.; Trapp, N.; Root, K.; Zenobi, R.; Diederich, F. Supramolecular Capsules: Strong versus Weak Chalcogen Bonding. Angew. Chem. Int. Ed. 2018, 57, 17259–17264. [Google Scholar] [CrossRef]
  17. Mahmudov, K.T.; Kopylovich, M.N.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L. Chalcogen bonding in synthesis, catalysis and design of materials. Dalton Trans. 2017, 46, 10121–10138. [Google Scholar] [CrossRef]
  18. Garrett, G.E.; Gibson, G.L.; Straus, R.N.; Seferos, D.S.; Taylor, M.S. Chalcogen Bonding in Solution: Interactions of Benzotelluradiazoles with Anionic and Uncharged Lewis Bases. J. Am. Chem. Soc. 2015, 137, 4126–4133. [Google Scholar] [CrossRef]
  19. De Vleeschouwer, F.; Denayer, M.; Pinter, B.; Geerlings, P.; De Proft, F. Characterization of chalcogen bonding interactions via an in-depth conceptual quantum chemical analysis. J. Comput. Chem. 2017, 39, 557–572. [Google Scholar] [CrossRef]
  20. Price, S.L.; Stone, A.J.; Lucas, J.; Rowland, R.S.; Thornley, A.E. The Nature of -Cl.cntdot..cntdot..cntdot.Cl- Intermolecular Interactions. J. Am. Chem. Soc. 1994, 116, 4910–4918. [Google Scholar] [CrossRef]
  21. Benz, S.; Poblador-Bahamonde, A.I.; Low-Ders, N.; Matile, S. Catalysis with Pnictogen, Chalcogen, and Halogen Bonds. Angew. Chem. Int. Ed. 2018, 57, 5408–5412. [Google Scholar] [CrossRef] [PubMed]
  22. Pascoe, D.J.; Ling, K.B.; Cockroft, S.L. The Origin of Chalcogen-Bonding Interactions. J. Am. Chem. Soc. 2017, 139, 15160–15167. [Google Scholar] [CrossRef] [PubMed]
  23. Li, Q.; Li, R.; Zhou, Z.; Li, W.; Cheng, J. S···X halogen bonds and H⋯X hydrogen bonds in H2CS–XY (XY = FF, ClF, ClCl, BrF, BrCl, and BrBr) complexes: Cooperativity and solvent effect. J. Chem. Phys. 2012, 136, 014302. [Google Scholar] [CrossRef] [PubMed]
  24. Teyssandier, J.; Mali, K.S.; De Feyter, S. Halogen Bonding in Two-Dimensional Crystal Engineering. ChemistryOpen 2020, 9, 225–241. [Google Scholar] [CrossRef]
  25. Nelyubina, Y.V.; Antipin, M.Y.; Lyssenko, K.A. Extremely short halogen bond: The nature and energy of iodine–oxygen interactions in crystalline iodic acid. Mendeleev Commun. 2011, 21, 250–252. [Google Scholar] [CrossRef]
  26. Tsirelson, V.G.; Zhou, P.F.; Tang, T.-H.; Bader, R.F.W. Topological definition of crystal structure: Determination of the bonded interactions in solid molecular chlorine. Acta Crystallogr. Sect. A Found. Crystallogr. 1995, 51, 143–153. [Google Scholar] [CrossRef]
  27. Brezgunova, M.E.; Aubert, E.; Dahaoui, S.; Fertey, P.; Lebègue, S.; Jelsch, C.; Ángyán, J.G.; Espinosa, E. Charge Density Analysis and Topological Properties of Hal3-Synthons and Their Comparison with Competing Hydrogen Bonds. Cryst. Growth Des. 2012, 12, 5373–5386. [Google Scholar] [CrossRef]
  28. Bauzá, A.; Frontera, A. On the Importance of Halogen–Halogen Interactions in the Solid State of Fullerene Halides: A Combined Theoretical and Crystallographic Study. Crystals 2017, 7, 191. [Google Scholar] [CrossRef]
  29. Li, H.; Lu, Y.; Liu, Y.; Zhu, X.; Liu, H.; Zhu, W. Interplay between halogen bonds and π–π stacking interactions: CSD search and theoretical study. Phys. Chem. Chem. Phys. 2012, 14, 9948–9955. [Google Scholar] [CrossRef]
  30. Eckstein, B.J.; Brown, L.C.; Noll, B.C.; Moghadasnia, M.P.; Balaich, G.J.; McGuirk, C.M. A Porous Chalcogen-Bonded Organic Framework. J. Am. Chem. Soc. 2021, 143, 20207–20215. [Google Scholar] [CrossRef]
  31. Berionni, G.; Pégot, B.; Marrot, J.; Goumont, R. Supramolecular association of 1,2,5-chalcogenadiazoles: An unexpected self-assembled dissymetric [Se⋯N]2 four-membered ring. CrystEngComm 2009, 11, 986–988. [Google Scholar] [CrossRef]
  32. Alfuth, J.; Zadykowicz, B.; Sikorski, A.; Połoński, T.; Eichstaedt, K.; Olszewska, T. Effect of Aromatic System Expansion on Crystal Structures of 1,2,5-Thia- and 1,2,5-Selenadiazoles and Their Quaternary Salts: Synthesis, Structure, and Spectroscopic Properties. Materials 2020, 13, 4908. [Google Scholar] [CrossRef] [PubMed]
  33. Ho, P.C.; Wang, J.Z.; Meloni, F.; Vargas-Baca, I. Chalcogen bonding in materials chemistry. Coord. Chem. Rev. 2020, 422, 213464. [Google Scholar] [CrossRef]
  34. Risto, M.; Reed, R.W.; Robertson, C.M.; Oilunkaniemi, R.; Laitinen, R.S.; Oakley, R.T. Self-association of the N-methyl benzotellurodiazolylium cation: Implications for the generation of super-heavy atom radicals. Chem. Commun. 2008, 3278–3280. [Google Scholar] [CrossRef] [PubMed]
  35. Kumar, V.; Xu, Y.; Bryce, D.L. Double Chalcogen Bonds: Crystal Engineering Stratagems via Diffraction and Multinuclear Solid-State Magnetic Resonance Spectroscopy. Chem. A Eur. J. 2019, 26, 3275–3286. [Google Scholar] [CrossRef] [PubMed]
  36. Ams, M.R.; Trapp, N.; Schwab, A.; Milić, J.V.; Diederich, F. Chalcogen Bonding “2S–2N Squares” versus Competing Interactions: Exploring the Recognition Properties of Sulfur. Chem. A Eur. J. 2018, 25, 323–333. [Google Scholar] [CrossRef] [PubMed]
  37. Tiekink, E.R. Supramolecular aggregation patterns featuring Se⋯N secondary-bonding interactions in mono-nuclear selenium compounds: A comparison with their congeners. Coord. Chem. Rev. 2021, 443, 214031. [Google Scholar] [CrossRef]
  38. Khrustalev, V.N.; Grishina, M.M.; Matsulevich, Z.V.; Lukiyanova, J.M.; Borisova, G.N.; Osmanov, V.K.; Novikov, A.S.; Kirichuk, A.A.; Borisov, A.V.; Solari, E.; et al. Novel cationic 1,2,4-selenadiazoles: Synthesis via addition of 2-pyridylselenyl halides to unactivated nitriles, structures and four-center Se⋯N contacts. Dalton Trans. 2021, 50, 10689–10691. [Google Scholar] [CrossRef] [PubMed]
  39. Grudova, M.V.; Khrustalev, V.N.; Kubasov, A.S.; Strashnov, P.V.; Matsulevich, Z.V.; Lukiyanova, J.M.; Borisova, G.N.; Kritchenkov, A.S.; Grishina, M.M.; Artemjev, A.A.; et al. Adducts of 2-Pyridylselenenyl Halides and Nitriles as Novel Supramolecular Building Blocks: Four-Center Se···N Chalcogen Bonding versus Other Weak Interactions. Cryst. Growth Des. 2021, 22, 313–322. [Google Scholar] [CrossRef]
  40. Artemjev, A.A.; Novikov, A.P.; Burkin, G.M.; Sapronov, A.A.; Kubasov, A.S.; Nenajdenko, V.G.; Khrustalev, V.N.; Borisov, A.V.; Kirichuk, A.A.; Kritchenkov, A.S.; et al. Towards Anion Recognition and Precipitation with Water-Soluble 1,2,4-Selenodiazolium Salts: Combined Structural and Theoretical Study. Int. J. Mol. Sci. 2022, 23, 6372. [Google Scholar] [CrossRef]
  41. Aliyeva, V.A.; Gurbanov, A.V.; da Silva, M.F.C.G.; Gomila, R.M.; Frontera, A.; Mahmudov, K.T.; Pombeiro, A.J. Substituent Effect on Chalcogen Bonding in 5-Substituted Benzo[c][1,2,5]selenadiazoles and Their Copper(II) Complexes: Experimental and Theoretical Study. Cryst. Growth Des. 2023, 24, 781–791. [Google Scholar] [CrossRef]
  42. Lindner, B.D.; Coombs, B.A.; Schaffroth, M.; Engelhart, J.U.; Tverskoy, O.; Rominger, F.; Hamburger, M.; Bunz, U.H.F. From Thia- to Selenadiazoles: Changing Interaction Priority. Org. Lett. 2013, 15, 666–669. [Google Scholar] [CrossRef] [PubMed]
  43. Sapronov, A.A.; Artemjev, A.A.; Burkin, G.M.; Khrustalev, V.N.; Kubasov, A.S.; Nenajdenko, V.G.; Gomila, R.M.; Frontera, A.; Kritchenkov, A.S.; Tskhovrebov, A.G. Robust Supramolecular Dimers Derived from Benzylic-Substituted 1,2,4-Selenodiazolium Salts Featuring Selenium⋯π Chalcogen Bonding. Int. J. Mol. Sci. 2022, 23, 14973. [Google Scholar] [CrossRef] [PubMed]
  44. Sapronov, A.A.; Kubasov, A.S.; Khrustalev, V.N.; Artemjev, A.A.; Burkin, G.M.; Dukhnovsky, E.A.; Chizhov, A.O.; Kritchenkov, A.S.; Gomila, R.M.; Frontera, A.; et al. Se⋯π Chalcogen Bonding in 1,2,4-Selenodiazolium Tetraphenylborate Complexes. Symmetry 2023, 15, 212. [Google Scholar] [CrossRef]
  45. Kazakova, A.A.; Kubasov, A.S.; Chizhov, A.O.; Novikov, A.P.; Volkov, M.A.; Borisov, A.V.; Nenajdenko, V.G.; Dukhnovsky, E.A.; Bely, A.E.; Grishina, M.M.; et al. Perrhenate and Pertechnetate Complexes of Dicationic Pyridinium-fused 1,2,4-Selenodiazoles Featuring Se⋯O Chalcogen Bonding and Anion⋯Anion Interactions. Inorganica Chim. Acta 2024, 563, 121929. [Google Scholar] [CrossRef]
  46. Artemjev, A.A.; Kubasov, A.S.; Kuznetsov, M.L.; Grudova, M.V.; Khrustalev, V.N.; Kritchenkov, A.S.; Tskhovrebov, A.G. Mechanistic investigation of 1,3-dipolar cycloaddition between bifunctional 2-pyridylselenyl reagents and nitriles including reactions with cyanamides. CrystEngComm 2023, 25, 3691–3701. [Google Scholar] [CrossRef]
  47. Bader, R.F.W. A quantum theory of molecular structure and its applications. Chem. Rev. 1991, 91, 893–928. [Google Scholar] [CrossRef]
  48. Buslov, I.V.; Novikov, A.S.; Khrustalev, V.N.; Grudova, M.V.; Kubasov, A.S.; Matsulevich, Z.V.; Borisov, A.V.; Lukiyanova, J.M.; Grishina, M.M.; Kirichuk, A.A.; et al. 2-Pyridylselenenyl versus 2-Pyridyltellurenyl Halides: Symmetrical Chalcogen Bonding in the Solid State and Reactivity towards Nitriles. Symmetry 2021, 13, 2350. [Google Scholar] [CrossRef]
  49. Soldatova, N.S.; Suslonov, V.V.; Ivanov, D.M.; Yusubov, M.S.; Resnati, G.; Postnikov, P.S.; Kukushkin, V.Y. Controlled Halogen-Bond-Involving Assembly of Double-σ-Hole-Donating Diaryliodonium Cations and Ditopic Arene Sulfonates. Cryst. Growth Des. 2022, 23, 413–423. [Google Scholar] [CrossRef]
  50. Gulyaev, R.; Semyonov, O.; Mamontov, G.V.; Ivanov, A.A.; Ivanov, D.M.; Kim, M.; Švorčík, V.; Resnati, G.; Liao, T.; Sun, Z.; et al. Weak Bonds, Strong Effects: Enhancing the Separation Performance of UiO-66 toward Chlorobenzenes via Halogen Bonding. ACS Mater. Lett. 2023, 5, 1340–1349. [Google Scholar] [CrossRef]
  51. Gurbanov, A.V.; Kuznetsov, M.L.; Resnati, G.; Mahmudov, K.T.; Pombeiro, A.J.L. Chalcogen and Hydrogen Bonds at the Periphery of Arylhydrazone Metal Complexes. Cryst. Growth Des. 2022, 22, 3932–3940. [Google Scholar] [CrossRef]
  52. Espinosa, E.; Alkorta, I.; Elguero, J.; Molins, E. From weak to strong interactions: A comprehensive analysis of the topological and energetic properties of the electron density distribution involving X–H⋯F–Y systems. J. Chem. Phys. 2002, 117, 5529–5542. [Google Scholar] [CrossRef]
  53. Johnson, E.R.; Keinan, S.; Mori-Sánchez, P.; Contreras-García, J.; Cohen, A.J.; Yang, W. Revealing Noncovalent Interactions. J. Am. Chem. Soc. 2010, 132, 6498–6506. [Google Scholar] [CrossRef] [PubMed]
  54. Contreras-García, J.; Johnson, E.R.; Keinan, S.; Chaudret, R.; Piquemal, J.-P.; Beratan, D.N.; Yang, W. NCIPLOT: A Program for Plotting Noncovalent Interaction Regions. J. Chem. Theory Comput. 2011, 7, 625–632. [Google Scholar] [CrossRef] [PubMed]
  55. Dhau, J.S.; Singh, A.; Singh, A.; Sharma, N.; Brandão, P.; Félix, V.; Singh, B.; Sharma, V. A mechanistic study of the synthesis, single crystal X-ray data and anticarcinogenic potential of bis(2-pyridyl)selenides and -diselenides. RSC Adv. 2015, 5, 78669–78676. [Google Scholar] [CrossRef]
  56. Bruker. SAINT Program; v. 8.40A; Bruker AXS Inc.: Madison, WI, USA, 2019. [Google Scholar]
  57. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. Comparison of silver and molybdenum microfocus X-ray sources for single-crystal structure determination. J. Appl. Crystallogr. 2015, 48, 3–10. [Google Scholar] [CrossRef] [PubMed]
  58. Battye, T.G.G.; Kontogiannis, L.; Johnson, O.; Powell, H.R.; Leslie, A.G.W. iMOSFLM: A new graphical interface for diffraction-image processing withMOSFLM. Acta Crystallogr. Sect. D Struct. Biol. 2011, 67, 271–281. [Google Scholar] [CrossRef] [PubMed]
  59. Evans, P. Scaling and assessment of data quality. Acta Crystallogr. Sect. D Struct. Biol. 2005, 62, 72–82. [Google Scholar] [CrossRef] [PubMed]
  60. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  61. Chai, J.-D.; Head-Gordon, M. Long-range corrected hybrid density functionals with damped atom–atom dispersion corrections. Phys. Chem. Chem. Phys. 2008, 10, 6615–6620. [Google Scholar] [CrossRef]
  62. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian, v. 09 C.01; Gaussian Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
  63. Barros, C.L.; De Oliveira, P.J.P.; Jorge, F.E.; Neto, A.C.; Campos, M. Gaussian basis set of double zeta quality for atoms Rb through Xe: Application in non-relativistic and relativistic calculations of atomic and molecular properties. Mol. Phys. 2010, 108, 1965–1972. [Google Scholar] [CrossRef]
  64. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef] [PubMed]

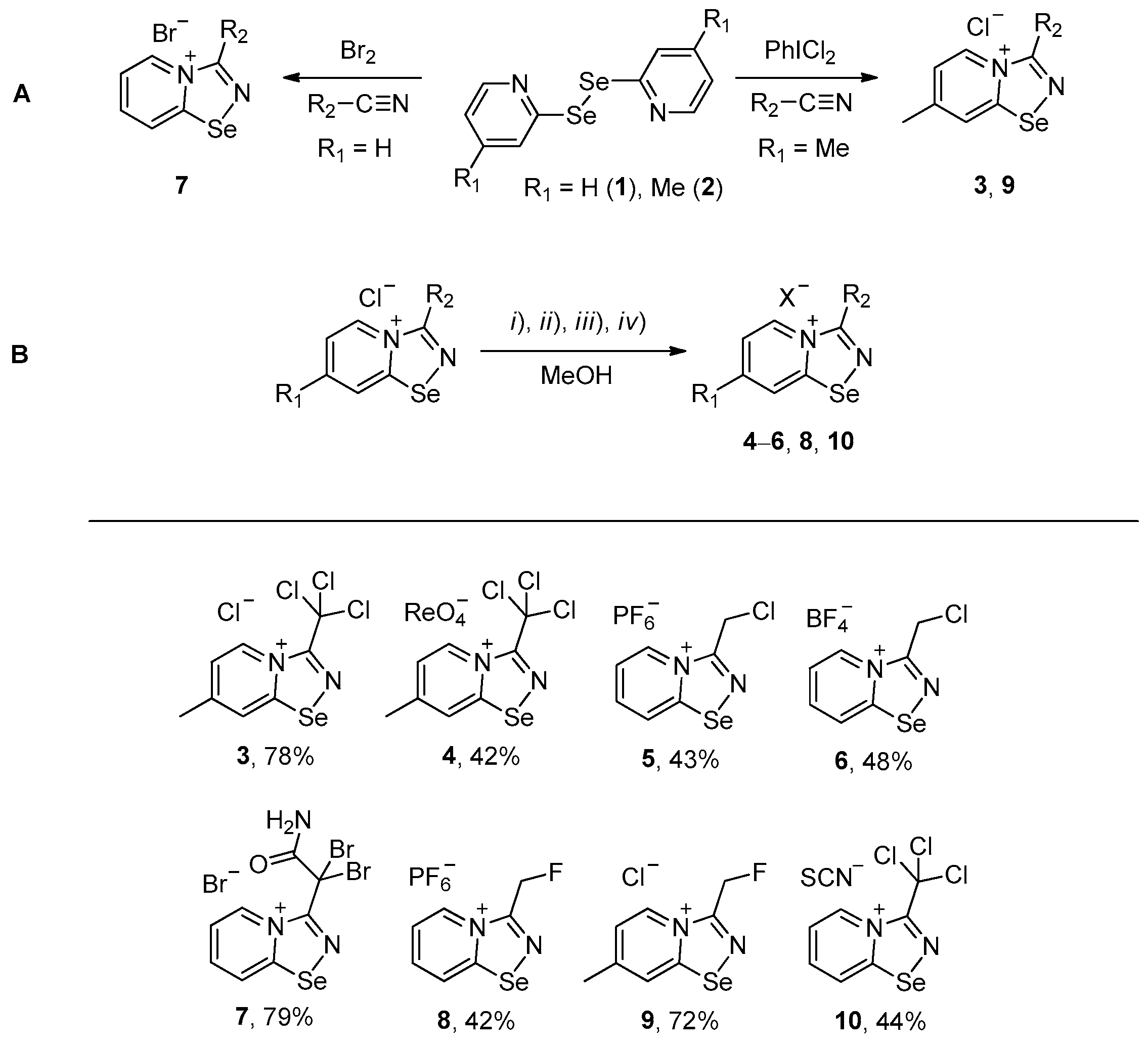

Scheme 1. Synthesis of 310. (i) HReO4, (ii) NBu4PF6, (iii) HBF4, (iv) NH4SCN.
Scheme 1. Synthesis of 310. (i) HReO4, (ii) NBu4PF6, (iii) HBF4, (iv) NH4SCN.
Ijms 25 03972 sch001

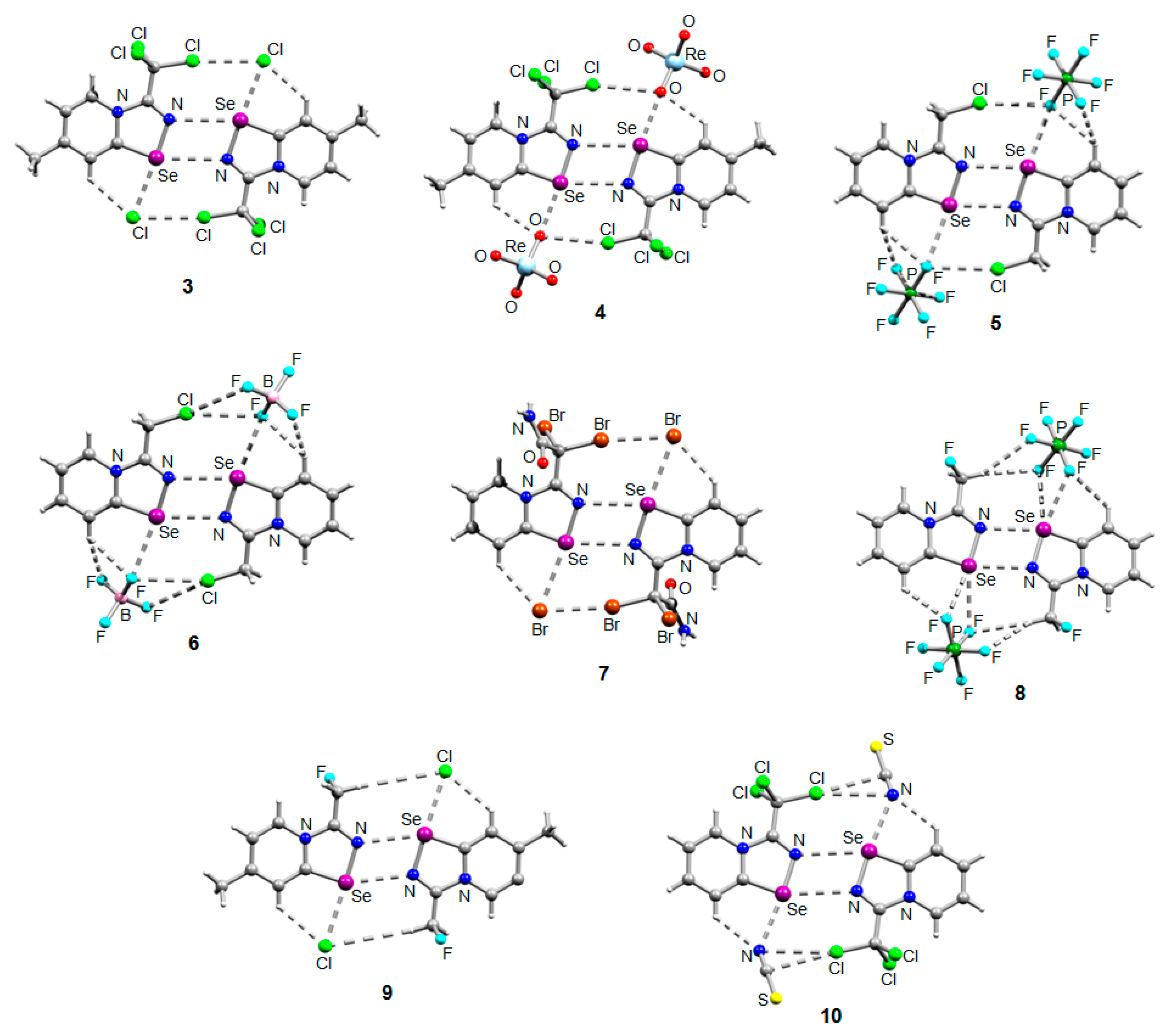

Figure 1. Ball-and-stick representations of the crystal structures of 310 demonstrating supramolecular dimerization via Se···N ChB assisted by the XB or HB (for 8 and 9). Grey and light-grey spheres represent carbon and hydrogen, respectively.
Figure 1. Ball-and-stick representations of the crystal structures of 310 demonstrating supramolecular dimerization via Se···N ChB assisted by the XB or HB (for 8 and 9). Grey and light-grey spheres represent carbon and hydrogen, respectively.
Ijms 25 03972 g001

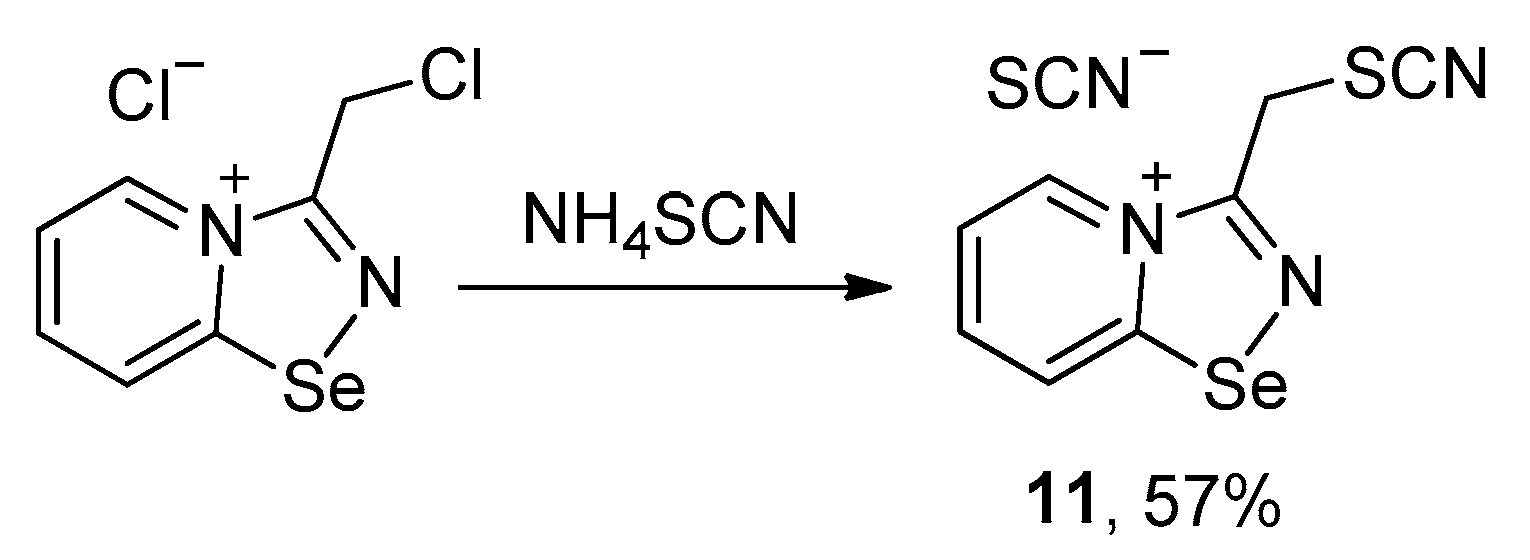

Scheme 2. Synthesis of 11.
Scheme 2. Synthesis of 11.
Ijms 25 03972 sch002

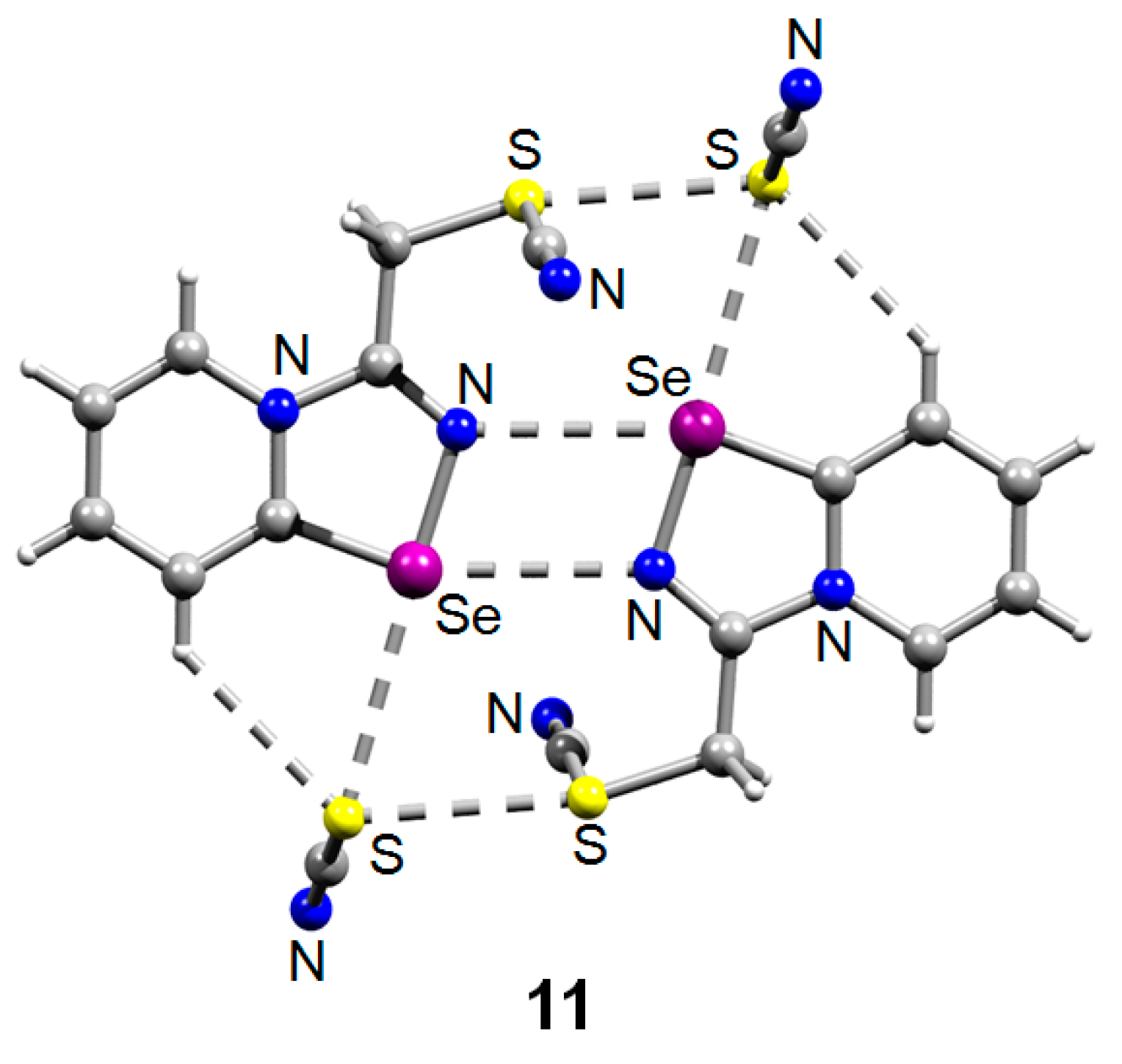

Figure 2. Ball-and-stick representation of the crystal structure of 11 demonstrating supramolecular dimerization via four center Se···N ChB assisted by the S···S ChB. Grey and light-grey spheres represent carbon and hydrogen, respectively.
Figure 2. Ball-and-stick representation of the crystal structure of 11 demonstrating supramolecular dimerization via four center Se···N ChB assisted by the S···S ChB. Grey and light-grey spheres represent carbon and hydrogen, respectively.
Ijms 25 03972 g002

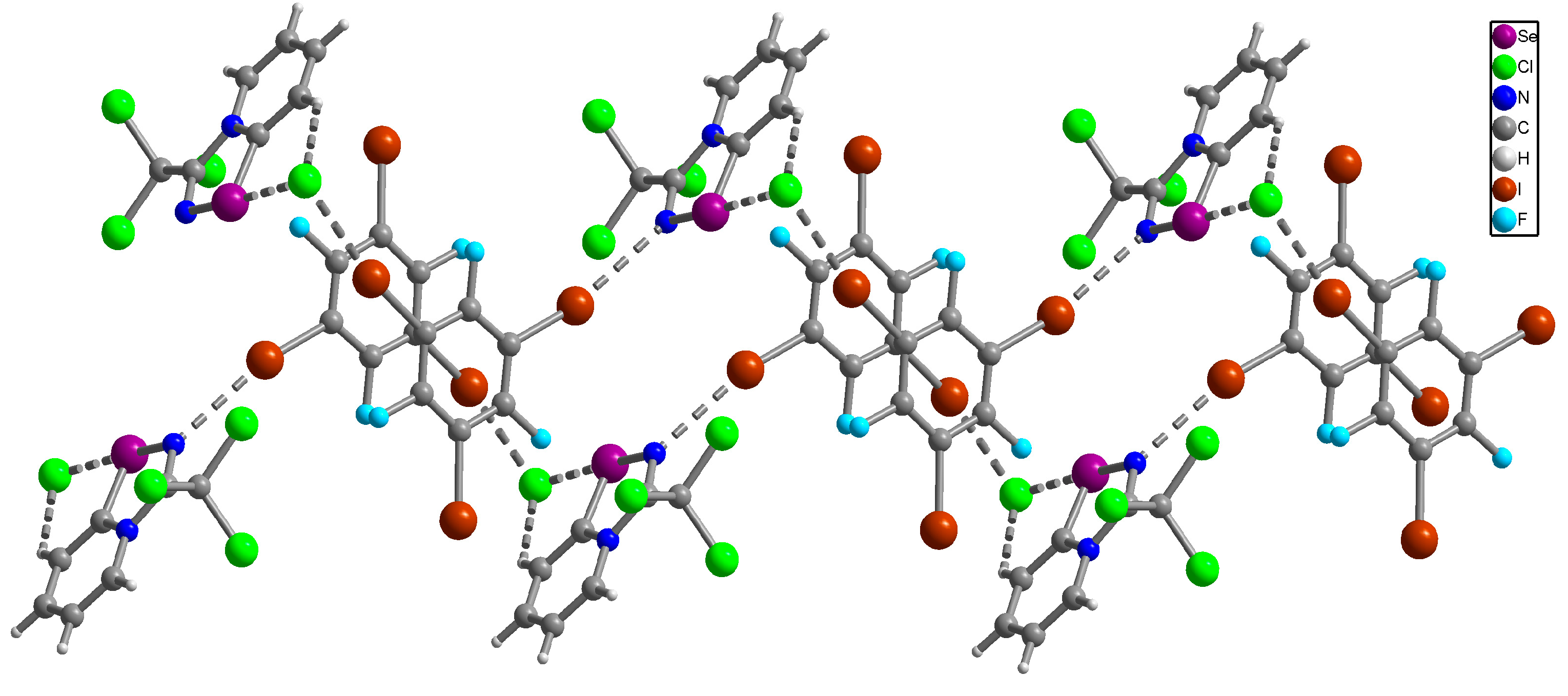

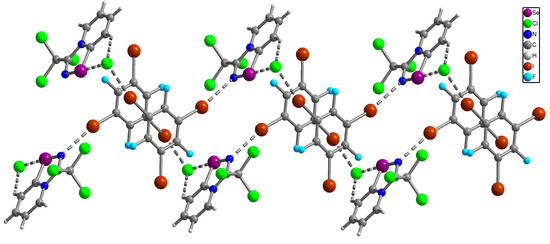

Figure 3. Ball-and-stick representation of the crystal structure of 12 demonstrating Se···Cl ChB, I···N, I···Cl XB and H···Cl HB. Purple, blue, green, brown, cyan, grey and light-grey spheres represent selenium, nitrogen, chlorine, iodine, fluorine, carbon and hydrogen, respectively.
Figure 3. Ball-and-stick representation of the crystal structure of 12 demonstrating Se···Cl ChB, I···N, I···Cl XB and H···Cl HB. Purple, blue, green, brown, cyan, grey and light-grey spheres represent selenium, nitrogen, chlorine, iodine, fluorine, carbon and hydrogen, respectively.
Ijms 25 03972 g003

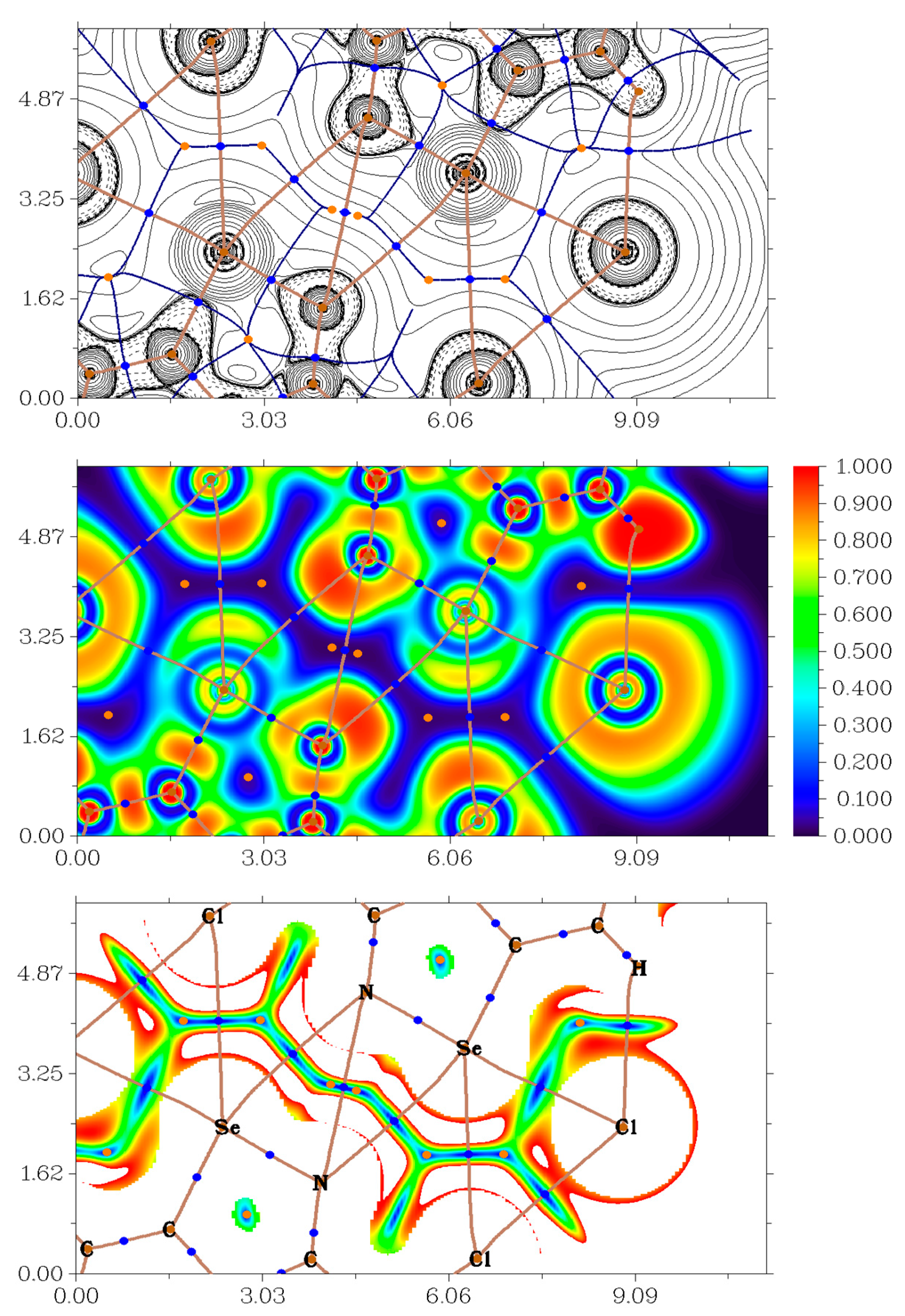

Figure 4. Contour line diagram of the Laplacian of electron density distribution ∇2ρ(r), bond paths and selected zero-flux surfaces (top panel), visualization of electron localization function (ELF, center panel) and reduced density gradient (RDG, bottom panel) analyses for H···Cl, Se···N, Se···C and Cl···Cl non-covalent interactions in 3. Bond critical points (3, −1) are shown in blue, nuclear critical points (3, −3) in pale brown, ring critical points (3, +1) in orange, bond paths are shown as pale brown lines, length units on axis is Å and the color scale for the ELF and RDG maps is presented in a.u.
Figure 4. Contour line diagram of the Laplacian of electron density distribution ∇2ρ(r), bond paths and selected zero-flux surfaces (top panel), visualization of electron localization function (ELF, center panel) and reduced density gradient (RDG, bottom panel) analyses for H···Cl, Se···N, Se···C and Cl···Cl non-covalent interactions in 3. Bond critical points (3, −1) are shown in blue, nuclear critical points (3, −3) in pale brown, ring critical points (3, +1) in orange, bond paths are shown as pale brown lines, length units on axis is Å and the color scale for the ELF and RDG maps is presented in a.u.
Ijms 25 03972 g004
Table 1. Values of the density of all electrons—ρ(r), Laplacian of electron density—∇2ρ(r) and appropriate λ2 eigenvalues, energy density—Hb, potential energy density—V(r), and Lagrangian kinetic energy—G(r) (a.u.) at the bond critical points (3, −1) corresponding with hydrogen, halogen and chalcogen bonding in studied crystal structures 312.
Table 1. Values of the density of all electrons—ρ(r), Laplacian of electron density—∇2ρ(r) and appropriate λ2 eigenvalues, energy density—Hb, potential energy density—V(r), and Lagrangian kinetic energy—G(r) (a.u.) at the bond critical points (3, −1) corresponding with hydrogen, halogen and chalcogen bonding in studied crystal structures 312.
Contactρ(r)2ρ(r)λ2HbV(r)G(r)
3
Se···N 3.199 Å0.0100.033−0.0100.001−0.0060.007
Se···Cl 2.886 Å0.0270.071−0.0270.000−0.0170.017
Cl···Cl 3.201 Å0.0120.041−0.0120.002−0.0070.009
H···Cl 2.590 Å0.0090.039−0.0090.003−0.0050.008
4
Se···N 3.139 Å0.0110.037−0.0110.002−0.0060.008
Se···O 2.611 Å0.0260.101−0.0260.003−0.0200.023
Cl···O 3.334 Å0.0060.022−0.0060.001−0.0030.004
Cl···O 3.180 Å0.0070.029−0.0070.001−0.0050.006
Cl···Se 3.644 Å0.0060.018−0.0060.001−0.0030.004
H···O 2.473 Å0.0100.043−0.0100.002−0.0070.009
5
Se···N 2.951 Å0.0150.055−0.0150.002−0.0100.012
Se···F 2.916 Å0.0120.049−0.0120.002−0.0080.010
Cl···F 3.153 Å0.0060.027−0.0060.001−0.0040.005
Cl···F 3.286 Å0.0050.020−0.0050.001−0.0030.004
H···F 2.441 Å0.0080.033−0.0080.001−0.0060.007
H···F 2.633 Å0.0060.026−0.0060.001−0.0040.005
6
Se···N 2.981 Å0.0140.052−0.0140.002−0.0090.011
Se···F 2.902 Å0.0120.050−0.0120.002−0.0080.010
Cl···F 3.312 Å0.0040.018−0.0040.001−0.0030.004
Cl···F 3.293 Å0.0050.020−0.0050.001−0.0030.004
H···F 2.345 Å0.0100.038−0.0100.001−0.0070.008
H···F 2.575 Å0.0060.029−0.0060.001−0.0050.006
7
Se···N 3.125 Å0.0110.039−0.0110.002−0.0070.008
Se···Br 3.230 Å0.0100.028−0.0100.001−0.0050.006
Br···Br 3.220 Å0.0170.042−0.0170.000−0.0100.010
Br···Br 3.316 Å0.0160.032−0.0160.000−0.0080.008
H···Br 2.716 Å0.0110.041−0.0110.001−0.0080.009
8
Se···N 2.892 Å0.0170.062−0.0170.002−0.0110.013
Se···F 2.953 Å0.0120.045−0.0120.002−0.0070.009
Se···F 3.068 Å0.0100.037−0.0100.002−0.0060.008
H···F 2.583 Å0.0060.029−0.0060.002−0.0040.006
H···F 2.768 Å0.0040.015−0.0040.001−0.0020.003
H···F 2.838 Å0.0030.013−0.0030.001−0.0020.003
9
Se···N 3.029 Å0.0130.047−0.0130.002−0.0080.010
Se···Cl 2.968 Å0.0240.062−0.0240.001−0.0140.015
H···Cl 2.712 Å0.0110.037−0.0110.001−0.0070.008
10
Se···N 3.239 Å0.0090.030−0.0090.001−0.0050.006
Se···N 2.694 Å0.0250.079−0.0250.001−0.0170.018
Cl···C 3.197 Å0.0070.029−0.0070.002−0.0040.006
H···N 2.422 Å0.0120.048−0.0120.002−0.0080.010
11
Se···N 3.101 Å0.0120.040−0.0120.002−0.0070.009
Se···S 3.591 Å0.0080.025−0.0080.001−0.0040.005
Se···C 3.402 Å0.0070.024−0.0070.001−0.0040.005
Se···S 3.201 Å0.0180.042−0.0180.001−0.0080.009
H···S 2.922 Å0.0080.025−0.0080.001−0.0040.005
12
I···Cl 3.358 Å0.0130.043−0.0130.001−0.0090.010
I···Cl 3.347 Å0.0140.044−0.0140.001−0.0090.010
I···Cl 3.353 Å0.0140.044−0.0140.001−0.0090.010
I···Cl 3.180 Å0.0190.055−0.0190.000−0.0130.013
I···N 3.116 Å0.0150.052−0.0150.001−0.0110.012
Se···Cl 2.968 Å0.0230.064−0.0230.001−0.0140.015
H···Cl 2.583 Å0.0140.046−0.0140.001−0.0090.010
Table 2. Estimated binding energies (Eint, kcal/mol) of HB, XB and ChB in studied crystal structures 312.
Table 2. Estimated binding energies (Eint, kcal/mol) of HB, XB and ChB in studied crystal structures 312.
ContactEint ≈ –V(r)/2
3
Se···N 3.199 Å1.9
Se···Cl 2.886 Å5.3
Cl···Cl 3.201 Å2.2
H···Cl 2.590 Å1.6
4
Se···N 3.139 Å1.9
Se···O 2.611 Å6.3
Cl···O 3.334 Å0.9
Cl···O 3.180 Å1.6
Cl···Se 3.644 Å0.9
H···O 2.473 Å2.2
5
Se···N 2.951 Å3.1
Se···F 2.916 Å2.5
Cl···F 3.153 Å1.3
Cl···F 3.286 Å0.9
H···F 2.441 Å1.9
H···F 2.633 Å1.3
6
Se···N 2.981 Å2.8
Se···F 2.902 Å2.5
Cl···F 3.312 Å0.9
Cl···F 3.293 Å0.9
H···F 2.345 Å2.2
H···F 2.575 Å1.6
7
Se···N 3.125 Å2.2
Se···Br 3.230 Å1.6
Br···Br 3.220 Å3.1
Br···Br 3.316 Å2.5
H···Br 2.716 Å2.5
8
Se···N 2.892 Å3.5
Se···F 2.953 Å2.2
Se···F 3.068 Å1.9
H···F 2.583 Å1.3
H···F 2.768 Å0.6
H···F 2.838 Å0.6
9
Se···N 3.029 Å2.5
Se···Cl 2.968 Å4.4
H···Cl 2.712 Å2.2
10
Se···N 3.239 Å1.6
Se···N 2.694 Å5.3
Cl···C 3.197 Å1.3
H···N 2.422 Å2.5
11
Se···N 3.101 Å2.2
Se···S 3.591 Å1.3
Se···C 3.402 Å1.3
Se···S 3.201 Å2.5
H···S 2.922 Å1.3
12
I···Cl 3.358 Å2.8
I···Cl 3.347 Å2.8
I···Cl 3.353 Å2.8
I···Cl 3.180 Å4.1
I···N 3.116 Å3.5
Se···Cl 2.968 Å4.4
H···Cl 2.583 Å2.8
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Dukhnovsky, E.A.; Novikov, A.S.; Kubasov, A.S.; Borisov, A.V.; Sikaona, N.D.; Kirichuk, A.A.; Khrustalev, V.N.; Kritchenkov, A.S.; Tskhovrebov, A.G. Halogen Bond-Assisted Supramolecular Dimerization of Pyridinium-Fused 1,2,4-Selenadiazoles via Four-Center Se2N2 Chalcogen Bonding. Int. J. Mol. Sci. 2024, 25, 3972. https://doi.org/10.3390/ijms25073972

AMA Style

Dukhnovsky EA, Novikov AS, Kubasov AS, Borisov AV, Sikaona ND, Kirichuk AA, Khrustalev VN, Kritchenkov AS, Tskhovrebov AG. Halogen Bond-Assisted Supramolecular Dimerization of Pyridinium-Fused 1,2,4-Selenadiazoles via Four-Center Se2N2 Chalcogen Bonding. International Journal of Molecular Sciences. 2024; 25(7):3972. https://doi.org/10.3390/ijms25073972

Chicago/Turabian Style

Dukhnovsky, Evgeny A., Alexander S. Novikov, Alexey S. Kubasov, Alexander V. Borisov, Nkumbu Donovan Sikaona, Anatoly A. Kirichuk, Victor N. Khrustalev, Andreii S. Kritchenkov, and Alexander G. Tskhovrebov. 2024. "Halogen Bond-Assisted Supramolecular Dimerization of Pyridinium-Fused 1,2,4-Selenadiazoles via Four-Center Se2N2 Chalcogen Bonding" International Journal of Molecular Sciences 25, no. 7: 3972. https://doi.org/10.3390/ijms25073972

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
