Synthesis of a Pd2L4 Hydrazone Molecular Cage Through Multiple Reaction Pathways

by
Giovanni Montà-González
1,2,
Ramón Martínez-Máñez
1,2,3,4,5,* and
Vicente Martí-Centelles
1,2,3,*
1
Instituto Interuniversitario de Investigación de Reconocimiento Molecular y Desarrollo Tecnológico (IDM), Universitat Politècnica de València, Universitat de València, Camino de Vera s/n, 46022 Valencia, Spain
2
Departamento de Química, Universitat Politècnica de València, Camino de Vera s/n, 46022 Valencia, Spain
3
CIBER de Bioingeniería, Biomateriales y Nanomedicina (CIBER-BBN), Instituto de Salud Carlos III, 28029 Madrid, Spain
4
Unidad Mixta de Investigación en Nanomedicina y Sensores, Universitat Politècnica de València, Instituto de Investigación Sanitaria La Fe (IISLAFE), Avenida Fernando Abril Martorell 106, 46026 Valencia, Spain
5
Unidad Mixta UPV-CIPF de Investigación en Mecanismos de Enfermedades y Nanomedicina, Universitat Politècnica de València, Centro de Investigación Príncipe Felipe, Avenida Eduardo Primo Yúfera 3, 46012 Valencia, Spain
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2024, 25(22), 11861; https://doi.org/10.3390/ijms252211861
Submission received: 14 October 2024 / Revised: 25 October 2024 / Accepted: 4 November 2024 / Published: 5 November 2024
(This article belongs to the Special Issue Molecular Cages: Design, Synthesis, and Applications)
Browse Figures
Versions Notes

Abstract

:
Molecular cages are preorganized molecules with a central cavity, typically formed through the reaction of their building blocks through chemical bonds. This requires, in most cases, forming and breaking reversible bonds during the cage formation reaction pathway for error correction to drive the reaction to the cage product. In this work, we focus on both Pd–ligand and hydrazone bonds implemented in the structure of a Pd2L4 hydrazone molecular cage. As the cage contains two different types of reversible bonds, we envisaged a cage formation comparative study by performing the synthesis of the cage through three different reaction pathways involving the formation of Pd–ligand bonds, hydrazone bonds, or a combination of both. The three reaction pathways produce the cage with yields ranging from 73% to 79%. Despite the complexity of the reaction, the cage is formed in a high yield, even for the reaction pathway that involves the formation of 16 bonds. This research paves the way for more sophisticated cage designs through complex reaction pathways.

Graphical Abstract

1. Introduction

Molecular cages are preorganized hosts with a central cavity that provides enhanced host–guest properties compared to less preorganized systems such as macrocycles [1,2], aiming to mimic the sophisticated cavity and functions of enzymes [3,4,5,6]. Chemists have developed synthetic methods to prepare both metal-organic cages and purely organic cages, resulting in a wide range of structures with size- and shape-dependent host–guest properties [7,8,9]. Encapsulation in the cavity of cages results in different effects on the guest molecule, ranging from activation for catalytic reactions to protection from the surrounding media. These effects yielded multiple applications of molecular cages, including catalysis [10,11,12,13,14], sensing of chemicals [15,16,17,18,19,20], stabilization of chemical species [21,22], separation process [23,24,25], removal of pollutants from water [26,27,28,29] and biological applications [30,31,32,33,34,35,36,37,38,39,40] among many others [7,8,41,42].
The synthesis of molecular cages from the constituent building block involves in most cases numerous reversible steps. Reversibility is key for error correction of improperly formed by-products during the cage formation process [43,44,45]. For this, the cage building blocks must have a specific shape and geometry that provides an appropriate preorganization in a similar fashion to macrocycles [7,46]. Besides the geometric requirements of the building blocks, both thermodynamic and kinetic aspects are key to setting up the appropriate reaction conditions, including concentration of reagents, reaction time, and temperature [43,44,45,47]. In this regard, computational modeling has been extensively used to design cages with specific geometries and properties such as predicting host-guest affinity [48,49,50,51,52,53,54].
Typically, metal-organic cages are prepared by the reaction of ligands with metals forming metal–ligand bonds [8,55,56], and purely organic cages are prepared through the reaction of ligands with complementary reactivity through reversible reactions such as imine and hydrazone bond formation [7,57,58]. There are examples of cages containing both metal–ligand bonds and reversible organic bonds, allowing their formation through either type of bond, or even both simultaneously [8,59,60,61] Focusing in Pd(II) containing cages, the formation of Pd2L4 cages involves the reaction of two Pd(II) ions and four ditopic ligands, typically containing pyridine moieties [62,63,64,65], though Pd–pyridine coordination bonds [66]. Regarding hydrazone-containing cages, hydrazone bonds are both reversible and robust [67], allowing the preparation of cages through the condensation reaction between hydrazide and aldehyde-containing building blocks [31,68,69,70,71,72,73,74,75,76]. Combining both strategies, Crowley and his team showed the feasibility of simultaneously using the cage synthesis of both Pd–pyridine coordination bonds and hydrazone bonds [60]. Similarly, we proved that it is possible to synthesize cages that contain Pd–pyridine bonds through hydrazone bond formation [31]. These results open the way to explore multiple cage formation pathways involving both Pd–pyridine and hydrazone bonds. For this, we propose studying the synthesis of a Pd2L4 cage through different reaction pathways involving the formation of Pd–ligand bonds, hydrazone bonds, or a combination of both.
In this work, we present a comparative study of the synthesis of a Pd2L4 cage containing Pd–pyridine and hydrazone bonds [31]. The reversible nature of both bond types enables the formation of the cage through the formation of Pd–ligand bonds or hydrazone bonds, utilizing three distinct reaction pathways (Figure 1). As far as we know, this is the first cage formation comparative study involving Pd–ligand and organic bond formation reactions. In particular, we focused on a Pd2L4 cage containing four dihydrazone units with a bent geometry and two [PdPy4]2+ units with a C4 symmetric geometry that serve to cap the cage [31].

2. Results and Discussion

2.1. Synthesis of the Pd2L4 Cage

The synthesis of the Pd2L4 cage that contains both Pd–pyridine and hydrazone bonds can be performed in multiple ways. In this regard, we proposed three possible reactions to prepare the Pd2L4 cage C1·(NO3)4 (Figure 2). The reaction pathway 1 involves the reaction of dihydrazide 1 and the square planar tetranicotinaldehyde palladium(II) nitrate motif 2 by hydrazone bond formation [31]; the reaction pathway 2 comprises the reaction of dipyridine ligand 3 with palladium(II) nitrate dihydrate by Pd–pyridine bond formation; and the reaction pathway 3 involves the reaction between dihydrazide 4,4′-oxydi(benzohydrazide) 1, nicotinaldehyde, and tetranicotinaldehyde palladium(II) nitrate involving Pd–pyridine and hydrazone bond formation simultaneously. In all cases, the synthesis of cage C1·(NO3)4 was performed in deuterated DMSO at 25 °C, and cage formation was monitored by 1H NMR spectroscopy. The solvent DMSO was chosen as it enables the complete solution of the reagents, cage, and reaction intermediates. Attempts to use fewer coordinating solvents (e.g., methanol or chloroform) resulted in low solubility of the reagents, and also, in the formation of precipitates that hamper both cage formation and the quantification of the species in solution. Quantification of the concentration of the species in solution was performed by integration of the corresponding proton signals considering the concentration of the internal standard 1,4-dimethoxybenzene. The same procedure was used consistently for determining cage formation yield.
Initially, we performed the synthesis of cage C1 through reaction pathway 1. For this, we placed dihydrazide 1 and tetranicotinaldehyde palladium(II) nitrate 2·(NO3)2 in an NMR tube and monitored the evolution of the reaction by acquiring 1H NMR spectra at different time intervals for a total of 55 h (Figure 3 and Figure S1). The signals corresponding to the starting materials disappeared rapidly with the simultaneous formation of the signals of the Pd2L4 cage. A set of signals corresponding to free nicotinaldehyde forms quickly at the beginning of the reaction and then disappears over time, suggesting a complex cage formation mechanism. In contrast, few signals of the reaction intermediates could be observed in the reaction mixture, probably due to a combination of the formation of a large number of reaction intermediates in fast exchange with unsymmetrical structures containing chemically inequivalent NMR signals, as often observed in cage formation reactions [43,77].
Then, we performed the synthesis of cage C1 through reaction pathway 2. We reacted dihydrazide ligand 3 with palladium(II) nitrate dihydrate to form the cage through Pd–pyridine bond formation. The reaction proceeds smoothly with the formation of cage C1, which is the only product observed in the 1H NMR spectra (Figure 4 and Figure S2). In contrast to reaction pathway 1, after 6 min, nearly all signals corresponding to the starting materials are absent, and the predominant signals in the spectra correspond to the cage. This highlights the rapid formation of the Pd–pyridine bonds, resulting in quick cage formation.
Finally, we performed the synthesis of cage C1 through reaction pathway 3, which involves dihydrazide 1, palladium(II) nitrate dihydrate, and nicotinaldehyde. This reaction is more complex, as it involves the simultaneous formation of 16 bonds, comprising 8 Pd–pyridine bonds and 8 hydrazone bonds. Indeed, this reaction pathway involves more difficulty; for example, hydrazine and hydrazone groups may result in competition with pyridine for Pd2+ coordination that may disturb the cage formation pathway [78,79,80,81]. This is supported by the free nicotinaldehyde signals observed at the beginning of the reaction, which disappear over time, suggesting that slow ligand displacement reactions are occurring. However, despite this complexity, the reaction yields the expected C1 cage in a clean formation reaction (Figure 5 and Figure S3). This experiment highlights the feasibility of the simultaneous formation of Pd–pyridine and hydrazone bonds in the cage formation reaction.

2.2. Analysis of the Cage Formation Reactions

After performing the cage formation reactions, we carried out a quantitative analysis of the integrals of the 1H NMR signals for the three reaction pathways to evaluate the kinetics of cage formation. For this, the integral of the internal standard 1,4-dimethoxybenzene was taken into account (Figure 6 and Table S1). We observed that the fastest cage formation is for reaction pathway 2, which gives a 65% yield in 6 min. In contrast, reaction pathways 1 and 3, only give a 16% and 17% yield in 6 min, respectively. Considering that reaction pathway 1 involves the reaction of 6 building blocks (4 molecules of dihydrazide 1 and 2 molecules of tetranicotinaldehyde palladium(II) nitrate 2·(NO3)2) through hydrazone bond formation, and reaction pathway 2 involves the reaction of 4 building blocks 3 and 2 Pd(II) atoms through Pd–pyridine bond formation. These results highlight that the formation of the Pd–pyridine bond has a greater rate than the formation of the hydrazone bond. A key observation, which involves the formation of 16 bonds through the reaction of 12 building blocks and 2 Pd(II) atoms, is that it exhibits similar reaction kinetics to reaction pathway 1, which only requires the formation of 8 bonds from the reaction of 6 building blocks. This observation shows that hydrazone bond formation is the rate-limiting step of the cage formation process, in contrast to the fast Pd–pyridine bond formation. Focusing on the final cage formation yield at 55 h of reaction, both reaction pathways 1 and 3 have similar yields in the range of 78–79%, whereas reaction pathway 2 has a 73% yield. Despite all that, reaction pathway 2 is the fastest, and the final yield is the lowest, highlighting that the final yield does not depend exclusively on the initial reaction rate. As the cage formation reaction yields are less than 100% for the three reaction pathways, in all three cases, by-products are formed.
In order to determine if the by-products formed in the three reaction pathways are visible by 1H NMR, a close examination of the obtained spectra at the end of the reaction was performed. While reaction pathways 1 and 2 produce clean 1H NMR spectra showing only the signals of cage C1, reaction pathway 3 displays a small set of additional peaks (Figure 7). This is probably due to the formation of asymmetric oligomeric structures possessing a number of chemically distinct NMR signals that are individually at too low concentration to be observed by 1H NMR.

2.3. Molecular Modeling

To understand the successful cage formation observed in the three different reaction pathways, we also performed molecular mechanics calculations. We carried out a conformational search for each of the cages’ building blocks to identify the most stable conformations. We observed that all conformations of ligands 1 and 3 have a bend configuration (Figure 8c,d), with good complementarity of ligand 1 to the geometry of metal complex 3 (Figure 8e) and ligand 3 to the square planar geometry of Pd(II). Specifically, the rigidity of the core Ph–O–Ph fragment of ligands 1 and 3 provides a key structural element with an average bend angle of 121° (Figure 8c) and 118° (Figure 8d), respectively. These angles match nicely the 130 °C average angle the ligand has in the crystal structure of cage C1·(NO3)4 (Figure 8a) and the theoretical bend angle of 120° of the chemical representation of cage C1 (Figure 8b). This analysis suggests that the successful cage formation from the ligands is linked to a favorable preorganization of the building blocks, whose geometry aligns well with the cage structure.

3. Materials and Methods

Materials. All chemicals and solvents were obtained from commercial sources and used without further purification unless specified.
NMR Experiments. 1H spectra were recorded on a Bruker FT-NMR Avance 400 (Ettlingen, Germany) spectrometer at 300 K. Chemical shifts (δ) are reported in parts per million (ppm) and referenced to residual solvent peak.
Molecular Modeling. The structure of ligands was modeled with the Spartan’ 20 software, using the built-in conformational search algorithm using the MMFF force field [82].

3.1. Synthesis of Ligands and Cages

Compounds 1, 2·(NO3)2, 3, and C1·(NO3)4 were prepared as described by our research group as reported in the literature [31].

3.2. Cage Formation Kinetic Experiments

All 1H NMR kinetic experiments were performed using the following general procedure. To an NMR tube, 1 (2.6 mg, 9.2 µmol) and 2·(NO3)2 (3.0 mg, 4.6 µmol) were introduced for reaction pathway 1; 3 (4.3 mg, 9.2 µmol) and Pd(NO3)2·2H2O (1.2 mg, 4.6 µmol) for reaction pathway 2; or 1 (2.6 mg, 9.2 µmol), and Pd(NO3)2·2H2O (1.2 mg, 4.6 µmol) for reaction pathway 3. Then, a stock solution of 1,4-dimethoxybenzene as an internal standard in DMSO-d6 (600 µL of a 10 mM stock solution) was added for reaction pathways 1 and 2. For reaction pathway 3, a solution of 1,4-dimethoxybenzene as internal standard (600 µL of a 10 mM stock solution) containing nicotinaldehyde (1.8 µL, 18.4 mmol). The reaction was shaken to obtain a clear solution of all the components, and the crude reaction mixture was monitored by 1H NMR for 55 h at 25 °C. The concentration of all chemical species was determined for each reaction time by the analysis of integrals of the 1H NMR signals of the cage and the internal standard, reporting the yield as the average. All reactions were performed at least twice, and a representative example is reported in the manuscript.

4. Conclusions

We have performed a study of the synthesis of a Pd2L4 hydrazone molecular cage C1 (C1 = [Pd2L4]4+ with nitrate counterions, i.e., C1·(NO3)4) through 3 different reaction pathways involving the formation of Pd–ligand bonds, hydrazone bonds, or a combination of both. Our results show that it is possible to synthesize the cage structure C1 through three different reaction pathways, obtaining yields ranging from 73 to 79%, with the lowest yield observed for pathway 2 (73%) and similar yields for pathways 1 and 3 (78% and 79%, respectively). The fastest initial reaction rate is observed for reaction pathway 2, compared to reaction pathways 1 and 3, which have similar initial reaction rates, indicating that Pd-pyridine bonds are formed faster than hydrazone bonds. Overall, the cage formation pathway influences the initial reaction kinetics and the final cage yield. We also proved that despite the complexity of reaction pathway 3, which involves the formation of 16 bonds in contrast to reaction pathways 1 and 2, which only involve the formation of 8 bonds, the cage is formed in a 79% yield. Molecular modeling shows that the ligands have a favorable preorganization and their geometry matches well with the cage structure. We anticipate that these results will open the way for more complex cage designs that involve reaction pathways with the simultaneous formation of both Pd–ligand and hydrazone bonds.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms252211861/s1.

Author Contributions

Conceptualization, V.M.-C.; methodology, G.M.-G.; experiments, G.M.-G.; writing—original draft preparation, G.M.-G., V.M.-C. and R.M.-M.; writing—review and editing, G.M.-G., V.M.-C. and R.M.-M.; supervision, V.M.-C. and R.M.-M.; project administration, V.M.-C. and R.M.-M.; funding acquisition, V.M.-C. and R.M.-M. All authors have read and agreed to the published version of the manuscript.

Funding

V. M.-C. acknowledges the financial support from project CIDEGENT/2020/031 funded by the Generalitat Valenciana, project PID2020-113256RA-I00 funded by MICIU/AEI/10.13039/501100011033, and project CNS2023-144879 funded by MICIU/AEI/10.13039/501100011033 and European Union NextGenerationEU/PRTR. R. M.-M. acknowledges the financial support from project PROMETEO CIPROM/2021/007 from the Generalitat Valenciana and project PID2021-126304OB-C41 funded by MICIU/AEI/10.13039/501100011033 and FEDER A way to make Europe.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Materials, further inquiries can be directed to the corresponding author/s.

Acknowledgments

U26 facility of ICTS “NANBIOSIS” is acknowledged for support in the NMR characterization of compounds. This research was supported by CIBER (CB06/01/2012), Instituto de Salud Carlos III, Ministerio de Ciencia e Innovación.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Martí-Centelles, V.; Duarte, F.; Lusby, P.J. Host-Guest Chemistry of Self-Assembled Hemi-Cage Systems: The Dramatic Effect of Lost Pre-Organization. Isr. J. Chem. 2019, 59, 257–266. [Google Scholar] [CrossRef]
  2. Rondelli, M.; Daranas, A.H.; Martín, T. Importance of Precursor Adaptability in the Assembly of Molecular Organic Cages. J. Org. Chem. 2023, 88, 2113–2121. [Google Scholar] [CrossRef] [PubMed]
  3. Lewis, J.E.M. Developing Sophisticated Microenvironments in Metal-organic Cages. Trends Chem. 2023, 5, 717–719. [Google Scholar] [CrossRef]
  4. Barber, B.E.; Jamieson, E.M.G.; White, L.E.M.; McTernan, C.T. Metal-Peptidic Cages—Helical Oligoprolines Generate Highly Anisotropic Nanospaces with Emergent Isomer Control. Chem 2024, 10, 2792–2806. [Google Scholar] [CrossRef]
  5. Yuan, J.; Guan, Z.; Lin, H.; Yan, B.; Liu, K.; Zhou, H.; Fang, Y. Modeling the Enzyme Specificity by Molecular Cages Through Regulating Reactive Oxygen Species Evolution. Angew. Chem. Int. Ed. 2023, 62, e202303896. [Google Scholar] [CrossRef]
  6. Bhattacharyya, S.; Ali, S.R.; Venkateswarulu, M.; Howlader, P.; Zangrando, E.; De, M.; Mukherjee, P.S. Self-Assembled Pd12 Coordination Cage as Photoregulated Oxidase-Like Nanozyme. J. Am. Chem. Soc. 2020, 142, 18981–18989. [Google Scholar] [CrossRef]
  7. Montà-González, G.; Sancenón, F.; Martínez-Máñez, R.; Martí-Centelles, V. Purely Covalent Molecular Cages and Containers for Guest Encapsulation. Chem. Rev. 2022, 122, 13636–13708. [Google Scholar] [CrossRef]
  8. Percástegui, E.G.; Ronson, T.K.; Nitschke, J.R. Design and Applications of Water-soluble Coordination Cages. Chem. Rev. 2020, 120, 13480–13544. [Google Scholar] [CrossRef]
  9. Cox, C.J.T.; Hale, J.; Molinska, P.; Lewis, J.E.M. Supramolecular and Molecular Capsules, Cages, and Containers. Chem. Soc. Rev. 2024, 53, 10380–10480. [Google Scholar] [CrossRef]
  10. Martí-Centelles, V.; Lawrence, A.L.; Lusby, P.J. High Activity and Efficient Turnover by a Simple, Self-Assembled Artificial “Diels-Alderase”. J. Am. Chem. Soc. 2018, 140, 2862–2868. [Google Scholar] [CrossRef]
  11. Yu, Y.; Yang, J.M.; Rebek, J. Molecules in Confined Spaces: Reactivities and Possibilities in Cavitands. Chem 2020, 6, 1265–1274. [Google Scholar] [CrossRef]
  12. Pappalardo, A.; Puglisi, R.; Sfrazzetto, G.T. Catalysis inside Supramolecular Capsules: Recent Developments. Catalysts 2019, 9, 630. [Google Scholar] [CrossRef]
  13. Chen, S.; Chen, L.-J. Metal–organic Cages: Applications in Organic Reactions. Chemistry 2022, 4, 494–519. [Google Scholar] [CrossRef]
  14. Piskorz, T.K.; Martí-Centelles, V.; Spicer, R.L.; Duarte, F.; Lusby, P.J. Picking the Lock of Coordination Cage Catalysis. Chem. Sci. 2023, 14, 11300–11331. [Google Scholar] [CrossRef]
  15. Luo, K.; Liu, Y.; Li, A.; Lai, Z.; Long, Z.; He, Q. A Tetraphenylethylene-Based Superphane for Selective Detection and Adsorption of Trace Picric Acid in Aqueous Media. Supramol. Chem. 2024, 1–10. [Google Scholar] [CrossRef]
  16. La Cognata, S.; Amendola, V. Recent Applications of Organic Cages in Sensing and Separation Processes in Solution. Chem. Commun. 2023, 59, 13668–13678. [Google Scholar] [CrossRef]
  17. Merli, D.; La Cognata, S.; Balduzzi, F.; Miljkovic, A.; Toma, L.; Amendola, V. A Smart Supramolecular Device for the Detection of t,t-Muconic Acid in Urine. New J. Chem. 2018, 42, 15460–15465. [Google Scholar] [CrossRef]
  18. Ludden, M.D.; Taylor, C.G.P.; Ward, M.D. Orthogonal Binding and Displacement of Different Guest Types Using a Coordination Cage Host with Cavity-Based and Surface-Based Binding Sites. Chem. Sci. 2021, 12, 12640–12650. [Google Scholar] [CrossRef]
  19. Lu, Y.; Wang, S.-M.; He, S.-S.; Huang, Q.; Zhao, C.-D.; Yu, S.; Jiang, W.; Yao, H.; Wang, L.-L.; Yang, L.-P. An Endo-functionalized Molecular Cage for Selective Potentiometric Determination of Creatinine. Chem. Sci. 2024, 14, 14791–14797. [Google Scholar] [CrossRef]
  20. Maitra, P.K.; Bhattacharyya, S.; Purba, P.C.; Mukherjee, P.S. Coordination-induced Emissive Poly-nhc-derived Metallacage for Pesticide Detection. Inorg. Chem. 2024, 63, 2569–2576. [Google Scholar] [CrossRef]
  21. Mal, P.; Breiner, B.; Rissanen, K.; Nitschke, J.R. White Phosphorus is Air-Stable within a Self-Assembled Tetrahedral Capsule. Science 2009, 324, 1697–1699. [Google Scholar] [CrossRef] [PubMed]
  22. Galan, A.; Ballester, P. Stabilization of Reactive Species by Supramolecular Encapsulation. Chem. Soc. Rev. 2016, 45, 1720–1737. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, D.; Ronson, T.K.; Zou, Y.-Q.; Nitschke, J.R. Metal–organic Cages for Molecular Separations. Nat. Rev. Chem. 2021, 5, 168–182. [Google Scholar] [CrossRef] [PubMed]
  24. Little, M.A.; Cooper, A.I. The Chemistry of Porous Organic Molecular Materials. Adv. Funct. Mater. 2020, 30, 1909842. [Google Scholar] [CrossRef]
  25. Zhang, J.; Xie, S.; Zi, M.; Yuan, L. Recent Advances of Application of Porous Molecular Cages for Enantioselective Recognition and Separation. J. Sep. Sci. 2020, 43, 134–149. [Google Scholar] [CrossRef]
  26. Pérez-Ferreiro, M.; Gallagher, Q.M.; León, A.B.; Webb, M.A.; Criado, A.; Mosquera, J. Engineering a Surfactant Trap via Postassembly Modification of an Imine Cage. Chem. Mater. 2024, 36, 8920–8928. [Google Scholar] [CrossRef]
  27. Wang, Z.; Pacheco-Fernández, I.; Carpenter, J.E.; Aoyama, T.; Huang, G.; Isfahani, A.P.; Ghalei, B.; Sivaniah, E.; Urayama, K.; Colón, Y.J.; et al. Pore-networked Membrane Using Linked Metal-organic Polyhedra for Trace-level Pollutant Removal and Detection in Environmental Water. Commun. Mater. 2024, 5, 161. [Google Scholar] [CrossRef]
  28. Samanta, J.; Tang, M.; Zhang, M.; Hughes, R.P.; Staples, R.J.; Ke, C. Tripodal Organic Cages with Unconventional CH···O Interactions for Perchlorate Remediation in Water. J. Am. Chem. Soc. 2023, 145, 21723–21728. [Google Scholar] [CrossRef]
  29. Liu, X.; Zhang, Z.; Shui, F.; Zhang, S.; Li, L.; Wang, J.; Yi, M.; You, Z.; Yang, S.; Yang, R.; et al. Porous Organic Cage as an Efficient Platform for Industrial Radioactive Iodine Capture. Angew. Chem. Int. Ed. 2024, 163, e202411342. [Google Scholar] [CrossRef]
  30. Montà-González, G.; Ortiz-Gómez, E.; López-Lima, R.; Fiorini, G.; Martínez-Máñez, R.; Martí-Centelles, V. Water-Soluble Molecular Cages for Biological Applications. Molecules 2024, 29, 1621. [Google Scholar] [CrossRef]
  31. Montà-González, G.; Bastante-Rodríguez, D.; García-Fernández, A.; Lusby, P.J.; Martínez-Máñez, R.; Martí-Centelles, V. Comparing organic and metallo-organic hydrazone molecular cages as potential carriers for doxorubicin delivery. Chem. Sci. 2024, 15, 10010–10017. [Google Scholar] [CrossRef] [PubMed]
  32. Casini, A.; Woods, B.; Wenzel, M. The Promise of Self-Assembled 3D Supramolecular Coordination Complexes for Biomedical Applications. Inorg. Chem. 2017, 56, 14715–14729. [Google Scholar] [CrossRef] [PubMed]
  33. Zhu, C.-Y.; Pan, M.; Su, C.-Y. Metal-Organic Cages for Biomedical Applications. Isr. J. Chem. 2018, 59, 209–219. [Google Scholar] [CrossRef]
  34. Dou, W.-T.; Yang, C.-Y.; Hu, L.-R.; Song, B.; Jin, T.; Jia, P.-P.; Ji, X.; Zheng, F.; Yang, H.-B.; Xu, L. Metallacages and Covalent Cages for Biological Imaging and Therapeutics. ACS Mater. Lett. 2023, 5, 1061–1082. [Google Scholar] [CrossRef]
  35. Ahmad, N.; Younus, H.A.; Chughtai, A.H.; Verpoort, F. Metal–organic Molecular Cages: Applications of Biochemical Implications. Chem. Soc. Rev. 2015, 44, 9–25. [Google Scholar] [CrossRef]
  36. Sun, D.; Feng, X.; Zhu, X.; Wang, Y.; Yang, J. Anticancer Agents Based on Metal Organic Cages. Coord. Chem. Rev. 2024, 500, 215546. [Google Scholar] [CrossRef]
  37. Cruz-Nava, S.; De Jesús Valencia-Loza, S.; Percástegui, E.G. Protection and Transformation of Natural Products Within Aqueous Metal-organic Cages. Eur. J. Org. Chem. 2022, 2022, e202200844. [Google Scholar] [CrossRef]
  38. Tapia, L.; Alfonso, I.; Solà, J. Molecular Cages for Biological Applications. Org. Biomol. Chem. 2021, 19, 9527–9540. [Google Scholar] [CrossRef]
  39. Tapia, L.; Pérez, Y.; Carreira-Barral, I.; Bujons, J.; Bolte, M.; Bedia, C.; Solà, J.; Quesada, R.; Alfonso, I. Tuning pH-dependent Cytotoxicity in Cancer Cells by Peripheral Fluorine Substitution on Pseudopeptidic Cages. Cell Rep. Phys. Sci. 2024, 5, 102152. [Google Scholar] [CrossRef]
  40. Montà-González, G.; Martínez-Máñez, R.; Martí-Centelles, V. Requirements of Constrictive Binding and Dynamic Systems on Molecular Cages for Drug Delivery. Preprints 2024, 2024100823. [Google Scholar] [CrossRef]
  41. Zhang, G.; Mastalerz, M. Organic Cage Compounds-from Shape-Persistency to Function. Chem. Soc. Rev. 2014, 43, 1934–1947. [Google Scholar] [CrossRef] [PubMed]
  42. Liu, W.; Stoddart, J.F. Emergent Behavior in Nanoconfined Molecular Containers. Chem. 2021, 7, 919–947. [Google Scholar] [CrossRef]
  43. Kai, S.; Martí-Centelles, V.; Sakuma, Y.; Mashiko, T.; Kojima, T.; Nagashima, U.; Tachikawa, M.; Lusby, P.J.; Hiraoka, S. Quantitative Analysis of Self-Assembly Process of a Pd2L4 Cage Consisting of Rigid Ditopic Ligands. Chem. Eur. J. 2018, 24, 663–671. [Google Scholar] [CrossRef] [PubMed]
  44. Abe, T.; Sanada, N.; Takeuchi, K.; Okazawa, A.; Hiraoka, S. Assembly of Six Types of Heteroleptic Pd2L4 Cages Under Kinetic Control. J. Am. Chem. Soc. 2023, 145, 28061–28074. [Google Scholar] [CrossRef]
  45. Foianesi-Takeshige, L.H.; Takahashi, S.; Tateishi, T.; Sekine, R.; Okazawa, A.; Zhu, W.; Kojima, T.; Harano, K.; Nakamura, E.; Sato, H.; et al. Bifurcation of Self-assembly Pathways to Sheet or Cage Controlled by Kinetic Template Effect. Commun. Chem. 2019, 2, 128. [Google Scholar] [CrossRef]
  46. Martí-Centelles, V.; Pandey, M.D.; Burguete, M.I.; Luis, S.V. Macrocyclization Reactions: The Importance of Conformational, Configurational, and Template-Induced Preorganization. Chem. Rev. 2015, 115, 8736–8834. [Google Scholar] [CrossRef]
  47. Martí-Centelles, V. Kinetic and thermodynamic concepts as synthetic tools in supramolecular chemistry for preparing macrocycles and molecular cages. Tetrahedron Lett. 2022, 93, 153676. [Google Scholar] [CrossRef]
  48. Martí-Centelles, V.; Piskorz, T.K.; Duarte, F. CageCavityCalc (C3): A Computational Tool for Calculating and Visualizing Cavities in Molecular Cages. J. Chem. Inf. Model. 2024, 64, 5604–5616. [Google Scholar] [CrossRef]
  49. Piskorz, T.K.; Martí-Centelles, V.; Young, T.A.; Lusby, P.J.; Duarte, F. Computational Modeling of Supramolecular Metallo-organic Cages-Challenges and Opportunities. ACS Catal. 2022, 12, 5806–5826. [Google Scholar] [CrossRef]
  50. Tarzia, A.; Wolpert, E.H.; Jelfs, K.E.; Pavan, G.M. Systematic Exploration of Accessible Topologies of Cage Molecules via Minimalistic Models. Chem. Sci. 2023, 14, 12506–12517. [Google Scholar] [CrossRef]
  51. Young, T.A.; Gheorghe, R.; Duarte, F. cgbind: A Python Module and Web App for Automated Metallocage Construction and Host–Guest Characterization. J. Chem. Inf. Model. 2020, 60, 3546–3557. [Google Scholar] [CrossRef] [PubMed]
  52. Turcani, L.; Tarzia, A.; Szczypiński, F.T.; Jelfs, K.E. stk: An Extendable Python Framework for Automated Molecular and Supramolecular Structure Assembly and Discovery. J. Chem. Phys. 2021, 154, 214102. [Google Scholar] [CrossRef] [PubMed]
  53. Santolini, V.; Miklitz, M.; Berardo, E.; Jelfs, K.E. Topological Landscapes of Porous Organic Cages. Nanoscale 2017, 9, 5280–5298. [Google Scholar] [CrossRef]
  54. Greenaway, R.L.; Jelfs, K.E. High-throughput Approaches for the Discovery of Supramolecular Organic Cages. ChemPlusChem 2020, 85, 1813–1823. [Google Scholar] [CrossRef]
  55. Mcconnell, A.J. Metallosupramolecular Cages: From Design Principles and Characterisation Techniques to Applications. Chem. Soc. Rev. 2022, 51, 2957–2971. [Google Scholar] [CrossRef]
  56. Cook, T.R.; Stang, P.J. Recent Developments in the Preparation and Chemistry of Metallacycles and Metallacages via Coordination. Chem. Rev. 2015, 115, 7001–7045. [Google Scholar] [CrossRef]
  57. Xu, Z.; Ye, Y.; Liu, Y.; Liu, H.; Jiang, S. Design and Assembly of Porous Organic Cages. Chem. Commun. 2024, 60, 2261–2282. [Google Scholar] [CrossRef]
  58. Yang, X.; Ullah, Z.; Stoddart, J.F.; Yavuz, C.T. Porous Organic Cages. Chem. Rev. 2023, 123, 4602–4634. [Google Scholar] [CrossRef]
  59. Van Hilst, Q.V.C.; Pearcy, A.C.; Preston, D.; Wright, L.J.; Hartinger, C.G.; Brooks, H.J.L.; Crowley, J.D. A Dynamic Covalent Approach to [PtnL2n]2n+ Cages. Chem. Commun. 2024, 60, 4302–4305. [Google Scholar] [CrossRef]
  60. Lisboa, L.S.; Riisom, M.; Dunne, H.J.; Preston, D.; Jamieson, S.M.F.; Wright, L.J.; Hartinger, C.G.; Crowley, J.D. Hydrazone- and Imine-containing [PdPtL4]4+ Cages: A Comparative Study of the Stability and Host–guest Chemistry. Dalton Trans. 2022, 51, 18438–18445. [Google Scholar] [CrossRef]
  61. Pradhan, S.; John, R.P. Self-assembled Pd6L4 Cage and Pd4L4 Square Using Hydrazide Based Ligands: Synthesis, Characterization and Catalytic Activity in Suzuki–Miyaura Coupling Reactions. RSC Adv. 2016, 6, 12453–12460. [Google Scholar] [CrossRef]
  62. Han, M.; Engelhard, D.M.; Clever, G.H. Self-assembled Coordination Cages Based on Banana-shaped Ligands. Chem. Soc. Rev. 2014, 43, 1848–1860. [Google Scholar] [CrossRef] [PubMed]
  63. Pullen, S.; Tessarolo, J.; Clever, G.H. Increasing Structural and Functional Complexity in Self-assembled Coordination Cages. Chem. Sci. 2021, 12, 7269–7293. [Google Scholar] [CrossRef] [PubMed]
  64. Moree, L.K.; Faulkner, L.A.V.; Crowley, J.D. Heterometallic Cages: Synthesis and Applications. Chem. Soc. Rev. 2024, 53, 25–46. [Google Scholar] [CrossRef]
  65. Schmidt, A.; Casini, A.; Kühn, F.E. Self-Assembled M2L4 Coordination Cages: Synthesis and Potential Applications. Coord. Chem. Rev. 2014, 275, 19–36. [Google Scholar] [CrossRef]
  66. Kurpik, G.; Walczak, A.; Gołdyn, M.; Harrowfield, J.; Stefankiewicz, A.R. Pd(II) Complexes with Pyridine Ligands: Substituent Effects on the NMR Data, Crystal Structures, and Catalytic Activity. Inorg. Chem. 2022, 61, 14019–14029. [Google Scholar] [CrossRef]
  67. Nguyen, R.; Huc, I. Optimizing the Reversibility of Hydrazone Formation for Dynamic Combinatorial Chemistry. Chem. Commun. 2003, 942–943. [Google Scholar] [CrossRef]
  68. Lin, Z.; Emge, T.J.; Warmuth, R. Multicomponent Assembly of Cavitand-based Polyacylhydrazone Nanocapsules. Chem. Eur. J. 2011, 17, 9395–9405. [Google Scholar] [CrossRef]
  69. Wierzbicki, M.; Głowacka, A.A.; Szymański, M.P.; Szumna, A. A Chiral Member of the Family of Organic Hexameric Cages. Chem. Commun. 2017, 53, 5200–5203. [Google Scholar] [CrossRef]
  70. Yang, M.; Qiu, F.; El-Sayed, E.-S.M.; Wang, W.; Du, S.; Su, K.; Yuan, D. Water-stable Hydrazone-linked Porous Organic Cages. Chem. Sci. 2021, 12, 13307–13315. [Google Scholar] [CrossRef]
  71. Foyle, E.; Mason, T.; Coote, M.; Izgorodina, E.; White, N. Robust Organic Cages Prepared Using Hydrazone Condensation Display Sulfate/hydrogenphosphate Selectivity in Water. ChemRxiv 2024. [Google Scholar] [CrossRef]
  72. Zheng, X.; Zhang, Y.; Wu, G.; Liu, J.-R.; Cao, N.; Wang, L.; Wang, Y.; Li, X.; Hong, X.; Yang, C.; et al. Temperature-dependent Self-assembly of a Purely Organic Cage in Water. Chem. Commun. 2018, 54, 3138–3141. [Google Scholar] [CrossRef] [PubMed]
  73. Xu, Y.-Y.; Liu, H.-K.; Wang, Z.-K.; Song, B.; Zhang, D.-W.; Wang, H.; Li, Z.; Li, X.; Li, Z.-T. Olive-shaped Organic Cages: Synthesis and Remarkable Promotion of Hydrazone Condensation Through Encapsulation in Water. J. Org. Chem. 2021, 86, 3943–3951. [Google Scholar] [CrossRef] [PubMed]
  74. Vestrheim, O.; Schenkelberg, M.E.; Dai, Q.; Schneebeli, S.T. Efficient Multigram Procedure for the Synthesis of Large Hydrazone-linked Molecular Cages. Org. Chem. Front. 2023, 10, 3965–3974. [Google Scholar] [CrossRef]
  75. Foyle, É.M.; Goodwin, R.J.; Cox, C.J.T.; Smith, B.R.; Colebatch, A.L.; White, N.G. Expedient Decagram-Scale Synthesis of Robust Organic Cages That Bind Sulfate Strongly and Selectively in Water. J. Am. Chem. Soc. 2024, 146, 27127–27137. [Google Scholar] [CrossRef]
  76. Cortón, P.; Wang, H.; Neira, I.; Blanco-Gómez, A.; Pazos, E.; Peinador, C.; Li, H.; García, M.D. “The Red Cage”: Implementation of Ph-responsiveness Within a Macrobicyclic Pyridinium-based Molecular Host. Org. Chem. Front. 2022, 9, 81–87. [Google Scholar] [CrossRef]
  77. Hiraoka, S. Self-Assembly Processes of Pd(II)- and Pt(II)-Linked Discrete Self-Assemblies Revealed by QASAP. Isr. J. Chem. 2019, 59, 151–165. [Google Scholar] [CrossRef]
  78. Das, S.; Pal, S. Synthesis, Characterization, and Structural Studies of Palladium(II) Complexes with N-(Aroyl)-N’-(2,4-Dimethoxybenzylidene)hydrazines. J. Organomet. Chem. 2006, 691, 2575–2583. [Google Scholar] [CrossRef]
  79. Bacchi, A.; Carcelli, M.; Pelagatti, P.; Pelizzi, C.; Pelizzi, G.; Salati, C.; Sgarabotto, P. Nickel(II) and Palladium(II) Complexes with Acylhydrazone Ligands of α-Diketones: The Electronic and Steric Factors Affecting the Formation of the Dimeric Palladium(II) Complexes. Inorganica Chim. Acta 1999, 295, 171–179. [Google Scholar] [CrossRef]
  80. Balaji, S.; Balamurugan, G.; Ramesh, R.; Semeril, D. Palladium(II) N^O Chelating Complexes Catalyzed One-Pot Approach for Synthesis of Quinazolin-4(3H)-ones via Acceptorless Dehydrogenative Coupling of Benzyl Alcohols and 2-Aminobenzamide. Organometallics 2021, 40, 725–734. [Google Scholar] [CrossRef]
  81. Bontchev, P.R.; Boneva, M.; Arnaudov, M.; Nefedov, V.I. Palladium(II) Complexes of Hydrazides of Aspartic and Glutamic Acids. Inorg. Chim. Acta 1984, 81, 75–81. [Google Scholar] [CrossRef]
  82. Deppmeier, B.J.; Driessen, A.J.; Hehre, T.S.; Hehre, W.J.; Johnson, J.A.; Klunzinger, P.E.; Leonard, J.M.; Pham, I.N.; Pietro, W.J.; Jianguo, Y. Spartan’20, Version 1.0.0 (8 March 2021); Wavefunction, Inc.: Irvine, CA, USA, 2011. [Google Scholar]
Ijms 25 11861 g001

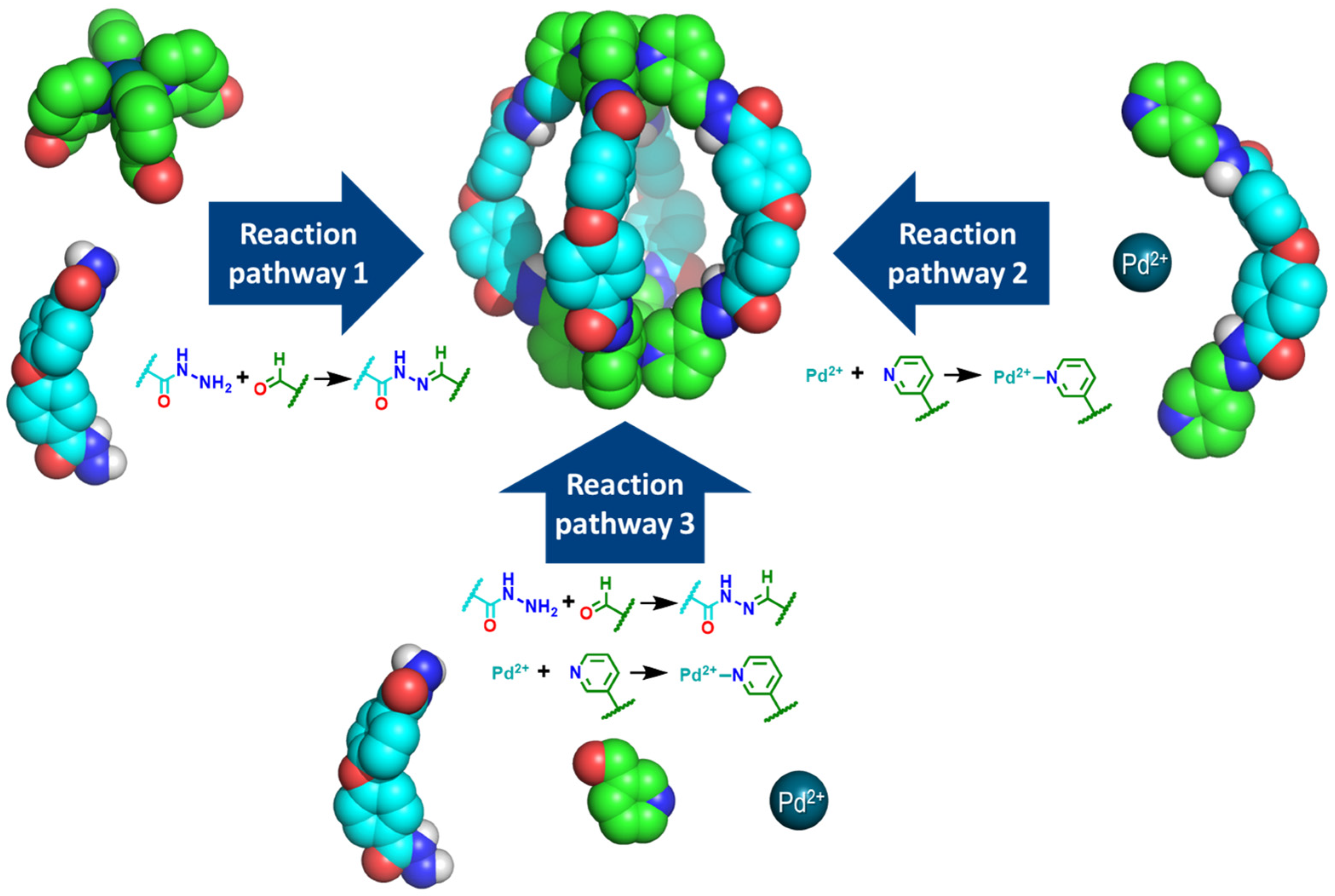

Figure 1. Schematic representation of the three reaction pathways for the synthesis of a Pd2L4 cage containing hydrazone and Pd–pyridine bonds. In the figura, carbon atoms in nicotinaldehyde are shown in green, while carbon atoms in 4,4′-oxydi(benzohydrazide) are colored cyan. Oxygen atoms are represented in red, nitrogen atoms in blue, hydrogen atoms in white, and Pd2+ ions in dark cyan.
Figure 1. Schematic representation of the three reaction pathways for the synthesis of a Pd2L4 cage containing hydrazone and Pd–pyridine bonds. In the figura, carbon atoms in nicotinaldehyde are shown in green, while carbon atoms in 4,4′-oxydi(benzohydrazide) are colored cyan. Oxygen atoms are represented in red, nitrogen atoms in blue, hydrogen atoms in white, and Pd2+ ions in dark cyan.
Ijms 25 11861 g001
Ijms 25 11861 g002

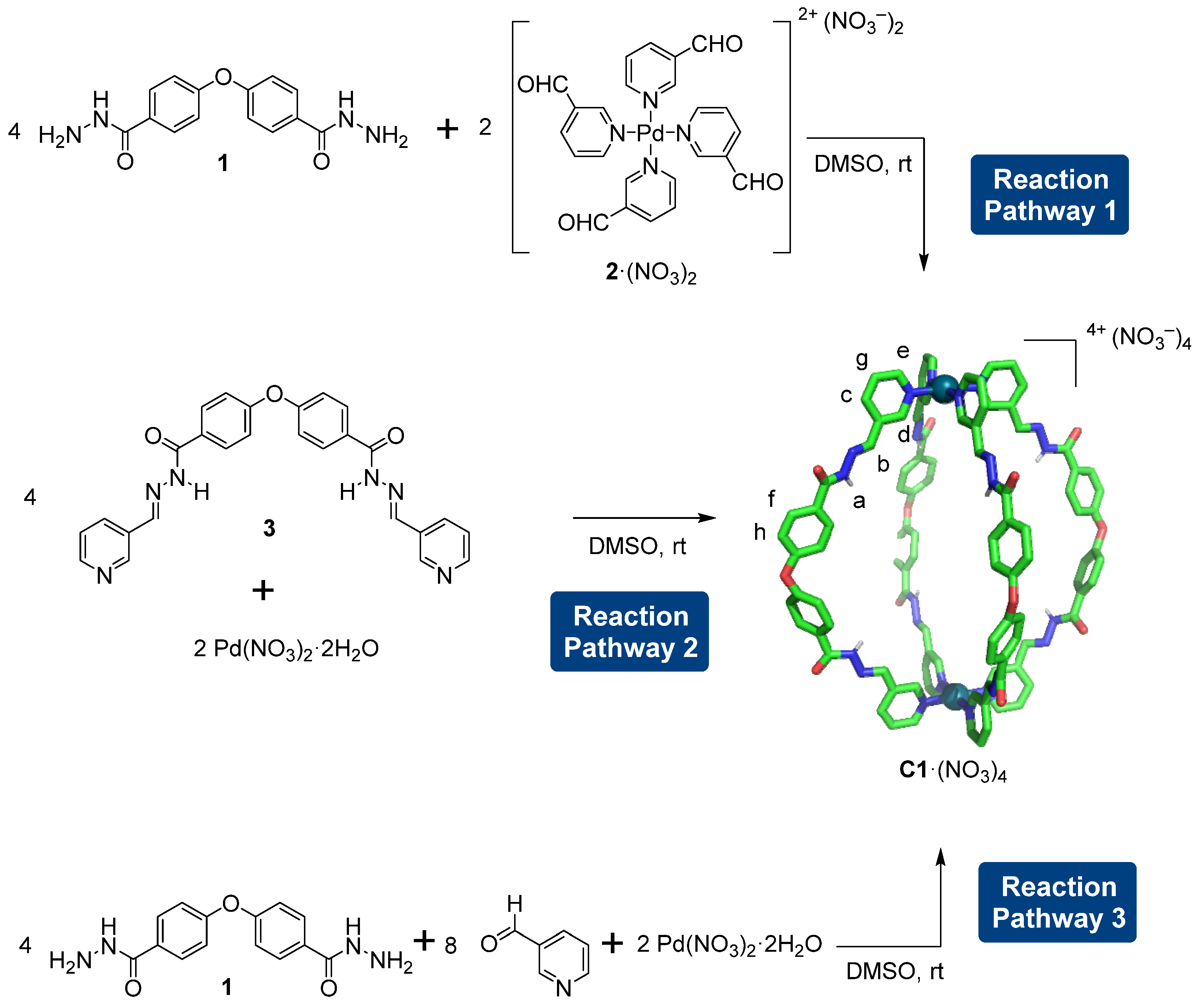

Figure 2. The three possible reaction pathways for the synthesis of cage C1·(NO3)4 by Pd–pyridine and hydrazone bond formation. The lettering of C1·(NO3)4 corresponds to the assignment of the 1H NMR signals. The molecular model of C1·(NO3)4, in which non-polar hydrogen atoms have been omitted for clarity, has the following color scheme: C, green; O, red; N, blue; H, white; and Pd2+, dark cyan. Note that C1 = [Pd2L4]4+; therefore, four nitrate counterions are required, i.e., C1·(NO3)4.
Figure 2. The three possible reaction pathways for the synthesis of cage C1·(NO3)4 by Pd–pyridine and hydrazone bond formation. The lettering of C1·(NO3)4 corresponds to the assignment of the 1H NMR signals. The molecular model of C1·(NO3)4, in which non-polar hydrogen atoms have been omitted for clarity, has the following color scheme: C, green; O, red; N, blue; H, white; and Pd2+, dark cyan. Note that C1 = [Pd2L4]4+; therefore, four nitrate counterions are required, i.e., C1·(NO3)4.
Ijms 25 11861 g002
Ijms 25 11861 g003

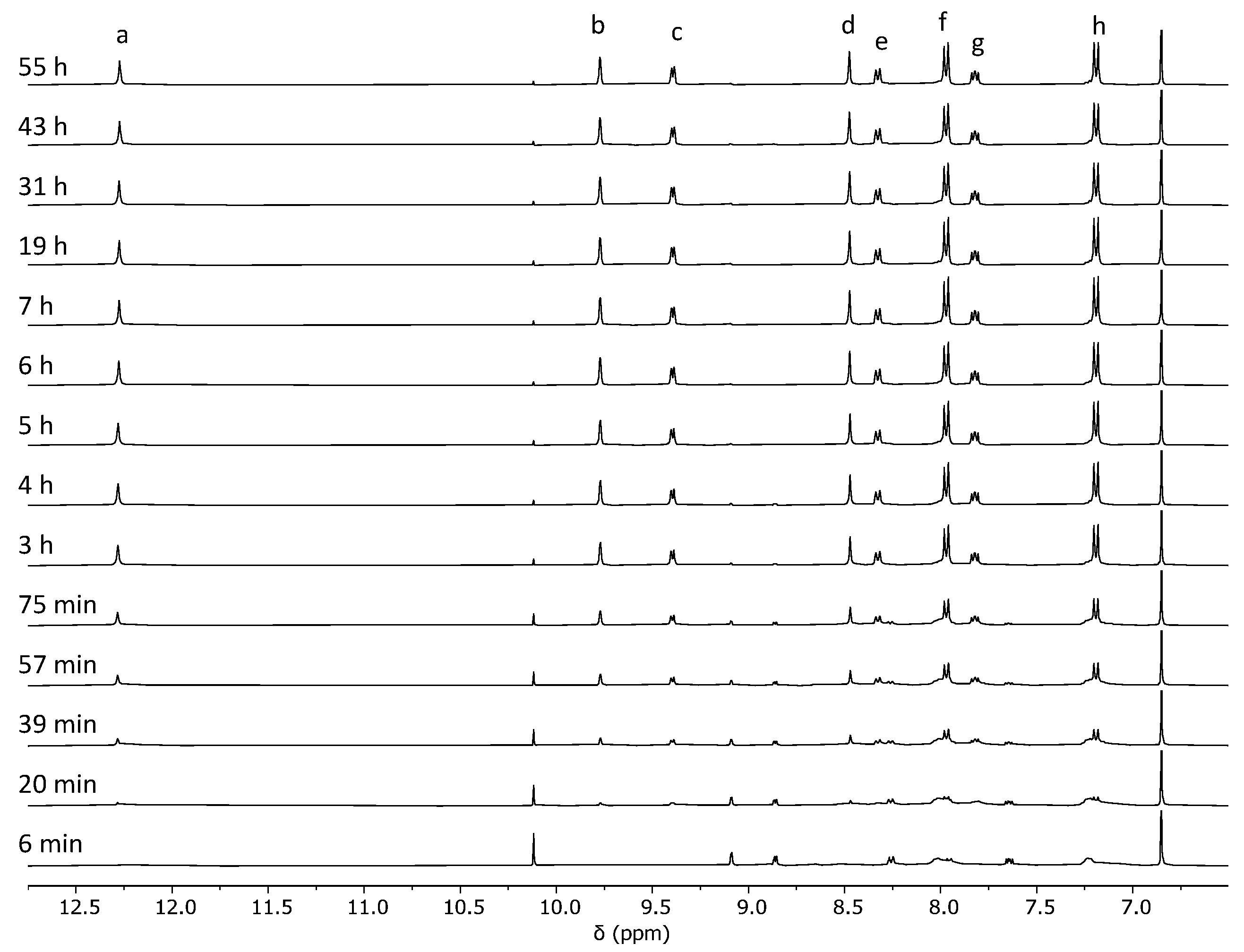

Figure 3. Evolution of the 1H NMR (400 MHz, DMSO-d6) for the synthesis of cage C1·(NO3)4 through reaction pathway 1 from 1 and 2·(NO3)2. The signal at 6.86 ppm corresponds to 1,4-dimethoxybenzene used as an internal standard. The assignment of cage signals a–h is shown in Figure 2. Due to the complexity of the cage formation reaction, the signals of building blocks and intermediates are not assigned. We were only able to assign the set of signals at 10.1, 9.1, 8.9, 8.3, and 7.6 ppm to nicotinaldehyde.
Figure 3. Evolution of the 1H NMR (400 MHz, DMSO-d6) for the synthesis of cage C1·(NO3)4 through reaction pathway 1 from 1 and 2·(NO3)2. The signal at 6.86 ppm corresponds to 1,4-dimethoxybenzene used as an internal standard. The assignment of cage signals a–h is shown in Figure 2. Due to the complexity of the cage formation reaction, the signals of building blocks and intermediates are not assigned. We were only able to assign the set of signals at 10.1, 9.1, 8.9, 8.3, and 7.6 ppm to nicotinaldehyde.
Ijms 25 11861 g003
Ijms 25 11861 g004

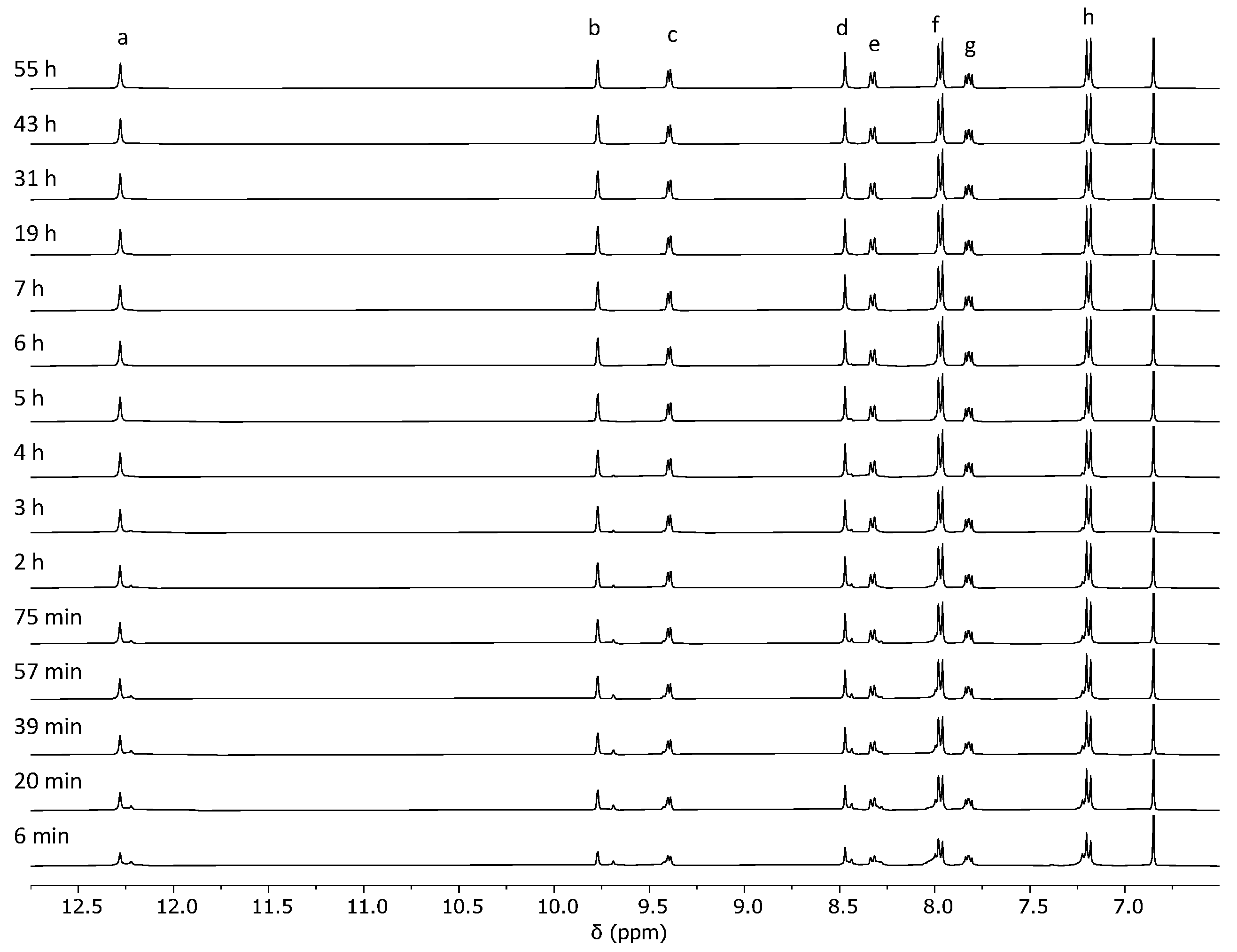

Figure 4. Evolution of the 1H NMR (400 MHz, DMSO-d6) for the synthesis of cage C1·(NO3)4 through reaction pathway 2 from 3 and palladium(II) nitrate dihydrate. The signal at 6.86 ppm corresponds to 1,4-dimethoxybenzene used as an internal standard. The assignment of cage signals a–h is shown in Figure 2. Due to the complexity of the cage formation reaction, the signals of building blocks and intermediates are not assigned.
Figure 4. Evolution of the 1H NMR (400 MHz, DMSO-d6) for the synthesis of cage C1·(NO3)4 through reaction pathway 2 from 3 and palladium(II) nitrate dihydrate. The signal at 6.86 ppm corresponds to 1,4-dimethoxybenzene used as an internal standard. The assignment of cage signals a–h is shown in Figure 2. Due to the complexity of the cage formation reaction, the signals of building blocks and intermediates are not assigned.
Ijms 25 11861 g004
Ijms 25 11861 g005

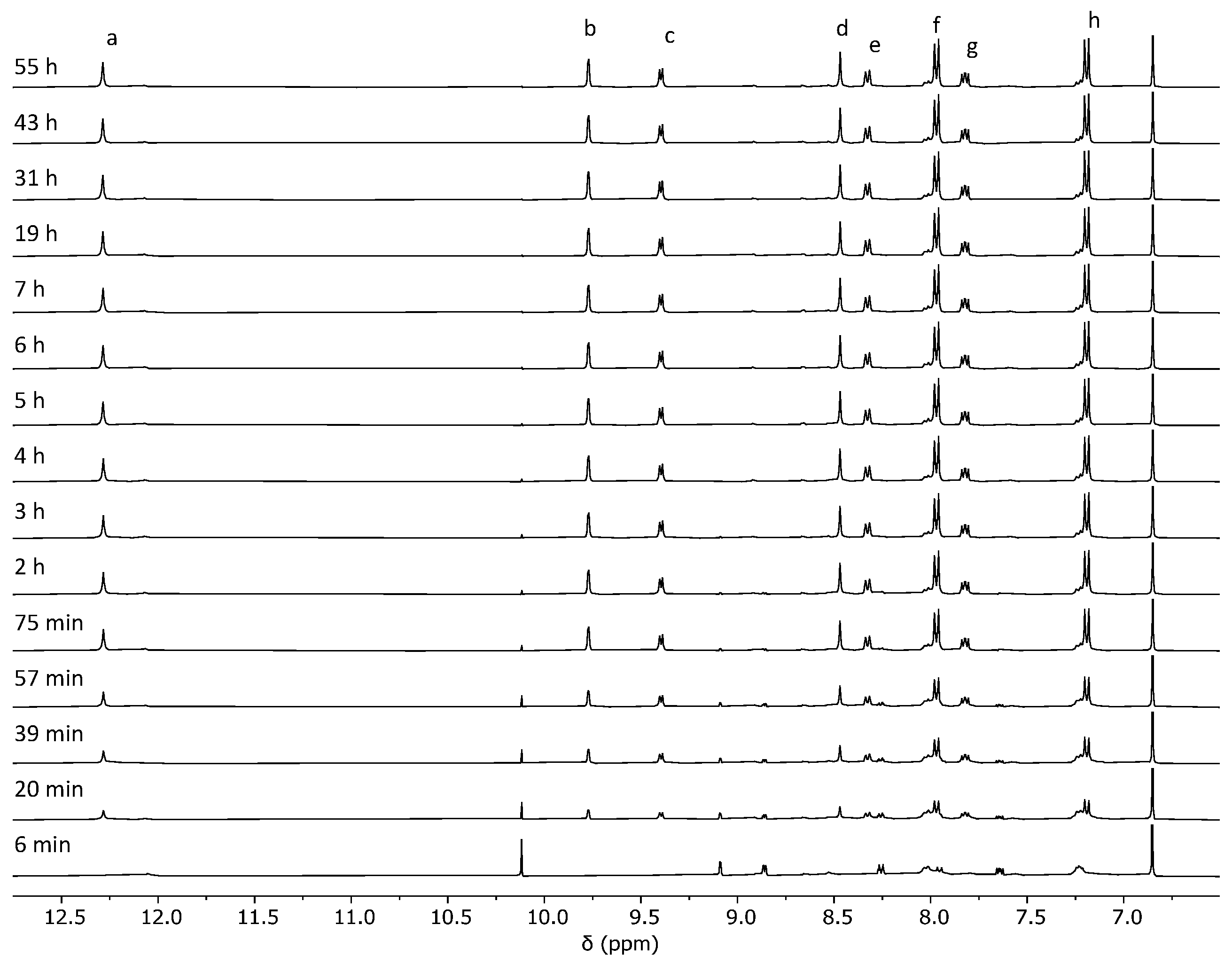

Figure 5. Evolution of the 1H NMR (400 MHz, DMSO-d6) for the synthesis of cage C1·(NO3)4 through reaction pathway 3 from dihydrazide 1, palladium(II) nitrate dihydrate, and nicotinaldehyde. The signal at 6.86 ppm corresponds to 1,4-dimethoxybenzene used as an internal standard. The assignment of cage signals a–h is shown in Figure 2. Due to the complexity of the cage formation reaction, the signals of building blocks and intermediates are not assigned. We were only able to assign the set of signals at 10.1, 9.1, 8.9, 8.3, and 7.6 ppm to nicotinaldehyde.
Figure 5. Evolution of the 1H NMR (400 MHz, DMSO-d6) for the synthesis of cage C1·(NO3)4 through reaction pathway 3 from dihydrazide 1, palladium(II) nitrate dihydrate, and nicotinaldehyde. The signal at 6.86 ppm corresponds to 1,4-dimethoxybenzene used as an internal standard. The assignment of cage signals a–h is shown in Figure 2. Due to the complexity of the cage formation reaction, the signals of building blocks and intermediates are not assigned. We were only able to assign the set of signals at 10.1, 9.1, 8.9, 8.3, and 7.6 ppm to nicotinaldehyde.
Ijms 25 11861 g005
Ijms 25 11861 g006
Figure 6. Evolution of the cage C1·(NO3)4 yield for the cage formation reaction through reaction pathways 1 (green), 2 (orange), and 3 (blue). The inset plot shows the first 7 h of reaction. Cage formation yields have been determined by 1H NMR using the integrals of the signals of the cage and 1,4-dimethoxybenzene which has been used as an internal standard.
Figure 6. Evolution of the cage C1·(NO3)4 yield for the cage formation reaction through reaction pathways 1 (green), 2 (orange), and 3 (blue). The inset plot shows the first 7 h of reaction. Cage formation yields have been determined by 1H NMR using the integrals of the signals of the cage and 1,4-dimethoxybenzene which has been used as an internal standard.
Ijms 25 11861 g006
Ijms 25 11861 g007

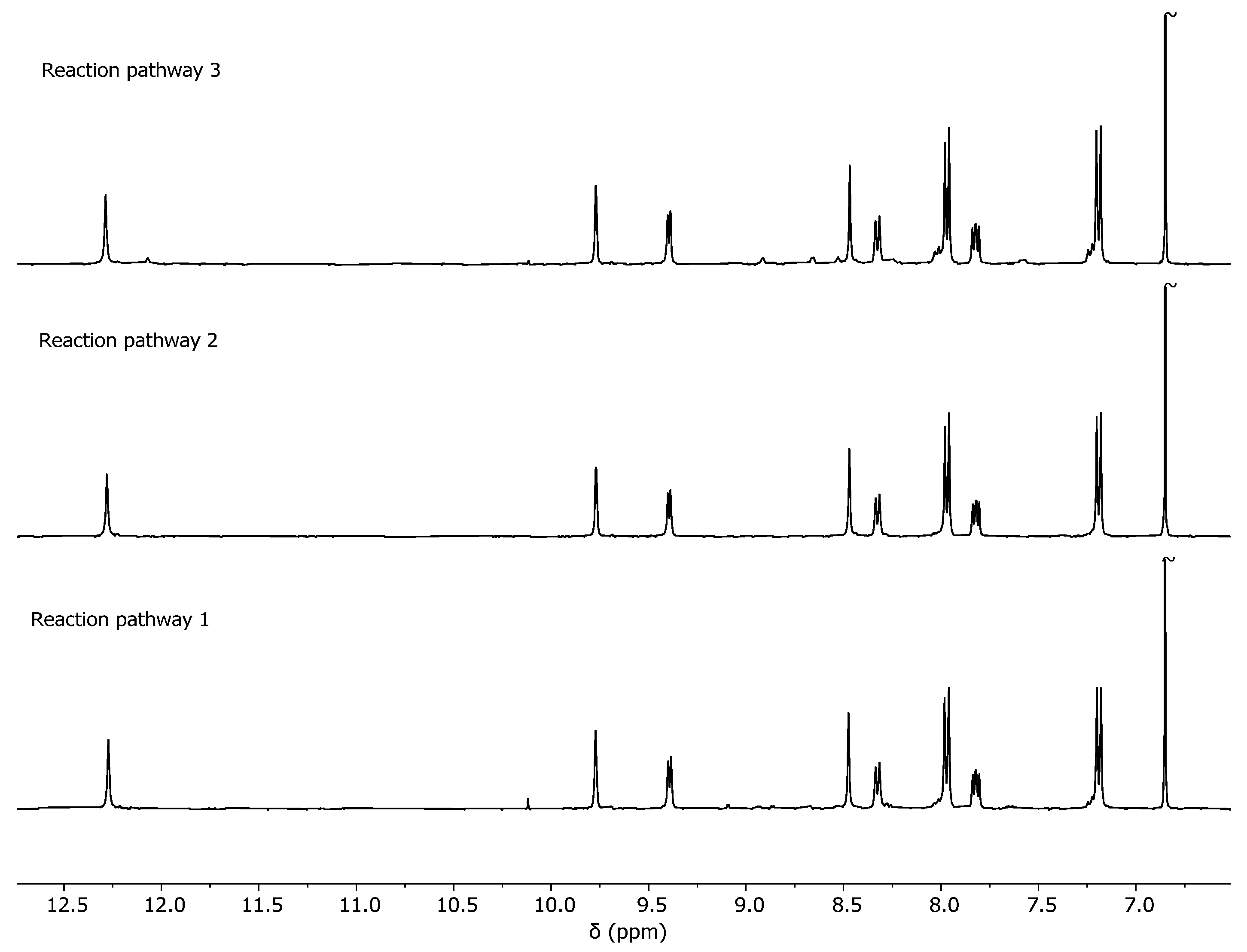

Figure 7. Comparison of the 1H NMR obtained at 55 h for the formation reaction of cage C1·(NO3)4 through reaction pathways 1, 2, and 3. The signal at 6.86 ppm corresponds to 1,4-dimethoxybenzene used as an internal standard. The signal at 10.1 ppm corresponds to the aldehyde group of unreacted nicotinaldehyde.
Figure 7. Comparison of the 1H NMR obtained at 55 h for the formation reaction of cage C1·(NO3)4 through reaction pathways 1, 2, and 3. The signal at 6.86 ppm corresponds to 1,4-dimethoxybenzene used as an internal standard. The signal at 10.1 ppm corresponds to the aldehyde group of unreacted nicotinaldehyde.
Ijms 25 11861 g007
Ijms 25 11861 g008

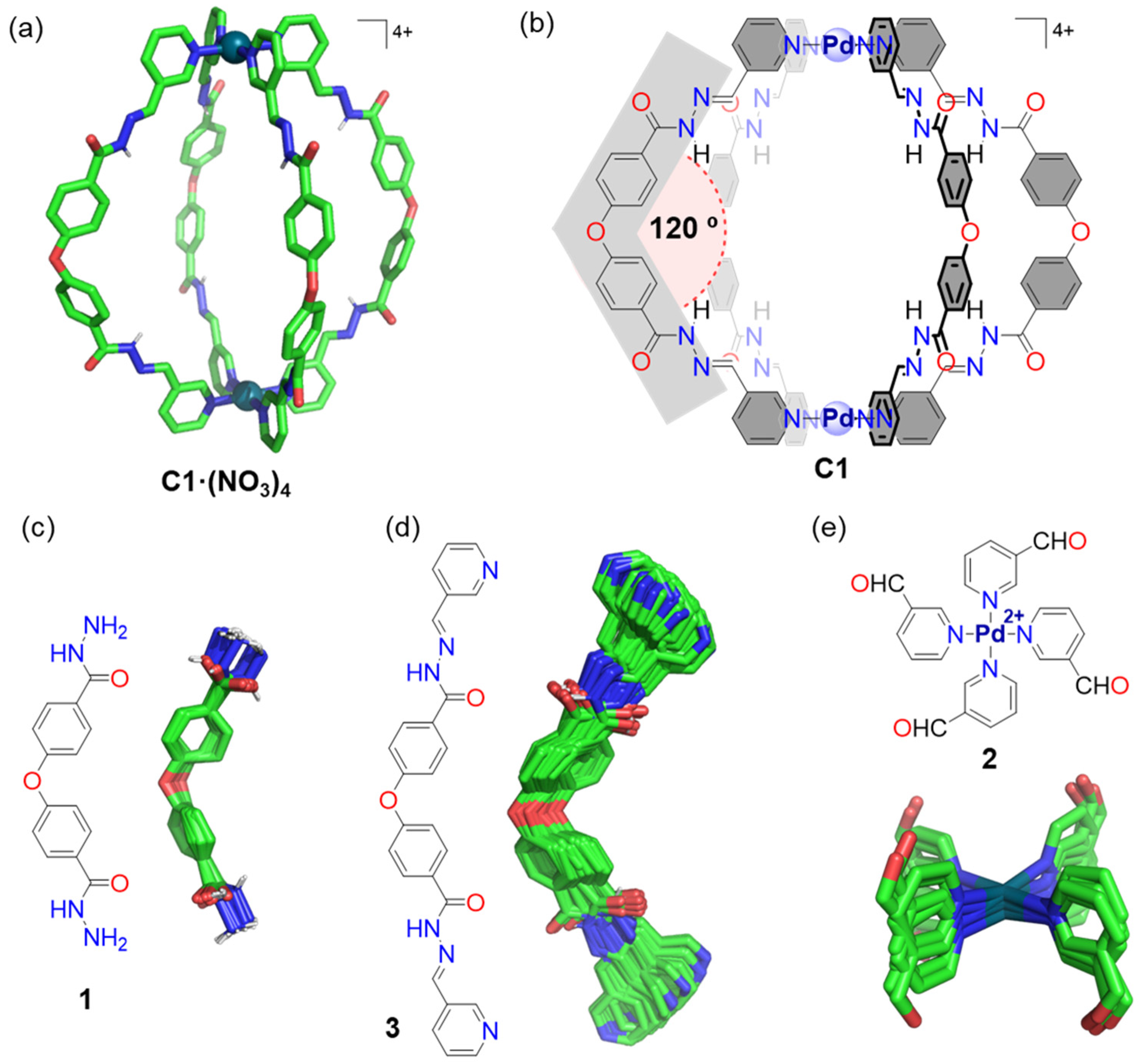

Figure 8. (a) Crystal structure of cage C1·(NO3)4 (CCDC 2295536, see ref [31]). (b) Chemical representation of the structure of cage C1 highlighting the ideal 120° angle of the ligand. (c–e) Conformational searches performed at MMFF level of theory using the software Wavefunction Spartan 20 (overlay of the most stable conformers found in a 2 kcal/mol energy window). The molecular models, in which non-polar hydrogen atoms have been omitted for clarity, have the following color scheme: C, green; O, red; N, blue; H, white; and Pd2+, dark cyan.
Figure 8. (a) Crystal structure of cage C1·(NO3)4 (CCDC 2295536, see ref [31]). (b) Chemical representation of the structure of cage C1 highlighting the ideal 120° angle of the ligand. (c–e) Conformational searches performed at MMFF level of theory using the software Wavefunction Spartan 20 (overlay of the most stable conformers found in a 2 kcal/mol energy window). The molecular models, in which non-polar hydrogen atoms have been omitted for clarity, have the following color scheme: C, green; O, red; N, blue; H, white; and Pd2+, dark cyan.
Ijms 25 11861 g008
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Montà-González, G.; Martínez-Máñez, R.; Martí-Centelles, V. Synthesis of a Pd2L4 Hydrazone Molecular Cage Through Multiple Reaction Pathways. Int. J. Mol. Sci. 2024, 25, 11861. https://doi.org/10.3390/ijms252211861

AMA Style

Montà-González G, Martínez-Máñez R, Martí-Centelles V. Synthesis of a Pd2L4 Hydrazone Molecular Cage Through Multiple Reaction Pathways. International Journal of Molecular Sciences. 2024; 25(22):11861. https://doi.org/10.3390/ijms252211861

Chicago/Turabian Style

Montà-González, Giovanni, Ramón Martínez-Máñez, and Vicente Martí-Centelles. 2024. "Synthesis of a Pd2L4 Hydrazone Molecular Cage Through Multiple Reaction Pathways" International Journal of Molecular Sciences 25, no. 22: 11861. https://doi.org/10.3390/ijms252211861

APA Style

Montà-González, G., Martínez-Máñez, R., & Martí-Centelles, V. (2024). Synthesis of a Pd2L4 Hydrazone Molecular Cage Through Multiple Reaction Pathways. International Journal of Molecular Sciences, 25(22), 11861. https://doi.org/10.3390/ijms252211861

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
