Human Sinoatrial Node Pacemaker Activity: Role of the Slow Component of the Delayed Rectifier K+ Current, IKs

by
Arie O. Verkerk
1,2 and
Ronald Wilders
1,*
1
Department of Medical Biology, Amsterdam Cardiovascular Sciences, Amsterdam UMC, University of Amsterdam, 1105 AZ Amsterdam, The Netherlands
2
Department of Experimental Cardiology, Heart Center, Amsterdam Cardiovascular Sciences, Amsterdam UMC, University of Amsterdam, 1105 AZ Amsterdam, The Netherlands
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(8), 7264; https://doi.org/10.3390/ijms24087264
Submission received: 22 March 2023 / Revised: 7 April 2023 / Accepted: 11 April 2023 / Published: 14 April 2023
(This article belongs to the Special Issue New Insights into Cardiac Ion Channel Regulation 3.0)
Browse Figures
Review Reports Versions Notes

Abstract

:
The pacemaker activity of the sinoatrial node (SAN) has been studied extensively in animal species but is virtually unexplored in humans. Here we assess the role of the slowly activating component of the delayed rectifier K+ current (IKs) in human SAN pacemaker activity and its dependence on heart rate and β-adrenergic stimulation. HEK-293 cells were transiently transfected with wild-type KCNQ1 and KCNE1 cDNA, encoding the α- and β-subunits of the IKs channel, respectively. KCNQ1/KCNE1 currents were recorded both during a traditional voltage clamp and during an action potential (AP) clamp with human SAN-like APs. Forskolin (10 µmol/L) was used to increase the intracellular cAMP level, thus mimicking β-adrenergic stimulation. The experimentally observed effects were evaluated in the Fabbri–Severi computer model of an isolated human SAN cell. Transfected HEK-293 cells displayed large IKs-like outward currents in response to depolarizing voltage clamp steps. Forskolin significantly increased the current density and significantly shifted the half-maximal activation voltage towards more negative potentials. Furthermore, forskolin significantly accelerated activation without affecting the rate of deactivation. During an AP clamp, the KCNQ1/KCNE1 current was substantial during the AP phase, but relatively small during diastolic depolarization. In the presence of forskolin, the KCNQ1/KCNE1 current during both the AP phase and diastolic depolarization increased, resulting in a clearly active KCNQ1/KCNE1 current during diastolic depolarization, particularly at shorter cycle lengths. Computer simulations demonstrated that IKs reduces the intrinsic beating rate through its slowing effect on diastolic depolarization at all levels of autonomic tone and that gain-of-function mutations in KCNQ1 may exert a marked bradycardic effect during vagal tone. In conclusion, IKs is active during human SAN pacemaker activity and has a strong dependence on heart rate and cAMP level, with a prominent role at all levels of autonomic tone.

1. Introduction

The pacemaker activity of the sinoatrial node (SAN) has been studied extensively in animal species but is virtually unexplored among humans [1]. According to the different heart rates, with high rates in small mammals and slower rates in humans [2,3,4], differences in the underlying pacemaker activity mechanism between animal species and humans can be expected [5,6]. Diseases and remodeling of the SAN [7,8,9,10,11], inherited cardiac syndromes [12,13,14,15,16], and drugs [17,18,19,20,21] frequently lead to changes in SAN pacemaker formation and/or sick sinus syndrome. A better understanding of the basic mechanisms of human SAN automaticity is therefore clinically important [8,17,22].
Chandler et al. [23] characterized the ‘molecular architecture’ of the human SAN based on the messenger RNA (mRNA) levels of 120 ion channels and the expression level of some related proteins, and they concluded that the observed expression pattern of these ion channels is “appropriate to explain pacemaking”. We actually measured action potentials (APs) of single pacemaker cells isolated from a human SAN using a patch clamp methodology [24]. We recorded spontaneous APs with a clear, but slow, diastolic depolarization phase resulting in an intrinsic cycle length of ≈830 ms (72 beats per min (bpm)). In addition, we found in these single human SAN cells a hyperpolarization-activated current (If) [24], a fast and large inward current with characteristics of the fast Na+ current (INa) [25], and a spontaneous Ca2+ transient [26]. The role of Ca2+ transients in human SAN automaticity was further studied in detail by Tsutsui et al. [27] in freshly isolated SAN cells from the donor hearts of four patients without a history of major cardiovascular diseases. They demonstrated that spontaneous and rhythmic local Ca2+ releases, generated by the so-called ‘Ca2+ clock’ [28,29], are coupled to electrogenic surface membrane molecules (the ‘membrane clock’ or ‘M clock’ [28,29]) to trigger spontaneous APs, and that cAMP protein kinase A (PKA) signaling regulates the clock coupling [27]. However, many exact details about single human SAN cell electrophysiology are still unknown due to the extreme difficulty of obtaining freshly isolated human SAN cells for in vitro studies [5,30].
In their characterization of the ‘molecular architecture’ of the human SAN, Chandler et al. [23] found mRNA for the KvLQT1 channel, which is responsible for the delayed rectifier K+ current (IKs) and is also known as KCNQ1 or Kv7.1 channel. IKs channels are formed by pore-forming KCNQ1 (Kv7.1) α-subunits and KCNE1 (minK) β-subunits, which are encoded by the KCNQ1 and KCNE1 genes, respectively [31,32]. IKs is a voltage-gated, outwardly directed repolarizing membrane current that activates at potentials positive to −50 mV. It deactivates upon repolarizing steps [33], and it may accumulate at high stimulation rates because of its slow deactivation kinetics [34,35]. IKs is modulated by various factors (for reviews, see Wang et al. [36], Wu and Larsson [37], and Sanguinetti and Seebohm [38]), including β-adrenergic stimulation [39], making this membrane current increase during exercise. The role of IKs in working myocardium APs and ventricular channelopathies is well established [33,37,40], but its function in pacemaker cells is less clear. On the one hand, one may argue that IKs will be active during the AP phase and that an increase in IKs increases the pacing rate of SAN cells through a shortening effect of this outward current on AP duration. On the other hand, one may hypothesize that IKs will be active during diastolic depolarization and that an increase in IKs decreases the pacing rate by exercising a suppressing effect on diastolic depolarization.
In the present study, we investigated the mechanism by which IKs modulates human SAN pacemaker activity. We first characterized the biophysical properties of KCNQ1/KCNE1 channels transfected in HEK-293 cells in absence and presence of forskolin, which was added to increase the intracellular cAMP level and thus mimic β-adrenergic stimulation conditions. In these conventional, square-step voltage clamp experiments, β-adrenergic stimulation activated KCNQ1/KCNE1 current by an increase in its conductance as well as a negative shift in its steady-state activation curve, thereby increasing the degree of current activation at any given voltage. Secondly, we measured KCNQ1/KCNE1 current during human SAN-like AP waveforms in absence and presence of forskolin, and at various cycle lengths. In these AP clamp experiments, we found that KCNQ1/KCNE1 current during AP repolarization was substantial and only slightly dependent on cycle length, but significantly increased in the presence of forskolin. The KCNQ1/KCNE1 current during diastolic depolarization, on the other hand, was relatively small, but increased at shorter cycle lengths as well as in the presence of forskolin. To study the functional role of the KCNQ1/KCNE1 encoded IKs in human SAN pacemaker activity, we modified the IKs equations of the Fabbri–Severi computer model of an isolated human SAN pacemaker cell [41] according to our patch-clamp data and ran the thereby obtained model at different levels of autonomic tone, also studying the effects of a gain-of-function mutation in KCNQ1. We found that IKs reduces the intrinsic beating rate through its slowing effect on diastolic depolarization at all levels of autonomic tone and that gain-of-function mutations in KCNQ1 may exert a marked bradycardic effect during vagal tone. A preliminary version of this study was presented at the 49th Computing in Cardiology conference in Tampere, Finland, and published in the conference proceedings [42].

2. Results

2.1. KCNQ1/KCNE1 Current in Response to Square Voltage Clamp Steps

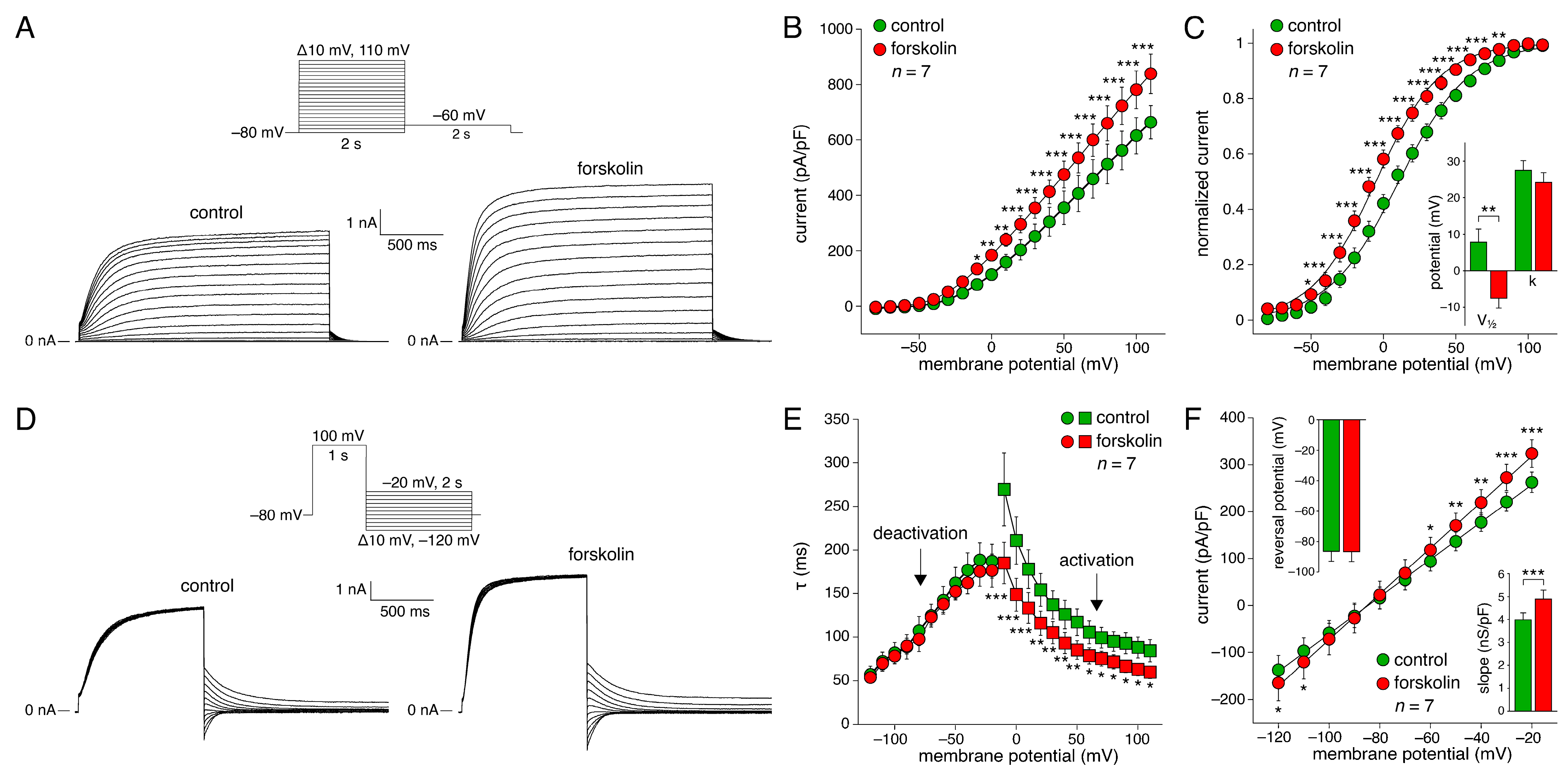

Figure 1, A–F summarizes the basic biophysical characteristics of ion currents flowing through KCNQ1/KCNE1 channels expressed in HEK-293 cells. Figure 1A shows typical KCNQ1/KCNE1 currents in a HEK-293 cell under control conditions (left traces) and in the presence of 10 µmol/L forskolin (right traces). The HEK-293 cell was voltage-clamped from a holding potential of −80 mV to various test potentials (ranging from −80 to +110 mV, in 10 mV increments) for 2 s, as diagrammed in the protocol at the top of Figure 1A. The depolarizing steps were followed by a 2-s step to −60 mV to record tail currents. As typical for a KCNQ1/KCNE1 current, the threshold of activation was approximately −50 mV and the current amplitude progressively increased with more depolarized potentials. Figure 1B shows the average current-voltage (I-V) relationships of seven cells. Forskolin significantly increased the KCNQ1/KCNE1 current density over the entire voltage range from −10 to +110 mV. At +110 mV, forskolin increased the KCNQ1/KCNE1 current density from 644 ± 60 to 839 ± 72 pA/pF.
The KCNQ1/KCNE1 current activated with a characteristic time course. Typically, KCNQ1/KCNE1 current activated faster at more positive potentials (Figure 1A). The time course of activation was well-fitted by a mono-exponential function, characterized by a single time constant (τ) of activation. The filled squares of Figure 1E show the thus obtained time constant of activation plotted against the depolarizing test potential in absence and presence of forskolin. Forskolin significantly increased the KCNQ1/KCNE1 current activation rate by ≈40% over the entire voltage range from −10 to +110 mV.
The normalized amplitude of the tail current at −60 mV is plotted against the preceding depolarizing test potential in Figure 1C to determine the voltage dependence of the amount of KCNQ1/KCNE1 current activation in the absence and the presence of forskolin. Forskolin shifted the thus obtained steady-state activation curve by −15.3 ± 3.0 mV (n = 7; p < 0.01), thus increasing the voltage range over which the KCNQ1/KCNE1 current is active during a SAN AP. As shown in Figure 1C (inset), the half-maximal activation voltage (V½) changed from 7.8 ± 3.7 mV under control conditions to −7.6 ± 2.7 mV in the presence of forskolin (n = 7; p < 0.01). The slope factor (k) of the steady-state activation curve was not significantly affected by forskolin (27.5 ± 2.7 mV (control) versus 24.1 ± 2.7 mV (forskolin)).
KCNQ1/KCNE1 currents that were activated during depolarization showed deactivation upon subsequent repolarization. Figure 1D shows a typical example of deactivation in a HEK-293 cell in the absence and the presence of forskolin. The cell was first voltage-clamped from a holding potential of −80 mV to +100 mV for 1 s to ensure full activation. This depolarizing step was followed by a 2-s step to test potentials ranging from −120 to −20 mV, in 10 mV increments, as diagrammed in the protocol at the top of Figure 1D. As typical for KCNQ1/KCNE1 currents, deactivation became faster at more negative test potentials (Figure 1D). The time course of deactivation was well-fitted by a mono-exponential function, characterized by a single time constant of deactivation. The filled circles of Figure 1E show the thus-obtained time constant of deactivation plotted against the test potential in the absence and the presence of forskolin. Forskolin did not affect the KCNQ1/KCNE1 current deactivation rate over the entire voltage range from −120 to −20 mV.
The fully activated I-V relationship was analyzed by determining the peak of the deactivating tail current. The fully activated I-V relationship was linear in the absence as well as in the presence of forskolin (Figure 1F). In each case, the reversal potential was close to the Nernst potential for K+. The reversal potential, determined from linear fits to the individual I-V relationships of the seven cells, was −86.4 ± 6.6 and −86.5 ± 6.4 mV under control conditions and in the presence of forskolin, respectively (Figure 1F, upper inset). The fully activated conductance, determined from the slopes of the linear fits, increased significantly by 23 ± 3% from 4.0 ± 0.3 nS/pF under control conditions to 4.9 ± 0.4 nS/pF in the presence of forskolin (Figure 1F, lower inset).

2.2. KCNQ1/KCNE1 Current in Response to Human SAN-like AP Waveforms

The square-step voltage clamp experiments described in Section 2.1 above are very useful to determine the basic biophysical properties of the KCNQ1/KCNE1 current. However, despite the detailed knowledge of its kinetic properties, the activity of the KCNQ1/KCNE1 current during the various phases of a human SAN cell AP, in particular during diastolic depolarization, remains difficult to predict. Therefore, we carried out AP clamp experiments with command potentials based on the AP waveform of an isolated human SAN cell, as set out in Section 4.4.

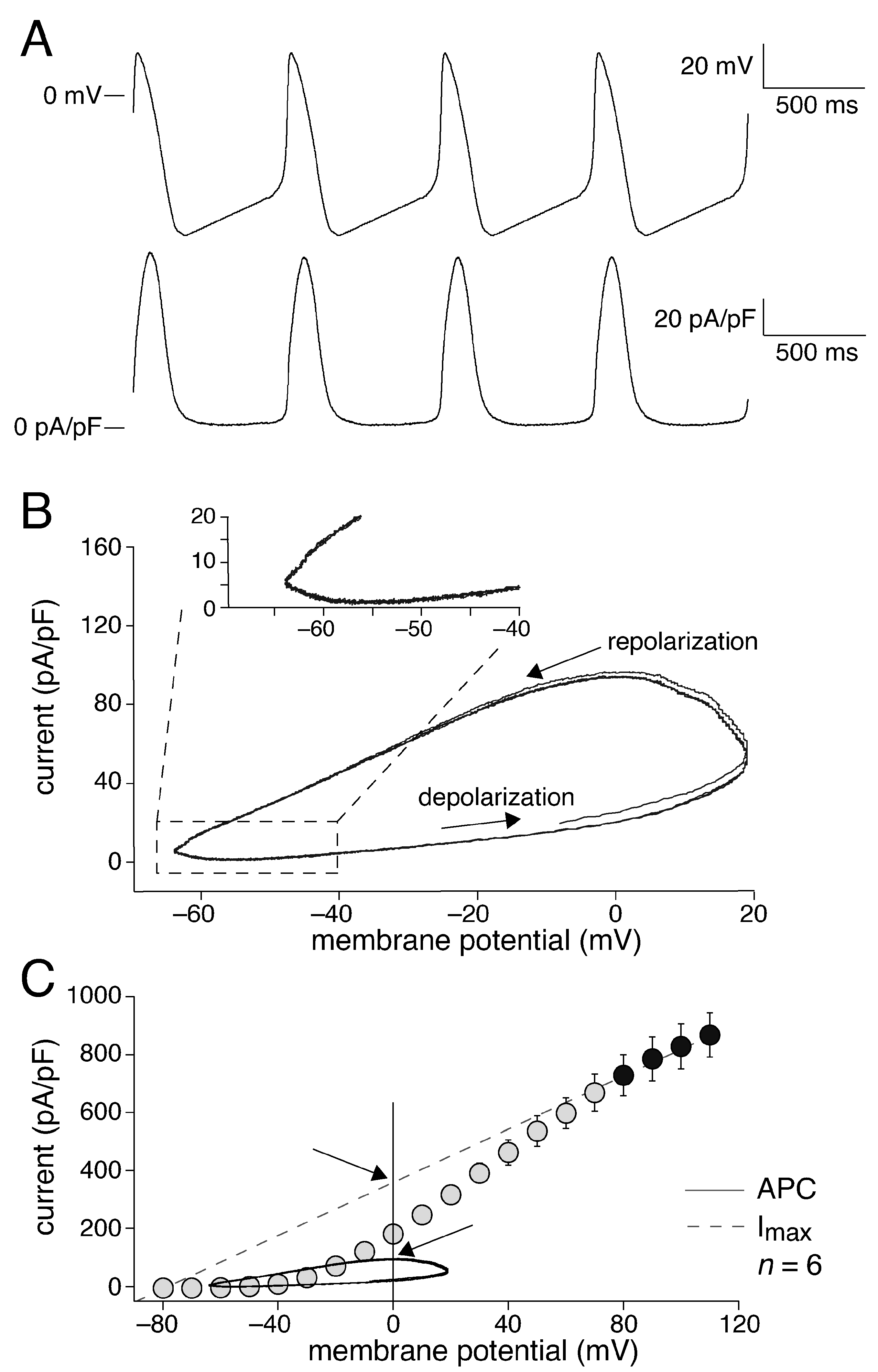

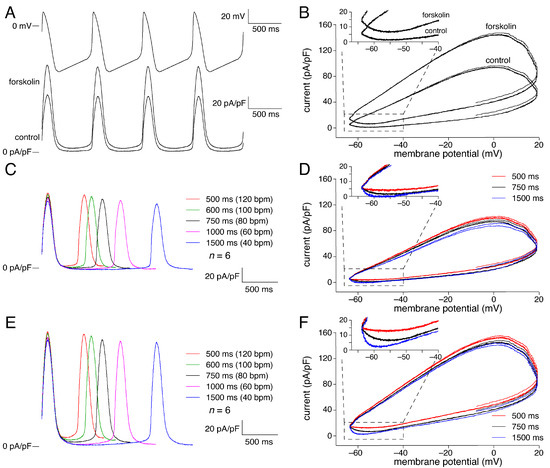

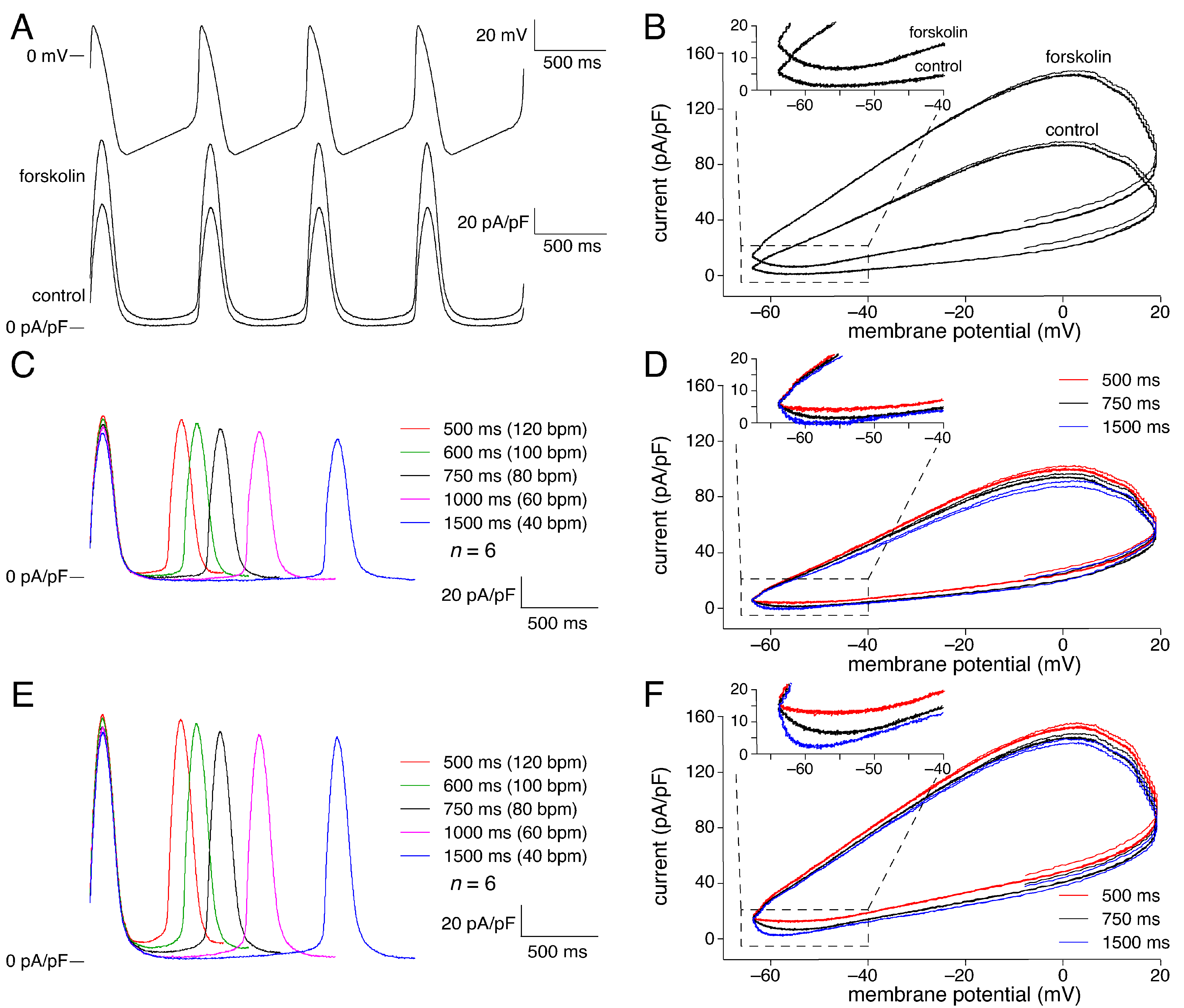

First, we assessed the KCNQ1/KCNE1 current characteristics during a train of human SAN-like AP waveforms with a cycle length of 750 ms (80 bpm; Figure 2A, top). Figure 2, A (bottom) and B, shows the average KCNQ1/KCNE1 current characteristics of six HEK-293 cells. The KCNQ1/KCNE1 current increases during the upstroke of the human SAN-like AP, likely due to activation of the channels and an increase in the driving force of the K+ current. The KCNQ1/KCNE1 current reaches its peak during the repolarization phase of the AP, near 0 mV, and subsequently decreases in amplitude during the remaining part of the AP repolarization phase, likely due to the diminishing driving force of the K+ current and deactivation of the channels. Near the maximum diastolic potential (MDP) of ≈−64 mV and during the early phase of the diastolic depolarization (from the MDP towards −55 mV), some current is still active (Figure 2B, inset). The current reaches its minimum near −55 mV, but does not become zero, indicating that not all channels deactivated and/or that some deactivated channels already (re)activated. In Figure 2C, we plotted the average fully activated current (dashed line), constructed by extrapolating the currents measured at +80 mV and more positive with the square-step voltage clamp protocol of Figure 1A (Figure 2C, black-filled circles), and the currents active during the human SAN-like AP waveform (Figure 2C, solid line) in the same six cells. For comparison, the gray-filled circles show the maximum current at voltages ranging from −80 to +70 mV as determined with the square-step voltage clamp protocol. The KCNQ1/KCNE1 current measured during the human SAN-like AP waveform was maximally ≈25% of the fully activated current (at a membrane potential near 0 mV; Figure 2C, arrows), indicating that maximally ≈25% of the channels will open during a human SAN-like AP waveform with a cycle length of 750 ms.
Next, we assessed the effects of forskolin on KCNQ1/KCNE1 current during human SAN-like AP waveforms with cycle lengths ranging from 500 to 1500 ms (40–120 bpm), thus studying the dependence of KCNQ1/KCNE1 current on cAMP levels and cycle length. Figure 3, A and B shows the effects of 10 µmol/L forskolin on the average KCNQ1/KCNE1 current (n = 6) at a cycle length of 750 ms (80 bpm). In the presence of forskolin, KCNQ1/KCNE1 current increases more quickly during the upstroke of the human SAN-like AP than in the absence of forskolin, in line with the decrease in the activation time constant of Figure 1E. Furthermore, the KCNQ1/KCNE1 current is substantially larger in the presence of forskolin (see also below), consistent with the square-step voltage clamp experiments of Figure 1. Interestingly, in the presence of forskolin, KCNQ1/KCNE1 current is clearly active during the entire diastolic depolarization phase (Figure 3A, bottom; Figure 3B, inset), which can be attributed to the ≈−15 mV shift of the steady-state activation curve in response to forskolin (Figure 1C).
We also studied the KCNQ1/KCNE1 current activity at shorter (500 and 600 ms) as well as longer (1000 and 1500 ms) cycle lengths. Figure 3, C and D shows the effects of changes in cycle length in the absence of forskolin, whereas results obtained in the presence of forskolin are shown in Figure 3, E and F. The average KCNQ1/KCNE1 current of Figure 3C and the phase plane plot of Figure 3D both suggest that the peak current reached during AP repolarization in the absence of forskolin slightly decreases with increasing cycle length. Accordingly, the peak current at a cycle length of 1500 ms differed significantly, albeit to a small extent, from that at cycle lengths of 500, 600, and 1000 ms (n = 6), as indicated in Figure 4A (green bars). This statistical significance may seem at odds with the error bars of Figure 4A, but it should be realized that all data are ‘paired’, both with respect to absence or presence of forkolin and with respect to cycle length, so that a powerful two-way Repeated Measures (RM) ANOVA test could be used.
Both Figure 3C and Figure 3D (inset) also suggest that the current during diastolic depolarization in the absence of forskolin decreases with increasing cycle length, becoming approximately zero at cycle lengths of 1000 and 1500 ms. Accordingly, the current at −60 mV during diastolic depolarization at a cycle length of 500 ms differed significantly from that at cycle lengths of 1000 and 1500 ms (n = 6), as indicated in Figure 4B (green bars). The latter data demonstrate that at faster heart rates, the KCNQ1/KCNE1 current may ‘accumulate’ and thus increase during the diastolic depolarization phase, likely because of incomplete deactivation.

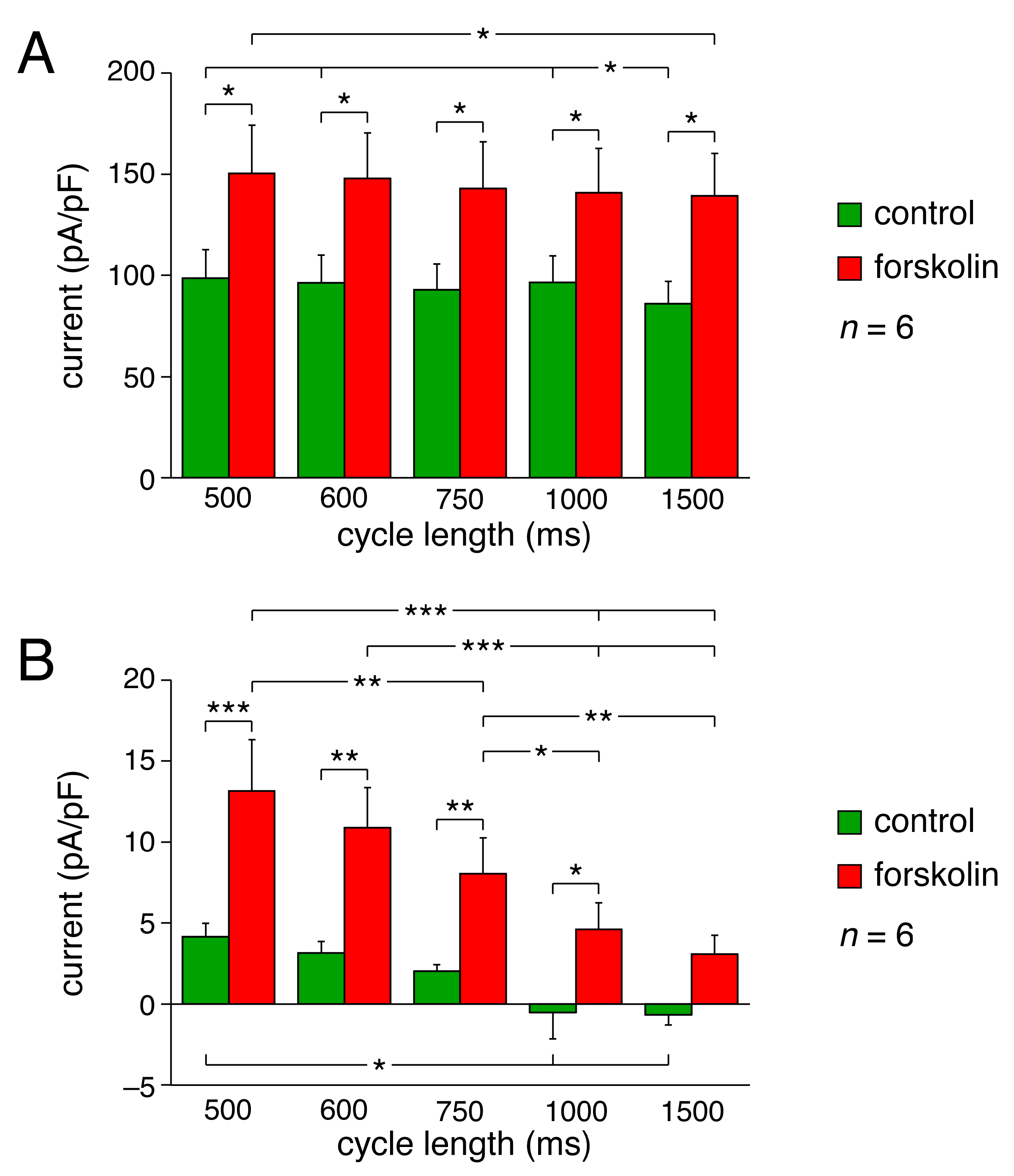

Figure 3, E and F shows the cycle length dependence of the KCNQ1/KCNE1 current in the presence of forskolin. The average KCNQ1/KCNE1 current of Figure 3E and the phase- plane plot of Figure 3F both suggest that the peak current reached during AP repolarization in the presence of forskolin slightly decreases with increasing cycle length, as in the absence of forskolin. Statistical significance is limited to the difference between the peak current at the shortest cycle length and that at the longest, as indicated in Figure 4A (leftmost and rightmost red bars). Figure 4A also shows that the peak current is significantly larger in the presence of forskolin at each cycle length tested (red vs. green bars), as may be anticipated from the increase in current amplitude upon forskolin observed in response to square voltage-clamp steps (Figure 1). The current during diastolic depolarization is also significantly larger in the presence of forskolin at each cycle length tested, except 1500 ms (p = 0.06) (Figure 4B, red vs. green bars), with a more distinct cycle length dependence (Figure 4B, red bars). At all cycle lengths, the current during diastolic depolarization was clearly above the zero current level (Figure 3, E and F; Figure 4B), indicating that the KCNQ1/KCNE1 current is continuously active during the human SAN-like AP.

2.3. Data on KCNQ1/KCNE1 Current Incorporated into Human SAN Cell Model

The data of Figure 2, Figure 3 and Figure 4 underscore the importance of carrying out AP clamp experiments in addition to traditional square-step voltage clamp experiments. In particular, the AP clamp experiments revealed that KCNQ1/KCNE1 current may be active during the diastolic depolarization phase, with an amount dependent on cycle length and cAMP level. However, despite the demonstration by the AP clamp measurements that KCNQ1/KCNE1 current may flow during both AP and diastolic depolarization, the net effect of the KCNQ1/KCNE1 current on AP and diastolic depolarization, and consequently, the cycle length of a free-running human SAN cell remains unknown. To study the dynamics of the KCNQ1/KCNE1 current as the KCNQ1/KCNE1 encoded IKs in a human SAN cell, we used the Fabbri–Severi model of an isolated human SAN cell [41]. To this end, the original kinetics of the model IKs were replaced with those derived from our voltage clamp data on the KCNQ1/KCNE1 current, together with several other modifications to IKs, also based on these data, as set out below.
To start, we adopted the second-order Hodgkin-and-Huxley-type kinetic scheme [43] as used to describe the (de)activation of IKs in the Fabbri–Severi model and in multiple other models of mammalian SAN cells, including those by Zhang et al. [44], Kurata et al. [45], Maltsev and Lakatta [28], Chandler et al. [23], Kharche et al. [46], Tao et al. [47], and Severi et al. [48]. Accordingly, IKs was described by:
IKs = xs2 × gKs × (Vm − EKs),
in which xs denotes the IKs gating variable, gKs denotes the IKs fully activated conductance, Vm denotes the membrane potential, and EKs denotes the IKs reversal potential.
To determine the Vm-dependent activation and deactivation rate constants α and β of xs, respectively, we first replotted the experimental data of Figure 1C on the normalized KCNQ1/KCNE1 current by taking their square root. The resulting data obtained under control conditions (Figure 5A, green-filled circles with error bars) could be wellfitted (r2 > 0.99) by a Boltzmann curve with a half-activation voltage of −15.733 mV and a slope factor of 27.77 mV (Figure 5A, solid green line). A negative shift of this curve by 14.568 mV, thus arriving at a Boltzmann curve with a half-activation voltage of −30.301 mV and a slope factor of 27.77 mV, produced a proper fit (r2 > 0.99) to the data obtained in the presence of forskolin (Figure 5A, red-filled circles with error bars and solid red line). The Boltzmann curves of Figure 5A defined the steady-state value of xs (xs,∞)—or, equivalently, α/(α + β) [43]—under control conditions and in the presence of forskolin.
Next, the experimental data of Figure 1E on the time constant of deactivation of the KCNQ1/KCNE1 current were inverted and halved to obtain data on the rate of deactivation, i.e., β. This rate of deactivation was highly similar under control conditions and in the presence of forskolin (Figure 5B; green- and red-filled circles with associated error bars, respectively) and could be well-fitted by a mono-exponential function (Figure 5B, solid line labeled ‘common fit’), defined by:
β = 1.93 × exp(−Vm/83.2)
(r2 = 0.97, both under control conditions and in the presence of forskolin).

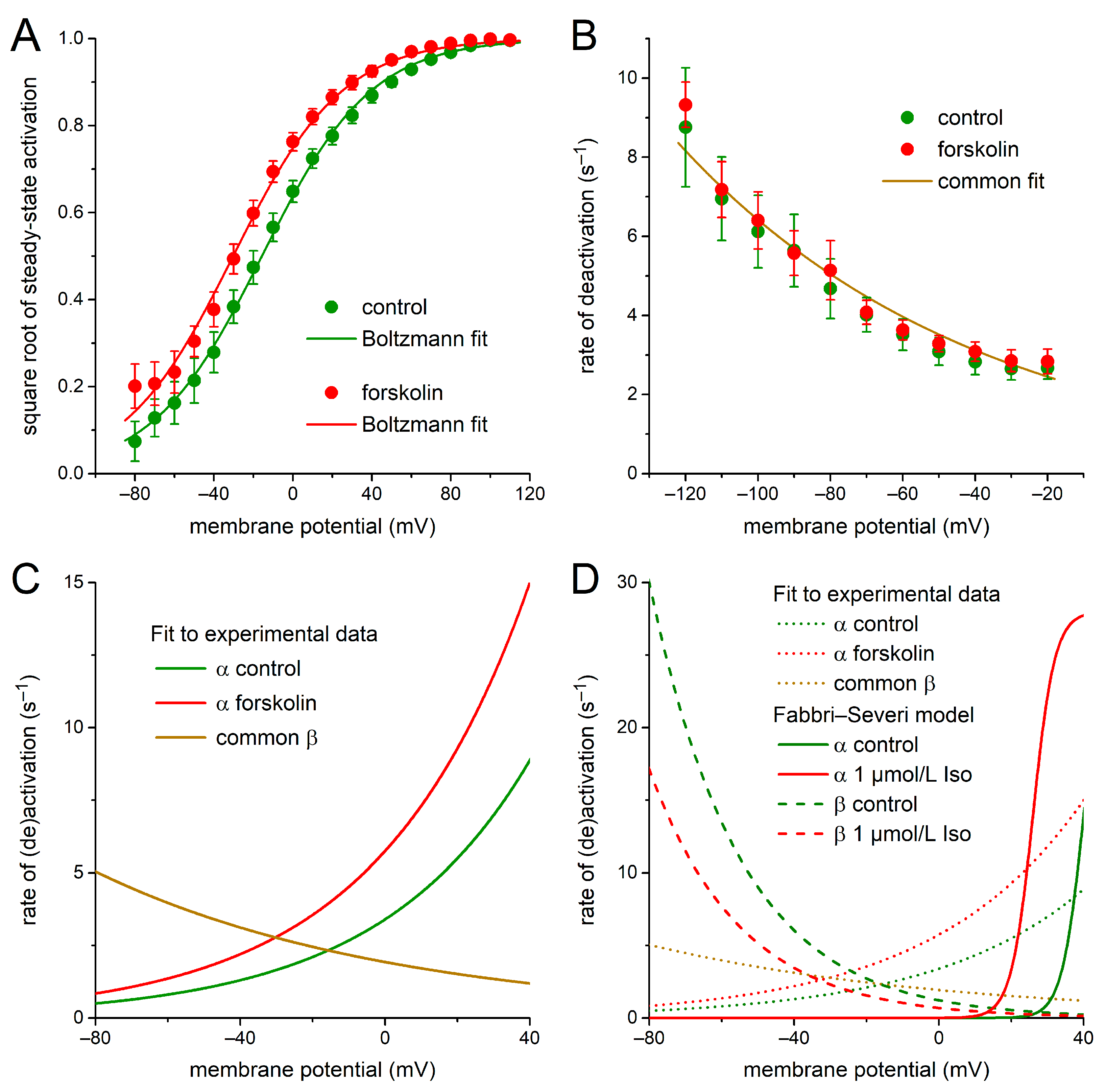

Having determined xs,∞ and β from the experimental data of Figure 1, C and E, the rate of activation α could be computed from xs,∞ (Figure 5A, Boltzmann curves) and β (Figure 5B, mono-exponential fit) as:
α = [xs,∞/(1 − xs,∞)] × β.
The thus-obtained rates of activation α under control conditions and in the presence of forskolin are shown in Figure 5C (solid green and red lines, respectively), together with the rate of deactivation β of Figure 5B, over the voltage range of a regular human SAN AP. As demonstrated in Figure 5D, our activation and deactivation rate constants α and β of the IKs gating variable xs (dotted lines), as based on our experimental data on the KCNQ1/KCNE1 current, are widely different from the original ones of the Fabbri–Severi model (solid and dashed lines).
Furthermore, we set the K+:Na+ permeability ratio of the IKs channel to 1:0.0018, in accordance with our experimentally observed reversal potential of the KCNQ1/KCNE1 current, near −86.4 mV (Figure 1F, inset), instead of the 1:0.12 ratio that was used in the Fabbri–Severi model and resulted in an IKs reversal potential of −49.3 mV. Moreover, the IKs fully activated conductance gKs was decreased by 80% from its original value of 0.65 nS to 0.13 nS to maintain an IKs amplitude in the range of the original model IKs. Finally, we limited the increase in gKs under β-adrenergic tone to 25%, in line with our experimental observations of Figure 1F, whereas the isoprenaline-induced increase in gKs amounted to 60% in the original Fabbri–Severi model.

2.4. Dynamics of KCNQ1/KCNE1 Encoded IKs in Human SAN Cell Model

We ran the Fabbri–Severi model with its modified, KCNQ1/KCNE1 current-based formulation of IKs to assess the net effect of the KCNQ1/KCNE1 encoded IKs on the dynamics of an isolated human SAN pacemaker cell. These simulations were not only run under control conditions (‘no rate modulation’), but also under vagal tone, upon simulated administration of 20 nmol/L acetylcholine (‘20 nmol/L ACh’), and under β-adrenergic tone, upon simulated administration of a high level of isoprenaline (‘high Iso’). Figure 6 shows the results of these simulations.

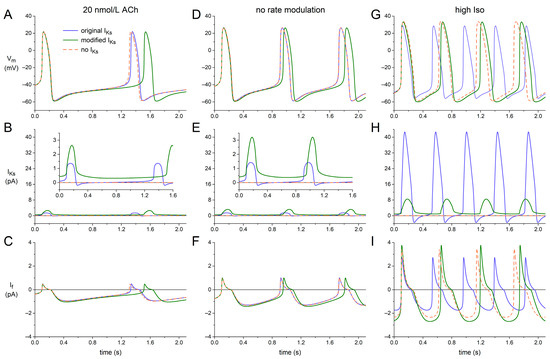

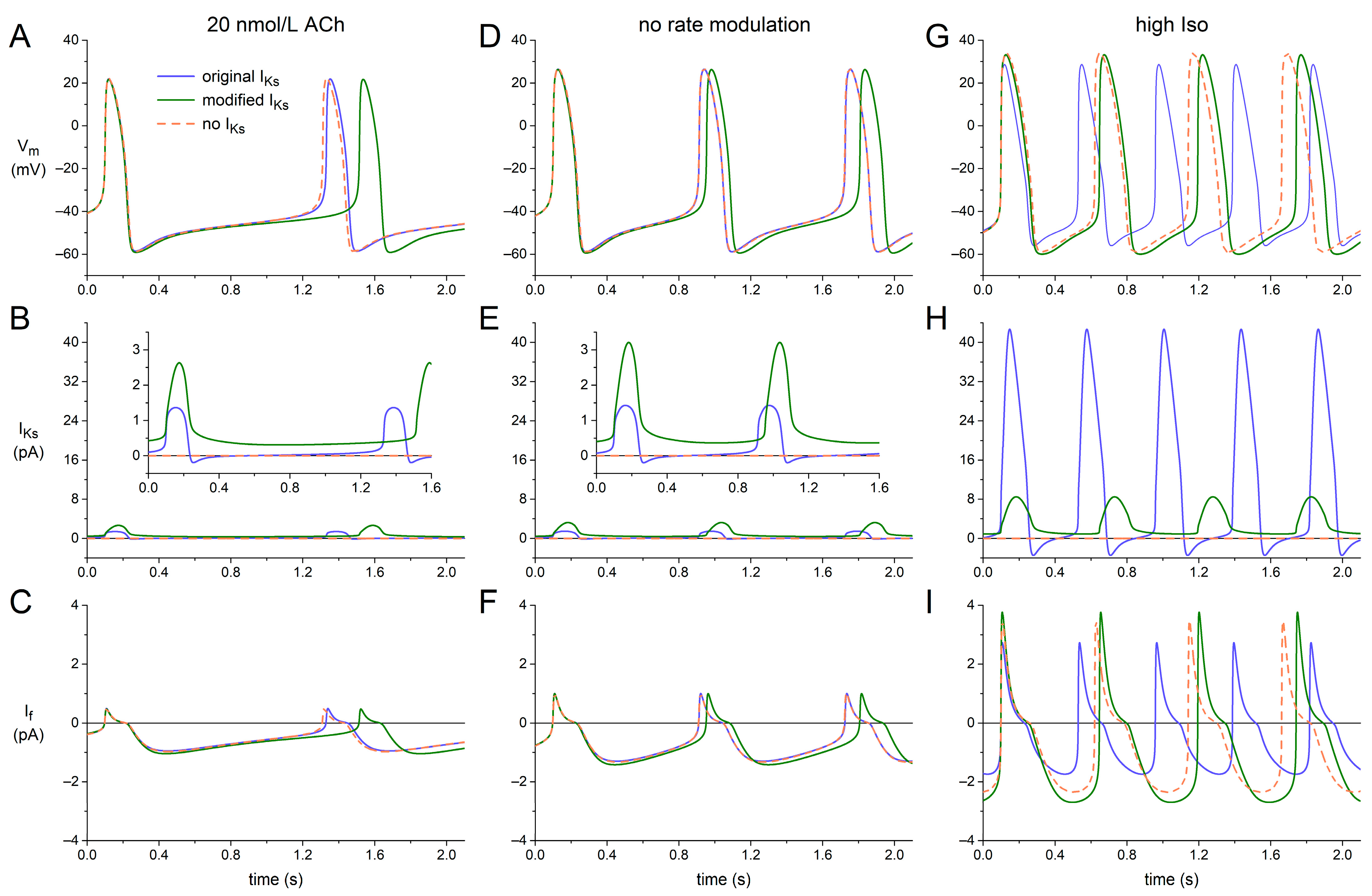

Under vagal tone (‘20 nmol/L ACh’; Figure 6, A–C), the original IKs has only a small effect on AP duration and diastolic depolarization—and, consequently, on cycle length—of the model cell, as demonstrated by the almost overlapping solid blue and orange-dashed traces of Figure 6A, which were obtained in the presence and absence of IKs, respectively. This is largely due to the small amplitude of IKs and its inward direction around the MDP because of its reversal potential near −50 mV (Figure 6B). With the KCNQ1/KCNE1-based IKs formulation (‘modified IKs’), IKs is clearly outward over the entire diastolic phase (Figure 6B, inset, solid green trace), with an amplitude that approaches that of the inward diastolic If (Figure 6, B and C). Accordingly, diastolic depolarization is clearly slowed down when the original IKs formulation is replaced with the KCNQ1/KCNE1-based one, despite the much smaller gKs in the latter case. Also, the block of IKs has a more prominent effect on diastolic depolarization and cycle length (Figure 6A, orange-dashed vs. solid green trace).
Under control conditions (‘no rate modulation’; Figure 6, D–F), qualitatively similar effects can be observed. The amplitude of the KCNQ1/KCNE1-based IKs becomes somewhat larger than under vagal tone (Figure 6, B and E) due to the shorter diastolic phase available for deactivation. Yet, its effect on the cycle length is smaller than under vagal tone (Figure 6, A and D), which can, at least partly, be explained by the concomitant increase in If (Figure 6, C and F). This increase in If is not only due to the shorter time available for its deactivation, but also to the positive shift in its voltage dependence of activation as compared to vagal tone.
Under β-adrenergic tone (‘high Iso’; Figure 6, G–I), the original IKs is largely inward over the relatively short diastolic phase (Figure 6H), which has a clear depolarizing effect on MDP and shortens diastolic depolarization (Figure 6G). Furthermore, the peak outward IKs is now so large that AP duration is significantly shortened. As a result, the block of IKs substantially increases its cycle length rather than decreasing it (Figure 6G, orange- dashed vs. solid blue trace). The block of the considerably smaller but entirely outward modified IKs has an opposite effect on MDP and diastolic depolarization (Figure 6, G–I, orange-dashed vs. solid green trace), thus decreasing the cycle length (as under vagal tone and under control conditions), also because the AP duration is less significantly shortened due to the substantially smaller increase in the peak outward IKs as compared to the original IKs (Figure 6H, solid green vs. solid blue trace).

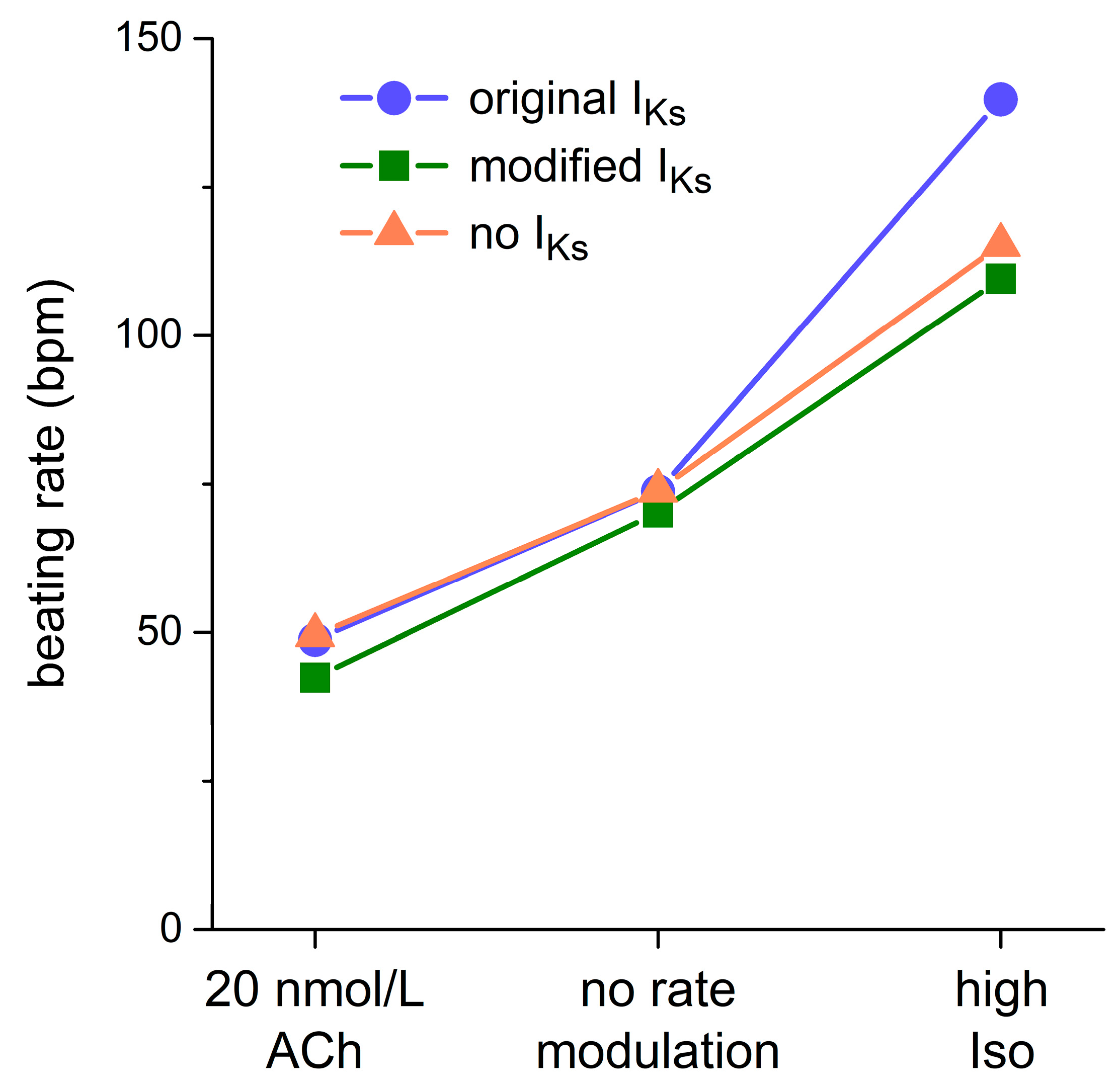

Figure 7 shows how IKs affects the beating rate at different levels of autonomic tone. Under a vagal tone (‘20 nmol/L ACh’), both original and modified IKs exhibit a slowing effect on the beating rate. However, the slowing effect of the original IKs is only marginal, reducing the beating rate from 49.5 bpm in the absence of IKs (‘no IKs’) to 48.7 bpm in its presence (−1.6%), whereas the slowing effect of the modified IKs is more prominent, reducing the beating rate from 49.5 to 42.4 bpm (−14.4%). Under control conditions (‘no rate modulation’), these slowing effects are smaller, amounting to −0.2% (from 73.9 to 73.8 bpm) and −5.0% (from 73.9 to 70.2 bpm), respectively. Under β-adrenergic tone (‘high Iso’), the modified IKs is considerably larger than under control conditions (Figure 6, E and H), not only because of the much shorter diastolic phase available for deactivation, but also because of the increase in gKs upon β-adrenergic stimulation. Nevertheless, it exerts a similar slowing effect, reducing the beating rate from 115 to 110 bpm (−4.9%). However, as already demonstrated in Figure 6G, the original IKs, which shows a dramatic increase upon β-adrenergic stimulation (Figure 6, E and H), speeds up the beating rate rather than decreasing it. The beating rate is increased by as much as 21% (from 115 to 140 bpm).

2.5. Bradycardic Effect of F279I Gain-of-Function Mutation in KCNQ1

Given the prominent slowing effect of the modified KCNQ1/KCNE1 current-based IKs on the beating rate, in particular under a vagal tone, we assessed whether the bradycardic effect of heterozygous gain-of-function mutations in KCNQ1 can be explained by their effects on the intrinsic pacemaker activity of human SAN cells. To this end, we tested the effects of the F279I mutation on the Fabbri–Severi model cell. This mutation was selected because, unlike several other gain-of-function mutations in KCNQ1, complete and detailed patch-clamp data on its effects in a heterozygous state are available [49]. The mutation effects on IKs were implemented by a −14.6 mV shift in steady-state activation as well as faster activation and deactivation kinetics through a 30% decrease in the time constant of (de)activation. The results obtained thereby are presented in Figure 8.

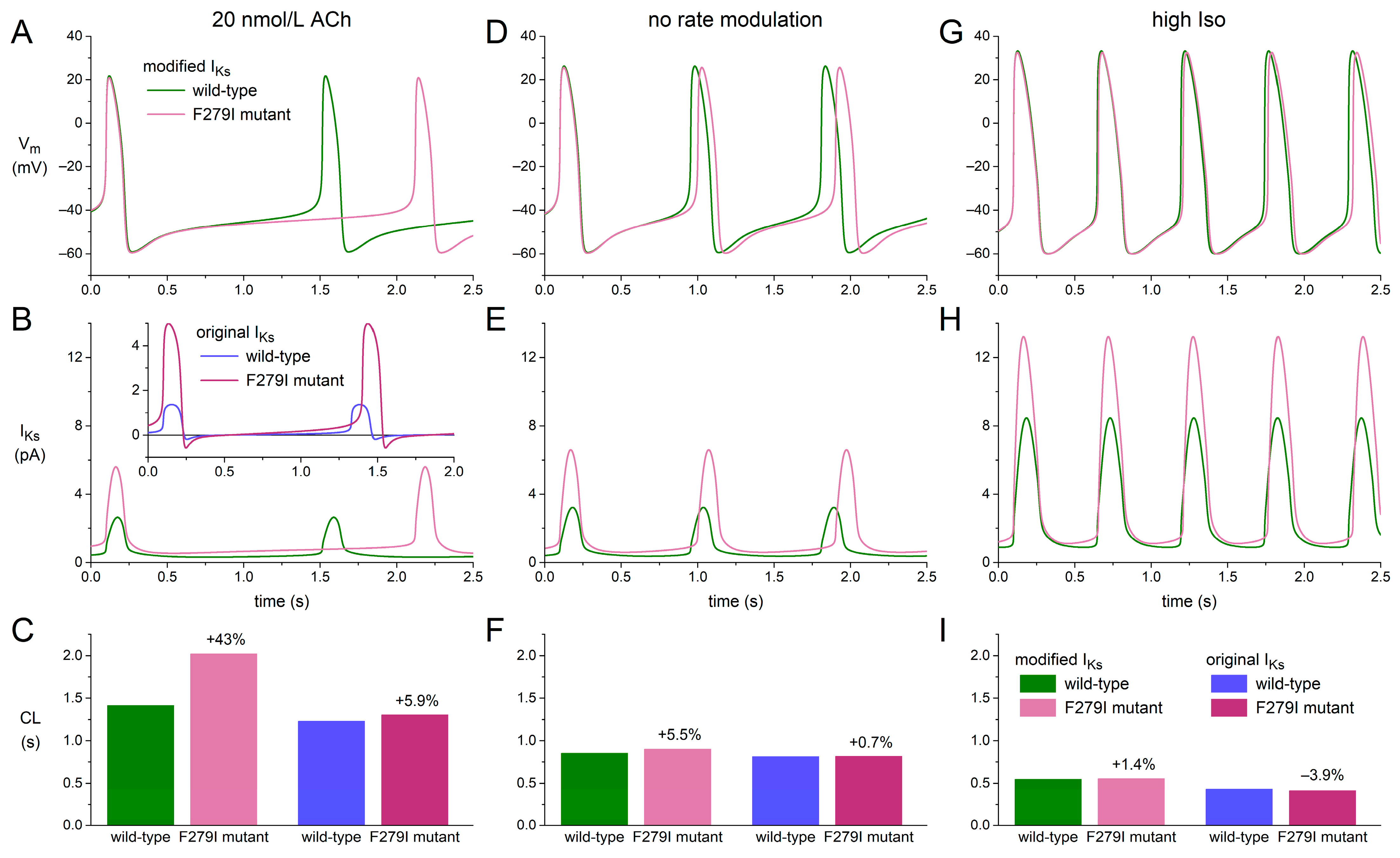

Under a vagal tone (‘20 nmol/L ACh’; Figure 8, A–C), the heterozygous F279I mutation approximately doubles the amplitude of the wild-type IKs, slowing down diastolic depolarization without substantially shortening AP duration and increasing the cycle length by 43% (Figure 8C, left two bars). The corresponding beating rate decreases from 42.4 to 29.7 bpm (−30%). Repeating these simulations with the original IKs formulation of the Fabbri–Severi model, the increase in cycle length is limited to 5.9% (Figure 8B, inset; Figure 8C, two right bars), reducing the beating rate from 48.7 to 46.0 bpm (−5.6%). Under control conditions (‘no rate modulation’) and under β-adrenergic tone (‘high Iso’), the effects of the F279I mutation on cycle length are much less pronounced (Figure 8, D–I). With the modified IKs, the increase in cycle length amounts to 5.5% under control conditions and 1.4% under β-adrenergic tone, reducing the beating rate by 5.2% and 1.3%, respectively. With the original IKs, the cycle length increases by 0.7% under control conditions and decreases by 3.9% under β-adrenergic tone, corresponding to changes in the beating rate by −0.7% and +4.1%, respectively.

3. Discussion

3.1. Overview

KCNQ1/KCNE1 transfected HEK-293 cells displayed large time-dependent, IKs-like outward currents in response to square voltage clamp steps. Forskolin significantly increased the fully-activated conductance of the KCNQ1/KCNE1 current by ≈23%, shifted the half-maximal activation voltage towards more negative potentials by ≈15 mV, and decreased the time constant of current activation by ≈30% (Figure 1). During AP clamp experiments with human SAN-like AP waveforms, KCNQ1/KCNE1 current was substantial during the AP but relatively small during diastolic depolarization. The amplitude of KCNQ1/KCNE1 current during the diastolic depolarization increased with decreasing cycle length and was significantly larger in the presence of forskolin (Figure 2, Figure 3 and Figure 4). Computer simulations with the Fabbri–Severi human SAN cell model, in which the original IKs equations were replaced with equations based on our voltage-clamp data (Figure 5), demonstrated that IKs reduced the intrinsic beating rate through its slowing effect on diastolic depolarization at all levels of autonomic tone (Figure 6 and Figure 7). IKs was smallest under vagal tone, with its long cycle length, and largest under β-adrenergic tone, with its short cycle length and its upregulation by cAMP, all in line with the data from our AP clamp experiments. Although IKs was more substantial during the AP than during diastolic depolarization, its shortening effect on AP duration was almost negligible at all levels of autonomic tone, so that, overall, IKs exerted a slowing effect on pacemaker activity at all levels of autonomic tone (Figure 6 and Figure 7). Gain-of-function mutations in KCNQ1, such as F279I, may exert a marked bradycardic effect, particularly during a vagal tone (Figure 8).

3.2. Computer Simulations with KCNQ1/KCNE1 Current Based IKs

In the original Fabbri–Severi human SAN cell model, the IKs equations are based on those of the parent Severi–DiFrancesco rabbit SAN cell model [48], except for its steady-state activation curve and its reversal potential EKs. The IKs steady-state activation curve was updated based on patch-clamp data on IKs in human embryonic cardiomyocytes (gestational weeks 5–9) from Danielsson et al. [50]. EKs was updated from the pure potassium equilibrium potential (EK) of −87.0 mV of the Severi–DiFrancesco parent model to −49.3 mV, as a consequence of the K+:Na+ permeability ratio of 1:0.12 of the IKs channel that was introduced in the Fabbri–Severi model.
Our experimentally observed reversal potential of the KCNQ1/KCNE1 current near −86.4 mV was only slightly less negative than the EK of −87.9 mV in our experimental settings. Correspondingly, we set our K+:Na+ permeability ratio of the IKs channel to 1:0.0018, which made us arrive at an EKs of −85.7 mV with the intracellular and extracellular ion concentrations set to those of the Fabbri–Severi model. Our much more negative EKs than the −49.3 mV one of the Fabbri–Severi model made IKs a true outward current over the entire voltage range of the human SAN model AP. Similarly, Whittaker et al. [51] updated the EKs of the Fabbri–Severi model “from the potentially unphysiological value of −49 mV in the original model, to the more realistic value of ≈−75 mV” for consistency with the atrial cell model used in their study on KCNQ1-linked short QT syndrome. Of note, our modification of the original Fabbri–Severi IKs equations was not limited to the IKs reversal potential. We also modified its kinetics, based on our voltage clamp data on the kinetics of the KCNQ1/KCNE1 current, as set out in Section 2.3. As illustrated in Figure 5, the kinetics thus obtained are widely different from the original ones of the Fabbri–Severi model.
In 2013, Britton et al. [52] proposed a methodology for the construction and calibration of populations of computational models to study causes of intercellular variability in electrophysiological activity. This methodology was, for example, successfully employed by Paci et al. [53] to investigate the potential causes of the experimentally observed phenotypic variability of human-induced pluripotent stem cell-derived cardiomyocytes (hiPSC-CMs) in relation to the long QT syndrome type 3 and the variability in response of these hiPSC-CMs to antiarrhythmic drugs. Unfortunately, we could not use such populations of models in our computational study of IKs in human SAN cells because of the insufficient number of experimental recordings from human SAN cells required for calibration.

3.3. Simulating Gain-of-Function Mutations in KCNQ1

In our computer simulations with the Fabbri–Severi human SAN cell model, we demonstrated that IKs is an important determinant of its cycle length at all levels of autonomic tone if the original IKs equations are adapted to our experimental data (Figure 6 and Figure 7). Consequently, it is not very surprising that our simulations of the F279I gain-of-function mutation in KCNQ1 resulted in bradycardia (Figure 8). Fabbri et al. [41] had already demonstrated that the R231C and V241F gain-of-function mutations in KCNQ1 resulted in a decrease in the beating rate of their model cell, but they had to rely on experimental data obtained in homozygous expression systems at room temperature [54,55] for setting their model parameters, presumably thus considerably overestimating the mutational effects. More recently, Zhou et al. [56] investigated the phenotype of the KCNQ1-G229D gain-of-function mutation by incorporating a corresponding heterozygous IKs model into the Fabbri–Severi model. They observed that this mutation could lead to slowdown or even pacemaking failure of the model cell. Similarly, Whittaker et al. [51] had observed a pacemaker slowing when studying the KCNQ1-V307L gain-of-function mutation in the Fabbri–Severi model, using a Markov chain model of IKs. Intriguingly, neither carriers of the G229D mutation nor carriers of the V307L mutation have presented with sinus bradycardia [56,57,58], in contrast with the aforementioned R231C, V241F, and F279I mutations. This may point to an overestimation of the fully activated IKs conductance under wild-type conditions with the simulation studies on the G229D and V307L mutations.
In earlier studies, the effects of gain-of-function mutations in KCNQ1 on pacemaking were assessed with the use of rabbit SAN cell models. Hong et al. [59], who had found severe fetal and neonatal bradycardia associated with the heterozygous V141M mutation in KCNQ1, observed cessation of spontaneous activity in the Zhang et al. [44] rabbit SAN cell model. However, their model IKs consisted of 50% wild-type and 50% homozygously mutant V141M IKs, thereby potentially overestimating the effect of the heterozygous mutation, now that most of the non-wild-type current will be carried by tetrameric IKs channels containing 1–3 mutant subunits rather than 4 mutant subunits, assuming that co-assembly of wild-type and mutant subunits occurs more or less randomly. Ki et al. [55] used the Kurata et al. [45] rabbit SAN cell model to investigate the effect of their KCNQ1-V241F gain-of-function mutation. They also observed cessation of spontaneous activity, but lack of heterozygous experimental data made them as well use a model IKs consisting of 50% wild-type and 50% homozygously mutant IKs.

3.4. Clinical Observations

Sinus bradycardia is a common finding in short QT type 2 (SQT2) patients, including carriers of the V141M [59,60,61,62,63,64,65] and F279I [49] mutations. SQT2 patients show an abnormally short QT interval due to a heterozygous gain-of-function mutation in KCNQ1 [40,57]. However, gain-of-function mutations in KCNQ1 have also been associated with sinus bradycardia, while the affected patients showed normal or even prolonged QT intervals. Such mutations are the R231C [54] and V241F [55] mutations mentioned above.. These V241F and R231C mutations are associated with normal and prolonged QTc intervals, respectively. Henrion et al. [54] demonstrated that the loss-of-function nature of the R231C mutation in the ventricles may arise from differences in the KCNE β-subunit composition between atrial and ventricular IKs channels. All five KCNE subunits are expressed throughout the heart, but heterogeneously, and the KCNQ1 α-subunit interacts differently with each of the five KCNE β-subunits [66,67]. Consequently, a mutation in KCNQ1 may have different or even opposing effects on IKs in atrial and ventricular tissue. For example, the KCNQ1-Q147R mutation shows a loss-of-function phenotype when co-expressed with KCNE1, but a gain-of-function phenotype when co-expressed with KCNE2 [68,69].

3.5. Limitations

In the present study, AP duration was not adapted when creating the set of AP clamp waveforms, as set out in Section 4.4, thus ignoring any rate dependence of AP duration and associated effects on activation or deactivation of KCNQ1/KCNE1 current. Another potential limitation is that the role of IKs may have been underestimated because our experimental data were obtained in HEK-293 cells, which lack a SAN cell like Ca2+ homeostasis that may increase IKs [70,71]. Also, the lack of experimental data on the amplitude of IKs in human SAN cells makes it difficult to determine the exact quantitative effect of (changes in) IKs.
Although the Fabbri–Severi human SAN cell model is comprehensive in many respects, it also has its limitations. One such limitation is that autonomic modulation is restricted to the direct effects of vagal and β-adrenergic tone on specific ion currents or pumps (see Section 4.6). Thus, the model lacks a full signaling network that acts through Ca2+-cAMP-PKA and Ca2+/calmodulin-dependent protein kinase II (CaMKII)-driven mechanisms, as, for example, in the computational model of a human ventricular myocyte by Dai et al. [72] and, although limited to CaMKII, in the computational model of a human atrial myocyte by Onal et al. [73]. Another limitation is that the intracellular Na+ concentration is fixed to 5 mmol/L. Thus, the model cannot show an intracellular Na+ accumulation upon an increase in beating rate, which has been shown to be important in a computational model of a neuron [74] and furthermore appears to be important in SAN pacemaker activity, as demonstrated in a computational model of a murine SAN pacemaker cell [75].

4. Materials and Methods

4.1. Cell Preparations

Constructs of human KCNQ1 and KCNE1 were generated as described above [76]. QBI-HEK-293A cells (Qbiogene, Heidelberg, Germany) were transiently transfected with 1 µg wild-type KCNQ1 cDNA and 1 µg KCNE1 cDNA using lipofectamine (Gibco BRL, Life Technologies, Bleiswijk, The Netherlands). Transfected HEK-293 cells were cultured in a Minimal Essential Medium (MEM) supplemented with nonessential amino acid solution, 10% fetal bovine serum (FBS), 100 IU/mL penicillin, and 100 mg/mL streptomycin in a 5% CO2 incubator at 37 °C for 2 days. Transfected cells were identified under epifluorescence microscopy using a green fluorescence protein (GFP) as a reporter gene.

4.2. Data Acquisition

KCNQ1/KCNE1 currents were recorded at 36 ± 0.2 °C by the amphotericin-perforated patch-clamp technique using an Axopatch 200B amplifier (Molecular Devices, Sunnyvale, CA, USA). Cells were superfused with a solution containing (in mmol/L): NaCl 140, KCl 5.4, CaCl2 1.8, MgCl2 1, glucose 5.5, HEPES 5; pH 7.4 (NaOH). Patch pipettes (borosilicate glass; 1.5–2 MΩ) were filled with a solution containing (in mmol/L): K-gluc 125, KCl 20, NaCl 10, amphotericin-B 0.88, HEPES 10; pH 7.2 (KOH). Signals were low-pass filtered (cut-off frequency 2 kHz) and digitized at 2 kHz. Series resistance was compensated by ≥80%, and potentials were corrected for the estimated liquid junction potential. Voltage control, data acquisition, and data analysis were accomplished using custom software. Cell membrane capacitance (Cm) was estimated by dividing the time constant of the decay of the capacitive transient in response to 5 mV hyperpolarizing voltage-clamp steps from −60 mV by the series resistance.

4.3. Square-Step Voltage Clamp Experiments

The activation and deactivation kinetics of the KCNQ1/KCNE1 current were determined by conventional, square-step voltage clamp protocols as diagrammed in Figure 1, A and D (insets). For both protocols, the holding potential was −80 mV and the cycle interval was 6 s. The voltage-dependence of the activation was determined by fitting a Boltzmann equation to determine the half-maximal activation voltage (V½) and slope factor (k) of the steady-state activation curve:
I/Imax = A/{1.0 + exp[(V½ − V)/k]}.
The time course of current activation was fitted by a mono-exponential equation to determine the time constant of activation (τ):
I/Imax = A × [1 − exp(−t/τ)].
The time course of current deactivation was fitted by a mono-exponential equation to determine the time constant of deactivation (τ):
I/Imax = A × exp(−t/τ).
Current densities were calculated by dividing current amplitudes by Cm.

4.4. Action Potential Clamp Experiments

Characteristics of KCNQ1/KCNE1 current during human SAN-like AP waveforms were measured using the AP clamp technique [77,78]. A prerecorded AP waveform of a human SAN cell [24] was used to construct a set of five human SAN-like APs that were employed as command signals under voltage clamp conditions. The cycle length of the original AP waveform was 817 ms (Figure 9, pink trace), and this cycle length was varied by manipulating the diastolic depolarization rate to simulate faster and slower beating rates, ranging from 40 to 120 bpm (Figure 9, other traces).

4.5. Drugs

Forskolin (10 µmol/L; Sigma-Aldrich, Zwijndrecht, The Netherlands) was used to mimic β-adrenergic stimulation. At this concentration, forskolin exerts its maximal effect on the KCNQ1/KCNE1 current in HEK-293 cells, similar to the effect of 1 μM isoproterenol [79]. The effect of forskolin on KCNQ1/KCNE1 current in HEK-293 cells was assessed in paired experiments.

4.6. Computer Simulations

The CellML code of the Fabbri–Severi model, as available from the CellML Model Repository [80] at https://www.cellml.org/ (accessed on 11 March 2023), was edited and run in version 0.9.31.1409 of the Windows-based Cellular Open Resource (COR) environment [81]. All simulations were run for a period of 100 s, which appeared long enough to reach steady-state behavior. The analyzed data are from the final three seconds of the 100-s period. Vagal tone was simulated by setting the model concentration of acetylcholine (ACh) to 20 nmol/L, which mainly exerts its effects by activation of the ACh-activated potassium current IK,ACh, which is zero in the default model, and the inhibition of If through a negative shift in its voltage dependence [41]. To simulate the β-adrenergic tone, we shifted the voltage dependence of the If kinetics by +10 mV, increased the maximal activity of the Na+/K+ pump as well as the IKs fully-activated conductance by 60%, increased ICaL through changes in its permeability (+64%) and its activation kinetics (−10.67 mV shift in its half-activation voltage and 29.244% decrease in its slope factor), shifted the voltage dependence of the IKs kinetics by −18.7 mV, and increased the SERCA pump activity by 25%. These changes are an intermediate between the changes used by Fabbri et al. [41] in these parameters to simulate the administration of 1 µmol/L of isoprenaline and their changes in these parameters used to arrive at a pacemaking rate near 180 bpm. Of note, the IKs fully activated conductance was increased by 25% instead of 60% in the modified IKs equations that we based on our experimental observations.

4.7. Statistics

Data are presented as mean ± SEM. Statistical analysis was carried out using Sigma-Stat, version 3.5 (Systat Software, Inc., San Jose, CA, USA). Two-way Repeated Measures ANOVA, followed by pairwise comparison using the Student–Newman–Keuls test, was used to compare the properties of the KCNQ1/KCNE1 current assessed with square-voltage clamp steps in the same seven HEK-293 cells in the absence and presence of 10 µmol/L forskolin as one factor and at various membrane potentials as the other factor (Figure 1, B, C, E and F). Similarly, we compared the KCNQ1/KCNE1 current amplitude measured with an AP clamp in the same six HEK-293 cells in the absence and presence of 10 µmol/L forskolin as one factor and at various cycle lengths as the other factor (Figure 4, A and B). A paired t-test was used to compare the half-maximal activation voltage (Figure 1C, inset, left two bars), the slope factor of the steady-state activation curve (Figure 1C, inset, right two bars), the reversal potential (Figure 1F, top left inset), and the fully-activated conductance (Figure 1F, bottom right inset) of the KCNQ1/KCNE1 current in the same seven cells in the absence and presence of 10 µmol/L forskolin. The level of significance was set at p < 0.05.

5. Conclusions

IKs is active during human SAN pacemaker activity at all levels of autonomic tone, but most substantially under vagal tone. Thus, it may help to extend the dynamic range of heart rate, while at the same time preventing excessive heart rates by its slowing effect on diastolic depolarization. The sinus bradycardia that is frequently observed in heterozygous gain-of-function mutations in KCNQ1 can be explained by the slowing effect of such mutations on the intrinsic pacemaker activity of human SAN pacemaker cells, in particular under a vagal tone.

Author Contributions

Patch clamp experiments, A.O.V.; computer simulations, R.W.; all other parts of the work reported, including conceptualization, methodology, investigation, data analysis, statistics, and visualization, as well as writing, reviewing, and editing the manuscript, A.O.V. and R.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data will be available upon request after publication to academic researchers.

Acknowledgments

The authors thank Berend de Jonge for his excellent technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dobrzynski, H.; Boyett, M.R.; Anderson, R.H. New insights into pacemaker activity: Promoting understanding of sick sinus syndrome. Circulation 2007, 115, 1921–1932. [Google Scholar] [CrossRef] [Green Version]
  2. Mortola, J.P.; Lanthier, C. Scaling the amplitudes of the circadian pattern of resting oxygen consumption, body temperature and heart rate in mammals. Comp. Biochem. Physiol. Part A Mol. Integr. Physiol. 2004, 139, 83–95. [Google Scholar] [CrossRef] [PubMed]
  3. Noujaim, S.F.; Lucca, E.; Muñoz, V.; Persaud, D.; Berenfeld, O.; Meijler, F.L.; Jalife, J. From mouse to whale: A universal scaling relation for the PR interval of the electrocardiogram of mammals. Circulation 2004, 110, 2802–2808. [Google Scholar] [CrossRef] [Green Version]
  4. Bassil, G.; Zarzoso, M.; Noujaim, S.F. Allometric scaling of electrical excitation and propagation in the mammalian heart. J. Theor. Biol. 2017, 419, 238–242. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Verkerk, A.O.; Van Ginneken, A.C.G.; Wilders, R. Pacemaker activity of the human sinoatrial node: Role of the hyperpolarization-activated current, If. Int. J. Cardiol. 2009, 132, 318–336. [Google Scholar] [CrossRef] [PubMed]
  6. Kalyanasundaram, A.; Li, N.; Hansen, B.J.; Zhao, J.; Fedorov, V.V. Canine and human sinoatrial node: Differences and similarities in the structure, function, molecular profiles, and arrhythmia. J. Vet. Cardiol. 2019, 22, 2–19. [Google Scholar] [CrossRef]
  7. Rodriguez, R.D.; Schocken, D.D. Update on sick sinus syndrome, a cardiac disorder of aging. Geriatrics 1990, 45, 26–30, 33–36. [Google Scholar]
  8. Morris, G.M.; Kalman, J.M. Fibrosis, electrics and genetics: Perspectives on sinoatrial node disease. Circ. J. 2014, 78, 1272–1282. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Boyett, M.R.; Yanni, J.; Tellez, J.; Bucchi, A.; Mesirca, P.; Cai, X.; Logantha, S.J.R.J.; Wilson, C.; Anderson, C.; Ariyaratnam, J.; et al. Regulation of sinus node pacemaking and atrioventricular node conduction by HCN channels in health and disease. Prog. Biophys. Mol. Biol. 2021, 166, 61–85. [Google Scholar] [CrossRef]
  10. Gatto, M.C.; Persi, A.; Tung, M.; Masi, R.; Canitano, S.; Kol, A. Bradyarrhythmias in patients with SARS-CoV-2 infection: A narrative review and a clinical report. Pacing Clin. Electrophysiol. 2021, 44, 1607–1615. [Google Scholar] [CrossRef]
  11. Al Kury, L.T.; Chacar, S.; Alefishat, E.; Khraibi, A.A.; Nader, M. Structural and electrical remodeling of the sinoatrial node in diabetes: New dimensions and perspectives. Front. Endocrinol. 2022, 13, 946313. [Google Scholar] [CrossRef]
  12. Lei, M.; Huang, C.L.-H.; Zhang, Y. Genetic Na+ channelopathies and sinus node dysfunction. Prog. Biophys. Mol. Biol. 2008, 98, 171–178. [Google Scholar] [CrossRef] [PubMed]
  13. Faggioni, M.; Van der Werf, C.; Knollmann, B.C. Sinus node dysfunction in catecholaminergic polymorphic ventricular tachycardia: Risk factor and potential therapeutic target? Trends Cardiovasc. Med. 2014, 24, 273–278. [Google Scholar] [CrossRef] [Green Version]
  14. Wilders, R.; Verkerk, A.O. Long QT syndrome and sinus bradycardia—A mini review. Front. Cardiovasc. Med. 2018, 5, 106. [Google Scholar] [CrossRef]
  15. DiFrancesco, D. Funny channel gene mutations associated with arrhythmias. J. Physiol. 2013, 591, 4117–4124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Verkerk, A.O.; Wilders, R. Pacemaker activity of the human sinoatrial node: An update on the effects of mutations in HCN4 on the hyperpolarization-activated current. Int. J. Mol. Sci. 2015, 16, 3071–3094. [Google Scholar] [CrossRef] [Green Version]
  17. Yusuf, S.; Camm, A.J. Sinus tachyarrhythmias and the specific bradycardic agents: A marriage made in heaven? J. Cardiovasc. Pharmacol. Ther. 2003, 8, 89–105. [Google Scholar] [CrossRef] [PubMed]
  18. Minoia, C.; Giannoccaro, M.; Iacobazzi, A.; Santini, D.; Silvestris, N.; Fioretti, A.; Oliva, S.; Guarini, A. Antineoplastic drug-induced bradyarrhythmias. Expert Opin. Drug Saf. 2012, 11, 739–751. [Google Scholar] [CrossRef]
  19. Vogler, J.; Breithardt, G.; Eckardt, L. Bradyarrhythmias and conduction blocks. Rev. Esp. Cardiol. (Engl. Ed.) 2012, 65, 656–667. [Google Scholar] [CrossRef]
  20. Ishikawa, T.; Tsuji, Y.; Makita, N. Inherited bradyarrhythmia: A diverse genetic background. J. Arrhythm. 2016, 32, 352–358. [Google Scholar] [CrossRef] [Green Version]
  21. Kojima, A.; Matsuura, H. Ionic mechanisms of the action of anaesthetics on sinoatrial node automaticity. Eur. J. Pharmacol. 2017, 814, 63–72. [Google Scholar] [CrossRef] [PubMed]
  22. Joung, B.; Chen, P.-S. Function and dysfunction of human sinoatrial node. Korean Circ. J. 2015, 45, 184–191. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Chandler, N.J.; Greener, I.D.; Tellez, J.O.; Inada, S.; Musa, H.; Molenaar, P.; DiFrancesco, D.; Baruscotti, M.; Longhi, R.; Anderson, R.H.; et al. Molecular architecture of the human sinus node: Insights into the function of the cardiac pacemaker. Circulation 2009, 119, 1562–1575. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Verkerk, A.O.; Wilders, R.; Van Borren, M.M.G.J.; Peters, R.J.G.; Broekhuis, E.; Lam, K.; Coronel, R.; De Bakker, J.M.T.; Tan, H.L. Pacemaker current (If) in the human sinoatrial node. Eur. Heart J. 2007, 28, 2472–2478. [Google Scholar] [CrossRef] [Green Version]
  25. Verkerk, A.O.; Wilders, R.; Van Borren, M.M.G.J.; Tan, H.L. Is sodium current present in human sinoatrial node cells? Int. J. Biol. Sci. 2009, 5, 201–204. [Google Scholar] [CrossRef] [Green Version]
  26. Verkerk, A.O.; Van Borren, M.M.G.J.; Wilders, R. Calcium transient and sodium-calcium exchange current in human versus rabbit sinoatrial node pacemaker cells. Sci. World J. 2013, 2013, 507872. [Google Scholar] [CrossRef]
  27. Tsutsui, K.; Monfredi, O.J.; Sirenko-Tagirova, S.G.; Maltseva, L.A.; Bychkov, R.; Kim, M.S.; Ziman, B.D.; Tarasov, K.V.; Tarasova, Y.S.; Zhang, J.; et al. A coupled-clock system drives the automaticity of human sinoatrial nodal pacemaker cells. Sci. Signal. 2018, 11, eaap7608. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Maltsev, V.A.; Lakatta, E.G. Synergism of coupled subsarcolemmal Ca2+ clocks and sarcolemmal voltage clocks confers robust and flexible pacemaker function in a novel pacemaker cell model. Am. J. Physiol. Heart Circ. Physiol. 2009, 296, H594–H615. [Google Scholar] [CrossRef] [Green Version]
  29. Lakatta, E.G.; Maltsev, V.A.; Vinogradova, T.M. A coupled SYSTEM of intracellular Ca2+ clocks and surface membrane voltage clocks controls the timekeeping mechanism of the heart’s pacemaker. Circ. Res. 2010, 106, 659–673. [Google Scholar] [CrossRef] [Green Version]
  30. Li, N.; Csepe, T.A.; Hansen, B.J.; Dobrzynski, H.; Higgins, R.S.D.; Kilic, A.; Mohler, P.J.; Janssen, P.M.L.; Rosen, M.R.; Biesiadecki, B.J.; et al. Molecular mapping of sinoatrial node HCN channel expression in the human heart. Circ. Arrhythm. Electrophysiol. 2015, 8, 1219–1227. [Google Scholar] [CrossRef] [Green Version]
  31. Sanguinetti, M.C.; Curran, M.E.; Zou, A.; Shen, J.; Spector, P.S.; Atkinson, D.L.; Keating, M.T. Coassembly of KvLQT1 and minK (IsK) proteins to form cardiac IKs potassium channel. Nature 1996, 384, 80–83. [Google Scholar] [CrossRef] [PubMed]
  32. Barhanin, J.; Lesage, F.; Guillemare, E.; Fink, M.; Lazdunski, M.; Romey, G. KvLQT1 and IsK (minK) proteins associate to form the IKS cardiac potassium current. Nature 1996, 384, 78–80. [Google Scholar] [CrossRef] [PubMed]
  33. Charpentier, F.; Mérot, J.; Loussouarn, G.; Baró, I. Delayed rectifier K+ currents and cardiac repolarization. J. Mol. Cell. Cardiol. 2010, 48, 37–44. [Google Scholar] [CrossRef] [PubMed]
  34. Jurkiewicz, N.K.; Sanguinetti, M.C. Rate-dependent prolongation of cardiac action potentials by a methanesulfonanilide class III antiarrhythmic agent: Specific block of rapidly activating delayed rectifier K+ current by dofetilide. Circ. Res. 1993, 72, 75–83. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Stengl, M.; Volders, P.G.A.; Thomsen, M.B.; Spätjens, R.L.H.M.G.; Sipido, K.R.; Vos, M.A. Accumulation of slowly activating delayed rectifier potassium current (IKs) in canine ventricular myocytes. J. Physiol. 2003, 551, 777–786. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, Y.; Eldstrom, J.; Fedida, D. Gating and regulation of KCNQ1 and KCNQ1 + KCNE1 channel complexes. Front. Physiol. 2020, 11, 504. [Google Scholar] [CrossRef]
  37. Wu, X.; Larsson, H.P. Insights into cardiac IKs (KCNQ1/KCNE1) channels regulation. Int. J. Mol. Sci. 2020, 21, 9440. [Google Scholar] [CrossRef]
  38. Sanguinetti, M.C.; Seebohm, G. Physiological functions, biophysical properties, and regulation of KCNQ1 (KV7.1) potassium channels. Adv. Exp. Med. Biol. 2021, 1349, 335–353. [Google Scholar] [CrossRef]
  39. Sanguinetti, M.C.; Jurkiewicz, N.K.; Scott, A.; Siegl, P.K.S. Isoproterenol antagonizes prolongation of refractory period by the class III antiarrhythmic agent E-4031 in guinea pig myocytes: Mechanism of action. Circ. Res. 1991, 68, 77–84. [Google Scholar] [CrossRef] [Green Version]
  40. Schwartz, P.J.; Ackerman, M.J.; Antzelevitch, C.; Bezzina, C.R.; Borggrefe, M.; Cuneo, B.F.; Wilde, A.A.M. Inherited cardiac arrhythmias. Nat. Rev. Dis. Primers 2020, 6, 58. [Google Scholar] [CrossRef]
  41. Fabbri, A.; Fantini, M.; Wilders, R.; Severi, S. Computational analysis of the human sinus node action potential: Model development and effects of mutations. J. Physiol. 2017, 595, 2365–2396. [Google Scholar] [CrossRef] [Green Version]
  42. Verkerk, A.O.; Wilders, R. Contribution of the slow delayed rectifier K+ current to pacemaker activity of the human sinoatrial node. Comp. Cardiol. 2022, 49, 91. [Google Scholar] [CrossRef]
  43. Hodgkin, A.L.; Huxley, A.F. A quantitative description of membrane current and its application to conduction and excitation in nerve. J. Physiol. 1952, 117, 500–544. [Google Scholar] [CrossRef]
  44. Zhang, H.; Holden, A.V.; Kodama, I.; Honjo, H.; Lei, M.; Varghese, T.; Boyett, M.R. Mathematical models of action potentials in the periphery and center of the rabbit sinoatrial node. Am. J. Physiol. Heart Circ. Physiol. 2000, 279, H397–H421. [Google Scholar] [CrossRef] [PubMed]
  45. Kurata, Y.; Hisatome, I.; Imanishi, S.; Shibamoto, T. Dynamical description of sinoatrial node pacemaking: Improved mathematical model for primary pacemaker cell. Am. J. Physiol. Heart Circ. Physiol. 2002, 283, H2074–H2101. [Google Scholar] [CrossRef] [PubMed]
  46. Kharche, S.; Yu, J.; Lei, M.; Zhang, H. A mathematical model of action potentials of mouse sinoatrial node cells with molecular bases. Am. J. Physiol. Heart Circ. Physiol. 2011, 301, H945–H963. [Google Scholar] [CrossRef] [Green Version]
  47. Tao, T.; Paterson, D.J.; Smith, N.P. A model of cellular cardiac-neural coupling that captures the sympathetic control of sinoatrial node excitability in normotensive and hypertensive rats. Biophys. J. 2011, 101, 594–602. [Google Scholar] [CrossRef] [Green Version]
  48. Severi, S.; Fantini, M.; Charawi, L.A.; DiFrancesco, D. An updated computational model of rabbit sinoatrial action potential to investigate the mechanisms of heart rate modulation. J. Physiol. 2012, 590, 4483–4499. [Google Scholar] [CrossRef]
  49. Moreno, C.; Oliveras, A.; De la Cruz, A.; Bartolucci, C.; Muñoz, C.; Salar, E.; Gimeno, J.R.; Severi, S.; Comes, N.; Felipe, A.; et al. A new KCNQ1 mutation at the S5 segment that impairs its association with KCNE1 is responsible for short QT syndrome. Cardiovasc. Res. 2015, 107, 613–623. [Google Scholar] [CrossRef] [Green Version]
  50. Danielsson, C.; Brask, J.; Sköld, A.-C.; Genead, R.; Andersson, A.; Andersson, U.; Stockling, K.; Pehrson, R.; Grinnemo, K.-H.; Salari, S.; et al. Exploration of human, rat, and rabbit embryonic cardiomyocytes suggests K-channel block as a common teratogenic mechanism. Cardiovasc. Res. 2013, 97, 23–32. [Google Scholar] [CrossRef] [Green Version]
  51. Whittaker, D.G.; Colman, M.A.; Ni, H.; Hancox, J.C.; Zhang, H. Human atrial arrhythmogenesis and sinus bradycardia in KCNQ1-linked short QT syndrome: Insights from computational modelling. Front. Physiol. 2018, 9, 1402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Britton, O.J.; Bueno-Orovio, A.; Van Ammel, K.; Lu, H.R.; Towart, R.; Gallacher, D.J.; Rodriguez, B. Experimentally calibrated population of models predicts and explains intersubject variability in cardiac cellular electrophysiology. Proc. Natl. Acad. Sci. USA 2013, 110, E2098–E2105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Paci, M.; Passini, E.; Severi, S.; Hyttinen, J.; Rodriguez, B. Phenotypic variability in LQT3 human induced pluripotent stem cell-derived cardiomyocytes and their response to antiarrhythmic pharmacologic therapy: An in silico approach. Heart Rhythm 2017, 14, 1704–1712. [Google Scholar] [CrossRef] [Green Version]
  54. Henrion, U.; Zumhagen, S.; Steinke, K.; Strutz-Seebohm, N.; Stallmeyer, B.; Lang, F.; Schulze-Bahr, E.; Seebohm, G. Overlapping cardiac phenotype associated with a familial mutation in the voltage sensor of the KCNQ1 channel. Cell. Physiol. Biochem. 2012, 29, 809–818. [Google Scholar] [CrossRef]
  55. Ki, C.-S.; Jung, C.L.; Kim, H.-J.; Baek, K.-H.; Park, S.J.; On, Y.K.; Kim, K.-S.; Noh, S.J.; Youm, J.B.; Kim, J.S.; et al. A KCNQ1 mutation causes age-dependant bradycardia and persistent atrial fibrillation. Pflügers Arch. 2014, 466, 529–540. [Google Scholar] [CrossRef]
  56. Zhou, X.; Bueno-Orovio, A.; Schilling, R.J.; Kirkby, C.; Denning, C.; Rajamohan, D.; Burrage, K.; Tinker, A.; Rodriguez, B.; Harmer, S.C. Investigating the complex arrhythmic phenotype caused by the gain-of-function mutation KCNQ1-G229D. Front. Physiol. 2019, 10, 259. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Bellocq, C.; Van Ginneken, A.C.G.; Bezzina, C.R.; Alders, M.; Escande, D.; Mannens, M.M.A.M.; Baró, I.; Wilde, A.A.M. Mutation in the KCNQ1 gene leading to the short QT-interval syndrome. Circulation 2004, 109, 2394–2397. [Google Scholar] [CrossRef] [Green Version]
  58. Hasegawa, K.; Ohno, S.; Ashihara, T.; Itoh, H.; Ding, W.-G.; Toyoda, F.; Makiyama, T.; Aoki, H.; Nakamura, Y.; Delisle, B.P.; et al. A novel KCNQ1 missense mutation identified in a patient with juvenile-onset atrial fibrillation causes constitutively open IKs channels. Heart Rhythm 2014, 11, 67–75. [Google Scholar] [CrossRef]
  59. Hong, K.; Piper, D.R.; Diaz-Valdecantos, A.; Brugada, J.; Oliva, A.; Burashnikov, E.; Santos-de-Soto, J.; Grueso-Montero, J.; Diaz-Enfante, E.; Brugada, P.; et al. De novo KCNQ1 mutation responsible for atrial fibrillation and short QT syndrome in utero. Cardiovasc. Res. 2005, 68, 433–440. [Google Scholar] [CrossRef] [Green Version]
  60. Maltret, A.; Wiener-Vacher, S.; Denis, C.; Extramiana, F.; Morisseau-Durand, M.P.; Fressart, V.; Bonnet, D.; Chabbert, C. Type 2 short QT syndrome and vestibular dysfunction: Mirror of the Jervell and Lange-Nielsen syndrome? Int. J. Cardiol. 2014, 171, 291–293. [Google Scholar] [CrossRef]
  61. Villafañe, J.; Fischbach, P.; Gebauer, R. Short QT syndrome manifesting with neonatal atrial fibrillation and bradycardia. Cardiology 2014, 128, 236–240. [Google Scholar] [CrossRef]
  62. Harrell, D.T.; Ashihara, T.; Ishikawa, T.; Tominaga, I.; Mazzanti, A.; Takahashi, K.; Oginosawa, Y.; Abe, H.; Maemura, K.; Sumitomo, N.; et al. Genotype-dependent differences in age of manifestation and arrhythmia complications in short QT syndrome. Int. J. Cardiol. 2015, 190, 393–402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Sarquella-Brugada, G.; Campuzano, O.; Iglesias, A.; Grueso, J.; Bradley, D.J.; Kerst, G.; Shmorhun, D.; Brugada, J.; Brugada, R. Short QT and atrial fibrillation: A KCNQ1 mutation-specific disease. Late follow-up in three unrelated children. HeartRhythm Case Rep. 2015, 1, 193–197. [Google Scholar] [CrossRef] [Green Version]
  64. Righi, D.; Silvetti, M.S.; Drago, F. Sinus bradycardia, junctional rhythm, and low-rate atrial fibrillation in Short QT syndrome during 20 years of follow-up: Three faces of the same genetic problem. Cardiol. Young 2016, 26, 589–592. [Google Scholar] [CrossRef] [PubMed]
  65. Takechi, F.; Kato, K.; Makiyama, T.; Ohno, S.; Kabasawa, M.; Morishima, H.; Kawasoe, Y.; Okajima, Y.; Matsuo, K.; Horie, M.; et al. Ventricular fibrillation in a family with short QT syndrome type 2 carrying a heterozygous KCNQ1-V141M variant. J. Pediatr. Cardiol. Card. Surg. 2022, 6, 31–36. [Google Scholar] [CrossRef]
  66. Bendahhou, S.; Marionneau, C.; Haurogne, K.; Larroque, M.-M.; Derand, R.; Szuts, V.; Escande, D.; Demolombe, S.; Barhanin, J. In vitro molecular interactions and distribution of KCNE family with KCNQ1 in the human heart. Cardiovasc. Res. 2005, 67, 529–538. [Google Scholar] [CrossRef] [PubMed]
  67. Lundquist, A.L.; Manderfield, L.J.; Vanoye, C.G.; Rogers, C.S.; Donahue, B.S.; Chang, P.A.; Drinkwater, D.C.; Murray, K.T.; George, A.L., Jr. Expression of multiple KCNE genes in human heart may enable variable modulation of IKs. J. Mol. Cell. Cardiol. 2005, 38, 277–287. [Google Scholar] [CrossRef] [PubMed]
  68. Lundby, A.; Ravn, L.S.; Svendsen, J.H.; Olesen, S.-P.; Schmitt, N. KCNQ1 mutation Q147R is associated with atrial fibrillation and prolonged QT interval. Heart Rhythm 2007, 4, 1532–1541. [Google Scholar] [CrossRef]
  69. Tseng, G.-N. The phenotype of a KCNQ1 mutation depends on its KCNE partners: Is the cardiac slow delayed rectifier (IKs) channel more than a KCNQ1/KCNE1 complex? Heart Rhythm 2007, 4, 1542–1543. [Google Scholar] [CrossRef] [Green Version]
  70. Bartos, D.C.; Morotti, S.; Ginsburg, K.S.; Grandi, E.; Bers, D.M. Quantitative analysis of the Ca2+-dependent regulation of delayed rectifier K+ current IKs in rabbit ventricular myocytes. J. Physiol. 2017, 595, 2253–2268. [Google Scholar] [CrossRef] [Green Version]
  71. Horváth, B.; Kiss, D.; Dienes, C.; Hézső, T.; Kovács, Z.; Szentandrássy, N.; Almássy, J.; Magyar, J.; Bányász, T.; Nánási, P.P. Ion current profiles in canine ventricular myocytes obtained by the “onion peeling” technique. J. Mol. Cell. Cardiol. 2021, 158, 153–162. [Google Scholar] [CrossRef] [PubMed]
  72. Dai, L.; Zang, Y.; Zheng, D.; Xia, L.; Gong, Y. Role of CaMKII and PKA in early afterdepolarization of human ventricular myocardium cell: A computational model study. Comput. Math. Methods Med. 2016, 2016, 4576313. [Google Scholar] [CrossRef] [Green Version]
  73. Onal, B.; Gratz, D.; Hund, T.J. Ca2+/calmodulin-dependent kinase II-dependent regulation of atrial myocyte late Na+ current, Ca2+ cycling, and excitability: A mathematical modeling study. Am. J. Physiol. Heart Circ. Physiol. 2017, 313, H1227–H1239. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Zang, Y.; Marder, E. Interactions among diameter, myelination, and the Na/K pump affect axonal resilience to high-frequency spiking. Proc. Natl. Acad. Sci. USA 2021, 118, e2105795118. [Google Scholar] [CrossRef]
  75. Morotti, S.; Ni, H.; Peters, C.H.; Rickert, C.; Asgari-Targhi, A.; Sato, D.; Glukhov, A.V.; Proenza, C.; Grandi, E. Intracellular Na+ modulates pacemaking activity in murine sinoatrial node myocytes: An in silico analysis. Int. J. Mol. Sci. 2021, 22, 5645. [Google Scholar] [CrossRef]
  76. Veerman, C.C.; Verkerk, A.O.; Blom, M.T.; Klemens, C.A.; Langendijk, P.N.J.; Van Ginneken, A.C.G.; Wilders, R.; Tan, H.L. Slow delayed rectifier potassium current blockade contributes importantly to drug-induced long QT syndrome. Circ. Arrhythm. Electrophysiol. 2013, 6, 1002–1009. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Starzak, M.E.; Starzak, R.J. An action potential clamp to probe the effectiveness of space clamp in axons. IEEE Trans. Biomed. Eng. 1978, 25, 201–204. [Google Scholar] [CrossRef]
  78. Doerr, T.; Denger, R.; Trautwein, W. Calcium currents in single SA nodal cells of the rabbit heart studied with action potential clamp. Pflügers Arch. 1989, 413, 599–603. [Google Scholar] [CrossRef]
  79. Imredy, J.P.; Penniman, J.R.; Dech, S.J.; Irving, W.D.; Salata, J.J. Modeling of the adrenergic response of the human IKs current (hKCNQ1/hKCNE1) stably expressed in HEK-293 cells. Am. J. Physiol. Heart Circ. Physiol. 2008, 295, H1867–H1881. [Google Scholar] [CrossRef] [Green Version]
  80. Lloyd, C.M.; Lawson, J.R.; Hunter, P.J.; Nielsen, P.F. The CellML Model Repository. Bioinformatics 2008, 24, 2122–2123. [Google Scholar] [CrossRef]
  81. Garny, A.; Kohl, P.; Noble, D. Cellular open resource (COR): A public CellML based environment for modelling biological function. Int. J. Bifurcat. Chaos 2003, 13, 3579–3590. [Google Scholar] [CrossRef]
Ijms 24 07264 g001 550
Figure 1. KCNQ1/KCNE1 current measured with conventional square voltage clamp steps in absence and presence of 10 µmol/L forskolin. (A) Typical current traces in absence (control; left) and presence (right) of forskolin. Inset: voltage clamp protocol used. (B) Average current density in absence and presence of forskolin. * p < 0.05, ** p < 0.01, *** p < 0.001, two-way Repeated Measures (RM) ANOVA. (C) Average voltage dependence of activation in absence and presence of forskolin. Solid lines are the Boltzmann fits to the experimental data. * p < 0.05, ** p < 0.01, *** p < 0.001, two-way RM ANOVA. Inset: half-maximal activation voltage (V½) and slope factor (k) of the individual Boltzmann curves; ** p < 0.01, paired t-test. (D) Typical current traces in absence and presence of forskolin. Inset: voltage clamp protocol used. (E) Average activation and deactivation time constants (τ) in absence and presence of forskolin. * p < 0.05, ** p < 0.01, *** p < 0.001, two-way RM ANOVA. (F) Average fully activated current in absence and presence of forskolin. Solid lines are the linear fits to the experimental data. * p < 0.05, ** p < 0.01, *** p < 0.001, two-way RM ANOVA. Insets: reversal potential (top left) and fully activated conductance (slope; bottom right), as determined from the individual linear fits; *** p < 0.001, paired t-test.
Figure 1. KCNQ1/KCNE1 current measured with conventional square voltage clamp steps in absence and presence of 10 µmol/L forskolin. (A) Typical current traces in absence (control; left) and presence (right) of forskolin. Inset: voltage clamp protocol used. (B) Average current density in absence and presence of forskolin. * p < 0.05, ** p < 0.01, *** p < 0.001, two-way Repeated Measures (RM) ANOVA. (C) Average voltage dependence of activation in absence and presence of forskolin. Solid lines are the Boltzmann fits to the experimental data. * p < 0.05, ** p < 0.01, *** p < 0.001, two-way RM ANOVA. Inset: half-maximal activation voltage (V½) and slope factor (k) of the individual Boltzmann curves; ** p < 0.01, paired t-test. (D) Typical current traces in absence and presence of forskolin. Inset: voltage clamp protocol used. (E) Average activation and deactivation time constants (τ) in absence and presence of forskolin. * p < 0.05, ** p < 0.01, *** p < 0.001, two-way RM ANOVA. (F) Average fully activated current in absence and presence of forskolin. Solid lines are the linear fits to the experimental data. * p < 0.05, ** p < 0.01, *** p < 0.001, two-way RM ANOVA. Insets: reversal potential (top left) and fully activated conductance (slope; bottom right), as determined from the individual linear fits; *** p < 0.001, paired t-test.
Ijms 24 07264 g001
Ijms 24 07264 g002 550
Figure 2. KCNQ1/KCNE1 current measured with action potential clamp. (A) Train of human SAN-like action potentials (APs) with a cycle length of 750 ms used as command potential in the AP clamp experiment (top) and average KCNQ1/KCNE1 current (n = 6) in response to this train of APs (bottom) in absence of forskolin. (B) KCNQ1/KCNE1 current of panel A as a phase-plane plot with arrows indicating the time course and phases of the APs. The inset shows the phase-plane plot on an enlarged current scale, focusing on the diastolic depolarization. (C) Static and dynamic characteristics of the KCNQ1/KCNE1 current shown as the fully activated current (Imax; dashed line), constructed by extrapolating the currents measured at +80 mV and more positive (black-filled circles) to the zero current level near −86 mV, the steady-state current at potentials ranging from −80 to +70 mV (gray-filled circles), and the current during AP clamp (APC, solid trace) of the same six cells. The arrows relate the maximum current flowing during the human SAN-like AP waveform to the fully activated current at the associated membrane potential.
Figure 2. KCNQ1/KCNE1 current measured with action potential clamp. (A) Train of human SAN-like action potentials (APs) with a cycle length of 750 ms used as command potential in the AP clamp experiment (top) and average KCNQ1/KCNE1 current (n = 6) in response to this train of APs (bottom) in absence of forskolin. (B) KCNQ1/KCNE1 current of panel A as a phase-plane plot with arrows indicating the time course and phases of the APs. The inset shows the phase-plane plot on an enlarged current scale, focusing on the diastolic depolarization. (C) Static and dynamic characteristics of the KCNQ1/KCNE1 current shown as the fully activated current (Imax; dashed line), constructed by extrapolating the currents measured at +80 mV and more positive (black-filled circles) to the zero current level near −86 mV, the steady-state current at potentials ranging from −80 to +70 mV (gray-filled circles), and the current during AP clamp (APC, solid trace) of the same six cells. The arrows relate the maximum current flowing during the human SAN-like AP waveform to the fully activated current at the associated membrane potential.
Ijms 24 07264 g002
Ijms 24 07264 g003 550
Figure 3. Effect of cycle length on KCNQ1/KCNE1 current in absence and presence of 10 µmol/L forskolin. (A) Average KCNQ1/KCNE1 current (n = 6) in absence and presence of 10 µmol/L forskolin (bottom) during a train of human SAN-like APs with a cycle length of 750 ms (top). (B) Associated phase-plane plots with inset focusing on diastolic depolarization. (C) Average KCNQ1/KCNE1 current in absence of forskolin at cycle lengths ranging from 500 to 1500 ms. (D) Phase-plane plots in absence of forskolin at cycle lengths of 500, 750, and 1500 ms. Inset: focus on diastolic depolarization. (E) Average KCNQ1/KCNE1 current in presence of 10 µmol/L forskolin at cycle lengths ranging from 500 to 1500 ms. (F) Phase-plane plots in presence of 10 µmol/L forskolin at cycle lengths of 500, 750, and 1500 ms. Inset: focus on diastolic depolarization.
Figure 3. Effect of cycle length on KCNQ1/KCNE1 current in absence and presence of 10 µmol/L forskolin. (A) Average KCNQ1/KCNE1 current (n = 6) in absence and presence of 10 µmol/L forskolin (bottom) during a train of human SAN-like APs with a cycle length of 750 ms (top). (B) Associated phase-plane plots with inset focusing on diastolic depolarization. (C) Average KCNQ1/KCNE1 current in absence of forskolin at cycle lengths ranging from 500 to 1500 ms. (D) Phase-plane plots in absence of forskolin at cycle lengths of 500, 750, and 1500 ms. Inset: focus on diastolic depolarization. (E) Average KCNQ1/KCNE1 current in presence of 10 µmol/L forskolin at cycle lengths ranging from 500 to 1500 ms. (F) Phase-plane plots in presence of 10 µmol/L forskolin at cycle lengths of 500, 750, and 1500 ms. Inset: focus on diastolic depolarization.
Ijms 24 07264 g003
Ijms 24 07264 g004 550
Figure 4. Amplitude of KCNQ1/KCNE1 current during human SAN-like APs in absence and presence of 10 µmol/L forskolin. (A) Peak current during AP repolarization (measured as current amplitude at 0 mV) vs. cycle length in absence and presence of forskolin. (B) Current during diastolic depolarization at −60 mV vs. cycle length in absence and presence of forskolin. * p < 0.05, ** p < 0.01, *** p < 0.001, two-way RM ANOVA.
Figure 4. Amplitude of KCNQ1/KCNE1 current during human SAN-like APs in absence and presence of 10 µmol/L forskolin. (A) Peak current during AP repolarization (measured as current amplitude at 0 mV) vs. cycle length in absence and presence of forskolin. (B) Current during diastolic depolarization at −60 mV vs. cycle length in absence and presence of forskolin. * p < 0.05, ** p < 0.01, *** p < 0.001, two-way RM ANOVA.
Ijms 24 07264 g004
Ijms 24 07264 g005 550
Figure 5. IKs kinetics derived from our voltage clamp data on KCNQ1/KCNE1 current. (A) Square root of the experimental data on steady-state activation of the KCNQ1/KCNE1 current in absence and presence of 10 µmol/L forskolin (filled circles) and Boltzmann fits to these data (solid lines). (B) Experimental data on the rate of deactivation (β) of the KCNQ1/KCNE1 current activation gate in absence and presence of 10 µmol/L forskolin (filled circles) and common mono-exponential fit to these data (solid line). (C) Rate of activation (α) of the KCNQ1/KCNE1 current activation gate as derived from the Boltzmann fits of panel A and the mono-exponential fit of panel B. Rate of deactivation (β) is the common fit of panel B. (D) Rates of activation (α) and deactivation (β) of panel C redrawn as dotted lines for comparison to the original α (solid lines) and β (dashed lines) of the IKs activation gate in the Fabbri–Severi human SAN cell model under control conditions and in presence of 1 µmol/L isoprenaline (Iso). Note difference in ordinate scale between panels C and D.
Figure 5. IKs kinetics derived from our voltage clamp data on KCNQ1/KCNE1 current. (A) Square root of the experimental data on steady-state activation of the KCNQ1/KCNE1 current in absence and presence of 10 µmol/L forskolin (filled circles) and Boltzmann fits to these data (solid lines). (B) Experimental data on the rate of deactivation (β) of the KCNQ1/KCNE1 current activation gate in absence and presence of 10 µmol/L forskolin (filled circles) and common mono-exponential fit to these data (solid line). (C) Rate of activation (α) of the KCNQ1/KCNE1 current activation gate as derived from the Boltzmann fits of panel A and the mono-exponential fit of panel B. Rate of deactivation (β) is the common fit of panel B. (D) Rates of activation (α) and deactivation (β) of panel C redrawn as dotted lines for comparison to the original α (solid lines) and β (dashed lines) of the IKs activation gate in the Fabbri–Severi human SAN cell model under control conditions and in presence of 1 µmol/L isoprenaline (Iso). Note difference in ordinate scale between panels C and D.
Ijms 24 07264 g005
Ijms 24 07264 g006 550
Figure 6. Effects of replacing the original IKs equations of the Fabbri–Severi human SAN cell model with those based on our voltage clamp data on KCNQ1/KCNE1 current. (A) Membrane potential (Vm), (B) slow delayed rectifier potassium current (IKs), and (C) hyperpolarization-activated ‘funny’ current (If) of the Fabbri–Severi model cell with its original IKs (solid blue traces), with its modified KCNQ1/KCNE1-based IKs (solid green traces), and in the absence of IKs (orange-dashed traces) under vagal tone (20 nmol/L ACh). (D–F) Vm, IKs, and If under control conditions (no rate modulation). (G–I) Vm, IKs, and If under β-adrenergic tone (high Iso). Insets to panels B and E show IKs on an enlarged current scale.
Figure 6. Effects of replacing the original IKs equations of the Fabbri–Severi human SAN cell model with those based on our voltage clamp data on KCNQ1/KCNE1 current. (A) Membrane potential (Vm), (B) slow delayed rectifier potassium current (IKs), and (C) hyperpolarization-activated ‘funny’ current (If) of the Fabbri–Severi model cell with its original IKs (solid blue traces), with its modified KCNQ1/KCNE1-based IKs (solid green traces), and in the absence of IKs (orange-dashed traces) under vagal tone (20 nmol/L ACh). (D–F) Vm, IKs, and If under control conditions (no rate modulation). (G–I) Vm, IKs, and If under β-adrenergic tone (high Iso). Insets to panels B and E show IKs on an enlarged current scale.
Ijms 24 07264 g006
Ijms 24 07264 g007 550
Figure 7. Effect of IKs on the beating rate of the Fabbri–Severi human SAN cell model. Beating rate of the Fabbri–Severi cell model with its original IKs (blue filled circles), with its IKs based on our voltage clamp data (green-filled squares), and in the absence of IKs (orange-filled triangles) under vagal tone (20 nmol/L ACh), under control conditions (no rate modulation), and under β-adrenergic tone (high Iso).
Figure 7. Effect of IKs on the beating rate of the Fabbri–Severi human SAN cell model. Beating rate of the Fabbri–Severi cell model with its original IKs (blue filled circles), with its IKs based on our voltage clamp data (green-filled squares), and in the absence of IKs (orange-filled triangles) under vagal tone (20 nmol/L ACh), under control conditions (no rate modulation), and under β-adrenergic tone (high Iso).
Ijms 24 07264 g007
Ijms 24 07264 g008 550
Figure 8. Effects of the heterozygous F279I mutation in KCNQ1 on the Fabbri–Severi human SAN cell model with IKs based on our voltage clamp data. (A) Vm, (B) IKs, and (C) cycle length (CL) of the Fabbri–Severi model cell with wild-type and F279I heterozygous mutant IKs under vagal tone (20 nmol/L ACh). The inset to panel B and the two rightmost bars of panel C show IKs and CL, respectively, obtained with the original IKs equations of the Fabbri–Severi model. (D–F) Vm, IKs, and CL under control conditions (no rate modulation). (G–I) Vm, IKs, and CL under β-adrenergic tone (high Iso). The two rightmost bars of panels F and I show CL obtained with the original IKs equations.
Figure 8. Effects of the heterozygous F279I mutation in KCNQ1 on the Fabbri–Severi human SAN cell model with IKs based on our voltage clamp data. (A) Vm, (B) IKs, and (C) cycle length (CL) of the Fabbri–Severi model cell with wild-type and F279I heterozygous mutant IKs under vagal tone (20 nmol/L ACh). The inset to panel B and the two rightmost bars of panel C show IKs and CL, respectively, obtained with the original IKs equations of the Fabbri–Severi model. (D–F) Vm, IKs, and CL under control conditions (no rate modulation). (G–I) Vm, IKs, and CL under β-adrenergic tone (high Iso). The two rightmost bars of panels F and I show CL obtained with the original IKs equations.
Ijms 24 07264 g008
Ijms 24 07264 g009 550

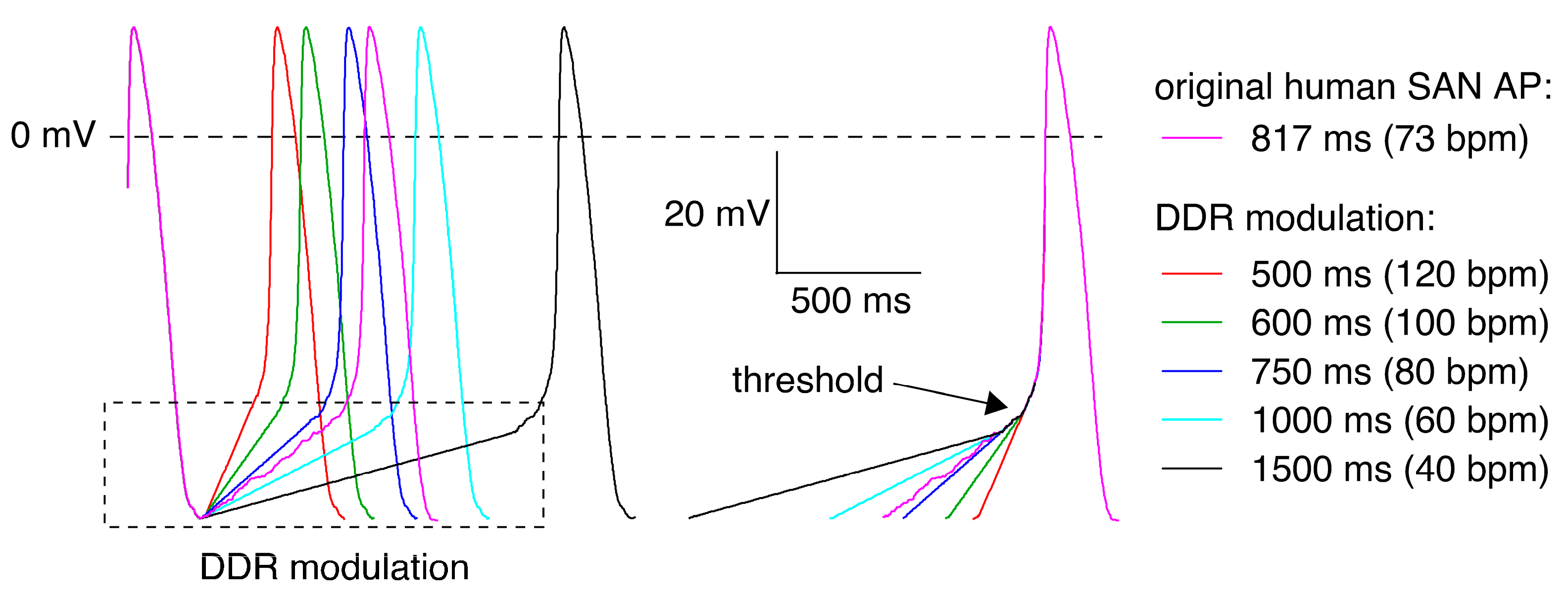

Figure 9. Command potentials used in AP clamp experiments. Native AP of an isolated human SAN cell (pink trace [24]) and modulation of its diastolic depolarization rate (DDR) to obtain AP waveforms with cycle lengths of 500, 600, 750, 1000, and 1500 ms (other traces), corresponding to beating rates ranging from 40 to 120 bpm.
Figure 9. Command potentials used in AP clamp experiments. Native AP of an isolated human SAN cell (pink trace [24]) and modulation of its diastolic depolarization rate (DDR) to obtain AP waveforms with cycle lengths of 500, 600, 750, 1000, and 1500 ms (other traces), corresponding to beating rates ranging from 40 to 120 bpm.
Ijms 24 07264 g009
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Verkerk, A.O.; Wilders, R. Human Sinoatrial Node Pacemaker Activity: Role of the Slow Component of the Delayed Rectifier K+ Current, IKs. Int. J. Mol. Sci. 2023, 24, 7264. https://doi.org/10.3390/ijms24087264

AMA Style

Verkerk AO, Wilders R. Human Sinoatrial Node Pacemaker Activity: Role of the Slow Component of the Delayed Rectifier K+ Current, IKs. International Journal of Molecular Sciences. 2023; 24(8):7264. https://doi.org/10.3390/ijms24087264

Chicago/Turabian Style

Verkerk, Arie O., and Ronald Wilders. 2023. "Human Sinoatrial Node Pacemaker Activity: Role of the Slow Component of the Delayed Rectifier K+ Current, IKs" International Journal of Molecular Sciences 24, no. 8: 7264. https://doi.org/10.3390/ijms24087264

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
