Nitrite Reductase Activity of Ferrous Nitrobindins: A Comparative Study

by
Giovanna De Simone
1,
Alessandra di Masi
1,
Grazia R. Tundo
2,
Massimo Coletta
3,* and
Paolo Ascenzi
4,*
1
Dipartimento di Scienze, Università Roma Tre, 00146 Roma, Italy
2
Dipartimento di Scienze Cliniche e Medicina Traslazionale, Università di Roma Tor Vergata, 00133 Roma, Italy
3
IRCCS Fondazione Bietti, 00198 Roma, Italy
4
Laboratorio Interdipartimentale di Microscopia Elettronica, Università Roma Tre, 00146 Roma, Italy
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(7), 6553; https://doi.org/10.3390/ijms24076553
Submission received: 28 February 2023 / Revised: 17 March 2023 / Accepted: 20 March 2023 / Published: 31 March 2023
(This article belongs to the Special Issue Nitroreductases and Nitro-Reduction)
Browse Figures
Review Reports Versions Notes

Abstract

Nitrobindins (Nbs) are all-β-barrel heme proteins spanning from bacteria to Homo sapiens. They inactivate reactive nitrogen species by sequestering NO, converting NO to HNO2, and promoting peroxynitrite isomerization to NO3−. Here, the nitrite reductase activity of Nb(II) from Mycobacterium tuberculosis (Mt-Nb(II)), Arabidopsis thaliana (At-Nb(II)), Danio rerio (Dr-Nb(II)), and Homo sapiens (Hs-Nb(II)) is reported. This activity is crucial for the in vivo production of NO, and thus for the regulation of blood pressure, being of the utmost importance for the blood supply to poorly oxygenated tissues, such as the eye retina. At pH 7.3 and 20.0 °C, the values of the second-order rate constants (i.e., kon) for the reduction of NO2− to NO and the concomitant formation of nitrosylated Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II) (Nb(II)-NO) were 7.6 M−1 s−1, 9.3 M−1 s−1, 1.4 × 101 M−1 s−1, and 5.8 M−1 s−1, respectively. The values of kon increased linearly with decreasing pH, thus indicating that the NO2−-based conversion of Nb(II) to Nb(II)-NO requires the involvement of one proton. These results represent the first evidence for the NO2 reductase activity of Nbs(II), strongly supporting the view that Nbs are involved in NO metabolism. Interestingly, the nitrite reductase reactivity of all-β-barrel Nbs and of all-α-helical globins (e.g., myoglobin) was very similar despite the very different three-dimensional fold; however, differences between all-α-helical globins and all-β-barrel Nbs suggest that nitrite reductase activity appears to be controlled by distal steric barriers, even though a more complex regulatory mechanism can be also envisaged.

1. Introduction

All-α-helical heme proteins are pivotal for O2, NO, and CO sensing, storing, transport, and chemistry [1,2,3,4]. Classical globins, including hemoglobin (Hb) and myoglobin (Mb), are composed of eight α-helical segments that are arranged in a 3/3 fold around the heme; the A, B, and E α-helices face the heme on one side and the F, G, and H α-helices on the other side [2,3,4,5,6].
Over the last 25 years, additional structural folds have been observed in heme proteins, such as a subset of all-α-helical globins, called truncated hemoglobins (trHbs), which were found in bacteria, plants, and in some unicellular eukaryotes [7]. TrHbs display a 2/2-fold, in which two anti-parallel pairs of helices (i.e., B/E and G/H) enclose the heme [7,8,9,10,11,12,13]. In 3/3 and 2/2 all-α-helical heme proteins, the fifth ligand of the metal center is the Nε atom of the so-called “proximal” histidyl residue; in most cases, a second histidyl side chain faces the heme–Fe-atom at the heme distal site [1,2,3,4,5,6].
More recently, all-β-barrel heme proteins (i.e., nitrophorins (NPs) and nitrobindins (Nbs)) have been discovered and characterized from both structural and functional viewpoints. Interestingly, NPs are present only in the salivary gland of Rhodnius prolixus whereas Nbs span from bacteria to Homo sapiens [13,14,15,16,17,18]. Although in NPs and Nbs the heme is anchored to the protein moiety by a proximal His residue, forming the fifth axial ligand of the Fe atom, they are predominantly in the ferric form [13,14,15,16,17,18,19]. On the other hand, the histidyl residue, which is facing the heme distal side in most all-α-helical globins, is absent in NPs and Nbs, thus preventing the heme–Fe-atom six-coordination and the consequent inactivation of the metal center [19].
Ferric and ferrous Nbs (Nb(III) and Nb(II), respectively) bind reversibly to NO with similar combination rate constants ((1.4 ± 0.4) × 106 M−1 s−1 and (1.5 ± 0.6) × 106 M−1 s−1, respectively); the very different values of the dissociation rate constant ((4.6 ± 2.6) × 101 s−1 and (5.7 ± 2.5) × 10−2 s−1, respectively) are at the root of the different affinities ((3.5 ± 2.5) × 10−5 M and (3.5 ± 2.5) × 10−8 M, respectively) [19,20,21,22]. Of note, NO binding to the sixth coordination position of the heme–Fe-atom induces the cleavage or the severe weakening of the fifth proximal His-Fe(II) bond, at a neutral pH; this process occurs only at low pH or in the presence of allosteric effectors in Mb and Hb, respectively [23,24]. Moreover, at alkaline pHs, NO facilitates the reduction of the heme–Fe(III)-atom leading to the nitrosylation of the ferrous metal center (Nb(II)-NO) with a OH−-dependent reaction via the transient formation of ferric nitrosylated Nb (Nb(III)-NO); concomitantly, one equivalent of HNO2 is produced [20,22]. Furthermore, Nbs catalyze the isomerization of peroxynitrite to NO3− and NO2− in the absence and presence of CO2 [19,25,26]. Lastly, O2 scavenging by Nb(II)-NO leads to NO3− and Nb(III) via the transient formation of a Nb(III)-NO(O)O adduct [24].
Here, the nitrite reductase activity of Nb(II) from Mycobacterium tuberculosis (Mt-Nb(II)), Arabidopiss thaliana (At-Nb(II)), Danio rerio (Dr-Nb(II)), and Homo sapiens (Hs-Nb(II)) is reported and analyzed in parallel with the kinetics of several heme proteins spanning from globins to cytochrome c [27,28,29,30].
Although the physiological function(s) of Nbs remain(s) still largely obscure, it is worth remarking that all these data indeed suggest that Nbs might be involved in NO signaling and metabolism. Indeed, nitrosative stress plays a pivotal role in the onset and progression of several human diseases, such as atherosclerosis, inflammation, cancer, and, importantly, in neurological disorders, being relevant in the pathogenesis of retinopathies and glaucoma [31]. Thus, a better comprehension of Nb functional and biochemical properties could have important implications in understanding the molecular basis of these diseases and to offer novel therapeutic target(s).

2. Results

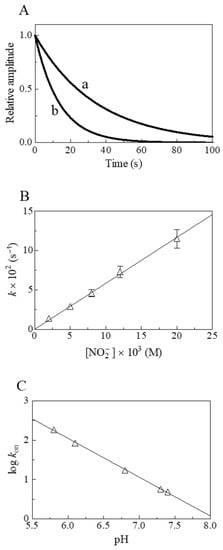

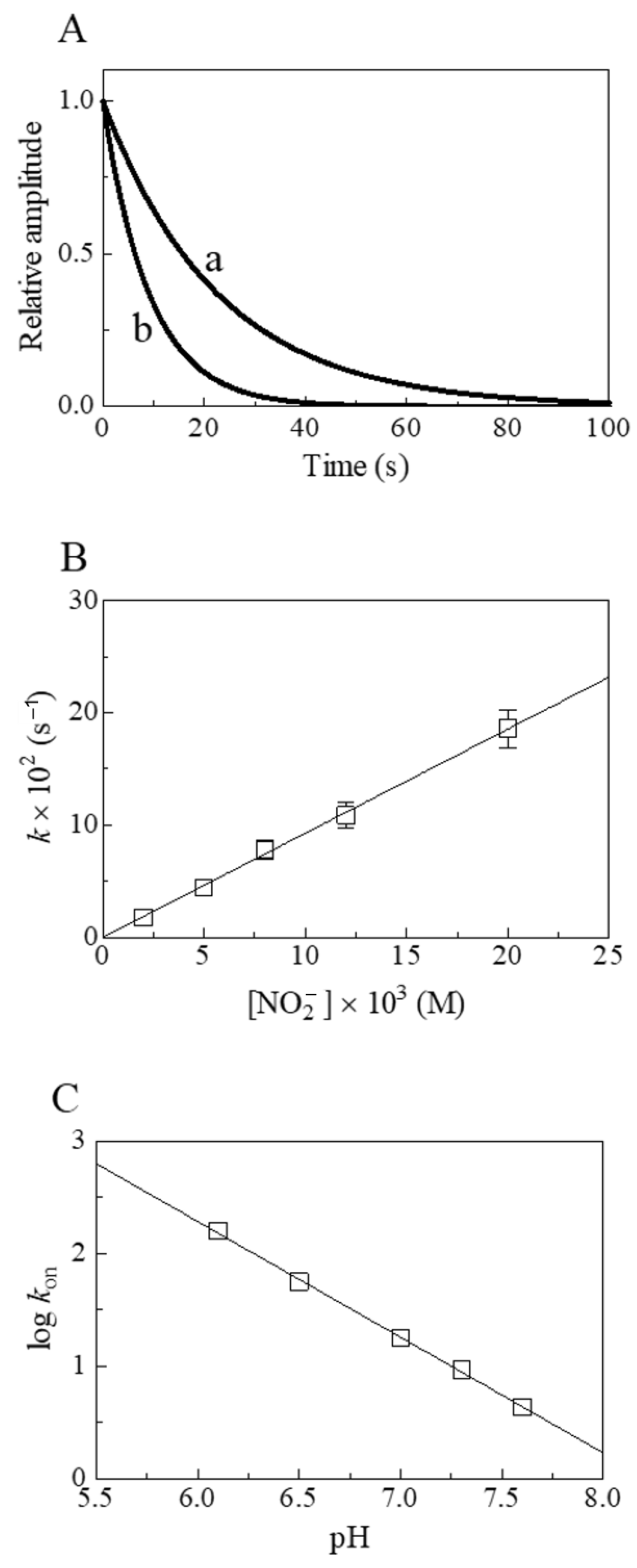

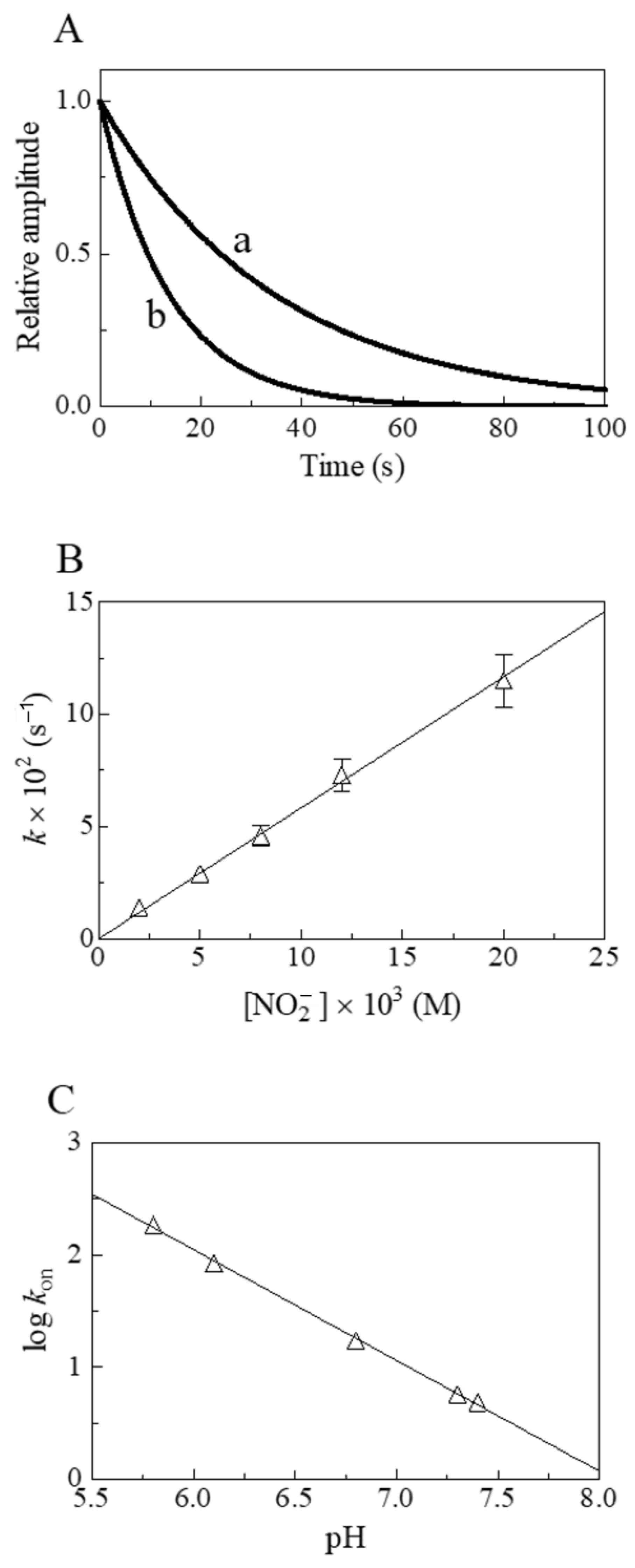

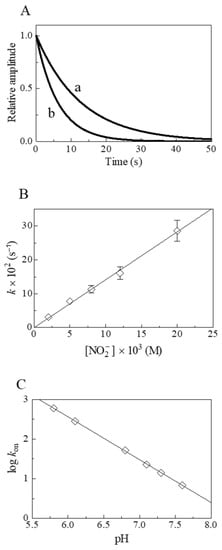

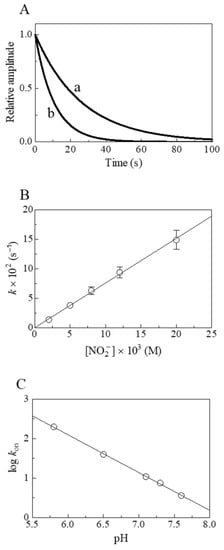

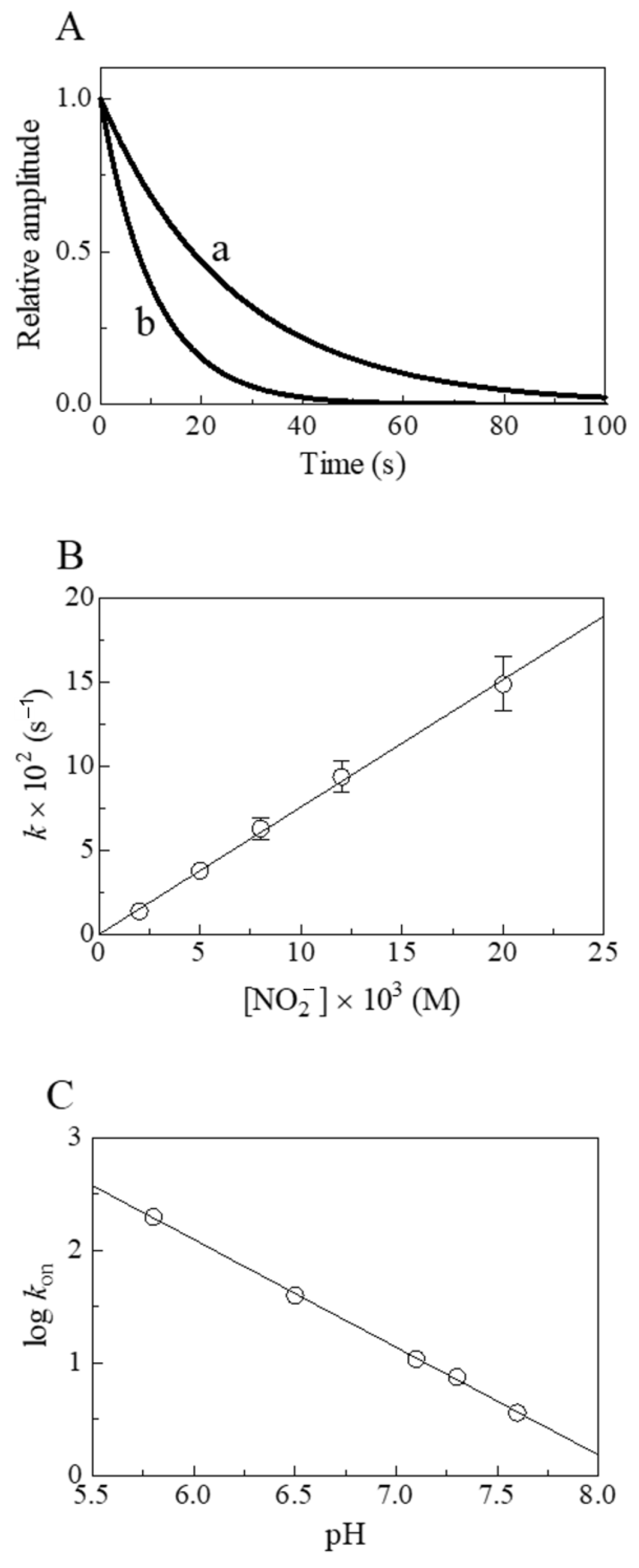

Mixing the Nb(II) solutions with NO2− solutions (at pH 7.3 and 20.0 °C) induces a shift of the optical absorption maximum of the Soret band from 430 nm (i.e., Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II)) to 414 nm (Mt-Nb(II)-NO), 408 nm (At-Nb(II)-NO), 401 nm (Dr-Nb(II)-NO), and 407 nm (Hs-Nb(II)-NO). Moreover, the absorbance spectrum of Dr-Nb(II)-NO showed a shoulder at 417 nm. The absorbance spectra of Mt-Nb(II)-NO, At-Nb(II)-NO, Dr-Nb(II)-NO, and Hs-Nb(II)-NO, obtained by NO2− reduction, overlapped with those achieved by flowing gaseous NO in Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II) solutions. Interestingly, the absorbance spectra of Mt-Nb(II)-NO, At-Nb(II)-NO, Dr-Nb(II)-NO, and Hs-Nb(II)-NO reflected the cleavage or the severe weakening of the proximal His-Fe(II) bond as evidenced from EPR spectroscopy [21,23,24].
Over the whole pH range explored (i.e., between pH 5.8 and 7.6), the kinetics of NO2−-based nitrosylation of Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II) was fitted to a single-exponential decay according to Equation (3) (Figure 1, Figure 2, Figure 3 and Figure 4, panels A). According to the literature [27,28,29,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48], this indicates that the Nb(III) intermediate species (see Scheme 1), which is rapidly converted to Nb(II)-NO by reacting with dithionite and NO, does not accumulate in the course of the NO2−-based nitrosylation of Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II).
Under all experimental conditions, the values of kobs for the NO2−-based nitrosylation of Nb(II) increased linearly with NO2− concentration (Figure 1, Figure 2, Figure 3 and Figure 4, panel B). The analysis of the data according to Equation (4) allowed the determination of kon values (corresponding to the slope of the linear plots) for NO2− (Table 1). The y-intercept of the linear plots was close to zero (Figure 1, Figure 2, Figure 3 and Figure 4, panel B), indicating that the NO2−-based nitrosylation of Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II) can be considered as an essentially irreversible process, as already reported [27,28,29,30,32,36,40,41,42,44,45,46,47]. Moreover, the values of kon for the NO2−-based nitrosylation of Nb(II) increased linearly with decreasing pH (Figure 1, Figure 2, Figure 3 and Figure 4, panel C) with slopes ranging between −0.96 ± 0.10 and −1.10 ± 0.10. This indicates the involvement of one proton in the NO2−-based conversion of Nb(II) to Nb(II)-NO (see Scheme 1), as already reported for heme proteins and heme model compounds [27,28,29,30,32,36,40,41,42,44,45,46,47].

3. Discussion

In order to have an overall view of the nitrite reductase activity of heme proteins and of their structural determinants, a list of heme proteins has been reported in Table 1. As a starting point, the second-order rate constant of the nitrite reductase activity of the heme proteins was compared to that of CO binding, which is usually considered as a probe of the energetic barriers (both on the distal and proximal side) for the reactivity of the heme–Fe(II) atom. Moreover, the coordination of the metal center in the ferrous form, which should be of some help in finding out the main determinants of the reactivity, has been reported. For the sake of consistency, only the values of the bimolecular rate constants for CO binding obtained by the rapid-mixing technique, which only can be employed for measurement of the nitrite reductase activity, have been reported. Accordingly, the values of the bimolecular rate constant for CO binding reported in Table 1, which were only obtained by flash and laser photolysis, such as for ferrous six-coordinated plant Hbs (i.e., Synechocystis Hb (S-Hb(II)), rice nonsymbiotic Hb(II) class 1, and Arabidopsis thaliana Hb (At-Hb(II) class 1 and class 2), have been calculated according to Equation (1) (see also footnotes to Table 1):
k on ( CO ) = k bind   × k in   k in   × k out   × k diss   k diss   + k ass
where kbind is the intrinsic rate of CO binding (as observed by geminate recombination), kin and kout are the rates of ligand entry and exit, respectively, from the heme pocket, kdiss is the dissociation rate of the endogenous six-coordinating ligand, and kass is its association rate; therefore, kdiss and kass account for the partial six-coordination of the species [49].

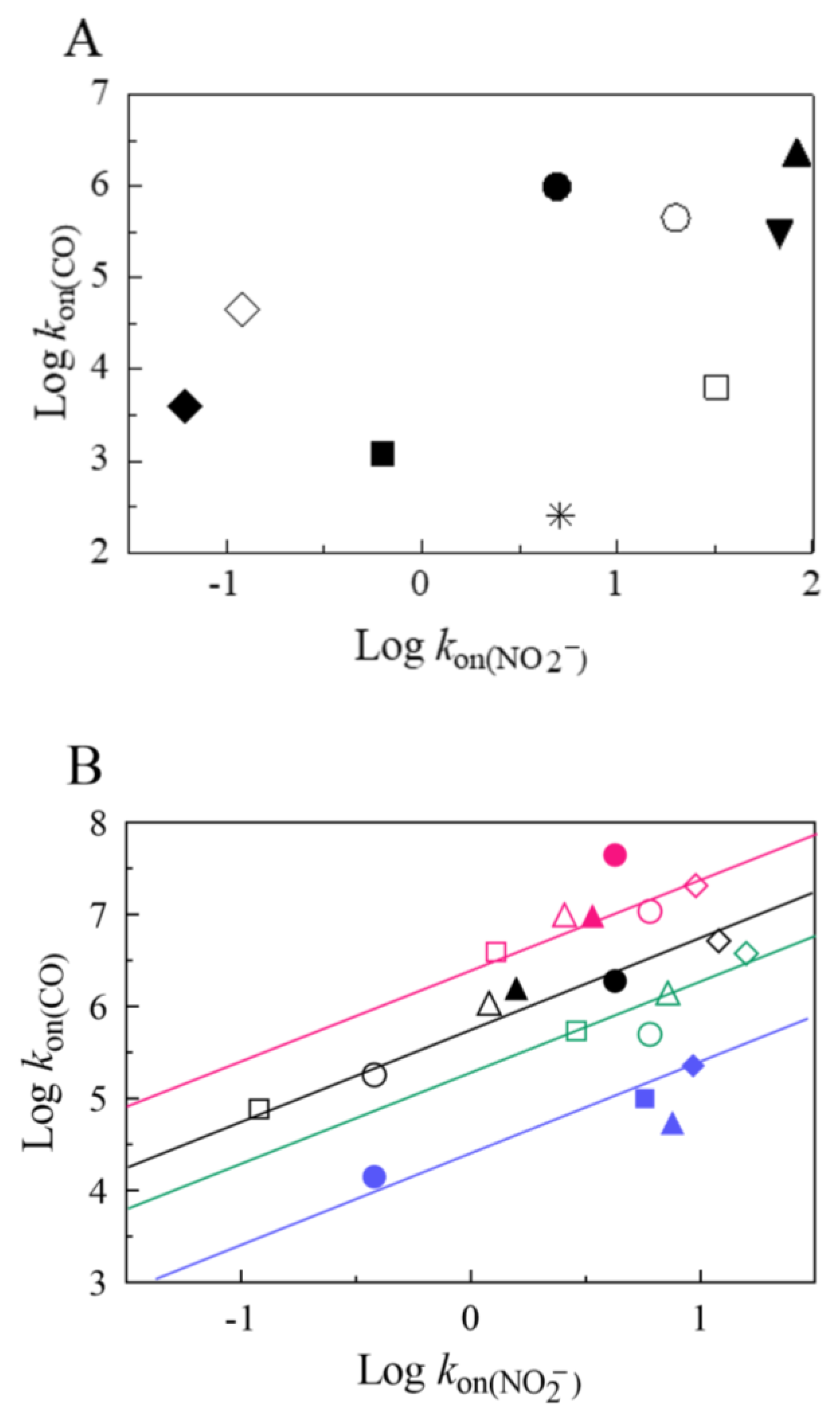

Figure 5 shows the correlation between the nitrite reductase activity and the CO-binding properties of heme proteins reported in Table 1. In the case of six-coordinated heme proteins, no apparent correlation was observed (Figure 5, panel A), even though rice nonsymbiotic Hb class 1 displayed the fastest rate constants of CO-binding and nitrite reductase activity (Table 1); this suggests that in rice nonsymbiotic Hb class 1, the axial six-coordinating bond with the endogenous ligand represents a low free energy barrier for both exogenous ligands (i.e., CO and NO2−). This occurrence might also be invoked for the relatively fast rate constants observed for other plant Hbs (i.e., At-Hb(II) class 1 and class 2 and S-Hb(II)), as compared to ferrous human neuroglobin (Hs-Ngb(II)) (Figure 5, panel A, and Table 1). On the other hand, in the case of ferrous human cytoglobin (Hs-Cygb(II)), which in the S-S monomeric form shows a nitrite reductase activity about six-fold faster than At-Hb(II) class 2 (in spite of an almost 200-fold slower rate constant for CO binding, see Figure 5, panel A, and Table 1), a different functional modulatory behavior must be taken into account. Thus, in Hs-Cygb(II), the disulfide bond between CysB2 and CysE9 plays a dramatic role in modulating the nitrite reductase activity, and the reduction of the CysB2-CysE9 bond brought about a 50-fold decrease of the nitrite reductase activity, an effect much more marked than for CO binding, where only a 5-fold reduction was observed (Figure 5, panel A, and Table 1). As a whole, in six-coordinated heme proteins, it looks like the His-Fe(II) axial sixth ligand regulates the barrier for CO binding, whereas in the case of nitrite reductase activity this is not the main determinant (as rice nonsymbiotic Hb(II) class 1 shows the fastest rate constant among all heme proteins investigated; see Table 1).
Conversely, in the case of five-coordinated heme proteins a linear correlation was observed between CO-binding rate constants and nitrite reductase activity (Figure 5, panel B), suggesting that several structural features allow the discrimination between CO and NO2−. As shown in Figure 5 (panel B), at least four classes of heme proteins have been identified. They may differ for the discrimination between the two ligands, as represented by the displacement along the y-axis of the straight lines in Figure 5 (panel B). Thus, five-coordinated heme proteins have been classified according to Equation (2) as follows:
r = k on ( CO ) k on ( NO 2 − )
Class I (straight red line in Figure 5, panel B) groups heme proteins, which strongly discriminate between the two ligands, being characterized by r ≥ 2.5 × 106 [i.e., the fast-reacting form of ferrous Campylobacter jejuni truncated HbP (Cj-trHbP(II)), human serum heme-albumin (Hs-heme(II)-albumin), Equus ferus caballus cytochrome c complexed with cardiolipin (Efc-Cytc(II)-CL), Equus ferus caballus microperoxidase 11 (Efc-MP11(II)), the fast-reacting form of Methanosarcina acetivorans protoglobin (Ma-Pgb(II)), and tetrameric human Hb(II) (Hs-Hb(II)) in the R quaternary state].
Class II (black straight line in Figure 5, panel B) groups heme proteins, which showed an intermediate discrimination power and r ≈ 5.6 × 105 [i.e., tetrameric Hs-Hb(II) in the T-state, the slow-reacting form of Ma-Pgb(II), Equus ferus caballus carboxy-methylated cytochrome c(II) (carboxymethylated Efc-Cytc(II)), the dimeric human haptoglobin2-2:hemoglobin(II) complex (Hs-Hp2-2:Hb(II)), the slow-reacting form of Cj-trHbP(II), and the fast-reacting form of Mycobacterium tuberculosis truncated HbO(II) (Mt-trHbO(II))].
Class III (green straight line in Figure 5, panel B) groups heme proteins, which have less efficient discrimination between CO and NO2−, and are characterized by r ≈ 2 × 105 [i.e., Equus ferus caballus Mb(II) (Efc-Mb(II)), Physeter catodon Mb(II) (Pc-Mb(II)), the dimeric human haptoglobin1-1:hemoglobin(II) complex (Hs-Hp1-1:Hb(II)), and Mycobacterium tuberculosis truncated HbN(II) (Mt-trHbN(II))].
Class IV (blue straight line in Figure 5, panel B) groups the slow-reacting form of Mt-trHbO(II) and all ferrous Nbs, which all showed a relatively poor discrimination power (r ≤ 2.5 × 104).
The correlation emerging from the data in Figure 5 (panel B) indicated that within each class of heme proteins, a variation in CO-binding rate constant was accompanied by a similar behavior of the nitrite reductase activity, even though heme proteins belonging to different classes have a different way of discriminating between the two ligands. Thus, closely similar nitrite reductase activity between heme-proteins drastically differing for their CO binding behavior has been observed. A dramatic example is represented by tetrameric Hs-Hb(II) in the R-state, Pc-Mb(II) and Hs-Nb(II), which all displayed values of kon(NO2−) ~ 6.0 M−1 s−1 while values of the CO-binding rate constant greatly differed, spanning between 1.0 × 107 M−1 s−1 and 1.0 × 105 M−1 s−1 (Figure 5, panel B, and Table 1). Although multiple conformations of both the distal and the proximal side of the heme pocket affect the CO-binding rate constant [79,80], a likely structural explanation has been attributed to the activation free energy for the ligand-induced movement of the Fe(II) atom into the heme plane, which is fairly low for tetrameric Hs-Hb(II) in the R-state, while it seems very high for Hs-Nb(II) [23,79]. As a matter of fact, it has been convincingly shown that a major contribution to the reactivity of CO with hemoproteins is represented by the energy required for the movement of the heme’s Fe atom from its unliganded position (about 0.5 Ǻ out of the heme plane on the proximal side) to the heme co-planar position in the CO-liganded form [2,79,81]; the major contribution stems from the steric repulsion between the imidazole of the proximal histidine and the heme pyrroles, which depends on the relative position and differs among various hemoproteins [2]. Obviously, the conformation of the distal portion of the heme pocket is also important to account for the different CO-binding behaviors shown by the various hemoproteins [80], but it is the variation of the activation free energy for the ligand-linked movement of the Fe–His bond which accounts for the modulation of the CO-binding kinetics of a specific protein by environmental conditions, such as pH [81].
On the basis of these considerations, class I may be representative of heme proteins with a very low activation free energy on both the proximal and the distal side of the heme pocket. It is illustrative that they also display a fairly fast nitrite reductase activity (Figure 5, panel B, and Table 1); the slight variation within this class is due to small variations of the heme distal side conformation, affecting the kinetics for both ligands. On the other hand, class II and III appear to be heme proteins displaying a high proximal barrier for the reaction with CO, thus slowing down the carbonylation rate constant; however, this barrier does not affect dramatically the nitrite reductase activity. Therefore, differences in nitrite reductase activity within heme proteins belonging to class II and III is likely attributable to distal barriers. Lastly, class IV includes heme proteins (such as the slow-reacting form of the Mt-trHbO(II) and all ferrous Nbs), which have a very high free energy proximal barrier, which dramatically slows down the CO-binding rate constant. Consequently, differences in the nitrite reductase activity are probably due to a much higher distal barrier in Mt-trHbO(II) than in all ferrous Nbs, which display a very open heme pocket and a fairly fast nitrite reductase activity (Figure 5, panel B, and Table 1). As a whole, different classes, reported in Figure 5 (panel B), reflect various free energy proximal barriers for CO-binding whereas different positions along the same line would refer to variations in the free energy distal barriers.
Even among ferrous six-coordinated heme proteins [i.e., Hs-Cygb(II) and Mus musculus Ngb(II) (Mm-Ngb(II)], the discriminatory power varied dramatically (r < 4.5 × 105; Figure 5, panel A, and Table 1). The low value of r depends on the low CO-binding rate constant, reflecting the occupancy of the sixth axial heme coordination by the heme distal histidyl residue and the strength of the axial Fe(II)–His distal bond. This is likely responsible for the variation in the nitrite reductase activity among the various six-coordinated heme proteins (Figure 5, panel A, and Table 1). In particular, the longer the Fe-His proximal and distal bonds are in six-coordinated S-Hb(II), rice nonsymbiotic Hb(II) class 1, and At-Hb(II) class 1, as compared to bis-histidyl cytochromes, the lower the bond strength is. This is likely a factor enabling the heme distal His dissociation and the subsequent binding of exogenous ligands in six-coordinated Hbs [82]. Moreover, six-coordinated S-Hb(II), rice nonsymbiotic Hb(II) class 1, and At-Hb(II) class 1 displayed larger tilt angles for both the proximal and distal His residues compared with cytochrome b5. This decreases the strength of the heme–Fe-His bond contributing to fast ligand binding of these six-coordinated globins, likely playing a role of the utmost importance in characterizing their high nitrite reductase activity (Figure 5, panel A, and Table 1) [82,83,84,85].

4. Materials and Methods

Mt-Nb(III), At-Nb(III), Dr-Nb(III), and Hs-Nb(III) were prepared as previously reported [16,17,19,21,25]. The concentration of Mt-Nb(III), At-Nb(III), Dr-Nb(III), and Hs-Nb(III) was determined spectrophotometrically at λ = 407 nm, the values of ε being 100 mM−1 cm−1, 160 mM−1 cm−1, 157 mM−1 cm−1, and 147 mM−1 cm−1, respectively [19,21,23,24]. Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II) solutions were obtained by adding dithionite solution (final concentration, 3.0 × 10−3 M) to Mt-Nb(III), At-Nb(III), Dr-Nb(III), and Hs-Nb(III) (final concentration ranging between 2.2 × 10−6 M and 3.1 × 10−6 M) under anaerobic conditions. Gaseous NO (Linde Caracciolossigeno S.r.l., Roma, Italy) was purified by flowing through a column packed with NaOH pellets and then by passage through a 5.0 M NaOH trapping solution to remove acidic nitrogen oxides; the NO pressure was 760.0 mmHg [86]. The stock NO solution was prepared anaerobically by keeping the degassed 1.0 × 10−2 M 1,3-bis(tris(hydroxymethyl)methylamino)propane buffer solution (pH 7.0) in a closed vessel under NO at p = 760.0 mmHg and 20.0 °C [1]. All the other chemicals were purchased from Merck KGaA (Darmstadt, Germany) and Sigma-Aldrich (St. Louis, MO, USA). All chemicals were of analytical grade and were used without further purification unless stated otherwise.
The absorbance spectra of Mt-Nb(II)-NO, At-Nb(II)-NO, Dr-Nb(II)-NO, and Hs-Nb(II)-NO were obtained either by adding nitrite (final concentration, 2.0 × 10−2 M) to Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II) or by flowing gaseous NO (final concentration 1.0 × 10−4 M) into the Nb(II) solutions. The final concentration of Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II) ranged between 2.2 × 10−6 M and 3.1 × 10−6 M.
The kinetics of NO2− reduction from Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II) (i.e., of Nb(II)-NO formation) were analyzed in the framework of the minimum reaction mechanism depicted in Scheme 1 [27,29,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,53].
The values of the apparent pseudo-first-order rate constant (i.e., kobs) for NO2− reduction from Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II) were determined by rapid-mixing the heme protein solutions (final concentration ranging between 2.2 × 10−6 M and 3.1 × 10−6 M) with the NO2− solution (final concentration ranging between 2.0 × 10−3 M and 2.0 × 10−2 M) in the presence of sodium dithionite (final concentration, 3.0 × 10−3 M). A sodium dithionite concentration lower than 1.0 × 10−2 M neither reduces NO2− to NO [37] nor reacts with NO [87]. No gaseous phase was present. The NO2− reduction by Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II) was monitored spectrophotometrically between 380 and 450 nm, with a wavelength interval of 5 nm. The values of kobs were obtained according to Equation (3) [27,28,29,30,32,36,40,41,42,44,45,46,47]:
[ Nb ( II ) ] t = [ Nb ( II ) ] i × e − k obs   × t
where Nb(II) is either Mt-Nb(II), At-Nb(II), Dr-Nb(II), or Hs-Nb(II).
The values of the apparent second-order rate constant for NO2− reduction by Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II) (i.e., kon) were determined from the linear dependence of kobs on the NO2− concentration (i.e., [NO2−]), according to Equation (4) [27,28,29,30,32,36,40,41,42,44,45,46,47]:
k obs = k o n × [ NO 2 − ]
The time courses of NO2− reduction from Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II) were obtained with a SFM-20/MOS-200 rapid-mixing stopped-flow apparatus (BioLogic Science Instruments, Claix, France).
The kinetic parameters were obtained between pH 5.8 and 7.6 (5.0 × 10−2 M of 2-(N-morpholino)-ethanesulfonic acid between pH 5.8 and 6.6, and 5.0 × 10−2 M 1,3-bis(tris(hydroxymethyl)-methylamino)propane between pH 6.3 and 7.6), at 20.0 °C. The different buffers did not affect the values of the kinetic parameters obtained at overlapping pH values.
The kinetic and thermodynamic data were analyzed with the Prism 5.03 program (GraphPad Software, Inc., La Jolla, CA, USA). The results are given as mean values of at least four experiments plus or minus the corresponding standard deviation.

5. Conclusions

All Nbs show a fairly high nitrite reductase activity, a property which strengthens the hypothesis that they are mostly involved in the NO metabolism [18,20]. This enzymatic activity of heme proteins is one of the most efficient ways for the production of NO starting from the reduction of NO2−, a pivotal process for the regulation of blood vessel muscular tone and the regulation of the blood flow. Of note, in the retina, NO levels are crucial to maintain normal visual functions, being relevant for photoreceptor light transduction and the control of retinal blood flow, opening a perspective on a major role of Nbs in retinal disorders [88,89]. Moreover, a link between NO and Nb-based signaling and chemistry has been envisaged in M. tuberculosis, A. thaliana, D. rerio and H. sapiens. Specifically, the survival of M. tuberculosis in the host implies the presence of effective detoxification systems, including Nbs, to inactivate RNS and ROS produced by the immune response [19,25,26]. In A. thaliana, Nb has been hypothesized to transport and release NO at the infection site; moreover, NO may reduce the superoxide radical with the generating peroxynitrite that increases pathogen burden [16,19]. Interestingly, Dr-Nb may play a relevant physiological role in peroxynitrite scavenging from poorly oxygenated tissues, such as the retina in fish where blood circulation is critical for adaptation to diving conditions [21,22,26]. It is worth remarking that Danio rerio Nb shows the fastest nitrite reductase activity (Table 1), outlining the fact that, in fishes, the O2 supply to poorly oxygenated tissues, such the retina, occurs by means of a fine regulation of the eye circulation through the rete mirabilis, with NO playing a major role in regulating the blood flow and thus the oxygenation of retinal layers [90]. Finally, Hs-Nb represents the C-terminal domain of the nuclear protein named THAP4, which displays a N-terminal modified zinc finger domain that binds DNA. Since Hs-Nb(III) binds NO without recognizing CO and O2, the Nb domain may be relevant for a NO-linked selective modulation of gene transcription [19,21,24].
Here, we report a comparison of a large number of heme proteins with drastically different conformations of the heme cavity, which casts light on the structure–function relationships, which modulate the nitrite reductase activity. In particular, we identified the accessibility of the heme distal pocket as an important factor since various heme proteins with different proximal constraints showed similar nitrite reductase activity. On the other hand, heme-proteins displaying different distal structural arrangements, but similar proximal constraints, show a remarkable effect on this enzymatic activity. However, other factors, such as the redox potential, cannot be discarded since the NO2− reduction to NO requires transient heme oxidation (see Scheme 1); unfortunately, for many of the investigated heme proteins this information is not yet available and a thorough comparison is presently not possible.

Author Contributions

P.A. and M.C. designed the manuscript and experiments; G.D.S. and A.d.M. helped in planning the manuscript and experiments; G.D.S., A.d.M. and G.R.T. performed the experiments; P.A. and M.C., wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The grant of Dipartimenti di Eccellenza, MIUR (Legge 232/2016, Articolo 1, Comma 314–337) is gratefully acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We gratefully acknowledged grants from the Excellence Departments, MIUR (Legge 232/2016, Articolo 1, Commi 314-337). M.C. thanks the Italian Ministry of Health and Fondazione Roma for support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Antonini, E.; Brunori, M. Hemoglobin and Myoglobin in Their Reactions with Ligands; North Holland Publishing Co.: Amsterdam, The Netherlands, 1971. [Google Scholar]
  2. Perutz, M.F. Regulation of oxygen affinity of hemoglobin: Influence of structure of the globin on the heme iron. Annu. Rev. Biochem. 1979, 48, 327–386. [Google Scholar] [CrossRef] [PubMed]
  3. Chan, M.K. Recent advances in heme-protein sensors. Curr. Opin. Chem. Biol. 2001, 5, 216–222. [Google Scholar] [CrossRef] [PubMed]
  4. Ascenzi, P.; di Masi, A.; Leboffe, L.; Fiocchetti, M.; Nuzzo, M.T.; Brunori, M.; Marino, M. Neuroglobin: From structure to function in health and disease. Mol. Aspects Med. 2016, 52, 1–48. [Google Scholar] [CrossRef]
  5. Domingues-Hamdi, E.; Vasseur, C.; Fournier, J.B.; Marden, M.C.; Wajcman, H.; Baudin-Creuza, V. Role of alpha-globin H helix in the building of tetrameric human hemoglobin: Interaction with alpha-hemoglobin stabilizing protein (AHSP) and heme molecule. PLoS ONE 2014, 9, e111395. [Google Scholar] [CrossRef] [PubMed]
  6. Vasseur, C.; Baudin-Creuza, V. Role of alpha-hemoglobin molecular chaperone in the hemoglobin formation and clinical expression of some hemoglobinopathies. Transfus. Clin. Biol. 2015, 22, 49–57. [Google Scholar] [CrossRef]
  7. Nardini, M.; Pesce, A.; Bolognesi, M. Truncated (2/2) hemoglobin: Unconventional structures and functional roles in vivo and in human pathogenesis. Mol. Aspects Med. 2022, 84, 101049. [Google Scholar] [CrossRef]
  8. Couture, M.; Yeh, S.R.; Wittenberg, B.A.; Wittenberg, J.B.; Ouellet, Y.; Rousseau, D.L.; Guertin, M. A cooperative oxygen-binding hemoglobin from Mycobacterium tuberculosis. Proc. Natl. Acad. Sci. USA 1999, 96, 11223–11228. [Google Scholar] [CrossRef]
  9. Wittenberg, J.B.; Bolognesi, M.; Wittenberg, B.A.; Guertin, M. Truncated hemoglobins: A new family of hemoglobins widely distributed in bacteria, unicellular eukaryotes, and plants. J. Biol. Chem. 2002, 277, 871–874. [Google Scholar] [CrossRef]
  10. Vuletich, D.A.; Lecomte, J.T. A phylogenetic and structural analysis of truncated hemoglobins. J. Mol. Evol. 2006, 62, 196–210. [Google Scholar] [CrossRef]
  11. Nardini, M.; Pesce, A.; Milani, M.; Bolognesi, M. Protein fold and structure in the truncated (2/2) globin family. Gene 2007, 398, 2–11. [Google Scholar] [CrossRef]
  12. Vinogradov, S.N.; Tinajero-Trejo, M.; Poole, R.K.; Hoogewijs, D. Bacterial and archaeal globins—A revised perspective. Biochim. Biophys. Acta 2013, 1834, 1789–1800. [Google Scholar] [CrossRef] [PubMed]
  13. De Simone, G.; Ascenzi, P.; di Masi, A.; Polticelli, F. Nitrophorins and nitrobindins: Structure and function. Biomol. Concepts 2017, 8, 105–118. [Google Scholar] [CrossRef] [PubMed]
  14. Montfort, W.R.; Weichsel, A.; Andersen, J.F. Nitrophorins and related antihemostatic lipocalins from Rhodnius prolixus and other blood-sucking arthropods. Biochim. Biophys. Acta 2000, 1482, 110–118. [Google Scholar] [CrossRef] [PubMed]
  15. Andersen, J.F. Structure and mechanism in salivary proteins from blood-feeding arthropods. Toxicon 2010, 56, 1120–1129. [Google Scholar] [CrossRef] [PubMed]
  16. Bianchetti, C.M.; Blouin, G.C.; Bitto, E.; Olson, J.S.; Phillips, G.N., Jr. The structure and NO binding properties of the nitrophorin-like heme-binding protein from Arabidopsis thaliana gene locus At1g79260.1. Proteins 2010, 78, 917–931. [Google Scholar] [CrossRef] [PubMed]
  17. Bianchetti, C.M.; Bingman, C.A.; Phillips, G.N., Jr. Structure of the C-terminal heme-binding domain of THAP domain containing protein 4 from Homo sapiens. Proteins 2011, 79, 1337–1341. [Google Scholar] [CrossRef] [PubMed]
  18. De Simone, G.; Ascenzi, P.; Polticelli, F. Nitrobindin: An Ubiquitous Family of All β-Barrel Heme-proteins. IUBMB Life 2016, 68, 423–428. [Google Scholar] [CrossRef]
  19. De Simone, G.; di Masi, A.; Vita, G.M.; Polticelli, F.; Pesce, A.; Nardini, M.; Bolognesi, M.; Ciaccio, C.; Coletta, M.; Turilli, E.S.; et al. Mycobacterial and Human Nitrobindins: Structure and Function. Antioxid. Redox Signal. 2020, 33, 229–246. [Google Scholar] [CrossRef]
  20. De Simone, G.; di Masi, A.; Ciaccio, C.; Coletta, M.; Ascenzi, P. NO Scavenging through Reductive Nitrosylation of Ferric Mycobacterium tuberculosis and Homo sapiens Nitrobindins. Int. J. Mol. Sci. 2020, 21, 9395. [Google Scholar] [CrossRef]
  21. De Simone, G.; Fattibene, P.; Sebastiani, F.; Smulevich, G.; Coletta, M.; Ascenzi, P. Dissociation of the proximal His-Fe bond upon NO binding to ferrous zebrafish nitrobindin. J. Inorg. Biochem. 2022, 236, 111962. [Google Scholar] [CrossRef]
  22. De Simone, G.; Sebastiani, F.; Smulevich, G.; Coletta, M.; Ascenzi, P. Nitrosylation of ferric zebrafish nitrobindin: A spectroscopic, kinetic, and thermodynamic study. J. Inorg. Biochem. 2022, 237, 111996. [Google Scholar] [CrossRef] [PubMed]
  23. De Simone, G.; di Masi, A.; Pesce, A.; Bolognesi, M.; Ciaccio, C.; Tognaccini, L.; Smulevich, G.; Abbruzzetti, S.; Viappiani, C.; Bruno, S.; et al. Mycobacterial and Human Ferrous Nitrobindins: Spectroscopic and Reactivity Properties. Int. J. Mol Sci. 2021, 22, 1674. [Google Scholar] [CrossRef] [PubMed]
  24. De Simone, G.; di Masi, A.; Fattibene, P.; Ciaccio, C.; Platas-Iglesias, C.; Coletta, M.; Pesce, A.; Ascenzi, P. Oxygen-mediated oxidation of ferrous nitrosylated nitrobindins. J. Inorg. Biochem. 2021, 224, 111579. [Google Scholar] [CrossRef]
  25. De Simone, G.; di Masi, A.; Polticelli, F.; Ascenzi, P. Human nitrobindin: The first example of an all-β-barrel ferric heme-protein that catalyzes peroxynitrite detoxification. FEBS Open Bio 2018, 8, 2002–2010. [Google Scholar] [CrossRef] [PubMed]
  26. De Simone, G.; Coletta, A.; di Masi, A.; Coletta, M.; Ascenzi, P. The Balancing of Peroxynitrite Detoxification between Ferric Heme-Proteins and CO2: The Case of Zebrafish Nitrobindin. Antioxidants 2022, 11, 1932. [Google Scholar] [CrossRef] [PubMed]
  27. Ascenzi, P.; Tundo, G.R.; Fanali, G.; Coletta, M.; Fasano, M. Warfarin modulates the nitrite reductase activity of ferrous human serum heme-albumin. J. Biol. Inorg. Chem. 2013, 18, 939–946. [Google Scholar] [CrossRef]
  28. Ascenzi, P.; Sbardella, D.; Fiocchetti, M.; Santucci, R.; Coletta, M. NO2−-mediated nitrosylation of ferrous microperoxidase-11. J. Inorg. Biochem. 2015, 153, 121–127. [Google Scholar] [CrossRef]
  29. Ascenzi, P.; Sbardella, D.; Sinibaldi, F.; Santucci, R.; Coletta, M. The nitrite reductase activity of horse heart carboxymethylated-cytochrome c is modulated by cardiolipin. J. Biol. Inorg. Chem. 2016, 21, 421–432. [Google Scholar] [CrossRef]
  30. Ascenzi, P.; Tundo, G.R.; Coletta, M. The nitrite reductase activity of ferrous human hemoglobin:haptoglobin 1-1 and 2-2 complexes. J. Inorg. Biochem. 2018, 187, 116–122. [Google Scholar] [CrossRef]
  31. Toma, C.; De Cilla, S.; Palumbo, A.; Garhwal, D.P.; Grossini, E. Oxidative and Nitrosative Stress in Age-Related Macular Degeneration: A Review of Their Role in Different Stages of Disease. Antioxidants 2021, 10, 653. [Google Scholar] [CrossRef]
  32. Doyle, M.P.; Pickering, R.A.; DeWeert, T.M.; Hoekstra, J.W.; Pater, D. Kinetics and mechanism of the oxidation of human deoxyhemoglobin by nitrites. J. Biol. Chem. 1981, 256, 12393–12398. [Google Scholar] [CrossRef] [PubMed]
  33. Huang, K.T.; Keszler, A.; Patel, N.; Patel, R.P.; Gladwin, M.T.; Kim-Shapiro, D.B.; Hogg, N. The reaction between nitrite and deoxyhemoglobin. Reassessment of reaction kinetics and stoichiometry. J. Biol. Chem. 2005, 280, 31126–31131. [Google Scholar] [CrossRef] [PubMed]
  34. Huang, Z.; Shiva, S.; Kim-Shapiro, D.B.; Patel, R.P.; Ringwood, L.A.; Irby, C.E.; Huang, K.T.; Ho, C.; Hogg, N.; Schechter, A.N.; et al. Enzymatic function of hemoglobin as a nitrite reductase that produces NO under allosteric control. J. Clin. Investig. 2005, 115, 2099–2107. [Google Scholar] [CrossRef]
  35. Shiva, S.; Huang, Z.; Grubina, R.; Sun, J.; Ringwood, L.A.; MacArthur, P.H.; Xu, X.; Murphy, E.; Darley-Usmar, V.M.; Gladwin, M.T. Deoxymyoglobin is a nitrite reductase that generates nitric oxide and regulates mitochondrial respiration. Circ. Res. 2007, 100, 654–661. [Google Scholar] [CrossRef] [PubMed]
  36. Basu, S.; Azarova, N.A.; Font, M.D.; King, S.B.; Hogg, N.; Gladwin, M.T.; Shiva, S.; Kim-Shapiro, D.B. Nitrite reductase activity of cytochrome c. J. Biol. Chem. 2008, 283, 32590–32597. [Google Scholar] [CrossRef]
  37. Grubina, R.; Basu, S.; Tiso, M.; Kim-Shapiro, D.B.; Gladwin, M.T. Nitrite reductase activity of hemoglobin S (sickle) provides insight into contributions of heme redox potential versus ligand affinity. J. Biol. Chem. 2008, 283, 3628–3638. [Google Scholar] [CrossRef]
  38. Petersen, M.G.; Dewilde, S.; Fago, A. Reactions of ferrous neuroglobin and cytoglobin with nitrite under anaerobic conditions. J. Inorg. Biochem. 2008, 102, 1777–1782. [Google Scholar] [CrossRef]
  39. Salhany, J.M. Kinetics of reaction of nitrite with deoxy hemoglobin after rapid deoxygenation or predeoxygenation by dithionite measured in solution and bound to the cytoplasmic domain of band 3 (SLC4A1). Biochemistry 2008, 47, 6059–6072. [Google Scholar] [CrossRef]
  40. Sturms, R.; DiSpirito, A.A.; Hargrove, M.S. Plant and cyanobacterial hemoglobins reduce nitrite to nitric oxide under anoxic conditions. Biochemistry 2011, 50, 3873–3878. [Google Scholar] [CrossRef]
  41. Tiso, M.; Tejero, J.; Kenney, C.; Frizzell, S.; Gladwin, M.T. Nitrite reductase activity of nonsymbiotic hemoglobins from Arabidopsis thaliana. Biochemistry 2012, 51, 5285–5292. [Google Scholar] [CrossRef]
  42. Helbo, S.; Dewilde, S.; Williams, D.R.; Berghmans, H.; Berenbrink, M.; Cossins, A.R.; Fago, A. Functional differentiation of myoglobin isoforms in hypoxia-tolerant carp indicates tissue-specific protective roles. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2012, 302, R693–R701. [Google Scholar] [CrossRef] [PubMed]
  43. Li, H.; Hemann, C.; Abdelghany, T.M.; El-Mahdy, M.A.; Zweier, J.L. Characterization of the mechanism and magnitude of cytoglobin-mediated nitrite reduction and nitric oxide generation under anaerobic conditions. J. Biol. Chem. 2012, 287, 36623–36633. [Google Scholar] [CrossRef] [PubMed]
  44. Tiso, M.; Tejero, J.; Basu, S.; Azarov, I.; Wang, X.; Simplaceanu, V.; Frizzell, S.; Jayaraman, T.; Geary, L.; Shapiro, C.; et al. Human neuroglobin functions as a redox-regulated nitrite reductase. J. Biol. Chem. 2011, 286, 18277–18289. [Google Scholar] [CrossRef] [PubMed]
  45. Ascenzi, P.; Marino, M.; Polticelli, F.; Santucci, R.; Coletta, M. Cardiolipin modulates allosterically the nitrite reductase activity of horse heart cytochrome c. J. Biol. Inorg. Chem. 2014, 19, 1195–1201. [Google Scholar] [CrossRef] [PubMed]
  46. Ascenzi, P.; Leboffe, L.; Pesce, A.; Ciaccio, C.; Sbardella, D.; Bolognesi, M.; Coletta, M. Nitrite-reductase and peroxynitrite isomerization activities of Methanosarcina acetivorans protoglobin. PLoS ONE 2014, 9, e95391. [Google Scholar] [CrossRef]
  47. Ascenzi, P.; di Masi, A.; Tundo, G.R.; Pesce, A.; Visca, P.; Coletta, M. Nitrosylation mechanisms of Mycobacterium tuberculosis and Campylobacter jejuni truncated hemoglobins N, O, and P. PLoS ONE 2014, 9, e102811. [Google Scholar] [CrossRef]
  48. Ciaccio, C.; Ocana-Calahorro, F.; Droghetti, E.; Tundo, G.R.; Sanz-Luque, E.; Polticelli, F.; Visca, P.; Smulevich, G.; Ascenzi, P.; Coletta, M. Functional and Spectroscopic Characterization of Chlamydomonas reinhardtii Truncated Hemoglobins. PLoS ONE 2015, 10, e0125005. [Google Scholar] [CrossRef]
  49. Smagghe, B.J.; Sarath, G.; Ross, E.; Hilbert, J.L.; Hargrove, M.S. Slow ligand binding kinetics dominate ferrous hexacoordinate hemoglobin reactivities and reveal differences between plants and other species. Biochemistry 2006, 45, 561–570. [Google Scholar] [CrossRef]
  50. Beckerson, P.; Reeder, B.J.; Wilson, M.T. Coupling of disulfide bond and distal histidine dissociation in human ferrous cytoglobin regulates ligand binding. FEBS Lett. 2015, 589, 507–512. [Google Scholar] [CrossRef]
  51. Couture, M.; Das, T.K.; Savard, P.Y.; Ouellet, Y.; Wittenberg, J.B.; Wittenberg, B.A.; Rousseau, D.L.; Guertin, M. Structural investigations of the hemoglobin of the cyanobacterium Synechocystis PCC6803 reveal a unique distal heme pocket. Eur. J. Biochem. 2000, 267, 4770–4780. [Google Scholar] [CrossRef]
  52. Bruno, S.; Faggiano, S.; Spyrakis, F.; Mozzarelli, A.; Abbruzzetti, S.; Grandi, E.; Viappiani, C.; Feis, A.; Mackowiak, S.; Smulevich, G.; et al. The reactivity with CO of AHb1 and AHb2 from Arabidopsis thaliana is controlled by the distal HisE7 and internal hydrophobic cavities. J. Am. Chem. Soc. 2007, 129, 2880–2889. [Google Scholar] [CrossRef] [PubMed]
  53. Tilleman, L.; Abbruzzetti, S.; Ciaccio, C.; De Sanctis, G.; Nardini, M.; Pesce, A.; Desmet, F.; Moens, L.; Van Doorslaer, S.; Bruno, S.; et al. Structural Bases for the Regulation of CO Binding in the Archaeal Protoglobin from Methanosarcina acetivorans. PLoS ONE 2015, 10, e0125959. [Google Scholar] [CrossRef] [PubMed]
  54. Smulevich, G.; Mantini, A.R.; Paoli, M.; Coletta, M.; Geraci, G. Resonance Raman studies of the heme active site of the homodimeric myoglobin from Nassa mutabilis: A peculiar case. Biochemistry 1995, 34, 7507–7516. [Google Scholar] [CrossRef] [PubMed]
  55. Egeberg, K.D.; Springer, B.A.; Martinis, S.A.; Sligar, S.G.; Morikis, D.; Champion, P.M. Alteration of sperm whale myoglobin heme axial ligation by site-directed mutagenesis. Biochemistry 1990, 29, 9783–9791. [Google Scholar] [CrossRef]
  56. Exertier, C.; Sebastiani, F.; Freda, I.; Gugole, E.; Cerutti, G.; Parisi, G.; Montemiglio, L.C.; Becucci, M.; Viappiani, C.; Bruno, S.; et al. Probing the Role of Murine Neuroglobin CDloop-D-Helix Unit in CO Ligand Binding and Structural Dynamics. ACS Chem. Biol. 2022, 17, 2099–2108. [Google Scholar] [CrossRef]
  57. Couture, M.; Burmester, T.; Hankeln, T.; Rousseau, D.L. The heme environment of mouse neuroglobin. Evidence for the presence of two conformations of the heme pocket. J. Biol. Chem. 2001, 276, 36377–36382. [Google Scholar] [CrossRef]
  58. Van Doorslaer, S.; Vinck, E.; Trandafir, F.; Ioanitescu, I.; Dewilde, S.; Moens, L. Tracing the structure-function relationship of neuroglobin and cytoglobin using resonance Raman and electron paramagnetic resonance spectroscopy. IUBMB Life 2004, 56, 665–670. [Google Scholar] [CrossRef]
  59. Reeder, B.J.; Ukeri, J. Strong modulation of nitrite reductase activity of cytoglobin by disulfide bond oxidation: Implications for nitric oxide homeostasis. Nitric Oxide 2018, 72, 16–23. [Google Scholar] [CrossRef]
  60. Makino, M.; Sugimoto, H.; Sawai, H.; Kawada, N.; Yoshizato, K.; Shiro, Y. High-resolution structure of human cytoglobin: Identification of extra N- and C-termini and a new dimerization mode. Acta Crystallogr. D Biol. Crystallogr. 2006, 62, 671–677. [Google Scholar] [CrossRef]
  61. Coletta, M.; Angeletti, M.; Ascone, I.; Boumis, G.; Castellano, A.C.; Dell’Ariccia, M.; Della Longa, S.; De Sanctis, G.; Priori, A.M.; Santucci, R.; et al. Heterotropic effectors exert more significant strain on monoligated than on unligated hemoglobin. Biophys. J. 1999, 76, 1532–1536. [Google Scholar] [CrossRef]
  62. Fermi, G.; Perutz, M.F.; Shaanan, B.; Fourme, R. The crystal structure of human deoxyhaemoglobin at 1.74 A resolution. J. Mol. Biol. 1984, 175, 159–174. [Google Scholar] [CrossRef] [PubMed]
  63. Sawicki, C.A.; Gibson, Q.H. Quaternary conformational changes in human hemoglobin studied by laser photolysis of carboxyhemoglobin. J. Biol. Chem. 1976, 251, 1533–1542. [Google Scholar] [CrossRef]
  64. Nagel, R.L.; Gibson, Q.H. Kinetics of the reaction of carbon monoxide with the hemoglobin-haptoglobin complex. J. Mol. Biol. 1966, 22, 249–255. [Google Scholar] [CrossRef]
  65. Ascenzi, P.; Coletta, A.; Cao, Y.; Trezza, V.; Leboffe, L.; Fanali, G.; Fasano, M.; Pesce, A.; Ciaccio, C.; Marini, S.; et al. Isoniazid inhibits the heme-based reactivity of Mycobacterium tuberculosis truncated hemoglobin N. PLoS ONE 2013, 8, e69762. [Google Scholar] [CrossRef]
  66. Ouellet, Y.; Milani, M.; Couture, M.; Bolognesi, M.; Guertin, M. Ligand interactions in the distal heme pocket of Mycobacterium tuberculosis truncated hemoglobin N: Roles of TyrB10 and GlnE11 residues. Biochemistry 2006, 45, 8770–8781. [Google Scholar] [CrossRef]
  67. Ouellet, H.; Juszczak, L.; Dantsker, D.; Samuni, U.; Ouellet, Y.H.; Savard, P.Y.; Wittenberg, J.B.; Wittenberg, B.A.; Friedman, J.M.; Guertin, M. Reactions of Mycobacterium tuberculosis truncated hemoglobin O with ligands reveal a novel ligand-inclusive hydrogen bond network. Biochemistry 2003, 42, 5764–5774. [Google Scholar] [CrossRef] [PubMed]
  68. Mukai, M.; Savard, P.Y.; Ouellet, H.; Guertin, M.; Yeh, S.R. Unique ligand-protein interactions in a new truncated hemoglobin from Mycobacterium tuberculosis. Biochemistry 2002, 41, 3897–3905. [Google Scholar] [CrossRef] [PubMed]
  69. Farres, J.; Rechsteiner, M.P.; Herold, S.; Frey, A.D.; Kallio, P.T. Ligand binding properties of bacterial hemoglobins and flavohemoglobins. Biochemistry 2005, 44, 4125–4134. [Google Scholar] [CrossRef] [PubMed]
  70. Wainwright, L.M.; Wang, Y.; Park, S.F.; Yeh, S.R.; Poole, R.K. Purification and spectroscopic characterization of Ctb, a group III truncated hemoglobin implicated in oxygen metabolism in the food-borne pathogen Campylobacter jejuni. Biochemistry 2006, 45, 6003–6011. [Google Scholar] [CrossRef]
  71. Bocedi, A.; De Sanctis, G.; Ciaccio, C.; Tundo, G.R.; Di Masi, A.; Fanali, G.; Nicoletti, F.P.; Fasano, M.; Smulevich, G.; Ascenzi, P.; et al. Reciprocal allosteric modulation of carbon monoxide and warfarin binding to ferrous human serum heme-albumin. PLoS ONE 2013, 8, e58842. [Google Scholar] [CrossRef]
  72. Wardell, M.; Wang, Z.; Ho, J.X.; Robert, J.; Ruker, F.; Ruble, J.; Carter, D.C. The atomic structure of human methemalbumin at 1.9 A. Biochem. Biophys. Res. Commun. 2002, 291, 813–819. [Google Scholar] [CrossRef] [PubMed]
  73. Banci, L.; Bertini, I.; Gray, H.B.; Luchinat, C.; Reddig, T.; Rosato, A.; Turano, P. Solution structure of oxidized horse heart cytochrome c. Biochemistry 1997, 36, 9867–9877. [Google Scholar] [CrossRef] [PubMed]
  74. Kapetanaki, S.M.; Silkstone, G.; Husu, I.; Liebl, U.; Wilson, M.T.; Vos, M.H. Interaction of carbon monoxide with the apoptosis-inducing cytochrome c-cardiolipin complex. Biochemistry 2009, 48, 1613–1619. [Google Scholar] [CrossRef] [PubMed]
  75. Wilson, M.T.; Brunori, M.; Rotilio, G.C.; Antonini, E. Properties of modified cytochromes. II. Ligand binding to reduced carboxymethyl cytochrome c. J. Biol. Chem. 1973, 248, 8162–8169. [Google Scholar] [CrossRef] [PubMed]
  76. Silkstone, G.; Jasaitis, A.; Vos, M.H.; Wilson, M.T. Geminate carbon monoxide rebinding to a c-type haem. Dalton Trans. 2005, 21, 3489–3494. [Google Scholar] [CrossRef]
  77. Miksovska, J.; Norstrom, J.; Larsen, R.W. Thermodynamic profiles for CO photodissociation from heme model compounds: Effect of proximal ligands. Inorg. Chem. 2005, 44, 1006–1014. [Google Scholar] [CrossRef]
  78. Laberge, M.; Vreugdenhil, A.J.; Vanderkooi, J.M.; Butler, I.S. Microperoxidase-11: Molecular dynamics and Q-band excited resonance Raman of the oxidized, reduced and carbonyl forms. J. Biomol. Struct. Dyn. 1998, 15, 1039–1050. [Google Scholar] [CrossRef]
  79. Coletta, M.; Ascenzi, P.; Brunori, M. Kinetic evidence for a role of heme geometry on the modulation of carbon monoxide reactivity in human hemoglobin. J. Biol. Chem. 1988, 263, 18286–18289. [Google Scholar] [CrossRef]
  80. Perutz, M.F. Myoglobin and haemoglobin: Role of distal residues in reactions with haem ligands. Trends Biochem. Sci. 1989, 14, 42–44. [Google Scholar] [CrossRef]
  81. Coletta, M.; Ascenzi, P.; Traylor, T.G.; Brunori, M. Kinetics of carbon monoxide binding to monomeric hemoproteins. Role of the proximal histidine. J. Biol. Chem. 1985, 260, 4151–4155. [Google Scholar] [CrossRef]
  82. Hoy, J.A.; Kundu, S.; Trent, J.T., 3rd; Ramaswamy, S.; Hargrove, M.S. The crystal structure of Synechocystis hemoglobin with a covalent heme linkage. J. Biol. Chem. 2004, 279, 16535–16542. [Google Scholar] [CrossRef] [PubMed]
  83. Robinson, V.L.; Smith, B.B.; Arnone, A. A pH-dependent aquomet-to-hemichrome transition in crystalline horse methemoglobin. Biochemistry 2003, 42, 10113–10125. [Google Scholar] [CrossRef] [PubMed]
  84. Dordas, C. Nonsymbiotic hemoglobins and stress tolerance in plants. Plant Sci. 2009, 176, 433–440. [Google Scholar] [CrossRef] [PubMed]
  85. Mukhi, N.; Dhindwal, S.; Uppal, S.; Kumar, P.; Kaur, J.; Kundu, S. X-ray crystallographic structural characteristics of Arabidopsis hemoglobin I and their functional implications. Biochim. Biophys. Acta 2013, 1834, 1944–1956. [Google Scholar] [CrossRef] [PubMed]
  86. Barbosa, R.M.; Lopes Jesus, A.J.; Santos, R.M.; Pereira, C.L.; Marques, C.F.; Rocha, B.S.; Ferreira, N.R.; Ledo, A.; Laranjinha, J. Preparation, standardization, and measurement of nitric oxide solutions. Glob. J. Anal. Chem. 2011, 2, 272–284. [Google Scholar]
  87. Moore, E.G.; Gibson, Q.H. Cooperativity in the dissociation of nitric oxide from hemoglobin. J. Biol. Chem. 1976, 251, 2788–2794. [Google Scholar] [CrossRef]
  88. Canto, A.; Olivar, T.; Romero, F.J.; Miranda, M. Nitrosative Stress in Retinal Pathologies: Review. Antioxidants 2019, 8, 543. [Google Scholar] [CrossRef]
  89. Schmetterer, L.; Polak, K. Role of nitric oxide in the control of ocular blood flow. Prog. Retin. Eye Res. 2001, 20, 823–847. [Google Scholar] [CrossRef]
  90. Tummanapalli, S.S.; Kuppusamy, R.; Yeo, J.H.; Kumar, N.; New, E.J.; Willcox, M.D.P. The role of nitric oxide in ocular surface physiology and pathophysiology. Ocul. Surf. 2021, 21, 37–51. [Google Scholar] [CrossRef]
Ijms 24 06553 sch001

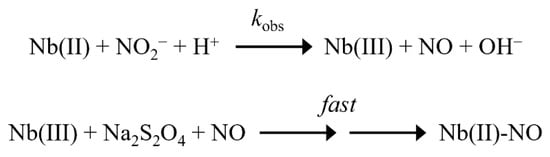

Scheme 1. NO2− reduction by Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II).
Scheme 1. NO2− reduction by Mt-Nb(II), At-Nb(II), Dr-Nb(II), and Hs-Nb(II).
Ijms 24 06553 sch001
Ijms 24 06553 g001
Figure 1. Nitrite reductase activity of Mt-Nb(II) at 20.0 °C. (A) Normalized averaged time courses for the NO2−-mediated conversion of Mt-Nb(II) to Mt-Nb(II)-NO at pH 7.3 in the presence of 5.0 × 10−3 M (trace a) and 1.2 × 10−2 M (trace b) NO2−. The time course analysis according to Equation (3) allowed the determination of the following values of kobs: 3.8 × 10−2 s−1 (trace a) and 9.4 × 10−2 s−1 (trace b). (B) Dependence of kobs on the NO2− concentration for Mt-Nb(II) nitrosylation, at pH 7.3. The solid line was calculated according to Equation (4) with the following value of kon = 7.6 ± 0.8 M−1 s−1. (C) pH-dependence of log kon for the NO2−-mediated conversion of Mt-Nb(II). The value of the slope of the continuous line is −0.96 ± 0.10. Where not shown, standard deviation is smaller than the symbol.
Figure 1. Nitrite reductase activity of Mt-Nb(II) at 20.0 °C. (A) Normalized averaged time courses for the NO2−-mediated conversion of Mt-Nb(II) to Mt-Nb(II)-NO at pH 7.3 in the presence of 5.0 × 10−3 M (trace a) and 1.2 × 10−2 M (trace b) NO2−. The time course analysis according to Equation (3) allowed the determination of the following values of kobs: 3.8 × 10−2 s−1 (trace a) and 9.4 × 10−2 s−1 (trace b). (B) Dependence of kobs on the NO2− concentration for Mt-Nb(II) nitrosylation, at pH 7.3. The solid line was calculated according to Equation (4) with the following value of kon = 7.6 ± 0.8 M−1 s−1. (C) pH-dependence of log kon for the NO2−-mediated conversion of Mt-Nb(II). The value of the slope of the continuous line is −0.96 ± 0.10. Where not shown, standard deviation is smaller than the symbol.
Ijms 24 06553 g001
Ijms 24 06553 g002
Figure 2. Nitrite reductase activity of At-Nb(II) at 20.0 °C. (A) Normalized averaged time courses for the NO2−-mediated conversion of At-Nb(II) to At-Nb(II)-NO at pH 7.3 in the presence of 5.0 × 10−3 M (trace a) and 1.2 × 10−2 M (trace b) NO2−. The time course analysis according to Equation (3) allowed the determination of the following values of kobs: 4.4 × 10−2 s−1 (trace a) and 1.1 × 10−1 s−1 (trace b). (B) Dependence of kobs on the NO2− concentration for At-Nb(II) nitrosylation at pH 7.3. The solid line was calculated according to Equation (4) using kon = 9.3 ± 1.0 M−1 s−1. (C) pH-dependence of log kon for the NO2−-mediated conversion of At-Nb(II). The value of the slope of the continuous line is −1.03 ± 0.10. Where not shown, standard deviation is smaller than the symbol.
Figure 2. Nitrite reductase activity of At-Nb(II) at 20.0 °C. (A) Normalized averaged time courses for the NO2−-mediated conversion of At-Nb(II) to At-Nb(II)-NO at pH 7.3 in the presence of 5.0 × 10−3 M (trace a) and 1.2 × 10−2 M (trace b) NO2−. The time course analysis according to Equation (3) allowed the determination of the following values of kobs: 4.4 × 10−2 s−1 (trace a) and 1.1 × 10−1 s−1 (trace b). (B) Dependence of kobs on the NO2− concentration for At-Nb(II) nitrosylation at pH 7.3. The solid line was calculated according to Equation (4) using kon = 9.3 ± 1.0 M−1 s−1. (C) pH-dependence of log kon for the NO2−-mediated conversion of At-Nb(II). The value of the slope of the continuous line is −1.03 ± 0.10. Where not shown, standard deviation is smaller than the symbol.
Ijms 24 06553 g002
Ijms 24 06553 g003
Figure 3. Nitrite reductase activity of Dr-Nb(II) at 20.0 °C. (A) Normalized averaged time courses for the NO2−-mediated conversion of Dr-Nb(II) to Dr-Nb(II)-NO at pH 7.3 in the presence of 5.0 × 10−3 M (trace a) and 1.2 × 10−2 M (trace b) NO2−. The time course analysis according to Equation (3) allowed the determination of the following values of kobs: 7.8 × 10−2 s−1 (trace a) and 1.6 × 10−1 s−1 (trace b). (B) Dependence of kobs on the NO2− concentration for Dr-Nb(II) nitrosylation at pH 7.3. The solid line was calculated according to Equation (4) using kon = (1.4 ± 0.2) × 101 M−1 s−1. (C) pH-dependence of log kon for the NO2−-mediated conversion of Dr-Nb(II). The value of the slope of the continuous lines is −1.1 ± 0.10. Where not shown, standard deviation is smaller than the symbol.
Figure 3. Nitrite reductase activity of Dr-Nb(II) at 20.0 °C. (A) Normalized averaged time courses for the NO2−-mediated conversion of Dr-Nb(II) to Dr-Nb(II)-NO at pH 7.3 in the presence of 5.0 × 10−3 M (trace a) and 1.2 × 10−2 M (trace b) NO2−. The time course analysis according to Equation (3) allowed the determination of the following values of kobs: 7.8 × 10−2 s−1 (trace a) and 1.6 × 10−1 s−1 (trace b). (B) Dependence of kobs on the NO2− concentration for Dr-Nb(II) nitrosylation at pH 7.3. The solid line was calculated according to Equation (4) using kon = (1.4 ± 0.2) × 101 M−1 s−1. (C) pH-dependence of log kon for the NO2−-mediated conversion of Dr-Nb(II). The value of the slope of the continuous lines is −1.1 ± 0.10. Where not shown, standard deviation is smaller than the symbol.
Ijms 24 06553 g003
Ijms 24 06553 g004
Figure 4. Nitrite reductase activity of Hs-Nb(II) at 20.0 °C. (A) Normalized averaged time courses for the NO2−-mediated conversion of Hs-Nb(II) to Hs-Nb(II)-NO at pH 7.3 in the presence of 5.0 × 10−3 M (trace a) and 1.2 × 10−2 M (trace b) NO2−. The time course analysis according to Equation (3) allowed the determination of the following values of kobs: 2.9 × 10−2 s−1 (trace a) and 7.3 × 10−2 s−1 (trace b). (B) Dependence of kobs on the NO2− concentration for Hs-Nb(II) nitrosylation at pH 7.3. The solid line was calculated according to Equation (4) using kon = 5.8 ± 0.6 M−1 s−1. (C) pH-dependence of log kon for the NO2−-mediated conversion of Hs-Nb(II)-NO. The value of the slope of the continuous line is −0.99 ± 0.10. Where not shown, standard deviation is smaller than the symbol.
Figure 4. Nitrite reductase activity of Hs-Nb(II) at 20.0 °C. (A) Normalized averaged time courses for the NO2−-mediated conversion of Hs-Nb(II) to Hs-Nb(II)-NO at pH 7.3 in the presence of 5.0 × 10−3 M (trace a) and 1.2 × 10−2 M (trace b) NO2−. The time course analysis according to Equation (3) allowed the determination of the following values of kobs: 2.9 × 10−2 s−1 (trace a) and 7.3 × 10−2 s−1 (trace b). (B) Dependence of kobs on the NO2− concentration for Hs-Nb(II) nitrosylation at pH 7.3. The solid line was calculated according to Equation (4) using kon = 5.8 ± 0.6 M−1 s−1. (C) pH-dependence of log kon for the NO2−-mediated conversion of Hs-Nb(II)-NO. The value of the slope of the continuous line is −0.99 ± 0.10. Where not shown, standard deviation is smaller than the symbol.
Ijms 24 06553 g004
Ijms 24 06553 g005
Figure 5. Correlation between the second-order rate constant of nitrite reductase activity (Log kon(NO2−)) and the CO-binding bimolecular rate constant (Log kon(CO)). (A) Six-coordinated heme proteins: At-Hb(II) class 1 (open circle) 1, At-Hb(II) class 2 (filled circle), S-Hb(II) (filled downward triangle), rice nonsymbiotic Hb(II) class 1 (filled upward triangle), Mm-Nb(II) (asterisk), Hs-Ngb(II) CysCD4-CysD5 (open diamond), Hs-Ngb(II) CysCD4/CysD5 (filled diamond), Hs-Cygb(II) CysB2-CysE9 (open square), and Hs-Cygb(II) CysB2/CysE9 (filled square). (B) Five-coordinated heme proteins. Class I (red symbols and straight line): fast-reacting form of Cj-trHbP(II) (filled circle), Hs-heme(II)-albumin (open square), Efc-Cytc(II)-CL (open triangle), Efc-MP-11(II) (filled triangle), the fast-reacting form of Ma-Pgb(II) (open diamond), and Hs-Hb(II)) in the R-state (open circle). Class II (black symbols and straight line): Hs-Hb(II) in the T-state (open square), slow-reacting form of Ma-Pgb(II) (open triangle), carboxymethylated Efc-Cytc(II) (filled triangle), Hs-Hp2-2:Hb(II) (open diamond), slow-reacting form of Cj-trHbP(II) (filled circle), and fast-reacting form of Mt-trHbO(II) (open circle). Class III (green symbols and straight line): Efc-Mb(II) (open square), Pc-Mb(II) (open circle), Hs-Hp1-1:Hb(II) (open triangle), and Mt-trHbN(II) (open diamond). Class IV (purple symbols and straight line): Mt-trHbO(II) (filled circle), Mt-Nb(II) filled triangle), At-Nb(II) (filled diamond), and Hs-Nb(II) (filled square).
Figure 5. Correlation between the second-order rate constant of nitrite reductase activity (Log kon(NO2−)) and the CO-binding bimolecular rate constant (Log kon(CO)). (A) Six-coordinated heme proteins: At-Hb(II) class 1 (open circle) 1, At-Hb(II) class 2 (filled circle), S-Hb(II) (filled downward triangle), rice nonsymbiotic Hb(II) class 1 (filled upward triangle), Mm-Nb(II) (asterisk), Hs-Ngb(II) CysCD4-CysD5 (open diamond), Hs-Ngb(II) CysCD4/CysD5 (filled diamond), Hs-Cygb(II) CysB2-CysE9 (open square), and Hs-Cygb(II) CysB2/CysE9 (filled square). (B) Five-coordinated heme proteins. Class I (red symbols and straight line): fast-reacting form of Cj-trHbP(II) (filled circle), Hs-heme(II)-albumin (open square), Efc-Cytc(II)-CL (open triangle), Efc-MP-11(II) (filled triangle), the fast-reacting form of Ma-Pgb(II) (open diamond), and Hs-Hb(II)) in the R-state (open circle). Class II (black symbols and straight line): Hs-Hb(II) in the T-state (open square), slow-reacting form of Ma-Pgb(II) (open triangle), carboxymethylated Efc-Cytc(II) (filled triangle), Hs-Hp2-2:Hb(II) (open diamond), slow-reacting form of Cj-trHbP(II) (filled circle), and fast-reacting form of Mt-trHbO(II) (open circle). Class III (green symbols and straight line): Efc-Mb(II) (open square), Pc-Mb(II) (open circle), Hs-Hp1-1:Hb(II) (open triangle), and Mt-trHbN(II) (open diamond). Class IV (purple symbols and straight line): Mt-trHbO(II) (filled circle), Mt-Nb(II) filled triangle), At-Nb(II) (filled diamond), and Hs-Nb(II) (filled square).
Ijms 24 06553 g005
Table 1. Values of the second-order rate constants for the nitrite reductase activity and carbonylation of ferrous heme proteins as well as heme–Fe coordination.
Table 1. Values of the second-order rate constants for the nitrite reductase activity and carbonylation of ferrous heme proteins as well as heme–Fe coordination.
Heme Proteinkon(NO2−)
(M−1 s−1)		kon(CO)
(M−1 s−1)		Heme–Fe(II) Coordination
Mt-Nb(II)7.6 a5.5 × 104 b5C c
At-Nb(II)9.3 a2.3 × 105 bn.a.
Dr-Nb(II)1.4 × 101 an.a.5C c
Hs-Nb(II)5.8 a1.0 × 105 b5C c
S-Hb(II)6.8 × 101 d3.0 × 105 e6C f
At-Hb(II) class 12.0 × 101 g4.6 × 105 h6C (60%) + 5C (40%) i
At-Hb(II) class 24.9 g1.0 × 106 h6C i
Rice nonsymbiotic Hb(II) class 18.3 × 101 d2.4 × 106 e6C (65%) + 5C (35%) j
Ma-Pgb(II)9.6 k
1.2 k		2.1 × 107 l
1.1 × 106 l		5C m

Cc-Mb(II) type 15.3 nn.a.n.a.
Cc-Mb(II) type 21.8 nn.a.n.a.
Efc-Mb(II)2.9 o5.5 × 105 p5C q
Pc-Mb(II)6.0 r5.0 × 105 h5C s
Mm-Ngb(II)5.1 t2.6 × 102 u6C v
Hs-Ngb(II) CysCD4-CysD51.2 × 10−1 w4.6 × 104 e6C x
Hs-Ngb(II) CysCD4/CysD56.2 × 10−2 y4.0 × 103 e6C x
Hs-Cygb(II) CysB2-CysE9 (monomer)3.2 × 101 z6.5 × 103 e6C x
Hs-Cygb(II) CysB2/CysE9 (monomer)6.3 × 10−1 aa1.2 × 103 e6C x
Hs-Cygb(II) CysB2/CysE9 (dimer)2.6 × 10−1 bbn.a.6C cc
Hs-Hb(II) T-state1.2 × 10−1 r7.8 × 104 dd5C ee
Hs-Hb(II) R-state6.0 r1.1 × 107 ffn.a.
Hs-Hp1-1:Hb(II)7.3 gg1.4 × 106 hhn.a.
Hs-Hp2-2:Hb(II)1.2 × 101 gg5.2 × 106 hhn.a.
Mt-trHbN(II)1.6 × 101 ii3.8 × 106 jj5C kk
Mt-trHbO(II)3.8 × 10−1 ii
 		1.8 × 105 ll
1.4 × 104 ll		 5C mm

Cj-trHbP(II) q4.3 ii
 		4.5 × 107 nn
1.9 × 106 nn		5C oo

Hs-heme(II)-albumin1.3 pp4.0 × 106 qq5C rr
Efc-Cytc(II)7.3 × 10−2 ssn.a.6C tt
Efc-Cytc(II) with CL2.6 ss1.0 × 107 uu5C vv
Carboxymethylated Efc-Cytc(II)1.6 ww1.6 × 106 xx5C yy
Carboxymethylated Efc-Cytc(II) with CL1.6 wwn.a.n.a.
Efc-MP-11(II)3.4 zz9.7 × 106 aaa5C bbb
a pH 7.3 and 20.0 °C. Present study.b pH 7.0 and 25.0 °C. From [23]. c From [23]. d pH 7.0; unknown temperature. From [40]. e pH 7.0 and 20.0 °C. Calculated according to Equation (1). From [49,50]. f From [51]. g pH 7.4 and 25.0 °C. From [41]. h pH 7.0; unknown temperature. Calculated as kon(CO) = (k−b/(k−b + kb)) × (k−1 × k−2 /(k2 + k−2)). From [52]. i From [52]. j From [49]. k pH 7.4 and 20 °C. From [46]. l pH 7.0 and 20.0 °C. From [53]. m From [53]. n pH 7.6 and 25 °C. From [42]. o pH 7.4 and 25.0 °C. From [44]. p pH 7.0 and 22.0 °C. From [1]. q From [54]. r pH 7.4 and 25.0 °C. From [34]. s From [55]. t pH 7.4 and 25.0 °C. From [38]. u pH 7.0 and 25.0 °C. From [56]. v From [57]. w pH 7.4 and 25.0 °C. From [44]. The CysCD4 and CysD5 residues form an intramolecular disulfide bond. x From [58]. y pH 7.4 and 25.0 °C. From [44]. The CysCD4 and CysD5 residues do not form an intramolecular disulfide bond. z pH 7.4 and 25.0 °C. From [59]. The CysB2 and CysE9 residues form an intramolecular disulfide bond. aa pH 7.4 and 25.0 °C. From [59]. The CysB2 and CysE9 residues do not form an intramolecular disulfide bond. bb pH 7.4 and 25.0 °C. From [59]. The CysB2 and CysE9 residues form an intermolecular disulfide bond. cc From [60]. dd pH 7.0 and 20.0 °C. From [61]. ee From [62]. ff pH 7.0 and 20.0 °C. From [63]. gg pH 7.3 and 20.0 °C. From [30]. hh pH 7.4 and 22.0 °C. From [64]. ii pH 7.4 and 20.0 °C. From [47]. jj pH 7.0 and 20.0 °C. From [65]. kk From [66]. ll pH 7.5 and 23.0 °C. From [67]. mm From [68]. nn pH 7.0 and 20.0 °C. From [69]. oo From [70]. pp pH 7.4 and 20.0 °C. From [27]. qq pH 7.0 and 25.0 °C. From [71]. rr From [72]. ss pH 7.4 and 20.0 °C. From [45]. tt From [73]. uu pH 7.4 and 20.0 °C. From [74]. vv From [74]. ww pH 7.4 and 20.0 °C. From [29]. xx pH 5.9 and 20.0 °C. From [75]. yy From [76]. zz pH 7.4 and 20.0 °C. MP-11 derived from Efc-Cytc. From [28]. aaa pH 7.5 and 20.0 °C. From [77]. bbb From [78].
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

De Simone, G.; di Masi, A.; Tundo, G.R.; Coletta, M.; Ascenzi, P. Nitrite Reductase Activity of Ferrous Nitrobindins: A Comparative Study. Int. J. Mol. Sci. 2023, 24, 6553. https://doi.org/10.3390/ijms24076553

AMA Style

De Simone G, di Masi A, Tundo GR, Coletta M, Ascenzi P. Nitrite Reductase Activity of Ferrous Nitrobindins: A Comparative Study. International Journal of Molecular Sciences. 2023; 24(7):6553. https://doi.org/10.3390/ijms24076553

Chicago/Turabian Style

De Simone, Giovanna, Alessandra di Masi, Grazia R. Tundo, Massimo Coletta, and Paolo Ascenzi. 2023. "Nitrite Reductase Activity of Ferrous Nitrobindins: A Comparative Study" International Journal of Molecular Sciences 24, no. 7: 6553. https://doi.org/10.3390/ijms24076553

APA Style

De Simone, G., di Masi, A., Tundo, G. R., Coletta, M., & Ascenzi, P. (2023). Nitrite Reductase Activity of Ferrous Nitrobindins: A Comparative Study. International Journal of Molecular Sciences, 24(7), 6553. https://doi.org/10.3390/ijms24076553

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
