Novel Rigidochromic and Anti-Kasha Dual Emission Fluorophores Based on D-π-A Dyads as the Promising Materials for Potential Applications Ranging from Optoelectronics and Optical Sensing to Biophotonics and Medicine

1
G.A. Razuvaev Institute of Organometallic Chemistry of RAS, 603950 Nizhny Novgorod, Russia
2
Institute of Applied Physics of RAS, 603950 Nizhny Novgorod, Russia
3
Biological Faculty, Lobachevsky State University of Nizhny Novgorod, 603950 Nizhny Novgorod, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(6), 5818; https://doi.org/10.3390/ijms24065818
Submission received: 26 November 2022 / Revised: 10 March 2023 / Accepted: 14 March 2023 / Published: 18 March 2023

Abstract

:
Today we see an increasing demand for new fluorescent materials exhibiting various sensory abilities due to their broad applicability ranging from the construction of flexible devices to bioimaging. In this paper, we report on the new fluorescent pigments AntTCNE, PyrTCNE, and PerTCNE which consist of 3–5 fused aromatic rings substituted with tricyanoethylene fragments forming D-π-A diad. Our studies reveal that all three compounds exhibit pronounced rigidochromic properties, i.e., strong sensitivity of their fluorescence to the viscosity of the local environment. We also demonstrate that our new pigments belong to a very rare type of organic fluorophores which do not obey the well-known empirical Kasha’rule stating that photoluminescence transition always occurs from the lowest excited state of an emitting molecule. This rare spectral feature of our pigments is accompanied by an even rarer capability of spectrally and temporally well-resolved anti-Kasha dual emission (DE) from both higher and lowest electronic states in non-polar solvents. We show that among three new pigments, PerTCNE has significant potential as the medium-bandgap non-fullerene electron acceptor. Such materials are now highly demanded for indoor low-power electronics and portable devices for the Internet-of-Things. Additionally, we demonstrate that PyrTCNE has been successfully used as a structural unit in template assembling of the new cyanoarylporphyrazine framework with 4 D-π-A dyads framing this macrocycle (Pyr4CN4Pz). Similarly to its structural unit, Pyr4CN4Pz is also the anti-Kasha fluorophore, exhibiting intensive DE in viscous non-polar medium and polymer films, which strongly depends on the polarity of the local environment. Moreover, our studies showed high photodynamic activity of this new tetrapyrrole macrocycle which is combined with its unique sensory capacities (strong sensitivity of its fluorescent properties to the local environmental stimuli such as viscosity and polarity. Thus, Pyr4CN4Pz can be considered the first unique photosensitizer that potentially enables the real-time combination of photodynamic therapy and double-sensory approaches which is very important for modern biomedicine.

1. Introduction

Aryltricyanoethylenes (ATCEs) are promising new radical bridging ligands for the design of new molecule-based magnets with low Curie temperatures, so their extensive study is highly relevant [1,2,3,4].
We have recently discovered the new reaction of the cyclic tetramerization of ATCE resulting in the formation of the cyanoarylporphyrazine framework [5,6,7]. Unusual for template synthesis of tetrapyrroles, ATCE template assembly on a metal cation takes place under mild conditions and provides significant reaction yields at room temperature. Most of the porphyrazine macrocycles composed of ATCE structural units are highly effective sensitizers in photodynamic therapy (PDT) which is rather typical for tetrapyrroles [7,8,9,10,11,12]. Unexpectedly we observed a strong dependence of the fluorescence parameters of cyanoarylporphyrazine on the environmental viscosity. Such photophysical property of such fluorophores makes them plausible candidates for optical probes of intracellular viscosity which are very important for many biomedical applications [13,14,15].
We discovered that among the variety of novel ATCEs used for the design and synthesis of cyanoarylporphyrazines some pigments with polycyclic aromatic fragments demonstrate very interesting optical and electrochemical properties (Figure 1). The compounds with polycyclic aromatic fragments with an extensive π-system can be used as potential materials for organic electronics [16,17,18,19,20,21,22,23,24,25,26,27,28,29].
In this study, we present a new small molecule non-fullerene acceptor 2-(perylen-3-yl)ethene-1,1,2-tricarbonitrile (PerTCNE) consisting of the fused pentacyclic aromatic group (perylene) substituted with an effective electron-withdrawing tricyanoethylene fragment at the position 3 (Figure 1). We discovered that this simple structural combination provides unexpected spectral and electrochemical properties potentially enabling the production of new effective non-fullerene small molecule acceptors with very high electron affinity (LUMO–4.00 eV). In addition, we have found that PerTCNE is a medium-bandgap small molecule non-fullerene acceptor (SM NFA) (1.62 eV). To our best knowledge, this is a unique electronic property for monomeric perylene derivatives. Medium-bandgap materials possess band gaps of 1.8–1.9 eV corresponding to optical absorption cut-off at ca. 680 nm. It has been recently established that their highest performance is achieved under artificial indoor lighting with a power conversion efficiency of 50–60%, which makes them highly applicable in organic photovoltaics (OPV)s. There is a growing interest in using photovoltaic (PV) cells as ambient energy harvesters, which harvest indoor light to power low-power electronics. This is a promising tool for the Internet-of-Things, which can be used in portable IoT devices and smart environments (homes, offices, buildings, etc.) [30,31,32]. Thus, we assume that PerTCNE can be of great interest in developing effective PV-devices for indoor applications.
PerTCNE is also capable to form active ion-radicals under light excitation which makes it potentially applicable as the bipolarity enhanced photoinitiator for UV or two-photon 3D polymerization and microfabrication [33]. Indeed, we have found that PerTCNE has a high two-photon absorption cross-section which is close to that of the widely used photoinitiators for 3D polymerization.
To the great surprise, we have found that our small-molecule electron acceptors possess peculiar fluorescence properties, namely the hypsochromic shift of the Stokes shift, which is against the empirical Kasha’s rule. Moreover they possess dual emissions from both higher and lower electronic states it non-polar media. These findings have dramatically shifted our focus of interest toward these new pigments. According to recent investigations dual emission is very important for a variety of photonic applications, including sensing, optical memory, and bioimaging [34,35,36,37]. Considering this, we have addressed closer attention to PyrTCNE (2-(pyren-1-yl)ethene-1,1,2-tricarbonitrile) pigment. Interestingly, despite its sterically bulk pyrenyl substituents, it can be used as a structural unit for template assembling of the new unique cyanoarylporphyrazine (Pyr4CN4Pz), which shows excellent photodynamic properties and high sensitivity to local viscosity. We should note that Pyr4CN4Pz possesses an even more pronounced anti-Kasha fluorescence and dual emission effect, compared to PyrTCNE. This is due to the unique macrocycle framing consisting of dipolar D-π-A fragments throughout the perimeter of the macrocycle. The unique combination of photodynamic activity and double-sensory properties (rigidochromism and dual anti-Kasha emission) testifies to a high potential applicability of Pyr4CN4Pz in photonics, biophotonics, and medicine.

2. Results and Discussion

2.1. Synthesis and Characterization

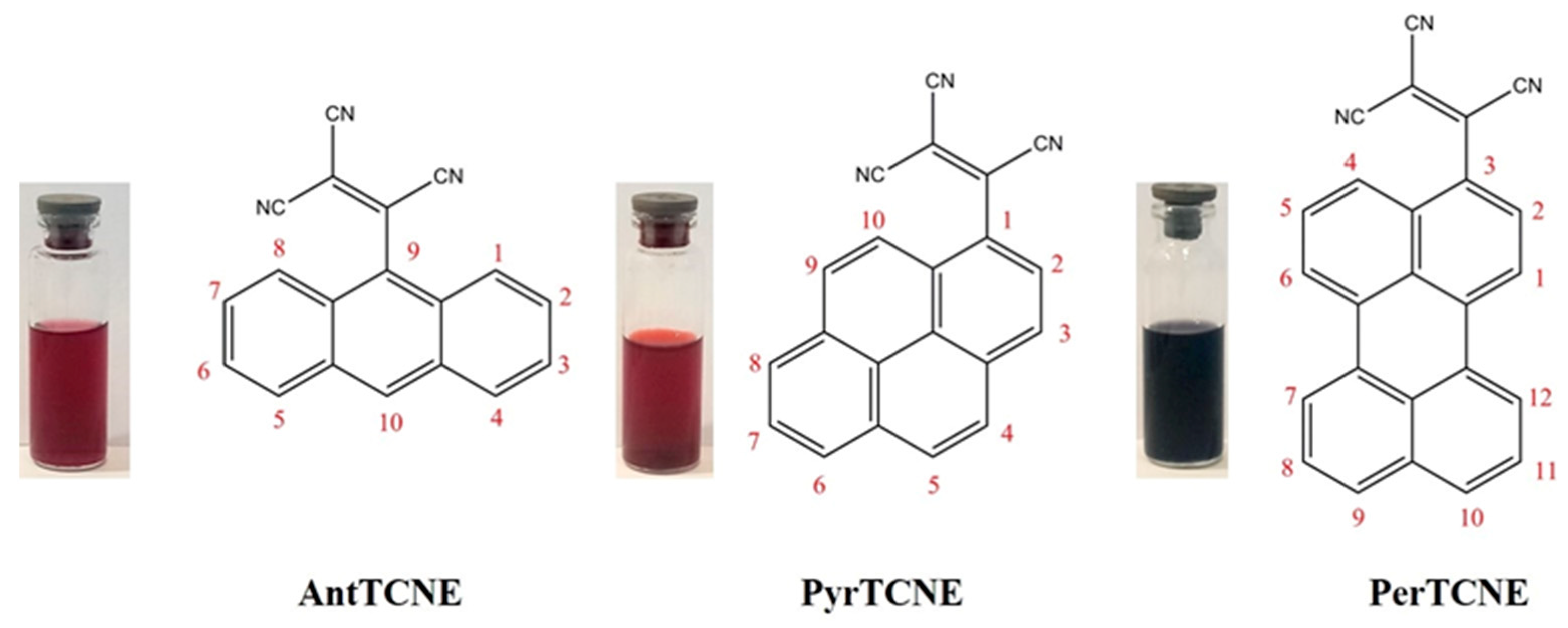

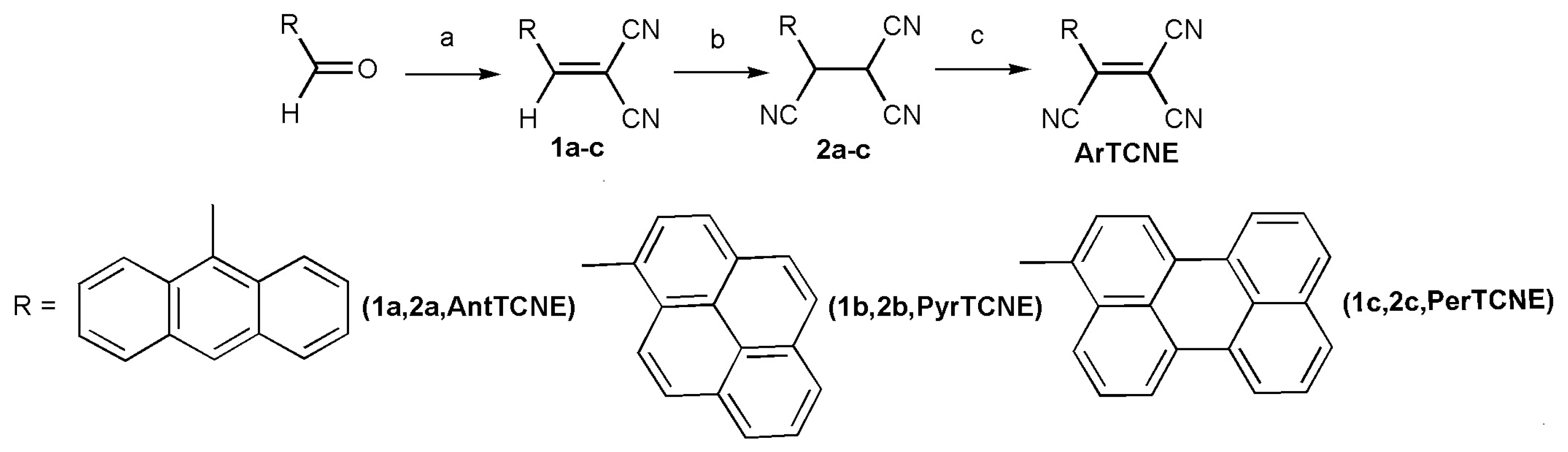

The new ATCEs can be easily synthesized in 3 steps at room temperature (Scheme 1). The general procedure for the synthesis of ArTCNE has been reported in the literature [1] as shown in Scheme 1. Synthesis of Pyr4CN4Pz was carried out according to the scheme we described earlier in [11].
The first step is the reaction of an aromatic aldehyde with malonodinitrile in the presence of piperidine resulting in dicyanoethylene formation. The second step is the reaction of dicyanoethylene with KCN in the acidic environment giving corresponding aryl tricyanoethane. The third step is the dehydrogenation of the aryl tricyanoethane in the presence of chlorosuccinimide resulting in the formation of corresponding ATCE. The new compounds are highly colored substances soluble in most organic solvents (DMF, acetonitrile, THF, and toluene) and, to a lesser extent, in ether, chloroform, glycerol, and water.

2.2. Structural and Thermal Properties

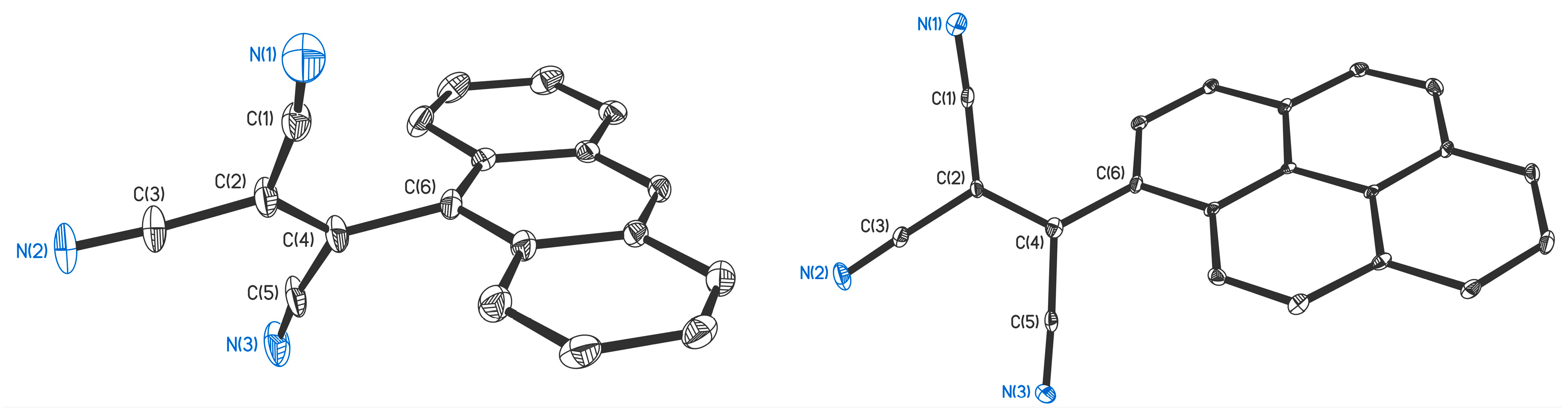

The single crystal X-ray diffraction study showed that AntTCNE and PyrTCNE crystallize in monoclinic P21/c and P21/n space groups, respectively, with unique molecules of compounds in the asymmetric parts of unit cells. The molecular structures of AntTCNE and PyrTCNE are shown in Figure 2, and crystal data and structure refinement details are given in Table S1 (Supplementary Materials, SM). The crystal packings of both compounds do not contain additional solvent molecules. Tricyanoethylene groups in AntTCNE are disordered by two sites with occupancies of 0.61/0.39.
The C-N distances in tricyanoethylene fragments of AntTCNE and PyrTCNE range from 1.116(5) to 1.117(6) Å and from 1.141(4) to 1.144(5) Å, respectively, and are typical for this class of compounds. The C(2)-C(4) distances are 1.335(5), 1.336(5) Å in AntTCNE and 1.364(4) in PyrTCNE and correspond to the double C-C bonds [38] and are noticeably shorter than other C-C distances in these fragments (AntTCNE: 1.450(6)-1.454(7) Å; PyrTCNE: 1.432(5)-1.449(5) Å). TCNE groups in the studied compounds are rotated relatively to the polycyclic aromatic cores; the dihedral angles between the TCNE and Ant or Pyr planes are 64.0(2)°, 74.1(3)° (AntTCNE), and 45.18(4)° (PyrTCNE). The C(4)-C(6) distance in AntTCNE is 1.520(5), 1.521(5) Å and slightly longer that in PyrTCNE (1.474(4) Å).
The analysis of AntTCNE and PyrTCNE crystal packing showed that compounds are packed in stacks with the intermolecular π… π-stacking interactions between aromatic Ant or Pyr systems with resulting Ant…Ant and Pyr…Pyr distances 3.45(2)-3.48(2) Å and 3.48(2)-3.51(2) Å, respectively (for details see Supplementary Materials, Figures S1 and S2). Crystal packing structures are poor in intermolecular hydrogen bonds (AntTCNE: N…H 2.66 Å; PyrTCNE: C…H 2.84-2.86 Å, H…H 2.33 Å). However, a detailed study of the intermolecular hydrogen interactions in these structures is problematic since the hydrogen atoms are placed and refined in calculated positions.
Unfortunately, the reflectivity of PerTCNE crystalline samples was insufficient to carry out an SC XRD study and establish its molecular and crystal structure. Therefore, we performed a theoretical study to compare the modeled molecular structure of PerTCNE with AntTCNE and PyrTCNE. DFT computations showed that the geometric characteristics of AntTCNE and PyrTCNE are fairly reproduced and compared to the experimental data (see Supplementary Materials for details, Figure S3, Table S2). The dihedral angles between TCNE and Ant, Pyr, or Per planes in the compounds are 65.9°, 51.1°, and 51.3° respectively, and this confirms an assumed non-planar molecular structure of PerTCNE.
The X-ray diffraction pattern of PerTCNE (Figure S4) is characterized by the clear reflexes indicated mainly by the microcrystal structure of the perylene-based compound. On the other hand, a slight baseline blur means the presence of a small amount of the amorphous phase in the sample. Despite that, high crystallinity can be beneficial for the formation of a favorable interpenetrating network with suitable phase separation contributing to higher electron mobility in the active layer of OPV [25,39].
No thermal effects indicating any chemical or phase transformations were observed in the temperature range of 23–270 °C (Figure S5). The melting of the compound was observed at 271 °C without any decomposition which was confirmed by the constant sample weight at the differential thermal analysis curve. A very slight decrease in sample weight in the temperature range 270–300 °C is presumably explained by partial evaporation of the liquid melt.

2.3. Photophysical Properties

AntTCNE, PyrTCNE, and PerTCNE are highly soluble in organic solvents such as DMSO, acetonitrile, and THF; less soluble in toluene, and the least soluble in glycerol and water. Molar extinction coefficients of AntTCNE, PyrTCNE, and PerTCNE in different solvents are given in SM (Tables S3 and S4).

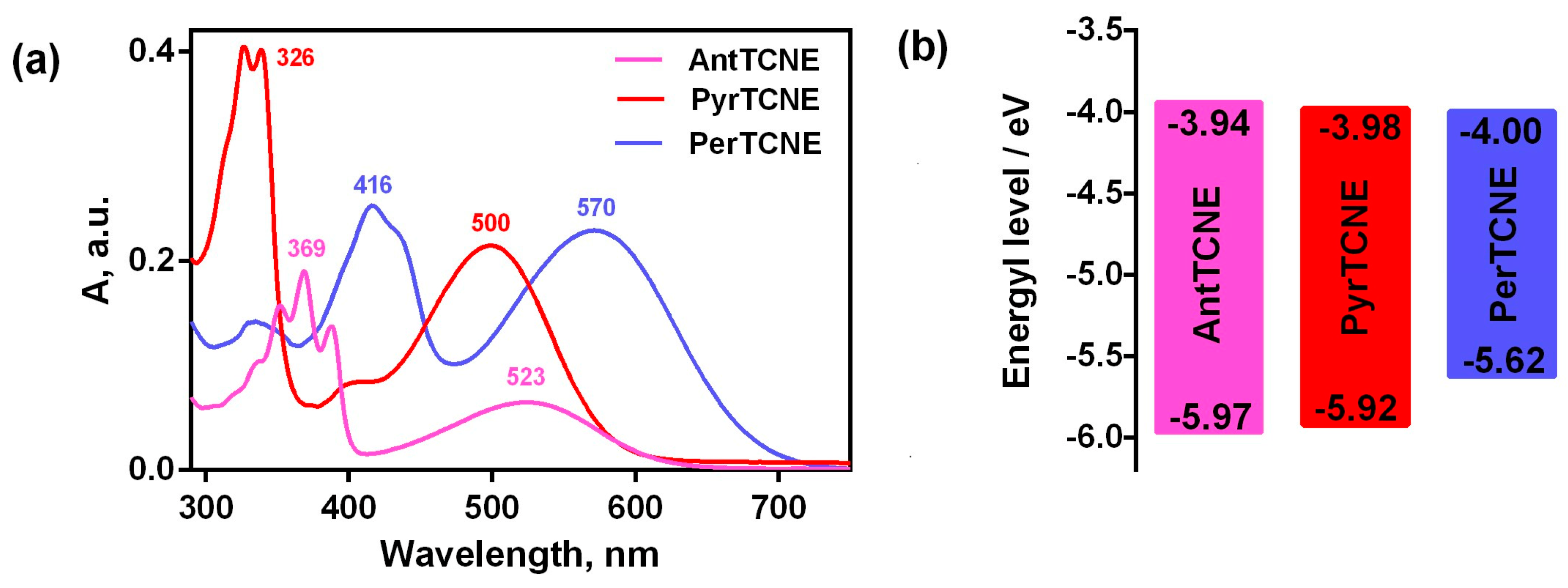

The normalized optical absorption spectra of AntTCNE, PyrTCNE, and PerTCNE in the acetonitrile solution (5 × 10–6 M) are shown in Figure 3.
The short-wavelength absorption bands which we observed for all three absorption spectra were attributed to electron transitions in the polycyclic cores of AntTCNE, PyrTCNE, and PerTCNE, although these bands demonstrate a much poorer vibronic structure compared to the corresponding individual aromatic compounds [40,41]. As for the long-wavelength part of the spectra presented in Figure 3, it was associated with the efficient charge transfer from the aromatic polycyclic core to the electron-withdrawing tricyanoethylene fragment. This band was the most red-shifted, and broadened for the perylene-containing compound PerTCNE.
As mentioned above, ATCEs can be used as the structural units in template assembly of the cyanoaryporphyrazine framework [7,8,9,10,11,12]. We discovered these macrocycles to be typical fluorescent molecular rotors demonstrating very strong rigidochromism, i.e., strong dependence on the fluorescent properties (emission intensity and fluorescent lifetime) on local viscosity. The physical principle of rigidochromism is the steric hindrance to intramolecular rotation, induced by Twisted Intramolecular Charge Transfer (TICT). TICT is formed upon photoexcitation in the strongly dipolar structures and is accompanied by twisting intramolecular motion in an excited state. The molecule enters a twisted state with lower excited-state energy, and relaxation from the twisted state is associated with either a red-shifted fluorescence emission or non-fluorescent relaxation [37]. Porphyrazines possess dipolar structural motifs D-π-A, where π is a π-conjugating bridge, D is an aromatic π-donor, and A is a tricarbonitrile acceptor, thus the mechanism of their rigidochromism can be attributed to TICT. Therefore, it is reasonable to expect that ATCEs including the same D-π-A motif as in porphyrazines can be noticeably sensitive to local viscosity.

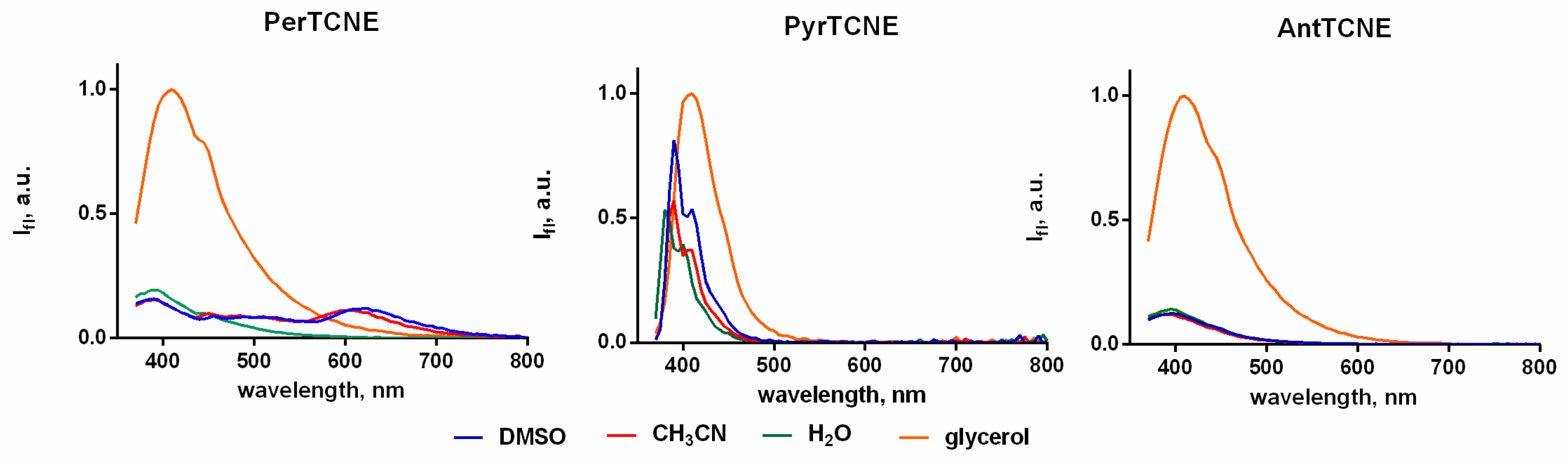

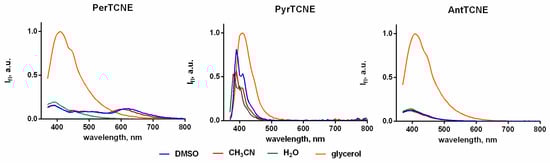

To compare the sensitivity to the viscosity of our compounds correctly, we should take into account that their fluorescence properties can be strongly affected by solvent polarity. So recording fluorescence spectra should be executed using solvents with approximately similar polarity and maximally different viscosity, e.g. in water (ε = 80, η = 1 cP) and glycerol (ε = 77, η = 950 cP) [15]. Indeed, the highest fluorescence intensity for PerTCNE, PyrTCNE, and AntTCNE is observed in highly viscous glycerol (Figure 4).

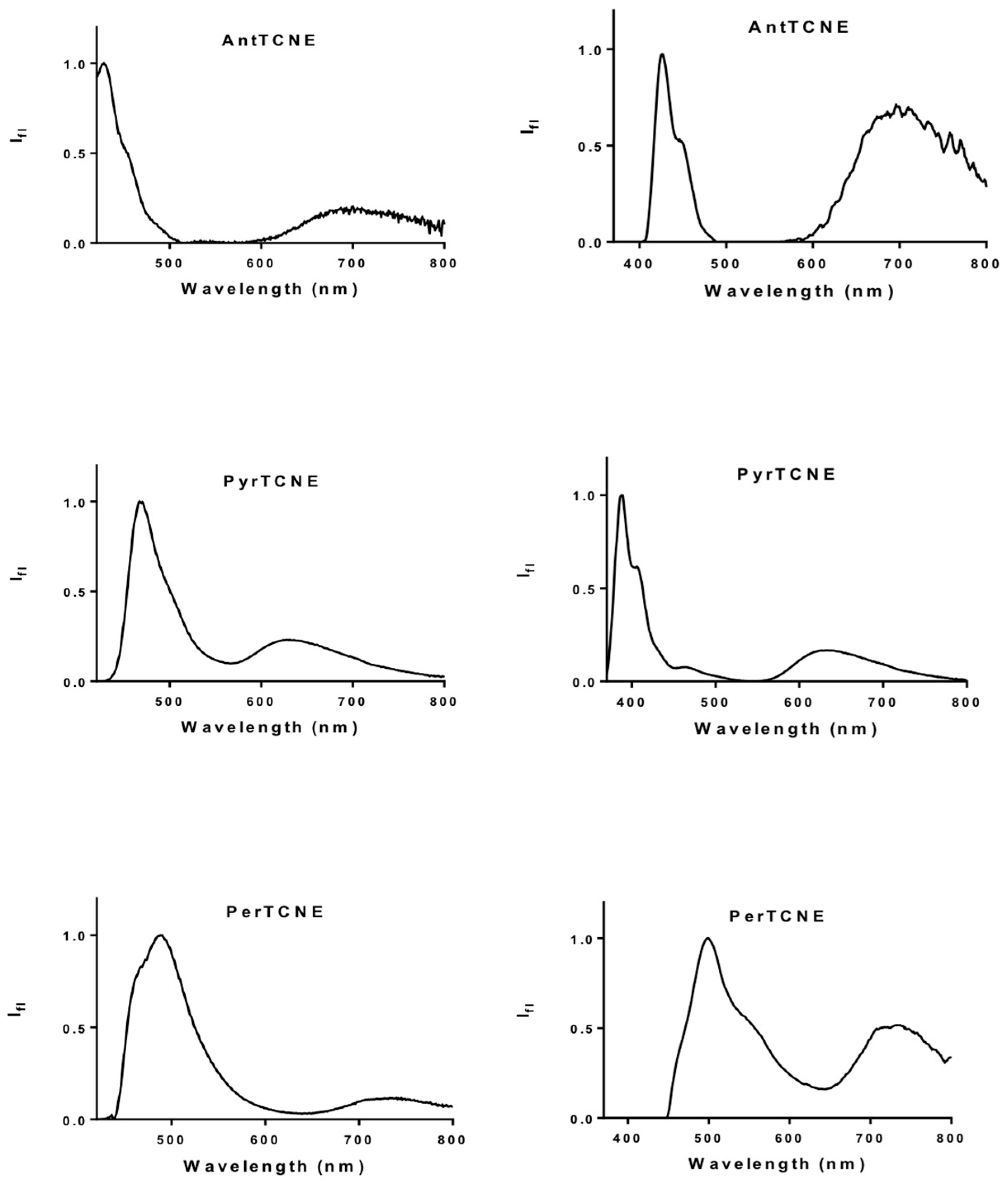

Unexpectedly, a controversial photophysical behavior of PyrTCNE was detected, namely a strong increase in fluorescence intensity in low-viscosity media (acetonitrile, DMSO, and water) upon the excitation at 350 nm. This could be explained by a combination of two possible photophysical mechanisms such as TICT and Association Induced emission (AIE) which, presumably, compete with each other under the excitation of vibronic structure (S2) levels belonging to the D-part of the D-π-A dyad. Intramolecular mobility induced by TICT may lead to strong conformeric heterogeneity [34]. Thus, the formation of some conformers which can associate and provide AIE effect should not be ruled out. In our opinion, the fluorescence enhancement in the polar low-viscosity media may be caused by the AIE mechanism arising from the strong conformeric heterogeneity. Interestingly, we also observe a strong increase in PerTCNE fluorescence intensity in the low-viscosity polar solvents upon the excitation at 400 nm (Figure S7). This means that in this case excitation of the lower level of PerTCN aromatic vibronic structure may increase the impact of the AIE effect into the interplay of two photophysical mechanisms.
Both mentioned photophysical mechanisms (TICT and AIE) strongly contribute to Kasha’s rule suppression [40]. Further investigations of this complex interplay of TICT and AIE effects upon the excitation of aromatic vibronic structure should provide more deep insight into the photophysical behavior of the new anti-Kasha fluorophores.
Furthermore, the new pigments exhibit an additional important photophysical feature. They belong to the unique family of anti-Kasha fluorophores which exhibit dual emission (DE) from the lowest- and upper-lying states. Figure 5 presents the spectra of AntTCNE, PyrTCNE, and PerTCNE recorded in a non-polar environment (toluene). The DE behavior is considered important because it is a promising principle for various photonic and biophotonic applications [34].
As long as the TICT induces strong twisting of the molecular configuration, it is accompanied by a strong increase in the dipole moment in the twisted state [40]. We studied the transmission spectra of PerTCNE and the DMSO solution (10−3 mol/L) before and after UV irradiation for 20 min (405 nm, laser diodes, 30 and 120 J/cm2) and the dynamics of the optical density changes at a fixed wavelength (560 nm) for PerTCNE upon irradiation with doses of 30 and 120 J/cm2 (Figure 6a,b). We found that the curves of the light transmission changes under irradiation with laser power of 30 J/cm2 and 120 J/cm2 looked exactly the same. We applied an exponential decay approach to make sure that there was no noticeable difference in the dynamics of the optical density changes at a fixed wavelength (560 nm) for PerTCNE upon a fourfold increase in the laser radiation power, taking into account that the photo-induced breaking of the double bond in the tricyanoethylene fragment is the first-order reaction (Figure 6b and Table S3). We established that difference in the dynamics of optical density with a fourfold increase in the laser radiation power is rather small. It means that the photoreaction rate weakly depends on the laser power, which confirms the resonance mechanism of the double bond break due to the TICT.
There was no change in the spectrum of unirradiated solution neither during this period (20 min) nor during a longer one (about 6 months). Thus, the double bond of PerTCNE which works, presumably, as π-spacer, conjugating condensed aromatic π-donor and electron acceptor fragment had been disrupted due to neo-UV irradiation inducing the powerful TICT. A gradual increase in light transmission up to the complete disappearance of the long-wavelength absorption band in the PerTCNE solution demonstrates the strong lability of the double bond during the charge transfer on the TICT mechanism under the influence of neo-UV radiation. The absorption related to the aromatic perylene fragment did not drop at all (Figure 6). Some reactive species, presumably, ion radicals, were formed as a result of the double bond disruption. As far as the TICT is regulated by environmental rigidity, the potential application of PerTCNE as a photoinitiator of viscosity-controlled polymerization could be developed.
Indeed, our primary experiments showed that these compounds can initiate photopolymerization of oligoether methacrylates and act as red-bleaching photoinitiators sensitive in the visible range. These data also confirm the generation of radical products during irradiation and will be studied in more detail in the future. Moreover, a three-dimensional microfabrication method based on two-photon polymerization with ultrashort laser pulses makes it very promising for PerTCNE to be used as a photoinitiator.

Two-Photon Absorption Investigations

Traditionally used z-scan method for studying two-photon absorption requires extremely high irradiation intensities, which destroy materials. We have optimized the approach, which allowed us to significantly reduce the intensity of laser radiation. This enabled us to store data and thus ensured higher setup sensitivity. When studying two-photon absorption of the new pigments, the method of the assignment of the number of photons arising during the relaxation of the excited state (fluorescence) as a result of two-photon absorption at a wavelength of 800 nm (the fundamental frequency of the laser) and one-photon absorption at a wavelength of 400 nm (the second harmonic of the laser) can be applied. Taking into account the fact that the photon emission during relaxation is a linear process with respect to the number of absorbed photons, this ratio allows us to measure the coefficient of two-photon absorption (β) [42]. When designing the equivalent configurations of laser beams at the fundamental frequency and at the second harmonic (the beams go coaxially near the surface of the cell), one can use the proportionality of the fluorescence intensity to the number of absorption events of two photons at the fundamental laser wavelength or a single photon at the second harmonic of the laser.
When the second harmonic is applied, the signal arrives at the power meter:
P 400 = P 0 400 exp ( α l ) ,
where l is the cell length, and α is the linear absorption coefficient at a wavelength of 400 nm. In this case, energy had been absorbed:
P A 400 = P 0 400 ( 1 exp ( α l ) )
The photon number and hence the number of the spectrometer counts for any of the fluorescence wavelengths (to improve the accuracy, we take the most intense spectral component IFl1) are proportional to this absorbed energy:
P 0 400 exp ( α l ) = K I F l 2
Otherwise, in terms of measured values:
P 400 ( exp ( α l ) 1 ) = K I F l 2
A signal that arrives at the power meter when the fundamental frequency of the laser is applied, corresponds to
P 800 = P 0 800 exp ( β I 800 l ) 1 ) P 0 800
where β is the coefficient of two-photon absorption, I800 is some average beam intensity which can be measured as
I 800 = P 800 π r 2 τ f
where r is the beam radius by level 1/e, τ (15 ns) is pulse duration, f is a pulse repetition rate, 10 Hz. In this case, the power value was absorbed in the medium with the two-photon absorption mechanism.
P A 800 = P 800 ( exp ( β I 800 l ) 1 ) P 800 β I 800 l
Since every two photons of the basic frequency (800 nm) provide the same energy impact as one photon of the second harmonic (400 nm), we can assume that with the same proportionality coefficient K which was used in (3).
P 800 β I 800 l = K I F l 1
Also, the spectral component energy of the fluorescence registered with an optical power meter (IFl2) at the same wavelength and fluorescence energy registered with a spectrometer (IFl1) are equal. However, the IFl2 value is substantially less than IFl1.
To avoid the hardware function embedded into coefficient K, we make the following proportion
P 800 β I 800 l I F l 2 = I F l 1 P 400 ( exp ( α l ) 1 )
It allows us to measure the two-photon absorption coefficient (β):
β = I F l 1 P 400 ( exp ( α l ) 1 ) P 800 I 800 l I F l 2 = I F l 1 P 400 ( exp ( α l ) 1 ) π r 2 τ f ( P 800 ) 2 l I F l 2
To provide sufficient accuracy of the β value, the method applied here requires noticeable fluorescence intensity of the tested compound and PerTCNE had been selected for this experiment because it demonstrated the best compliance with this criterion. The value of β and two-photon absorption cross-sections (δ) for PerTCNE are presented in Table 1.
The value of the two-photon absorption coefficient β of PerTCNE is very close to that of Michler’s ketone (~2 × 10−48 cm4s/photon) and some similar compounds, which are widely used as two-photon polymerization initiators for three-dimensional optical data storage and microfabrication [33,43].

2.4. Electrochemical Investigation

The redox properties of AntTCNE, PyrTCNE, PerTCNE, and Pyr4CN4Pz assembled from PyrTCNE were studied by cyclic voltammetry in acetonitrile vs. Ag/AgCl/KCl(sat.). The cyclic voltammograms (CV) for both complexes exhibit closed current–voltage loops showing that the electrogenerated intermediates are stable in the time-frame of the experiment. The cyclic voltammograms are presented in Figure S6.
The results of electrochemical studies and the energies of molecular orbitals are presented in Table 2.
We observed the appropriate decrease of the bandgap of ATCEs (the energy difference between the HOMO and the LUMO) with the increase in the number of fused rings in the aromatic core. However, we did not expect to achieve such a small bandgap for the perylene-based compound, which puts it among the potential medium-bandgap acceptors (1.9–1.5 eV) for photovoltaic applications. As mentioned above, this opens up the prospect to apply PerTCNE as a small molecule non-fullerene electron acceptor for the fabrication of OPV active layers with an appropriate polymeric electron donor. The idea is particularly promising in terms of indoor photovoltaic devices since it was established that medium-bandgap materials allow reaching much higher OPV performance than that for narrow-bandgap materials (1.1–1.4 eV) under AM1.5G illumination because for indoor light harvesting only photons from of the visible light need to be collected [30].
As for PyrTCNE, a wide-bandgap electron acceptor (1.94 eV), it presumably can be used in combination with PerTCNE as the additive to increase the total light harvesting of visible light in the region of shorter wavelengths. The bandgap of porphyrazine Pyr4CN4Pz is very close to that of PyrTCNE but it is significantly wider than that of PerTCNE presumably due to the influence of the perylene fragment, which is known to show n-type, electron conducting behavior and electron-acceptor properties [44].

2.5. Template Assembling of the New Cyanoporphyrazine Frameworks Using AntTCNE, PyrTCNE and PerTCNE as the Structural Units

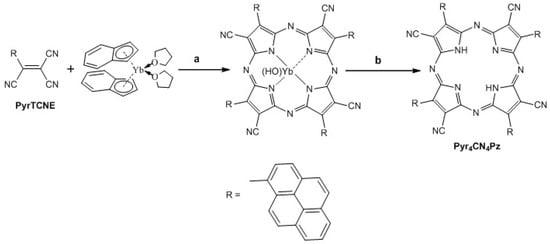

It was interesting to find out whether such spatially bulk fragments prevent the formation of a macrocyclic structure from AntTCNE, PyrTCNE, and PerTCNE. We found that despite a spatially hindered structure of PyrTCNE it easily forms a cyanoarylporphyrazine framework Pyr4CN4Pz as a result of template assembling of these molecules in the presence of bis(indenyl)ytterbium(II) (Scheme 2). This synthesis was carried out according to the procedures we reported previously [15,45]:
However, this synthesis does not apply to AntTCNE and PerTCNE. The less spatially hindered anthracene aromatic core substituted by tricyanoethylene fragments at position 9 seems to create greater spatial obstacles to the assembly of the macrocyclic framework than the pyrrole aromatic core, while the 5-fused rings of perylene core are presumably just too bulky for porphyrazine macrocycle assembling. The absorption (a) and fluorescence (b) spectra of new porphyrazine Pyr4CN4Pz are presented in Figure 7.

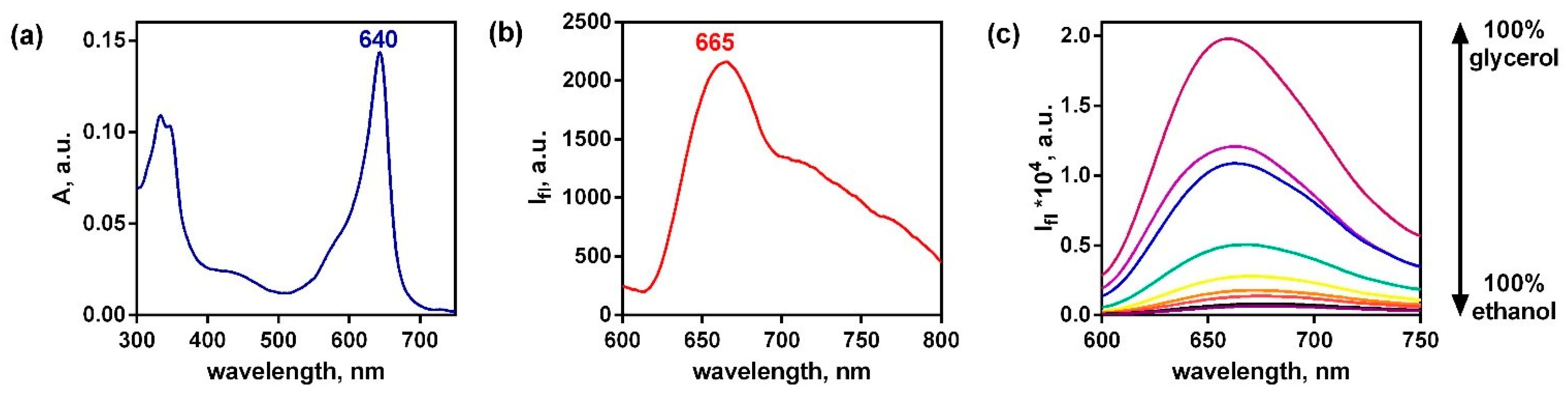

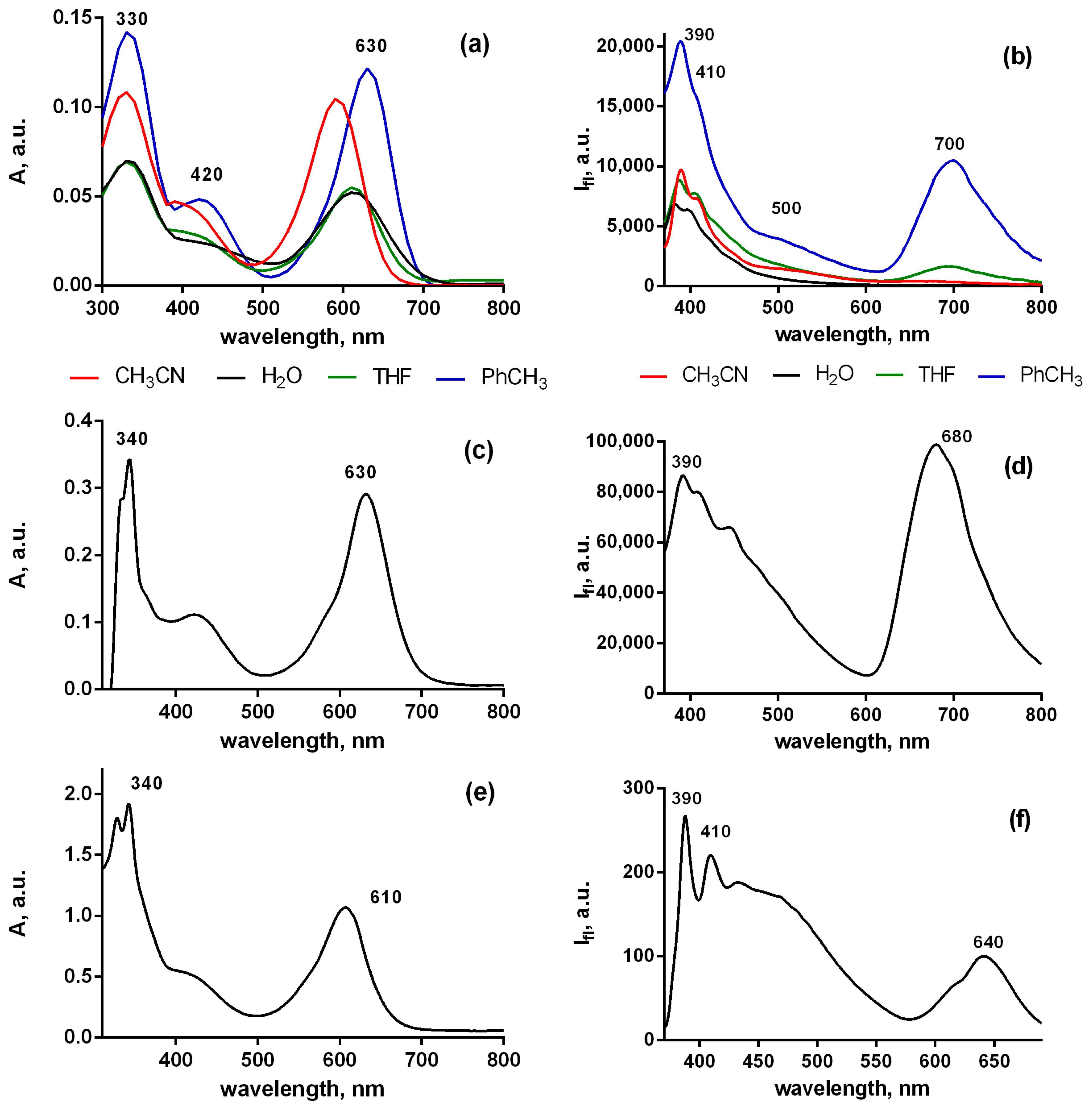

The absorption spectrum of Pyr4CN4Pz presented in Figure 7 is rather typical for tetrapyrrole macrocycles, but its maximum is strongly moved to the longer wavelength in comparison with cyanoarylporphyrazines with peripheral monocyclic aromatic groups [15]. The fluorescence spectrum is unusually broadened towards the long wavelengths which can be explained by the partial association of macrocyclic rings in water. This opens up new avenues to use Pyr4CN4Pz in biomedical optical devices, since it provides better transparency of the biological tissue for light irradiation. In addition, we found that Pyr4CN4Pz demonstrates excellent photodynamic activity which is much higher than that we established for cyanoarylporphyrazines with monocyclic aryl framing [8,10,15]. Exposure of pretreated cell culture to light irradiation at the dose of 20 J/cm2 induced cell death. The half-maximal inhibitory concentration (IC50) for Pyr4CN4Pz was 1.0 μM in light conditions and above 150 μM when incubated in the dark (Figure 8).

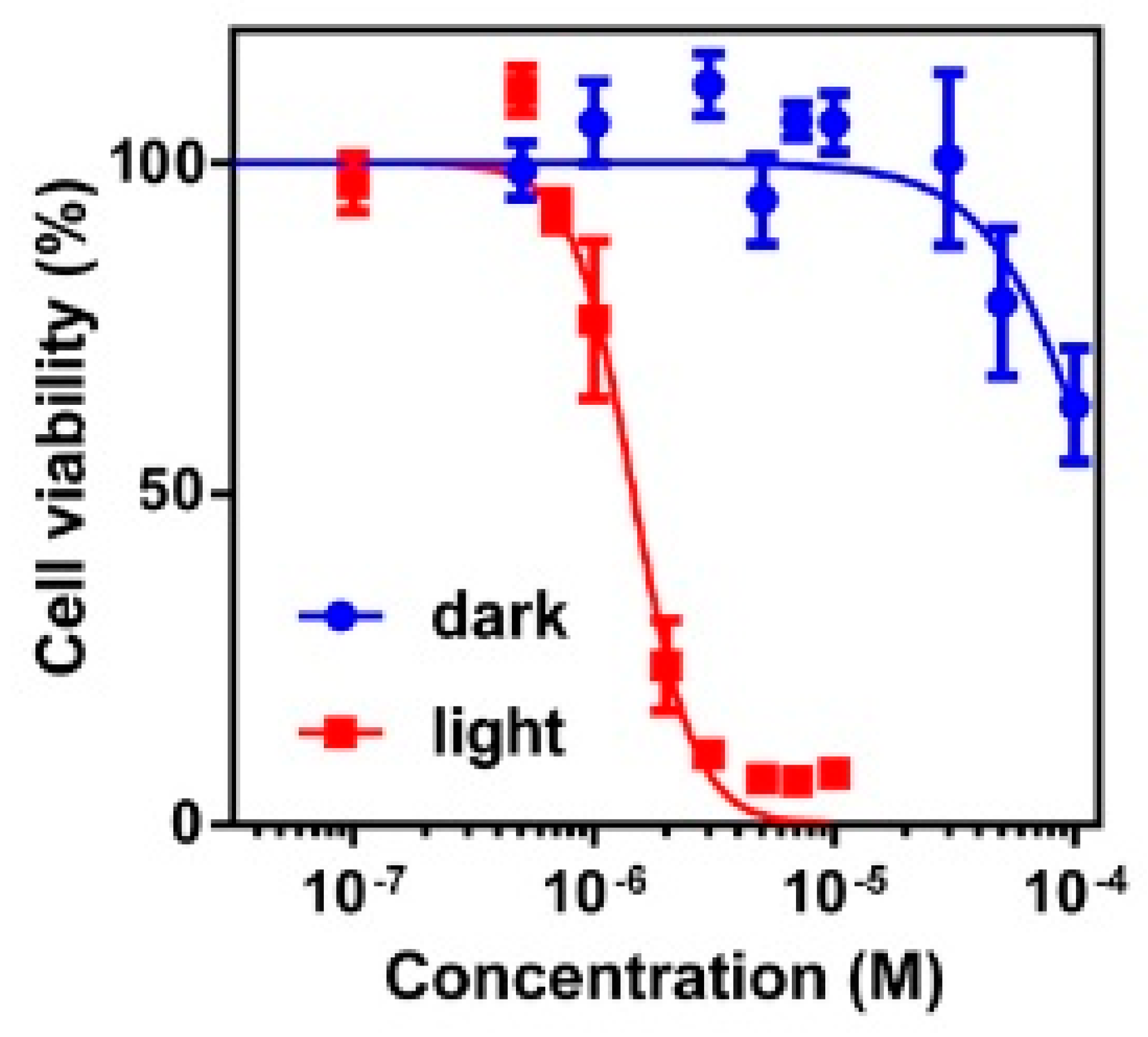

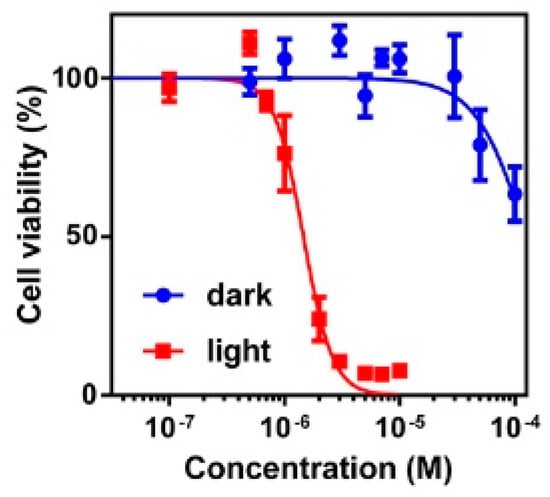

The ratio of IC50 in the dark and under light irradiation is rather high (~150). It means that this photosensitizer is very toxic for irradiated cancer cells and not harmful for healthy tissues which are not irradiated.
Light irradiation of Pyr4CN4Pz led to rapid degradation of singlet oxygen trap 1,3-diphenylisobenzofuran (DPBF) which supports the significant contribution of Photoreaction Type II in Pyr4CN4Pz phototoxicity. In a non-viscous DMSO solution (2 cP), the quantum yield of singlet oxygen generation was about 0.35 (Figure S9). However, as it was previously mentioned, the tested compound belongs to the fluorescent molecular rotors. The probability of formation of the particular states of porphyrazine molecule (excited singlet planar and excited singlet twisted, with one to four twisted groups, triplet planar and twisted) is strongly dependent on viscosity. In this regard, we expect an increase in the quantum yield of singlet oxygen generation in viscous environments (in particular, in cell membranes with a viscosity of about 800 cP) in which Pyr4CN4Pz is localized in the cell.
Despite the hindered aromatic framing of Pyr4CN4Pz similar to most cyanoporphyrazines, it retains a strong sensitivity of its fluorescent properties to the environmental viscosity due to the photoinduced intramolecular mobility of peripheral aromatic groups. [15]. It follows from the data in Figure 7c indicating a strong emission and viscosity increase. Therefore, Pyr4CN4Pz can be potentially used as an optical sensor of local viscosity.
Similar to ATCEs, Pyr4CN4Pz is found to be a typical anti-Kasha fluorephore. Below we present the absorption and fluorescence spectra of Pyr4CN4Pz in an environment of different polarity and rigidity.

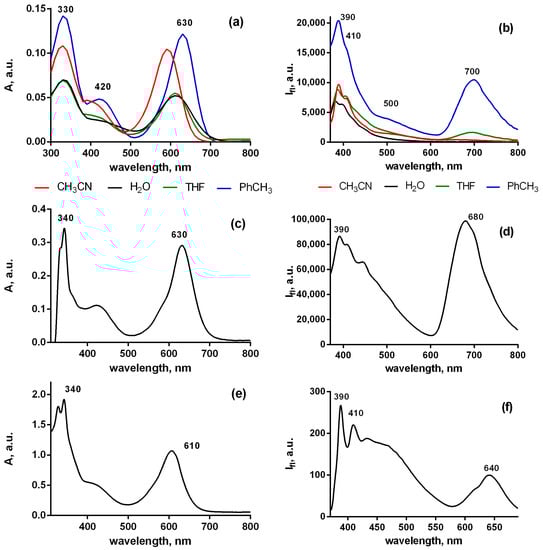

The fluorescence spectrum of Pyr4CN4Pz in toluene given below (Figure 9) is rather similar to that of PerTCNE (Figure 4). In a nonpolar medium, porphyrazine demonstrates spectrally and temporally resolved DE from the both lowest- and upper-lying states. Moreover, the intensity of emission from the lowest electronic state is very sensitive to local polarity. It drops with the environmental polarity increase. Such additional sensory capacity makes it possible to use rigidochromic Pyr4CN4Pz as a polarity sensor.
Moreover, in the media of various rigidity ranging from low-viscosity toluene to solid film of polycarbonatedimethacrylate (PCMA), the DE effect remains quite pronounced. However, the lowest wavelength emission maximum shifts significantly to shorter wavelengths in the media of high viscosity (Figure 9). Quantum yields of the PerTCN long-wavelength (LW) and short-wavelength (SW) DE emission of Pyr4CN4Pz in the different solvents are given in Table 3. Interestingly, the quantum yield ratio of long-wavelength (LW) and short-wavelength (SW) emissions strongly depends on solvent polarity and viscosity. We observed a strong anti-Kasha effect in a polar solvent with low viscosity. On the contrary, in a nonpolar solvent with high viscosity (castor oil), we observed a pronounced suppression of the anti-Kasha effect. But dual emission and a rather high fluorescence quantum yield at long wavelengths were found. Curiously, we observed an unexpectedly high quantum yield for the emissive S2 state (SW) relaxation at the upper-lying state in the aqueous medium (Table 3). This, presumably, means that in contrast to that at the low-lying state the AIE mechanism, significantly dominates here strengthening the anti-Kasha effect.
Interestingly, we detected high quantum yields of Pyr4CN4Pz in castor oil that is similar to cell membranes in terms of viscosity and polarity. We also observe a very strong DE effect in castor oil that is very promising for anticancer therapy monitoring through ratiometric evaluation of cell membrane polarity

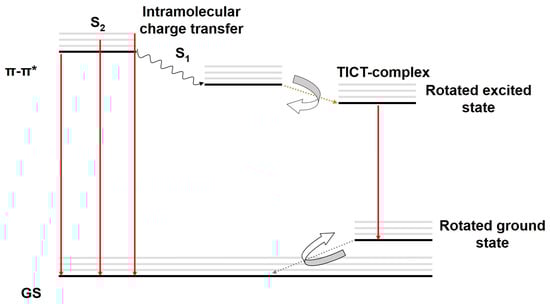

We proposed a new mechanism of DE for rigidochromic dyes such as Pyr4CN4Pz and PerTCNE in a non-polar low-viscosity medium based on the above spectral data (Figure 10).
Thus, we hypothesized a new photophysical mechanism of DE in our rigidochromic pigments: the rotated excited state resulting from the TICT can behave as a high-oscillator-strength (emissive) state while the S1 state is found to be a low-oscillator-strength (not emissive) state. A more rigid medium (such as castor oil and polymer film) strongly suppressed the TICT, but this effect does not disappear completely even in polymer film [37]. In this case, we observe a significantly reduced energy gap between the ground state and the rotated excited state compared to that in a nonpolar medium of low viscosity. This explains the hypsochromic shift of long-wavelength emission of Pyr4CN4Pz in the rigid environment. Nevertheless, the pronounced DE effect is also observed in the rigid media.

3. Materials and Methods

3.1. Reagents and Equipment

The reagents, for example, 9-anthracenecarboxaldehyde, 1-pyrenecarboxaldehyde, 3-perylenecarboxaldehyde, were used as received from Sigma-Aldrich or TCI without further purification. The 1H and 13C NMR spectra were recorded using a Brucker Avance DPX-200 spectrometer (200 MHz) and a Bruker Avance III 400 (100 MHz) respectively. All chemical shifts were referenced to the TMS lock signal. The UV–vis electron absorption spectra of the compounds were recorded using a Perkin Elmer Lambda 25 spectrometer. The IR spectra of the pigments in the form of mineral oil suspensions were recorded using an FSM 1201 spectrometer. Fluorescence was measured using a Synergy MX plate reader (BioTek, Winooski, VT, USA) in the range of 370–700 nm with excitation at a wavelength of 350 nm. Integration time at a single point—100 msec, slits width—9 nm, gain—100. The positive ion electron ionization mass spectra were measured using a PolarisQ/TraceGCUltra GC/MS spectrometer at 70 eV, at the temperature of ion source 230 °C, by heating the sample from 50 to 450 °C in the mass number range of 90–600.
The thermogravimetric analysis (TGA) and differential thermal analysis (DTA) were carried out using a DTG-60 H Simultaneous Thermogravimetric and Differential Thermal Analyzer (Shimadzu). PerTCNE powder (1 mg) was heated under flowing air at a heating rate of 5 °C per minute in the temperature range of 23–300 °C.

3.2. Powder X-ray Diffraction

The X-ray diffraction pattern was obtained using diffractometer Shimadzu Lab XRD-6000 (CuKα-filtered radiation, λ = 1.54178 Å) at 30 kV and 30 mA in the 2θ range of 10–50° at the rate of 4 degrees per minute.

3.3. Single Crystal X-ray Crystallography

The X-ray data for AntTCNE and PyrTCNE were collected using a Bruker D8 Quest diffractometer (MoKα-radiation, ω-scans technique, λ = 0.71073 Å, T = 298 K for AntTCNE and 100 K for PyrTCNE) using the APEX3 software package. The structures were solved via the intrinsic phasing algorithm and refined by full-matrix least squares against F2 using SHELX [37]. SADABS [36] was used to perform absorption corrections. All non-hydrogen atoms in AntTCNE and PyrTCNE were found from Fourier syntheses of electron density and refined anisotropically. All hydrogen atoms were placed in calculated positions and refined isotropically in the “riding” model with U(H)iso = 1.2 Ueq of their parent atoms. Both structures were refined as pseudo-merohedral twins with laws (1 0 0 0 −1 0 0 0 −1) for AntTCNE and (−1 0 0 0 −1 0 0.325 0 1) for PyrTCNE and resulting domain ratios 0.52/0.48 and 0.87/0.13, respectively.
The crystallographic data and structure refinement details are given in Supplementary Material. CCDC 2085342 (AntTCNE) and 2085343 (PyrTCNE) contain supplementary crystallographic data for this paper. These data are provided free of charge by The Cambridge Crystallographic Data Centre: ccdc.cam.ac.uk/structures (accessed on 20 November 2022). The corresponding CIF is also available as Supplementary Material.

3.4. Computational Details

The DFT calculations were performed using the Gaussian 09 software package [37] with the hybrid B3LYP functional [45,46] and aug-cc-DZVP basis set [46] for all atoms. The stationary points on the potential energy surfaces were located by full geometry optimization. The absence of imaginary frequencies suggests that the molecules are in the minimum of potential energy.

3.5. Synthetic Details

The general procedure for the synthesis of ArTCNE is reported in the literature [1] as shown in Scheme 1.

3.5.1. Synthesis of 1ac

Malononitrile (7.3 mmol), carboxaldehyde (7.3 mmol) and a few drops of piperidine were dissolved in 150 mL of ethanol. The reaction mixture was stirred for 24 h at room temperature. The resulting precipitate was collected by filtration, rinsed thoroughly with ice-cold 95% ethanol, and dried under vacuum to 2-(aryl)-1,1-dicyanoethylene (1ac).
2-(antracene-1-yl)-1,1-dicyanoethylene (1a). 78% yield. 1H NMR (200 MHz, CDCl3) δ (ppm): 8.95 (s, 1H), 8.65 (s, 1H), 8.10 (d, J = 8.92 Hz, 2H), 7.93 (d, J = 8.77 Hz, 2H), 7.72–7.54 (overlapped peaks, 4H). IR (KBr) (cm−1): 3055 (arC-H), 2230 (C≡N), 1622, 1578, 1551, 1520, 1486 (arC-C), 1561 (C=C).
2-(pyrene-1-yl)-1,1-dicyanoethylene (1b). 96% yield. 1H NMR (200 MHz, CDCl3) δ (ppm): 8.91 (s, 1H), 8.83 (d, J = 8.20 Hz, 1H), 8.39–8.10 (overlapped peaks, 8H). IR (KBr, cm−1): 3042 (arC-H), 2221 (C≡N), 1625, 1598, 1584, 1560, 1532, 1508, 1482 (arC-C, C=C). EI MS (70 eV): m/z (%) 278 (100) [(M)+].
2-(perylene-3-yl)-1,1-dicyanoethylene (1c). 74% yield. 1H NMR (200 MHz, CDCl3) δ (ppm): 8.50 (s, 1H), 8.36–8.24 (overlapped peaks, 5H), 7.87–7.79 (overlapped peaks, 3H), 7.71–7.57 (overlapped peaks, 3H). IR (KBr, cm−1): 3054 (arC-H), 2224 (C≡N), 1600, 1589, 1578, 1557, 1501 (arC-C, C=C). EI MS (70 eV): m/z (%) 328 (100) [(M)+].

3.5.2. Synthesis of 2ac

A solution of potassium cyanide (12.2 mmol) in cold water (50 mL) was added to 2-(aryl)-1,1-dicyanoethylene (6.1 mol) dissolved in ethanol (150 mL). Then, the reaction mixture was diluted with cold water (700 mL), stirred for 45 min at room temperature, and concentrated HCl was added (1.7 mL). After 15 min, the resulting mixture was refrigerated at 8 °C for 12 h. The precipitate was filtered off, carefully washed with water, and dried under vacuum to 2-(aryl)-1,1,2-tricyanoethane (2ac).
2-(antracene-1-yl)-1,1,2-tricyanoethane (2a). 74% yield. 1H NMR (200 MHz, CDCl3) δ (ppm): 8.69 (s, 1H), 8.27 (d, J = 6.94 Hz, 2H), 8.15 (d, J = 8.48 Hz, 2H), 7.80–7.57 (overlapped peaks, 4H), 6.02 (d, J = 10.75 Hz, 2H), 4.95 (d, J = 10.75 Hz, 2H). IR (KBr, cm−1): 3056 (arC-H), 2258, 2245 (C≡N), 1626, 1597, 1530, 1486 (arC-C), 1557 (C=C).
2-(pyrene-1-yl)-1,1,2-tricyanoethane (2b). 70% yield. 1H NMR (200 MHz, CDCl3) δ (ppm): 8.40–8.01 (overlapped peaks, 9H), 5.60 (d, J = 5.96 Hz, 1H), 4.48 (d, J = 5.85 Hz, 1H). IR (KBr, cm−1): 3044 (arC-H), 2253 (C≡N), 1604, 1587, 1570, 1561, 1536, 1527, 1525, 1510, 1501 (arC-C, C=C). EI MS (70 eV): m/z (%) 305 (10) [(M)+].
2-(perylene-3-yl)-1,1,2-tricyanoethane (2c). 71% yield. 1H NMR (200 MHz, DMSO) δ (ppm): 8.51 (t, J = 8.22 Hz, 2H), 8.46–8.43 (overlapped peaks, 2H), 8.13 (d, J = 8.53 Hz, 1H), 8.46–8.43 (overlapped peaks, 3H), 7.71 (t, J = 8.01 Hz, 1H), 7.61–7.56 (overlapped peaks, 2H), 6.27 (d, J = 6.58 Hz, 1H), 5.93 (d, J = 6.56 Hz, 1H). IR (KBr, cm−1): 2263 (C≡N), 1600, 1589, 1567, 1520, 1501 (arC-C, C=C). EI MS (70 eV): m/z (%) 355 (12) [(M)+].

3.5.3. Synthesis of AntTCNE, PyrTCNE, PerTCNE

Chlorosuccinimide (8 mmol) and 2-(aryl)-1,1,2-tricyanoethane (5.7 mmol) were dissolved in diethyl ether (100 mL). After 1 hour, 150 mL of water was added. The mixture was stirred until precipitation of a solid. The precipitate was filtered off and dried. The resulting product was chromatographically purified on a silica gel column eluting with THF to 2-(aryl)-1,1,2- tricyanoethene (ArTCNE).
2-(anthracene-1-yl)-1,1,2-tricyanoethene (AntTCNE). 65% yield. 1H NMR (200 MHz, CD3CN) δ (ppm): 8.85 (s, 1H), 8.18 (d, J = 8.13 Hz, 2H), 8.10 (d, J = 8.81 Hz, 2H), 7.78–7.62 (overlapped peaks, 4H). 13C NMR (100 MHz, CD3CN): 141.35, 133.52, 130.89, 129.55, 129.19, 126.44, 123.42, 120.03, 117.35, 113.96, 110.88, 110.06, 105.03. IR (KBr, cm−1): 3055 (arC-H), 2239 (C≡N), 1624, 1585, 1523, 1485 (arC-C), 1554 (C=C). EI MS (70 eV): m/z (%) 279 (100) [(M)+].
2-(pyrene-1-yl)-1,1,2-tricyanoethene (PyrTCNE). 92% yield. 1H NMR (200 MHz, DMSO) δ (ppm): 8.53–8.38 (overlapped peaks, 7H), 8.29 (d, J = 8.95 Hz, 1H), 8.21 (t, J = 7.67 Hz, 1H). 13C NMR (100 MHz, DMSO) δ (ppm): 140.58, 134.92, 131.28, 130.98, 130.91, 130.47, 128.96, 128.23, 128.15, 127.92, 127.58, 125.60, 124.07, 123.72, 123.41, 122.98, 115.39, 111.94. IR (KBr, cm−1): 3051 (arC-H), 2232 (C≡N), 1624, 1595, 1585, 1544, 1505, 1482 (arC-C, C=C). EI MS (70 eV): m/z (%) 303 (100) [(M)+].
2-(perylene-3-yl)-1,1,2-tricyanoethene (PerTCNE). 93% yield. 1H NMR (200 MHz, DMSO) δ (ppm): 8.48–8.37 (overlapped peaks, 4H), 8.00–7.96 (overlapped peaks, 2H), 7.89 (d, J = 8.12 Hz, 1H), 7.83 (d, J = 8.07 Hz, 1H), 7.75 (t, J = 8.12 Hz, 1H), 7.58–7.52 (overlapped peaks, 2H). 13C NMR (100 MHz, DMSO) δ (ppm): 139.49, 137.14, 134.28, 131.96, 131.67, 130.98, 130.92, 129.72, 129.56, 129.50, 129.15, 128.40, 127.63, 127.47, 125.81, 124.66, 123.99, 122.85, 122.60, 120.42, 115.12, 112.58, 111.95. IR (KBr, cm−1): 3054 (arC-H), 2234, 2224 (C≡N), 1599, 1589, 1567, 1545, 1535, 1520, 1498 (arC-C, C=C). EI MS (70 eV): m/z (%) 353 (100) [(M)+].

3.5.4. Synthesis of 3,8,13,18-Tetra(pyrene-1-yl)-2,7,12,17-Tetracyanoporphyrazine (Pyr4CN4Pz)

PyrTCNE (0.62 g, 2.05 mmol) in THF (10 mL) and bis(indenyl)ytterbium (0.25 g, 0.46 mmol) in THF (2 mL) were mixed in an inert atmosphere. After 24 h, the solution was filtered under vacuum. To remove the unreacted compound PyrTCNE and its complex with ytterbium, the obtained solution was washed with degassed toluene until discoloration. Pyr4CN4PzYb was dried under reduced pressure and isolated (0.34 g, 0.24 mmol) 54%.
Pyr4CN4PzYb (0.28 g, 0.20 mmol) was dissolved in trifluoroacetic acid (2 mL) and stirred at room temperature for 30 min. The resulting solution was poured onto ice/water (30 mL) and a dark-blue solid was precipitated. This residue was centrifuged and carefully washed with water until the supernatant gave a neutral reaction. The product was further purified by chromatography (Silica gel 60, 40–63 µm particle size, Sigma-Aldrich, THF eluent). The purification was repeated twice and gave isolated Pyr4CN4Pz as a dark blue solid (0.06 g, 0.05 mmol, 25% yield). 1H NMR (200 MHz, CD3CN) δ (ppm): 7.10 (s, 1H), 7.35 (s, 1H), 8.35–7.68 (overlapped peaks, 36H). 13C NMR (400 MHz, DMSO-d6) δ (ppm): 163.93, 163.36,163.34, 163.26, 136.14, 136.11, 133.84, 133.44, 132.26, 131.24, 131.06, 130.81, 130.48, 129.82, 129.65, 129.20, 129.13, 128.97, 127.85, 127.72, 127.55, 127.52, 127.19, 126.79, 126.65, 126.49, 126.35, 126.29, 125.54, 125.03, 124.30, 124.25, 124.19, 124.00, 123.92, 123.64, 122.86, 122.78, 122.01, 121.58, 120.21, 120.14, 118.67, 118.62, 118.26, 117.29, 117.18, 68.72, 67.49, 66.18, 65.81, 65.79. IR (KBr, cm−1): 3413 (N-H), 3045 (arC-H), 2201 (C≡N), 1762 (C=N), 1596, 1584, 1498, 1480 (Car=Car). Anal. calcd. for C84H38N12: C 83.02, N 13.83%. Found (EDAX): C 82.85, N 13.94%.

3.6. Cell lines and Culturing Conditions

A431 human epidermoid carcinoma cell line was used (All-Russian Collection of Cell Cultures, Institute of Cytology of the Russian Academy of Sciences, Saint-Petersburg, Russia). A-431 cells were cultured in DMEM (PanEco, Russia), containing 10% of fetal bovine serum (HyClone, USA) and 2 mM of L-glutamine (PanEco, Russia) in a 5% CO2 atmosphere at 37 °C. For passaging the cells were detached with 0.25% trypsin-EDTA (PanEco, Russia).

3.7. Study of Photodynamic Activity of Pyr4CN4Pz In Vitro

A431 cells were seeded in 96-well plates at a density of 4000 cells per well and were left to attach overnight (20 h). The medium was removed, and the cells were then incubated in the presence of Pyr4CN4Pz at different concentrations in a growth medium at 37 °C for 4 h in 5 % CO2. Then the cells were washed twice with PBS and the medium containing Pyr4CN4Pz was replaced by a growth medium. To estimate photoinduced toxicity, the cells were exposed to light irradiation (615–635 nm, 20 mW/cm2, 20 J/cm2) using a LED light source providing a homogeneous light distribution in 96-well plates [40]. Irradiated cells were then incubated for 24 h before cell viability was measured by the MTT assay. The growth medium was replaced with the solution of 3-(4,5-dimethyl-2-thiasolyl)-2,5-diphenyl-2H-tetrasole bromide (MTT reagent, Alfa Aesar, USA) in DMEM at final concentration 0.5 mg/mL and the cells were incubated for 4 h. The resulting formazan crystals were dissolved in DMSO, and the absorbance was measured at 540 nm with a Synergy MX plate reader (BioTeck, Winooski, VT, USA). The amount of formazan produced is assumed to be proportional to the number of living cells. Cell viability was measured as the ratio of the optical density of treated and untreated cells given in a percentage. The same procedure was applied for the estimation of dark toxicity of Pyr4CN4Pz, except that there was no exposure of cells to LED light. Since Pyr4CN4Pz, like the MTT dye, absorbs at a wavelength of 540 nm, we additionally evaluated the possible contribution of the optical density of porphyrazine to the results of the MTT assay (Table S5.).Experiments were performed and repeated at least three times. Data analysis and calculation of IC50 were performed using the GraphPad Prism 6 software.

3.8. Estimation of Singlet Oxygen Production by Pyr4CN4Pz

To establish the type of photoreactions caused by Pyr4CN4Pz, we measured the relative quantum yield of singlet oxygen generation using a chemical trap method. The solution of 200 μM 1,3-diphenylisobenzofuran (singlet oxygen trap, DPBF) and 5 μM Pyr4CN4Pz in dimethyl sulfoxide (DMSO) was irradiated with light at a dose of 0 to 100 J/cm2 using an LED light source (λex 615–635 nm, 20 mW/cm2) at room temperature. The absorbance of DPBF at a wavelength of 420 nm was measured using a Synergy MX plate reader. The quantum yield of singlet oxygen generation was calculated relative to the quantum yield of the Photodithazine (0.56) from the ratios of the rate constants of DPIBF photobleaching (S).

3.9. Electrochemistry Experiment

The reduction potentials were determined using the cyclic voltammetry method (CV) using a three-electrode cell (potentiostat “Elins P-45X”) in an argon atmosphere. The working electrode was a glassy carbon (GC) electrode (d = 2 mm), and the auxiliary electrode was a platinum wire. A reference electrode was Ag/AgCl/KCl(sat.) with a waterproof diaphragm. The potential sweep rate was 0.1 V s−1. The solvent was acetonitrile. The background electrolyte is 0.1 M (NBu4)ClO4 («Aldrich»), twice recrystallized from aqueous EtOH and dried under a vacuum. The concentration of tricyanoethylenes was 2 mM. After CV experiments equimolar amount of ferrocene was added to the cell and the electrochemical experiments were repeated. The values of E1/2 are given versus the E1/2 of the Fc+/Fc couple.

3.9.1. Irradiation of Solutions with Laser Diode at 405 nm

Irradiation of solutions was carried out using a 405 nm CW laser diode. Collimation lenses were used to expand the beam to 9 mm in diameter at a half-of-maximum intensity of the Gaussian profile at the cell point. During irradiation with a laser diode, the cell temperature was monitored using an Optris PI400 thermal imager. Laser diode power was measured with a Thorlabs power meter head S302C.

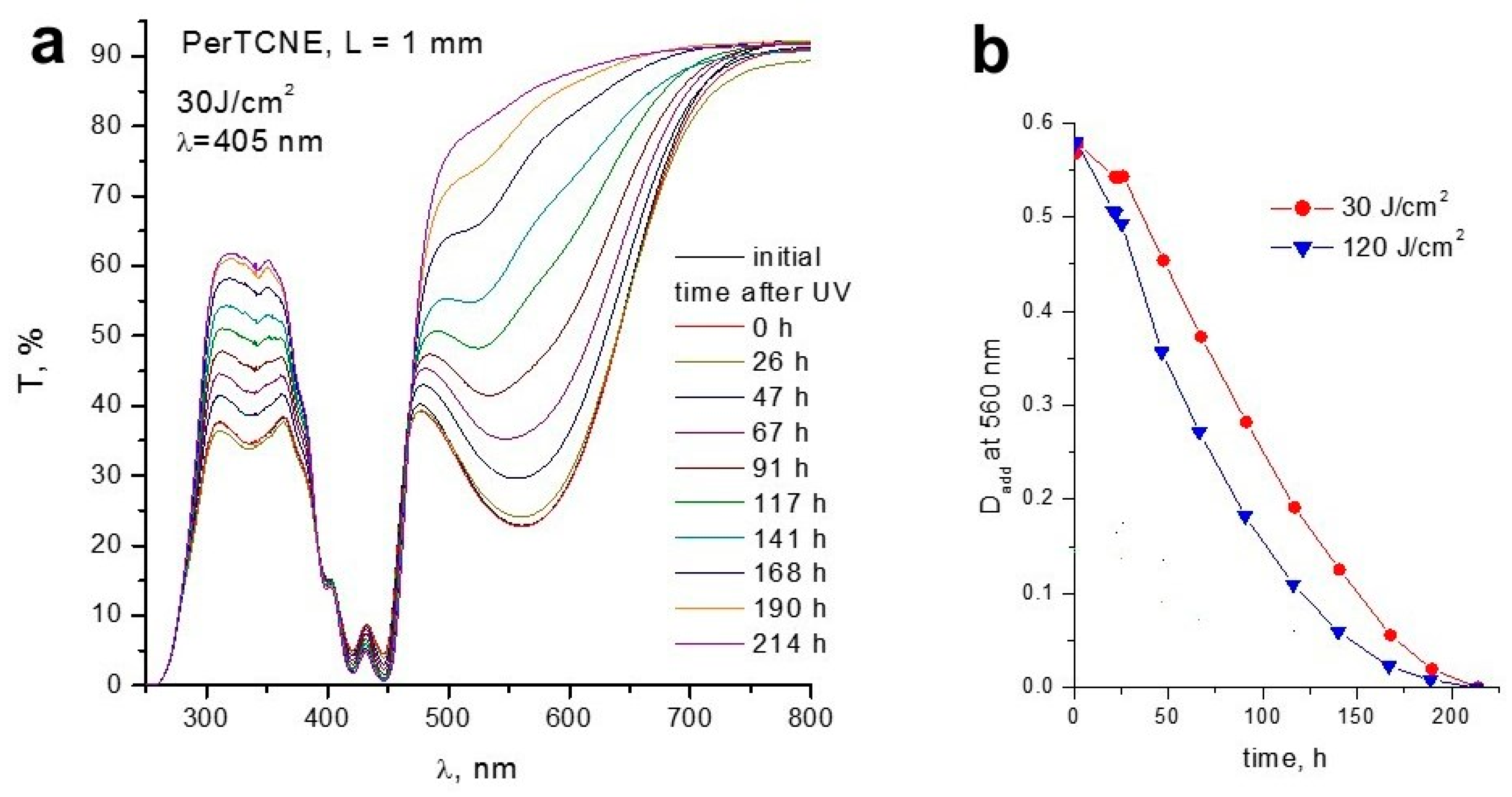

3.9.2. Measurement of the Temporal Dynamics of Changes in Absorption

We used cells 10 mm wide and 0.5 mm or 1 mm path length made of quartz for transmittance measurements of PerTCNE and PyrTCNE solutions. A Shimadzu UV-1800 spectrophotometer was applied to obtain spectra. The spectral range was 200–1100 nm with a spectral resolution close to 1 nm.

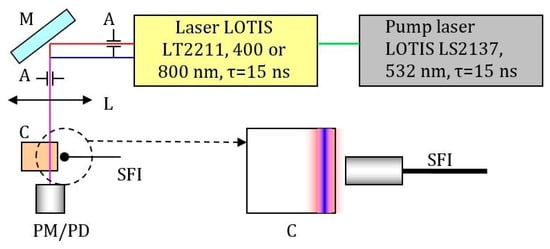

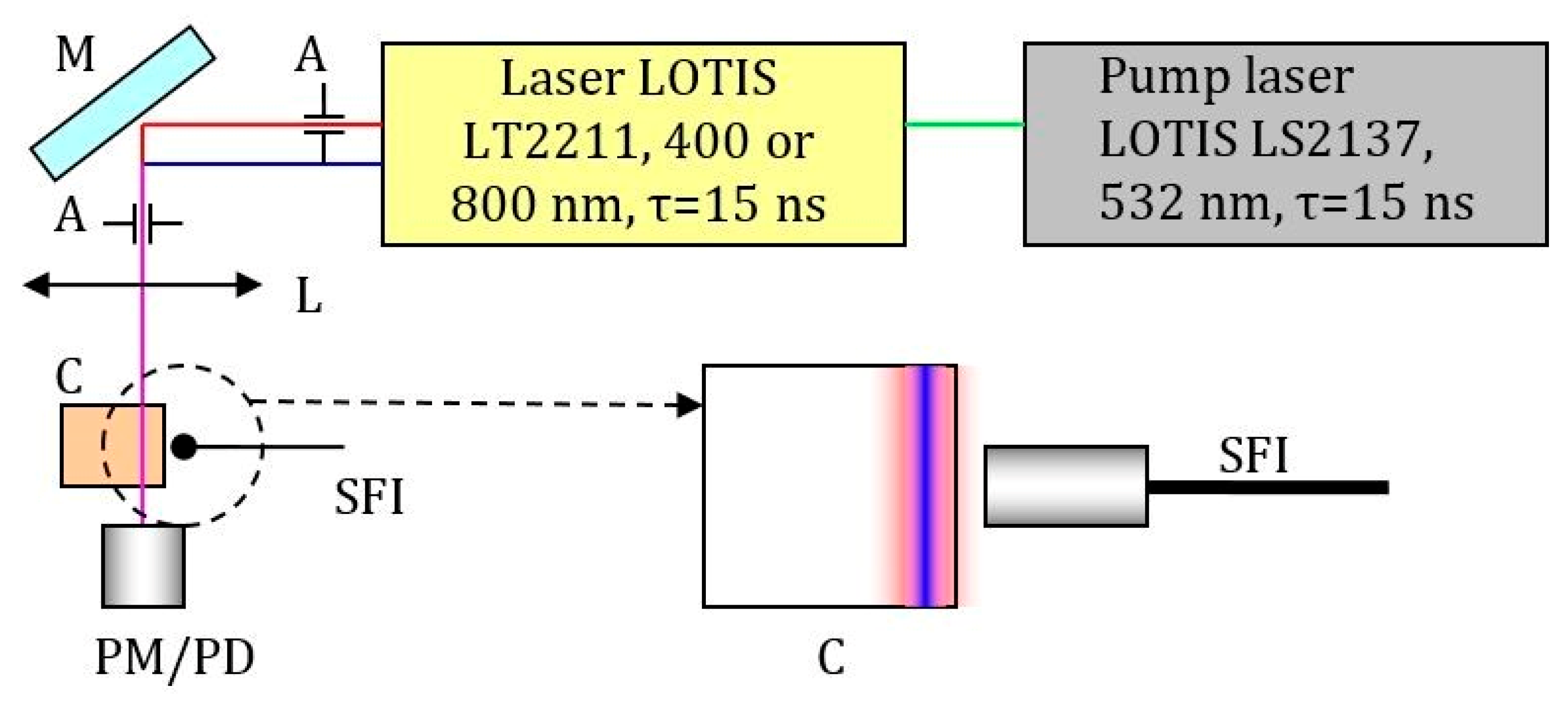

3.9.3. Setup for Two-Photon Absorption Measurement by Comparing the Fluorescence of Solutions

We used pulsed a Ti:Saphirre laser LOTIS LT2211 pumped by a master laser LOTIS LS2137 at a wavelength of 532 nm with 15 ns pulses at repetition rates of 1 to 10 Hz (Figure 11). Output laser beams were at wavelengths 400 or 800 nm. Mirror M was adjusted (moved to the corresponding fixed position) whenever the wavelength was changed. Two systems of apertures and collimation lenses were used to obtain the same configuration of beam profiles for two different wavelengths. The beam diameter for 400 nm radiation was 1.4 times smaller than that of the 800 nm beam due to the role of the second power of intensity for 800 nm radiation in the two-photon absorption process (under the assumption of the Gaussian beam profile). A Thorlabs power meter head S302C and A PM100D console were used for laser power measurements. A highly sensitive spectrometer Ocean Optics QE65Pro was used for spectral measurements (luminescence spectra). The spectral range of the spectrometer is 200 nm to 1000 nm. An Ocean Optics HL2000 calibration lamp was used in the spectrometer to ensure correct sensitivity in a wide spectral range.
To verify the result of the measurement of the two-photon absorption cross-section the same experimental setup configuration was used for the determination of the two-photon absorption cross-section for Rhodamine B (Lambda Physik). Rhodamine B was dissolved in methanol with concentrations of 2 mmol/L (for experiments at wavelength 810 nm) and 0.2 mmol/L (for experiments at wavelength 405 nm). Applied pulse energy at 810 nm changes in the range of 2–30 mJ. Starting from the level of pulse energy 4–5 mJ bright luminescence appears (visible with the naked eye) and is registered by the spectrometer. Comparing and recalculating signals from photodetectors and spectrometer we find a two-photon absorption cross-section for Rhodamine B 1.5 × 10-48 cm4*s/photon with accuracy about 30%. [47].

4. Conclusions

To summarize, we developed new anti-Kasha rigidochromic pigments including new cyanoarylporphyrazine Pyr4CN4Pz with four peripheral pyren-2-yl groups. It exhibits a unique combination of properties of the therapeutic agent (effective photosensitizer for PDT) with double-sensory capacity allowing the real-time control of the therapeutic process simultaneously with the cell membrane viscosity and polarity changes. The obtained pigments demonstrate the potential efficacy of modulating successive photophysical intramolecular events inducing pronounced dual emission (DE). This unique form of anti-Kasha effect is found to be controlled by the changes of environmental polarity that can be utilized for intracellular membrane polarity sensing during PDT. Previously, we established that cyanoarylporphyrazines demonstrate excellent anchorage towards the intracellular membrane (mainly, endoplasmic reticulum and Golgi apparatus) and high brightness [11]. A potential advantage of our new compound compared to the recently reported high-performance plasma membrane polarity [48] is the ratiometric method for estimating local polarity (i.e., by the ratio of long-wavelength and short-wavelength emission intensities, which depends on local polarity). This considerably simplifies polarity monitoring, since there is no need to use complex and expensive equipment for measuring the sensor fluorescence lifetime, which depends on plasma membrane polarity. Thus, we showed that cyanoarylporphyrazines are potent immunogenic death inducers that could be effectively applied in the photodynamic therapy of cancer [49].
We synthesized new small molecule non-fullerene acceptors based on the aromatic fused-ring hydrocarbons substituted with tricyanoethylene fragments and studied their photophysical, electrochemical, and structural properties. We found that electron affinity increases with a number of fused aromatic rings. In addition, we found that the bandgap of PerTCNE is significantly narrower (1.62 eV) than that of widely studied PDI and its derivatives. Thus, PerTCNE can be attributed to the medium-bandgap materials which now attract growing interest for application in PV cells that harvest indoor light for Internet-of-Things (IoT) power electronic devices.
Moreover, the reported compounds can be promising as the potential dipolarity-enhanced photoinitiators for UV and two-photon 3D polymerization and microfabrication. PerTCNE showed a high two-photon absorption cross-section which is close to that of the widely used photoinitiators for two-photon 3D polymerization.
And finally, we believe that combination of sensory and therapeutic capacities of the new pigments is very promising for multifunctional applications ranging from photonics and biophotonics to biomedicine.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24065818/s1. References [50,51,52] are cited in the supplementary materials.

Author Contributions

Conceptualization, L.G.K.; methodology, L.G.K.; software, G.K.F. and A.V.C.; validation, A.V.P., I.V.B. and G.K.F.; investigation, S.A.L., T.S.L., N.Y.S., M.V.A., A.V.A., E.Y.L. and A.V.Y.; resources, A.V.A. and I.V.B.; writing—original draft preparation, L.G.K.; writing—review and editing, N.Y.S., I.S.G. and A.V.P.; supervision, A.V.P.; project administration, A.V.P.; All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science and Higher Education of the Russian Federation: UNN “Priority 2030” Strategic Academic Leadership Program (Project No. H-417-99_2022-2023). Synthesis and characterization of new chromophores were performed as a part of the state assignment of the IOMC RAS. The SC XRD studies of AntTCNE and PyrTCNE were carried out using the equipment of the Analytical Centre of the IOMC RAS in G.A. Razuvaev Institute of Organometallic Chemistry RAS with the financial support of the grant “Ensuring the development of the material and technical infrastructure of the centers for collective use of scientific equipment” (Unique identifier RF----2296.61321X0017, Agreement Number 075-15-2021-670). The grant of the Ministry of Science and Higher Education of the Russian Federation as part of the state assignment of the IAP RAS, project No. 0035-2019-0012 is also acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data used to support the findings in this study are available from the corresponding author upon request.

Conflicts of Interest

The authors have no conflicts of interest to declare.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Harvey, M.D.; Pace, J.T.; Yee, G.T. A room temperature ferrimagnet, vanadium[pentafluorophenyltricyanoethylene]2. Polyhedron 2007, 26, 2037–2041. [Google Scholar] [CrossRef]
  2. Harvey, M.D.; Crawford, T.D.; Yee, G.T. Room-Temperature and Near-Room-Temperature Molecule-Based Magnets. Inorg. Chem. 2008, 47, 5649–5655. [Google Scholar] [CrossRef]
  3. Kaul, B.B.; Yee, G.T. Two new acceptor building blocks for ‘high Tc’ coordination polymer magnets. Inorg. Chim. Acta 2001, 326, 9–12. [Google Scholar] [CrossRef]
  4. Amshumali, M.K.; Harvey, M.D.; Yee, G.T. Room temperature and near-room temperature coordination polymer magnets. Synth. Met. 2014, 188, 53–56. [Google Scholar] [CrossRef]
  5. Klapshina, L.G.; Grigoryev, I.S.; Douglas, W.E.; Trifonov, A.A.; Gudilenkov, I.D.; Semenov, V.V.; Bushuk, B.A.; Bushuk, S.B. Metal template assembly of highly functionalized octacyanoporphyrazine framework from TCNE structural units. Chem. Commun. 2007, 1942–1944. [Google Scholar] [CrossRef] [PubMed]
  6. Klapshina, L.G.; Douglas, W.E.; Grigoryev, I.S.; Korytin, A.I.; Lavrentiev, S.A.; Lopatin, M.A.; Lukyanov, A.Y.; Semenov, V.V.; Gerbier, P.; Treushnikov, V.M. Novel metal-template assembled highly-functionalized cyanoporphyrazine ytterbium and vanadium complexes for potential photonic and optoelectronic applications. J. Mater. Chem. 2009, 19, 3668–3676. [Google Scholar] [CrossRef]
  7. Klapshina, L.G.; Douglas, W.E.; Grigoryev, I.S.; Ladilina, E.Y.; Shirmanova, M.V.; Mysyagin, S.A.; Balalaeva, I.V.; Zagaynova, E.V. Novel PEG-organized biocompatible fluorescent nanoparticles doped with an ytterbium cyanoporphyrazine complex for biophotonic applications. Chem. Commun. 2010, 46, 8398–8400. [Google Scholar] [CrossRef] [PubMed]
  8. Shilyagina, N.Y.; Peskova, N.N.; Lermontova, S.A.; Brilkina, A.A.; Vodeneev, V.A.; Yakimansky, A.V.; Klapshina, L.G.; Balalaeva, I.V. Effective delivery of porphyrazine photosensitizers to cancer cells by polymer brush nanocontainers. J. Biophotonics 2017, 10, 1189–1197. [Google Scholar] [CrossRef] [PubMed]
  9. Mishchenko, T.A.; Turubanova, V.D.; Mitroshina, E.V.; Alzeibak, R.; Peskova, N.N.; Lermontova, S.A.; Klapshina, L.G.; Balalaeva, I.V.; Vedunova, M.V.; Krysko, D.V. Effect of novel porphyrazine photosensitizers on normal and tumor brain cells. J. Biophotonics 2020, 13, e201960077. [Google Scholar] [CrossRef] [PubMed]
  10. Yuzhakova, D.V.; Lermontova, S.A.; Grigoryev, I.S.; Muravieva, M.S.; Gavrina, A.I.; Shirmanova, M.V.; Balalaeva, I.V.; Klapshina, L.G.; Zagaynova, E.V. In vivo multimodal tumor imaging and photodynamic therapy with novel theranostic agents based on the porphyrazine framework-chelated gadolinium (III) cation. Biochim. Biophys. Acta Gen. Subj. 2017, 1861, 3120–3130. [Google Scholar] [CrossRef]
  11. Lermontova, S.; Grigoryev, I.; Peskova, N.; Ladilina, E.; Lyubova, T.; Plekhanov, V.; Grishin, I.; Balalaeva, I.; Klapshina, L. Cyano-Aryl Porphyrazine Pigments with Polycyclic Substituents as the Promising Agents for Photodynamic Therapy and Potential Sensors of Local Viscosity. Macroheterocycles 2019, 12, 268–275. [Google Scholar] [CrossRef]
  12. Shirmanova, M.V.; Balalaeva, I.V.; Lekanova, N.; Mysiagin, S.A.; Brilkina, A.A.; Klapshina, L.G.; Zagaĭnova, E.V. Development of a new photosensitizer on the basis of ytterbium porphyrazine complex. Biofizika 2011, 56, 1117–1124. [Google Scholar]
  13. Kuimova, M.K.; Botchway, S.W.; Parker, A.W.; Balaz, M.; Collins, H.A.; Anderson, H.L.; Suhling, K.; Ogilby, P.R. Imaging intracellular viscosity of a single cell during photoinduced cell death. Nat. Chem. 2009, 1, 69–73. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Shimolina, L.E.; Izquierdo, M.A.; López-Duarte, I.; Bull, J.A.; Shirmanova, M.V.; Klapshina, L.G.; Zagaynova, E.V.; Kuimova, M.K. Imaging tumor microscopic viscosity in vivo using molecular rotors. Sci. Rep. 2017, 7, 41097. [Google Scholar] [CrossRef] [Green Version]
  15. Izquierdo, M.A.; Vyšniauskas, A.; Lermontova, S.A.; Grigoryev, I.S.; Shilyagina, N.Y.; Balalaeva, I.V.; Klapshina, L.G.; Kuimova, M.K. Dual use of porphyrazines as sensitizers and viscosity markers in photodynamic therapy. J. Mater. Chem. B 2015, 3, 1089–1096. [Google Scholar] [CrossRef]
  16. Figueira-Duarte, T.M.; Müllen, K. Pyrene-Based Materials for Organic Electronics. Chem. Rev. 2011, 111, 7260–7314. [Google Scholar] [CrossRef]
  17. Türkmen, G.; Erten-Ela, S.; Icli, S. Highly soluble perylene dyes: Synthesis, photophysical and electrochemical characterizations. Dye. Pigment. 2009, 83, 297–303. [Google Scholar] [CrossRef]
  18. Zhang, F.; Ma, Y.; Chi, Y.; Yu, H.; Li, Y.; Jiang, T.; Wei, X.; Shi, J. Self-assembly, optical and electrical properties of perylene diimide dyes bearing unsymmetrical substituents at bay position. Sci. Rep. 2018, 8, 8208. [Google Scholar] [CrossRef]
  19. Sharma, G.D.; Suresh, P.; Mikroyannidis, J.A.; Stylianakis, M.M. Efficient bulk heterojunction devices based on phenylenevinylene small molecule and perylene–pyrene bisimide. J. Mater. Chem. 2010, 20, 561–567. [Google Scholar] [CrossRef]
  20. Li, H.; Earmme, T.; Subramaniyan, S.; Jenekhe, S.A. Bis(Naphthalene Imide)diphenylanthrazolines: A New Class of Electron Acceptors for Efficient Nonfullerene Organic Solar Cells and Applicable to Multiple Donor Polymers. Adv. Energy Mater. 2015, 5, 1402041. [Google Scholar] [CrossRef]
  21. Rao, P.S.; More, V.G.; Jangale, A.D.; Bhosale, S.V.; Bhosale, R.S.; Puyad, A.L.; Chen, J.-Y.; Li, J.-L.; Bhosale, S.V.; Gupta, A.; et al. A series of V-shaped small molecule non-fullerene electron acceptors for efficient bulk-heterojunction devices. Dye. Pigment. 2019, 171, 107677. [Google Scholar] [CrossRef]
  22. Cheng, P.; Li, G.; Zhan, X.; Yang, Y. Next-generation organic photovoltaics based on non-fullerene acceptors. Nat. Photonics 2018, 12, 131–142. [Google Scholar] [CrossRef]
  23. Sisto, T.J.; Zhong, Y.; Zhang, B.; Trinh, M.T.; Miyata, K.; Zhong, X.; Zhu, X.Y.; Steigerwald, M.L.; Ng, F.; Nuckolls, C. Long, Atomically Precise Donor–Acceptor Cove-Edge Nanoribbons as Electron Acceptors. J. Am. Chem. Soc. 2017, 139, 5648–5651. [Google Scholar] [CrossRef] [PubMed]
  24. Liu, Y.; Mu, C.; Jiang, K.; Zhao, J.; Li, Y.; Zhang, L.; Li, Z.; Lai, J.Y.L.; Hu, H.; Ma, T.; et al. A Tetraphenylethylene Core-Based 3D Structure Small Molecular Acceptor Enabling Efficient Non-Fullerene Organic Solar Cells. Adv. Mater. 2015, 27, 1015–1020. [Google Scholar] [CrossRef] [PubMed]
  25. Duan, Y.; Xu, X.; Yan, H.; Wu, W.; Li, Z.; Peng, Q. Pronounced Effects of a Triazine Core on Photovoltaic Performance–Efficient Organic Solar Cells Enabled by a PDI Trimer-Based Small Molecular Acceptor. Adv. Mater. 2017, 29, 1605115. [Google Scholar] [CrossRef]
  26. Feng, L.; Yuan, J.; Zhang, Z.; Peng, H.; Zhang, Z.-G.; Xu, S.; Liu, Y.; Li, Y.; Zou, Y. Thieno[3,2-b]pyrrolo-Fused Pentacyclic Benzotriazole-Based Acceptor for Efficient Organic Photovoltaics. ACS Appl. Mater. Interfaces 2017, 9, 31985–31992. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, J.; Zhang, J.; Xiao, Y.; Xiao, T.; Zhu, R.; Yan, C.; Fu, Y.; Lu, G.; Lu, X.; Marder, S.R.; et al. Effect of Isomerization on High-Performance Nonfullerene Electron Acceptors. J. Am. Chem. Soc. 2018, 140, 9140–9147. [Google Scholar] [CrossRef]
  28. Yuan, J.; Zhang, Y.; Zhou, L.; Zhang, G.; Yip, H.-L.; Lau, T.-K.; Lu, X.; Zhu, C.; Peng, H.; Johnson, P.A.; et al. Single-Junction Organic Solar Cell with over 15% Efficiency Using Fused-Ring Acceptor with Electron-Deficient Core. Joule 2019, 3, 1140–1151. [Google Scholar] [CrossRef]
  29. Weng, K.; Ye, L.; Zhu, L.; Xu, J.; Zhou, J.; Feng, X.; Lu, G.; Tan, S.; Liu, F.; Sun, Y. Optimized active layer morphology toward efficient and polymer batch insensitive organic solar cells. Nat. Commun. 2020, 11, 2855. [Google Scholar] [CrossRef]
  30. Hin Lee, H.K.; Barbé, J.; Tsoi, W.C. Chapter Ten—Organic and perovskite photovoltaics for indoor applications. In Solar Cells and Light Management; Enrichi, F., Righini, G.C., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 355–388. [Google Scholar] [CrossRef]
  31. Matiko, J.W.; Grabham, N.J.; Beeby, S.P.; Tudor, M.J. Review of the application of energy harvesting in buildings. Meas. Sci. Technol. 2014, 25, 012002. [Google Scholar] [CrossRef]
  32. Arai, R.; Furukawa, S.; Hidaka, Y.; Komiyama, H.; Yasuda, T. High-Performance Organic Energy-Harvesting Devices and Modules for Self-Sustainable Power Generation under Ambient Indoor Lighting Environments. ACS Appl. Mater. Interfaces 2019, 11, 9259–9264. [Google Scholar] [CrossRef] [PubMed]
  33. Whitby, R.; Ben-Tal, Y.; MacMillan, R.; Janssens, S.; Raymond, S.; Clarke, D.; Jin, J.; Kay, A.; Simpson, M.C. Photoinitiators for two-photon polymerisation: Effect of branching and viscosity on polymerisation thresholds. RSC Adv. 2017, 7, 13232–13239. [Google Scholar] [CrossRef] [Green Version]
  34. Jhun, B.H.; Jeong, D.Y.; Nah, S.; Park, S.Y.; You, Y. Novel anti-Kasha fluorophores exhibiting dual emission with thermally activated delayed fluorescence through detouring triplet manifolds. J. Mater. Chem. C 2021, 9, 7083–7093. [Google Scholar] [CrossRef]
  35. Zhang, Z.; Chen, Y.-A.; Hung, W.-Y.; Tang, W.-F.; Hsu, Y.-H.; Chen, C.-L.; Meng, F.-Y.; Chou, P.-T. Control of the Reversibility of Excited-State Intramolecular Proton Transfer (ESIPT) Reaction: Host-Polarity Tuning White Organic Light Emitting Diode on a New Thiazolo[5,4-d]thiazole ESIPT System. Chem. Mater. 2016, 28, 8815–8824. [Google Scholar] [CrossRef]
  36. Yang, Q.Y.; Lehn, J.M. Bright white-light emission from a single organic compound in the solid state. Angew. Chem. Int. Ed. Engl. 2014, 53, 4572–4577. [Google Scholar] [CrossRef]
  37. Husband, J.T.; Xie, Y.; Wilks, T.R.; Male, L.; Torrent-Sucarrat, M.; Stavros, V.G.; O’Reilly, R.K. Rigidochromism by imide functionalisation of an aminomaleimide fluorophore. Chem. Sci. 2021, 12, 10550–10557. [Google Scholar] [CrossRef]
  38. Piskorz, J.; Lijewski, S.; Gierszewski, M.; Gorniak, K.; Sobotta, L.; Wicher, B.; Tykarska, E.; Düzgüneş, N.; Konopka, K.; Sikorski, M.; et al. Sulfanyl porphyrazines: Molecular barrel-like self-assembly in crystals, optical properties and in vitro photodynamic activity towards cancer cells. Dye. Pigment. 2017, 136, 898–908. [Google Scholar] [CrossRef]
  39. Wang, H.; Li, M.; Liu, Y.; Song, J.; Li, C.; Bo, Z. Perylene diimide based star-shaped small molecular acceptors for high efficiency organic solar cells. J. Mater. Chem. C 2019, 7, 819–825. [Google Scholar] [CrossRef]
  40. Qian, H.; Cousins, M.E.; Horak, E.H.; Wakefield, A.; Liptak, M.D.; Aprahamian, I. Suppression of Kasha’s rule as a mechanism for fluorescent molecular rotors and aggregation-induced emission. Nat. Chem. 2017, 9, 83–87. [Google Scholar] [CrossRef]
  41. Wieczorek, E.; Mlynarczyk, D.T.; Kucinska, M.; Dlugaszewska, J.; Piskorz, J.; Popenda, L.; Szczolko, W.; Jurga, S.; Murias, M.; Mielcarek, J.; et al. Photophysical properties and photocytotoxicity of free and liposome-entrapped diazepinoporphyrazines on LNCaP cells under normoxic and hypoxic conditions. Eur. J. Med. Chem. 2018, 150, 64–73. [Google Scholar] [CrossRef]
  42. Kunnil, J.; Sarasanandarajah, S.; Chacko, E.; Reinisch, L. Fluorescence quantum efficiency of dry Bacillus globigii spores. Opt. Express 2005, 13, 8969–8979. [Google Scholar] [CrossRef]
  43. Barry, N.P.E.; Therrien, B. Chapter 13—Pyrene: The Guest of Honor. In Organic Nanoreactors; Sadjadi, S., Ed.; Academic Press: Boston, MA, USA, 2016; pp. 421–461. [Google Scholar] [CrossRef]
  44. Günes, S.; Neugebauer, H.; Sariciftci, N.S. Conjugated Polymer-Based Organic Solar Cells. Chem. Rev. 2007, 107, 1324–1338. [Google Scholar] [CrossRef] [PubMed]
  45. Matin, M.; Islam, M.; Bredow, T.; Aziz, M. The Effects of Oxidation States, Spin States and Solvents on Molecular Structure, Stability and Spectroscopic Properties of Fe-Catechol Complexes: A Theoretical Study. Adv. Chem. Eng. Sci. 2017, 07, 137–153. [Google Scholar] [CrossRef] [Green Version]
  46. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. Comparison of silver and molybdenum microfocus X-ray sources for single-crystal structure determination. J. Appl. Crystallogr. 2015, 48, 3–10. [Google Scholar] [CrossRef] [Green Version]
  47. Xu, C.; Webb, W.W. Measurement of two-photon excitation cross sections of molecular fluorophores with data from 690 to 1050 nm. J. Opt. Soc. Am. B 1996, 13, 481–491. [Google Scholar] [CrossRef]
  48. Wu, S.; Yan, Y.; Hou, H.; Huang, Z.; Li, D.; Zhang, X.; Xiao, Y. Polarity-sensitive and membrane-specific probe quantitatively monitoring ferroptosis through fluorescence lifetime imaging. Anal. Chem. 2022, 94, 11238–11247. [Google Scholar] [CrossRef] [PubMed]
  49. Turubanova, V.D.; Mishchenko, T.A.; Balalaeva, I.V.; Efimova, I.; Peskova, N.N.; Klapshina, L.G.; Lermontova, S.A.; Bachert, C.; Krysko, O.; Vedunova, M.V.; et al. Novel porphyrazine-based photodynamic anti-cancer therapy induces immunogenic cell death. Sci. Rep. 2021, 11, 7205. [Google Scholar] [CrossRef]
  50. Bagrov, I.V.; Dadeko, A.; Kiselev, V.M.; Muravieva, T.D.; Starodubtsev, A.M. Comparative studies of the photophysical properties of dimegin, photoditazine and radachlorin. J. Tech. Phys. 2019, 126, 162. [Google Scholar]
  51. Kulinich, A.V.; Ishchenko, A.A.; Bondarev, S.L.; Knyukshto, V.N. Effect of donor and acceptor end-groups on electronic structure and spectral-fluorescent properties of merocyanines in frozen ethanol. J. Photochem. Photobiol. A Chem. 2021, 405, 112932. [Google Scholar] [CrossRef]
  52. Lakowicz, J.R. Principiles of Fluorescence Spectroscopy; Springer: Berlin/Heidelberg, Germany, 1999. [Google Scholar]
Figure 1. Chemical structures of novel ATCEs: 2-(anthracen-9-yl)ethene-1,1,2-tricarbonitrile (AntTCNE), 2-(pyren-1-yl)ethene-1,1,2-tricarbonitrile (PyrTCNE) and 2-(perylen-3-yl)ethene-1,1,2-tricarbonitrile (PerTCNE).
Figure 1. Chemical structures of novel ATCEs: 2-(anthracen-9-yl)ethene-1,1,2-tricarbonitrile (AntTCNE), 2-(pyren-1-yl)ethene-1,1,2-tricarbonitrile (PyrTCNE) and 2-(perylen-3-yl)ethene-1,1,2-tricarbonitrile (PerTCNE).
Ijms 24 05818 g001
Scheme 1. Synthesis compound ArTCNE. (a) malonodinitrile, piperidine EtOH, 24 h, RT. (b) KCN, H2O, EtOH, 45 min, RT, HCl. (c) chlorosuccinimide, Et2O.
Scheme 1. Synthesis compound ArTCNE. (a) malonodinitrile, piperidine EtOH, 24 h, RT. (b) KCN, H2O, EtOH, 45 min, RT, HCl. (c) chlorosuccinimide, Et2O.
Ijms 24 05818 sch001
Figure 2. Molecular structures of AntTCNE (left) and PyrTCNE (right). Thermal ellipsoids are drawn at probability levels of 10% (AntTCNE, T = 298 K) and 30% (PyrTCNE, T = 100 K). Hydrogen atoms are omitted for clarity.
Figure 2. Molecular structures of AntTCNE (left) and PyrTCNE (right). Thermal ellipsoids are drawn at probability levels of 10% (AntTCNE, T = 298 K) and 30% (PyrTCNE, T = 100 K). Hydrogen atoms are omitted for clarity.
Ijms 24 05818 g002
Figure 3. Normalized UV-vis absorption spectra in acetonitrile (10−3 mol/L) of ATCEs (a) and energy level diagrams calculated from cyclic voltammetry data (b).
Figure 3. Normalized UV-vis absorption spectra in acetonitrile (10−3 mol/L) of ATCEs (a) and energy level diagrams calculated from cyclic voltammetry data (b).
Ijms 24 05818 g003
Figure 4. Emission spectra of AntTCNE, PyrTCNE, and PerTCNE in the different solvent (10−6 mol/L), λex = 350 nm. Molar extinction coefficients for AntTCNE, PyrTCNE and PerTCNE are presented in Table S3.
Figure 4. Emission spectra of AntTCNE, PyrTCNE, and PerTCNE in the different solvent (10−6 mol/L), λex = 350 nm. Molar extinction coefficients for AntTCNE, PyrTCNE and PerTCNE are presented in Table S3.
Ijms 24 05818 g004
Figure 5. Fluorescence spectra of AntTCNE, PyrTCNE, and PerTCNE normalized by intensity of emission from upper-lying electronic state in toluene, λex = 400 nm (on the left), λex = 350 nm (on the right), 10−6 mol/L.
Figure 5. Fluorescence spectra of AntTCNE, PyrTCNE, and PerTCNE normalized by intensity of emission from upper-lying electronic state in toluene, λex = 400 nm (on the left), λex = 350 nm (on the right), 10−6 mol/L.
Ijms 24 05818 g005
Figure 6. (a) Dynamics of light transmission changes after 20 min radiation of the PerTCNE solution in DMSO (10−3 mol/L) with laser diodes (30 J/cm2); (b) Dynamics of changes in the optical density at a fixed wavelength (560 nm) for PerTCNE upon irradiation with doses of 30 and 120 J/cm2 (120 J/cm2) at 405 nm, beam diameter 9 mm, “square“ (1 × 1 cm) cell filling, cell thickness 1 mm. The details of optical density calculation are shown in Supplementary Data (Table S5).
Figure 6. (a) Dynamics of light transmission changes after 20 min radiation of the PerTCNE solution in DMSO (10−3 mol/L) with laser diodes (30 J/cm2); (b) Dynamics of changes in the optical density at a fixed wavelength (560 nm) for PerTCNE upon irradiation with doses of 30 and 120 J/cm2 (120 J/cm2) at 405 nm, beam diameter 9 mm, “square“ (1 × 1 cm) cell filling, cell thickness 1 mm. The details of optical density calculation are shown in Supplementary Data (Table S5).
Ijms 24 05818 g006
Scheme 2. Synthesis of porphyrazine Pyr4CN4Pz. (a) bis-indenyl ytterbium, THF, 24 h, vacuum, RT (b) trifluoroacetic acid, 30 min, RT.
Scheme 2. Synthesis of porphyrazine Pyr4CN4Pz. (a) bis-indenyl ytterbium, THF, 24 h, vacuum, RT (b) trifluoroacetic acid, 30 min, RT.
Ijms 24 05818 sch002
Figure 7. Absorption (a), fluorescence (b) spectra of Pyr4CN4Pz (λex = 580 nm) in water (5 × 10−6 mol/L). Emission of Pyr4CN4Pz (10−6 mol/L) in the mixtures of ethanol and glycerol (c).
Figure 7. Absorption (a), fluorescence (b) spectra of Pyr4CN4Pz (λex = 580 nm) in water (5 × 10−6 mol/L). Emission of Pyr4CN4Pz (10−6 mol/L) in the mixtures of ethanol and glycerol (c).
Ijms 24 05818 g007
Figure 8. Dark and photoinduced cytotoxicity of Pyr4CN4Pz towards A431 cell line as a function of photodynamic therapy (PDT) therapy sensitizer concentration. The cells were incubated with porphyrazines for 4 h and were exposed to wavelengths of 615–635 nm, at the irradiation doses of 20 J/cm2 at the power density of 20 mW/cm2. For dark cytotoxicity assessment, the plate was kept without irradiation. The error bars denote one standard deviation from a minimum of 3 replicates.
Figure 8. Dark and photoinduced cytotoxicity of Pyr4CN4Pz towards A431 cell line as a function of photodynamic therapy (PDT) therapy sensitizer concentration. The cells were incubated with porphyrazines for 4 h and were exposed to wavelengths of 615–635 nm, at the irradiation doses of 20 J/cm2 at the power density of 20 mW/cm2. For dark cytotoxicity assessment, the plate was kept without irradiation. The error bars denote one standard deviation from a minimum of 3 replicates.
Ijms 24 05818 g008
Figure 9. Spectra of absorption (a,c,e) and fluorescence (b,d,f) of Pyr4CN4Pz (10−6 mol/L) in the environment of different rigidity low viscosity solvents with different polarity (a,b)—castor oil (c,d)—solid film (e,f), λex = 350 nm.
Figure 9. Spectra of absorption (a,c,e) and fluorescence (b,d,f) of Pyr4CN4Pz (10−6 mol/L) in the environment of different rigidity low viscosity solvents with different polarity (a,b)—castor oil (c,d)—solid film (e,f), λex = 350 nm.
Ijms 24 05818 g009
Figure 10. Jablonski diagram demonstrating the proposed photophysical mechanism of DE for Pyr4CN4Pz and PerTCNE in a non-polar low viscosity medium. GS—ground state, π-π*—high-lying transition state. ICT—intramolecular charge transfer, TICT—twisted intramolecular charge transfer.
Figure 10. Jablonski diagram demonstrating the proposed photophysical mechanism of DE for Pyr4CN4Pz and PerTCNE in a non-polar low viscosity medium. GS—ground state, π-π*—high-lying transition state. ICT—intramolecular charge transfer, TICT—twisted intramolecular charge transfer.
Ijms 24 05818 g010
Figure 11. Scheme of the setup for two-photon absorption measurement by comparing the fluorescence of solutions in the beam configuration at the cell wall. M-mirror, A-apertures that form the required ratio of the diameters of the laser beams at the fundamental frequency and the second harmonic, L-collimating lens system, C-cell with solution, PM / PD-optical power meter or calibrated photodiode, SFI-fiber input into the spectrometer (OceanOptics QE65Pro), which determines the fluorescence. The insert shows the ratio of the diameters of the laser beams in the cuvette (the second harmonic beam has a smaller diameter by 1.4 times, the beams are coaxial). A short focus collecting lens was also used to amplify the signal received on the spectrometer.
Figure 11. Scheme of the setup for two-photon absorption measurement by comparing the fluorescence of solutions in the beam configuration at the cell wall. M-mirror, A-apertures that form the required ratio of the diameters of the laser beams at the fundamental frequency and the second harmonic, L-collimating lens system, C-cell with solution, PM / PD-optical power meter or calibrated photodiode, SFI-fiber input into the spectrometer (OceanOptics QE65Pro), which determines the fluorescence. The insert shows the ratio of the diameters of the laser beams in the cuvette (the second harmonic beam has a smaller diameter by 1.4 times, the beams are coaxial). A short focus collecting lens was also used to amplify the signal received on the spectrometer.
Ijms 24 05818 g011
Table 1. Determination of β.
Table 1. Determination of β.
IFl2/IFl1Cell Thickness (mm)P400/P800P800 (W)r (cm)f (Hz)I800 (GW/cm2)β
(cm/W)
δ (cm4s/Photon)
4001.00.010.0450.0110~14.5 × 10−121.85 × 10−48
Table 2. Reduction and oxidation potentials vs. Fc/Fc- in acetonitrile (10−3 mol/L) and molecular orbital energies of AntTCNE, PyrTCNE, PerTCNE and Pyr4CN4Pz.
Table 2. Reduction and oxidation potentials vs. Fc/Fc- in acetonitrile (10−3 mol/L) and molecular orbital energies of AntTCNE, PyrTCNE, PerTCNE and Pyr4CN4Pz.
AryltricyanoethyleneE11/2 Red, VE21/2 Red, VEOx, VEHOMO, eVELUMO, eVBandgap
AntTCNE−0.84−1.631.17−5.97−3.942.03
PyrTCNE−0.82−1.441.12−5.92−3.981.94
PerTCNE−0.80−1.410.82−5.62−4.001.62
Pyr4CN4Pz−1.60 0.29−6.40−4.511.89
Table 3. Fluorescence quantum yield of Pyr4CN4Pz in the different solvents (η-viscosity, ε-dielectric constant).
Table 3. Fluorescence quantum yield of Pyr4CN4Pz in the different solvents (η-viscosity, ε-dielectric constant).
Solventη
(cP)
εΦf
LWSW
Castor oil10794.70.3600.480
CH3Ph0.592.40.0660.129
THF0.557.50.0300.168
CH3CN0.3737.00.0020.043
Water1.0080.00.0070.398
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lermontova, S.A.; Arsenyev, M.V.; Cherkasov, A.V.; Fukin, G.K.; Afanasyev, A.V.; Yudintsev, A.V.; Grigoryev, I.S.; Ladilina, E.Y.; Lyubova, T.S.; Shilyagina, N.Y.; et al. Novel Rigidochromic and Anti-Kasha Dual Emission Fluorophores Based on D-π-A Dyads as the Promising Materials for Potential Applications Ranging from Optoelectronics and Optical Sensing to Biophotonics and Medicine. Int. J. Mol. Sci. 2023, 24, 5818. https://doi.org/10.3390/ijms24065818

AMA Style

Lermontova SA, Arsenyev MV, Cherkasov AV, Fukin GK, Afanasyev AV, Yudintsev AV, Grigoryev IS, Ladilina EY, Lyubova TS, Shilyagina NY, et al. Novel Rigidochromic and Anti-Kasha Dual Emission Fluorophores Based on D-π-A Dyads as the Promising Materials for Potential Applications Ranging from Optoelectronics and Optical Sensing to Biophotonics and Medicine. International Journal of Molecular Sciences. 2023; 24(6):5818. https://doi.org/10.3390/ijms24065818

Chicago/Turabian Style

Lermontova, Svetlana A., Maxim V. Arsenyev, Anton V. Cherkasov, Georgy K. Fukin, Andrey V. Afanasyev, Andrey V. Yudintsev, Ilya S. Grigoryev, Elena Yu. Ladilina, Tatyana S. Lyubova, Natalia Yu. Shilyagina, and et al. 2023. "Novel Rigidochromic and Anti-Kasha Dual Emission Fluorophores Based on D-π-A Dyads as the Promising Materials for Potential Applications Ranging from Optoelectronics and Optical Sensing to Biophotonics and Medicine" International Journal of Molecular Sciences 24, no. 6: 5818. https://doi.org/10.3390/ijms24065818

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
