Ionic Conductivity of K-ion Glassy Solid Electrolytes of K2S-P2S5-KOTf System

1
Environmental Science Department, United Tribes Technical College, Bismarck, ND 58504, USA
2
Engineering Department, United Tribes Technical College, Bismarck, ND 58504, USA
3
Environmental Engineering Department, University of North Dakota, Grand Forks, ND 58202, USA
4
School of Arts and Science, University of Mt. Olive, Mount Olive, NC 28365, USA
5
Conn Center for Renewable Energy Research, University of Louisville, Louisville, KY 40292, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(23), 16855; https://doi.org/10.3390/ijms242316855
Submission received: 30 October 2023 / Revised: 16 November 2023 / Accepted: 19 November 2023 / Published: 28 November 2023
(This article belongs to the Section Biochemistry)

Abstract

:
Ternary glassy electrolytes containing K2S as a glass modifier and P2S5 as a network former are synthesized by introducing a new type of complex and asymmetric salt, potassium triflate (KOTf), to obtain unprecedented K+ ion conductivity at ambient temperature. The glasses are synthesized using a conventional quenching technique at a low temperature. In general, alkali ionic glassy electrolytes of ternary systems, specifically for Li+ and Na+ ion conductivity, have been studied with the addition of halide salts or oxysalts such as M2SO4, M2SiO4, M3PO4 (M = Li or Na), etc. We introduce a distinct and complex salt, potassium triflate (KOTf) with asymmetric anion, to the conventional glass modifier and former to synthesize K+-ion-conducting glassy electrolytes. Two series of glassy electrolytes with a ternary system of (0.9–x)K2S-xP2S5-0.1KOTf (x = 0.15, 0.30, 0.45, 0.60, and 0.75) and z(K2S-2P2S5)-yKOTf (y = 0.05, 0.10, 0.15, 0.20, and 0.25) on a straight line of z(K2S-2P2S5) are studied for their K+ ionic conductivities by using electrochemical impedance spectroscopy (EIS). The composition 0.3K2S-0.6P2S5-0.1KOTf is found to have the highest conductivity among the studied glassy electrolytes at ambient temperature with the value of 1.06 × 10−7 S cm−1, which is the highest of all pure K+-ion-conducting glasses reported to date. Since the glass transition temperatures of the glasses are near 100 °C, as demonstrated by DSC, temperature-dependent conductivities are studied within the range of 25 to 100 °C to determine the activation energies. A Raman spectroscopic study shows the variation in the structural units P S 4 3 ,   P 2 S 7 4 ,   a n d   P 2 S 6 4 of the network former for different glassy electrolytes. It seems that there is a role of P 2 S 7 4   a n d   P 2 S 6 4 in K+-ion conductivity in the glassy electrolytes because the spectroscopic results are compatible with the composition-dependent, room-temperature conductivity trend.

1. Introduction

Potassium batteries (such as the K-ion battery, K-sulfur battery, and K-O2 battery) have gained considerable attention in recent years due to their low cost, abundant resources, and the relatively low reduction potential of potassium [1,2,3]. It has been reported that potassium batteries can deliver higher energy-storage capacity and energy density relative to Li- and Na- batteries [2,3]. However, since the liquid electrolyte containing commercially available batteries posed risks of leakage, flammability, and electrode corrosion, attention has been diverted to the development of all-solid-state batteries (ASSBs) [4,5], which are assumed to be the safest energy-storage systems because of the non-flammability and electrochemical stability of solid-state electrolytes [6]. Since battery performance depends on the nature of the electrodes and electrolyte, it is critical to include a high-quality electrolyte and electrodes (cathode and anode) in a K+-ion battery [7]. The introduction of a high-quality solid electrolyte reflects the efficiency of a battery with high energy density, capacity, and durability. For this reason, the search for electrolyte materials with high potassium ion (K+) conductivity at room temperature is a crucial aspect in the development of all-solid-state batteries with improved energy and power densities [8].
The increasing research interest in developing all-solid-state K batteries necessitated high room-temperature, K+-ion-conducting solid electrolytes. Attempts have been made to develop different types of electrolytes for a solid-state K+-ion battery such as solid polymer [9,10] and inorganic electrolytes of different classes and phases [11,12]. Inorganic solid electrolytes have been the focus of investigations [11,12,13]. Most of the studied inorganic solid electrolytes include mixed ionic and electronic conductivity [13,14,15,16]. For all-solid-state potassium batteries (K-ion, K-S, or KO2 batteries), a purely K+-ion-conducting electrolyte that has no electronic conductivity is required. Among the different classes of purely K+-ion-conducting inorganic solid electrolytes, an ionic glass/amorphous electrolyte is one of the potential electrolytes. Ag+ and Li+ ions conducting glassy electrolytes have proved that the conductivity of a glass electrolyte can be comparable to that required of a liquid electrolyte for room-temperature battery operation [17,18,19]. Glasses are isotropic, without grain boundaries, and are easy to fabricate in the forms of complex shapes that can be used to optimize their properties due to wide compositional flexibility. Much attention has been paid to the study of ionic glasses with Li+ and Na+ conductivity [20,21,22,23]. However, there has been less attention paid to the study of K+-ion-conducting glassy electrolytes. Because of the larger ionic volume of the K+ ion relative to Li+ and Na+ ions, achieving glassy solid electrolytes with high K+ ionic conductivity is a major challenge for design and synthesis. Although reports of mixed ions (such as K+, Li+, Na+, etc.) conducting glasses can be found, [24,25] only a handful of reports have studied pure K+-ion conducting glass electrolytes [12,26,27,28,29]. Among the five published reports [12,26,27,28,29] we have found, only one report mentioned room-temperature K+ ion conductivity that was close to 10−10 S cm−1 [27].
In general, inorganic alkali ionic glass is composed of a glass network former and glass modifier. Network formers are compounds of a covalent nature such as oxides and sulfides of Si, P, and B, and glass modifiers are compounds of an ionic nature such as oxides and sulfides of alkali metals. Modifiers break long-chain networks to build pathways for cation movement from one spot to another. This makes a glass ion conductive. However, salts are added to improve the ionic conductivity [30] in glasses. Generally, the added salts are alkali metal halides or oxyanion salts of the alkali metals such as MX, M2SO4, M4SiO4 (M = Li, Na, and K; x = Cl, Br, and I), etc. [31,32,33,34,35]. Sometimes, nitrides are also added [36]. We are going to introduce potassium triflate, which is a distinct anion and complex in nature. It is assumed that complex anion addition to glass facilitates the paddlewheel mechanism to enhance its ionic conductivity [37]. Here, we report a part of the glass-forming region with different compositions of K2S, P2S5, and KOTf. The conventional alkali ionic glasses were generally synthesized using a melt quench technique at a higher temperature (>700 °C) [20,38]. We report very low-temperature (450 °C) melt-quenched glass systems, (0.9–x)K2S-xP2S5-0.1KOTf (x = 0.15, 0.30, 0.45, 0.60, and 0.75) and z(K2S-2P2S5)-yKOTf (b = 0.05, 0.10, 0.15, 0.20, and 0.25) on a straight line of z(K2S-2P2S5)) along with the ionic conductivity higher than ever reported before for K+-ion conducting glassy electrolytes.

2. Results

2.1. Synthesis and Characterization

TGA analysis showed that KOTf decomposes at around 480 °C (Figure 1). All the compositions of glass electrolytes showed broad or no peaks in the powder XRD, confirming glass phase formation. Two series of glassy electrolytes (each series with five different composition samples) were chosen from the pure glasses for the study of ionic conductivity in the glass system. The studied glass compositions are shown in Figure 2a, and the two series are shown as lines 1 and 2 in Figure 2b. Each series contained a glass composition with an unknown impurity peak. Series 1 contained the compositions of (0.9–x)K2S-xP2S5-0.1KOTf where the amount of KOTf was kept fixed and the ratio of K2S and P2S5 was varied with x = 0.15, 0.30, 0.45, 0.60 and 0.75. The other series (series 2) consisted of the compositions z(K2S-2P2S5)-yKOTf with a ratio of K2S and P2S5 remaining on a straight-line z(K2S-2P2S5) where the z value changes with y.

2.2. Ionic Conductivity

In the first series of glasses, (0.9–x)K2S-xP2S5-0.1KOTf, the room temperature conductivity varied with different ratios of glass former to modifier concentrations. The highest conductivity was observed for the composition of x = 0.6, and the lowest conductivity was observed for the composition of x = 0.45. Table 1 shows the room temperature conductivities and activation energies of the 2nd series of glassy electrolytes. In the second series of z(K2S-2P2S5)-yKOTf, the conductivity reached the highest at y = 0.1. Table 2 shows the room-temperature conductivities and activation energies of the 2nd series of glassy electrolytes obtained from the temperature-dependent conductivities measurement from 25 to 100 °C. In the two series, the room temperature conductivities changed with the increase in K+ ion concentrations, and the conductivities variations looked opposite. In series one, the conductivity first decreased with the increase in K+ ions before the highest conductivity point. However, in the second series, the conductivity first increased and then decreased with the increase in K+ concentration, which is just the opposite result to that of the first series.

3. Discussion

3.1. Synthesis and Characterization

A part of the glass formation region was investigated for a ternary glass system containing K2S, P2S5, and KOTf by the conventional melt quench technique. Before melting the mixture of glass components, we investigated the decomposition temperature of KOTf using TGA and found that it decomposed at around 480 °C (Figure 1). The single-step decomposition of the salt follows the previously reported DSC pattern of other triflate salts of lanthanides and silver [39,40,41]. There was a gradual slope before 480 °C as seen for other reported sulfide materials [42,43]. Since it was accomplished in an open pan and the material was very hygroscopic, the slope before 480 °C was assumed to be due to the loss of adsorbed moisture [42]. We melted and quenched the mixture of precursors at 450 °C, which was below the decomposition temperature of KOTf. In general, the melt quench technique involved higher temperatures, higher than 700 °C [44,45]. Figure 2a shows the pure glass-forming composition with blue circles, and red circles show the formation of impure glass or no glass-forming compositions. Two series of glassy electrolytes (each series with five different composition samples) were chosen from the pure glasses for the study of ionic conductivity in the glass system. The studied glass compositions and the two series are shown in lines 1 and 2 in Figure 2b. Each series contained a glass composition with an unknown impurity peak. Series 1 contained the compositions of (0.9–x)K2S-xP2S5-0.1KOTf where the amount of KOTf was kept fixed and the ratio of K2S and P2S5 was varied with x = 0.15, 0.30, 0.45, 0.60 and 0.75. The other series (series 2) consisted of the compositions z(K2S-2P2S5)-yKOTf with a ratio of K2S and P2S5 remaining on a straight-line z(K2S-2P2S5) where the z value changes with y. The ratio of 1K2S-2P2S5 (or K2S/2P2S5) was chosen for the compositions z(K2S-2P2S5)-yKOTf because the ionic conductivity of this ratio was found to be the best among the studied compositions in the first series. The primary characterization of glass formation or amorphization of a material is generally accomplished by powder X-ray diffraction, as it is easy to distinguish between the crystalline and amorphous phases due to the presence and absence of peaks [46,47]. The glass or amorphous phase shows no peaks or diffused peaks in the X-ray diffraction data [46,47]. We characterized our synthesized materials using powder X-ray diffraction. Figure 3a shows the powder X-ray diffraction patterns of the compositions (0.9–x)K2S-xP2S5-0.1KOTf. All the studied compositions of (0.9–x)K2S-xP2S5-0.1KOTf in series 1 (Figure 3a) produced pure glasses except for the composition with x = 0.45. The vertical lines before 2θ = 30° were observed because of the 3M film. Similarly, all the compositions of z(K2S-2P2S5)-yKOTf in series 2 (Figure 3b) produced pure glass for b = 0.05, 0.10, 0.15, 0.20, 0.25 on a straight line of z(K2S-2P2S5).
The fundamental role of intermolecular interactions on glass formation in multicomponent mixtures can be more complex compared to single-component systems. This complexity arises due to several factors, including the presence of tortuous phase diagrams and the necessity to define the interactions between particles of different types [48]. Past reports of the glass-forming tendency because of the effect of molecular asymmetry have demonstrated that asymmetric molecules can be comparatively more easily supercooled than symmetric ones [48,49]. KOTf is an asymmetric molecule. The study of glassy electrolytes with the addition of KOTf is thus plausible.
The glass transition temperature of a glass can be characterized using digital scanning calorimetry (DSC). Figure 4 and Figure 5 show the DSC data for the series of (0.9–x)K2S-xP2S5-0.1KOTf and z(K2S-2P2S5)-yKOTf. Generally, the glass transition temperature is observed as a slow short slope [50]. However, it can also be observed as a small dip [28,51]. In our case, the glass transition temperature was observed as a small dip, and the temperature corresponding to the first dip has been the glass transition temperature [28]. The glass transition temperature does not seem to change with the compositional variation demonstrating almost no compositional effect on the glass transition temperature. All the materials demonstrated the glass transition temperature near 99–100 °C. A second dip appeared near 140 °C. To confirm the phase transition at the second dip, we heated a pure glass to 150 °C for 2 h and then cooled it down slowly to room temperature to collect its XRD data at room temperature. The XRD data exhibited glass ceramic peaks as shown in Figure 6, confirming the phase transition.

3.2. Ionic Conductivity

ASSB requires purely ion-conducting electrolytes. The ionic conductivity of an electrolyte can be determined by EIS studies. We measured the impedance of two series of glasses using EIS within the frequency range of 0.1 Hz to 1 MHz. To determine the highest temperature limit for conductivity measurement at variable temperatures, differential scanning calorimetry (DSC) data were collected for KOTf, which showed the glass transition temperature near 100 °C and another peak near 140 °C. To analyze the peak at 140 °C, XRD data were collected after heating the glass at 150 °C for 2 h, which exhibited peaks (Figure 6) confirming the phase transformation. Glassy electrolytes lose their properties after the phase transition temperature. Since the glass transition temperatures were near 100 °C, the conductivities of the glasses were measured within the temperature range of 25 to 100 °C. Generally, impedance is measured at low voltage (10–100 mV). However, different problems are observed while applying low voltage to measure impedance for a material with very high impedance [52]. So, high voltage is used to measure the high impedance of a solid material [53]. Our materials exhibited the impedance of several GΩ at room temperature. So, we used 20 to 100 mV to measure the impedance of all the studied materials depending on the impedance of the materials. Glass lacks grain boundaries. The ideal EIS of glasses with ionic conductivity exhibits a semicircle. When the impedance of glass is measured as an electrolyte, bulk resistance from bulk material, the capacitive effect of the bulk and the double-layer capacitance at the interface of the electrode and material can be considered. Hence, we used an equivalent circuit for our materials, as shown in the inset of Figure 7 where R1 and R2 represent the resistance of wire (lead) and the bulk material, respectively. CPE1 and CPE2 indicate the capacitance of the bulk material and the electrode–electrolyte double-layer capacitive behavior, respectively [54]. The constant phase element (CPE) is a modeling element frequently used in electrochemical impedance spectroscopy (EIS) to describe nonideal capacitive behavior. It is particularly useful for systems that exhibit imperfect semicircular impedance plots in Nyquist plots. The nonideal behavior is caused by the leakage capacitance, surface roughness, and nonuniform distribution [54]. Semicircles with heights (depressed) smaller than half of their diameter were observed in our materials (Figure 7). Thus, the classical parallel R//C circuit, which consists of a resistor (R) in parallel with a capacitor (C), is not suitable for modeling the impedance behavior of glasses that exhibit imperfect semicircles with the center located on the real axis in the Nyquist diagram. Figure 7 shows an impedance data of 0.3K2S-0.6P2S5-0.1KOTf as a representative of the compositions (0.9–x)K2S-xP2S5-0.1KOTf and z(K2S-2P2S5)-yKOTf. The inset demonstrates the equivalent circuit used and the impedance data at 75 and 100 °C. The circles represent the raw data, and the red solid lines represent the fitted data. The observed curve shows the typical ionic conductivity behavior containing a high-frequency semicircle which represents the bulk properties of the material, and the low-frequency tail is the response of interfacial (electrode) polarization [55].
Some of the studied materials did not show the tail region at room temperature, which might be due to the frequency limitation, as it showed the high resistivity. The semicircle without a spike observation at lower temperatures for some materials is not surprising. It has been mentioned for other materials in the past reports [56,57,58]. The resistance of a material under study is represented by the intercept of the semicircular curve on the low-frequency region. This resistance (R) is used to determine the conductivity (σ) of the bulk material (circular pellet) using its thickness (L) and surface area (A) as given in relation 1 [59].
σ = L/RA
The studies of temperature-dependent conductivity of glassy electrolytes can also characterize their nature. Thus, almost all the glassy electrolytes studied for their ionic conductivities were studied for their conductivities at variable temperatures ranging from ambient to high temperature. The temperature-dependent conductivities of all the studied glasses were measured from 21 to 100 °C. All glasses exhibited the semiconductor-type nature by decreasing resistivity with the increase in temperature within the measured temperature range. The measurement was stopped at 100 °C because the glassy electrolytes showed the glass transition temperature near this temperature. From these experiments, the activation energies were obtained, as shown in Table 1 and Table 2. The conductivity trends and the Arrhenius plots for both series of glasses are shown in Figure 8. The plots in Figure 8b,d were used for fitting with the Arrhenius equation for thermally activated conductivity [59] (shown below), which helped to find the activation energy.
σ T= σ° e (−Ea/kT)
where σ° = pre-exponential factor;
  • K = Boltzmann constant;
  • T = absolute temperature; and
  • Ea = activation energy for conductivity. The activation energy (Ea) can be calculated from the slope of the lines of best fit in the log σT vs. 1000/T plot.

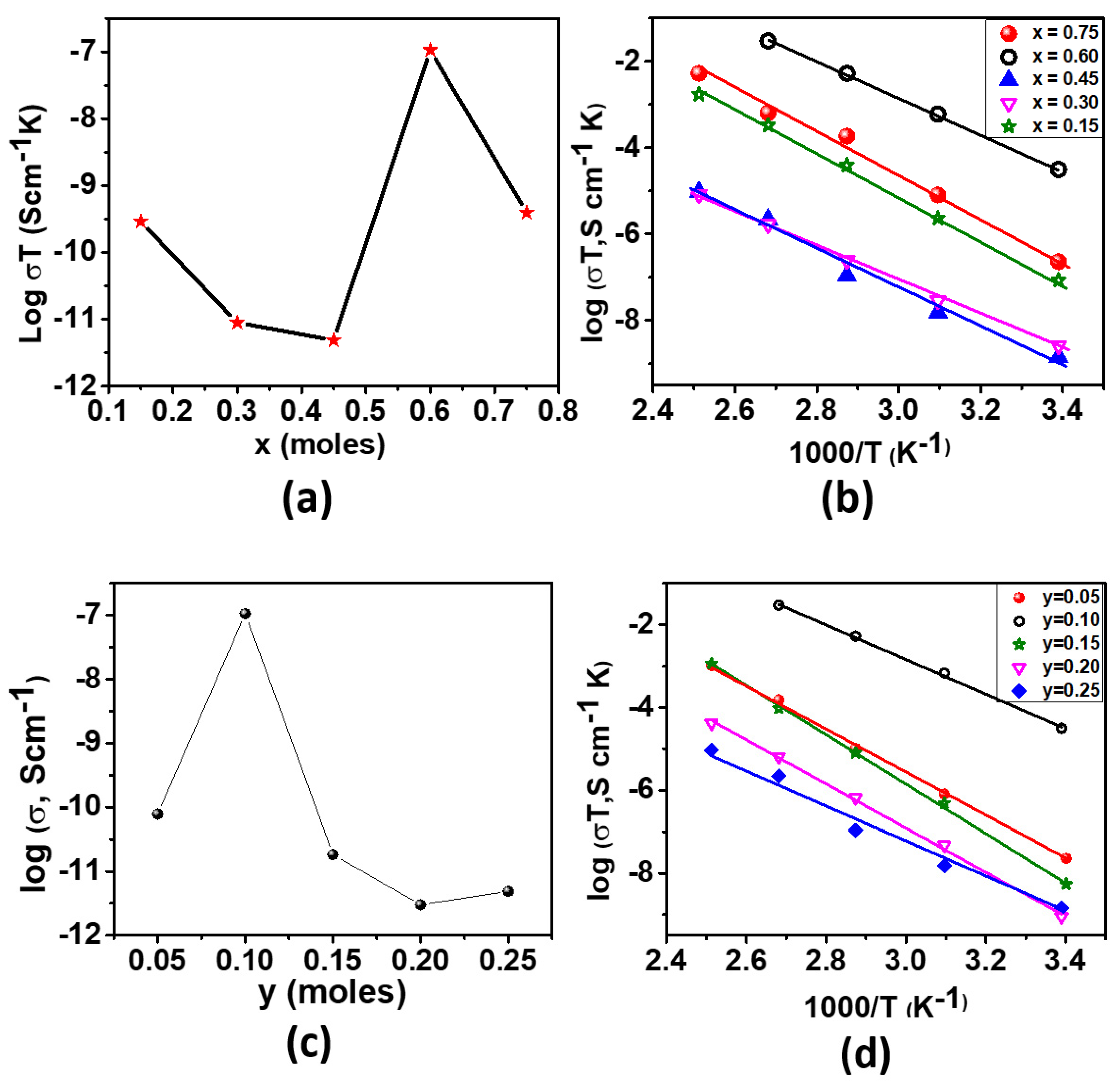

Figure 8. Ionic conductivity of (0.9–x)K2S-xP2S5-0.1KOTf: (a) composition dependence and (b) temperature dependence and that of z(K2S-2P2S5)-yKOTf (c) composition dependence and (d) temperature dependence.
Figure 8. Ionic conductivity of (0.9–x)K2S-xP2S5-0.1KOTf: (a) composition dependence and (b) temperature dependence and that of z(K2S-2P2S5)-yKOTf (c) composition dependence and (d) temperature dependence.
Ijms 24 16855 g008

3.3. Optimizing the K2S/P2S5 Ratio

We studied the effect of the composition of the glassy electrolytes on their conductivities. Most of the ionic conductivity of glassy electrolytes has been studied by varying the ratio of glass former and modifier concentrations [23,60]. We also varied the modifier and network former concentrations in the first series. Figure 8a shows the composition-dependent conductivities of the glassy electrolytes of the first series at ambient temperature. In the first series of glasses, (0.9–x)K2S-xP2S5-0.1KOTf, the room temperature conductivity varied with different ratios of glass former to modifier concentrations. The highest conductivity was observed for the composition of x = 0.6, and the lowest conductivity was observed for the composition of x = 0.45. Since these compositions do not contain any transition elements, the conductivity is believed to be purely due to K+ ions. The K+ ionic conductivity of x = 0.6 is 1.06 × 10−7 S cm−1, which is the highest of all the formerly reported values, so far, we have known. The reported values for 0.3K2S-0.7(0.1Ga2S3-0.9GeS2) [27] at 25 °C and Ca3OK [26] at 75 °C were ~10−10 and 10−13 S cm−1, respectively. Other studies reported K+ ion conductivities only above 200 °C [28,29]. Table 1 shows the room temperature conductivities and activation energies of all the studied glassy electrolytes of series 1.
It has been observed in the past in lithium and sodium ion-conducting glasses that the ionic conductivity increases with the increase in alkali ion concentration, which is due to the higher charge carrier concentration [31,61]. This effect has normally been observed in oxide glasses, and the ionic conductivity increases with increasing alkali oxide content. However, there is a concomitant increase in the number of non-bridging oxygens (NBOs) with increasing modifying oxide, which can decrease ionic mobility by acting as trapping centers [23,31]. Some studies reported that the ionic conductivity increased with the increase in glass network former to modifier ratio (GF/GM), indicating the dilution of the charge carrier concentration [23]. Other reports mentioned the highest conductivity at a particular GF/GM ratio [23]. Thus, a fixed rule of the compositional effect of glasses on the ionic conductivity trend has not been established yet. The activation energies of the glasses obtained from the temperature-dependent conductivities also did not show a specific increasing or decreasing order. Thus, the results we obtained in our first series of glasses are not surprising, and the highest room temperature ionic conductivity for (0.9–x)K2S-xP2S5-0.1KOTf is rational.

3.4. Optimizing KOTf Concentration

Figure 8c,d show the composition-dependent conductivity and activation energies of the 2nd series of glassy electrolytes with the composition z(K2S-2P2S5)-yKOTf. In this series of glasses, the room temperature conductivity did not increase or decrease systematically with the variation of KOTf concentration. In the Li and Na glassy electrolytes, the Li+ and Na+ ions of the added salts (MX, M = Li or Na and X = Cl, Br or I) were considered to be adjusted at the interstitial positions [59,62]. Li and Na ion-conducting glasses were found to exhibit increasing conductivity with the concentration of added salts such as MX [38,63]. The increment of the ionic conductivity in those glasses was due to the increase in the charge carrier concentration [38,63]. However, previous reports showed that the conductivity increment stopped at a certain level of added salt concentration, given that the GF/GM ratio remained constant [38,63]. It means that the ionic conductivity becomes the highest at a certain concentration of added salt. In our case of z(K2S-2P2S5)-yKOTf, the conductivity reached the highest at y = 0.1. Table 2 shows the room-temperature conductivities and activation energies of the 2nd series of glassy electrolytes obtained from the temperature-dependent conductivities measurement from 25 to 100 °C. In the two series, the room temperature conductivity changed with the increase in K+ ion concentrations, and the conductivity variations looked opposite. In series one, the conductivities first decreased with the increase in K+ ions before the highest conductivity point. However, in the second series, the conductivity first increased and then decreased with the increase in K+ concentration, which is just the opposite result to that of the first series. If we look back to XRD patterns, the impurity peak appears for a glassy electrolyte after the highest conductivity glass in the first series and before the highest conductivity glassy electrolyte in the second series for K+ concentration increment.

3.5. Raman Study for Conductivity Trend

Studying the glass structure is most often the key step in explaining or predicting the properties. In general, properties of the alkali oxide and sulfide glasses are described based on the network former (P2O5/P2S5) fragment units such as P S 4 3 ,   P 2 S 7 4 ,   P 2 S 6 4 [64,65,66]. It is important to study the coordination of the network formers, including their interactions with modifier cations and the added salt. The spectroscopic studies of a previous report for the S O 4 2 addition to Li-based binary oxide glasses have shown that molecular anions can be localized at the interstitial positions of the glass networks [67]. The report also mentioned that the Li+ ion sites are affected by the molecular ion, S O 4 2 [67]. However, other reports of SiS2 glasses mentioned Li-based sulfide glasses with the formation of new bonds (S-Si-O-Si-S) due to the added complex oxysalts [68]. Similarly, another report mentioned the modification of the glass structure of Li2S-SiS2 by the addition of Li3PO4 [69]. Thus, it is hard to conclude whether triflate anion resides in interstitial positions or reacts with the network. Since we are focused here on the K+ ionic conductivity, we tried to correlate the role of the dominant coordination structure of the network former with the conductivity of the electrolytes. We discuss Raman spectra of the glassy electrolytes: particularly the highest K+ conductive glassy electrolyte, to discuss the structural units. The active bands (peaks) of triflate ions disappear when added to glasses. The reason for the disappearance of Raman peaks of asymmetric triflate anion in glassy electrolytes may be a subject of further investigation, which may help figure out whether the triflate anions reside in interstitial positions or react with the network former to form new bonds. So, we discuss here only the structural units of the P2S5 fragments which might play a role in the conductivity variation in different compositions of the studied glassy electrolytes. The presence or absence of the fragment units ( P S 4 3 ,   P 2 S 7 4 ,   P 2 S 6 4 ) were discussed in Li- and Na-ion conducting glasses based on the particular wavenumbers ranging from 380 to 425 cm−1 in the previous reports [64,65,66]. According to those reports, the responses of the units P S 4 3 ,   P 2 S 7 4   a n d   P 2 S 6 4 appear as the peaks at 420, 400 and 380 cm−1, respectively [64,65,66]. In our glasses also, the peaks appeared at 380, 400 and 420 cm−1 corresponding to P S 4 3 ,   P 2 S 7 4   a n d   P 2 S 6 4 units, respectively. Figure 9 shows the Raman spectra of the first and second series of glasses. Figure 9c shows the Raman spectra of the glassy electrolyte (x = 0.6) with the structural unit assignments. As seen for series 1 in Figure 9a, the glassy electrolyte with x = 0.6 composition has a P 2 S 6 4 unit exactly at 420 cm−1. The same peak shifts to the right (higher wavenumber) for x = 0.75. The peak tends to disappear in the composition x = 0.15 where the peak is left as a sign of slope between 400 and 420 cm−1. The peak is completely absent in the rest of the two glasses. The order of the disappearance of the structural unit P 2 S 6 4 is x = 0.60 > 0.75 > 0.15 > 0.30 > 0.45. The room-temperature conductivities also decrease in the same order, σ for x = 0.60 > 0.75 > 0.15 > 0.30 > 0.45. The conductivity trend matches with the appearance or disappearance of the structural unit P 2 S 6 4 . The structural unit P 2 S 7 4 is clearly observed in the compositions x = 0.6 and 0.75 and partly in 0.15, which is shifted toward the left. This unit is going to disappear in x = 0.30 and is completely absent in x = 0.45, which has the lowest room temperature ionic conductivity. A peak corresponding to P S 4 3 unit can be seen in all the compositions, although it is very small in the composition x = 0.75. A similar trend was observed for the glassy electrolytes of the second series. Figure 9b shows the Raman spectra of the second series of glassy electrolytes where the P 2 S 7 4 unit trend is 0.1 = 0.05 > 0.15 > 0.20 > 0.25 (peak disappearing from left to right). The conductivity trend is in the order of 0.10 > 0.05 > 0.15 > 0.20 ≈ 0.25. The P 2 S 6 4 unit is present in all the compositions, but the peak corresponding to y = 0.05 and 0.15 shifted slightly to the right side relative to that corresponding to y = 0.10, and the P S 4 3 peak is absent in the composition, y = 0.25. So, the high conductivity of the glassy electrolytes might correspond to the structural unit P 2 S 6 4 and P 2 S 7 4 . The correlation of the structural units with the conductivity trends has been reported for other glassy electrolytes in the past [65,66,70]. The correlation of the peak positions (structural units) with the ionic conductivity is opposite to the results reported for Li-ion conducting glassy electrolytes, where a higher conductivity was observed for the glassy electrolyte with a high concentration of P S 4 3 units [65,66]. Some authors reported the high conductivity of glass and glass ceramics as a result of the dominant P 2 S 7 4 structural units [70,71].
However, the relation has not been found to be uniform for other glasses [72]. It seems that there is no compositional effect on the Tg values of our glassy electrolytes. So, the relationship of room temperature conductivity with Tg values cannot be established for our glassy electrolytes. Some reports mentioned the correlation of activation energy with the conductivity trend. They reported that the high conductivity is due to the low activation energy [33,72,73]. This correlation has been shown to oxide glasses as well [33,74]. In the two series of our electrolytes, the one with the highest conductivity shows the lowest activation energy in the second series and is close to the one with the lowest value in the first series. However, the conductivity is not determined by a single factor; multiple factors are responsible for the variation of the conductivity of glassy electrolytes [33].

4. Methods and Materials

Glassy electrolytes were synthesized from three chemicals: K2S (99.99%, Alfa Aesar, Haverhill, MA, USA), P2S5(99.99%, Alfa Aesar) and KOTf (potassium triflate, 99.99%, Alfa Aesar) as starting materials at different compositions. Before their use, all the chemicals were dried at 120 °C for 2 days. The stoichiometric amount of each chemical was weighed for each composition. They were mixed homogeneously in mortar and pestle and kept in a quartz tube, which was sealed later. All the work took place in an argon environment inside a glovebox. The quartz tube was then taken out of the glovebox and vacuum sealed and heated to 450 °C for 6 h. It was quenched in liquid nitrogen. The phase purity and glass formation were characterized by powder X-ray diffraction using a Brucker D8 ADVANCE with an X-ray diffractometer copper Kα-radiation device (1.5418 Å). Since the samples were air sensitive, the materials were covered with 3M film to collect the XRD data. A differential scanning calorimetry (DSC) method was used to characterize the glass transition temperatures. The measurements were carried out in the temperature range from −40 to 200 °C in Al pans with a heating rate of 10 °C min−1 in dry argon atmosphere using DSC Q200-1776. The Raman spectra were studied with a 514/613 nm argon laser on a Renishaw inVia Spectrometer. It was scanned from 100 to 800 cm−1 with a 50× objective lens. Since the samples are susceptible to moisture, they are sealed in cylindrical glass tubes for spectroscopic data collection. The ionic conductivities of the glass samples were investigated by electrical impedance spectroscopy (EIS) using Gamry reference 600 potentiostat. Impedance measurements were conducted using a computer-controlled frequency response analyzer within the frequency range of 0.1 Hz to 1 MHz. For the measurements, pellets of as-synthesized materials were pressed into a disc of 6 mm diameter using a pressure of 2 tons. The pellets were painted with Pt spray on both sides using plasma sputtering for 4 min on each side. This platinum coating acts as a current collector and electrode. The pellet was kept in an air-sealed Swagelok cell. The whole setting of the pellet in the Swagelok cell was performed inside a glovebox, and the AC impedance measurement was performed outside the glovebox in an MTI 1100 box furnace. The pellet in the Swagelok cell was first sintered at 125 °C for 4 h to bring the particles into close packing, and then the impedance measurement was started from 25 to 100 °C.

5. Conclusions

K+ ion conducting ternary glassy electrolytes with complex and asymmetric triflate anion as an added salt have been synthesized at low-temperature quenching by a conventional melt quench technique. Ionic conductivities of two series of glassy electrolytes have been studied. The highest RT conductivity was exhibited by a common composition 0.3K2S-0.6P2S5-0.1KOTf of the two series. The highest RT conductivity of 1.06 × 10−7 S cm−1 is unprecedented for the K+ ion conductivity studied yet for glassy electrolytes and is almost three orders of magnitude higher than the highest RT K+ ion conductivity reported yet [27]. Based on the structural unit correlation with the composition-dependent conductivity trend, it can be considered that the K+ ion conduction is governed by the nature of structural units of the glass former (P2S5) fragments, particularly by P S 6 4 and P S 7 4 .
Overall, our study introduces potassium triflate (KOTf) as a unique and complex salt for synthesizing high-performance glassy electrolytes, thereby paving the way for advancements in all-solid-state potassium batteries.

Author Contributions

Conceptualization, R.K.H.; methodology, R.K.H.; software, A.D.A. and M.G.; validation, A.K.T.; formal analysis, R.K.H.; investigation, R.K.H. and A.D.A.; resources, M.G.; data curation, U.S.P.; writing—original draft preparation, R.K.H. and K.S.; writing—review and editing, R.K.H., A.D.A. and M.G.; visualization, R.K.H. and U.S.P.; supervision, R.K.H. and A.K.T.; project administration, R.K.H.; funding acquisition, R.K.H. and M.G. All authors have read and agreed to the published version of the manuscript.

Funding

Instructional Capacity Excellence in TCUP Institutions (ICE-TI) award #1561004 and NSF Tribal Enterprise Advancement Center award grant no. HRD 1839895.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Acknowledgments

This work is supported in part by the National Science Foundation Tribal College and University Program Instructional Capacity Excellence in TCUP Institutions (ICE-TI) award #1561004, and we express gratitude to the program managers and review panels for project support. A part of this work is also supported by NSF grant no. HRD 1839895. Additional support for the work came from ND EPSCOR STEM grants for research. The authors also acknowledge the support of North Dakota EPSCoR for the purchase of a potentiostat and X-ray diffractometer. Permission was granted by the United Tribes Technical Colleges (UTTC) Environmental Science Department to publish this information. The views expressed are those of the authors and do not necessarily represent those of United Tribes Technical College.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rajagopalan, R.; Tang, Y.; Ji, X.; Jia, C.; Wang, H. Advancements and Challenges in Potassium Ion Batteries: A Comprehensive Review. Adv. Funct. Mater. 2020, 30, 1909486. [Google Scholar] [CrossRef]
  2. Zhu, Y.-H.; Yin, Y.-B.; Yang, X.; Sun, T.; Wang, S.; Jiang, Y.S.; Yan, J.-M.; Zhang, X.-B. Transformation of Rusty Stainless-Steel Meshes into Stable, Low-Cost, and Binder-Free Cathodes for High-Performance Potassium-Ion Batteries. Angew. Chem. Int. Ed. 2017, 56, 7881–7885. [Google Scholar] [CrossRef]
  3. Hosaka, T.; Kubota, K.; Hameed, A.S.; Komaba, S. Research Development on K-Ion Batteries. Chem. Rev. 2020, 120, 6358–6466. [Google Scholar] [CrossRef]
  4. Fei, H.; Liu, Y.; An, Y.; Xu, Y.; Zeng, G.; Tian, Y.; Ci, L.; Xi, B.; Xiong, S.; Feng, S. Stable all-solid-state potassium battery operating at room temperature with a composite polymer electrolyte and a sustainable organic cathode. J. Power Sources 2018, 399, 294–298. [Google Scholar] [CrossRef]
  5. Fei, H.; Liu, Y.; An, Y.; Xu, Y.; Zhang, J.; Xi, B.; Xiong, S.; Feng, J. Safe all-solid-state potassium batteries with three dimentional, flexible and binder-free metal sulfide array electrode. J. Power Sources 2019, 433, 226697. [Google Scholar] [CrossRef]
  6. Wang, Y.; Song, S.; Xu, C.; Hu, N.; Molenda, J.; Lu, L. Development of solid-state electrolytes for sodium-ion battery—A short review. Nano Mater. Sci. 2019, 1, 91–100. [Google Scholar] [CrossRef]
  7. Reddy, M.V.; Subba Rao, G.V.; Chowdari, B.V.R. Metal Oxides and Oxysalts as Anode Materials for Li Ion Batteries. Chem. Rev. 2013, 113, 5364–5457. [Google Scholar] [CrossRef]
  8. Yuan, H.; Li, H.; Zhang, T.; Li, G.; Du, F.; Feng, S. A K2Fe4O7 superionic conductor for all-solid-state potassium metal batteries. J. Mater. Chem. A 2018, 6, 8413–8418. [Google Scholar] [CrossRef]
  9. Chandra, A.; Basak, S.; Khan, M.Z.; Chandra, A.; Dhundhel, R.S.; Bhatt, A. Synthesis and ionic conductivity measurement of a new potassium ion conducting solid polymer electrolytes. IOP Conf. Ser. Mater. Sci. Eng. 2020, 798, 012007. [Google Scholar] [CrossRef]
  10. Kesharwani, P.; Sahu, D.K.; Mahipal, Y.K.; Agrawal, R.C. Conductivity enhancement in K+-ion conducting dry Solid Polymer Electrolyte (SPE): [PEO: KNO3]: A consequence of KI dispersal and nano-ionic effect. Mater. Chem. Phys. 2017, 193, 524–531. [Google Scholar] [CrossRef]
  11. Yamamoto, S.; Tamura, S.; Imanaka, N. New type of potassium ion conducting solid based on lanthanum oxysulfate. J. Alloys. Compd. 2006, 418, 226–229. [Google Scholar] [CrossRef]
  12. Fusco, F.A.; Massot, M.; Oueslati, M.; Haro, E.; Tuller, H.L.; Balkanski, M. Structural Changes in Fast Ion Conducting Chloride Doped Potassium Borate Glasses. MRS Proc. 2011, 135, 189. [Google Scholar] [CrossRef]
  13. Burmakin, E.I.; Nechaev, G.V.; Shekhtman, G.S. Solid potassium-cation-conducting electrolytes in the K1−2xBaxFeO2 and K1−2xPbxFeO2 systems. Russ. J. Electrochem. 2007, 43, 121–124. [Google Scholar] [CrossRef]
  14. Burmakin, E.I.; Antonov, B.D.; Shekhtman, G.S. Potassium ion conducting K1–2xCdxFeO2 solid electrolytes. Inorg. Mater. 2010, 46, 540–544. [Google Scholar] [CrossRef]
  15. Burmakin, E.I.; Shekhtman, G.S. Potassium ion conducting K2–2xFe2–xPxO4 solid electrolytes. Inorg. Mater. 2008, 44, 882–885. [Google Scholar] [CrossRef]
  16. Nechaev, G.V.; Burmakin, E.I. Potassium–conducting K1–2xPbxGaO2 solid electrolytes. Russ. J. Electrochem. 2011, 47, 457–460. [Google Scholar] [CrossRef]
  17. Braga, M.H.; Ferreira, J.A.; Stokhausen, V.; Oliveira, J.E.; El-Ajab, A. Novel Li3ClO based glasses with superionic properties for lithium batteries. J. Mater. Chem. A 2014, 2, 5470–5480. [Google Scholar] [CrossRef]
  18. Braga, M.H.; Murchison, A.J.; Ferreira, J.; Singh, P.; Goodenough, J.B. Glass-amorphous alkali-ion solid electrolytes and their performance in symmetrical cells. Energy Environ. Sci. 2016, 9, 948–954. [Google Scholar] [CrossRef]
  19. Minami, T.; Imazawa, K.; Tanaka, M. Formation region and characterization of superionic conducting glasses in the systems AgI-Ag2O-MxOy. J. Non-Cryst. Solids 1980, 42, 469–476. [Google Scholar] [CrossRef]
  20. Jha, P.K.; Pandey, O.; Singh, K. Na2S-P2S5 Based Super-Ionic Glasses for Solid Electrolytes. Trans. Indian Ceram. Soc. 2013, 72, 5–9. [Google Scholar]
  21. Startsev, Y.K.; Pronkin, A.A.; Sokolov, I.A.; Murin, I.V. Electrical conductivity and structure of glasses in the Na2O-Na2S-P2O5 and Na2S-P2S5 systems. Glass Phys. Chem. 2011, 37, 263–282. [Google Scholar] [CrossRef]
  22. Kulkarni, A.R.; Maiti, H.S.; Paul, A. Fast ion conducting lithium glasses—Review. Bull. Mater. Sci. 1984, 6, 201–221. [Google Scholar] [CrossRef]
  23. Chandra, A.; Bhatt, A.; Chandra, A. Ion Conduction in Superionic Glassy Electrolytes: An Overview. J. Mater. Sci. Technol. 2013, 29, 193–208. [Google Scholar] [CrossRef]
  24. Lodesani, F.; Menziani, M.C.; Hijiya, H.; Takato, Y.; Urata, S.; Pedone, A. Structural origins of the Mixed Alkali Effect in Alkali Aluminosilicate Glasses: Molecular Dynamics Study and its Assessment. Sci. Rep. 2020, 10, 2906. [Google Scholar] [CrossRef]
  25. Narasimham, P.S.L.; Mahadevan, S.; Rao, K.J. Electrical conductivity studies in K2SO4-ZnSO4 glasses. Proc. Indian Acad. Sci.-Chem. Sci. 1979, 88, 11–17. [Google Scholar] [CrossRef]
  26. Budina, D.; Zakel, Z.; Martin, J.; Menezes, P.; Schafer, M.; Weitzel, K.-M. Bombardment Induced Transport of Rb+ through a K+ Conducting Glass vs. K+ Transport through a Rb+ Conducting Glass. Z. Für Phys. Chem. 2014, 228, 609–627. [Google Scholar] [CrossRef]
  27. Yao, W.; Martin, S.W. Ionic conductivity of glasses in the MI+M2S+(0.1Ga2S3+0.9GeS2) system (M=Li, Na, K and Cs). Solid State Ion. 2008, 178, 1777–1784. [Google Scholar] [CrossRef]
  28. Thipperudra, A.; Nagaraj, N.; PrashanthKumar, M.; Arunkumar, B. DSC and FTIR Studies in Potassium, Strontium Doped Boro-Phosphate Glasses. Chem. Mater. Res. 2020, 20, 1–8. [Google Scholar]
  29. Lejeune, M.; Colomban, P.; Boilot, J.P. Fast potassium ion conduction in quenched KASICON glass. J. Non-Cryst. Solids 1982, 51, 273–276. [Google Scholar] [CrossRef]
  30. Lau, J.; Deblock, H.; Butts, D.M.; Ashby, D.S.; Choi, C.S.; Dunn, B.S. Sulfide Solid Electrolytes for Lithium Battery Applications. Adv. Energy Mater. 2018, 8, 1800933. [Google Scholar] [CrossRef]
  31. Kennedy, J.H. Ionically conductive glasses based on SiS2. Mater. Chem. Phys. 1989, 23, 29–50. [Google Scholar] [CrossRef]
  32. Hirai, K.; Tatsumisago, M.; Minami, T. Thermal and electrical properties of rapidly quenched glasses in the systems Li2S-SiS2-LixMOy (LixMOy = Li4SiO4, Li2SO4). Solid State Ion. 1995, 78, 269–273. [Google Scholar] [CrossRef]
  33. Deshpande, V.K. Factors affecting ionic conductivity in the lithium conducting glassy solid electrolytes. Ionics 2004, 10, 20–26. [Google Scholar] [CrossRef]
  34. Kondo, S.; Takada, K.; Yamamura, Y. New lithium ion conductors based on Li2S-SiS2 system. Solid State Ion. 1992, 53–56, 1183–1186. [Google Scholar] [CrossRef]
  35. Tatsumisago, M.; Hiral, K.; Hirata, T.; Takahashi, M.; Minami, T. Structure and properties of lithium ion conducting oxysulfide glasses prepared by rapid quenching. Solid State Ion. 1996, 86–88, 487–490. [Google Scholar] [CrossRef]
  36. Muñoz, F.; Duran, A.; Pascaula, L.; Montagne, L.; Revel, B.; Rodrigues, C.M. Increased electrical conductivity of LiPON glasses produced by ammonolysis. Solid State Ion. 2008, 179, 574–579. [Google Scholar] [CrossRef]
  37. Smith, J.G.; Siegel, D.J. Low-temperature paddlewheel effect in glassy solid electrolytes. Nat. Commun. 2020, 11, 1483. [Google Scholar] [CrossRef]
  38. Kennedy, J.H.; Yang, Y. A Highly Conductive Li+-Glass System:  (1 − x )( 0.4SiS2 − 0.6Li2 S  ) − xLil. J. Electrochem. Soc. 1986, 133, 2437–2438. [Google Scholar] [CrossRef]
  39. Naohisa, Y.; Shin, N.; Masayoshi, N. Thermal Decomposition of Lanthanum Trifluoromethanesulfonate. Chem. Lett. 1995, 24, 555–556. [Google Scholar]
  40. Egashira, K.; Yashimura, Y.; Kanno, H.; Suzuki, Y. TG-DTA study on the lanthanoid trifluoromethanesulfonate complexes. J. Therm. Anal. Calorim. 2003, 71, 501–508. [Google Scholar] [CrossRef]
  41. Malinowski, P.J.; Mazel, Z.; Derzsi, M.; Jaglicic, Z.; Szydtowska, J.; Gilewski, T.; Grochala, W. Silver(ii) triflate with one-dimensional [Ag(ii)(SO3CF3)4/2]∞ chains hosting antiferromagnetism. CrystEngComm 2011, 13, 6871–6879. [Google Scholar] [CrossRef]
  42. Subianto, S.; Dutta, N.K.; Choudhury, N.R. Water-Reprocessable, Reformable, and Ecofriendly Sustainable Material Based on Disulfide-Cross-Linked Polyethyleneimine. ACS Omega 2017, 2, 3036–3042. [Google Scholar] [CrossRef]
  43. Sathiyaraj, E.; Gurumoorthy, G.; Thirumaran, S. Nickel(ii) dithiocarbamate complexes containing the pyrrole moiety for sensing anions and synthesis of nickel sulfide and nickel oxide nanoparticles. New J. Chem. 2015, 39, 5336–5349. [Google Scholar] [CrossRef]
  44. Wada, H.; Menetrier, M.; Evasseir, A.; Hagenmuller, P. Preparation and ionic conductivity of new B2S3-Li2S-LiI glasses. Mater. Res. Bull. 1983, 18, 189–193. [Google Scholar] [CrossRef]
  45. Watson, D.E.; Martin, S.W. Short range order characterization of the Na2S+SiS2 glass system using Raman, infrared and 29Si magic angle spinning nuclear magnetic resonance spectroscopies. J. Non-Crystal. Solids 2017, 471, 39–50. [Google Scholar] [CrossRef]
  46. Paiva, A.L.; Moraes, E.Z.; Stochero, N.P.; Oliveira, A.P.N. Characterization of Vitrocrystalline Foams Produced from Discarded Glasses and Recycled Polystyrene Spheres. Mater. Res. 2017, 20, 472–478. [Google Scholar] [CrossRef]
  47. Warren, B.E. X-ray determination of the structure of glass. J. Am. Ceram. Soc. 1934, 17, 249–254. [Google Scholar] [CrossRef]
  48. Koperwas, K.; Adrjanowicz, L.; Wojnarowska, Z.; Jedrzejowska, A.; Knapik, J.; Paluch, M. Glass-Forming Tendency of Molecular Liquids and the Strength of the Intermolecular Attractions. Sci. Rep. 2016, 6, 36934. [Google Scholar] [CrossRef]
  49. Turnbull, D. Under what conditions can a glass be formed? Contemp. Phys. 1969, 10, 473–488. [Google Scholar] [CrossRef]
  50. Saetova, N.S.; Raskovalov, A.A.; Antonov, B.D.; Yoroslavtseva, T.V.; Reznitskikh, O.G.; Kadurova, N.I. The influence of lithium oxide concentration on the transport properties of glasses in the Li2O–B2O3–SiO2 system. J. Non-Crystal. Solids 2016, 443, 75–81. [Google Scholar] [CrossRef]
  51. Interpreting DSC Curves Part 1: Dynamic Measurements, in Information for Users of METTLER TOLEDO Thermal Analysis Systems; Metteler Toledo: Columbus, OH, USA, 2020.
  52. Brisebois, G. Signal Conditioning for High-Impedance Sensors. EDN 2016, 51, 67. [Google Scholar]
  53. Whittam, J.; Hector, A.L.; Kavanagh, C.; Owen, J.R.; Reid, G. Combination of Solid-State and Electrochemical Impedance Spectroscopy To Explore Effects of Porosity in Sol–Gel-Derived BaTiO3 Thin Films. ACS Omega 2018, 3, 6880–6887. [Google Scholar] [CrossRef]
  54. Choi, W.; Shin, H.-C.; Kin, J.M.; Choi, J.Y.; Yoon, W.S. Modeling and Applications of Electrochemical Impedance Spectroscopy (EIS) for Lithium-ion Batteries. J. Electrochem. Sci. Technol. 2020, 11, 1–13. [Google Scholar] [CrossRef]
  55. Shimakawa, K. Electrical Transport Properties of Glass. In Springer Hand Book of Glass; Springer: Berlin/Heidelberg, Germany, 2019; p. 343. [Google Scholar]
  56. Jha, P.K.; Pandey, O.P.; Singh, K. Non-isothermal crystallization kinetics of K2O modified sodium-phosphate glasses. J. Non-Crystal. Solids 2016, 440, 76–84. [Google Scholar] [CrossRef]
  57. Liu, X.; Liang, B.; Zhang, M.; Long, Y.; Li, W. Enhanced photocatalytic properties of α-SnWO4 nanosheets modified by Ag nanoparticles. J. Colloid Interface Sci. 2017, 490, 46–52. [Google Scholar] [CrossRef]
  58. Montouillout, V.; Fan, H.; Campo, L.D.; Ory, S.; Rakhmatullin, A.; Fayon, F.; Malki, M. Ionic conductivity of lithium borate glasses and local structure probed by high resolution solid-sate NMR. J. Non-Crystal. Solids 2018, 484, 57–64. [Google Scholar] [CrossRef]
  59. Neyret, M.; Lenoir, M.; Grandjean, A.; Massoni, M.; Penelon, B.; Malki, M. Ionic transport of alkali in borosilicate glass. Role of alkali nature on glass structure and on ionic conductivity at the glassy state. J. Non-Crystal. Solids 2015, 410, 74–81. [Google Scholar] [CrossRef]
  60. Pradel, A.; Ribes, M. Electrical properties of lithium conductive silicon sulfide glasses prepared by twin roller quenching. Solid State Ion. 1986, 18–19, 351–355. [Google Scholar] [CrossRef]
  61. Kennedy, J.H.; Yang, Y. Glass-forming region and structure in SiS2-Li2S-LiX (X = Br, I). J. Solid State Chem. 1987, 69, 252–257. [Google Scholar] [CrossRef]
  62. Tuller, H.L.; Tuller, H.L.; Balkanski, M. Science and Technology of Fast Ion Conductors; NATO-ASI Series; Plenum: New York, NY, USA, 1989; Volume 199, p. 51. [Google Scholar]
  63. Kennedy, J.H.; Sahami, S.; Sheg, S.W.; Zhang, Z. Preparation and conductivity measurements of SiS2-Li2S glasses doped with LiBr and LiCI. Solid State Ion. 1986, 18–19, 368–371. [Google Scholar] [CrossRef]
  64. Ujiie, S.; Hayashi, A.; Tatsumisago, M. Structure, ionic conductivity and electrochemical stability of Li2S–P2S5–LiI glass and glass–ceramic electrolytes. Solid State Ion. 2012, 211, 42–45. [Google Scholar] [CrossRef]
  65. Noi, K.; Hayashi, A.; Tatsumisago, M. Structure and properties of the Na2S–P2S5 glasses and glass–ceramics prepared by mechanical milling. J. Power Sources 2014, 269, 260–265. [Google Scholar] [CrossRef]
  66. Dietrich, C.; Weber, D.A.; Sedlmaier, S.J.; Indris, S.; Culver, S.P.; Walter, D.; Janek, J.; Zeier, W.G. Lithium ion conductivity in Li2S–P2S5 glasses–building units and local structure evolution during the crystallization of superionic conductors Li3PS4, Li7P3S11 and Li4P2S7. J. Mater. Chem. A 2017, 5, 18111–18119. [Google Scholar] [CrossRef]
  67. Chryssikos, G.D.; Kamitsos, E.I.; Patsis, A.P. Effect of Li2SO4 on the structure of Li2O-B2O3 glasses. J. Non-Cryst. Solid 1996, 202, 222–232. [Google Scholar] [CrossRef]
  68. Minami, T.; Hayashi, A.; Tatsumisago, M. Recent progress of glass and glass-ceramics as solid electrolytes for lithium secondary batteries. Solid State Ion. 2006, 177, 2715–2720. [Google Scholar] [CrossRef]
  69. Aotani, N.; Twamoto, K.; Takada, K.; Kondo, S. Synthesis and electrochemical properties of lithium ion conductive glass, Li3PO4-Li2S-SiS2. Solid State Ion. 1994, 68, 35–39. [Google Scholar] [CrossRef]
  70. Mizuno, F.; Hayashi, A.; Tadanaga, K.; Tasumisaga, M. New, Highly Ion-Conductive Crystals Precipitated from Li2S–P2S5 Glasses. Adv. Mater. 2005, 17, 918–921. [Google Scholar] [CrossRef]
  71. Kennedy, J.H.; Schaupp, C.; Eckert, H.; Ribes, M. Aluminum substitution in the glass system 0.33 [(1−x)P2S5-xAl2S3]−0.67 Li2S. Solid State Ion. 1991, 45, 21–27. [Google Scholar] [CrossRef]
  72. Zhang, Z.; Kennedy, J. Synthesis and characterization of the B2S3-Li2S, the P2S5-Li2S and the B2S3-P2S5-Li2S glass systems. Solid State Ion. 1990, 38, 217–224. [Google Scholar] [CrossRef]
  73. Deshpande, V.K.; Pradel, A.; Ribes, M. The mixed glass former effect in the Li2S:SiS2:GeS2 system. Mater. Res. Bull. 1988, 23, 379–384. [Google Scholar] [CrossRef]
  74. Radhakrishnan, K.; Chowdari, B.V.R. Fast ion conduction in Li2O GeO2 Nb2O5 glasses. Mater. Sci. Eng. B 1992, 14, 17–22. [Google Scholar] [CrossRef]

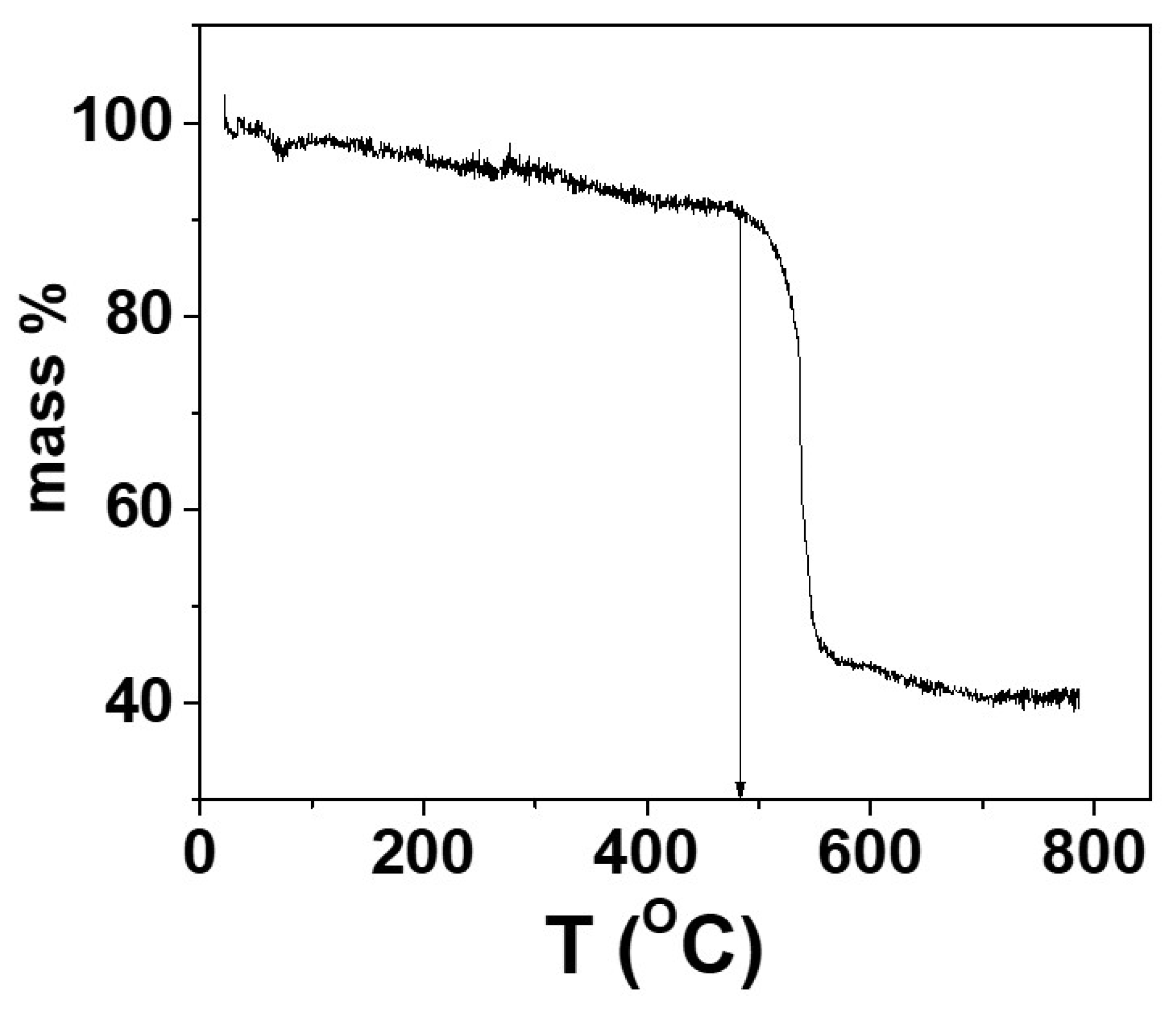

Figure 1. Thermogravimetric analysis (TGA) of KOTf. The decomposition started at around 480 °C.
Figure 1. Thermogravimetric analysis (TGA) of KOTf. The decomposition started at around 480 °C.
Ijms 24 16855 g001

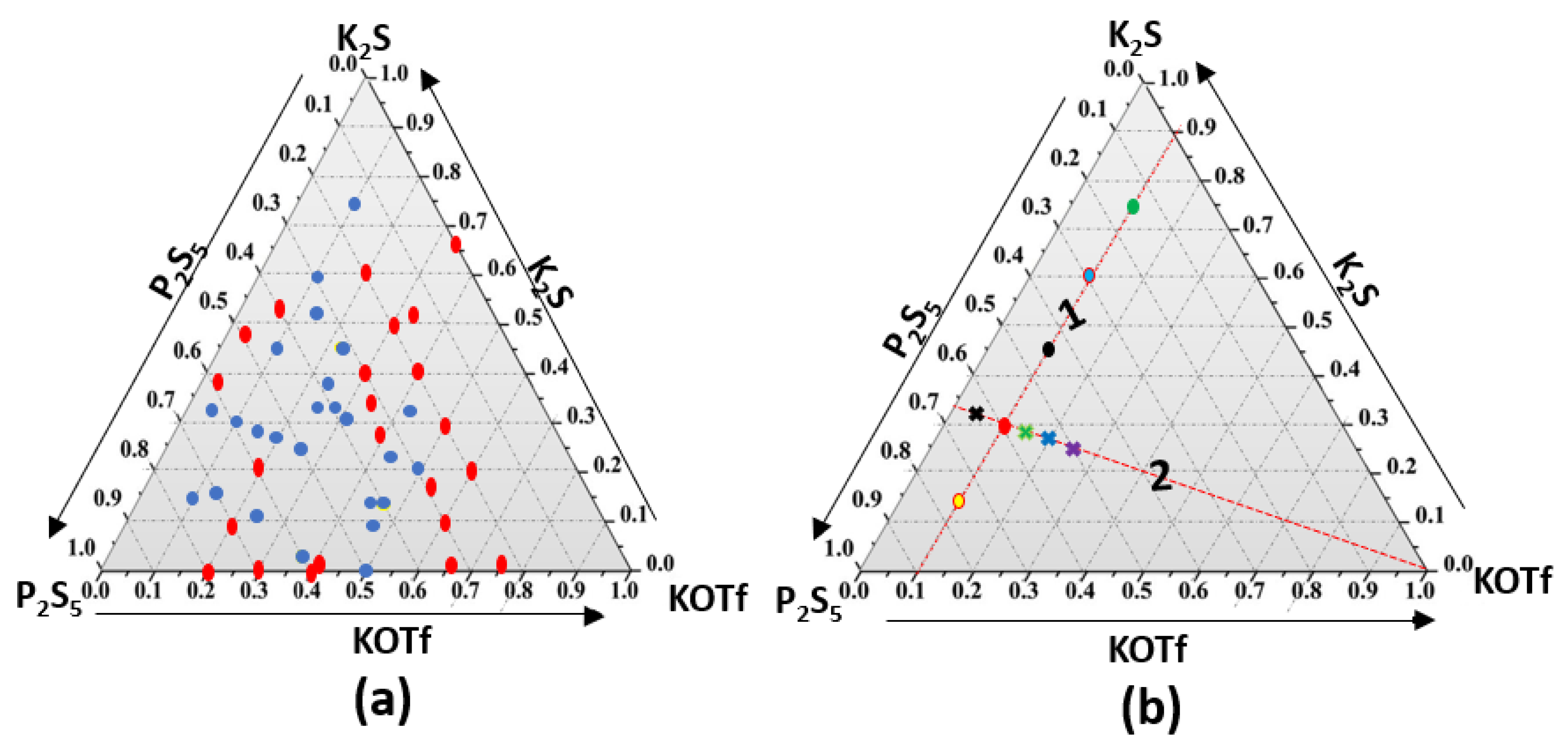

Figure 2. (a) Region of glass formation; blue spots represent pure glassy electrolytes and red spots represent impure or no glassy electrolyte formation. (b) Glass compositions of (0.9–x)K2S-xP2S5-0.1KOTf (line 1) where x = 0.15 (green), 0.30 (blue), 0.45 (black), 0.60 (red) and 0.75 (yellow) and z(K2S-2P2S5)-yKOTf (line 2) where y = 0.05 (black cross), 0.10 (red circle), 0.15 (green cross), 0.20 (blue cross) and 0.25 (purple cross). The z value changes according to the y values in line 2.
Figure 2. (a) Region of glass formation; blue spots represent pure glassy electrolytes and red spots represent impure or no glassy electrolyte formation. (b) Glass compositions of (0.9–x)K2S-xP2S5-0.1KOTf (line 1) where x = 0.15 (green), 0.30 (blue), 0.45 (black), 0.60 (red) and 0.75 (yellow) and z(K2S-2P2S5)-yKOTf (line 2) where y = 0.05 (black cross), 0.10 (red circle), 0.15 (green cross), 0.20 (blue cross) and 0.25 (purple cross). The z value changes according to the y values in line 2.
Ijms 24 16855 g002

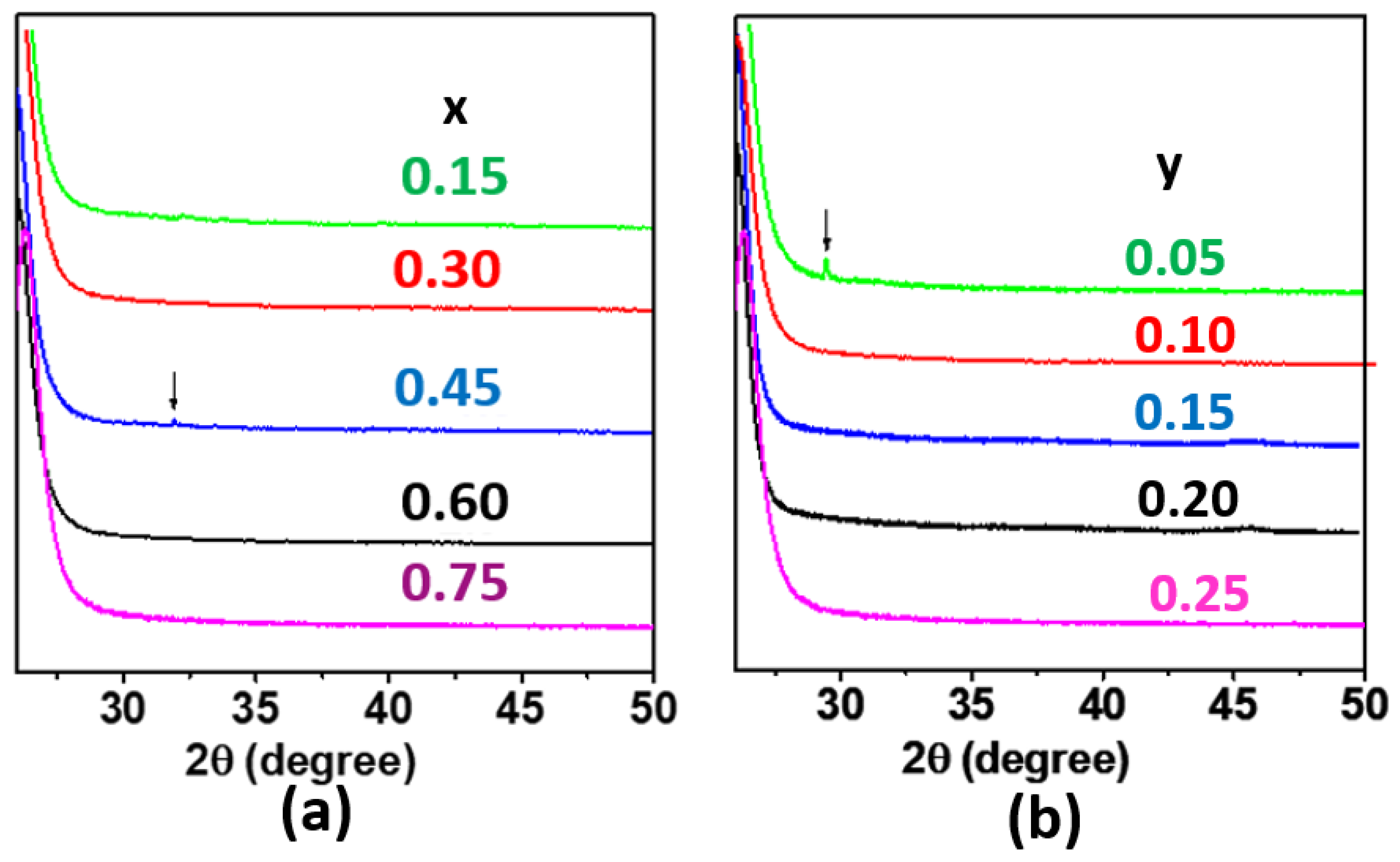

Figure 3. Powder X-ray diffraction data of compositions (a) (0.9–x)K2S-xP2S5-0.1KOTf where the numbers represent x values. The arrow on x = 0.45 represents the impurity peak. (b) z(K2S-2P2S5)-yKOTf where the numbers represent y values. The arrow on y = 0.05 represents the impurity peak.
Figure 3. Powder X-ray diffraction data of compositions (a) (0.9–x)K2S-xP2S5-0.1KOTf where the numbers represent x values. The arrow on x = 0.45 represents the impurity peak. (b) z(K2S-2P2S5)-yKOTf where the numbers represent y values. The arrow on y = 0.05 represents the impurity peak.
Ijms 24 16855 g003

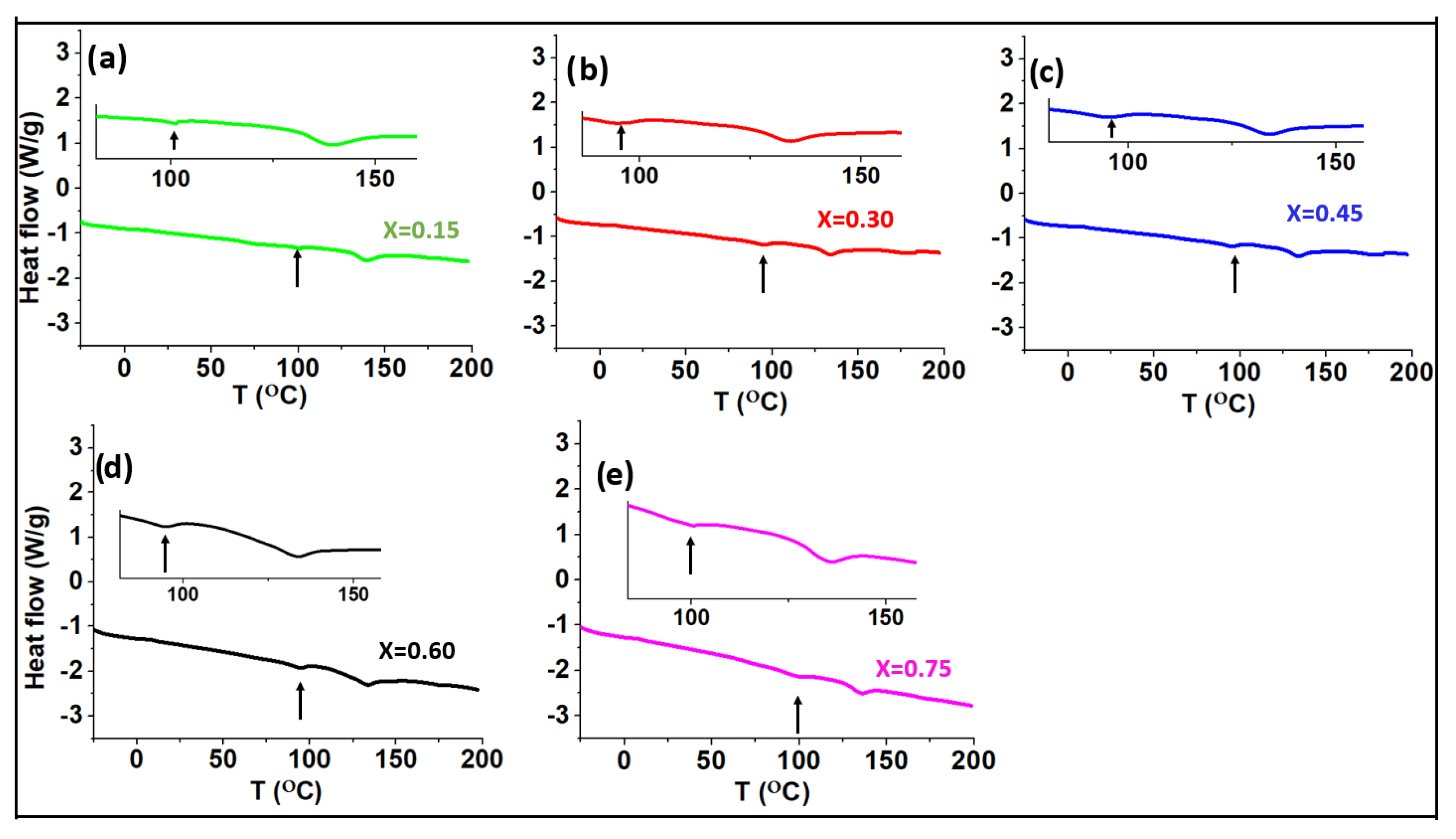

Figure 4. DSC data for the compositions of (0.9–x)K2S-xP2S5-0.1KOTf where x = 0.15, 0.30, 0.45, 0.60, and 0.75. The inset shows the magnified data showing the first dip or slope.
Figure 4. DSC data for the compositions of (0.9–x)K2S-xP2S5-0.1KOTf where x = 0.15, 0.30, 0.45, 0.60, and 0.75. The inset shows the magnified data showing the first dip or slope.
Ijms 24 16855 g004

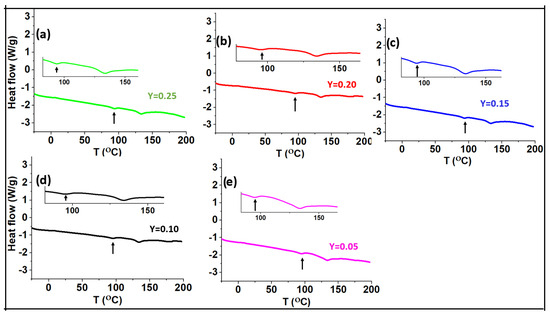

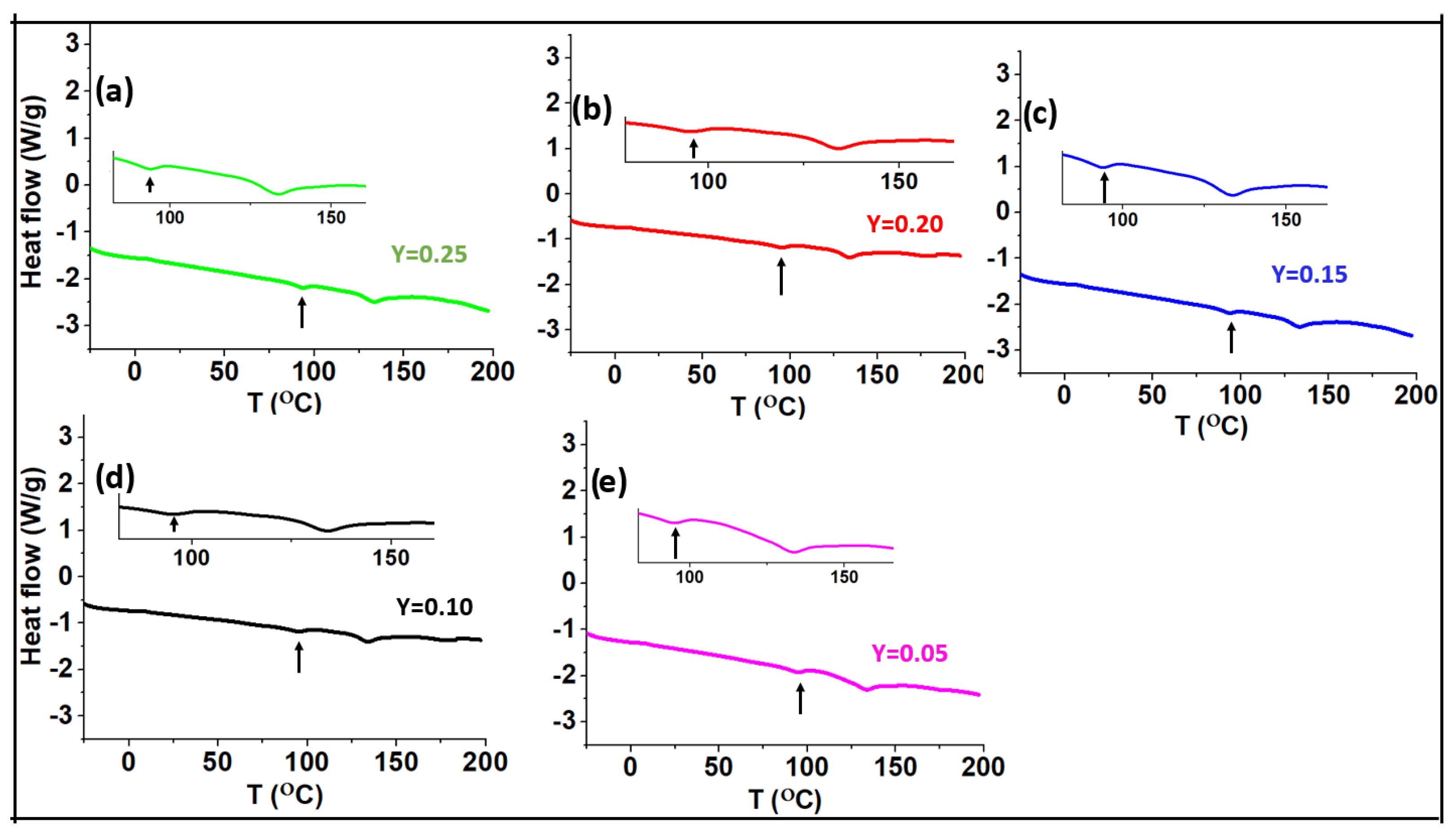

Figure 5. DSC data for the compositions of z(K2S-2P2S5)-yKOTf where y = 0.05, 0.1, 0.15, 0.20 and 0.25. The inset shows the magnified data showing the first dip or slope.
Figure 5. DSC data for the compositions of z(K2S-2P2S5)-yKOTf where y = 0.05, 0.1, 0.15, 0.20 and 0.25. The inset shows the magnified data showing the first dip or slope.
Ijms 24 16855 g005

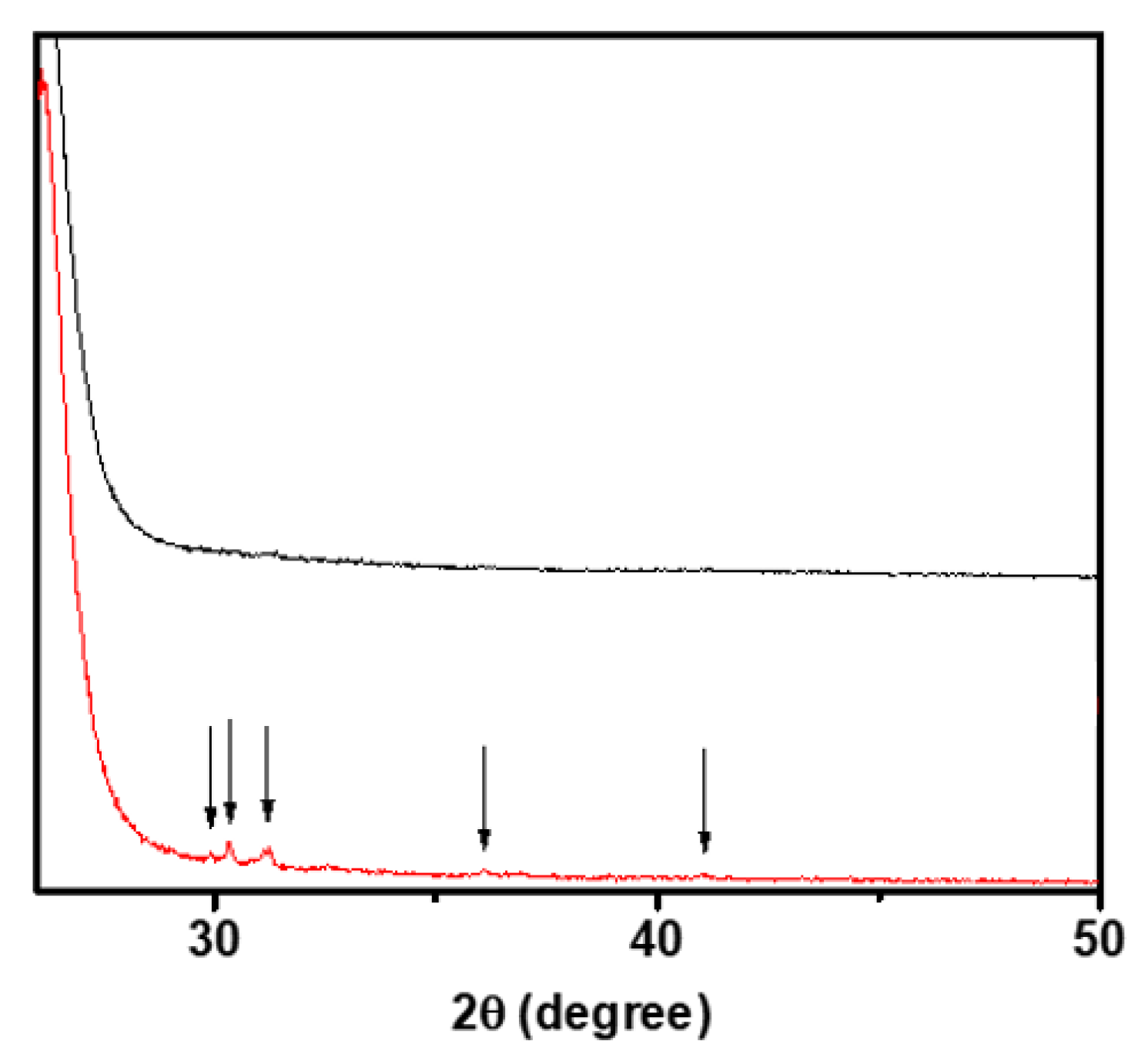

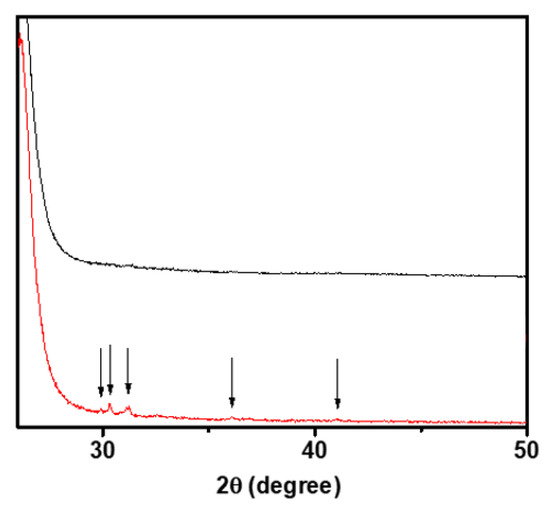

Figure 6. Powder X-ray diffraction data of 0.3K2S-0.6P2S5-0.1KOTf at room temperature. The upper black line represents pure glass. The glass is then heated to 150 °C for 2 h and then cooled slowly. The lower red line containing peaks represents XRD data collected after heating the glass to 150 °C.
Figure 6. Powder X-ray diffraction data of 0.3K2S-0.6P2S5-0.1KOTf at room temperature. The upper black line represents pure glass. The glass is then heated to 150 °C for 2 h and then cooled slowly. The lower red line containing peaks represents XRD data collected after heating the glass to 150 °C.
Ijms 24 16855 g006

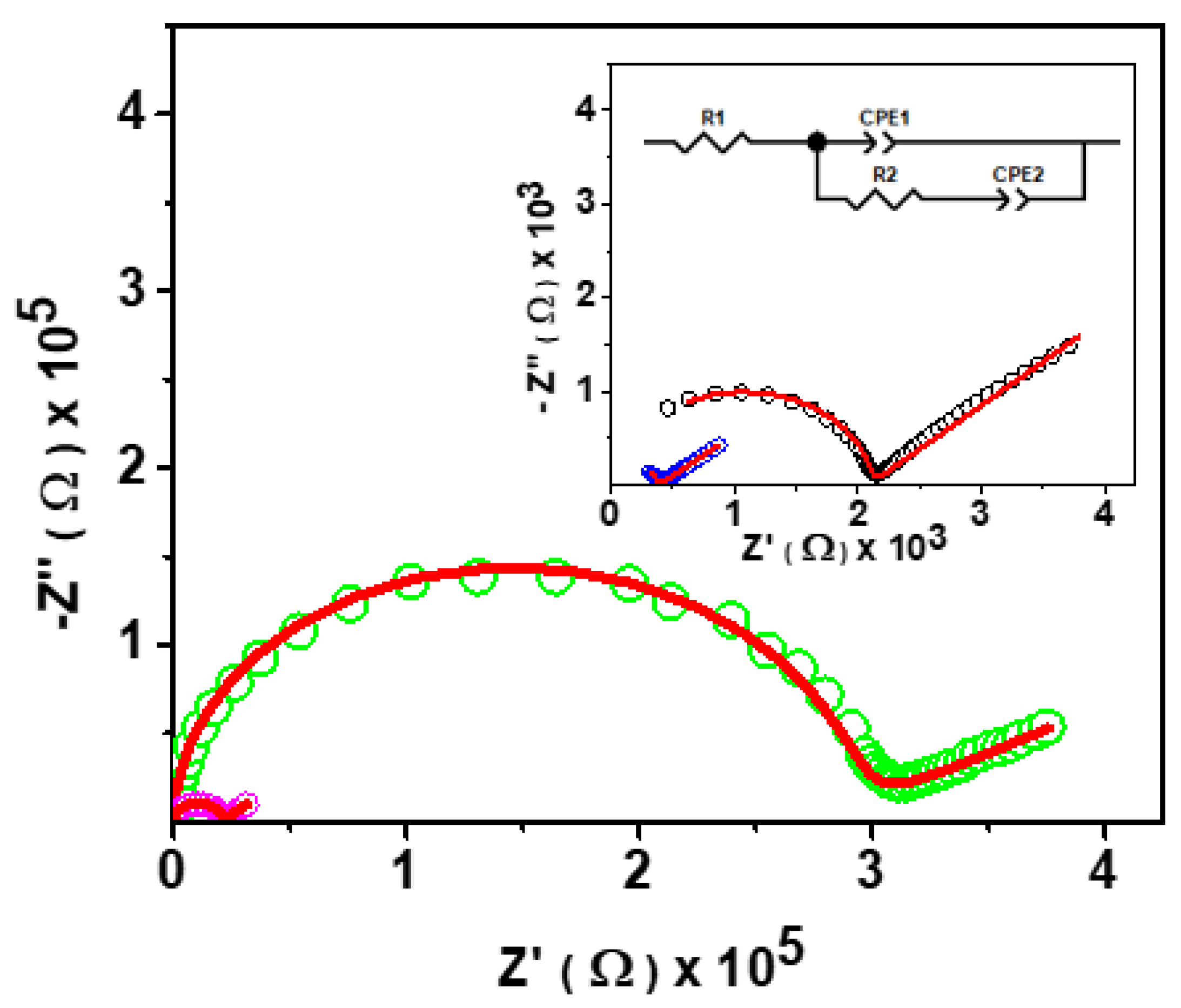

Figure 7. Electrical impedance spectroscopy data of 0.3K2S-0.6P2S5-0.1KOTf. Circles and red solid lines represent raw and fitted data for 25 °C (green), 50 °C (magenta), 75 °C (black), and 100 °C (blue).
Figure 7. Electrical impedance spectroscopy data of 0.3K2S-0.6P2S5-0.1KOTf. Circles and red solid lines represent raw and fitted data for 25 °C (green), 50 °C (magenta), 75 °C (black), and 100 °C (blue).
Ijms 24 16855 g007

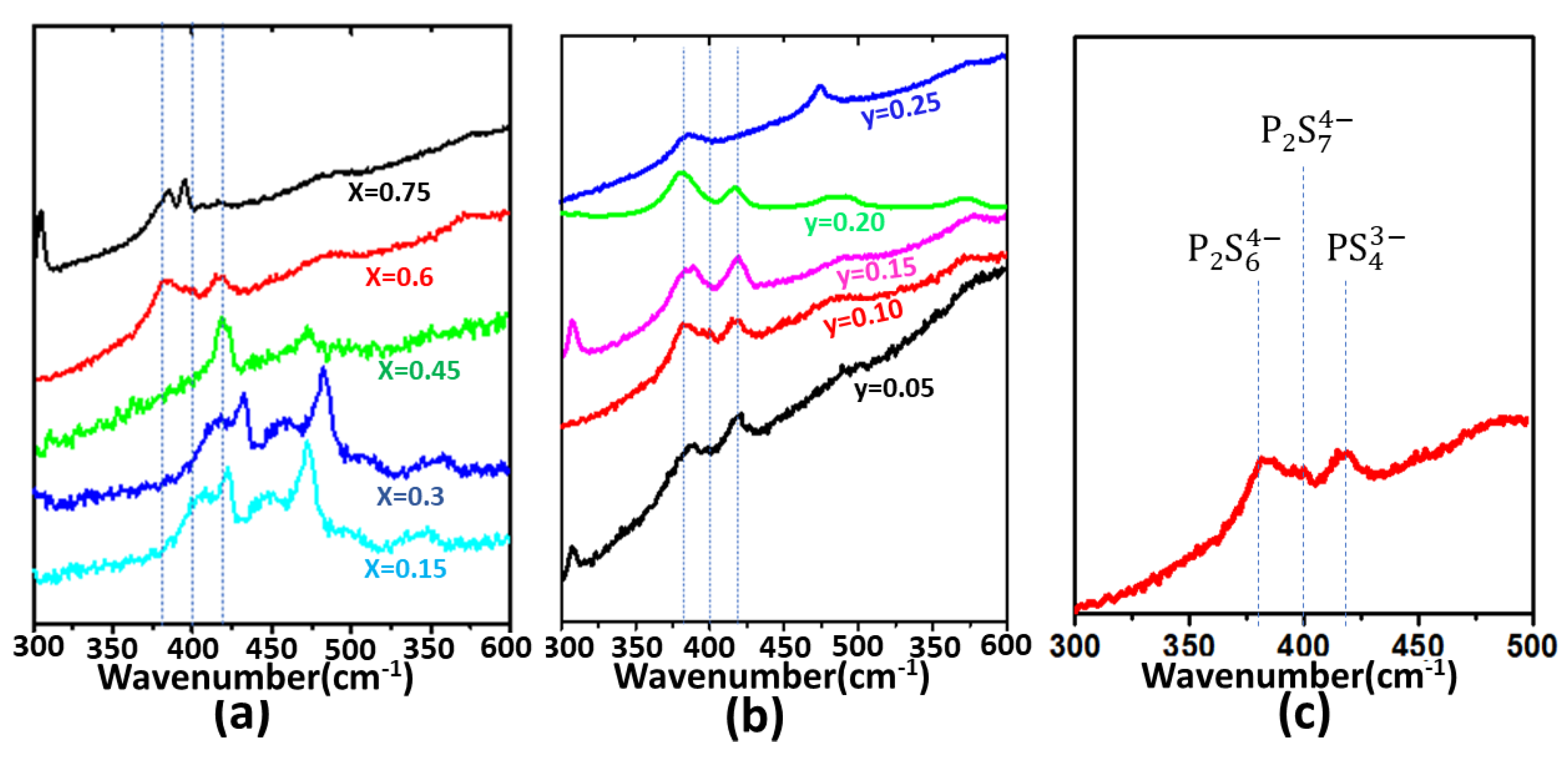

Figure 9. The Raman spectra of (a) (0.9–x)K2S-xP2S5-0.1KOTf compositions where x = 0.15, 0.30, 0.45, 0.60 and 0.75; (b) z(K2S-2P2S5)-yKOTf where y = 0.05, 0.10, 0.15, 0.20 and 0.25 (c) peak assignments for x = 0.60 or y = 0.1.
Figure 9. The Raman spectra of (a) (0.9–x)K2S-xP2S5-0.1KOTf compositions where x = 0.15, 0.30, 0.45, 0.60 and 0.75; (b) z(K2S-2P2S5)-yKOTf where y = 0.05, 0.10, 0.15, 0.20 and 0.25 (c) peak assignments for x = 0.60 or y = 0.1.
Ijms 24 16855 g009
Table 1. Ionic conductivity at 21 °C and activation energy of (0.9–x)K2S-xP2S5-0.1KOTf.
Table 1. Ionic conductivity at 21 °C and activation energy of (0.9–x)K2S-xP2S5-0.1KOTf.
Moles (x)σ 21 (S cm−1)Ea (eV)
0.152.91 × 10−100.99
0.308.93 × 10−120.80
0.454.88 × 10−120.89
0.601.06 × 10−70.83
0.753.95 × 10−100.98
Table 2. Ionic conductivity at 21 °C and activation energy of z(K2S-2P2S5)-yKOTf.
Table 2. Ionic conductivity at 21 °C and activation energy of z(K2S-2P2S5)-yKOTf.
yσ 21 (S cm−1)Ea
0.057.81 × 10−111.04
0.101.06 × 10−70.83
0.151.84 × 10−111.17
0.203.00 × 10−121.05
0.253.88 × 10−120.90
