Article

Activity and Crystal Structure of the Adherent-Invasive Escherichia coli Tle3/Tli3 T6SS Effector/Immunity Complex Determined Using an AlphaFold2 Predicted Model

by
Thi Thu Hang Le
1,†,
Christine Kellenberger
1,‡,
Marie Boyer
2,
Pierre Santucci
2,
Nicolas Flaugnatti
2,§,
Eric Cascales
2,
Alain Roussel
1,2,
Stéphane Canaan
2,
Laure Journet
2,* and
Christian Cambillau
1,3,4,*
1
Architecture et Fonction des Macromolécules Biologiques, Aix Marseille University and CNRS, 13288 Marseille, France
2
Laboratoire d’Ingénierie des Systèmes Macromoléculaires (LISM), Institut de Microbiologie, Bioénergies et Biotechnologie, Aix Marseille University and CNRS, 13009 Marseille, France
3
AlphaGraphix, 66210 Formiguères, France
4
School of Microbiology, University College Cork, T12 K8AF Cork, Ireland
*
Authors to whom correspondence should be addressed.
†
Present address: Department of Life Sciences (LS), University of Science and Technology of Hanoi, VAST, Hanoi 100000, Vietnam.
‡
Present address: Laboratoire de Chimie Bactérienne (LCB), Institut de Microbiologie, Bioénergies et Biotechnologie, Aix Marseille University and CNRS, 13402 Marseille, France.
§
Present address: Laboratory of Molecular Microbiology, School of Life Sciences, Ecole Polytechnique Fédérale de Lausanne (EPFL), CH-1015 Lausanne, Switzerland.
Int. J. Mol. Sci. 2023, 24(2), 1740; https://doi.org/10.3390/ijms24021740
Submission received: 22 November 2022 / Revised: 11 January 2023 / Accepted: 13 January 2023 / Published: 16 January 2023
(This article belongs to the Special Issue Emerging Topics in Structural Biology)
Browse Figures
Versions Notes

Abstract

:
The type VI secretion system (T6SS) delivers enzymatic effectors into target cells to destroy them. Cells of the same strain protect themselves against effectors with immunity proteins that specifically inhibit effectors. Here, we report the identification and characterization of a Tle3 phospholipase effector and its cognate immunity protein Tli3—an outer membrane lipoprotein from adherent-invasive Escherichia coli (AIEC). Enzymatic assays demonstrate that purified Tle3AIEC has a phospholipase A1, and not A2, activity and that its toxicity is neutralized by the cognate immunity protein Tli3AIEC. Tli3AIEC binds Tle3 in a 1:1 stoichiometric ratio. Tle3AIEC, Tli3AIEC and the Tle3AIEC-Tli3AIEC complex were purified and subjected to crystallization. The Tle3AIEC-Tli3AIEC complex structure could not be solved by SeMet phasing, but only by molecular replacement when using an AlphaFold2 prediction model. Tle3AIEC exhibits an α/β-hydrolase fold decorated by two protruding segments, including a N-terminus loop. Tli3AIEC displays a new fold of three stacked β-sheets and a protruding loop that inserts in Tle3AIECcatalytic crevice. We showed, experimentally, that Tle3AIEC interacts with the VgrG AIEC cargo protein and AlphaFold2 prediction of the VgrGAIEC-Tle3AIEC complex reveals a strong interaction between the VgrGAIEC C-terminus adaptor and Tle3AIEC N-terminal loop.

1. Introduction

The type VI secretion system (T6SS) is a macromolecular machine anchored in the envelope of Gram-negative bacteria. This nanomachine allows the injection of effectors or toxins into eukaryotic or bacterial target cells and is involved in virulence and antibacterial competition. T6SS+ cells that deliver antibacterial effectors also produce specific immunity proteins to protect themselves from the toxicity of these effectors.
The subunits required to assemble a functional T6SS machine are usually encoded within gene clusters, together with additional toxin and immunity genes. These subunits assemble a membrane complex embedded in the envelope that anchors a cytoplasmic contractile tail structure [1,2,3,4]. The contractile tail is an internal tube made of Hcp protein hexamers, surrounded by a sheath-like structure and tipped by a needle-spike. The spike is built by a trimeric protein named VgrG, topped by a conical protein named PAAR [5,6]. The contractile tail assembles on a baseplate platform in an elongated conformation [7,8,9]. Upon contact with the target bacterium, the contraction of the sheath outwardly propels the tube and spike directly into the target cell. Because the toxins can be fused to or interact with the Hcp tube component or the VgrG/PAAR spike proteins, the contraction of the sheath leads to the secretion and delivery of the effectors into the target cell.
Antibacterial toxins’ injection into the cytoplasm or the periplasm of target bacteria leads to bacterial cell lysis or growth inhibition. Cytoplasmic-acting antibacterial effectors include DNases, deaminases, NAD(P) + glycohydrolase toxins, p(p)pApp synthetase and post-translational modification enzymes, such as ADP-ribosyltransferases [10,11]. Periplasmic-acting antibacterial effectors include enzymes degrading the peptidoglycan, such as amidases or glycosides hydrolases, or toxins targeting the membrane, such as pore-forming toxins or phospholipases [10,11].
Type VI lipase effectors (Tle) were classified in five families (Tle1-5) [12]. Members of the Tle5 family, such as Pseudomonas aeruginosa PldA and PldB, are phospholipases D [12,13,14]. Members of families 1 to 4 (Tle1–4) bear a GxSxG motif and a putative catalytic triad (S-H-D). B. thailandensis Tle1BT and P. aeruginosa Tle1PA demonstrate phospholipase A2 (PLA2) activity [12,15], while Vibrio cholerae Tle2VC (TseL) and P. aeruginosa Tle4PA (TplE) demonstrate phospholipase A1 (PLA1) activity [12,16]. Tle1EAEC was shown to possess PLA1 activity and, to a lesser extent, PLA2 activity [17]. The enzymatic activity of Tle3 family members has not been determined as yet. All Tle characterized effectors are antibacterial effectors, likely degrading the membrane phospholipids of target cells. Interestingly, T6SS phospholipases can demonstrate activity in eukaryotic cells, and thus are considered as transkingdom effectors [13,16].
We previously characterized Tle1 and Tli1, a toxin/immunity couple of enteroaggregative Escherichia coli (EAEC) [17]. Tle1 is a periplasmic-acting toxin with phospholipase A1/A2 activity that mediates the antibacterial activity of EAEC T6SS-1. Tle1EAEC activity is counteracted by Tli1EAEC, a small outer membrane lipoprotein encoded downstream from the tle1 gene. We further showed that the delivery of Tle1EAEC into bacteria requires a direct interaction of Tle1EAEC with the VgrG1 protein [17]. The EAEC VgrG1 is comprised of a gp27-like base, gp5 β-helix and a C-terminal extension with a transthyretin (TTR) fold. We recently determined the high-resolution structure of the VgrG1/Tle1 complex by cryo-EM, demonstrating that Tle1EAEC binds to the VgrG1 TTR domain and that the interaction is stabilized by additional contacts with the VgrG β-helix and base [18].
The presence of phospholipase/immunity genes is a conserved feature of T6SS-1 clusters in E. coli strains [19]. However, these phospholipase effectors belong to different families (Tle1 for EAEC, Tle4 for avian pathogenic E. coli and a predicted Tle3 for uropathogenic E. coli CFT073 or adherent-invasive E. coli (AIEC) [12,17,19,20]). AIEC is implicated as a determinant of human Crohn’s disease (CD) development, as ileal gut mucosa colonization by AIEC is often observed in CD patients [21,22].
Here, we biochemically and structurally characterized Tle3 from AIEC and its cognate Tli3 immunity protein. We showed that Tle3AIEC has PLA1 activity that is specifically counteracted by the Tli3AIEC immunity protein. We solved the structure of the Tle3AIEC/Tli3AIEC complex by X-ray crystallography, with the help of Alphafold2 structure predictions [23,24]. Finally, a model of a Tle3AIEC/VgrG AIEC complex was proposed.

2. Results

2.1. Genomic Context and Bioinformatic Analyses of AIEC T6SS-1 Phospholipase Effector/Immunity

E. coli T6SS-1 clusters encode similar machines, but different effector/immunity pairs are encoded in between the vgrG and PAAR genes. The AIEC reference strain LF82 encodes a putative Tli3/Tle3 immunity/toxin couple (Figure 1A). The tle3AIEC gene (LF82_435, NCBI Gene Identifier (GI): 222034514) is predicted to encode a 658-aminoacid (73.9 kDa) cytoplasmic protein identical to the uncharacterized c3395 protein from E. coli CFT073, classified by Russell et al. as a member of the Tle3 family of T6SS effectors [12]. Alignment of Tle3 members reveals the presence of a conserved XHSQG motif (G/S/C/A-H-S-Q-G motif in Tle3) (Figure S1).
In T6SS, protection against kin cells that produce toxic effectors is ensured by the production of immunity proteins that specifically bind and inhibit their corresponding toxin. Effector/immunity genes are found in tandem in genomes, and immunity proteins of Tle effectors, named Tli (Type VI lipase immunity), are usually periplasmic proteins or lipoproteins, as Tle are periplasmic-acting toxins. Computer analysis of the LF82_434 gene product (GI: 222034513) using SignalP 6.0 suggests that LF82_434 is a lipoprotein with a signal sequence bearing a characteristic lipobox motif with an isoleucine as +2 residue, suggesting an outer membrane localization (Figure S2; [25]). A fractionation experiment confirmed that LF82_434 co-localizes with the membrane fraction (Figure S2). Its localization and genomic context close to tle3 suggest it could correspond to the Tle3 immunity protein; therefore, it was named Tli3.

2.2. Tle3AIEC and Activity and Inhibition by Tli3AIEC

T6SS Tle1, Tle2 and Tle4 effectors were demonstrated to have phospholipase A1 (PLA1) or phospholipase A2 (PLA2) activity [12,15,16]. Interestingly, Tle1EAEC has both phospholipase A1 and phospholipase A2 (PLA2) activities [17]. By contrast, no enzymatic activity has been assigned, to date, for any member of the Tle3 family.
The AIEC Tle3 protein, Tle3AIEC, was purified (Figure 1B), and its activity was tested using fluorogenic PLA1- and PLA2-specific phospholipid substrates. As shown in Figure 1C, Tle3AIEC possesses phospholipase A1 (PLA1) activity (specific activity (SA) = 7.65 nmole.min−1.mg−1) but no PLA2 activity. This result supports our previous remark that Tle classification was based on their protein sequences and phylogenetic distribution, and not on their activity [17].
The Tli3AIEC putative immunity, devoid of is signal sequence and N-terminal cysteine residue, was purified (Figure 1B), and tested for its ability to interfere with Tle3AIEC activity. Thirty micrograms of Tle3AIEC were incubated with various molar ratios of Tli3AIEC (xi = 0, 0.25, 0.5, 1 and 2), and the activity was measured immediately or after 30 min incubation at room temperature. Figure 1D shows that the Tle3AIEC phospholipase activity was inhibited by Tli3AIEC in a dose-dependent manner. Interestingly, the Tle3AIEC activity was nearly abolished with a Tle3AIEC:Tli3AIEC molecular ratio of 1:2 (Figure 1D). Tli3AIEC is thus likely to interact strongly with Tle3AIEC, probably inside or in a close vicinity to the active site, since no substrate can have access to the active site to be hydrolyzed. These results indicate that Tli3AIEC is an immunity protein that inhibits the phospholipase activity of Tle3AIEC.
To better understand the specificity of Tli3 towards Tle3, cross-inhibition assays with Tli1EAEC (from EAEC T6SS-1, [17]) were performed by incubating 20 µg of Tle3AIEC with various molar ratios of Tli1 (xi = 0, 0.5, 1, 2 and 10) (Figure 1E). No inhibition by Tli1EAEC was detected even with the highest immunity/effector ratio. As expected, this result indicates specificity between Tle and Tli, without any cross-reaction.
Because AIEC is a human pathogen, we then investigated whether Tle3AIEC is cytotoxic in mammalian cells (Figure 1F). Many bacterial enzymes presenting phospholipase A2/A1 activity possess cytotoxic activity against mammalian cells [26,27]. In order to estimate the effect of Tle3AIEC on a RAW 264.7 cell, we used the well-established resazurin-based cell viability assay. As controls, lysis buffer containing Triton X-100 leads to 100% cellular lysis while the untreated and buffer-only conditions maintained cell viability. The addition of the Tle3AIEC PLA1 did not show any significant cytotoxicity (~15%) towards mouse macrophages. In contrast, the incubation with the Tle1EAEC PLA1/PLA2 led to ~50% lysis of the RAW 264.7 cells in 16 h. This cytotoxic effect can be inhibited by preincubating Tle1EAEC with Tli1EAEC, its cognate and specific immunity. Our results are in agreement with the literature, supporting the idea that the PLA2 activity is required for a cytotoxic effect towards mammalian cells [28]. Finally, these results confirm the biochemical properties of Tle3AIEC as a PLA1 enzyme.

2.3. Tle3AIEC-Tli3AIEC Heterodimer Crystallization and Data Collection

The purified Tle3AIEC and Tli3AIEC proteins were mixed with a molar ratio of 1:1.3. The complex was then collected by gel filtration chromatography (Supplementary Figure S3). The Tle3AIEC-Tli3AIEC complex has an apparent molecular mass of 100 kDa (Supplementary Figure S3C). Considering its theoretical molecular weight of 101.9 kDa, it is likely to be a 1:1 Tle3AIEC-Tli3AIEC heterodimer in solution.
Highly purified protein fractions were pooled and concentrated to 5.6 mg/mL. The Tle3AIEC-Tli3AIEC SeMet purified complex was then submitted to crystallization. Sharp crystals appeared within 10 days to 3 weeks, reaching maximum dimensions of 100 × 40 × 40 µm within 2 months. The best crystals were exposed at the Soleil synchrotron (Saint-Aubin, France) and diffracted to 3.6-Å resolution (Table 1). Tle3AIEC-Tli3AIEC crystals belong to space group P21, with unit-cell parameters a = 67.9 Å, b = 449.1 Å, c = 116.2 Å and β = 91.2° (Table 1). The crystals exhibit a Vm of 17.4 Å3/Da for 1 complex per asymmetric unit. Based on the molecular weight of 101,9 kDa, a total of 4 to 8 complexes per asymmetric unit should be expected, as this would lead to more reasonable values of Vm, in the range of 4.35–2.17 Å3/Da, and solvent contents of 72–43%. However, due to the low redundancy of the collected data set, data resolution, large cell and 4-8 complexes of ~900 amino acids in the asymmetric unit, the structure could not be solved by SeMet phasing nor with molecular replacement, and the project was abandoned for 6 years.

2.4. Crystal Structure Determination Using Molecular Replacement with AlphaFold2 Models

Recently (15 July 2021) AlphaFold2 (AF2) [23], a highly efficient protein structure prediction program, was released. With the idea to resuscitate the project, we submitted the sequences of Tle3AIEC and Tli3AIEC to AlphaFold2 and obtained models with satisfying statistics (pLDDT > 80; Supplementary Figure S4). However, since some loops or stretches of residues were poorly predicted, we removed them from the starting models used for molecular replacement (Supplementary Figure S5). Molecular replacement with Molrep [29] using the AF2 “cleaned” model yielded four Tle3AIEC molecules in a first pass. This starting model was refined with Phenix [30] and a second pass of molecular replacement yielded three more molecules. After refinement, the seven-molecule ensemble was used as the fixed model for molecular replacement with Tli3AIEC, yielding two Tli3AIEC molecules. The Tle3AIEC-Tli3AIEC complex was substituted on the six remaining Tle3AIEC, and the seven complexes were subjected to refinement with Phenix. After cycles of model building with Coot [31] and Phenix refinement [30], an eight-complex ensemble was identified and a new cycle of refinement was performed. Finally, the 8 complexes exhibited a reasonable geometry for a 3.6 Å resolution with R and Rfree factors of 23.4% and 26.8%, respectively (Table 1).

2.5. Structure of Tle3AIEC and Tli3AIEC

The Tle3AIEC phospholipase chain is 658 residues long, of which 525, on average, have been identified in the electron density map. Tle3AIEC structure is bulky, with overall dimensions of ~75 Å × 65 Å × 55 Å (Figure 2A,B). Stretches in the amino acid chain are lacking at the N- and C-termini, as well as in some more or less extended loops. Tle3AIEC shares the classical core of an α/β-hydrolase fold [32], with a β-sheet of six parallel β-strands in the order β2β1β3β4β5β6. The β-sheet is covered by two α-helices on one face, and five helices on the other face. Very large decorations, in which structured elements are a minority, complete the structure (Figure 2A,B). A cation, probably Ca2+, is observed at bonding distance from three acidic side chains from Asp444, Asp484 and Asp573 and the C=O group of Asp377 (Figure 2, inset 1; Supplementary Figure S6a). In enzymes belonging to the α/β-hydrolase fold, the nucleophilic serine is located at the tip of a sharp β–strand/α–helix kink with a GxSxG consensus sequence. In Tle3AIEC, the catalytic serine was identified in a short loop between a β–strand and a α–helix, with the sequence SHSQG at position 265. Notably, the first glycine of the consensus kink sequence GxSxG is replaced here by a serine. As in all α/β-hydrolase fold, the Ser exhibits a special position in the Ramachandran graph, with Phi and Psi angles of 60° and −135°, respectively. The Ser265 hydroxyl moiety is implicated in a hydrogen bound with the Ne2 atom of His574 which is, in turn, hydrogen-bound by its Nd1 atom to the Asp377 carboxyl group, forming the catalytic triad (Figure 2, inset 2; Supplementary Figure S6b). An Asn side chain further orientates the carboxyl moiety of Asp377. Notably, Asp377 C=O group participates in the binding of the Ca2+ cation, whose function might be to stabilize the catalytic triad geometry. The oxyanion hole, a device that stabilizes the oxyanion transition state via hydrogen bonds with two main-chain nitrogens, is often evidenced by using organophosphate or organophosphonate complexes. Two main-chain NH groups establish short hydrogen bonds with an oxygen belonging to the phosphonate group. In Tle3AIEC, in the absence of bound inhibitors, the oxyanion hole has been identified on the basis of comparisons with other α/β-hydrolases. Within the α/β hydrolase fold family, one obligate component of the oxyanion hole is the NH group of the residue following the nucleophile Ser (Gln266 in Tle3AIEC). The second NH group occupies a different position in sequence but always originates from the same spatial region. Here, by comparison with gastric lipase in complex with a phosphonate inhibitor ([33], PDB id: 1k8q), we identified Val55 as the second NH group involved in the oxyanion hole.
The catalytic triad is located at the bottom of a crevice ~30-Å deep and ~20 × 15 Å (Figure 2A). Surprisingly, the walls of the crevice, as well as the surface residues around it, are not particularly hydrophobic. A Dali search with Tle3AIEC structure returned hits with a palmitoyl thioesterase (PDB id 1pja; Z = 12.1; r.m.s.d. = 3.3 Å; aligned 187) and a lipase (PDB id 5h6g; Z = 11.4; r.m.s.d. = 3.1; aligned 176). Indeed, most residues belonging to the α/β-hydrolase fold core, i.e., the six β–strands and the seven α–helices, are aligned. Comparison with the apo- and phosphonate-complexed gastric lipase suggests that the oxyanion hole is preformed, even without substrate.
The Tli3AIEC immunity protein is predicted to be translated as a 274-residue long protein, with 24 residues cleaved upon processing and acylated at the N-terminal cysteine residue of the mature form (Figure S2). A total of 30–33 residues at the N-terminus of the mature form, which may correspond to a linker, as well as 0–5 residues at the C-terminus, are not observed in the electron density map. The Tli3AIEC structure possesses overall dimensions of 60 × 45 × 45 Å. (Figure 2C,D). The core of Tli3AIEC is assembled in three stacked β-sheets of 4, 3 and 4 β-strands, respectively, with topology of β1β2β3β4, β6β7β8, β5β10β11β12. A long loop of 17 residues is observed between strands β6 and β7 (residues 133–150). A large loop after strand β12 is followed by a very long extended C-terminal segment that runs antiparallel to the extended N-terminus. The extremities of these segments point outwards from the core. Dali returned several hits with small Z values (~6–6.4) and a relatively low number of residues aligned (~120). These hits cover many different functions and reflect only resemblances between the β structures. Overall, the fold of Tli3AIEC seems unique.

2.6. Structure of the Tle3AIEC-Tli3AIEC Complex

The Tle3AIEC-Tli3AIEC complex has overall dimensions of ~85 Å × 75 Å × 55 Å. The β6-β7 Tli3AIEC loop inserts deeply in the Tle3AIEC substrate-binding crevice, without reaching catalytic Ser265, however (Figure 3A–D). A water surface area of 1800 Å2 is buried upon complex formation, as calculated by Pisa server [34], which represents 11% of the total Tle3AIEC surface and 28% of the Tli3AIEC surface. Four loops of Tli3AIEC interact with the Tle3AIEC crevice, residues 132–151 (Loop1), 162–181 (Loop 2), 194–207 (Loop 3) and 235–241 (Loop 4) (Figure 3E). Loops 1 and 2 interact mainly with the C-terminal part of Tle3AIEC (residues 481–582), while loops 3 and 4 interact mainly with the N-terminal part (residues 56–132).

2.7. Comparison of the X-ray- and AlphaFold2-Predicted Structures

Superposition of AF2 prediction of Tle3AIEC onto the crystal structure yields an r.m.s.d of 1.12 Å (528/555 residues) (Figure 4A). Two predicted loops are absent in the crystal structure between residues 203–215 and residues 537–552. The AF2 prediction of Tle3AIEC exhibits two protruding domains at opposite sides of Tle3AIEC core that are not visible in the crystal structure, probably due to dynamic disorder. One of these extensions is the above-mentioned loop, 537–552, that starts and terminates with two antiparallel β-strands. The second is formed by the N-terminus of Tle3AIEC (residues 1–43), including a poorly predicted stretch of ~10 residues followed by a well-predicted structure of 3 extended stretches interlocked by 4 β-strands (Figure 4A). The tip of these two extensions, as well as loop 203–215, display lower prediction statistics (Supplementary Figure S4), which together with their absence in the electron density map of the X-ray structure, may indicate that they are flexible. Superposition of AF2 prediction of Tli3AIEC onto the crystal structure yields an r.m.s.d. of 1.4 Å (205/211 residues) (Figure 4B). The Tle3AIEC-Tli3AIEC complex was predicted by AlphaFold2 multimer [24] (Figure 4C). Although the complex is roughly predicted, the position of Tli3AIEC relative to Tle3AIEC is displaced by ~5 Å outside of the cavity in the predicted structure of the complex, leading to reduced predicted interactions.

2.8. Tle3AIEC Interacts with VgrGAIEC

In EAEC, the Tle1 phospholipase was shown to be transported through its association to the VgrG1 spike protein. As for EAEC VgrG1 [18], the VgrG protein from AIEC (VgrGAIEC) carries a C-terminal extension (COG 4532 domain) comprising a DUF2345/TTR domain separated from the VgrG base by two helices. This domain was shown to be involved, together with the base of the VgrG needle β-prism, in the interaction of VgrG1 with Tle1 from EAEC [17,18]. The predicted structural organization of VgrGAIEC and its genetic proximity to tle3 suggest a similar mode of binding. To test whether Tle3AIEC associates with VgrGAIEC, we used a pull-down assay. Strep-tagII VgrGAIEC (SVgrG) and Tle3AIEC 6-His (Tle3H)-tagged proteins were produced separately and cell lysates were mixed and loaded on a Streptactin resin. SDS-PAGE followed by Coomassie blue staining and Western blot analysis of the eluted material showed that Tle3H co-precipitated with SVgrG (Figure 5), suggesting that Tle3AIEC indeed interacts with VgrGAIEC.

2.9. Predicted Model of VgrGAIEC and Docking with Tle3AIEC

Comparison of the crystal structure of Tle3AIEC (Figure 4A) with the cryoEM structure of Tle1EAEC (Figure 6A) indicates that both structures share a α/β-hydrolase fold core of six β-strands surrounded by α-helices. Besides this core, the extra-parts of the structures diverge deeply. Two extensions that are absent in Tle3AIEC crystal structure are observed in Tle1EAEC at opposites sides (Figure 4A). However, these Tle1EAEC extensions are present in the Tle3AIEC AF2 prediction (Figure 4A) at similar positions; one of the two extensions also involves its N-terminus. Considering that the Tle1EAEC extensions interact with VgrGEAEC [18] (Figure 6A) and that we have shown that Tle3AIEC interacts with VgrGAIEC, we hypothesized that a similar mode of interaction may occur for Tle3AIEC-VgrGAIEC. To explore this hypothesis, we co-predicted the VgrGAIEC (residues 421-Ct) and Tle3AIEC structures with AF2-multimer. As expected from the sequence similarity, both VgrGs exhibit close structures (Figure 6B). After a non-predicted linker (750–767), the predicted structure of VgrGAIEC C-terminus domain, the adaptor (or TTR domain, 768–824), forms a complex with the N-terminus loop of Tle3AIEC (Figure 6B-inset). It completes the two β-sheets of the Tle3AIEC N-terminal loop by providing two β-strands to each of them. However, AF2 was not able to identify the second anchoring point of the complex, and the position of Tle3AIEC was adjusted manually to resemble that of Tle1EAEC in the complex with its VgrG (Figure 6B).

3. Discussions

In this study, we provide the first biochemical and structural characterization of a type VI phospholipase effector from the Tle3 family and its immunity protein Tli3. Tle3 effectors were identified by Russell et al. by bioinformatics [12]. Pseudomonas aeruginosa Tle3PA was previously shown to be a periplasmic antibacterial T6SS effector, but its biochemical activity was not determined [35,36]. Here we show that Tle3AIEC demonstrates PLA1 activity, inhibited by Tli3AIEC.
Tle3AIEC was soluble and could be readily purified from the cytoplasm of E. coli. The absence of toxicity of Tle3AIEC when produced in the cytoplasm of a host cell is in agreement with its predicted periplasmic activity. Indeed, Tli3AIEC co-fractionates with the membrane fraction as a predicted outer membrane lipoprotein, suggesting a periplasmic activity for Tle3AIEC that is common for Tle effectors.
The structure of the Tle3AIEC/Tli3AIEC complex presented here is only the second structure of a Tle effector in complex with its immunity protein. The structure of Tle3AIEC/Tli3AIEC reveals the inhibition mechanism, as a loop of Tli3AIEC inserts deeply in the Tle3AIEC substrate-binding crevice. This mechanism is very different from the “crab-claw like mechanism” used by Tli4 immunity protein to maintain Tle4 from P. aeruginosa in a closed conformation [37].
In EAEC, three Tle1s bind to the VgrG trimeric protein that serves as cargo for their delivery into the target cell. Each Tle1 interacts with the C-terminal transthyretin (TTR) extension of each VgrG monomer through its N-terminal domain extension, as well as on two additional zones of contact on the side and at the base of the VgrG needle. As expected from their sequence similarity, an AlphaFold2 model of VgrGAIEC predicts a structure similar to VgrGEAEC, including two α-helices located alongside of the extended needle and a TTR domain, features corresponding to COG4532 domains found in several VgrG proteins [38]. Here we found that Tle1EAEC and Tle3AIEC share the small overall α/β mixed hydrolase fold core, and two divergent extensions, as modelled by AlphaFold2 for Tle3AIEC. The docking simulations of Tle3AIEC on VgrGAIEC suggest a similar mode of interaction, with an N-terminal domain/TTR adaptor interaction, and likely other contacts with the side of the needle as well as a contact with the base of the needle through the C-terminal extension of Tle3AIEC. We propose that effectors could have evolved different extensions to allow interaction with VgrG proteins, especially with the COG4532 domain-containing VgrG protein family.

4. Materials and Methods

4.1. Plasmid Constructions

E. coli AIEC LF82 chromosomal DNA was used as a template for all PCRs. E. coli strain DH5α was used for cloning procedures. Polymerase chain reactions (PCR) were performed using a Biometra thermocycler using Q5 High Fidelity DNA Polymerase (New England Biolabs, Herts, UK) or PfuTurbo (Agilent, Santa Clara, CA, USA). The genes encoding Tle3AIEC and Tli3AIEC (without the N-terminal 24-residue signal peptide) were amplified from AIEC LF82 genomic DNA using the primers listed in Supplementary Table S1. Tle3AIEC was cloned, using the gateway technology, into the pETG20A vector that incorporates a Trx fusion protein followed by N-terminal His tag and a TEV cleavage site. The tli3AIEC gene sequence corresponding to the mature form of Tli3AIEC was cloned into the pET22b vector (Novagen, Madison, Wis, USA), fused to the PelB signal sequence, with a C-terminal 6-His tag in order to be addressed to the periplasm. Plasmids pET-Duet-SVgrGAIEC and pRSF-Duet1-Tle3H used for the pull-down experiments were constructed by a classical restriction/ligation method using the primers and restriction sites described in Supplementary Table S1. Plasmid pBAD33-Tli3VSVG used for the fractionation experiment was constructed by restriction-free cloning, as previously described [39], using oligonucleotides introducing extensions annealing to the target vector (see Supplementary Table S1). The constructs were verified by sequencing (Eurofins, Nantes, France).

4.2. Expression, Production and Purification of Tle3AIEC, Tli3AIEC and Tle3AIEC-Tli3AIEC Complex

For Tle3AIEC production, the expression plasmid pETG20A harboring the Tle3AIEC coding sequence was transformed into E. coli T7 Iq pLys strain. Recombinant cells were grown in a 2 L Erlenmeyer flask at 37 °C in Terrific Broth medium supplemented with 100 µg/mL ampicillin. When the OD600nm reached 0.8, the temperature was reduced to 17 °C and expression was induced overnight by the addition of 0.5 mM IPTG. Expression of selenomethionine (SeMet)-labelled Tle3AIEC (Tle3AIEC SeMet) was performed in E. coli T7 Iq pLys cells using the method of methionine biosynthesis pathway inhibition [40].
For Tli3AIEC production, E. coli C41 (DE3) cells were transformed with pET22b-Tli3AIEC for production in the periplasmic compartment and grown at 37 °C in Terrific Broth medium containing 0.1% glucose and 100 µg/mL ampicillin to an OD600nm of approximately 0.8. Gene expression was then induced by the addition of 1 mM IPTG and the bacterial culture was further incubated for 16 h at 28 °C.
After induction, cells were harvested by centrifugation and stored at −80 °C. The Tle3AIEC or Tle3AIEC SeMet cell pellets were resuspended in Tris-HCl 20 mM pH 8.0, NaCl 300 mM, glycerol 5% (v/v), lysozyme (0.25 mg/mL), DNase (2 µg/mL) and MgSO4 20 mM, and cells were lysed by ultrasonication on ice. The insoluble material was discarded by centrifugation at 20,000× g for 60 min at 4 °C. The soluble thioredoxin 6×His-tagged Tle3AIEC or Tle3AIEC SeMet fusion proteins were purified by affinity chromatography on a nickel–nitrilotriacetic acid resin (Bio-Rad) and the tag was removed after dialysis by overnight hydrolysis with the TEV protease and re-purified in presence of 10 mM imidazole. Pure fractions were concentrated by ultrafiltration using Amicon-Ultra 10-kDa cut-off and further purified by gel filtration chromatography (Superdex 200, 16/60 GE Healthcare) equilibrated in Hepes 10 mM pH 6.8, NaCl 150 mM using an AKTA purifier System (Amersham, Bath, UK).
Purification of Tli3AIEC was performed from the periplasmic fraction prepared by osmotic shock, according to Skerra and Plückthun [41]. Briefly, the cell pellet was resuspended in 9 mL cold TES buffer (0.2 M Tris-HCl pH 8.0, 0.5 mM EDTA, 0.5 M sucrose) and kept on ice for 1 h. The periplasmic proteins were obtained by osmotic shock by addition of 13.5 mL cold TES diluted 1/4 into H2O, incubation for 1–2 h on ice, and w consecutive centrifugations at 20,000× g for 30 min at 4 °C. The Tli3AIEC protein was then purified from the periplasmic fraction using the same procedure described above for Tle3AIEC. Production and purification of recombinant Tle1EAEC was performed as previously described [17,18].
For the purification of the Tle3AIEC-Tli3AIEC complex, the purified Tle3AIEC and Tli3AIEC were mixed with a molar ratio of 1:1.3. The complex was purified by gel filtration chromatography (Superdex 200, 16/60 GE Healthcare) equilibrated in a Hepes 10 mM pH 6.8, NaCl 150 mM buffer using an AKTA purifier System (Amersham, Bath, UK).

4.3. Phospholipase Activity Measurements. Enzymatic Assay on Synthetic Phospholipids

The activity of purified Tle3AIEC was tested on fluorogenic phospholipid substrates (Figure 1A). Phospholipase A1 and A2 activities were monitored continuously using BODIPY® dye-labeled phospholipids: PED-A1 (N-((6-(2,4-DNP)Amino)Hexanoyl)-1-(BODIPY® FL C5)-2Hexyl-sn-Glycero-3-Phosphoethanolamine) 3 and red/green BODIPY® PC-A2 (1-O-(6BODIPY-®558/568-Aminohexyl)-2-BODIPY®FLC5-sn-Glycero-3-Phosphocholine), respectively [42,43]. The sn-2 fatty acyl group in PED-A1 is a non-hydrolyzable alkyl chain, and PED-A1 substrate was used to specifically measure the PLA1 activity. The red/green BODIPY® PC-A2 possesses an sn-1 uncleavable alkyl chain. Substrate stock solutions (50 µM) were prepared in ethanol. All enzyme activities were assayed in 10 mM Tris-HCl pH 8.0, 150 mM NaCl, 1 mM CaCl2 and 0.1% Triton X-100. Enzymatic reactions were performed at 20 °C for 25 min in a final volume of 200 µL containing 20 µg of Tle3AIEC purified protein (from a 0.5 mg/mL stock solution) and 5 µM of the substrate. The release of BODIPY® (BFCL5) (Life Technologies) was recorded at λexc = 485 nm and λem = 538 nm using a 96-well plate fluorometer (Fluoroskan ascent, Thermo Fischer Scientific, Waltham, MA, USA). Enzymatic activities were quantified using a BFCL5 calibration curve (0.08–200 pmoles in activity buffers) and expressed in pmol of fatty acid (or BFLC5) released per minute per mg of protein (pmol.min−1.mg−1). PLA1 from Thermomyces lanuginosus and bee-venom PLA2 (Sigma-Aldrich, Saint-Quentin Fallavier, France) were used as positive standards for PLA1 and PLA2 activities, respectively. Inhibition studies with Tli1AIEC were performed by incubating 20 µg of Tle1AIEC or Tle3EAEC with various molar ratio of Tli1AIEC (xi = 0, 0.25, 0.5, 1 and 2). The residual activity was measured as described above.

4.4. Cytotoxic Effects of Tle1 and Tle3 Phospholipases on Mouse Macrophage

The cytotoxicity of the Tle1EAEC and Tle3AIEC phospholipases against eukaryotic cells was measured based on the reduction of resazurin as reporter of cellular viability [44,45,46]. Murine macrophage cells RAW264.7 (ATCC® TIB-71™) were cultured in Dulbecco’s Modified Eagle’s medium (DMEM; Gibco, Thermo Fischer Scientific, Waltham, MA, USA). containing 4.5 g/L glucose, L-glutamine and sodium pyruvate supplemented with 10% heat-inactivated fetal bovine serum (Lonza, BioWhittaker® sera, Walkersville, MD, USA), in the presence of 5% CO2, at 37 °C. For viability assays, cells were seeded in 96-well plates to a density of 1 × 105 cells/well and, after 16 h, tightly attached macrophages were washed 1 time with 200 µL of complete culture medium. Then, fresh complete medium alone or fresh medium containing the purified Tle1EAEC and Tle3AIEC recombinant proteins (30 µg) was added into each well. After 16 h incubation, 20 µL of a 0.025% (w/v) resazurin solution was added to each well and fluorescence was measured following 4 h incubation at 37 °C and 5% CO2 in the dark, by excitation at 530 nm and emission at 590 nm using a TECAN Spark 10 M. Similar control experiments were carried out by treating the cells with the vehicle buffer, the pre-incubated Tle1EAEC-Tli1EAEC inactive complex at stochiometric 1:1 ratio, as previously described [17], or with Triton X-100, used as lysis control.

4.5. VgrGAIEC-Tle3AIEC Pull-Down Experiments

An amount of 100 milliliters of E. coli BL21 (DE3) culture cells transformed with pETDuet-SVgrG or pRSF-Tle3H were grown to an OD600 of 0.8, and the expression of SvgrG or tle3H was induced with 0.5 mM of IPTG for 16 h at 16 °C. Cultures were centrifuged and resuspended in 1.5 mL buffer A (50 mM Tris-HCl pH8.5, 150 mM NaCl, 1 mM TCEP, cOmpleteTM™ protease inhibitors (Merck, Darmstadt, Germany ). Cells were lysed by sonication followed by a 30 min centrifugation at 20,000× g at 4 °C. Cleared lysates were then mixed (500 μL SVgrG+ 500 μL Tle3H) or not (SVgrG alone, Tle3H alone) for 1 h and then incubated with 100 μL of Strep-Tactin® Sepharose® resin (IBA Technologies) equilibrated with buffer A and gently mixed on a wheel at 4 °C. The resin was washed 5 times with buffer A and the proteins were eluted with buffer B (50 mM Tris-HCl pH 8.5, 250 mM NaCl, 1 mM TCEP, 2.5 mM desthiobiotin). In total, 1 μL of lysates and 7.5 μL of eluted fractions were analyzed by 10%-acrylamide SDS-PAGE followed by InstantBlue® Commassie Blue Protein Stain (Abcam, Cambridge, UK) staining or immunoblotted using anti Strep (Mouse anti Strep-Tag Classic antibody, clone Strep-tag II, Biorad, MCA2489) or anti 6 × His (6 × His, His-Tag Monoclonal Antibody, Proteintech, 66005-1-Ig) antibodies and secondary antibodies coupled to phosphatase alkaline, and developed in alkaline buffer in presence of 5-bromo-4-chloro-3-indolylphosphate and nitroblue tetrazolium.

4.6. Crystallization of the Tle3AIEC-Tli3AIEC Complex

The purified Tle3AIEC-Tli3AIEC complex was subjected to crystallization screening assays with Hampton Research and Qiagen kits using the sitting-drop vapor-diffusion method at 20 °C. After 44 days at 20 °C, Tle3AIEC-Tli3AIEC crystals were obtained using a reservoir solution consisting of 20% v/v PEG 3350, Bis Tris propane of pH 6.5 and 0.2 M sodium acetate trihydrate. The Tle3AIEC-Tli3AIEC crystals’ quality were optimized by varying the pH, the protein and precipitant concentrations and the protein/precipitant ratio. The best condition was obtained by mixing 300 µL of protein solution and 100 µL of mother liquor (0.1 M Bis Tris propane pH 7.5, 25% PEG 3350, 0.2 M sodium acetate trihydrate). The Tle3AIEC-Tli3AIEC crystals were soaked with different heavy atoms: CsI (quick shock), TaBr (3 daysshock), NaBr (quick shock) and cryocold in Ethylenglycol 12% to 14%. The best condition for rescreen of SeMet Tle3AIEC SeMet-Tli3AIEC crystals was in 70 mM Bis-Tris Propane, 30 mM Tris, pH 7.6 17% PEG 3350, 130 mM NaAcetate and 9.4% PEG 6000.

4.7. Data Collection and Processing

The SeMet Tle3AIEC/Tli3AIEC data were collected at Proxima 2 using a Pilatus 6M detector at a wavelength of 0.9791 Å. Before data collection, the crystals were soaked in reservoir solution supplemented with 12% (v/v) ethylene glycerol for a few seconds and then flash-cooled in liquid nitrogen. All data were processed using XDS [47]. The final data-collection and processing statistics are provided in Table 1. A total of 375,390 measured reflections were merged into 78,970 unique reflections. The merged dataset was 98.9% complete to 3.6 Å resolution. The relevant data collection statistics are provided in Table 1.

4.8. Structure Determination and Refinement

Models of Tle3AIEC and Tli3AIEC and their complex were predicted with AlphaFold2 [23,24] on GitHub notebook (https://colab.research.google.com/github/deepmind/alphafold/blob/main/notebooks/AphaFold.ipynb#scrollTo=XUo6foMQxwS2) Stretches of residues with pLDDT < 80 were removed from the model Supplementary Figure S5. Molecular replacement was performed with the “cleaned” AlphaFold2 model using Molrep [29]. This starting model and subsequent ones were refined with Phenix [30], alternated with manual rebuilding using Coot [31]. The final statistics are provided in Supplementary Table S1. Figures were prepared with Chimera X [48].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24021740/s1, Figure S1: Multiple alignment of Tle3 family members; Figure S2. Tli3 is a predicted outer membrane lipoprotein; Figure S3. Purification of the Tle3AIEC/Tli3AIEC complex; Figure S4: AlphaFold2 pLDDT and PEA plots; Figure S5: Schematic strategy of molecular replacement; Table S1: Data collection and refinement statistics.; Table S2: Plasmids and primers.

Author Contributions

Conceptualization, L.J. and C.C.; methodology, S.C., L.J. and C.C.; investigation, T.T.H.L., C.K., M.B., P.S., N.F., E.C, A.R., S.C., L.J. and C.C.; writing—original draft preparation, S.C., L.J. and C.C.; writing—review and editing, A.R., E.C., S.C., L.J. and C.C.; supervision, S.C., L.J. and C.C.; project administration, S.C., L.J. and C.C.; funding acquisition, L.J., E.C. and C.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Aix-Marseille Université (AMU), the Centre National de la Recherche Scientifique (CNRS) and a grant from the Agence Nationale de la Recherche (ANR-18-CE15-0013 to LJ). MB was supported by the ANR-18-CE15-0013.

Data Availability Statement

The predicted coordinates of Tle3, Tli3 and Tle3/Tli3 structures will be deposited in the open data repository Zenodo. The X-ray structure has been deposited with the Protein Data Bank with identifier 8BOZ.

Acknowledgments

We thank Nicolas Barnich (M2iSH, Unversité Clermont Auvergne) for providing the LF82 AIEC strain. We thank the members of Soleil synchrotron. We acknowledge UCSF ChimeraX for molecular graphics developed by the Resource for Biocomputing, Visualization, and Informatics at the University of California, San Francisco, with support from National Institutes of Health R01-GM129325 and the Office of Cyber Infrastructure and Computational Biology, National Institute of Allergy and Infectious Diseases.

Conflicts of Interest

C.C. is an employee of Alphagraphix ([email protected]). Authors and Alphagraphix declare that they have no competing interests. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Zoued, A.; Durand, E.; Brunet, Y.R.; Spinelli, S.; Douzi, B.; Guzzo, M.; Flaugnatti, N.; Legrand, P.; Journet, L.; Fronzes, R.; et al. Priming and polymerization of a bacterial contractile tail structure. Nature 2016, 531, 59–63. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Durand, E.; Nguyen, V.S.; Zoued, A.; Logger, L.; Pehau-Arnaudet, G.; Aschtgen, M.S.; Spinelli, S.; Desmyter, A.; Bardiaux, B.; Dujeancourt, A.; et al. Biogenesis and structure of a type VI secretion membrane core complex. Nature 2015, 523, 555–560. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Ho, B.T.; Dong, T.G.; Mekalanos, J.J. A View to a Kill: The Bacterial Type VI Secretion System. Cell Host Microbe 2014, 15, 9–21. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Cherrak, Y.; Flaugnatti, N.; Durand, E.; Journet, L.; Cascales, E. Structure and Activity of the Type VI Secretion System. Microbiol. Spectr. 2019, 7. [Google Scholar] [CrossRef] [Green Version]
  5. Leiman, P.G.; Basler, M.; Ramagopal, U.A.; Bonanno, J.B.; Sauder, J.M.; Pukatzki, S.; Burley, S.K.; Almo, S.C.; Mekalanos, J.J. Type VI secretion apparatus and phage tail-associated protein complexes share a common evolutionary origin. Proc. Natl. Acad. Sci. USA 2009, 106, 4154–4159. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Shneider, M.M.; Buth, S.A.; Ho, B.T.; Basler, M.; Mekalanos, J.J.; Leiman, P.G. PAAR-repeat proteins sharpen and diversify the type VI secretion system spike. Nature 2013, 500, 350–353. [Google Scholar] [CrossRef] [Green Version]
  7. Nguyen, V.S.; Logger, L.; Spinelli, S.; Legrand, P.; Huyen Pham, T.T.; Nhung Trinh, T.T.; Cherrak, Y.; Zoued, A.; Desmyter, A.; Durand, E.; et al. Type VI secretion TssK baseplate protein exhibits structural similarity with phage receptor-binding proteins and evolved to bind the membrane complex. Nat. Microbiol. 2017, 2, 17103. [Google Scholar] [CrossRef] [Green Version]
  8. Cherrak, Y.; Rapisarda, C.; Pellarin, R.; Bouvier, G.; Bardiaux, B.; Allain, F.; Malosse, C.; Rey, M.; Chamot-Rooke, J.; Cascales, E.; et al. Biogenesis and structure of a type VI secretion baseplate. Nat. Microbiol. 2018, 3, 1404–1416. [Google Scholar] [CrossRef] [Green Version]
  9. Park, Y.J.; Lacourse, K.D.; Cambillau, C.; DiMaio, F.; Mougous, J.D.; Veesler, D. Structure of the type VI secretion system TssK-TssF-TssG baseplate subcomplex revealed by cryo-electron microscopy. Nat. Commun. 2018, 9, 5385. [Google Scholar] [CrossRef] [Green Version]
  10. Hernandez, R.E.; Gallegos-Monterrosa, R.; Coulthurst, S.J. Type VI secretion system effector proteins: Effective weapons for bacterial competitiveness. Cell. Microbiol. 2020, 22, e13241. [Google Scholar] [CrossRef]
  11. Jurenas, D.; Journet, L. Activity, delivery, and diversity of Type VI secretion effectors. Mol. Microbiol. 2021, 115, 383–394. [Google Scholar] [CrossRef] [PubMed]
  12. Russell, A.B.; LeRoux, M.; Hathazi, K.; Agnello, D.M.; Ishikawa, T.; Wiggins, P.A.; Wai, S.N.; Mougous, J.D. Diverse type VI secretion phospholipases are functionally plastic antibacterial effectors. Nature 2013, 496, 508–512. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Jiang, F.; Waterfield, N.R.; Yang, J.; Yang, G.; Jin, Q. A Pseudomonas aeruginosa type VI secretion phospholipase D effector targets both prokaryotic and eukaryotic cells. Cell Host Microbe 2014, 15, 600–610. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Spencer, C.; Brown, H.A. Biochemical characterization of a Pseudomonas aeruginosa phospholipase D. Biochemistry 2015, 54, 1208–1218. [Google Scholar] [CrossRef] [Green Version]
  15. Hu, H.; Zhang, H.; Gao, Z.; Wang, D.; Liu, G.; Xu, J.; Lan, K.; Dong, Y. Structure of the type VI secretion phospholipase effector Tle1 provides insight into its hydrolysis and membrane targeting. Acta. Cryst. D Biol. Cryst. 2014, 70, 2175–2185. [Google Scholar] [CrossRef]
  16. Jiang, F.; Wang, X.; Wang, B.; Chen, L.; Zhao, Z.; Waterfield, N.R.; Yang, G.; Jin, Q. The Pseudomonas aeruginosa Type VI Secretion PGAP1-like Effector Induces Host Autophagy by Activating Endoplasmic Reticulum Stress. Cell Rep. 2016, 16, 1502–1509. [Google Scholar] [CrossRef] [Green Version]
  17. Flaugnatti, N.; Le, T.T.; Canaan, S.; Aschtgen, M.S.; Nguyen, V.S.; Blangy, S.; Kellenberger, C.; Roussel, A.; Cambillau, C.; Cascales, E.; et al. A phospholipase A1 antibacterial Type VI secretion effector interacts directly with the C-terminal domain of the VgrG spike protein for delivery. Mol. Microbiol. 2016, 99, 1099–1118. [Google Scholar] [CrossRef] [Green Version]
  18. Flaugnatti, N.; Rapisarda, C.; Rey, M.; Beauvois, S.G.; Nguyen, V.A.; Canaan, S.; Durand, E.; Chamot-Rooke, J.; Cascales, E.; Fronzes, R.; et al. Structural basis for loading and inhibition of a bacterial T6SS phospholipase effector by the VgrG spike. EMBO J. 2020, 39, e104129. [Google Scholar] [CrossRef]
  19. Journet, L.; Cascales, E. The Type VI Secretion System in Escherichia coli and Related Species. EcoSal. Plus. 2016, 7. [Google Scholar] [CrossRef] [Green Version]
  20. Ma, J.; Bao, Y.; Sun, M.; Dong, W.; Pan, Z.; Zhang, W.; Lu, C.; Yao, H. Two functional type VI secretion systems in avian pathogenic Escherichia coli are involved in different pathogenic pathways. Infect. Immun. 2014, 82, 3867–3879. [Google Scholar] [CrossRef]
  21. Darfeuille-Michaud, A.; Boudeau, J.; Bulois, P.; Neut, C.; Glasser, A.L.; Barnich, N.; Bringer, M.A.; Swidsinski, A.; Beaugerie, L.; Colombel, J.F. High prevalence of adherent-invasive Escherichia coli associated with ileal mucosa in Crohn’s disease. Gastroenterology 2004, 127, 412–421. [Google Scholar] [CrossRef] [PubMed]
  22. Palmela, C.; Chevarin, C.; Xu, Z.; Torres, J.; Sevrin, G.; Hirten, R.; Barnich, N.; Ng, S.C.; Colombel, J.F. Adherent-invasive Escherichia coli in inflammatory bowel disease. Gut 2018, 67, 574–587. [Google Scholar] [CrossRef] [PubMed]
  23. Jumper, J.; Evans, R.; Pritzel, A.; Green, T.; Figurnov, M.; Ronneberger, O.; Tunyasuvunakool, K.; Bates, R.; Zidek, A.; Potapenko, A.; et al. Highly accurate protein structure prediction with AlphaFold. Nature 2021, 596, 583–589. [Google Scholar] [CrossRef]
  24. Evans, R.E.A. Protein complex prediction with AlphaFold-Multimer. bioRxiv 2022. [Google Scholar] [CrossRef]
  25. Teufel, F.; Almagro Armenteros, J.J.; Johansen, A.R.; Gislason, M.H.; Pihl, S.I.; Tsirigos, K.D.; Winther, O.; Brunak, S.; von Heijne, G.; Nielsen, H. SignalP 6.0 predicts all five types of signal peptides using protein language models. Nat. Biotechnol. 2022, 40, 1023–1025. [Google Scholar] [CrossRef]
  26. Hiu, J.J.; Yap, M.K.K. Cytotoxicity of snake venom enzymatic toxins: Phospholipase A2 and l-amino acid oxidase. Biochem. Soc. Trans. 2020, 48, 719–731. [Google Scholar] [CrossRef] [Green Version]
  27. Schue, M.; Maurin, D.; Dhouib, R.; Bakala N’Goma, J.C.; Delorme, V.; Lambeau, G.; Carriere, F.; Canaan, S. Two cutinase-like proteins secreted by Mycobacterium tuberculosis show very different lipolytic activities reflecting their physiological function. FASEB J. Off. Publ. Fed. Am. Soc. Exp. Biol. 2010, 24, 1893–1903. [Google Scholar] [CrossRef]
  28. Gutierrez, J.M.; Lomonte, B. Phospholipases A2: Unveiling the secrets of a functionally versatile group of snake venom toxins. Toxicon 2013, 62, 27–39. [Google Scholar] [CrossRef] [PubMed]
  29. Vagin, A.; Teplyakov, A. Molecular replacement with MOLREP. Acta. Cryst. D Biol. Cryst. 2010, 66, 22–25. [Google Scholar] [CrossRef]
  30. Liebschner, D.; Afonine, P.V.; Baker, M.L.; Bunkoczi, G.; Chen, V.B.; Croll, T.I.; Hintze, B.; Hung, L.W.; Jain, S.; McCoy, A.J.; et al. Macromolecular structure determination using X-rays, neutrons and electrons: Recent developments in Phenix. Acta. Cryst. D Struct. Biol. 2019, 75, 861–877. [Google Scholar] [CrossRef]
  31. Emsley, P.; Lohkamp, B.; Scott, W.G.; Cowtan, K. Features and development of Coot. Acta. Cryst. D Biol. Cryst. 2010, 66, 486–501. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Ollis, D.L.; Cheah, E.; Cygler, M.; Dijkstra, B.; Frolow, F.; Franken, S.M.; Harel, M.; Remington, S.J.; Silman, I.; Schrag, J.; et al. The alpha/beta hydrolase fold. Protein. Eng. 1992, 5, 197–211. [Google Scholar] [CrossRef] [Green Version]
  33. Roussel, A.; Miled, N.; Berti-Dupuis, L.; Riviere, M.; Spinelli, S.; Berna, P.; Gruber, V.; Verger, R.; Cambillau, C. Crystal structure of the open form of dog gastric lipase in complex with a phosphonate inhibitor. J. Biol. Chem. 2002, 277, 2266–2274. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Krissinel, E.; Henrick, K. Inference of macromolecular assemblies from crystalline state. J. Mol. Biol. 2007, 372, 774–797. [Google Scholar] [CrossRef] [PubMed]
  35. Berni, B.; Soscia, C.; Djermoun, S.; Ize, B.; Bleves, S. A Type VI Secretion System Trans-Kingdom Effector Is Required for the Delivery of a Novel Antibacterial Toxin in Pseudomonas aeruginosa. Front. Microbiol. 2019, 10, 1218. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Wood, T.E.; Howard, S.A.; Wettstadt, S.; Filloux, A. PAAR proteins act as the ‘sorting hat’ of the type VI secretion system. Microbiol. (Read.) 2019, 165, 1203–1218. [Google Scholar] [CrossRef]
  37. Lu, D.; Zheng, Y.; Liao, N.; Wei, L.; Xu, B.; Liu, X.; Liu, J. The structural basis of the Tle4-Tli4 complex reveals the self-protection mechanism of H2-T6SS in Pseudomonas aeruginosa. Acta. Cryst. D Biol. Cryst. 2014, 70, 3233–3243. [Google Scholar] [CrossRef]
  38. Boyer, F.; Fichant, G.; Berthod, J.; Vandenbrouck, Y.; Attree, I. Dissecting the bacterial type VI secretion system by a genome wide in silico analysis: What can be learned from available microbial genomic resources? BMC Genom. 2009, 10, 104. [Google Scholar] [CrossRef] [Green Version]
  39. Aschtgen, M.S.; Gavioli, M.; Dessen, A.; Lloubes, R.; Cascales, E. The SciZ protein anchors the enteroaggregative Escherichia coli Type VI secretion system to the cell wall. Mol. Microbiol. 2010. [Google Scholar] [CrossRef]
  40. Doublie, S. Preparation of selenomethionyl proteins for phase determination. Methods Enzymol 1997, 276, 523–530. [Google Scholar]
  41. Skerra, A.; Pluckthun, A. Assembly of a functional immunoglobulin Fv fragment in Escherichia coli. Science 1988, 240, 1038–1041. [Google Scholar] [CrossRef] [PubMed]
  42. Farber, S.A.; Pack, M.; Ho, S.Y.; Johnson, I.D.; Wagner, D.S.; Dosch, R.; Mullins, M.C.; Hendrickson, H.S.; Hendrickson, E.K.; Halpern, M.E. Genetic analysis of digestive physiology using fluorescent phospholipid reporters. Science 2001, 292, 1385–1388. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Darrow, A.L.; Olson, M.W.; Xin, H.; Burke, S.L.; Smith, C.; Schalk-Hihi, C.; Williams, R.; Bayoumy, S.S.; Deckman, I.C.; Todd, M.J.; et al. A novel fluorogenic substrate for the measurement of endothelial lipase activity. J. Lipid. Res. 2011, 52, 374–382. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. O’Brien, J.; Wilson, I.; Orton, T.; Pognan, F. Investigation of the Alamar Blue (resazurin) fluorescent dye for the assessment of mammalian cell cytotoxicity. Eur. J. Biochem. 2000, 267, 5421–5426. [Google Scholar] [CrossRef] [PubMed]
  45. Santucci, P.; Dedaki, C.; Athanasoulis, A.; Gallorini, L.; Munoz, A.; Canaan, S.; Cavalier, J.F.; Magrioti, V. Synthesis of Long-Chain beta-Lactones and Their Antibacterial Activities against Pathogenic Mycobacteria. Chem. Med. Chem. 2019, 14, 349–358. [Google Scholar] [CrossRef]
  46. Palomino, J.C.; Martin, A.; Camacho, M.; Guerra, H.; Swings, J.; Portaels, F. Resazurin microtiter assay plate: Simple and inexpensive method for detection of drug resistance in Mycobacterium tuberculosis. Antimicrob. Agents Chemother. 2002, 46, 2720–2722. [Google Scholar] [CrossRef] [Green Version]
  47. Kabsch, W. Xds. Acta. Cryst. D Biol. Cryst. 2010, 66, 125–132. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Meng, E.C.; Couch, G.S.; Croll, T.I.; Morris, J.H.; Ferrin, T.E. UCSF ChimeraX: Structure visualization for researchers, educators, and developers. Protein Sci. A Publ. Protein Soc. 2021, 30, 70–82. [Google Scholar] [CrossRef]
Ijms 24 01740 g001 550

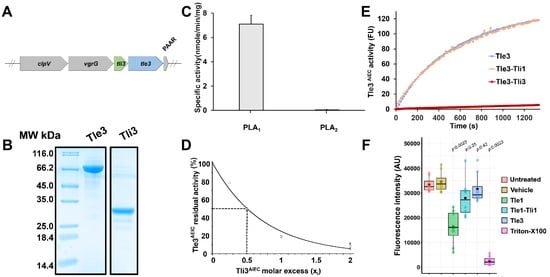

Figure 1. Biochemical characterization of recombinant Tle3AIEC. (A) Schematic representation of the genetic organization of vgrG, tli3 and tle3 genes from AIEC LF82 T6SS-1 cluster. The LF82_434 and LF82_435 genes encoding Tli3AIEC and Tle3AIEC are indicated in green and blue, respectively. The clpV, vgrG and PAAR T6SS-1 genes are indicated in grey. (B) The SDS-PAGE analysis of the purified Tle3AIEC and Tli3AIEC proteins (10 µg) after Coomassie blue staining. Molecular weight markers from Euromedex (in kDa) are indicated on the left. (C) Specific phospholipase A1 (PLA1) and A2 (PLA2) activity measurements of the Tle3AIEC protein using fluorescent phospholipids. Specific activities were calculated from the velocity slope obtained for 25 min using 20 µg of purified protein. Data are expressed as mean of three, from three independent assays (CV% < 5%). (D) Inhibition studies with Tli3AIEC were performed by incubating 30 µg of Tle3AIEC with various molar ratio of Tli3AIEC (xi = 0, 0.25, 0.5, 1 and 2). The rate of hydrolysis of PED-A1 by purified Tle3AIEC at 20 °C in presence of increasing concentrations of Tli3AIEC was plotted against the molar excess of Tli3. (E) Cross-inhibition studies with Tli1EAEC were performed by incubating 20 µg of Tle3AIEC (Ijms 24 01740 i001) with a molar ratio of 10, 20 µg of Tle3AIEC alone (Ijms 24 01740 i002) or incubated with Tli3AIEC (Ijms 24 01740 i003) at molar ratio of 2, were used as controls. (F) Cytotoxic activities of Tle1EAEC and Tle3AIEC towards eukaryotic cells. Cytotoxicity experiments were carried with approximately 1 × 105 RAW264.7 cells/well pulsed with Tle1EAEC and Tle3AIEC recombinant proteins (30 µg) incubated for 16 h. Tle1EAEC phospholipase A2 and lysis buffer containing 1% Triton X-100 were used as positive controls. Alternatively, cells were incubated with medium containing the vehicle buffer or the Tle1EAEC-Tli1EAEC complex as additional negative controls. Viability was evaluated using resazurin assay. Results are displayed as box-plots with individuals’ raw data. Black dots were added to highlight the mean of each condition. Results are representative from n = 2 biologically independent experiments performed in technical quadruplicates. Statistical analysis was performed using Wilcoxon signed-rank test, where vehicle treatment was used as reference condition. Exact adjusted p-value are indicated on the graph and were considered significant when p ≤ 0.05.
Figure 1. Biochemical characterization of recombinant Tle3AIEC. (A) Schematic representation of the genetic organization of vgrG, tli3 and tle3 genes from AIEC LF82 T6SS-1 cluster. The LF82_434 and LF82_435 genes encoding Tli3AIEC and Tle3AIEC are indicated in green and blue, respectively. The clpV, vgrG and PAAR T6SS-1 genes are indicated in grey. (B) The SDS-PAGE analysis of the purified Tle3AIEC and Tli3AIEC proteins (10 µg) after Coomassie blue staining. Molecular weight markers from Euromedex (in kDa) are indicated on the left. (C) Specific phospholipase A1 (PLA1) and A2 (PLA2) activity measurements of the Tle3AIEC protein using fluorescent phospholipids. Specific activities were calculated from the velocity slope obtained for 25 min using 20 µg of purified protein. Data are expressed as mean of three, from three independent assays (CV% < 5%). (D) Inhibition studies with Tli3AIEC were performed by incubating 30 µg of Tle3AIEC with various molar ratio of Tli3AIEC (xi = 0, 0.25, 0.5, 1 and 2). The rate of hydrolysis of PED-A1 by purified Tle3AIEC at 20 °C in presence of increasing concentrations of Tli3AIEC was plotted against the molar excess of Tli3. (E) Cross-inhibition studies with Tli1EAEC were performed by incubating 20 µg of Tle3AIEC (Ijms 24 01740 i001) with a molar ratio of 10, 20 µg of Tle3AIEC alone (Ijms 24 01740 i002) or incubated with Tli3AIEC (Ijms 24 01740 i003) at molar ratio of 2, were used as controls. (F) Cytotoxic activities of Tle1EAEC and Tle3AIEC towards eukaryotic cells. Cytotoxicity experiments were carried with approximately 1 × 105 RAW264.7 cells/well pulsed with Tle1EAEC and Tle3AIEC recombinant proteins (30 µg) incubated for 16 h. Tle1EAEC phospholipase A2 and lysis buffer containing 1% Triton X-100 were used as positive controls. Alternatively, cells were incubated with medium containing the vehicle buffer or the Tle1EAEC-Tli1EAEC complex as additional negative controls. Viability was evaluated using resazurin assay. Results are displayed as box-plots with individuals’ raw data. Black dots were added to highlight the mean of each condition. Results are representative from n = 2 biologically independent experiments performed in technical quadruplicates. Statistical analysis was performed using Wilcoxon signed-rank test, where vehicle treatment was used as reference condition. Exact adjusted p-value are indicated on the graph and were considered significant when p ≤ 0.05.
Ijms 24 01740 g001
Ijms 24 01740 g002 550

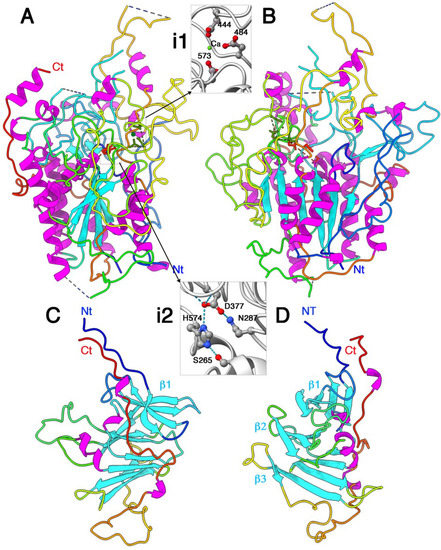

Figure 2. X-ray structure of Tle3AIEC and Tli3AIEC. (A) Structure of Tle3AIEC; the catalytic triad is colored red and the Ca2+ cation in green. (i1) The Ca2+ ligands. (i2) The catalytic triad. (B) Same view as (A) rotated 90° around a vertical axis. (C) Structure of Tli3. (D) Same view as (D) rotated 90° around a vertical axis. The three β-sheets are labeled β1–3. (A–D) The protein backbones are rainbow colored. The helices are colored magenta and the β-strands are colored blue. The inset atoms arec colored red (oxygen), blue (nitrogen), grey (carbon) and green (calcium).
Figure 2. X-ray structure of Tle3AIEC and Tli3AIEC. (A) Structure of Tle3AIEC; the catalytic triad is colored red and the Ca2+ cation in green. (i1) The Ca2+ ligands. (i2) The catalytic triad. (B) Same view as (A) rotated 90° around a vertical axis. (C) Structure of Tli3. (D) Same view as (D) rotated 90° around a vertical axis. The three β-sheets are labeled β1–3. (A–D) The protein backbones are rainbow colored. The helices are colored magenta and the β-strands are colored blue. The inset atoms arec colored red (oxygen), blue (nitrogen), grey (carbon) and green (calcium).
Ijms 24 01740 g002
Ijms 24 01740 g003 550

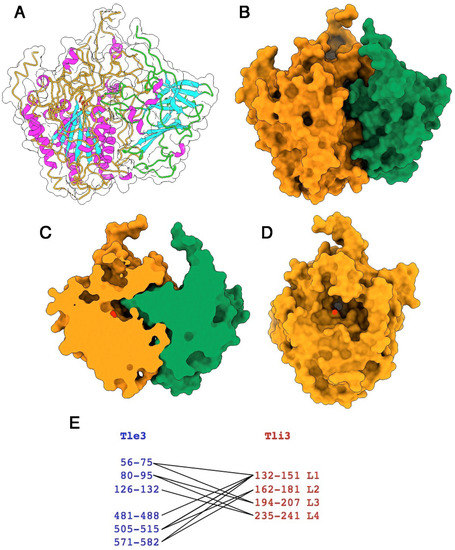

Figure 3. Structure of the Tle3AIEC/Tli3AIEC complex. (A) Ribbon view and protein surface (white transparent) of Tle3AIEC backbone colored orange and Tli3AIEC backbone colored green. The catalytic triad is colored red, helices and strands are colored purple and blue, respectively. (B) Molecular surface of the Tle3AIEC/Tli3AIEC complex (same colors as in (A). (C) Molecular surface of the Tle3AIEC/Tli3AIEC complex cut at the catalytic triad (red) level. Same orientation as in (B). (D) Molecular surface of Tle3AIEC rotated 90° as compared to (B) evidencing the catalytic crevice with the catalytic triad position indicated at its bottom (red). (E) Schematic representation of the Tle3AIEC (blue) and Tli3AIEC (red) interacting in the complex.
Figure 3. Structure of the Tle3AIEC/Tli3AIEC complex. (A) Ribbon view and protein surface (white transparent) of Tle3AIEC backbone colored orange and Tli3AIEC backbone colored green. The catalytic triad is colored red, helices and strands are colored purple and blue, respectively. (B) Molecular surface of the Tle3AIEC/Tli3AIEC complex (same colors as in (A). (C) Molecular surface of the Tle3AIEC/Tli3AIEC complex cut at the catalytic triad (red) level. Same orientation as in (B). (D) Molecular surface of Tle3AIEC rotated 90° as compared to (B) evidencing the catalytic crevice with the catalytic triad position indicated at its bottom (red). (E) Schematic representation of the Tle3AIEC (blue) and Tli3AIEC (red) interacting in the complex.
Ijms 24 01740 g003
Ijms 24 01740 g004 550

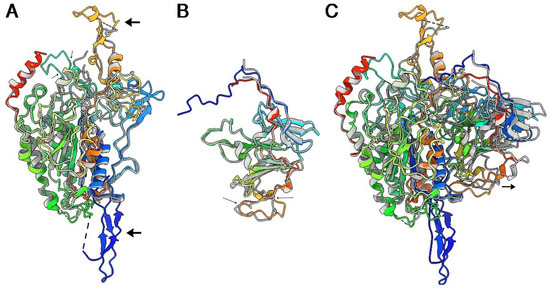

Figure 4. Comparison of X-ray- and AF2-predicted structures. Superposed ribbon views of (A) Tle3AIEC, (B) Tli3AIEC and (C) Tle3AIEC/Tli3AIEC complex. The small arrow indicates the positional difference between the X-ray structure and the predicted structure. (A–C) The X-ray structures are colored grey and the predicted structures are rainbow-colored.
Figure 4. Comparison of X-ray- and AF2-predicted structures. Superposed ribbon views of (A) Tle3AIEC, (B) Tli3AIEC and (C) Tle3AIEC/Tli3AIEC complex. The small arrow indicates the positional difference between the X-ray structure and the predicted structure. (A–C) The X-ray structures are colored grey and the predicted structures are rainbow-colored.
Ijms 24 01740 g004
Ijms 24 01740 g005 550

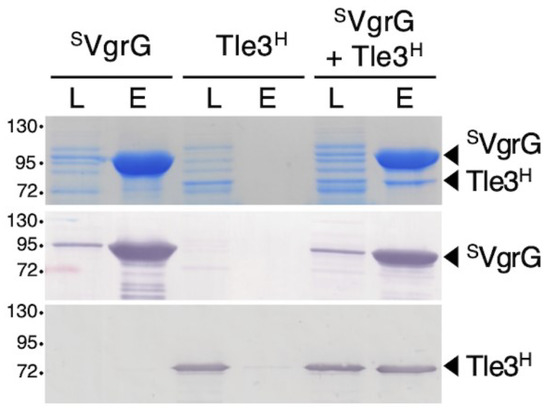

Figure 5. Tle3AIEC interacts with VgrGAIEC. Strep-tag II-tagged VgrG (SVgrG) and 6His-tagged Tle3 (Tle3H) were produced separately from E. coli BL21 (DE3) pETDuet-SVgrG and BL21 (DE3) pRSF-Tle3H cells, respectively. Lysates of cells (L) producing SVgrG, Tle3H or a 1:1 mix of SVgrG and Tle3H cell lysates (SVgrG + Tle3 H) were incubated with Strep-Tactin Sepharose resin. After five washing steps, the Strep-tagged and co-precipitated proteins were eluted with desthiobiotin (E) and analyzed by SDS–PAGE and Coomassie blue staining (upper panel) or immunoblotting using anti-StrepII (middle panel) and anti-His (lower panel) antibodies. The molecular weight markers (in kDa) are indicated on the left and the positions of SVgrG and Tle3H are indicated on the right.
Figure 5. Tle3AIEC interacts with VgrGAIEC. Strep-tag II-tagged VgrG (SVgrG) and 6His-tagged Tle3 (Tle3H) were produced separately from E. coli BL21 (DE3) pETDuet-SVgrG and BL21 (DE3) pRSF-Tle3H cells, respectively. Lysates of cells (L) producing SVgrG, Tle3H or a 1:1 mix of SVgrG and Tle3H cell lysates (SVgrG + Tle3 H) were incubated with Strep-Tactin Sepharose resin. After five washing steps, the Strep-tagged and co-precipitated proteins were eluted with desthiobiotin (E) and analyzed by SDS–PAGE and Coomassie blue staining (upper panel) or immunoblotting using anti-StrepII (middle panel) and anti-His (lower panel) antibodies. The molecular weight markers (in kDa) are indicated on the left and the positions of SVgrG and Tle3H are indicated on the right.
Ijms 24 01740 g005
Ijms 24 01740 g006 550

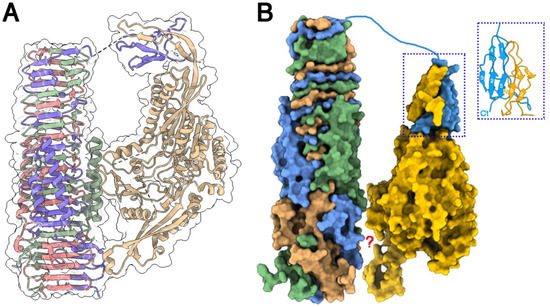

Figure 6. Structure of Tle1EAEC and Tle3AIEC, and their interaction with VgrGEAEC and VgrGAIEC. (A) Ribbon representation of the cryoEM structure of Tle1EAEC in complex with VgrGEAEC. VgrGEAEC is colored magenta, violet and green. Tle1EAEC is colored beige. Surfaces are colored white and transparent. (B) Surface representation of the predicted structure of Tle3AIECand VgrGAIEC, and a possible mode of interaction in their complex; inset: details of the interaction of VgrGAIEC C-terminal adaptator with Tle3AIEC N-terminal loop. VgrGAIEC trimer is colored magenta, blue and green. Tle3AIEC is colored yellow. The blue dot square identify the interaction between VgrGEAEC TTR domain with the N-terminus loop of Tle3AIEC. The red question mark means that the interaction between the bVgrGEAECand Tle3AIEC cores remains unknown.
Figure 6. Structure of Tle1EAEC and Tle3AIEC, and their interaction with VgrGEAEC and VgrGAIEC. (A) Ribbon representation of the cryoEM structure of Tle1EAEC in complex with VgrGEAEC. VgrGEAEC is colored magenta, violet and green. Tle1EAEC is colored beige. Surfaces are colored white and transparent. (B) Surface representation of the predicted structure of Tle3AIECand VgrGAIEC, and a possible mode of interaction in their complex; inset: details of the interaction of VgrGAIEC C-terminal adaptator with Tle3AIEC N-terminal loop. VgrGAIEC trimer is colored magenta, blue and green. Tle3AIEC is colored yellow. The blue dot square identify the interaction between VgrGEAEC TTR domain with the N-terminus loop of Tle3AIEC. The red question mark means that the interaction between the bVgrGEAECand Tle3AIEC cores remains unknown.
Ijms 24 01740 g006
Table
Table 1. Data collection and refinement statistics. Values in parenthesis refer to the highest resolution bin.
Table 1. Data collection and refinement statistics. Values in parenthesis refer to the highest resolution bin.
Data Collection
BeamlineSOLEIL Proxima2
PDB ID8BOZ
Space groupP21
Cell parameters, a, b, c (Å)67.9, 449.1, 116.2
β = 93.2°
Wavelength (Å) 0.9791Å
Resolution (Å)48.7–3.6 (3.69–3.6)
Rmerge (%)31 (160)
Mean ((I)/sd(I))4.5 (0.82)
Cc (1/2)97.6 (38.3)
No. of observations305,990 (22970)
No. of unique reflections78,970 (5814)
Completeness (%)98.9 (99.3)
Multiplicity3.9 (3.9)
Refinement
Resolution (Å)48.74–3.6 (3.64–3.6)
No. of reflections78,957 (2660)
Atoms: protein/ions 45213/8
Rwork/Rfree (%)23.4 (34.0)/26.8(37.6)
R.m.s.d. bonds (Å)/angles (°)0.003/0.59
B-factors Wilson/model (Å2)106/98
Ramachandran: favored/allowed/outliers (%)90.6/8.1/1.3
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Le, T.T.H.; Kellenberger, C.; Boyer, M.; Santucci, P.; Flaugnatti, N.; Cascales, E.; Roussel, A.; Canaan, S.; Journet, L.; Cambillau, C. Activity and Crystal Structure of the Adherent-Invasive Escherichia coli Tle3/Tli3 T6SS Effector/Immunity Complex Determined Using an AlphaFold2 Predicted Model. Int. J. Mol. Sci. 2023, 24, 1740. https://doi.org/10.3390/ijms24021740

AMA Style

Le TTH, Kellenberger C, Boyer M, Santucci P, Flaugnatti N, Cascales E, Roussel A, Canaan S, Journet L, Cambillau C. Activity and Crystal Structure of the Adherent-Invasive Escherichia coli Tle3/Tli3 T6SS Effector/Immunity Complex Determined Using an AlphaFold2 Predicted Model. International Journal of Molecular Sciences. 2023; 24(2):1740. https://doi.org/10.3390/ijms24021740

Chicago/Turabian Style

Le, Thi Thu Hang, Christine Kellenberger, Marie Boyer, Pierre Santucci, Nicolas Flaugnatti, Eric Cascales, Alain Roussel, Stéphane Canaan, Laure Journet, and Christian Cambillau. 2023. "Activity and Crystal Structure of the Adherent-Invasive Escherichia coli Tle3/Tli3 T6SS Effector/Immunity Complex Determined Using an AlphaFold2 Predicted Model" International Journal of Molecular Sciences 24, no. 2: 1740. https://doi.org/10.3390/ijms24021740

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
