Mitogen-like Cerium-Based Nanoparticles Protect Schmidtea mediterranea against Severe Doses of X-rays

Kristina O. Filippova
Artem M. Ermakov
Anton L. Popov
Olga N. Ermakova
Artem S. Blagodatsky
Nikita N. Chukavin
Alexander B. Shcherbakov
Alexander E. Baranchikov
3 and
Vladimir K. Ivanov
Institute of Theoretical and Experimental Biophysics, Russian Academy of Sciences, Pushchino 142290, Russia
Moscow Region Pedagogical State University, Moscow 141014, Russia
Kurnakov Institute of General and Inorganic Chemistry, Russian Academy of Sciences, Moscow 119991, Russia
Institute of Microbiology and Virology, National Academy of Sciences of Ukraine, 03680 Kyiv, Ukraine
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(2), 1241;
Submission received: 8 November 2022 / Revised: 13 December 2022 / Accepted: 4 January 2023 / Published: 8 January 2023
(This article belongs to the Special Issue Advances in Radiation Toxicity)


Novel radioprotectors are strongly demanded due to their numerous applications in radiobiology and biomedicine, e.g., for facilitating the remedy after cancer radiotherapy. Currently, cerium-containing nanomaterials are regarded as promising inorganic radioprotectors due to their unrivaled antioxidant activity based on their ability to mimic the action of natural redox enzymes like catalase and superoxide dismutase and to neutralize reactive oxygen species (ROS), which are by far the main damaging factors of ionizing radiation. The freshwater planarian flatworms are considered a promising system for testing new radioprotectors, due to the high regenerative potential of these species and an excessive amount of proliferating stem cells (neoblasts) in their bodies. Using planarian Schmidtea mediterranea, we tested CeO2 nanoparticles, well known for their antioxidant activity, along with much less studied CeF3 nanoparticles, for their radioprotective potential. In addition, both CeO2 and CeF3 nanoparticles improve planarian head blastema regeneration after ionizing irradiation by enhancing blastema growth, increasing the number of mitoses and neoblasts’ survival, and modulating the expression of genes responsible for the proliferation and differentiation of neoblasts. The CeO2 nanoparticles’ action stems directly from their redox activity as ROS scavengers, while the CeF3 nanoparticles’ action is mediated by overexpression of “wound-induced genes” and neoblast- and stem cell-regulating genes.

1. Introduction

When exposed to ionizing radiation, living organisms take the most damage from reactive oxygen species (ROS) and free radicals, which are formed during the radiolysis of water [1,2,3]. The ROS have a high level of redox activity due to the presence of unpaired electrons, which leads to oxidative damage to all components of the cells [4]. An effective way to reduce the damage from ionizing radiation is to inactivate the abovementioned damaging agents. In order to reach this goal, radioprotectors are used—compounds that shield the organism from damage to its molecules, cells, organs, and tissues mainly by inactivating ROS and other damaging agents [5]. Despite significant progress in the development of radioprotective substances for military use, there is still a need for new selective radioprotectors and radiomitigators for medical applications, in particular for radiation therapy [6,7,8,9,10]. By using new functional nanomaterials and various approaches, including molecular systems, it is possible to enhance the damaging effect of ionizing radiation on tumor cells by changing their radiosensitivity [11].
Cerium dioxide nanoparticles have emerged as a completely new type of antioxidant in recent years. It was demonstrated that these nanoparticles possess exceptional biological activity, which is supposed to be based on their redox potential in biological environments [12,13,14,15,16]. In addition, CeO2 nanoparticles demonstrate activities similar to a range of natural redox enzymes (oxidoreductases), including superoxide dismutase (SOD) [17] and catalase (CAT) [18], which are able to scavenge detrimental ROS. The enzyme-like activity of CeO2 nanoparticles is commonly thought to be due to the Ce3+/Ce4+ redox cycle [19]. Further, CeO2 nanoparticles possess outstanding free radical scavenging activity and excellent biocompatibility, which makes them promising candidates for a novel generation of radioprotectors [20,21,22]. Recently, it was shown that Ce3+-containing nanoparticles are also able to mimic natural enzymes. In particular, cerium(III) fluoride nanoparticles performed well as antioxidants to protect cell cultures from the oxidative damage of hydrogen peroxide [23]. It is believed that Ce4+ ions are responsible for catalase- and phosphatase-mimicking activities [16,24] while SOD-mimetic activity correlates with Ce3+ content [25]. It was demonstrated that CeO2-modified poly-L-lactide scaffolds containing various concentrations of Ce4+ and Ce3+ used as an effective substrate for cell growth showed different effects on cell spreading, migration, and adhesion behavior depending on the content of cerium species in different valence states [26].
Planarians are invertebrate flatworms with unique regenerative abilities. The presence of a large number of stem cells, called neoblasts, allows them to actively replace damaged or dying cells in their body [27]. Due to the high proliferation rate of neoblasts, planarians are extremely sensitive to ionizing radiation [28]. Additionally, high doses of radiation (more than 15 Gy) are detrimental to planarians, as they lead to the death of the entire population of neoblasts and, accordingly, to the impossibility of regeneration [29]. Smaller absorbed doses of ionizing radiation lead to the partial death of neoblasts, while the remaining population of neoblasts is able to completely regenerate the worm’s body [30]. The rapid development of pure phenotypes and high sensitivity to ionizing radiation, combined with new genomic technologies, make planarians a unique experimental model for the discovery of potential radioprotective agents [30]. It is well known that ionizing radiation has a pronounced and measurable effect on planarians that can be easily monitored and quantified, such as the rate of blastema regeneration, the number of neoblasts and their mitotic activity, the degree of DNA damage, and the intracellular ROS level [31]. Recently, CeO2 and CeF3 nanoparticles were shown to act as inorganic mitogens in regenerating planarians [32]. In the current study, we studied the radioprotective action of 2 different types of cerium-containing nanoparticles, including the molecular mechanisms of their bioactivity and the analysis of key gene expression and signaling pathways using a unique in vivo experimental model, the freshwater flatworm Schmidtea mediterranea.

2. Results

2.1. Cerium-Containing Nanoparticles Have a High Degree of Crystallinity

The stable aqueous sols of highly crystalline CeO2 and CeF3 nanoparticles were obtained by soft chemistry methods. The selected area electron diffraction patterns of the samples (Figure 1a,b) correspond to the space groups Fm3 ̅m and P6_3/mcm for the cubic structure of CeO2 and the hexagonal structure of CeF3. Both cerium-containing materials are characterized by a high degree of crystallinity of CeO2 and CeF3 nanoparticles [33,34]. The zeta potentials of cerium(IV) oxide and cerium(III) fluoride sols are −35 mV and +39 mV, respectively, which confirms their high colloidal stability, which is also confirmed by the long storage time (more than 1 year) of the synthesized samples without signs of sedimentation. The hydrodynamic radii of CeO2 and CeF3 nanoparticles in sols diluted with distilled water were 4.8 ± 2.2 and 30.4 ± 16.2 nm, respectively, indicating a low degree of particle agglomeration. Transmission electron microscopy confirms the ultra-small size (2–4 nm) of CeO2 nanoparticles. In turn, according to TEM data, the size of CeF3 nanoparticles was 15–25 nm with characteristic faceting, which confirms their high degree of crystallinity.

2.2. CeO2 and CeF3 Nanoparticles Show Pronounced Antioxidant Activity after X-ray Irradiation

The data presented in Figure 2 shows that both cerium(IV) oxide and cerium(III) fluoride nanoparticles are capable of preventing the formation of hydrogen peroxide in water upon X-ray exposure due to their catalase-like properties. The cerium(IV) oxide at a concentration of 10−7 M provides a decrease in the concentration of hydrogen peroxide formed after irradiation of the solution, while CeF3 nanoparticles do not lead to a decrease in the level of hydrogen peroxide at this concentration. An increase in the concentration of nanoparticles of both cerium(IV) oxide and cerium(III) fluoride to 10−6 M provides a notable antioxidant effect, which is expressed in significant (up to 30%) decrease in the concentration of hydrogen peroxide. The nanoparticles of cerium(IV) oxide and cerium(III) fluoride at a concentration of 10−5 M reduced the level of hydrogen peroxide to zero values. Further, the existing reports confirm that the decomposition of hydrogen peroxide by CeO2 nanoparticles can be well described using the Michaelis-Menten equation, commonly used to describe enzyme-substrate interactions [35]. The rate of hydrogen peroxide decomposition depends directly on the size of nanoparticles, i.e., on the number of available surface sites for binding hydrogen peroxide molecules. At high peroxide concentrations, when almost all Ce3+ − Vo − Ce3+ sites are involved in peroxide decomposition, the process of slow oxidation of Ce3+ → Ce4+ transforms into fast redox cycling, and Ce3+/Ce4+ oscillations are observed [36]. The possible reasons for different cerium(IV) oxide and cerium(III) fluoride catalase-like activities can be explained not only by different ratios of the Ce3+ and Ce4+ fractions on the nanoparticles’ surfaces, but also by the number of binding sites for hydrogen peroxide, which directly correlates with the nanoparticle size. The catalytic decomposition of hydrogen peroxide is a heterogeneous process that occurs at the interface and depends strongly on a specific surface area. Cerium(IV) oxide nanoparticles have an ultra-small size (2–4 nm), which corresponds to ≈80% of surface cerium atoms, while cerium(III) fluoride nanoparticles have a size of 15–25 nm, which corresponds to ≈10% of surface cerium atoms [37,38]. Thus, the specific surface area of a cerium(IV) oxide nanoparticle is much larger, resulting in higher catalase-like activity.

2.3. CeO2 and CeF3 Nanoparticles Exhibit Radioprotective Properties on a Planarian Model, with CeF3 Acting at Nanomolar Concentrations

In order to evaluate the radioprotective effect of CeO2 and CeF3 on regenerating planarians, the animals were kept for a day in a solution of CeO2 and CeF3 nanoparticles (10−4 M to 10−11 M), then the worms were subjected to X-ray radiation (in doses of 10 Gy and 15 Gy) and decapitated with subsequent measurement of the growing blastema area. The irradiated worms without nanoparticle treatment and the non-irradiated worms served as negative and positive controls, respectively. In addition, both CeO2 and CeF3 nanoparticles promoted an accelerated growth of the blastema when compared to untreated animals (Figure 3 and Figure 4). In CeO2, the most pronounced effect was observed on the 3rd day of regeneration after irradiation of animals at a dose of 10 Gy at a concentration of 105 M; the level of protection was 96% higher than the control. At a dose of 15 Gy, the level of protection was 74% for concentrations of 104 and 105 M (Figure 3).
It was found that cerium fluoride nanoparticles act as a more effective radioprotector than cerium dioxide ones since a similar effect of radioprotection was achieved in their case even at a nanomolar concentration (109 M) (Figure 4). However, this radioprotective effect was not pronounced on the 6th day of regeneration. At higher doses of radiation (15 Gy), the greatest effect was observed at all periods of regeneration time (3–6 days) (Figure 4). Significantly, the cerium(III) chloride solution taken as a control at a similar concentration (10−6 M) did not show any radioprotective activity (Figure S1), which confirms our hypothesis that only cerium-containing nanoparticles are effective antioxidants and ROS scavengers, but not free cerium ions. Moreover, fluoride ions by themselves are known to take part in the development of oxidative stress [39,40] and suppression of antioxidant enzyme activity processes [41]. The fluoride ions were found to negatively impact nervous system activity and development in planarians, including regeneration processes [42].

2.4. CeO2 and CeF3 Nanoparticles Help Preserve Mitotic Activity after Irradiation

In order to evaluate the effect of cerium dioxide and cerium fluoride nanoparticles on the mitotic activity of regenerating planarian neoblasts, changes in the number of mitotic cells were assessed using immunohistochemical studies (Figure 5). In planarians pretreated with CeO2 or CeF3 nanoparticles, before irradiation with X-rays at doses of 10 and 15 Gy, mitotic activity remains at levels of up to 70% for cerium dioxide and up to 30% for cerium fluoride. Even at a higher dose of 15 Gy, the protective action of nanoparticles can be clearly observed, differing significantly from the negative control. Since neoblasts are the cells responsible for mitotic activity in regenerating planarian blastema, pretreatment with nanoparticles presumably leads to the survival of a significant portion of neoblasts after irradiation, thus confirming their radioprotective property.

2.5. Quantitative Analysis of Cerium Content in Planarians

In quantifying the content of cerium in planarians upon long-term (48 h) incubation, inductively coupled plasma mass spectrometry was used. It was found that when cerium oxide and cerium fluoride NPs are added at a concentration of 10−4 M, planarians contain a nanomolar concentration of cerium on the second day of incubation (Table 1). The ICP analysis allows for estimating the number of nanoparticles internalized by a planarian. Given that the introduction of a high concentration of nanoparticles (10−4 M) ensures that only nanomolar concentrations remain on the second day, it can be argued that even nanomolar concentrations of cerium-containing nanoparticles can effectively act as ROS scavengers and protect the body of planarians from the negative effects of ionizing radiation.

2.6. Expression Analysis of Stem Cell Marker Genes Reveals High Stem Cell Stimulatory Activity by CeF3

The RT-PCR analysis of the expression of stem cell marker genes in regenerating planarians was performed to study the effect of CeO2 and CeF3 nanoparticles on the neoblasts (Figure 6). The study showed that, for CeO2 , on the third day after decapitation, significant overexpression of two marker genes is observed. One of them was the gene from the sigma class Smed-soxP-1 (which gives rise to the epidermal layer) [43], and the second was from the class of gamma neoblasts, gata456 and prox-1 (which are necessary for the differentiation of progenitors into intestinal cells and for the survival of these differentiated cells, confirming a key role of the gene in the regeneration process and maintenance of the intestine) [44].
On the 10th day after irradiation, the mRNA transcription of neoblast marker genes is noticeably higher in the CeO2 group that was exposed to irradiation compared to the 3rd day after irradiation, which indicates the restoration of the stem cell population. In particular, the expression of the Smed-gata456 and prox-1 genes remained elevated and increased in the genes of the zeta class: Smed-soxB-1 and pbx-1, which form the cells of the epidermal layer.
On the 10th day after the treatment of planarians with CeF3 nanoparticles, an increased level of expression of almost all the studied genes was observed, allowing us to conclude that cerium fluoride nanoparticles have a more pronounced radioprotective effect compared to cerium dioxide and are highly beneficial for the survival of neoblasts after X-ray irradiation.
Smed-nlk-1 (Nemo-like kinase), Smed-armc1 (Armadillo repeat-containing 1), as well as Smed-fgfr-1 and Smed-fgfr-4 (fibroblast growth factor receptors), are four neoblast-expressed genes encoding proteins that are very similar in structure to signal transduction proteins [43]. The zeta-class fgfr-1 is involved in the signal systems controlling differentiation/growth/migration of stem cells during planarian regeneration [45]. Ogawa et al. suggested that the loss of regenerative activity in X-ray-irradiated planarians, Dugesia japonica, is caused by the disappearance of fgfr-1-expressing cells in the mesenchymal space. In our study, the reduced expression of genes encoding fgfr-1 in X-ray-irradiated planarians Schmidtea mediterranea can be leveled to the intact animal ones by both cerium(IV) oxide and cerium(III) fluoride nanoparticles, with cerous fluoride having a faster effect. Moreover, 10 days after irradiation, the CeF3-treated animals overexpress the sigma-class Smed-fgfr-4 and Smed-nlk-1 genes. These genes are involved in the early wound response, namely «the primary class» [46].

3. Discussion

The destructive effect of ionizing radiation on the cell structure is associated with two main factors: direct damage to DNA through the action of radiation track and indirect damage through the generation of reactive oxygen species (ROS) and free radicals as a result of water radiolysis. The products of water radiolysis (hydroxyl radicals, peroxide, nitroxyl radicals, etc.) have the greatest damaging effect on cellular structures. They are able to oxidize not only nucleic acids but also proteins, invoking crosslinks in them, as well as lipids, initiating lipid peroxidation [47]. A complex analysis was performed of the biological activity of two types of cerium-containing nanoparticles (CeO2 or CeF3) on planarian regeneration after X-ray irradiation. The study revealed a dose-dependent and regeneration-stimulating effect of both types of nanoparticles. The suggested mechanisms of the radioprotective effects are a significant decrease in intracellular ROS after irradiation, overexpression of wound repair genes, and induction of neoblast mitotic activity. The regenerative capacity of planarians depends on the population of their adult pluripotent stem cells. The effects of radiation-induced inhibition of planarian regeneration are associated with the partial or complete death of planarian stem cells after X-ray irradiation. Our results show that the neoblasts preserved in the worm body after X-ray irradiation in the presence of cerium-based nanoparticles give rise to a new population of neoblasts and, thus, ensure the regeneration of the planarian body. The molecular mechanisms of proliferation, migration, and differentiation of neoblasts have previously been thoroughly studied using various modern methods, including RNA interference [48]. This makes it possible to identify the influence of external factors, including ionizing radiation, on the processes of regeneration and vital activity of the planaria. The observed radioprotective effects can also be explained by a decrease in the number of ionization products due to their capture and scavenging by nanoparticles. As a result, neoblasts remain partially or completely protected from the effects of ionizing radiation and continue to drive the process of regeneration in planarians. Any impact on a biological system, especially a non-specialized one, implies a biological response in the form of simultaneous stimulation of many independent cellular functions, each of which, in turn, is regulated by a variety of interacting receptors and signaling pathways. The triggering of such complex pathways ultimately causes a metabolically complex and coordinated response at all levels of the organization of the biological system.
Previously, we showed that CeO2 nanoparticles are able to effectively neutralize the radiolysis products after exposure to X-rays, reducing the concentration of hydrogen peroxide to almost zero at a nanoparticle concentration of 105 M [49]. The antioxidant and radioprotective properties of CeO2 nanoparticles were demonstrated in vitro using mouse fibroblast cell culture and in vivo on SHK laboratory mice. It should be noted that CeO2 nanoparticles were effective both as a radioprotector (administration before irradiation) and as a radiomitigator (administration after irradiation), ensuring the survival of more than 50% of the experimental group after total irradiation at a lethal dose. Our data show that CeO2 nanoparticles effectively penetrate into the body of the worm and provide radioprotection from high doses (10 and 15 Gy) of X-rays, modulate the expression of key blastema regeneration genes, and also maintain the pool of viable stem cells (neoblasts) that provide subsequent blastema growth. It should be noted that after incubation of planarians with nanoparticles, only nanomolar concentrations of cerium (3.43 × 10−9 M per 1 planarian) are found in them, despite the initially high concentrations of the introduced nanoparticles (10−4 M) (Table 1). Given that we detect nano- and picomolar concentrations of cerium in the whole body of the planarian, detection of cerium directly in the blastema part is impossible due to the ultra-low content and limited sensitivity of the device. At the same time, according to the data on the rate of blastema regeneration (Figure 3), the nanomolar concentrations of CeO2 nanoparticles showed a statistically significant increase in the rate of regeneration on the 6th day after irradiation. The large concentrations of CeO2 nanoparticles did not demonstrate statistically significant differences in the efficiency of regeneration. It is known that an increase in the concentration of CeO2 nanoparticles can lead to their aggregation, which may be a limitation for their effective penetration into the body of planarians. Thus, we can indirectly conclude that not all CeO2 nanoparticles will directly penetrate into planarian cells. At the same time, despite the fact that only nanomolar concentrations of nanoparticles remain in planarians, such pretreatment of animals provides high radioprotective efficiency due to their unique antioxidant activity. The similar activity of CeO2 nanoparticles was previously demonstrated in various experimental models in vitro. Zal et al. found that cerium oxide nanoparticles reduce the percentage of micronuclei induced by irradiation in lymphocytes by up to 73% [50]. The cell pretreatment significantly reduced the incidence of IL-1β levels as well as the number of apoptotic and necrotic lymphocytes. Goushbolagh et al. showed that CeO2 nanoparticles exhibit pronounced radioprotective properties against normal human lung cells but do not protect cancer cells of the line MCF-7 [51]. Shinpaugh et al. demonstrated the potential of CeO2 nanoparticles as an effective radioprotector/radiosensitizer in proton therapy [52]. It was shown that pretreatment of normal epithelial cells of the mammary gland with CeO2 nanoparticles and their subsequent irradiation with protons with an energy of 3.0 MeV at a dose of 2.8 Gy provided their protection, reducing the proportion of damaged cell nuclei. The direction of the biological action of CeO2 nanoparticles can be changed by using different irradiation energies. For example, Briggs et al. showed the multidirectional effects of CeO2 nanoparticles in cells irradiated with different energies (10 MV or 150 kVp) [53]. The analysis of the survival curve of radioresistant 9L cells at 150 kVp irradiation indicates a change in the quality of radiation, which becomes more lethal for irradiated cells exposed to CeO2 nanoparticles. The authors attribute this change in efficiency to an increase in the generation of Auger electrons with high linear energy transfer at 150 kVp. This selectivity of action makes CeO2 nanoparticles quite promising as a theranostic agent capable of acting as a radioprotector/radiosensitizer depending on the irradiation scheme, radiation source, and irradiation energy, which makes it possible to control their biological activity.
The cerium oxide nanoparticles are currently regarded as promising antioxidants and antiproliferative agents with outstanding potential. They improve muscle, gastrointestinal, and retinal function in animal experiments [29,54]. They may find especially important applications for cancer treatment [55]. Interestingly, their high redox activity, which makes them useful as radioprotectors, is also involved in the mechanism of their anticancer action. While redox switching is increasingly recognized as playing an important role in ROS-dependent cancer therapy, ROS-independent cytotoxicity mechanisms such as Ce4+ dissolution and autophagy are also becoming important. Despite the fact that pro-oxidant cancer therapy is the most intensively studied, antioxidant activity, capable of protecting healthy tissues surrounding the tumor, also plays an important role by reducing side effects [56].
The biological effects of cerium fluoride nanoparticles were studied much less until recent times. Previously, we have shown that cerium fluoride nanoparticles effectively protect organic molecules and cells from oxidative stress induced by hydrogen peroxide [23]. The doping of CeF3 nanoparticles with terbium ions allowed us to provide visualization of nanoparticles [39]. It was also demonstrated the mitogenic activity of cerium fluoride nanoparticles in nanomolar concentrations on regenerating planarians [30]. In expanding on these findings, we compared the regenerative and radioprotective potential of Ce4+-containing nanomaterials (CeO2 nanoparticles) and Ce3+-containing nanomaterials (CeF3 nanoparticles) and came to intriguing results. Although both types of nanoparticles possess radioprotective and regenerative properties, the effect of CeO2 nanoparticles on planarian regeneration seems to be mediated through their high antioxidative and/or ROS-scavenging abilities. CeF3 nanoparticles, on the other hand, seem to act via another pathway: by affecting gene expression and/or signaling pathways. The importance of genetic mechanisms for controlling the regeneration of various planarian tissues is well known [57]. Additionally, by activating an orchestra of wound-induced and other pro-regenerative and antioxidant genes, cerium-based nanoparticles are a more sophisticated and newly discovered class of inorganic bioregulators with radioprotective potential.
As part of this work, we demonstrated for the first time the radioprotective properties of cerium fluoride on the experimental model in vivo. The cerium fluoride nanoparticles, as well as cerium oxide nanoparticles, penetrate planarian cells (8.01 × 10−9 M per 1 planarian) and provide radioprotective activity after irradiation at the maximum radiation dose (15 Gy). It was shown that, starting from the 3rd day of observation, regeneration in planarians treated with CeF3 nanoparticles was statistically significantly higher compared to the untreated, irradiated control. Such a stimulating effect persisted throughout the observation period up to day 6, which confirms the antioxidant and mitogenic properties of cerium-containing nanoparticles. The modulation of expression levels of key genes in the presence of CeF3 nanoparticles on the 10th day of observation after their irradiation demonstrates the long-term bioactivity of nanoparticles on the transcriptional profile of neoblasts. Further, both CeO2 and CeF3 nanoparticles are proven to be effective radioprotectors, in the range of micromolar or even nanomolar concentrations on the planarian model. The outstanding and previously unknown effect of CeF3 particles is probably caused by their ability to stimulate genes responsible for planarian neoblast proliferation. This result seems to have very high biomedical prospects, taking into account the low toxicity of cerium fluoride: the single-dose acute oral LD50 is greater than 5.0 g/kg (Sprague-Dawley rats), CeF3 is not considered to be a skin or eye irritant (New Zealand Albino rabbits) [58]. Meanwhile, the molecular mechanisms and long-term effects of cerium-containing nanoparticles require further research.

4. Materials and Methods

4.1. Synthesis of Cerium Nanoparticles

The CeO2 nanoparticles were synthesized by the hydrothermal microwave method in accordance with the previously described procedure [33]. In addition, the CeF3 nanoparticles were synthesized by precipitation in alcoholic media with the previously described procedure [23]. The UV-visible absorption spectra of CeO2 and CeF3 nanoparticles were measured in standard quartz cuvettes using a UV5 Nano spectrophotometer (METTLER TOLEDO, Zurich, Switzerland). The transmission electron microscopy and electron diffraction (SAED) analysis were performed using a Leo 912 AB Omega electron microscope. Hydrodynamic radii were measured by dynamic light scattering on a N5 submicron particle size analyzer (Beckman Coulter, Pasadena, CA, USA).

4.2. Experimental Object

In our work, we used an asexual laboratory strain of freshwater flatworm, Schmidtea mediterranea (Turbellaria, Platyhelminthes). The animals were kept at room temperature in darkened glass aquariums containing artificial freshwater flatworm water (a mixture of tap and distilled water, 2:1 vol). The freshwater flatworms were fed twice a week with mosquito larvae (Chironomidae). In addition, before the experiment, flatworms were starved for one week. Animals with a body length of about 10–12 mm were selected for the experiments. The amputation of 1/5 of the anterior part of the flatworm body with the head nervous ganglion (i.e., decapitation) was performed. Further, before the operation, flatworms were immobilized and anaesthetized on the cooling table. The operations were performed under a Carl Zeiss Stemi 2000 dissecting microscope, using a thin eye scalpel. One day before decapitation and before X-ray irradiation (if required by the experiment design), different concentrations of CeO2 or CeF3 nanoparticles were added. After amputation of 1/5 of the planarian body part containing the head ganglion, regeneration of the severed part of the body was observed. The number of animals in each group was the same and amounted to 35 pcs.

4.3. X-ray Exposure

The X-ray irradiation of the planarians was performed using an X-ray therapeutic machine, RTM-15 174 (Mosrentgen, Russia), at a dose of 10–15 Gy (1 Gy/min), 200 kV voltage, 37.5 cm focal length, and a 20 mA current. For irradiation, animals were placed in Petri dishes (35 mm) on filter paper moistened with water.

4.4. Assessment of CeO2 and CeF3 Nanoparticles’ Antioxidant Activity

To determine the antioxidant activity of CeO2 and CeF3 nanoparticles, we analyzed the concentration of hydrogen peroxide after X-ray irradiation of CeO2 and CeF3 nanoparticles by enhanced chemiluminescence using a luminol—4-iodophenol—peroxidase system [49]. The TRIS buffer was used to maintain a constant pH (7.2). The irradiation dose was 5 Gy (1 Gy per min). A liquid scintillation counter, Beta-1 (MedApparatura, Kyiv, Ukraine), operating in the mode for counting single photons (with one photomultiplier and the coincidence scheme disengaged), was used as a highly sensitive chemiluminometer. The high sensitivity of this method allows for the detection of hydrogen peroxide at a concentration of <1 nM. The H2O2 content was determined using the calibration dependencies of chemiluminescence on the H2O2 concentration in the solution. The concentration of hydrogen peroxide used for the calibration was determined spectrophotometrically at 240 nm using a molar absorption coefficient of 43.6 M−1 × cm−1.

4.5. Intravital Computer Morphometry

In investigating the growth of the regeneration bud (blastema), computer morphometry was used [32]. The control and experimental groups of freshwater flatworms were photographed with a Carl Zeiss AxioCam MRC camera and a Carl Zeiss Stemi 2000 microscope, 72 h after decapitation. The area of the blastema (s) and the total area of the body (S) were determined using the Plana 4.0 software. The index of regeneration, R = s/S, was used as a quantitative measure of blastema growth. Each R-value was calculated as the mean for 30 animals in either the experimental or control group. Each experimental point was repeated in triplicate. The relative change was calculated as follows:
Δ R = R E R c ± δ E δ c R c × 100 %
In addition, RE is the index of regeneration in the experimental group of flatworms; RC is the index of regeneration in the control group of flatworms; ΔR is the difference (%) between RE and RC; δE and δC are the standard errors of measurement in the experimental and control groups, respectively. The results presented here are the means from three independent experiments. The standard errors in all the experiments did not exceed 6%.

4.6. Whole-Mount Immunocytochemical Study of Planarian Stem Cell Mitotic Activity

In this study, planarians with body lengths of about 4 mm were selected. The number of mitotic cells in the regenerating worms was determined after seven days. The planarians were treated with cerium-containing nanoparticles overnight and fixed in PBS containing 4% formaldehyde and 0.3% Triton X100 for 20 min. In addition, the planarian staining for detecting mitotic cells was performed according to the protocol provided by Newmark and Alvarado [31]. In labeling mitotic cells, a primary antibody was used for phosphorylated histone H3 (Santa Cruz, Dallas, TX, USA) at a 1/1000 dilution. A secondary antibody conjugated to a fluorescent label, CF488A (Biotium, Fremont, CA, USA), was used in a 1/1000 dilution. The phosphorylated H3 histone has long been used as a classical marker of mitotic cells in studies of planarian neoblast mitotic activity [32]. After washing in PBS, the whole-mount preparations were placed in Vectashield Antifade Mounting Medium (Vector Labs, Burlingame, CA, USA) and analyzed using a ZEISS Axiolab 5 Fluorescence Digital Microscope (Carl Zeiss, Jena, Germany). The mitotic cell number and the planarian body area were measured using the Carl Zeiss Axio Image software. The number of mitotic cells per 1 mm2 of the planarian body (the mitotic index) was then calculated. The average values of the mitotic indices (i.e., the relationship of the total number of mitotic cells to the body area of each animal) were obtained using 15 animals per experimental group in three experimental repetitions. The specificity of immunocytochemical staining was confirmed using a non-immune serum. All controls were negative and demonstrated the absence of specific and non-specific fluorescent staining in planarian tissues.

4.7. Real-Time PCR

Furthermore, after incubation of the animals in the presence of CeO2 and CeF3 nanoparticles, mRNA from experimental (n = 5) and control animals (n = 5) was extracted with magnetic particles using an mRNA purification kit (Sileks, Russia). The mRNA concentration was measured using a NanoDrop spectrophotometer (Gene Company, South San Francisco, CA, USA). The reverse transcription was performed using the oligo dT primer according to the protocol provided by the manufacturer (Sileks, Russia). The resulting cDNA was amplified as a real-time PCR template using SybrGreen (Syntol, Russia). The polymerase chain reaction was carried out using a BioRad CFX-96 amplifier (USA). The expression of 46 genes that control the early stages of regeneration and the proliferative activity of neoplasms, divided into four classes (W1, W2, W3, and W4), was measured [31]. In addition, the expression of another 15 key genes involved in regeneration was measured: ζ-class neoblast subpopulations (ancestors of all neoblasts), σ-class (epidermal progenitors), and γ-class (interstitial cell progenitors). The level of gene transcription was normalized according to the average levels of transcription of the housekeeping genes Smed-ef1 and Smed_01699. The genomic DNA contamination was determined from a sample without a reverse transcription stage based on genome-specific primers. Further, gene-specific primers were selected using the Primer Express program (Applied Biosystems, Waltham, MA, USA) (Supplementary Materials, Table S1). The obtained expression data were analyzed using the online service (accessed on 25 January 2022), the mayday-2.14 program (Center for Bioinformatics, Tübingen, Germany), and the Genesis program.

4.8. Inductively Coupled Plasma Mass Spectrometry (ICP-MS)

The planarians were incubated for two days with CeO2 and CeF3 nanoparticles (10−4 M), then the sample preparation procedure was carried out for analysis by the ICP-MS method. In addition, the planarians were washed three times with double-distilled water and placed in a 30% H2O2 solution (Sigma Aldrich, St. Louis, MO, USA) under bright light for 16 h for decolorization. After this procedure, concentrated HNO3 (Khimmed, Moscow, Russia) was added to the sample, and the samples were placed in a dry oven at a temperature of 150 °C until the solution evaporated. Further, after drying, nitric acid was added to the sample and measured using an Element™ Series HR-ICP-MS analyzer (Thermo Scientific, Waltham, MA, USA).

4.9. Statistical Data Processing

The experiments were performed in 3–4 repetitions, with three independent repetitions for each concentration of CeO2 and CeF3 nanoparticles. The experimental results were compared with those of untreated controls. In addition, the statistical analysis was performed using the methods of variation statistics (ANOVA, Mann–Whitney U test). The means and standard deviations (SD) of the means were determined. The significance of differences between groups was determined using a Student’s t-test. The obtained data were processed statistically using the Sigma-Plot 9.11 program (Systat Software Inc., Erkrath, Germany).

4.10. Ethical Standards

All procedures performed in this study involving animals were performed in accordance with the ethical standards of the institution at which the studies were conducted.

Supplementary Materials

The supporting information can be downloaded at:

Author Contributions

A.M.E.—study concept and design, performance of experiments, data interpretation, writing of manuscript; K.O.F.—performance of experiments, data interpretation; O.N.E.—performance of experiments, data interpretation; A.S.B.—performance of experiments, data interpretation; A.L.P.—performance of experiments, data interpretation, writing of manuscript, conception of the structure of the article, provision of overall scientific advice, and manuscript revision; A.B.S.—conceptualization and experiment design, writing, review, and editing; N.N.C.—performance of experiments, data interpretation; A.E.B.—data analyzing, review and editing; V.K.I.—supervision, writing, review, and editing. All authors have read and agreed to the published version of the manuscript.


The work was supported by the Russian Science Foundation (Project 19-13-00416).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article.


We thank the Center for Collective Use of the Federal Research Center “Pushchino Scientific Center for Biological Research of the Russian Academy of Sciences” «Sector of Ionizing Radiation Sources» for the possibility of X-ray irradiating experimental objects.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Reisz, J.A.; Bansal, N.; Qian, J.; Zhao, W.; Furdui, C.M. Effects of ionizing radiation on biological molecules—Mechanisms of damage and emerging methods of detection. Antioxid. Redox Signal. 2014, 21, 260–292. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Cadet, J.; Douki, T.; Gasparutto, D.; Ravanat, J.L. Oxidative damage to DNA: Formation, measurement and biochemical features. Mutat. Res. 2003, 531, 5–23. [Google Scholar] [PubMed]
  3. Von Sonntag, C. Nucleobases, Nucleosides and Nucleotides. Free-Radical-Induced DNA Damage and Its Repair: A Chemical Perspective; Springer: Berlin/Heidelberg, Germany, 2006; pp. 211–334. [Google Scholar]
  4. Azzam, E.I.; Jay-Gerin, J.P.; Pain, D. Ionizing radiation-induced metabolic oxidative stress and prolonged cell injury. Cancer Lett. 2012, 327, 48–60. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Mishra, K.; Alsbeih, G. Appraisal of biochemical classes of radioprotectors: Evidence, current status and guidelines for future development. Biotech 2017, 7, 292. [Google Scholar] [CrossRef]
  6. Kamran, M.Z.; Ranjan, A.; Kaur, N.; Sur, S.; Tandonet, V. Radioprotective agents: Strategies and translational advances. Med. Res. Rev. 2016, 36, 461–493. [Google Scholar] [CrossRef]
  7. Kouvaris, J.R.; Kouloulias, V.E.; Vlahos, L.J. Amifostine: The first selective-target and broad-spectrum radioprotector. Oncologist 2007, 12, 738–747. [Google Scholar] [CrossRef] [Green Version]
  8. Singh, V.K.; Seed, T.M. The efficacy and safety of amifostine for the acute radiation syndrome. Expert Opin. Drug Saf. 2019, 18, 1077–1090. [Google Scholar] [CrossRef] [Green Version]
  9. Du, J.; Zhang, P.; Cheng, Y.; Liu, R.; Liu, H.; Gao, F.; Shi, C.; Liu, C. General principles of developing novel radioprotective agents for nuclear emergency. Radiat. Med. Prot. 2020, 1, 120–126. [Google Scholar] [CrossRef]
  10. Rosen, E.M.; Day, R.; Singh, V.K. New approaches to radiation protection. Front. Oncol. 2014, 4, 381. [Google Scholar] [CrossRef] [Green Version]
  11. Liu, Y.; Zhang, P.; Li, F.; Jin, X.; Li, J.; Chen, W.; Li, Q. Metal-based NanoEnhancers for Future Radiotherapy: Radiosensitizing and Synergistic Effects on Tumor Cells. Theranostics 2018, 8, 1824–1849. [Google Scholar]
  12. Silva, G.A. Seeing the benefits of ceria. Nat. Nanotechnol. 2006, 1, 92–94. [Google Scholar] [CrossRef] [PubMed]
  13. Xu, C.; Qu, X. Cerium oxide nanoparticle: A remarkably versatile rare earth nanomaterial for biological applications. NPG Asia Mater. 2014, 6, e90. [Google Scholar] [CrossRef] [Green Version]
  14. Sims, C.M.; Hanna, S.K.; Heller, D.A.; Horoszko, C.P.; Johnson, M.E.; Bustos, A.R.; Reipa, V.; Riley, K.R.; Nelson, B.C. Redox-active nanomaterials for nanomedicine applications. Nanoscale 2017, 9, 15226–15251. [Google Scholar] [CrossRef] [PubMed]
  15. Das, S.; Neal, C.J.; Ortiz, J.; Seal, S. Engineered nanoceria cytoprotection in vivo: Mitigation of reactive oxygen species and double-stranded DNA breakage due to radiation exposure. Nanoscale 2018, 10, 21069–21075. [Google Scholar] [CrossRef]
  16. Caputo, F.; De Nicola, M.; Sienkiewicz, A.; Giovanetti, A.; Bejarano, I.; Licoccia, S.; Travesa, E.; Ghibelli, L. Cerium oxide nanoparticles, combining antioxidant and UV shielding properties, prevent UV-induced cell damage and mutagenesis. Nanoscale 2015, 7, 15643–15656. [Google Scholar] [CrossRef]
  17. Korsvik, C.; Patil, S.; Seal, S.; Self, W.T. Superoxide dismutase mimetic properties exhibited by vacancy engineered ceria nanoparticles. Chem. Commun. 2007, 1056–1058. [Google Scholar] [CrossRef]
  18. Pirmohamed, T.; Dowding, J.M.; Singh, S.; Wasserman, B.; Heckert, E.; Karakoti, A.S.; King, J.E.S.; Seal, S.; Self, T.W. Nanoceria exhibit redox state-dependent catalase mimetic activity. Chem. Commun. 2010, 46, 2736–2738. [Google Scholar] [CrossRef] [Green Version]
  19. Wang, Z.; Shen, X. Simultaneous enzyme mimicking and chemical reduction mechanisms for nanoceria as a bio-antioxidant: A catalytic model bridging computations and experiments for nanozymes. Nanoscale 2019, 11, 13289–13299. [Google Scholar] [CrossRef]
  20. Feng, N.; Liu, Y.; Dai, X.; Wang, Y.; Guo, Q.; Li, Q. Advanced applications of cerium oxide based nanozymes in cancer. RSC Adv. 2022, 12, 1486–1493. [Google Scholar] [CrossRef] [PubMed]
  21. Singh, S. Cerium oxide based nanozymes: Redox phenomenon at biointerfaces. Biointerphases 2016, 11, 04B202. [Google Scholar] [CrossRef] [Green Version]
  22. Heckman, K.L.; DeCoteau, W.; Estevez, A.; Reed, K.J.; Costanzo, W.; Sanford, D.; Leiter, J.C.; Clauss, J.; Knapp, K.; Gomez, C.; et al. Custom cerium oxide nanoparticles protect against a free radical mediated autoimmune degenerative disease in the brain. ACS Nano 2013, 7, 10582–10596. [Google Scholar] [CrossRef]
  23. Shcherbakov, A.B.; Zholobak, N.M.; Baranchikov, A.E.; Ryabova, A.V.; Ivanov, V.K. Cerium fluoride nanoparticles protect cells against oxidative stress. Mater. Sci. Eng. C 2015, 50, 151–159. [Google Scholar] [CrossRef] [PubMed]
  24. Tan, F.; Zhang, Y.; Wang, J.; Wei, J.; Qian, X. An efficient method for dephosphorylation of phosphopeptides by cerium oxide. J. Mass Spectrom. 2008, 43, 628–632. [Google Scholar] [CrossRef] [PubMed]
  25. McCormack, R.N.; Mendez, P.; Barkam, S.; Neal, C.J.; Das, S.; Seal, S. Inhibition of nanoceria’s catalytic activity due to Ce3+ site-specific interaction with phosphate ions. J. Phys. Chem. C 2014, 118, 18992–19006. [Google Scholar] [CrossRef]
  26. Naganum, T.; Traversa, E. The effect of cerium valence states at cerium oxide nanoparticle surfaces on cell proliferation. Biomaterials 2014, 35, 4441–4453. [Google Scholar] [CrossRef]
  27. Rink, J.C. Stem cell systems and regeneration in planaria. Dev. Genes Evol. 2013, 223, 67–84. [Google Scholar] [CrossRef] [Green Version]
  28. Pellettieri, J.; Alvarado, A.S. Cell turnover and adult tissue homeostasis: From humans to planarians. Annu. Rev. Genet. 2007, 41, 83–105. [Google Scholar] [CrossRef]
  29. Salvetti, A.; Rossi, L.; Bonuccelli, L.; Lena, A.; Pugliesi, C.; Rainaldi, G.; Evangelista, M.; Gremigni, V. Adult stem cell plasticity: Neoblast repopulation in non-lethally irradiated planarians. Dev. Biol. 2009, 328, 305–314. [Google Scholar] [CrossRef]
  30. Rossi, L.; Cassella, L.; Iacopetti, P.; Ghezzani, C.; Tana, L.; Gimenez, G.; Ghigo, E.; Salvetti, A. Insight into stem cell regulation from sub-lethally irradiated worms. Gene 2018, 662, 37–45. [Google Scholar] [CrossRef]
  31. Ermakov, A.M.; Kamenskikh, K.A.; Ermakova, O.n.; Blagodatsky, A.S.; Popov, A.L.; Ivanov, V.K. Planarians as an in vivo experimental model for the study of new radioprotective substances. Antioxidants 2021, 10, 1763. [Google Scholar] [CrossRef]
  32. Ermakov, A.; Popov, A.; Ermakova, O.; Ivanova, O.; Baranchikov, A.; Kamenskikh, K.; Shekunova, T.; Shcherbakov, A.; Popova, N.; Ivanov, V. The first inorganic mitogens: Cerium oxide and cerium fluoride nanoparticles stimulate planarian regeneration via neoblastic activation. Mater. Sci. Eng. C 2019, 104, 109924. [Google Scholar] [CrossRef] [PubMed]
  33. Ivanova, O.S.; Shekunova, T.O.; Ivanov, V.K.; Shcherbakov, A.B.; Popov, A.L.; Davydova, G.A.; Selezneva, I.I.; Kopitsa, G.P.; Tret’yakov Yu, P. One-stage synthesis of ceria colloid solutions for biomedical. Dokl. Chem. 2011, 437, 103–106. [Google Scholar] [CrossRef]
  34. Popov, A.L.; Zholobak, N.M.; Shcherbakov, A.B.; Kozlova, T.O.; Kolmanovich, D.D.; Ermakov, A.M.; Popova, N.R.; Chukavin, N.N.; Bazikyan, E.A.; Ivanov, V.K. The Strong Protective Action of Ce3+/F Combined Treatment on Tooth Enamel and Epithelial Cells. Nanomaterials 2022, 12, 3034. [Google Scholar] [CrossRef] [PubMed]
  35. Yang, Y.; Mao, Z.; Huang, W.; Liu, L.; Li, J.; Li, J.; Wu, Q. Redox enzyme-mimicking activities of CeO2 nanostructures: Intrinsic influence of exposed facets. Sci. Rep. 2016, 6, 35344. [Google Scholar] [CrossRef] [Green Version]
  36. Seminko, V.; Maksimchuk, P.; Grygorova, G.; Malyukin, Y.V. Mechanism and dynamics of fast redox cycling in cerium oxide nanoparticles at high oxidant concentration. J. Phys. Chem. C 2021, 125, 4743–4749. [Google Scholar] [CrossRef]
  37. Malyukin, Y.; Maksimchuk, P.; Seminko, V.; Okrushko, E.; Spivak, N. Limitations of self-regenerative antioxidant ability of nanoceria imposed by oxygen diffusion. J. Phys. Chem. C 2018, 122, 16406–16411. [Google Scholar] [CrossRef]
  38. Dutta, P.; Pal, S.; Seehra, M.S.; Shi, Y.; Eyring, E.M.; Ernst, R.D. Concentration of Ce3+ and oxygen vacancies in cerium ox-ide nanoparticles. Chem. Mater. 2006, 18, 5144–5146. [Google Scholar] [CrossRef]
  39. Chlubek, D.; Poland, S. Fluoride and oxidative stress. Fluoride 2003, 36, 217–228. [Google Scholar]
  40. Agalakova, N.I.; Gusev, G.P. Molecular mechanisms of cytotoxicity and apoptosis induced by inorganic fluoride. Int. Sch. Res. Not. 2012, 403835. [Google Scholar] [CrossRef] [Green Version]
  41. Gutiérrez-Salinas, J.; García-Ortíz, L.; Morales González, J.A.; Hernández-Rodríguez, S.; Ramírez-García, S.; Núñez-Ramos, N.R.; Madrigal-Santillán, E. In vitro effect of sodium fluoride on malondialdehyde concentration and on superoxide dismutase, catalase, and glutathione peroxidase in human erythrocytes. Sci. World J. 2013, 2013, 864718. [Google Scholar] [CrossRef] [Green Version]
  42. Williams, J., Jr. The effects of fluoride ions on neuromuscular activity and regeneration in Dugesia Tigrine. Ga. J. Sci. 2017, 75, 5. [Google Scholar]
  43. González-Sastre, A.; De Sousa, N.; Adell, I.C.T.; Saló, I.B.E. The pioneer factor Smed-gata456-1 is required for gut cell differentiation and maintenance in planarians. Int. J. Dev. Biol. 2017, 61, 53–63. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Wagner, D.E.; Ho, J.J.; Reddien, P.W. Genetic regulators of a pluripotent adult stem cell system in planarians identified by RNAi and clonal analysis. Cell Stem Cell 2012, 10, 299–311. [Google Scholar] [CrossRef]
  45. Hubert, A.; Henderson, J.M.; Cowles, M.W.; Ross, K.G.; Hagen, M.; Anderson, C.; Szeterlak, C.J.; Zayas, R.M. A functional genomics screen identifies an Importin-α homolog as a regulator of stem cell function and tissue patterning during planarian regeneration. BMC Genom. 2015, 16, 769. [Google Scholar] [CrossRef] [Green Version]
  46. Ogawa, K.; Kobayashi, C.; Hayashi, T.; Orii, H.; Watanabe, K.; Agata, K. Planarian fibroblast growth factor receptor homologs expressed in stem cells and cephalic ganglions. Dev. Growth Differ. 2022, 44, 191–204. [Google Scholar] [CrossRef] [PubMed]
  47. Eriksson, D.; Stigbrand, T. Radiation-induced cell death mechanisms. Tumor Biol. 2010, 31, 363–372. [Google Scholar] [CrossRef]
  48. Shibata, N.; Rouhana, L.; Agata, K. Cellular and molecular dissection of pluripotent adult somatic stem cells in planarians. Dev. Growth Differ. 2010, 52, 27–41. [Google Scholar] [CrossRef] [Green Version]
  49. Popov, A.L.; Zaichkina, S.I.; Popova, N.R.; Rozanova, O.M.; Romanchenko, S.P.; Ivanova, O.S.; Smirnov, A.A.; Minorova, E.V.; Selezneva, I.I.; Ivanov, V.K. Radioprotective effects of ultra-small citrate-stabilized cerium oxide nanoparticles. RSC Adv. 2016, 6, 106141–106149. [Google Scholar] [CrossRef]
  50. Zohreh, Z.; Arash, G.; Asgarian-Omran, H.; Azadeh, M.; Jalal, H.S. Radioprotective effect of cerium oxide nanoparticles against genotoxicity induced by ionizing radiation on human lymphocytes. Curr. Radio Pharm. 2018, 11, 109–115. [Google Scholar]
  51. Goushbolagh, N.A.; Firouzjah, R.A.; Gorji, K.E.; Khosravanipour, M.; Moradi, S.; Banaei, A.; Astani, A.; Najafi, M.; Zare, M.H.; Farhood, B. Estimation of radiation dose-reduction factor for cerium oxide nanoparticles in MRC-5 human lung fibroblastic cells and MCF-7 breast-cancer cells. Artif. Cells Nanomed. Biotechnol. 2018, 46, S1215–S1225. [Google Scholar] [CrossRef] [Green Version]
  52. Shinpaugh, J.L.; Putnam-Evans, C.S.; Das, S.; Seal, S. Protection and sensitization of normal and tumor cells to proton radiation by cerium oxide nanoparticles. J. Phys. Conf. Ser. 2015, 635, 032032. [Google Scholar] [CrossRef] [Green Version]
  53. Briggs, A.; Corde, S.; Oktaria, S.; Brown, R.; Rosenfeld, A.; Lerch, M.; Konstantinov, K.; Tehei, M. Cerium oxide nanoparticles: Influence of the high-Z component revealed on radioresistant 9L cell survival under X-ray irradiation. Nanomedicine 2013, 9, 1098–1105. [Google Scholar] [CrossRef] [Green Version]
  54. Stephen Inbaraj, B.; Chen, B.-H. An overview on recent in vivo biological application of cerium oxide nanoparticles. Asian J. Pharm. Sci. 2020, 15, 558–575. [Google Scholar] [CrossRef] [PubMed]
  55. Gao, Y.; Chen, K.; Ma, J.-L.; Gao, F. Cerium oxide nanoparticles in cancer. Onco Targets 2014, 7, 835–840. [Google Scholar] [CrossRef] [PubMed]
  56. Amaldoss, M.J.N.; Mehmood, R. Anticancer therapeutic effect of cerium-based nanoparticles: Known and unknown molecular mechanisms. Biomater. Sci. 2022, 10, 3671–3694. [Google Scholar] [CrossRef]
  57. Ge, X.Y.; Han, X.; Zhao, Y.L.; Cui, G.S.; Yang, Y.G. An insight into planarian regeneration. Cell Prolif. 2022, 55, e13276. [Google Scholar] [CrossRef]
  58. Lambert, C.; Barnum, E.C.; Shapiro, R. Acute toxicological evaluation of cerium fluoride. J. Am. Coll. Toxicol. 1993, 12, 632. [Google Scholar] [CrossRef]

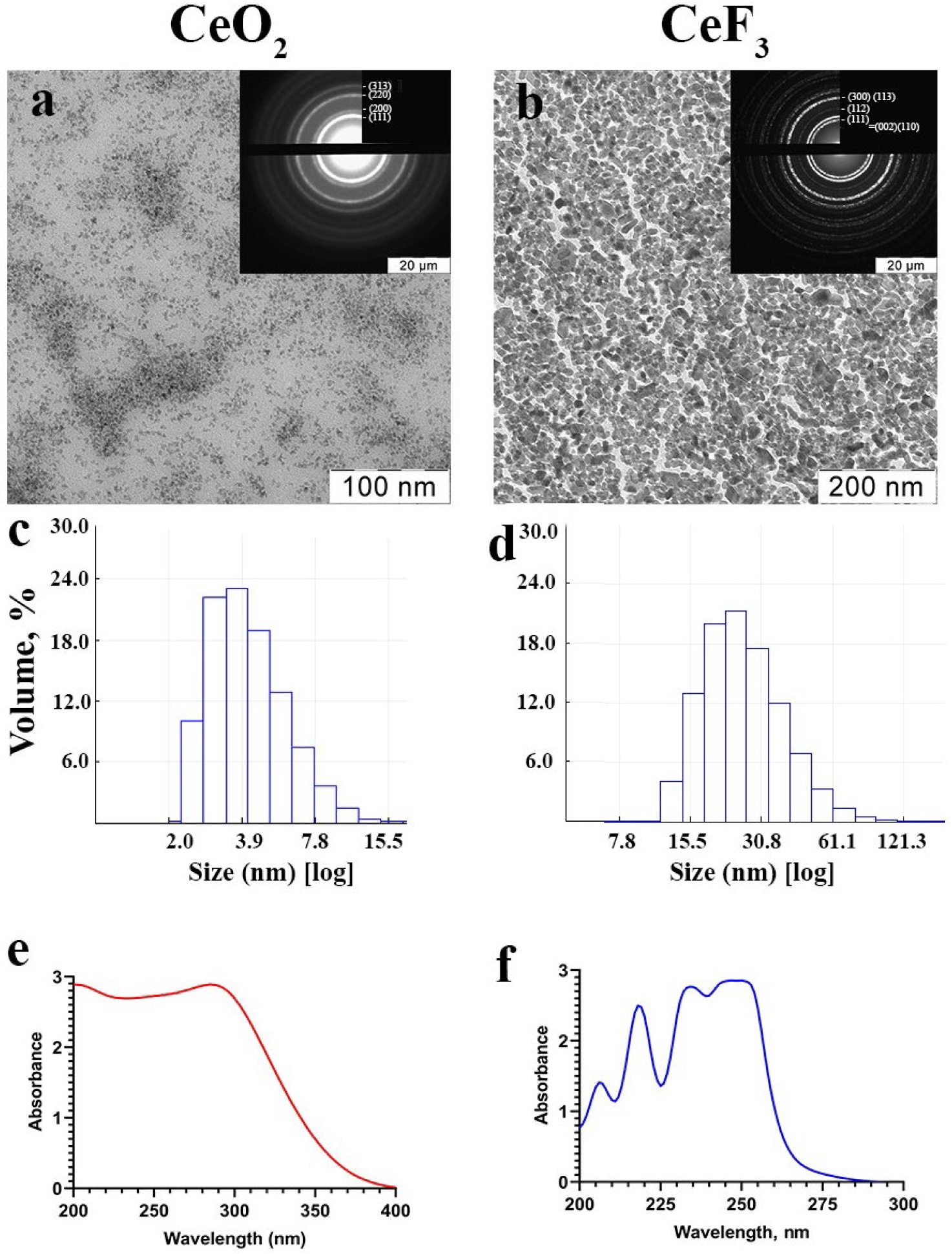

Figure 1. Transmission electron microscopy (a,b), dynamic light scattering (c,d) in water, and UV absorption spectra (e,f) of cerium oxide (CeO2) and cerium fluoride (CeF3) nanoparticles. Insets in (a,b) show selected-area electron diffraction data.
Figure 1. Transmission electron microscopy (a,b), dynamic light scattering (c,d) in water, and UV absorption spectra (e,f) of cerium oxide (CeO2) and cerium fluoride (CeF3) nanoparticles. Insets in (a,b) show selected-area electron diffraction data.
Ijms 24 01241 g001

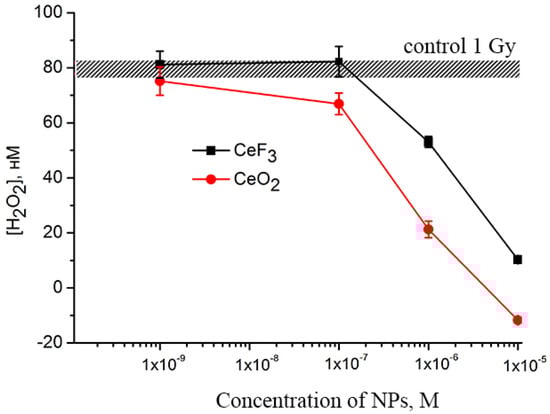

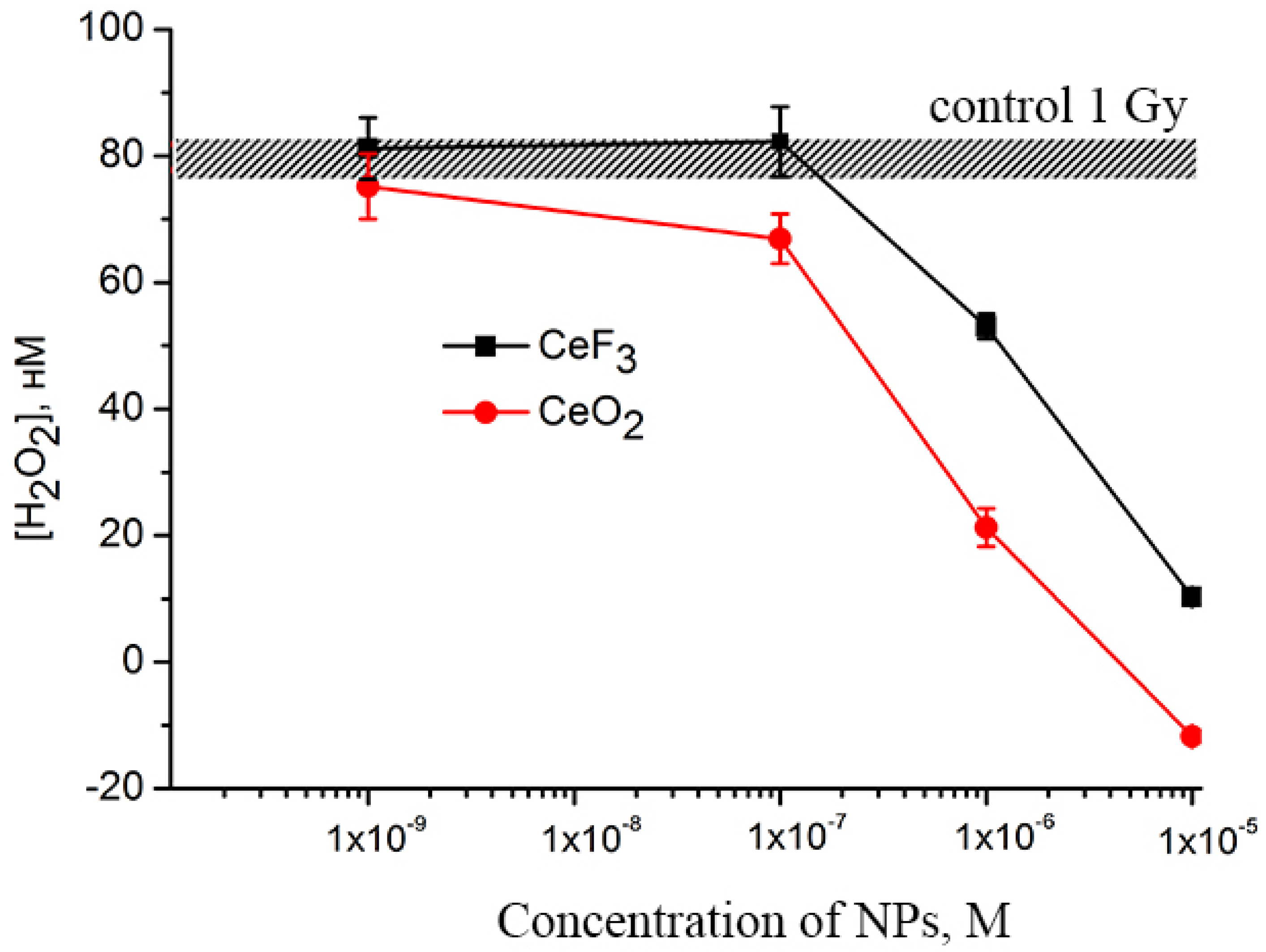

Figure 2. Concentration dependencies of hydrogen peroxide formation induced by X-ray irradiation (1 Gy) in a buffer solution containing CeF3 and CeO2 NPs. The mean values of three independent experiments and their standard errors are given.
Figure 2. Concentration dependencies of hydrogen peroxide formation induced by X-ray irradiation (1 Gy) in a buffer solution containing CeF3 and CeO2 NPs. The mean values of three independent experiments and their standard errors are given.
Ijms 24 01241 g002

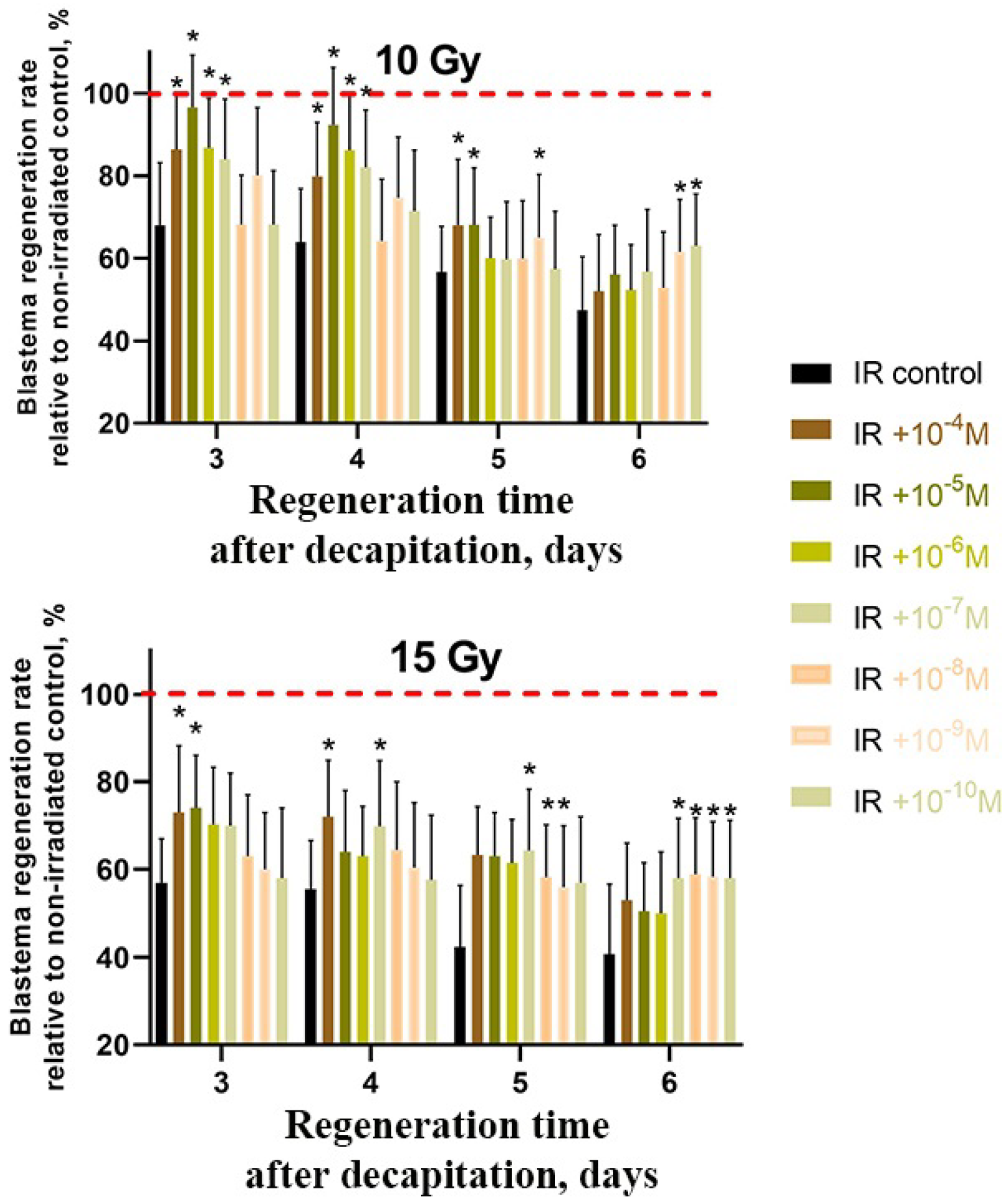

Figure 3. Radioprotective effect of CeO2 nanoparticles on regenerating planarian blastemas after X-ray irradiation (10 Gy and 15 Gy). Brown to light-brown bars represent the percentage of blastema regeneration rate; the regeneration rate of non-irradiated animals was taken as 100% (red line). * p < 0.05 (difference from the control group). M ± SD, n = 90. IR—X-ray irradiation.
Figure 3. Radioprotective effect of CeO2 nanoparticles on regenerating planarian blastemas after X-ray irradiation (10 Gy and 15 Gy). Brown to light-brown bars represent the percentage of blastema regeneration rate; the regeneration rate of non-irradiated animals was taken as 100% (red line). * p < 0.05 (difference from the control group). M ± SD, n = 90. IR—X-ray irradiation.
Ijms 24 01241 g003

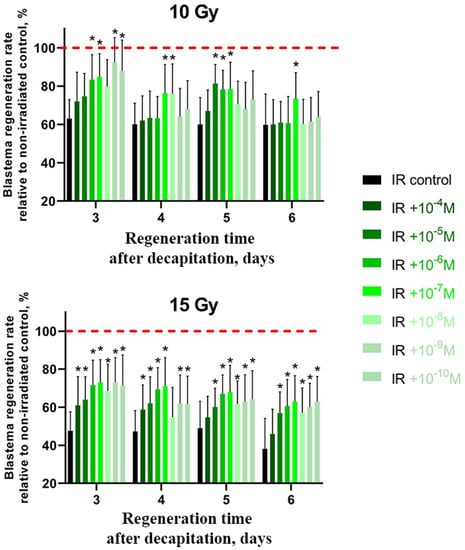

Figure 4. Radioprotective effect of CeF3 nanoparticles on regenerating planarian blastema after irradiation with 10 Gy and 15 Gy. Green to light-green bars represent the percentage of blastema regeneration rate; the regeneration rate of non-irradiated animals was taken as 100% (red line). * p < 0.05 (difference from the control group). M ± SD, n = 90. IR—X-ray irradiation.
Figure 4. Radioprotective effect of CeF3 nanoparticles on regenerating planarian blastema after irradiation with 10 Gy and 15 Gy. Green to light-green bars represent the percentage of blastema regeneration rate; the regeneration rate of non-irradiated animals was taken as 100% (red line). * p < 0.05 (difference from the control group). M ± SD, n = 90. IR—X-ray irradiation.
Ijms 24 01241 g004

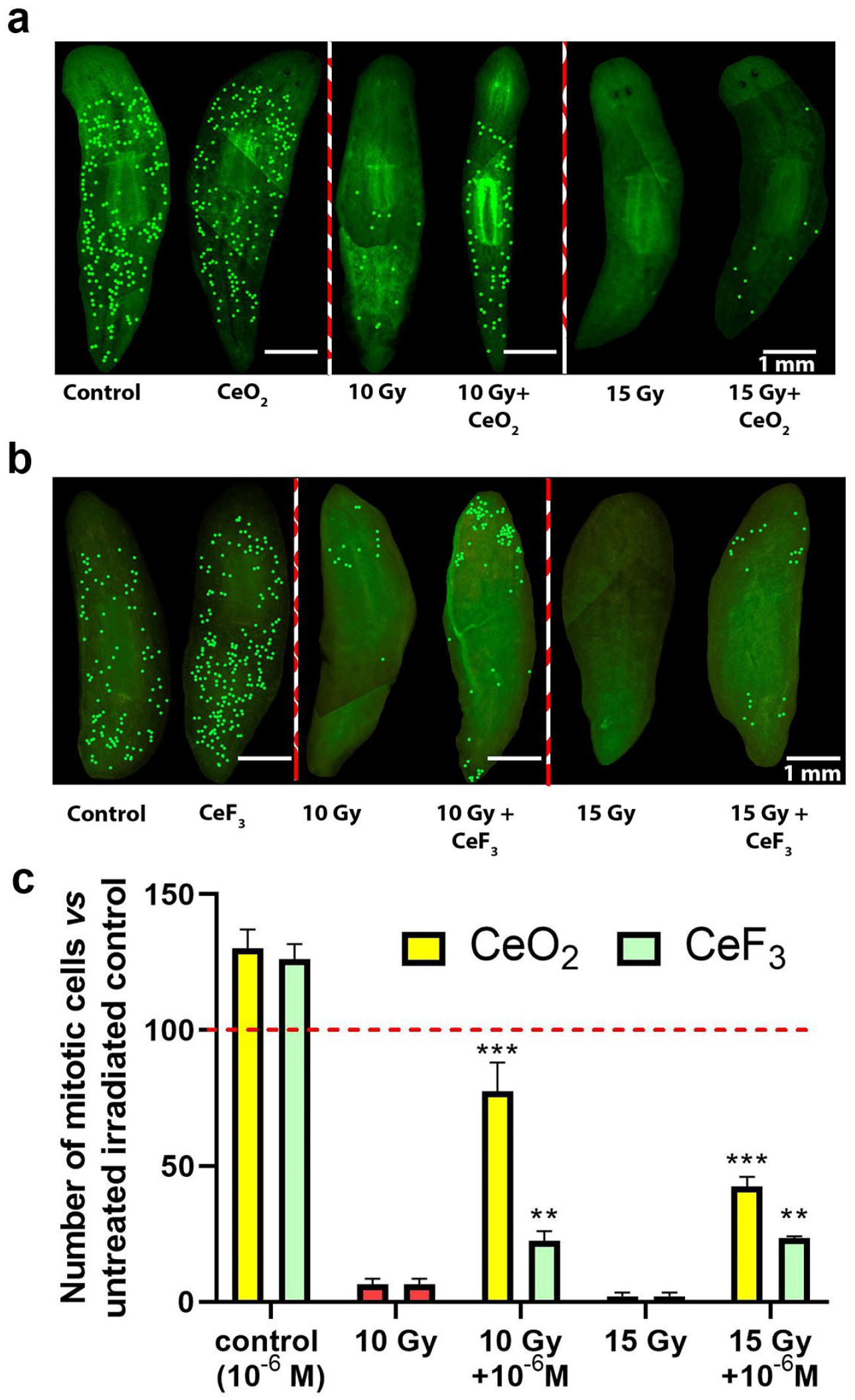

Figure 5. Mitotic activity of regenerating planarians pretreated with CeO2 and CeF3 nanoparticles and X-ray irradiated. Photographs of immunostained planarians after X-rays irradiation with CeO2 (a) and cerium fluoride (b) nanoparticles. Quantitative analysis of the level of mitotic cells (c). This concentration of nanoparticles (106 M) was chosen as it gave the most pronounced effect. Significance was estimated by one-way analysis of variance (one-way ANOVA). Data are presented as means. Significant statistical difference ** p < 0.001, *** p < 0.05 compared to the untreated control (indicated by the red line).
Figure 5. Mitotic activity of regenerating planarians pretreated with CeO2 and CeF3 nanoparticles and X-ray irradiated. Photographs of immunostained planarians after X-rays irradiation with CeO2 (a) and cerium fluoride (b) nanoparticles. Quantitative analysis of the level of mitotic cells (c). This concentration of nanoparticles (106 M) was chosen as it gave the most pronounced effect. Significance was estimated by one-way analysis of variance (one-way ANOVA). Data are presented as means. Significant statistical difference ** p < 0.001, *** p < 0.05 compared to the untreated control (indicated by the red line).
Ijms 24 01241 g005

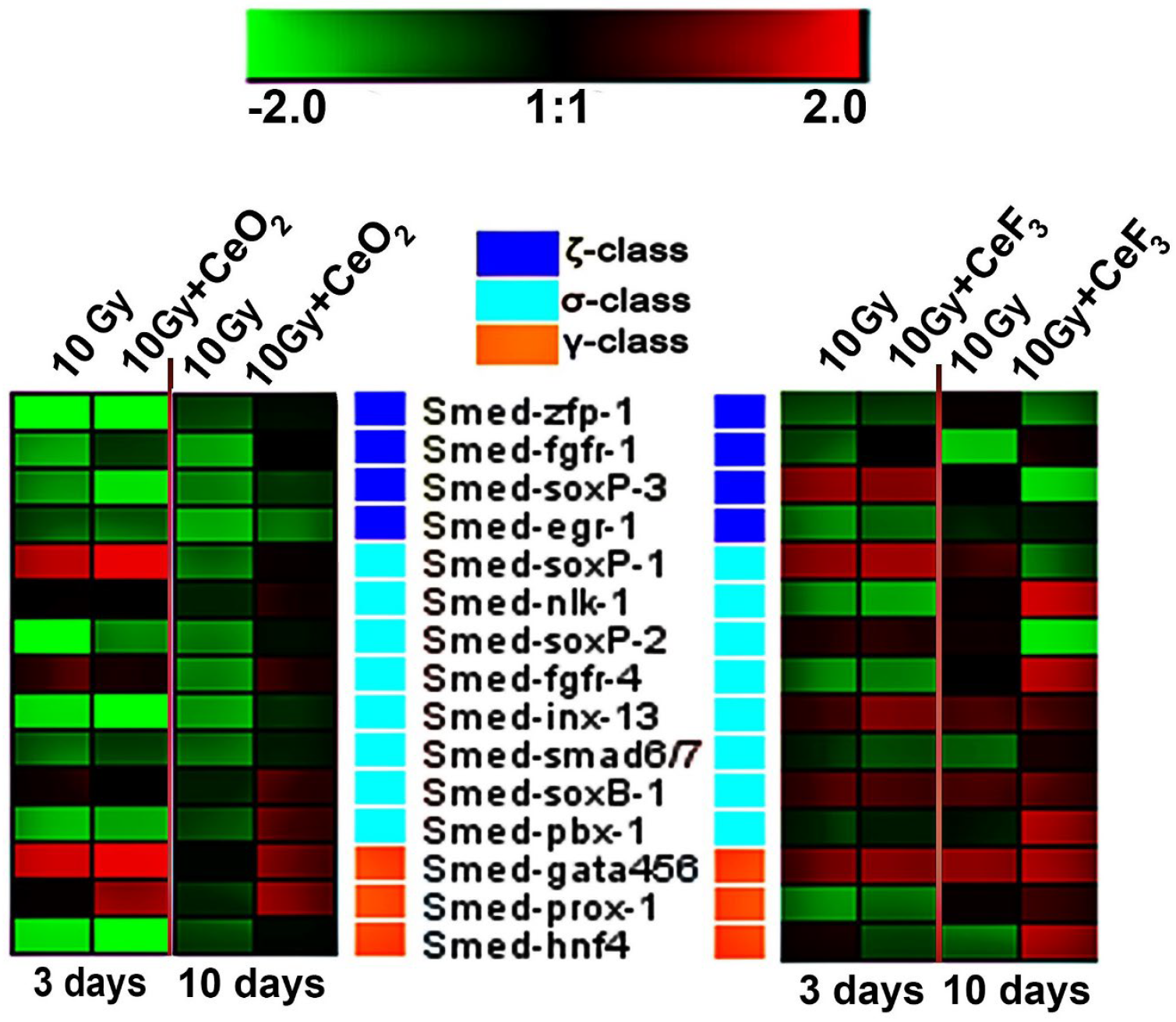

Figure 6. Expression of 3 classes of neoblast marker genes in regenerating planarians on days 3 and 10 after 10 Gy X-ray irradiation. The intensity scale of the standardized expression values ranges from −2 (green: low expression) to +2 (red: high expression), with a 1:1 intensity value (black) representing the control (non-treated). The data in the heat maps are from the non-irradiated control group. A non-irradiated control group without CeO2 or CeF3 nanoparticle pretreatment was taken as a control.
Figure 6. Expression of 3 classes of neoblast marker genes in regenerating planarians on days 3 and 10 after 10 Gy X-ray irradiation. The intensity scale of the standardized expression values ranges from −2 (green: low expression) to +2 (red: high expression), with a 1:1 intensity value (black) representing the control (non-treated). The data in the heat maps are from the non-irradiated control group. A non-irradiated control group without CeO2 or CeF3 nanoparticle pretreatment was taken as a control.
Ijms 24 01241 g006
Table 1. The content of cerium species in planarians as determined using the method of mass spectrometry with inductively coupled plasma.
Table 1. The content of cerium species in planarians as determined using the method of mass spectrometry with inductively coupled plasma.
Sample NameDissolution MediumCe Content Per 1 Planarian, M
CeO2 + planariansHNO3 + H2O + H2O23.43 × 10−9
CeF3 + planariansHNO3 + H2O + H2O28.01 × 10−9
H2O + planariansHNO3 + H2O + H2O2-
HNO3 + H2O + H2O2HNO3 + H2O + H2O2-
