Maize Genotypes Sensitive and Tolerant to Low Phosphorus Levels Exhibit Different Transcriptome Profiles under Talaromyces purpurogenus Symbiosis and Low-Phosphorous Stress

by
Qing Sun
,
Peiyu Zhang
,
Zixuan Zhao
,
Xuefang Sun
,
Xiang Liu
,
Hongsheng Zhang
and
Wen Jiang
*
Shandong Provincial Key Laboratory of Dryland Farming Technology, College of Agronomy, Qingdao Agricultural University, Qingdao 266109, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(15), 11941; https://doi.org/10.3390/ijms241511941
Submission received: 24 June 2023 / Revised: 20 July 2023 / Accepted: 23 July 2023 / Published: 26 July 2023
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Review Reports Versions Notes

Abstract

:
Talaromyces purpurogenus, an endophytic fungus, exhibits beneficial effects on plants during plant–fungus interactions. However, the molecular mechanisms underlying plants’ responses to T. purpurogenus under low-phosphorous (P) stress are not fully understood. In this study, we investigated the transcriptomic changes in maize with low-P-sensitive (31778) and -tolerant (CCM454) genotypes under low-P stress and its symbiotic interaction with T. purpurogenus. Its colonization enhanced plant growth and facilitated P uptake, particularly in 31778. Transcriptome sequencing revealed that 135 DEGs from CCM454 and 389 from 31778 were identified, and that only 6 DEGs were common. This suggested that CCM454 and 31778 exhibited distinct molecular responses to T. purpurogenus inoculation. GO and KEGG analysis revealed that DEGs in 31778 were associated with nicotianamine biosynthesis, organic acid metabolic process, inorganic anion transport, biosynthesis of various secondary metabolites and nitrogen metabolism. In CCM454, DEGs were associated with anthocyanin biosynthesis, diterpenoid biosynthesis and metabolic process. After T. purpurogenus inoculation, the genes associated with phosphate transporter, phosphatase, peroxidase and high-affinity nitrate transporter were upregulated in 31778, whereas AP2-EREBP-transcription factors were detected at significantly higher levels in CCM454. This study provided insights on the molecular mechanisms underlying plant–endophytic fungus symbiosis and low-P stress in maize with low-P-sensitive and -tolerant genotypes.

1. Introduction

Phosphorus (P) is an essential nutrient for plants and plays a crucial role in many functions, such as anabolism and catabolism. It is one of the most important fertilizers for high-yielding crops [1]. However, its slow diffusion in soil causes its deficiency, which is a common problem in agro-ecosystem lands [2]. Due to the precipitation and mineralization of inorganic phosphate, crops can only utilize 15–25% of applied P fertilizer. Hence, approximately 70% of arable land suffers from suboptimal phosphate availability for vegetative growth, hampering crop productivity [3,4]. Furthermore, P fertilizers must be prepared from phosphates from rock, which is a finite resource. Therefore, at current consumption rates, a scarcity of P fertilizers is going to be a real crisis by the end of this century [5]. Plants have evolved a series of developmental and physiological responses to low-P stress, including secreting acid phosphatases, releasing organic acids, inducing Pi transporters with high affinity and changing the shoot–root biomass ratio [6].
The association between plants and beneficial fungi provides several benefits to plants, including increased biomass production [7], enhanced nutrient uptake [8,9,10] and environmental adaptation [11]. The inoculation of endophytes in the rhizosphere is considered one of the most sustainable and promising approaches to promote plant growth as it significantly increases the efficiency of nutrient absorption and improves soil functions (i.e., increases soil nutrients, balances pH and increases soil microbial diversity), and is beneficial for the environment as it reduces artificial fertilizer input [12,13]. The colonized endophytes help their plant hosts in adapting to adverse soil conditions and promoting growth through several mechanisms [14,15]. The inoculation of endophytes significantly improves the germination rate, seedling survival rate and biomass of plants [12,16]. Xu et al. reported that through enhancing phosphorus-metabolism-related enzyme activities and decreasing the pH of the rhizosphere, Exophiala pisciphila H93 inoculation increased biomass, P absorption and photosynthesis in maize compared with uninoculated maize plants [17]. Sun et al. reported that Falciphora oryzae, an endophytic fungus, increased the lateral root growth of Arabidopsis by producing indole derivatives [18].
The molecular interactions between symbiotic fungi and plants were recently clarified, especially those related to P acquisition induced with arbuscular mycorrhizal fungi (AMF). PHR2, a transcriptional regulator of the response to phosphate starvation in rice, is involved in mycorrhizal root colonization, mycorrhizal phosphate uptake and yield increase in field soils [19]. In rice, NSP2 and ZAS promote root colonization; CERK1 and SYMRK play a role in signal transduction at the root epidermal surface; and PT11 plays a role in nutrient uptake [20]. The phosphate transporter (PHT) gene family is involved in phosphate transport. In maize, ZmPHT1;2, ZmPHT1;4, ZmPHT1;6, ZmPHT1;7, ZmPHT1;9 and ZmPHT1;11 were upregulated by AMF, suggesting that these genes might participate in AMF-induced P absorption and/or transport [21]. These studies revealed important molecular mechanisms underlying the establishment of plant–fungus symbioses and provided molecular targets for gene editing to establish symbiotic relationships between plants and beneficial mycorrhiza. However, in plants, the regulation of P uptake and P-transport genes induced by fungi other than AMF have not been studied in detail.
Maize is an important staple cereal that contributes to human food and animal feed worldwide [22]. The maize yield is frequently negatively affected by various abiotic stresses, particularly low-P stress in tropical and subtropical soils [23]. The edaphic properties and genetic characteristics of plants determine their efficiency of P acquisition [24]. In maize with genotypes of greater or sustained development of the lateral roots, the ability to acquire P is enhanced compared with other genotypes [25]. Plant growth promoting rhizobacteria and mycorrhizae can also mediate P availability to plants. A new maize genotype (XY335) exhibited significantly enhanced phosphorus acquisition efficiency (PAE) compared with an old genotype (HMY); this was attributed to the stronger mycorrhizal responsiveness of the new genotype [26]. Rhizosphere microbes play a crucial role in plant health by promoting nutrient acquisition, immune modulation and abiotic stress tolerance. Therefore, the interaction between plants and microbes is a key factor for determining global crop production and ecosystem stability [27,28]. However, the effects of endophytic fungi on maize with genotypes of varying P sensitivity have not been explored in detail.
Talaromyces purpurogenus is a plant endophyte that produces terpenoids, antiproliferative red pigments and antioxidative bioactive compounds [29,30]. Interestingly, T. purpurogenus can solubilize insoluble inorganic P and mineralize organic P with a strong ability to regulate the nutrient dynamics in plants [31]. In this study, we aimed to comprehensively analyze the gene regulatory mechanisms in different genotypes of maize during plant–T. purpurogenus symbiosis under low-P stress. The growth and P content of maize seedlings exposed to low-P stress in the presence and absence of T. purpurogenus were assessed. The effect of T. purpurogenus on the molecular responses of maize seedlings under low-P stress was analyzed via transcriptome sequencing, and the differentially expressed genes (DEGs) were annotated using Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment pathway analyses to reveal the pathways involved. We hypothesized that T. purpurogenus could colonize the root system of maize, and the response of maize to endophytic fungi would be different with different genotypes under low-P stress. This study provided insights on the molecular regulatory mechanisms in plants during plant–endophytic fungi symbiosis under low-P stress.

2. Results

2.1. T. purpurogenus Improves the Adaptation of Maize to Low-P Stress

To investigate the impact of T. purpurogenus on the adaptation of maize seedlings to low-P stress, the plants were cultivated on vermiculite supplemented with calcium phytate as an insoluble phosphate source with or without T. purpurogenus. As expected, T. purpurogenus was detected in the maize roots after their inoculation, and no fungal symbiosis was observed in the roots of the uninoculated control (Figure S1).
The growth of maize after 15 days of fungal colonization in pot cultures is shown in Figure 1A. Compared with the control group, T. purpurogenus significantly promoted the growth of 31778 (low-P-sensitive inbred line), whereas no significant difference was observed in the growth of CCM454 (low-P-tolerant inbred line). Compared with the control group, T. purpurogenus inoculation significantly increased the fresh weight of the shoot by 55.7% and the total plant P content by 32.9% in 31778 (p < 0.05). However, it only significantly increased the total P content of the shoot by 22.4% (p < 0.05) and the fresh weight of the shoot remain unchanged in CCM454 (Figure 1B, C). Moreover, T. purpurogenus improved root morphological traits, such as root length and root biomass, in 31778; however, no significant change was observed in CCM454 (Figure 1D). T. purpurogenus significantly increased the fresh weight of the root by 30.9% in 31778; however, no change was observed in CCM454 (Figure 1E). T. purpurogenus significantly increased the total P content of the root by 9.8% in 31778 and 3.1% in CCM454 (Figure 1F).

2.2. Quality Assessment of Transcriptome Sequencing

To systematically identify mRNAs that respond to T. purpurogenus under low-P stress, the transcriptome of maize seedling roots was sequenced after 15 days of the fungal inoculation. On average, 48,778,439 raw reads were generated per sample (Table S1). After deleting adapter and low-quality reads, 540,555,118 clean and high-quality reads were obtained. Sequence alignment was performed using the B73 genome (RefGen_v4.41) as the reference genome. Among the 12 samples, the mapping ratios varied between 89.29% and 90.35%, indicating that the majority of reads were mapped to the B73 genome, and the selected reference genome could meet the analysis requirements (Table 1).

2.3. Analysis of Differentially Expressed Genes (DEGs) in Low-P-Tolerant and -Sensitive Genotypes of Maize

The DEGs between T. purpurogenus-inoculated and -uninoculated samples were determined using pair-wise comparisons (Figure 2). Lines 31778 and CCM454 exhibited 389 and 135 DEGs, respectively, in response to T. purpurogenus. In 31778 and CCM454, 173 and 55 DEGs were upregulated and 216 and 80 DEGs were downregulated, respectively. The number of fungus-responsive genes was lower in CCM454 than 31778, indicating that 31778 exhibited a greater response to T. purpurogenus than CCM454. Moreover, only six DEGs were common between CCM454 and 31778 after the treatment with T. purpurogenus (Figure 3).

2.4. GO and KEGG Pathway Enrichment Analyses of the DEGs

GO functional enrichment analysis was conducted to annotate the functions of DEGs. For 31778, the DEGs in T. purpurogenus-inoculated and -uninoculated samples were enriched in 556, 72 and 294 terms in the biological process (BP), cellular component (CC) and molecular function (MF), respectively (Table S2). The significantly enriched BP terms were the nicotianamine metabolic process, nicotianamine biosynthetic process, organic acid metabolic process and inorganic anion transport (Figure 4A). The significantly enriched MF terms were nicotianamine synthase activity and oxidoreductase activity. In the KEGG pathway enrichment analysis, these DEGs were clustered in 52 pathways (Table S4), the most significant being biosynthesis of various secondary metabolites, nitrogen metabolism and cysteine and methionine metabolism (Figure 5A). For CCM454, the DEGs in T. purpurogenus-inoculated and -uninoculated samples were enriched in the anthocyanin-containing compound biosynthetic process, anthocyanin-containing compound metabolic process, pigment biosynthetic process and pigment metabolic process (BP terms); and transcription regulator activity and DNA-binding transcription factor activity (MF terms) in the GO analysis (Table S3, Figure 4B). In the KEGG pathway enrichment analysis, these DEGs were enriched in 31 pathways (Table S5), the most significant being anthocyanin biosynthesis, diterpenoid biosynthesis and the plant–pathogen interaction (Figure 5B).

2.5. Comparison of the DEGs Induced by T. purpurogenus in Low-P-Sensitive and -Tolerant Genotypes of Maize

The molecular response of low-P-sensitive and -tolerant genotypes of maize to T. purpurogenus under low-P stress was assessed by identifying the DEGs induced by T. purpurogenus (Table 2). After T. purpurogenus inoculation, one gene each of P transporter Zmpht1;9 (Zm00001d027700), trehalose-6-phosphate phosphatase9 (Zm00001d022192), calcium-dependent protein kinase29 (Zm00001d052713) and MYB-transcription factor 114 (Zm00001d011739) was significantly upregulated in 31778 but exhibited no difference in CCM454. Four peroxidase genes (Zm00001d034128, Zm00001d014603, Zm00001d026683, and Zm00001d002901) and four high-affinity nitrate transporter genes (Zm00001d054060, Zm00001d054057, Zm00001d011679, and Zm00001d017095) were significantly upregulated in 31778 but not in CCM454. In CCM454, two AP2-EREBP-transcription factor genes (Zm00001d010175 and Zm00001d039019) were upregulated and one AP2-EREBP-transcription factor gene (Zm00001d049364) was downregulated but exhibited no difference in 31778. One WRKY-transcription factor (Zm00001d020492) was downregulated in CCM454 but not in 31778.

2.6. Validation of the DEGs Using RT-qPCR

To validate the outcomes of the high-throughput sequencing, eight DEGs (Zm00001d027700, Zm00001d052713, Zm00001d023617 and Zm00001d025409 from 31778; Zm00001d010175, Zm00001d039019, Zm00001d049364 and Zm00001d044558 from CCM454) involved in the T. purpurogenus–maize root interaction were randomly selected for RT-qPCR analysis. Consistent with high-throughput sequencing results, four DEGs were significantly upregulated and four were downregulated (Figure 6), demonstrating the reliability of the sequencing results.

3. Discussion

Plants can form symbiotic associations with rhizosphere microorganisms. Endophytic fungi can colonize hundreds of plant species and contribute to nutrition acquisition and stress resistance in plants. However, molecular mechanisms governing the interactions between soil endophytes and their plant hosts are still poorly understood. Here, we studied the impact of maize–endophytic fungus symbiosis on the transcriptome of the maize root with low-P-sensitive and -tolerant genotypes under low-P stress. T. purpurogenus, an endophytic fungus isolated from maize rhizosphere soil, efficiently solubilizes insoluble organic and inorganic P. In this study, a T. purpurogenus–maize symbiotic system was used to explore the molecular mechanisms impacted by the interaction.

3.1. Promotion of Maize Growth by T. purpurogenus

The colonization of maize roots by T. purpurogenus resulted in the development of microsclerotia-like structures within the root cells (Figure S1). The formation of such structures commonly occurs in the symbiotic associations of endophytic fungus–root, as evidenced by previous reports on the colonization of maize roots by Serendipita indica, an endophytic fungus [32]. After inoculating E. pisciphila, an endophytic fungus, hyphae and microsclerotia were observed in all maize root samples but not in the uninoculated control [17]. Our findings suggested that T. purpurogenus could develop an endophytic phase and possessed a specific interface that may facilitate the growth of host plants.
Symbiotic fungi can greatly improve the host plant’s growth and ability to absorb nutrients. E. pisciphila enhanced the biomass, P absorption and photosynthesis in maize under both P-deficient and -sufficient conditions [17]. F. oryzae could promote lateral root growth and development in Arabidopsis thaliana [18]. S. indica could greatly promote nutrient uptake and improve maize growth in low-sulfate environments [32]. Similarly, in this study, T. purpurogenus promoted maize root growth and P uptake, and the growth-promoting effects were dependent on the plant genotype. These findings suggested that T. purpurogenus promoted maize root growth through a genotype-dependent mechanism.

3.2. Alteration in the Maize Transcriptome by T. purpurogenus

The molecular mechanisms of the contribution of the endophytic fungi–plant association to the growth and P absorption in maize were explored via transcriptome sequencing of the maize seedling roots with and without T. purpurogenus inoculation. Very few common DEGs induced by T. purpurogenus were observed between 31778 and CCM454. This indicated that in the presence of endophytic fungi, the molecular mechanisms of maize to enhance P utilization vary depending on the genotype.
The most enriched GO terms were the nicotianamine metabolic process, nicotianamine biosynthetic process, organic acid metabolic process, oxidoreductase activity and inorganic anion transport for the DEGs in 31778; and the anthocyanin-containing compound biosynthetic process, anthocyanin-containing compound metabolic process, DNA-binding transcription factor activity and transcription regulator activity for the DEGs in CCM454. A previous study reported that nicotianamine is a non-secretory secondary metabolic substance produced by plants and that it functions as a potential antioxidant in plant resistance [33]. Similarly, our results indicated that T. purpurogenus could increase the adaptability of maize to low-P stress by regulating the biosynthetic and metabolic process of nicotinamine. To increase P acquisition under P-deficient conditions, roots can produce organic acid and secrete it into the rhizosphere as an adaptive strategy. A higher organic acid exudation in P-starved plants has been observed, particularly in maize with low-P-tolerant genotype [34]. This was consistent with our results, which indicated that the organic acid metabolic process significantly changed in the low-P-sensitive inbred line 31778. In the low-P-tolerant inbred line CCM454, the anthocyanin-containing compound biosynthetic and metabolic process was strongly altered. Anthocyanins participate in the defense response of plants to abiotic stress [35,36] and mediate certain plant–microbe interactions [37]. Pei et al. reported that anthocyanins improved root growth, reduced oxidative destruction and enhanced photosynthetic performance in maize under low-P stress [38]. In this study, T. purpurogenus could enhance the ability of maize to resist P stress by regulating the anabolism of anthocyanin in the low-P-tolerant inbred line CCM454.
After T. purpurogenus inoculation, strongly enriched KEGG pathways included the biosynthesis of various secondary metabolites, nitrogen metabolism and cysteine and methionine metabolism in 31778; and anthocyanin biosynthesis, diterpenoid biosynthesis, and plant–pathogen interactions in CCM454, indicating that T. purpurogenus altered different pathways in different genotypes of maize.

3.3. Effect of T. purpurogenus on the Genes Involved in P acquisition under Low-P Stress

PHTs play an important role in phosphate uptake in plants. ZmPht1;9 is a mycorrhiza-induced phosphate transporter and plays a significant role in phosphate uptake and plant growth [39]. The expression level of ZmPht1;6 was 26–135 times higher and that of ZmPht1;3 was 5–44 times lower in maize roots with AMF than in those without [40]. In this study, the upregulated expression of ZmPht1;9 in 31778 inoculated with T. purpurogenus was consistent with the role of T. purpurogenus in facilitating the uptake of P under low-P conditions. These results suggested that ZmPHTs can be further exploited for improving phosphate uptake in crop growth.
In this study, four peroxidase genes were significantly upregulated in 31778 inoculated with T. purpurogenus. Peroxidase family genes are closely related to controlling ROS homeostasis in plant roots [41]. Peroxidase activity in the roots of 31778 and CCM454 under P-deficient conditions was higher than under P-sufficient conditions [42]. Our results confirmed that genes related to the defense response were more highly expressed in the roots inoculated with endophytic fungi, suggesting an interaction between endophytic fungi or phosphate stress and plant immunity. Our findings supported the suggestion that peroxidase could be an important trait in maize stress resistance breeding.
Studies have demonstrated that altering the expression of a transcription factor can influence the resistance to P stress by activating downstream target genes. The transcription factors include members of the MYB, WRKY and AP2/EREBP families [43]. In this study, the fungal-responsive DEGs in 31778 and CCM454 included one MYB, three WRKYs and three AP2/EREBP transcription factors. PHR2, a MYB transcription factor responsible for phosphate starvation responses in rice, is required for root colonization, mycorrhizal phosphate uptake and yield enhancement in field soil [19,20]. WRKY transcription factor controls several co-expressed genes, while the overexpression of OsWRKY74 increases the expression of Pi transport proteins such as OsPHT1;3, OsPHT1;4 and OsPHT1;10 [44]. AP2/EREBP transcription factor WRI5a in Medicago truncatula is a master regulator of AMF symbiosis controlling lipid transfer and periarbuscular membrane formation [45]. These results indicated that transcriptional regulation plays a crucial role in the interaction between T. purpurogenus and maize under low-P conditions. It is expected that the transcription factors will greatly enrich the available gene resources toward increasing low-P tolerance in maize.
Interestingly, four high-affinity nitrate transporter genes were significantly upregulated in 31778 inoculated with T. purpurogenus. To maintain a nutrient balance and achieve optimal growth, nitrogen (N) and P uptake and metabolism must be coordinated in plants [46]. Reduced N uptake, translocation and assimilation are the typical effects of P starvation on the N response [47]. Medici et al. reported that P starvation negatively regulates NRT1.1 transcription and protein stability [48]. In the current study, nitrate transporter genes were significantly upregulated in 31778, implying that N absorption was increased after T. purpurogenus inoculation.
In addition, one trehalose-6-phosphate phosphatase9 gene and one calcium-dependent protein kinase29 gene were significantly upregulated in 31778. Trehalose-6-phosphate phosphatase induces ROS production during ABA-controlled root elongation and stomatal movement process [49]. In Arabidopsis, calcium-dependent protein kinase 29 modulates the polarity of PIN-FORMED and root development via its own phosphorylation code [50]. These results indicated that different molecular pathways are involved in the root–fungus symbiosis under low-P stress depending on the maize genotype. Therefore, these identified genes are promising candidates for breeding maize cultivars with improved low-P tolerance.

4. Materials and Methods

4.1. Plant Material and Growth Conditions

Maize seeds of low-P-sensitive (31778) and -tolerant (CCM454) genotypes were obtained from the Maize Molecular Breeding Laboratory, Institute of Crop Sciences, Chinese Academy of Agricultural Sciences. The criteria for distinguishing between low-P sensitive and low-P tolerant genotypes have been described in a previous article published by our laboratory [42]. After surface sterilization with 3% NaClO for 20 min, the seeds were washed three times in distilled water and allowed to germinate on moist filter paper in humidified sterile Petri dishes for 2–3 days at 28 °C. Uniformly germinated seeds were cultivated in plastic pots with air-dried vermiculite. Calcium phytate was supplied as an insoluble P source. There were four treatments in this study, including 31778 with and without inoculation, and CCM454 with and without inoculation. In each pot of the inoculated group, 1 mL of 107 CFU/mL T. purpurogenus spore suspension was added to the vermiculite, and in the control, an equal amount of sterile water was added. The low-P stress seedlings were irrigated with Hoagland’s nutrient solution without KH2PO4 every 3 days. The seedlings were grown in a greenhouse at 28 °C/22 °C with a day/night cycle of 14 h/10 h. The relative humidity was 45–55%. Fifteen days after the fungal inoculation, six maize roots and shoots were collected for physiological and transcriptome analyses.

4.2. Histochemical Analysis Using Trypan Blue Staining

Three maize root samples were randomly collected from T. purpurogenus-inoculated and -uninoculated plants. The roots were softened with 10% KOH solution for 15 min, acidified with 1 N HCl for 10 min and stained with 0.02% Trypan Blue. After 2 h, the samples were destained with 50% lactophenol for 1–2 h and observed under a Leica light microscope (Leica, Wetzlar, Germany).

4.3. Determination of Biomass and P concentration

From each treatment, six plants were randomly selected. The fresh weights of roots and shoots were measured using an electric balance. The shoots and roots were dried at 105 °C for 30 min, followed by 65 °C for 72 h. After complete drying, the shoots and roots from each replicate were ground to a fine powder to determine the plant’s total P content. In total, 0.2 g powder was digested with H2SO4–H2O2, and P content was determined using vanadomolybdate method [26].

4.4. RNA Extraction and Sequencing

Total RNA was extracted from the roots using TransZol Plant Reagent (from TransGen Biotech, Beijing, China) as per the manufacturer’s instructions. The quantity and quality of the extracted RNA were determined using the NanoDrop one C (Thermo Fisher Scientific, Waltham, MA, USA) and 1% agarose gel electrophoresis, respectively. RNAseq transcriptome library was prepared with NEB Next Ultra II RNA Library Prep Kit for Illumina (NEB, Houston, TX, USA) using 1 μg of total RNA. First, the mRNA was purified via poly-T selection method using oligo(dT) beads, and the fragments were prepared using divalent cations in a fragmentation buffer under elevated temperatures. Further, double-stranded cDNA was synthesized using random oligonucleotides and Super Script II. The synthesized cDNA was purified, followed by adenylation of 3′ ends and ‘A’ base addition. The libraries were optimized for cDNA fragments of 400–500-bp length, and PCR amplification was performed using Illumina PCR Primer Cocktail for 15 cycles. After quantification on an Agilent high sensitivity DNA Bioanalyzer 2100, paired-end RNA-seq libraries were sequenced by Shanghai Personal Biotechnology Cp. Ltd. using the NovaSeq 6000 platform (Illumina, San Diego, CA, USA). The RNA sequencing data are available through the NCBI Sequence Read Archive (SRA; accession number PRJNA986686).

4.5. Mapping of RNA-seq Reads and Identification of DEGs

To obtain clean reads with high-quality sequence, raw reads were trimmed and quality-controlled with Cutadapt (v1.15) and FastQC (v0.11.8). The clean reads were separately mapped to the maize B73 RefGeen_V4 genome with orientation mode using HISAT2 (v2.0.5) software [51]. Using HTSeq (0.9.1) statistics, the expression level of each transcript was calculated based on fragments per kilobases per million fragments (FPKM) method to identify DEGs between various samples. DEGs with |log2FoldChange| > 2 and p < 0.05 (DESeq 1.30.0) were considered significant DEGs.

4.6. GO and KEGG Pathway Enrichment Analyses

GO analysis was conducted using topGO to identify functionally differentially enriched genes by calculating p values based on hypergeometric distributions (http://geneontology.org/ (accessed on 8 January 2022)). KEGG pathway enrichment analysis was conducted to analyze metabolic pathways of DEGs using ClusterProfiler (3.4.4) software (http://www.kegg.jp/ (accessed on 16 January 2022)). Enriched GO and KEGG categories with p < 0.05 were considered significant.

4.7. RT-qPCR

The first-strand cDNA was synthesized using SuperScript TM III First-Strand Synthesis Supermix (Invitrogen, Waltham, USA). The primers are given in Supplementary Table S5. RT-PCR was performed on an ABI 7500 system (Thermo Fisher Scientific, Waltham, MA, USA) with the SYBR Premix Ex TaqTM kit (TaKaRa, Osaka, Japan). The PCR reaction system and conditions were as described by Zhao et al. [52]. All reactions were performed in triplicate. Actin gene was used as the reference gene. The relative expressions were calculated according to the 2−∆∆Ct method.

4.8. Statistical Analyses

All experiments were carried out at least three times. One-way ANOVA was performed using SPSS 23.0 (SPSS Inc., Chicago, IL, USA) for statistical analysis. Duncan’s post hoc test was used to perform multiple comparisons and p < 0.05 was considered significant.

5. Conclusions

In summary, in this study, the different phenotypes and molecular mechanisms of two contrasting maize genotypes were described in the presence of a root endophyte under low-P stress (Figure 7). The symbiotic relationship between T. purpurogenus and maize roots enhanced low-P stress tolerance as evidenced by improved plant growth, root architecture and P uptake, particularly for the low-P-sensitive inbred line 31778. Transcriptome analysis indicated that line 31778 exhibited greater molecular responsiveness to T. purpurogenus than CCM454 under low-P stress. Furthermore, 31778 enriched more DEGs in nicotianamine biosynthesis, organic acid metabolic process, inorganic anion transport, biosynthesis of various secondary metabolites and nitrogen metabolism.CCM454 enriched more DEGs in anthocyanin biosynthesis, the metabolic process and diterpenoid biosynthesis. Moreover, one phosphate transporter gene, four peroxidase genes, four high-affinity nitrate transporter genes and four transcription factor genes may play an important role in regulating the process of the plant–fungus interactions. Our study provided novel insights on the molecular mechanisms underlying plant–endophytic fungus interactions under low-P stress. Further studies should focus on the characterization of P assimilation gene-expression profiles and how they relate to the P balance and phosphate demand for both organisms.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms241511941/s1.

Author Contributions

Conceptualization, Q.S. and W.J.; methodology, Q.S.; software, P.Z.; validation, Z.Z. and X.S.; formal analysis, X.L.; investigation, Q.S., P.Z., Z.Z., X.S., X.L. and W.J.; data curation, Q.S. and H.Z.; writing—original draft preparation, Q.S.; writing—review and editing, Q.S. and W.J.; visualization, Q.S. and W.J.; supervision, P.Z.; project administration, H.Z.; funding acquisition, W.J. and Q.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Youth Fund of the National Natural Science Foundation of China, grant number 32201905, Youth Program of the Natural Science Foundation of Shandong, grant number ZR2020QC108, Science & Technology Specific Projects in Agricultural High-tech Industrial Demonstration Area of the Yellow River Delta, grant number 2022SZX24, and Shandong Modern Agricultural Industrial Technology System Construction Fund, grant number SAIT-02-06.

Data Availability Statement

Not applicable.

Acknowledgments

We thank Wen-xue Li (Institute of Crop Science, Chinese Academy of Agricultural Sciences) for providing the maize inbred lines and experimental ideas.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chiu, C.H.; Paszkowski, U. Mechanisms and impact of symbiotic phosphate acquisition. Cold Spring Harb. Perspect. Biol. 2019, 11, a034603. [Google Scholar] [CrossRef] [PubMed]
  2. Paz-Ares, J.; Puga, M.I.; Rojas-Triana, M.; Martinez-Hevia, I.; Diaz, S.; Poza-Carrion, C.; Minambres, M.; Leyva, A. Plant adaptation to low phosphorus availability: Core signaling, crosstalks, and applied implications. Mol. Plant 2022, 15, 104–124. [Google Scholar] [CrossRef] [PubMed]
  3. Heuer, S.; Gaxiola, R.; Schilling, R.; Herrera-Estrella, L.; López-Arredondo, D.; Wissuwa, M.; Delhaize, E.; Rouached, H. Improving phosphorus use efficiency: A complex trait with emerging opportunities. Plant J. 2017, 90, 868–885. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Herrera-Estrella, L.; Lopez-Arredondo, D. Phosphorus: The Underrated Element for Feeding the World. Trends Plant Sci. 2016, 21, 461–463. [Google Scholar] [CrossRef] [PubMed]
  5. Baker, A.; Ceasar, S.A.; Palmer, A.J.; Paterson, J.B.; Qi, W.; Muench, S.P.; Baldwin, S.A. Replace, reuse, recycle: Improving the sustainable use of phosphorus by plants. J. Exp. Bot. 2015, 66, 3523–3540. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Puga, M.I.; Rojas-Triana, M.; de Lorenzo, L.; Leyva, A.; Rubio, V.; Paz-Ares, J. Novel signals in the regulation of Pi starvation responses in plants: Facts and promises. Curr. Opin. Plant Biol. 2017, 39, 40–49. [Google Scholar] [CrossRef]
  7. Hiruma, K.; Gerlach, N.; Sacristan, S.; Nakano, R.T.; Hacquard, S.; Kracher, B.; Neumann, U.; Ramirez, D.; Bucher, M.; O’Connell, R.J.; et al. Root Endophyte Colletotrichum tofieldiae Confers Plant Fitness Benefits that Are Phosphate Status Dependent. Cell 2016, 165, 464–474. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Guether, M.; Balestrini, R.; Hannah, M.; He, J.; Udvardi, M.K.; Bonfante, P. Genome-wide reprogramming of regulatory networks, transport, cell wall and membrane biogenesis during arbuscular mycorrhizal symbiosis in Lotus japonicus. New Phytol. 2009, 182, 200–212. [Google Scholar] [CrossRef]
  9. Fochi, V.; Chitarra, W.; Kohler, A.; Voyron, S.; Singan, V.R.; Lindquist, E.A.; Barry, K.W.; Girlanda, M.; Grigoriev, I.V.; Martin, F.; et al. Fungal and plant gene expression in the Tulasnella calospora-Serapias vomeracea symbiosis provides clues about nitrogen pathways in orchid mycorrhizas. New Phytol. 2017, 213, 365–379. [Google Scholar] [CrossRef] [Green Version]
  10. Peng, L.; Shan, X.; Yang, Y.; Wang, Y.; Druzhinina, I.S.; Pan, X.; Jin, W.; He, X.; Wang, X.; Zhang, X.; et al. Facultative symbiosis with a saprotrophic soil fungus promotes potassium uptake in American sweetgum trees. Plant Cell Environ. 2021, 44, 2793–2809. [Google Scholar] [CrossRef]
  11. Sui, X.L.; Zhang, T.; Tian, Y.Q.; Xue, R.J.; Li, A.R. A neglected alliance in battles against parasitic plants: Arbuscular mycorrhizal and rhizobial symbioses alleviate damage to a legume host by root hemiparasitic Pedicularis species. New Phytol. 2019, 221, 470–481. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Liu, C.; Lin, H.; Li, B.; Dong, Y.; Menzembere, E.R.G.Y. Endophyte Pseudomonas putida enhanced Trifolium repens L. growth and heavy metal uptake: A promising in-situ non-soil cover phytoremediation method of nonferrous metallic tailing. Chemosphere 2021, 272, 129816. [Google Scholar] [CrossRef] [PubMed]
  13. Liu, C.; Lin, H.; Dong, Y.; Li, B. Increase of P and Cd bioavailability in the rhizosphere by endophytes promoted phytoremediation efficiency of Phytolacca acinosa. J. Hazard. Mater. 2022, 431, 128546. [Google Scholar] [CrossRef] [PubMed]
  14. Rajkumar, M.; Ae, N.; Freitas, H. Endophytic bacteria and their potential to enhance heavy metal phytoextraction. Chemosphere 2009, 77, 153–160. [Google Scholar] [CrossRef]
  15. Hassan, S.E.-D. Plant growth-promoting activities for bacterial and fungal endophytes isolated from medicinal plant of Teucrium polium L. J. Adv. Res. 2017, 8, 687–695. [Google Scholar] [CrossRef]
  16. Ji, S.H.; Gururani, M.A.; Chun, S.-C. Isolation and characterization of plant growth promoting endophytic diazotrophic bacteria from Korean rice cultivars. Microbiol. Res. 2014, 169, 83–98. [Google Scholar] [CrossRef]
  17. Xu, R.; Li, T.; Shen, M.; Yang, Z.L.; Zhao, Z.-W. Evidence for a Dark Septate Endophyte (Exophiala Pisciphila, H93) Enhancing Phosphorus Absorption by Maize Seedlings. Plant Soil 2020, 452, 249–266. [Google Scholar] [CrossRef]
  18. Sun, X.; Wang, N.; Li, P.; Jiang, Z.; Liu, X.; Wang, M.; Su, Z.; Zhang, C.; Lin, F.; Liang, Y. Endophytic fungus Falciphora oryzae promotes lateral root growth by producing indole derivatives after sensing plant signals. Plant Cell Environ. 2020, 43, 358–373. [Google Scholar] [CrossRef]
  19. Shi, J.; Zhao, B.; Zheng, S.; Zhang, X.; Wang, X.; Dong, W.; Xie, Q.; Wang, G.; Xiao, Y.; Chen, F.; et al. A phosphate starvation response-centered network regulates mycorrhizal symbiosis. Cell 2021, 184, 5527–5540.e5518. [Google Scholar] [CrossRef]
  20. Das, D.; Paries, M.; Hobecker, K.; Gigl, M.; Dawid, C.; Lam, H.M.; Zhang, J.; Chen, M.; Gutjahr, C. PHOSPHATE STARVATION RESPONSE transcription factors enable arbuscular mycorrhiza symbiosis. Nat. Commun. 2022, 13, 477. [Google Scholar] [CrossRef]
  21. Liu, F.; Xu, Y.; Jiang, H.; Jiang, C.; Du, Y.; Gong, C.; Wang, W.; Zhu, S.; Han, G.; Cheng, B. Systematic Identification, Evolution and Expression Analysis of the Zea mays PHT1 Gene Family Reveals Several New Members Involved in Root Colonization by Arbuscular Mycorrhizal Fungi. Int. J. Mol. Sci. 2016, 17, 930. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. McLaren, J.S. Crop biotechnology provides an opportunity to develop a sustainable future. Trends Biotechnol. 2005, 23, 339–342. [Google Scholar] [CrossRef] [PubMed]
  23. Calderon-Vazquez, C.; Ibarra-Laclette, E.; Caballero-Perez, J.; Herrera-Estrella, L. Transcript profiling of Zea mays roots reveals gene responses to phosphate deficiency at the plant- and species-specific levels. J. Exp. Bot. 2008, 59, 2479–2497. [Google Scholar] [CrossRef] [Green Version]
  24. Ramaekers, L.; Remans, R.; Rao, I.M.; Blair, M.W.; Vanderleyden, J. Strategies for improving phosphorus acquisition efficiency of crop plants. Field Crops Res. 2010, 117, 169–176. [Google Scholar] [CrossRef]
  25. Zhu, J.; Lynch, J.P. The contribution of lateral rooting to phosphorus acquisition efficiency in maize (Zea mays) seedlings. Funct. Plant Biol. 2004, 31, 949–958. [Google Scholar] [CrossRef]
  26. Chu, Q.; Zhang, L.; Zhou, J.W.; Yuan, L.X.; Chen, F.J.; Zhang, F.S.; Feng, G.; Rengel, Z. Soil plant-available phosphorus levels and maize genotypes determine the phosphorus acquisition efficiency and contribution of mycorrhizal pathway. Plant Soil 2020, 449, 357–371. [Google Scholar] [CrossRef]
  27. Cordovez, V.; Dini-Andreote, F.; Carrion, V.J.; Raaijmakers, J.M. Ecology and Evolution of Plant Microbiomes. Annu. Rev. Microbiol. 2019, 73, 69–88. [Google Scholar] [CrossRef]
  28. Trivedi, P.; Leach, J.E.; Tringe, S.G.; Sa, T.; Singh, B.K. Plant-microbiome interactions: From community assembly to plant health. Nat. Rev. Microbiol. 2020, 18, 607–621. [Google Scholar] [CrossRef]
  29. Kumari, M.; Taritla, S.; Sharma, A.; Jayabaskaran, C. Antiproliferative and Antioxidative Bioactive Compounds in Extracts of Marine-Derived Endophytic Fungus Talaromyces purpureogenus. Front. Microbiol. 2018, 9, 1777. [Google Scholar] [CrossRef] [Green Version]
  30. Wang, W.; Wan, X.; Liu, J.; Wang, J.; Zhu, H.; Chen, C.; Zhang, Y. Two New Terpenoids from Talaromyces purpurogenus. Mar. Drugs 2018, 16, 150. [Google Scholar] [CrossRef] [Green Version]
  31. Sun, X.; Liu, F.; Jiang, W.; Zhang, P.; Zhao, Z.; Liu, X.; Shi, Y.; Sun, Q. Talaromyces purpurogenus Isolated from Rhizosphere Soil of Maize Has Efficient Organic Phosphate-Mineralizing and Plant Growth-Promoting Abilities. Sustainability 2023, 15, 5961. [Google Scholar] [CrossRef]
  32. Narayan, O.P.; Verma, N.; Jogawat, A.; Dua, M.; Johri, A.K. Sulfur transfer from the endophytic fungus Serendipita indica improves maize growth and requires the sulfate transporter SiSulT. Plant Cell 2021, 33, 1268–1285. [Google Scholar] [CrossRef]
  33. Lee, D.K.; Chung, P.J.; Jeong, J.S.; Jang, G.; Bang, S.W.; Jung, H.; Kim, Y.S.; Ha, S.H.; Choi, Y.D.; Kim, J.K. The rice OsNAC6 transcription factor orchestrates multiple molecular mechanisms involving root structural adaptions and nicotianamine biosynthesis for drought tolerance. Plant Biotechnol. J. 2017, 15, 754–764. [Google Scholar] [CrossRef] [Green Version]
  34. Carvalhais, L.C.; Dennis, P.G.; Fedoseyenko, D.; Hajirezaei, M.R.; Borriss, R.; von Wirén, N. Root exudation of sugars, amino acids, and organic acids by maize as affected by nitrogen, phosphorus, potassium, and iron deficiency. J. Plant Nutr. Soil. Sci. 2010, 174, 3–11. [Google Scholar] [CrossRef]
  35. Li, P.; Li, Y.J.; Zhang, F.J.; Zhang, G.Z.; Jiang, X.Y.; Yu, H.M.; Hou, B.K. The Arabidopsis UDP-glycosyltransferases UGT79B2 and UGT79B3, contribute to cold, salt and drought stress tolerance via modulating anthocyanin accumulation. Plant J. 2017, 89, 85–103. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Cui, L.G.; Shan, J.X.; Shi, M.; Gao, J.P.; Lin, H.X. The miR156-SPL9-DFR pathway coordinates the relationship between development and abiotic stress tolerance in plants. Plant J. 2014, 80, 1108–1117. [Google Scholar] [CrossRef]
  37. Serrano, M.; Kanehara, K.; Torres, M.; Yamada, K.; Tintor, N.; Kombrink, E.; Schulze-Lefert, P.; Saijo, Y. Repression of sucrose/ultraviolet B light-induced flavonoid accumulation in microbe-associated molecular pattern-triggered immunity in Arabidopsis. Plant Physiol. 2012, 158, 408–422. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Pei, L.; Liu, J.; Zhou, Y.; Jiang, Y.; Li, H. Transcriptomic and metabolomic profiling reveals the protective role of anthocyanins in alleviating low phosphate stress in maize. Physiol. Mol. Biol. Plants 2021, 27, 889–905. [Google Scholar] [CrossRef] [PubMed]
  39. Xu, Y.; Bao, H.; Fei, H.; Zhou, W.; Li, X.; Liu, F. Overexpression of a phosphate transporter gene ZmPt9 from maize influences growth of transgenic Arabidopsis thaliana. Biochem. Biophys. Res. Commun. 2021, 558, 196–201. [Google Scholar] [CrossRef] [PubMed]
  40. Tian, H.; Drijber, R.A.; Li, X.; Miller, D.N.; Wienhold, B.J. Arbuscular mycorrhizal fungi differ in their ability to regulate the expression of phosphate transporters in maize (Zea mays L.). Mycorrhiza 2013, 23, 507–514. [Google Scholar] [CrossRef] [Green Version]
  41. Mora-Macias, J.; Ojeda-Rivera, J.O.; Gutierrez-Alanis, D.; Yong-Villalobos, L.; Oropeza-Aburto, A.; Raya-Gonzalez, J.; Jimenez-Dominguez, G.; Chavez-Calvillo, G.; Rellan-Alvarez, R.; Herrera-Estrella, L. Malate-dependent Fe accumulation is a critical checkpoint in the root developmental response to low phosphate. Proc. Natl. Acad. Sci. USA 2017, 114, E3563–E3572. [Google Scholar] [CrossRef] [PubMed]
  42. Du, Q.; Wang, K.; Xu, C.; Zou, C.; Xie, C.; Xu, Y.; Li, W.-X. Strand-specific RNA-Seq transcriptome analysis of genotypes with and without low-phosphorus tolerance provides novel insights into phosphorus-use efficiency in maize. BMC Plant Biol. 2016, 16, 222. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Chiou, T.J.; Lin, S.I. Signaling network in sensing phosphate availability in plants. Annu. Rev. Plant Biol. 2011, 62, 185–206. [Google Scholar] [CrossRef] [Green Version]
  44. Tang, W.; Wang, F.; Chu, H.; You, M.; Lv, Q.; Ji, W.; Deng, X.; Zhou, B.; Dan, P. WRKY transcription factors regulate phosphate uptake in plants. Environ. Exp. Bot. 2023, 208, 105241. [Google Scholar] [CrossRef]
  45. Jiang, Y.; Xie, Q.; Wang, W.; Yang, J.; Zhang, X.; Yu, N.; Zhou, Y.; Wang, E. Medicago AP2-Domain Transcription Factor WRI5a Is a Master Regulator of Lipid Biosynthesis and Transfer during Mycorrhizal Symbiosis. Mol. Plant 2018, 11, 1344–1359. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Zhang, Z.; Li, Z.; Wang, W.; Jiang, Z.; Guo, L.; Wang, X.; Qian, Y.; Huang, X.; Liu, Y.; Liu, X.; et al. Modulation of nitrate-induced phosphate response by the MYB transcription factor RLI1/HINGE1 in the nucleus. Mol. Plant 2021, 14, 517–529. [Google Scholar] [CrossRef] [PubMed]
  47. Krouk, G.; Kiba, T. Nitrogen and Phosphorus interactions in plants: From agronomic to physiological and molecular insights. Curr. Opin. Plant Biol. 2020, 57, 104–109. [Google Scholar] [CrossRef]
  48. Medici, A.; Marshall-Colon, A.; Ronzier, E.; Szponarski, W.; Wang, R.; Gojon, A.; Crawford, N.M.; Ruffel, S.; Coruzzi, G.M.; Krouk, G. AtNIGT1/HRS1 integrates nitrate and phosphate signals at the Arabidopsis root tip. Nat. Commun. 2015, 6, 6274. [Google Scholar] [CrossRef] [Green Version]
  49. Wang, W.; Chen, Q.; Xu, S.; Liu, W.C.; Zhu, X.; Song, C.P. Trehalose-6-phosphate phosphatase E modulates ABA-controlled root growth and stomatal movement in Arabidopsis. J. Integr. Plant Biol. 2020, 62, 1518–1534. [Google Scholar] [CrossRef] [Green Version]
  50. Lee, H.; Ganguly, A.; Baik, S.; Cho, H.T. Calcium-dependent protein kinase 29 modulates PIN-FORMED polarity and Arabidopsis development via its own phosphorylation code. Plant Cell 2021, 33, 3513–3531. [Google Scholar] [CrossRef]
  51. Kim, D.; Langmead, B.; Salzberg, S.L. HISAT: A fast spliced aligner with low memory requirements. Nat. Methods 2015, 12, 357–360. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Zhao, Y.; Wang, D.; Ji, M.; Tian, J.; Ding, H.; Deng, Z. Transcriptome Dynamic Analysis Reveals New Candidate Genes Associated with Resistance to Fusarium Head Blight in Two Chinese Contrasting Wheat Genotypes. Int. J. Mol. Sci. 2023, 24, 4222. [Google Scholar] [CrossRef] [PubMed]
Ijms 24 11941 g001 550

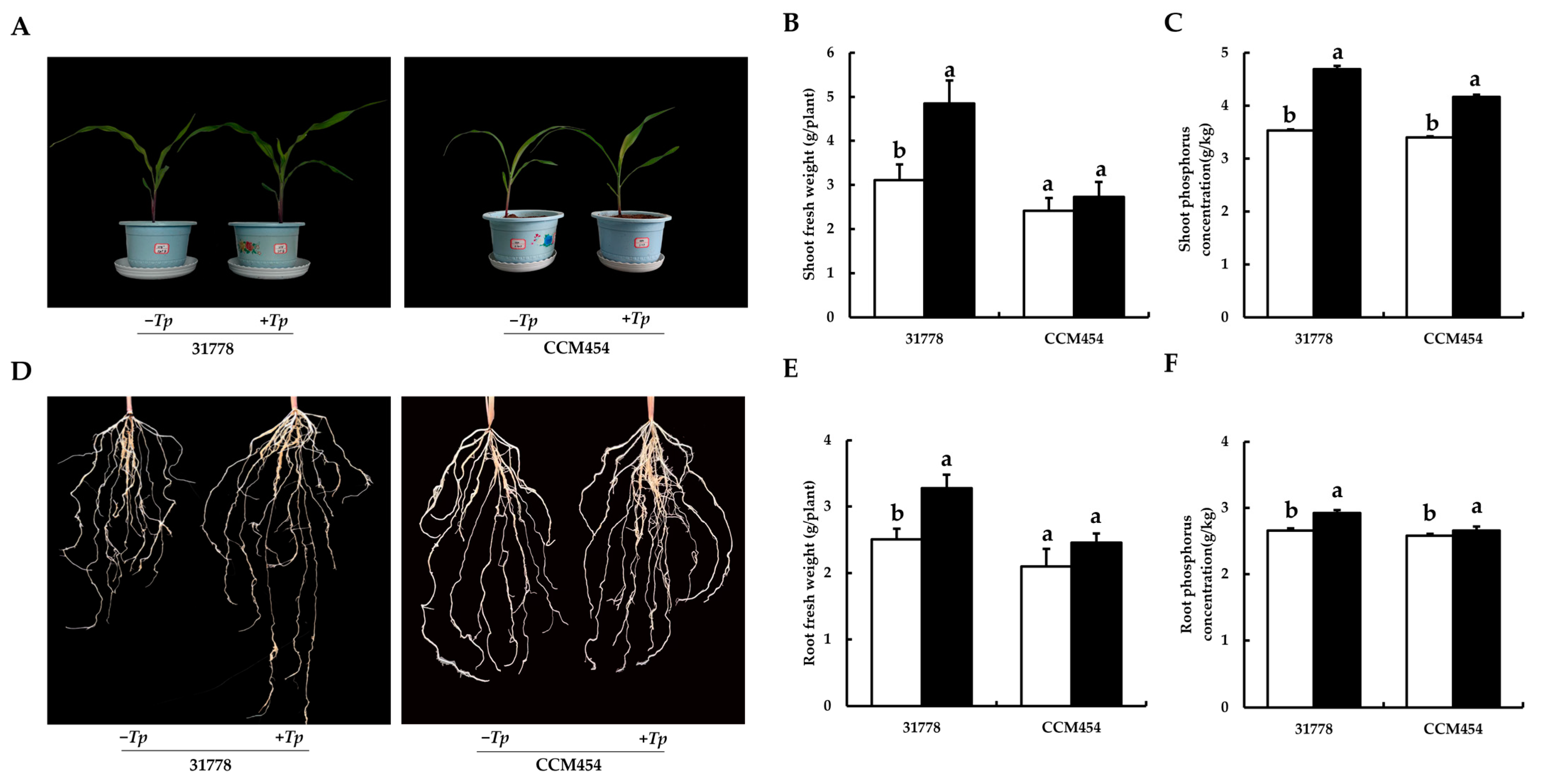

Figure 1. Physiological responses of maize seedlings to T. purpurogenus under low-P stress. (A) Morphological appearance of shoot. (B) The fresh weight of shoot. (C) Total P content of shoot. (D) Morphological appearance of the root. (E) The fresh weight of root. (F) Total P content of root. The black and white bars indicate T. purpurogenus-inoculated and -uninoculated plants, respectively. Values indicate mean ± SD, n = 6. Various lowercase letters indicate significant difference at p < 0.05.
Figure 1. Physiological responses of maize seedlings to T. purpurogenus under low-P stress. (A) Morphological appearance of shoot. (B) The fresh weight of shoot. (C) Total P content of shoot. (D) Morphological appearance of the root. (E) The fresh weight of root. (F) Total P content of root. The black and white bars indicate T. purpurogenus-inoculated and -uninoculated plants, respectively. Values indicate mean ± SD, n = 6. Various lowercase letters indicate significant difference at p < 0.05.
Ijms 24 11941 g001
Ijms 24 11941 g002 550

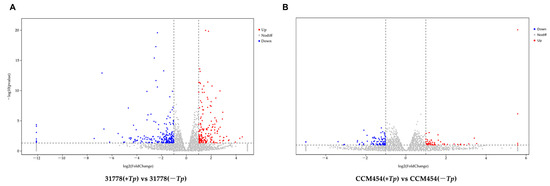

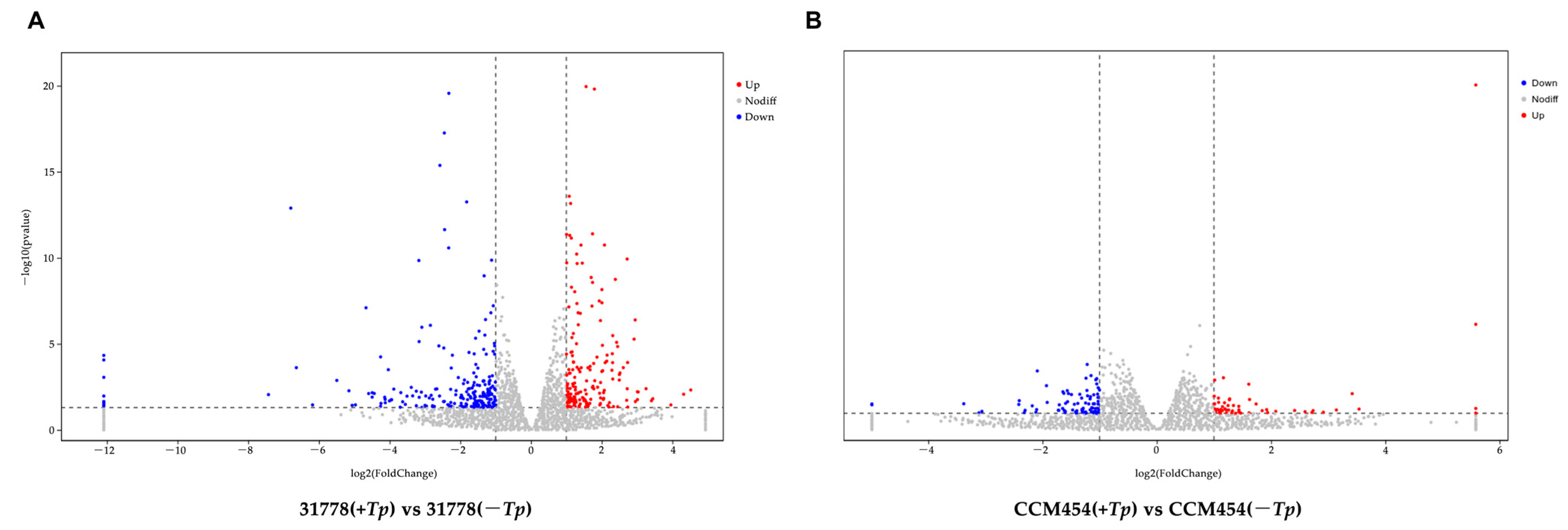

Figure 2. Volcano plots illustrating the up- and downregulated DEGs in low-P-sensitive and -tolerant genotypes of maize. (A) Low-P-sensitive and (B) low-P-tolerant genotypes. Red and blue colors indicate up- and downregulated DEGs, respectively, based on the log2 fold change and p < 0.05.
Figure 2. Volcano plots illustrating the up- and downregulated DEGs in low-P-sensitive and -tolerant genotypes of maize. (A) Low-P-sensitive and (B) low-P-tolerant genotypes. Red and blue colors indicate up- and downregulated DEGs, respectively, based on the log2 fold change and p < 0.05.
Ijms 24 11941 g002
Ijms 24 11941 g003 550

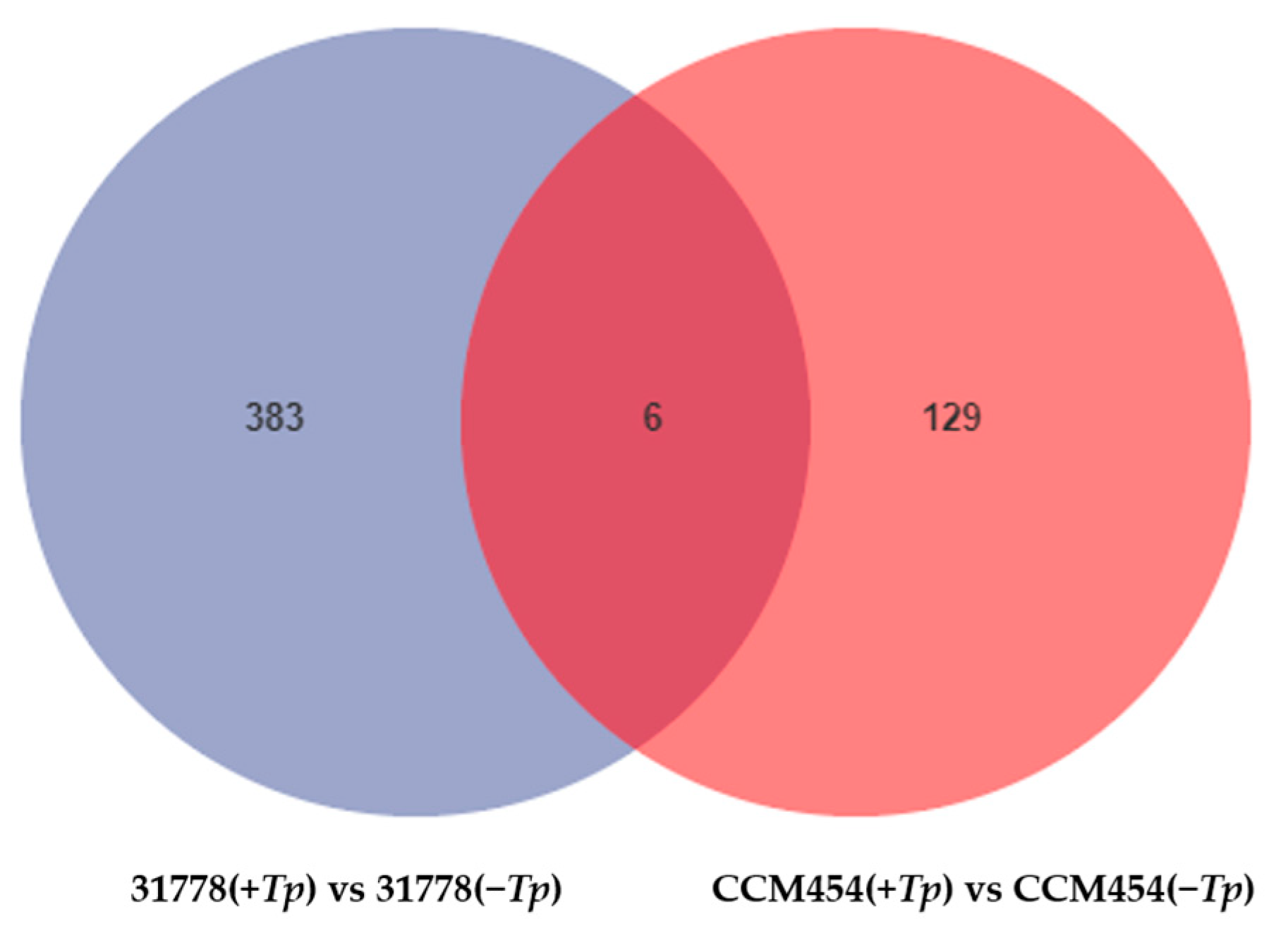

Figure 3. Venn diagram showing the up- and downregulated DEGs in low-P-sensitive and -tolerant genotypes of maize. DEGs were quantified based on log2 fold changes ± 2 and FDR < 0.05.
Figure 3. Venn diagram showing the up- and downregulated DEGs in low-P-sensitive and -tolerant genotypes of maize. DEGs were quantified based on log2 fold changes ± 2 and FDR < 0.05.
Ijms 24 11941 g003
Ijms 24 11941 g004 550

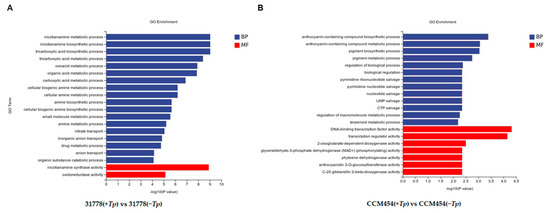

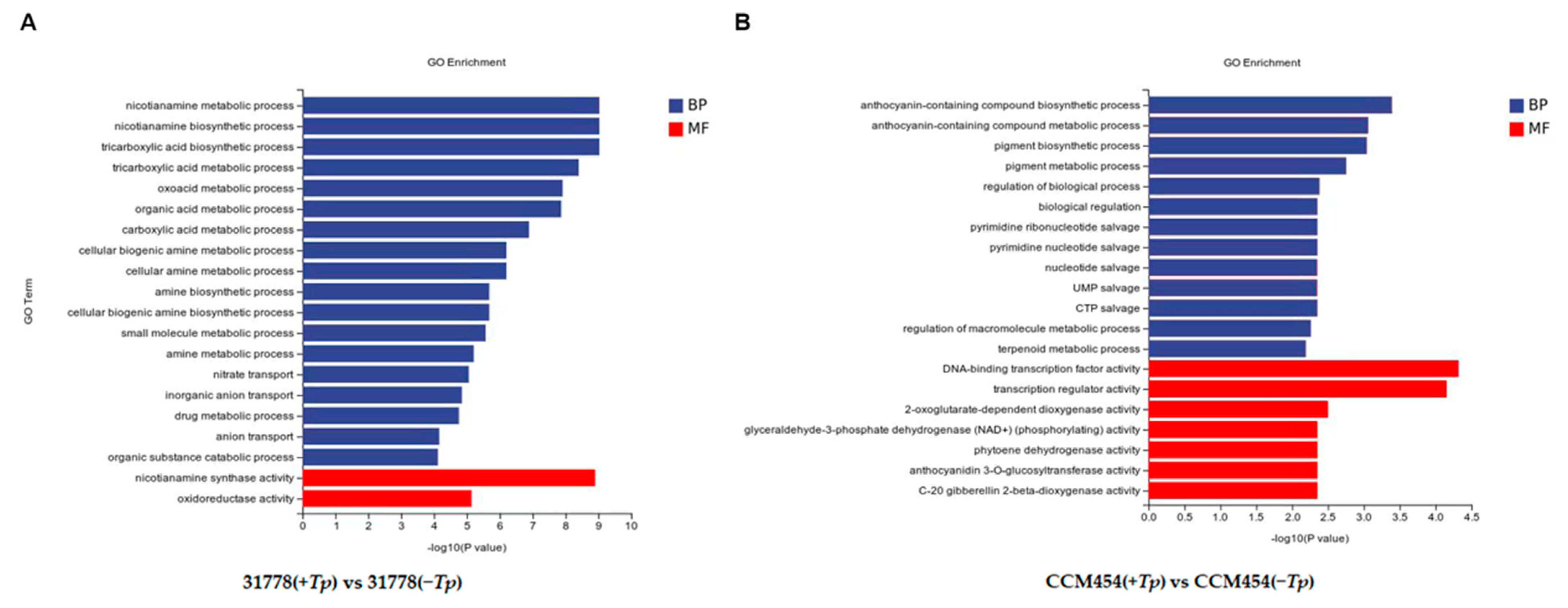

Figure 4. Gene Ontology analysis of differentially expressed genes (DEGs). (A) Low-P-sensitive and (B) -tolerant genotypes of maize.
Figure 4. Gene Ontology analysis of differentially expressed genes (DEGs). (A) Low-P-sensitive and (B) -tolerant genotypes of maize.
Ijms 24 11941 g004
Ijms 24 11941 g005 550

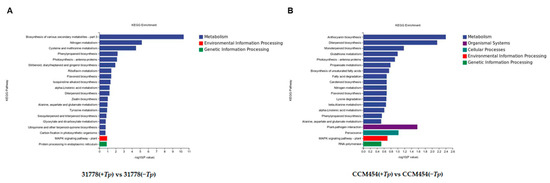

Figure 5. KEGG pathway enrichment analysis of DEGs. (A) Low-P-sensitive and (B) -tolerant genotypes of maize.
Figure 5. KEGG pathway enrichment analysis of DEGs. (A) Low-P-sensitive and (B) -tolerant genotypes of maize.
Ijms 24 11941 g005
Ijms 24 11941 g006 550

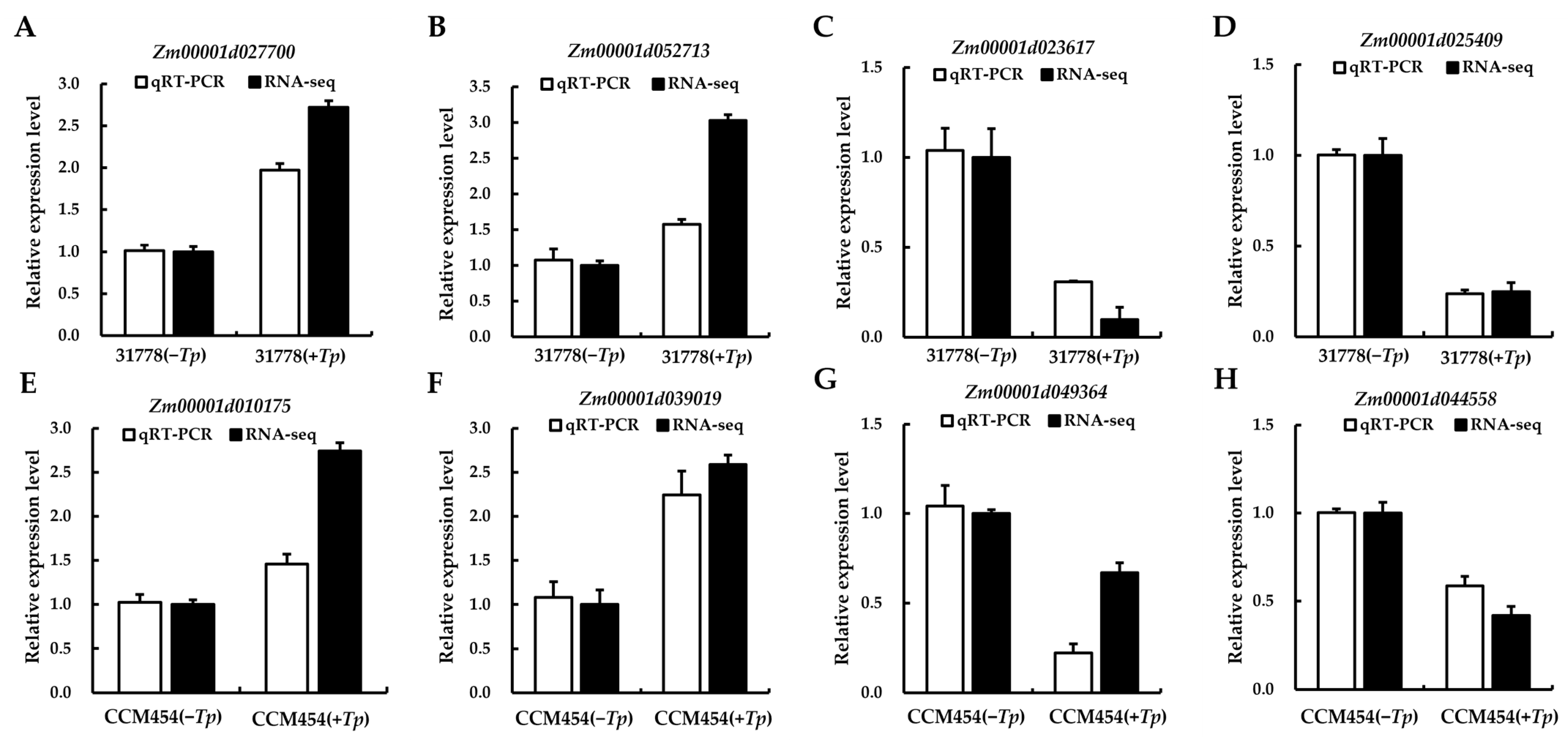

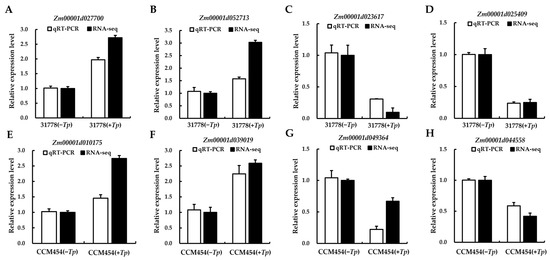

Figure 6. Expression of selected DEGs in response to T. purpurogenus using qRT-PCR. (A–D) Differences in expression levels of 31778. (E–H) Differences in expression levels of CCM454. Data are the mean ± SD of three biological replicates. The maize UBQ gene was used as an internal control for normalization of gene expression.
Figure 6. Expression of selected DEGs in response to T. purpurogenus using qRT-PCR. (A–D) Differences in expression levels of 31778. (E–H) Differences in expression levels of CCM454. Data are the mean ± SD of three biological replicates. The maize UBQ gene was used as an internal control for normalization of gene expression.
Ijms 24 11941 g006
Ijms 24 11941 g007 550

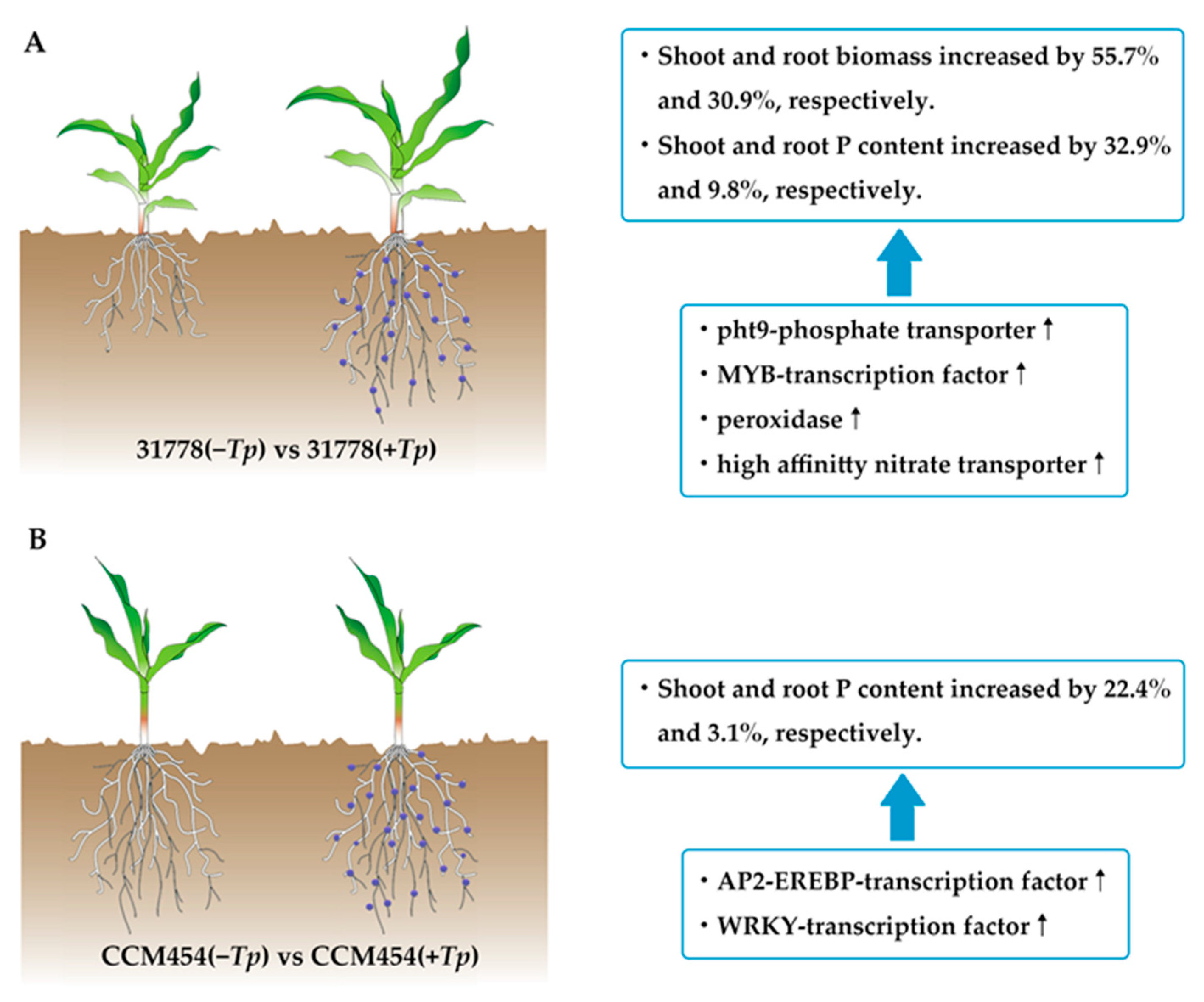

Figure 7. A conceptual paradigm explaining the regulatory mechanisms in different genotypes of maize during plant–T. purpurogenus symbiosis under low-P stress. (A) Low-P-sensitive and (B) -tolerant genotypes of maize.
Figure 7. A conceptual paradigm explaining the regulatory mechanisms in different genotypes of maize during plant–T. purpurogenus symbiosis under low-P stress. (A) Low-P-sensitive and (B) -tolerant genotypes of maize.
Ijms 24 11941 g007
Table
Table 1. The comparison of the sequencing data of 12 samples with the reference genome.
Table 1. The comparison of the sequencing data of 12 samples with the reference genome.
Sample NameClean_ReadsTotal_MappedMapped_to_GeneMapped_to_Exon
31778(−Tp)-14629845041626754 (89.91%)38990457 (96.58%)38557878 (98.89%)
31778(−Tp)-23878267434628066 (89.29%)32343885 (96.50%)31964851 (98.83%)
31778(−Tp)-34859129243401145 (89.32%)40555256 (96.49%)40064582 (98.79%)
31778(+Tp)-14637042041568979 (89.65%)38856443 (96.40%)38377630 (98.77%)
31778(+Tp)-24326831838856759 (89.80%)36309531 (96.43%)35953229 (99.02%)
31778(+Tp)-34811526042470081 (88.27%)39716251 (96.44%)39269182 (98.87%)
CCM454(−Tp)-14340043438847008 (89.51%)36347742 (96.61%)35956252 (98.92%)
CCM454(−Tp)-24737407642504688 (89.72%)39766918 (96.73%)39373252 (99.01%)
CCM454(−Tp)-35021562045146328 (89.90%)42298870 (96.72%)41889645 (99.03%)
CCM454(+Tp)-13974345035907876 (90.35%)33630363 (96.67%)33296449 (99.01%)
CCM454(+Tp)-24384987239553863 (90.20%)36958797 (96.38%)36508229 (98.78%)
CCM454(+Tp)-34454525239963821 (89.72%)37194552 (96.28%)36766865 (98.85%)
Table
Table 2. Differentially expressed genes involved in the interaction between Talaromyces purpurogenus and maize root.
Table 2. Differentially expressed genes involved in the interaction between Talaromyces purpurogenus and maize root.
GenotypeGene IDRegulationLog2FCDescription
31778Zm00001d027700up2.72pht9-phosphate transporter protein9
Zm00001d022192up1.29trehalose-6-phosphate phosphatase9
Zm00001d052713up3.03calcium-dependent protein kinase29
Zm00001d011739up2.92MYB-transcription factor 114
Zm00001d034128up1.74peroxidase 73
Zm00001d014603up1.57peroxidase 45
Zm00001d026683up1.42peroxidase 12 precursor
Zm00001d002901up1.07peroxidase 12 precursor
Zm00001d054060up1.40high affinity nitrate transporter
Zm00001d054057up1.16high affinity nitrate transporter
Zm00001d011679up1.14high affinity nitrate transporter
Zm00001d017095up1.02high affinity nitrate transporter
CCM454Zm00001d010175up2.74AP2-EREBP-transcription factor 113
Zm00001d039019up2.59AP2-EREBP-transcription factor 165
Zm00001d049364down1.49AP2-EREBP-transcription factor 209
Zm00001d020492down1.55WRKY-transcription factor 53
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sun, Q.; Zhang, P.; Zhao, Z.; Sun, X.; Liu, X.; Zhang, H.; Jiang, W. Maize Genotypes Sensitive and Tolerant to Low Phosphorus Levels Exhibit Different Transcriptome Profiles under Talaromyces purpurogenus Symbiosis and Low-Phosphorous Stress. Int. J. Mol. Sci. 2023, 24, 11941. https://doi.org/10.3390/ijms241511941

AMA Style

Sun Q, Zhang P, Zhao Z, Sun X, Liu X, Zhang H, Jiang W. Maize Genotypes Sensitive and Tolerant to Low Phosphorus Levels Exhibit Different Transcriptome Profiles under Talaromyces purpurogenus Symbiosis and Low-Phosphorous Stress. International Journal of Molecular Sciences. 2023; 24(15):11941. https://doi.org/10.3390/ijms241511941

Chicago/Turabian Style

Sun, Qing, Peiyu Zhang, Zixuan Zhao, Xuefang Sun, Xiang Liu, Hongsheng Zhang, and Wen Jiang. 2023. "Maize Genotypes Sensitive and Tolerant to Low Phosphorus Levels Exhibit Different Transcriptome Profiles under Talaromyces purpurogenus Symbiosis and Low-Phosphorous Stress" International Journal of Molecular Sciences 24, no. 15: 11941. https://doi.org/10.3390/ijms241511941

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
