Transcriptome-Wide Identification and Functional Characterization of CIPK Gene Family Members in Actinidia valvata under Salt Stress

by
Shichao Gu
,
Muhammad Abid
,
Danfeng Bai
,
Chen Chen
,
Leiming Sun
,
Xiujuan Qi
,
Yunpeng Zhong
* and
Jinbao Fang
*
Key Laboratory for Fruit Tree Growth, Development and Quality Control, Zhengzhou Fruit Research Institute, Chinese Academy of Agricultural Sciences, Zhengzhou 450009, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(1), 805; https://doi.org/10.3390/ijms24010805
Submission received: 2 December 2022 / Revised: 22 December 2022 / Accepted: 26 December 2022 / Published: 2 January 2023
(This article belongs to the Special Issue Biotic and Abiotic Stress Effects on Plant Structure and Physiology 2.0)
Browse Figures
Versions Notes

Abstract

:
Fruit plants are severely constrained by salt stress in the soil due to their sessile nature. Ca2+ sensors, which are known as CBL-interacting protein kinases (CIPKs), transmit abiotic stress signals to plants. Therefore, it is imperative to investigate the molecular regulatory role of CIPKs underlying salt stress tolerance in kiwifruit. In the current study, we have identified 42 CIPK genes from Actinidia. valvata (A.valvata). All the AvCIPKs were divided into four different phylogenetic groups. Moreover, these genes showed different conserved motifs. The expression pattern analysis showed that AvCIPK11 was specifically highly expressed under salt stress. The overexpression of AvCIPK11 in ‘Hongyang’ (a salt sensitive commercial cultivar from Actinidia chinensis) enhanced salt tolerance by maintaining K+/Na+ homeostasis in the leaf and positively improving the activity of POD. In addition, the salt-related genes AcCBL1 and AcNHX1 had higher expression in overexpression lines. Collectively, our study suggested that AvCIPK11 is involved in the positive regulation of salt tolerance in kiwifruit.

1. Introduction

Abiotic stresses are a global constraint to agricultural development. Among them, salt stress is a major factor that limits land utilization and food output [1]. It inhibits seed germination, plant growth, development, and fruit yield in fruit trees. The salt tolerance ability in plants varies depending on their internal salt tolerance mechanisms. Salt stress causes damage to plants by imposing osmotic stress, ionic stress, and oxidative stress [2]. The overaccumulation of ions, i.e., Na+, K+, Ca2+, Mg2+, Cl−, SO42−, and NO3−, significantly inhibits plant growth and development [3]. Additionally, toxic ions are more likely to accumulate in older leaves, resulting in leaf damage and death. Therefore, it is highly prudent to unravel the molecular mechanism of salt tolerance in fruit plants.
The influx of inorganic ions in plant cells plays an important role in the regulation of salt tolerance in fruit trees. Within plant cells, Ca2+ is an important nutrient and the second messenger within plants that regulate ion homeostasis, the stress response (abiotic and biotic), and stomatal opening [4]. The overaccumulation of Ca2+ within plants under salt stress enhances signal transduction to protect it from fatal damage [5,6]. The CIPK gene family plays an important role in plant responses to abiotic stresses, including salt, drought, flooding, high temperatures, and low temperatures [7,8]. CIPK family members harbor the SNF domain at the N-terminal and the FISL/NAF domain at the C-terminal [9]. In Arabidopsis, a salt overly sensitive (SOS) pathway containing SOS3 ((a calcineurin B-like protein-CBL) [10], SOS2 (a CIPK protein) [11], and SOS1 (a Na+/H+ transporter activated by SOS2) [12] maintains cellular homeostasis under salt stress by transporting calcium ion signals. SOS3 can interact with SOS2 via the FISL motif allowing SOS2 to transition from the self-inhibited state to the kinase state in a calcium-dependent manner [12]. Excess Na+ under salt stress can be transported out of the cell through the SOS pathway via the plasma membrane Na+/H+ antiporter SOS1. The CBL4-CIPK14 (also known as SOS3-SOS2) is the earliest reported CBL-CIPK module in Arabidopsis that plays a positive regulatory role in salt stress tolerance by activating the plasma membrane (PM)-localized Na+/H+ antiporter SOS1 [13]. Similarly, the AtCBL4-AtCIPK24 module enhanced salt tolerance in Arabidopsis roots by activating the Na+/H+ antiporter AtNHX7 (SOS1) and vesicular H+-ATPase [14]. The CBL1/9-CIPK23 complex stimulated the potassium transporter proteins HAK5 and AKT1 to enhance the potassium absorption by the plant under low potassium conditions [15,16]. Additionally, in a low potassium state, CBL1 and CBL9 transport CIPK23 to the plasma membrane, where it can phosphorylate and activate AKT1 or HAK5 to increase K+ entry into the cell [17,18,19]. In addition, in a low-potassium environment, potassium channels in the vesicle membrane can also be activated by CBL-CIPK thus maintaining ionic homeostasis [20]. The CBL2-CIPK11/14 was involved in the regulation of the H+-ATPase, which in turn controlled the PH of the cells in Arabidopsis [21]. Additionally, CIPK genes were reported to regulate the transport of phytohormones in tobacco to improve salt tolerance [22]. The overexpression of BrCIPK1 improves plant abiotic stress tolerance by promoting proline synthesis in rice [23]. The CIPKs improved the stress tolerance of plants by modulating the activities of reactive oxygen species (ROS) scavengers (POD, SOD, and CAT), and reducing H2O2 and MDA content [24,25].
The CIPK gene family has been identified in numerous plants. There were 25 CIPK members in the Arabidopsis [26]. In total, 23 CIPK genes in Brassica napus L. [27], 30 CIPK genes in Oryza sativa [28], 43 CIPK genes in Zea mays L. [29], 27 CIPK genes in Populus [30], 20 CIPK genes in Vitis vinifera [31], and 34 CIPK genes Malus Domestica [32], as well as 80 and 78 CIPK genes in Gossypium hirsutum and G. barbadense, respectively [33], and 27 CIPK genes in Solanum tuberosum [34]. The molecular regulatory mechanism of CIPKs under salt stress is unclear and demands more exploration.
The kiwifruit (Actinidia chinensis Planch.) is a perennial deciduous fruit tree belonging to the genus Actinidia L. It is rich in nutrition and has various health functions. Previously, we have obtained promising results for a superior quality rootstock material ZMH through screening kiwifruit germplasm resources against salt stress [35,36]. In the current study, we comprehensively analyzed the structure and function of CIPK gene family members in the ZMH transcriptome [37]. Our findings will improve the understanding of calcium signaling in salt stress. Moreover, it will help researchers to develop salt tolerant cultivars to tackle the damaging effects of climate change on the kiwifruit industry.

2. Results

2.1. Identification and Phylogenetic Analysis of AvCIPK Genes in A. valvata

We used the prediction tools, InterProscan and ScanProsite, to identify 42 AvCIPK proteins containing the conserved domain. The 42 AvCIPK family members were renamed as AvCIPK1-42. Proteins encoded by the AvCIPK genes varied in length from 412 to 477aa (Table S1). The relative molecular weights of CIPK kinase proteins varied from 47.12–54.50 KDa. The predicted theoretical pI ranged from 6.85 to 9.35. The instability index was 25.8145.44 and the aliphatic index was 82.96–93.61 The hydropathicity of AvCIPK ranged from –0.408 to –0.151, which indicated all CIPK proteins were hydrophobic (Table S1). A phylogenetic tree was constructed for 42 AvCIPK and 25 AtCIPK proteins by using the neighbor-joining (NJ) method (Figure 1). The protein sequences of AvCIPKs are presented in Supplementary Table S2. Based on the phylogenetic tree, the AvCIPKs were classified into four distinct groups (I–IV). Group I contained the greatest number of AvCIPKs (19 proteins) and group II had the least number of AvCIPK proteins (four proteins). Groups III and IV contained 10 and 9 AvCIPK proteins, respectively.

2.2. Analysis of Conserved Motif and Gene Structure for AvCIPKs

We identified a total of 15 conserved motifs in 42 AvCIPK protein sequences (Figure 2). Interestingly, members of the same phylogenetic group had similar motif compositions. Motif 1, motif 2, motif 4, motif 5, motif 7, and motif 8 were identified in all AvCIPKs, indicating that these conserved motifs might play an important role in the function of AvCIPKs. Motif 3 was found in all AvCIPKs except for AvCIPK38. Similarly, motif 6 was contained by all AvCIPKs except for AvCIPK1 and AvCIPK17. Some motifs were specific to a distinct phylogenetic group, i.e., Motif 15 in groups I, III, and IV; motif 11 in groups I, II, and III; motifs 9, 10, and 13 in groups I and III; and motifs 12 and 14 in group IV. The amino acid sequence of the conserved motifs in AvCIPK protein shows that all its members have motif 7 and motif 8 (Figure S1). These two motifs are essential for the function of CIPK protein. Moreover, conserved domain analysis demonstrated that all 42 AvCIPKs contained a CIPK_C domain (Figure 3). The existence of the conserved domain ensures the stability of its function.

2.3. Expression Profiles of AvCIPK Genes

We investigated the expression patterns of 42 AvCIPKs in the salt-tolerant plant material ‘ZMH’ at 0 h, 12 h, 24 h, and 72 h after salt stress (Figure 4). The FPKM values were used to estimate the expression profile of AvCIPKs for screening the candidate genes associated with salt tolerance. The analysis revealed that AvCIPK genes had distinct expression profiles after salt stress. Some of the AvCIPK genes (AvCIPK1, AvCIPK2, AvCIPK17, AvCIPK23, AvCIPK27, and AvCIPK40) were expressed at the initial stages of salt stress (0 h and 12 h), while some AvCIPK genes (AvCIPK6, AvCIPK11, AvCIPK12, AvCIPK16, and AvCIPK35) were induced at the final stages (24 h and 72 h). We are interested in plant salt tolerance under salt stress. Therefore, we paid more attention to transcriptomic changes between 0h and 72h. It is well known that the CIPK genes played an important role in maintaining low Na+ levels in cells via the SOS3-SOS2-SOS1 module in plants [12]. The heatmap results identified AvCIPK6, AvCIPK11, AvCIPK12, AvCIPK16, and AvCIPK35 as salt-responsive genes. Based on annotation results, we knocked out AvCIPK12 and AvCIPK35 (low quality protein) and AvCIPK16 (does not belong to the SOS3-interacting protein) (Table S3). The results showed that the expression of the AvCIPK11 gene from the phylogenetic group IV increased significantly more than AvCIPK6 after salt stress. Based on the above results, the AvCIPK11 gene was selected as the core salt-responsive gene for subsequent analysis.

2.4. Subcellular Localization Analysis of AvCIPK11

To investigate the subcellular localization of AvCIPK11, the pBWA(V)HS-AvCIPK11-GLosgfp vector was transiently expressed in N. benthamiana leaves by the Agrobacterium-mediated transformation method. An empty vector containing a GFP was considered as a negative control. The GFP fluorescence signals were detected under a confocal microscope (Figure 5). The cells containing the recombinant plasmid showed GFP fluorescence signals in the nucleus and cytoplasm. The result indicated that AvCIPK11 might encode a protein localized in the nucleus and cytoplasm.

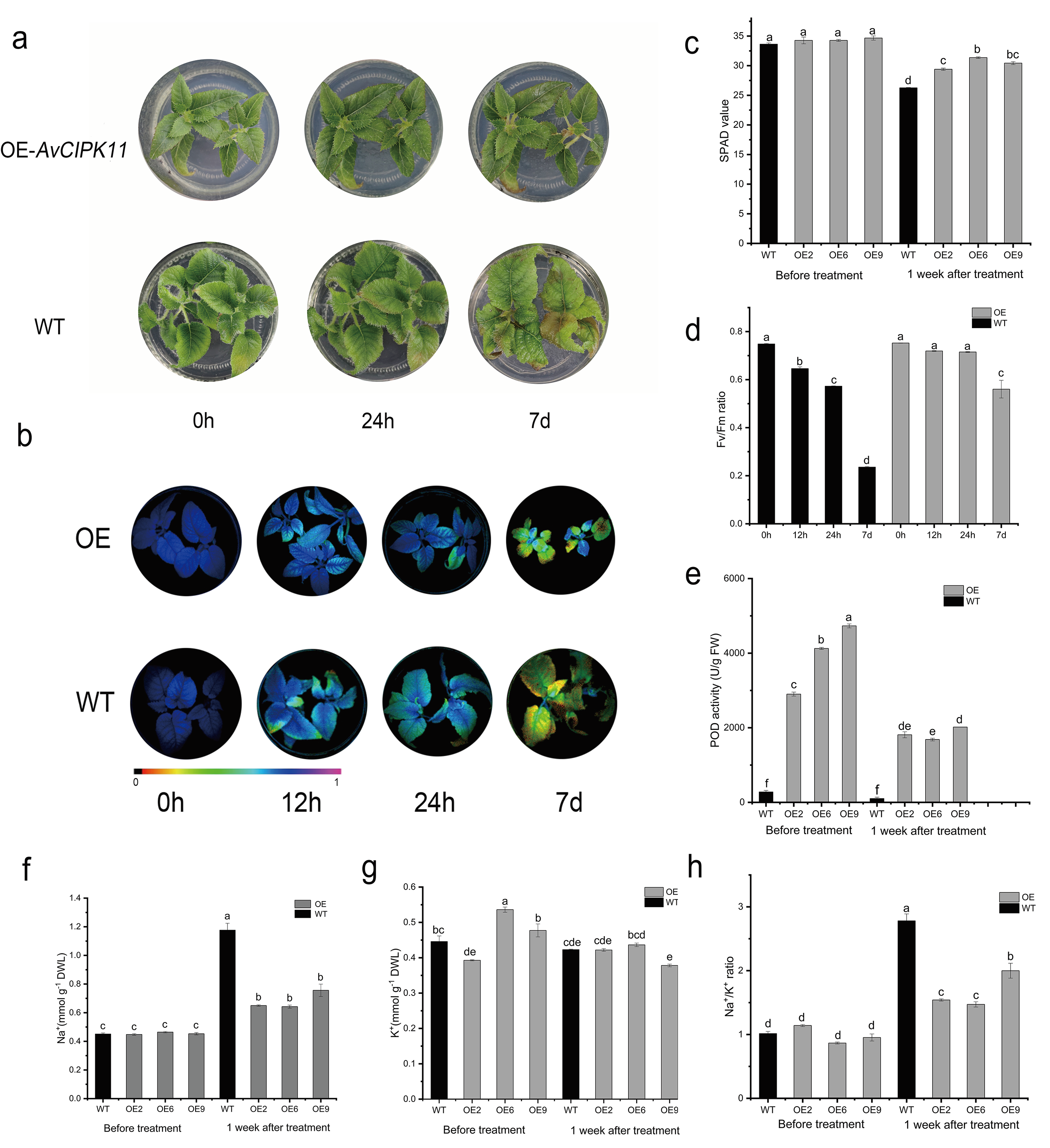

2.5. Overexpression of AvCIPK11 Enhances Salt Tolerance of A. chinensis

Phylogenetic tree analysis indicated close homology between AvCIPK11 and AtCIPK11 proteins (Figure 1). Previously, the AtCIPK11 was identified as a positive regulator of stress responses [38]. To investigate the function of AvCIPK11 in salt tolerance, an expression vector pBI121-AvCIPK11-GFP was transformed into Ac ‘Hongyang’ through the Agrobacterium-mediated transformation. The successful transformants were identified by using a specific pair of primers in the polymerase chain reaction (PCR) analysis (Figure 6). Based on higher expression levels, three positive lines for AvCIPK11 were chosen for further salt stress assays (Figure S2). The OE (overexpressed) and WT (wild type) plants were grown on Murashige and Skoog (MS) medium containing 1.0% (w/v) NaCl and plant samples were taken at 0 h (control), 24 h, and 7 days after salt stress treatment. The phenotype analysis showed that the OE plant performed better than WT (Figure 7a,b). Under salt stress, the SPAD and Fv/Fm levels in the OE plants were significantly higher than that of WT plants (Figure 7c,d). In addition, the POD (peroxidase) activity in OE plants was higher than that in WT plants (Figure 7e). In contrast, the levels of Na+ and Na+/K+ ratio in OE plants were lower than in the WT plants under salt stress (Figure 7f–h).

2.6. AvCIPK11 Activates the Expression of Salt Stress-Related Genes

We carried out RT-qPCR analysis in OE plants to analyze the expression levels of salt stress-related genes. Previously, researchers reported that CIPK genes were regulated by CBL genes to influence plant adaptation to salt stress [12,13]. In the current study, expression levels of AcCBL1 and AcNHX1 were significantly higher in OE plants than in WT after 12 h of salt treatment (Figure 8). These results suggest that AvCIPK11 in coordination with some salt-related genes (AcCBL1 and AcNHX1) might enhance plants’ salt tolerance.

3. Discussion

The advent of sequencing technologies (RNA-seq etc.) opens up new horizons to unravel the complex molecular mechanisms of cellular events [39]. However, it is a daunting task to identify gene families in a non-sequenced organism. Salt stress imposes the most devastating effect on plants. Ion transport (especially Na+/K+ homeostasis) is one of the major methods to reduce the harm of salt stress. The CIPK gene family, an important gene family that plays a key role in regulating abiotic stress tolerance in plants, has been functionally characterized for biotic and abiotic stress tolerance in plants [8,40,41,42]. Many CIPK genes have been reported to regulate ion homeostasis under salt stress [43]. However, the unavailability of reports on expression patterns and the function of CIPKs from Actinidia valvata under salt stress compelled us to conduct the current study. Based on transcriptome data, we identified 42 CIPK genes in A. valvata (ZMH). According to the phylogenetic analysis, we classified them into four different groups based on their homology with Arabidopsis CIPKs. The presence of specific motifs in various phylogenetic groups indicated the functional orientation of members of these groups. AvCIPK11 is a homologous gene to AtCIPK11. It was found that AtCIPK11 enhanced cadmium stress tolerance and decreased drought stress tolerance in plants [38,44]. In addition, the overexpression of NtCIPK11, a homologous gene to AtCIPK11, promoted salt and drought tolerance in Arabidopsis [45]. The CIPK, a Ca2+ signal transductor, may play a key role in stress tolerance. The overexpression of AvCIPK11 enhances kiwifruit salt stress. Our findings shed light on the molecular mechanism by which plants cope with salt stress by modulating ion homeostasis and ROS scavenging.
Under salt stress, plans transduce signals through four different pathways, including electromagnetic signaling, calcium signaling, ROS signaling, and osmotic signaling [46]. The dehydration caused by salt stress activates the ion channels in plant cells. The calcium (Ca2+) channels and CIPKs regulate the hyperosmotic tension within plant cells under salt stress to protect them from death. The CIPK family members are the main ion signal transductor in plants. The rapid accumulation of calcium ions (Ca2+) in cytosol helps plant cells to sense and respond to salt stress. It is speculated that an initial overaccumulation of Ca2+ ions upon salt stress occurs due to CIPKs, CBLs, CaM, CMLs, and CDPKs [47]. The CIPK family members are the main ion signal transductors. All the AvCIPK genes in our experiment have the conserved domain (Figure 3). The presence of conserved domains (CIPK_C, STKc_SnRK3, and PKc_like superfamily) in AvCIPK proteins ensured their functional integrity. The AvCIPK genes were divided into four groups, unlike CIPKs in A. thaliana and rice, which were divided into five groups [30,48]. These results might occur due to species differences (Figure 1). The gene structure and evolution analysis presented new insights into the functional annotation of AvCIPK genes. The most interesting findings were that the CIPKs gene clustered into the same phylogenetic groups in different species had the same function [30]. The AvCIPK genes which did not cluster into AtCIPK phylogenetic groups might attribute to functional specificity. The conserved motif analysis showed that the CIPK family member had the common motif composition of motif 2, motif 3, motif 11, and motif 14, which corresponded the findings in tomato [49]. Motif 7 and motif 8 were identified within the NAF domain and PPI domain [32]. Most AvCIPK proteins have been demonstrated to contain both domains, suggesting the potential function of AvCIPKs in participating salt stress.
In the past, many CIPK genes were reported to enhance the salt stress tolerance of apple, cotton, soybean, and Nitraria tangutorum [45,50,51,52]. The MdCIPK13 gene was induced by salt stress in apple [50]. Moreover, antioxidant metabolites were increased in the overexpression of MdSOS2L1 in apple and tomato [53]. The induction of ZmCIPK24 expression in maize indicated the positive function of this regulator in salt stress [40]. We analyzed all AvCIPKs that had consistently high expression after 72 h of salt stress and identified five candidate genes (AvCIPK6, AvCIPK11, AvCIPK12, AvCIPK16, and AvCIPK35), which were significantly up-regulated by salt. We abandoned the low quality proteins AvCIPK12 and AvCIPK35 based on functional annotation. The SOS3-SOS2-SOS1 module was identified as a typical pathway to regulated ion homeostasis. The AvCIPK6 and AvCIPK11 were annotated as SOS3-interacting proteins based on KEGG annotation. The AvCIPK11 shared high homology with AtCIPK11 and a high expression level under salt treatment and was screened for further function research. The result of subcellular localization of AvCIPK11 protein indicated it as a signal transporter for salt stress, which was consistent with the findings in other CIPK family members in Arabidopsis [54]. The AvCIPK11 is an important signal transporter in kiwifruit that plays a role in ion transduction under salt stress.
We performed the transformation of AvCIPK11 in kiwifruit to determine its function under salt stress. The overaccumulation of Na+ ions under salt stress causes serious damage to plant cells. Chlorophyll concentration is a key indicator of leaves’ health. Previous research found that soil salinity stress interrupted the enzymatic activities of chlorophyll biosynthesis [55]. The overexpression of TaCIPK14 in wheat enhanced chlorophyll content and decreased Na+ concentration [56]. Our findings are consistent with a previous study in which Fv/Fm ratio and SPAD value in the transgenic plant was higher than in WT plants (Figure 7c,d). The result showed that the leaves of WT kiwifruit were more vulnerable to salt stress damage than transgene kiwifruit leaves. Salt stress was followed by ionic stress, osmotic stress, and secondary oxidative stress that severely injured plants. The salt-tolerant wheat varieties had a lower Na+/K+ ratio and reduced oxidative stress than salt-sensitive varieties [57]. Excessive Na+ ion accumulation in cells interfered with K+ homeostasis, resulting in cell metabolic harm [58]. The activity of peroxidase (POD) was also influenced by CIPK family members in plants [24]. The molecular regulatory mechanism of CIPK family members during salt stress differs across plant species. In Arabidopsis, the CBL-CIPK module has been shown to play a vital role in regulating Na+, K+, and NO3− between cells [15,59,60,61]. Therefore, maintaining a balanced K+/Na+ ratio has emerged as a crucial factor for the regulation of salt stress in plants [62,63]. In the present study, the overexpression of AvCIPK11 decreased the Na+/K+ ratio in transgene kiwifruit plant leaves (Figure 7f–h). The salt-induced reactive oxygen species in plants are highly harmful to plant growth and development and ROS scavenging is essential for plants to maintain their viability under salt stress [64]. Plants produce many antioxidant enzymes (POD, SOD, CAT) to protect them from oxidative damage. The higher level of POD safeguarded kiwifruit OE plants from oxidative stress. In addition, POD activity was maintained at a high level, regardless of salt stress. A possible explanation for this might be that the overexpression of AvCIPK11 triggered the expression of POD-related genes and enhanced the ability of oxidase scavenging in plants.
The CBL-CIPK complex is involved in Ca2+ signaling induced by abiotic stress. The CIPK genes often interact with CBL, which is a serine/threonine protein kinase [60,65]. The wheat TaCBL-TaCIPK24 signaling pathway plays a key role in salt tolerance, and overexpression of TaCIPK24 in Arabidopsis increased the Na+ efflux and enhanced the ROS scavenging ability [66]. In Arabidopsis, the CBL10-CIPK8-SOS1 protein complex co-regulated Na+ efflux and enhanced salt tolerance [43]. In Hordeum brevisubulatum, the HbCBL4/10-HbCIPK2 complex modulated HbSOS1L to exclude Na+ [67]. The Na+/H+ antiporters (NHXs) excreted excess cytosolic Na+ into the vacuole [68]. Furthermore, the plasma membrane-located NHX7 and NHX8 (also known as SOS1) played a role in ion homeostasis [69]. The function of NHXs has been verified in Arabidopsis [70], Beta vulgaris L. [71], and rice [72] under salt stress. It is possible to hypothesize that these conditions are likely to occur in kiwifruit. Therefore, we measured the expression level of AcCBL and AcNHX genes in OE kiwifruit plants. The expression level of AcCBL and AcNHX was highly induced in OE plants and the (Figure 8). These results were in agreement with those obtained in soybean [73]. The AvCIPK11 might enhance plant salt tolerance by regulating ion homeostasis-related genes. Hence, we can infer that AvCIPK11 can increase salt tolerance by improving ROS scavenging and maintaining ion homeostasis. Further research should be undertaken to investigate how AcCBL1 and AcNHX1 coordinate with AvCIPK11 to co-regulate plant salt tolerance.

4. Materials and Methods

4.1. Identification of CIPK Family Members in A. valata and Arabidopsis

We obtained the CDS, protein, and the full-length gene sequences of kiwifruit CIPKs from our previously published data [37]. Twenty-five AtCIPK protein sequences were retrieved from The Arabidopsis Information Resources database (TAIR, https://www.Arabidopsis.org/, accessed on 6 May 2022) and blasted to A. valvata transcriptome to obtain AvCIPK protein sequences. Each member of the AvCIPK protein was subjected to InterProscan (http://www.ebi.ac.uk/Tools/pfa/iprscan/, accessed on 10 May 2022) and ScanProsite (https://prosite.expasy.org/prosite.html, accessed on 10 May 2022) database to confirm the presence of conserved domains protein kinase (PF00069) and the NAF (PF03822). The conserved domains were detected by NCBI Conserved Domains (https://www.ncbi.nlm.nih.gov/cdd/?term=, accessed on 11 May 2022). The sequences harboring both conserved domains were identified as candidate sequences. All the sequences for CIPK proteins are shown in Supplementary Table S2.

4.2. Phylogenetic Analysis and Conserved Motif Identification

The multiple sequence alignment analyses of 42 AvCIPKs and 25 AtCIPKs were carried out using the Clustal W method with a default settings, and then a phylogenetic tree was constructed by using MEGA-X (Mega Limited, Auckland, New Zealand) with the neighbor-joining (NJ) method and 1000 bootstrap replicates [74]. The phylogenetic tree was visualized by the interactive tree of life (iTOL) (https://itol.embl.de/itol.cgi, accessed on 12 May 2022). The conserved motifs in AvCIPKs were analyzed by the Multiple Em for Motif Elicitation suit (MEME; http://memesuite.org/tools/meme, accessed on 13 May 2022). A total of 15 conserved motifs were identified in each of the AvCIPK proteins. The motif with an e-value of less than 1×10−60 was screened for further study. The model of fragments per kilobase of exon per million (FPKM) from RNA-seq data was used to assess the expression levels of AvCIPK under salt stress. The heatmap of FPKM values of AvCIPK was constructed by TBtools (https://github.com/CJ-Chen/TBtools/releases, accessed on 2 June 2022) [75].

4.3. Plant Materials Preparation and Application of Salt Treatment

The salt-tolerant genotype ZMH was grown in a greenhouse at Zhengzhou Fruit Research Institute, Chinese Academy of Agriculture Science, Henan Province, China (Latitude 34°43′N, Longitude 113°39′E, and Altitude 111 m). At the 4–6 leaf stage, kiwifruit plants were treated with 0.4% NaCl per net weight of the growing medium in the pot. All the treatments were repeated thrice and there were five plants in each replication. We took samples from the roots of kiwifruit plants at 0 h, 12 h, 24 h, and 72 h after salt treatment. All samples were immediately frozen in liquid nitrogen and stored at −80 °C for subsequent use.

4.4. RNA Isolation and RT-qPCR Analysis

Total RNA was extracted by using the Plant Total RNA purification kit (Waryoung, Beijing, China). Genomic DNA was removed by DNase I (Thermos Scientific, Waltham, MA, USA) from the total RNA. Then, the cDNA was synthesized using the First Strand cDNA Synthesis Kit (TOYOBO, Tokyo, Japan). The pair of primers for RT-qPCR was designed by Primer Premier 5.0 (reference). The RT-qPCR reaction was performed by a previously described method [76]. The gene expression levels were calculated using the 2−∆∆Ct method [77]. The pair of primers used in this study is listed in Table S4.

4.5. Subcellular Localization Analysis

The full-length coding sequence (CDS) of AvCIPK11 without a stop codon was cloned into the vector pBWAVHS-GLosgfp with N-terminal fusion of AvCIPK11 to the GFP report gene. The recombinant vector pBWAVHS-AvCIPK11-GLosgfp and empty vector pBWAVHS-GLosgfp were transformed into tobacco leaves (Nicotiana benthamiana) by Agrobacterium-mediated transformation. Then, a laser scanning confocal microscope (Nikon C2-ER, Tokyo, Japan) was used for detecting the GFP signal in transformed leaves. For GFP detection, excitation was carried out at 488 nm wavelength and detection at 510 nm. For chloroplast fluorescence detection, the excitation wavelength was 640nm and the detection wavelength was 675 nm. All the pairs of primers used in this analysis were shown in Table S4.

4.6. Construction of Overexpression Vector, Transformation, and Regeneration of Transgenic Kiwifruit Plants

The full-length ORF of AvCIPK11 was cloned from root samples of ZMH by using specific pair of primers (Table S4). Afterward, the ORF of AvCIPK11 without a stop codon was inserted into the PBI121-GFP vector driven by the CaMV35S promoter and the recombinant plasmid was transformed into leaf discs of A. chinensis (a salt sensitive cultivar ‘Hongyang’) according to a previously described method [78]. The transgenic plants were obtained after six months and were later propagated on an MS medium [79]. We identified three positive transgenic lines via PCR analysis and fluorescence imaging. The pair of primers used for this study is presented in Table S4.

4.7. Salt Tolerance Assay

To evaluate the salt tolerance ability of transgenic kiwifruit plants, OE and WT plants were grown on an MS medium containing 1.0% (w/v) NaCl, and samples were taken at 0 h, 24 h, and 7 d. After 30 min of dark treatment, an IMAGING-PAM chorophyll fluorometer (Walz, Effeltrich, Germany) was used to capture chlorophyll fluorescence images. The maximum quantum efficiency of photosystem II (Fv/Fm) was measured by Imaging WinGegE software (Walz, Effeltrich, Germany) [80]. The chlorophyll contents were measured by SPAD meter (SPAD 502 plus, Minolta, Japan) [81]. The Na+ and K+ ions were determined according to the protocol of commercial kits (Nanjing Jiancheng Bioengineering Institute, Nanjing, China). The activity of POD was detected using a commercial kit (Solarbio, Beijing, China).

4.8. Statistical Analysis

All the statistical analyses were performed using SPSS 21.0 software (IBM Corporation, Chicago, IL, USA). The data were analyzed for significant differences by one-way ANOVA, and mean differences between the samples were analyzed by Tukey’s multiple comparisons test. The data samples were considered significantly different at p < 0.05. All the results were presented as the means ± SE (standard error).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24010805/s1.

Author Contributions

J.F., Y.Z., and M.A. conceived and designed the research. S.G. performed the experiment, analyzed the data, and wrote the manuscript. D.B. and C.C. provided scientific suggestions and helped in collecting samples. L.S. and X.Q. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the National Key Research and Development Program (2022YFD1600700), Agricultural Science and Technology Innovation Program, Chinese Academy of Agricultural Sciences (CAAS-ASTIP-2022-ZFRI-03), the Major Science and Technology Projects of Henan Province (221100110400), Yunnan Science and Technology Program (202205AF150043), Sichuan Science and Technology Program (2021YFN0060).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Sequence data from this work can be found in the NCBI database (SRA data).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Van Zelm, E.; Zhang, Y.; Testerink, C. Salt Tolerance Mechanisms of Plants. Annu. Rev. Plant Biol. 2020, 71, 403–433. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Munns, R.; Tester, M. Mechanisms of salinity tolerance. Annu. Rev. Plant Biol. 2008, 59, 651–681. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Majumder, A.L.; Sengupta, S.; Goswami, L. Osmolyte Regulation in Abiotic Stress; Springer: Berlin/Heidelberg, Germany, 2009; pp. 349–370. [Google Scholar]
  4. Maierhofer, T.; Diekmann, M.; Offenborn, J.N.; Lind, C.; Bauer, H.; Hashimoto, K.; KA, S.A.-R.; Luan, S.; Kudla, J.; Geiger, D.; et al. Site- and kinase-specific phosphorylation-mediated activation of SLAC1, a guard cell anion channel stimulated by abscisic acid. Sci. Signal. 2014, 7, ra86–ra97. [Google Scholar] [CrossRef]
  5. Luan, S. The CBL-CIPK network in plant calcium signaling. Trends Plant Sci. 2009, 14, 37–42. [Google Scholar] [CrossRef] [PubMed]
  6. Kudla, J.; Becker, D.; Grill, E.; Hedrich, R.; Hippler, M.; Kummer, U.; Parniske, M.; Romeis, T.; Schumacher, K. Advances and current challenges in calcium signaling. New. Phytol. 2018, 218, 414–431. [Google Scholar] [CrossRef]
  7. Guo, Y.; Halfter, U.; Ishitani, M.; Zhu, J.K. Molecular characterization of functional domains in the protein kinase SOS2 that is required for plant salt tolerance. Plant Cell 2001, 13, 1383–1400. [Google Scholar] [CrossRef] [Green Version]
  8. Xiang, Y.; Huang, Y.; Xiong, L. Characterization of stress-responsive CIPK genes in rice for stress tolerance improvement. Plant Physiol. 2007, 144, 1416–1428. [Google Scholar] [CrossRef] [Green Version]
  9. Hrabak, E.M.; Chan, C.W.; Gribskov, M.; Harper, J.F.; Choi, J.H.; Halford, N.; Kudla, J.; Luan, S.; Nimmo, H.G.; Sussman, M.R.; et al. The Arabidopsis CDPK-SnRK superfamily of protein kinases. Plant Physiol. 2003, 132, 666–680. [Google Scholar] [CrossRef] [Green Version]
  10. Ishitani, M.; Liu, J.; Halfter, U.; Kim, C.S.; Shi, W.; Zhu, J.K. SOS3 function in plant salt tolerance requires N-myristoylation and calcium binding. Plant Cell 2000, 12, 1667–1678. [Google Scholar] [CrossRef] [Green Version]
  11. Sánchez-Barrena, M.J.; Martínez-Ripoll, M.; Zhu, J.K.; Albert, A. The structure of the Arabidopsis thaliana SOS3: Molecular mechanism of sensing calcium for salt stress response. J. Mol. Biol. 2005, 345, 1253–1264. [Google Scholar] [CrossRef]
  12. Qiu, Q.S.; Guo, Y.; Dietrich, M.A.; Schumaker, K.S.; Zhu, J.K. Regulation of SOS1, a plasma membrane Na+/H+ exchanger in Arabidopsis thaliana, by SOS2 and SOS3. Proc. Natl. Acad. Sci. USA 2002, 99, 8436–8441. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Shi, H.; Ishitani, M.; Kim, C.; Zhu, J.K. The Arabidopsis thaliana salt tolerance gene SOS1 encodes a putative Na+/H+ antiporter. Proc. Natl. Acad. Sci. USA 2000, 97, 6896–6901. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Batelli, G.; Verslues, P.E.; Agius, F.; Qiu, Q.; Fujii, H.; Pan, S.; Schumaker, K.S.; Grillo, S.; Zhu, J.K. SOS2 promotes salt tolerance in part by interacting with the vacuolar H+-ATPase and upregulating its transport activity. Mol. Cell Biol. 2007, 27, 7781–7790. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Xu, J.; Li, H.D.; Chen, L.Q.; Wang, Y.; Liu, L.L.; He, L.; Wu, W.H. A protein kinase, interacting with two calcineurin B-like proteins, regulates K+ transporter AKT1 in Arabidopsis. Cell 2006, 125, 1347–1360. [Google Scholar] [CrossRef] [Green Version]
  16. Ragel, P.; Ródenas, R.; García-Martín, E.; Andrés, Z.; Villalta, I.; Nieves-Cordones, M.; Rivero, R.M.; Martínez, V.; Pardo, J.M.; Quintero, F.J.; et al. The CBL-Interacting Protein Kinase CIPK23 Regulates HAK5-Mediated High-Affinity K+ Uptake in Arabidopsis Roots. Plant Physiol. 2015, 169, 2863–2873. [Google Scholar]
  17. Li, L.; Kim, B.G.; Cheong, Y.H.; Pandey, G.K.; Luan, S. A Ca(2)+ signaling pathway regulates a K(+) channel for low-K response in Arabidopsis. Proc. Natl. Acad. Sci. USA 2006, 103, 12625–12630. [Google Scholar] [CrossRef] [Green Version]
  18. Gierth, M.; Maser, P.; Schroeder, J.I. The potassium transporter AtHAK5 functions in K(+) deprivation-induced high-affinity K(+) uptake and AKT1 K(+) channel contribution to K(+) uptake kinetics in Arabidopsis roots. Plant Physiol. 2005, 137, 1105–1114. [Google Scholar] [CrossRef] [Green Version]
  19. Rubio, F.; Alemán, F.; Nieves-Cordones, M.; Martínez, V. Studies on Arabidopsis athak5, atakt1 double mutants disclose the range of concentrations at which AtHAK5, AtAKT1 and unknown systems mediate K uptake. Physiol. Plant 2010, 139, 220–228. [Google Scholar] [CrossRef]
  20. Tang, R.J.; Zhao, F.G.; Yang, Y.; Wang, C.; Li, K.; Kleist, T.J.; Lemaux, P.G.; Luan, S. A calcium signalling network activates vacuolar K(+) remobilization to enable plant adaptation to low-K environments. Nat. Plants 2020, 6, 384–393. [Google Scholar] [CrossRef]
  21. Yang, Y.; Qin, Y.; Xie, C.; Zhao, F.; Zhao, J.; Liu, D.; Chen, S.; Fuglsang, A.T.; Palmgren, M.G.; Schumaker, K.S.; et al. The Arabidopsis chaperone J3 regulates the plasma membrane H+-ATPase through interaction with the PKS5 kinase. Plant Cell 2010, 22, 1313–1332. [Google Scholar] [CrossRef] [Green Version]
  22. Tripathi, V.; Parasuraman, B.; Laxmi, A.; Chattopadhyay, D. CIPK6, a CBL-interacting protein kinase is required for development and salt tolerance in plants. Plant J. 2009, 58, 778–790. [Google Scholar] [CrossRef] [PubMed]
  23. Abdula, S.E.; Lee, H.-J.; Ryu, H.; Kang, K.K.; Nou, I.; Sorrells, M.E.; Cho, Y.-G. Overexpression of BrCIPK1 Gene Enhances Abiotic Stress Tolerance by Increasing Proline Biosynthesis in Rice. Plant Mol. Biol. Rep. 2015, 34, 501–511. [Google Scholar] [CrossRef]
  24. Deng, X.; Hu, W.; Wei, S.; Zhou, S.; Zhang, F.; Han, J.; Chen, L.; Li, Y.; Feng, J.; Fang, B.; et al. TaCIPK29, a CBL-Interacting Protein Kinase Gene from Wheat, Confers Salt Stress Tolerance in Transgenic Tobacco. PLoS ONE 2013, 8, e69881. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Wang, Y.; Sun, T.; Li, T.; Wang, M.; Yang, G.; He, G. A CBL-Interacting Protein Kinase TaCIPK2 Confers Drought Tolerance in Transgenic Tobacco Plants through Regulating the Stomatal Movement. PLoS ONE 2016, 11, e0167962. [Google Scholar] [CrossRef] [PubMed]
  26. Luan, S.; Kudla, J.; Rodriguez-Concepcion, M.; Yalovsky, S.; Gruissem, W. Calmodulins and calcineurin B-like proteins: Calcium sensors for specific signal response coupling in plants. Plant Cell 2002, 14, S389–S400. [Google Scholar] [CrossRef] [Green Version]
  27. Zhang, H.; Yang, B.; Liu, W.-Z.; Li, H.; Wang, L.; Wang, B.; Deng, M.; Liang, W.; Deyholos, M.K.; Jiang, Y.-Q. Identification and characterization of CBL and CIPK gene families in canola (Brassica napus L.). BMC Plant Biol. 2014, 14, 8. [Google Scholar] [CrossRef] [Green Version]
  28. Kolukisaoglu, Ü.; Weinl, S.; Blazevic, D.; Batistic, O.; Kudla, J. Calcium Sensors and Their Interacting Protein Kinases: Genomics of the Arabidopsis and Rice CBL-CIPK Signaling Networks. Plant Physiol. 2004, 134, 43–58. [Google Scholar] [CrossRef] [Green Version]
  29. Chen, X.; Gu, Z.; Xin, D.; Hao, L.; Liu, C.; Huang, J.; Ma, B.; Zhang, H. Identification and characterization of putative CIPK genes in maize. J. Genet. Genom. 2011, 38, 77–87. [Google Scholar] [CrossRef]
  30. Yu, Y.; Xia, X.; Yin, W.; Zhang, H. Comparative genomic analysis of CIPK gene family in Arabidopsis and Populus. Plant Growth Regul. 2007, 52, 101–110. [Google Scholar] [CrossRef]
  31. Xi, Y.; Liu, J.; Dong, C.; Cheng, Z.-M. The CBL and CIPK Gene Family in Grapevine (Vitis vinifera): Genome-Wide Analysis and Expression Profiles in Response to Various Abiotic Stresses. Front Plant Sci 2017, 8, 978–993. [Google Scholar] [CrossRef] [Green Version]
  32. Niu, L.; Dong, B.; Song, Z.; Meng, D.; Fu, Y. Genome-Wide Identification and Characterization of CIPK Family and Analysis Responses to Various Stresses in Apple (Malus domestica). Int. J. Mol. Sci. 2018, 19, 19072131. [Google Scholar] [CrossRef] [PubMed]
  33. Cui, Y.; Su, Y.; Wang, J.; Jia, B.; Wu, M.; Pei, W.; Zhang, J.; Yu, J. Genome-Wide Characterization and Analysis of CIPK Gene Family in Two Cultivated Allopolyploid Cotton Species: Sequence Variation, Association with Seed Oil Content, and the Role of GhCIPK6. Int. J. Mol. Sci. 2020, 21, 863. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Mao, J.; Zhang, X.; Zhang, W.; Tian, Y.; Wang, X.; Hao, Z.; Chang, Y. Genome-wide identification, characterization and expression analysis of the MITF gene in Yesso scallops (Patinopecten yessoensis) with different shell colors. Gene 2019, 688, 155–162. [Google Scholar] [CrossRef]
  35. Abid, M.; Zhang, Y.J.; Li, Z.; Bai, D.F.; Zhong, Y.P.; Fang, J.B. Effect of Salt stress on growth, physiological and biochemical characters of Four kiwifruit genotypes. Sci. Hortic. 2020, 271, 109473. [Google Scholar] [CrossRef]
  36. Zhong, Y.-P.; Qi, X.-J.; Chen, J.-Y.; Li, Z.; Bai, D.-F.; Wei, C.-G.; Fang, J.-B. Growth and physiological responses of four kiwifruit genotypes to salt stress and resistance evaluation. J. Integr. Agric. 2019, 18, 83–95. [Google Scholar] [CrossRef] [Green Version]
  37. Abid, M.; Gu, S.; Zhang, Y.-J.; Sun, S.; Li, Z.; Bai, D.-F.; Sun, L.; Qi, X.-J.; Zhong, Y.-P.; Fang, J.-B. Comparative transcriptome and metabolome analysis reveal key regulatory defense networks and genes involved in enhanced salt tolerance of Actinidia (kiwifruit). Hortic. Res. 2022, 9, uhac189. [Google Scholar] [CrossRef] [PubMed]
  38. Gu, S.; Wang, X.; Bai, J.; Wei, T.; Sun, M.; Zhu, L.; Wang, M.; Zhao, Y.; Wei, W. The kinase CIPK11 functions as a positive regulator in cadmium stress response in Arabidopsis. Gene 2020, 772, 145372. [Google Scholar] [CrossRef]
  39. Yang, Y.H.; Li, M.J.; Li, X.Y.; Chen, X.J.; Lin, W.X.; Zhang, Z.Y. Transcriptome-wide identification of the genes responding to replanting disease in Rehmannia glutinosa L. roots. Mol. Biol. Rep. 2014, 42, 881–892. [Google Scholar] [CrossRef]
  40. Chen, X.; Chen, G.; Li, J.; Hao, X.; Tuerxun, Z.; Chang, X.; Gao, S.; Huang, Q. A maize calcineurin B-like interacting protein kinase ZmCIPK42 confers salt stress tolerance. Physiol. Plant. 2020, 171, 161–172. [Google Scholar] [CrossRef]
  41. Plasencia, F.A.; Estrada, Y.; Flores, F.B.; Ortíz-Atienza, A.; Lozano, R.; Egea, I. The Ca(2+) Sensor Calcineurin B-Like Protein 10 in Plants: Emerging New Crucial Roles for Plant Abiotic Stress Tolerance. Front. Plant Sci. 2020, 11, 599944. [Google Scholar] [CrossRef]
  42. Ma, R.; Liu, W.; Li, S.; Zhu, X.; Yang, J.; Zhang, N.; Si, H. Genome-Wide Identification, Characterization and Expression Analysis of the CIPK Gene Family in Potato (Solanum tuberosum L.) and the Role of StCIPK10 in Response to Drought and Osmotic Stress. Int. J. Mol. Sci. 2021, 22, 13535. [Google Scholar] [CrossRef] [PubMed]
  43. Yin, X.; Xia, Y.; Xie, Q.; Cao, Y.; Wang, Z.; Hao, G.; Song, J.; Zhou, Y.; Jiang, X. The protein kinase complex CBL10–CIPK8–SOS1 functions in Arabidopsis to regulate salt tolerance. J. Exp. Bot. 2019, 71, 1801–1814. [Google Scholar] [CrossRef] [PubMed]
  44. Ma, Y.; Cao, J.; Chen, Q.; He, J.; Liu, Z.; Wang, J.; Li, X.; Yang, Y. The Kinase CIPK11 Functions as a Negative Regulator in Drought Stress Response in Arabidopsis. Int. J. Mol. Sci. 2019, 20, 2422. [Google Scholar] [CrossRef] [Green Version]
  45. Lu, L.; Chen, X.; Wang, P.; Lu, Y.; Zhang, J.; Yang, X.; Cheng, T.; Shi, J.; Chen, J. CIPK11: A calcineurin B-like protein-interacting protein kinase from Nitraria tangutorum, confers tolerance to salt and drought in Arabidopsis. BMC Plant Biol. 2021, 21, 123. [Google Scholar] [CrossRef]
  46. Fichman, Y.; Mittler, R. Integration of electric, calcium, reactive oxygen species and hydraulic signals during rapid systemic signaling in plants. Plant J. 2021, 107, 7–20. [Google Scholar] [CrossRef] [PubMed]
  47. Seifikalhor, M.; Aliniaeifard, S.; Shomali, A.; Azad, N.; Hassani, B.; Lastochkina, O.; Li, T. Calcium signaling and salt tolerance are diversely entwined in plants. Plant Signal. Behav. 2019, 14, 1665455. [Google Scholar] [CrossRef] [PubMed]
  48. Wan, X.; Zou, L.H.; Zheng, B.Q.; Wang, Y. Circadian Regulation of Alternative Splicing of Drought-Associated CIPK Genes in Dendrobium catenatum (Orchidaceae). Int. J. Mol. Sci. 2019, 20, 688. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Zhang, Y.; Zhou, X.; Liu, S.; Yu, A.; Yang, C.; Chen, X.; Liu, J.; Wang, A. Identification and Functional Analysis of Tomato CIPK Gene Family. Int. J. Mol. Sci. 2019, 21, 110. [Google Scholar] [CrossRef] [Green Version]
  50. Ma, Q.-J.; Sun, M.-H.; Kang, H.; Lu, J.; You, C.-X.; Hao, Y.-J. A CIPK protein kinase targets sucrose transporter MdSUT2.2 at Ser254 for phosphorylation to enhance salt tolerance. Plant Cell Environ. 2019, 42, 918–930. [Google Scholar] [CrossRef]
  51. Su, Y.; Guo, A.; Huang, Y.; Wang, Y.; Hua, J. GhCIPK6a increases salt tolerance in transgenic upland cotton by involving in ROS scavenging and MAPK signaling pathways. BMC Plant Biol. 2020, 20, 421. [Google Scholar] [CrossRef]
  52. Ketehouli, T.; Zhou, Y.-G.; Dai, S.-Y.; Carther, K.F.I.; Sun, D.-Q.; Li, Y.; Nguyen, Q.V.H.; Xu, H.; Wang, F.-W.; Liu, W.-C.; et al. A soybean calcineurin B-like protein-interacting protein kinase, GmPKS4, regulates plant responses to salt and alkali stresses. J. Plant Physiol. 2021, 256, 153331. [Google Scholar] [CrossRef] [PubMed]
  53. Hu, D.-G.; Ma, Q.-J.; Sun, C.-H.; Sun, M.-H.; You, C.-X.; Hao, Y.-J. Overexpression of MdSOS2L1, a CIPK protein kinase, increases the antioxidant metabolites to enhance salt tolerance in apple and tomato. Physiol. Plant 2016, 156, 201–214. [Google Scholar] [CrossRef] [PubMed]
  54. Batistič, O.; Waadt, R.; Steinhorst, L.; Held, K.; Kudla, J. CBL-mediated targeting of CIPKs facilitates the decoding of calcium signals emanating from distinct cellular stores. Plant J. 2010, 61, 211–222. [Google Scholar] [CrossRef]
  55. Turan, S.; Tripathy, B.C. Salt-stress induced modulation of chlorophyll biosynthesis during de-etiolation of rice seedlings. Physiol. Plant 2015, 153, 477–491. [Google Scholar] [CrossRef] [PubMed]
  56. Deng, X.; Zhou, S.; Hu, W.; Feng, J.; Zhang, F.; Chen, L.; Huang, C.; Luo, Q.; He, Y.; Yang, G.; et al. Ectopic expression of wheatTaCIPK14, encoding a calcineurin B-like protein-interacting protein kinase, confers salinity and cold tolerance in tobacco. Physiol. Plant. 2013, 149, 367–377. [Google Scholar] [CrossRef]
  57. Siddiqui, N.; Mostofa, M.G.; Akter, M.M.; Srivastava, A.K.; Sayed, A.; Hasan, M.S.; Tran, L.-S.P. Impact of salt-induced toxicity on growth and yield-potential of local wheat cultivars: Oxidative stress and ion toxicity are among the major determinants of salt-tolerant capacity. Chemosphere 2017, 187, 385–394. [Google Scholar] [CrossRef]
  58. Barragán, V.; Leidi, E.O.; Andrés, Z.; Rubio, L.; De Luca, A.; Fernández, J.A.; Cubero, B.; Pardo, J.M. Ion Exchangers NHX1 and NHX2 Mediate Active Potassium Uptake into Vacuoles to Regulate Cell Turgor and Stomatal Function in Arabidopsis. Plant Cell 2012, 24, 1127–1142. [Google Scholar] [CrossRef] [Green Version]
  59. Ho, C.H.; Lin, S.H.; Hu, H.C.; Tsay, Y.F. CHL1 functions as a nitrate sensor in plants. Cell 2009, 138, 1184–1194. [Google Scholar] [CrossRef] [Green Version]
  60. Liu, J.; Ishitani, M.; Halfter, U.; Kim, C.-S.; Zhu, J.-K. The Arabidopsis thaliana SOS2 gene encodes a protein kinase that is required for salt tolerance. Proc. Natl. Acad. Sci. USA 2000, 97, 3730–3734. [Google Scholar] [CrossRef]
  61. Liu, J.; Zhu, J.-K. A calcium sensor homolog required for plant salt tolerance. Science 1998, 280, 1943–1945. [Google Scholar] [CrossRef] [Green Version]
  62. Rubio, F.; Nieves-Cordones, M.; Horie, T.; Shabala, S. Doing ‘business as usual’ comes with a cost: Evaluating energy cost of maintaining plant intracellular K(+) homeostasis under saline conditions. New. Phytol. 2020, 225, 1097–1104. [Google Scholar] [CrossRef] [PubMed]
  63. Cuin, T.A.; Betts, S.A.; Chalmandrier, R.; Shabala, S. A root’s ability to retain K+ correlates with salt tolerance in wheat. J. Exp. Bot. 2008, 59, 2697–2706. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Gill, S.S.; Tuteja, N. Reactive oxygen species and antioxidant machinery in abiotic stress tolerance in crop plants. Plant Physiol. Biochem. 2010, 48, 909–930. [Google Scholar] [CrossRef] [PubMed]
  65. Halfter, U.; Ishitani, M.; Zhu, J.K. The Arabidopsis SOS2 protein kinase physically interacts with and is activated by the calcium-binding protein SOS3. Proc. Natl. Acad. Sci. USA 2000, 97, 3735–3740. [Google Scholar] [CrossRef] [PubMed]
  66. Sun, T.; Wang, Y.; Wang, M.; Li, T.; Zhou, Y.; Wang, X.; Wei, S.; He, G.; Yang, G. Identification and comprehensive analyses of the CBL and CIPK gene families in wheat (Triticum aestivum L.). BMC Plant Biol. 2015, 15, 269. [Google Scholar] [CrossRef] [Green Version]
  67. Zhang, H.; Feng, H.; Zhang, J.; Ge, R.; Zhang, L.; Wang, Y.; Li, L.; Wei, J.; Li, R. Emerging crosstalk between two signaling pathways coordinates K+ and Na+ homeostasis in the halophyte Hordeum brevisubulatum. J. Exp. Bot. 2020, 71, 4345–4358. [Google Scholar] [CrossRef]
  68. Blumwald, E.; Poole, R.J. Na+/H+ Antiport in Isolated Tonoplast Vesicles from Storage Tissue of Beta vulgaris 1. Plant Physiol. 1985, 78, 163–167. [Google Scholar] [CrossRef] [Green Version]
  69. Bassil, E.; Coku, A.; Blumwald, E. Cellular ion homeostasis: Emerging roles of intracellular NHX Na+/H+ antiporters in plant growth and development. J. Exp. Bot. 2012, 63, 5727–5740. [Google Scholar] [CrossRef] [Green Version]
  70. Apse, M.P.; Aharon, G.S.; Snedden, W.A.; Blumwald, E.J.S. Salt tolerance conferred by overexpression of a vacuolar Na+/H+ antiport in Arabidopsis. Science 1999, 285, 1256–1258. [Google Scholar] [CrossRef]
  71. Liu, H.U.A.; Wang, Q.; Yu, M.; Zhang, Y.; Wu, Y.; Zhang, H. Transgenic salt-tolerant sugar beet (Beta vulgaris L.) constitutively expressing an Arabidopsis thaliana vacuolar Na+/H+ antiporter gene, AtNHX3, accumulates more soluble sugar but less salt in storage roots. Plant Cell Environ. 2008, 31, 1325–1334. [Google Scholar] [CrossRef]
  72. Ohta, M.; Hayashi, Y.; Nakashima, A.; Hamada, A.; Tanaka, A.; Nakamura, T.; Hayakawa, T. Introduction of a Na+/H+ antiporter gene from Atriplex gmelini confers salt tolerance to rice. FEBS Lett. 2002, 532, 279–282. [Google Scholar] [CrossRef] [PubMed]
  73. Li, H.; Liu, Z.-N.; Li, Q.; Zhu, W.-L.; Wang, X.-H.; Xu, P.; Cao, X.; Cui, X.-Y. CBL-Interacting Protein Kinase 2 Improves Salt Tolerance in Soybean (Glycine max L.). Agronomy 2022, 12, 1595. [Google Scholar] [CrossRef]
  74. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.K. MEGA6: Molecular Evolutionary Genetics Analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [Green Version]
  75. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef] [PubMed]
  76. Li, Y.; Fang, J.; Qi, X.; Lin, M.; Zhong, Y.; Sun, L.; Cui, W. Combined Analysis of the Fruit Metabolome and Transcriptome Reveals Candidate Genes Involved in Flavonoid Biosynthesis in Actinidia arguta. Int. J. Mol. Sci. 2018, 1471–1488. [Google Scholar] [CrossRef] [Green Version]
  77. Livak, K.J.; Schmittgen, T.D. Analysis of Relative Gene Expression Data Using Real-Time Quantitative PCR and the 2−ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  78. Wang, T.; Atkinson, R.; Janssen, B. The choice of agrobacterium strain for transformation of kiwifruit. Acta Hortic. 2007, 753, 227–232. [Google Scholar] [CrossRef]
  79. Murashige, T.; Skoog, F. A Revised Medium for Rapid Growth and Bio Assays with Tobacco Tissue Cultures. Physiol. Plant 1962, 15, 473–497. [Google Scholar] [CrossRef]
  80. Su, L.; Dai, Z.; Li, S.; Xin, H. A novel system for evaluating drought-cold tolerance of grapevines using chlorophyll fluorescence. BMC Plant Biol. 2015, 15, 82. [Google Scholar] [CrossRef] [Green Version]
  81. Abdelbaki, A.; Schlerf, M.; Retzlaff, R.; Machwitz, M.; Verrelst, J.; Udelhoven, T. Comparison of Crop Trait Retrieval Strategies Using UAV-Based VNIR Hyperspectral Imaging. Remote Sens. 2021, 13, 1748. [Google Scholar] [CrossRef]
Ijms 24 00805 g001 550
Figure 1. The phylogenetic analysis of the AtCIPK and AvCIPK proteins. Each clade in the phylogenetic tree is represented by a different color. I–IV represent the different groups.
Figure 1. The phylogenetic analysis of the AtCIPK and AvCIPK proteins. Each clade in the phylogenetic tree is represented by a different color. I–IV represent the different groups.
Ijms 24 00805 g001
Ijms 24 00805 g002 550
Figure 2. Analysis of phylogenetic relationships and conserved motifs of AvCIPK proteins. The phylogenetic groups and conserved motifs are presented in different colors. I–IV represent the different groups.
Figure 2. Analysis of phylogenetic relationships and conserved motifs of AvCIPK proteins. The phylogenetic groups and conserved motifs are presented in different colors. I–IV represent the different groups.
Ijms 24 00805 g002
Ijms 24 00805 g003 550

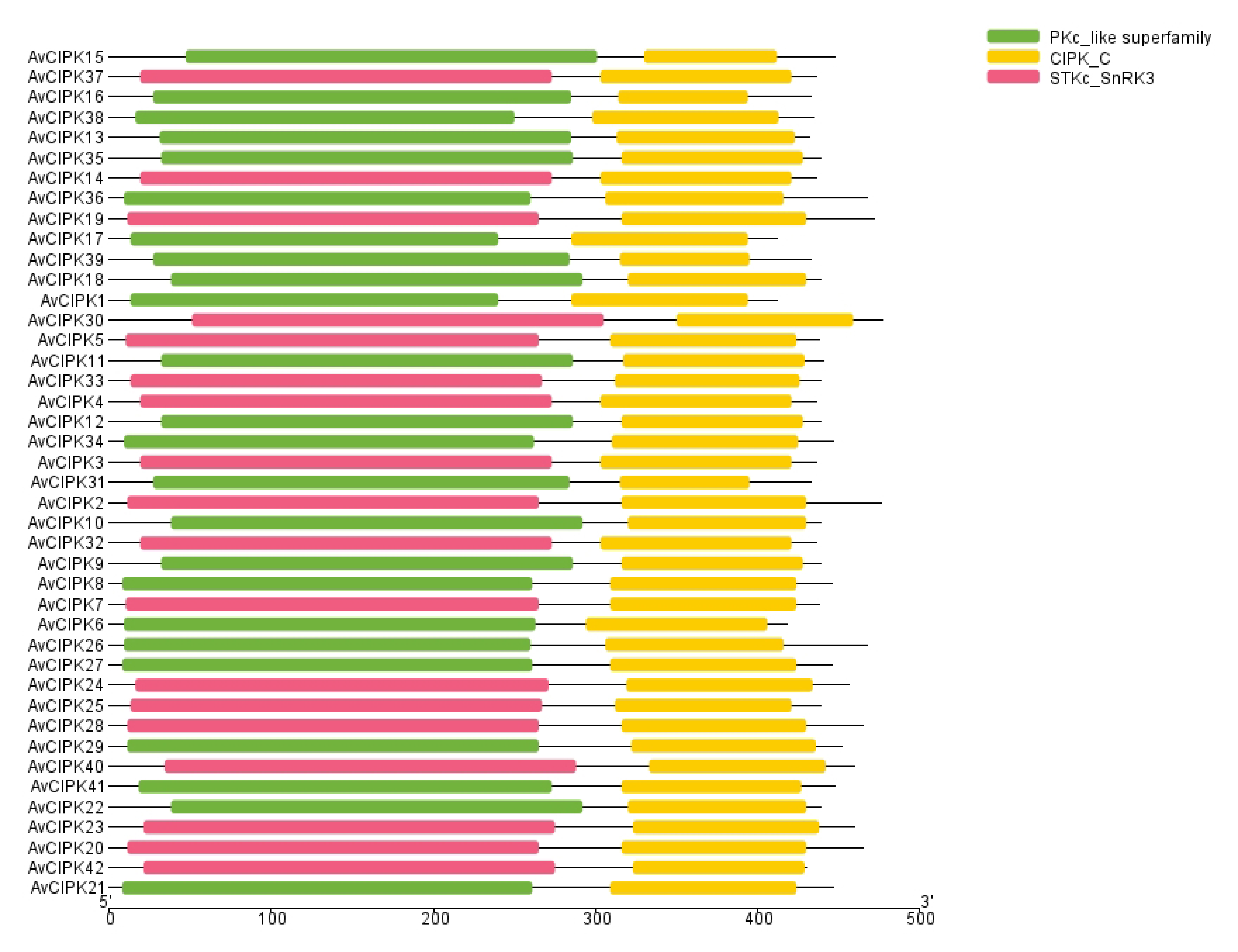

Figure 3. Identification of conserved domains in AvCIPK protein sequences.
Figure 3. Identification of conserved domains in AvCIPK protein sequences.
Ijms 24 00805 g003
Ijms 24 00805 g004 550

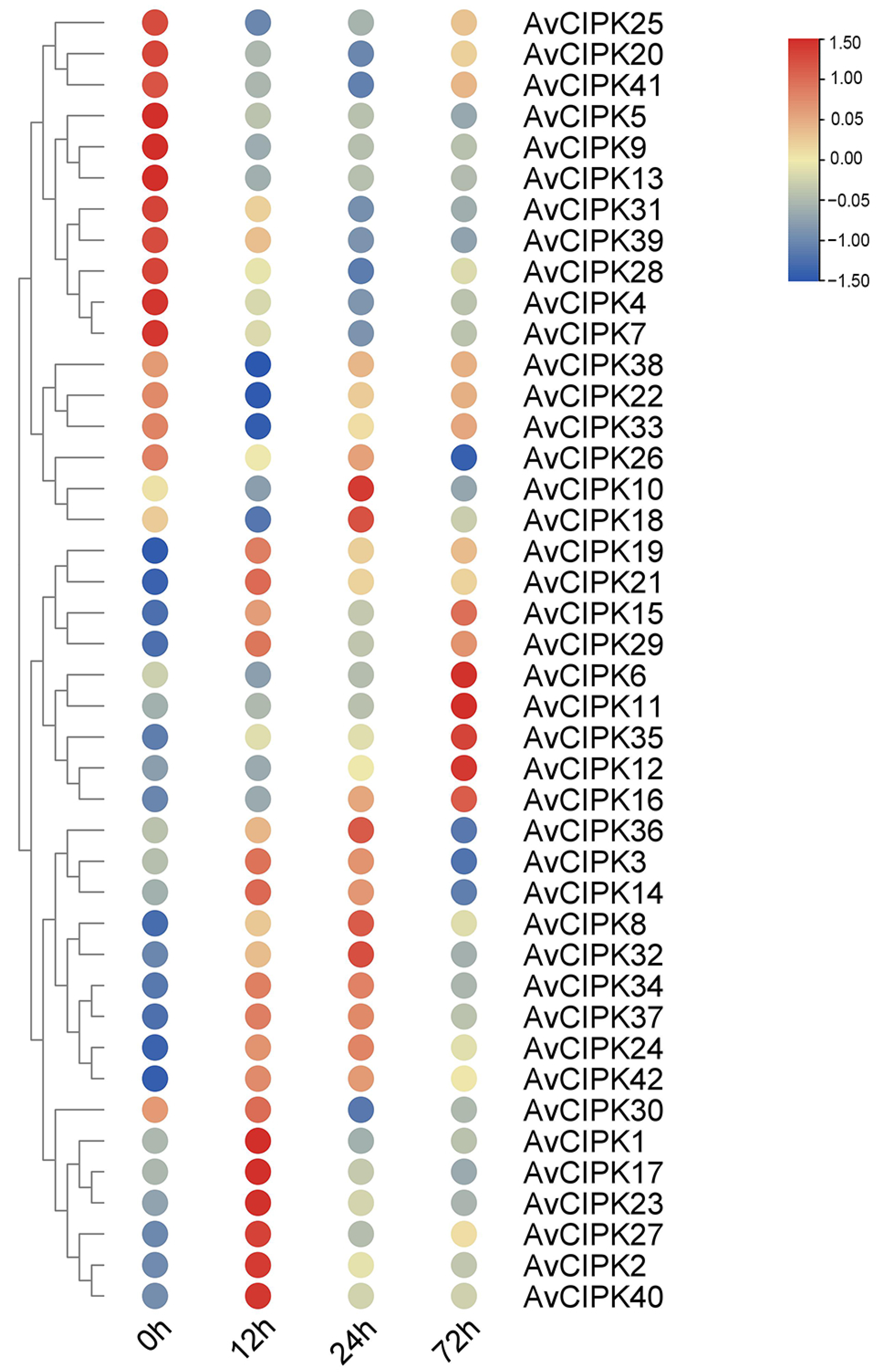

Figure 4. The heatmap for expression profile of kiwifruit CIPK family members under different time points of salt stress.
Figure 4. The heatmap for expression profile of kiwifruit CIPK family members under different time points of salt stress.
Ijms 24 00805 g004
Ijms 24 00805 g005 550
Figure 5. Subcellular localization analysis of the AvCIPK11 protein. GFP: Green fluorescence protein; CF: Chloroplast fluorescence; BF: Bright field; Merged: Merged field for GFP and CF. The scale bar was set at 20μm. Arrows represent where the protein is localized.
Figure 5. Subcellular localization analysis of the AvCIPK11 protein. GFP: Green fluorescence protein; CF: Chloroplast fluorescence; BF: Bright field; Merged: Merged field for GFP and CF. The scale bar was set at 20μm. Arrows represent where the protein is localized.
Ijms 24 00805 g005
Ijms 24 00805 g006 550
Figure 6. Identification of positive transgenic A. chinensis plants. (a) Based on the expression of GFP reporter genes in plants. (b) The PCR detection of T1 A. chinensis transgenic lines. M, 2000 bp marker; -, ddH2O; +, the recombinant plasmid containing AvCIPK11; WT, wild type kiwifruit; and #2, #6, #9, positive transgenic lines. The forward primer was designed at 5′of 35S and the reverse primer was designed at 3′of AvCIPK11. The pair of primers can be found in supplementary Table S4.
Figure 6. Identification of positive transgenic A. chinensis plants. (a) Based on the expression of GFP reporter genes in plants. (b) The PCR detection of T1 A. chinensis transgenic lines. M, 2000 bp marker; -, ddH2O; +, the recombinant plasmid containing AvCIPK11; WT, wild type kiwifruit; and #2, #6, #9, positive transgenic lines. The forward primer was designed at 5′of 35S and the reverse primer was designed at 3′of AvCIPK11. The pair of primers can be found in supplementary Table S4.
Ijms 24 00805 g006
Ijms 24 00805 g007 550
Figure 7. Functional validation of AvCIPK11 in kiwifruit under salt stress. (a) Phenotypes of WT (A. chinensis cv. ‘Hongyang’) and OE kiwifruit plants under normal and salt stress conditions. (b) Detection of chlorophyll fluorescence in WT and OE plants under different time points of salt stress. The images were take using an IMAGING-PAM chlorophyll fluorometer. (c) The SPAD value in WT and OE plants before and after salt stress treatment. (d) The Fv/Fm ratio in WT and OE plants before and after salt stress treatment. (e) The POD activity in WT and OE plants before and after salt stress treatment. (f–h) The content of leaf Na+, K+, and the ratio of Na+/K+ in WT and OE plants before and after salt stress treatment. Different letters (a–f) represent significant mean differences at p < 0.05.
Figure 7. Functional validation of AvCIPK11 in kiwifruit under salt stress. (a) Phenotypes of WT (A. chinensis cv. ‘Hongyang’) and OE kiwifruit plants under normal and salt stress conditions. (b) Detection of chlorophyll fluorescence in WT and OE plants under different time points of salt stress. The images were take using an IMAGING-PAM chlorophyll fluorometer. (c) The SPAD value in WT and OE plants before and after salt stress treatment. (d) The Fv/Fm ratio in WT and OE plants before and after salt stress treatment. (e) The POD activity in WT and OE plants before and after salt stress treatment. (f–h) The content of leaf Na+, K+, and the ratio of Na+/K+ in WT and OE plants before and after salt stress treatment. Different letters (a–f) represent significant mean differences at p < 0.05.
Ijms 24 00805 g007
Ijms 24 00805 g008 550
Figure 8. Expression analysis of AcCBL1 and AcNHX1 in OE plants. WT: ‘Hongyang’ kiwifruit; OE2, OE6, and OE9 repression the three transgene lines. Different letters (a–b) represent significant mean differences at p<0.05.
Figure 8. Expression analysis of AcCBL1 and AcNHX1 in OE plants. WT: ‘Hongyang’ kiwifruit; OE2, OE6, and OE9 repression the three transgene lines. Different letters (a–b) represent significant mean differences at p<0.05.
Ijms 24 00805 g008
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gu, S.; Abid, M.; Bai, D.; Chen, C.; Sun, L.; Qi, X.; Zhong, Y.; Fang, J. Transcriptome-Wide Identification and Functional Characterization of CIPK Gene Family Members in Actinidia valvata under Salt Stress. Int. J. Mol. Sci. 2023, 24, 805. https://doi.org/10.3390/ijms24010805

AMA Style

Gu S, Abid M, Bai D, Chen C, Sun L, Qi X, Zhong Y, Fang J. Transcriptome-Wide Identification and Functional Characterization of CIPK Gene Family Members in Actinidia valvata under Salt Stress. International Journal of Molecular Sciences. 2023; 24(1):805. https://doi.org/10.3390/ijms24010805

Chicago/Turabian Style

Gu, Shichao, Muhammad Abid, Danfeng Bai, Chen Chen, Leiming Sun, Xiujuan Qi, Yunpeng Zhong, and Jinbao Fang. 2023. "Transcriptome-Wide Identification and Functional Characterization of CIPK Gene Family Members in Actinidia valvata under Salt Stress" International Journal of Molecular Sciences 24, no. 1: 805. https://doi.org/10.3390/ijms24010805

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
