Mutant lpa1 Analysis of ZmLPA1 Gene Regulates Maize Leaf-Angle Development through the Auxin Pathway

by
Xiangzhuo Ji
1,2,3,†,
Qiaohong Gao
1,†,
Fenqi Chen
1,2,3,
Mingxing Bai
1,2,3,
Zelong Zhuang
1,2,3 and
Yunling Peng
1,2,3,*
1
College of Agronomy, Gansu Agricultural University, Lanzhou 730070, China
2
Gansu Provincial Key Laboratory of Aridland Crop Science, Gansu Agricultural University, Lanzhou 730070, China
3
Gansu Key Laboratory of Crop Improvement & Germplasm Enhancement, Lanzhou 730070, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(9), 4886; https://doi.org/10.3390/ijms23094886
Submission received: 9 March 2022 / Revised: 6 April 2022 / Accepted: 25 April 2022 / Published: 28 April 2022
(This article belongs to the Topic Plant Functional Genomics and Crop Genetic Improvement)
Browse Figures
Review Reports Versions Notes

Abstract

:
Maize plant type is one of the main factors determining maize yield, and leaf angle is an important aspect of plant type. The rice Loose Plant Architecture1 (LPA1) gene and Arabidopsis AtIDD15/SHOOT GRAVITROPISM5 (SGR5) gene are related to their leaf angle. However, the homologous ZmLPA1 in maize has not been studied. In this study, the changing of leaf angle, as well as gene expression in leaves in maize mutant lpa1 and wild-type ‘B73’ under different IAA concentrations were investigated. The regulation effect of IAA on the leaf angle of lpa1 was significantly stronger than that of the wild type. Transcriptome analysis showed that different exogenous IAA treatments had a common enrichment pathway—the indole alkaloid biosynthesis pathway—and among the differentially expressed genes, four genes—AUX1, AUX/IAA, ARF and SAUR—were significantly upregulated. This study revealed the regulation mechanism of ZmLPA1 gene on maize leaf angle and provided a promising gene resource for maize breeding.

1. Introduction

Maize (Zea mays L.) is the most productive crop in the world. In addition to being used for food, maize is mainly used as feed and for industrial raw materials, and it occupies a pivotal position in the world economy [1]. High yield has always been the goal of crop-industry development, and plant type is one of the important determinants in maize yield [2,3]. Leaf angle is a crucial aspect of plant type, and analysis of the cloning and molecular mechanism of leaf-angle-related genes is the basis for the ideal plant-type breeding of maize [4,5,6,7]. Different plant types affect the light distribution and light-energy utilization in the canopy of the population, and this ultimately affects the yield [7,8]. A complete maize leaf consists of three parts: the leaf blade, leaf pillow (including leaf tongue and leaf ear) and leaf sheath. The acute angle between the leaf and the main stem is the leaf angle. According to the difference in leaf angle, maize plant types are divided into three types, namely compact type, intermediate type and flat type [9]. The leaf angle is one of the main morphological indicators to measure the compactness of maize [8,10]. There is a correlation between the maize leaf angle and yield: the smaller the upper leaf angle, the lower the light-interception ability, which is beneficial to the middle leaf for receiving light, improving the production and accumulation of dry matter, and then increasing the yield [11].
Previous studies found that leaf-angle development is jointly regulated by a variety of plant hormones, and auxin plays a crucial role in regulating leaf-angle formation [12]. Indole-3-acetic acid (IAA) is the main form of auxin in maize, which mainly regulates apical dominance, root heaviness, promotion of cell elongation, inflorescence formation and embryo development [13]. Studies have found that an appropriate level of auxin plays an important role in the normal development of leaf primordium (leaf primordium) and the formation of leaves. The polar transport of auxin triggers the formation of shoot apical meristem (SAM) leaves [14]. In maize, inhibiting the transport of auxin will destroy the production of new leaves, affecting the growth of existing leaves and the formation of leaf edges. Guxin-Amino Synthetase 3 (GH3) is an early auxin-responsive gene widely present in plants [15]. In rice, OsGH participates in the microRNA-mediated auxin signal-transduction pathway and maintains the homeostasis of auxin [16,17]. In the rice mutant leaf inclination1 (lc1-D), the content of free auxin is reduced, showing a phenotype of increased leaf angle [18]. Rice LAZY1 regulates the polar transport of auxin. Corresponding rice and Arabidopsis lazy mutants both exhibit a weakened aerial gravitational response and an increase in tiller and leaf angles [19,20,21].
Ku et al. used inbred lines Yu 82 and Shen 137 to construct an F2:3 family and located the ZmTAC1 gene that regulates leaf angles in the qLA2 region of the second chromosome by the CAP marker method. The nucleic acid sequence of the two parents is different at the 5′-UTR end, and its ‘CTCC’ becomes ‘CCCC’, which affects the expression level of ZmTAC1, thereby further affecting the size of the leaf angle [22]. Juarez et al. found that mutants rld1 and lbl1 showed paraxial/upward leaf morphology. By cloning the genes corresponding to these two mutants, it was found that rld1 encodes a HD-ZIPIII protein, and the semidominant Rldl-O mutant caused continuous expression of the distal transcript due to a base substitution at the miR166 complementary site, causing the blade to deflect to the proximal end [23]. Zhang et al. localized the ZmCLA4, which controls leaf angle, to the qLA4-1 region by fine positioning. ZmCLA4 is a homologous gene of LAZY1 in rice and Arabidopsis; the accumulation of ZmCLA4 mRNA is negatively correlated with the change in leaf angle, and then negatively regulates the development of the leaf angle [24]. Josh et al. found that drl1 mutants exhibited leaf-drooping morphology, and drl1 mutations affected leaf length, width and leaf angle [25].
At present, LPA1 has been reported to regulate leaf angle in rice; it specifically regulates the gravitational response of rice, which increases the tillering angle and leaf angle, resulting in a loose rice plant. LPA1 is the functional ortholog of AtIDD15/SGR5, but with distinct features [26,27]. However, ZmLPA1 as a homologous gene of LPA1 has not been reported in maize, and the mechanism of regulating plant type has not been studied. In this paper, we obtained the ZmLPA1 mutant lpa1 by EMS mutagenesis of wild-type B73, which displays a relatively larger leaf angle, maize mutant lpa1 and wild-type ‘B73’ were analyzed using RNA-Seq sequencing, aiming at clarifying the molecular mechanism of the ZmLPA1 gene regulation leaf angle in maize.

2. Results

2.1. Identification of ZmLPA1 Gene

The ZmLPA1 gene sequence (LOC103633308) was obtained from the NCBI database. The gene is located on maize chromosome 1. The full-length gene sequence is 2120 bp, including a 5′-UTR of 375 bp and a 3′-UTR of 387 bp. The cDNA sequence is 1359bp, encoding 452 amino acids. By comparing the DNA and cDNA sequences, it was found that the full length of the gene consists of three exons and two introns. The mutation position of the mutant lpa1 occurred at the 691st base of the ZmLPA1 gene sequence, and a T-C base was replaced to mutate cysteine (Cys) to arginine (Arg), Mutations lpa1 in the ZmLPA1 gene lead to changes in leaf angle in wild-type B73 maize. (Figure 1A). The protein sequence of ZmLPA1 was analyzed by Blastp in GeneBank, and it was found that it has high homology with the protein sequences of Panicum hallii, Panicum miliaceum, Dichanthelium oligosanthes, Setaria italica, Sorghum bicolor, Hordeum vulgare, Aegilops tauschii, Brachypodium distachyon, Oryza sativa, Glycine max, Phoenix dactylifera and Elaeis guineensis. The above plant-protein sequences were compared by MEGA7.0 software, and then a phylogenetic tree was constructed. The results showed that a variety of ZmLPA1 homologous protein sequences were found, which were widely distributed in angiosperms, indicating that the ZmLPA1 may originate in angiosperms. After the emergence of plants, it has specific effects on higher plants. The ZmLPA1 was divided into two branches between dicotyledonous and monocotyledonous plants, and it could be seen that ZmLPA1 was most closely related to maize (GRMZM2G074032) and sorghum (XP_021312760.1) (Figure 1B). To clarify the expression specificity of the ZmLPA1 in different maize tissues, the expression patterns of the ZmLPA1 in maize root, stem, leaf, ear and tassel were detected by qPCR technology. The results showed that the expression patterns of the ZmLPA1 in maize tissues were different. The highest expression level was in maize roots, which was more than 5 times that of other tissues and organs. There may be a close relationship between the ZmLPA1 and auxin in the process of maize growth and development (Figure 1C).

2.2. Phenotype Identification of Maize Mutant lpa1

The phenotypic analysis of the mutant lpa1 and its wild-type B73 showed that the mutant has phenotypic variation in various organs (Figure 2 and Figure 3). On the whole, the whole plant type of the mutant is quite different from the wild type. Compared with the wild type, the height of the mutant is significantly lower than that of the wild type. From the trumpet stage, the leaf angle is significantly different; the leaf angle of the mutant is larger than that of the wild type. When the leaf angle of the mutant is 45.3° while that of the wild type is only 30.1°, the main stem and leaf ears of the mutant are red, the number of tassel branches of the mutant is significantly reduced, and the pollen vigor is weak. In addition, the mature ears of the mutant become smaller, and the grains are oblate and smaller. When the maize grows to the pollination period, the plant types of the mutant and the wild type are measured, it mainly records the indexes of three-ear leaves, and the average value of each index of three-ear leaves represents the indexes of the whole plant. Compared with the wild type, the leaf length and height point length of the mutant lpa1 are shorter, and the leaf width is narrower, but the height difference is significant; the leaf angle of the mutant lpa1 is 38.94° while the leaf angle of the wild type is 33.19°, significantly increased; the leaf spacing of the mutant lpa1 is 17.06 cm, while that of the wild type is 12.32 cm, and the leaf orientation value of the mutant lpa1 is significantly smaller than that of the wild type (Table 1).

2.3. Analysis of Agronomic Characters of Maize Mutant lpa1

The survey results of agronomic characteristics of wild-type B73 and mutant lpa1 are shown in Table 2. The plant height of mutant lpa1 is 222.66 cm, wild-type B73 is reduced by 5.56%, and the plant height is significantly shorter; the ear position of the mutant is significantly lower than wild-type B73, the bottom was reduced by 18.99%; the number of tassel branches, the total tassel length, the tassel branch length, the panicle length and the panicle thickness of the mutant were compared with the wild type, except that there was no significant difference in panicle thickness. The mutants were significantly reduced by 53.57%, 24.25%, 40.61% and 26.17%, respectively. The single-ear weight, ear weight, seed setting rate and 100-kernel weight of the mutant were significantly lower than those of the wild type, and they were reduced by 54.13%, 60.21%, 13.26% and 34.19%, respectively. The various agronomic traits of the mutant and the wild type varied greatly.

2.4. Screening of the Optimal Concentration of Exogenous Hormones

The leaf angle is affected by many factors and is more sensitive to external signals. Both light and plant hormones may change the leaf angle. Current studies believe that the leaf angle is mainly related to plant hormones, and auxin plays an important role in the formation of leaf angles. Therefore, an auxin response analysis experiment was carried out on wild-type B73 and mutant lpa1. Two materials of three leaves and one heart stage were treated with different concentrations of hormones to analyze the effects of different concentrations of hormones on the size of the leaf angle. As the concentration of exogenous IAA increased, the leaf angles of wild-type and mutant became larger; when the concentration of IAA increased to 100 μmol·L−1, the wild-type leaves’ angles continued to increase, while the mutant’s gradually decreased. This indicates that lpa1 is less sensitive to IAA (Figure 4A). Under the treatment of 100 μmol·L−1 IAA, the leaf angle of wild-type B73 was 39.6°, and the leaf angle of mutant lpa1 was 60.6°. Source 100 μmol·L−1 IAA has the best effect on lpa1. Under the treatment of 500 μmol·L−1 IAA, the leaf angle of wild-type B73 was 50.3°, and the leaf angle of mutant lpa1 was 44.9°, which reached the maximum, and the difference between wild type and mutant was 5.4°. It can be concluded that the exogenous 100 μmol·L−1 IAA has the best effect on the wild type (Figure 4B).

2.5. Upset Plot Analysis of DEGs in B73 and lpa1 under Different Concentrations of IAA

To study the change of leaf angle between wild-type B73 and mutant lpa1 under different concentrations of exogenous IAA treatment, we determined the DEGs under these conditions ((|Fold-change in expression| >1 and p-value < 0.05). Using FPKM as a measure of gene expression, a total of 10,958 and 7090 were identified in wild-type B73 and mutant lpa1 under two concentrations of 100 μmol·L−1 IAA and 500 μmol·L−1 IAA DEGs (Figure 5). The Upset plot reflects the distribution of upregulation and downregulation of DEG in wild-type B73 and mutant lpa1 under IAA treatment compared with CK treatment. At 100 μmol·L−1 under IAA treatment, compared with CK, 7522 DEGs (1733 upregulated and 5789 downregulated) were identified in wild-type B73 (Table S1), and 3269 DEGs were identified in mutant lpa1 (364 upregulated and 2905) downregulated (Table S2). Compared with CK, 7700 DEGs (2529 upregulated and 5171 downregulated) were identified in wild-type B73 under 500 μmol·L-1 IAA treatment (Table S3), and in the mutant lpa1, 5831 DEGs were identified (1766 upregulated and 4065 downregulated) (Table S4). In the comparison of B73-CK vs. B73-100 and B73-CK vs. B73-500, a total of 2273 DEGs were identified. In the comparison of lpa1-CK vs. lpa1-100 and lpa1-CK vs. lpa1-500, 1017 DEGs were identified. At two IAA-treatment concentrations, a total of 516 DEGs were identified in wild-type B73 and mutant lpa1. These shared DEGs may play an important role in the adjustment of leaf angle in response to exogenous IAA in maize, reflecting the difference between the mutant lpa1 and wild-type B73 has a difference in response to exogenous IAA.

2.6. Gene-Ontology Classification of DEGs in the Leaf Angle between B73 and lpa1 under Different IAA Concentrations

We used the gene-ontology (GO) function annotation to analyze all DEGs and divide them into biological processes, cellular components and molecular functions (Figure 6). Under 100 μmol·L−1 IAA treatment, the GO terms of DEGs in wild-type B73 were mainly annotated as cellular-component organization or biogenesis, cell-wall organization or biogenesis and cellulose synthase activity, and the GO terms of DEGs in mutant lap1 were mainly annotated as cellular-component organization or biogenesis, cell-wall organization or biogenesis and external encapsulating-structure organization. Under the treatment of 500 μmol·L−1 IAA, the GO terms of DEGs in wild-type B73 mainly annotated catalytic activity, carbohydrate metabolic process, and intrinsic components of membrane. The GO terms of DEGs in mutant lap1 were mainly annotated as cellular-component organization or biogenesis, cell-wall organization or biogenesis and external encapsulating-structure organization. This indicates that under the condition of exogenous IAA treatment, maize can regulate the change in leaf angle by regulating its cellular-component organization, cellular-component biogenesis, cell-wall organization and cell-wall biogenesis mechanism.

2.7. Pathway Enrichment Analysis of B73 and lpa1 at Different IAA Concentrations

We performed pathway enrichment analysis on all DEGs in wild-type B73 and mutant lpa1, and selected the top 20 metabolic pathways from each comparison (Figure 7). The DEG identified from the comparison of B73-CK vs. B73-100 and lpa1-CK vs. lpa1-100 is commonly enriched in indole alkaloid biosynthesis, starch and sucrose metabolism, diterpenoid biosynthesis, and plant–pathogen interaction pathways. The DEG identified from the comparison of B73-CK vs. B73-500 and lpa1-CK vs. lpa1-500 is commonly enriched in plant–pathogen interaction, starch and sucrose metabolism, indole alkaloid biosynthesis and flavone and flavonol biosynthesis pathways. Under IAA treatment, DEGs were enriched in metabolism, genetic information processing, organic systems, organic systems and environmental information processing of wild-type B73 and mutant lpa1. In the comparison of B73-CK vs. lpa1-CK, it was found that the common enrichment pathway of DEG and IAA-treated KEGG was indole alkaloid biosynthesis. We speculate that the indole alkaloid biosynthesis enrichment pathway related to the ZmLPA1 gene can regulate the size of the maize leaf angle.

2.8. Transcription-Factor Family Analysis

Transcription factors, also known as trans-acting factors, regulate gene expression at the transcriptional level and are proteins with special structures that can regulate plant growth and development. RNA-seq results showed that many TFs were differentially regulated under IAA treatment. Here, we only show TF families with more than three DEGs (Figure 8, Table S4). We found that 30 families of TF were differentially regulated in wild-type B73 and mutant lap1 under IAA treatment. The top five TF families of DEGs are AP2-EREBP, bHLH, MYB, NAC and WRKY. The AP2-EREBP transcription factor is associated with plant-hormone signal transduction and MAPK signaling, the bHLH transcription factor is associated with plant-hormone signal transduction and MAPK signaling, the MYB transcription factor is associated with protein processing in the endoplasmic reticulum, and the WRKY transcription factor associated with the MAPK signaling pathway is related; we speculate that under the influence of exogenous IAA, maize can regulate the leaf angle through plant-hormone signal transduction, MAPK signaling and protein processing in endoplasmic reticulum-related transcription factors.

2.9. Validation of DEGs by qRT-PCR Analysis

In order to evaluate the reliability of the gene-expression profile of wild-type B73 and mutant lpa1 in response to exogenous IAA under normal conditions and after the addition of different concentrations of exogenous IAA, qRT-PCR was used to verify the reliability of the gene-expression profile at 100 μmol·L−1 IAA and 500 μmol·L−1. The eight genes Zm00001d022388, Zm00001d026645, Zm00001d029366, Zm00001d042695, Zm00001d011086, Zm00001d053376, Zm00001d034298 and Zm00001d028662 were up-regulated in wild-type B73 and mutant lpa1 at two concentrations of IAA (Figure 9). We found that the expression levels of wild-type B73 and mutant lpa1 treated with different IAA concentrations of these eight genes are consistent with the transcriptome-sequencing results, indicating that our RNA-seq data is reliable.

3. Discussion

3.1. Functional Study of ZmLPA1 in Maize

Using ClustalW software to perform multiple alignments of ZmLPA1 amino acid se-quences, it was found that the ZmLPA1 gene in maize encodes a zinc-finger protein. which contains a plant-specific IDD domain, and the protein of this gene is named ZmIDD16/SGR5. The protein is connected to four different zinc-finger protein domains at the N-terminus, namely ZF1, ZF2, ZF3 and ZF4, which have conserved nuclear localization signals. These results indicate that ZmLPA1 belongs to the C2H2 transcription-factor-gene family. Using ProtComp v.9.0 to predict the subcellular localization of the ZmLPA1 gene, the results show that ZmLPA1 protein is localized in the nucleus, which is similar to the results of Wu et al. [26]. Bioinformatics analysis found that there are at least 20 ZmIDD genes in maize, at least 15 OsIDD genes in rice, and at least 16 AtIDD genes in Arabidopsis [5]. In Arabidopsis, AtIDD3/MAGPIE, AtIDD10/JACKDAW and AtIDD8/NUTCRACKER are involved in root development [28]. AtIDD8 also regulates photoperiod flowering by regulating sucrose transport and metabolism [29]. AtIDD1/ENHYDROUS promotes seed germination by regulating the light and hormone signals during seed maturation [30]. AtIDD5 actively regulates starch synthesis and regulates flower development. AtIDD4 and AtIDD6 regulate the synthesis of gibberellin. AtIDD15/SGR5 is mainly expressed in the endothelium of the inflorescence stem and participates in the regulation of the early gravity response of Arabidopsis inflorescence [31]. In rice, three independent studies have shown that OsID1 plays a decisive role in the flower development of rice [32,33]. Studies have found that the OsIDD14/LPA1 is a functional homologous gene of AtIDD15/SGR5 in Arabidopsis [26].

3.2. Plant-Type Characteristics of Mutant lpa1

In this study, a mutant lpa1 with increased leaf angle was selected from the wild-type B73 maize mutant library mutagenized by EMS. The plant height of the mutant lpa1 was significantly lower than that of the wild-type B73. From the great bell-mouth stage, the leaf angle was significantly different and the leaf angle of the mutant was larger than that of the wild type. The main stem and leaf ears of the mutant were red, the number of tassel branches was significantly reduced, the pollen vigor was weak, the mature ears of the mutants became smaller and the grains were oblate and smaller. Compared with the wild type, the leaf length and height point length of the mutant were shorter and the leaf width was narrower, but the difference in height point length was significant. The leaf spacing of the mutant was significantly longer and the leaf direction value was significantly smaller than that of the wild type. The survey results of agronomic traits showed that the mutant plant height, ear height, tassel branch number, tassel principal axis length, tassel branch length, ear length, single-ear weight, ear grain weight, seed setting rate and 100-kernel weight were significantly reduced, and there was no significant difference in ear thickness. The study found that the mutant drl1 exhibited leaf drooping. The mutation of the drl1 gene affected the length, width and angle of the leaf. The study showed that the drl1 gene controls the development of key agronomic traits in maize [25]. The mutant ila1 with increased leaf angle was obtained by T-DNA. The increase in leaf angle of ila1 was caused by the decrease in the mechanical strength of the leaf occipital part [34]. Studying the leaf photosynthetic characteristics of the ear position found that the height of the ear position of maize hybrids has the greatest influence on the grain weight per ear, followed by traits such as leaf length, leaf size and photosynthetic efficiency [35].

3.3. The Effect of Exogenous IAA on Maize Leaf Angle

Leaf occipital is a key factor that affects the formation of the leaf angle. Changing the cell division and cell elongation of the leaf occipital part will result in a change in the size of the leaf angle. Both external factors and internal growth regulators (such as hormones, cell-cycle regulators, cell-wall-modifying genes, etc.) can ultimately affect the size of the leaf angle by regulating cell division and cell elongation [36]. The main purpose of this study is to explore the regulation mechanism of plant hormones on maize mutant lpa1 leaf angle, treat maize wild-type B73 and mutant lpa1 with exogenous IAA and clarify that IAA regulates the development of leaf angles by controlling cell elongation or cell division in the occipital region of the leaf. The optimal hormone-concentration screening results showed that the leaf angle of the mutant lpa1 increased first and then decreased with the increase in IAA concentration, and the leaf angle was the largest under the treatment of 100 μmol·L−1 IAA. The leaf angle of wild-type B73 increases with the increase in IAA concentration. Based on the results of cytological analysis, it is speculated that high concentrations of IAA may inhibit cell elongation and cell division in the occipital region of the mutant, and the appropriate concentration of IAA may increase the leaf angle of maize by regulating cell elongation and cell division in the occipital region.

3.4. Differentially Expressed Genes Comparison and GO Function Analysis

Through the statistics and comparison of the number of differentially expressed genes between different comparison groups, it was found that under exogenous hormone treatment, the number of differential genes in the wild type was more than that in mutants, and under exogenous hormone treatment, compared with the control, the number of downregulated genes in the material is greater than the number of upregulated genes, which is similar to the results of Liu et al. [27]. This study found that under the same concentration of exogenous IAA, the number of differentially expressed genes between the materials was higher, which was directly related to the mutation of ZmLPA1. GO annotation analysis of differential genes in different comparison groups showed that the differentially expressed genes in different comparison groups of the two materials were mainly enriched in the three biological processes of cellular processes, metabolic processes, and biological regulation, and were mainly enriched in cells and membranes. Among the four-cell components, membrane part and organelle, the number of corresponding differential genes is quite different in the molecular functions that are mainly enriched in catalytic activity and binding. Overall, by comparing the comparison group of mutant lpa1 and wild-type B73 materials under the same treatment, it is found that the number of differentially expressed genes enriched in the above process under the exogenous IAA treatment is higher than the number of differentially expressed genes under the control condition, indicating that exogenous IAA can change the expression pattern of most genes, thereby regulating the size of the leaf angle.

3.5. Analysis of Differential Genes Related to Maize Leaf Angle under Different Concentrations of Exogenous IAA Treatment

This study is based on the results of pathway enrichment analysis and the series test of Cluster transcriptome sequencing. Seven candidate genes related to leaf angle were screened under the conditions of |log2FC| > 1 and p < 0.001; the study found that the expression of replication licensing factor MCM7 homologue9 (gi|542504|) was downregulated under the treatment of exogenous 100 μmol·L−1 IAA, but not under the treatment of exogenous 500 μmol·L−1 IAA, which indicates that the gene is under low-concentration IAA treatment and its expression level is downregulated, thereby promoting the growth and elongation of maize leaf cells, which may lead to an increase in leaf angle. Three genes are related to leaf growth and development. Plant-specific domain TIGR01627 family (gi|100282024|) was downregulated under the treatment of exogenous 500 μmol·L−1 IAA. It is a transcription factor that regulates plant growth and development. The connection is not yet clear, and further research is needed. Fasciclin-like arabinogalactan protein 11 (gi|103643069|) was downregulated under the treatment of exogenous 100 μmol·L−1 IAA, but not under the treatment of exogenous 500 μmol·L−1 IAA. It may be that the gene is more sensitive to IAA. It is expressed only when treated with an appropriate concentration of IAA, which mainly regulates the integrity of Arabidopsis cell wall, root growth and stem development, which may be related to leaf angle. Auxin response factor 15 (gi|103630727|) was downregulated under the treatment of exogenous 500 μmol·L−1 IAA, indicating that high concentrations of IAA inhibited the expression of this gene. It is speculated that auxin response factor 15 is positively correlated in auxin response. This study found three genes related to the auxin signal-transduction pathway, Auxin response factor 8 (gi|100194200|) was treated with 100 μmol·L−1 IAA. The expression was downregulated. The overexpression of this gene in Arabidopsis affects the elongation of the hypocotyl and the growth habit of the root system, indicating that it may participate in the dynamic balance of auxin under light conditions. Auxin response factor 4 (gi|100383226|) was downregulated under the treatment of exogenous 100 μmol·L−1 IAA. This gene regulates the growth of seedlings under light conditions by regulating auxin biosynthesis and auxin signal transduction and participates in it. The shade-avoidance-syndrome reaction may affect the size of the leaf angle, which is similar to the results of Hornitschek et al. [37]. The expression of Auxin response factor 16 (gi|100280136|) was downregulated under the treatment of exogenous 500 μmol·L−1 IAA, indicating that high concentrations of IAA inhibited the expression of this gene, weakened the cell division ability, and ultimately reduced the leaf angle. How the new genes discovered in the study respond to exogenous hormones to regulate the developmental mechanism of leaf angles remains to be further studied.

3.6. The Effect of ZmLPA1 on Maize Auxin Signal-Transduction-Related Genes

The development of the leaf angle is regulated by a variety of factors, and plant hormones play an important role in regulating leaf-angle development—especially auxin, which is very important for the regulation of leaf angle. AUX is the earliest discovered hormone with polar-transport characteristics. IAA is the main form of auxin, which can maintain the apical advantage of plants, promote cell elongation, root geotropism, embryo and endosperm development, etc. [12,38]. Auxin starts with tryptophan as a substrate and is synthesized through multiple pathways, the most important of which is the indole-3-pyruvate (IPA) synthesis pathway [39], It is mainly responsible for tryptophan aminotransferase TAA1 and flavin monooxygenase YUCCA [40,41]. We analyzed the pathway enrichment analysis of B73 and lpa1 at different IAA concentrations and found that the common enrichment pathway of KEGG is indole alkaloid biosynthesis; in the process of ZmLPA1 expression pattern, we found that its gene expression pattern is positively correlated with the concentration of AUX, we speculate that ZmLPA1 in plants may be related to the synthesis and transportation of AUX. Among the differentially expressed genes between mutant lpa1 and wild-type B73, we found that the four types of genes that regulate AUX1, AUX/IAA, ARF, and SAUR, were significantly upregulated. The AUX1 cotransporter is responsible for the influx transport of auxin from extracellular to intracellular [42]; AUX/IAA and auxin response factor (ARF) form a dimer, thereby inhibiting the transcriptional regulatory function of ARF exercise. ARF-type transcription factors can bind to the cis-acting elements of auxin-induced genes to regulate their transcriptional expression [43]. Small auxin-up RNA (SAUR) is a fast-response gene for auxin, among which SAUR19 and SAUR63 have been found to be positive regulators of cell growth [44]. We speculate that ZmLPA1 is related to the synthesis of maize AUX, and the mutant lpa1 can respond more positively to exogenous IAA, increase the cell volume of the ears of maize and increase the angle of maize leaves (Figure 10).

4. Materials and Methods

4.1. Plant Materials and Planting Conditions

Mutant lpa1 (EMS3-003c97) related to the expression of maize leaf angle was obtained from the maize EMS mutant library of Qilu Normal University (http://elabcaas.cn/memd/, accessed on 17 April 2021). The mutant lpa1 was planted in the experimental field of Gansu Agricultural University; we used mutant lpa1 to continuously backcross B73 for 2 generations and then self-brought for one generation to clear the mutant background, and we used the Sanger Method to preserve the mutated sites during background removal and observe mutant phenotypes. B73 germplasm material was provided by the Maize Breeding Research Group of the Agricultural College of Gansu Agricultural University. The experiment was carried out at the Gansu Provincial Key Laboratory of Aridland Crop Science, Gansu Agricultural University.

4.2. Mutant Phenotype Identification

We observed the morphology of the mutant and wild-type plants, and took pictures of the parts with obvious differences. During the pollination period, we measured the plant height, ear height and tassel-branch length of the mutant and wild type; measured the leaf length, leaf width, leaf angle, height point length and leaf spacing of three clover leaves during the pollination period; and measured the number of tassel branches. Agronomic traits such as ear length, ear row number, row grain number, single-ear weight, seed setting rate and 100-seed weight were determined.

4.3. Data Analysis

All data were analyzed using Microsoft Office 2019 and SPSS19.0 statistical software, and Duncan’s was used to analyze significant differences between the treatments, with three replicates for each treatment.
The gene sequence and amino-acid sequence were obtained using the NCBI (https://www.ncbi.nlm.nih.gov, accessed on 11 March 2021) database, and the subcellular localization was performed using the online program ProtComp v.9.0 (http://linux1.softberry.com, accessed on 11 January 2022). For prediction, ClustalW (https://www.ebi.ac.uk/Tools/msa/clustalw2, accessed on 12 January 2022) performed multiple alignments of amino-acid sequences; phylogenetic trees were constructed using MEGA7.0 software.
A series of quality-control steps were performed on the raw reads obtained by sequencing. The following reads were removed: reads containing adaptor sequences; reads with an unknown base number greater than 5% of the total sequence length; reads with Q ≤ 15; and reads where the base number accounts for more than 20% of the total read base number of the reads. Then, the clean reads for each sample were aligned to the third version of the B73 maize reference genome (http://ftp.maizesequence.org, accessed on 15 October 2021) using HISAT software [45]. Gene expression levels were determined using RSEM software [46]. DEGs were identified as described by Audic et al. [47]. DEG was defined as p-value < 0.05 and false discovery rate ≤ 0.001 compared to CK > 1 or <−1. The functional annotations of the selected DEGs in the GO database were determined using WEGO software [48]. The metabolic pathways enriched in DEGs were determined using the Kyoto Encyclopedia of Genes and Genomes pathway database (https://www.genome.jp/kegg/kegg1.html, accessed on 15 January 2022).

4.4. Extraction of Total RNA and Synthesis of First Strand cDNA

The total RNA from the leaf occipital part of maize B73 at the V3 stage was extracted, and the extraction procedure was carried out according to the instructions of Pure Plant Kit (DP423) of TIANGEN Biotech (Beijing, China) Co., Ltd. RNAprep (Beijing, China). The synthesis of the first strand of cDNA was carried out according to the instruction of FastKing RT Kit (With gDNase) (KR116) of Biotech (Beijing, China) Co., Ltd.

4.5. PCR Amplification of ZmLPA1 and Sequencing of the Product

Using Primer Premier 5.0 software, the primer sequences of ZmLPA 1(GRMZM2G465595) were: F-GGCCAGGACTCCCTTAAAAGAA, R-ATGAACTATGCATGGCAATGGC. Using wild-type B73 cDNA as a template, PCR amplification was carried out with the Easy Taq enzyme. The reaction system (20 μL) was as follows: Easy Taq 10 μL, ddH2O 7 μL, forward and reverse primers 1 μL each, and cDNA template 1 μL. Amplification conditions were as follows: pre-denaturation at 94 °C for 4 min, 94 °C for 1 min, 56 °C for 30 s, 72 °C for 1 min; after 35 cycles, extension at 72 °C for 10 min. We sent the PCR-amplification products to Xi’an Tsingke Company for sequencing.

4.6. Bioinformatics Analysis of ZmLPA1

We used the NCBI database to find the gene sequence and amino-acid sequence encoded by ZmLPA1; DNAMAN software to analyze ZmLPA1 sequence and sequence alignment; ClustalW program to perform multiple alignments of amino acid sequences; and MEGA7.0 software to construct multiple alignment results generated by ClustalW Phylogenetic tree.

4.7. Material Hormone Treatment

We used vermiculite to plant maize seeds in a flowerpot with a diameter of 10 cm. The flowerpot was placed in a light incubator (28 °C, 65% RH, 14 h, 8000 Lux, 25 °C, 65% RH, 10 h, 0 Lux), When the maize seedlings grew to V3 stage, we sprayed different concentrations of exogenous IAA (0, 0.5, 1, 10, 100, 300, and 500 μmol·L−1), then cultivated the maize seedlings for 12 h, and sprayed again with different concentrations of exogenous IAA; 24 h after the processing is completed, the size of the leaf angle under different processing concentrations was counted, and the material of 2 cm at the leaf occipital area was taken and sent to the company for sequencing.

4.8. Total RNA Extraction and Detection

TRIzol reagent (Invitrogen) was used to extract total RNA from the leaf occipital part samples (a total of 18) of lpa1 and B73 plants under different conditions. To ensure the reliability and comprehensiveness of the sequencing data, the Agilent 2100 Bioanalyzer and NanoDrop were used to detect the total RNA concentration and quality of the extracted samples before sequencing. Using the BGISEQ-500 sequencing platform for RNA-Seq sequencing, the average number of clean databases produced by each sample is 11.07Gb; The average output was 90,910,840 original reads, and the quality control of the original reads yielded clean reads of maize leaves. The average number was 77,386,306. The size of the filtered data accounted for 85.13% of the original data size; the percentage of bases with a quality value of Q ≥ 30 was 84.88% and above. Comparison of clean reads was obtained from the screen to the B73 RefGen v4 maize reference genome sequence using HISAT software. The original sequencing reads were submitted to the SRA at NCBI (Accession number: PRJNA821235).

5. Conclusions

In this study, the phenotype and genotype of mutant lpa1 and wild-type B73 were identified from three aspects: agronomic traits, gene identification and bioinformatics analysis. Different concentrations of exogenous IAA were used to screen the V3 phase mutant lpa1 and wild-type B73, and two optimal concentrations were obtained from hormone-response levels, and the function of ZmLPA1 was analyzed by transcriptome-sequencing results. The results showed that the expression pattern of the ZmLPA1 gene was correlated with the distribution of auxin in maize plants. Among the KEGG enrichment pathways, we found a common enrichment pathway for indole alkaloid biosynthesis, and found seven candidate genes related to leaf angle from the differentially expressed genes. From the analysis of our obtained results, ZmLPA1 is involved in the synthesis and response of AUX in maize plants, and ZmLPA1 regulates maize leaf angle by regulating maize auxin. Our research results have important theoretical significance for analyzing the molecular mechanism regulating leaf angle of maize and provide a promising new gene resource for shaping the ideal plant type.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23094886/s1.

Author Contributions

Y.P. designed the experiments; X.J. wrote the manuscript; Q.G. and X.J. performed the experiments and analyzed data; F.C., M.B. and Z.Z., participated in the critical reading and discussion of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Gansu Provincial Key Laboratory of Aridland Crop Science, Gansu Agricultural University (GHSJ-2020-Z5), the Fuxi Talent Project of Gansu Agricultural University, China (GAUFX-02Y09), and the Lanzhou Science and Technology Bureau (2020-RC-122).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank the reviewers for the critical review of the manuscripts, and Peng Yunling for her guidance and revision.

Conflicts of Interest

The authors declare that there are no conflict of interest.

References

  1. Liu, J.; Fernie, A.R.; Yan, J. The Past, Present, and Future of Maize Improvement: Domestication, Genomics, and Functional Genomic Routes toward Crop Enhancement. Plant Commun. 2020, 1, 100010. [Google Scholar] [CrossRef] [PubMed]
  2. Ciampitti, I.; Vyn, T.J. Physiological perspectives of changes over time in maize yield dependency on nitrogen uptake and associated nitrogen efficiencies: A review. Field Crops Res. 2012, 133, 48–67. [Google Scholar] [CrossRef]
  3. Messmer, R.; Fracheboud, Y.; Banziger, M.; Vargas, M.; Stamp, P.; Ribaut, J.M. Drought stress and tropical maize: QTL-by-environment interactions and stability of QTLs across environments for yield components and secondary traits. Theor. Appl. Genet. 2009, 119, 913–930. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Chern, M.; Canlas, P.E.; Fitzgerald, H.A.; Ronald, P.C. Rice NRR, a negative regulator of disease resistance, interacts with Arabidopsis NPR1 and rice NH1. Plant J. 2005, 43, 623–635. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Colasanti, J.; Tremblay, R.; Wong, A.Y.; Coneva, V.; Kozaki, A.; Mable, B.K. The maize INDETERMINATE1 flowering time regulator defines a highly conserved zinc finger protein family in higher plants. BMC Genom. 2006, 7, 158. [Google Scholar] [CrossRef] [Green Version]
  6. Correll, M.J.; Kiss, J.Z. Interactions between gravitropism and phototropism in plants. J. Plant Growth Regul. 2002, 21, 89–101. [Google Scholar] [CrossRef]
  7. Duan, K.; Li, L.; Hu, P.; Xu, S.P.; Xu, Z.H.; Xue, H.W. A brassinolide-suppressed rice MADS-box transcription factor, OsMDP1, has a negative regulatory role in BR signaling. Plant J. Cell Mol. Biol. 2006, 47, 519–531. [Google Scholar] [CrossRef]
  8. Vazin, F.; Hassanzadeh, M.; Madani, A.; Nassiri-Mahallati, M.; Nasri, M. Modeling light interception and distribution in mixed canopy of common cocklebur (Xanthium stramarium) in competition with corn. Planta Daninha 2010, 28, 455–462. [Google Scholar] [CrossRef] [Green Version]
  9. Donald, C.M. The breeding of crop ideotypes. Euphytica 1968, 17, 385–403. [Google Scholar] [CrossRef]
  10. Buckler, E.S.; Tian, F.; Bradbury, P.J.; Brown, P.J.; Hung, H.; Sun, Q.; Holland, J.B. Genome-wide association study of leaf architecture in the maize nested association mapping population. Nat. Genet. 2011, 43, 159–162. [Google Scholar]
  11. Stewart, D.W.; Costa, C.; Dwyer, L.M.; Smith, D.L.; Hamilton, R.I.; Ma, B.L. Canopy Structure, Light Interception, and Photosynthesis in Maize. Agron. J. 2003, 95, 1465–1474. [Google Scholar] [CrossRef]
  12. Mattsson, J.; Ckurshumova, W.; Berleth, T. Auxin signaling in Arabidopsis leaf vascular development. Plant Physiol. 2003, 131, 1327–1339. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Galli, M.; Liu, Q.; Moss, B.L.; Malcomber, S.; Li, W.; Gaines, C.; Gallavotti, A. Auxin signaling modules regulate maize inflorescence architecture. Proc. Natl. Acad. Sci. USA 2015, 112, 13372–13377. [Google Scholar] [CrossRef] [Green Version]
  14. Reinhardt, D.; Mandel, T.; Kuhlemeier, C. Auxin regulates the initiation and radial position of plant lateral organs. Plant Cell 2000, 12, 507–518. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Terol, J.; Domingo, C.; Talon, M. The GH3 family in plants: Genome wide analysis in rice and evolutionary history based on EST analysis. Gene 2006, 371, 279–290. [Google Scholar] [CrossRef]
  16. Jain, M.; Kaur, N.; Tyagi, A.K.; Khurana, J.P. The auxin-responsive GH3 gene family in rice (Oryza sativa). Funct. Integr. Genom. 2006, 6, 36–46. [Google Scholar] [CrossRef]
  17. Yang, J.H.; Han, S.J.; Yoon, E.K.; Lee, W.S. Evidence of an auxin signal pathway, microRNA167-ARF8-GH3, and its response to exogenous auxin in cultured rice cells. Nucleic Acids Res. 2006, 34, 1892–1899. [Google Scholar] [CrossRef]
  18. Zhao, S.Q.; Xiang, J.J.; Xue, H.W. Studies on the rice LEAF INCLINATION1 (LC1), an IAA-amido synthetase, reveal the effects of auxin in leaf inclination control. Mol. Plant 2013, 6, 174–187. [Google Scholar] [CrossRef] [Green Version]
  19. Yoshihara, T.; Spalding, E.P. LAZY Genes Mediate the Effects of Gravity on Auxin Gradients and Plant Architecture. Plant Physiol. 2017, 175, 959–969. [Google Scholar] [CrossRef] [Green Version]
  20. Yoshihara, T.; Spalding, E.P.; Iino, M. AtLAZY1 is a signaling component required for gravitropism of the Arabidopsis thaliana inflorescence. Plant J. 2013, 74, 267–279. [Google Scholar] [CrossRef]
  21. Band, L.R.; Wells, D.M.; Larrieu, A.; Sun, J.; Middleton, A.M.; French, A.P.; Bennett, M.J. Root gravitropism is regulated by a transient lateral auxin gradient controlled by a tipping-point mechanism. Proc. Natl. Acad. Sci. USA 2012, 109, 4668–4673. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Ku, L.; Wei, X.; Zhang, S.; Zhang, J.; Guo, S.; Chen, Y. Cloning and characterization of a putative TAC1 ortholog associated with leaf angle in maize (Zea mays L.). PLoS ONE 2011, 6, e20621. [Google Scholar] [CrossRef] [PubMed]
  23. Juarez, M.T.; Twigg, R.W.; Timmermans, M.C. Specification of adaxial cell fate during maize leaf development. Development 2004, 131, 4533–4544. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Zhang, J.; Ku, L.X.; Han, Z.P.; Guo, S.L.; Liu, H.J.; Zhang, Z.Z.; Chen, Y.H. The ZmCLA4 gene in the qLA4-1 QTL controls leaf angle in maize (Zea mays L.). J. Exp. Bot. 2014, 65, 5063–5076. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Strable, J.; Wallace, J.G.; Unger-Wallace, E.; Briggs, S.; Bradbury, P.J.; Buckler, E.S.; Vollbrecht, E. Maize YABBY Genes drooping leaf1 and drooping leaf2 Regulate Plant Architecture. Plant Cell 2017, 29, 1622–1641. [Google Scholar] [CrossRef] [Green Version]
  26. Wu, X.; Tang, D.; Li, M.; Wang, K.; Cheng, Z. Loose Plant Architecture1, an INDETERMINATE DOMAIN protein involved in shoot gravitropism, regulates plant architecture in rice. Plant Physiol. 2013, 161, 317–329. [Google Scholar] [CrossRef] [Green Version]
  27. Liu, J.M.; Park, S.J.; Huang, J.; Lee, E.J.; Xuan, Y.H.; Je, B.I.; Han, C.D. Loose Plant Architecture1 (LPA1) determines lamina joint bending by suppressing auxin signalling that interacts with C-22-hydroxylated and 6-deoxo brassinosteroids in rice. J. Exp. Bot. 2016, 67, 1883–1895. [Google Scholar] [CrossRef] [Green Version]
  28. Ingkasuwan, P.; Netrphan, S.; Prasitwattanaseree, S.; Tanticharoen, M.; Bhumiratana, S.; Meechai, A.; Cheevadhanarak, S. Inferring transcriptional gene regulation network of starch metabolism in Arabidopsis thaliana leaves using graphical Gaussian model. BMC Syst. Biol. 2012, 6, 100. [Google Scholar] [CrossRef] [Green Version]
  29. Seo, P.J.; Ryu, J.; Kang, S.K.; Park, C.M. Modulation of sugar metabolism by an INDETERMINATE DOMAIN transcription factor contributes to photoperiodic flowering in Arabidopsis. Plant J. 2011, 65, 418–429. [Google Scholar] [CrossRef]
  30. Feurtado, J.A.; Huang, D.; Wicki-Stordeur, L.; Hemstock, L.E.; Potentier, M.S.; Tsang, E.W.; Cutler, A.J. The Arabidopsis C2H2 zinc finger INDETERMINATE DOMAIN1/ENHYDROUS promotes the transition to germination by regulating light and hormonal signaling during seed maturation. Plant Cell 2011, 23, 1772–1794. [Google Scholar] [CrossRef] [Green Version]
  31. Tanimoto, M.; Tremblay, R.; Colasanti, J. Altered gravitropic response, amyloplast sedimentation and circumnutation in the Arabidopsis shoot gravitropism 5 mutant are associated with reduced starch levels. Plant Mol. Biol. 2008, 67, 57–69. [Google Scholar] [CrossRef] [PubMed]
  32. Matsubara, K.; Yamanouchi, U.; Wang, Z.; Minobe, Y.; Izawa, T.; Yano, M. Ehd2, a Rice Ortholog of the Maize INDETERMINATE1 Gene, Promotes Flowering by Up-Regulating Ehd11[C][W]. Plant Physiol. 2008, 148, 1425–1435. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Park, S.J.; Kim, S.L.; Lee, S.; Je, B.I.; Piao, H.L.; Park, S.H.; Han, C.D. Rice Indeterminate 1 (OsId1) is necessary for the expression of Ehd1 (Early heading date 1) regardless of photoperiod. Plant J. 2008, 56, 1018–1029. [Google Scholar] [CrossRef] [PubMed]
  34. Ning, J.; Zhang, B.; Wang, N.; Zhou, Y.; Xiong, L. Increased leaf angle1, a Raf-like MAPKKK that interacts with a nuclear protein family, regulates mechanical tissue formation in the Lamina joint of rice. Plant Cell 2011, 23, 4334–4347. [Google Scholar] [CrossRef] [Green Version]
  35. Tang, H.; Zhang, B.; Tan, J.; Tian, Y.; Kang, J.; Ye, G. Grey correlation degree analysis on yield and photosynthetic characteristics of ear leaf on hybrids of corn. Chin. Agric. Sci. Bull. 2011, 27, 69–73. [Google Scholar]
  36. Yuan, L.M. Mining Key Genes Involved in the Regulation of Ligular Region Development and Leaf Angle (LA) Formation in Maize. Master’s Thesis, Shandong Agricultural University, Tai’an, China, 2016. [Google Scholar]
  37. Hornitschek, P.; Kohnen, M.V.; Lorrain, S.; Rougemont, J.; Ljung, K.; Lopez-Vidriero, I.; Fankhauser, C. Phytochrome interacting factors 4 and 5 control seedling growth in changing light conditions by directly controlling auxin signaling. Plant J. 2012, 71, 699–711. [Google Scholar] [CrossRef] [Green Version]
  38. Marchant, A.; Bhalerao, R.; Casimiro, I.; Eklof, J.; Casero, P.J.; Bennett, M.; Sandberg, G. AUX1 promotes lateral root formation by facilitating indole-3-acetic acid distribution between sink and source tissues in the Arabidopsis seedling. Plant Cell 2002, 14, 589–597. [Google Scholar] [CrossRef] [Green Version]
  39. Mashiguchi, K.; Tanaka, K.; Sakai, T.; Sugawara, S.; Kawaide, H.; Natsume, M.; Kasahara, H. The main auxin biosynthesis pathway in Arabidopsis. Proc. Natl. Acad. Sci. USA 2011, 108, 18512–18517. [Google Scholar] [CrossRef] [Green Version]
  40. Stepanova, A.N.; Robertson-Hoyt, J.; Yun, J.; Benavente, L.M.; Xie, D.; Doležal, K.; Alonso, J.M. TAA1-Mediated Auxin Biosynthesis Is Essential for Hormone Crosstalk and Plant Development. Cell 2008, 133, 177–191. [Google Scholar] [CrossRef] [Green Version]
  41. Cheng, Y.; Dai, X.; Zhao, Y. Auxin biosynthesis by the YUCCA flavin monooxygenases controls the formation of floral organs and vascular tissues in Arabidopsis. Genes Dev. 2006, 20, 1790–1799. [Google Scholar] [CrossRef] [Green Version]
  42. Yang, Y.; Hammes, U.Z.; Taylor, C.G.; Schachtman, D.P.; Nielsen, E. High-affinity auxin transport by the AUX1 influx carrier protein. Curr. Biol. 2006, 16, 1123–1127. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Li, S.; Xie, Z.; Hu, C.; Zhang, J. A Review of Auxin Response Factors (ARFs) in Plants. Front. Plant Sci. 2016, 7, 47. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Spartz, A.K.; Lee, S.H.; Wenger, J.P.; Gonzalez, N.; Itoh, H.; Inze, D.; Gray, W.M. The SAUR19 subfamily of SMALL AUXIN UP RNA genes promote cell expansion. Plant J. 2012, 70, 978–990. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Kim, D.; Langmead, B.; Salzberg, S.L. HISAT: A fast spliced aligner with low memory requirements. Nat. Methods 2015, 12, 357–360. [Google Scholar] [CrossRef] [Green Version]
  46. Li, B.; Dewey, C. RSEM: Accurate transcript quantification from RNA-Seq data with or without a reference genome. BMC Bioinform. 2011, 12, 323. [Google Scholar] [CrossRef] [Green Version]
  47. Audic, S.; Claverie, J.M. The significance of digital gene expression profiles. Genome Res. 1997, 7, 986–995. [Google Scholar] [CrossRef]
  48. Ye, J.; Fang, L.; Zheng, H.; Zhang, Y.; Chen, J.; Zhang, Z. WEGO: A web tool for plotting GO annotations. Nucleic. Acids Res. 2006, 34, W293–W297. [Google Scholar] [CrossRef]
Ijms 23 04886 g001 550

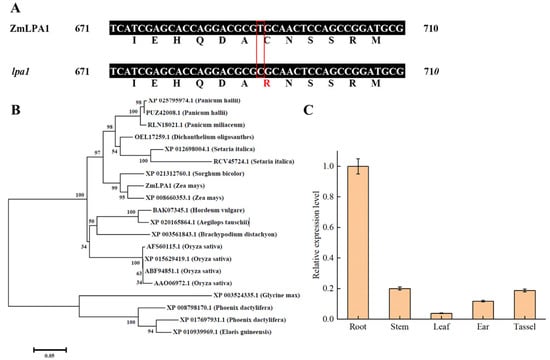

Figure 1. Analysis of ZmLPA1 gene in maize. (A) Alignment of ZmLPA1 gene cDNA sequences in B73 and lpa1, amino acid changes are marked with red box; (B) Phylogenetic tree of ZmLPA1 gene; (C) Transcription expression of ZmLPA1 gene in different tissues of maize.
Figure 1. Analysis of ZmLPA1 gene in maize. (A) Alignment of ZmLPA1 gene cDNA sequences in B73 and lpa1, amino acid changes are marked with red box; (B) Phylogenetic tree of ZmLPA1 gene; (C) Transcription expression of ZmLPA1 gene in different tissues of maize.
Ijms 23 04886 g001
Ijms 23 04886 g002 550
Figure 2. Phenotypic analysis of wild-type and mutant lpa1. (A) Plants at trumpet stage; (B) main stem at male drawing stage; (C) corresponding leaf angle in A; (D) male spike: the left side is wild type and the right side is mutant.
Figure 2. Phenotypic analysis of wild-type and mutant lpa1. (A) Plants at trumpet stage; (B) main stem at male drawing stage; (C) corresponding leaf angle in A; (D) male spike: the left side is wild type and the right side is mutant.
Ijms 23 04886 g002
Ijms 23 04886 g003 550

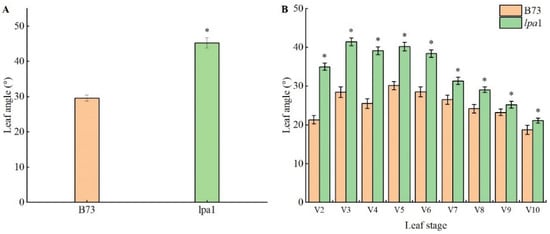

Figure 3. Analysis of index of wild-type and mutant lpa1. (A) Leaf angle with the greatest difference; (B) leaf angle of 2–10 leaves in trumpet stage. * indicates p < 0.05.
Figure 3. Analysis of index of wild-type and mutant lpa1. (A) Leaf angle with the greatest difference; (B) leaf angle of 2–10 leaves in trumpet stage. * indicates p < 0.05.
Ijms 23 04886 g003
Ijms 23 04886 g004 550

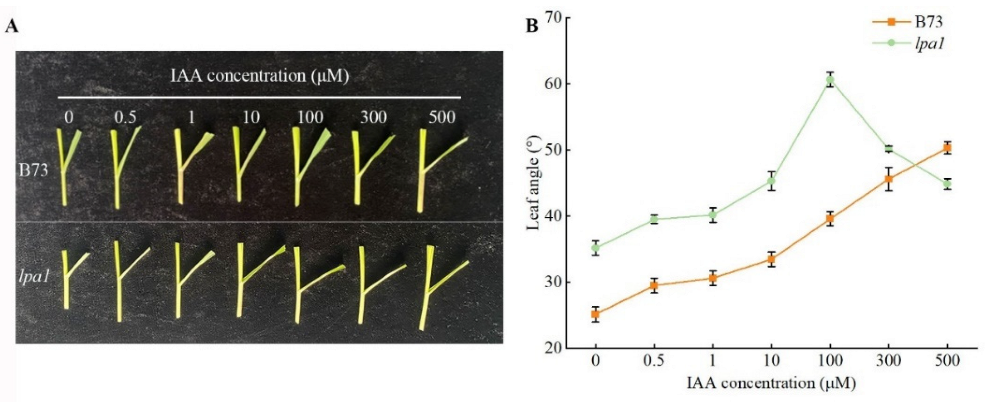

Figure 4. Effects of exogenous hormones on leaf angle of wild-type B73 and mutant lpa1. (A) Effects of different concentrations of IAA on leaf angle of wild type and mutant. (B) Size of leaf angle for wild type and mutant under different concentrations of IAA treatment.
Figure 4. Effects of exogenous hormones on leaf angle of wild-type B73 and mutant lpa1. (A) Effects of different concentrations of IAA on leaf angle of wild type and mutant. (B) Size of leaf angle for wild type and mutant under different concentrations of IAA treatment.
Ijms 23 04886 g004
Ijms 23 04886 g005 550

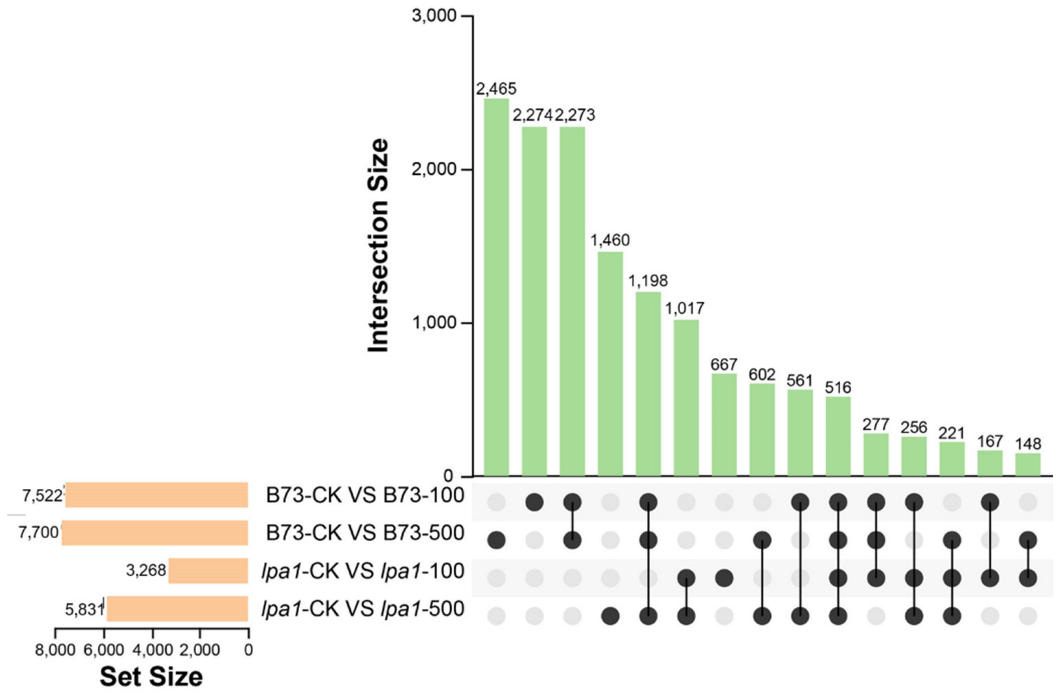

Figure 5. Upset plot analysis of DEGs in B73 and lpa1 under different treatments. The columns indicate DEGs under single or multiple processes, the x-axis represents combinations of different groups (black dots represent single-treatment comparisons, black lines connected by dots represent multiple-treatment comparisons) and the y-axis represents the number of genes corresponding to the combinations.
Figure 5. Upset plot analysis of DEGs in B73 and lpa1 under different treatments. The columns indicate DEGs under single or multiple processes, the x-axis represents combinations of different groups (black dots represent single-treatment comparisons, black lines connected by dots represent multiple-treatment comparisons) and the y-axis represents the number of genes corresponding to the combinations.
Ijms 23 04886 g005
Ijms 23 04886 g006 550

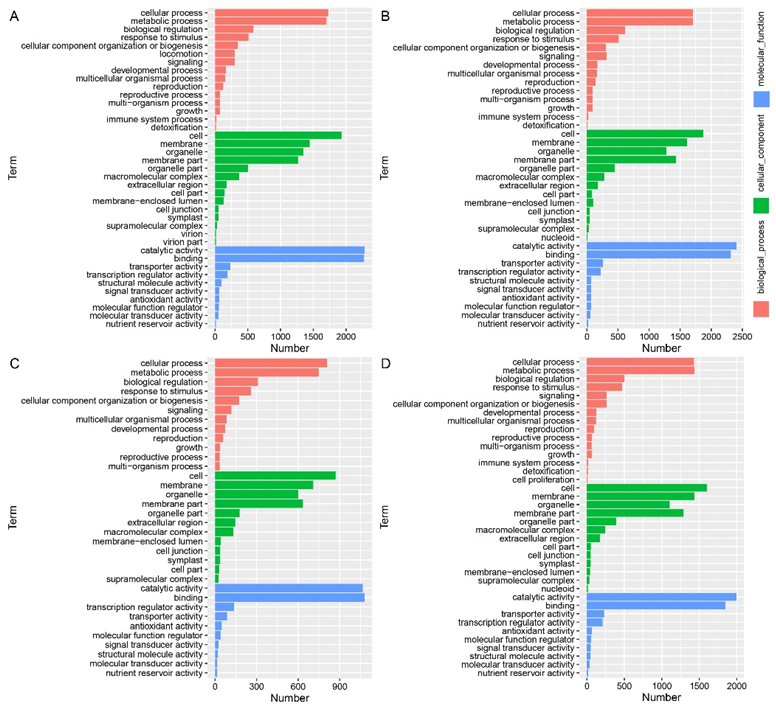

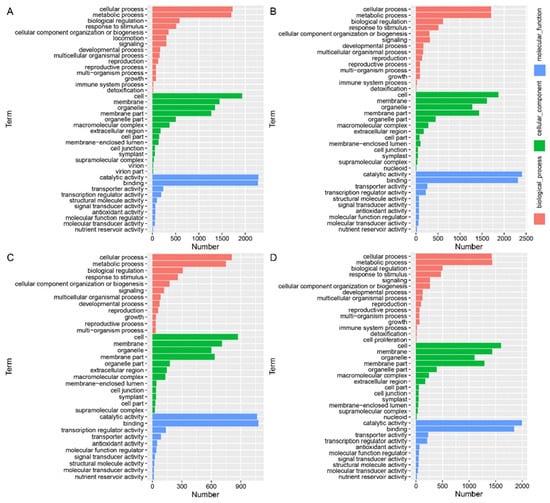

Figure 6. GO annotations of DEGs in B73 and lpa1 identified under different treatments. (A) B73-CK vs. B73-100; (B) B73-CK vs. B73-500; (C) lpa1-CK vs. lpa1-100; (D) lpa1-CK vs. lpa1-500. CK = control, 100 = 100 μmol·L−1 IAA, and 500 = 500 μmol·L−1 IAA.
Figure 6. GO annotations of DEGs in B73 and lpa1 identified under different treatments. (A) B73-CK vs. B73-100; (B) B73-CK vs. B73-500; (C) lpa1-CK vs. lpa1-100; (D) lpa1-CK vs. lpa1-500. CK = control, 100 = 100 μmol·L−1 IAA, and 500 = 500 μmol·L−1 IAA.
Ijms 23 04886 g006
Ijms 23 04886 g007 550

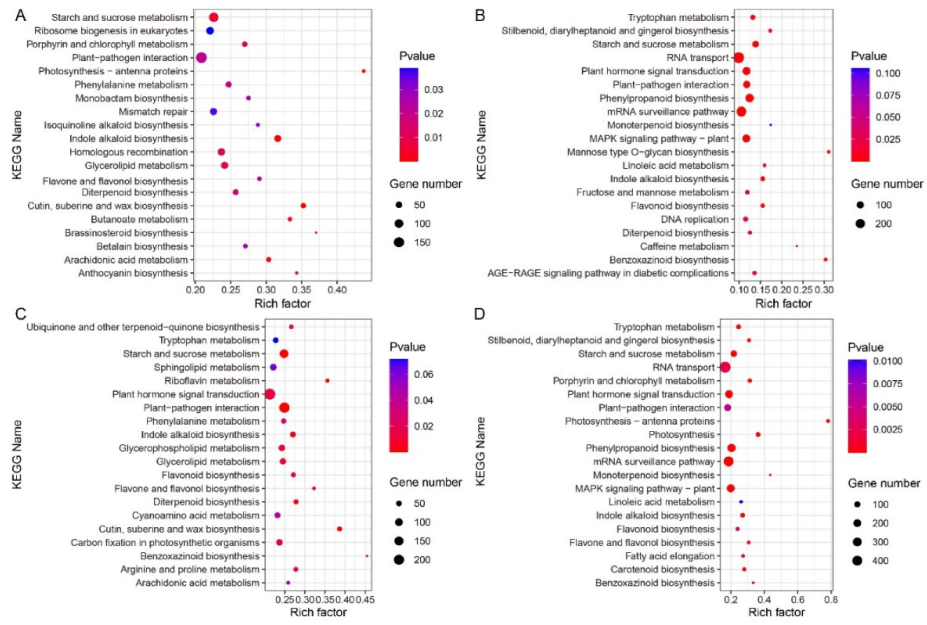

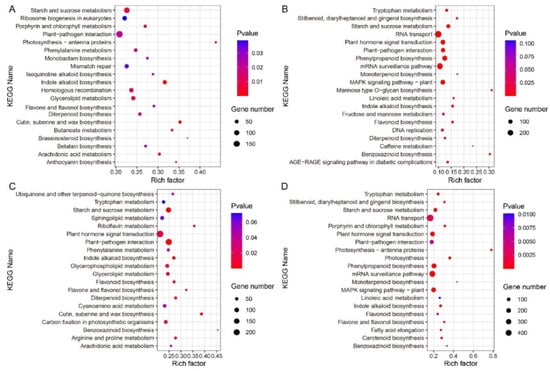

Figure 7. Pathway enrichment analysis of B73 and lpa1 exposed to different treatments. (A) B73-CK vs. B73-100; (B) B73-CK vs. B73-500; (C) lpa1-CK vs. lpa1-100; (D) lpa1-CK vs. lpa1-500. CK = control, 100 = 100 μmol·L−1 IAA, and 500 = 500 μmol·L−1 IAA.
Figure 7. Pathway enrichment analysis of B73 and lpa1 exposed to different treatments. (A) B73-CK vs. B73-100; (B) B73-CK vs. B73-500; (C) lpa1-CK vs. lpa1-100; (D) lpa1-CK vs. lpa1-500. CK = control, 100 = 100 μmol·L−1 IAA, and 500 = 500 μmol·L−1 IAA.
Ijms 23 04886 g007
Ijms 23 04886 g008 550

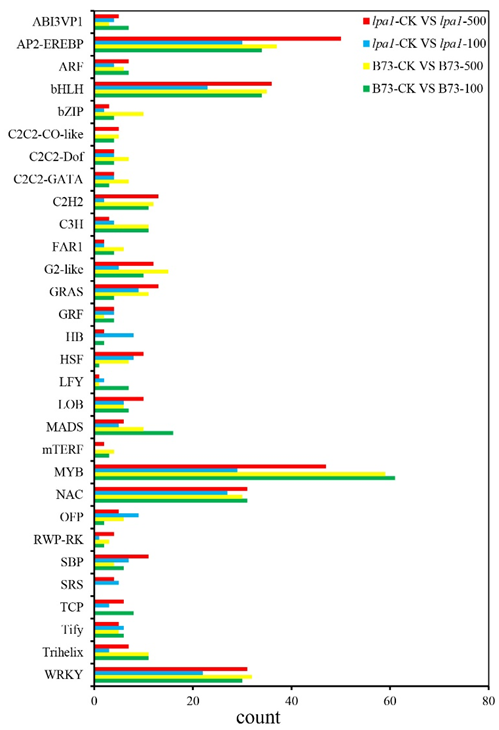

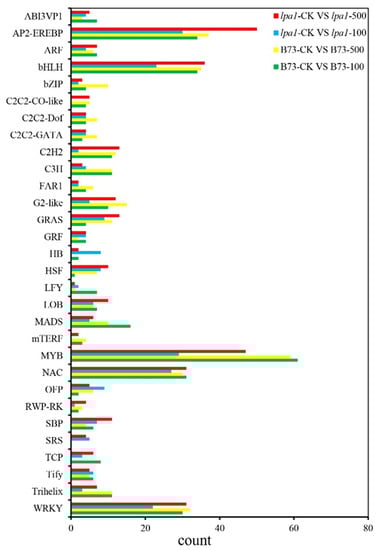

Figure 8. Analysis of transcription factors differentially expressed in B73 and lpa1 under different treatments.
Figure 8. Analysis of transcription factors differentially expressed in B73 and lpa1 under different treatments.
Ijms 23 04886 g008
Ijms 23 04886 g009 550

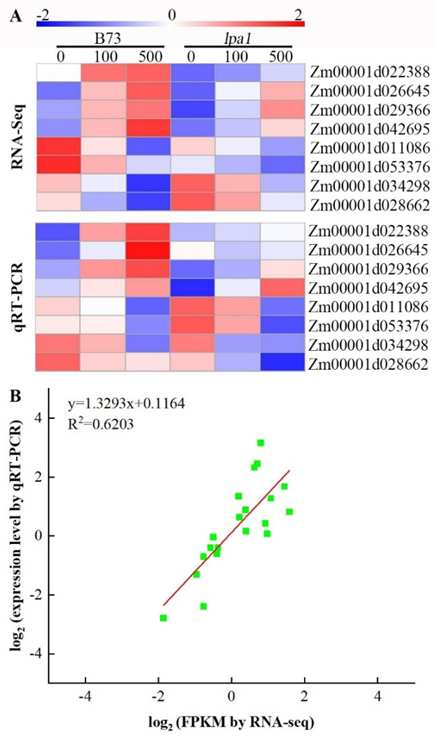

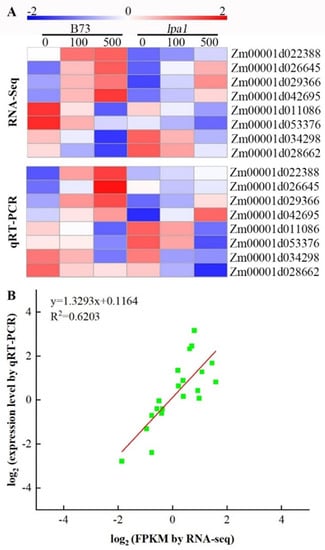

Figure 9. The expression pattern of eight selected genes identified by RNA-seq was verified by qRT-PCR. (A) Heat map showing the expression changes (log2 fold change) in response to the B73-CK to lpa1-500 treatments for each candidate gene as measured by RNA-seq and qRT-PCR; (B) Scatter plot showing the changes in the expression (log-fold change) of selected genes based on RNA-seq via qRT-PCR. The gene expression levels are indicated by colored bars.
Figure 9. The expression pattern of eight selected genes identified by RNA-seq was verified by qRT-PCR. (A) Heat map showing the expression changes (log2 fold change) in response to the B73-CK to lpa1-500 treatments for each candidate gene as measured by RNA-seq and qRT-PCR; (B) Scatter plot showing the changes in the expression (log-fold change) of selected genes based on RNA-seq via qRT-PCR. The gene expression levels are indicated by colored bars.
Ijms 23 04886 g009
Ijms 23 04886 g010 550

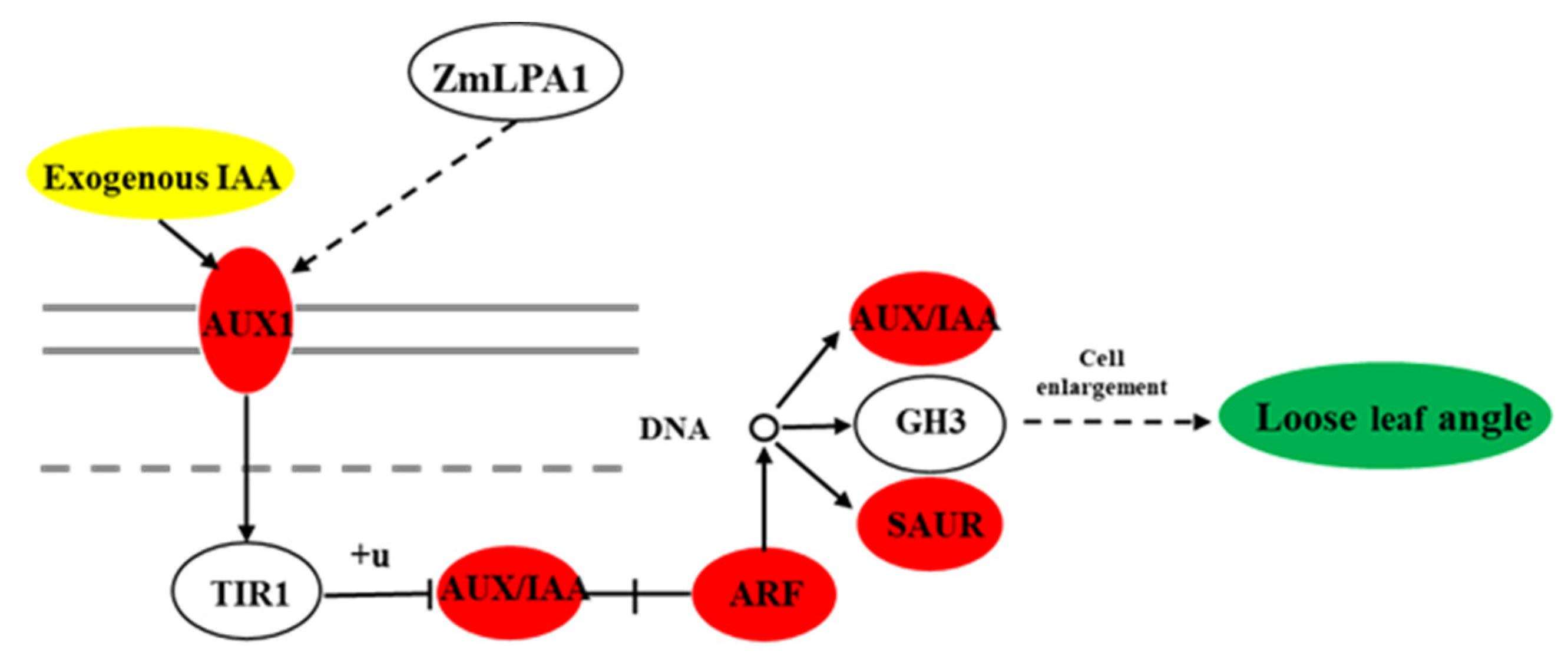

Figure 10. ZmLPA1 gene regulates maize leaf angle. ZmLPA1 acts as a central gene that directly regulates the auxin signaling pathway, thereby regulating the size of leaf angle. The red circle indicates that the expression of auxin-related genes in mutant lpa1 is higher than that in wild-type B73 under exogenous IAA treatment.
Figure 10. ZmLPA1 gene regulates maize leaf angle. ZmLPA1 acts as a central gene that directly regulates the auxin signaling pathway, thereby regulating the size of leaf angle. The red circle indicates that the expression of auxin-related genes in mutant lpa1 is higher than that in wild-type B73 under exogenous IAA treatment.
Ijms 23 04886 g010
Table
Table 1. Analysis of relevant characters of wild-type B73 and mutant lpa1 cloverleaf.
Table 1. Analysis of relevant characters of wild-type B73 and mutant lpa1 cloverleaf.
TraitsB73lpa1
Leaf length/cm84.68 ± 6.86 a81.43 ± 4.89 a
Leaf width/cm14.16 ± 0.29 ab10.20 ± 0.32 b
Leaf angle/°33.19 ± 0.44 b38.94 ± 3.53 a
High point length/cm62.70 ± 4.70 b55.49 ± 2.29 a
Leaf space/cm12.32 ± 0.16 b17.06 ± 0.58 a
Leaf orientation value42.11 ± 1.64 b34.78 ± 1.44 a
Plant height/cm235.78 ± 0.92 a222.66 ± 0.66 b
Note: Lowercase letters indicate a significant difference at 5% level.
Table
Table 2. Investigation of agronomic characters of wild-type B73 and mutant lpa1.
Table 2. Investigation of agronomic characters of wild-type B73 and mutant lpa1.
TraitsB73lpa1
Plant height/cm235.78 ± 0.92 a222.66 ± 0.66 b
Ear height/cm131.18 ± 0.43 a106.26 ± 0.32 b
Number of tassel branches11.50 ± 0.41 a5.50 ± 0.41 b
Total tassel length/cm38.55 ± 0.04 a29.20 ± 0.24 b
Tassel branch length/cm27.95 ± 0.37 a16.60 ± 0.08 b
Panicle length/cm20.90 ± 0.33 a15.43 ± 0.67 b
Per-panicle weight/g213.83 ± 2.43 a98.08 ± 1.27 b
Kernel weight/g186.87 ± 1.28 a74.35 ± 0.80 b
Seed setting rate/%87.40 ± 0.39 a75.81 ± 0.17 b
Hundred-grain weight/g43.99 ± 0.73 a28.95 ± 0.65 b
Ear coarse/cm5.72 ± 0.02 a4.38 ± 0.06 a
Note: Lowercase letters indicate a significant difference at 5% level.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ji, X.; Gao, Q.; Chen, F.; Bai, M.; Zhuang, Z.; Peng, Y. Mutant lpa1 Analysis of ZmLPA1 Gene Regulates Maize Leaf-Angle Development through the Auxin Pathway. Int. J. Mol. Sci. 2022, 23, 4886. https://doi.org/10.3390/ijms23094886

AMA Style

Ji X, Gao Q, Chen F, Bai M, Zhuang Z, Peng Y. Mutant lpa1 Analysis of ZmLPA1 Gene Regulates Maize Leaf-Angle Development through the Auxin Pathway. International Journal of Molecular Sciences. 2022; 23(9):4886. https://doi.org/10.3390/ijms23094886

Chicago/Turabian Style

Ji, Xiangzhuo, Qiaohong Gao, Fenqi Chen, Mingxing Bai, Zelong Zhuang, and Yunling Peng. 2022. "Mutant lpa1 Analysis of ZmLPA1 Gene Regulates Maize Leaf-Angle Development through the Auxin Pathway" International Journal of Molecular Sciences 23, no. 9: 4886. https://doi.org/10.3390/ijms23094886

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
